Sayfa 9-01 - Isuzu EPC

9-01 — TOOLS (#1839) — 191 parça

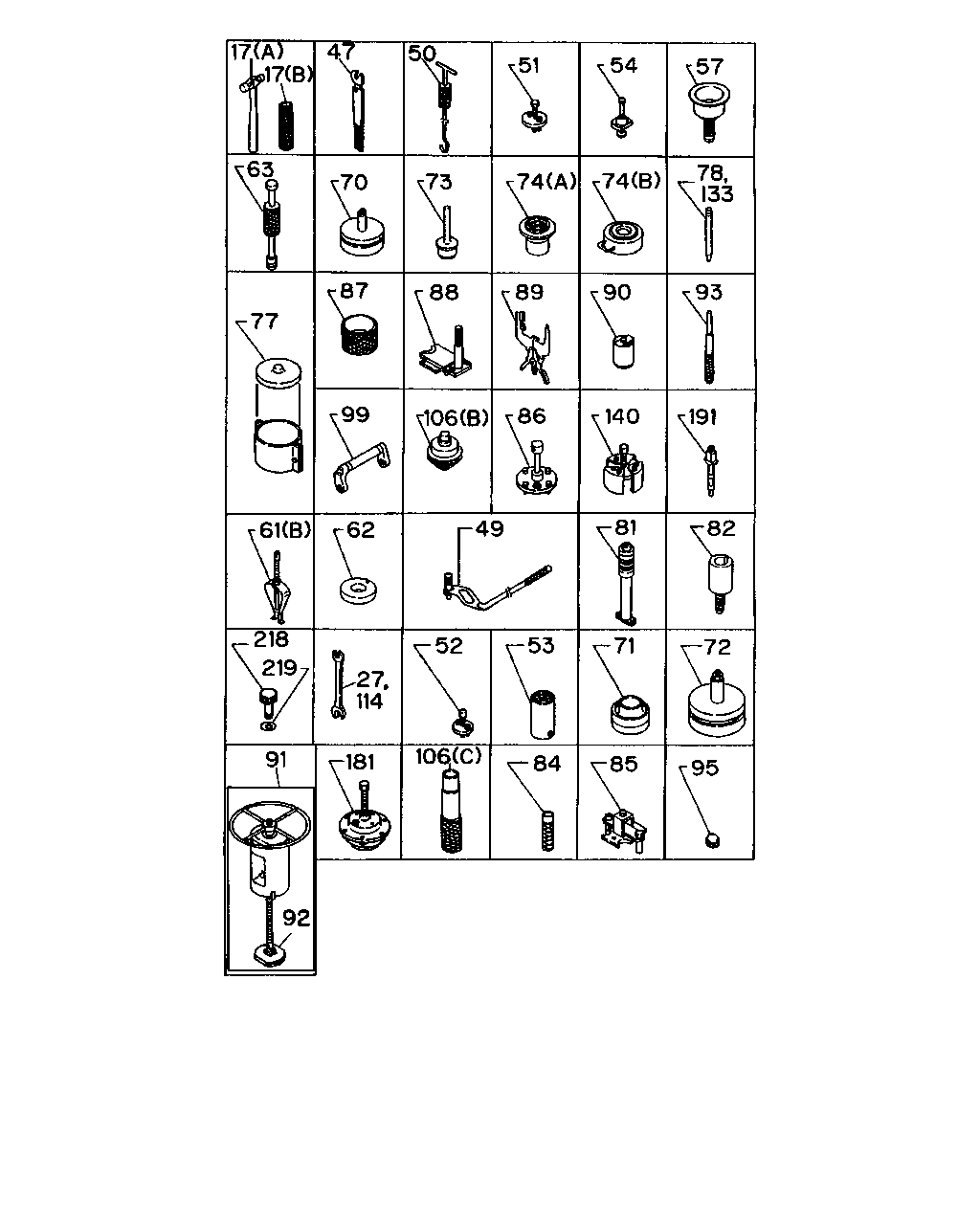

17 47 17 50 51 54 57 78 133 74 74 73 70 63 77 87 88 89 90 93 191 140 86 106 99 62 61 49 81 82 72 71 53 52 27 114 219 218 91 181 106 84 85 95 92

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
17	HAMMER (A)	9-85121-406-0	01	1	9002-	●	●
17	HAMMER 10PD1 STD ENG(40L),12PD1 STD ENG(42L) (B)	1-85220-021-0	01	1	9002-9509	●	●
17	HAMMER 10PD1 STD ENG(40L) (B)	1-85220-021-0	01	1	9510-	●	●
27	WRENCH; OPEN END 5.5X7 5.5X7	9-09592-105-0	01	1	9002-	●	●
47	WRENCH ASM; UNIVERSAL,INJ PUMP 10PD1 STD ENG(40L),12PD1 STD ENG(42L)	1-85220-018-0	01	1	9002-	●	●
47	WRENCH ASM; UNIVERSAL,INJ PUMP 6RB1 STD ENG(07L),6RB1TC ENG(30L)	9-85113-901-0	01	1	9002-	●	●
49	REPLACER ASM; VALVE 10PD1 STD ENG(40L),12PD1 STD ENG(42L)	1-85235-001-0	01	1	9002-	●	●
50	REPLACER; NOZZLE HOLDER L TYPE ENG<90L>	9-85232-001-0	01	1	9002-	●	●
50	REPLACER; NOZZLE HOLDER 10PD1 STD ENG(40L),12PD1 STD ENG(42L) L=500	1-85230-007-0	01	1	9002-	●	●
51	PULLER ASM; WATER PUMP 10PD1 STD ENG(40L),12PD1 STD ENG(42L)	1-85210-028-0	01	1	9002-	●	●
52	REMOVER; WATER PUMP L TYPE ENG<90L>	9-85210-097-0	01	1	9002-	●	●
53	PULLER; TAPER BUSHING L TYPE ENG<90L>	9-85210-123-0	01	1	9002-	●	●
54	PULLER; THERMOSTAT SEAL 10PD1 STD ENG(40L),12PD1 STD ENG(42L)	1-85210-029-0	01	1	9002-9509	●	●
54	PULLER; THERMOSTAT SEAL 10PD1 STD ENG(40L)	1-85210-029-0	01	1	9510-	●	●
57	TOOL; SETTING CRANK GEAR L TYPE ENG<90L> OD=153	9-85220-025-0	01	1	9002-	●	●
57	TOOL; SETTING CRANK GEAR 10PD1 STD ENG(40L),12PD1 STD ENG(42L) OD=175	1-85221-028-0	01	1	9002-	●	●
61	PULLER ASM; PILOT BRG (B)	9-85210-157-0	01	1	9002-9307	●	●
61	PULLER ASM; PILOT BRG 6RB1TC ENG(30L),10PD1 STD ENG(40L) (B)	9-85210-157-0	01	1	9308-	●	●
61	PULLER ASM; PILOT BRG ISUZU M/T<X9A> (A)	1-85210-050-0	01	1	9002-	●	●
62	TOOL ASM; SETTING WEAR RING L TYPE ENG<90L>	1-85220-014-0	01	1	9002-	●	●
62	TOOL ASM; SETTING WEAR RING 10PD1 STD ENG(40L),12PD1 STD ENG(42L)	1-85221-008-0	01	1	9002-	●	●
63	PULLER; NOZZLE SLEEVE 10PD1 STD ENG(40L),12PD1 STD ENG(42L)	1-85210-026-0	01	1	9002-	●	●
70	TOOL; SETTING,OIL SEAL 10PD1 STD ENG(40L),12PD1 STD ENG(42L)	1-85220-008-0	01	1	9002-	●	●
71	TOOL; SETTING,OIL SEAL,FRT L TYPE ENG<90L>	1-85220-015-0	01	1	9002-	●	●
72	TOOL; SETTING,OIL SEAL,RR L TYPE ENG<90L> W/REAR PTO	1-85220-013-0	01	1	9002-	●	●
72	TOOL; SETTING,OIL SEAL,RR L TYPE ENG<90L> WO/REAR PTO	1-85220-035-0	01	1	9002-	●	●
73	TOOL; SETTING,THERMOSTAT SEAL 10PD1 STD ENG(40L),12PD1 STD ENG(42L)	1-85221-034-0	01	1	9002-	●	●
74	TOOL; SETTING,INJ PUMP BRG 10PD1 STD ENG(40L),12PD1 STD ENG(42L) (A)	1-85220-019-0	01	1	9002-	●	●
74	TOOL; SETTING,INJ PUMP BRG 10PD1 STD ENG(40L),12PD1 STD ENG(42L) (B)	1-85220-020-1	01	1	9002-	●	●
77	TOOL; SETTING,CYL LINER L TYPE ENG<90L>	9-85220-043-0	01	1	9002-	●	●
78	TOOL; SETTING,CYL HD TO BODY 12PD1 STD ENG(42L)	1-85221-030-0	02	1	9002-9306		●
81	PULLER; BRG CAP 10PD1 STD ENG(40L),12PD1 STD ENG(42L)	1-85210-015-0	01	1	9002-	●	●
82	PULLER ASM; CR/SHF GEAR 10PD1 STD ENG(40L),12PD1 STD ENG(42L)	9-85211-139-0	01	1	9002-	●	●
84	REPLACER; VALVE SEAL L TYPE ENG<90L>	9-85221-289-0	01	1	9002-	●	●
85	REPLACER ASM; VALVE SPR L TYPE ENG<90L>	9-85231-436-0	01	1	9002-	●	●
86	REPLACER; FLYWHEEL 10PD1 STD ENG(40L),12PD1 STD ENG(42L)	1-85230-006-0	01	1	9002-	●	●
87	TOOL; PISTON L TYPE ENG<90L>	9-85221-319-0	01	1	9002-	●	●
87	TOOL; PISTON 10PD1 STD ENG(40L),12PD1 STD ENG(42L)	1-85220-017-0	01	1	9002-	●	●
88	TOOL; CONNROD BUSHING L TYPE ENG<90L>	9-85220-042-0	01	1	9002-	●	●
88	TOOL; CONNROD BUSHING 10PD1 STD ENG(40L),12PD1 STD ENG(42L)	1-85220-002-0	01	1	9002-	●	●
89	TOOL; PISTON RING L TYPE ENG<90L>	1-85221-025-0	01	1	9002-	●	●
89	TOOL; PISTON RING 10PD1 STD ENG(40L),12PD1 STD ENG(42L)	1-85221-029-0	01	1	9002-	●	●
90	PULLER; INJ PUMP BRG 10PD1 STD ENG(40L),12PD1 STD ENG(42L)	1-85210-039-0	01	1	9002-	●	●
91	REPLACER ASM; CYL LINER 10PD1 STD ENG(40L),12PD1 STD ENG(42L)	1-85230-004-0	01	1	9002-	●	●
91	REPLACER ASM; CYL LINER 6RA1TC ENG(19L)	9-85231-186-0	01	1	9004-9306	●	●
92	ANKLE; REPLACER,CYL LINER 6RA1TC ENG(19L)	9-85231-180-0	01	1	9004-9306	●	●
93	SETTING KIT; VALVE GUIDE L TYPE ENG<90L>	9-85231-222-0	01	1	9002-	●	●
93	SETTING KIT; VALVE GUIDE 10PD1 STD ENG(40L),12PD1 STD ENG(42L) L=260	9-85231-202-0	01	1	9002-	●	●
95	SETTING TOOL; BRIDGE GUIDE L TYPE ENG<90L>	9-85221-324-0	01	1	9002-	●	●
99	WRENCH; CYL HD BOLT 10PD1 STD ENG(40L),12PD1 STD ENG(42L)	1-85115-013-0	01	1	9002-	●	●
106	TOOL; SETTING PILOT BRG ISUZU M/T<X9A> (A)	9-85221-247-0	01	1	9002-	●	●
106	TOOL; SETTING PILOT BRG ISUZU M/T<X9A> (D)	9-85221-249-0	01	1	9002-	●	●
106	TOOL; SETTING PILOT BRG L TYPE ENG<90L> (C)	9-85241-409-0	01	1	9002-	●	●
106	TOOL; SETTING PILOT BRG 10PD1 STD ENG(40L),12PD1 STD ENG(42L) (B)	1-85221-057-0	01	1	9002-	●	●
114	WRENCH; INJ PUMP 10PD1 STD ENG(40L)	1-85220-027-0	01	1	9002-	●	●
133	WRENCH; NUT STARTER 10PD1 STD ENG(40L)	1-85221-030-0	02	1	9002-	●	●
140	REMOVER; WEAR RING	1-85210-027-0	01	1	9002-9307	●	●
140	REMOVER; WEAR RING 6RB1TC ENG(30L),10PD1 STD ENG(40L)	1-85210-027-0	01	1	9308-	●	●
181	PULLER ASM; AIR CMPR L TYPE ENG<90L>	1-85210-036-0	01	1	9002-	●	●
191	ADAPTER 10PD1 STD ENG(40L)	1-85317-002-0	01	1	9002-	●	●
218	PLUG 10PD1 STD ENG(40L),12PD1 STD ENG(42L)	1-15629-043-0	01	1	9002-9509	●	●
218	PLUG 10PD1 STD ENG(40L)	1-15629-043-0	01	1	9510-	●	●
219	GASKET 10PD1 STD ENG(40L),12PD1 STD ENG(42L)	9-09720-555-0	01	1	9002-	●	●

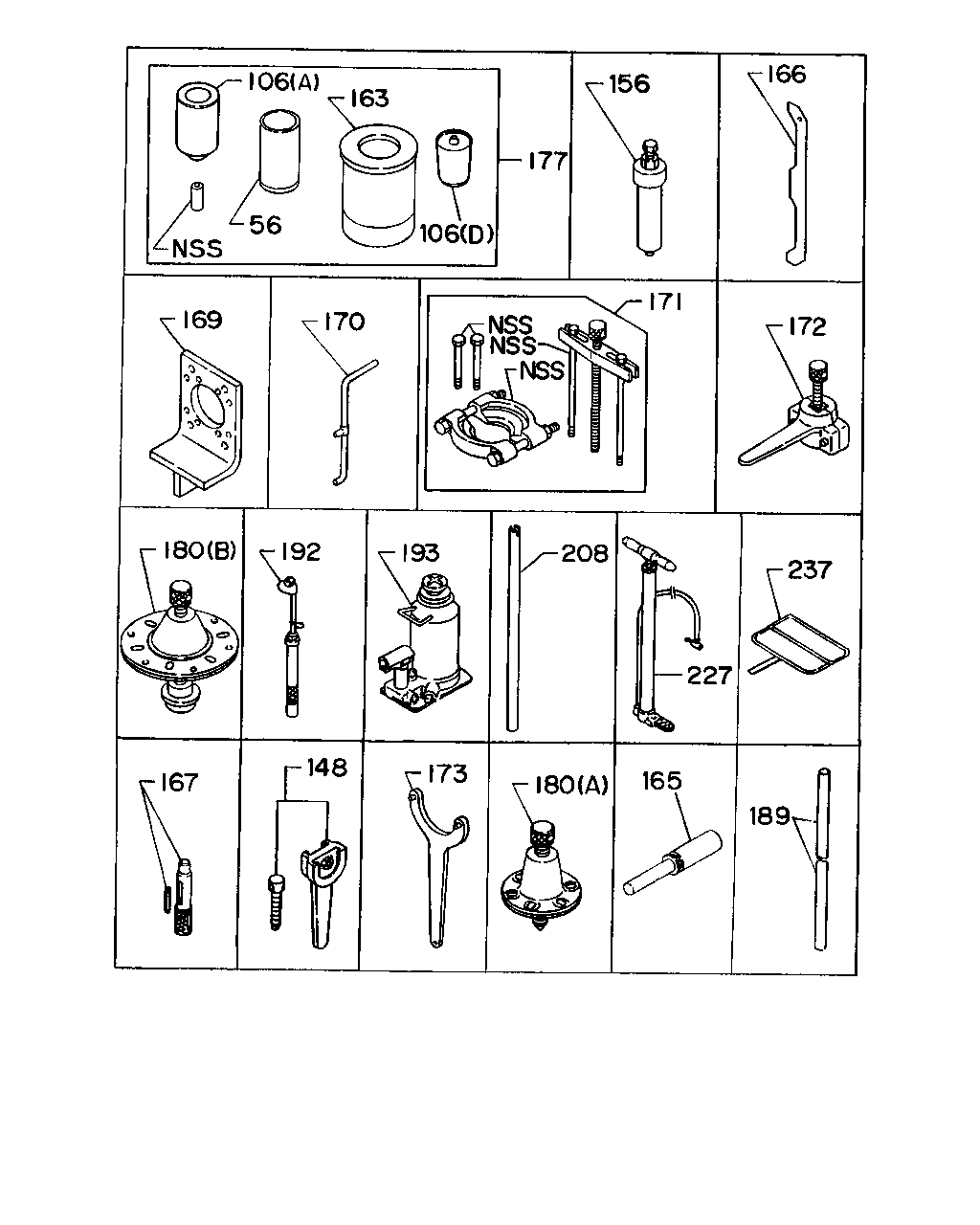

106 56 163 106 177 156 166 172 171 170 169 180 192 193 208 227 237 189 180 165 173 148 167

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
56	TOOL; SETTING TOP GEAR MAIN ISUZU M/T<X9A> L=350	9-85221-310-0	01	1	9002-	●	●
106	TOOL; SETTING PILOT BRG ISUZU M/T<X9A> (A)	9-85221-247-0	01	1	9002-	●	●
106	TOOL; SETTING PILOT BRG ISUZU M/T<X9A> (D)	9-85221-249-0	01	1	9002-	●	●
106	TOOL; SETTING PILOT BRG L TYPE ENG<90L> (C)	9-85241-409-0	01	1	9002-	●	●
106	TOOL; SETTING PILOT BRG 10PD1 STD ENG(40L),12PD1 STD ENG(42L) (B)	1-85221-057-0	01	1	9002-	●	●
148	PULLER; COUNTER SHAFT BRG	9-85210-129-1	01	1	9002-	●	●
156	PULLER; ANCHOR PIN	1-85210-025-0	01	1	9002-	●	●
163	TOOL; SETTING ISUZU M/T<X9A> L=150	9-85221-248-0	01	1	9002-	●	●
165	SETTING TOOL; PTO L TYPE ENG<90L>	9-85241-702-0	01	1	9002-	●	●
166	ALIGNER; CLU RELEASE LEVER EXC. 14INCH TWO PLATE SPICER CLUTCH(M07),15? CLUCHTWIN PLATE(SGL) L=550 H=17.5	1-85253-010-0	01	1	9002-	●	●
166	ALIGNER; CLU RELEASE LEVER 15? CLUCH TWIN PLATE(SGL) L=550 H=100 L=550 H=57.5	1-85253-015-0	01	1	9002-9306		●
167	ALIGNER; CLU PILOT 6RB1TC ENG(30L) L=300 OD=41.1	1-85253-020-0	01	1	9307-	●
167	ALIGNER; CLU PILOT 10PD1 STD ENG(40L) 14INCH TWO PLATE SPICER CLUTCH(M07) L=300 OD=36.5	1-85253-021-0	01	1	9307-	●	●
167	ALIGNER; CLU PILOT 6RB1 STD ENG(07L),6RA1TC ENG(19L) EXC. 14INCH TWO PLATE SPICER CLUTCH(M07),15? CLUCHTWIN PLATE(SGL) L=300 OD=41.1	1-85253-020-0	01	1	9002-9306	●	●
167	ALIGNER; CLU PILOT 6RB1TC ENG(30L),12PD1 STD ENG(42L) L=300 OD=41.1	1-85253-020-0	01	1	9002-9306	●	●
167	ALIGNER; CLU PILOT 6RB1 STD ENG(07L),6RA1TC ENG(19L),10PD1 STD ENG(40L) 14INCH TWO PLATE SPICER CLUTCH(M07) L=300 OD=36.5	1-85253-021-0	01	1	9002-9306	●	●
169	BRACKET; SPLINE YOKE	9-85221-243-1	01	1	9002-	●	●
170	HANDLE; TURNING,FINAL	9-85251-121-0	01	1	9002-	●	●
171	PULLER ASM; PINION BRG	9-85210-152-0	01	1	9002-	●	●
172	PULLER ASM; BRG DIFF PILOT	9-85210-182-0	01	1	9002-	●	●
173	WRENCH; COUPLING DRIVER	9-85111-944-0	01	1	9002-	●	●
177	SETTING TOOL KIT ISUZU M/T<X9A>	1-85220-004-0	01	1	9002-	●	●
180	PULLER; FRT & RR HUB (A)	1-85210-002-0	01	1	9002-	●	●
180	PULLER; FRT & RR HUB (B)	1-85210-003-0	01	1	9002-	●	●
189	TUBE; AIR BREATHER L=460	9-85291-414-0	01	1	9002-	●	●
192	GAUGE; TIRE PRESSURE	1-85315-001-0	01	1	9002-	●	●
192	GAUGE; TIRE PRESSURE TIRE INFLATOR DEVICE<W47>	1-85315-001-0	01	1	9002-	●	●
193	JACK ASM 15TON	1-85510-004-2	01	1	9002-9310	●	●
193	JACK ASM 15TON	1-85510-019-0	01	1	9311-	●	●
208	HANDLE; JACK L=680	1-85515-004-0	01	1	9002-9405	●	●
208	HANDLE; JACK L=600	1-85515-008-0	01	1	9406-	●	●
227	PUMP ASM; TIRE	9-85521-132-0	01	1	9002-	●	●
237	BAG; TOOL	8-94367-102-0	01	1	9002-9509	●	●
237	BAG; TOOL	8-97130-902-0	01	1	9510-	●	●

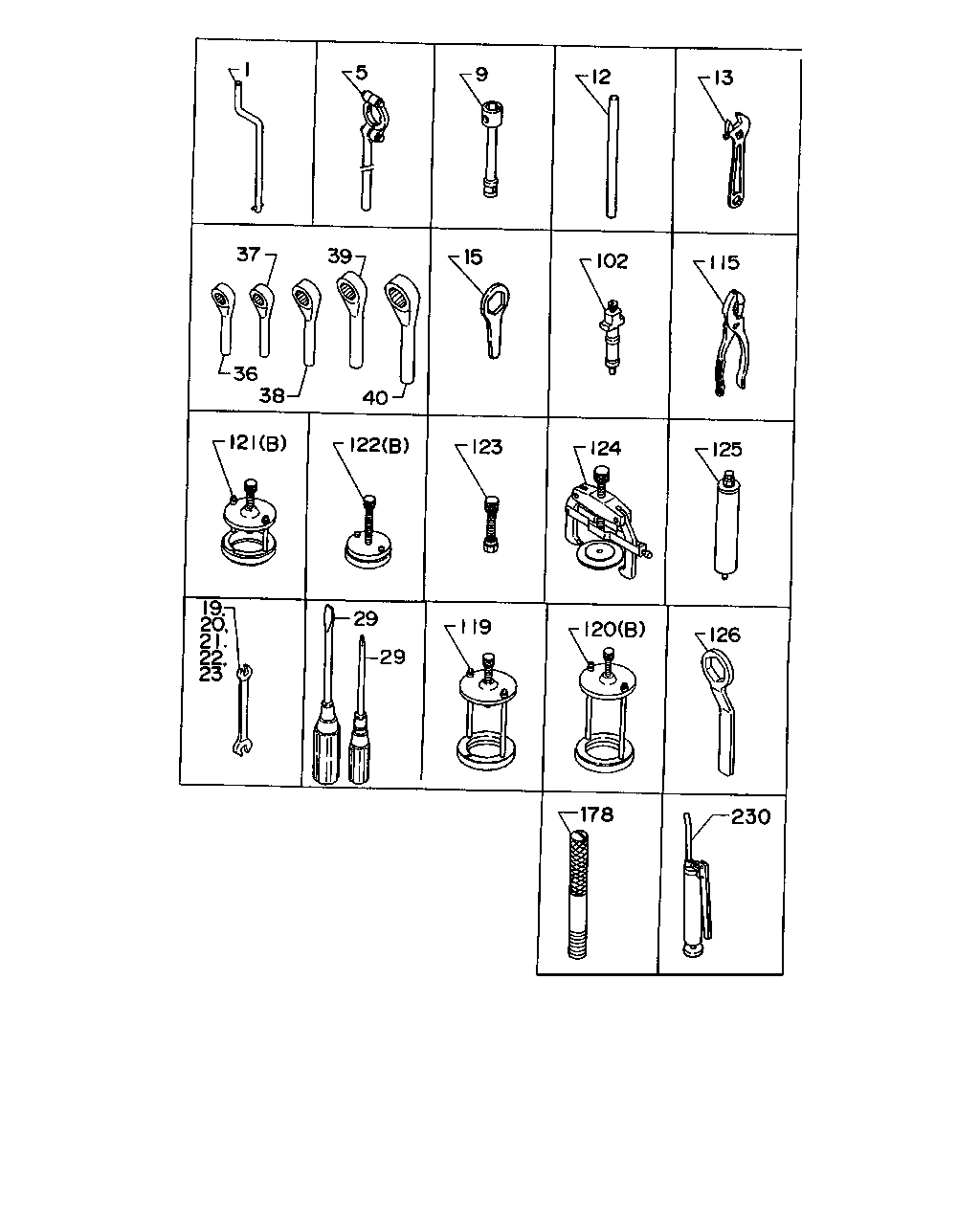

1 5 9 12 13 115 102 15 39 40 38 36 37 121 122 123 124 125 126 120 119 29 29 19 23 22 21 20 178 230

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HANDLE; SPARE TIRE CARRIER SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR2<RF6>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8>	9-23110-018-0	01	1	9002-	●	●
5	WRENCH ASM; NUT,MAINSHAFT	1-85110-010-0	01	1	9002-	●	●
9	WRENCH; WHEEL PIN INTERNATIONAL STANDARD ISO 10STUD<B3V> B=33X30 L=450	1-85111-033-0	01	1	9002-9306	●
9	WRENCH; WHEEL PIN EXC. DISC WHEEL 8STUD 7.50VX20 165-13<Q62> B=33X30 L=450	1-85111-033-1	01	1	9307-	●
9	WRENCH; WHEEL PIN B=33X30 L=450	1-85111-033-1	01	1	9307-		●
9	WRENCH; WHEEL PIN EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> B=30 L=450	1-85111-032-0	01	1	9002-9306	●
9	WRENCH; WHEEL PIN EXC. DISC WHEEL 8STUD 7.50VX20 165-13<Q62> B=30 L=450	1-85111-032-0	01	1	9002-9306		●
9	WRENCH; WHEEL PIN DISC WHEEL 8STUD 7.50VX20 165-13<Q62> B=41X21 L=440	1-85113-015-0	01	1	9002-9306		●
9	WRENCH; WHEEL PIN DISC WHEEL 8STUD 7.50VX20 165-13<Q62> B=41X21 L=440	1-85113-015-1	01	1	9307-	●
12	HANDLE; WRENCH,WHEEL PIN OD=25 L=480	1-85116-011-0	01	1	9002-	●	●
13	WRENCH; MONKEY	1-85117-003-1	01	1	9002-9304	●	●
13	WRENCH; MONKEY L=255	1-85117-002-1	01	1	9305-	●	●
15	WRENCH; TOP GEAR NUT	9-85111-330-0	01	1	9002-	●	●
19	WRENCH; 7X8 7X8	9-09592-107-0	01	1	9002-	●	●
20	WRENCH; 10X12 10X12	9-09592-110-0	01	1	9002-	●	●
21	WRENCH; 14X17 14X17	9-09592-114-0	01	1	9002-	●	●
22	WRENCH; 19X22 19X22	9-99592-119-0	01	1	9002-	●	●
23	WRENCH; 24X27 24X27	9-09592-124-0	01	1	9002-	●	●
29	DRIVER; SCREW <+> L=205	9-09595-022-0	01	1	9002-	●	●
29	DRIVER; SCREW <+> L=275	9-09595-023-0	01	1	9002-	●	●
29	DRIVER; SCREW <-> L=205	9-09595-126-0	01	1	9002-	●	●
29	DRIVER; SCREW <-> L=325	9-09595-129-0	01	1	9002-	●	●
36	WRENCH; 24	9-85111-377-0	01	1	9002-	●	●
37	WRENCH; 27	9-85111-375-0	01	1	9002-	●	●
38	WRENCH; 32	9-85111-358-0	01	1	9002-	●	●
39	WRENCH; 36	9-85111-374-0	01	1	9002-	●	●
40	WRENCH; 41	9-85111-356-0	01	1	9002-	●	●
102	ADAPTER; COMP GAGE L TYPE ENG<90L>	9-85431-505-0	01	1	9002-	●	●
102	ADAPTER; COMP GAGE 12PD1 STD ENG(42L)	1-85317-002-0	01	1	9002-9306		●
115	PLIER	5-85171-001-0	01	1	9002-	●	●
119	PULLER ASM; TOP GEAR BRG ISUZU M/T<X9A> L=235	9-85210-190-0	01	1	9002-	●	●
120	PULLER ASM; MAIN REAR BRG ISUZU M/T<X9A> (A)	9-85210-148-0	01	1	9002-	●	●
120	PULLER ASM; MAIN REAR BRG ISUZU M/T<X9A> (B)	9-85210-184-0	01	1	9002-	●	●
121	PULLER ASM; COUNTER REAR ISUZU M/T<X9A> (B)	9-85210-185-0	01	1	9002-	●	●
121	PULLER ASM; COUNTER REAR ISUZU M/T<X9A> (A)	9-85210-195-0	01	1	9002-	●	●
122	PULLER ASM; COUNTER FRT ISUZU M/T<X9A> (B)	1-85210-010-0	01	1	9002-	●	●
122	PULLER ASM; COUNTER FRT ISUZU M/T<X9A> (A)	9-85210-129-1	01	1	9002-	●	●
123	PULLER; SPEEDOMETER BUSHING ISUZU M/T<X9A>	9-85210-091-0	01	1	9002-	●	●
124	PULLER ASM; BRG DIFF	9-85210-131-0	01	1	9002-	●	●
125	PULLER ASM; KING PIN L=450	1-85210-009-0	01	1	9002-	●	●
126	WRENCH; FRT HUB BRG NUT L=350 B=75	1-85110-002-0	01	1	9002-	●	●
178	BAR; TRANS GUIDE	9-85291-203-0	01	1	9002-	●	●
230	PUMP; GREASE	1-85556-007-2	01	1	9002-	●	●

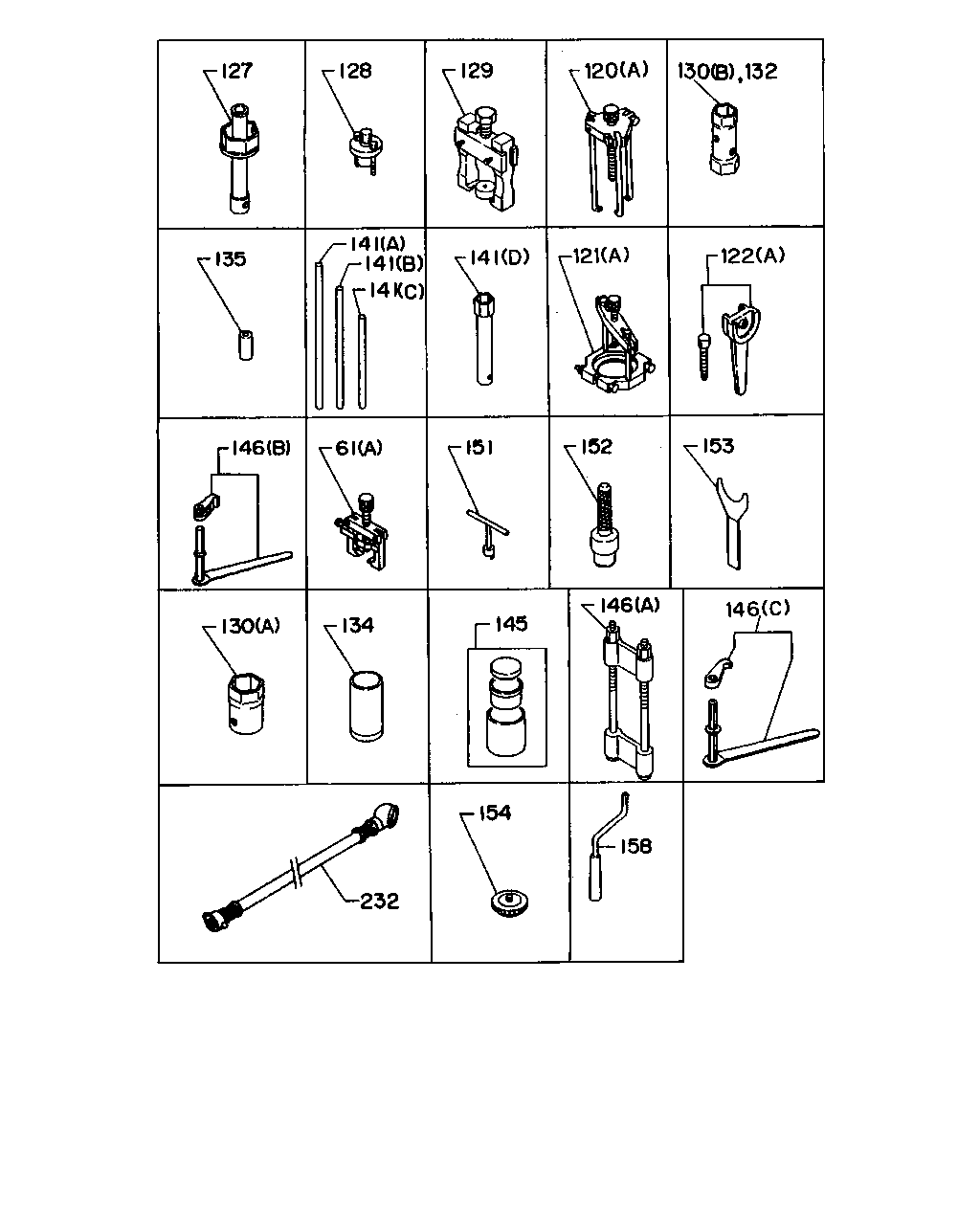

127 128 129 120 130 132 122 121 141 141 135 141 146 141 61 151 152 153 146 146 145 134 130 232 154 158

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
61	PULLER ASM; PILOT BRG (B)	9-85210-157-0	01	1	9002-9307	●	●
61	PULLER ASM; PILOT BRG 6RB1TC ENG(30L),10PD1 STD ENG(40L) (B)	9-85210-157-0	01	1	9308-	●	●
61	PULLER ASM; PILOT BRG ISUZU M/T<X9A> (A)	1-85210-050-0	01	1	9002-	●	●
120	PULLER ASM; MAIN REAR BRG ISUZU M/T<X9A> (A)	9-85210-148-0	01	1	9002-	●	●
120	PULLER ASM; MAIN REAR BRG ISUZU M/T<X9A> (B)	9-85210-184-0	01	1	9002-	●	●
121	PULLER ASM; COUNTER REAR ISUZU M/T<X9A> (B)	9-85210-185-0	01	1	9002-	●	●
121	PULLER ASM; COUNTER REAR ISUZU M/T<X9A> (A)	9-85210-195-0	01	1	9002-	●	●
122	PULLER ASM; COUNTER FRT ISUZU M/T<X9A> (B)	1-85210-010-0	01	1	9002-	●	●
122	PULLER ASM; COUNTER FRT ISUZU M/T<X9A> (A)	9-85210-129-1	01	1	9002-	●	●
127	WRENCH ASM; HUB BRG NUT RR L=400 B=105	9-85113-509-0	01	1	9002-	●	●
127	WRENCH ASM; HUB BRG NUT FWD RR L=400 B=116	9-85113-524-0	01	1	9002-	●	●
128	PULLER ASM; STRG WHEEL	9-85210-099-0	01	1	9002-	●	●
129	PULLER ASM; PITMAN ARM	1-85210-011-0	01	1	9002-	●	●
130	WRENCH; BOX (A) B=63	9-85111-368-0	01	1	9002-	●	●
130	WRENCH; BOX (A) B=46 & 54 L=165	9-85112-320-0	01	1	9002-	●	●
130	WRENCH; BOX (B) B=32 & 41 L=150	9-85112-322-0	01	1	9002-	●	●
130	WRENCH; BOX (B) B=36 & 41 L=200	9-85112-330-0	01	1	9002-	●	●
130	WRENCH; BOX (B) B=41 & 46 L=165	9-85113-401-0	01	1	9002-	●	●
132	WRENCH; NUT CR/SHF L TYPE ENG<90L> B=46 & 54 L=165	9-85112-320-0	01	1	9002-	●	●
134	SETTING TOOL; OUTPUT BRG	1-85220-003-0	01	1	9002-	●	●
135	COVER; ENG MTG,FRT	9-85595-016-0	02	1	9002-	●	●
141	HANDLE; WRENCH (A)	1-85116-011-0	01	1	9002-	●	●
141	HANDLE; WRENCH (D)	9-85111-934-0	01	1	9002-	●	●
141	HANDLE; WRENCH (B)	9-85114-306-0	01	1	9002-	●	●
141	HANDLE; WRENCH (C)	9-85114-307-0	01	1	9002-	●	●
145	REPLACER ASM; BUSHING	1-85230-008-0	01	1	9002-	●	●
146	REPLACER KIT; LEAF SPR (C)	1-85237-003-0	01	1	9002-9307	●	●
146	REPLACER KIT; LEAF SPR (C)	1-85237-016-0	01	1	9308-	●	●
146	REPLACER KIT; LEAF SPR (B)	1-85237-017-0	01	1	9002-	●	●
146	REPLACER KIT; LEAF SPR (A)	9-85231-556-0	01	1	9002-	●	●
151	REMOVER; OIL BRK,FRT RETURN SPR	1-85237-002-0	01	1	9002-	●	●
152	DRIVER; NEEDLE,KING PIN L=220	1-85238-001-0	01	1	9002-	●	●
153	DRIVER; WASHER,THRUST WASHER	1-85238-002-0	01	1	9002-	●	●
154	SLEEPER; KING PIN	1-85238-003-0	01	1	9002-	●	●
158	SETTING TOOL; RETURN SPR	9-85221-231-0	01	1	9002-	●	●
232	HOSE; AIR,AIR CHARGE TIRE INFLATOR DEVICE<W47>	1-09360-628-1	01	1	9002-	●	●

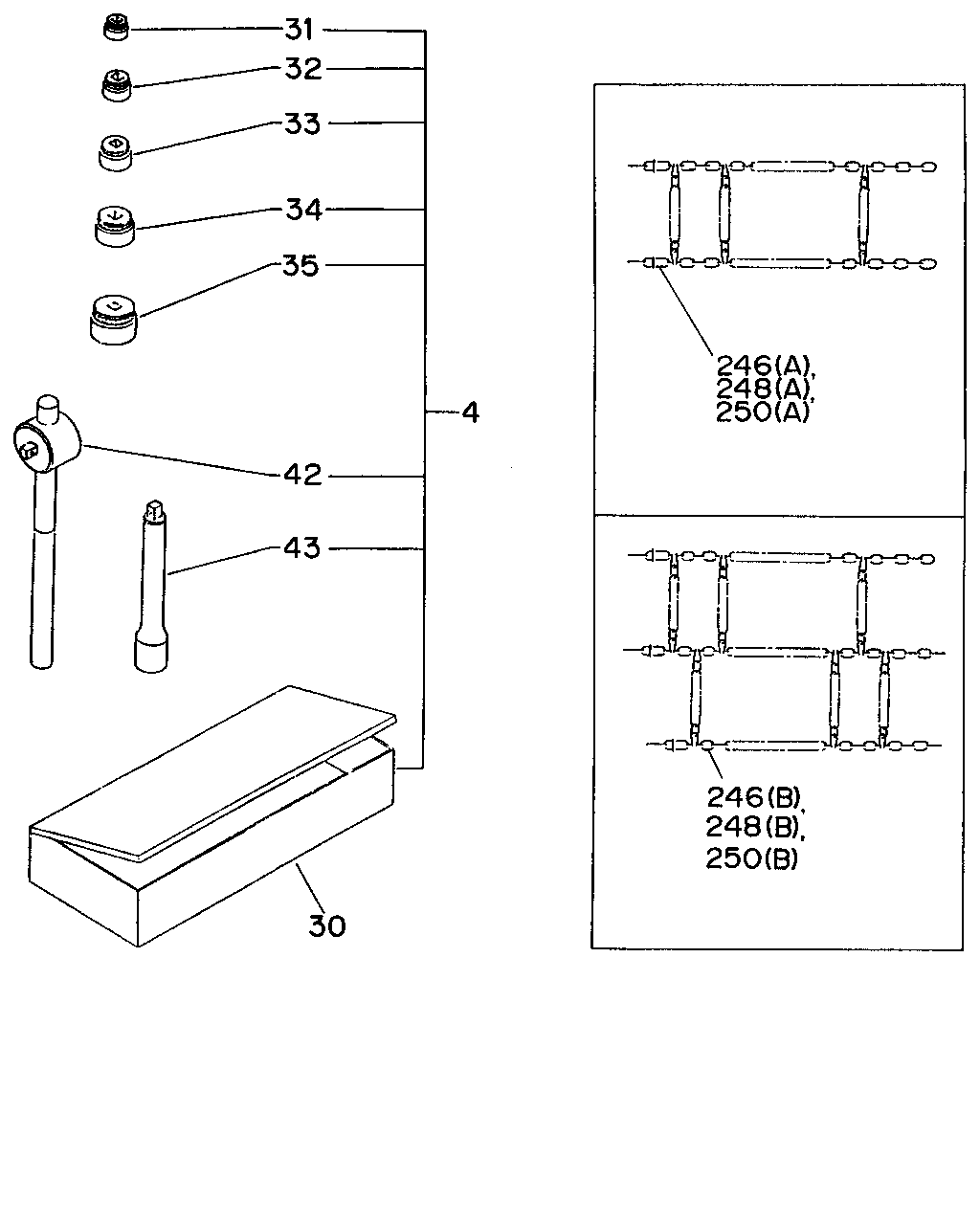

31 33 32 34 35 42 43 4 30 250 248 246 250 248 246

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	WRENCH KIT; SOCKET	9-85110-012-0	01	1	9002-	●	●
30	BOX; SOCKET WRENCH	9-85581-260-0	01	1	9002-	●	●
31	WRENCH; 12	9-09590-012-0	01	1	9002-	●	●
32	WRENCH; 14	9-09590-014-0	01	1	9002-	●	●
33	WRENCH; 17	9-09590-017-0	01	1	9002-	●	●
34	WRENCH; 19	9-09590-019-0	01	1	9002-	●	●
35	WRENCH; 22	9-09590-022-0	01	1	9002-	●	●
42	HANDLE; SLIDING	9-09590-512-0	01	1	9002-	●	●
43	BAR; EXTENSION,SOCKET WRENCH	9-09590-812-0	01	1	9002-	●	●
246	CHAIN; TIRE,1000-20,SINGLE (A) 10.00-20 SINGLE TYPE	9-85591-239-0	AR	1	9002-	●	●
246	CHAIN; TIRE,1000-20,SINGLE (B) 11.00-20 SINGLE TYPE	9-85591-259-0	AR	1	9002-	●	●
248	CHAIN; TIRE,1000-20,DOUBLE (A) 10.00-20 DOUBLE TYPE	9-85591-240-0	AR	1	9002-	●	●
248	CHAIN; TIRE,1000-20,DOUBLE (B) 11.00-20 DOUBLE TYPE	9-85591-260-0	AR	1	9002-	●	●
250	CHAIN; TIRE,1000-20,TRIPLE (A) 10.00-20 TRIPLE TYPE	9-85591-241-0	AR	1	9002-	●	●
250	CHAIN; TIRE,1000-20,TRIPLE (B) 11.00-20 TRIPLE TYPE	9-85591-261-0	AR	1	9002-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
