8-28 — CHASSIS ELECTRICAL (#18366) — 93 parça

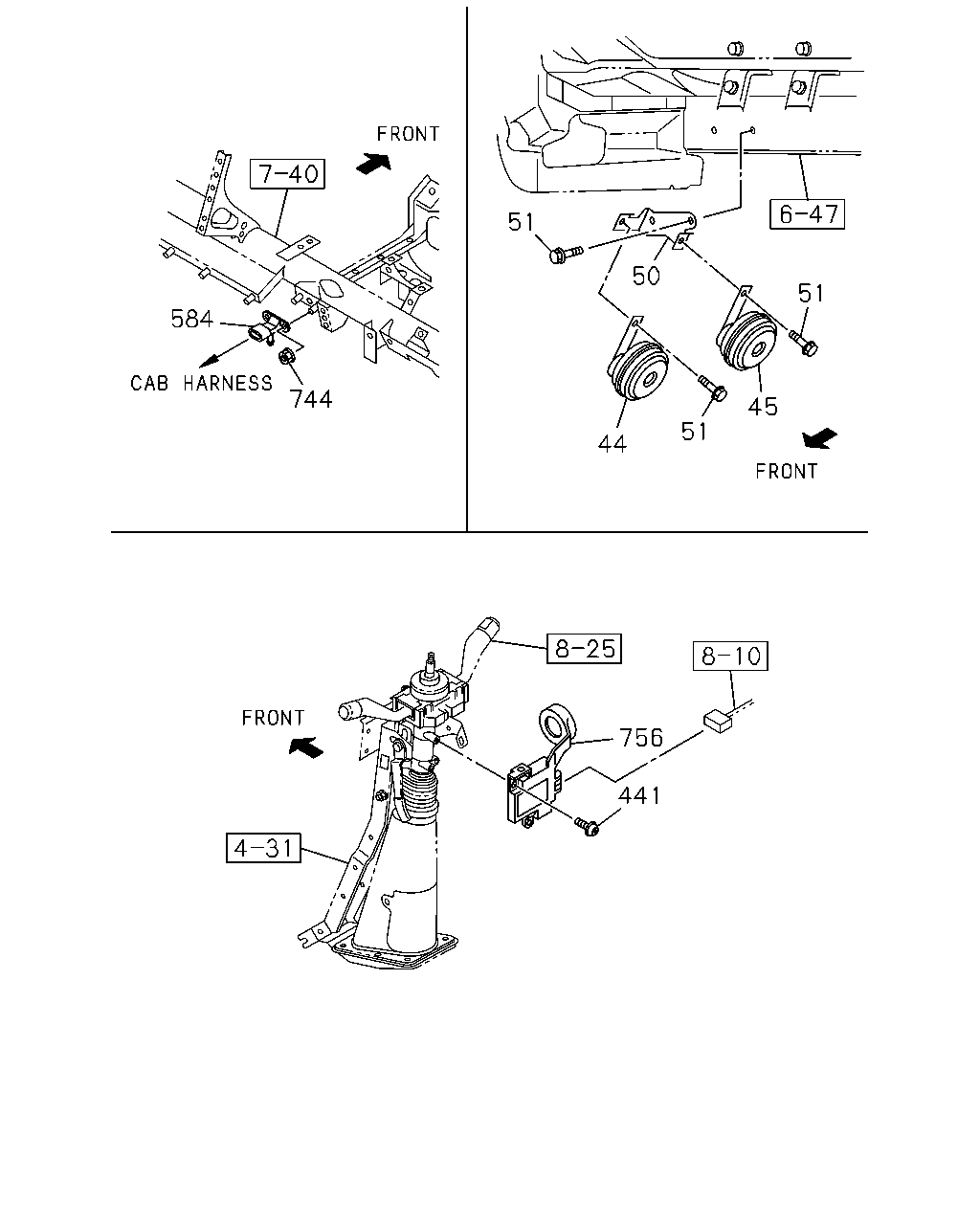

51 50 51 584 744 45 51 44 756 441

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
44	HORN; HIGH NOTE	8-98022-022-0	01	1	1001-
45	HORN; LOW NOTE	8-98022-023-0	01	1	1001-
50	BRACKET; HORN	8-97613-300-2	01	1	1001-
51	BOLT; HORN TO BRKT M8X20 W/LK&PL WASHER SOU	8-97086-825-0	04	1	1001-1001
51	BOLT; HORN TO BRKT M8X20 W/LK&PL WASHER SOU	8-97086-825-0	02	1	1002-
51	BOLT; HORN TO BRKT M8X20 W/LK&PL WASHER SOU	8-97086-825-0	02	1	1002-
441	SCREW; CONT UNIT M5X7 HEXALOBULAR SOCKET	8-98063-767-0	02	1	1001-1411
441	SCREW; CONT UNIT IMMOBILIZER SYSTEM<7KC> M5X7 HEXALOBULAR SOCKET	8-98063-767-0	02	1	1412-
584	SENSOR; PRESSURE	8-98020-514-0	01	1	1001-
615	RELAY; TRAILER 24V 10A PANASONIC	8-97173-035-1	01	1	1001-
744	NUT; SENSOR M6 FLANGE SOU	0-91180-106-0	02	1	1001-
756	CONTROL UNIT; IMMOBILIZER	8-98097-554-0	01	1	1001-1005
756	CONTROL UNIT; IMMOBILIZER	8-98158-127-0	01	1	1006-1411
756	CONTROL UNIT; IMMOBILIZER IMMOBILIZER SYSTEM<7KC>	8-98158-127-0	01	1	1412-
770	RELAY; ENG BRK ANTI LOCK BRAKE<JE5> 24V 10A PANASONIC	8-97173-035-1	01	1	1412-

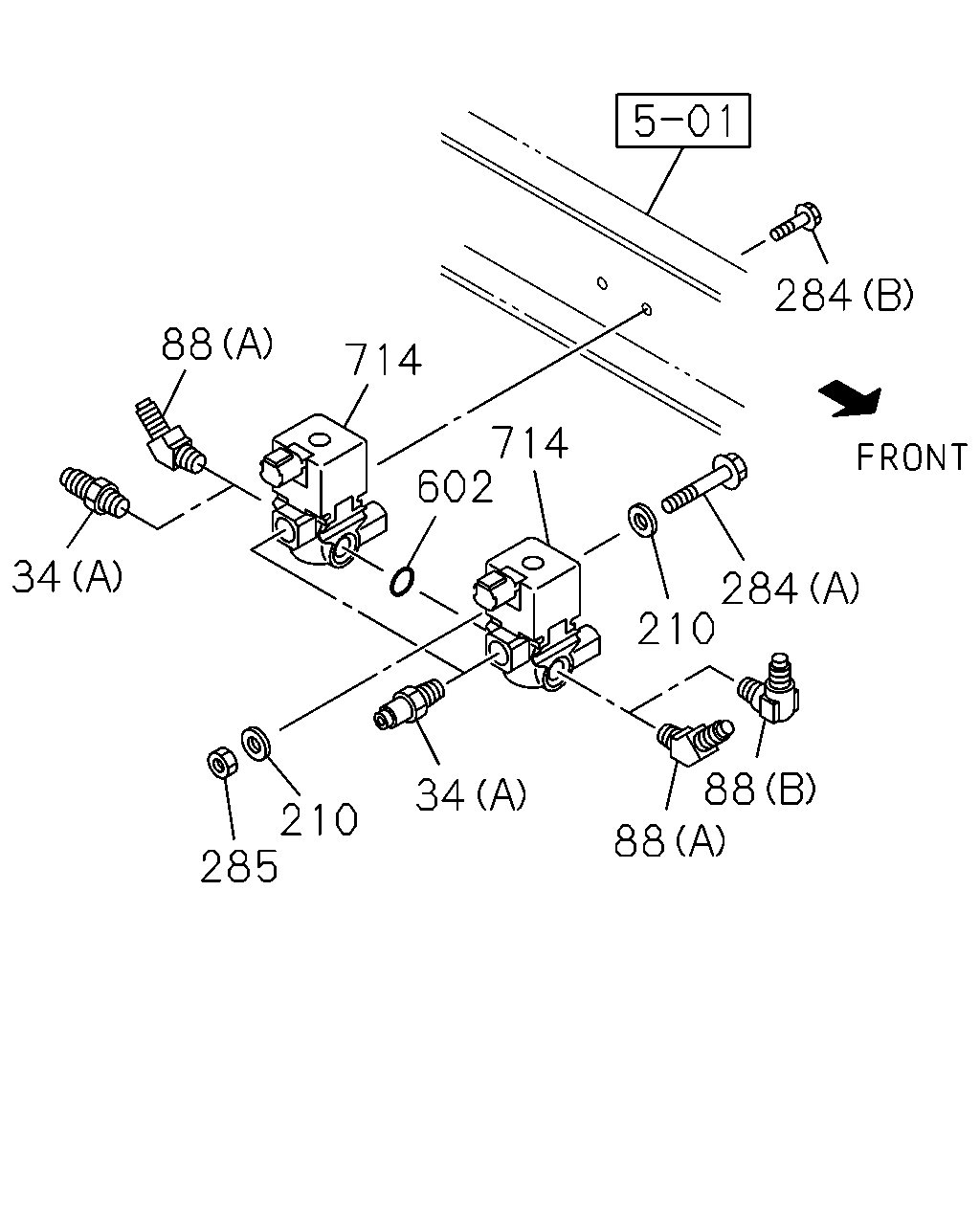

88 34 285 34 602 714 714 88 210 284 284 88 210

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
34	CONNECTOR; MAG VLV,INL PORT EXC. BRAKE REGULATION ECE<TDV> (A) M12 & PT1/4 STRAIGHT SOU	1-09650-074-1	02	1	1502-
34	CONNECTOR; MAG VLV,INL PORT (A) M12 & PT1/4 STRAIGHT SOU	1-09650-074-1	01	1	1001-1501
34	CONNECTOR; MAG VLV,INL PORT PTO CONTROL<SV6> EXC. RIGID SEAT WO/ARM REST<TAZ> (A) M12 & PT1/4 STRAIGHT SOU	1-09650-074-1	01	1	1001-1501
34	CONNECTOR; MAG VLV,INL PORT PTO CONTROL<SV6> EXC. RIGID SEAT WO/ARM REST<TAZ> (A) M12 & PT1/4 STRAIGHT SOU	1-09650-074-1	01	1	1502-
34	CONNECTOR; MAG VLV,INL PORT EXC. BRAKE REGULATION ECE<TDV> (A) M12 & PT1/4 STRAIGHT SOU	1-09650-074-1	01	1	1502-
34	CONNECTOR; MAG VLV,INL PORT (A) M12 & PT1/4 STRAIGHT SOU	1-09650-074-1	02	1	1001-1501
34	CONNECTOR; MAG VLV,INL PORT BRAKE REGULATION ECE<TDV> (A) M12 & PT1/4 STRAIGHT SOU	1-09650-074-1	03	1	1502-
34	CONNECTOR; MAG VLV,INL PORT (B) M12 & PT1/4 ELBOW SOU	1-09650-430-0	01	1	1001-1501
34	CONNECTOR; MAG VLV,INL PORT PTO CONTROL<SV6> (B) M12 & PT1/4 ELBOW SOU	1-09650-430-0	01	1	1001-1501
34	CONNECTOR; MAG VLV,INL PORT EXC. BRAKE REGULATION ECE<TDV> (B) M12 & PT1/4 ELBOW SOU	1-09650-430-0	01	1	1502-
34	CONNECTOR; MAG VLV,INL PORT PTO CONTROL<SV6> (B) M12 & PT1/4 ELBOW SOU	1-09650-430-0	01	1	1502-
34	CONNECTOR; MAG VLV,INL PORT PTO CONTROL<SV6> (C) M12X2 & PT1/4 3WAY SOU	1-09656-230-1	01	1	1001-
88	CONNECTOR; MAG VLV BRAKE REGULATION ECE<TDV> (C) M12X2 & PT1/4 3WAY SOU	1-09656-230-1	01	1	1502-
88	CONNECTOR; MAG VLV BRAKE REGULATION ECE<TDV> (B) M12 & PT1/4 ELBOW SOU	1-09650-430-0	01	1	1502-
88	CONNECTOR; MAG VLV BRAKE REGULATION ECE<TDV> (B) M12 & PT1/4 ELBOW SOU	1-09650-430-0	01	1	1502-
88	CONNECTOR; MAG VLV (A) M12 & PT1/4 ELBOW SOU	1-48629-258-0	02	1	1001-1501
88	CONNECTOR; MAG VLV EXC. BRAKE REGULATION ECE<TDV> (A) M12 & PT1/4 ELBOW SOU	1-48629-258-0	02	1	1502-1503
88	CONNECTOR; MAG VLV EXC. BRAKE REGULATION ECE<TDV> (A) M12 & PT1/4 ELBOW SOU	8-98299-777-0	02	1	1504-
210	WASHER; PL,BRKT SOU	1-82569-266-0	02	1	1001-
284	BOLT; MAG VLV (A) M6X50 FLANGE SOU	0-28050-650-0	01	1	1001-
284	BOLT; MAG VLV (B) M8X25 FLANGE SOU	0-28650-825-0	02	1	1001-
285	NUT; MAG VLV M6 FLANGE SOU	0-91180-106-0	01	1	1001-
602	GASKET; MAG VLV ID=16.8 SOU	9-09565-117-0	01	1	1001-
615	RELAY; TRAILER 24V 10A PANASONIC	8-97173-035-1	01	1	1001-
714	VALVE; MAG,TRANS,LOW TO HIGH SOU	1-82563-871-2	02	1	1001-
770	RELAY; ENG BRK ANTI LOCK BRAKE<JE5> 24V 10A PANASONIC	8-97173-035-1	01	1	1412-

34 34 261 34 35 39 89 450 34 88 88 34 261 36 33 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
33	VALVE; MAG,PTO CONT PTO CONTROL<SV6> SOU	1-82563-871-2	01	1	1001-
34	CONNECTOR; MAG VLV,INL PORT EXC. BRAKE REGULATION ECE<TDV> (A) M12 & PT1/4 STRAIGHT SOU	1-09650-074-1	02	1	1502-
34	CONNECTOR; MAG VLV,INL PORT (A) M12 & PT1/4 STRAIGHT SOU	1-09650-074-1	01	1	1001-1501
34	CONNECTOR; MAG VLV,INL PORT PTO CONTROL<SV6> EXC. RIGID SEAT WO/ARM REST<TAZ> (A) M12 & PT1/4 STRAIGHT SOU	1-09650-074-1	01	1	1001-1501
34	CONNECTOR; MAG VLV,INL PORT PTO CONTROL<SV6> EXC. RIGID SEAT WO/ARM REST<TAZ> (A) M12 & PT1/4 STRAIGHT SOU	1-09650-074-1	01	1	1502-
34	CONNECTOR; MAG VLV,INL PORT EXC. BRAKE REGULATION ECE<TDV> (A) M12 & PT1/4 STRAIGHT SOU	1-09650-074-1	01	1	1502-
34	CONNECTOR; MAG VLV,INL PORT (A) M12 & PT1/4 STRAIGHT SOU	1-09650-074-1	02	1	1001-1501
34	CONNECTOR; MAG VLV,INL PORT BRAKE REGULATION ECE<TDV> (A) M12 & PT1/4 STRAIGHT SOU	1-09650-074-1	03	1	1502-
34	CONNECTOR; MAG VLV,INL PORT (B) M12 & PT1/4 ELBOW SOU	1-09650-430-0	01	1	1001-1501
34	CONNECTOR; MAG VLV,INL PORT PTO CONTROL<SV6> (B) M12 & PT1/4 ELBOW SOU	1-09650-430-0	01	1	1001-1501
34	CONNECTOR; MAG VLV,INL PORT EXC. BRAKE REGULATION ECE<TDV> (B) M12 & PT1/4 ELBOW SOU	1-09650-430-0	01	1	1502-
34	CONNECTOR; MAG VLV,INL PORT PTO CONTROL<SV6> (B) M12 & PT1/4 ELBOW SOU	1-09650-430-0	01	1	1502-
34	CONNECTOR; MAG VLV,INL PORT PTO CONTROL<SV6> (C) M12X2 & PT1/4 3WAY SOU	1-09656-230-1	01	1	1001-
35	BRACKET; MAG VLV,PTO CONT PTO CONTROL<SV6> SOU	8-98034-702-0	01	1	1001-
36	BOLT; MAG VLV,PTO CONT (B) M8X25 FLANGE SOU	0-28650-825-0	02	1	1001-
36	BOLT; MAG VLV,PTO CONT PTO CONTROL<SV6> (A) M8X20 FLANGE	0-28650-820-0	02	1	1001-
39	BOLT; BRKT,MAG VLV PTO CONTROL<SV6> M10X30 FLANGE SOU	0-28651-030-0	02	1	1001-
88	CONNECTOR; MAG VLV BRAKE REGULATION ECE<TDV> (C) M12X2 & PT1/4 3WAY SOU	1-09656-230-1	01	1	1502-
88	CONNECTOR; MAG VLV BRAKE REGULATION ECE<TDV> (B) M12 & PT1/4 ELBOW SOU	1-09650-430-0	01	1	1502-
88	CONNECTOR; MAG VLV BRAKE REGULATION ECE<TDV> (B) M12 & PT1/4 ELBOW SOU	1-09650-430-0	01	1	1502-
88	CONNECTOR; MAG VLV (A) M12 & PT1/4 ELBOW SOU	1-48629-258-0	02	1	1001-1501
88	CONNECTOR; MAG VLV EXC. BRAKE REGULATION ECE<TDV> (A) M12 & PT1/4 ELBOW SOU	1-48629-258-0	02	1	1502-1503
88	CONNECTOR; MAG VLV EXC. BRAKE REGULATION ECE<TDV> (A) M12 & PT1/4 ELBOW SOU	8-98299-777-0	02	1	1504-
89	VALVE; MAG,DIFF LOCK SOU	1-82563-871-2	01	1	1001-1205
89	VALVE; MAG,DIFF LOCK SOU	8-97641-594-0	01	1	1206-1501
89	VALVE; MAG,DIFF LOCK EXC. BRAKE REGULATION ECE<TDV> SOU	8-97641-594-0	01	1	1502-
261	PLUG; MAG VLV SOU	0-92004-813-0	01	1	1206-1206
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	1001-1205
261	PLUG; MAG VLV PTO CONTROL<SV6> RIGID SEAT WO/ARM REST<TAZ> PT1/4	9-99204-513-0	01	1	1001-1205
261	PLUG; MAG VLV PTO CONTROL<SV6> RIGID SEAT WO/ARM REST<TAZ> PT1/4	9-99204-513-0	01	1	1206-1206
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	1207-
261	PLUG; MAG VLV PTO CONTROL<SV6> RIGID SEAT WO/ARM REST<TAZ> PT1/4	9-99204-513-0	01	1	1207-
450	VALVE; MAG BRAKE REGULATION ECE<TDV> SOU	8-97641-594-0	01	1	1502-
615	RELAY; TRAILER 24V 10A PANASONIC	8-97173-035-1	01	1	1001-
770	RELAY; ENG BRK ANTI LOCK BRAKE<JE5> 24V 10A PANASONIC	8-97173-035-1	01	1	1412-

531

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
531	RELAY; MAIN 24V 30A MITSUBA	8-97238-540-0	01	1	1001-1402
531	RELAY; MAIN 24V 30A MITSUBA	8-98259-779-0	01	1	1403-
615	RELAY; TRAILER 24V 10A PANASONIC	8-97173-035-1	01	1	1001-
770	RELAY; ENG BRK ANTI LOCK BRAKE<JE5> 24V 10A PANASONIC	8-97173-035-1	01	1	1412-

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
22	RELAY; STOP LAMP 24V 12.5A PANASONIC SOU	8-97262-933-0	01	1	1001-
615	RELAY; TRAILER 24V 10A PANASONIC	8-97173-035-1	01	1	1001-
770	RELAY; ENG BRK ANTI LOCK BRAKE<JE5> 24V 10A PANASONIC	8-97173-035-1	01	1	1412-

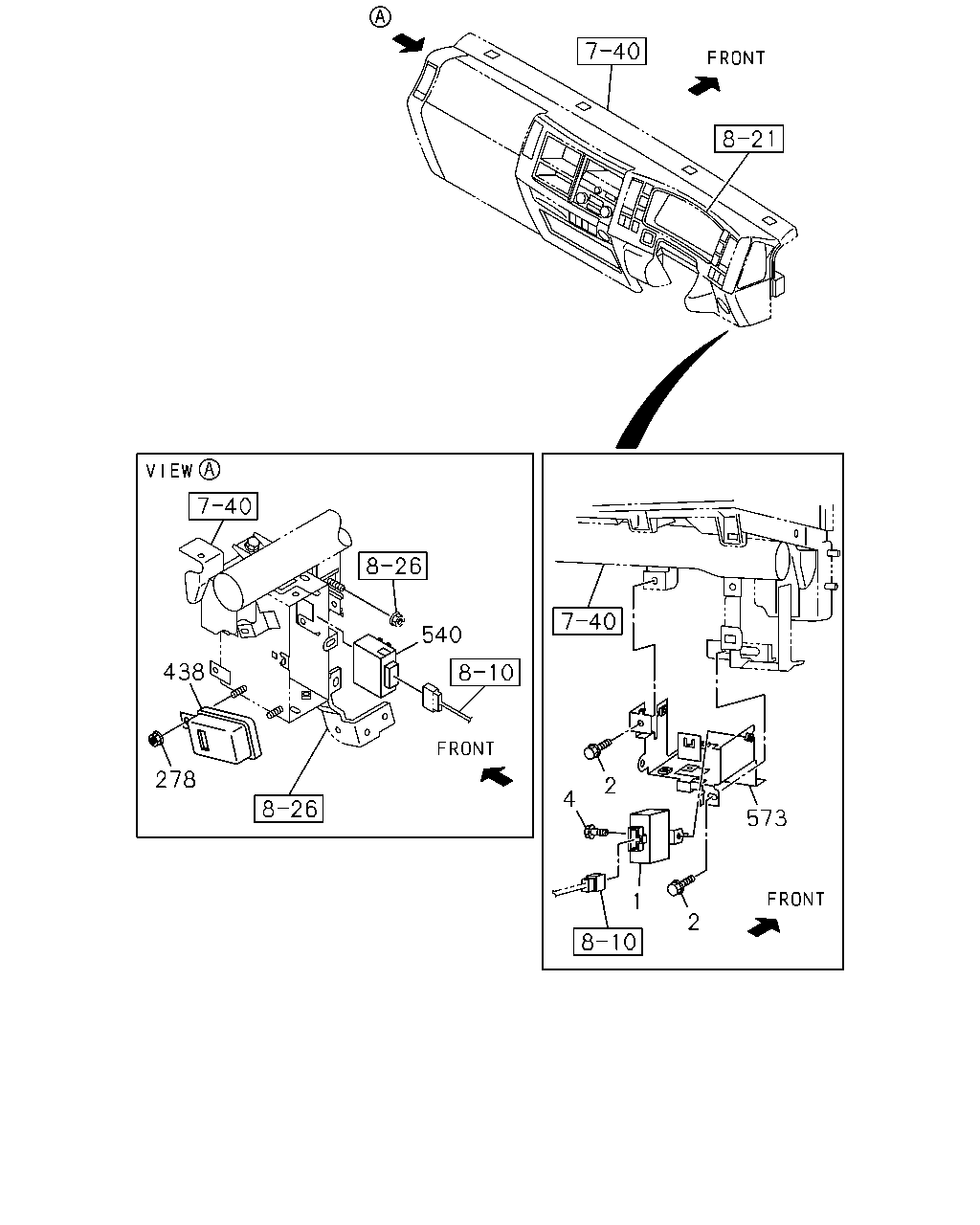

540 438 278 2 4 573 1 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	UNIT; FLASHER	8-98025-533-1	01	1	1001-
2	BOLT; FLASHER UNIT M6X16 FLANGE SOU	0-28650-616-0	02	1	1001-
4	SCREW; FLASHER UNIT BOLT M6X16 FLANGE SOU	0-28650-616-0	01	1	1001-
278	NUT; CONT UNIT M6 FLANGE SOU	0-91180-106-0	01	1	1001-
438	UNIT; SPD CONTROL	1-82550-271-0	01	1	1001-
540	RELAY; WIPER INTERVAL	8-98060-388-0	01	1	1001-1308
540	RELAY; WIPER INTERVAL	8-98233-976-0	01	1	1309-
573	BRACKET; FLASHER UNIT	8-97609-984-5	01	1	1001-
615	RELAY; TRAILER 24V 10A PANASONIC	8-97173-035-1	01	1	1001-
770	RELAY; ENG BRK ANTI LOCK BRAKE<JE5> 24V 10A PANASONIC	8-97173-035-1	01	1	1412-
