Isuzu WW
▶
TRUCKS
▶
FTS
▶
11166 - FTS(SOUTH AFRICA)
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-26 - ELECTRICAL CONTROL AND OTHER PARTS
▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS
(#18364) — 31 parça
◀

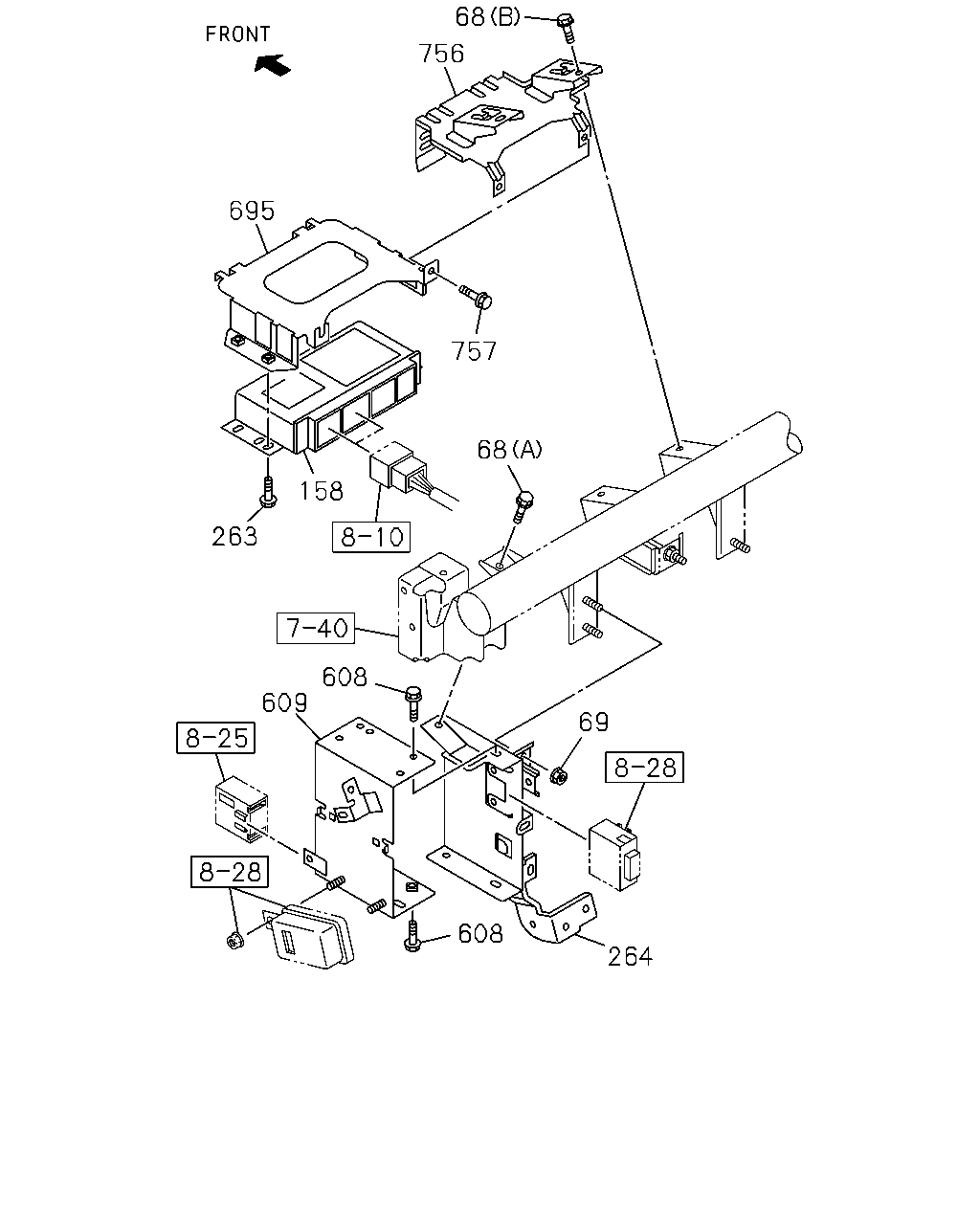

[826A] FRONT SIDE NO.2 (14 parça)
[826A] FRONT SIDE NO.3 (9 parça)
[826A] TRANSMISSION SIDE (3 parça)
[826A] FRONT SIDE NO.1 (5 parça)
▶
68
756
695
757
68
158
263
608
609
608
264
69
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
68
BOLT; BRKT
ANTI LOCK BRAKE<JE5> (B) M6X16 W/LK&PL WASHER SOU
1-09980-492-0
02
1
1412-
68
BOLT; BRKT
(A) M6X16 FLANGE SOU
0-28650-616-0
01
1
1001-
69
NUT; BRKT
M6 FLANGE SOU
0-91180-106-0
01
1
1001-
158
CONTROLLER; ABS
ANTI LOCK BRAKE<JE5>
8-98170-647-0
01
1
1502-
263
BOLT; CONT UNIT
ANTI LOCK BRAKE<JE5> M6X16 FLANGE SOU
0-28650-616-0
04
1
1412-
264
BRACKET; CONT UNIT
8-97609-985-9
01
1
1001-
608
BOLT; CONT UNIT,AIR SUS
M6X16 FLANGE SOU
0-28650-616-0
05
1
1001-
609
BRACKET ASM; ELEC UNIT,AIR SUS
8-98095-337-0
01
1
1001-1308
609
BRACKET ASM; ELEC UNIT,AIR SUS
8-98169-737-1
01
1
1309-
657
CONTROL UNIT; MIMAMORI
8-98013-144-8
01
1
1001-1401
657
CONTROL UNIT; MIMAMORI
8-98260-912-1
01
1
1402-
695
BRACKET; CONT UNIT,ABS
ANTI LOCK BRAKE<JE5>
8-98045-016-1
01
1
1412-
756
BRACKET; ECU,BCM
ANTI LOCK BRAKE<JE5>
8-98056-411-3
01
1
1412-
757
BOLT; BRKT,BCM
ANTI LOCK BRAKE<JE5> M6X16 FLANGE SOU
0-28650-616-0
02
1
1412-

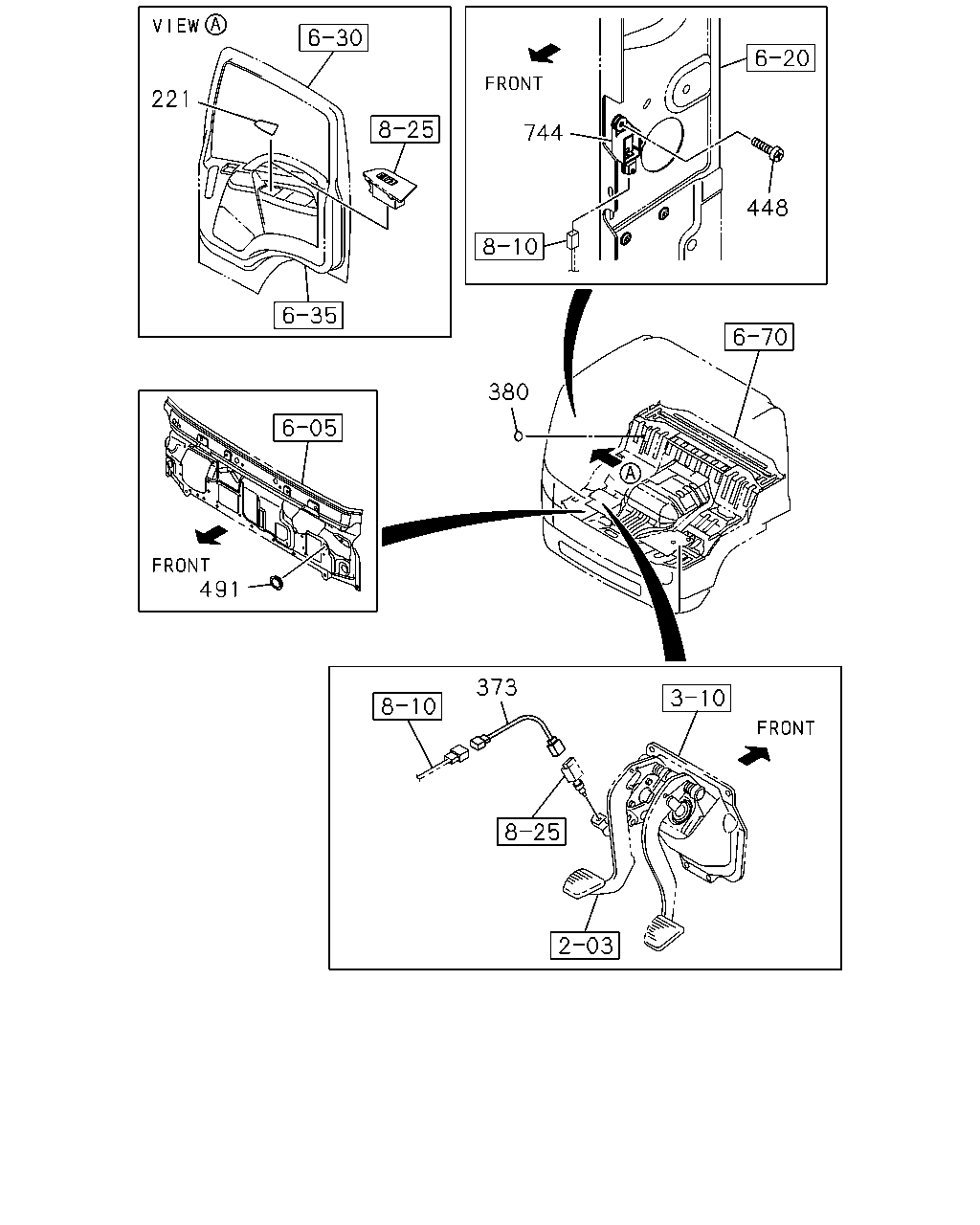

221
744
448
380
491
373
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
221
COVER; HOLE,DOOR LOCK SW
EXC. POWER WINDOW FRT DOOR<A32>
8-98029-916-2
01
1
1001-
221
COVER; HOLE,DOOR LOCK SW
EXC. POWER WINDOW FRT DOOR<A32>
8-98029-915-2
01
1
1001-
373
HARNESS; CLU SWITCH
8-98053-829-3
01
1
1001-
380
SEAL
OD=25 BLACK SOU
1-76798-019-0
01
1
1001-
448
BOLT; SENSOR
AIR BAG DRIVER<AJ3> M6X18 W/PL WASHER
8-97105-796-1
02
1
1001-1411
491
PLUG; HOLE,CONT UNIT
OD=60
8-98054-651-0
01
1
1001-
657
CONTROL UNIT; MIMAMORI
8-98013-144-8
01
1
1001-1401
657
CONTROL UNIT; MIMAMORI
8-98260-912-1
01
1
1402-
744
SENSOR; AIR BAG
AIR BAG DRIVER<AJ3>
8-97386-841-2
01
1
1001-1411
625
625
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
625
CAP; SPEED SENSOR
1-83129-133-0
01
1
1001-
657
CONTROL UNIT; MIMAMORI
8-98013-144-8
01
1
1001-1401
657
CONTROL UNIT; MIMAMORI
8-98260-912-1
01
1
1402-

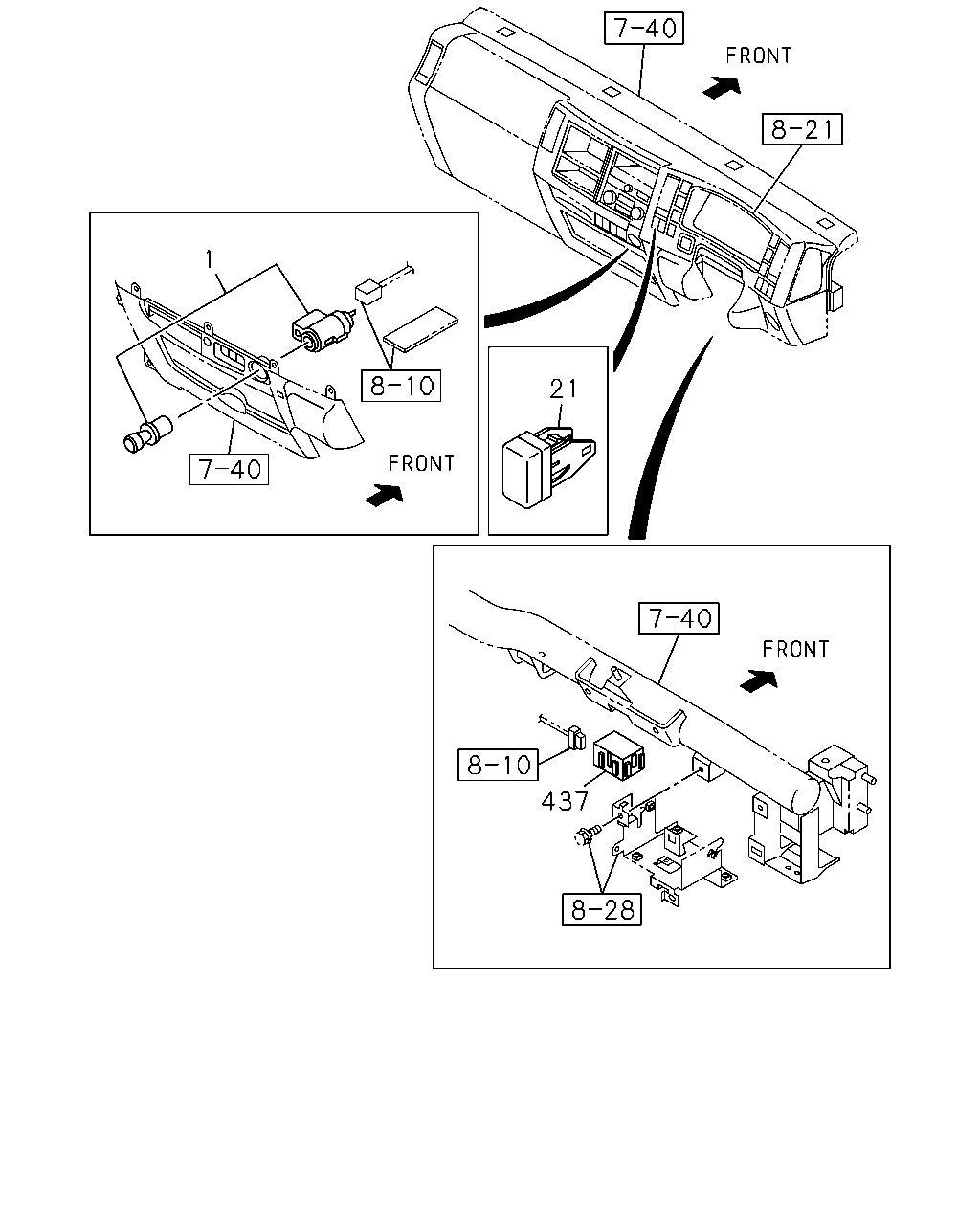

21
437
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
LIGHTER; CIGAR
8-98142-962-0
01
1
1001-
21
COVER; HOLE
8-98025-954-1
01
1
1001-
437
CONVERTER; DC
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> KOITO
8-97359-129-0
01
1
1001-
657
CONTROL UNIT; MIMAMORI
8-98013-144-8
01
1
1001-1401
657
CONTROL UNIT; MIMAMORI
8-98260-912-1
01
1
1402-
