Sayfa 8-15 - Isuzu EPC

8-15 — FIXING PARTS; WIRING HARNESS (#18361) — 273 parça

305 305 48 16 171 223 305 470 48 305 305 306 16 223 16 223 223 223 470 48 213 48 16 171 16 171 305 305 116 306 305 235 305 16

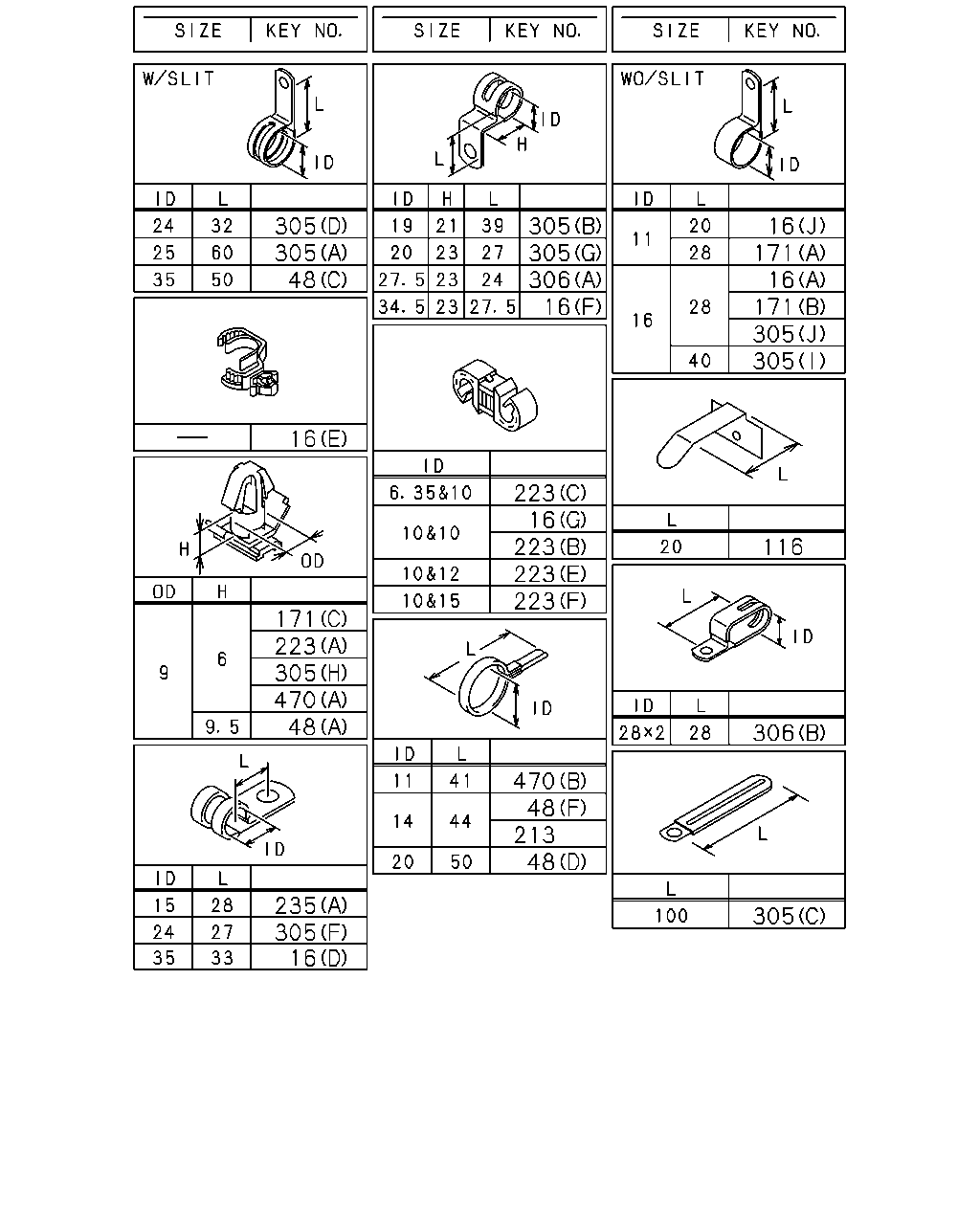

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS ANTI LOCK BRAKE<JE5> (J) ID=11 L=20	0-95235-035-0	02	1	1502-
16	CLIP; HARNESS ANTI LOCK BRAKE<JE5> (K) ID=11X2 L=16	0-95325-025-0	01	1	1502-
16	CLIP; HARNESS ANTI LOCK BRAKE<JE5> (L) ID=5-12 L=14.5	1-09987-221-0	04	1	1502-
16	CLIP; HARNESS ANTI LOCK BRAKE<JE5> (M) L=140 SOU	5-09707-031-1	01	1	1502-
16	CLIP; HARNESS (G) ID=10 & 10	1-09709-277-1	05	1	1001-
16	CLIP; HARNESS (A) ID=16 L=28	0-95235-556-0	02	1	1001-
16	CLIP; HARNESS (F) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	1001-
16	CLIP; HARNESS (F) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	1001-
16	CLIP; HARNESS (D) ID=35 L=33	1-09700-945-0	01	1	1001-
16	CLIP; HARNESS (I) L=350	1-09707-183-0	02	1	1001-
16	CLIP; HARNESS (E) ID=10 & 16 SOU	8-94413-325-0	01	1	1001-
16	CLIP; HARNESS (B) L=155 SOU	8-97173-307-0	18	1	1001-
16	CLIP; HARNESS (H) L=40.6	8-97229-357-0	02	1	1001-
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	1001-
48	CLIP; FRAME HARNESS ANTI LOCK BRAKE<JE5> (F) ID=14 L=44	9-09917-427-0	12	1	1502-
48	CLIP; FRAME HARNESS (E) L=250 SOU	5-09707-030-1	01	1	1005-1501
48	CLIP; FRAME HARNESS EXC. ANTI LOCK BRAKE<JE5> (E) L=250 SOU	5-09707-030-1	01	1	1502-
48	CLIP; FRAME HARNESS (F) ID=14 L=44	9-09917-427-0	13	1	1008-1502
48	CLIP; FRAME HARNESS EXC. ANTI LOCK BRAKE<JE5> (F) ID=14 L=44	9-09917-427-0	13	1	1503-
48	CLIP; FRAME HARNESS (C) ID=35 L=50	1-09701-214-0	01	1	1001-
48	CLIP; FRAME HARNESS (B) L=350	1-09707-183-0	01	1	1001-
48	CLIP; FRAME HARNESS (A) OD=9 H=9.5	1-09709-179-0	01	1	1001-
48	CLIP; FRAME HARNESS (E) L=250 SOU	5-09707-030-1	02	1	1001-
48	CLIP; FRAME HARNESS (D) ID=20 L=50 SOU	9-09917-430-0	15	1	1001-1007
48	CLIP; FRAME HARNESS (D) ID=20 L=50 SOU	9-09917-430-0	02	1	1008-1201
48	CLIP; FRAME HARNESS (F) ID=14 L=44	9-09917-427-0	02	1	1202-
116	CLIP; ROOF HARNESS EXC. LAMPS TWO ROOF MARKER<TEC> L=20 SET=10 PIECE SOU	1-09987-246-2	03	1	1202-
116	CLIP; ROOF HARNESS L=20 SET=10 PIECE SOU	1-09987-246-2	04	1	1001-1201
116	CLIP; ROOF HARNESS LAMPS TWO ROOF MARKER<TEC> L=20 SET=10 PIECE SOU	1-09987-246-2	04	1	1202-
171	CLIP; STARTER HARNESS MLD6W M/T(Y2C) (A) ID=11 L=28	0-95235-055-0	01	1	1001-
171	CLIP; STARTER HARNESS MLD6W M/T(Y2C) (B) ID=16 L=28	0-95235-556-0	01	1	1001-
171	CLIP; STARTER HARNESS MLD6W M/T(Y2C) (C) OD=9 H=6	1-09709-178-0	02	1	1001-
171	CLIP; STARTER HARNESS MLD6W M/T(Y2C) (D) ID=13-18 L=14.5	1-09709-290-0	01	1	1001-
171	CLIP; STARTER HARNESS MLD6W M/T(Y2C) (E) ID=5-12 L=14.5	1-09987-221-0	01	1	1001-
213	CLIP; END CROSS HARNESS ID=14 L=44	9-09917-427-0	03	1	1001-
223	CLIP; AIR TANK HARNESS ANTI LOCK BRAKE<JE5> (E) ID=10 & 12	1-09709-278-1	01	1	1412-1501
223	CLIP; AIR TANK HARNESS ANTI LOCK BRAKE<JE5> (B) ID=10 & 10	1-09709-277-1	01	1	1502-
223	CLIP; AIR TANK HARNESS ANTI LOCK BRAKE<JE5> (F) ID=10 & 15	1-09709-279-1	01	1	1502-
223	CLIP; AIR TANK HARNESS (A) OD=9 H=6	1-09709-178-0	01	1	1001-
223	CLIP; AIR TANK HARNESS AIR DRYER<PS7> (A) OD=9 H=6	1-09709-178-0	01	1	1001-
223	CLIP; AIR TANK HARNESS (C) ID=6.35 & 10.0	1-09709-274-1	01	1	1001-1411
223	CLIP; AIR TANK HARNESS EXC. ANTI LOCK BRAKE<JE5> (C) ID=6.35 & 10.0	1-09709-274-1	01	1	1412-
223	CLIP; AIR TANK HARNESS (B) ID=10 & 10	1-09709-277-1	02	1	1001-1501
223	CLIP; AIR TANK HARNESS EXC. ANTI LOCK BRAKE<JE5> (B) ID=10 & 10	1-09709-277-1	02	1	1502-
223	CLIP; AIR TANK HARNESS AIR DRYER<PS7> (D) ID=5-12 L=14.5	1-09987-221-0	01	1	1001-1411
223	CLIP; AIR TANK HARNESS ANTI LOCK BRAKE<JE5> (D) ID=5-12 L=14.5	1-09987-221-0	01	1	1412-1501
223	CLIP; AIR TANK HARNESS AIR DRYER<PS7> (D) ID=5-12 L=14.5	1-09987-221-0	01	1	1412-1501
223	CLIP; AIR TANK HARNESS AIR DRYER<PS7> (D) ID=5-12 L=14.5	1-09987-221-0	01	1	1502-
235	CLIP; HARNESS,SPD SENSOR,SSPS ANTI LOCK BRAKE<JE5> (A) ID=15 L=28	1-09701-216-0	01	1	1412-1501
235	CLIP; HARNESS,SPD SENSOR,SSPS ANTI LOCK BRAKE<JE5> (B) ID=11 H=45 L=25	1-09700-866-0	01	1	1502-
235	CLIP; HARNESS,SPD SENSOR,SSPS ANTI LOCK BRAKE<JE5> (C) ID=5-12 L=14.5	1-09987-221-0	02	1	1502-
305	CLIP; ENG HARNESS (J) ID=16 L=28	0-95235-556-0	02	1	1001-
305	CLIP; ENG HARNESS (I) ID=16 L=40	0-95235-576-0	01	1	1001-
305	CLIP; ENG HARNESS (D) ID=24 L=32	1-09700-766-1	01	1	1001-
305	CLIP; ENG HARNESS (F) ID=24 L=27	1-09700-809-0	03	1	1001-
305	CLIP; ENG HARNESS (G) ID=20 H=23 L=27	1-09700-861-0	01	1	1001-
305	CLIP; ENG HARNESS (B) ID=19 L=39 H=21	1-09700-972-1	01	1	1001-
305	CLIP; ENG HARNESS (A) ID=25 L=60	1-09701-041-1	01	1	1001-
305	CLIP; ENG HARNESS (H) OD=9 H=6	1-09709-178-0	01	1	1001-
305	CLIP; ENG HARNESS (E) ID=21 L=47.5	8-94178-108-0	01	1	1001-
305	CLIP; ENG HARNESS (C) L=100	8-94443-021-1	01	1	1001-1310
305	CLIP; ENG HARNESS (C) L=100	8-94443-021-1	02	1	1311-
306	CLIP; HARNESS,ELEC GOV (A) ID=27.5 H=23 L=24	1-09700-863-0	01	1	1001-
306	CLIP; HARNESS,ELEC GOV (B) ID=28X2 L=28	1-09701-302-0	02	1	1001-
470	CLIP; HARNESS,LICENSE LAMP (A) OD=9 H=6	1-09709-178-0	01	1	1001-
470	CLIP; HARNESS,LICENSE LAMP PINTLE HOOK<PP7> (B) ID=11 L=41	1-09700-403-0	01	1	1001-1411

16 16 171 223 235 171 235 305

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS ANTI LOCK BRAKE<JE5> (J) ID=11 L=20	0-95235-035-0	02	1	1502-
16	CLIP; HARNESS ANTI LOCK BRAKE<JE5> (K) ID=11X2 L=16	0-95325-025-0	01	1	1502-
16	CLIP; HARNESS ANTI LOCK BRAKE<JE5> (L) ID=5-12 L=14.5	1-09987-221-0	04	1	1502-
16	CLIP; HARNESS ANTI LOCK BRAKE<JE5> (M) L=140 SOU	5-09707-031-1	01	1	1502-
16	CLIP; HARNESS (G) ID=10 & 10	1-09709-277-1	05	1	1001-
16	CLIP; HARNESS (A) ID=16 L=28	0-95235-556-0	02	1	1001-
16	CLIP; HARNESS (F) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	1001-
16	CLIP; HARNESS (F) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	1001-
16	CLIP; HARNESS (D) ID=35 L=33	1-09700-945-0	01	1	1001-
16	CLIP; HARNESS (I) L=350	1-09707-183-0	02	1	1001-
16	CLIP; HARNESS (E) ID=10 & 16 SOU	8-94413-325-0	01	1	1001-
16	CLIP; HARNESS (B) L=155 SOU	8-97173-307-0	18	1	1001-
16	CLIP; HARNESS (H) L=40.6	8-97229-357-0	02	1	1001-
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	1001-
171	CLIP; STARTER HARNESS MLD6W M/T(Y2C) (A) ID=11 L=28	0-95235-055-0	01	1	1001-
171	CLIP; STARTER HARNESS MLD6W M/T(Y2C) (B) ID=16 L=28	0-95235-556-0	01	1	1001-
171	CLIP; STARTER HARNESS MLD6W M/T(Y2C) (C) OD=9 H=6	1-09709-178-0	02	1	1001-
171	CLIP; STARTER HARNESS MLD6W M/T(Y2C) (D) ID=13-18 L=14.5	1-09709-290-0	01	1	1001-
171	CLIP; STARTER HARNESS MLD6W M/T(Y2C) (E) ID=5-12 L=14.5	1-09987-221-0	01	1	1001-
223	CLIP; AIR TANK HARNESS ANTI LOCK BRAKE<JE5> (E) ID=10 & 12	1-09709-278-1	01	1	1412-1501
223	CLIP; AIR TANK HARNESS ANTI LOCK BRAKE<JE5> (B) ID=10 & 10	1-09709-277-1	01	1	1502-
223	CLIP; AIR TANK HARNESS ANTI LOCK BRAKE<JE5> (F) ID=10 & 15	1-09709-279-1	01	1	1502-
223	CLIP; AIR TANK HARNESS (A) OD=9 H=6	1-09709-178-0	01	1	1001-
223	CLIP; AIR TANK HARNESS AIR DRYER<PS7> (A) OD=9 H=6	1-09709-178-0	01	1	1001-
223	CLIP; AIR TANK HARNESS (C) ID=6.35 & 10.0	1-09709-274-1	01	1	1001-1411
223	CLIP; AIR TANK HARNESS EXC. ANTI LOCK BRAKE<JE5> (C) ID=6.35 & 10.0	1-09709-274-1	01	1	1412-
223	CLIP; AIR TANK HARNESS (B) ID=10 & 10	1-09709-277-1	02	1	1001-1501
223	CLIP; AIR TANK HARNESS EXC. ANTI LOCK BRAKE<JE5> (B) ID=10 & 10	1-09709-277-1	02	1	1502-
223	CLIP; AIR TANK HARNESS AIR DRYER<PS7> (D) ID=5-12 L=14.5	1-09987-221-0	01	1	1001-1411
223	CLIP; AIR TANK HARNESS ANTI LOCK BRAKE<JE5> (D) ID=5-12 L=14.5	1-09987-221-0	01	1	1412-1501
223	CLIP; AIR TANK HARNESS AIR DRYER<PS7> (D) ID=5-12 L=14.5	1-09987-221-0	01	1	1412-1501
223	CLIP; AIR TANK HARNESS AIR DRYER<PS7> (D) ID=5-12 L=14.5	1-09987-221-0	01	1	1502-
235	CLIP; HARNESS,SPD SENSOR,SSPS ANTI LOCK BRAKE<JE5> (A) ID=15 L=28	1-09701-216-0	01	1	1412-1501
235	CLIP; HARNESS,SPD SENSOR,SSPS ANTI LOCK BRAKE<JE5> (B) ID=11 H=45 L=25	1-09700-866-0	01	1	1502-
235	CLIP; HARNESS,SPD SENSOR,SSPS ANTI LOCK BRAKE<JE5> (C) ID=5-12 L=14.5	1-09987-221-0	02	1	1502-
305	CLIP; ENG HARNESS (J) ID=16 L=28	0-95235-556-0	02	1	1001-
305	CLIP; ENG HARNESS (I) ID=16 L=40	0-95235-576-0	01	1	1001-
305	CLIP; ENG HARNESS (D) ID=24 L=32	1-09700-766-1	01	1	1001-
305	CLIP; ENG HARNESS (F) ID=24 L=27	1-09700-809-0	03	1	1001-
305	CLIP; ENG HARNESS (G) ID=20 H=23 L=27	1-09700-861-0	01	1	1001-
305	CLIP; ENG HARNESS (B) ID=19 L=39 H=21	1-09700-972-1	01	1	1001-
305	CLIP; ENG HARNESS (A) ID=25 L=60	1-09701-041-1	01	1	1001-
305	CLIP; ENG HARNESS (H) OD=9 H=6	1-09709-178-0	01	1	1001-
305	CLIP; ENG HARNESS (E) ID=21 L=47.5	8-94178-108-0	01	1	1001-
305	CLIP; ENG HARNESS (C) L=100	8-94443-021-1	01	1	1001-1310
305	CLIP; ENG HARNESS (C) L=100	8-94443-021-1	02	1	1311-

139 304 139 38 516 304 304 38 386 127 38 150 139 242 139 38 313 139 38 313 139 139 139 184 516 38 377 386 524 294 219 525 294 47

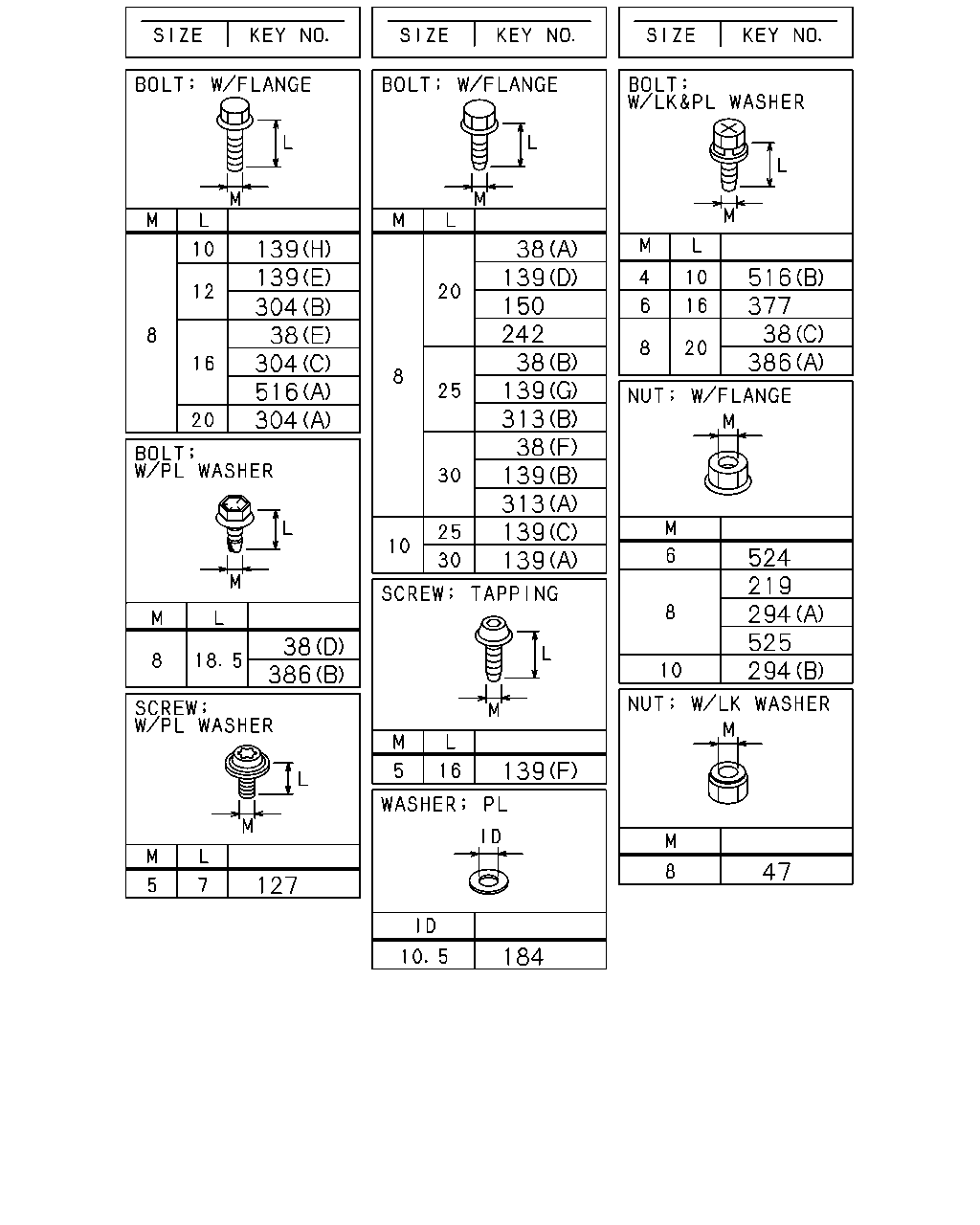

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
38	BOLT; CLIP,HARNESS ANTI LOCK BRAKE<JE5> (E) M8X16 FLANGE SOU	0-28050-816-0	02	1	1502-
38	BOLT; CLIP,HARNESS ANTI LOCK BRAKE<JE5> (F) M8X30 FLANGE	0-28650-830-0	01	1	1502-
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28650-820-0	01	1	1001-1501
38	BOLT; CLIP,HARNESS (A) M8X25 FLANGE SOU	0-28650-825-0	01	1	1502-
38	BOLT; CLIP,HARNESS (B) M8X25 FLANGE SOU	0-28650-825-0	01	1	1001-1411
38	BOLT; CLIP,HARNESS ANTI LOCK BRAKE<JE5> (B) M8X25 FLANGE SOU	0-28650-825-0	01	1	1412-1501
38	BOLT; CLIP,HARNESS (B) M8X25 FLANGE SOU	0-28650-825-0	01	1	1412-1501
38	BOLT; CLIP,HARNESS (B) M8X20 FLANGE	0-28650-820-0	01	1	1502-
38	BOLT; CLIP,HARNESS ANTI LOCK BRAKE<JE5> (B) M8X20 FLANGE	0-28650-820-0	01	1	1502-
38	BOLT; CLIP,HARNESS (B) M8X25 FLANGE SOU	0-28650-825-0	02	1	1001-
38	BOLT; CLIP,HARNESS (B) M8X25 FLANGE SOU	0-28650-825-0	03	1	1001-
38	BOLT; CLIP,HARNESS (C) M8X20 W/LK&PL WASHER SOU	8-97086-825-0	03	1	1001-1201
38	BOLT; CLIP,HARNESS (D) M8X18.5 W/PL WASHER	8-98141-255-0	03	1	1202-
47	NUT; GEN TERMINAL M8 W/LK WASHER SOU	8-94279-050-0	01	1	1409-
127	SCREW; FACIA HARNESS CLIP EXC. IMMOBILIZER SYSTEM<7KC> M5X7 HEXALOBULAR SOCKET	8-98063-767-0	01	1	1412-
139	BOLT; BRKT ANTI LOCK BRAKE<JE5> (G) M8X25 FLANGE SOU	0-28650-825-0	02	1	1412-1501
139	BOLT; BRKT ANTI LOCK BRAKE<JE5> (G) M8X25 FLANGE SOU	0-28650-825-0	02	1	1502-
139	BOLT; BRKT ANTI LOCK BRAKE<JE5> (G) M8X25 FLANGE SOU	0-28650-825-0	02	1	1502-
139	BOLT; BRKT ANTI LOCK BRAKE<JE5> (H) M8X10 FLANGE	0-28050-810-0	01	1	1412-
139	BOLT; BRKT (E) M8X12 FLANGE	0-28050-812-0	01	1	1001-
139	BOLT; BRKT (D) M8X20 FLANGE	0-28650-820-0	01	1	1001-
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	01	1	1001-
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	01	1	1001-
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	1001-1501
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	1001-1501
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	1502-
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	1502-
139	BOLT; BRKT ANTI LOCK BRAKE<JE5> (B) M8X30 FLANGE	0-28650-830-0	02	1	1502-
139	BOLT; BRKT (C) M10X25 FLANGE SOU	0-28651-025-0	02	1	1001-
139	BOLT; BRKT (A) M10X30 FLANGE SOU	0-28651-030-0	01	1	1001-
139	BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (F) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1001-
150	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	1001-
184	WASHER; PL,STARTER EARTH ID=10.5 OD=22 T=2.0 SOU	1-09503-265-0	01	1	1001-
219	NUT ANTI LOCK BRAKE<JE5> M8 FLANGE SOU	0-91180-108-0	01	1	1412-1501
219	NUT ANTI LOCK BRAKE<JE5> M8 FLANGE SOU	0-91180-108-0	01	1	1502-
219	NUT ANTI LOCK BRAKE<JE5> M8 FLANGE SOU	0-91180-108-0	01	1	1502-
219	NUT M8 FLANGE SOU	0-91180-108-0	02	1	1001-
242	BOLT; BRKT,HARNESS M8X20 FLANGE	0-28650-820-0	01	1	1001-
294	NUT ANTI LOCK BRAKE<JE5> (A) M8 FLANGE SOU	0-91180-108-0	02	1	1412-
294	NUT ANTI LOCK BRAKE<JE5> (A) M8 FLANGE SOU	0-91180-108-0	04	1	1502-
294	NUT (A) M8 FLANGE SOU	0-91180-108-0	03	1	1001-
294	NUT (A) M8 FLANGE SOU	0-91180-108-0	05	1	1001-
294	NUT (A) M8 FLANGE SOU	0-91180-108-0	01	1	1001-
294	NUT (A) M8 FLANGE SOU	0-91180-108-0	01	1	1001-
294	NUT (B) M10 FLANGE SOU	0-91180-210-0	02	1	1001-
304	BOLT; ENG HARNESS CLIP (B) M8X12 FLANGE	0-28050-812-0	06	1	1001-
304	BOLT; ENG HARNESS CLIP (C) M8X16 FLANGE SOU	0-28050-816-0	05	1	1001-
304	BOLT; ENG HARNESS CLIP (A) M8X20 FLANGE	0-28050-820-0	04	1	1001-
313	BOLT; BRKT (B) M8X25 FLANGE SOU	0-28650-825-0	01	1	1001-
313	BOLT; BRKT (B) M8X25 FLANGE SOU	0-28650-825-0	01	1	1001-
313	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	04	1	1001-
377	BOLT; CAB EARTH M6X16 W/LK&PL WASHER	8-97086-823-0	02	1	1001-
386	BOLT; GRAND HARNESS (A) M8X20 W/LK&PL WASHER SOU	8-97086-825-0	02	1	1001-1202
386	BOLT; GRAND HARNESS (B) M8X18.5 W/PL WASHER	8-98141-255-0	02	1	1203-
516	BOLT; HARNESS (B) M4X10 W/LK&PL WASHER	0-36230-410-0	01	1	1001-
516	BOLT; HARNESS MLD6W M/T(Y2C) (A) M8X16 FLANGE SOU	0-28050-816-0	02	1	1001-
524	NUT; HARNESS M6 FLANGE SOU	0-91180-106-0	04	1	1001-
525	NUT; CLIP M8 FLANGE SOU	0-91180-108-0	01	1	1001-
525	NUT; CLIP M8 FLANGE SOU	0-91180-108-0	02	1	1001-

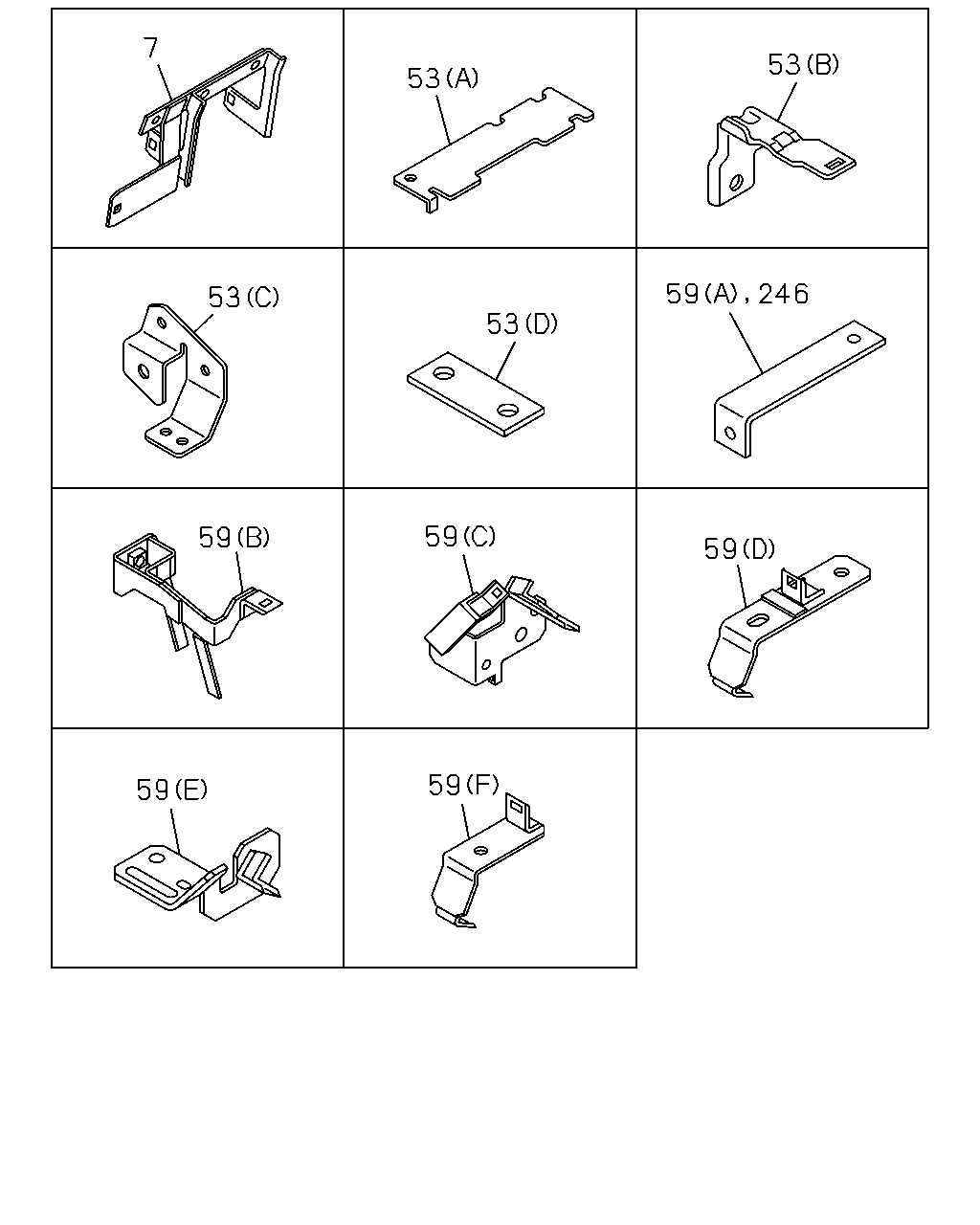

7 53 53 53 53 59 246 59 59 59 59 59

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
7	BRACKET; CONNECTOR	8-98049-798-1	01	1	1001-
53	BRACKET; HARNESS ANTI LOCK BRAKE<JE5> (D)	1-82699-239-0	01	1	1412-
53	BRACKET; HARNESS (B)	8-98052-458-0	01	1	1001-
53	BRACKET; HARNESS (A)	8-98127-093-0	01	1	1001-
53	BRACKET; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C)	8-98084-590-0	01	1	1001-
59	BRACKET; FRAME HARNESS (A) L=95	1-82699-085-0	01	1	1001-
59	BRACKET; FRAME HARNESS (C)	8-97622-828-0	01	1	1001-
59	BRACKET; FRAME HARNESS (F)	8-98118-500-0	01	1	1001-
59	BRACKET; FRAME HARNESS (D)	8-98152-281-0	01	1	1001-
59	BRACKET; FRAME HARNESS (E)	8-97616-305-0	01	1	1001-1502
59	BRACKET; FRAME HARNESS (E)	8-98254-592-0	01	1	1503-
59	BRACKET; FRAME HARNESS MLD6W M/T(Y2C) (B)	8-97627-325-0	01	1	1001-
59	BRACKET; FRAME HARNESS MZX6P M/T(RSW),MZW6P M/T(RSZ) (B)	8-97609-264-2	01	1	1001-
246	BRACKET; CLIP,SPD SENSOR L=95	1-82699-085-0	01	1	1001-

16 48 14 206 225 217 14 16 48 225 224 1 1 194 225 503 503 503 305 178 178 178 16 538 16 16 530

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SLEEVE; RUBBER (B) ID=14 OD=18 L=60	1-09337-030-0	01	1	1001-
1	SLEEVE; RUBBER (A) ID=10 OD=14 L=30	9-09956-682-0	03	1	1001-
14	CLIP; BAND,HARNESS (B) L=350	1-09707-183-0	01	1	1001-
14	CLIP; BAND,HARNESS (A) L=250 SOU	5-09707-030-1	08	1	1001-1205
14	CLIP; BAND,HARNESS (A) L=250	8-98216-430-0	08	1	1206-
16	CLIP; HARNESS ANTI LOCK BRAKE<JE5> (J) ID=11 L=20	0-95235-035-0	02	1	1502-
16	CLIP; HARNESS ANTI LOCK BRAKE<JE5> (K) ID=11X2 L=16	0-95325-025-0	01	1	1502-
16	CLIP; HARNESS ANTI LOCK BRAKE<JE5> (L) ID=5-12 L=14.5	1-09987-221-0	04	1	1502-
16	CLIP; HARNESS ANTI LOCK BRAKE<JE5> (M) L=140 SOU	5-09707-031-1	01	1	1502-
16	CLIP; HARNESS (G) ID=10 & 10	1-09709-277-1	05	1	1001-
16	CLIP; HARNESS (A) ID=16 L=28	0-95235-556-0	02	1	1001-
16	CLIP; HARNESS (F) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	1001-
16	CLIP; HARNESS (F) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	1001-
16	CLIP; HARNESS (D) ID=35 L=33	1-09700-945-0	01	1	1001-
16	CLIP; HARNESS (I) L=350	1-09707-183-0	02	1	1001-
16	CLIP; HARNESS (E) ID=10 & 16 SOU	8-94413-325-0	01	1	1001-
16	CLIP; HARNESS (B) L=155 SOU	8-97173-307-0	18	1	1001-
16	CLIP; HARNESS (H) L=40.6	8-97229-357-0	02	1	1001-
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	1001-
48	CLIP; FRAME HARNESS ANTI LOCK BRAKE<JE5> (F) ID=14 L=44	9-09917-427-0	12	1	1502-
48	CLIP; FRAME HARNESS (E) L=250 SOU	5-09707-030-1	01	1	1005-1501
48	CLIP; FRAME HARNESS EXC. ANTI LOCK BRAKE<JE5> (E) L=250 SOU	5-09707-030-1	01	1	1502-
48	CLIP; FRAME HARNESS (F) ID=14 L=44	9-09917-427-0	13	1	1008-1502
48	CLIP; FRAME HARNESS EXC. ANTI LOCK BRAKE<JE5> (F) ID=14 L=44	9-09917-427-0	13	1	1503-
48	CLIP; FRAME HARNESS (C) ID=35 L=50	1-09701-214-0	01	1	1001-
48	CLIP; FRAME HARNESS (B) L=350	1-09707-183-0	01	1	1001-
48	CLIP; FRAME HARNESS (A) OD=9 H=9.5	1-09709-179-0	01	1	1001-
48	CLIP; FRAME HARNESS (E) L=250 SOU	5-09707-030-1	02	1	1001-
48	CLIP; FRAME HARNESS (D) ID=20 L=50 SOU	9-09917-430-0	15	1	1001-1007
48	CLIP; FRAME HARNESS (D) ID=20 L=50 SOU	9-09917-430-0	02	1	1008-1201
48	CLIP; FRAME HARNESS (F) ID=14 L=44	9-09917-427-0	02	1	1202-
178	GROMMET; HARNESS ANTI LOCK BRAKE<JE5> (C) ID=32 OD=40 T=18	1-09891-003-0	01	1	1502-
178	GROMMET; HARNESS (B) ID=24 OD=30 T=17	9-09956-092-1	01	1	1001-1411
178	GROMMET; HARNESS (B) ID=24 OD=30 T=17	9-09956-092-1	01	1	1001-1411
178	GROMMET; HARNESS (B) ID=24 OD=30 T=17	9-09956-092-1	01	1	1412-
178	GROMMET; HARNESS (B) ID=24 OD=30 T=17	9-09956-092-1	01	1	1412-
178	GROMMET; HARNESS ANTI LOCK BRAKE<JE5> (B) ID=24 OD=30 T=17	9-09956-092-1	01	1	1412-
178	GROMMET; HARNESS (A) ID=28 OD=35 T=17	9-09956-256-2	02	1	1001-
178	GROMMET; HARNESS (A) ID=28 OD=35 T=17	9-09956-256-2	01	1	1001-1501
178	GROMMET; HARNESS (A) ID=28 OD=35 T=17	9-09956-256-2	01	1	1001-1501
178	GROMMET; HARNESS (A) ID=28 OD=35 T=17	9-09956-256-2	01	1	1502-
178	GROMMET; HARNESS EXC. ANTI LOCK BRAKE<JE5> (A) ID=28 OD=35 T=17	9-09956-256-2	01	1	1502-
194	CLIP; BAND L=180 SOU	1-09707-162-1	01	1	1001-
206	CLIP; FUEL TANK HARNESS L=250 SOU	5-09707-030-1	02	1	1001-
217	CLIP; RR BODY HARNESS L=250 SOU	5-09707-030-1	02	1	1001-
224	SLEEVE; RUBBER,HARNESS ID=9.5 OD=14.5 L=120	9-09913-202-1	01	1	1005-1010
225	CLIP; AIR TANK HARNESS ANTI LOCK BRAKE<JE5> (B) L=180 SOU	1-09707-162-1	04	1	1412-
225	CLIP; AIR TANK HARNESS ANTI LOCK BRAKE<JE5> (A) L=250 SOU	5-09707-030-1	01	1	1412-1501
225	CLIP; AIR TANK HARNESS ANTI LOCK BRAKE<JE5> (A) L=250 SOU	5-09707-030-1	03	1	1502-
225	CLIP; AIR TANK HARNESS ANTI LOCK BRAKE<JE5> (C) L=600	8-98172-345-0	03	1	1502-1502
225	CLIP; AIR TANK HARNESS ANTI LOCK BRAKE<JE5> (C) L=600	8-98172-345-0	01	1	1503-
225	CLIP; AIR TANK HARNESS (A) L=250 SOU	5-09707-030-1	02	1	1001-
225	CLIP; AIR TANK HARNESS EXC. AIR DRYER<PS7> (B) L=180 SOU	1-09707-162-1	01	1	1001-
305	CLIP; ENG HARNESS (J) ID=16 L=28	0-95235-556-0	02	1	1001-
305	CLIP; ENG HARNESS (I) ID=16 L=40	0-95235-576-0	01	1	1001-
305	CLIP; ENG HARNESS (D) ID=24 L=32	1-09700-766-1	01	1	1001-
305	CLIP; ENG HARNESS (F) ID=24 L=27	1-09700-809-0	03	1	1001-
305	CLIP; ENG HARNESS (G) ID=20 H=23 L=27	1-09700-861-0	01	1	1001-
305	CLIP; ENG HARNESS (B) ID=19 L=39 H=21	1-09700-972-1	01	1	1001-
305	CLIP; ENG HARNESS (A) ID=25 L=60	1-09701-041-1	01	1	1001-
305	CLIP; ENG HARNESS (H) OD=9 H=6	1-09709-178-0	01	1	1001-
305	CLIP; ENG HARNESS (E) ID=21 L=47.5	8-94178-108-0	01	1	1001-
305	CLIP; ENG HARNESS (C) L=100	8-94443-021-1	01	1	1001-1310
305	CLIP; ENG HARNESS (C) L=100	8-94443-021-1	02	1	1311-
503	CONNECTOR ANTI LOCK BRAKE<JE5> EXC. AIR DRYER<PS7> (C)	1-82691-191-0	01	1	1503-1512
503	CONNECTOR EXC. AIR CONDITIONER MANUAL CONTROL(C60) (A) SOU	1-82690-668-0	01	1	1001-
503	CONNECTOR EXC. AIR DRYER<PS7> (B) SOU	1-82690-666-0	01	1	1001-
530	SEAL; HARNESS 180X40	1-72498-019-1	14	1	1001-1305
530	SEAL; HARNESS 180X40	1-72498-019-1	01	1	1306-
530	SEAL; HARNESS 100X40 SOU	1-72498-022-1	06	1	1001-1305
530	SEAL; HARNESS 180X40	1-72498-019-1	16	1	1306-
538	SEAL; HOLE OD=25 BLACK SOU	1-76798-019-0	01	1	1001-

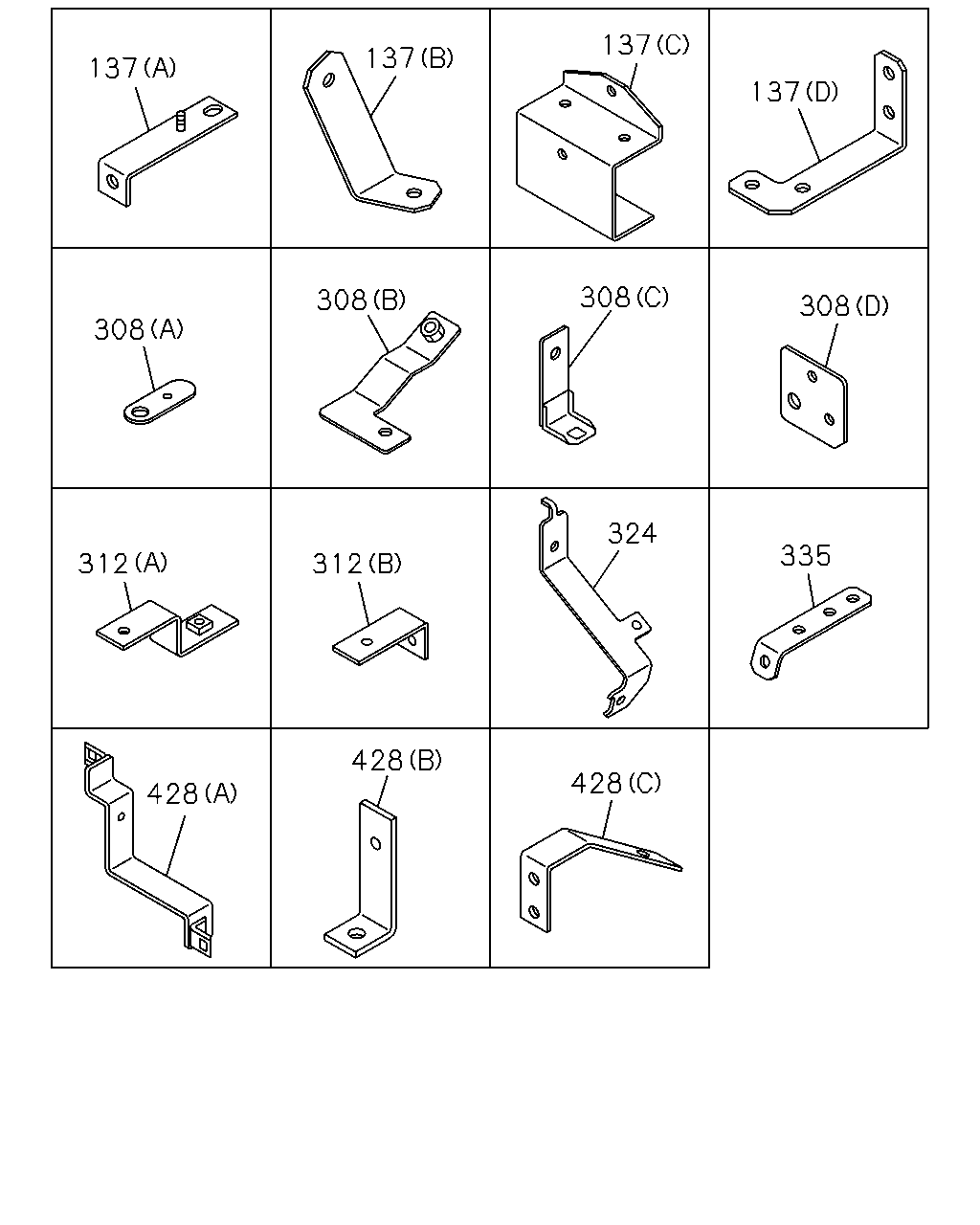

137 137 137 137 308 308 308 308 312 312 324 335 428 428 428

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
137	BRACKET; HARNESS CLAMP ANTI LOCK BRAKE<JE5> (C)	8-97609-797-1	02	1	1412-
137	BRACKET; HARNESS CLAMP ANTI LOCK BRAKE<JE5> (D)	8-98244-722-0	01	1	1502-
137	BRACKET; HARNESS CLAMP (B)	8-97614-728-1	01	1	1001-
137	BRACKET; HARNESS CLAMP (A)	8-97624-013-0	01	1	1001-
308	BRACKET; CLIP,ENG HARNESS (A)	8-97601-310-0	02	1	1001-
308	BRACKET; CLIP,ENG HARNESS (D)	8-98021-692-1	01	1	1001-
308	BRACKET; CLIP,ENG HARNESS (B)	8-98032-178-0	01	1	1001-
308	BRACKET; CLIP,ENG HARNESS (C)	8-98075-824-0	01	1	1001-
312	BRACKET; CLIP HARNESS (B) L=55	1-47475-304-0	01	1	1001-
312	BRACKET; CLIP HARNESS (A)	8-97609-110-1	01	1	1001-
324	BRACKET; CLIP ANTI LOCK BRAKE<JE5>	8-98209-753-0	01	1	1502-
324	BRACKET; CLIP ANTI LOCK BRAKE<JE5>	8-98209-754-0	01	1	1502-
335	BRACKET; CONNECTOR	1-82698-167-0	01	1	1001-
428	BRACKET (B)	1-47475-519-0	01	1	1001-
428	BRACKET (C)	8-98049-870-2	01	1	1001-
428	BRACKET (A)	8-98090-953-1	01	1	1001-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
