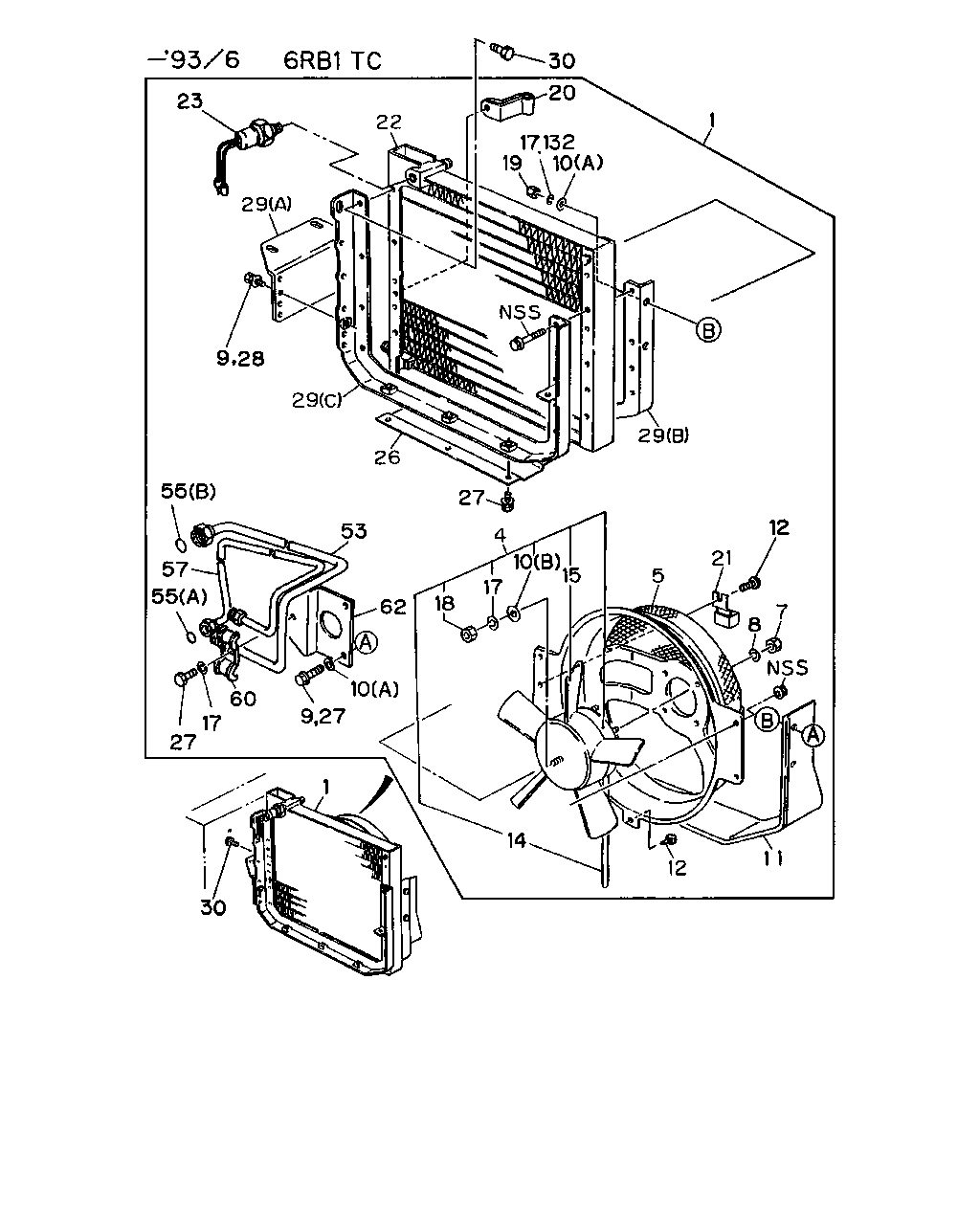

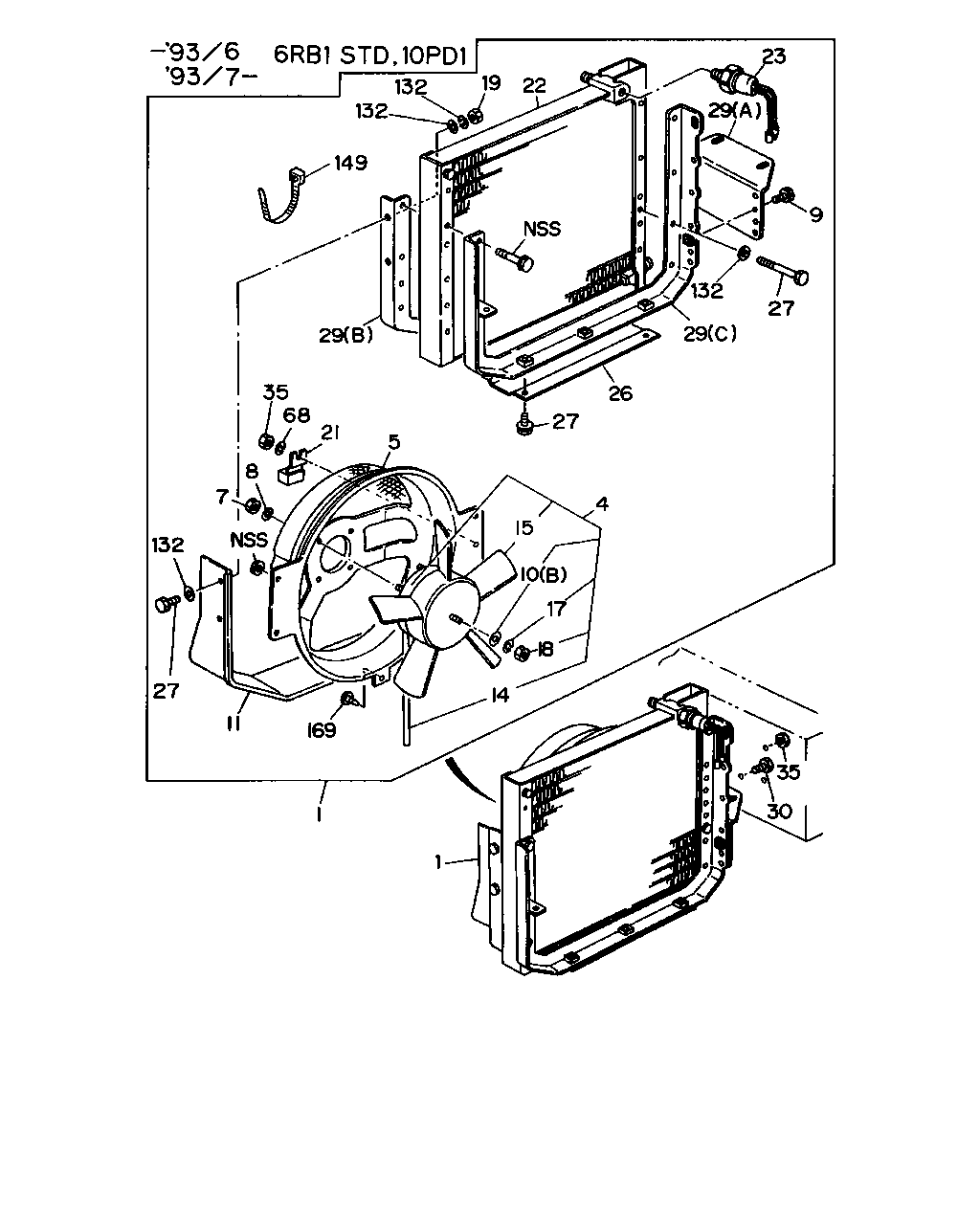

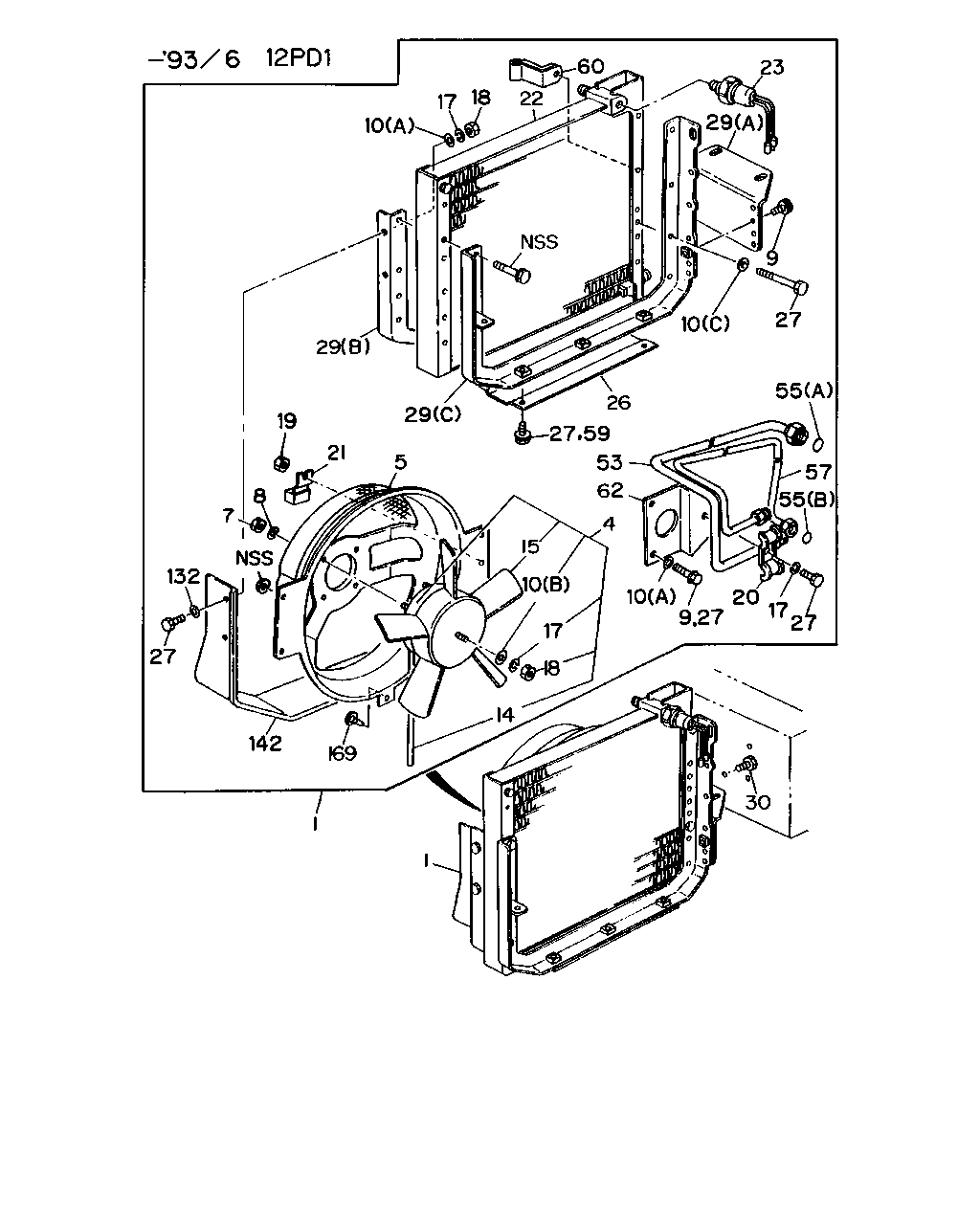

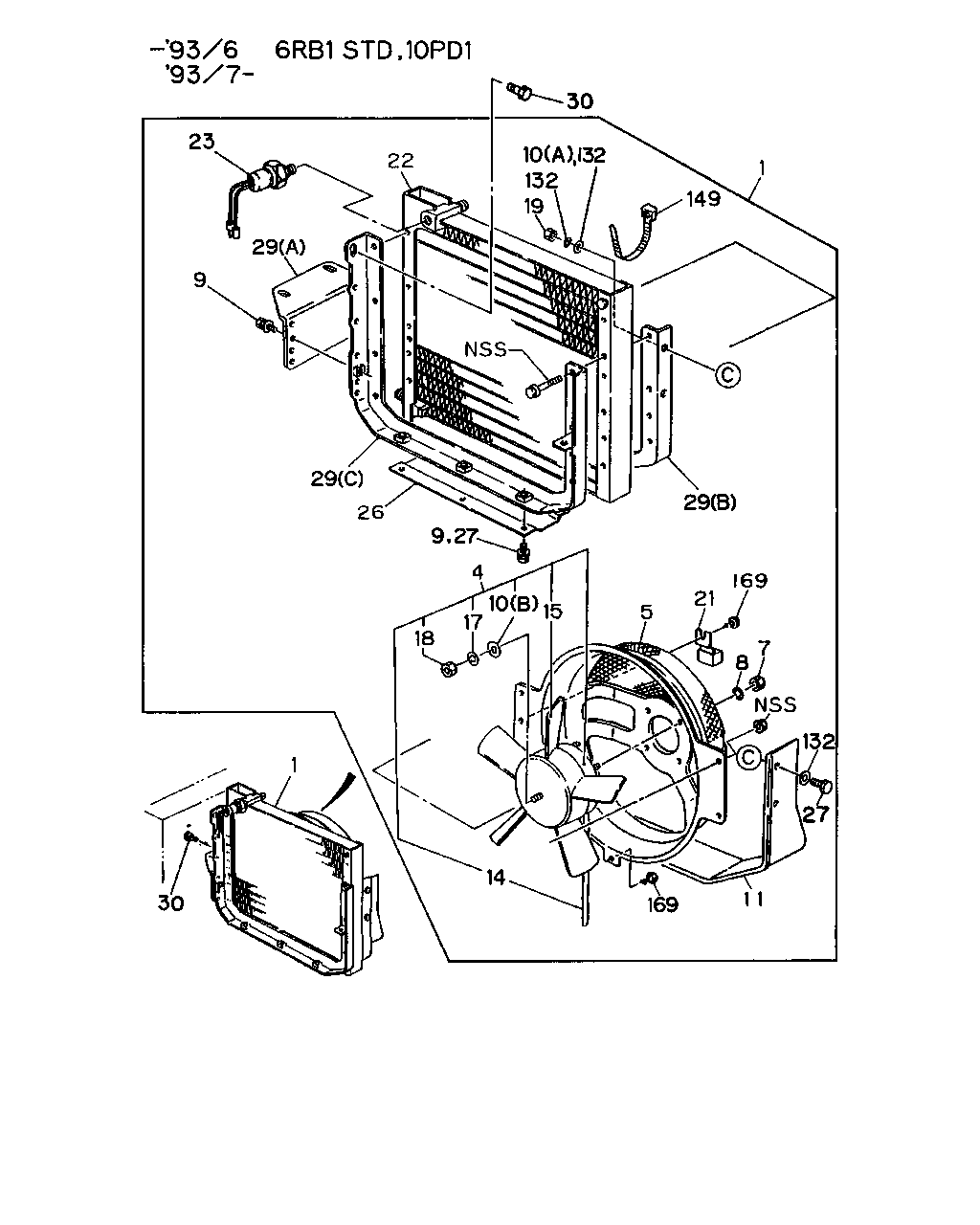

8-75 — CONDENSER (#1836) — 431 parça

10 17 18 22 60 23 27 9 10 29 55 57 53 59 26 27 29 29 62 55 17 27 9 27 20 10 4 15 17 18 10 14 169 1 1 142 27 132 7 19 21 5 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CONDENSER; A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-166-0	01	1	9307-	●
1	CONDENSER; A/C 6RB1 STD ENG(07L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-055-2	01	1	9002-9306	●
1	CONDENSER; A/C 6RB1TC ENG(30L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-064-1	01	1	9002-9306	●
1	CONDENSER; A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-167-0	01	1	9307-		●
1	CONDENSER; A/C 12PD1 STD ENG(42L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-065-1	01	1	9002-9306		●
1	CONDENSER; A/C 6RB1 STD ENG(07L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-049-2	01	1	9002-9306		●
4	MOTOR ASM; FAN AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-033-0	01	1	9002-9306	●	●
4	MOTOR ASM; FAN AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-175-0	01	1	9307-	●	●
5	SHROUD; FAN MOTOR 6RB1 STD ENG(07L),6RB1TC ENG(30L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-185-0	01	1	9107-9306	●
5	SHROUD; FAN MOTOR 12PD1 STD ENG(42L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-185-0	01	1	9107-9306		●
5	SHROUD; FAN MOTOR AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-185-0	01	1	9307-	●	●
5	SHROUD; FAN MOTOR 6RB1 STD ENG(07L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-034-0	01	1	9002-9306		●
7	NUT; FAN AIR CONDITIONER MANUAL CONTROL(C60) M4	1-83539-065-0	04	1	9002-	●	●
9	BOLT; BRKT 6RB1 STD ENG(07L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) M8X22	1-83579-198-0	06	1	9002-9009	●
9	BOLT; BRKT 6RB1TC ENG(30L) AIR CONDITIONER MANUAL CONTROL(C60) M8X18	1-83539-067-0	02	1	9002-9106	●
9	BOLT; BRKT 6RB1TC ENG(30L) AIR CONDITIONER MANUAL CONTROL(C60) M8X18	9-02040-818-0	02	1	9107-9306	●
9	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M8X22	1-83579-198-0	06	1	9307-	●	●
9	BOLT; BRKT 6RB1 STD ENG(07L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) M8X22	1-83579-198-0	06	1	9010-9306	●	●
9	BOLT; BRKT 12PD1 STD ENG(42L) AIR CONDITIONER MANUAL CONTROL(C60) L=55	1-83539-087-0	01	1	9002-9306		●
9	BOLT; BRKT 6RB1 STD ENG(07L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) M8X22 W/LK&PL WASHER	9-01960-822-0	06	1	9002-9009		●
10	WASHER; PL,FAN 6RB1TC ENG(30L),12PD1 STD ENG(42L) AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=8	1-14319-034-0	02	1	9002-9106	●	●
10	WASHER; PL,FAN 6RB1TC ENG(30L),12PD1 STD ENG(42L) AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=8	1-14319-034-0	05	1	9107-9306	●	●
10	WASHER; PL,FAN 6RB1TC ENG(30L),12PD1 STD ENG(42L) AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=5.3	9-09160-505-0	01	1	9002-9106	●	●
10	WASHER; PL,FAN 12PD1 STD ENG(42L) AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=6.4 OD=14	9-09160-606-0	01	1	9002-9306		●
10	WASHER; PL,FAN 6RB1 STD ENG(07L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83539-045-0	01	1	9010-9106		●
10	WASHER; PL,FAN AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83539-045-0	01	1	9107-	●	●
14	HOSE; DRAIN AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-258-0	01	1	9002-	●	●
15	FAN; MOTOR AIR CONDITIONER MANUAL CONTROL(C60)	1-83561-064-0	01	1	9002-	●	●
17	WASHER; LK,FAN 6RB1TC ENG(30L) AIR CONDITIONER MANUAL CONTROL(C60) ID=8.2	9-09150-608-0	03	1	9002-9106	●
17	WASHER; LK,FAN 6RB1TC ENG(30L),12PD1 STD ENG(42L) AIR CONDITIONER MANUAL CONTROL(C60) ID=8	1-83579-492-0	03	1	9107-9306	●	●
17	WASHER; LK,FAN AIR CONDITIONER MANUAL CONTROL(C60) ID=5.1	9-09150-505-0	01	1	9002-9009	●	●
17	WASHER; LK,FAN 6RB1 STD ENG(07L),6RB1TC ENG(30L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) ID=5.1	9-09150-505-0	01	1	9010-9106	●
17	WASHER; LK,FAN 12PD1 STD ENG(42L) AIR CONDITIONER MANUAL CONTROL(C60) ID=5.1	9-09150-505-0	01	1	9010-9106		●
17	WASHER; LK,FAN 12PD1 STD ENG(42L) AIR CONDITIONER MANUAL CONTROL(C60) D=18	1-83539-082-0	01	1	9002-9306		●
17	WASHER; LK,FAN 12PD1 STD ENG(42L) AIR CONDITIONER MANUAL CONTROL(C60) ID=8.2	9-09150-608-0	02	1	9002-9106		●
17	WASHER; LK,FAN 6RB1 STD ENG(07L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) ID=5	1-83539-044-0	01	1	9010-9106		●
17	WASHER; LK,FAN AIR CONDITIONER MANUAL CONTROL(C60) ID=5	1-83539-044-0	01	1	9107-	●	●
18	NUT; FAN,CENTER 6RB1TC ENG(30L) AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	1-83539-068-0	03	1	9002-9106	●
18	NUT; FAN,CENTER 6RB1TC ENG(30L),12PD1 STD ENG(42L) AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	1-83539-068-0	03	1	9107-9306	●	●
18	NUT; FAN,CENTER AIR CONDITIONER MANUAL CONTROL(C60) M5	9-99110-505-0	01	1	9002-	●	●
18	NUT; FAN,CENTER 12PD1 STD ENG(42L) AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	1-83539-068-0	04	1	9002-9106		●
19	NUT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	1-83539-068-0	02	1	9307-	●	●
19	NUT; BRKT 6RB1 STD ENG(07L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	1-83539-068-0	02	1	9002-9306	●	●
19	NUT; BRKT 12PD1 STD ENG(42L) AIR CONDITIONER MANUAL CONTROL(C60) M6	1-83539-083-0	01	1	9002-9306		●
20	CLIP; CONDENSER 6RB1TC ENG(30L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-081-0	01	1	9002-9306	●
20	CLIP; CONDENSER 12PD1 STD ENG(42L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-080-0	01	1	9002-9306		●
21	CONDENSER 6RB1 STD ENG(07L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-046-0	01	1	9002-9106	●
21	CONDENSER AIR CONDITIONER MANUAL CONTROL(C60)	1-84132-007-0	01	1	9107-9306	●	●
21	CONDENSER 6RB1TC ENG(30L),12PD1 STD ENG(42L) AIR CONDITIONER MANUAL CONTROL(C60)	1-84132-007-0	02	1	9002-9106	●	●
21	CONDENSER 6RB1 STD ENG(07L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60)	1-84132-007-0	01	1	9002-9106		●
21	CONDENSER AIR CONDITIONER MANUAL CONTROL(C60)	8-94150-133-0	01	1	9307-	●	●
22	CONDENSER ASM; A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-170-0	01	1	9307-	●
22	CONDENSER ASM; A/C 6RB1 STD ENG(07L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-076-0	01	1	9002-9106	●
22	CONDENSER ASM; A/C 6RB1 STD ENG(07L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-140-0	01	1	9107-9306	●
22	CONDENSER ASM; A/C 6RB1TC ENG(30L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-083-1	01	1	9002-9306	●
22	CONDENSER ASM; A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-171-0	01	1	9307-		●
22	CONDENSER ASM; A/C 12PD1 STD ENG(42L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-082-1	01	1	9002-9306		●
22	CONDENSER ASM; A/C 6RB1 STD ENG(07L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-084-1	01	1	9002-9306		●
23	SWITCH; PRESSURE,CONDENSER AIR CONDITIONER MANUAL CONTROL(C60)	1-82510-085-0	01	1	9002-9306	●	●
23	SWITCH; PRESSURE,CONDENSER AIR CONDITIONER MANUAL CONTROL(C60)	1-82380-127-0	01	1	9307-	●	●
26	BRACKET; LOW 6RB1 STD ENG(07L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83571-505-0	01	1	9002-9106	●
26	BRACKET; LOW 6RB1TC ENG(30L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-071-0	01	1	9002-9106	●
26	BRACKET; LOW 6RB1 STD ENG(07L),10PD1 STD ENG(40L),12PD1 STD ENG(42L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-071-0	01	1	9002-9106		●
26	BRACKET; LOW AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-071-0	01	1	9107-	●	●
27	BOLT; BRKT,LOW SIDE 6RB1TC ENG(30L) AIR CONDITIONER MANUAL CONTROL(C60) M8X22	1-83579-198-0	10	1	9002-9306	●
27	BOLT; BRKT,LOW SIDE AIR CONDITIONER MANUAL CONTROL(C60) M8X22	1-83579-198-0	03	1	9307-	●	●
27	BOLT; BRKT,LOW SIDE AIR CONDITIONER MANUAL CONTROL(C60) M8X18	9-02040-818-0	02	1	9307-	●	●
27	BOLT; BRKT,LOW SIDE 6RB1 STD ENG(07L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) M8X22	1-83579-198-0	03	1	9002-9306	●	●
27	BOLT; BRKT,LOW SIDE 6RB1 STD ENG(07L),10PD1 STD ENG(40L),12PD1 STD ENG(42L) AIR CONDITIONER MANUAL CONTROL(C60) M8X18	1-83539-067-0	02	1	9002-9009	●	●
27	BOLT; BRKT,LOW SIDE AIR CONDITIONER MANUAL CONTROL(C60) L=55	1-83539-087-0	01	1	9307-		●
27	BOLT; BRKT,LOW SIDE 12PD1 STD ENG(42L) AIR CONDITIONER MANUAL CONTROL(C60) M8X18	9-02040-818-0	03	1	9107-9306		●
27	BOLT; BRKT,LOW SIDE 6RB1 STD ENG(07L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) L=55	1-83539-087-0	01	1	9002-9306		●
27	BOLT; BRKT,LOW SIDE 6RB1 STD ENG(07L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) M8X22 W/LK&PL WASHER	9-01960-822-0	03	1	9002-9009		●
27	BOLT; BRKT,LOW SIDE 6RB1 STD ENG(07L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) M8X18	9-02040-818-0	02	1	9010-9106		●
27	BOLT; BRKT,LOW SIDE 6RB1 STD ENG(07L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) M8X18	9-02040-818-0	02	1	9107-9306	●	●
29	BRACKET; SIDE 6RB1 STD ENG(07L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83571-504-0	01	1	9002-9106	●
29	BRACKET; SIDE 6RB1 STD ENG(07L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83571-506-0	01	1	9002-9106	●
29	BRACKET; SIDE 12PD1 STD ENG(42L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83539-076-0	01	1	9107-9306		●
29	BRACKET; SIDE 6RB1 STD ENG(07L),6RB1TC ENG(30L),8PD1 STD ENG(38L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83539-070-0	01	1	9107-	●
29	BRACKET; SIDE 6RB1 STD ENG(07L),6RB1TC ENG(30L),8PD1 STD ENG(38L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83571-503-0	01	1	9307-	●
29	BRACKET; SIDE 6RB1 STD ENG(07L),8PD1 STD ENG(38L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83539-072-0	01	1	9107-	●
29	BRACKET; SIDE 6RB1TC ENG(30L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83539-070-0	01	1	9002-9106	●
29	BRACKET; SIDE 6RB1TC ENG(30L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83539-084-0	01	1	9002-9306	●
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83539-075-0	01	1	9002-		●
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83539-086-0	01	1	9307-		●
29	BRACKET; SIDE 6RB1 STD ENG(07L),10PD1 STD ENG(40L),12PD1 STD ENG(42L) AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83539-074-0	01	1	9002-		●
29	BRACKET; SIDE 6RB1 STD ENG(07L),10PD1 STD ENG(40L),12PD1 STD ENG(42L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83539-086-0	01	1	9002-9106		●
29	BRACKET; SIDE 6RB1 STD ENG(07L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83539-086-0	01	1	9107-9306		●
30	BOLT; CONDENSER,A/C AIR CONDITIONER MANUAL CONTROL(C60) M10X35 W/LK&PL WASHER	0-50141-035-0	05	1	9002-	●	●
53	PIPE; CONDENSER 6RB1TC ENG(30L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-088-0	01	1	9002-9306	●
53	PIPE; CONDENSER 12PD1 STD ENG(42L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-079-0	01	1	9002-9306		●
55	GASKET; PIPE 6RB1TC ENG(30L),12PD1 STD ENG(42L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-94243-998-0	01	1	9002-9106	●	●
55	GASKET; PIPE 6RB1TC ENG(30L),12PD1 STD ENG(42L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-09623-517-0	01	1	9107-9306	●	●
55	GASKET; PIPE 6RB1TC ENG(30L),12PD1 STD ENG(42L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-94244-315-0	01	1	9002-9106	●	●
55	GASKET; PIPE 6RB1TC ENG(30L),12PD1 STD ENG(42L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-94113-332-0	01	1	9107-9306	●	●
57	PIPE; CONDENSER 6RB1TC ENG(30L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-085-0	01	1	9002-9306	●
57	PIPE; CONDENSER 12PD1 STD ENG(42L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-078-0	01	1	9002-9306		●
59	BRACKET; CONDENSER 12PD1 STD ENG(42L) AIR CONDITIONER MANUAL CONTROL(C60) M8X22 W/LK&PL WASHER	9-01960-822-0	09	1	9002-9106		●
59	BRACKET; CONDENSER 12PD1 STD ENG(42L) AIR CONDITIONER MANUAL CONTROL(C60) M8X22	1-83579-198-0	10	1	9107-9306		●
60	CLIP; PIPE 6RB1TC ENG(30L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-080-0	01	1	9002-9306	●
60	CLIP; PIPE 12PD1 STD ENG(42L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-081-0	01	1	9002-9306		●
62	BRACKET; PIPE 6RB1TC ENG(30L),12PD1 STD ENG(42L) AIR CONDITIONER MANUAL CONTROL(C60)	1-89964-445-3	01	1	9002-9306	●	●
132	WASHER; BRKT 6RB1 STD ENG(07L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) ID=8.2	9-09150-608-0	02	1	9002-9106	●
132	WASHER; BRKT AIR CONDITIONER MANUAL CONTROL(C60) ID=8	1-83579-492-0	02	1	9107-	●	●
132	WASHER; BRKT 6RB1 STD ENG(07L),8PD1 STD ENG(38L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) ID=8	1-14319-034-0	04	1	9002-	●	●
132	WASHER; BRKT 6RB1 STD ENG(07L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) ID=6.4	9-09160-506-0	01	1	9002-9009		●
132	WASHER; BRKT 6RB1 STD ENG(07L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) ID=8	1-83579-492-0	02	1	9010-9106		●
132	WASHER; BRKT 6RB1 STD ENG(07L),8PD1 STD ENG(38L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) ID=6.4 OD=14	9-09160-606-0	01	1	9010-		●
142	COVER; SHROUD COVER 12PD1 STD ENG(42L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-077-0	01	1	9002-9306		●
169	SCREW; SHROUD 6RB1 STD ENG(07L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-066-0	02	1	9002-9306	●
169	SCREW; SHROUD AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-066-0	02	1	9307-	●
169	SCREW; SHROUD AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-066-0	01	1	9002-		●

132 132 19 22 149 23 9 29 27 132 26 29 27 4 15 17 18 10 14 169 11 1 1 30 35 27 132 7 8 68 35 29 21 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CONDENSER; A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-166-0	01	1	9307-	●
1	CONDENSER; A/C 6RB1 STD ENG(07L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-055-2	01	1	9002-9306	●
1	CONDENSER; A/C 6RB1TC ENG(30L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-064-1	01	1	9002-9306	●
1	CONDENSER; A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-167-0	01	1	9307-		●
1	CONDENSER; A/C 12PD1 STD ENG(42L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-065-1	01	1	9002-9306		●
1	CONDENSER; A/C 6RB1 STD ENG(07L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-049-2	01	1	9002-9306		●
4	MOTOR ASM; FAN AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-033-0	01	1	9002-9306	●	●
4	MOTOR ASM; FAN AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-175-0	01	1	9307-	●	●
5	SHROUD; FAN MOTOR 6RB1 STD ENG(07L),6RB1TC ENG(30L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-185-0	01	1	9107-9306	●
5	SHROUD; FAN MOTOR 12PD1 STD ENG(42L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-185-0	01	1	9107-9306		●
5	SHROUD; FAN MOTOR AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-185-0	01	1	9307-	●	●
5	SHROUD; FAN MOTOR 6RB1 STD ENG(07L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-034-0	01	1	9002-9306		●
7	NUT; FAN AIR CONDITIONER MANUAL CONTROL(C60) M4	1-83539-065-0	04	1	9002-	●	●
8	WASHER; LK,FAN AIR CONDITIONER MANUAL CONTROL(C60) ID=4.1	9-09150-504-0	04	1	9002-	●	●
9	BOLT; BRKT 6RB1 STD ENG(07L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) M8X22	1-83579-198-0	06	1	9002-9009	●
9	BOLT; BRKT 6RB1TC ENG(30L) AIR CONDITIONER MANUAL CONTROL(C60) M8X18	1-83539-067-0	02	1	9002-9106	●
9	BOLT; BRKT 6RB1TC ENG(30L) AIR CONDITIONER MANUAL CONTROL(C60) M8X18	9-02040-818-0	02	1	9107-9306	●
9	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M8X22	1-83579-198-0	06	1	9307-	●	●
9	BOLT; BRKT 6RB1 STD ENG(07L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) M8X22	1-83579-198-0	06	1	9010-9306	●	●
9	BOLT; BRKT 12PD1 STD ENG(42L) AIR CONDITIONER MANUAL CONTROL(C60) L=55	1-83539-087-0	01	1	9002-9306		●
9	BOLT; BRKT 6RB1 STD ENG(07L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) M8X22 W/LK&PL WASHER	9-01960-822-0	06	1	9002-9009		●
10	WASHER; PL,FAN 6RB1TC ENG(30L),12PD1 STD ENG(42L) AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=8	1-14319-034-0	02	1	9002-9106	●	●
10	WASHER; PL,FAN 6RB1TC ENG(30L),12PD1 STD ENG(42L) AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=8	1-14319-034-0	05	1	9107-9306	●	●
10	WASHER; PL,FAN 6RB1TC ENG(30L),12PD1 STD ENG(42L) AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=5.3	9-09160-505-0	01	1	9002-9106	●	●
10	WASHER; PL,FAN 12PD1 STD ENG(42L) AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=6.4 OD=14	9-09160-606-0	01	1	9002-9306		●
10	WASHER; PL,FAN 6RB1 STD ENG(07L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83539-045-0	01	1	9010-9106		●
10	WASHER; PL,FAN AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83539-045-0	01	1	9107-	●	●
11	COVER; SHROUD 6RB1 STD ENG(07L),6RB1TC ENG(30L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-035-0	01	1	9002-9306	●
11	COVER; SHROUD AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-035-0	01	1	9307-	●
11	COVER; SHROUD AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-077-0	01	1	9307-		●
11	COVER; SHROUD 6RB1 STD ENG(07L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-077-0	01	1	9002-9306		●
14	HOSE; DRAIN AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-258-0	01	1	9002-	●	●
15	FAN; MOTOR AIR CONDITIONER MANUAL CONTROL(C60)	1-83561-064-0	01	1	9002-	●	●
17	WASHER; LK,FAN 6RB1TC ENG(30L) AIR CONDITIONER MANUAL CONTROL(C60) ID=8.2	9-09150-608-0	03	1	9002-9106	●
17	WASHER; LK,FAN 6RB1TC ENG(30L),12PD1 STD ENG(42L) AIR CONDITIONER MANUAL CONTROL(C60) ID=8	1-83579-492-0	03	1	9107-9306	●	●
17	WASHER; LK,FAN AIR CONDITIONER MANUAL CONTROL(C60) ID=5.1	9-09150-505-0	01	1	9002-9009	●	●
17	WASHER; LK,FAN 6RB1 STD ENG(07L),6RB1TC ENG(30L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) ID=5.1	9-09150-505-0	01	1	9010-9106	●
17	WASHER; LK,FAN 12PD1 STD ENG(42L) AIR CONDITIONER MANUAL CONTROL(C60) ID=5.1	9-09150-505-0	01	1	9010-9106		●
17	WASHER; LK,FAN 12PD1 STD ENG(42L) AIR CONDITIONER MANUAL CONTROL(C60) D=18	1-83539-082-0	01	1	9002-9306		●
17	WASHER; LK,FAN 12PD1 STD ENG(42L) AIR CONDITIONER MANUAL CONTROL(C60) ID=8.2	9-09150-608-0	02	1	9002-9106		●
17	WASHER; LK,FAN 6RB1 STD ENG(07L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) ID=5	1-83539-044-0	01	1	9010-9106		●
17	WASHER; LK,FAN AIR CONDITIONER MANUAL CONTROL(C60) ID=5	1-83539-044-0	01	1	9107-	●	●
18	NUT; FAN,CENTER 6RB1TC ENG(30L) AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	1-83539-068-0	03	1	9002-9106	●
18	NUT; FAN,CENTER 6RB1TC ENG(30L),12PD1 STD ENG(42L) AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	1-83539-068-0	03	1	9107-9306	●	●
18	NUT; FAN,CENTER AIR CONDITIONER MANUAL CONTROL(C60) M5	9-99110-505-0	01	1	9002-	●	●
18	NUT; FAN,CENTER 12PD1 STD ENG(42L) AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	1-83539-068-0	04	1	9002-9106		●
19	NUT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	1-83539-068-0	02	1	9307-	●	●
19	NUT; BRKT 6RB1 STD ENG(07L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	1-83539-068-0	02	1	9002-9306	●	●
19	NUT; BRKT 12PD1 STD ENG(42L) AIR CONDITIONER MANUAL CONTROL(C60) M6	1-83539-083-0	01	1	9002-9306		●
21	CONDENSER 6RB1 STD ENG(07L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-046-0	01	1	9002-9106	●
21	CONDENSER AIR CONDITIONER MANUAL CONTROL(C60)	1-84132-007-0	01	1	9107-9306	●	●
21	CONDENSER 6RB1TC ENG(30L),12PD1 STD ENG(42L) AIR CONDITIONER MANUAL CONTROL(C60)	1-84132-007-0	02	1	9002-9106	●	●
21	CONDENSER 6RB1 STD ENG(07L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60)	1-84132-007-0	01	1	9002-9106		●
21	CONDENSER AIR CONDITIONER MANUAL CONTROL(C60)	8-94150-133-0	01	1	9307-	●	●
22	CONDENSER ASM; A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-170-0	01	1	9307-	●
22	CONDENSER ASM; A/C 6RB1 STD ENG(07L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-076-0	01	1	9002-9106	●
22	CONDENSER ASM; A/C 6RB1 STD ENG(07L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-140-0	01	1	9107-9306	●
22	CONDENSER ASM; A/C 6RB1TC ENG(30L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-083-1	01	1	9002-9306	●
22	CONDENSER ASM; A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-171-0	01	1	9307-		●
22	CONDENSER ASM; A/C 12PD1 STD ENG(42L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-082-1	01	1	9002-9306		●
22	CONDENSER ASM; A/C 6RB1 STD ENG(07L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-084-1	01	1	9002-9306		●
23	SWITCH; PRESSURE,CONDENSER AIR CONDITIONER MANUAL CONTROL(C60)	1-82510-085-0	01	1	9002-9306	●	●
23	SWITCH; PRESSURE,CONDENSER AIR CONDITIONER MANUAL CONTROL(C60)	1-82380-127-0	01	1	9307-	●	●
26	BRACKET; LOW 6RB1 STD ENG(07L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83571-505-0	01	1	9002-9106	●
26	BRACKET; LOW 6RB1TC ENG(30L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-071-0	01	1	9002-9106	●
26	BRACKET; LOW 6RB1 STD ENG(07L),10PD1 STD ENG(40L),12PD1 STD ENG(42L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-071-0	01	1	9002-9106		●
26	BRACKET; LOW AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-071-0	01	1	9107-	●	●
27	BOLT; BRKT,LOW SIDE 6RB1TC ENG(30L) AIR CONDITIONER MANUAL CONTROL(C60) M8X22	1-83579-198-0	10	1	9002-9306	●
27	BOLT; BRKT,LOW SIDE AIR CONDITIONER MANUAL CONTROL(C60) M8X22	1-83579-198-0	03	1	9307-	●	●
27	BOLT; BRKT,LOW SIDE AIR CONDITIONER MANUAL CONTROL(C60) M8X18	9-02040-818-0	02	1	9307-	●	●
27	BOLT; BRKT,LOW SIDE 6RB1 STD ENG(07L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) M8X22	1-83579-198-0	03	1	9002-9306	●	●
27	BOLT; BRKT,LOW SIDE 6RB1 STD ENG(07L),10PD1 STD ENG(40L),12PD1 STD ENG(42L) AIR CONDITIONER MANUAL CONTROL(C60) M8X18	1-83539-067-0	02	1	9002-9009	●	●
27	BOLT; BRKT,LOW SIDE AIR CONDITIONER MANUAL CONTROL(C60) L=55	1-83539-087-0	01	1	9307-		●
27	BOLT; BRKT,LOW SIDE 12PD1 STD ENG(42L) AIR CONDITIONER MANUAL CONTROL(C60) M8X18	9-02040-818-0	03	1	9107-9306		●
27	BOLT; BRKT,LOW SIDE 6RB1 STD ENG(07L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) L=55	1-83539-087-0	01	1	9002-9306		●
27	BOLT; BRKT,LOW SIDE 6RB1 STD ENG(07L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) M8X22 W/LK&PL WASHER	9-01960-822-0	03	1	9002-9009		●
27	BOLT; BRKT,LOW SIDE 6RB1 STD ENG(07L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) M8X18	9-02040-818-0	02	1	9010-9106		●
27	BOLT; BRKT,LOW SIDE 6RB1 STD ENG(07L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) M8X18	9-02040-818-0	02	1	9107-9306	●	●
29	BRACKET; SIDE 6RB1 STD ENG(07L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83571-504-0	01	1	9002-9106	●
29	BRACKET; SIDE 6RB1 STD ENG(07L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83571-506-0	01	1	9002-9106	●
29	BRACKET; SIDE 12PD1 STD ENG(42L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83539-076-0	01	1	9107-9306		●
29	BRACKET; SIDE 6RB1 STD ENG(07L),6RB1TC ENG(30L),8PD1 STD ENG(38L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83539-070-0	01	1	9107-	●
29	BRACKET; SIDE 6RB1 STD ENG(07L),6RB1TC ENG(30L),8PD1 STD ENG(38L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83571-503-0	01	1	9307-	●
29	BRACKET; SIDE 6RB1 STD ENG(07L),8PD1 STD ENG(38L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83539-072-0	01	1	9107-	●
29	BRACKET; SIDE 6RB1TC ENG(30L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83539-070-0	01	1	9002-9106	●
29	BRACKET; SIDE 6RB1TC ENG(30L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83539-084-0	01	1	9002-9306	●
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83539-075-0	01	1	9002-		●
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83539-086-0	01	1	9307-		●
29	BRACKET; SIDE 6RB1 STD ENG(07L),10PD1 STD ENG(40L),12PD1 STD ENG(42L) AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83539-074-0	01	1	9002-		●
29	BRACKET; SIDE 6RB1 STD ENG(07L),10PD1 STD ENG(40L),12PD1 STD ENG(42L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83539-086-0	01	1	9002-9106		●
29	BRACKET; SIDE 6RB1 STD ENG(07L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83539-086-0	01	1	9107-9306		●
30	BOLT; CONDENSER,A/C AIR CONDITIONER MANUAL CONTROL(C60) M10X35 W/LK&PL WASHER	0-50141-035-0	05	1	9002-	●	●
35	NUT; CONDENSER,A/C 6RB1 STD ENG(07L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) M6	1-83539-083-0	01	1	9002-		●
68	WASHER; LK,CONDENSER 6RB1 STD ENG(07L) 10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-082-0	01	1	9002-		●
132	WASHER; BRKT 6RB1 STD ENG(07L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) ID=8.2	9-09150-608-0	02	1	9002-9106	●
132	WASHER; BRKT AIR CONDITIONER MANUAL CONTROL(C60) ID=8	1-83579-492-0	02	1	9107-	●	●
132	WASHER; BRKT 6RB1 STD ENG(07L),8PD1 STD ENG(38L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) ID=8	1-14319-034-0	04	1	9002-	●	●
132	WASHER; BRKT 6RB1 STD ENG(07L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) ID=6.4	9-09160-506-0	01	1	9002-9009		●
132	WASHER; BRKT 6RB1 STD ENG(07L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) ID=8	1-83579-492-0	02	1	9010-9106		●
132	WASHER; BRKT 6RB1 STD ENG(07L),8PD1 STD ENG(38L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) ID=6.4 OD=14	9-09160-606-0	01	1	9010-		●
149	CLIP; HARNESS AIR CONDITIONER MANUAL CONTROL(C60) L=140	5-09707-008-0	01	1	9307-	●	●
169	SCREW; SHROUD 6RB1 STD ENG(07L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-066-0	02	1	9002-9306	●
169	SCREW; SHROUD AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-066-0	02	1	9307-	●
169	SCREW; SHROUD AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-066-0	01	1	9002-		●

23 22 20 30 17 132 1 19 10 29 9 28 26 29 27 29 53 55 57 55 62 10 9 27 60 17 27 18 17 4 5 15 10 21 12 8 7 11 12 14 1 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CONDENSER; A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-166-0	01	1	9307-	●
1	CONDENSER; A/C 6RB1 STD ENG(07L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-055-2	01	1	9002-9306	●
1	CONDENSER; A/C 6RB1TC ENG(30L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-064-1	01	1	9002-9306	●
1	CONDENSER; A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-167-0	01	1	9307-		●
1	CONDENSER; A/C 12PD1 STD ENG(42L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-065-1	01	1	9002-9306		●
1	CONDENSER; A/C 6RB1 STD ENG(07L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-049-2	01	1	9002-9306		●
4	MOTOR ASM; FAN AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-033-0	01	1	9002-9306	●	●
4	MOTOR ASM; FAN AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-175-0	01	1	9307-	●	●
5	SHROUD; FAN MOTOR 6RB1 STD ENG(07L),6RB1TC ENG(30L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-185-0	01	1	9107-9306	●
5	SHROUD; FAN MOTOR 12PD1 STD ENG(42L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-185-0	01	1	9107-9306		●
5	SHROUD; FAN MOTOR AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-185-0	01	1	9307-	●	●
5	SHROUD; FAN MOTOR 6RB1 STD ENG(07L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-034-0	01	1	9002-9306		●
7	NUT; FAN AIR CONDITIONER MANUAL CONTROL(C60) M4	1-83539-065-0	04	1	9002-	●	●
8	WASHER; LK,FAN AIR CONDITIONER MANUAL CONTROL(C60) ID=4.1	9-09150-504-0	04	1	9002-	●	●
9	BOLT; BRKT 6RB1 STD ENG(07L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) M8X22	1-83579-198-0	06	1	9002-9009	●
9	BOLT; BRKT 6RB1TC ENG(30L) AIR CONDITIONER MANUAL CONTROL(C60) M8X18	1-83539-067-0	02	1	9002-9106	●
9	BOLT; BRKT 6RB1TC ENG(30L) AIR CONDITIONER MANUAL CONTROL(C60) M8X18	9-02040-818-0	02	1	9107-9306	●
9	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M8X22	1-83579-198-0	06	1	9307-	●	●
9	BOLT; BRKT 6RB1 STD ENG(07L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) M8X22	1-83579-198-0	06	1	9010-9306	●	●
9	BOLT; BRKT 12PD1 STD ENG(42L) AIR CONDITIONER MANUAL CONTROL(C60) L=55	1-83539-087-0	01	1	9002-9306		●
9	BOLT; BRKT 6RB1 STD ENG(07L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) M8X22 W/LK&PL WASHER	9-01960-822-0	06	1	9002-9009		●
10	WASHER; PL,FAN 6RB1TC ENG(30L),12PD1 STD ENG(42L) AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=8	1-14319-034-0	02	1	9002-9106	●	●
10	WASHER; PL,FAN 6RB1TC ENG(30L),12PD1 STD ENG(42L) AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=8	1-14319-034-0	05	1	9107-9306	●	●
10	WASHER; PL,FAN 6RB1TC ENG(30L),12PD1 STD ENG(42L) AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=5.3	9-09160-505-0	01	1	9002-9106	●	●
10	WASHER; PL,FAN 12PD1 STD ENG(42L) AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=6.4 OD=14	9-09160-606-0	01	1	9002-9306		●
10	WASHER; PL,FAN 6RB1 STD ENG(07L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83539-045-0	01	1	9010-9106		●
10	WASHER; PL,FAN AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83539-045-0	01	1	9107-	●	●
11	COVER; SHROUD 6RB1 STD ENG(07L),6RB1TC ENG(30L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-035-0	01	1	9002-9306	●
11	COVER; SHROUD AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-035-0	01	1	9307-	●
11	COVER; SHROUD AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-077-0	01	1	9307-		●
11	COVER; SHROUD 6RB1 STD ENG(07L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-077-0	01	1	9002-9306		●
12	BOLT; FAN MOTOR 6RB1TC ENG(30L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-066-0	02	1	9002-9306	●
14	HOSE; DRAIN AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-258-0	01	1	9002-	●	●
15	FAN; MOTOR AIR CONDITIONER MANUAL CONTROL(C60)	1-83561-064-0	01	1	9002-	●	●
17	WASHER; LK,FAN 6RB1TC ENG(30L) AIR CONDITIONER MANUAL CONTROL(C60) ID=8.2	9-09150-608-0	03	1	9002-9106	●
17	WASHER; LK,FAN 6RB1TC ENG(30L),12PD1 STD ENG(42L) AIR CONDITIONER MANUAL CONTROL(C60) ID=8	1-83579-492-0	03	1	9107-9306	●	●
17	WASHER; LK,FAN AIR CONDITIONER MANUAL CONTROL(C60) ID=5.1	9-09150-505-0	01	1	9002-9009	●	●
17	WASHER; LK,FAN 6RB1 STD ENG(07L),6RB1TC ENG(30L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) ID=5.1	9-09150-505-0	01	1	9010-9106	●
17	WASHER; LK,FAN 12PD1 STD ENG(42L) AIR CONDITIONER MANUAL CONTROL(C60) ID=5.1	9-09150-505-0	01	1	9010-9106		●
17	WASHER; LK,FAN 12PD1 STD ENG(42L) AIR CONDITIONER MANUAL CONTROL(C60) D=18	1-83539-082-0	01	1	9002-9306		●
17	WASHER; LK,FAN 12PD1 STD ENG(42L) AIR CONDITIONER MANUAL CONTROL(C60) ID=8.2	9-09150-608-0	02	1	9002-9106		●
17	WASHER; LK,FAN 6RB1 STD ENG(07L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) ID=5	1-83539-044-0	01	1	9010-9106		●
17	WASHER; LK,FAN AIR CONDITIONER MANUAL CONTROL(C60) ID=5	1-83539-044-0	01	1	9107-	●	●
18	NUT; FAN,CENTER 6RB1TC ENG(30L) AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	1-83539-068-0	03	1	9002-9106	●
18	NUT; FAN,CENTER 6RB1TC ENG(30L),12PD1 STD ENG(42L) AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	1-83539-068-0	03	1	9107-9306	●	●
18	NUT; FAN,CENTER AIR CONDITIONER MANUAL CONTROL(C60) M5	9-99110-505-0	01	1	9002-	●	●
18	NUT; FAN,CENTER 12PD1 STD ENG(42L) AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	1-83539-068-0	04	1	9002-9106		●
19	NUT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	1-83539-068-0	02	1	9307-	●	●
19	NUT; BRKT 6RB1 STD ENG(07L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	1-83539-068-0	02	1	9002-9306	●	●
19	NUT; BRKT 12PD1 STD ENG(42L) AIR CONDITIONER MANUAL CONTROL(C60) M6	1-83539-083-0	01	1	9002-9306		●
20	CLIP; CONDENSER 6RB1TC ENG(30L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-081-0	01	1	9002-9306	●
20	CLIP; CONDENSER 12PD1 STD ENG(42L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-080-0	01	1	9002-9306		●
21	CONDENSER 6RB1 STD ENG(07L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-046-0	01	1	9002-9106	●
21	CONDENSER AIR CONDITIONER MANUAL CONTROL(C60)	1-84132-007-0	01	1	9107-9306	●	●
21	CONDENSER 6RB1TC ENG(30L),12PD1 STD ENG(42L) AIR CONDITIONER MANUAL CONTROL(C60)	1-84132-007-0	02	1	9002-9106	●	●
21	CONDENSER 6RB1 STD ENG(07L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60)	1-84132-007-0	01	1	9002-9106		●
21	CONDENSER AIR CONDITIONER MANUAL CONTROL(C60)	8-94150-133-0	01	1	9307-	●	●
22	CONDENSER ASM; A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-170-0	01	1	9307-	●
22	CONDENSER ASM; A/C 6RB1 STD ENG(07L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-076-0	01	1	9002-9106	●
22	CONDENSER ASM; A/C 6RB1 STD ENG(07L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-140-0	01	1	9107-9306	●
22	CONDENSER ASM; A/C 6RB1TC ENG(30L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-083-1	01	1	9002-9306	●
22	CONDENSER ASM; A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-171-0	01	1	9307-		●
22	CONDENSER ASM; A/C 12PD1 STD ENG(42L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-082-1	01	1	9002-9306		●
22	CONDENSER ASM; A/C 6RB1 STD ENG(07L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-084-1	01	1	9002-9306		●
23	SWITCH; PRESSURE,CONDENSER AIR CONDITIONER MANUAL CONTROL(C60)	1-82510-085-0	01	1	9002-9306	●	●
23	SWITCH; PRESSURE,CONDENSER AIR CONDITIONER MANUAL CONTROL(C60)	1-82380-127-0	01	1	9307-	●	●
26	BRACKET; LOW 6RB1 STD ENG(07L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83571-505-0	01	1	9002-9106	●
26	BRACKET; LOW 6RB1TC ENG(30L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-071-0	01	1	9002-9106	●
26	BRACKET; LOW 6RB1 STD ENG(07L),10PD1 STD ENG(40L),12PD1 STD ENG(42L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-071-0	01	1	9002-9106		●
26	BRACKET; LOW AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-071-0	01	1	9107-	●	●
27	BOLT; BRKT,LOW SIDE 6RB1TC ENG(30L) AIR CONDITIONER MANUAL CONTROL(C60) M8X22	1-83579-198-0	10	1	9002-9306	●
27	BOLT; BRKT,LOW SIDE AIR CONDITIONER MANUAL CONTROL(C60) M8X22	1-83579-198-0	03	1	9307-	●	●
27	BOLT; BRKT,LOW SIDE AIR CONDITIONER MANUAL CONTROL(C60) M8X18	9-02040-818-0	02	1	9307-	●	●
27	BOLT; BRKT,LOW SIDE 6RB1 STD ENG(07L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) M8X22	1-83579-198-0	03	1	9002-9306	●	●
27	BOLT; BRKT,LOW SIDE 6RB1 STD ENG(07L),10PD1 STD ENG(40L),12PD1 STD ENG(42L) AIR CONDITIONER MANUAL CONTROL(C60) M8X18	1-83539-067-0	02	1	9002-9009	●	●
27	BOLT; BRKT,LOW SIDE AIR CONDITIONER MANUAL CONTROL(C60) L=55	1-83539-087-0	01	1	9307-		●
27	BOLT; BRKT,LOW SIDE 12PD1 STD ENG(42L) AIR CONDITIONER MANUAL CONTROL(C60) M8X18	9-02040-818-0	03	1	9107-9306		●
27	BOLT; BRKT,LOW SIDE 6RB1 STD ENG(07L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) L=55	1-83539-087-0	01	1	9002-9306		●
27	BOLT; BRKT,LOW SIDE 6RB1 STD ENG(07L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) M8X22 W/LK&PL WASHER	9-01960-822-0	03	1	9002-9009		●
27	BOLT; BRKT,LOW SIDE 6RB1 STD ENG(07L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) M8X18	9-02040-818-0	02	1	9010-9106		●
27	BOLT; BRKT,LOW SIDE 6RB1 STD ENG(07L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) M8X18	9-02040-818-0	02	1	9107-9306	●	●
28	SCREW; BRKT,LOW SIDE 6RB1TC ENG(30L) AIR CONDITIONER MANUAL CONTROL(C60) M8X22 W/LK&PL WASHER	9-01960-822-0	10	1	9002-9106	●
29	BRACKET; SIDE 6RB1 STD ENG(07L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83571-504-0	01	1	9002-9106	●
29	BRACKET; SIDE 6RB1 STD ENG(07L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83571-506-0	01	1	9002-9106	●
29	BRACKET; SIDE 12PD1 STD ENG(42L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83539-076-0	01	1	9107-9306		●
29	BRACKET; SIDE 6RB1 STD ENG(07L),6RB1TC ENG(30L),8PD1 STD ENG(38L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83539-070-0	01	1	9107-	●
29	BRACKET; SIDE 6RB1 STD ENG(07L),6RB1TC ENG(30L),8PD1 STD ENG(38L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83571-503-0	01	1	9307-	●
29	BRACKET; SIDE 6RB1 STD ENG(07L),8PD1 STD ENG(38L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83539-072-0	01	1	9107-	●
29	BRACKET; SIDE 6RB1TC ENG(30L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83539-070-0	01	1	9002-9106	●
29	BRACKET; SIDE 6RB1TC ENG(30L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83539-084-0	01	1	9002-9306	●
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83539-075-0	01	1	9002-		●
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83539-086-0	01	1	9307-		●
29	BRACKET; SIDE 6RB1 STD ENG(07L),10PD1 STD ENG(40L),12PD1 STD ENG(42L) AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83539-074-0	01	1	9002-		●
29	BRACKET; SIDE 6RB1 STD ENG(07L),10PD1 STD ENG(40L),12PD1 STD ENG(42L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83539-086-0	01	1	9002-9106		●
29	BRACKET; SIDE 6RB1 STD ENG(07L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83539-086-0	01	1	9107-9306		●
30	BOLT; CONDENSER,A/C AIR CONDITIONER MANUAL CONTROL(C60) M10X35 W/LK&PL WASHER	0-50141-035-0	05	1	9002-	●	●
53	PIPE; CONDENSER 6RB1TC ENG(30L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-088-0	01	1	9002-9306	●
53	PIPE; CONDENSER 12PD1 STD ENG(42L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-079-0	01	1	9002-9306		●
55	GASKET; PIPE 6RB1TC ENG(30L),12PD1 STD ENG(42L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-94243-998-0	01	1	9002-9106	●	●
55	GASKET; PIPE 6RB1TC ENG(30L),12PD1 STD ENG(42L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-09623-517-0	01	1	9107-9306	●	●
55	GASKET; PIPE 6RB1TC ENG(30L),12PD1 STD ENG(42L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-94244-315-0	01	1	9002-9106	●	●
55	GASKET; PIPE 6RB1TC ENG(30L),12PD1 STD ENG(42L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-94113-332-0	01	1	9107-9306	●	●
57	PIPE; CONDENSER 6RB1TC ENG(30L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-085-0	01	1	9002-9306	●
57	PIPE; CONDENSER 12PD1 STD ENG(42L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-078-0	01	1	9002-9306		●
60	CLIP; PIPE 6RB1TC ENG(30L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-080-0	01	1	9002-9306	●
60	CLIP; PIPE 12PD1 STD ENG(42L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-081-0	01	1	9002-9306		●
62	BRACKET; PIPE 6RB1TC ENG(30L),12PD1 STD ENG(42L) AIR CONDITIONER MANUAL CONTROL(C60)	1-89964-445-3	01	1	9002-9306	●	●
132	WASHER; BRKT 6RB1 STD ENG(07L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) ID=8.2	9-09150-608-0	02	1	9002-9106	●
132	WASHER; BRKT AIR CONDITIONER MANUAL CONTROL(C60) ID=8	1-83579-492-0	02	1	9107-	●	●
132	WASHER; BRKT 6RB1 STD ENG(07L),8PD1 STD ENG(38L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) ID=8	1-14319-034-0	04	1	9002-	●	●
132	WASHER; BRKT 6RB1 STD ENG(07L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) ID=6.4	9-09160-506-0	01	1	9002-9009		●
132	WASHER; BRKT 6RB1 STD ENG(07L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) ID=8	1-83579-492-0	02	1	9010-9106		●
132	WASHER; BRKT 6RB1 STD ENG(07L),8PD1 STD ENG(38L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) ID=6.4 OD=14	9-09160-606-0	01	1	9010-		●

30 1 10 132 132 19 149 22 23 29 9 29 27 9 26 10 17 4 18 15 5 21 169 29 7 8 132 27 11 169 14 30 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CONDENSER; A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-166-0	01	1	9307-	●
1	CONDENSER; A/C 6RB1 STD ENG(07L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-055-2	01	1	9002-9306	●
1	CONDENSER; A/C 6RB1TC ENG(30L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-064-1	01	1	9002-9306	●
1	CONDENSER; A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-167-0	01	1	9307-		●
1	CONDENSER; A/C 12PD1 STD ENG(42L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-065-1	01	1	9002-9306		●
1	CONDENSER; A/C 6RB1 STD ENG(07L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-049-2	01	1	9002-9306		●
4	MOTOR ASM; FAN AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-033-0	01	1	9002-9306	●	●
4	MOTOR ASM; FAN AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-175-0	01	1	9307-	●	●
5	SHROUD; FAN MOTOR 6RB1 STD ENG(07L),6RB1TC ENG(30L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-185-0	01	1	9107-9306	●
5	SHROUD; FAN MOTOR 12PD1 STD ENG(42L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-185-0	01	1	9107-9306		●
5	SHROUD; FAN MOTOR AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-185-0	01	1	9307-	●	●
5	SHROUD; FAN MOTOR 6RB1 STD ENG(07L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-034-0	01	1	9002-9306		●
7	NUT; FAN AIR CONDITIONER MANUAL CONTROL(C60) M4	1-83539-065-0	04	1	9002-	●	●
8	WASHER; LK,FAN AIR CONDITIONER MANUAL CONTROL(C60) ID=4.1	9-09150-504-0	04	1	9002-	●	●
9	BOLT; BRKT 6RB1 STD ENG(07L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) M8X22	1-83579-198-0	06	1	9002-9009	●
9	BOLT; BRKT 6RB1TC ENG(30L) AIR CONDITIONER MANUAL CONTROL(C60) M8X18	1-83539-067-0	02	1	9002-9106	●
9	BOLT; BRKT 6RB1TC ENG(30L) AIR CONDITIONER MANUAL CONTROL(C60) M8X18	9-02040-818-0	02	1	9107-9306	●
9	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M8X22	1-83579-198-0	06	1	9307-	●	●
9	BOLT; BRKT 6RB1 STD ENG(07L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) M8X22	1-83579-198-0	06	1	9010-9306	●	●
9	BOLT; BRKT 12PD1 STD ENG(42L) AIR CONDITIONER MANUAL CONTROL(C60) L=55	1-83539-087-0	01	1	9002-9306		●
9	BOLT; BRKT 6RB1 STD ENG(07L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) M8X22 W/LK&PL WASHER	9-01960-822-0	06	1	9002-9009		●
10	WASHER; PL,FAN 6RB1TC ENG(30L),12PD1 STD ENG(42L) AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=8	1-14319-034-0	02	1	9002-9106	●	●
10	WASHER; PL,FAN 6RB1TC ENG(30L),12PD1 STD ENG(42L) AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=8	1-14319-034-0	05	1	9107-9306	●	●
10	WASHER; PL,FAN 6RB1TC ENG(30L),12PD1 STD ENG(42L) AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=5.3	9-09160-505-0	01	1	9002-9106	●	●
10	WASHER; PL,FAN 12PD1 STD ENG(42L) AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=6.4 OD=14	9-09160-606-0	01	1	9002-9306		●
10	WASHER; PL,FAN 6RB1 STD ENG(07L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83539-045-0	01	1	9010-9106		●
10	WASHER; PL,FAN AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83539-045-0	01	1	9107-	●	●
11	COVER; SHROUD 6RB1 STD ENG(07L),6RB1TC ENG(30L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-035-0	01	1	9002-9306	●
11	COVER; SHROUD AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-035-0	01	1	9307-	●
11	COVER; SHROUD AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-077-0	01	1	9307-		●
11	COVER; SHROUD 6RB1 STD ENG(07L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-077-0	01	1	9002-9306		●
14	HOSE; DRAIN AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-258-0	01	1	9002-	●	●
15	FAN; MOTOR AIR CONDITIONER MANUAL CONTROL(C60)	1-83561-064-0	01	1	9002-	●	●
17	WASHER; LK,FAN 6RB1TC ENG(30L) AIR CONDITIONER MANUAL CONTROL(C60) ID=8.2	9-09150-608-0	03	1	9002-9106	●
17	WASHER; LK,FAN 6RB1TC ENG(30L),12PD1 STD ENG(42L) AIR CONDITIONER MANUAL CONTROL(C60) ID=8	1-83579-492-0	03	1	9107-9306	●	●
17	WASHER; LK,FAN AIR CONDITIONER MANUAL CONTROL(C60) ID=5.1	9-09150-505-0	01	1	9002-9009	●	●
17	WASHER; LK,FAN 6RB1 STD ENG(07L),6RB1TC ENG(30L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) ID=5.1	9-09150-505-0	01	1	9010-9106	●
17	WASHER; LK,FAN 12PD1 STD ENG(42L) AIR CONDITIONER MANUAL CONTROL(C60) ID=5.1	9-09150-505-0	01	1	9010-9106		●
17	WASHER; LK,FAN 12PD1 STD ENG(42L) AIR CONDITIONER MANUAL CONTROL(C60) D=18	1-83539-082-0	01	1	9002-9306		●
17	WASHER; LK,FAN 12PD1 STD ENG(42L) AIR CONDITIONER MANUAL CONTROL(C60) ID=8.2	9-09150-608-0	02	1	9002-9106		●
17	WASHER; LK,FAN 6RB1 STD ENG(07L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) ID=5	1-83539-044-0	01	1	9010-9106		●
17	WASHER; LK,FAN AIR CONDITIONER MANUAL CONTROL(C60) ID=5	1-83539-044-0	01	1	9107-	●	●
18	NUT; FAN,CENTER 6RB1TC ENG(30L) AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	1-83539-068-0	03	1	9002-9106	●
18	NUT; FAN,CENTER 6RB1TC ENG(30L),12PD1 STD ENG(42L) AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	1-83539-068-0	03	1	9107-9306	●	●
18	NUT; FAN,CENTER AIR CONDITIONER MANUAL CONTROL(C60) M5	9-99110-505-0	01	1	9002-	●	●
18	NUT; FAN,CENTER 12PD1 STD ENG(42L) AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	1-83539-068-0	04	1	9002-9106		●
19	NUT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	1-83539-068-0	02	1	9307-	●	●
19	NUT; BRKT 6RB1 STD ENG(07L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	1-83539-068-0	02	1	9002-9306	●	●
19	NUT; BRKT 12PD1 STD ENG(42L) AIR CONDITIONER MANUAL CONTROL(C60) M6	1-83539-083-0	01	1	9002-9306		●
21	CONDENSER 6RB1 STD ENG(07L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-046-0	01	1	9002-9106	●
21	CONDENSER AIR CONDITIONER MANUAL CONTROL(C60)	1-84132-007-0	01	1	9107-9306	●	●
21	CONDENSER 6RB1TC ENG(30L),12PD1 STD ENG(42L) AIR CONDITIONER MANUAL CONTROL(C60)	1-84132-007-0	02	1	9002-9106	●	●
21	CONDENSER 6RB1 STD ENG(07L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60)	1-84132-007-0	01	1	9002-9106		●
21	CONDENSER AIR CONDITIONER MANUAL CONTROL(C60)	8-94150-133-0	01	1	9307-	●	●
22	CONDENSER ASM; A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-170-0	01	1	9307-	●
22	CONDENSER ASM; A/C 6RB1 STD ENG(07L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-076-0	01	1	9002-9106	●
22	CONDENSER ASM; A/C 6RB1 STD ENG(07L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-140-0	01	1	9107-9306	●
22	CONDENSER ASM; A/C 6RB1TC ENG(30L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-083-1	01	1	9002-9306	●
22	CONDENSER ASM; A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-171-0	01	1	9307-		●
22	CONDENSER ASM; A/C 12PD1 STD ENG(42L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-082-1	01	1	9002-9306		●
22	CONDENSER ASM; A/C 6RB1 STD ENG(07L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-084-1	01	1	9002-9306		●
23	SWITCH; PRESSURE,CONDENSER AIR CONDITIONER MANUAL CONTROL(C60)	1-82510-085-0	01	1	9002-9306	●	●
23	SWITCH; PRESSURE,CONDENSER AIR CONDITIONER MANUAL CONTROL(C60)	1-82380-127-0	01	1	9307-	●	●
26	BRACKET; LOW 6RB1 STD ENG(07L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83571-505-0	01	1	9002-9106	●
26	BRACKET; LOW 6RB1TC ENG(30L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-071-0	01	1	9002-9106	●
26	BRACKET; LOW 6RB1 STD ENG(07L),10PD1 STD ENG(40L),12PD1 STD ENG(42L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-071-0	01	1	9002-9106		●
26	BRACKET; LOW AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-071-0	01	1	9107-	●	●
27	BOLT; BRKT,LOW SIDE 6RB1TC ENG(30L) AIR CONDITIONER MANUAL CONTROL(C60) M8X22	1-83579-198-0	10	1	9002-9306	●
27	BOLT; BRKT,LOW SIDE AIR CONDITIONER MANUAL CONTROL(C60) M8X22	1-83579-198-0	03	1	9307-	●	●
27	BOLT; BRKT,LOW SIDE AIR CONDITIONER MANUAL CONTROL(C60) M8X18	9-02040-818-0	02	1	9307-	●	●
27	BOLT; BRKT,LOW SIDE 6RB1 STD ENG(07L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) M8X22	1-83579-198-0	03	1	9002-9306	●	●
27	BOLT; BRKT,LOW SIDE 6RB1 STD ENG(07L),10PD1 STD ENG(40L),12PD1 STD ENG(42L) AIR CONDITIONER MANUAL CONTROL(C60) M8X18	1-83539-067-0	02	1	9002-9009	●	●
27	BOLT; BRKT,LOW SIDE AIR CONDITIONER MANUAL CONTROL(C60) L=55	1-83539-087-0	01	1	9307-		●
27	BOLT; BRKT,LOW SIDE 12PD1 STD ENG(42L) AIR CONDITIONER MANUAL CONTROL(C60) M8X18	9-02040-818-0	03	1	9107-9306		●
27	BOLT; BRKT,LOW SIDE 6RB1 STD ENG(07L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) L=55	1-83539-087-0	01	1	9002-9306		●
27	BOLT; BRKT,LOW SIDE 6RB1 STD ENG(07L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) M8X22 W/LK&PL WASHER	9-01960-822-0	03	1	9002-9009		●
27	BOLT; BRKT,LOW SIDE 6RB1 STD ENG(07L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) M8X18	9-02040-818-0	02	1	9010-9106		●
27	BOLT; BRKT,LOW SIDE 6RB1 STD ENG(07L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) M8X18	9-02040-818-0	02	1	9107-9306	●	●
29	BRACKET; SIDE 6RB1 STD ENG(07L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83571-504-0	01	1	9002-9106	●
29	BRACKET; SIDE 6RB1 STD ENG(07L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83571-506-0	01	1	9002-9106	●
29	BRACKET; SIDE 12PD1 STD ENG(42L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83539-076-0	01	1	9107-9306		●
29	BRACKET; SIDE 6RB1 STD ENG(07L),6RB1TC ENG(30L),8PD1 STD ENG(38L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83539-070-0	01	1	9107-	●
29	BRACKET; SIDE 6RB1 STD ENG(07L),6RB1TC ENG(30L),8PD1 STD ENG(38L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83571-503-0	01	1	9307-	●
29	BRACKET; SIDE 6RB1 STD ENG(07L),8PD1 STD ENG(38L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83539-072-0	01	1	9107-	●
29	BRACKET; SIDE 6RB1TC ENG(30L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83539-070-0	01	1	9002-9106	●
29	BRACKET; SIDE 6RB1TC ENG(30L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83539-084-0	01	1	9002-9306	●
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83539-075-0	01	1	9002-		●
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83539-086-0	01	1	9307-		●
29	BRACKET; SIDE 6RB1 STD ENG(07L),10PD1 STD ENG(40L),12PD1 STD ENG(42L) AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83539-074-0	01	1	9002-		●
29	BRACKET; SIDE 6RB1 STD ENG(07L),10PD1 STD ENG(40L),12PD1 STD ENG(42L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83539-086-0	01	1	9002-9106		●
29	BRACKET; SIDE 6RB1 STD ENG(07L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83539-086-0	01	1	9107-9306		●
30	BOLT; CONDENSER,A/C AIR CONDITIONER MANUAL CONTROL(C60) M10X35 W/LK&PL WASHER	0-50141-035-0	05	1	9002-	●	●
132	WASHER; BRKT 6RB1 STD ENG(07L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) ID=8.2	9-09150-608-0	02	1	9002-9106	●
132	WASHER; BRKT AIR CONDITIONER MANUAL CONTROL(C60) ID=8	1-83579-492-0	02	1	9107-	●	●
132	WASHER; BRKT 6RB1 STD ENG(07L),8PD1 STD ENG(38L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) ID=8	1-14319-034-0	04	1	9002-	●	●
132	WASHER; BRKT 6RB1 STD ENG(07L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) ID=6.4	9-09160-506-0	01	1	9002-9009		●
132	WASHER; BRKT 6RB1 STD ENG(07L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) ID=8	1-83579-492-0	02	1	9010-9106		●
132	WASHER; BRKT 6RB1 STD ENG(07L),8PD1 STD ENG(38L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) ID=6.4 OD=14	9-09160-606-0	01	1	9010-		●
149	CLIP; HARNESS AIR CONDITIONER MANUAL CONTROL(C60) L=140	5-09707-008-0	01	1	9307-	●	●
169	SCREW; SHROUD 6RB1 STD ENG(07L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-066-0	02	1	9002-9306	●
169	SCREW; SHROUD AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-066-0	02	1	9307-	●
169	SCREW; SHROUD AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-066-0	01	1	9002-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
