◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50948 - NPR/NQR RHDEXC.EURO4 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-75 - CONDENSER ▶
8-75 — CONDENSER (#18358) — 24 parça

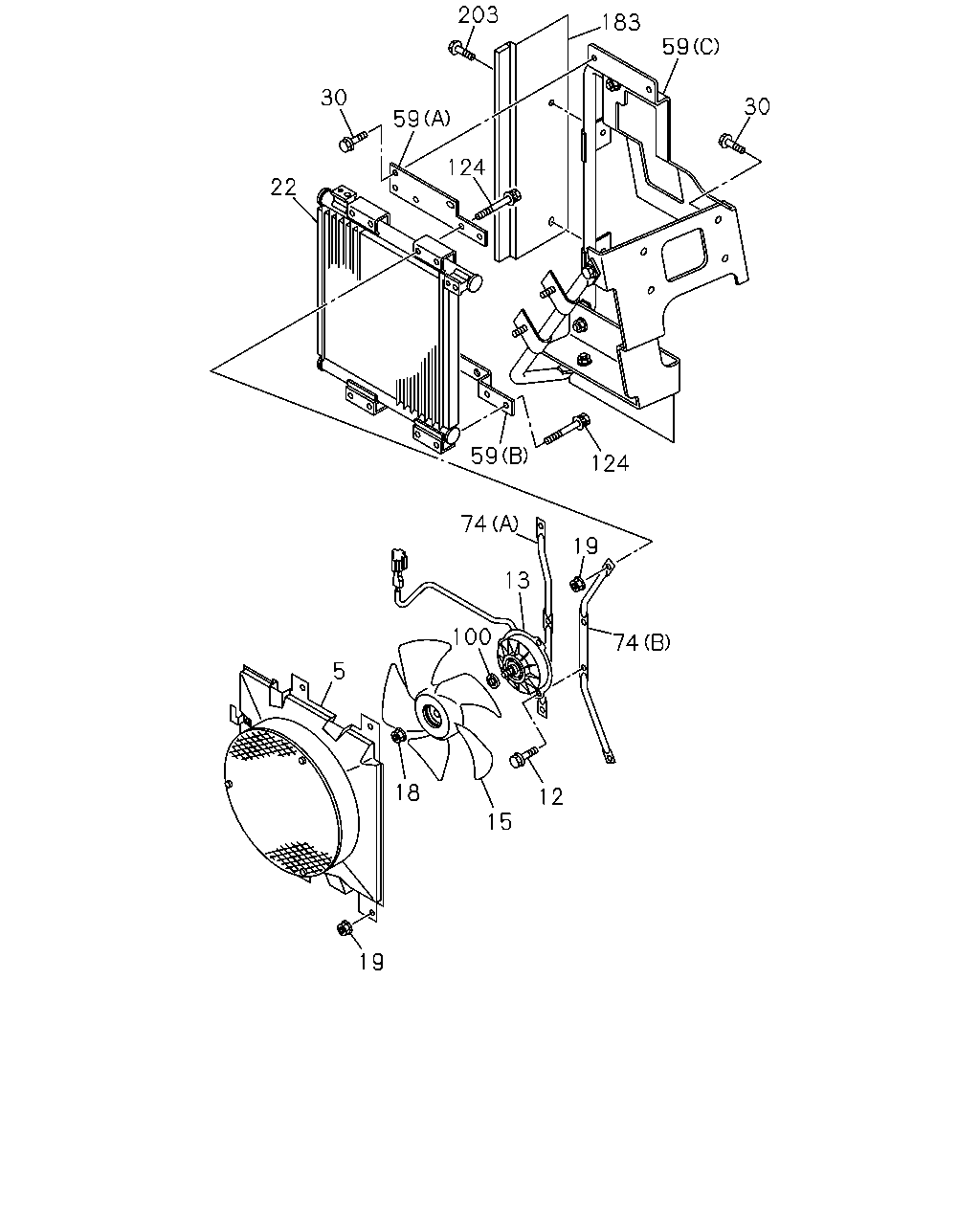

çizim 53937
203 183 59 30 30 59 124 22 59 124 74 19 13 100 74 5 18 12 15 19
BalonParca AdiParca NoAdetTipApplied Date A B C D E
5 09.216 SHROUD; FAN MOTOR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) AUSTRALIA EQUIPMENT(RR3) 		8-97220-293-0 01 1 0507- ● ● ● ● ●
12 09.196 BOLT; FAN MOTOR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) AUSTRALIA EQUIPMENT(RR3) 		8-97188-579-0 03 1 0507- ● ● ● ● ●
13 09.215 MOTOR; FAN
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) AUSTRALIA EQUIPMENT(RR3) 		8-97379-234-0 01 1 0507-0611 ● ● ● ● ●
13 09.215 MOTOR; FAN
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) AUSTRALIA EQUIPMENT(RR3) 		8-97091-322-0 01 1 0612- ● ● ● ● ●
15 09.216 FAN; MOTOR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) AUSTRALIA EQUIPMENT(RR3) 		8-97220-290-0 01 1 0507- ● ● ● ● ●
18 09.190 NUT; FAN,CENTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) AUSTRALIA EQUIPMENT(RR3) 08.852 		1-83579-483-0 01 1 0507- ● ● ● ● ●
19 09.190 NUT; BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) AUSTRALIA EQUIPMENT(RR3) 		8-97096-636-0 08 1 0507- ● ● ● ● ●
22 09.190 CONDENSER ASM; A/C
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) AUSTRALIA EQUIPMENT(RR3) 		8-97379-231-0 01 1 0507- ● ● ● ● ●
30 09.190 BOLT; CONDENSER,A/C
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) AUSTRALIA EQUIPMENT(RR3) 02.664 M8X20 FLANGE 		0-28680-820-0 04 1 0507-0512 ● ● ● ● ●
30 09.190 BOLT; CONDENSER,A/C
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) AUSTRALIA EQUIPMENT(RR3) 01.531 M8X20 FLANGE 		0-28650-820-0 04 1 0601- ● ● ● ● ●
30 09.190 BOLT; CONDENSER,A/C
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) AUSTRALIA EQUIPMENT(RR3) 03.405 M10X30 FLANGE 		0-28681-030-0 04 1 0507-0512 ● ● ● ● ●
30 09.190 BOLT; CONDENSER,A/C
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) AUSTRALIA EQUIPMENT(RR3) 00.029 M10X30 FLANGE 		0-28651-030-0 04 1 0601- ● ● ● ● ●
59 09.190 BRACKET; CONDENSER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) AUSTRALIA EQUIPMENT(RR3) (C) 		8-97333-689-2 01 1 0507- ● ● ● ● ●
59 09.190 BRACKET; CONDENSER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) AUSTRALIA EQUIPMENT(RR3) (A) 		8-97379-232-1 01 1 0507- ● ● ● ● ●
59 09.190 BRACKET; CONDENSER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) AUSTRALIA EQUIPMENT(RR3) (B) 		8-97379-233-1 01 1 0507- ● ● ● ● ●
74 09.190 STAY; CONDENSER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) AUSTRALIA EQUIPMENT(RR3) (A) 		8-97379-236-0 01 1 0507-0611 ● ● ● ● ●
74 09.190 STAY; CONDENSER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) AUSTRALIA EQUIPMENT(RR3) (A) 		8-97220-291-0 01 1 0612- ● ● ● ● ●
74 09.190 STAY; CONDENSER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) AUSTRALIA EQUIPMENT(RR3) (B) 		8-97379-237-0 01 1 0507-0611 ● ● ● ● ●
74 09.190 STAY; CONDENSER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) AUSTRALIA EQUIPMENT(RR3) (B) 		8-97220-292-0 01 1 0612- ● ● ● ● ●
100 09.190 COLLAR; FAN MOTOR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) AUSTRALIA EQUIPMENT(RR3) 		8-97379-235-0 01 1 0507-0611 ● ● ● ● ●
124 09.169 BOLT; BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) AUSTRALIA EQUIPMENT(RR3) 		8-97096-633-0 08 1 0507- ● ● ● ● ●
183 09.190 GUIDE; AIR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) AUSTRALIA EQUIPMENT(RR3) 		8-97367-986-1 01 1 0507- ● ● ● ● ●
203 09.190 BOLT; GUIDE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) AUSTRALIA EQUIPMENT(RR3) 04.439 M6X16 FLANGE 		0-28680-616-0 02 1 0507-0512 ● ● ● ● ●
203 09.190 BOLT; GUIDE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) AUSTRALIA EQUIPMENT(RR3) 02.343 M6X16 FLANGE 		0-28650-616-0 02 1 0601- ● ● ● ● ●
