◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50948 - NPR/NQR RHDEXC.EURO4 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-74 - EVAPORATOR ▶
8-74 — EVAPORATOR (#18357) — 22 parça

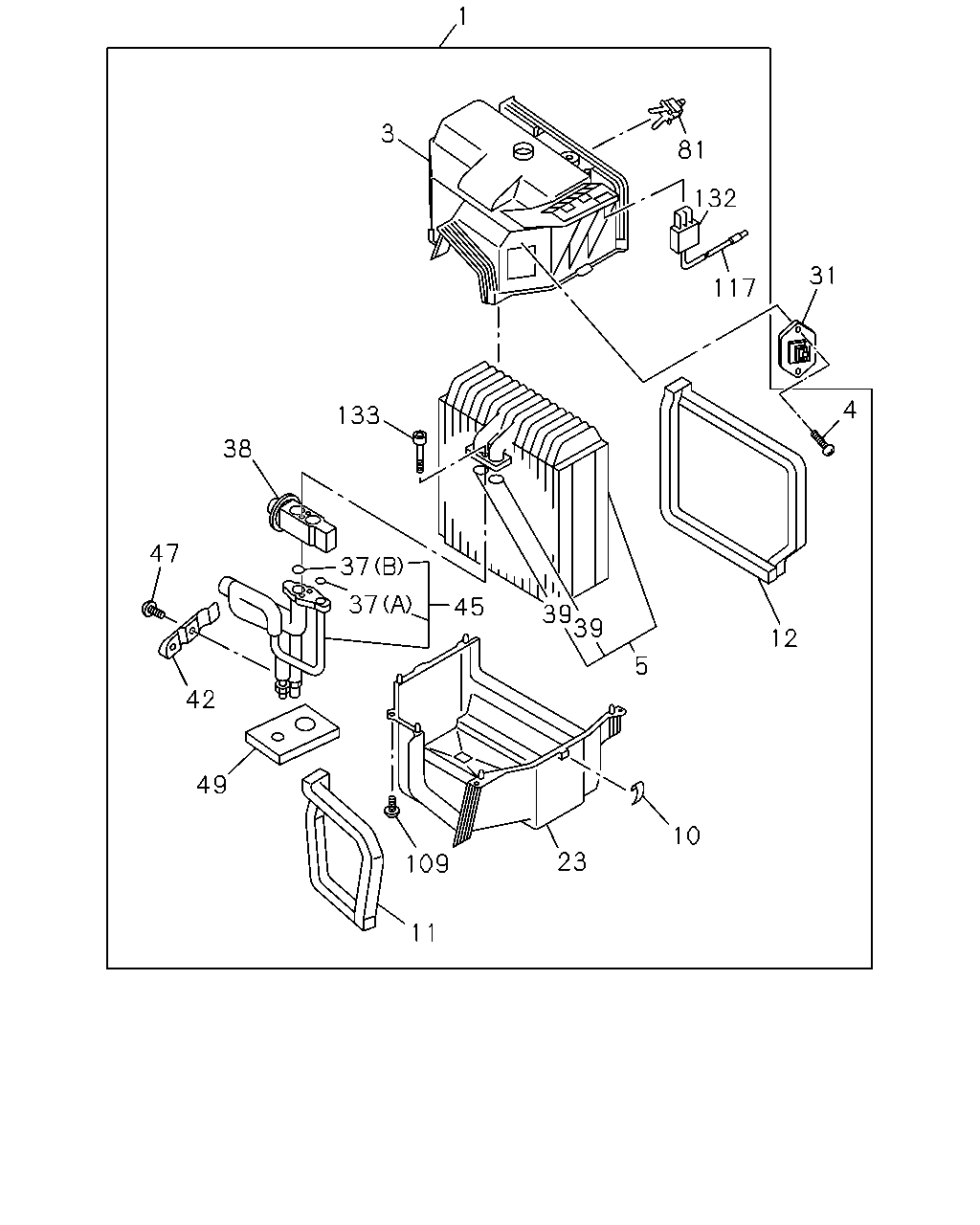

çizim 53909
1 3 81 132 31 117 4 133 38 47 37 37 45 39 39 12 5 42 49 10 23 109 11
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 09.210 EVAPORATOR ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) AUSTRALIA EQUIPMENT(RR3) 		8-97177-159-0 01 1 0507- ● ● ● ● ●
3 09.211 CASE; EVAP,UPR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) AUSTRALIA EQUIPMENT(RR3) 		8-97178-713-0 01 1 0507- ● ● ● ● ●
4 09.211 SCREW; RESISTOR TO CASE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) AUSTRALIA EQUIPMENT(RR3) 		8-97096-575-0 02 1 0507- ● ● ● ● ●
5 09.210 EVAPORATOR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) AUSTRALIA EQUIPMENT(RR3) 		8-97096-606-0 01 1 0507- ● ● ● ● ●
10 09.211 CLIP; EVAP CASE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) AUSTRALIA EQUIPMENT(RR3) 		8-97096-562-0 03 1 0507- ● ● ● ● ●
11 09.211 LINING; EVAP A/C
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) AUSTRALIA EQUIPMENT(RR3) 		8-97096-569-0 01 1 0507- ● ● ● ● ●
12 09.211 LINING; EVAP
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) AUSTRALIA EQUIPMENT(RR3) 		8-97178-755-0 01 1 0507- ● ● ● ● ●
23 09.211 CASE; EVAP,LWR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) AUSTRALIA EQUIPMENT(RR3) 		8-97178-714-0 01 1 0507- ● ● ● ● ●
31 09.277 RESISTOR; POWER EVAP
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) AUSTRALIA EQUIPMENT(RR3) 08.855 		8-97358-389-0 01 1 0507- ● ● ● ● ●
37 09.214 GASKET; EVAP
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) AUSTRALIA EQUIPMENT(RR3) 09.222 (A) ID=7.5 		1-83539-316-0 01 1 0507- ● ● ● ● ●
37 09.214 GASKET; EVAP
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) AUSTRALIA EQUIPMENT(RR3) (B) ID=14.5 		1-83539-324-0 01 1 0507- ● ● ● ● ●
38 09.213 VALVE; EXPANSION
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) AUSTRALIA EQUIPMENT(RR3) 		8-97376-121-0 01 1 0507- ● ● ● ● ●
39 09.214 GASKET; EVAP
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) AUSTRALIA EQUIPMENT(RR3) ID=14.5 		1-83539-324-0 02 1 0507- ● ● ● ● ●
42 09.214 CLIP; VLV PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) AUSTRALIA EQUIPMENT(RR3) 		8-97096-560-1 01 1 0507- ● ● ● ● ●
45 09.220 PIPE; EXPANSION VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) AUSTRALIA EQUIPMENT(RR3) 		8-97096-598-0 01 1 0507- ● ● ● ● ●
47 09.214 SCREW; EVAP
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) AUSTRALIA EQUIPMENT(RR3) 		8-97096-577-0 01 1 0507- ● ● ● ● ●
49 09.211 GROMMET; EVAP
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) AUSTRALIA EQUIPMENT(RR3) 		8-97096-566-0 01 1 0507- ● ● ● ● ●
81 09.211 CLIP; THERMOSTAT A/C
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) AUSTRALIA EQUIPMENT(RR3) 		8-97096-563-0 01 1 0507- ● ● ● ● ●
109 09.211 BOLT; EVAP
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) AUSTRALIA EQUIPMENT(RR3) 		8-97096-575-0 03 1 0507- ● ● ● ● ●
117 09.211 HARNESS; THERMOSTAT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) AUSTRALIA EQUIPMENT(RR3) 		8-97149-689-0 01 1 0507- ● ● ● ● ●
132 09.210 AMPLIFIER; EVAP
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) AUSTRALIA EQUIPMENT(RR3) 		8-97178-715-0 01 1 0507- ● ● ● ● ●
133 09.211 BOLT; PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) AUSTRALIA EQUIPMENT(RR3) 		8-97096-586-0 02 1 0507- ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
