Sayfa 8-50 - Isuzu EPC

8-50 — AIR CONDITIONING SYSTEM; FRONT (#18351) — 242 parça

78 74 78 378 210

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
74	09.215 DUCT; EVAP TO HTR UNIT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) AUSTRALIA EQUIPMENT(RR3)	8-97262-801-0	01	1	0507-	●	●	●	●	●
74	09.215 DUCT; EVAP TO HTR UNIT AIR CONDITIONER MANUAL CONT(C60)	8-97262-801-0	01	1	0211-0501	●	●	●	●	●	●
78	09.211 BOLT; EVAP,A/C 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) AUSTRALIA EQUIPMENT(RR3) 04.930 M6X20 FLANGE	0-28680-620-0	02	1	0507-0512	●	●	●	●	●
78	09.211 BOLT; EVAP,A/C 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) AUSTRALIA EQUIPMENT(RR3) 03.162 M6X20 FLANGE	0-28650-620-0	02	1	0601-	●	●	●	●	●
78	09.211 BOLT; EVAP,A/C 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) AUSTRALIA EQUIPMENT(RR3) 02.664 M8X20 FLANGE	0-28680-820-0	01	1	0507-0512	●	●	●	●	●
78	09.211 BOLT; EVAP,A/C 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) AUSTRALIA EQUIPMENT(RR3) 01.531 M8X20 FLANGE	0-28650-820-0	01	1	0601-	●	●	●	●	●
78	09.211 BOLT; EVAP,A/C AIR CONDITIONER MANUAL CONT(C60) 04.930 M6X20 FLANGE	0-28680-620-0	02	1	0211-0501	●	●	●	●	●	●
78	09.211 BOLT; EVAP,A/C AIR CONDITIONER MANUAL CONT(C60) 02.664 M8X20 FLANGE	0-28680-820-0	01	1	0211-0501	●	●	●	●	●	●
210	09.242 CLIP; HARNESS 4HF1-S ENG(RLS),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) 02.559 (B) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	0211-0501	●
210	09.242 CLIP; HARNESS 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) 02.559 (B) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	0211-0501		●	●	●
210	09.242 CLIP; HARNESS AIR CONDITIONER MANUAL CONT(C60) 02.559 (B) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	0211-0501					●	●
210	09.242 CLIP; HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 02.559 (B) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	0502-0506	●	●	●	●		●
210	09.242 CLIP; HARNESS 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HG1 ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 02.559 (B) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	0507-	●	●	●	●	●	●
210	09.242 CLIP; HARNESS 00.446 (A) ID=12 B=14 ID=8.5	5-09700-350-0	01	1	0211-0501	●	●	●	●	●	●
210	09.242 CLIP; HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 00.446 (A) ID=12 B=14 ID=8.5	5-09700-350-0	01	1	0502-0506	●	●	●	●		●
210	09.242 CLIP; HARNESS 00.446 (A) ID=12 B=14 ID=8.5	5-09700-350-0	01	1	0507-0801	●	●	●	●	●	●
210	09.242 CLIP; HARNESS 03.671 (A) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	0802-	●	●	●	●	●	●
378	09.211 HOSE; DRAIN,EVAPORATOR 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) AUSTRALIA EQUIPMENT(RR3)	8-97043-419-1	01	1	0507-	●	●	●	●	●

166 177 166 225 410 166 224 8 206 227 227 264 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
8	09.171 BOLT; BRKT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) AUSTRALIA EQUIPMENT(RR3) 04.439 M6X16 FLANGE	0-28680-616-0	02	1	0507-0512	●	●	●	●	●
8	09.171 BOLT; BRKT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) AUSTRALIA EQUIPMENT(RR3) 02.343 M6X16 FLANGE	0-28650-616-0	02	1	0601-	●	●	●	●	●
15	09.173 NUT; BRKT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) AUSTRALIA EQUIPMENT(RR3) 07.633 M8 FLANGE	0-91150-108-0	02	1	0507-0602	●	●	●	●	●
15	09.173 NUT; BRKT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) AUSTRALIA EQUIPMENT(RR3) 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●	●	●
166	09.226 BRACKET; FLEX HOSE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) AUSTRALIA EQUIPMENT(RR3) (A)	8-97090-310-1	01	1	0507-0611	●	●	●	●	●
166	09.226 BRACKET; FLEX HOSE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) AUSTRALIA EQUIPMENT(RR3) 09.242 (A)	8-98029-613-0	01	1	0612-1009	●	●	●	●	●
166	09.226 BRACKET; FLEX HOSE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) AUSTRALIA EQUIPMENT(RR3) 09.242 (A)	8-98151-264-0	01	1	1010-	●	●	●	●	●
166	09.226 BRACKET; FLEX HOSE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) AUSTRALIA EQUIPMENT(RR3) (C)	8-97352-128-0	01	1	0507-	●	●	●	●	●
166	09.226 BRACKET; FLEX HOSE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) AUSTRALIA EQUIPMENT(RR3) (B)	8-97386-607-1	01	1	0507-	●	●	●	●	●
177	09.242 BRACKET; PIPE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) AUSTRALIA EQUIPMENT(RR3)	8-98019-107-0	01	1	0507-	●	●	●	●	●
206	09.242 BOLT; CLIP BRKT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) AUSTRALIA EQUIPMENT(RR3) (B) M6X16 FLANGE	0-28050-616-0	01	1	0507-	●	●	●	●	●
206	09.242 BOLT; CLIP BRKT 4HF1-S ENG(RLS),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) 02.812 (A) M6X12 FLANGE	0-28280-612-0	01	1	0211-0501	●
206	09.242 BOLT; CLIP BRKT 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) 02.812 (A) M6X12 FLANGE	0-28280-612-0	01	1	0211-0501		●	●	●
206	09.242 BOLT; CLIP BRKT AIR CONDITIONER MANUAL CONT(C60) 02.812 (A) M6X12 FLANGE	0-28280-612-0	01	1	0211-0501					●	●
206	09.242 BOLT; CLIP BRKT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 02.812 (A) M6X12 FLANGE	0-28280-612-0	01	1	0502-0506	●	●	●	●		●
206	09.242 BOLT; CLIP BRKT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HG1 ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 02.812 (A) M6X12 FLANGE	0-28280-612-0	01	1	0507-0512	●	●	●	●	●	●
206	09.242 BOLT; CLIP BRKT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HG1 ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.216 (A) M6X12 FLANGE	0-28250-612-0	01	1	0601-	●	●	●	●	●	●
224	09.195 TANK ASM; RECEIVER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) AUSTRALIA EQUIPMENT(RR3)	8-97366-992-0	01	1	0507-	●	●	●	●	●
225	09.172 SWITCH; RECEIVER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) AUSTRALIA EQUIPMENT(RR3)	8-97366-964-0	01	1	0507-	●	●	●	●	●
227	09.196 BRACKET; RECEIVER TANK 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) AUSTRALIA EQUIPMENT(RR3) (A)	8-97300-284-0	01	1	0507-	●	●	●	●	●
227	09.196 BRACKET; RECEIVER TANK 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) AUSTRALIA EQUIPMENT(RR3) (B)	8-97333-691-1	01	1	0507-	●	●	●	●	●
264	09.242 PLATE; BRKT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) AUSTRALIA EQUIPMENT(RR3)	8-98014-747-0	01	1	0507-	●	●	●	●	●
410	09.172 GASKET; PRESSURE SWITCH 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) AUSTRALIA EQUIPMENT(RR3) 09.190	8-94154-048-0	01	1	0507-	●	●	●	●	●

66 25 30 29 34 26 27 25 57 35 35 316 25 316 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
25	09.180 PULLEY ASM; IDLER,CMPR AIR CONDITIONER MANUAL CONT(C60) (B) 1-GROOVE	8-94334-696-2	01	1	0507-					●
25	09.180 PULLEY ASM; IDLER,CMPR AIR CONDITIONER MANUAL CONT(C60) (C) 1-GROOVE	8-94334-873-0	01	1	0507-					●
25	09.180 PULLEY ASM; IDLER,CMPR 4HF1-S ENG(RLS),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) (A) 1-GROOVE	8-97161-198-1	01	1	0211-0501	●
25	09.180 PULLEY ASM; IDLER,CMPR 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) (A) 1-GROOVE	8-97161-198-1	01	1	0211-0501		●	●	●
25	09.180 PULLEY ASM; IDLER,CMPR AIR CONDITIONER MANUAL CONT(C60) (A) 1-GROOVE	8-97161-198-1	01	1	0211-0501						●
25	09.180 PULLEY ASM; IDLER,CMPR 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A) 1-GROOVE	8-97161-198-1	01	1	0502-0506	●	●	●	●		●
25	09.180 PULLEY ASM; IDLER,CMPR 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HG1 ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A) 1-GROOVE	8-97161-198-1	01	1	0507-	●	●	●	●		●
26	09.180 BRACKET; IDLE PULLEY,A/C AIR CONDITIONER MANUAL CONT(C60) (A)	8-97060-362-0	01	1	0507-					●
26	09.180 BRACKET; IDLE PULLEY,A/C 4HF1-S ENG(RLS),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97161-031-1	01	1	0406-0501	●
26	09.180 BRACKET; IDLE PULLEY,A/C 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97161-031-1	01	1	0406-0501		●	●	●
26	09.180 BRACKET; IDLE PULLEY,A/C AIR CONDITIONER MANUAL CONT(C60) (B)	8-97161-031-1	01	1	0406-0501						●
26	09.180 BRACKET; IDLE PULLEY,A/C 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97161-031-1	01	1	0502-0506	●	●	●	●		●
26	09.180 BRACKET; IDLE PULLEY,A/C 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HG1 ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97161-031-1	01	1	0507-	●	●	●	●		●
27	09.180 PULLEY; IDLE,A/C AIR CONDITIONER MANUAL CONT(C60) (A)	9-13663-606-0	01	1	0507-					●
27	09.180 PULLEY; IDLE,A/C 4HF1-S ENG(RLS),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97386-869-0	01	1	0406-0501	●
27	09.180 PULLEY; IDLE,A/C 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97386-869-0	01	1	0406-0501		●	●	●
27	09.180 PULLEY; IDLE,A/C AIR CONDITIONER MANUAL CONT(C60) (B)	8-97386-869-0	01	1	0406-0501						●
27	09.180 PULLEY; IDLE,A/C 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97386-869-0	01	1	0502-0506	●	●	●	●		●
27	09.180 PULLEY; IDLE,A/C 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HG1 ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97386-869-0	01	1	0507-	●	●	●	●		●
29	09.181 COVER; DUST,IDLE PULLEY AIR CONDITIONER MANUAL CONT(C60) (C)	9-13669-603-0	02	1	0507-					●
29	09.181 COVER; DUST,IDLE PULLEY 4HF1-S ENG(RLS),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97384-114-0	01	1	0406-0501	●
29	09.181 COVER; DUST,IDLE PULLEY 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97384-114-0	01	1	0406-0501		●	●	●
29	09.181 COVER; DUST,IDLE PULLEY AIR CONDITIONER MANUAL CONT(C60) (A)	8-97384-114-0	01	1	0406-0501						●
29	09.181 COVER; DUST,IDLE PULLEY 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97384-114-0	01	1	0502-0506	●	●	●	●		●
29	09.181 COVER; DUST,IDLE PULLEY 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HG1 ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97384-114-0	01	1	0507-	●	●	●	●		●
29	09.181 COVER; DUST,IDLE PULLEY 4HF1-S ENG(RLS),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97384-115-0	01	1	0406-0501	●
29	09.181 COVER; DUST,IDLE PULLEY 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97384-115-0	01	1	0406-0501		●	●	●
29	09.181 COVER; DUST,IDLE PULLEY AIR CONDITIONER MANUAL CONT(C60) (B)	8-97384-115-0	01	1	0406-0501						●
29	09.181 COVER; DUST,IDLE PULLEY 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97384-115-0	01	1	0502-0506	●	●	●	●		●
29	09.181 COVER; DUST,IDLE PULLEY 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HG1 ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97384-115-0	01	1	0507-	●	●	●	●		●
30	09.181 COLLAR; IDLE PULLEY AIR CONDITIONER MANUAL CONT(C60) (A)	8-94207-192-0	01	1	0507-					●
30	09.181 COLLAR; IDLE PULLEY 4HF1-S ENG(RLS),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97384-117-0	01	1	0406-0501	●
30	09.181 COLLAR; IDLE PULLEY 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97384-117-0	01	1	0406-0501		●	●	●
30	09.181 COLLAR; IDLE PULLEY AIR CONDITIONER MANUAL CONT(C60) (B)	8-97384-117-0	01	1	0406-0501						●
30	09.181 COLLAR; IDLE PULLEY 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97384-117-0	01	1	0502-0506	●	●	●	●		●
30	09.181 COLLAR; IDLE PULLEY 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HG1 ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97384-117-0	01	1	0507-	●	●	●	●		●
34	09.181 SHAFT; IDLE PULLEY AIR CONDITIONER MANUAL CONT(C60) 02.277 (A) M10X30	0-28121-030-0	01	1	0507-					●
34	09.181 SHAFT; IDLE PULLEY 4HF1-S ENG(RLS),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97384-116-0	01	1	0406-0501	●
34	09.181 SHAFT; IDLE PULLEY 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97384-116-0	01	1	0406-0501		●	●	●
34	09.181 SHAFT; IDLE PULLEY AIR CONDITIONER MANUAL CONT(C60) (B)	8-97384-116-0	01	1	0406-0501						●
34	09.181 SHAFT; IDLE PULLEY 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97384-116-0	01	1	0502-0506	●	●	●	●		●
34	09.181 SHAFT; IDLE PULLEY 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HG1 ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97384-116-0	01	1	0507-	●	●	●	●		●
35	09.181 BOLT; IDLER PULLEY TO C/BL AIR CONDITIONER MANUAL CONT(C60) 01.062 M8X16 FLANGE	0-28080-816-0	05	1	0507-0512					●
35	09.181 BOLT; IDLER PULLEY TO C/BL AIR CONDITIONER MANUAL CONT(C60) 02.343 M8X16 FLANGE	0-28050-816-0	05	1	0601-					●
57	09.171 BRACKET; IDLER PULLEY AIR CONDITIONER MANUAL CONT(C60)	8-97081-262-2	01	1	0507-					●
66	01.066 BELT; A/C CMPR 4HF1-S ENG(RLS),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) L=1569	8-97180-183-2	01	1	0211-0501	●
66	01.066 BELT; A/C CMPR 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) L=1569	8-97180-183-2	01	1	0211-0501		●	●	●
66	01.066 BELT; A/C CMPR AIR CONDITIONER MANUAL CONT(C60) L=1569	8-97180-183-2	01	1	0211-0501					●	●
66	01.066 BELT; A/C CMPR 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) L=1569	8-97180-183-3	01	1	0502-0506	●	●	●	●		●
66	01.066 BELT; A/C CMPR 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HG1 ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) L=1569	8-97180-183-3	01	1	0507-	●	●	●	●	●	●
66	01.066 BELT; A/C CMPR 4HF1-S ENG(RLS),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) BEST VALUE PARTS	5-87610-097-0	01	1	0211-0501	●
66	01.066 BELT; A/C CMPR 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) BEST VALUE PARTS	5-87610-097-0	01	1	0211-0501		●	●	●
66	01.066 BELT; A/C CMPR AIR CONDITIONER MANUAL CONT(C60) BEST VALUE PARTS	5-87610-097-0	01	1	0211-0501					●	●
66	01.066 BELT; A/C CMPR 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) BEST VALUE PARTS	5-87610-097-0	01	1	0502-0506	●	●	●	●		●
66	01.066 BELT; A/C CMPR 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HG1 ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) BEST VALUE PARTS	5-87610-097-0	01	1	0507-	●	●	●	●	●	●
316	09.242 BOLT; BRKT FIX AIR CONDITIONER MANUAL CONT(C60) 09.171 (C) M10X100 FLANGE	0-28181-000-0	01	1	0507-0512					●
316	09.242 BOLT; BRKT FIX AIR CONDITIONER MANUAL CONT(C60) 09.171 (C) M10X100 FLANGE	0-28151-000-0	01	1	0601-					●
316	09.242 BOLT; BRKT FIX AIR CONDITIONER MANUAL CONT(C60) 03.330 (D) M10X60 FLANGE	0-28181-060-0	02	1	0507-0512					●
316	09.242 BOLT; BRKT FIX AIR CONDITIONER MANUAL CONT(C60) 00.683 (D) M10X60 FLANGE	0-28151-060-0	02	1	0601-					●
316	09.242 BOLT; BRKT FIX 4HF1-S ENG(RLS),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) 01.780 (A) M8X50 FLANGE	0-28080-850-0	01	1	0211-0501	●
316	09.242 BOLT; BRKT FIX 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) 01.780 (A) M8X50 FLANGE	0-28080-850-0	01	1	0211-0501		●	●	●
316	09.242 BOLT; BRKT FIX AIR CONDITIONER MANUAL CONT(C60) 01.780 (A) M8X50 FLANGE	0-28080-850-0	01	1	0211-0501						●
316	09.242 BOLT; BRKT FIX 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 01.780 (A) M8X50 FLANGE	0-28080-850-0	01	1	0502-0506	●	●	●	●		●
316	09.242 BOLT; BRKT FIX 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HG1 ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 01.780 (A) M8X50 FLANGE	0-28080-850-0	01	1	0507-0512	●	●	●	●		●
316	09.242 BOLT; BRKT FIX 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HG1 ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 00.386 (A) M8X50 FLANGE	0-28050-850-0	01	1	0601-	●	●	●	●		●
316	09.242 BOLT; BRKT FIX 4HF1-S ENG(RLS),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) 04.510 (B) M10X65 FLANGE	8-94344-540-1	01	1	0211-0501	●
316	09.242 BOLT; BRKT FIX 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) 04.510 (B) M10X65 FLANGE	8-94344-540-1	01	1	0211-0501		●	●	●
316	09.242 BOLT; BRKT FIX AIR CONDITIONER MANUAL CONT(C60) 04.510 (B) M10X65 FLANGE	8-94344-540-1	01	1	0211-0501						●
316	09.242 BOLT; BRKT FIX 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 04.510 (B) M10X65 FLANGE	8-94344-540-1	01	1	0502-0506	●	●	●	●		●
316	09.242 BOLT; BRKT FIX 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HG1 ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 04.510 (B) M10X65 FLANGE	8-94344-540-1	01	1	0507-	●	●	●	●		●

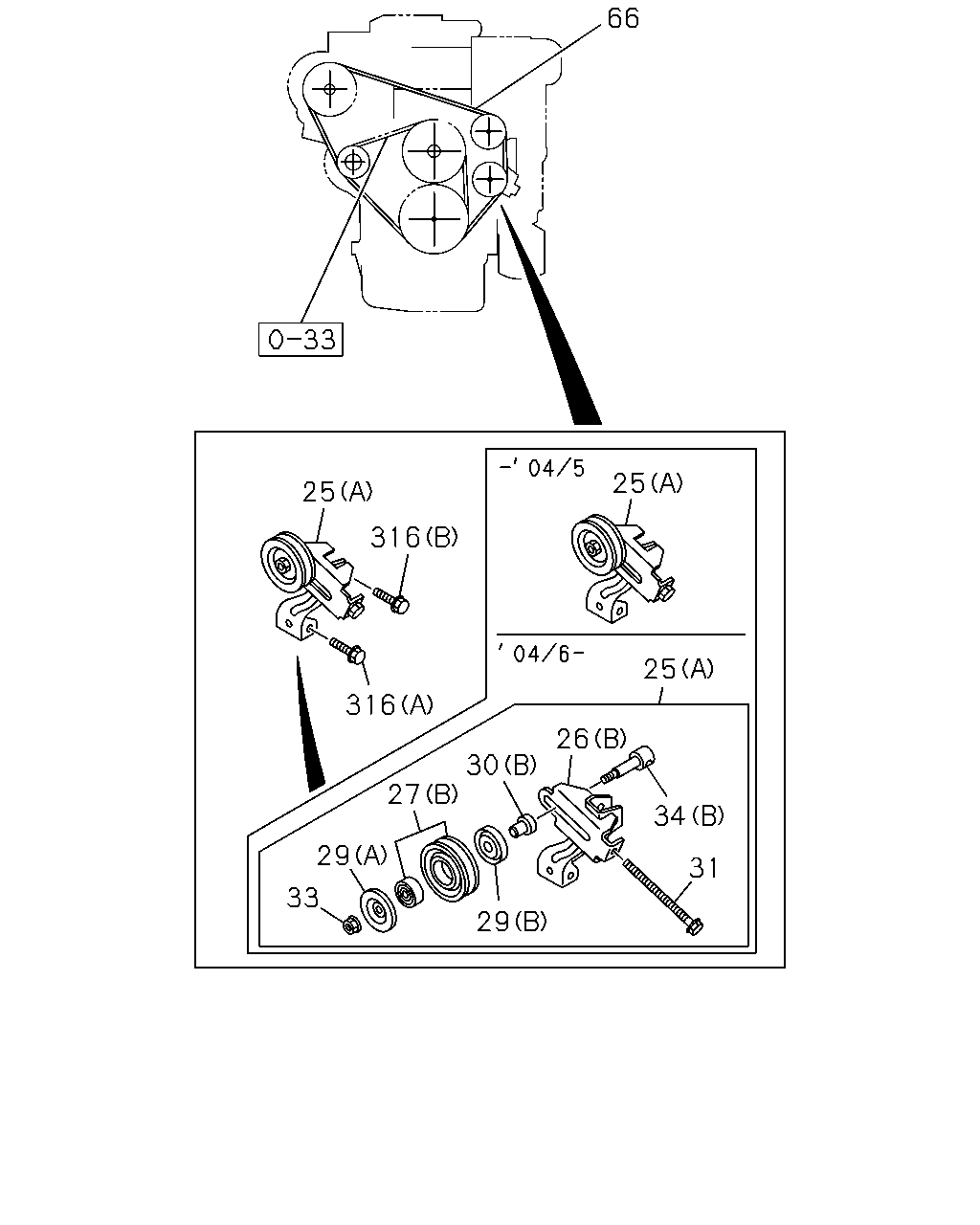

66 25 25 316 25 316 26 30 27 34 29 31 33 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
25	09.180 PULLEY ASM; IDLER,CMPR AIR CONDITIONER MANUAL CONT(C60) (B) 1-GROOVE	8-94334-696-2	01	1	0507-					●
25	09.180 PULLEY ASM; IDLER,CMPR AIR CONDITIONER MANUAL CONT(C60) (C) 1-GROOVE	8-94334-873-0	01	1	0507-					●
25	09.180 PULLEY ASM; IDLER,CMPR 4HF1-S ENG(RLS),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) (A) 1-GROOVE	8-97161-198-1	01	1	0211-0501	●
25	09.180 PULLEY ASM; IDLER,CMPR 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) (A) 1-GROOVE	8-97161-198-1	01	1	0211-0501		●	●	●
25	09.180 PULLEY ASM; IDLER,CMPR AIR CONDITIONER MANUAL CONT(C60) (A) 1-GROOVE	8-97161-198-1	01	1	0211-0501						●
25	09.180 PULLEY ASM; IDLER,CMPR 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A) 1-GROOVE	8-97161-198-1	01	1	0502-0506	●	●	●	●		●
25	09.180 PULLEY ASM; IDLER,CMPR 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HG1 ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A) 1-GROOVE	8-97161-198-1	01	1	0507-	●	●	●	●		●
26	09.180 BRACKET; IDLE PULLEY,A/C AIR CONDITIONER MANUAL CONT(C60) (A)	8-97060-362-0	01	1	0507-					●
26	09.180 BRACKET; IDLE PULLEY,A/C 4HF1-S ENG(RLS),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97161-031-1	01	1	0406-0501	●
26	09.180 BRACKET; IDLE PULLEY,A/C 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97161-031-1	01	1	0406-0501		●	●	●
26	09.180 BRACKET; IDLE PULLEY,A/C AIR CONDITIONER MANUAL CONT(C60) (B)	8-97161-031-1	01	1	0406-0501						●
26	09.180 BRACKET; IDLE PULLEY,A/C 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97161-031-1	01	1	0502-0506	●	●	●	●		●
26	09.180 BRACKET; IDLE PULLEY,A/C 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HG1 ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97161-031-1	01	1	0507-	●	●	●	●		●
27	09.180 PULLEY; IDLE,A/C AIR CONDITIONER MANUAL CONT(C60) (A)	9-13663-606-0	01	1	0507-					●
27	09.180 PULLEY; IDLE,A/C 4HF1-S ENG(RLS),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97386-869-0	01	1	0406-0501	●
27	09.180 PULLEY; IDLE,A/C 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97386-869-0	01	1	0406-0501		●	●	●
27	09.180 PULLEY; IDLE,A/C AIR CONDITIONER MANUAL CONT(C60) (B)	8-97386-869-0	01	1	0406-0501						●
27	09.180 PULLEY; IDLE,A/C 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97386-869-0	01	1	0502-0506	●	●	●	●		●
27	09.180 PULLEY; IDLE,A/C 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HG1 ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97386-869-0	01	1	0507-	●	●	●	●		●
29	09.181 COVER; DUST,IDLE PULLEY AIR CONDITIONER MANUAL CONT(C60) (C)	9-13669-603-0	02	1	0507-					●
29	09.181 COVER; DUST,IDLE PULLEY 4HF1-S ENG(RLS),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97384-114-0	01	1	0406-0501	●
29	09.181 COVER; DUST,IDLE PULLEY 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97384-114-0	01	1	0406-0501		●	●	●
29	09.181 COVER; DUST,IDLE PULLEY AIR CONDITIONER MANUAL CONT(C60) (A)	8-97384-114-0	01	1	0406-0501						●
29	09.181 COVER; DUST,IDLE PULLEY 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97384-114-0	01	1	0502-0506	●	●	●	●		●
29	09.181 COVER; DUST,IDLE PULLEY 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HG1 ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97384-114-0	01	1	0507-	●	●	●	●		●
29	09.181 COVER; DUST,IDLE PULLEY 4HF1-S ENG(RLS),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97384-115-0	01	1	0406-0501	●
29	09.181 COVER; DUST,IDLE PULLEY 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97384-115-0	01	1	0406-0501		●	●	●
29	09.181 COVER; DUST,IDLE PULLEY AIR CONDITIONER MANUAL CONT(C60) (B)	8-97384-115-0	01	1	0406-0501						●
29	09.181 COVER; DUST,IDLE PULLEY 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97384-115-0	01	1	0502-0506	●	●	●	●		●
29	09.181 COVER; DUST,IDLE PULLEY 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HG1 ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97384-115-0	01	1	0507-	●	●	●	●		●
30	09.181 COLLAR; IDLE PULLEY AIR CONDITIONER MANUAL CONT(C60) (A)	8-94207-192-0	01	1	0507-					●
30	09.181 COLLAR; IDLE PULLEY 4HF1-S ENG(RLS),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97384-117-0	01	1	0406-0501	●
30	09.181 COLLAR; IDLE PULLEY 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97384-117-0	01	1	0406-0501		●	●	●
30	09.181 COLLAR; IDLE PULLEY AIR CONDITIONER MANUAL CONT(C60) (B)	8-97384-117-0	01	1	0406-0501						●
30	09.181 COLLAR; IDLE PULLEY 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97384-117-0	01	1	0502-0506	●	●	●	●		●
30	09.181 COLLAR; IDLE PULLEY 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HG1 ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97384-117-0	01	1	0507-	●	●	●	●		●
31	09.181 BOLT; ADJ,IDLE PULLEY 4HF1-S ENG(RLS),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60)	8-97384-113-0	01	1	0406-0501	●
31	09.181 BOLT; ADJ,IDLE PULLEY 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60)	8-97384-113-0	01	1	0406-0501		●	●	●
31	09.181 BOLT; ADJ,IDLE PULLEY AIR CONDITIONER MANUAL CONT(C60)	8-97384-113-0	01	1	0406-0501						●
31	09.181 BOLT; ADJ,IDLE PULLEY 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97384-113-0	01	1	0502-0506	●	●	●	●		●
31	09.181 BOLT; ADJ,IDLE PULLEY 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HG1 ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97384-113-0	01	1	0507-	●	●	●	●		●
33	09.181 NUT; IDLER PULLEY 4HF1-S ENG(RLS),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60)	8-97384-118-0	01	1	0406-0501	●
33	09.181 NUT; IDLER PULLEY 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60)	8-97384-118-0	01	1	0406-0501		●	●	●
33	09.181 NUT; IDLER PULLEY AIR CONDITIONER MANUAL CONT(C60)	8-97384-118-0	01	1	0406-0501						●
33	09.181 NUT; IDLER PULLEY 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97384-118-0	01	1	0502-0506	●	●	●	●		●
33	09.181 NUT; IDLER PULLEY 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HG1 ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97384-118-0	01	1	0507-	●	●	●	●		●
34	09.181 SHAFT; IDLE PULLEY AIR CONDITIONER MANUAL CONT(C60) 02.277 (A) M10X30	0-28121-030-0	01	1	0507-					●
34	09.181 SHAFT; IDLE PULLEY 4HF1-S ENG(RLS),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97384-116-0	01	1	0406-0501	●
34	09.181 SHAFT; IDLE PULLEY 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97384-116-0	01	1	0406-0501		●	●	●
34	09.181 SHAFT; IDLE PULLEY AIR CONDITIONER MANUAL CONT(C60) (B)	8-97384-116-0	01	1	0406-0501						●
34	09.181 SHAFT; IDLE PULLEY 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97384-116-0	01	1	0502-0506	●	●	●	●		●
34	09.181 SHAFT; IDLE PULLEY 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HG1 ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97384-116-0	01	1	0507-	●	●	●	●		●
66	01.066 BELT; A/C CMPR 4HF1-S ENG(RLS),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) L=1569	8-97180-183-2	01	1	0211-0501	●
66	01.066 BELT; A/C CMPR 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) L=1569	8-97180-183-2	01	1	0211-0501		●	●	●
66	01.066 BELT; A/C CMPR AIR CONDITIONER MANUAL CONT(C60) L=1569	8-97180-183-2	01	1	0211-0501					●	●
66	01.066 BELT; A/C CMPR 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) L=1569	8-97180-183-3	01	1	0502-0506	●	●	●	●		●
66	01.066 BELT; A/C CMPR 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HG1 ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) L=1569	8-97180-183-3	01	1	0507-	●	●	●	●	●	●
66	01.066 BELT; A/C CMPR 4HF1-S ENG(RLS),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) BEST VALUE PARTS	5-87610-097-0	01	1	0211-0501	●
66	01.066 BELT; A/C CMPR 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) BEST VALUE PARTS	5-87610-097-0	01	1	0211-0501		●	●	●
66	01.066 BELT; A/C CMPR AIR CONDITIONER MANUAL CONT(C60) BEST VALUE PARTS	5-87610-097-0	01	1	0211-0501					●	●
66	01.066 BELT; A/C CMPR 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) BEST VALUE PARTS	5-87610-097-0	01	1	0502-0506	●	●	●	●		●
66	01.066 BELT; A/C CMPR 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HG1 ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) BEST VALUE PARTS	5-87610-097-0	01	1	0507-	●	●	●	●	●	●
316	09.242 BOLT; BRKT FIX AIR CONDITIONER MANUAL CONT(C60) 09.171 (C) M10X100 FLANGE	0-28181-000-0	01	1	0507-0512					●
316	09.242 BOLT; BRKT FIX AIR CONDITIONER MANUAL CONT(C60) 09.171 (C) M10X100 FLANGE	0-28151-000-0	01	1	0601-					●
316	09.242 BOLT; BRKT FIX AIR CONDITIONER MANUAL CONT(C60) 03.330 (D) M10X60 FLANGE	0-28181-060-0	02	1	0507-0512					●
316	09.242 BOLT; BRKT FIX AIR CONDITIONER MANUAL CONT(C60) 00.683 (D) M10X60 FLANGE	0-28151-060-0	02	1	0601-					●
316	09.242 BOLT; BRKT FIX 4HF1-S ENG(RLS),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) 01.780 (A) M8X50 FLANGE	0-28080-850-0	01	1	0211-0501	●
316	09.242 BOLT; BRKT FIX 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) 01.780 (A) M8X50 FLANGE	0-28080-850-0	01	1	0211-0501		●	●	●
316	09.242 BOLT; BRKT FIX AIR CONDITIONER MANUAL CONT(C60) 01.780 (A) M8X50 FLANGE	0-28080-850-0	01	1	0211-0501						●
316	09.242 BOLT; BRKT FIX 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 01.780 (A) M8X50 FLANGE	0-28080-850-0	01	1	0502-0506	●	●	●	●		●
316	09.242 BOLT; BRKT FIX 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HG1 ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 01.780 (A) M8X50 FLANGE	0-28080-850-0	01	1	0507-0512	●	●	●	●		●
316	09.242 BOLT; BRKT FIX 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HG1 ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 00.386 (A) M8X50 FLANGE	0-28050-850-0	01	1	0601-	●	●	●	●		●
316	09.242 BOLT; BRKT FIX 4HF1-S ENG(RLS),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) 04.510 (B) M10X65 FLANGE	8-94344-540-1	01	1	0211-0501	●
316	09.242 BOLT; BRKT FIX 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) 04.510 (B) M10X65 FLANGE	8-94344-540-1	01	1	0211-0501		●	●	●
316	09.242 BOLT; BRKT FIX AIR CONDITIONER MANUAL CONT(C60) 04.510 (B) M10X65 FLANGE	8-94344-540-1	01	1	0211-0501						●
316	09.242 BOLT; BRKT FIX 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 04.510 (B) M10X65 FLANGE	8-94344-540-1	01	1	0502-0506	●	●	●	●		●
316	09.242 BOLT; BRKT FIX 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HG1 ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 04.510 (B) M10X65 FLANGE	8-94344-540-1	01	1	0507-	●	●	●	●		●

14 14 206 206 4 4 66 210 210 46 14 1 49 1 49 66 14 1 4 66

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	09.242 BRACKET; A/C 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) (C)	8-97379-507-2	01	1	0507-	●	●	●	●	●
1	09.242 BRACKET; A/C 4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97116-230-2	01	1	0211-0501	●	●	●	●
1	09.242 BRACKET; A/C AIR CONDITIONER MANUAL CONT(C60) (A)	8-97116-230-2	01	1	0211-0501					●
1	09.242 BRACKET; A/C 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97305-489-0	01	1	0502-	●	●	●	●		●
4	09.171 BOLT; A/C CMPR BRKT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) M10X100 FLANGE	0-28181-000-0	02	1	0507-0512	●	●	●	●	●
4	09.171 BOLT; A/C CMPR BRKT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) M10X100 FLANGE	0-28151-000-0	02	1	0601-	●	●	●	●	●
4	09.171 BOLT; A/C CMPR BRKT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 04.085 M10X80 FLANGE	0-28181-080-0	02	1	0507-0512	●	●	●	●	●
4	09.171 BOLT; A/C CMPR BRKT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 02.042 M10X80 FLANGE	0-28151-080-0	02	1	0601-	●	●	●	●	●
4	09.171 BOLT; A/C CMPR BRKT 4HF1-S ENG(RLS),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) 00.683 M10X55 FLANGE	8-94399-863-1	02	1	0211-0501	●
4	09.171 BOLT; A/C CMPR BRKT 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) 00.683 M10X55 FLANGE	8-94399-863-1	02	1	0211-0501		●	●	●
4	09.171 BOLT; A/C CMPR BRKT AIR CONDITIONER MANUAL CONT(C60) 00.683 M10X55 FLANGE	8-94399-863-1	02	1	0211-0501					●	●
4	09.171 BOLT; A/C CMPR BRKT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 00.683 M10X55 FLANGE	8-94399-863-1	02	1	0502-0805	●	●	●	●		●
4	09.171 BOLT; A/C CMPR BRKT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 00.683 M10X55 FLANGE	8-97365-449-0	02	1	0806-	●	●	●	●		●
4	09.171 BOLT; A/C CMPR BRKT 4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) 01.062 M10X85 FLANGE	8-94397-359-1	02	1	0211-0501	●	●	●	●
4	09.171 BOLT; A/C CMPR BRKT AIR CONDITIONER MANUAL CONT(C60) 01.062 M10X85 FLANGE	8-94397-359-1	02	1	0211-0501					●
4	09.171 BOLT; A/C CMPR BRKT 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.173 M10X90 FLANGE	0-28181-090-0	01	1	0211-0501	●	●	●	●		●
4	09.171 BOLT; A/C CMPR BRKT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 01.516 M10X110 FLANGE	0-28186-011-0	01	1	0502-0512	●	●	●	●		●
4	09.171 BOLT; A/C CMPR BRKT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) M10X110 FLANGE	0-28156-011-0	01	1	0601-	●	●	●	●		●
14	09.171 BOLT; CMPR 4HF1-S ENG(RLS),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) 03.708 M10X40	0-28281-040-0	04	1	0211-0501	●
14	09.171 BOLT; CMPR 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) 03.708 M10X40	0-28281-040-0	04	1	0211-0501		●	●	●
14	09.171 BOLT; CMPR AIR CONDITIONER MANUAL CONT(C60) 03.708 M10X40	0-28281-040-0	04	1	0211-0501					●	●
14	09.171 BOLT; CMPR 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) M8X90 FLANGE	0-28080-890-0	04	1	0502-0506	●	●	●	●		●
14	09.171 BOLT; CMPR 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HG1 ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) M8X90 FLANGE	0-28080-890-0	04	1	0507-0512	●	●	●	●	●	●
14	09.171 BOLT; CMPR 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HG1 ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 02.100 M8X90 FLANGE	0-28050-890-0	04	1	0601-	●	●	●	●	●	●
46	09.171 BRACKET; CMPR 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97147-029-0	01	1	0211-0501	●	●	●	●		●
49	09.171 COLLAR; BRKT,CMPR 4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) (A)	8-94201-057-1	02	1	0211-0501	●	●	●	●
49	09.171 COLLAR; BRKT,CMPR AIR CONDITIONER MANUAL CONT(C60) (A)	8-94201-057-1	02	1	0211-0501					●
49	09.171 COLLAR; BRKT,CMPR 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97147-059-0	02	1	0211-0501	●	●	●	●		●
66	01.066 BELT; A/C CMPR 4HF1-S ENG(RLS),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) L=1569	8-97180-183-2	01	1	0211-0501	●
66	01.066 BELT; A/C CMPR 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) L=1569	8-97180-183-2	01	1	0211-0501		●	●	●
66	01.066 BELT; A/C CMPR AIR CONDITIONER MANUAL CONT(C60) L=1569	8-97180-183-2	01	1	0211-0501					●	●
66	01.066 BELT; A/C CMPR 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) L=1569	8-97180-183-3	01	1	0502-0506	●	●	●	●		●
66	01.066 BELT; A/C CMPR 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HG1 ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) L=1569	8-97180-183-3	01	1	0507-	●	●	●	●	●	●
66	01.066 BELT; A/C CMPR 4HF1-S ENG(RLS),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) BEST VALUE PARTS	5-87610-097-0	01	1	0211-0501	●
66	01.066 BELT; A/C CMPR 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) BEST VALUE PARTS	5-87610-097-0	01	1	0211-0501		●	●	●
66	01.066 BELT; A/C CMPR AIR CONDITIONER MANUAL CONT(C60) BEST VALUE PARTS	5-87610-097-0	01	1	0211-0501					●	●
66	01.066 BELT; A/C CMPR 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) BEST VALUE PARTS	5-87610-097-0	01	1	0502-0506	●	●	●	●		●
66	01.066 BELT; A/C CMPR 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HG1 ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) BEST VALUE PARTS	5-87610-097-0	01	1	0507-	●	●	●	●	●	●
206	09.242 BOLT; CLIP BRKT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) AUSTRALIA EQUIPMENT(RR3) (B) M6X16 FLANGE	0-28050-616-0	01	1	0507-	●	●	●	●	●
206	09.242 BOLT; CLIP BRKT 4HF1-S ENG(RLS),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) 02.812 (A) M6X12 FLANGE	0-28280-612-0	01	1	0211-0501	●
206	09.242 BOLT; CLIP BRKT 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) 02.812 (A) M6X12 FLANGE	0-28280-612-0	01	1	0211-0501		●	●	●
206	09.242 BOLT; CLIP BRKT AIR CONDITIONER MANUAL CONT(C60) 02.812 (A) M6X12 FLANGE	0-28280-612-0	01	1	0211-0501					●	●
206	09.242 BOLT; CLIP BRKT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 02.812 (A) M6X12 FLANGE	0-28280-612-0	01	1	0502-0506	●	●	●	●		●
206	09.242 BOLT; CLIP BRKT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HG1 ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 02.812 (A) M6X12 FLANGE	0-28280-612-0	01	1	0507-0512	●	●	●	●	●	●
206	09.242 BOLT; CLIP BRKT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HG1 ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.216 (A) M6X12 FLANGE	0-28250-612-0	01	1	0601-	●	●	●	●	●	●
210	09.242 CLIP; HARNESS 4HF1-S ENG(RLS),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) 02.559 (B) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	0211-0501	●
210	09.242 CLIP; HARNESS 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) 02.559 (B) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	0211-0501		●	●	●
210	09.242 CLIP; HARNESS AIR CONDITIONER MANUAL CONT(C60) 02.559 (B) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	0211-0501					●	●
210	09.242 CLIP; HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 02.559 (B) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	0502-0506	●	●	●	●		●
210	09.242 CLIP; HARNESS 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HG1 ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 02.559 (B) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	0507-	●	●	●	●	●	●
210	09.242 CLIP; HARNESS 00.446 (A) ID=12 B=14 ID=8.5	5-09700-350-0	01	1	0211-0501	●	●	●	●	●	●
210	09.242 CLIP; HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 00.446 (A) ID=12 B=14 ID=8.5	5-09700-350-0	01	1	0502-0506	●	●	●	●		●
210	09.242 CLIP; HARNESS 00.446 (A) ID=12 B=14 ID=8.5	5-09700-350-0	01	1	0507-0801	●	●	●	●	●	●
210	09.242 CLIP; HARNESS 03.671 (A) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	0802-	●	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
