8-28 — CHASSIS ELECTRICAL (#18348) — 139 parça

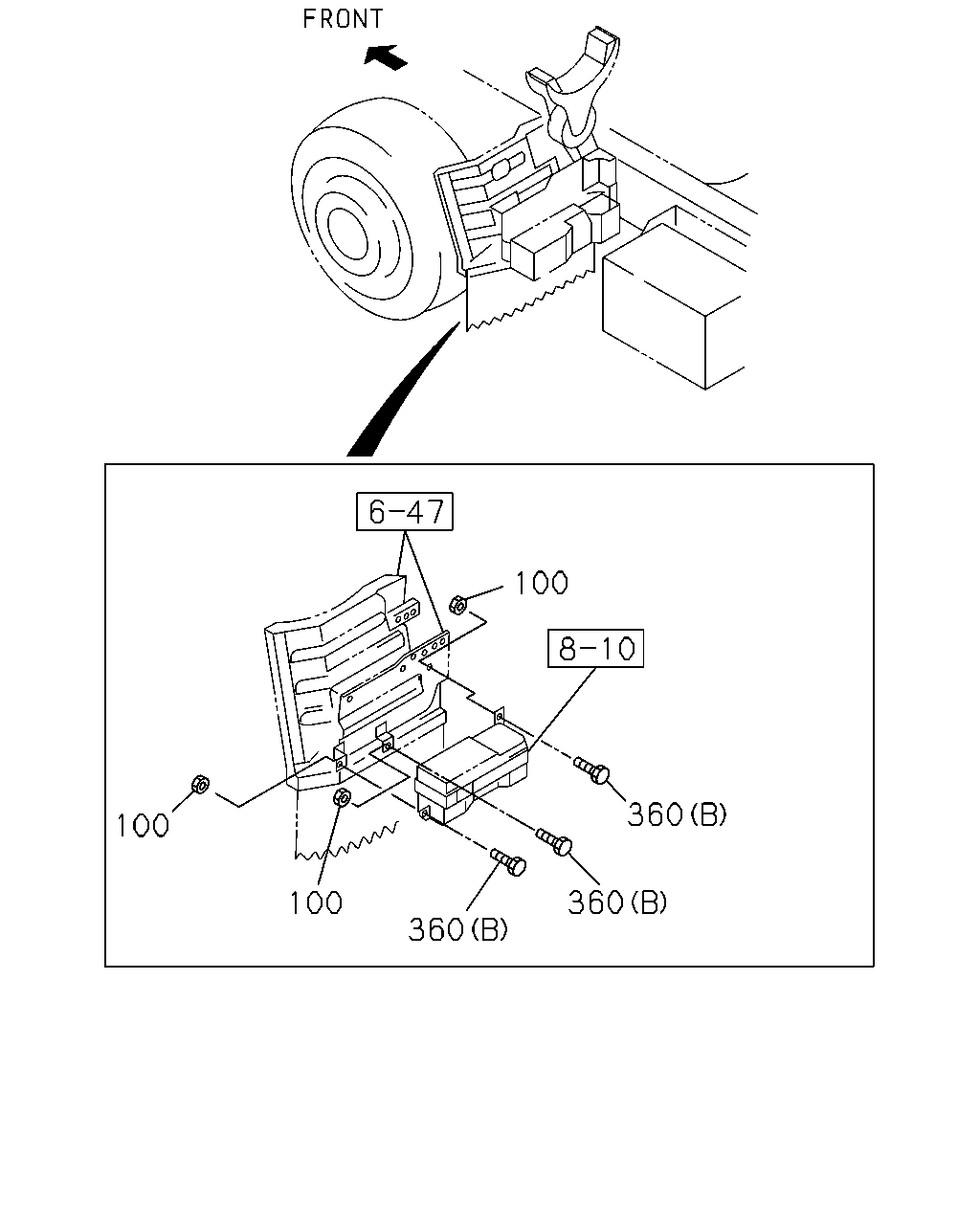

çizim 13330
100 360 100 360 100 360
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
100 09.277 NUT; RELAY BOX COVER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE 		0-91150-108-0 03 1 0211-0501 ● ● ● ●
100 09.277 NUT; RELAY BOX COVER
4HG1 ENG(RJH),4HF1-S ENG(RLS) TIRE SIZE 8.25-16<7QP> 07.633 M8 FLANGE 		0-91150-108-0 03 1 0211-0501 ● ● ●
100 09.277 NUT; RELAY BOX COVER
CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE 		0-91150-108-0 03 1 0211-0501 ●
100 09.277 NUT; RELAY BOX COVER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) TIRE SIZE 8.25-16<7QP> 07.633 M8 FLANGE 		0-91150-108-0 03 1 0502-0506 ● ● ●
100 09.277 NUT; RELAY BOX COVER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 07.633 M8 FLANGE 		0-91150-108-0 03 1 0507-0602 ● ● ● ● ●
100 09.277 NUT; RELAY BOX COVER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) TIRE SIZE 8.25-16<7QP> 07.633 M8 FLANGE 		0-91150-108-0 03 1 0507-0602 ● ● ●
100 09.277 NUT; RELAY BOX COVER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.062 M8 FLANGE 		0-91180-108-0 03 1 0603- ● ● ● ● ●
100 09.277 NUT; RELAY BOX COVER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) TIRE SIZE 8.25-16<7QP> 01.062 M8 FLANGE 		0-91180-108-0 03 1 0603- ● ● ●
100 09.277 NUT; RELAY BOX COVER
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>,TIRE SIZE8.25-16<7QP> 07.633 M8 FLANGE 		0-91150-108-0 02 1 0211-0501 ● ● ● ● ● ●
100 09.277 NUT; RELAY BOX COVER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. TIRE SIZE 8.25-16<7QP> 07.633 M8 FLANGE 		0-91150-108-0 02 1 0502-0602 ● ● ● ● ●
100 09.277 NUT; RELAY BOX COVER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. TIRE SIZE 8.25-16<7QP> 01.062 M8 FLANGE 		0-91180-108-0 02 1 0603- ● ● ● ● ●
360 02.483 BOLT; RELAY BOX
4HK1-TCN ENG(RDQ) 02.559 (B) M8X25 FLANGE 		0-28680-825-0 03 1 0507-0512 ●
360 02.483 BOLT; RELAY BOX
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 02.559 (B) M8X25 FLANGE 		0-28680-825-0 03 1 0507-0512 ● ● ●
360 02.483 BOLT; RELAY BOX
02.559 (B) M8X25 FLANGE 		0-28680-825-0 03 1 0507-0512 ●
360 02.483 BOLT; RELAY BOX
4HK1-TCN ENG(RDQ) 06.216 (B) M8X25 FLANGE 		0-28650-825-0 03 1 0601- ●
360 02.483 BOLT; RELAY BOX
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 06.216 (B) M8X25 FLANGE 		0-28650-825-0 03 1 0601- ● ● ●
360 02.483 BOLT; RELAY BOX
06.216 (B) M8X25 FLANGE 		0-28650-825-0 03 1 0601- ●
360 02.483 BOLT; RELAY BOX
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 02.559 (B) M8X25 FLANGE 		0-28680-825-0 03 1 0211-0501 ● ● ● ●
360 02.483 BOLT; RELAY BOX
CHARGE AIR COOLER<6PL> 02.559 (B) M8X25 FLANGE 		0-28680-825-0 03 1 0211-0501 ●
360 02.483 BOLT; RELAY BOX
10.230 (A) M6X16 W/LK&PL WASHER 		8-94139-963-0 04 1 0211-0501 ● ● ● ● ● ●
360 02.483 BOLT; RELAY BOX
10.230 (A) M6X16 W/LK&PL WASHER 		8-94139-963-0 04 1 0502-0506 ● ● ● ● ●
360 02.483 BOLT; RELAY BOX
10.230 (A) M6X16 W/LK&PL WASHER 		8-94139-963-0 04 1 0507-1210 ● ● ● ● ● ●
360 02.483 BOLT; RELAY BOX
02.587 (A) M6X19.5 W/LK&PL WASHER 		8-97360-226-0 04 1 1211- ● ● ● ● ● ●
360 02.483 BOLT; RELAY BOX
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>,TIRE SIZE8.25-16<7QP> 01.062 (B) M8X16 FLANGE 		0-28080-816-0 01 1 0211-0501 ● ● ● ● ● ●
360 02.483 BOLT; RELAY BOX
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. TIRE SIZE 8.25-16<7QP> 01.062 (B) M8X16 FLANGE 		0-28080-816-0 01 1 0502-0512 ● ● ● ● ●
360 02.483 BOLT; RELAY BOX
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. TIRE SIZE 8.25-16<7QP> 02.343 (B) M8X16 FLANGE 		0-28050-816-0 01 1 0601- ● ● ● ● ●
360 02.483 BOLT; RELAY BOX
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>,TIRE SIZE8.25-16<7QP> 02.559 (B) M8X25 FLANGE 		0-28680-825-0 04 1 0211-0501 ● ● ● ● ● ●
360 02.483 BOLT; RELAY BOX
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. TIRE SIZE 8.25-16<7QP> 02.559 (B) M8X25 FLANGE 		0-28680-825-0 04 1 0502-0512 ● ● ● ● ●
360 02.483 BOLT; RELAY BOX
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. TIRE SIZE 8.25-16<7QP> 06.216 (B) M8X25 FLANGE 		0-28650-825-0 04 1 0601- ● ● ● ● ●
360 02.483 BOLT; RELAY BOX
4HG1 ENG(RJH),4HF1-S ENG(RLS) TIRE SIZE 8.25-16<7QP> 07.010 (B) M8X20 FLANGE 		0-28080-820-0 03 1 0211-0501 ● ● ●
360 02.483 BOLT; RELAY BOX
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) TIRE SIZE 8.25-16<7QP> 07.010 (B) M8X20 FLANGE 		0-28080-820-0 03 1 0502-0512 ● ● ●
360 02.483 BOLT; RELAY BOX
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) TIRE SIZE 8.25-16<7QP> 04.338 (B) M8X20 FLANGE 		0-28050-820-0 03 1 0601- ● ● ●

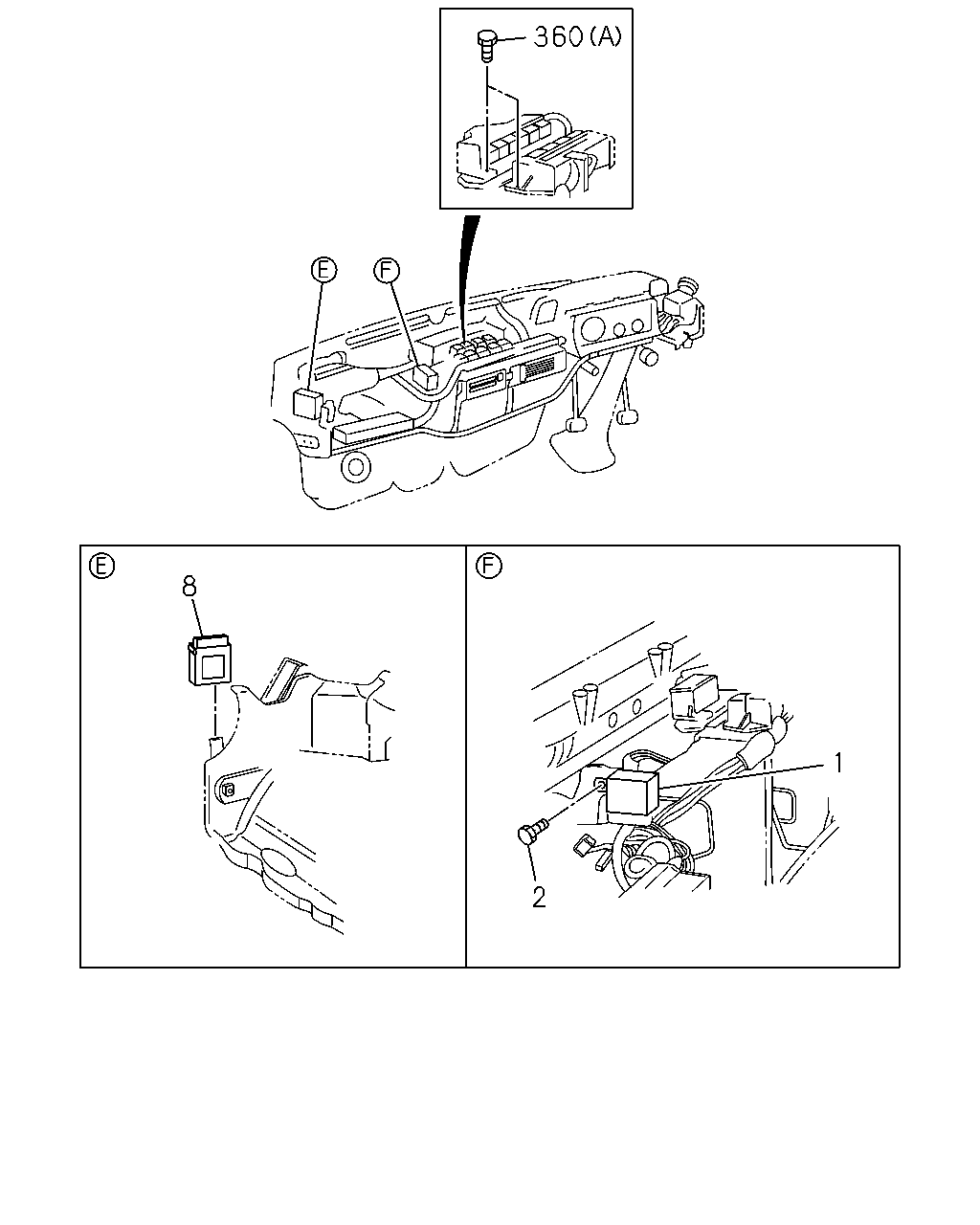

çizim 13331
360 8 1 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 02.575 UNIT; FLASHER 8-97086-508-1 01 1 0211-0211 ● ● ● ● ● ●
1 02.575 UNIT; FLASHER 8-97360-084-0 01 1 0212-0501 ● ● ● ● ● ●
1 02.575 UNIT; FLASHER 8-97360-084-1 01 1 0502-0506 ● ● ● ● ●
1 02.575 UNIT; FLASHER 8-97360-084-1 01 1 0507- ● ● ● ● ● ●
2 02.892 BOLT; FLASHER UNIT
10.230 M6X16 W/LK&PL WASHER 		8-94139-963-0 01 1 0211-0501 ● ● ● ● ● ●
2 02.892 BOLT; FLASHER UNIT
10.230 M6X16 W/LK&PL WASHER 		8-94139-963-0 01 1 0502-0506 ● ● ● ● ●
2 02.892 BOLT; FLASHER UNIT
10.230 M6X16 W/LK&PL WASHER 		8-94139-963-0 01 1 0507-1210 ● ● ● ● ● ●
2 02.892 BOLT; FLASHER UNIT
02.587 M6X19.5 W/LK&PL WASHER 		8-97360-226-0 01 1 1211- ● ● ● ● ● ●
8 16.067 RELAY; WIPER
INTERMITTENT WIPER<C13> 		8-97184-233-0 01 1 0211-0301 ● ● ● ● ● ●
8 16.067 RELAY; WIPER
INTERMITTENT WIPER<C13> 		8-97363-983-0 01 1 0302-0501 ● ● ● ● ● ●
8 16.067 RELAY; WIPER
INTERMITTENT WIPER<C13> 		8-97363-983-0 01 1 0502-0506 ● ● ● ● ●
8 16.067 RELAY; WIPER
INTERMITTENT WIPER<C13> 		8-97363-983-0 01 1 0507- ● ● ● ● ● ●
360 02.483 BOLT; RELAY BOX
4HK1-TCN ENG(RDQ) 02.559 (B) M8X25 FLANGE 		0-28680-825-0 03 1 0507-0512 ●
360 02.483 BOLT; RELAY BOX
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 02.559 (B) M8X25 FLANGE 		0-28680-825-0 03 1 0507-0512 ● ● ●
360 02.483 BOLT; RELAY BOX
02.559 (B) M8X25 FLANGE 		0-28680-825-0 03 1 0507-0512 ●
360 02.483 BOLT; RELAY BOX
4HK1-TCN ENG(RDQ) 06.216 (B) M8X25 FLANGE 		0-28650-825-0 03 1 0601- ●
360 02.483 BOLT; RELAY BOX
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 06.216 (B) M8X25 FLANGE 		0-28650-825-0 03 1 0601- ● ● ●
360 02.483 BOLT; RELAY BOX
06.216 (B) M8X25 FLANGE 		0-28650-825-0 03 1 0601- ●
360 02.483 BOLT; RELAY BOX
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 02.559 (B) M8X25 FLANGE 		0-28680-825-0 03 1 0211-0501 ● ● ● ●
360 02.483 BOLT; RELAY BOX
CHARGE AIR COOLER<6PL> 02.559 (B) M8X25 FLANGE 		0-28680-825-0 03 1 0211-0501 ●
360 02.483 BOLT; RELAY BOX
10.230 (A) M6X16 W/LK&PL WASHER 		8-94139-963-0 04 1 0211-0501 ● ● ● ● ● ●
360 02.483 BOLT; RELAY BOX
10.230 (A) M6X16 W/LK&PL WASHER 		8-94139-963-0 04 1 0502-0506 ● ● ● ● ●
360 02.483 BOLT; RELAY BOX
10.230 (A) M6X16 W/LK&PL WASHER 		8-94139-963-0 04 1 0507-1210 ● ● ● ● ● ●
360 02.483 BOLT; RELAY BOX
02.587 (A) M6X19.5 W/LK&PL WASHER 		8-97360-226-0 04 1 1211- ● ● ● ● ● ●
360 02.483 BOLT; RELAY BOX
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>,TIRE SIZE8.25-16<7QP> 01.062 (B) M8X16 FLANGE 		0-28080-816-0 01 1 0211-0501 ● ● ● ● ● ●
360 02.483 BOLT; RELAY BOX
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. TIRE SIZE 8.25-16<7QP> 01.062 (B) M8X16 FLANGE 		0-28080-816-0 01 1 0502-0512 ● ● ● ● ●
360 02.483 BOLT; RELAY BOX
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. TIRE SIZE 8.25-16<7QP> 02.343 (B) M8X16 FLANGE 		0-28050-816-0 01 1 0601- ● ● ● ● ●
360 02.483 BOLT; RELAY BOX
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>,TIRE SIZE8.25-16<7QP> 02.559 (B) M8X25 FLANGE 		0-28680-825-0 04 1 0211-0501 ● ● ● ● ● ●
360 02.483 BOLT; RELAY BOX
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. TIRE SIZE 8.25-16<7QP> 02.559 (B) M8X25 FLANGE 		0-28680-825-0 04 1 0502-0512 ● ● ● ● ●
360 02.483 BOLT; RELAY BOX
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. TIRE SIZE 8.25-16<7QP> 06.216 (B) M8X25 FLANGE 		0-28650-825-0 04 1 0601- ● ● ● ● ●
360 02.483 BOLT; RELAY BOX
4HG1 ENG(RJH),4HF1-S ENG(RLS) TIRE SIZE 8.25-16<7QP> 07.010 (B) M8X20 FLANGE 		0-28080-820-0 03 1 0211-0501 ● ● ●
360 02.483 BOLT; RELAY BOX
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) TIRE SIZE 8.25-16<7QP> 07.010 (B) M8X20 FLANGE 		0-28080-820-0 03 1 0502-0512 ● ● ●
360 02.483 BOLT; RELAY BOX
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) TIRE SIZE 8.25-16<7QP> 04.338 (B) M8X20 FLANGE 		0-28050-820-0 03 1 0601- ● ● ●

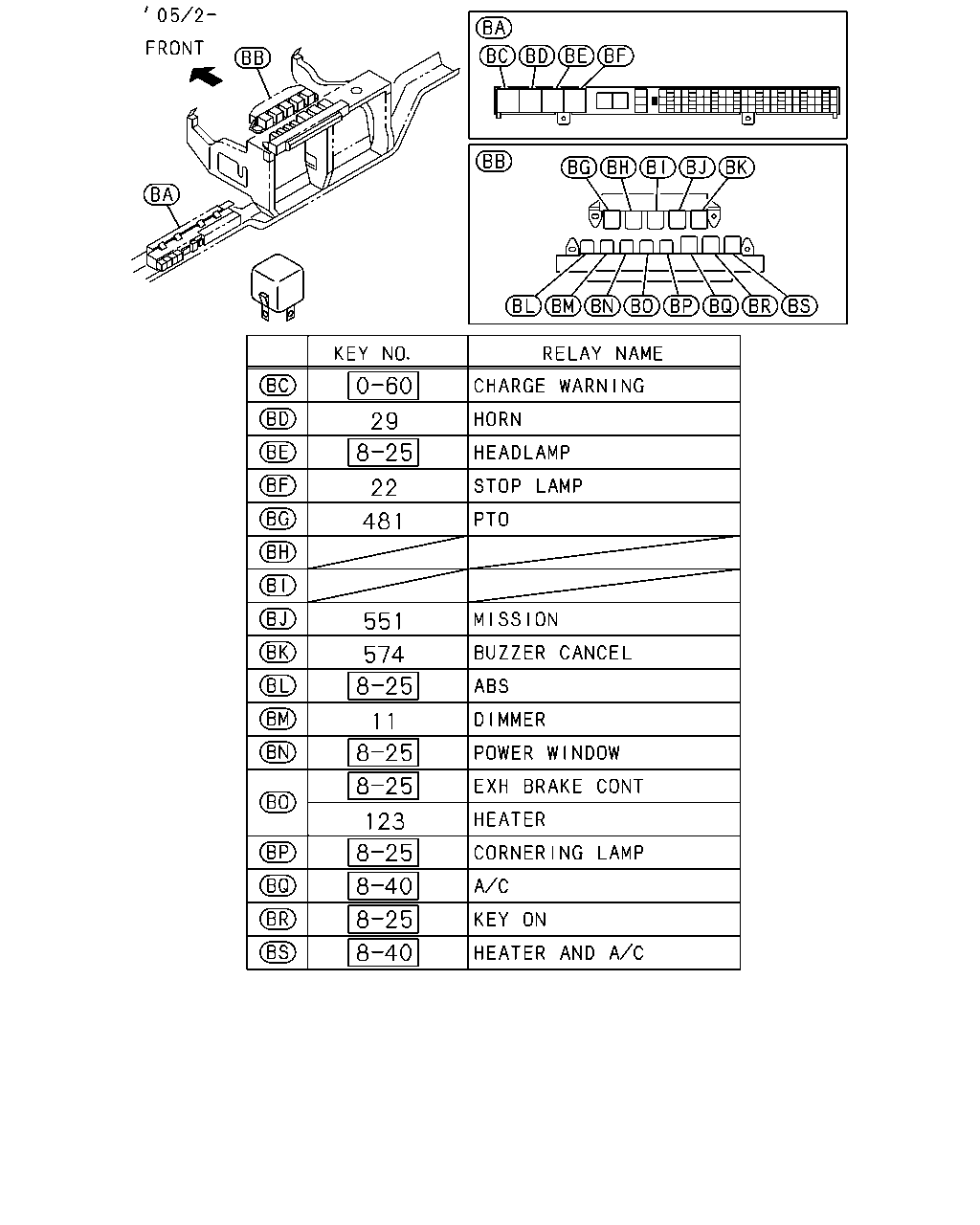

çizim 51562
29 22 481 551 574 11 123
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
11 02.485 RELAY; DIMMER
02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0501 ● ● ● ● ● ●
11 02.485 RELAY; DIMMER
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502-0506 ● ● ● ● ●
11 02.485 RELAY; DIMMER
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0507- ● ● ● ● ● ●
22 02.679 RELAY; STOP LAMP
02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0501 ● ● ● ● ● ●
22 02.679 RELAY; STOP LAMP
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502-0506 ● ● ● ● ●
22 02.679 RELAY; STOP LAMP
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0507- ● ● ● ● ● ●
29 02.815 RELAY; HORN
02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0501 ● ● ● ● ● ●
29 02.815 RELAY; HORN
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502-0506 ● ● ● ● ●
29 02.815 RELAY; HORN
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0507- ● ● ● ● ● ●
123 02.270 RELAY; HTR
4HK1-TCN ENG(RDQ) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0507- ●
123 02.270 RELAY; HTR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0507- ● ● ●
123 02.270 RELAY; HTR
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0507- ●
481 04.439 RELAY; PTO
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) PTO TRANSMISSION SIDE(V66) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0611- ● ● ● ●
551 02.510 RELAY; TRANSMISSION
TRANSMISSION CONTROL-SMOOTHER(8GF) 08.852 24V 10A PANASONIC 		8-97173-035-1 02 1 0507- ● ● ● ● ●
574 02.510 RELAY; CANCEL,BUZZER
HYDRO BRAKE BOOSTER<7QQ> 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0501 ● ● ●
574 02.510 RELAY; CANCEL,BUZZER
HYDRO BRAKE BOOSTER<7QQ> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502-0506 ●
574 02.510 RELAY; CANCEL,BUZZER
HYDRO BRAKE BOOSTER<7QQ> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0507- ● ● ●
574 02.510 RELAY; CANCEL,BUZZER
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0507- ●

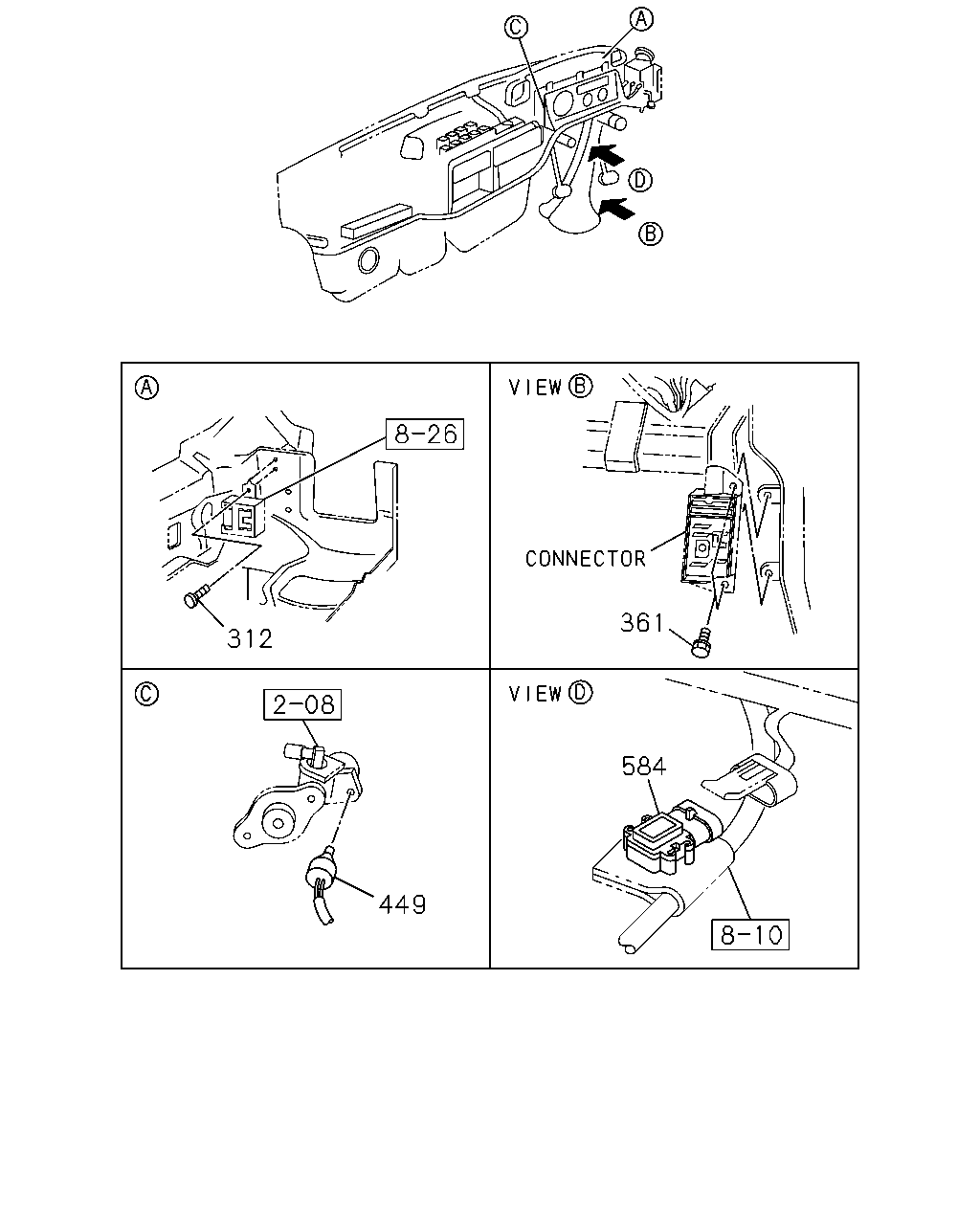

çizim 51571
361 312 584 449
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
312 09.765 BOLT; BUZZER
A/T 4 SPEED-AISIN(RNJ) 10.230 M6X16 W/LK&PL WASHER 		8-94139-963-0 01 1 0211-0501 ● ●
361 02.559 BOLT; CONNECTOR
08.225 M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 0211-0501 ● ● ● ● ● ●
361 02.559 BOLT; CONNECTOR
08.225 M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 0502-0506 ● ● ● ● ●
361 02.559 BOLT; CONNECTOR
08.225 M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 0507-1210 ● ● ● ● ● ●
361 02.559 BOLT; CONNECTOR
02.587 M6X19.5 W/LK&PL WASHER 		8-97360-226-0 01 1 1211- ● ● ● ● ● ●
361 02.559 BOLT; CONNECTOR
08.225 M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0211-0501 ● ● ● ● ● ●
361 02.559 BOLT; CONNECTOR
08.225 M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0502-0506 ● ● ● ● ●
361 02.559 BOLT; CONNECTOR
08.225 M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0507-1210 ● ● ● ● ● ●
361 02.559 BOLT; CONNECTOR
02.587 M6X19.5 W/LK&PL WASHER 		8-97360-226-0 02 1 1211- ● ● ● ● ● ●
449 08.083 SWITCH; OIL PRESS,CLUTCH
H.S.A SYSTEM<6EP> POWER ASSIST CLUTCH(S2T) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97222-138-2 01 1 0507-0611 ● ● ● ● ●
449 08.083 SWITCH; OIL PRESS,CLUTCH
H.S.A SYSTEM<6EP> POWER ASSIST CLUTCH(S2T) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98072-042-1 01 1 0612- ● ● ● ● ●
584 02.440 SENSOR; PRESSURE
4HK1-TCN ENG(RDQ) 02.510 		8-09350-899-1 01 1 0507-0810 ●
584 02.440 SENSOR; PRESSURE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 02.510 		8-09350-899-1 01 1 0507-0810 ● ● ●
584 02.440 SENSOR; PRESSURE
02.510 		8-09350-899-1 01 1 0507-0810 ●
584 02.440 SENSOR; PRESSURE
4HK1-TCN ENG(RDQ) 		8-28180-175-0 01 1 0811- ●
584 02.440 SENSOR; PRESSURE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 		8-28180-175-0 01 1 0811- ● ● ●
584 02.440 SENSOR; PRESSURE 8-28180-175-0 01 1 0811- ●
çizim 53541
22 11 29 574
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
11 02.485 RELAY; DIMMER
02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0501 ● ● ● ● ● ●
11 02.485 RELAY; DIMMER
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502-0506 ● ● ● ● ●
11 02.485 RELAY; DIMMER
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0507- ● ● ● ● ● ●
22 02.679 RELAY; STOP LAMP
02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0501 ● ● ● ● ● ●
22 02.679 RELAY; STOP LAMP
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502-0506 ● ● ● ● ●
22 02.679 RELAY; STOP LAMP
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0507- ● ● ● ● ● ●
29 02.815 RELAY; HORN
02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0501 ● ● ● ● ● ●
29 02.815 RELAY; HORN
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502-0506 ● ● ● ● ●
29 02.815 RELAY; HORN
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0507- ● ● ● ● ● ●
574 02.510 RELAY; CANCEL,BUZZER
HYDRO BRAKE BOOSTER<7QQ> 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0501 ● ● ●
574 02.510 RELAY; CANCEL,BUZZER
HYDRO BRAKE BOOSTER<7QQ> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502-0506 ●
574 02.510 RELAY; CANCEL,BUZZER
HYDRO BRAKE BOOSTER<7QQ> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0507- ● ● ●
574 02.510 RELAY; CANCEL,BUZZER
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0507- ●
çizim 54803
72 72 45 44 46
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
44 02.810 HORN; HIGH NOTE
DUAL TONE HORN<U05> 		8-97211-741-1 01 1 0211-0501 ● ● ● ● ● ●
44 02.810 HORN; HIGH NOTE
DUAL TONE HORN<U05> 		8-97211-741-2 01 1 0502-0506 ● ● ● ● ●
44 02.810 HORN; HIGH NOTE
DUAL TONE HORN<U05> 		8-97211-741-2 01 1 0507- ● ● ● ● ● ●
45 02.810 HORN; LOW NOTE
SINGLE HEAVY DUTY HORN<6HG> 		8-97109-364-1 01 1 0211-0501 ● ● ● ● ● ●
45 02.810 HORN; LOW NOTE
SINGLE HEAVY DUTY HORN<6HG> 		8-97109-364-1 01 1 0502-0506 ● ● ● ● ●
45 02.810 HORN; LOW NOTE
SINGLE HEAVY DUTY HORN<6HG> 		8-97109-364-1 01 1 0507- ● ● ● ● ● ●
45 02.810 HORN; LOW NOTE
EXC. SINGLE HEAVY DUTY HORN<6HG> 		8-97211-740-1 01 1 0211-0501 ● ● ● ● ● ●
45 02.810 HORN; LOW NOTE
EXC. SINGLE HEAVY DUTY HORN<6HG> 		8-97211-740-2 01 1 0502-0506 ● ● ● ● ●
45 02.810 HORN; LOW NOTE
EXC. SINGLE HEAVY DUTY HORN<6HG> 		8-97211-740-2 01 1 0507- ● ● ● ● ● ●
46 02.812 BOLT; HORN TO BODY
DUAL TONE HORN<U05> 02.559 M8X20 W/LK&PL WASHER 		8-97086-825-0 02 1 0211-0501 ● ● ● ● ● ●
46 02.812 BOLT; HORN TO BODY
DUAL TONE HORN<U05> 02.559 M8X20 W/LK&PL WASHER 		8-97086-825-0 02 1 0502-0506 ● ● ● ● ●
46 02.812 BOLT; HORN TO BODY
DUAL TONE HORN<U05> 02.559 M8X20 W/LK&PL WASHER 		8-97086-825-0 02 1 0507-1004 ● ● ● ● ● ●
46 02.812 BOLT; HORN TO BODY
DUAL TONE HORN<U05> 02.343 M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1005- ● ● ● ● ● ●
46 02.812 BOLT; HORN TO BODY
EXC. DUAL TONE HORN<U05> 02.559 M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 0211-0501 ● ● ● ● ● ●
46 02.812 BOLT; HORN TO BODY
EXC. DUAL TONE HORN<U05> 02.559 M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 0502-0506 ● ● ● ● ●
46 02.812 BOLT; HORN TO BODY
EXC. DUAL TONE HORN<U05> 02.559 M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 0507-1004 ● ● ● ● ● ●
46 02.812 BOLT; HORN TO BODY
EXC. DUAL TONE HORN<U05> 02.343 M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1005- ● ● ● ● ● ●
72 02.760 PROTECTOR; RELAY
FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) 02.530 (B) L=65 		8-94235-856-0 01 1 0211-0501 ● ● ● ● ●
72 02.760 PROTECTOR; RELAY
PTO TRANSMISSION SIDE(V66) 02.530 (B) L=65 		8-94235-856-0 01 1 0211-0501 ●
72 02.760 PROTECTOR; RELAY
PTO TRANSMISSION SIDE(V66) 02.530 (B) L=65 		8-94235-856-0 01 1 0502- ● ● ● ● ●
72 02.760 PROTECTOR; RELAY
FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) EXC. FRAME STRAIGHT TYPE<7KJ> 04.785 (A) L=200 		8-97096-423-0 01 1 0211-0501 ● ● ● ● ●
72 02.760 PROTECTOR; RELAY
PTO TRANSMISSION SIDE(V66) 04.785 (A) L=200 		8-97096-423-0 01 1 0211-0501 ●
72 02.760 PROTECTOR; RELAY
PTO TRANSMISSION SIDE(V66) 04.785 (A) L=200 		8-97096-423-0 01 1 0502-0506 ● ●
72 02.760 PROTECTOR; RELAY
PTO TRANSMISSION SIDE(V66) EXC. FRAME STRAIGHT TYPE<7KJ> 04.785 (A) L=200 		8-97096-423-0 01 1 0502-0506 ● ● ●
72 02.760 PROTECTOR; RELAY
PTO TRANSMISSION SIDE(V66) EXC. FRAME STRAIGHT TYPE<7KJ> 04.785 (A) L=200 		8-97096-423-0 01 1 0507- ● ● ● ● ●
72 02.760 PROTECTOR; RELAY
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> 04.785 (A) L=200 		8-97096-423-0 01 1 0507- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
