8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#18346) — 61 parça
çizim 11275
204 21 2 3 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 09.709 LIGHTER; CIGAR 8-97320-325-0 01 1 0211-0501 ● ● ● ● ● ●
1 09.709 LIGHTER; CIGAR 8-97320-325-0 01 1 0502-0506 ● ● ● ● ●
1 09.709 LIGHTER; CIGAR 8-97320-325-0 01 1 0507- ● ● ● ● ● ●
2 09.709 BEZEL; CIGAR LIGHTER 8-97853-159-1 01 1 0211-0501 ● ● ● ● ● ●
2 09.709 BEZEL; CIGAR LIGHTER 8-97853-159-1 01 1 0502-0506 ● ● ● ● ●
2 09.709 BEZEL; CIGAR LIGHTER 8-97853-159-1 01 1 0507-0706 ● ● ● ● ● ●
2 09.709 BEZEL; CIGAR LIGHTER 8-98091-060-0 01 1 0707- ● ● ● ● ● ●
3 08.991 BULB; CIGAR LIGHTER
28V 1.8W 		8-97173-159-0 01 1 0211-0501 ● ● ● ● ● ●
3 08.991 BULB; CIGAR LIGHTER
28V 1.8W 		8-97173-159-0 01 1 0502-0506 ● ● ● ● ●
3 08.991 BULB; CIGAR LIGHTER
28V 1.8W 		8-97173-159-0 01 1 0507- ● ● ● ● ● ●
21 09.744 COVER; HOLE 8-97136-694-0 01 1 0211-0501 ● ● ● ● ● ●
21 09.744 COVER; HOLE 8-97136-694-0 01 1 0211-0501 ● ● ● ● ● ●
21 09.744 COVER; HOLE 8-97136-694-0 01 1 0211-0501 ● ● ● ● ● ●
21 09.744 COVER; HOLE
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 		8-97136-694-0 01 1 0502-0506 ● ● ● ● ●
21 09.744 COVER; HOLE 8-97136-694-0 01 1 0502-0506 ● ● ● ● ●
21 09.744 COVER; HOLE 8-97136-694-0 01 1 0507- ● ● ● ● ● ●
21 09.744 COVER; HOLE
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HG1 ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. H.S.A SYSTEM<6EP> 		8-97136-694-0 01 1 0507- ● ● ● ● ● ●
204 02.195 BUZZER; KEY REMIND
TRANSMISSION CONTROL-SMOOTHER(8GF) 09.765 		8-97036-649-0 01 1 0507- ● ● ● ● ●
204 02.195 BUZZER; KEY REMIND
A/T 4 SPEED-AISIN(RNJ) 09.765 		8-97036-649-0 01 1 0211-0501 ● ●

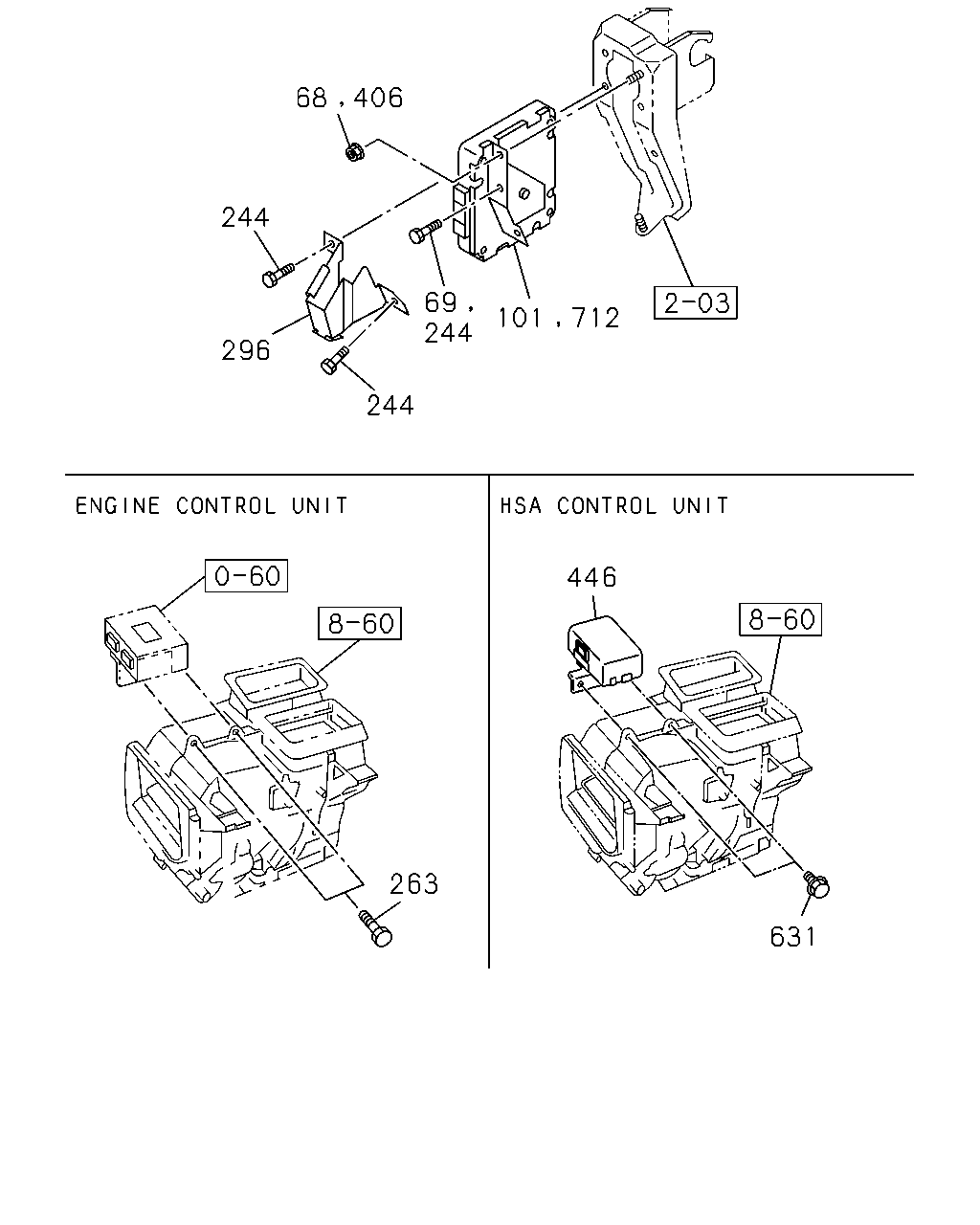

çizim 53120
68 406 244 69 244 101 712 296 244 446 263 631
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
68 02.500 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER(8GF) 00.662 M8X14 FLANGE 		0-28080-814-0 02 1 0507- ● ● ● ● ●
69 02.458 NUT; BRKT
TRANSMISSION CONTROL-SMOOTHER(8GF) 00.777 M8 W/LK WASHER 		8-94279-050-0 01 1 0507- ● ● ● ● ●
101 04.115 CONTROL UNIT; ELEC,A/T
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) 		8-97205-034-1 01 1 0211-0501 ● ●
244 02.500 BOLT; COVER
A/T 4 SPEED-AISIN(RNJ) 00.662 M8X14 FLANGE 		0-28080-814-0 03 1 0211-0501 ● ●
263 04.115 BOLT; CONT UNIT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 04.930 M6X20 FLANGE 		0-28680-620-0 02 1 0211-0501 ● ● ● ● ●
263 04.115 BOLT; CONT UNIT
4HG1 ENG(RJH) TURBOCHARGER(K51) 04.930 M6X20 FLANGE 		0-28680-620-0 02 1 0211-0501 ● ● ● ●
263 04.115 BOLT; CONT UNIT
4HG1-T ENG(RDP) 04.930 M6X20 FLANGE 		0-28680-620-0 02 1 0502-0512 ●
263 04.115 BOLT; CONT UNIT
04.930 M6X20 FLANGE 		0-28680-620-0 02 1 0502-0512 ●
263 04.115 BOLT; CONT UNIT
4HG1-T ENG(RDP) 03.162 M6X20 FLANGE 		0-28650-620-0 02 1 0601- ●
263 04.115 BOLT; CONT UNIT
03.162 M6X20 FLANGE 		0-28650-620-0 02 1 0601- ●
296 09.709 COVER; CONT UNIT
A/T 4 SPEED-AISIN(RNJ) 		8-97204-758-3 01 1 0211-0501 ● ●
406 09.709 NUT; COVER
A/T 4 SPEED-AISIN(RNJ) 00.777 M8 W/LK WASHER 		8-94279-050-0 01 1 0211-0501 ● ●
446 02.510 CONTROL UNIT; HSA
H.S.A SYSTEM<6EP> 		8-97376-739-0 01 1 0507-0510 ● ● ● ● ●
446 02.510 CONTROL UNIT; HSA
H.S.A SYSTEM<6EP> 		8-98031-565-1 01 1 0511- ● ● ● ● ●
631 04.054 BOLT; CONT UNIT
H.S.A SYSTEM<6EP> 04.930 M6X20 FLANGE 		0-28680-620-0 02 1 0507-0512 ● ● ● ● ●
631 04.054 BOLT; CONT UNIT
H.S.A SYSTEM<6EP> 03.162 M6X20 FLANGE 		0-28650-620-0 02 1 0601- ● ● ● ● ●
712 02.510 CONTROL UNIT; NEES
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98017-905-2 01 1 0507- ● ● ● ● ●

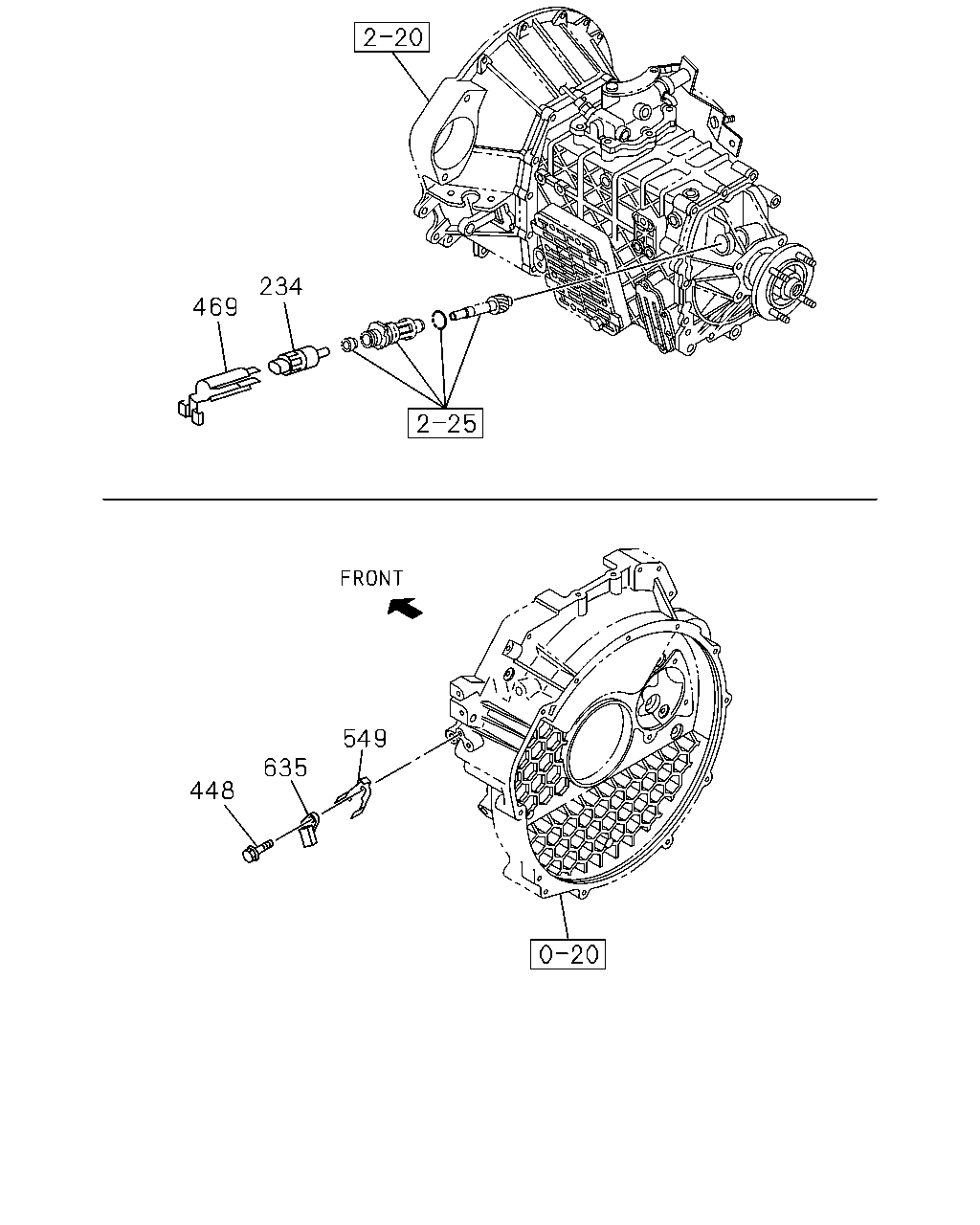

çizim 54659
234 469 549 635 448
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
234 03.682 SENSOR; VEHICLE SPD
4HK1-TCN ENG(RDQ) 25 PULSE ALUMINUM 		8-97328-058-1 01 1 0507- ●
234 03.682 SENSOR; VEHICLE SPD
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 25 PULSE ALUMINUM 		8-97328-058-1 01 1 0507- ● ● ●
234 03.682 SENSOR; VEHICLE SPD
25 PULSE ALUMINUM 		8-97328-058-1 01 1 0507- ●
234 03.682 SENSOR; VEHICLE SPD
4 PULSE ALUMINUM 		8-97256-525-0 01 1 0211-0501 ● ● ● ● ● ●
234 03.682 SENSOR; VEHICLE SPD
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 4 PULSE ALUMINUM 		8-97256-525-0 01 1 0502- ● ● ● ● ●
448 02.500 BOLT; SENSOR
00.738 M6X16 FLANGE 		0-28080-616-0 01 1 0211-0501 ● ● ● ● ● ●
448 02.500 BOLT; SENSOR
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 00.738 M6X16 FLANGE 		0-28080-616-0 01 1 0502-0506 ● ● ● ● ●
448 02.500 BOLT; SENSOR
00.738 M6X16 FLANGE 		0-28080-616-0 01 1 0507-0512 ● ● ● ● ● ●
448 02.500 BOLT; SENSOR
09.242 M6X16 FLANGE 		0-28050-616-0 01 1 0601- ● ● ● ● ● ●
469 03.682 PROTECTOR; SPEED SENSOR
A/T 4 SPEED-AISIN(RNJ) 		8-97168-308-0 01 1 0211-0501 ● ●
549 02.510 SHEET
09.743 		8-97161-633-2 01 1 0211-0501 ● ● ● ● ● ●
549 02.510 SHEET
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 09.743 		8-97161-633-2 01 1 0502- ● ● ● ● ●
635 09.750 SENSOR; TACHOMETER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) DENSO 		8-97306-113-1 01 1 0507- ● ● ● ● ●
635 09.750 SENSOR; TACHOMETER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> YAZAKI 		8-97214-325-0 01 1 0211-0211 ● ● ● ● ●
635 09.750 SENSOR; TACHOMETER
4HG1 ENG(RJH) TURBOCHARGER(K51) YAZAKI 		8-97214-325-0 01 1 0211-0211 ● ● ● ●
635 09.750 SENSOR; TACHOMETER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> YAZAKI 		8-97214-325-0 01 1 0212-0501 ● ● ● ● ●
635 09.750 SENSOR; TACHOMETER
4HG1 ENG(RJH) TURBOCHARGER(K51) YAZAKI 		8-97214-325-0 01 1 0212-0501 ● ● ●
635 09.750 SENSOR; TACHOMETER
4HG1-T ENG(RDP) YAZAKI 		8-97214-325-0 01 1 0502- ● ●
635 09.750 SENSOR; TACHOMETER
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> CALSONIC KANSEI 		8-97163-104-0 01 1 0211-0211 ● ● ● ● ●
635 09.750 SENSOR; TACHOMETER
4HF1-S ENG(RLS) CALSONIC KANSEI 		8-97163-104-0 01 1 0211-0211 ● ● ● ●
635 09.750 SENSOR; TACHOMETER
4HG1 ENG(RJH) EXC. TURBOCHARGER(K51) CALSONIC KANSEI 		8-97163-104-0 01 1 0211-0211 ● ● ● ●
635 09.750 SENSOR; TACHOMETER
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> CALSONIC KANSEI 		8-97163-104-0 01 1 0212-0501 ● ● ● ● ●
635 09.750 SENSOR; TACHOMETER
4HF1-S ENG(RLS) CALSONIC KANSEI 		8-97163-104-0 01 1 0212-0501 ● ● ● ●
635 09.750 SENSOR; TACHOMETER
4HG1 ENG(RJH) EXC. TURBOCHARGER(K51) CALSONIC KANSEI 		8-97163-104-0 01 1 0212-0501 ● ● ●
635 09.750 SENSOR; TACHOMETER
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) CALSONIC KANSEI 		8-97163-104-0 01 1 0502- ● ● ● ●
