◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50948 - NPR/NQR RHDEXC.EURO4 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-25 - SWITCH AND RELAY; INSTRUMENT PANEL ▶
8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#18345) — 250 parça

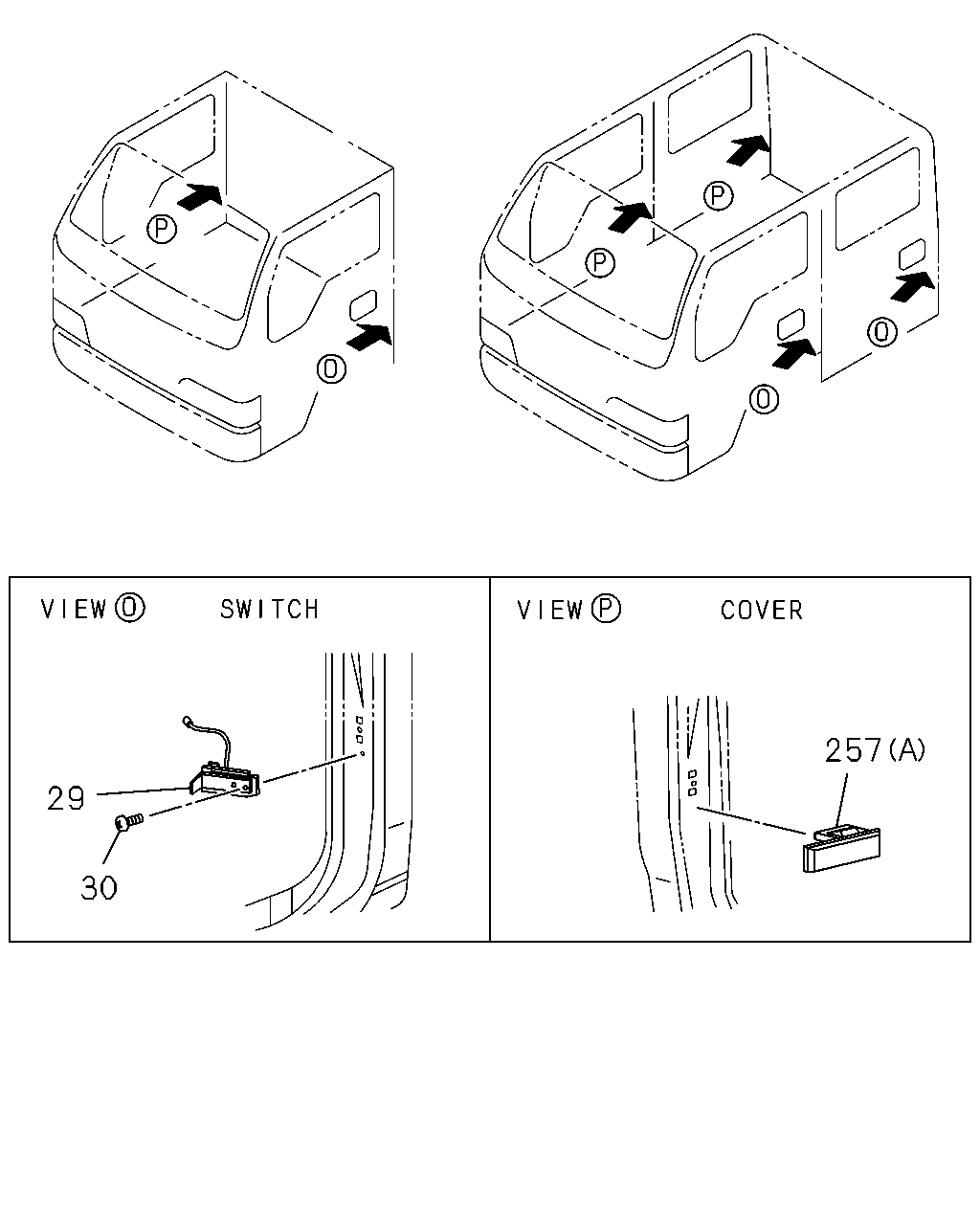

çizim 11194
257 29 30
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
29 16.263 SWITCH; DOOR
EXC. ROOM LAMP W/ALL DOORS SW(SDF), REMOTE CONT DOOR LOCK<6NF>, TRANSMISSIONCONTROL-SMOOTHER(8GF) 		8-97855-032-3 01 1 0507- ● ● ● ●
29 16.263 SWITCH; DOOR 8-97855-032-3 01 1 0507- ●
29 16.263 SWITCH; DOOR 8-97855-032-3 04 1 0507- ●
29 16.263 SWITCH; DOOR
ROOM LAMP W/ALL DOORS SW(SDF) 		8-97855-032-3 02 1 0211-0405 ● ● ● ●
29 16.263 SWITCH; DOOR
EXC. ROOM LAMP W/ALL DOORS SW(SDF) 		8-97855-032-3 02 1 0211-0405 ●
29 16.263 SWITCH; DOOR
ROOM LAMP W/ALL DOORS SW(SDF) 		8-97855-032-3 02 1 0406-0501 ● ● ● ●
29 16.263 SWITCH; DOOR
NEW ZEALAND EQUIPMENT(PK5) REMOTE CONT DOOR LOCK<6NF> 		8-97855-032-3 02 1 0406-0501 ● ● ●
29 16.263 SWITCH; DOOR
EXC. ROOM LAMP W/ALL DOORS SW(SDF), REMOTE CONT DOOR LOCK<6NF> 		8-97855-032-3 02 1 0406-0501 ●
29 16.263 SWITCH; DOOR
EXC. ROOM LAMP W/ALL DOORS SW(SDF) 		8-97855-032-3 01 1 0211-0405 ● ● ● ●
29 16.263 SWITCH; DOOR 8-97855-032-3 01 1 0211-0405 ●
29 16.263 SWITCH; DOOR
EXC. ROOM LAMP W/ALL DOORS SW(SDF), REMOTE CONT DOOR LOCK<6NF> 		8-97855-032-3 01 1 0406-0501 ● ● ● ●
29 16.263 SWITCH; DOOR 8-97855-032-3 01 1 0406-0501 ●
29 16.263 SWITCH; DOOR 8-97855-032-3 01 1 0502-0506 ● ● ● ● ●
29 16.263 SWITCH; DOOR
ROOM LAMP W/ALL DOORS SW(SDF) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97855-032-3 02 1 0507- ● ● ● ●
29 16.263 SWITCH; DOOR
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97855-032-3 02 1 0507- ● ● ● ●
29 16.263 SWITCH; DOOR
ROOM LAMP W/ALL DOORS SW(SDF) 		8-97855-032-3 04 1 0211-0501 ●
30 16.263 SCREW; DOOR SW
EXC. ROOM LAMP W/ALL DOORS SW(SDF), REMOTE CONT DOOR LOCK<6NF>, TRANSMISSIONCONTROL-SMOOTHER(8GF) M5X16 		8-94279-341-0 01 1 0507- ● ● ● ●
30 16.263 SCREW; DOOR SW
M5X16 		8-94279-341-0 01 1 0507- ●
30 16.263 SCREW; DOOR SW
M5X16 		8-94279-341-0 04 1 0507- ●
30 16.263 SCREW; DOOR SW
ROOM LAMP W/ALL DOORS SW(SDF) M5X16 		8-94279-341-0 02 1 0211-0405 ● ● ● ●
30 16.263 SCREW; DOOR SW
EXC. ROOM LAMP W/ALL DOORS SW(SDF) M5X16 		8-94279-341-0 02 1 0211-0405 ●
30 16.263 SCREW; DOOR SW
ROOM LAMP W/ALL DOORS SW(SDF) M5X16 		8-94279-341-0 02 1 0406-0501 ● ● ● ●
30 16.263 SCREW; DOOR SW
NEW ZEALAND EQUIPMENT(PK5) REMOTE CONT DOOR LOCK<6NF> M5X16 		8-94279-341-0 02 1 0406-0501 ● ● ●
30 16.263 SCREW; DOOR SW
EXC. ROOM LAMP W/ALL DOORS SW(SDF), REMOTE CONT DOOR LOCK<6NF> M5X16 		8-94279-341-0 02 1 0406-0501 ●
30 16.263 SCREW; DOOR SW
EXC. ROOM LAMP W/ALL DOORS SW(SDF) M5X16 		8-94279-341-0 01 1 0211-0405 ● ● ● ●
30 16.263 SCREW; DOOR SW
M5X16 		8-94279-341-0 01 1 0211-0405 ●
30 16.263 SCREW; DOOR SW
EXC. ROOM LAMP W/ALL DOORS SW(SDF), REMOTE CONT DOOR LOCK<6NF> M5X16 		8-94279-341-0 01 1 0406-0501 ● ● ● ●
30 16.263 SCREW; DOOR SW
M5X16 		8-94279-341-0 01 1 0406-0501 ●
30 16.263 SCREW; DOOR SW
M5X16 		8-94279-341-0 01 1 0502-0506 ● ● ● ● ●
30 16.263 SCREW; DOOR SW
ROOM LAMP W/ALL DOORS SW(SDF) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M5X16 		8-94279-341-0 02 1 0507- ● ● ● ●
30 16.263 SCREW; DOOR SW
TRANSMISSION CONTROL-SMOOTHER(8GF) M5X16 		8-94279-341-0 02 1 0507- ● ● ● ●
30 16.263 SCREW; DOOR SW
ROOM LAMP W/ALL DOORS SW(SDF) M5X16 		8-94279-341-0 04 1 0211-0501 ●
257 16.081 COVER; HOLE,SW
EXC. ROOM LAMP W/ALL DOORS SW(SDF) 16.494 (A) 		8-94229-914-1 01 1 0211-0405 ● ● ● ●
257 16.081 COVER; HOLE,SW
16.494 (A) 		8-94229-914-1 01 1 0211-0405 ●
257 16.081 COVER; HOLE,SW
EXC. ROOM LAMP W/ALL DOORS SW(SDF), REMOTE CONT DOOR LOCK<6NF> 16.494 (A) 		8-94229-914-1 01 1 0406-0501 ● ● ● ●
257 16.081 COVER; HOLE,SW
16.494 (A) 		8-94229-914-1 01 1 0406-0501 ●
257 16.081 COVER; HOLE,SW
16.494 (A) 		8-94229-914-1 01 1 0502-0506 ● ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. ROOM LAMP W/ALL DOORS SW(SDF), REMOTE CONT DOOR LOCK<6NF>, TRANSMISSIONCONTROL-SMOOTHER(8GF) 16.494 (A) 		8-94229-914-1 01 1 0507- ● ● ● ●
257 16.081 COVER; HOLE,SW
16.494 (A) 		8-94229-914-1 01 1 0507- ●
257 16.081 COVER; HOLE,SW
PTO TRANSMISSION SIDE(V66) 02.485 (B) 		8-94310-890-0 01 1 0211-0501 ● ● ● ● ● ●
257 16.081 COVER; HOLE,SW
PTO TRANSMISSION SIDE(V66) 02.485 (B) 		8-94310-890-0 01 1 0502- ● ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. ROOM LAMP SWITCH<7KL> 09.744 (C) 		8-97136-694-0 01 1 0211-0501 ● ● ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. ROOM LAMP SWITCH<7KL> 09.744 (C) 		8-97136-694-0 01 1 0502-0506 ● ● ● ● ●
257 16.081 COVER; HOLE,SW
09.744 (C) 		8-97136-694-0 01 1 0502-0506 ● ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. ROOM LAMP SWITCH<7KL> 09.744 (C) 		8-97136-694-0 01 1 0507- ● ● ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. THROTTLE CONTROL SYSTEM<6XH> 09.744 (C) 		8-97136-694-0 01 1 0507- ● ● ● ●
257 16.081 COVER; HOLE,SW
09.744 (C) 		8-97136-694-0 01 1 0507- ●
257 16.081 COVER; HOLE,SW
EXC. ROOM LAMP W/ALL DOORS SW(SDF) 16.494 (A) 		8-94229-914-1 02 1 0211-0405 ●
257 16.081 COVER; HOLE,SW
EXC. ROOM LAMP W/ALL DOORS SW(SDF), REMOTE CONT DOOR LOCK<6NF> 16.494 (A) 		8-94229-914-1 02 1 0406-0501 ●

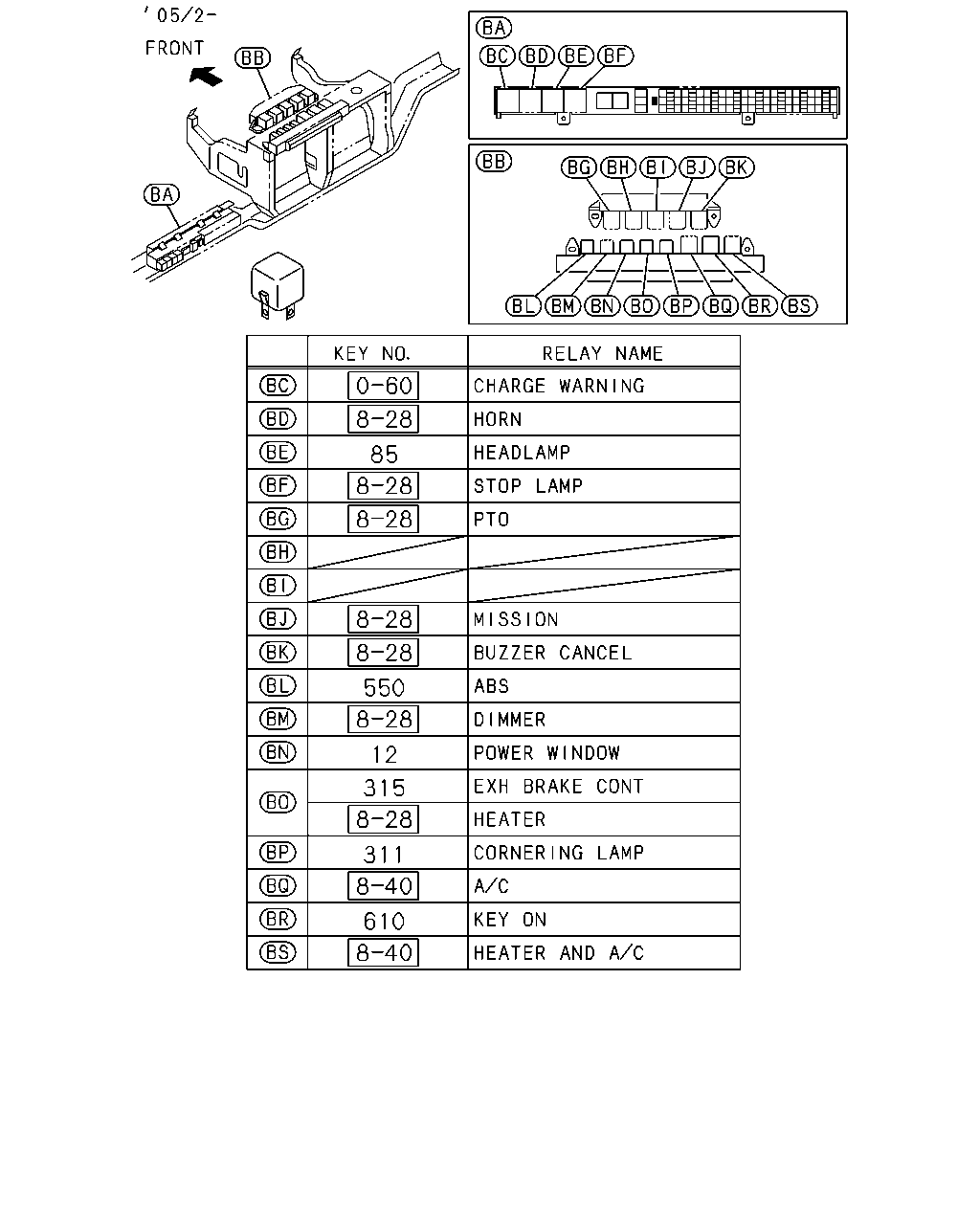

çizim 12921
85 550 12 315 311 610
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0501 ● ● ● ● ● ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC 		8-97173-035-1 01 1 0502-0506 ● ● ● ● ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC 		8-97173-035-1 01 1 0507- ● ● ● ● ●
12 08.852 RELAY; POWER WINDOW
24V 10A PANASONIC 		8-97173-035-1 01 1 0507- ●
85 02.485 RELAY; HEADLAMP
02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0501 ● ● ● ● ● ●
85 02.485 RELAY; HEADLAMP
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502-0506 ● ● ● ● ●
85 02.485 RELAY; HEADLAMP
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0507- ● ● ● ● ● ●
311 02.596 RELAY; CORNERING LAMP
EXC. AUSTRALIA EQUIPMENT(RR3) 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0501 ● ● ● ● ●
311 02.596 RELAY; CORNERING LAMP
02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0501 ●
311 02.596 RELAY; CORNERING LAMP
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502-0504 ● ● ● ●
311 02.596 RELAY; CORNERING LAMP
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0505-0506 ● ● ● ● ●
311 02.596 RELAY; CORNERING LAMP
EXC. AUSTRALIA EQUIPMENT(RR3) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0507- ● ● ● ●
311 02.596 RELAY; CORNERING LAMP
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0507- ●
315 09.277 RELAY; EXH BRAKE CONT
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) EXHAUST BRAKE<NF8> VOLTAGE 24V<7AE> EXC. FUEL SEDIMENTER WITH HEATER<6HU> 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0501 ● ● ● ● ● ●
315 09.277 RELAY; EXH BRAKE CONT
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> VOLTAGE 24V<7AE> 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0501 ● ● ● ●
315 09.277 RELAY; EXH BRAKE CONT
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> VOLTAGE 24V<7AE> EXC. FUEL SEDIMENTER WITH HEATER<6HU> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502- ● ● ● ● ●
315 09.277 RELAY; EXH BRAKE CONT
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> VOLTAGE 24V<7AE> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502- ● ● ● ●
550 02.510 RELAY; ABS
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 4 WHEEL ANTI LOCK BRAKE<JE5> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0507- ● ● ● ●
550 02.510 RELAY; ABS
4 WHEEL ANTI LOCK BRAKE<JE5> 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0309-0501 ● ● ●
610 02.510 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0502-0506 ● ● ● ● ●
610 02.510 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0507- ● ● ● ● ● ●

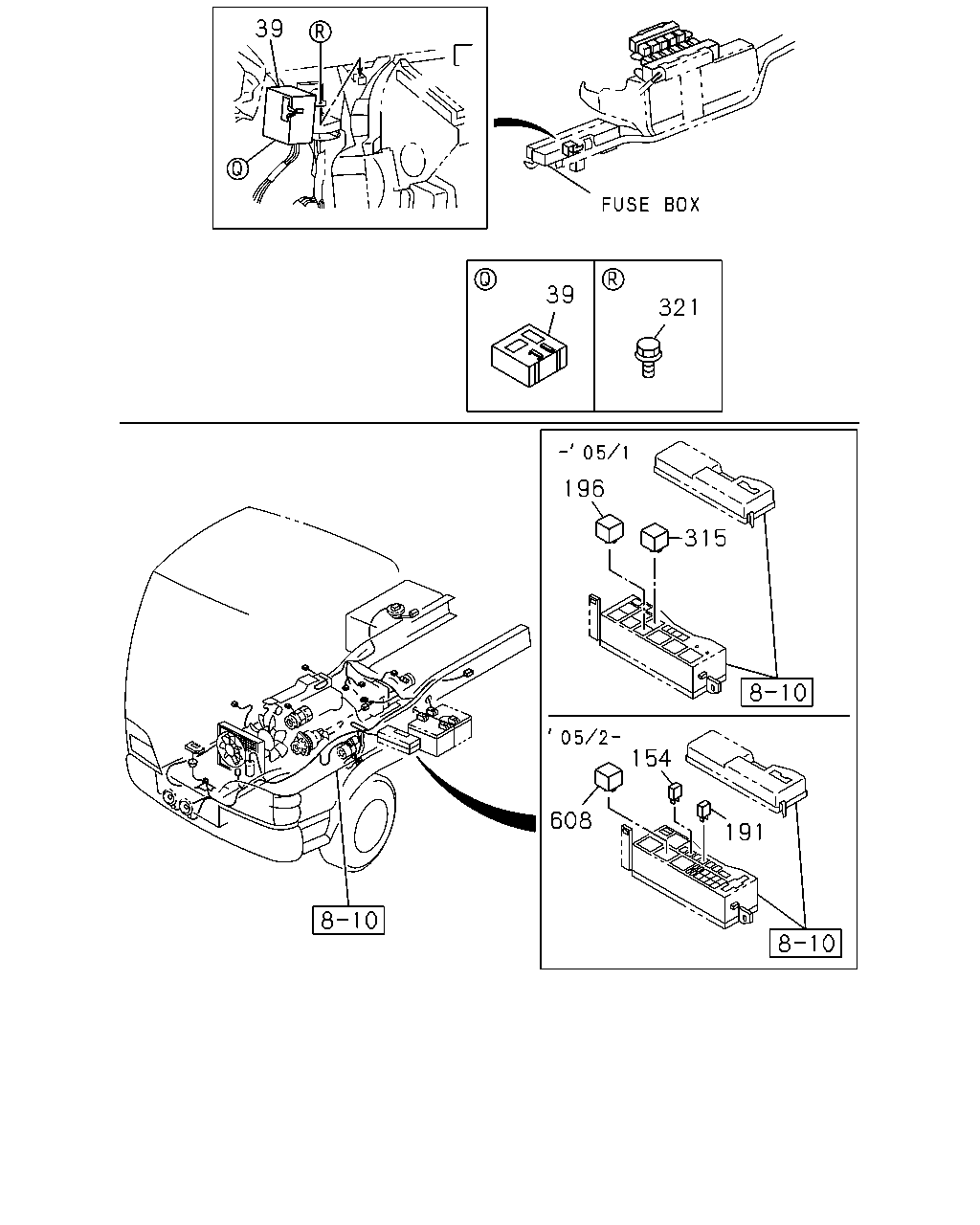

çizim 13010
39 39 321 196 315 154 608 191
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
39 16.341 RELAY; DOOR LK
AUTO DOOR LOCK<AU4> 		8-97177-214-0 01 1 0211-0501 ● ● ● ● ● ●
39 16.341 RELAY; DOOR LK
AUTO DOOR LOCK<AU4> 		8-97177-214-0 01 1 0502-0506 ● ● ● ● ●
39 16.341 RELAY; DOOR LK
AUTO DOOR LOCK<AU4> 		8-97177-214-0 01 1 0507- ● ● ● ● ●
39 16.341 RELAY; DOOR LK 8-97177-214-0 01 1 0507- ●
154 09.277 RELAY; CONDENSER FAN
4HG1-T ENG(RDP) AIR CONDITIONER MANUAL CONT(C60) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502-0506 ●
154 09.277 RELAY; CONDENSER FAN
AIR CONDITIONER MANUAL CONT(C60) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502-0506 ●
154 09.277 RELAY; CONDENSER FAN
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0507- ● ● ● ● ● ●
191 02.510 RELAY; EXH BRK CUT
4HF1-S ENG(RLS),4HE1 ENG(RLY) EXHAUST BRAKE<NF8> 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0308 ●
191 02.510 RELAY; EXH BRK CUT
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) EXHAUST BRAKE<NF8> 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0308 ● ● ●
191 02.510 RELAY; EXH BRK CUT
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0308 ● ●
191 02.510 RELAY; EXH BRK CUT
4HF1-S ENG(RLS),4HE1 ENG(RLY) EXHAUST BRAKE<NF8> 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0309-0501 ●
191 02.510 RELAY; EXH BRK CUT
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) EXHAUST BRAKE<NF8> 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0309-0501 ● ● ●
191 02.510 RELAY; EXH BRK CUT
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) 4 WHEEL ANTI LOCK BRAKE<JE5> 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0309-0501 ● ● ●
191 02.510 RELAY; EXH BRK CUT
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0309-0501 ● ●
191 02.510 RELAY; EXH BRK CUT
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> VOLTAGE 24V<7AE> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502-0506 ● ● ● ● ●
191 02.510 RELAY; EXH BRK CUT
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0507- ● ● ● ● ●
191 02.510 RELAY; EXH BRK CUT
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 4 WHEEL ANTI LOCK BRAKE<JE5> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0507- ● ● ● ●
196 02.510 RELAY; BACKUP LAMP
A/T 4 SPEED-AISIN(RNJ) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0501 ● ●
315 09.277 RELAY; EXH BRAKE CONT
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) EXHAUST BRAKE<NF8> VOLTAGE 24V<7AE> EXC. FUEL SEDIMENTER WITH HEATER<6HU> 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0501 ● ● ● ● ● ●
315 09.277 RELAY; EXH BRAKE CONT
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> VOLTAGE 24V<7AE> 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0501 ● ● ● ●
315 09.277 RELAY; EXH BRAKE CONT
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> VOLTAGE 24V<7AE> EXC. FUEL SEDIMENTER WITH HEATER<6HU> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502- ● ● ● ● ●
315 09.277 RELAY; EXH BRAKE CONT
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> VOLTAGE 24V<7AE> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502- ● ● ● ●
321 16.341 BOLT; RELAY
AUTO DOOR LOCK<AU4> 01.269 M5X20 		8-94436-927-0 01 1 0211-0501 ● ● ● ● ● ●
321 16.341 BOLT; RELAY
AUTO DOOR LOCK<AU4> 01.269 M5X20 		8-94436-927-0 01 1 0502-0506 ● ● ● ● ●
321 16.341 BOLT; RELAY
AUTO DOOR LOCK<AU4> 01.269 M5X20 		8-94436-927-0 01 1 0507-0612 ● ● ● ● ●
321 16.341 BOLT; RELAY
01.269 M5X20 		8-94436-927-0 01 1 0507-0612 ●
321 16.341 BOLT; RELAY
AUTO DOOR LOCK<AU4> 16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0701-1101 ● ● ● ● ●
321 16.341 BOLT; RELAY
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0701-1101 ●
321 16.341 BOLT; RELAY
AUTO DOOR LOCK<AU4> 16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 01 1 1102-1212 ● ● ● ● ●
321 16.341 BOLT; RELAY
16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 01 1 1102-1212 ●
321 16.341 BOLT; RELAY
AUTO DOOR LOCK<AU4> 16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1301- ● ● ● ● ●
321 16.341 BOLT; RELAY
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1301- ●
608 02.485 RELAY; SHIFT
TRANSMISSION CONTROL-SMOOTHER(8GF) 02.510 24V 30A MITSUBA 		8-97238-540-0 01 1 0507-1402 ● ● ● ● ●
608 02.485 RELAY; SHIFT
TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 30A MITSUBA 		8-98259-779-0 01 1 1403- ● ● ● ● ●

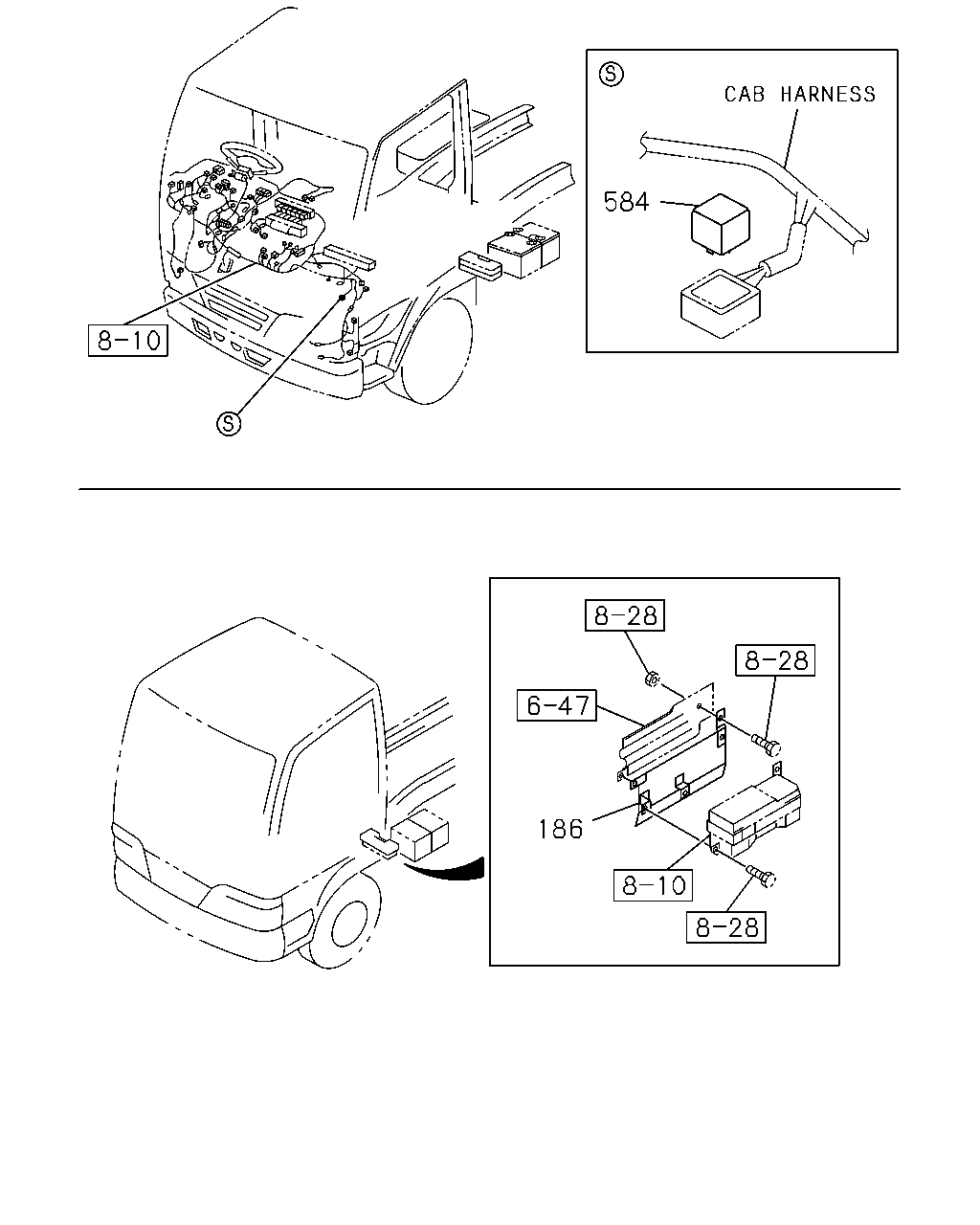

çizim 52335
584 186
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
186 09.277 BRACKET; RELAY BOX
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>,TIRE SIZE8.25-16<7QP> 		8-97088-652-1 01 1 0211-0501 ● ● ● ● ● ●
186 09.277 BRACKET; RELAY BOX
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. TIRE SIZE 8.25-16<7QP> 		8-97088-652-1 01 1 0502- ● ● ● ● ●
584 02.510 RELAY; TIMING
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0501 ● ● ● ●
584 02.510 RELAY; TIMING
CHARGE AIR COOLER<6PL> 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0501 ●
çizim 52380
85 311 550 12 191
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0501 ● ● ● ● ● ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC 		8-97173-035-1 01 1 0502-0506 ● ● ● ● ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC 		8-97173-035-1 01 1 0507- ● ● ● ● ●
12 08.852 RELAY; POWER WINDOW
24V 10A PANASONIC 		8-97173-035-1 01 1 0507- ●
85 02.485 RELAY; HEADLAMP
02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0501 ● ● ● ● ● ●
85 02.485 RELAY; HEADLAMP
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502-0506 ● ● ● ● ●
85 02.485 RELAY; HEADLAMP
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0507- ● ● ● ● ● ●
191 02.510 RELAY; EXH BRK CUT
4HF1-S ENG(RLS),4HE1 ENG(RLY) EXHAUST BRAKE<NF8> 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0308 ●
191 02.510 RELAY; EXH BRK CUT
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) EXHAUST BRAKE<NF8> 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0308 ● ● ●
191 02.510 RELAY; EXH BRK CUT
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0308 ● ●
191 02.510 RELAY; EXH BRK CUT
4HF1-S ENG(RLS),4HE1 ENG(RLY) EXHAUST BRAKE<NF8> 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0309-0501 ●
191 02.510 RELAY; EXH BRK CUT
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) EXHAUST BRAKE<NF8> 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0309-0501 ● ● ●
191 02.510 RELAY; EXH BRK CUT
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) 4 WHEEL ANTI LOCK BRAKE<JE5> 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0309-0501 ● ● ●
191 02.510 RELAY; EXH BRK CUT
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0309-0501 ● ●
191 02.510 RELAY; EXH BRK CUT
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> VOLTAGE 24V<7AE> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502-0506 ● ● ● ● ●
191 02.510 RELAY; EXH BRK CUT
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0507- ● ● ● ● ●
191 02.510 RELAY; EXH BRK CUT
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 4 WHEEL ANTI LOCK BRAKE<JE5> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0507- ● ● ● ●
311 02.596 RELAY; CORNERING LAMP
EXC. AUSTRALIA EQUIPMENT(RR3) 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0501 ● ● ● ● ●
311 02.596 RELAY; CORNERING LAMP
02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0501 ●
311 02.596 RELAY; CORNERING LAMP
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502-0504 ● ● ● ●
311 02.596 RELAY; CORNERING LAMP
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0505-0506 ● ● ● ● ●
311 02.596 RELAY; CORNERING LAMP
EXC. AUSTRALIA EQUIPMENT(RR3) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0507- ● ● ● ●
311 02.596 RELAY; CORNERING LAMP
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0507- ●
550 02.510 RELAY; ABS
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 4 WHEEL ANTI LOCK BRAKE<JE5> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0507- ● ● ● ●
550 02.510 RELAY; ABS
4 WHEEL ANTI LOCK BRAKE<JE5> 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0309-0501 ● ● ●

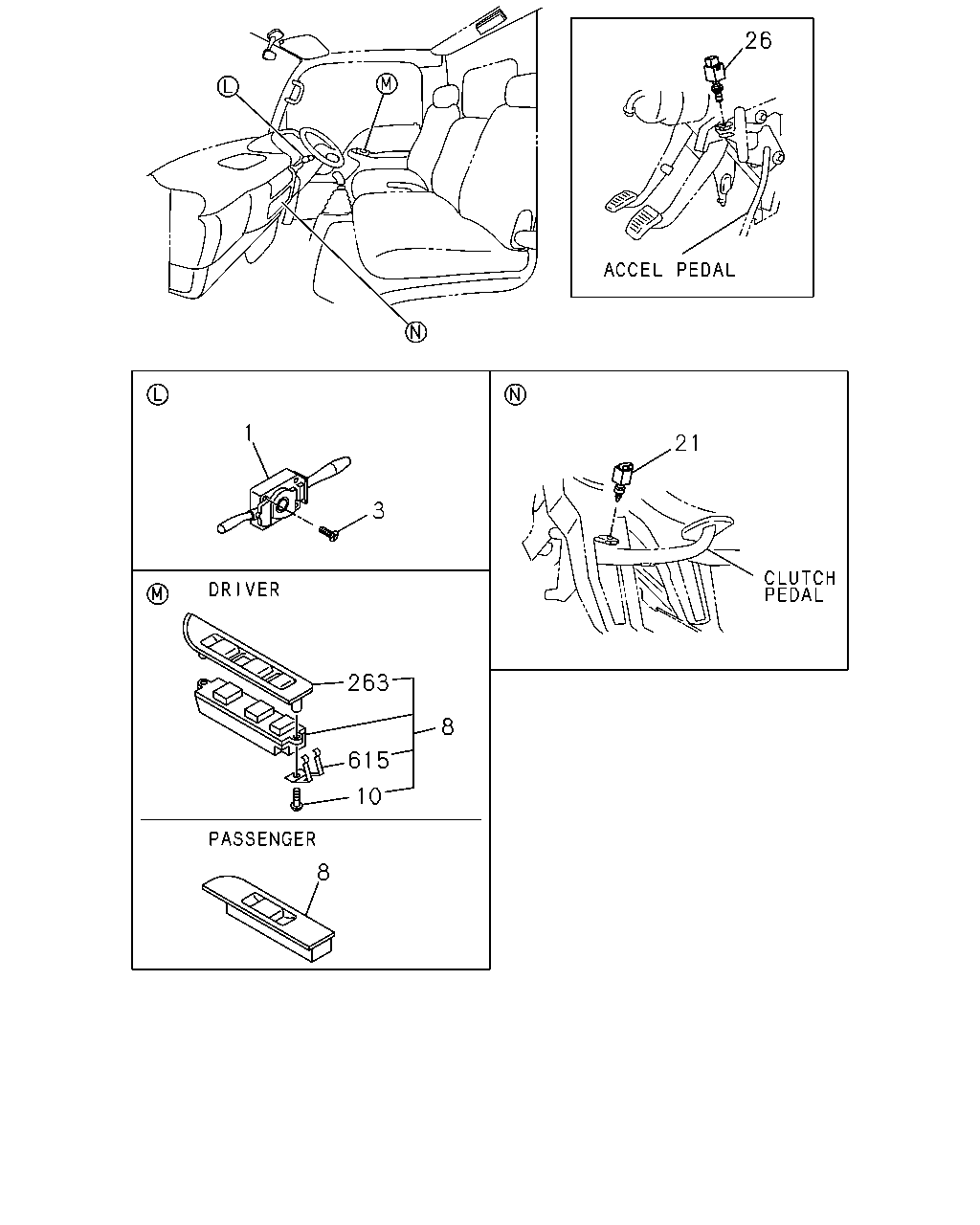

çizim 54139
26 1 21 3 263 8 615 10 8
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 02.895 SWITCH; COMB
AIR BAG DRIVER<AJ3> W/SRS COIL 		8-97384-691-1 01 1 0507-1006 ● ● ● ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER<AJ3> 		8-98172-381-0 01 1 1007- ● ● ● ● ●
1 02.895 SWITCH; COMB
EXHAUST BRAKE<NF8> EXC. INTERMITTENT WIPER<C13> 		8-97287-886-2 01 1 0211-0301 ● ● ● ●
1 02.895 SWITCH; COMB
EXC. INTERMITTENT WIPER<C13> 		8-97287-886-2 01 1 0211-0301 ● ●
1 02.895 SWITCH; COMB
EXHAUST BRAKE<NF8> EXC. INTERMITTENT WIPER<C13> 		8-97364-072-0 01 1 0302-0501 ● ● ● ●
1 02.895 SWITCH; COMB
EXC. INTERMITTENT WIPER<C13> 		8-97364-072-0 01 1 0302-0501 ● ●
1 02.895 SWITCH; COMB
EXHAUST BRAKE<NF8> EXC. INTERMITTENT WIPER<C13> 		8-97383-515-0 01 1 0502-0506 ● ● ● ●
1 02.895 SWITCH; COMB
EXC. INTERMITTENT WIPER<C13> 		8-97383-515-0 01 1 0502-0506 ●
1 02.895 SWITCH; COMB
EXHAUST BRAKE<NF8> EXC. AIR BAG DRIVER<AJ3>, INTERMITTENTWIPER<C13> 		8-97383-515-0 01 1 0507- ● ● ● ● ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> 		8-97287-892-2 01 1 0211-0301 ● ● ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> 		8-97287-892-2 01 1 0211-0301 ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> 		8-97364-076-0 01 1 0302-0501 ● ● ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> 		8-97364-076-0 01 1 0302-0501 ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> 		8-97383-519-0 01 1 0502-0506 ● ● ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> 		8-97383-519-0 01 1 0502-0506 ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> EXC. AIR BAG DRIVER<AJ3> 		8-97383-519-0 01 1 0507- ● ● ● ● ● ●
3 02.897 SCREW; COMB SW
M5X20 W/LK WASHER 		9-03910-520-0 04 1 0211-0501 ● ● ● ● ● ●
3 02.897 SCREW; COMB SW
M5X20 W/LK WASHER 		9-03910-520-0 04 1 0502-0506 ● ● ● ● ●
3 02.897 SCREW; COMB SW
M5X20 W/LK WASHER 		9-03910-520-0 04 1 0507-0604 ● ● ● ● ● ●
3 02.897 SCREW; COMB SW
M5X20 W/LK WASHER 		0-36220-520-0 04 1 0605-0612 ● ● ● ● ● ●
3 02.897 SCREW; COMB SW
M5X20 W/PL WASHER&TORQUES 		8-98061-743-0 04 1 0701- ● ● ● ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> PASSENGER SIDE 		8-97214-398-0 01 1 0211-0501 ● ● ● ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> PASSENGER SIDE 		8-97214-398-0 01 1 0502-0506 ● ● ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> PASSENGER SIDE 		8-97214-398-0 01 1 0507-0703 ● ● ● ● ●
8 16.263 SWITCH; POWER WINDOW
PASSENGER SIDE 		8-97214-398-0 01 1 0507-0703 ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> PASSENGER SIDE 		8-98075-445-0 01 1 0704-0907 ● ● ● ● ●
8 16.263 SWITCH; POWER WINDOW
PASSENGER SIDE 		8-98075-445-0 01 1 0704-0907 ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> PASSENGER SIDE 		8-98147-235-0 01 1 0908- ● ● ● ● ●
8 16.263 SWITCH; POWER WINDOW
PASSENGER SIDE 		8-98147-235-0 01 1 0908- ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> DRIVER SIDE 		8-97315-176-0 01 1 0211-0501 ● ● ● ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> DRIVER SIDE 		8-97315-176-0 01 1 0502-0506 ● ● ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> DRIVER SIDE 		8-97315-176-0 01 1 0507-0907 ● ● ● ● ●
8 16.263 SWITCH; POWER WINDOW
DRIVER SIDE 		8-97315-176-0 01 1 0507-0907 ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> DRIVER SIDE 		8-98147-225-0 01 1 0908- ● ● ● ● ●
8 16.263 SWITCH; POWER WINDOW
DRIVER SIDE 		8-98147-225-0 01 1 0908- ●
10 03.885 SCREW; POWER WINDOW SW
POWER WINDOW FRT DOOR<A32> 		8-97219-239-0 02 1 0211-0501 ● ● ● ● ● ●
10 03.885 SCREW; POWER WINDOW SW
POWER WINDOW FRT DOOR<A32> 		8-97219-239-0 02 1 0502-0506 ● ● ● ● ●
10 03.885 SCREW; POWER WINDOW SW
POWER WINDOW FRT DOOR<A32> 		8-97219-239-0 02 1 0507- ● ● ● ● ●
10 03.885 SCREW; POWER WINDOW SW 8-97219-239-0 02 1 0507- ●
21 02.575 SWITCH; CLU
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXHAUST BRAKE<NF8> 04.054 		8-94331-723-1 01 1 0211-0211 ● ● ● ● ● ●
21 02.575 SWITCH; CLU
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXHAUST BRAKE<NF8> 		8-97358-248-0 01 1 0212-0501 ● ● ● ● ● ●
21 02.575 SWITCH; CLU
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> 		8-97358-248-0 01 1 0502-0506 ● ● ● ● ●
21 02.575 SWITCH; CLU
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97358-248-0 01 1 0507- ● ● ● ● ●
21 02.575 SWITCH; CLU
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> 		8-97358-248-0 01 1 0507- ● ● ● ● ●
26 03.636 SWITCH; ACCEL
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) EXHAUST BRAKE<NF8> 04.054 		8-94368-343-0 01 1 0211-0211 ● ● ● ● ● ●
26 03.636 SWITCH; ACCEL
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) EXHAUST BRAKE<NF8> 		8-97358-315-0 01 1 0212-0501 ● ● ● ● ● ●
26 03.636 SWITCH; ACCEL
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> 		8-97358-315-0 01 1 0502- ● ● ● ● ●
263 16.081 COVER; SW
POWER WINDOW FRT DOOR<A32> 		8-97219-234-0 01 1 0211-0501 ● ● ● ● ● ●
263 16.081 COVER; SW
POWER WINDOW FRT DOOR<A32> 		8-97219-234-0 01 1 0502-0506 ● ● ● ● ●
263 16.081 COVER; SW
POWER WINDOW FRT DOOR<A32> 		8-97219-234-0 01 1 0507- ● ● ● ● ●
263 16.081 COVER; SW 8-97219-234-0 01 1 0507- ●
615 16.263 SPRING; POWER WINDOW SW
POWER WINDOW FRT DOOR<A32> 		8-97219-238-0 01 1 0211-0501 ● ● ● ● ● ●
615 16.263 SPRING; POWER WINDOW SW
POWER WINDOW FRT DOOR<A32> 		8-97219-238-0 01 1 0502-0506 ● ● ● ● ●
615 16.263 SPRING; POWER WINDOW SW
POWER WINDOW FRT DOOR<A32> 		8-97219-238-0 01 1 0507- ● ● ● ● ●
615 16.263 SPRING; POWER WINDOW SW 8-97219-238-0 01 1 0507- ●

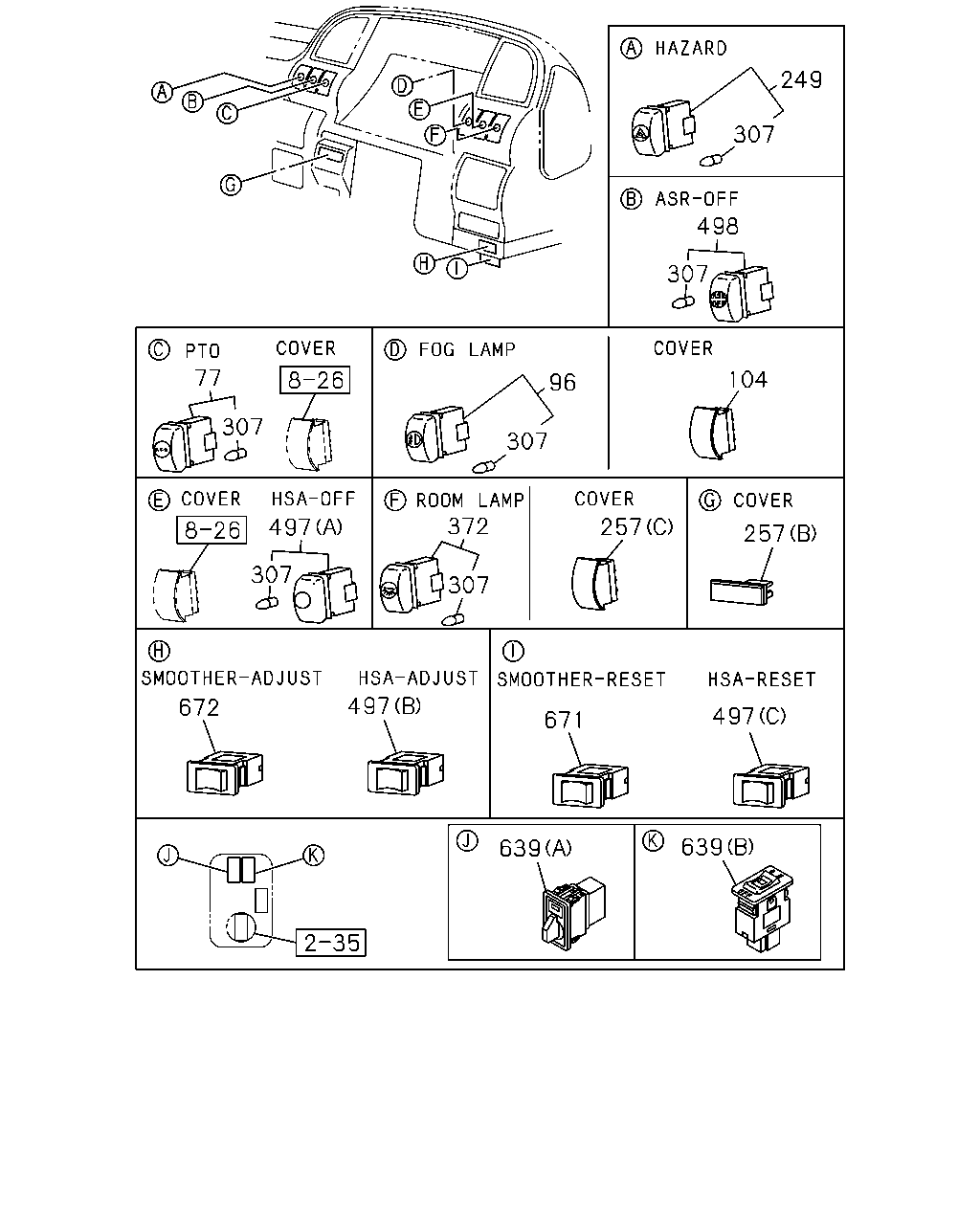

çizim 54163
249 307 498 307 77 104 96 307 307 372 257 497 257 307 307 497 672 497 671 639 639
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
77 04.439 SWITCH; PTO
PTO TRANSMISSION SIDE(V66) TRANSMISSION CONTROL-SMOOTHER(8GF) 		1-82340-537-0 01 1 0507- ● ● ● ●
96 02.485 SWITCH; FOG LAMP
AUSTRALIA EQUIPMENT(RR3) FOG LAMP<T96> 		8-97206-021-1 01 1 0507- ● ● ● ●
96 02.485 SWITCH; FOG LAMP
FOG LAMP<T96> 		8-97206-021-1 01 1 0507- ●
96 02.485 SWITCH; FOG LAMP
AUSTRALIA EQUIPMENT(RR3) FOG LAMP<T96> 		8-97206-021-1 01 1 0211-0501 ● ● ● ● ●
96 02.485 SWITCH; FOG LAMP
FOG LAMP<T96> 		8-97170-441-0 01 1 0502-0506 ● ● ● ● ●
96 02.485 SWITCH; FOG LAMP
FOG LAMP<T96> EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97170-441-0 01 1 0507- ● ● ● ●
96 02.485 SWITCH; FOG LAMP
FOG LAMP<T96> 		8-97170-441-0 01 1 0507- ●
96 02.485 SWITCH; FOG LAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> EXC. AUSTRALIA EQUIPMENT(RR3),FOG LAMP<T96> 		8-97170-441-0 01 1 0211-0501 ● ● ● ● ●
96 02.485 SWITCH; FOG LAMP
FOG LAMP<T96> EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97170-441-0 01 1 0211-0501 ● ● ● ● ●
96 02.485 SWITCH; FOG LAMP 8-97170-441-0 01 1 0211-0501 ●
104 09.778 COVER; SW HOLE,FOG LAMP
AUSTRALIA EQUIPMENT(RR3) HALOGEN HEAD LAMP RECTANGULAR<TR4> EXC. FOG LAMP<T96> 09.744 		8-97136-694-0 01 1 0211-0501 ● ● ● ● ●
104 09.778 COVER; SW HOLE,FOG LAMP
EXC. AUSTRALIA EQUIPMENT(RR3), HALOGENHEAD LAMP RECTANGULAR<TR4>,FOG LAMP<T96> 09.744 		8-97136-694-0 01 1 0211-0501 ● ● ● ● ●
104 09.778 COVER; SW HOLE,FOG LAMP
EXC. FOG LAMP<T96> 09.744 		8-97136-694-0 01 1 0502-0506 ● ● ● ● ●
104 09.778 COVER; SW HOLE,FOG LAMP
EXC. FOG LAMP<T96> 09.744 		8-97136-694-0 01 1 0507- ● ● ● ● ● ●
249 02.485 SWITCH; HAZARD 8-97202-475-0 01 1 0211-0501 ● ● ● ● ● ●
249 02.485 SWITCH; HAZARD 8-97202-475-0 01 1 0502-0506 ● ● ● ● ●
249 02.485 SWITCH; HAZARD 8-97202-475-0 01 1 0507- ● ● ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. ROOM LAMP W/ALL DOORS SW(SDF) 16.494 (A) 		8-94229-914-1 01 1 0211-0405 ● ● ● ●
257 16.081 COVER; HOLE,SW
16.494 (A) 		8-94229-914-1 01 1 0211-0405 ●
257 16.081 COVER; HOLE,SW
EXC. ROOM LAMP W/ALL DOORS SW(SDF), REMOTE CONT DOOR LOCK<6NF> 16.494 (A) 		8-94229-914-1 01 1 0406-0501 ● ● ● ●
257 16.081 COVER; HOLE,SW
16.494 (A) 		8-94229-914-1 01 1 0406-0501 ●
257 16.081 COVER; HOLE,SW
16.494 (A) 		8-94229-914-1 01 1 0502-0506 ● ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. ROOM LAMP W/ALL DOORS SW(SDF), REMOTE CONT DOOR LOCK<6NF>, TRANSMISSIONCONTROL-SMOOTHER(8GF) 16.494 (A) 		8-94229-914-1 01 1 0507- ● ● ● ●
257 16.081 COVER; HOLE,SW
16.494 (A) 		8-94229-914-1 01 1 0507- ●
257 16.081 COVER; HOLE,SW
PTO TRANSMISSION SIDE(V66) 02.485 (B) 		8-94310-890-0 01 1 0211-0501 ● ● ● ● ● ●
257 16.081 COVER; HOLE,SW
PTO TRANSMISSION SIDE(V66) 02.485 (B) 		8-94310-890-0 01 1 0502- ● ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. ROOM LAMP SWITCH<7KL> 09.744 (C) 		8-97136-694-0 01 1 0211-0501 ● ● ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. ROOM LAMP SWITCH<7KL> 09.744 (C) 		8-97136-694-0 01 1 0502-0506 ● ● ● ● ●
257 16.081 COVER; HOLE,SW
09.744 (C) 		8-97136-694-0 01 1 0502-0506 ● ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. ROOM LAMP SWITCH<7KL> 09.744 (C) 		8-97136-694-0 01 1 0507- ● ● ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. THROTTLE CONTROL SYSTEM<6XH> 09.744 (C) 		8-97136-694-0 01 1 0507- ● ● ● ●
257 16.081 COVER; HOLE,SW
09.744 (C) 		8-97136-694-0 01 1 0507- ●
257 16.081 COVER; HOLE,SW
EXC. ROOM LAMP W/ALL DOORS SW(SDF) 16.494 (A) 		8-94229-914-1 02 1 0211-0405 ●
257 16.081 COVER; HOLE,SW
EXC. ROOM LAMP W/ALL DOORS SW(SDF), REMOTE CONT DOOR LOCK<6NF> 16.494 (A) 		8-94229-914-1 02 1 0406-0501 ●
307 08.991 BULB ASM; SW
28V 40MA 		8-97116-331-0 02 1 0211-0501 ● ● ● ● ● ●
307 08.991 BULB ASM; SW
AUSTRALIA EQUIPMENT(RR3) FOG LAMP<T96> 28V 40MA 		8-97116-331-0 02 1 0211-0501 ● ● ● ● ●
307 08.991 BULB ASM; SW
ROOM LAMP SWITCH<7KL> 28V 40MA 		8-97116-331-0 01 1 0502-0506 ● ● ● ● ●
307 08.991 BULB ASM; SW
FOG LAMP<T96> 28V 40MA 		8-97116-331-0 01 1 0502-0506 ● ● ● ● ●
307 08.991 BULB ASM; SW
28V 40MA 		8-97116-331-0 02 1 0507- ● ● ● ● ● ●
307 08.991 BULB ASM; SW
AUSTRALIA EQUIPMENT(RR3) FOG LAMP<T96> 28V 40MA 		8-97116-331-0 02 1 0507- ● ● ● ●
307 08.991 BULB ASM; SW
FOG LAMP<T96> 28V 40MA 		8-97116-331-0 02 1 0507- ●
307 08.991 BULB ASM; SW
ROOM LAMP SWITCH<7KL> 28V 40MA 		8-97116-331-0 01 1 0211-0501 ● ● ● ● ● ●
307 08.991 BULB ASM; SW
HALOGEN HEAD LAMP RECTANGULAR<TR4> EXC. AUSTRALIA EQUIPMENT(RR3),FOG LAMP<T96> 28V 40MA 		8-97116-331-0 01 1 0211-0501 ● ● ● ● ●
307 08.991 BULB ASM; SW
FOG LAMP<T96> EXC. AUSTRALIA EQUIPMENT(RR3) 28V 40MA 		8-97116-331-0 01 1 0211-0501 ● ● ● ● ●
307 08.991 BULB ASM; SW
28V 40MA 		8-97116-331-0 01 1 0211-0501 ●
307 08.991 BULB ASM; SW
28V 40MA 		8-97116-331-0 02 1 0502-0506 ● ● ● ● ●
307 08.991 BULB ASM; SW
ROOM LAMP SWITCH<7KL> 28V 40MA 		8-97116-331-0 01 1 0507- ● ● ● ● ● ●
307 08.991 BULB ASM; SW
H.S.A SYSTEM<6EP> 28V 40MA 		8-97116-331-0 01 1 0507- ● ● ● ● ●
307 08.991 BULB ASM; SW
FOG LAMP<T96> EXC. AUSTRALIA EQUIPMENT(RR3) 28V 40MA 		8-97116-331-0 01 1 0507- ● ● ● ●
307 08.991 BULB ASM; SW
FOG LAMP<T96> 28V 40MA 		8-97116-331-0 01 1 0507- ●
372 08.852 SWITCH; ROOM LAMP
ROOM LAMP SWITCH<7KL> 		8-97136-693-0 01 1 0211-0501 ● ● ● ● ● ●
372 08.852 SWITCH; ROOM LAMP
ROOM LAMP SWITCH<7KL> 		8-97136-693-0 01 1 0502-0506 ● ● ● ● ●
372 08.852 SWITCH; ROOM LAMP
ROOM LAMP SWITCH<7KL> 		8-97136-693-0 01 1 0507- ● ● ● ● ● ●
497 04.439 SWITCH; HSA
H.S.A SYSTEM<6EP> (C) HSA RESET 		8-97076-356-0 01 1 0507- ● ● ● ● ●
497 04.439 SWITCH; HSA
H.S.A SYSTEM<6EP> (B) HSA ADJUST 		8-97076-358-1 01 1 0507- ● ● ● ● ●
497 04.439 SWITCH; HSA
H.S.A SYSTEM<6EP> (A) HSA OFF 		8-97140-593-0 01 1 0507- ● ● ● ● ●
498 03.883 SWITCH; ASR
THROTTLE CONTROL SYSTEM<6XH> 		8-97140-601-0 01 1 0507- ● ● ● ●
498 03.883 SWITCH; ASR 8-97140-601-0 01 1 0507- ●
639 16.263 SWITCH; EMERGENCY
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		1-82350-361-0 01 1 0507- ● ● ● ● ●
639 16.263 SWITCH; EMERGENCY
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97331-179-0 01 1 0507- ● ● ● ● ●
671 02.895 SWITCH; SMOOTHER,RESET
TRANSMISSION CONTROL-SMOOTHER(8GF) 16.263 		8-97329-833-0 01 1 0507- ● ● ● ● ●
672 16.263 SWITCH; SMOOTHER,ADJUST
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97329-781-0 01 1 0507- ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
