◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50948 - NPR/NQR RHDEXC.EURO4 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-21 - METER ASM ▶
8-21 — METER ASM (#18344) — 661 parça

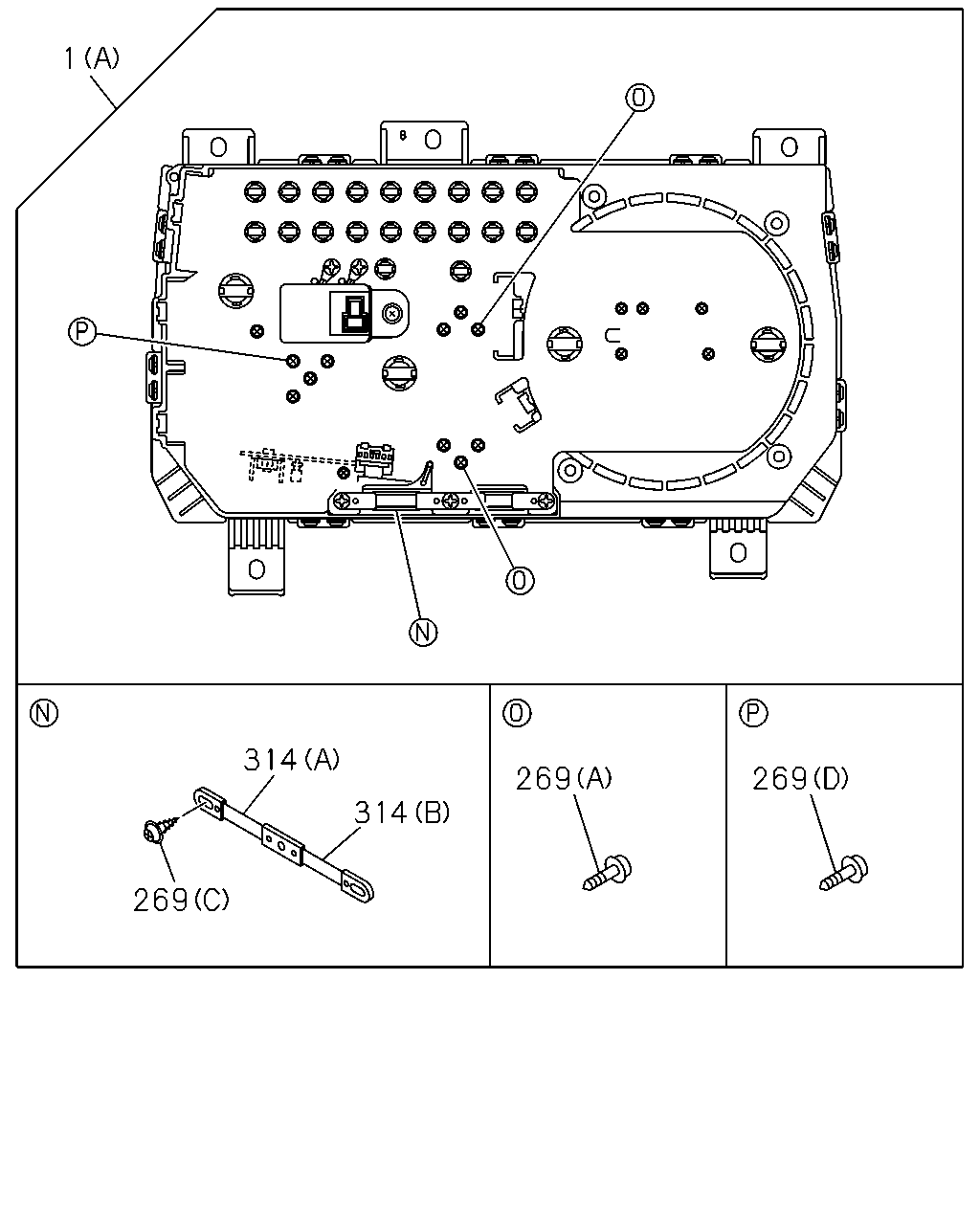

çizim 12607
1 314 269 269 314 269
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 09.735 METER COMPL; CLUSTER
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) PROVISIONAL PACKAGE SPEC<BCC> FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> (A) 		8-98179-899-1 01 1 1207- ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HG1-T ENG(RDP) PROVISIONAL PACKAGE SPEC<BCC> FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> (A) 		8-98179-901-1 01 1 1207- ●
1 09.735 METER COMPL; CLUSTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AUSTRALIA EQUIPMENT(RR3) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1>, TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98000-514-4 01 1 0507-1206 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AUSTRALIA EQUIPMENT(RR3) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. PROVISIONAL PACKAGE SPEC<BCC>, SPEEDOMETER MILE<UC1>,TRANSMISSION CONT ROL-SMOOTHER(8GF) (B) 		8-98000-514-4 01 1 1207- ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. SPEEDOMETER MILE<UC1> (B) 		8-98000-518-4 01 1 0507-0607 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. SPEEDOMETER MILE<UC1> (B) 		8-98055-735-0 01 1 0608-0808 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. SPEEDOMETER MILE<UC1> (B) 		8-98124-890-0 01 1 0809-1206 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PROVISIONAL PACKAGE SPEC<BCC>, SPEEDOMETER MILE<UC1> (B) 		8-98124-890-0 01 1 1207- ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HG1 ENG(RJH),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> SPEEDOMETER MILE<UC1> TACHOMETER<U16> EXC. TURBOCHARGER(K51),AUSTRALIA EQUIPMENT(RR3) (A) 		8-97170-609-2 01 1 0211-0501 ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> SPEEDOMETER MILE<UC1> TACHOMETER<U16> (A) 		8-97383-493-0 01 1 0502-1206 ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> SPEEDOMETER MILE<UC1> TACHOMETER<U16> EXC. PROVISIONAL PACKAGE SPEC<BCC> (A) 		8-97383-493-0 01 1 1207- ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HG1 ENG(RJH),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. TURBOCHARGER(K51),SPEEDOMETER MILE<UC1> (A) 		8-97170-600-2 01 1 0211-0501 ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> SPEEDOMETER MILE<UC1> EXC. TACHOMETER<U16> (A) 		8-97383-492-0 01 1 0502-1206 ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> SPEEDOMETER MILE<UC1> EXC. PROVISIONAL PACKAGE SPEC<BCC>, TACHOMETER<U16> (A) 		8-97383-492-0 01 1 1207- ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> CHARGE AIR COOLER<6PL> EXC. SPEEDOMETER MILE<UC1> (A) 		8-97259-819-0 01 1 0211-0501 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HG1-T ENG(RDP) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> (A) 		8-98000-849-0 01 1 0502-0506 ●
1 09.735 METER COMPL; CLUSTER
TACHOMETER<U16> (A) 		8-98000-849-0 01 1 0502-0506 ●
1 09.735 METER COMPL; CLUSTER
4HG1-T ENG(RDP) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> (A) 		8-98000-849-1 01 1 0507-1206 ●
1 09.735 METER COMPL; CLUSTER
TACHOMETER<U16> (A) 		8-98000-849-1 01 1 0507-1206 ●
1 09.735 METER COMPL; CLUSTER
4HG1-T ENG(RDP) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. PROVISIONAL PACKAGE SPEC<BCC>, SPEEDOMETER MILE<UC1> (A) 		8-98000-849-1 01 1 1207- ●
1 09.735 METER COMPL; CLUSTER
TACHOMETER<U16> (A) 		8-98000-849-1 01 1 1207- ●
1 09.735 METER COMPL; CLUSTER
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. AUSTRALIA EQUIPMENT(RR3), SPEEDOMETER MILE<UC1>,CHARGE AIR COOLER<6PL> ,HYDRO BRAKE BOOSTER<7QQ> (A) 		8-97184-611-1 01 1 0211-0501 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HG1-T ENG(RDP) SPEEDOMETER MILE<UC1> EXC. TACHOMETER<U16> (A) 		8-98000-852-0 01 1 0502-0506 ●
1 09.735 METER COMPL; CLUSTER
4HG1-T ENG(RDP) FLOOR REMOTE SHIFT<M11> SPEEDOMETER MILE<UC1> EXC. TACHOMETER<U16> (A) 		8-98000-852-0 01 1 0507-1206 ●
1 09.735 METER COMPL; CLUSTER
4HG1-T ENG(RDP) FLOOR REMOTE SHIFT<M11> SPEEDOMETER MILE<UC1> EXC. PROVISIONAL PACKAGE SPEC<BCC>, TACHOMETER<U16> (A) 		8-98000-852-0 01 1 1207- ●
1 09.735 METER COMPL; CLUSTER
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> CHARGE AIR COOLER<6PL> EXC. AUSTRALIA EQUIPMENT(RR3), SPEEDOMETER MILE<UC1>,HYDRO BRAKE BOOSTER<7QQ> (A) 		8-97217-065-0 01 1 0211-0501 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HG1-T ENG(RDP) SPEEDOMETER MILE<UC1> TACHOMETER<U16> (A) 		8-98000-851-0 01 1 0502-0506 ●
1 09.735 METER COMPL; CLUSTER
4HG1-T ENG(RDP) FLOOR REMOTE SHIFT<M11> SPEEDOMETER MILE<UC1> TACHOMETER<U16> (A) 		8-98000-851-0 01 1 0507-1206 ●
1 09.735 METER COMPL; CLUSTER
4HG1-T ENG(RDP) FLOOR REMOTE SHIFT<M11> SPEEDOMETER MILE<UC1> TACHOMETER<U16> EXC. PROVISIONAL PACKAGE SPEC<BCC> (A) 		8-98000-851-0 01 1 1207- ●
1 09.735 METER COMPL; CLUSTER
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> SPEEDOMETER MILE<UC1> EXC. AUSTRALIA EQUIPMENT(RR3), TACHOMETER<U16>,HYDRO BRAKE BOOSTER<7QQ> (A) 		8-97170-607-2 01 1 0211-0501 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> (A) 		8-97383-491-0 01 1 0502-1206 ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. PROVISIONAL PACKAGE SPEC<BCC>, SPEEDOMETER MILE<UC1> (A) 		8-97383-491-0 01 1 1207- ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. AUSTRALIA EQUIPMENT(RR3), SPEEDOMETER MILE<UC1>,TACHOMETER<U16>,HYDRO BRAKE BOOSTER<7QQ> (A) 		8-97170-596-2 01 1 0211-0501 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16> (A) 		8-97383-490-0 01 1 0502-1206 ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. PROVISIONAL PACKAGE SPEC<BCC>, SPEEDOMETER MILE<UC1>,TACHOMETER<U16> (A) 		8-97383-490-0 01 1 1207- ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16> (A) 		8-97311-545-0 01 1 0211-0501 ● ●
1 09.735 METER COMPL; CLUSTER
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16>,HYDRO BRAKE BOOSTER<7QQ> (A) 		8-97312-733-0 01 1 0211-0501 ● ●
1 09.735 METER COMPL; CLUSTER
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) TACHOMETER<U16> CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> EXC. SPEEDOMETER MILE<UC1> (A) 		8-97208-815-1 01 1 0211-0501 ● ●
1 09.735 METER COMPL; CLUSTER
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) TACHOMETER<U16> CHARGE AIR COOLER<6PL> EXC. AUSTRALIA EQUIPMENT(RR3), SPEEDOMETER MILE<UC1>,HYDRO BRAKE BOOSTER<7QQ> (A) 		8-97208-816-1 01 1 0211-0501 ● ●
1 09.735 METER COMPL; CLUSTER
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) TURBOCHARGER(K51) AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> (A) 		8-97350-665-0 01 1 0211-0501 ● ●
1 09.735 METER COMPL; CLUSTER
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> HYDRO BRAKE BOOSTER<7QQ> EXC. AUSTRALIA EQUIPMENT(RR3), SPEEDOMETER MILE<UC1>,TACHOMETER<U16> (A) 		8-97181-027-2 01 1 0211-0501 ● ● ●
1 09.735 METER COMPL; CLUSTER
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> SPEEDOMETER MILE<UC1> HYDRO BRAKE BOOSTER<7QQ> EXC. AUSTRALIA EQUIPMENT(RR3), TACHOMETER<U16> (A) 		8-97181-028-2 01 1 0211-0301 ● ● ●
1 09.735 METER COMPL; CLUSTER
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> SPEEDOMETER MILE<UC1> TACHOMETER<U16> CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> EXC. AUSTRALIA EQUIPMENT(RR3) (A) 		8-97217-063-0 01 1 0211-0301 ● ● ●
1 09.735 METER COMPL; CLUSTER
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> HYDRO BRAKE BOOSTER<7QQ> EXC. AUSTRALIA EQUIPMENT(RR3), SPEEDOMETER MILE<UC1>,CHARGE AIR COOLER<6PL> (A) 		8-97170-603-2 01 1 0211-0501 ● ● ●
1 09.735 METER COMPL; CLUSTER
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> EXC. AUSTRALIA EQUIPMENT(RR3), SPEEDOMETER MILE<UC1> (A) 		8-97217-064-0 01 1 0211-0501 ● ● ●
1 09.735 METER COMPL; CLUSTER
4HG1 ENG(RJH) TURBOCHARGER(K51) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. AUSTRALIA EQUIPMENT(RR3), SPEEDOMETER MILE<UC1> (A) 		8-97217-080-0 01 1 0211-0312 ● ● ●
1 09.735 METER COMPL; CLUSTER
TACHOMETER<U16> (A) 		8-97217-080-0 01 1 0211-0312 ●
1 09.735 METER COMPL; CLUSTER
4HG1 ENG(RJH) TURBOCHARGER(K51) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. AUSTRALIA EQUIPMENT(RR3), SPEEDOMETER MILE<UC1>,HYDRO BRAKE BOOSTER<7QQ> (A) 		8-97217-080-0 01 1 0401-0501 ● ● ●
1 09.735 METER COMPL; CLUSTER
TACHOMETER<U16> (A) 		8-97217-080-0 01 1 0401-0501 ●
1 09.735 METER COMPL; CLUSTER
4HG1-T ENG(RDP) EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16> (A) 		8-98000-850-0 01 1 0502-0506 ●
1 09.735 METER COMPL; CLUSTER
EXC. TACHOMETER<U16> (A) 		8-98000-850-0 01 1 0502-0506 ●
1 09.735 METER COMPL; CLUSTER
4HG1-T ENG(RDP) FLOOR REMOTE SHIFT<M11> EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16> (A) 		8-98000-850-1 01 1 0507-1206 ●
1 09.735 METER COMPL; CLUSTER
EXC. TACHOMETER<U16> (A) 		8-98000-850-1 01 1 0507-1206 ●
1 09.735 METER COMPL; CLUSTER
4HG1-T ENG(RDP) FLOOR REMOTE SHIFT<M11> EXC. PROVISIONAL PACKAGE SPEC<BCC>, SPEEDOMETER MILE<UC1>,TACHOMETER<U16> (A) 		8-98000-850-1 01 1 1207- ●
1 09.735 METER COMPL; CLUSTER
EXC. TACHOMETER<U16> (A) 		8-98000-850-1 01 1 1207- ●
269 09.743 SCREW; METER CLUSTER
(C) 		8-97185-528-0 05 1 0211-0501 ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
EXC. TACHOMETER<U16> (C) 		8-97185-528-0 05 1 0211-0501 ●
269 09.743 SCREW; METER CLUSTER
08.225 (F) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0211-0501 ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
08.225 (F) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0502-0506 ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
08.225 (F) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0507-1210 ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
02.587 (F) M6X19.5 W/LK&PL WASHER 		8-97360-226-0 05 1 1211- ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
(B) 		8-97185-523-0 01 1 0211-0501 ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) (B) 		8-97185-523-0 01 1 0502-1206 ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. PROVISIONAL PACKAGE SPEC<BCC> (B) 		8-97185-523-0 01 1 1207- ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
FLOOR REMOTE SHIFT<M11> (A) 		8-97185-525-0 06 1 0211-0501 ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
A/T 4 SPEED-AISIN(RNJ) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> (A) 		8-97185-525-0 06 1 0211-0501 ● ●
269 09.743 SCREW; METER CLUSTER
TACHOMETER<U16> (E) 		8-97185-524-0 08 1 0211-0501 ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. AUSTRALIA EQUIPMENT(RR3), TACHOMETER<U16> (E) 		8-97185-524-0 07 1 0211-0501 ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> (E) 		8-97185-524-0 08 1 0502-1206 ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. PROVISIONAL PACKAGE SPEC<BCC> (E) 		8-97185-524-0 08 1 1207- ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16> (E) 		8-97185-524-0 05 1 0211-0501 ● ●
269 09.743 SCREW; METER CLUSTER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TACHOMETER<U16> (E) 		8-97185-524-0 07 1 0502-1206 ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. PROVISIONAL PACKAGE SPEC<BCC>, TACHOMETER<U16> (E) 		8-97185-524-0 07 1 1207- ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16> (A) 		8-97185-525-0 03 1 0211-0501 ● ●
269 09.743 SCREW; METER CLUSTER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) (A) 		8-97185-525-0 06 1 0502-1206 ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. PROVISIONAL PACKAGE SPEC<BCC> (A) 		8-97185-525-0 06 1 1207- ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16> (D) 		8-97185-526-0 03 1 0211-0501 ● ●
269 09.743 SCREW; METER CLUSTER
4HG1 ENG(RJH) TURBOCHARGER(K51) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. AUSTRALIA EQUIPMENT(RR3), SPEEDOMETER MILE<UC1> (C) 		8-97185-528-0 02 1 0211-0312 ● ● ●
269 09.743 SCREW; METER CLUSTER
TACHOMETER<U16> (C) 		8-97185-528-0 02 1 0211-0312 ●
269 09.743 SCREW; METER CLUSTER
4HG1 ENG(RJH) TURBOCHARGER(K51) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. AUSTRALIA EQUIPMENT(RR3), SPEEDOMETER MILE<UC1>,HYDRO BRAKE BOOSTER<7QQ> (C) 		8-97185-528-0 02 1 0401-0501 ● ● ●
269 09.743 SCREW; METER CLUSTER
TACHOMETER<U16> (C) 		8-97185-528-0 02 1 0401-0501 ●
269 09.743 SCREW; METER CLUSTER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) (C) 		8-97185-528-0 05 1 0502-1206 ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. PROVISIONAL PACKAGE SPEC<BCC> (C) 		8-97185-528-0 05 1 1207- ● ● ● ● ●
314 09.765 RESISTOR; COMB METER,CLUSTER MET
(A) 		8-97185-515-0 01 1 0211-0501 ● ● ● ● ● ●
314 09.765 RESISTOR; COMB METER,CLUSTER MET
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) (A) 		8-97185-515-0 01 1 0502-1206 ● ● ● ● ●
314 09.765 RESISTOR; COMB METER,CLUSTER MET
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. PROVISIONAL PACKAGE SPEC<BCC> (A) 		8-97185-515-0 01 1 1207- ● ● ● ● ●
314 09.765 RESISTOR; COMB METER,CLUSTER MET
(B) 		8-97185-516-0 01 1 0211-0501 ● ● ● ● ● ●
314 09.765 RESISTOR; COMB METER,CLUSTER MET
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) (B) 		8-97185-516-0 01 1 0502-1206 ● ● ● ● ●
314 09.765 RESISTOR; COMB METER,CLUSTER MET
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. PROVISIONAL PACKAGE SPEC<BCC> (B) 		8-97185-516-0 01 1 1207- ● ● ● ● ●

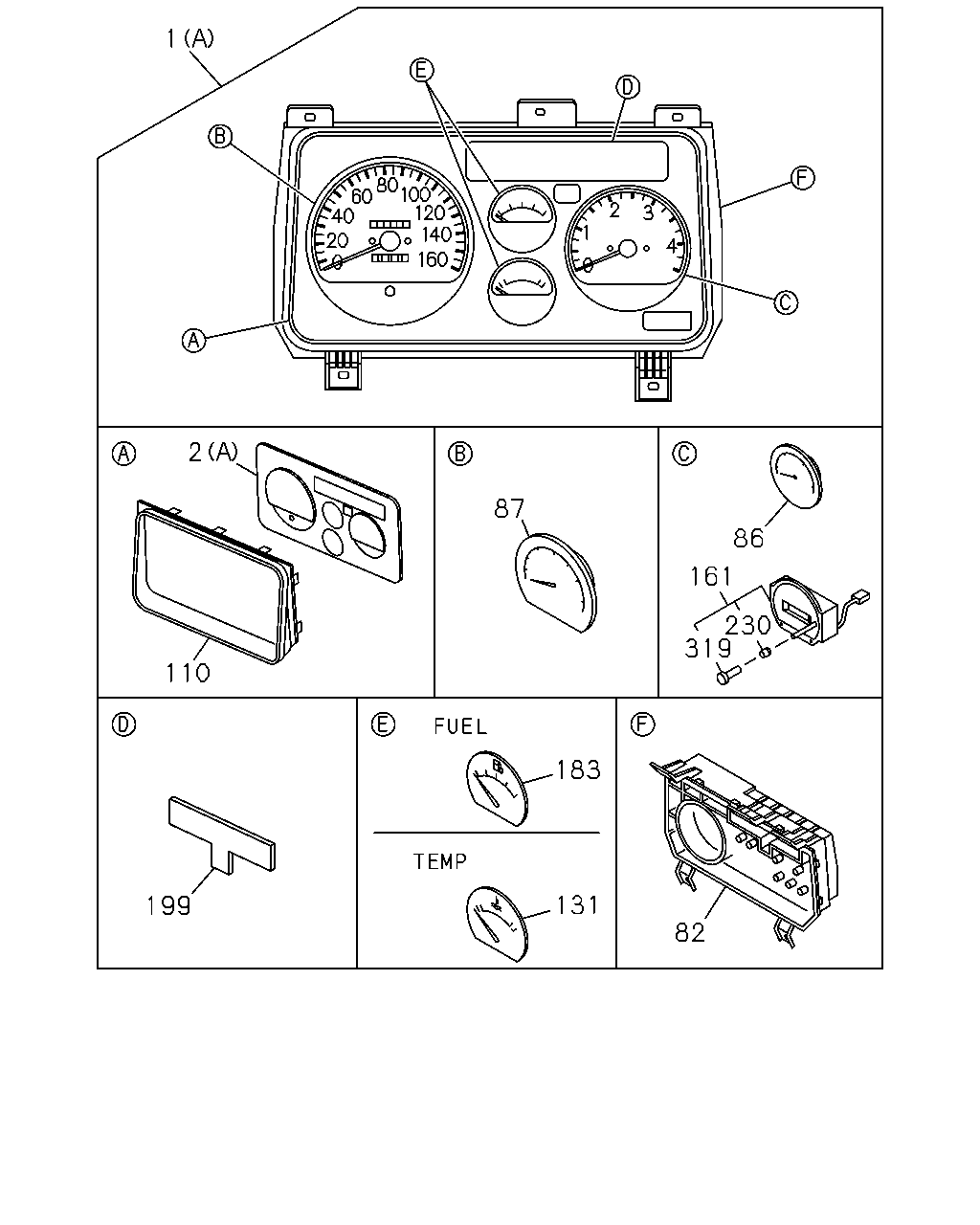

çizim 13134
1 2 87 86 161 230 319 110 183 131 199 82
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 09.735 METER COMPL; CLUSTER
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) PROVISIONAL PACKAGE SPEC<BCC> FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> (A) 		8-98179-899-1 01 1 1207- ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HG1-T ENG(RDP) PROVISIONAL PACKAGE SPEC<BCC> FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> (A) 		8-98179-901-1 01 1 1207- ●
1 09.735 METER COMPL; CLUSTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AUSTRALIA EQUIPMENT(RR3) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1>, TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98000-514-4 01 1 0507-1206 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AUSTRALIA EQUIPMENT(RR3) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. PROVISIONAL PACKAGE SPEC<BCC>, SPEEDOMETER MILE<UC1>,TRANSMISSION CONT ROL-SMOOTHER(8GF) (B) 		8-98000-514-4 01 1 1207- ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. SPEEDOMETER MILE<UC1> (B) 		8-98000-518-4 01 1 0507-0607 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. SPEEDOMETER MILE<UC1> (B) 		8-98055-735-0 01 1 0608-0808 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. SPEEDOMETER MILE<UC1> (B) 		8-98124-890-0 01 1 0809-1206 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PROVISIONAL PACKAGE SPEC<BCC>, SPEEDOMETER MILE<UC1> (B) 		8-98124-890-0 01 1 1207- ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HG1 ENG(RJH),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> SPEEDOMETER MILE<UC1> TACHOMETER<U16> EXC. TURBOCHARGER(K51),AUSTRALIA EQUIPMENT(RR3) (A) 		8-97170-609-2 01 1 0211-0501 ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> SPEEDOMETER MILE<UC1> TACHOMETER<U16> (A) 		8-97383-493-0 01 1 0502-1206 ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> SPEEDOMETER MILE<UC1> TACHOMETER<U16> EXC. PROVISIONAL PACKAGE SPEC<BCC> (A) 		8-97383-493-0 01 1 1207- ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HG1 ENG(RJH),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. TURBOCHARGER(K51),SPEEDOMETER MILE<UC1> (A) 		8-97170-600-2 01 1 0211-0501 ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> SPEEDOMETER MILE<UC1> EXC. TACHOMETER<U16> (A) 		8-97383-492-0 01 1 0502-1206 ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> SPEEDOMETER MILE<UC1> EXC. PROVISIONAL PACKAGE SPEC<BCC>, TACHOMETER<U16> (A) 		8-97383-492-0 01 1 1207- ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> CHARGE AIR COOLER<6PL> EXC. SPEEDOMETER MILE<UC1> (A) 		8-97259-819-0 01 1 0211-0501 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HG1-T ENG(RDP) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> (A) 		8-98000-849-0 01 1 0502-0506 ●
1 09.735 METER COMPL; CLUSTER
TACHOMETER<U16> (A) 		8-98000-849-0 01 1 0502-0506 ●
1 09.735 METER COMPL; CLUSTER
4HG1-T ENG(RDP) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> (A) 		8-98000-849-1 01 1 0507-1206 ●
1 09.735 METER COMPL; CLUSTER
TACHOMETER<U16> (A) 		8-98000-849-1 01 1 0507-1206 ●
1 09.735 METER COMPL; CLUSTER
4HG1-T ENG(RDP) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. PROVISIONAL PACKAGE SPEC<BCC>, SPEEDOMETER MILE<UC1> (A) 		8-98000-849-1 01 1 1207- ●
1 09.735 METER COMPL; CLUSTER
TACHOMETER<U16> (A) 		8-98000-849-1 01 1 1207- ●

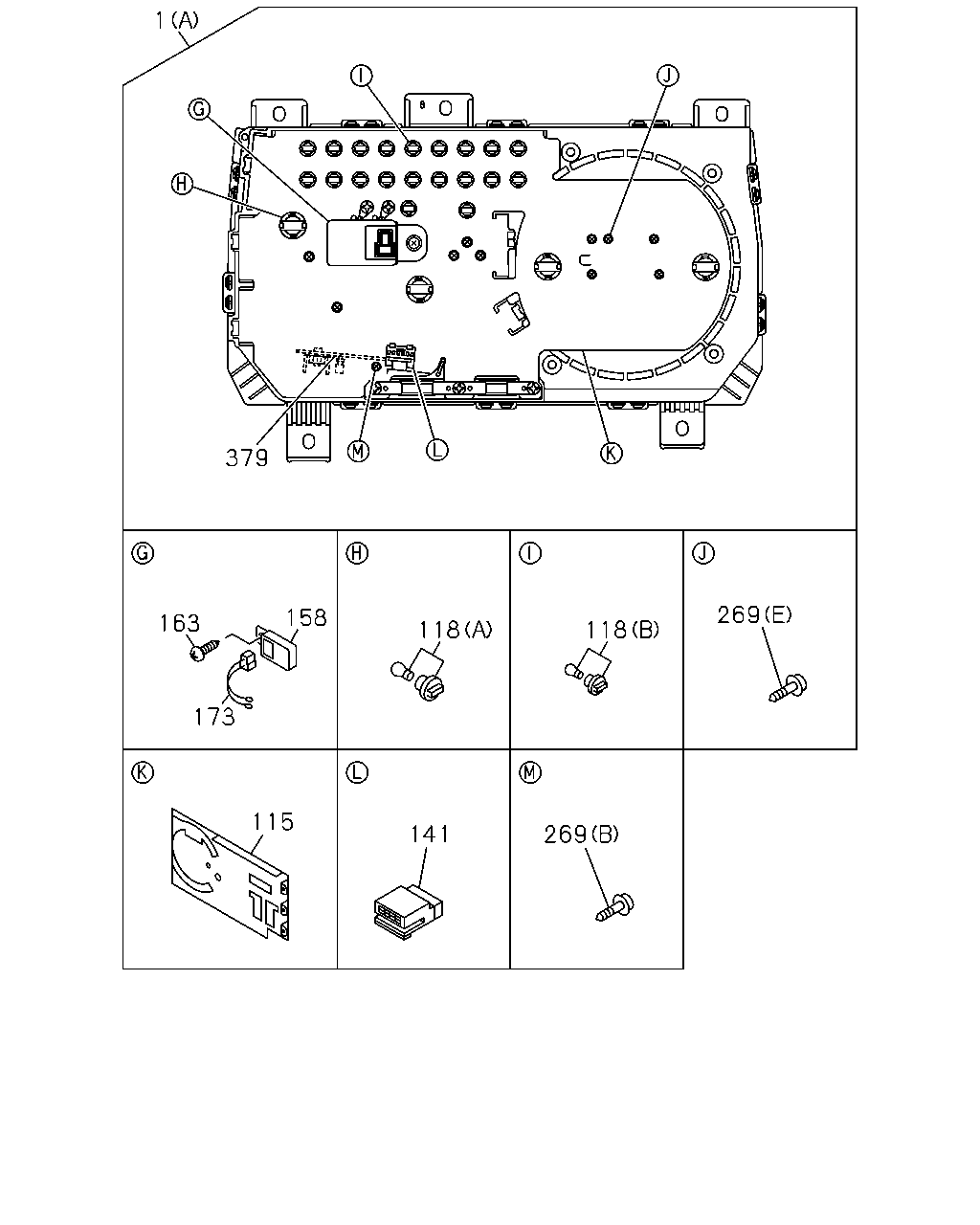

1 09.735 METER COMPL; CLUSTER
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. AUSTRALIA EQUIPMENT(RR3), SPEEDOMETER MILE<UC1>,CHARGE AIR COOLER<6PL> ,HYDRO BRAKE BOOSTER<7QQ> (A) 		8-97184-611-1 01 1 0211-0501 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HG1-T ENG(RDP) SPEEDOMETER MILE<UC1> EXC. TACHOMETER<U16> (A) 		8-98000-852-0 01 1 0502-0506 ●
1 09.735 METER COMPL; CLUSTER
4HG1-T ENG(RDP) FLOOR REMOTE SHIFT<M11> SPEEDOMETER MILE<UC1> EXC. TACHOMETER<U16> (A) 		8-98000-852-0 01 1 0507-1206 ●
1 09.735 METER COMPL; CLUSTER
4HG1-T ENG(RDP) FLOOR REMOTE SHIFT<M11> SPEEDOMETER MILE<UC1> EXC. PROVISIONAL PACKAGE SPEC<BCC>, TACHOMETER<U16> (A) 		8-98000-852-0 01 1 1207- ●
1 09.735 METER COMPL; CLUSTER
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> CHARGE AIR COOLER<6PL> EXC. AUSTRALIA EQUIPMENT(RR3), SPEEDOMETER MILE<UC1>,HYDRO BRAKE BOOSTER<7QQ> (A) 		8-97217-065-0 01 1 0211-0501 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HG1-T ENG(RDP) SPEEDOMETER MILE<UC1> TACHOMETER<U16> (A) 		8-98000-851-0 01 1 0502-0506 ●
1 09.735 METER COMPL; CLUSTER
4HG1-T ENG(RDP) FLOOR REMOTE SHIFT<M11> SPEEDOMETER MILE<UC1> TACHOMETER<U16> (A) 		8-98000-851-0 01 1 0507-1206 ●
1 09.735 METER COMPL; CLUSTER
4HG1-T ENG(RDP) FLOOR REMOTE SHIFT<M11> SPEEDOMETER MILE<UC1> TACHOMETER<U16> EXC. PROVISIONAL PACKAGE SPEC<BCC> (A) 		8-98000-851-0 01 1 1207- ●
1 09.735 METER COMPL; CLUSTER
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> SPEEDOMETER MILE<UC1> EXC. AUSTRALIA EQUIPMENT(RR3), TACHOMETER<U16>,HYDRO BRAKE BOOSTER<7QQ> (A) 		8-97170-607-2 01 1 0211-0501 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> (A) 		8-97383-491-0 01 1 0502-1206 ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. PROVISIONAL PACKAGE SPEC<BCC>, SPEEDOMETER MILE<UC1> (A) 		8-97383-491-0 01 1 1207- ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. AUSTRALIA EQUIPMENT(RR3), SPEEDOMETER MILE<UC1>,TACHOMETER<U16>,HYDRO BRAKE BOOSTER<7QQ> (A) 		8-97170-596-2 01 1 0211-0501 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16> (A) 		8-97383-490-0 01 1 0502-1206 ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. PROVISIONAL PACKAGE SPEC<BCC>, SPEEDOMETER MILE<UC1>,TACHOMETER<U16> (A) 		8-97383-490-0 01 1 1207- ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16> (A) 		8-97311-545-0 01 1 0211-0501 ● ●
1 09.735 METER COMPL; CLUSTER
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16>,HYDRO BRAKE BOOSTER<7QQ> (A) 		8-97312-733-0 01 1 0211-0501 ● ●
1 09.735 METER COMPL; CLUSTER
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) TACHOMETER<U16> CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> EXC. SPEEDOMETER MILE<UC1> (A) 		8-97208-815-1 01 1 0211-0501 ● ●
1 09.735 METER COMPL; CLUSTER
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) TACHOMETER<U16> CHARGE AIR COOLER<6PL> EXC. AUSTRALIA EQUIPMENT(RR3), SPEEDOMETER MILE<UC1>,HYDRO BRAKE BOOSTER<7QQ> (A) 		8-97208-816-1 01 1 0211-0501 ● ●
1 09.735 METER COMPL; CLUSTER
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) TURBOCHARGER(K51) AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> (A) 		8-97350-665-0 01 1 0211-0501 ● ●
1 09.735 METER COMPL; CLUSTER
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> HYDRO BRAKE BOOSTER<7QQ> EXC. AUSTRALIA EQUIPMENT(RR3), SPEEDOMETER MILE<UC1>,TACHOMETER<U16> (A) 		8-97181-027-2 01 1 0211-0501 ● ● ●
1 09.735 METER COMPL; CLUSTER
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> SPEEDOMETER MILE<UC1> HYDRO BRAKE BOOSTER<7QQ> EXC. AUSTRALIA EQUIPMENT(RR3), TACHOMETER<U16> (A) 		8-97181-028-2 01 1 0211-0301 ● ● ●
1 09.735 METER COMPL; CLUSTER
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> SPEEDOMETER MILE<UC1> TACHOMETER<U16> CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> EXC. AUSTRALIA EQUIPMENT(RR3) (A) 		8-97217-063-0 01 1 0211-0301 ● ● ●
1 09.735 METER COMPL; CLUSTER
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> HYDRO BRAKE BOOSTER<7QQ> EXC. AUSTRALIA EQUIPMENT(RR3), SPEEDOMETER MILE<UC1>,CHARGE AIR COOLER<6PL> (A) 		8-97170-603-2 01 1 0211-0501 ● ● ●
1 09.735 METER COMPL; CLUSTER
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> EXC. AUSTRALIA EQUIPMENT(RR3), SPEEDOMETER MILE<UC1> (A) 		8-97217-064-0 01 1 0211-0501 ● ● ●
1 09.735 METER COMPL; CLUSTER
4HG1 ENG(RJH) TURBOCHARGER(K51) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. AUSTRALIA EQUIPMENT(RR3), SPEEDOMETER MILE<UC1> (A) 		8-97217-080-0 01 1 0211-0312 ● ● ●
1 09.735 METER COMPL; CLUSTER
TACHOMETER<U16> (A) 		8-97217-080-0 01 1 0211-0312 ●
1 09.735 METER COMPL; CLUSTER
4HG1 ENG(RJH) TURBOCHARGER(K51) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. AUSTRALIA EQUIPMENT(RR3), SPEEDOMETER MILE<UC1>,HYDRO BRAKE BOOSTER<7QQ> (A) 		8-97217-080-0 01 1 0401-0501 ● ● ●
1 09.735 METER COMPL; CLUSTER
TACHOMETER<U16> (A) 		8-97217-080-0 01 1 0401-0501 ●
1 09.735 METER COMPL; CLUSTER
4HG1-T ENG(RDP) EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16> (A) 		8-98000-850-0 01 1 0502-0506 ●
1 09.735 METER COMPL; CLUSTER
EXC. TACHOMETER<U16> (A) 		8-98000-850-0 01 1 0502-0506 ●
1 09.735 METER COMPL; CLUSTER
4HG1-T ENG(RDP) FLOOR REMOTE SHIFT<M11> EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16> (A) 		8-98000-850-1 01 1 0507-1206 ●
1 09.735 METER COMPL; CLUSTER
EXC. TACHOMETER<U16> (A) 		8-98000-850-1 01 1 0507-1206 ●
1 09.735 METER COMPL; CLUSTER
4HG1-T ENG(RDP) FLOOR REMOTE SHIFT<M11> EXC. PROVISIONAL PACKAGE SPEC<BCC>, SPEEDOMETER MILE<UC1>,TACHOMETER<U16> (A) 		8-98000-850-1 01 1 1207- ●
1 09.735 METER COMPL; CLUSTER
EXC. TACHOMETER<U16> (A) 		8-98000-850-1 01 1 1207- ●

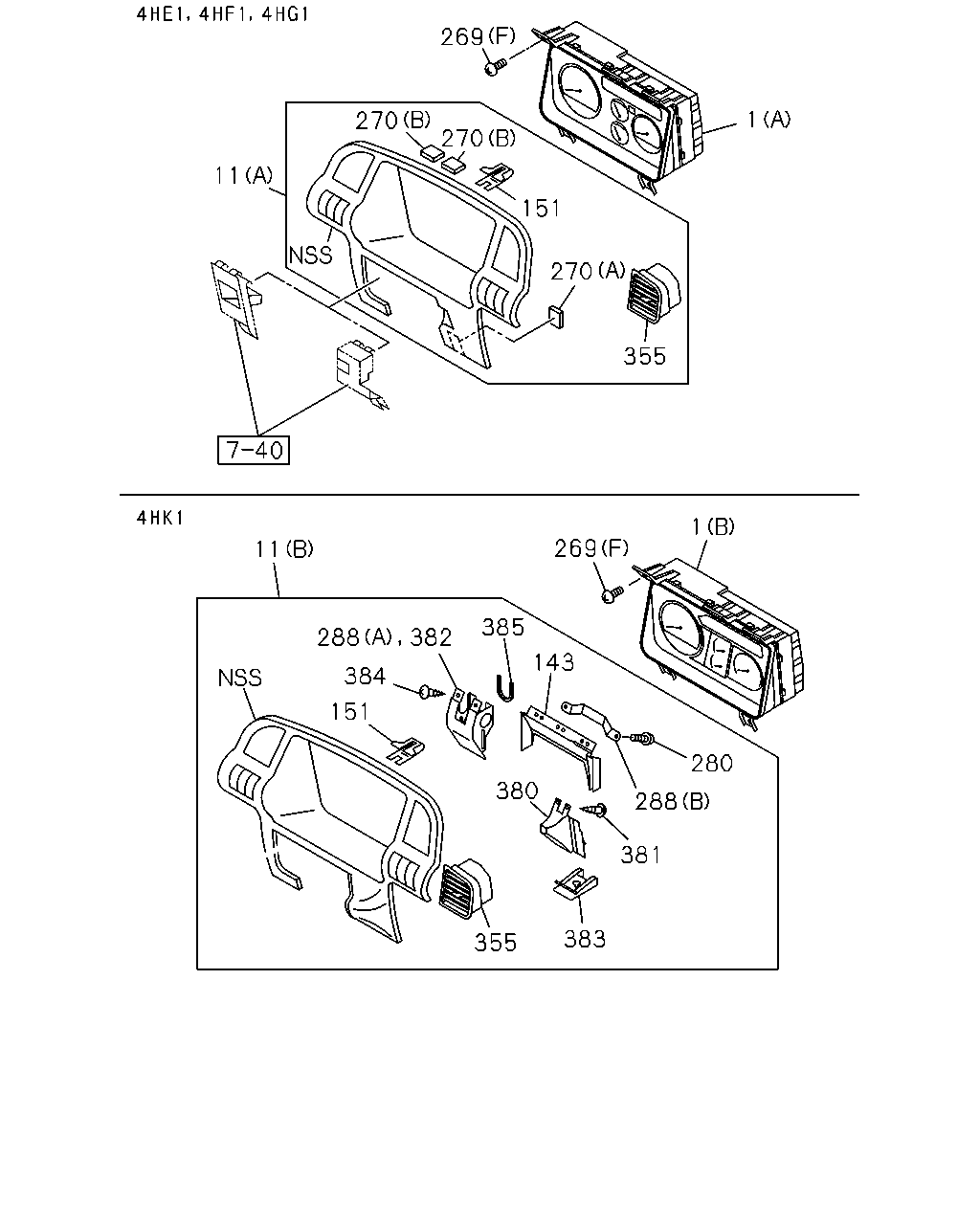

2 09.735 PANEL; CLUSTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> (B) 		8-97185-047-0 01 1 0507-1206 ● ● ● ● ●
2 09.735 PANEL; CLUSTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> EXC. PROVISIONAL PACKAGE SPEC<BCC>, SPEEDOMETER MILE<UC1> (B) 		8-97185-047-0 01 1 1207- ● ● ● ● ●
2 09.735 PANEL; CLUSTER
(A) 		8-97185-443-0 01 1 0211-0501 ● ● ● ● ● ●
2 09.735 PANEL; CLUSTER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) (A) 		8-97185-443-0 01 1 0502-1206 ● ● ● ● ●
2 09.735 PANEL; CLUSTER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. PROVISIONAL PACKAGE SPEC<BCC> (A) 		8-97185-443-0 01 1 1207- ● ● ● ● ●
82 09.743 CASE ASM; CLUSTER METER 8-97185-448-0 01 1 0211-0501 ● ● ● ● ● ●
82 09.743 CASE ASM; CLUSTER METER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 		8-97185-448-0 01 1 0502-1206 ● ● ● ● ●
82 09.743 CASE ASM; CLUSTER METER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-97185-448-0 01 1 1207- ● ● ● ● ●
86 09.750 TACHOMETER; CLUSTER METER
4HG1 ENG(RJH),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> SPEEDOMETER MILE<UC1> TACHOMETER<U16> EXC. TURBOCHARGER(K51),AUSTRALIA EQUIPMENT(RR3) 		8-97185-470-0 01 1 0211-0501 ● ● ● ●
86 09.750 TACHOMETER; CLUSTER METER
4HG1 ENG(RJH),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. TURBOCHARGER(K51),SPEEDOMETER MILE<UC1> 		8-97185-470-0 01 1 0211-0501 ● ● ● ●
86 09.750 TACHOMETER; CLUSTER METER
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> 		8-98002-112-0 01 1 0502-1206 ● ● ● ●
86 09.750 TACHOMETER; CLUSTER METER
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-98002-112-0 01 1 1207- ● ● ● ●
86 09.750 TACHOMETER; CLUSTER METER
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. AUSTRALIA EQUIPMENT(RR3), SPEEDOMETER MILE<UC1>,CHARGE AIR COOLER<6PL> 		8-97185-471-0 01 1 0211-0501 ● ● ● ● ●
86 09.750 TACHOMETER; CLUSTER METER
4HG1-T ENG(RDP) TACHOMETER<U16> 		8-98002-115-0 01 1 0502-0506 ●
86 09.750 TACHOMETER; CLUSTER METER
TACHOMETER<U16> 		8-98002-115-0 01 1 0502-0506 ●
86 09.750 TACHOMETER; CLUSTER METER
4HG1-T ENG(RDP) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> 		8-98002-115-0 01 1 0507-1206 ●
86 09.750 TACHOMETER; CLUSTER METER
TACHOMETER<U16> 		8-98002-115-0 01 1 0507-1206 ●
86 09.750 TACHOMETER; CLUSTER METER
4HG1-T ENG(RDP) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-98002-115-0 01 1 1207- ●
86 09.750 TACHOMETER; CLUSTER METER
TACHOMETER<U16> 		8-98002-115-0 01 1 1207- ●
86 09.750 TACHOMETER; CLUSTER METER
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> CHARGE AIR COOLER<6PL> EXC. SPEEDOMETER MILE<UC1> 		8-97218-460-0 01 1 0211-0301 ● ● ● ● ●
86 09.750 TACHOMETER; CLUSTER METER
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> SPEEDOMETER MILE<UC1> TACHOMETER<U16> CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97218-460-0 01 1 0211-0301 ● ● ●
86 09.750 TACHOMETER; CLUSTER METER
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> CHARGE AIR COOLER<6PL> EXC. SPEEDOMETER MILE<UC1> 		8-97218-460-0 01 1 0302-0501 ● ● ● ● ●
86 09.750 TACHOMETER; CLUSTER METER
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) TACHOMETER<U16> CHARGE AIR COOLER<6PL> EXC. SPEEDOMETER MILE<UC1> 		8-97218-586-0 01 1 0211-0501 ● ●
86 09.750 TACHOMETER; CLUSTER METER
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) TURBOCHARGER(K51) AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> 		8-97218-586-0 01 1 0211-0501 ● ●
86 09.750 TACHOMETER; CLUSTER METER
4HG1 ENG(RJH) TURBOCHARGER(K51) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. AUSTRALIA EQUIPMENT(RR3), SPEEDOMETER MILE<UC1> 		8-97218-588-0 01 1 0211-0312 ● ● ●
86 09.750 TACHOMETER; CLUSTER METER
TACHOMETER<U16> 		8-97218-588-0 01 1 0211-0312 ●
86 09.750 TACHOMETER; CLUSTER METER
4HG1 ENG(RJH) TURBOCHARGER(K51) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. AUSTRALIA EQUIPMENT(RR3), SPEEDOMETER MILE<UC1>,HYDRO BRAKE BOOSTER<7QQ> 		8-97218-588-0 01 1 0401-0501 ● ● ●
86 09.750 TACHOMETER; CLUSTER METER
TACHOMETER<U16> 		8-97218-588-0 01 1 0401-0501 ●
87 09.761 SPEEDOMETER
SPEEDOMETER MILE<UC1> 		8-97185-458-0 01 1 0211-0501 ● ● ● ● ●
87 09.761 SPEEDOMETER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> SPEEDOMETER MILE<UC1> 		8-98002-109-0 01 1 0502-1206 ● ● ● ●
87 09.761 SPEEDOMETER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> SPEEDOMETER MILE<UC1> EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-98002-109-0 01 1 1207- ● ● ● ●
87 09.761 SPEEDOMETER
EXC. SPEEDOMETER MILE<UC1> 		8-97185-457-0 01 1 0211-0501 ● ● ● ● ● ●
87 09.761 SPEEDOMETER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. SPEEDOMETER MILE<UC1> 		8-98002-108-0 01 1 0502-1206 ● ● ● ● ●
87 09.761 SPEEDOMETER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. PROVISIONAL PACKAGE SPEC<BCC>, SPEEDOMETER MILE<UC1> 		8-98002-108-0 01 1 1207- ● ● ● ● ●

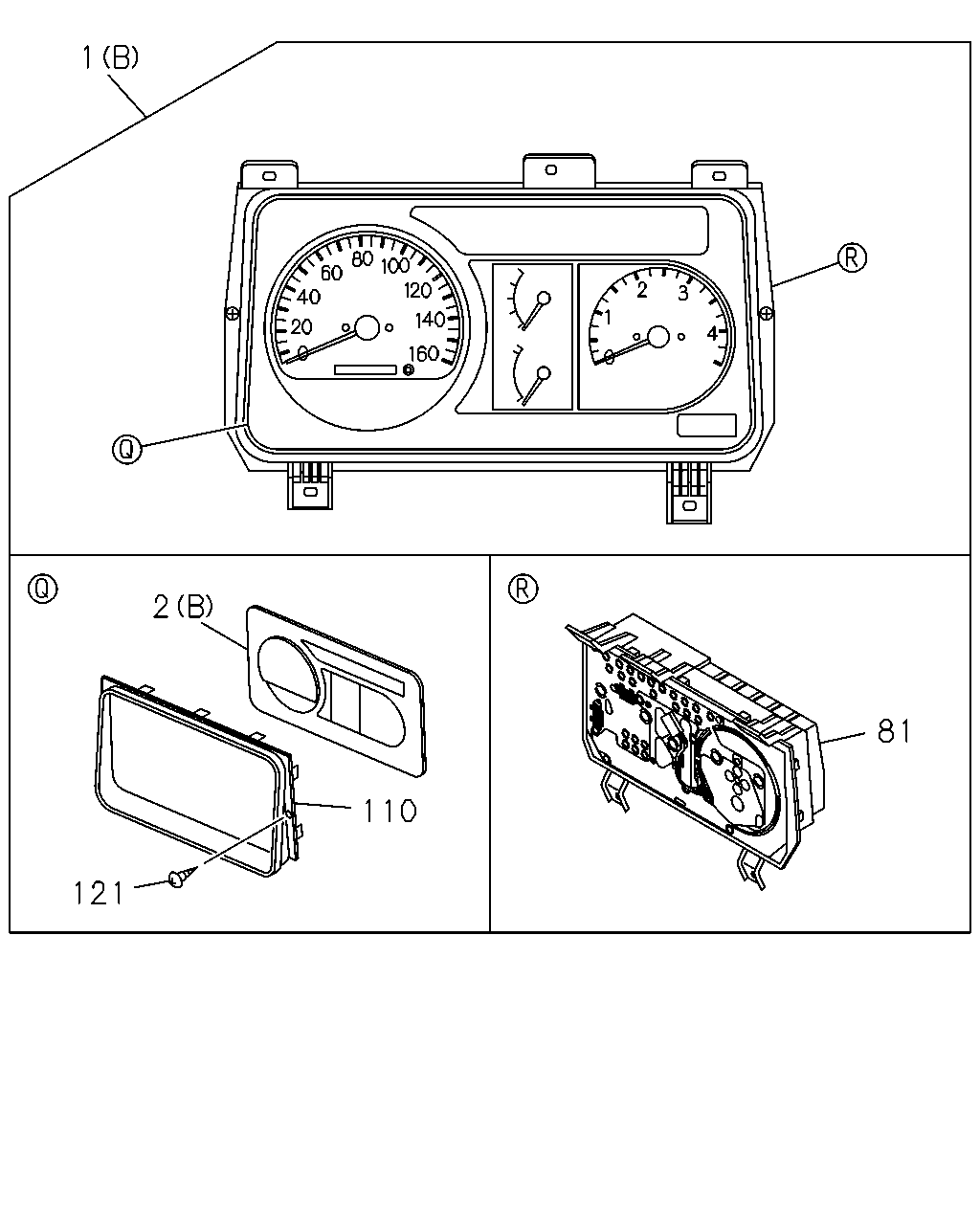

110 09.748 GLASS; CLUSTER METER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) PROVISIONAL PACKAGE SPEC<BCC> FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> 		8-98203-825-0 01 1 1207- ● ● ● ●
110 09.748 GLASS; CLUSTER METER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> 		8-97185-045-0 01 1 0507-1206 ● ● ● ● ●
110 09.748 GLASS; CLUSTER METER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> EXC. PROVISIONAL PACKAGE SPEC<BCC>, SPEEDOMETER MILE<UC1> 		8-97185-045-0 01 1 1207- ● ● ● ● ●
110 09.748 GLASS; CLUSTER METER
FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> 		8-97185-452-0 01 1 0211-0501 ● ● ● ● ● ●
110 09.748 GLASS; CLUSTER METER
A/T 4 SPEED-AISIN(RNJ) 		8-97185-452-0 01 1 0211-0501 ● ●
110 09.748 GLASS; CLUSTER METER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> 		8-97185-452-0 01 1 0502-1206 ● ● ● ● ●
110 09.748 GLASS; CLUSTER METER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-97185-452-0 01 1 1207- ● ● ● ● ●
110 09.748 GLASS; CLUSTER METER
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. AUSTRALIA EQUIPMENT(RR3), TACHOMETER<U16> 		8-97185-451-0 01 1 0211-0501 ● ● ● ● ● ●
110 09.748 GLASS; CLUSTER METER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TACHOMETER<U16> 		8-97185-451-0 01 1 0502-1206 ● ● ● ● ●
110 09.748 GLASS; CLUSTER METER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. PROVISIONAL PACKAGE SPEC<BCC>, TACHOMETER<U16> 		8-97185-451-0 01 1 1207- ● ● ● ● ●
131 01.148 GAUGE; TEMP,CLUSTER METER
FLOOR REMOTE SHIFT<M11> 		8-97185-475-0 01 1 0211-0501 ● ● ● ● ● ●
131 01.148 GAUGE; TEMP,CLUSTER METER
A/T 4 SPEED-AISIN(RNJ) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> 		8-97185-475-0 01 1 0211-0501 ● ●
131 01.148 GAUGE; TEMP,CLUSTER METER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 		8-98002-121-0 01 1 0502-1206 ● ● ● ● ●
131 01.148 GAUGE; TEMP,CLUSTER METER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-98002-121-0 01 1 1207- ● ● ● ● ●
131 01.148 GAUGE; TEMP,CLUSTER METER
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16> 		8-97218-589-0 01 1 0211-0501 ● ●
161 09.772 CLOCK; CLUSTER METER
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. AUSTRALIA EQUIPMENT(RR3), TACHOMETER<U16> 		8-97185-462-0 01 1 0211-0501 ● ● ● ● ● ●
161 09.772 CLOCK; CLUSTER METER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TACHOMETER<U16> 		8-98002-110-0 01 1 0502-1206 ● ● ● ● ●
161 09.772 CLOCK; CLUSTER METER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. PROVISIONAL PACKAGE SPEC<BCC>, TACHOMETER<U16> 		8-98002-110-0 01 1 1207- ● ● ● ● ●
183 03.107 GAUGE; FUEL
FLOOR REMOTE SHIFT<M11> 		8-97185-473-0 01 1 0211-0501 ● ● ● ● ● ●
183 03.107 GAUGE; FUEL
A/T 4 SPEED-AISIN(RNJ) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> 		8-97185-473-0 01 1 0211-0501 ● ●
183 03.107 GAUGE; FUEL
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16> 		8-97185-463-0 01 1 0211-0501 ● ●
183 03.107 GAUGE; FUEL
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 		8-98002-118-0 01 1 0502-1206 ● ● ● ● ●
183 03.107 GAUGE; FUEL
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-98002-118-0 01 1 1207- ● ● ● ● ●

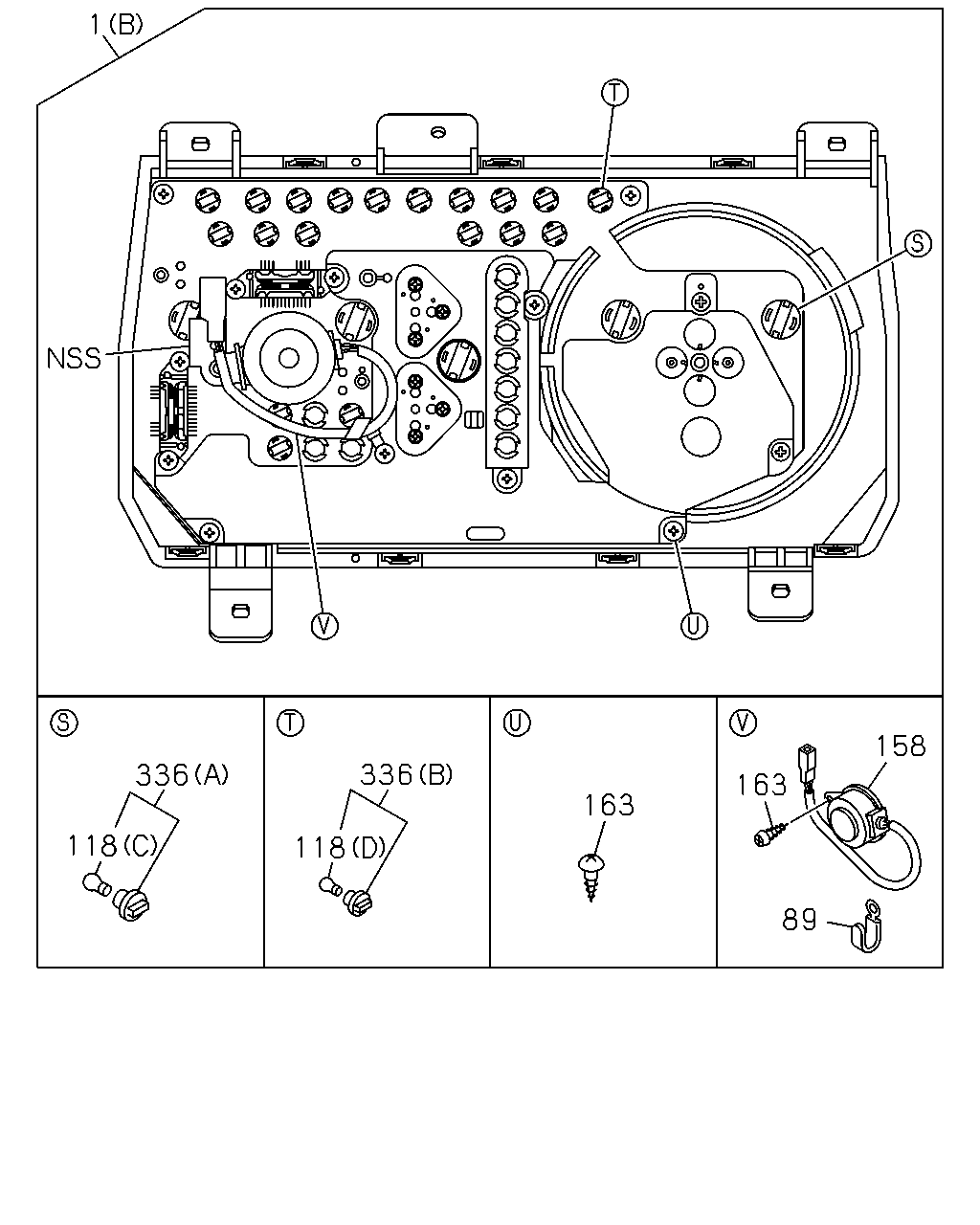

199 09.772 LENS; WARNING LAMP
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> CHARGE AIR COOLER<6PL> EXC. SPEEDOMETER MILE<UC1> 		8-97185-482-0 01 1 0211-0501 ● ● ● ● ●
199 09.772 LENS; WARNING LAMP
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) TURBOCHARGER(K51) AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> 		8-97185-482-0 01 1 0211-0501 ● ●
199 09.772 LENS; WARNING LAMP
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97185-481-0 01 1 0211-0501 ● ● ● ● ●
199 09.772 LENS; WARNING LAMP
4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. TURBOCHARGER(K51) 		8-97185-481-0 01 1 0211-0501 ● ● ● ●
199 09.772 LENS; WARNING LAMP
EXC. TACHOMETER<U16> 		8-97185-481-0 01 1 0211-0501 ●
199 09.772 LENS; WARNING LAMP
4HG1 ENG(RJH) TURBOCHARGER(K51) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. AUSTRALIA EQUIPMENT(RR3), SPEEDOMETER MILE<UC1> 		8-97210-305-0 01 1 0211-0312 ● ● ●
199 09.772 LENS; WARNING LAMP
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16>,HYDRO BRAKE BOOSTER<7QQ> 		8-97210-305-0 01 1 0211-0312 ● ●
199 09.772 LENS; WARNING LAMP
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) TACHOMETER<U16> CHARGE AIR COOLER<6PL> EXC. AUSTRALIA EQUIPMENT(RR3), SPEEDOMETER MILE<UC1>,HYDRO BRAKE BOOSTER<7QQ> 		8-97210-305-0 01 1 0211-0312 ● ●
199 09.772 LENS; WARNING LAMP
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> EXC. SPEEDOMETER MILE<UC1> 		8-97210-305-0 01 1 0211-0312 ● ●
199 09.772 LENS; WARNING LAMP
TACHOMETER<U16> 		8-97210-305-0 01 1 0211-0312 ●
199 09.772 LENS; WARNING LAMP
4HG1 ENG(RJH) TURBOCHARGER(K51) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. AUSTRALIA EQUIPMENT(RR3), SPEEDOMETER MILE<UC1>,HYDRO BRAKE BOOSTER<7QQ> 		8-97210-305-0 01 1 0401-0501 ● ● ●
199 09.772 LENS; WARNING LAMP
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16>,HYDRO BRAKE BOOSTER<7QQ> 		8-97210-305-0 01 1 0401-0501 ● ●
199 09.772 LENS; WARNING LAMP
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) TACHOMETER<U16> CHARGE AIR COOLER<6PL> EXC. AUSTRALIA EQUIPMENT(RR3), SPEEDOMETER MILE<UC1>,HYDRO BRAKE BOOSTER<7QQ> 		8-97210-305-0 01 1 0401-0501 ● ●
199 09.772 LENS; WARNING LAMP
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> EXC. SPEEDOMETER MILE<UC1> 		8-97210-305-0 01 1 0401-0501 ● ●
199 09.772 LENS; WARNING LAMP
TACHOMETER<U16> 		8-97210-305-0 01 1 0401-0501 ●
199 09.772 LENS; WARNING LAMP
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 		8-98002-124-0 01 1 0502-1206 ● ● ● ● ●
199 09.772 LENS; WARNING LAMP
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-98002-124-0 01 1 1207- ● ● ● ● ●
230 09.772 KNOB; DIGITAL CLOCK,SUB METER
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. AUSTRALIA EQUIPMENT(RR3), TACHOMETER<U16> 		8-97185-644-0 01 1 0211-0501 ● ● ● ● ● ●
230 09.772 KNOB; DIGITAL CLOCK,SUB METER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TACHOMETER<U16> 		8-97185-644-0 01 1 0502-1206 ● ● ● ● ●
230 09.772 KNOB; DIGITAL CLOCK,SUB METER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. PROVISIONAL PACKAGE SPEC<BCC>, TACHOMETER<U16> 		8-97185-644-0 01 1 1207- ● ● ● ● ●
319 09.744 SCREW; KNOB,CLUSTER METER
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. AUSTRALIA EQUIPMENT(RR3), TACHOMETER<U16> 		8-97185-522-0 01 1 0211-0501 ● ● ● ● ● ●
319 09.744 SCREW; KNOB,CLUSTER METER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TACHOMETER<U16> 		8-97185-522-0 01 1 0502-1206 ● ● ● ● ●
319 09.744 SCREW; KNOB,CLUSTER METER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. PROVISIONAL PACKAGE SPEC<BCC>, TACHOMETER<U16> 		8-97185-522-0 01 1 1207- ● ● ● ● ●
çizim 14044
1 2 81 110 121
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 09.735 METER COMPL; CLUSTER
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) PROVISIONAL PACKAGE SPEC<BCC> FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> (A) 		8-98179-899-1 01 1 1207- ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HG1-T ENG(RDP) PROVISIONAL PACKAGE SPEC<BCC> FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> (A) 		8-98179-901-1 01 1 1207- ●
1 09.735 METER COMPL; CLUSTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AUSTRALIA EQUIPMENT(RR3) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1>, TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98000-514-4 01 1 0507-1206 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AUSTRALIA EQUIPMENT(RR3) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. PROVISIONAL PACKAGE SPEC<BCC>, SPEEDOMETER MILE<UC1>,TRANSMISSION CONT ROL-SMOOTHER(8GF) (B) 		8-98000-514-4 01 1 1207- ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. SPEEDOMETER MILE<UC1> (B) 		8-98000-518-4 01 1 0507-0607 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. SPEEDOMETER MILE<UC1> (B) 		8-98055-735-0 01 1 0608-0808 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. SPEEDOMETER MILE<UC1> (B) 		8-98124-890-0 01 1 0809-1206 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PROVISIONAL PACKAGE SPEC<BCC>, SPEEDOMETER MILE<UC1> (B) 		8-98124-890-0 01 1 1207- ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HG1 ENG(RJH),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> SPEEDOMETER MILE<UC1> TACHOMETER<U16> EXC. TURBOCHARGER(K51),AUSTRALIA EQUIPMENT(RR3) (A) 		8-97170-609-2 01 1 0211-0501 ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> SPEEDOMETER MILE<UC1> TACHOMETER<U16> (A) 		8-97383-493-0 01 1 0502-1206 ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> SPEEDOMETER MILE<UC1> TACHOMETER<U16> EXC. PROVISIONAL PACKAGE SPEC<BCC> (A) 		8-97383-493-0 01 1 1207- ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HG1 ENG(RJH),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. TURBOCHARGER(K51),SPEEDOMETER MILE<UC1> (A) 		8-97170-600-2 01 1 0211-0501 ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> SPEEDOMETER MILE<UC1> EXC. TACHOMETER<U16> (A) 		8-97383-492-0 01 1 0502-1206 ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> SPEEDOMETER MILE<UC1> EXC. PROVISIONAL PACKAGE SPEC<BCC>, TACHOMETER<U16> (A) 		8-97383-492-0 01 1 1207- ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> CHARGE AIR COOLER<6PL> EXC. SPEEDOMETER MILE<UC1> (A) 		8-97259-819-0 01 1 0211-0501 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HG1-T ENG(RDP) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> (A) 		8-98000-849-0 01 1 0502-0506 ●
1 09.735 METER COMPL; CLUSTER
TACHOMETER<U16> (A) 		8-98000-849-0 01 1 0502-0506 ●
1 09.735 METER COMPL; CLUSTER
4HG1-T ENG(RDP) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> (A) 		8-98000-849-1 01 1 0507-1206 ●
1 09.735 METER COMPL; CLUSTER
TACHOMETER<U16> (A) 		8-98000-849-1 01 1 0507-1206 ●
1 09.735 METER COMPL; CLUSTER
4HG1-T ENG(RDP) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. PROVISIONAL PACKAGE SPEC<BCC>, SPEEDOMETER MILE<UC1> (A) 		8-98000-849-1 01 1 1207- ●
1 09.735 METER COMPL; CLUSTER
TACHOMETER<U16> (A) 		8-98000-849-1 01 1 1207- ●
1 09.735 METER COMPL; CLUSTER
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. AUSTRALIA EQUIPMENT(RR3), SPEEDOMETER MILE<UC1>,CHARGE AIR COOLER<6PL> ,HYDRO BRAKE BOOSTER<7QQ> (A) 		8-97184-611-1 01 1 0211-0501 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HG1-T ENG(RDP) SPEEDOMETER MILE<UC1> EXC. TACHOMETER<U16> (A) 		8-98000-852-0 01 1 0502-0506 ●
1 09.735 METER COMPL; CLUSTER
4HG1-T ENG(RDP) FLOOR REMOTE SHIFT<M11> SPEEDOMETER MILE<UC1> EXC. TACHOMETER<U16> (A) 		8-98000-852-0 01 1 0507-1206 ●
1 09.735 METER COMPL; CLUSTER
4HG1-T ENG(RDP) FLOOR REMOTE SHIFT<M11> SPEEDOMETER MILE<UC1> EXC. PROVISIONAL PACKAGE SPEC<BCC>, TACHOMETER<U16> (A) 		8-98000-852-0 01 1 1207- ●
1 09.735 METER COMPL; CLUSTER
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> CHARGE AIR COOLER<6PL> EXC. AUSTRALIA EQUIPMENT(RR3), SPEEDOMETER MILE<UC1>,HYDRO BRAKE BOOSTER<7QQ> (A) 		8-97217-065-0 01 1 0211-0501 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HG1-T ENG(RDP) SPEEDOMETER MILE<UC1> TACHOMETER<U16> (A) 		8-98000-851-0 01 1 0502-0506 ●
1 09.735 METER COMPL; CLUSTER
4HG1-T ENG(RDP) FLOOR REMOTE SHIFT<M11> SPEEDOMETER MILE<UC1> TACHOMETER<U16> (A) 		8-98000-851-0 01 1 0507-1206 ●
1 09.735 METER COMPL; CLUSTER
4HG1-T ENG(RDP) FLOOR REMOTE SHIFT<M11> SPEEDOMETER MILE<UC1> TACHOMETER<U16> EXC. PROVISIONAL PACKAGE SPEC<BCC> (A) 		8-98000-851-0 01 1 1207- ●
1 09.735 METER COMPL; CLUSTER
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> SPEEDOMETER MILE<UC1> EXC. AUSTRALIA EQUIPMENT(RR3), TACHOMETER<U16>,HYDRO BRAKE BOOSTER<7QQ> (A) 		8-97170-607-2 01 1 0211-0501 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> (A) 		8-97383-491-0 01 1 0502-1206 ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. PROVISIONAL PACKAGE SPEC<BCC>, SPEEDOMETER MILE<UC1> (A) 		8-97383-491-0 01 1 1207- ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. AUSTRALIA EQUIPMENT(RR3), SPEEDOMETER MILE<UC1>,TACHOMETER<U16>,HYDRO BRAKE BOOSTER<7QQ> (A) 		8-97170-596-2 01 1 0211-0501 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16> (A) 		8-97383-490-0 01 1 0502-1206 ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. PROVISIONAL PACKAGE SPEC<BCC>, SPEEDOMETER MILE<UC1>,TACHOMETER<U16> (A) 		8-97383-490-0 01 1 1207- ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16> (A) 		8-97311-545-0 01 1 0211-0501 ● ●
1 09.735 METER COMPL; CLUSTER
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16>,HYDRO BRAKE BOOSTER<7QQ> (A) 		8-97312-733-0 01 1 0211-0501 ● ●
1 09.735 METER COMPL; CLUSTER
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) TACHOMETER<U16> CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> EXC. SPEEDOMETER MILE<UC1> (A) 		8-97208-815-1 01 1 0211-0501 ● ●
1 09.735 METER COMPL; CLUSTER
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) TACHOMETER<U16> CHARGE AIR COOLER<6PL> EXC. AUSTRALIA EQUIPMENT(RR3), SPEEDOMETER MILE<UC1>,HYDRO BRAKE BOOSTER<7QQ> (A) 		8-97208-816-1 01 1 0211-0501 ● ●
1 09.735 METER COMPL; CLUSTER
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) TURBOCHARGER(K51) AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> (A) 		8-97350-665-0 01 1 0211-0501 ● ●
1 09.735 METER COMPL; CLUSTER
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> HYDRO BRAKE BOOSTER<7QQ> EXC. AUSTRALIA EQUIPMENT(RR3), SPEEDOMETER MILE<UC1>,TACHOMETER<U16> (A) 		8-97181-027-2 01 1 0211-0501 ● ● ●
1 09.735 METER COMPL; CLUSTER
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> SPEEDOMETER MILE<UC1> HYDRO BRAKE BOOSTER<7QQ> EXC. AUSTRALIA EQUIPMENT(RR3), TACHOMETER<U16> (A) 		8-97181-028-2 01 1 0211-0301 ● ● ●
1 09.735 METER COMPL; CLUSTER
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> SPEEDOMETER MILE<UC1> TACHOMETER<U16> CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> EXC. AUSTRALIA EQUIPMENT(RR3) (A) 		8-97217-063-0 01 1 0211-0301 ● ● ●
1 09.735 METER COMPL; CLUSTER
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> HYDRO BRAKE BOOSTER<7QQ> EXC. AUSTRALIA EQUIPMENT(RR3), SPEEDOMETER MILE<UC1>,CHARGE AIR COOLER<6PL> (A) 		8-97170-603-2 01 1 0211-0501 ● ● ●
1 09.735 METER COMPL; CLUSTER
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> EXC. AUSTRALIA EQUIPMENT(RR3), SPEEDOMETER MILE<UC1> (A) 		8-97217-064-0 01 1 0211-0501 ● ● ●
1 09.735 METER COMPL; CLUSTER
4HG1 ENG(RJH) TURBOCHARGER(K51) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. AUSTRALIA EQUIPMENT(RR3), SPEEDOMETER MILE<UC1> (A) 		8-97217-080-0 01 1 0211-0312 ● ● ●
1 09.735 METER COMPL; CLUSTER
TACHOMETER<U16> (A) 		8-97217-080-0 01 1 0211-0312 ●
1 09.735 METER COMPL; CLUSTER
4HG1 ENG(RJH) TURBOCHARGER(K51) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. AUSTRALIA EQUIPMENT(RR3), SPEEDOMETER MILE<UC1>,HYDRO BRAKE BOOSTER<7QQ> (A) 		8-97217-080-0 01 1 0401-0501 ● ● ●
1 09.735 METER COMPL; CLUSTER
TACHOMETER<U16> (A) 		8-97217-080-0 01 1 0401-0501 ●
1 09.735 METER COMPL; CLUSTER
4HG1-T ENG(RDP) EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16> (A) 		8-98000-850-0 01 1 0502-0506 ●
1 09.735 METER COMPL; CLUSTER
EXC. TACHOMETER<U16> (A) 		8-98000-850-0 01 1 0502-0506 ●
1 09.735 METER COMPL; CLUSTER
4HG1-T ENG(RDP) FLOOR REMOTE SHIFT<M11> EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16> (A) 		8-98000-850-1 01 1 0507-1206 ●
1 09.735 METER COMPL; CLUSTER
EXC. TACHOMETER<U16> (A) 		8-98000-850-1 01 1 0507-1206 ●
1 09.735 METER COMPL; CLUSTER
4HG1-T ENG(RDP) FLOOR REMOTE SHIFT<M11> EXC. PROVISIONAL PACKAGE SPEC<BCC>, SPEEDOMETER MILE<UC1>,TACHOMETER<U16> (A) 		8-98000-850-1 01 1 1207- ●
1 09.735 METER COMPL; CLUSTER
EXC. TACHOMETER<U16> (A) 		8-98000-850-1 01 1 1207- ●
2 09.735 PANEL; CLUSTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> (B) 		8-97185-047-0 01 1 0507-1206 ● ● ● ● ●
2 09.735 PANEL; CLUSTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> EXC. PROVISIONAL PACKAGE SPEC<BCC>, SPEEDOMETER MILE<UC1> (B) 		8-97185-047-0 01 1 1207- ● ● ● ● ●
2 09.735 PANEL; CLUSTER
(A) 		8-97185-443-0 01 1 0211-0501 ● ● ● ● ● ●
2 09.735 PANEL; CLUSTER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) (A) 		8-97185-443-0 01 1 0502-1206 ● ● ● ● ●
2 09.735 PANEL; CLUSTER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. PROVISIONAL PACKAGE SPEC<BCC> (A) 		8-97185-443-0 01 1 1207- ● ● ● ● ●
81 09.735 METER SUB ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AUSTRALIA EQUIPMENT(RR3) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1>, TRANSMISSION CONTROL-SMOOTHER(8GF) 09.743 		8-98003-835-0 01 1 0507-1206 ● ● ● ● ●
81 09.735 METER SUB ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AUSTRALIA EQUIPMENT(RR3) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. PROVISIONAL PACKAGE SPEC<BCC>, SPEEDOMETER MILE<UC1>,TRANSMISSION CONT ROL-SMOOTHER(8GF) 09.743 		8-98003-835-0 01 1 1207- ● ● ● ● ●
81 09.735 METER SUB ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. SPEEDOMETER MILE<UC1> 09.743 		8-98003-836-0 01 1 0507-0808 ● ● ● ● ●
81 09.735 METER SUB ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. SPEEDOMETER MILE<UC1> 		8-98127-296-0 01 1 0809-1206 ● ● ● ● ●
81 09.735 METER SUB ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PROVISIONAL PACKAGE SPEC<BCC>, SPEEDOMETER MILE<UC1> 		8-98127-296-0 01 1 1207- ● ● ● ● ●
110 09.748 GLASS; CLUSTER METER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) PROVISIONAL PACKAGE SPEC<BCC> FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> 		8-98203-825-0 01 1 1207- ● ● ● ●
110 09.748 GLASS; CLUSTER METER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> 		8-97185-045-0 01 1 0507-1206 ● ● ● ● ●
110 09.748 GLASS; CLUSTER METER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> EXC. PROVISIONAL PACKAGE SPEC<BCC>, SPEEDOMETER MILE<UC1> 		8-97185-045-0 01 1 1207- ● ● ● ● ●
110 09.748 GLASS; CLUSTER METER
FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> 		8-97185-452-0 01 1 0211-0501 ● ● ● ● ● ●
110 09.748 GLASS; CLUSTER METER
A/T 4 SPEED-AISIN(RNJ) 		8-97185-452-0 01 1 0211-0501 ● ●
110 09.748 GLASS; CLUSTER METER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> 		8-97185-452-0 01 1 0502-1206 ● ● ● ● ●
110 09.748 GLASS; CLUSTER METER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-97185-452-0 01 1 1207- ● ● ● ● ●
110 09.748 GLASS; CLUSTER METER
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. AUSTRALIA EQUIPMENT(RR3), TACHOMETER<U16> 		8-97185-451-0 01 1 0211-0501 ● ● ● ● ● ●
110 09.748 GLASS; CLUSTER METER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TACHOMETER<U16> 		8-97185-451-0 01 1 0502-1206 ● ● ● ● ●
110 09.748 GLASS; CLUSTER METER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. PROVISIONAL PACKAGE SPEC<BCC>, TACHOMETER<U16> 		8-97185-451-0 01 1 1207- ● ● ● ● ●
121 09.744 SCREW; PANEL FIX,CLUSTER METER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> 		8-97185-100-0 02 1 0507-1206 ● ● ● ● ●
121 09.744 SCREW; PANEL FIX,CLUSTER METER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> EXC. PROVISIONAL PACKAGE SPEC<BCC>, SPEEDOMETER MILE<UC1> 		8-97185-100-0 02 1 1207- ● ● ● ● ●
çizim 53624
1 270 11 151 355 1 269 11 385 288 382 143 384 151 280 380 288 381 383 355 269 270 270
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 09.735 METER COMPL; CLUSTER
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) PROVISIONAL PACKAGE SPEC<BCC> FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> (A) 		8-98179-899-1 01 1 1207- ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HG1-T ENG(RDP) PROVISIONAL PACKAGE SPEC<BCC> FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> (A) 		8-98179-901-1 01 1 1207- ●
1 09.735 METER COMPL; CLUSTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AUSTRALIA EQUIPMENT(RR3) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1>, TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98000-514-4 01 1 0507-1206 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AUSTRALIA EQUIPMENT(RR3) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. PROVISIONAL PACKAGE SPEC<BCC>, SPEEDOMETER MILE<UC1>,TRANSMISSION CONT ROL-SMOOTHER(8GF) (B) 		8-98000-514-4 01 1 1207- ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. SPEEDOMETER MILE<UC1> (B) 		8-98000-518-4 01 1 0507-0607 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. SPEEDOMETER MILE<UC1> (B) 		8-98055-735-0 01 1 0608-0808 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. SPEEDOMETER MILE<UC1> (B) 		8-98124-890-0 01 1 0809-1206 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PROVISIONAL PACKAGE SPEC<BCC>, SPEEDOMETER MILE<UC1> (B) 		8-98124-890-0 01 1 1207- ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HG1 ENG(RJH),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> SPEEDOMETER MILE<UC1> TACHOMETER<U16> EXC. TURBOCHARGER(K51),AUSTRALIA EQUIPMENT(RR3) (A) 		8-97170-609-2 01 1 0211-0501 ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> SPEEDOMETER MILE<UC1> TACHOMETER<U16> (A) 		8-97383-493-0 01 1 0502-1206 ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> SPEEDOMETER MILE<UC1> TACHOMETER<U16> EXC. PROVISIONAL PACKAGE SPEC<BCC> (A) 		8-97383-493-0 01 1 1207- ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HG1 ENG(RJH),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. TURBOCHARGER(K51),SPEEDOMETER MILE<UC1> (A) 		8-97170-600-2 01 1 0211-0501 ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> SPEEDOMETER MILE<UC1> EXC. TACHOMETER<U16> (A) 		8-97383-492-0 01 1 0502-1206 ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> SPEEDOMETER MILE<UC1> EXC. PROVISIONAL PACKAGE SPEC<BCC>, TACHOMETER<U16> (A) 		8-97383-492-0 01 1 1207- ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> CHARGE AIR COOLER<6PL> EXC. SPEEDOMETER MILE<UC1> (A) 		8-97259-819-0 01 1 0211-0501 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HG1-T ENG(RDP) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> (A) 		8-98000-849-0 01 1 0502-0506 ●
1 09.735 METER COMPL; CLUSTER
TACHOMETER<U16> (A) 		8-98000-849-0 01 1 0502-0506 ●
1 09.735 METER COMPL; CLUSTER
4HG1-T ENG(RDP) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> (A) 		8-98000-849-1 01 1 0507-1206 ●
1 09.735 METER COMPL; CLUSTER
TACHOMETER<U16> (A) 		8-98000-849-1 01 1 0507-1206 ●
1 09.735 METER COMPL; CLUSTER
4HG1-T ENG(RDP) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. PROVISIONAL PACKAGE SPEC<BCC>, SPEEDOMETER MILE<UC1> (A) 		8-98000-849-1 01 1 1207- ●
1 09.735 METER COMPL; CLUSTER
TACHOMETER<U16> (A) 		8-98000-849-1 01 1 1207- ●
1 09.735 METER COMPL; CLUSTER
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. AUSTRALIA EQUIPMENT(RR3), SPEEDOMETER MILE<UC1>,CHARGE AIR COOLER<6PL> ,HYDRO BRAKE BOOSTER<7QQ> (A) 		8-97184-611-1 01 1 0211-0501 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HG1-T ENG(RDP) SPEEDOMETER MILE<UC1> EXC. TACHOMETER<U16> (A) 		8-98000-852-0 01 1 0502-0506 ●
1 09.735 METER COMPL; CLUSTER
4HG1-T ENG(RDP) FLOOR REMOTE SHIFT<M11> SPEEDOMETER MILE<UC1> EXC. TACHOMETER<U16> (A) 		8-98000-852-0 01 1 0507-1206 ●
1 09.735 METER COMPL; CLUSTER
4HG1-T ENG(RDP) FLOOR REMOTE SHIFT<M11> SPEEDOMETER MILE<UC1> EXC. PROVISIONAL PACKAGE SPEC<BCC>, TACHOMETER<U16> (A) 		8-98000-852-0 01 1 1207- ●
1 09.735 METER COMPL; CLUSTER
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> CHARGE AIR COOLER<6PL> EXC. AUSTRALIA EQUIPMENT(RR3), SPEEDOMETER MILE<UC1>,HYDRO BRAKE BOOSTER<7QQ> (A) 		8-97217-065-0 01 1 0211-0501 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HG1-T ENG(RDP) SPEEDOMETER MILE<UC1> TACHOMETER<U16> (A) 		8-98000-851-0 01 1 0502-0506 ●
1 09.735 METER COMPL; CLUSTER
4HG1-T ENG(RDP) FLOOR REMOTE SHIFT<M11> SPEEDOMETER MILE<UC1> TACHOMETER<U16> (A) 		8-98000-851-0 01 1 0507-1206 ●
1 09.735 METER COMPL; CLUSTER
4HG1-T ENG(RDP) FLOOR REMOTE SHIFT<M11> SPEEDOMETER MILE<UC1> TACHOMETER<U16> EXC. PROVISIONAL PACKAGE SPEC<BCC> (A) 		8-98000-851-0 01 1 1207- ●
1 09.735 METER COMPL; CLUSTER
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> SPEEDOMETER MILE<UC1> EXC. AUSTRALIA EQUIPMENT(RR3), TACHOMETER<U16>,HYDRO BRAKE BOOSTER<7QQ> (A) 		8-97170-607-2 01 1 0211-0501 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> (A) 		8-97383-491-0 01 1 0502-1206 ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. PROVISIONAL PACKAGE SPEC<BCC>, SPEEDOMETER MILE<UC1> (A) 		8-97383-491-0 01 1 1207- ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. AUSTRALIA EQUIPMENT(RR3), SPEEDOMETER MILE<UC1>,TACHOMETER<U16>,HYDRO BRAKE BOOSTER<7QQ> (A) 		8-97170-596-2 01 1 0211-0501 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16> (A) 		8-97383-490-0 01 1 0502-1206 ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. PROVISIONAL PACKAGE SPEC<BCC>, SPEEDOMETER MILE<UC1>,TACHOMETER<U16> (A) 		8-97383-490-0 01 1 1207- ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16> (A) 		8-97311-545-0 01 1 0211-0501 ● ●
1 09.735 METER COMPL; CLUSTER
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16>,HYDRO BRAKE BOOSTER<7QQ> (A) 		8-97312-733-0 01 1 0211-0501 ● ●
1 09.735 METER COMPL; CLUSTER
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) TACHOMETER<U16> CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> EXC. SPEEDOMETER MILE<UC1> (A) 		8-97208-815-1 01 1 0211-0501 ● ●
1 09.735 METER COMPL; CLUSTER
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) TACHOMETER<U16> CHARGE AIR COOLER<6PL> EXC. AUSTRALIA EQUIPMENT(RR3), SPEEDOMETER MILE<UC1>,HYDRO BRAKE BOOSTER<7QQ> (A) 		8-97208-816-1 01 1 0211-0501 ● ●
1 09.735 METER COMPL; CLUSTER
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) TURBOCHARGER(K51) AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> (A) 		8-97350-665-0 01 1 0211-0501 ● ●
1 09.735 METER COMPL; CLUSTER
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> HYDRO BRAKE BOOSTER<7QQ> EXC. AUSTRALIA EQUIPMENT(RR3), SPEEDOMETER MILE<UC1>,TACHOMETER<U16> (A) 		8-97181-027-2 01 1 0211-0501 ● ● ●
1 09.735 METER COMPL; CLUSTER
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> SPEEDOMETER MILE<UC1> HYDRO BRAKE BOOSTER<7QQ> EXC. AUSTRALIA EQUIPMENT(RR3), TACHOMETER<U16> (A) 		8-97181-028-2 01 1 0211-0301 ● ● ●
1 09.735 METER COMPL; CLUSTER
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> SPEEDOMETER MILE<UC1> TACHOMETER<U16> CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> EXC. AUSTRALIA EQUIPMENT(RR3) (A) 		8-97217-063-0 01 1 0211-0301 ● ● ●
1 09.735 METER COMPL; CLUSTER
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> HYDRO BRAKE BOOSTER<7QQ> EXC. AUSTRALIA EQUIPMENT(RR3), SPEEDOMETER MILE<UC1>,CHARGE AIR COOLER<6PL> (A) 		8-97170-603-2 01 1 0211-0501 ● ● ●
1 09.735 METER COMPL; CLUSTER
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> EXC. AUSTRALIA EQUIPMENT(RR3), SPEEDOMETER MILE<UC1> (A) 		8-97217-064-0 01 1 0211-0501 ● ● ●
1 09.735 METER COMPL; CLUSTER
4HG1 ENG(RJH) TURBOCHARGER(K51) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. AUSTRALIA EQUIPMENT(RR3), SPEEDOMETER MILE<UC1> (A) 		8-97217-080-0 01 1 0211-0312 ● ● ●
1 09.735 METER COMPL; CLUSTER
TACHOMETER<U16> (A) 		8-97217-080-0 01 1 0211-0312 ●
1 09.735 METER COMPL; CLUSTER
4HG1 ENG(RJH) TURBOCHARGER(K51) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. AUSTRALIA EQUIPMENT(RR3), SPEEDOMETER MILE<UC1>,HYDRO BRAKE BOOSTER<7QQ> (A) 		8-97217-080-0 01 1 0401-0501 ● ● ●
1 09.735 METER COMPL; CLUSTER
TACHOMETER<U16> (A) 		8-97217-080-0 01 1 0401-0501 ●
1 09.735 METER COMPL; CLUSTER
4HG1-T ENG(RDP) EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16> (A) 		8-98000-850-0 01 1 0502-0506 ●
1 09.735 METER COMPL; CLUSTER
EXC. TACHOMETER<U16> (A) 		8-98000-850-0 01 1 0502-0506 ●
1 09.735 METER COMPL; CLUSTER
4HG1-T ENG(RDP) FLOOR REMOTE SHIFT<M11> EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16> (A) 		8-98000-850-1 01 1 0507-1206 ●
1 09.735 METER COMPL; CLUSTER
EXC. TACHOMETER<U16> (A) 		8-98000-850-1 01 1 0507-1206 ●
1 09.735 METER COMPL; CLUSTER
4HG1-T ENG(RDP) FLOOR REMOTE SHIFT<M11> EXC. PROVISIONAL PACKAGE SPEC<BCC>, SPEEDOMETER MILE<UC1>,TACHOMETER<U16> (A) 		8-98000-850-1 01 1 1207- ●
1 09.735 METER COMPL; CLUSTER
EXC. TACHOMETER<U16> (A) 		8-98000-850-1 01 1 1207- ●
11 09.743 CLUSTER ASM; METER
NEW ZEALAND COUNTRY(CX6) EXC. AIR BAG DRIVER<AJ3> (A) BLACK 		8-97404-376-0 01 1 0507- ● ● ● ● ●
11 09.743 CLUSTER ASM; METER
AIR BAG DRIVER<AJ3> PTO TRANSMISSION SIDE(V66) EXC. NEW ZEALAND COUNTRY(CX6) (B) BLACK 		8-97196-063-4 01 1 0507- ● ● ● ●
11 09.743 CLUSTER ASM; METER
AIR BAG DRIVER<AJ3> EXC. NEW ZEALAND COUNTRY(CX6),PTO TRANSMISSION SIDE(V66) (B) BLACK 		8-97868-145-7 01 1 0507- ● ● ● ●
11 09.743 CLUSTER ASM; METER
AIR BAG DRIVER<AJ3> EXC. NEW ZEALAND COUNTRY(CX6) (B) BLACK 		8-97868-145-7 01 1 0507- ●
11 09.743 CLUSTER ASM; METER
AIR BAG DRIVER<AJ3> NEW ZEALAND COUNTRY(CX6) PTO TRANSMISSION SIDE(V66) (A) WOODY PATTERN 		8-97583-471-0 01 1 0507- ● ● ● ●
11 09.743 CLUSTER ASM; METER
AIR BAG DRIVER<AJ3> NEW ZEALAND COUNTRY(CX6) EXC. PTO TRANSMISSION SIDE(V66) (A) WOODY PATTERN 		8-97583-470-0 01 1 0507- ● ● ● ●
11 09.743 CLUSTER ASM; METER
AIR BAG DRIVER<AJ3> NEW ZEALAND COUNTRY(CX6) (A) WOODY PATTERN 		8-97583-470-0 01 1 0507- ●
11 09.743 CLUSTER ASM; METER
(A) BLACK 		8-97195-965-2 01 1 0211-0408 ● ● ● ● ● ●
11 09.743 CLUSTER ASM; METER
(A) BLACK 		8-97195-965-2 01 1 0409-0501 ● ● ●
11 09.743 CLUSTER ASM; METER
EXC. NEW ZEALAND EQUIPMENT(PK5) (A) BLACK 		8-97195-965-2 01 1 0409-0501 ● ● ●
11 09.743 CLUSTER ASM; METER
(A) BLACK 		8-97195-965-2 01 1 0502-0506 ● ● ● ● ●
11 09.743 CLUSTER ASM; METER
EXC. AIR BAG DRIVER<AJ3>,NEW ZEALAND COUNTRY(CX6) (A) BLACK 		8-97195-965-2 01 1 0507- ● ● ● ● ●
11 09.743 CLUSTER ASM; METER
(A) BLACK 		8-97195-965-2 01 1 0507- ●
11 09.743 CLUSTER ASM; METER
NEW ZEALAND EQUIPMENT(PK5) (A) WOOD GRAIN 		8-97588-963-0 01 1 0409-0501 ● ● ●
143 09.715 COVER; CLUSTER METER
AIR BAG DRIVER<AJ3> PTO TRANSMISSION SIDE(V66) 		8-97185-759-1 01 1 0507- ● ● ● ●
143 09.715 COVER; CLUSTER METER
AIR BAG DRIVER<AJ3> EXC. PTO TRANSMISSION SIDE(V66) 		8-97185-757-1 01 1 0507- ● ● ● ●
143 09.715 COVER; CLUSTER METER
AIR BAG DRIVER<AJ3> 		8-97185-757-1 01 1 0507- ●
151 09.747 CLIP; METER CLUSTER 8-97217-066-0 07 1 0211-0501 ● ● ● ● ● ●
151 09.747 CLIP; METER CLUSTER 8-97217-066-0 07 1 0502-0506 ● ● ● ● ●
151 09.747 CLIP; METER CLUSTER 8-97217-066-0 07 1 0507- ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
(C) 		8-97185-528-0 05 1 0211-0501 ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
EXC. TACHOMETER<U16> (C) 		8-97185-528-0 05 1 0211-0501 ●
269 09.743 SCREW; METER CLUSTER
08.225 (F) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0211-0501 ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
08.225 (F) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0502-0506 ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
08.225 (F) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0507-1210 ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
02.587 (F) M6X19.5 W/LK&PL WASHER 		8-97360-226-0 05 1 1211- ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
(B) 		8-97185-523-0 01 1 0211-0501 ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) (B) 		8-97185-523-0 01 1 0502-1206 ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. PROVISIONAL PACKAGE SPEC<BCC> (B) 		8-97185-523-0 01 1 1207- ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
FLOOR REMOTE SHIFT<M11> (A) 		8-97185-525-0 06 1 0211-0501 ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
A/T 4 SPEED-AISIN(RNJ) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> (A) 		8-97185-525-0 06 1 0211-0501 ● ●
269 09.743 SCREW; METER CLUSTER
TACHOMETER<U16> (E) 		8-97185-524-0 08 1 0211-0501 ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. AUSTRALIA EQUIPMENT(RR3), TACHOMETER<U16> (E) 		8-97185-524-0 07 1 0211-0501 ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> (E) 		8-97185-524-0 08 1 0502-1206 ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. PROVISIONAL PACKAGE SPEC<BCC> (E) 		8-97185-524-0 08 1 1207- ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16> (E) 		8-97185-524-0 05 1 0211-0501 ● ●
269 09.743 SCREW; METER CLUSTER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TACHOMETER<U16> (E) 		8-97185-524-0 07 1 0502-1206 ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. PROVISIONAL PACKAGE SPEC<BCC>, TACHOMETER<U16> (E) 		8-97185-524-0 07 1 1207- ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16> (A) 		8-97185-525-0 03 1 0211-0501 ● ●
269 09.743 SCREW; METER CLUSTER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) (A) 		8-97185-525-0 06 1 0502-1206 ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. PROVISIONAL PACKAGE SPEC<BCC> (A) 		8-97185-525-0 06 1 1207- ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16> (D) 		8-97185-526-0 03 1 0211-0501 ● ●
269 09.743 SCREW; METER CLUSTER
4HG1 ENG(RJH) TURBOCHARGER(K51) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. AUSTRALIA EQUIPMENT(RR3), SPEEDOMETER MILE<UC1> (C) 		8-97185-528-0 02 1 0211-0312 ● ● ●
269 09.743 SCREW; METER CLUSTER
TACHOMETER<U16> (C) 		8-97185-528-0 02 1 0211-0312 ●
269 09.743 SCREW; METER CLUSTER
4HG1 ENG(RJH) TURBOCHARGER(K51) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. AUSTRALIA EQUIPMENT(RR3), SPEEDOMETER MILE<UC1>,HYDRO BRAKE BOOSTER<7QQ> (C) 		8-97185-528-0 02 1 0401-0501 ● ● ●
269 09.743 SCREW; METER CLUSTER
TACHOMETER<U16> (C) 		8-97185-528-0 02 1 0401-0501 ●
269 09.743 SCREW; METER CLUSTER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) (C) 		8-97185-528-0 05 1 0502-1206 ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. PROVISIONAL PACKAGE SPEC<BCC> (C) 		8-97185-528-0 05 1 1207- ● ● ● ● ●
270 09.743 CUSHION; METER CLUSTER
16.085 (A) 15X30 T=5 		8-94270-366-2 01 1 0211-0501 ● ● ● ● ● ●
270 09.743 CUSHION; METER CLUSTER
16.085 (A) 15X30 T=5 		8-94270-366-2 01 1 0502-0506 ● ● ● ● ●
270 09.743 CUSHION; METER CLUSTER
EXC. AIR BAG DRIVER<AJ3> 16.085 (A) 15X30 T=5 		8-94270-366-2 01 1 0507- ● ● ● ● ●
270 09.743 CUSHION; METER CLUSTER
16.085 (A) 15X30 T=5 		8-94270-366-2 01 1 0507- ●
270 09.743 CUSHION; METER CLUSTER
(B) 6X30 T=2 		8-94270-378-1 02 1 0211-0501 ● ● ● ● ● ●
270 09.743 CUSHION; METER CLUSTER
(B) 6X30 T=2 		8-94270-378-1 02 1 0502-0506 ● ● ● ● ●
270 09.743 CUSHION; METER CLUSTER
EXC. AIR BAG DRIVER<AJ3> (B) 6X30 T=2 		8-94270-378-1 02 1 0507- ● ● ● ● ●
270 09.743 CUSHION; METER CLUSTER
(B) 6X30 T=2 		8-94270-378-1 02 1 0507- ●
280 09.744 SCREW; COVER
AIR BAG DRIVER<AJ3> 09.663 M5X12 TAPPING W/PL WASHER 		0-74110-512-0 02 1 0507-0604 ● ● ● ● ●
280 09.744 SCREW; COVER
AIR BAG DRIVER<AJ3> 16.345 M5X12 TAPPING W/PL WASHER 		0-74160-512-0 02 1 0605- ● ● ● ● ●
288 09.743 BRACKET
AIR BAG DRIVER<AJ3> (B) 		8-97205-060-0 01 1 0507- ● ● ● ● ●
288 09.743 BRACKET
AIR BAG DRIVER<AJ3> PTO TRANSMISSION SIDE(V66) (A) 		8-97182-775-0 01 1 0507- ● ● ● ●
355 09.748 GRILLE; VENT
BLACK 		8-97195-966-1 01 1 0211-0501 ● ● ● ● ● ●
355 09.748 GRILLE; VENT
BLACK 		8-97195-966-1 01 1 0502-0506 ● ● ● ● ●
355 09.748 GRILLE; VENT
BLACK 		8-97195-966-1 01 1 0507- ● ● ● ● ● ●
355 09.748 GRILLE; VENT
BLACK 		8-97195-967-1 01 1 0211-0501 ● ● ● ● ● ●
355 09.748 GRILLE; VENT
BLACK 		8-97195-967-1 01 1 0502-0506 ● ● ● ● ●
355 09.748 GRILLE; VENT
BLACK 		8-97195-967-1 01 1 0507- ● ● ● ● ● ●
380 09.744 BRACKET; KNEE SPREADER
AIR BAG DRIVER<AJ3> 		8-97187-860-3 01 1 0507- ● ● ● ● ●
381 09.744 SCREW; KNEE SPREADER
AIR BAG DRIVER<AJ3> 09.663 M5X12 TAPPING W/PL WASHER 		0-74110-512-0 04 1 0507-0604 ● ● ● ● ●
381 09.744 SCREW; KNEE SPREADER
AIR BAG DRIVER<AJ3> 16.345 M5X12 TAPPING W/PL WASHER 		0-74160-512-0 04 1 0605- ● ● ● ● ●
382 09.744 BRACKET; KNEE BOLSTER
AIR BAG DRIVER<AJ3> EXC. PTO TRANSMISSION SIDE(V66) 		8-97890-267-2 01 1 0507- ● ● ● ●
382 09.744 BRACKET; KNEE BOLSTER
AIR BAG DRIVER<AJ3> 		8-97890-267-2 01 1 0507- ●
383 09.744 NUT; SPIRE,KNEE BOLSTER
AIR BAG DRIVER<AJ3> 16.081 M5 SPIRE NUT 		8-94279-051-0 02 1 0507- ● ● ● ● ●
384 09.744 SCREW; KNEE BOLSTER
AIR BAG DRIVER<AJ3> PTO TRANSMISSION SIDE(V66) 09.663 M5X12 TAPPING W/PL WASHER 		0-74110-512-0 01 1 0507-0604 ● ● ● ●
384 09.744 SCREW; KNEE BOLSTER
AIR BAG DRIVER<AJ3> PTO TRANSMISSION SIDE(V66) 16.345 M5X12 TAPPING W/PL WASHER 		0-74160-512-0 01 1 0605- ● ● ● ●
384 09.744 SCREW; KNEE BOLSTER
AIR BAG DRIVER<AJ3> EXC. PTO TRANSMISSION SIDE(V66) 09.663 M5X12 TAPPING W/PL WASHER 		0-74110-512-0 02 1 0507-0604 ● ● ● ●
384 09.744 SCREW; KNEE BOLSTER
AIR BAG DRIVER<AJ3> 09.663 M5X12 TAPPING W/PL WASHER 		0-74110-512-0 02 1 0507-0604 ●
384 09.744 SCREW; KNEE BOLSTER
AIR BAG DRIVER<AJ3> EXC. PTO TRANSMISSION SIDE(V66) 16.345 M5X12 TAPPING W/PL WASHER 		0-74160-512-0 02 1 0605- ● ● ● ●
384 09.744 SCREW; KNEE BOLSTER
AIR BAG DRIVER<AJ3> 16.345 M5X12 TAPPING W/PL WASHER 		0-74160-512-0 02 1 0605- ●
385 09.761 FINISHER; BRKT
AIR BAG DRIVER<AJ3> EXC. PTO TRANSMISSION SIDE(V66) 16.686 L=80 SERVICED BY L=90 		1-71997-795-0 01 1 0507- ● ● ● ●
385 09.761 FINISHER; BRKT
AIR BAG DRIVER<AJ3> 16.686 L=80 SERVICED BY L=90 		1-71997-795-0 01 1 0507- ●
çizim 53955
1 158 336 336 163 163 118 118 89
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 09.735 METER COMPL; CLUSTER
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) PROVISIONAL PACKAGE SPEC<BCC> FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> (A) 		8-98179-899-1 01 1 1207- ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HG1-T ENG(RDP) PROVISIONAL PACKAGE SPEC<BCC> FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> (A) 		8-98179-901-1 01 1 1207- ●
1 09.735 METER COMPL; CLUSTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AUSTRALIA EQUIPMENT(RR3) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1>, TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98000-514-4 01 1 0507-1206 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AUSTRALIA EQUIPMENT(RR3) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. PROVISIONAL PACKAGE SPEC<BCC>, SPEEDOMETER MILE<UC1>,TRANSMISSION CONT ROL-SMOOTHER(8GF) (B) 		8-98000-514-4 01 1 1207- ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. SPEEDOMETER MILE<UC1> (B) 		8-98000-518-4 01 1 0507-0607 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. SPEEDOMETER MILE<UC1> (B) 		8-98055-735-0 01 1 0608-0808 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. SPEEDOMETER MILE<UC1> (B) 		8-98124-890-0 01 1 0809-1206 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PROVISIONAL PACKAGE SPEC<BCC>, SPEEDOMETER MILE<UC1> (B) 		8-98124-890-0 01 1 1207- ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HG1 ENG(RJH),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> SPEEDOMETER MILE<UC1> TACHOMETER<U16> EXC. TURBOCHARGER(K51),AUSTRALIA EQUIPMENT(RR3) (A) 		8-97170-609-2 01 1 0211-0501 ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> SPEEDOMETER MILE<UC1> TACHOMETER<U16> (A) 		8-97383-493-0 01 1 0502-1206 ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> SPEEDOMETER MILE<UC1> TACHOMETER<U16> EXC. PROVISIONAL PACKAGE SPEC<BCC> (A) 		8-97383-493-0 01 1 1207- ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HG1 ENG(RJH),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. TURBOCHARGER(K51),SPEEDOMETER MILE<UC1> (A) 		8-97170-600-2 01 1 0211-0501 ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> SPEEDOMETER MILE<UC1> EXC. TACHOMETER<U16> (A) 		8-97383-492-0 01 1 0502-1206 ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> SPEEDOMETER MILE<UC1> EXC. PROVISIONAL PACKAGE SPEC<BCC>, TACHOMETER<U16> (A) 		8-97383-492-0 01 1 1207- ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> CHARGE AIR COOLER<6PL> EXC. SPEEDOMETER MILE<UC1> (A) 		8-97259-819-0 01 1 0211-0501 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HG1-T ENG(RDP) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> (A) 		8-98000-849-0 01 1 0502-0506 ●
1 09.735 METER COMPL; CLUSTER
TACHOMETER<U16> (A) 		8-98000-849-0 01 1 0502-0506 ●
1 09.735 METER COMPL; CLUSTER
4HG1-T ENG(RDP) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> (A) 		8-98000-849-1 01 1 0507-1206 ●
1 09.735 METER COMPL; CLUSTER
TACHOMETER<U16> (A) 		8-98000-849-1 01 1 0507-1206 ●
1 09.735 METER COMPL; CLUSTER
4HG1-T ENG(RDP) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. PROVISIONAL PACKAGE SPEC<BCC>, SPEEDOMETER MILE<UC1> (A) 		8-98000-849-1 01 1 1207- ●
1 09.735 METER COMPL; CLUSTER
TACHOMETER<U16> (A) 		8-98000-849-1 01 1 1207- ●
1 09.735 METER COMPL; CLUSTER
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. AUSTRALIA EQUIPMENT(RR3), SPEEDOMETER MILE<UC1>,CHARGE AIR COOLER<6PL> ,HYDRO BRAKE BOOSTER<7QQ> (A) 		8-97184-611-1 01 1 0211-0501 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HG1-T ENG(RDP) SPEEDOMETER MILE<UC1> EXC. TACHOMETER<U16> (A) 		8-98000-852-0 01 1 0502-0506 ●
1 09.735 METER COMPL; CLUSTER
4HG1-T ENG(RDP) FLOOR REMOTE SHIFT<M11> SPEEDOMETER MILE<UC1> EXC. TACHOMETER<U16> (A) 		8-98000-852-0 01 1 0507-1206 ●
1 09.735 METER COMPL; CLUSTER
4HG1-T ENG(RDP) FLOOR REMOTE SHIFT<M11> SPEEDOMETER MILE<UC1> EXC. PROVISIONAL PACKAGE SPEC<BCC>, TACHOMETER<U16> (A) 		8-98000-852-0 01 1 1207- ●
1 09.735 METER COMPL; CLUSTER
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> CHARGE AIR COOLER<6PL> EXC. AUSTRALIA EQUIPMENT(RR3), SPEEDOMETER MILE<UC1>,HYDRO BRAKE BOOSTER<7QQ> (A) 		8-97217-065-0 01 1 0211-0501 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HG1-T ENG(RDP) SPEEDOMETER MILE<UC1> TACHOMETER<U16> (A) 		8-98000-851-0 01 1 0502-0506 ●
1 09.735 METER COMPL; CLUSTER
4HG1-T ENG(RDP) FLOOR REMOTE SHIFT<M11> SPEEDOMETER MILE<UC1> TACHOMETER<U16> (A) 		8-98000-851-0 01 1 0507-1206 ●
1 09.735 METER COMPL; CLUSTER
4HG1-T ENG(RDP) FLOOR REMOTE SHIFT<M11> SPEEDOMETER MILE<UC1> TACHOMETER<U16> EXC. PROVISIONAL PACKAGE SPEC<BCC> (A) 		8-98000-851-0 01 1 1207- ●
1 09.735 METER COMPL; CLUSTER
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> SPEEDOMETER MILE<UC1> EXC. AUSTRALIA EQUIPMENT(RR3), TACHOMETER<U16>,HYDRO BRAKE BOOSTER<7QQ> (A) 		8-97170-607-2 01 1 0211-0501 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> (A) 		8-97383-491-0 01 1 0502-1206 ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. PROVISIONAL PACKAGE SPEC<BCC>, SPEEDOMETER MILE<UC1> (A) 		8-97383-491-0 01 1 1207- ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. AUSTRALIA EQUIPMENT(RR3), SPEEDOMETER MILE<UC1>,TACHOMETER<U16>,HYDRO BRAKE BOOSTER<7QQ> (A) 		8-97170-596-2 01 1 0211-0501 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16> (A) 		8-97383-490-0 01 1 0502-1206 ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. PROVISIONAL PACKAGE SPEC<BCC>, SPEEDOMETER MILE<UC1>,TACHOMETER<U16> (A) 		8-97383-490-0 01 1 1207- ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16> (A) 		8-97311-545-0 01 1 0211-0501 ● ●
1 09.735 METER COMPL; CLUSTER
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16>,HYDRO BRAKE BOOSTER<7QQ> (A) 		8-97312-733-0 01 1 0211-0501 ● ●
1 09.735 METER COMPL; CLUSTER
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) TACHOMETER<U16> CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> EXC. SPEEDOMETER MILE<UC1> (A) 		8-97208-815-1 01 1 0211-0501 ● ●
1 09.735 METER COMPL; CLUSTER
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) TACHOMETER<U16> CHARGE AIR COOLER<6PL> EXC. AUSTRALIA EQUIPMENT(RR3), SPEEDOMETER MILE<UC1>,HYDRO BRAKE BOOSTER<7QQ> (A) 		8-97208-816-1 01 1 0211-0501 ● ●
1 09.735 METER COMPL; CLUSTER
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) TURBOCHARGER(K51) AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> (A) 		8-97350-665-0 01 1 0211-0501 ● ●
1 09.735 METER COMPL; CLUSTER
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> HYDRO BRAKE BOOSTER<7QQ> EXC. AUSTRALIA EQUIPMENT(RR3), SPEEDOMETER MILE<UC1>,TACHOMETER<U16> (A) 		8-97181-027-2 01 1 0211-0501 ● ● ●
1 09.735 METER COMPL; CLUSTER
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> SPEEDOMETER MILE<UC1> HYDRO BRAKE BOOSTER<7QQ> EXC. AUSTRALIA EQUIPMENT(RR3), TACHOMETER<U16> (A) 		8-97181-028-2 01 1 0211-0301 ● ● ●
1 09.735 METER COMPL; CLUSTER
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> SPEEDOMETER MILE<UC1> TACHOMETER<U16> CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> EXC. AUSTRALIA EQUIPMENT(RR3) (A) 		8-97217-063-0 01 1 0211-0301 ● ● ●
1 09.735 METER COMPL; CLUSTER
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> HYDRO BRAKE BOOSTER<7QQ> EXC. AUSTRALIA EQUIPMENT(RR3), SPEEDOMETER MILE<UC1>,CHARGE AIR COOLER<6PL> (A) 		8-97170-603-2 01 1 0211-0501 ● ● ●
1 09.735 METER COMPL; CLUSTER
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> EXC. AUSTRALIA EQUIPMENT(RR3), SPEEDOMETER MILE<UC1> (A) 		8-97217-064-0 01 1 0211-0501 ● ● ●
1 09.735 METER COMPL; CLUSTER
4HG1 ENG(RJH) TURBOCHARGER(K51) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. AUSTRALIA EQUIPMENT(RR3), SPEEDOMETER MILE<UC1> (A) 		8-97217-080-0 01 1 0211-0312 ● ● ●
1 09.735 METER COMPL; CLUSTER
TACHOMETER<U16> (A) 		8-97217-080-0 01 1 0211-0312 ●
1 09.735 METER COMPL; CLUSTER
4HG1 ENG(RJH) TURBOCHARGER(K51) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. AUSTRALIA EQUIPMENT(RR3), SPEEDOMETER MILE<UC1>,HYDRO BRAKE BOOSTER<7QQ> (A) 		8-97217-080-0 01 1 0401-0501 ● ● ●
1 09.735 METER COMPL; CLUSTER
TACHOMETER<U16> (A) 		8-97217-080-0 01 1 0401-0501 ●
1 09.735 METER COMPL; CLUSTER
4HG1-T ENG(RDP) EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16> (A) 		8-98000-850-0 01 1 0502-0506 ●
1 09.735 METER COMPL; CLUSTER
EXC. TACHOMETER<U16> (A) 		8-98000-850-0 01 1 0502-0506 ●
1 09.735 METER COMPL; CLUSTER
4HG1-T ENG(RDP) FLOOR REMOTE SHIFT<M11> EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16> (A) 		8-98000-850-1 01 1 0507-1206 ●
1 09.735 METER COMPL; CLUSTER
EXC. TACHOMETER<U16> (A) 		8-98000-850-1 01 1 0507-1206 ●
1 09.735 METER COMPL; CLUSTER
4HG1-T ENG(RDP) FLOOR REMOTE SHIFT<M11> EXC. PROVISIONAL PACKAGE SPEC<BCC>, SPEEDOMETER MILE<UC1>,TACHOMETER<U16> (A) 		8-98000-850-1 01 1 1207- ●
1 09.735 METER COMPL; CLUSTER
EXC. TACHOMETER<U16> (A) 		8-98000-850-1 01 1 1207- ●
89 09.761 CLIP; HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> 		8-97253-928-0 01 1 0507-1206 ● ● ● ● ●
89 09.761 CLIP; HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> EXC. PROVISIONAL PACKAGE SPEC<BCC>, SPEEDOMETER MILE<UC1> 		8-97253-928-0 01 1 1207- ● ● ● ● ●
118 08.991 BULB; CLUSTER METER
(A) 12V SOCKET COLOR BLACK 		8-97185-535-0 AR 1 0211- ● ● ● ● ● ●
118 08.991 BULB; CLUSTER METER
(B) 12V SOCKET COLOR BLUE 		8-97185-537-0 AR 1 0211- ● ● ● ● ● ●
118 08.991 BULB; CLUSTER METER
(A) 24V SOCKET COLOR DARK BROWN 		8-97185-538-0 AR 1 0211- ● ● ● ● ● ●
118 08.991 BULB; CLUSTER METER
(B) 24V SOCKET COLOR DARK BROWN 		8-97185-539-0 AR 1 0211- ● ● ● ● ● ●
118 08.991 BULB; CLUSTER METER
(B) 24V SOCKET COLOR REDDISH BROWN 		8-97185-540-0 AR 1 0211- ● ● ● ● ● ●
118 08.991 BULB; CLUSTER METER
(B) 24V SOCKET COLOR BROWN 		8-97185-541-0 AR 1 0211- ● ● ● ● ● ●
118 08.991 BULB; CLUSTER METER
(C) 28V 3W 		8-97305-178-0 AR 1 0507- ● ● ● ● ● ●
118 08.991 BULB; CLUSTER METER
(D) 28V 1.8W 		8-97305-177-0 AR 1 0507- ● ● ● ● ● ●
158 09.765 BUZZER; VAC WARNING
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> 		8-98003-830-0 01 1 0507-1206 ● ● ● ● ●
158 09.765 BUZZER; VAC WARNING
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> EXC. PROVISIONAL PACKAGE SPEC<BCC>, SPEEDOMETER MILE<UC1> 		8-98003-830-0 01 1 1207- ● ● ● ● ●
158 09.765 BUZZER; VAC WARNING
24V 		8-97185-519-0 01 1 0211-0501 ● ● ● ● ● ●
158 09.765 BUZZER; VAC WARNING
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 24V 		8-97185-519-0 01 1 0502-1206 ● ● ● ● ●
158 09.765 BUZZER; VAC WARNING
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. PROVISIONAL PACKAGE SPEC<BCC> 24V 		8-97185-519-0 01 1 1207- ● ● ● ● ●
163 08.977 SCREW; BUZZER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> 		8-97185-099-0 02 1 0507-1206 ● ● ● ● ●
163 08.977 SCREW; BUZZER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> EXC. PROVISIONAL PACKAGE SPEC<BCC>, SPEEDOMETER MILE<UC1> 		8-97185-099-0 02 1 1207- ● ● ● ● ●
163 08.977 SCREW; BUZZER 8-97185-527-0 01 1 0211-0501 ● ● ● ● ● ●
163 08.977 SCREW; BUZZER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 		8-97185-527-0 01 1 0502-1206 ● ● ● ● ●
163 08.977 SCREW; BUZZER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-97185-527-0 01 1 1207- ● ● ● ● ●
336 02.575 LAMP ASM; WARNING
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> (A) 		8-97185-093-0 05 1 0507-1206 ● ● ● ● ●
336 02.575 LAMP ASM; WARNING
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> EXC. PROVISIONAL PACKAGE SPEC<BCC>, SPEEDOMETER MILE<UC1> (A) 		8-97185-093-0 05 1 1207- ● ● ● ● ●
336 02.575 LAMP ASM; WARNING
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AUSTRALIA EQUIPMENT(RR3) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1>, TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97185-091-0 19 1 0507-0509 ● ● ● ● ●
336 02.575 LAMP ASM; WARNING
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AUSTRALIA EQUIPMENT(RR3) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1>, TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97185-091-0 20 1 0510-1206 ● ● ● ● ●
336 02.575 LAMP ASM; WARNING
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AUSTRALIA EQUIPMENT(RR3) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. PROVISIONAL PACKAGE SPEC<BCC>, SPEEDOMETER MILE<UC1>,TRANSMISSION CONT ROL-SMOOTHER(8GF) (B) 		8-97185-091-0 20 1 1207- ● ● ● ● ●
336 02.575 LAMP ASM; WARNING
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. SPEEDOMETER MILE<UC1> (B) 		8-97185-091-0 18 1 0507-0509 ● ● ● ● ●
336 02.575 LAMP ASM; WARNING
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. SPEEDOMETER MILE<UC1> (B) 		8-97185-091-0 19 1 0510-1206 ● ● ● ● ●
336 02.575 LAMP ASM; WARNING
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PROVISIONAL PACKAGE SPEC<BCC>, SPEEDOMETER MILE<UC1> (B) 		8-97185-091-0 19 1 1207- ● ● ● ● ●
çizim 54144
1 379 269 158 163 118 118 173 115 269 141
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 09.735 METER COMPL; CLUSTER
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) PROVISIONAL PACKAGE SPEC<BCC> FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> (A) 		8-98179-899-1 01 1 1207- ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HG1-T ENG(RDP) PROVISIONAL PACKAGE SPEC<BCC> FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> (A) 		8-98179-901-1 01 1 1207- ●
1 09.735 METER COMPL; CLUSTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AUSTRALIA EQUIPMENT(RR3) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1>, TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98000-514-4 01 1 0507-1206 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AUSTRALIA EQUIPMENT(RR3) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. PROVISIONAL PACKAGE SPEC<BCC>, SPEEDOMETER MILE<UC1>,TRANSMISSION CONT ROL-SMOOTHER(8GF) (B) 		8-98000-514-4 01 1 1207- ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. SPEEDOMETER MILE<UC1> (B) 		8-98000-518-4 01 1 0507-0607 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. SPEEDOMETER MILE<UC1> (B) 		8-98055-735-0 01 1 0608-0808 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. SPEEDOMETER MILE<UC1> (B) 		8-98124-890-0 01 1 0809-1206 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PROVISIONAL PACKAGE SPEC<BCC>, SPEEDOMETER MILE<UC1> (B) 		8-98124-890-0 01 1 1207- ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HG1 ENG(RJH),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> SPEEDOMETER MILE<UC1> TACHOMETER<U16> EXC. TURBOCHARGER(K51),AUSTRALIA EQUIPMENT(RR3) (A) 		8-97170-609-2 01 1 0211-0501 ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> SPEEDOMETER MILE<UC1> TACHOMETER<U16> (A) 		8-97383-493-0 01 1 0502-1206 ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> SPEEDOMETER MILE<UC1> TACHOMETER<U16> EXC. PROVISIONAL PACKAGE SPEC<BCC> (A) 		8-97383-493-0 01 1 1207- ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HG1 ENG(RJH),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. TURBOCHARGER(K51),SPEEDOMETER MILE<UC1> (A) 		8-97170-600-2 01 1 0211-0501 ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> SPEEDOMETER MILE<UC1> EXC. TACHOMETER<U16> (A) 		8-97383-492-0 01 1 0502-1206 ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> SPEEDOMETER MILE<UC1> EXC. PROVISIONAL PACKAGE SPEC<BCC>, TACHOMETER<U16> (A) 		8-97383-492-0 01 1 1207- ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> CHARGE AIR COOLER<6PL> EXC. SPEEDOMETER MILE<UC1> (A) 		8-97259-819-0 01 1 0211-0501 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HG1-T ENG(RDP) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> (A) 		8-98000-849-0 01 1 0502-0506 ●
1 09.735 METER COMPL; CLUSTER
TACHOMETER<U16> (A) 		8-98000-849-0 01 1 0502-0506 ●
1 09.735 METER COMPL; CLUSTER
4HG1-T ENG(RDP) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> (A) 		8-98000-849-1 01 1 0507-1206 ●
1 09.735 METER COMPL; CLUSTER
TACHOMETER<U16> (A) 		8-98000-849-1 01 1 0507-1206 ●
1 09.735 METER COMPL; CLUSTER
4HG1-T ENG(RDP) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. PROVISIONAL PACKAGE SPEC<BCC>, SPEEDOMETER MILE<UC1> (A) 		8-98000-849-1 01 1 1207- ●
1 09.735 METER COMPL; CLUSTER
TACHOMETER<U16> (A) 		8-98000-849-1 01 1 1207- ●
1 09.735 METER COMPL; CLUSTER
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. AUSTRALIA EQUIPMENT(RR3), SPEEDOMETER MILE<UC1>,CHARGE AIR COOLER<6PL> ,HYDRO BRAKE BOOSTER<7QQ> (A) 		8-97184-611-1 01 1 0211-0501 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HG1-T ENG(RDP) SPEEDOMETER MILE<UC1> EXC. TACHOMETER<U16> (A) 		8-98000-852-0 01 1 0502-0506 ●
1 09.735 METER COMPL; CLUSTER
4HG1-T ENG(RDP) FLOOR REMOTE SHIFT<M11> SPEEDOMETER MILE<UC1> EXC. TACHOMETER<U16> (A) 		8-98000-852-0 01 1 0507-1206 ●
1 09.735 METER COMPL; CLUSTER
4HG1-T ENG(RDP) FLOOR REMOTE SHIFT<M11> SPEEDOMETER MILE<UC1> EXC. PROVISIONAL PACKAGE SPEC<BCC>, TACHOMETER<U16> (A) 		8-98000-852-0 01 1 1207- ●
1 09.735 METER COMPL; CLUSTER
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> CHARGE AIR COOLER<6PL> EXC. AUSTRALIA EQUIPMENT(RR3), SPEEDOMETER MILE<UC1>,HYDRO BRAKE BOOSTER<7QQ> (A) 		8-97217-065-0 01 1 0211-0501 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HG1-T ENG(RDP) SPEEDOMETER MILE<UC1> TACHOMETER<U16> (A) 		8-98000-851-0 01 1 0502-0506 ●
1 09.735 METER COMPL; CLUSTER
4HG1-T ENG(RDP) FLOOR REMOTE SHIFT<M11> SPEEDOMETER MILE<UC1> TACHOMETER<U16> (A) 		8-98000-851-0 01 1 0507-1206 ●
1 09.735 METER COMPL; CLUSTER
4HG1-T ENG(RDP) FLOOR REMOTE SHIFT<M11> SPEEDOMETER MILE<UC1> TACHOMETER<U16> EXC. PROVISIONAL PACKAGE SPEC<BCC> (A) 		8-98000-851-0 01 1 1207- ●
1 09.735 METER COMPL; CLUSTER
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> SPEEDOMETER MILE<UC1> EXC. AUSTRALIA EQUIPMENT(RR3), TACHOMETER<U16>,HYDRO BRAKE BOOSTER<7QQ> (A) 		8-97170-607-2 01 1 0211-0501 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> (A) 		8-97383-491-0 01 1 0502-1206 ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. PROVISIONAL PACKAGE SPEC<BCC>, SPEEDOMETER MILE<UC1> (A) 		8-97383-491-0 01 1 1207- ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. AUSTRALIA EQUIPMENT(RR3), SPEEDOMETER MILE<UC1>,TACHOMETER<U16>,HYDRO BRAKE BOOSTER<7QQ> (A) 		8-97170-596-2 01 1 0211-0501 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16> (A) 		8-97383-490-0 01 1 0502-1206 ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. PROVISIONAL PACKAGE SPEC<BCC>, SPEEDOMETER MILE<UC1>,TACHOMETER<U16> (A) 		8-97383-490-0 01 1 1207- ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16> (A) 		8-97311-545-0 01 1 0211-0501 ● ●
1 09.735 METER COMPL; CLUSTER
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16>,HYDRO BRAKE BOOSTER<7QQ> (A) 		8-97312-733-0 01 1 0211-0501 ● ●
1 09.735 METER COMPL; CLUSTER
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) TACHOMETER<U16> CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> EXC. SPEEDOMETER MILE<UC1> (A) 		8-97208-815-1 01 1 0211-0501 ● ●
1 09.735 METER COMPL; CLUSTER
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) TACHOMETER<U16> CHARGE AIR COOLER<6PL> EXC. AUSTRALIA EQUIPMENT(RR3), SPEEDOMETER MILE<UC1>,HYDRO BRAKE BOOSTER<7QQ> (A) 		8-97208-816-1 01 1 0211-0501 ● ●
1 09.735 METER COMPL; CLUSTER
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) TURBOCHARGER(K51) AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> (A) 		8-97350-665-0 01 1 0211-0501 ● ●
1 09.735 METER COMPL; CLUSTER
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> HYDRO BRAKE BOOSTER<7QQ> EXC. AUSTRALIA EQUIPMENT(RR3), SPEEDOMETER MILE<UC1>,TACHOMETER<U16> (A) 		8-97181-027-2 01 1 0211-0501 ● ● ●
1 09.735 METER COMPL; CLUSTER
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> SPEEDOMETER MILE<UC1> HYDRO BRAKE BOOSTER<7QQ> EXC. AUSTRALIA EQUIPMENT(RR3), TACHOMETER<U16> (A) 		8-97181-028-2 01 1 0211-0301 ● ● ●
1 09.735 METER COMPL; CLUSTER
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> SPEEDOMETER MILE<UC1> TACHOMETER<U16> CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> EXC. AUSTRALIA EQUIPMENT(RR3) (A) 		8-97217-063-0 01 1 0211-0301 ● ● ●
1 09.735 METER COMPL; CLUSTER
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> HYDRO BRAKE BOOSTER<7QQ> EXC. AUSTRALIA EQUIPMENT(RR3), SPEEDOMETER MILE<UC1>,CHARGE AIR COOLER<6PL> (A) 		8-97170-603-2 01 1 0211-0501 ● ● ●
1 09.735 METER COMPL; CLUSTER
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> EXC. AUSTRALIA EQUIPMENT(RR3), SPEEDOMETER MILE<UC1> (A) 		8-97217-064-0 01 1 0211-0501 ● ● ●
1 09.735 METER COMPL; CLUSTER
4HG1 ENG(RJH) TURBOCHARGER(K51) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. AUSTRALIA EQUIPMENT(RR3), SPEEDOMETER MILE<UC1> (A) 		8-97217-080-0 01 1 0211-0312 ● ● ●
1 09.735 METER COMPL; CLUSTER
TACHOMETER<U16> (A) 		8-97217-080-0 01 1 0211-0312 ●
1 09.735 METER COMPL; CLUSTER
4HG1 ENG(RJH) TURBOCHARGER(K51) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. AUSTRALIA EQUIPMENT(RR3), SPEEDOMETER MILE<UC1>,HYDRO BRAKE BOOSTER<7QQ> (A) 		8-97217-080-0 01 1 0401-0501 ● ● ●
1 09.735 METER COMPL; CLUSTER
TACHOMETER<U16> (A) 		8-97217-080-0 01 1 0401-0501 ●
1 09.735 METER COMPL; CLUSTER
4HG1-T ENG(RDP) EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16> (A) 		8-98000-850-0 01 1 0502-0506 ●
1 09.735 METER COMPL; CLUSTER
EXC. TACHOMETER<U16> (A) 		8-98000-850-0 01 1 0502-0506 ●
1 09.735 METER COMPL; CLUSTER
4HG1-T ENG(RDP) FLOOR REMOTE SHIFT<M11> EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16> (A) 		8-98000-850-1 01 1 0507-1206 ●
1 09.735 METER COMPL; CLUSTER
EXC. TACHOMETER<U16> (A) 		8-98000-850-1 01 1 0507-1206 ●
1 09.735 METER COMPL; CLUSTER
4HG1-T ENG(RDP) FLOOR REMOTE SHIFT<M11> EXC. PROVISIONAL PACKAGE SPEC<BCC>, SPEEDOMETER MILE<UC1>,TACHOMETER<U16> (A) 		8-98000-850-1 01 1 1207- ●
1 09.735 METER COMPL; CLUSTER
EXC. TACHOMETER<U16> (A) 		8-98000-850-1 01 1 1207- ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> CHARGE AIR COOLER<6PL> EXC. SPEEDOMETER MILE<UC1> 		8-97185-493-0 01 1 0211-0211 ● ● ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97185-493-0 01 1 0211-0211 ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> CHARGE AIR COOLER<6PL> EXC. SPEEDOMETER MILE<UC1> 		8-97185-493-0 01 1 0212-0301 ● ● ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97185-493-0 01 1 0212-0301 ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> HYDRO BRAKE BOOSTER<7QQ> EXC. AUSTRALIA EQUIPMENT(RR3), SPEEDOMETER MILE<UC1>,CHARGE AIR COOLER<6PL> 		8-97185-493-0 01 1 0212-0301 ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> CHARGE AIR COOLER<6PL> EXC. SPEEDOMETER MILE<UC1> 		8-97185-493-0 01 1 0302-0501 ● ● ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> HYDRO BRAKE BOOSTER<7QQ> EXC. AUSTRALIA EQUIPMENT(RR3), SPEEDOMETER MILE<UC1> 		8-97185-493-0 01 1 0302-0501 ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> CHARGE AIR COOLER<6PL> EXC. AUSTRALIA EQUIPMENT(RR3), SPEEDOMETER MILE<UC1>,HYDRO BRAKE BOOSTER<7QQ> 		8-97185-507-0 01 1 0211-0501 ● ● ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4HG1 ENG(RJH),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> SPEEDOMETER MILE<UC1> TACHOMETER<U16> EXC. TURBOCHARGER(K51),AUSTRALIA EQUIPMENT(RR3) 		8-97185-507-0 01 1 0211-0501 ● ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4HG1 ENG(RJH),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. TURBOCHARGER(K51),SPEEDOMETER MILE<UC1> 		8-97185-507-0 01 1 0211-0501 ● ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> 		8-97185-507-0 01 1 0502-1206 ● ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-97185-507-0 01 1 1207- ● ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. AUSTRALIA EQUIPMENT(RR3), TACHOMETER<U16>,HYDRO BRAKE BOOSTER<7QQ> 		8-97185-489-0 01 1 0211-0501 ● ● ● ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TACHOMETER<U16> 		8-97185-489-0 01 1 0502-1206 ● ● ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. PROVISIONAL PACKAGE SPEC<BCC>, TACHOMETER<U16> 		8-97185-489-0 01 1 1207- ● ● ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16>,HYDRO BRAKE BOOSTER<7QQ> 		8-97218-592-0 01 1 0211-0501 ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16> 		8-97315-067-0 01 1 0211-0501 ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) TACHOMETER<U16> CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> EXC. SPEEDOMETER MILE<UC1> 		8-97210-604-0 01 1 0211-0501 ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) TURBOCHARGER(K51) AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> 		8-97210-318-0 01 1 0211-0501 ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) TACHOMETER<U16> CHARGE AIR COOLER<6PL> EXC. AUSTRALIA EQUIPMENT(RR3), SPEEDOMETER MILE<UC1>,HYDRO BRAKE BOOSTER<7QQ> 		8-97210-318-0 01 1 0211-0501 ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> HYDRO BRAKE BOOSTER<7QQ> EXC. AUSTRALIA EQUIPMENT(RR3), TACHOMETER<U16> 		8-97185-510-0 01 1 0211-0301 ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> HYDRO BRAKE BOOSTER<7QQ> EXC. AUSTRALIA EQUIPMENT(RR3), SPEEDOMETER MILE<UC1>,TACHOMETER<U16> 		8-97185-510-0 01 1 0302-0501 ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4HG1 ENG(RJH) TURBOCHARGER(K51) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. AUSTRALIA EQUIPMENT(RR3), SPEEDOMETER MILE<UC1> 		8-97210-311-0 01 1 0211-0312 ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
TACHOMETER<U16> 		8-97210-311-0 01 1 0211-0312 ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4HG1 ENG(RJH) TURBOCHARGER(K51) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. AUSTRALIA EQUIPMENT(RR3), SPEEDOMETER MILE<UC1>,HYDRO BRAKE BOOSTER<7QQ> 		8-97210-311-0 01 1 0401-0501 ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
TACHOMETER<U16> 		8-97210-311-0 01 1 0401-0501 ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4HG1-T ENG(RDP) TACHOMETER<U16> 		8-97210-311-0 01 1 0502-0506 ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
TACHOMETER<U16> 		8-97210-311-0 01 1 0502-0506 ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4HG1-T ENG(RDP) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> 		8-97210-311-0 01 1 0507-1206 ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
TACHOMETER<U16> 		8-97210-311-0 01 1 0507-1206 ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4HG1-T ENG(RDP) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-97210-311-0 01 1 1207- ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
TACHOMETER<U16> 		8-97210-311-0 01 1 1207- ●
118 08.991 BULB; CLUSTER METER
(A) 12V SOCKET COLOR BLACK 		8-97185-535-0 AR 1 0211- ● ● ● ● ● ●
118 08.991 BULB; CLUSTER METER
(B) 12V SOCKET COLOR BLUE 		8-97185-537-0 AR 1 0211- ● ● ● ● ● ●
118 08.991 BULB; CLUSTER METER
(A) 24V SOCKET COLOR DARK BROWN 		8-97185-538-0 AR 1 0211- ● ● ● ● ● ●
118 08.991 BULB; CLUSTER METER
(B) 24V SOCKET COLOR DARK BROWN 		8-97185-539-0 AR 1 0211- ● ● ● ● ● ●
118 08.991 BULB; CLUSTER METER
(B) 24V SOCKET COLOR REDDISH BROWN 		8-97185-540-0 AR 1 0211- ● ● ● ● ● ●
118 08.991 BULB; CLUSTER METER
(B) 24V SOCKET COLOR BROWN 		8-97185-541-0 AR 1 0211- ● ● ● ● ● ●
118 08.991 BULB; CLUSTER METER
(C) 28V 3W 		8-97305-178-0 AR 1 0507- ● ● ● ● ● ●
118 08.991 BULB; CLUSTER METER
(D) 28V 1.8W 		8-97305-177-0 AR 1 0507- ● ● ● ● ● ●
141 09.744 CONNECTOR; CLUSTER METER 8-97185-513-0 01 1 0211-0501 ● ● ● ● ● ●
141 09.744 CONNECTOR; CLUSTER METER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 		8-97185-513-0 01 1 0502-1206 ● ● ● ● ●
141 09.744 CONNECTOR; CLUSTER METER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-97185-513-0 01 1 1207- ● ● ● ● ●
158 09.765 BUZZER; VAC WARNING
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> 		8-98003-830-0 01 1 0507-1206 ● ● ● ● ●
158 09.765 BUZZER; VAC WARNING
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> EXC. PROVISIONAL PACKAGE SPEC<BCC>, SPEEDOMETER MILE<UC1> 		8-98003-830-0 01 1 1207- ● ● ● ● ●
158 09.765 BUZZER; VAC WARNING
24V 		8-97185-519-0 01 1 0211-0501 ● ● ● ● ● ●
158 09.765 BUZZER; VAC WARNING
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 24V 		8-97185-519-0 01 1 0502-1206 ● ● ● ● ●
158 09.765 BUZZER; VAC WARNING
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. PROVISIONAL PACKAGE SPEC<BCC> 24V 		8-97185-519-0 01 1 1207- ● ● ● ● ●
163 08.977 SCREW; BUZZER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> 		8-97185-099-0 02 1 0507-1206 ● ● ● ● ●
163 08.977 SCREW; BUZZER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> EXC. PROVISIONAL PACKAGE SPEC<BCC>, SPEEDOMETER MILE<UC1> 		8-97185-099-0 02 1 1207- ● ● ● ● ●
163 08.977 SCREW; BUZZER 8-97185-527-0 01 1 0211-0501 ● ● ● ● ● ●
163 08.977 SCREW; BUZZER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 		8-97185-527-0 01 1 0502-1206 ● ● ● ● ●
163 08.977 SCREW; BUZZER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-97185-527-0 01 1 1207- ● ● ● ● ●
173 09.744 WIRE; LEAD 8-97185-643-0 01 1 0211-0501 ● ● ● ● ● ●
173 09.744 WIRE; LEAD
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 		8-97185-643-0 01 1 0502-1206 ● ● ● ● ●
173 09.744 WIRE; LEAD
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-97185-643-0 01 1 1207- ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
(C) 		8-97185-528-0 05 1 0211-0501 ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
EXC. TACHOMETER<U16> (C) 		8-97185-528-0 05 1 0211-0501 ●
269 09.743 SCREW; METER CLUSTER
08.225 (F) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0211-0501 ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
08.225 (F) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0502-0506 ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
08.225 (F) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0507-1210 ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
02.587 (F) M6X19.5 W/LK&PL WASHER 		8-97360-226-0 05 1 1211- ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
(B) 		8-97185-523-0 01 1 0211-0501 ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) (B) 		8-97185-523-0 01 1 0502-1206 ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. PROVISIONAL PACKAGE SPEC<BCC> (B) 		8-97185-523-0 01 1 1207- ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
FLOOR REMOTE SHIFT<M11> (A) 		8-97185-525-0 06 1 0211-0501 ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
A/T 4 SPEED-AISIN(RNJ) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> (A) 		8-97185-525-0 06 1 0211-0501 ● ●
269 09.743 SCREW; METER CLUSTER
TACHOMETER<U16> (E) 		8-97185-524-0 08 1 0211-0501 ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. AUSTRALIA EQUIPMENT(RR3), TACHOMETER<U16> (E) 		8-97185-524-0 07 1 0211-0501 ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> (E) 		8-97185-524-0 08 1 0502-1206 ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. PROVISIONAL PACKAGE SPEC<BCC> (E) 		8-97185-524-0 08 1 1207- ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16> (E) 		8-97185-524-0 05 1 0211-0501 ● ●
269 09.743 SCREW; METER CLUSTER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TACHOMETER<U16> (E) 		8-97185-524-0 07 1 0502-1206 ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. PROVISIONAL PACKAGE SPEC<BCC>, TACHOMETER<U16> (E) 		8-97185-524-0 07 1 1207- ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16> (A) 		8-97185-525-0 03 1 0211-0501 ● ●
269 09.743 SCREW; METER CLUSTER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) (A) 		8-97185-525-0 06 1 0502-1206 ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. PROVISIONAL PACKAGE SPEC<BCC> (A) 		8-97185-525-0 06 1 1207- ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16> (D) 		8-97185-526-0 03 1 0211-0501 ● ●
269 09.743 SCREW; METER CLUSTER
4HG1 ENG(RJH) TURBOCHARGER(K51) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. AUSTRALIA EQUIPMENT(RR3), SPEEDOMETER MILE<UC1> (C) 		8-97185-528-0 02 1 0211-0312 ● ● ●
269 09.743 SCREW; METER CLUSTER
TACHOMETER<U16> (C) 		8-97185-528-0 02 1 0211-0312 ●
269 09.743 SCREW; METER CLUSTER
4HG1 ENG(RJH) TURBOCHARGER(K51) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. AUSTRALIA EQUIPMENT(RR3), SPEEDOMETER MILE<UC1>,HYDRO BRAKE BOOSTER<7QQ> (C) 		8-97185-528-0 02 1 0401-0501 ● ● ●
269 09.743 SCREW; METER CLUSTER
TACHOMETER<U16> (C) 		8-97185-528-0 02 1 0401-0501 ●
269 09.743 SCREW; METER CLUSTER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) (C) 		8-97185-528-0 05 1 0502-1206 ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. PROVISIONAL PACKAGE SPEC<BCC> (C) 		8-97185-528-0 05 1 1207- ● ● ● ● ●
379 09.744 CIRCUIT; DROP 8-97185-512-0 01 1 0211-0501 ● ● ● ● ● ●
379 09.744 CIRCUIT; DROP
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 		8-97185-512-0 01 1 0502-1206 ● ● ● ● ●
379 09.744 CIRCUIT; DROP
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-97185-512-0 01 1 1207- ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
