Sayfa 8-15 - Isuzu EPC

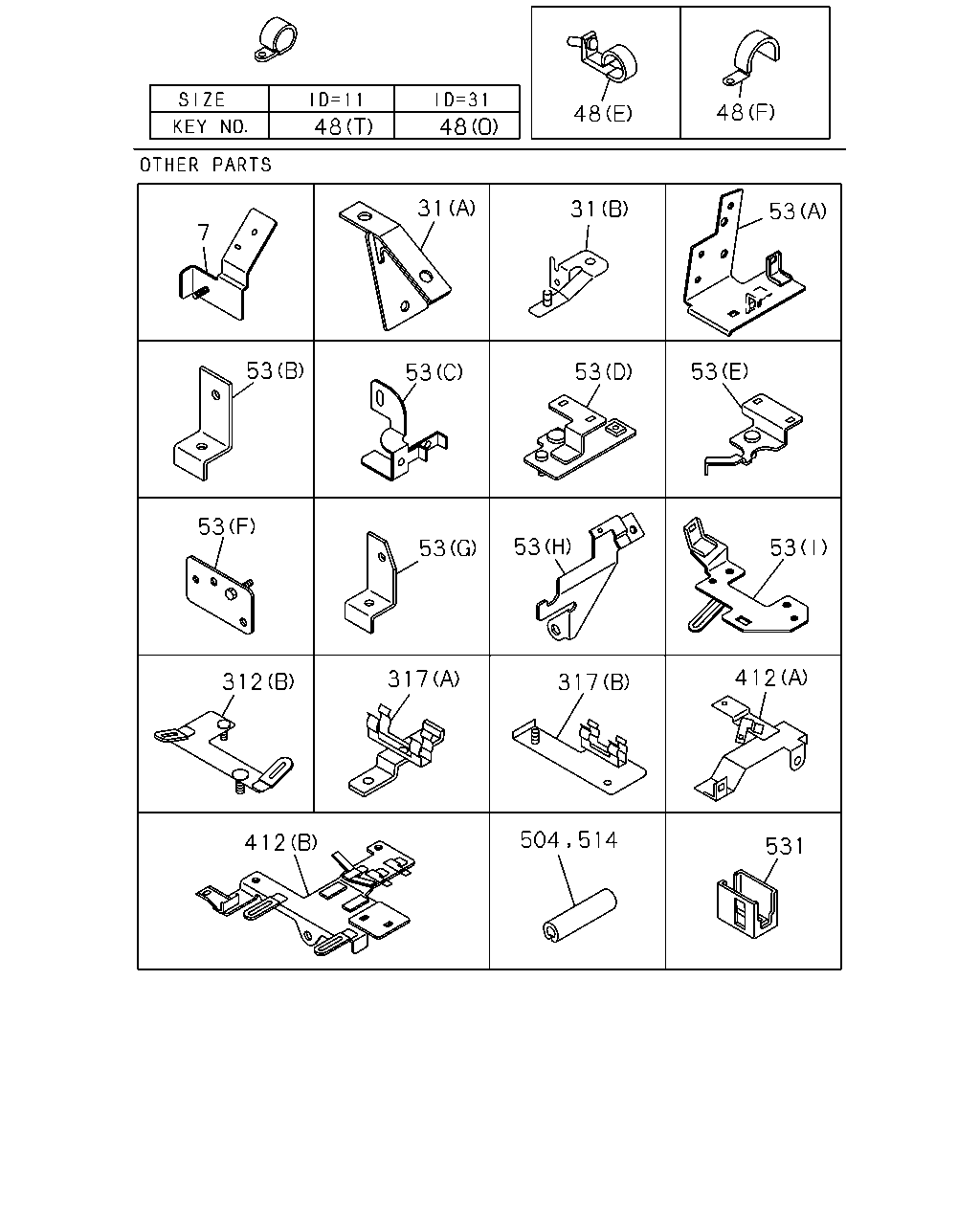

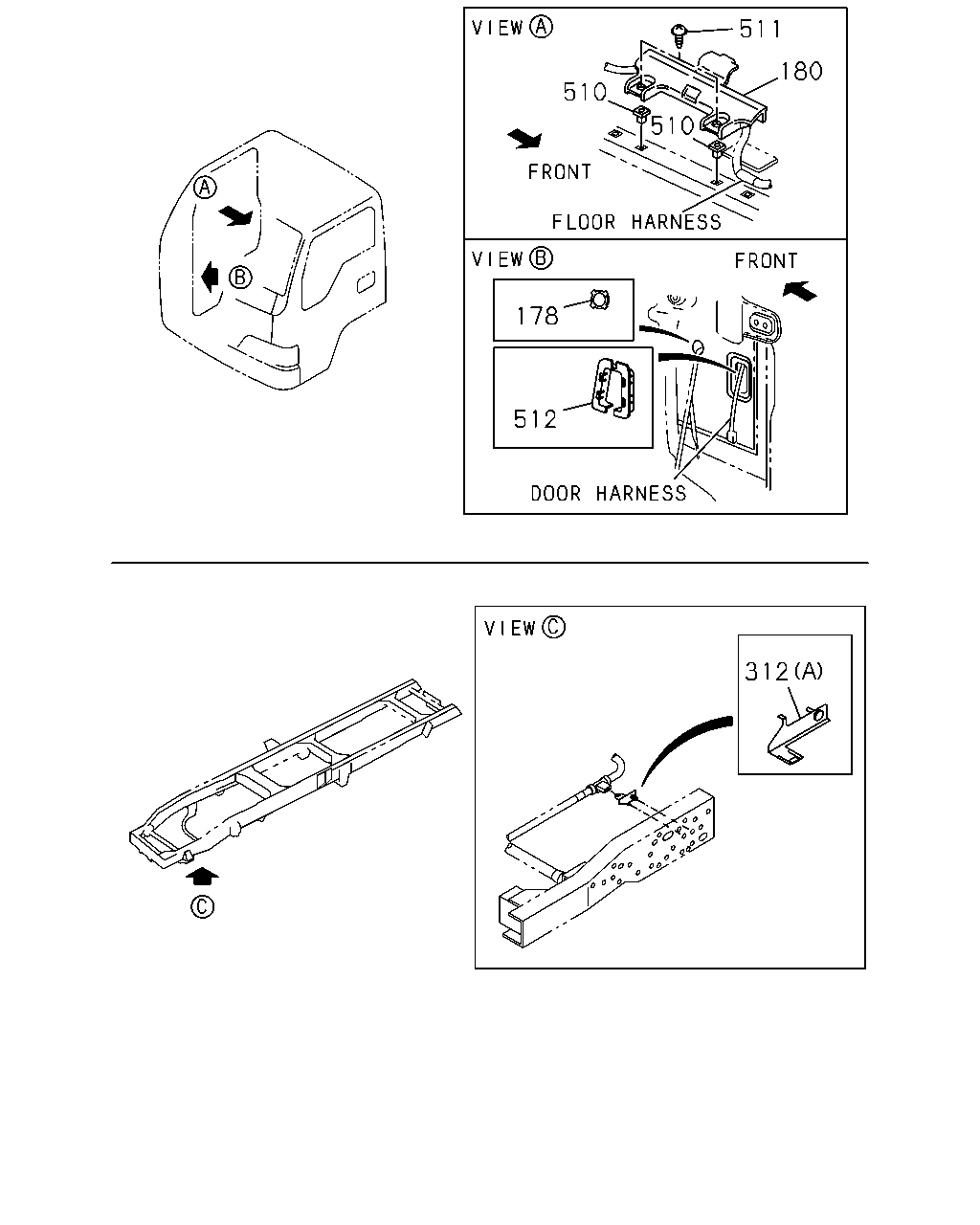

8-15 — FIXING PARTS; WIRING HARNESS (#18343) — 677 parça

464 488 16 22 48 102 220 483 593 22 102 16 22 220 488 16 205 48 142 14 16 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
14	02.559 CLIP; BAND,HARNESS 03.430 L=200	8-94464-835-0	01	1	0211-0501	●	●	●	●	●	●
14	02.559 CLIP; BAND,HARNESS 03.430 L=200	8-94464-835-0	01	1	0502-0506	●	●	●	●		●
14	02.559 CLIP; BAND,HARNESS 03.430 L=200	8-94464-835-0	01	1	0507-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 4HG1 ENG(RJH) 01.240 (A) ID=14 L=47	5-09700-319-0	AR	1	0211-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 16.065 (B) 1 SET=5 PIECE	1-09987-214-0	AR	1	0211-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 01.166 (C) ID=22 & 22	8-94464-837-0	AR	1	0211-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (D) L=135	1-09987-143-1	AR	1	0211-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 02.343 (E) ID=10 & 16	8-94413-325-0	AR	1	0211-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (F) ID=15-32	8-97174-404-0	AR	1	0211-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 03.162 (G) L=140	5-09707-031-1	AR	1	0211-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (H) L=250	5-09707-030-1	AR	1	0211-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 04.930 (I) ID=10 & 16.5	8-94360-745-0	AR	1	0211-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (J) L=100	8-94442-388-0	AR	1	0211-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (K) L=60	8-94457-053-0	AR	1	0211-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (L) L=100	8-94327-067-1	AR	1	0211-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (M) L=155	8-97173-307-0	AR	1	0211-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 02.525 (N) T=4.5 & 9	5-09709-023-0	AR	1	0309-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (O) T=6.0	5-09709-024-0	AR	1	0309-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 02.589 (P) ID=27	5-09700-323-0	AR	1	0309-	●	●	●	●	●	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.162 (A) L=140	5-09707-031-1	03	1	0507-	●	●	●	●	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.162 (B) L=170	5-09707-054-0	02	1	0507-	●	●	●	●	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) EXC. KD PREPARATORY PACK<6HF> (C) L=250	5-09707-030-1	01	1	0507-0508	●	●	●	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) (C) L=250	5-09707-030-1	01	1	0507-0508	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (C) L=250	5-09707-030-1	01	1	0507-0508		●	●	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) EURO3 SPECIFICATION(NT3) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) L=250	5-09707-030-1	01	1	0507-0508		●	●	●
22	02.559 CLIP; ENG HARNESS (C) L=250	5-09707-030-1	01	1	0507-0508					●
22	02.559 CLIP; ENG HARNESS EXC. KD PREPARATORY PACK<6HF> (C) L=250	5-09707-030-1	01	1	0507-0508					●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO3 SPECIFICATION(NT3) EXC. KD PREPARATORY PACK<6HF> (C) L=250	5-09707-030-1	01	1	0509-0606	●	●	●	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) (C) L=250	5-09707-030-1	01	1	0509-0606	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (C) L=250	5-09707-030-1	01	1	0509-0606		●	●	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO3 SPECIFICATION(NT3) HYDRO BRAKE BOOSTER<7QQ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) L=250	5-09707-030-1	01	1	0509-0606		●	●	●
22	02.559 CLIP; ENG HARNESS (C) L=250	5-09707-030-1	01	1	0509-0606					●
22	02.559 CLIP; ENG HARNESS HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. KD PREPARATORY PACK<6HF> (C) L=250	5-09707-030-1	01	1	0509-0606					●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO3 SPECIFICATION(NT3) EXC. KD PREPARATORY PACK<6HF> (C) L=250	5-09707-030-1	01	1	0607-	●	●	●	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) (C) L=250	5-09707-030-1	01	1	0607-	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO3 SPECIFICATION(NT3) KD PREPARATORY PACK<6HF> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) L=250	5-09707-030-1	01	1	0607-	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (C) L=250	5-09707-030-1	01	1	0607-		●	●	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO3 SPECIFICATION(NT3) KD PREPARATORY PACK<6HF> EXC. HYDRO BRAKE BOOSTER<7QQ>, TRANSMISSION CONTROL-SMOOTHER(8GF) (C) L=250	5-09707-030-1	01	1	0607-		●	●	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO3 SPECIFICATION(NT3) HYDRO BRAKE BOOSTER<7QQ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) L=250	5-09707-030-1	01	1	0607-		●	●	●
22	02.559 CLIP; ENG HARNESS (C) L=250	5-09707-030-1	01	1	0607-					●
22	02.559 CLIP; ENG HARNESS HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. KD PREPARATORY PACK<6HF> (C) L=250	5-09707-030-1	01	1	0607-					●
48	02.559 CLIP; FRAME HARNESS 03.162 (A) L=140	5-09707-031-1	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (B) ID=33 L=63	1-09700-807-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 02.525 (C) T=4.5 & 9	5-09709-023-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 03.115 (D) T=9 & 10.5	8-97041-091-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (E) ID=30 W/STUD	8-97078-642-2	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 04.197 (F) ID=32 L=75	1-09700-702-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 01.240 (G) ID=14 L=47	5-09700-319-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 00.446 (H) ID=12 B=14 ID=8.5	5-09700-350-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (I) ID=20	8-94169-650-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 04.785 (J) ID=11 L=28	9-09525-055-0	AR	1	0211-0606	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (J) ID=11 L=28	0-95235-055-0	AR	1	0607-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (K) L=170.3	1-09987-182-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (L) ID=9	8-97063-874-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (M) ID=24	8-94149-610-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 04.785 (N) ID=9.6	8-94147-870-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (O) ID=31 L=30	1-09700-969-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (P) ID=5-12 L=14.5	1-09987-221-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 02.589 (Q) ID=27	5-09700-323-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (R) T=6.0	5-09709-024-0	AR	1	0502-	●	●	●	●		●
48	02.559 CLIP; FRAME HARNESS (S) T=6.0	5-09709-012-0	AR	1	0507-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (T) ID=11 L=50	9-09525-085-0	AR	1	0507-0606	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (T) ID=11 L=50	0-95235-085-0	AR	1	0607-	●	●	●	●	●	●
102	02.559 CLIP; BAND 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.162 (A) L=140	5-09707-031-1	01	1	0507-0508	●	●	●	●	●
102	02.559 CLIP; BAND 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.162 (B) L=170	5-09707-054-0	01	1	0507-	●	●	●	●	●
142	02.559 CLIP; HARNESS,ENG 4HK1-TCS ENG(RJS) 03.483 (B)	8-97101-436-0	01	1	0507-0511		●	●	●
142	02.559 CLIP; HARNESS,ENG 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 03.483 (B)	8-97101-436-0	01	1	0211-0501	●	●	●	●
142	02.559 CLIP; HARNESS,ENG CHARGE AIR COOLER<6PL> 03.483 (B)	8-97101-436-0	01	1	0211-0501					●
142	02.559 CLIP; HARNESS,ENG FLOOR REMOTE SHIFT<M11> (A) L=170.3	1-09987-182-0	01	1	0211-0501	●	●	●	●	●
142	02.559 CLIP; HARNESS,ENG (A) L=170.3	1-09987-182-0	01	1	0211-0501						●
142	02.559 CLIP; HARNESS,ENG (A) L=170.3	1-09987-182-0	01	1	0502-0506	●	●	●	●		●
142	02.559 CLIP; HARNESS,ENG M/T MZZ6U(RSF),M/T MYY6P(RSJ),M/T MYY5T(RSM) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=170.3	1-09987-182-0	01	1	0507-	●	●	●	●	●	●
205	02.559 CLIP; BACK LAMP HARNESS L=135	1-09987-143-1	01	1	0211-0211	●	●	●	●	●	●
205	02.559 CLIP; BACK LAMP HARNESS M/T MZZ6U(RSF),M/T MYY6P(RSJ),M/T MYY5T(RSM) L=135	1-09987-143-1	01	1	0212-0501	●	●	●	●	●	●
205	02.559 CLIP; BACK LAMP HARNESS L=135	1-09987-143-1	01	1	0502-0506	●	●	●	●		●
205	02.559 CLIP; BACK LAMP HARNESS M/T MZZ6U(RSF),M/T MYY6P(RSJ),M/T MYY5T(RSM) L=135	1-09987-143-1	01	1	0507-	●	●	●	●	●	●
220	02.559 CLIP; HARNESS TO CABLE 4HK1-TCN ENG(RDQ) (C) L=250	5-09707-030-1	01	1	0507-	●
220	02.559 CLIP; HARNESS TO CABLE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (C) L=250	5-09707-030-1	01	1	0507-		●	●	●
220	02.559 CLIP; HARNESS TO CABLE (C) L=250	5-09707-030-1	01	1	0507-					●
220	02.559 CLIP; HARNESS TO CABLE FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 03.680 (A) ID=25.5 & 8.0	8-94363-538-0	01	1	0211-0501	●	●	●	●	●
220	02.559 CLIP; HARNESS TO CABLE 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 03.680 (A) ID=25.5 & 8.0	8-94363-538-0	01	1	0502-0506		●	●	●
220	02.559 CLIP; HARNESS TO CABLE 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 03.680 (A) ID=25.5 & 8.0	8-94363-538-0	01	1	0507-	●	●	●	●
220	02.559 CLIP; HARNESS TO CABLE 4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ),M/T MYY5T(RSM) CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> 03.162 (B) L=140	5-09707-031-1	01	1	0211-0501	●	●	●	●	●
464	02.525 CLIP; SEDIMENTER HARNESS 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 01.240 (C) ID=14 L=47	5-09700-319-0	01	1	0211-0501	●	●	●	●	●	●
464	02.525 CLIP; SEDIMENTER HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 01.240 (C) ID=14 L=47	5-09700-319-0	01	1	0502-0503	●	●	●	●		●
464	02.525 CLIP; SEDIMENTER HARNESS 01.240 (C) ID=14 L=47	5-09700-319-0	01	1	0504-	●	●	●	●		●
464	02.525 CLIP; SEDIMENTER HARNESS 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. FUEL FILTER DUAL(S6B),FRAME STRAIGHT TYPE<7KJ> 02.587 (A) L=112	8-94232-618-0	01	1	0211-0501	●	●	●	●
464	02.525 CLIP; SEDIMENTER HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> EXC. FUEL FILTER DUAL(S6B),FRAME STRAIGHT TYPE<7KJ> 02.587 (A) L=112	8-94232-618-0	01	1	0502-	●	●	●	●
464	02.525 CLIP; SEDIMENTER HARNESS 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) EXC. FUEL FILTER DUAL(S6B),FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COO LER<6PL> 02.559 (B) ID=6.5	8-94257-639-0	01	1	0211-0501	●	●	●	●	●	●
464	02.525 CLIP; SEDIMENTER HARNESS 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) FUEL FILTER DUAL(S6B) EXC. CHARGE AIR COOLER<6PL> 02.559 (B) ID=6.5	8-94257-639-0	01	1	0211-0501	●	●	●	●
464	02.525 CLIP; SEDIMENTER HARNESS 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL FILTER DUAL(S6B) 02.559 (B) ID=6.5	8-94257-639-0	01	1	0211-0501	●	●	●	●
464	02.525 CLIP; SEDIMENTER HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) 02.559 (B) ID=6.5	8-94257-639-0	01	1	0502-0506	●	●	●	●		●
464	02.525 CLIP; SEDIMENTER HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FUEL FILTER DUAL(S6B),FUEL SEDIMENTER WITH HEATER<6HU> 02.559 (B) ID=6.5	8-94257-639-0	01	1	0502-0506	●	●	●	●		●
464	02.525 CLIP; SEDIMENTER HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL FILTER DUAL(S6B) 02.559 (B) ID=6.5	8-94257-639-0	01	1	0502-0506		●	●	●
464	02.525 CLIP; SEDIMENTER HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FUEL FILTER DUAL(S6B),FUEL SEDIMENTER WITH HEATER<6HU> 02.559 (B) ID=6.5	8-94257-639-0	01	1	0507-	●	●	●	●		●
464	02.525 CLIP; SEDIMENTER HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) 02.559 (B) ID=6.5	8-94257-639-0	01	1	0507-	●	●	●	●
464	02.525 CLIP; SEDIMENTER HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL FILTER DUAL(S6B) 02.559 (B) ID=6.5	8-94257-639-0	01	1	0507-	●	●	●	●
483	02.559 CLIP; ENG HARNESS 4HE1 ENG(RLY) 03.162 L=140	5-09707-031-1	01	1	0310-0501	●	●	●	●
483	02.559 CLIP; ENG HARNESS 4HF1-S ENG(RLS) HIGH ALTITUDE COMPENSATOR(EE2) ENGINE POWER N-SPEC(7QV) 03.162 L=140	5-09707-031-1	01	1	0310-0501	●	●	●	●
483	02.559 CLIP; ENG HARNESS 4HF1-S ENG(RLS) EXC. ENGINE POWER N-SPEC(7QV) 03.162 L=140	5-09707-031-1	01	1	0310-0501	●	●	●
483	02.559 CLIP; ENG HARNESS 03.162 L=140	5-09707-031-1	01	1	0310-0501					●	●
483	02.559 CLIP; ENG HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-S ENG(RLS) 03.162 L=140	5-09707-031-1	01	1	0502-	●	●	●	●		●
483	02.559 CLIP; ENG HARNESS 4HF1-N ENG(RJZ) HIGH ALTITUDE COMPENSATOR(EE2) 03.162 L=140	5-09707-031-1	01	1	0502-	●	●	●
483	02.559 CLIP; ENG HARNESS 03.162 L=140	5-09707-031-1	01	1	0211-0309	●	●	●	●	●	●
483	02.559 CLIP; ENG HARNESS 4HF1-S ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. HIGH ALTITUDE COMPENSATOR(EE2) 03.162 L=140	5-09707-031-1	02	1	0310-0501	●	●	●
483	02.559 CLIP; ENG HARNESS 4HF1-N ENG(RJZ) EXC. HIGH ALTITUDE COMPENSATOR(EE2) 03.162 L=140	5-09707-031-1	02	1	0502-	●	●	●
488	02.559 CLIP; CABLE,TRAILER EXC. DUMP CHASSIS(V4D) (A) L=250	5-09707-030-1	01	1	0211-0501	●
488	02.559 CLIP; CABLE,TRAILER EXC. RR BODY FLAT BED(RS6) (A) L=250	5-09707-030-1	01	1	0211-0501		●	●
488	02.559 CLIP; CABLE,TRAILER (A) L=250	5-09707-030-1	01	1	0211-0501				●	●	●
488	02.559 CLIP; CABLE,TRAILER EXC. DUMP CHASSIS(V4D) (A) L=250	5-09707-030-1	01	1	0502-0503	●
488	02.559 CLIP; CABLE,TRAILER EXC. RR BODY FLAT BED(RS6) (A) L=250	5-09707-030-1	01	1	0502-0503		●	●
488	02.559 CLIP; CABLE,TRAILER (A) L=250	5-09707-030-1	01	1	0502-0503				●		●
488	02.559 CLIP; CABLE,TRAILER (A) L=250	5-09707-030-1	01	1	0504-0506	●			●		●
488	02.559 CLIP; CABLE,TRAILER EXC. RR BODY FLAT BED(RS6) (A) L=250	5-09707-030-1	01	1	0504-0506		●	●
488	02.559 CLIP; CABLE,TRAILER (A) L=250	5-09707-030-1	01	1	0507-	●			●	●	●
488	02.559 CLIP; CABLE,TRAILER EXC. RR BODY FLAT BED(RS6) (A) L=250	5-09707-030-1	01	1	0507-		●	●
488	02.559 CLIP; CABLE,TRAILER RR BODY FLAT BED(RS6) 02.587 (B) L=112	8-94232-618-0	05	1	0211-		●	●
593	02.559 CLIP 4HF1-S ENG(RLS),4HE1 ENG(RLY) 03.162 L=140	5-09707-031-1	01	1	0211-0211	●
593	02.559 CLIP 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) 03.162 L=140	5-09707-031-1	01	1	0211-0211		●	●	●
593	02.559 CLIP 03.162 L=140	5-09707-031-1	01	1	0211-0211					●	●
593	02.559 CLIP 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) M/T MZZ6U(RSF),M/T MYY6P(RSJ),M/T MYY5T(RSM) 03.162 L=140	5-09707-031-1	01	1	0212-0212	●	●	●	●	●	●

16 48 48 142 183 264 16 16 464 397 264 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
16	02.559 CLIP; HARNESS 4HG1 ENG(RJH) 01.240 (A) ID=14 L=47	5-09700-319-0	AR	1	0211-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 16.065 (B) 1 SET=5 PIECE	1-09987-214-0	AR	1	0211-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 01.166 (C) ID=22 & 22	8-94464-837-0	AR	1	0211-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (D) L=135	1-09987-143-1	AR	1	0211-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 02.343 (E) ID=10 & 16	8-94413-325-0	AR	1	0211-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (F) ID=15-32	8-97174-404-0	AR	1	0211-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 03.162 (G) L=140	5-09707-031-1	AR	1	0211-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (H) L=250	5-09707-030-1	AR	1	0211-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 04.930 (I) ID=10 & 16.5	8-94360-745-0	AR	1	0211-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (J) L=100	8-94442-388-0	AR	1	0211-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (K) L=60	8-94457-053-0	AR	1	0211-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (L) L=100	8-94327-067-1	AR	1	0211-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (M) L=155	8-97173-307-0	AR	1	0211-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 02.525 (N) T=4.5 & 9	5-09709-023-0	AR	1	0309-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (O) T=6.0	5-09709-024-0	AR	1	0309-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 02.589 (P) ID=27	5-09700-323-0	AR	1	0309-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 03.162 (A) L=140	5-09707-031-1	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (B) ID=33 L=63	1-09700-807-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 02.525 (C) T=4.5 & 9	5-09709-023-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 03.115 (D) T=9 & 10.5	8-97041-091-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (E) ID=30 W/STUD	8-97078-642-2	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 04.197 (F) ID=32 L=75	1-09700-702-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 01.240 (G) ID=14 L=47	5-09700-319-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 00.446 (H) ID=12 B=14 ID=8.5	5-09700-350-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (I) ID=20	8-94169-650-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 04.785 (J) ID=11 L=28	9-09525-055-0	AR	1	0211-0606	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (J) ID=11 L=28	0-95235-055-0	AR	1	0607-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (K) L=170.3	1-09987-182-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (L) ID=9	8-97063-874-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (M) ID=24	8-94149-610-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 04.785 (N) ID=9.6	8-94147-870-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (O) ID=31 L=30	1-09700-969-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (P) ID=5-12 L=14.5	1-09987-221-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 02.589 (Q) ID=27	5-09700-323-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (R) T=6.0	5-09709-024-0	AR	1	0502-	●	●	●	●		●
48	02.559 CLIP; FRAME HARNESS (S) T=6.0	5-09709-012-0	AR	1	0507-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (T) ID=11 L=50	9-09525-085-0	AR	1	0507-0606	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (T) ID=11 L=50	0-95235-085-0	AR	1	0607-	●	●	●	●	●	●
142	02.559 CLIP; HARNESS,ENG 4HK1-TCS ENG(RJS) 03.483 (B)	8-97101-436-0	01	1	0507-0511		●	●	●
142	02.559 CLIP; HARNESS,ENG 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 03.483 (B)	8-97101-436-0	01	1	0211-0501	●	●	●	●
142	02.559 CLIP; HARNESS,ENG CHARGE AIR COOLER<6PL> 03.483 (B)	8-97101-436-0	01	1	0211-0501					●
142	02.559 CLIP; HARNESS,ENG FLOOR REMOTE SHIFT<M11> (A) L=170.3	1-09987-182-0	01	1	0211-0501	●	●	●	●	●
142	02.559 CLIP; HARNESS,ENG (A) L=170.3	1-09987-182-0	01	1	0211-0501						●
142	02.559 CLIP; HARNESS,ENG (A) L=170.3	1-09987-182-0	01	1	0502-0506	●	●	●	●		●
142	02.559 CLIP; HARNESS,ENG M/T MZZ6U(RSF),M/T MYY6P(RSJ),M/T MYY5T(RSM) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=170.3	1-09987-182-0	01	1	0507-	●	●	●	●	●	●
183	02.559 CLIP; CONNECTOR L=15	8-94315-436-1	02	1	0507-					●
183	02.559 CLIP; CONNECTOR L=15	8-94315-436-1	02	1	0211-0501					●
264	02.559 CLIP; HARNESS,HEADLAMP 02.343 (A) ID=10 & 16	8-94413-325-0	03	1	0211-0404	●	●	●	●	●	●
264	02.559 CLIP; HARNESS,HEADLAMP 02.343 (A) ID=10 & 16	8-94413-325-0	02	1	0405-0501	●	●	●	●	●	●
264	02.559 CLIP; HARNESS,HEADLAMP 02.694 (B) ID=6 & 10-13	8-97069-515-0	01	1	0405-0501	●	●	●	●	●	●
264	02.559 CLIP; HARNESS,HEADLAMP 02.694 (B) ID=6 & 10-13	8-97069-515-0	01	1	0502-0506	●	●	●	●		●
264	02.559 CLIP; HARNESS,HEADLAMP 02.694 (B) ID=6 & 10-13	8-97069-515-0	01	1	0507-	●	●	●	●	●	●
397	02.559 CLIP; RR DOOR HARNESS 10.154 ID=7	8-97014-713-0	02	1	0507-					●
397	02.559 CLIP; RR DOOR HARNESS AUTO DOOR LOCK<AU4> 10.154 ID=7	8-97014-713-0	02	1	0211-0501					●
464	02.525 CLIP; SEDIMENTER HARNESS 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 01.240 (C) ID=14 L=47	5-09700-319-0	01	1	0211-0501	●	●	●	●	●	●
464	02.525 CLIP; SEDIMENTER HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 01.240 (C) ID=14 L=47	5-09700-319-0	01	1	0502-0503	●	●	●	●		●
464	02.525 CLIP; SEDIMENTER HARNESS 01.240 (C) ID=14 L=47	5-09700-319-0	01	1	0504-	●	●	●	●		●
464	02.525 CLIP; SEDIMENTER HARNESS 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. FUEL FILTER DUAL(S6B),FRAME STRAIGHT TYPE<7KJ> 02.587 (A) L=112	8-94232-618-0	01	1	0211-0501	●	●	●	●
464	02.525 CLIP; SEDIMENTER HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> EXC. FUEL FILTER DUAL(S6B),FRAME STRAIGHT TYPE<7KJ> 02.587 (A) L=112	8-94232-618-0	01	1	0502-	●	●	●	●
464	02.525 CLIP; SEDIMENTER HARNESS 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) EXC. FUEL FILTER DUAL(S6B),FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COO LER<6PL> 02.559 (B) ID=6.5	8-94257-639-0	01	1	0211-0501	●	●	●	●	●	●
464	02.525 CLIP; SEDIMENTER HARNESS 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) FUEL FILTER DUAL(S6B) EXC. CHARGE AIR COOLER<6PL> 02.559 (B) ID=6.5	8-94257-639-0	01	1	0211-0501	●	●	●	●
464	02.525 CLIP; SEDIMENTER HARNESS 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL FILTER DUAL(S6B) 02.559 (B) ID=6.5	8-94257-639-0	01	1	0211-0501	●	●	●	●
464	02.525 CLIP; SEDIMENTER HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) 02.559 (B) ID=6.5	8-94257-639-0	01	1	0502-0506	●	●	●	●		●
464	02.525 CLIP; SEDIMENTER HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FUEL FILTER DUAL(S6B),FUEL SEDIMENTER WITH HEATER<6HU> 02.559 (B) ID=6.5	8-94257-639-0	01	1	0502-0506	●	●	●	●		●
464	02.525 CLIP; SEDIMENTER HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL FILTER DUAL(S6B) 02.559 (B) ID=6.5	8-94257-639-0	01	1	0502-0506		●	●	●
464	02.525 CLIP; SEDIMENTER HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FUEL FILTER DUAL(S6B),FUEL SEDIMENTER WITH HEATER<6HU> 02.559 (B) ID=6.5	8-94257-639-0	01	1	0507-	●	●	●	●		●
464	02.525 CLIP; SEDIMENTER HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) 02.559 (B) ID=6.5	8-94257-639-0	01	1	0507-	●	●	●	●
464	02.525 CLIP; SEDIMENTER HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL FILTER DUAL(S6B) 02.559 (B) ID=6.5	8-94257-639-0	01	1	0507-	●	●	●	●

48 48 48 48 31 31 53 7 53 53 53 53 53 53 53 53 412 317 312 317 412 531 504 514

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
7	02.559 BRACKET; CONNECTOR 4HK1-TCN ENG(RDQ)	8-98003-671-1	01	1	0507-	●
7	02.559 BRACKET; CONNECTOR 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-98003-671-1	01	1	0507-		●	●	●
7	02.559 BRACKET; CONNECTOR	8-98003-671-1	01	1	0507-					●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4HF1-S ENG(RLS),4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (B) L=47	8-97042-635-0	01	1	0211-0501	●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (B) L=47	8-97042-635-0	01	1	0211-0501		●	●	●
31	02.559 BRACKET; HARNESS CLIP,PIPE FRAME STRAIGHT TYPE<7KJ> (B) L=47	8-97042-635-0	01	1	0211-0501					●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> (B) L=47	8-97042-635-0	01	1	0502-0506		●	●	●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HG1 ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> (B) L=47	8-97042-635-0	01	1	0507-	●	●	●	●	●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (B) L=73	8-97077-845-0	02	1	0211-0501	●	●	●	●	●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> (B) L=73	8-97077-845-0	02	1	0502-0506		●	●	●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HG1 ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> (B) L=73	8-97077-845-0	02	1	0507-	●	●	●	●	●
31	02.559 BRACKET; HARNESS CLIP,PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97357-142-0	03	1	0211-0211	●	●	●	●	●
31	02.559 BRACKET; HARNESS CLIP,PIPE (A)	8-97357-142-0	03	1	0211-0211						●
31	02.559 BRACKET; HARNESS CLIP,PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97362-859-0	03	1	0211-0501	●	●	●	●	●
31	02.559 BRACKET; HARNESS CLIP,PIPE (A)	8-97362-859-0	03	1	0211-0501						●
31	02.559 BRACKET; HARNESS CLIP,PIPE (A)	8-97362-859-0	03	1	0502-0506	●					●
31	02.559 BRACKET; HARNESS CLIP,PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97362-859-0	03	1	0502-0506		●	●	●
31	02.559 BRACKET; HARNESS CLIP,PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97362-859-0	03	1	0507-	●	●	●	●
31	02.559 BRACKET; HARNESS CLIP,PIPE (A)	8-97362-859-0	03	1	0507-						●
48	02.559 CLIP; FRAME HARNESS 03.162 (A) L=140	5-09707-031-1	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (B) ID=33 L=63	1-09700-807-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 02.525 (C) T=4.5 & 9	5-09709-023-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 03.115 (D) T=9 & 10.5	8-97041-091-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (E) ID=30 W/STUD	8-97078-642-2	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 04.197 (F) ID=32 L=75	1-09700-702-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 01.240 (G) ID=14 L=47	5-09700-319-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 00.446 (H) ID=12 B=14 ID=8.5	5-09700-350-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (I) ID=20	8-94169-650-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 04.785 (J) ID=11 L=28	9-09525-055-0	AR	1	0211-0606	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (J) ID=11 L=28	0-95235-055-0	AR	1	0607-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (K) L=170.3	1-09987-182-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (L) ID=9	8-97063-874-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (M) ID=24	8-94149-610-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 04.785 (N) ID=9.6	8-94147-870-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (O) ID=31 L=30	1-09700-969-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (P) ID=5-12 L=14.5	1-09987-221-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 02.589 (Q) ID=27	5-09700-323-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (R) T=6.0	5-09709-024-0	AR	1	0502-	●	●	●	●		●
48	02.559 CLIP; FRAME HARNESS (S) T=6.0	5-09709-012-0	AR	1	0507-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (T) ID=11 L=50	9-09525-085-0	AR	1	0507-0606	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (T) ID=11 L=50	0-95235-085-0	AR	1	0607-	●	●	●	●	●	●
53	02.483 BRACKET; HARNESS 4HG1-T ENG(RDP) EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-97065-158-2	01	1	0507-		●
53	02.483 BRACKET; HARNESS (C)	8-97065-158-2	01	1	0507-						●
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ) EXH SYSTEM CHROME SINGLE VERTICAL TAI L PIPE<NC4> (F)	8-98012-847-0	01	1	0507-	●
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXH SYSTEM CHROME SINGLE VERTICAL TAI L PIPE<NC4> (F)	8-98012-847-0	01	1	0507-		●	●	●
53	02.483 BRACKET; HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (G)	8-97359-614-0	01	1	0507-	●	●	●	●
53	02.483 BRACKET; HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (H)	8-97373-512-1	01	1	0507-	●	●	●	●	●
53	02.483 BRACKET; HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (I)	8-97373-532-2	01	1	0507-0611	●	●	●	●	●
53	02.483 BRACKET; HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (I)	8-98018-899-1	01	1	0612-	●	●	●	●	●
53	02.483 BRACKET; HARNESS 4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97357-140-0	01	1	0211-0304	●
53	02.483 BRACKET; HARNESS 4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97357-140-0	01	1	0211-0304		●	●
53	02.483 BRACKET; HARNESS 4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97357-140-0	01	1	0305-0501	●
53	02.483 BRACKET; HARNESS 4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97357-140-0	01	1	0305-0501		●	●
53	02.483 BRACKET; HARNESS (A)	8-97357-140-0	01	1	0305-0501						●
53	02.483 BRACKET; HARNESS (A)	8-97357-140-0	01	1	0502-0506	●					●
53	02.483 BRACKET; HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97357-140-0	01	1	0502-0506		●	●	●
53	02.483 BRACKET; HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97357-140-0	01	1	0507-	●	●	●	●
53	02.483 BRACKET; HARNESS (A)	8-97357-140-0	01	1	0507-						●
53	02.483 BRACKET; HARNESS 4HE1 ENG(RLY) M/T MZZ6U(RSF),M/T MYY6P(RSJ),M/T MYY5T(RSM) (B)	8-97352-527-0	01	1	0211-0501	●	●	●	●	●
53	02.483 BRACKET; HARNESS 4HG1 ENG(RJH),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> (B)	8-97352-527-0	01	1	0211-0501	●	●	●	●
53	02.483 BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (B)	8-97352-527-0	01	1	0502-0506		●	●	●
53	02.483 BRACKET; HARNESS M/T MZZ6U(RSF),M/T MYY6P(RSJ),M/T MYY5T(RSM) FRAME STRAIGHT TYPE<7KJ> (B)	8-97352-527-0	01	1	0507-	●	●	●	●	●
53	02.483 BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (D)	8-98003-050-0	01	1	0502-0506		●	●	●
53	02.483 BRACKET; HARNESS FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> (D)	8-98003-050-0	01	1	0507-	●	●	●	●
53	02.483 BRACKET; HARNESS (D)	8-98003-050-0	01	1	0507-					●
53	02.483 BRACKET; HARNESS 4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-97065-158-2	01	1	0211-0501		●	●	●
53	02.483 BRACKET; HARNESS (C)	8-97065-158-2	01	1	0211-0501						●
53	02.483 BRACKET; HARNESS (E)	8-98003-048-0	01	1	0502-0506	●					●
53	02.483 BRACKET; HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (E)	8-98003-048-0	01	1	0502-0506		●	●	●
53	02.483 BRACKET; HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (E)	8-98003-048-0	01	1	0507-	●	●	●	●
53	02.483 BRACKET; HARNESS (E)	8-98003-048-0	01	1	0507-						●
312	02.559 BRACKET; CLIP HARNESS 4HF1-S ENG(RLS),4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (A)	8-97017-072-2	01	1	0211-0501	●
312	02.559 BRACKET; CLIP HARNESS 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (A)	8-97017-072-2	01	1	0211-0501		●	●	●
312	02.559 BRACKET; CLIP HARNESS FRAME STRAIGHT TYPE<7KJ> (A)	8-97017-072-2	01	1	0211-0501					●
312	02.559 BRACKET; CLIP HARNESS FRAME STRAIGHT TYPE<7KJ> (A)	8-97017-072-2	01	1	0502-0506		●	●	●
312	02.559 BRACKET; CLIP HARNESS FRAME STRAIGHT TYPE<7KJ> (A)	8-97017-072-2	01	1	0507-	●	●	●	●
312	02.559 BRACKET; CLIP HARNESS (A)	8-97017-072-2	01	1	0507-					●
312	02.559 BRACKET; CLIP HARNESS 4HF1-S ENG(RLS),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97357-050-0	01	1	0211-0501	●
312	02.559 BRACKET; CLIP HARNESS 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97357-050-0	01	1	0211-0501		●	●	●
312	02.559 BRACKET; CLIP HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97357-050-0	01	1	0211-0501					●
312	02.559 BRACKET; CLIP HARNESS (A)	8-97357-050-0	01	1	0211-0501						●
312	02.559 BRACKET; CLIP HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97357-050-0	01	1	0502-	●	●	●	●		●
312	02.559 BRACKET; CLIP HARNESS 4HF1-S ENG(RLS),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-97357-051-1	01	1	0211-0501	●
312	02.559 BRACKET; CLIP HARNESS 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-97357-051-1	01	1	0211-0501		●	●	●
312	02.559 BRACKET; CLIP HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-97357-051-1	01	1	0211-0501					●
312	02.559 BRACKET; CLIP HARNESS (B)	8-97357-051-1	01	1	0211-0501						●
312	02.559 BRACKET; CLIP HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-97357-051-1	01	1	0502-	●	●	●	●		●
317	02.559 CLAMP; CONNECTOR 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) FUEL FILTER DUAL(S6B) FUEL SEDIMENTER WITH HEATER<6HU> EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-94466-377-0	01	1	0211-0501	●	●	●	●
317	02.559 CLAMP; CONNECTOR 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ> (A)	8-94466-377-0	01	1	0211-0501	●	●	●	●
317	02.559 CLAMP; CONNECTOR 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) FUEL SEDIMENTER WITH HEATER<6HU> EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-94466-377-0	01	1	0502-0506	●	●	●	●
317	02.559 CLAMP; CONNECTOR 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ> (A)	8-94466-377-0	01	1	0502-0506		●	●	●
317	02.559 CLAMP; CONNECTOR 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) FUEL SEDIMENTER WITH HEATER<6HU> EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-94466-377-0	01	1	0507-	●	●	●	●
317	02.559 CLAMP; CONNECTOR 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ> (A)	8-94466-377-0	01	1	0507-	●	●	●	●
317	02.559 CLAMP; CONNECTOR 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. FUEL FILTER DUAL(S6B),FRAME STRAIGHT TYPE<7KJ> (B)	8-94366-903-0	01	1	0211-0501	●	●	●	●
317	02.559 CLAMP; CONNECTOR 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> EXC. FUEL FILTER DUAL(S6B),FRAME STRAIGHT TYPE<7KJ> (B)	8-94366-903-0	01	1	0502-	●	●	●	●
412	02.559 BRACKET; HARNESS,TRANS TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97369-191-3	01	1	0507-	●	●	●	●	●
412	02.559 BRACKET; HARNESS,TRANS (A)	8-97324-451-1	01	1	0211-0211	●	●	●	●	●	●
412	02.559 BRACKET; HARNESS,TRANS M/T MZZ6U(RSF),M/T MYY6P(RSJ),M/T MYY5T(RSM) (A)	8-97324-451-1	01	1	0212-0501	●	●	●	●	●	●
412	02.559 BRACKET; HARNESS,TRANS (A)	8-97324-451-1	01	1	0502-0506	●	●	●	●		●
412	02.559 BRACKET; HARNESS,TRANS M/T MZZ6U(RSF),M/T MYY6P(RSJ),M/T MYY5T(RSM) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97324-451-1	01	1	0507-	●	●	●	●	●
504	02.559 PROTECTOR; HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 03.008 L=80	5-22439-006-0	01	1	0507-0608	●	●	●	●	●
504	02.559 PROTECTOR; HARNESS 4HK1-TCN ENG(RDQ) 03.008 L=80	5-22439-006-0	01	1	0507-0608	●
504	02.559 PROTECTOR; HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.008 L=80	5-22439-006-0	01	1	0507-0608		●	●	●
504	02.559 PROTECTOR; HARNESS 03.008 L=80	5-22439-006-0	01	1	0507-0608					●
504	02.559 PROTECTOR; HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 03.008 L=80	5-22439-006-0	01	1	0609-	●	●	●	●	●
504	02.559 PROTECTOR; HARNESS 4HK1-TCN ENG(RDQ) 03.008 L=80	5-22439-006-0	01	1	0609-	●
504	02.559 PROTECTOR; HARNESS 4HK1-TCN ENG(RDQ) 03.008 L=80	5-22439-006-0	01	1	0609-	●
504	02.559 PROTECTOR; HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.008 L=80	5-22439-006-0	01	1	0609-		●	●	●
504	02.559 PROTECTOR; HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.008 L=80	5-22439-006-0	01	1	0609-		●	●	●
504	02.559 PROTECTOR; HARNESS 03.008 L=80	5-22439-006-0	01	1	0609-					●
504	02.559 PROTECTOR; HARNESS 03.008 L=80	5-22439-006-0	01	1	0609-					●
504	02.559 PROTECTOR; HARNESS FRAME STRAIGHT TYPE<7KJ> 04.785 L=200	8-97096-423-0	01	1	0211-0501	●	●	●	●	●
504	02.559 PROTECTOR; HARNESS 04.785 L=200	8-97096-423-0	01	1	0502-0506	●	●	●	●		●
504	02.559 PROTECTOR; HARNESS 04.785 L=200	8-97096-423-0	01	1	0507-	●	●	●	●	●	●
514	02.559 FINISHER; HARNESS 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> L=290 SERVICED BY L=500	1-79937-746-0	01	1	0211-0501	●	●	●	●	●
514	02.559 FINISHER; HARNESS 4HG1 ENG(RJH) TURBOCHARGER(K51) L=290 SERVICED BY L=500	1-79937-746-0	01	1	0211-0501		●	●	●		●
514	02.559 FINISHER; HARNESS 4HG1-T ENG(RDP) L=290 SERVICED BY L=500	1-79937-746-0	01	1	0502-0506		●
514	02.559 FINISHER; HARNESS L=290 SERVICED BY L=500	1-79937-746-0	01	1	0502-0506						●
514	02.559 FINISHER; HARNESS 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) L=290 SERVICED BY L=500	1-79937-746-0	01	1	0507-0507	●	●	●	●	●	●
514	02.559 FINISHER; HARNESS H.S.A SYSTEM<6EP> L=290 SERVICED BY L=500	1-79937-746-0	01	1	0507-1508	●	●	●	●	●
514	02.559 FINISHER; HARNESS 4HG1-T ENG(RDP) L=290 SERVICED BY L=500	1-79937-746-0	01	1	0507-1508		●
514	02.559 FINISHER; HARNESS L=290 SERVICED BY L=500	1-79937-746-0	01	1	0507-1508						●
514	02.559 FINISHER; HARNESS 4HK1-TCN ENG(RDQ),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) H.S.A SYSTEM<6EP> L=290 SERVICED BY L=500	1-79937-746-0	01	1	1509-	●
514	02.559 FINISHER; HARNESS 4HG1-T ENG(RDP) EXC. H.S.A SYSTEM<6EP> L=290 SERVICED BY L=500	1-79937-746-0	01	1	1509-		●
514	02.559 FINISHER; HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS), 4HF1-N ENG(RJZ),4HF1-S ENG(RLS) H.S.A SYSTEM<6EP> L=290 SERVICED BY L=500	1-79937-746-0	01	1	1509-		●
514	02.559 FINISHER; HARNESS 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH), 4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) H.S.A SYSTEM<6EP> L=290 SERVICED BY L=500	1-79937-746-0	01	1	1509-			●
514	02.559 FINISHER; HARNESS 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH), 4HK1-TCS ENG(RJS),4HF1-S ENG(RLS) H.S.A SYSTEM<6EP> L=290 SERVICED BY L=500	1-79937-746-0	01	1	1509-				●
514	02.559 FINISHER; HARNESS H.S.A SYSTEM<6EP> L=290 SERVICED BY L=500	1-79937-746-0	01	1	1509-					●
514	02.559 FINISHER; HARNESS L=290 SERVICED BY L=500	1-79937-746-0	01	1	1509-						●
514	02.559 FINISHER; HARNESS 16.550 L=120 SERVICED BY L=2040	1-71997-513-1	03	1	0211-0501	●	●	●	●	●	●
514	02.559 FINISHER; HARNESS L=120 SERVICED BY L=500	1-79937-746-0	03	1	0502-0506	●	●	●	●		●
514	02.559 FINISHER; HARNESS L=120 SERVICED BY L=500	1-79937-746-0	03	1	0507-	●	●	●	●	●	●
514	02.559 FINISHER; HARNESS 16.550 L=175 SERVICED BY L=2040	1-71997-513-1	01	1	0211-0501	●	●	●	●	●	●
514	02.559 FINISHER; HARNESS L=175 SERVICED BY L=500	1-79937-746-0	01	1	0502-0506	●	●	●	●		●
514	02.559 FINISHER; HARNESS L=175 SERVICED BY L=500	1-79937-746-0	01	1	0507-	●	●	●	●	●	●
531	02.559 HOLDER AIR BAG DRIVER<AJ3> 03.636	8-97147-637-0	01	1	0507-	●	●	●	●	●

16 48 16 48 464 48 16 48 48 16 48 48 48 16 48 16 48 48 48 220 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
16	02.559 CLIP; HARNESS 4HG1 ENG(RJH) 01.240 (A) ID=14 L=47	5-09700-319-0	AR	1	0211-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 16.065 (B) 1 SET=5 PIECE	1-09987-214-0	AR	1	0211-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 01.166 (C) ID=22 & 22	8-94464-837-0	AR	1	0211-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (D) L=135	1-09987-143-1	AR	1	0211-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 02.343 (E) ID=10 & 16	8-94413-325-0	AR	1	0211-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (F) ID=15-32	8-97174-404-0	AR	1	0211-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 03.162 (G) L=140	5-09707-031-1	AR	1	0211-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (H) L=250	5-09707-030-1	AR	1	0211-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 04.930 (I) ID=10 & 16.5	8-94360-745-0	AR	1	0211-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (J) L=100	8-94442-388-0	AR	1	0211-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (K) L=60	8-94457-053-0	AR	1	0211-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (L) L=100	8-94327-067-1	AR	1	0211-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (M) L=155	8-97173-307-0	AR	1	0211-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 02.525 (N) T=4.5 & 9	5-09709-023-0	AR	1	0309-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (O) T=6.0	5-09709-024-0	AR	1	0309-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 02.589 (P) ID=27	5-09700-323-0	AR	1	0309-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 03.162 (A) L=140	5-09707-031-1	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (B) ID=33 L=63	1-09700-807-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 02.525 (C) T=4.5 & 9	5-09709-023-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 03.115 (D) T=9 & 10.5	8-97041-091-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (E) ID=30 W/STUD	8-97078-642-2	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 04.197 (F) ID=32 L=75	1-09700-702-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 01.240 (G) ID=14 L=47	5-09700-319-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 00.446 (H) ID=12 B=14 ID=8.5	5-09700-350-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (I) ID=20	8-94169-650-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 04.785 (J) ID=11 L=28	9-09525-055-0	AR	1	0211-0606	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (J) ID=11 L=28	0-95235-055-0	AR	1	0607-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (K) L=170.3	1-09987-182-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (L) ID=9	8-97063-874-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (M) ID=24	8-94149-610-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 04.785 (N) ID=9.6	8-94147-870-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (O) ID=31 L=30	1-09700-969-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (P) ID=5-12 L=14.5	1-09987-221-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 02.589 (Q) ID=27	5-09700-323-0	AR	1	0211-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (R) T=6.0	5-09709-024-0	AR	1	0502-	●	●	●	●		●
48	02.559 CLIP; FRAME HARNESS (S) T=6.0	5-09709-012-0	AR	1	0507-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (T) ID=11 L=50	9-09525-085-0	AR	1	0507-0606	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (T) ID=11 L=50	0-95235-085-0	AR	1	0607-	●	●	●	●	●	●
220	02.559 CLIP; HARNESS TO CABLE 4HK1-TCN ENG(RDQ) (C) L=250	5-09707-030-1	01	1	0507-	●
220	02.559 CLIP; HARNESS TO CABLE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (C) L=250	5-09707-030-1	01	1	0507-		●	●	●
220	02.559 CLIP; HARNESS TO CABLE (C) L=250	5-09707-030-1	01	1	0507-					●
220	02.559 CLIP; HARNESS TO CABLE FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 03.680 (A) ID=25.5 & 8.0	8-94363-538-0	01	1	0211-0501	●	●	●	●	●
220	02.559 CLIP; HARNESS TO CABLE 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 03.680 (A) ID=25.5 & 8.0	8-94363-538-0	01	1	0502-0506		●	●	●
220	02.559 CLIP; HARNESS TO CABLE 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 03.680 (A) ID=25.5 & 8.0	8-94363-538-0	01	1	0507-	●	●	●	●
220	02.559 CLIP; HARNESS TO CABLE 4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ),M/T MYY5T(RSM) CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> 03.162 (B) L=140	5-09707-031-1	01	1	0211-0501	●	●	●	●	●
464	02.525 CLIP; SEDIMENTER HARNESS 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 01.240 (C) ID=14 L=47	5-09700-319-0	01	1	0211-0501	●	●	●	●	●	●
464	02.525 CLIP; SEDIMENTER HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 01.240 (C) ID=14 L=47	5-09700-319-0	01	1	0502-0503	●	●	●	●		●
464	02.525 CLIP; SEDIMENTER HARNESS 01.240 (C) ID=14 L=47	5-09700-319-0	01	1	0504-	●	●	●	●		●
464	02.525 CLIP; SEDIMENTER HARNESS 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. FUEL FILTER DUAL(S6B),FRAME STRAIGHT TYPE<7KJ> 02.587 (A) L=112	8-94232-618-0	01	1	0211-0501	●	●	●	●
464	02.525 CLIP; SEDIMENTER HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> EXC. FUEL FILTER DUAL(S6B),FRAME STRAIGHT TYPE<7KJ> 02.587 (A) L=112	8-94232-618-0	01	1	0502-	●	●	●	●
464	02.525 CLIP; SEDIMENTER HARNESS 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) EXC. FUEL FILTER DUAL(S6B),FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COO LER<6PL> 02.559 (B) ID=6.5	8-94257-639-0	01	1	0211-0501	●	●	●	●	●	●
464	02.525 CLIP; SEDIMENTER HARNESS 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) FUEL FILTER DUAL(S6B) EXC. CHARGE AIR COOLER<6PL> 02.559 (B) ID=6.5	8-94257-639-0	01	1	0211-0501	●	●	●	●
464	02.525 CLIP; SEDIMENTER HARNESS 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL FILTER DUAL(S6B) 02.559 (B) ID=6.5	8-94257-639-0	01	1	0211-0501	●	●	●	●
464	02.525 CLIP; SEDIMENTER HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) 02.559 (B) ID=6.5	8-94257-639-0	01	1	0502-0506	●	●	●	●		●
464	02.525 CLIP; SEDIMENTER HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FUEL FILTER DUAL(S6B),FUEL SEDIMENTER WITH HEATER<6HU> 02.559 (B) ID=6.5	8-94257-639-0	01	1	0502-0506	●	●	●	●		●
464	02.525 CLIP; SEDIMENTER HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL FILTER DUAL(S6B) 02.559 (B) ID=6.5	8-94257-639-0	01	1	0502-0506		●	●	●
464	02.525 CLIP; SEDIMENTER HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FUEL FILTER DUAL(S6B),FUEL SEDIMENTER WITH HEATER<6HU> 02.559 (B) ID=6.5	8-94257-639-0	01	1	0507-	●	●	●	●		●
464	02.525 CLIP; SEDIMENTER HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) 02.559 (B) ID=6.5	8-94257-639-0	01	1	0507-	●	●	●	●
464	02.525 CLIP; SEDIMENTER HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL FILTER DUAL(S6B) 02.559 (B) ID=6.5	8-94257-639-0	01	1	0507-	●	●	●	●

139 139 150 386 38 150 358 377 386 377 386 239 38 239 516 38 139 19 38 139 64 219 294 515 219 294 515 219 294 469 515 519 525

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
19	02.559 BOLT; PROTECTOR 4HF1-S ENG(RLS),4HE1 ENG(RLY) 03.162 M10X35 FLANGE	0-28681-035-0	01	1	0211-0501	●	●	●	●
19	02.559 BOLT; PROTECTOR 4HG1 ENG(RJH) EXC. TURBOCHARGER(K51),FRAME STRAIGHTTYPE<7KJ> 03.162 M10X35 FLANGE	0-28681-035-0	01	1	0211-0501		●	●	●
19	02.559 BOLT; PROTECTOR 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> 03.162 M10X35 FLANGE	0-28681-035-0	01	1	0211-0501		●	●	●
19	02.559 BOLT; PROTECTOR 03.162 M10X35 FLANGE	0-28681-035-0	01	1	0211-0501					●
19	02.559 BOLT; PROTECTOR 03.162 M10X35 FLANGE	0-28681-035-0	01	1	0502-0506	●	●	●	●		●
19	02.559 BOLT; PROTECTOR 03.162 M10X35 FLANGE	0-28681-035-0	01	1	0507-0507	●	●	●	●	●	●
19	02.559 BOLT; PROTECTOR FRAME STRAIGHT TYPE<7KJ> 03.162 M10X35 FLANGE	0-28681-035-0	01	1	0507-0512	●	●	●	●	●
19	02.559 BOLT; PROTECTOR 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 M10X35 FLANGE	0-28681-035-0	01	1	0507-0512	●	●	●	●
19	02.559 BOLT; PROTECTOR FRAME STRAIGHT TYPE<7KJ> 02.277 M10X35 FLANGE	0-28651-035-0	01	1	0601-	●	●	●	●	●
19	02.559 BOLT; PROTECTOR 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 02.277 M10X35 FLANGE	0-28651-035-0	01	1	0601-	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 04.686 (A) M8X30 FLANGE	0-28680-830-0	01	1	0211-0501	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 04.686 (A) M8X30 FLANGE	0-28680-830-0	01	1	0502-0506		●	●	●
38	02.559 BOLT; CLIP,HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 04.686 (A) M8X30 FLANGE	0-28680-830-0	01	1	0507-0512	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 03.403 (A) M8X30 FLANGE	0-28650-830-0	01	1	0601-	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 02.334 (C) M6X25 FLANGE	0-28680-625-0	01	1	0211-0501	●	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 02.334 (C) M6X25 FLANGE	0-28680-625-0	01	1	0211-0501	●	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> 02.334 (C) M6X25 FLANGE	0-28680-625-0	01	1	0211-0501	●	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 02.334 (C) M6X25 FLANGE	0-28680-625-0	01	1	0502-0506	●					●
38	02.559 BOLT; CLIP,HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> 02.334 (C) M6X25 FLANGE	0-28680-625-0	01	1	0502-0506		●	●	●
38	02.559 BOLT; CLIP,HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> 02.334 (C) M6X25 FLANGE	0-28680-625-0	01	1	0507-0512	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 02.334 (C) M6X25 FLANGE	0-28680-625-0	01	1	0507-0512						●
38	02.559 BOLT; CLIP,HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> 00.685 (C) M6X25 FLANGE	0-28650-625-0	01	1	0601-	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 00.685 (C) M6X25 FLANGE	0-28650-625-0	01	1	0601-						●
38	02.559 BOLT; CLIP,HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (B) M10X35 FLANGE	0-28681-035-0	01	1	0211-0501	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 03.162 (B) M10X35 FLANGE	0-28681-035-0	01	1	0211-0501						●
38	02.559 BOLT; CLIP,HARNESS 03.162 (B) M10X35 FLANGE	0-28681-035-0	01	1	0502-0506	●					●
38	02.559 BOLT; CLIP,HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (B) M10X35 FLANGE	0-28681-035-0	01	1	0502-0506		●	●	●
38	02.559 BOLT; CLIP,HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (B) M10X35 FLANGE	0-28681-035-0	01	1	0507-0512	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 03.162 (B) M10X35 FLANGE	0-28681-035-0	01	1	0507-0512						●
38	02.559 BOLT; CLIP,HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> 02.277 (B) M10X35 FLANGE	0-28651-035-0	01	1	0601-	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 02.277 (B) M10X35 FLANGE	0-28651-035-0	01	1	0601-						●
38	02.559 BOLT; CLIP,HARNESS (D) M8X25 FLANGE	0-28680-825-0	01	1	0211-0501	●	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (D) M8X25 FLANGE	0-28680-825-0	01	1	0211-0501	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (D) M8X25 FLANGE	0-28680-825-0	01	1	0211-0501	●	●	●	●		●
38	02.559 BOLT; CLIP,HARNESS 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) FUEL FILTER DUAL(S6B) FUEL SEDIMENTER WITH HEATER<6HU> EXC. FRAME STRAIGHT TYPE<7KJ> (D) M8X25 FLANGE	0-28680-825-0	01	1	0211-0501	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ> (D) M8X25 FLANGE	0-28680-825-0	01	1	0211-0501	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS FRAME STRAIGHT TYPE<7KJ> (D) M8X25 FLANGE	0-28680-825-0	01	1	0211-0501	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (D) M8X25 FLANGE	0-28680-825-0	01	1	0211-0501		●	●
38	02.559 BOLT; CLIP,HARNESS (D) M8X25 FLANGE	0-28680-825-0	01	1	0502-0506	●	●	●	●		●
38	02.559 BOLT; CLIP,HARNESS (D) M8X25 FLANGE	0-28680-825-0	01	1	0502-0506	●	●	●	●		●
38	02.559 BOLT; CLIP,HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) FUEL SEDIMENTER WITH HEATER<6HU> EXC. FRAME STRAIGHT TYPE<7KJ> (D) M8X25 FLANGE	0-28680-825-0	01	1	0502-0506	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ> (D) M8X25 FLANGE	0-28680-825-0	01	1	0502-0506	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (D) M8X25 FLANGE	0-28680-825-0	01	1	0507-0512	●	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS (D) M8X25 FLANGE	0-28680-825-0	01	1	0507-0512	●	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS FRAME STRAIGHT TYPE<7KJ> (D) M8X25 FLANGE	0-28680-825-0	01	1	0507-0512	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (D) M8X25 FLANGE	0-28680-825-0	01	1	0507-0512	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ> (D) M8X25 FLANGE	0-28680-825-0	01	1	0507-0512	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) FUEL SEDIMENTER WITH HEATER<6HU> EXC. FRAME STRAIGHT TYPE<7KJ> (D) M8X25 FLANGE	0-28680-825-0	01	1	0507-0512	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS (D) M8X25 FLANGE	0-28680-825-0	01	1	0507-0512					●
38	02.559 BOLT; CLIP,HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 (D) M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 06.216 (D) M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS FRAME STRAIGHT TYPE<7KJ> 06.216 (D) M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 06.216 (D) M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ> 06.216 (D) M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) FUEL SEDIMENTER WITH HEATER<6HU> EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 (D) M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 06.216 (D) M8X25 FLANGE	0-28650-825-0	01	1	0601-					●
64	02.559 SCREW; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) 16.742 M4X16 TAPPING	1-09981-477-0	01	1	0507-	●	●	●	●
64	02.559 SCREW; CLIP 16.742 M4X16 TAPPING	1-09981-477-0	01	1	0507-					●
64	02.559 SCREW; CLIP 16.742 M4X16 TAPPING	1-09981-477-0	01	1	0211-0410					●
64	02.559 SCREW; CLIP 4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) 16.742 M4X16 TAPPING	1-09981-477-0	01	1	0411-0501		●	●
64	02.559 SCREW; CLIP 16.742 M4X16 TAPPING	1-09981-477-0	01	1	0411-0501					●
139	02.559 BOLT; BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 04.665 (C) M8X10 W/LK WASHER	8-97025-916-0	02	1	0507-0610	●	●	●	●
139	02.559 BOLT; BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 04.665 (C) M8X10 W/LK WASHER	8-98029-928-0	02	1	0611-	●	●	●	●
139	02.559 BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) 02.183 (D) M8X35 FLANGE	0-28680-835-0	02	1	0507-0512	●	●	●	●	●
139	02.559 BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) 01.060 (D) M8X35 FLANGE	0-28650-835-0	02	1	0601-	●	●	●	●	●
139	02.559 BOLT; BRKT 4HF1-S ENG(RLS),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97028-451-3	01	1	0211-0501	●
139	02.559 BOLT; BRKT 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97028-451-3	01	1	0211-0501		●	●	●
139	02.559 BOLT; BRKT EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97028-451-3	01	1	0211-0501					●
139	02.559 BOLT; BRKT (A)	8-97028-451-3	01	1	0211-0501						●
139	02.559 BOLT; BRKT (A)	8-97028-451-3	01	1	0502-0506	●					●
139	02.559 BOLT; BRKT EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97028-451-3	01	1	0502-0506		●	●	●
139	02.559 BOLT; BRKT EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97028-451-3	01	1	0507-	●	●	●	●
139	02.559 BOLT; BRKT (A)	8-97028-451-3	01	1	0507-						●
139	02.559 BOLT; BRKT 01.062 (B) M8X16 FLANGE	0-28080-816-0	03	1	0211-0501	●	●	●	●	●	●
139	02.559 BOLT; BRKT 01.062 (B) M8X16 FLANGE	0-28080-816-0	03	1	0502-0506	●	●	●	●		●
139	02.559 BOLT; BRKT 01.062 (B) M8X16 FLANGE	0-28080-816-0	03	1	0507-0512	●	●	●	●	●	●
139	02.559 BOLT; BRKT 02.343 (B) M8X16 FLANGE	0-28050-816-0	03	1	0601-	●	●	●	●	●	●
139	02.559 BOLT; BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 04.665 (C) M8X10 W/LK WASHER	8-97025-916-0	02	1	0309-0501		●	●	●
150	02.343 BOLT; CLIP 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 08.900 (A) M8X12 FLANGE	0-28080-812-0	01	1	0507-0512	●	●	●	●	●
150	02.343 BOLT; CLIP 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (A) M8X12 FLANGE	0-28050-812-0	01	1	0601-	●	●	●	●	●
150	02.343 BOLT; CLIP 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.062 (B) M8X16 FLANGE	0-28080-816-0	01	1	0507-0512	●	●	●	●	●
150	02.343 BOLT; CLIP 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B) M8X16 FLANGE	0-28050-816-0	01	1	0601-	●	●	●	●	●
219	02.559 NUT 4HK1-TCN ENG(RDQ) 04.594 (B) M6 FLANGE	0-91150-106-0	04	1	0507-0602	●
219	02.559 NUT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 04.594 (B) M6 FLANGE	0-91150-106-0	04	1	0507-0602		●	●	●
219	02.559 NUT 04.594 (B) M6 FLANGE	0-91150-106-0	04	1	0507-0602					●
219	02.559 NUT 4HK1-TCN ENG(RDQ) 01.062 (B) M6 FLANGE	0-91180-106-0	04	1	0603-	●
219	02.559 NUT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.062 (B) M6 FLANGE	0-91180-106-0	04	1	0603-		●	●	●
219	02.559 NUT 01.062 (B) M6 FLANGE	0-91180-106-0	04	1	0603-					●
219	02.559 NUT 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. FUEL FILTER DUAL(S6B),FRAME STRAIGHT TYPE<7KJ> 07.829 (B) M6 FLANGE	5-09440-004-0	01	1	0211-0501	●	●	●	●
219	02.559 NUT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> EXC. FUEL FILTER DUAL(S6B),FRAME STRAIGHT TYPE<7KJ> 07.829 (B) M6 FLANGE	5-09440-004-0	01	1	0502-	●	●	●	●
219	02.559 NUT EXC. FRAME STRAIGHT TYPE<7KJ> 04.785 (A) M10 FLANGE	0-91150-110-0	01	1	0211-0501	●	●	●	●	●
219	02.559 NUT 04.785 (A) M10 FLANGE	0-91150-110-0	01	1	0211-0501						●
219	02.559 NUT 04.785 (A) M10 FLANGE	0-91150-110-0	01	1	0502-0506	●					●
219	02.559 NUT EXC. FRAME STRAIGHT TYPE<7KJ> 04.785 (A) M10 FLANGE	0-91150-110-0	01	1	0502-0506		●	●	●
219	02.559 NUT EXC. FRAME STRAIGHT TYPE<7KJ> 04.785 (A) M10 FLANGE	0-91150-110-0	01	1	0507-0602	●	●	●	●
219	02.559 NUT 04.785 (A) M10 FLANGE	0-91150-110-0	01	1	0507-0602						●
219	02.559 NUT EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (A) M10 FLANGE	0-91180-110-0	01	1	0603-	●	●	●	●
219	02.559 NUT 03.162 (A) M10 FLANGE	0-91180-110-0	01	1	0603-						●
219	02.559 NUT 07.633 (C) M8 FLANGE	0-91150-108-0	01	1	0211-0501	●	●	●	●	●	●
219	02.559 NUT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 07.633 (C) M8 FLANGE	0-91150-108-0	01	1	0211-0501	●	●	●	●	●
219	02.559 NUT FRAME STRAIGHT TYPE<7KJ> 07.633 (C) M8 FLANGE	0-91150-108-0	01	1	0211-0501	●	●	●	●	●
219	02.559 NUT 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 07.633 (C) M8 FLANGE	0-91150-108-0	01	1	0211-0501	●	●	●	●	●
219	02.559 NUT 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) FUEL FILTER DUAL(S6B) FUEL SEDIMENTER WITH HEATER<6HU> EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 (C) M8 FLANGE	0-91150-108-0	01	1	0211-0501	●	●	●	●
219	02.559 NUT 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ> 07.633 (C) M8 FLANGE	0-91150-108-0	01	1	0211-0501	●	●	●	●
219	02.559 NUT 4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 07.633 (C) M8 FLANGE	0-91150-108-0	01	1	0211-0501		●	●
219	02.559 NUT 07.633 (C) M8 FLANGE	0-91150-108-0	01	1	0502-0506	●	●	●	●		●
219	02.559 NUT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) FUEL SEDIMENTER WITH HEATER<6HU> EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 (C) M8 FLANGE	0-91150-108-0	01	1	0502-0506	●	●	●	●
219	02.559 NUT FRAME STRAIGHT TYPE<7KJ> 07.633 (C) M8 FLANGE	0-91150-108-0	01	1	0502-0506		●	●	●
219	02.559 NUT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 07.633 (C) M8 FLANGE	0-91150-108-0	01	1	0502-0506		●	●	●
219	02.559 NUT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ> 07.633 (C) M8 FLANGE	0-91150-108-0	01	1	0502-0506		●	●	●
219	02.559 NUT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 07.633 (C) M8 FLANGE	0-91150-108-0	01	1	0507-0602	●	●	●	●	●	●
219	02.559 NUT 07.633 (C) M8 FLANGE	0-91150-108-0	01	1	0507-0602	●	●	●	●	●	●
219	02.559 NUT FRAME STRAIGHT TYPE<7KJ> 07.633 (C) M8 FLANGE	0-91150-108-0	01	1	0507-0602	●	●	●	●	●
219	02.559 NUT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 07.633 (C) M8 FLANGE	0-91150-108-0	01	1	0507-0602	●	●	●	●	●
219	02.559 NUT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ> 07.633 (C) M8 FLANGE	0-91150-108-0	01	1	0507-0602	●	●	●	●	●
219	02.559 NUT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) FUEL SEDIMENTER WITH HEATER<6HU> EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 (C) M8 FLANGE	0-91150-108-0	01	1	0507-0602	●	●	●	●
219	02.559 NUT 07.633 (C) M8 FLANGE	0-91150-108-0	01	1	0507-0602					●
219	02.559 NUT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 01.062 (C) M8 FLANGE	0-91180-108-0	01	1	0603-	●	●	●	●	●	●
219	02.559 NUT 01.062 (C) M8 FLANGE	0-91180-108-0	01	1	0603-	●	●	●	●	●	●
219	02.559 NUT FRAME STRAIGHT TYPE<7KJ> 01.062 (C) M8 FLANGE	0-91180-108-0	01	1	0603-	●	●	●	●	●
219	02.559 NUT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.062 (C) M8 FLANGE	0-91180-108-0	01	1	0603-	●	●	●	●	●
219	02.559 NUT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ> 01.062 (C) M8 FLANGE	0-91180-108-0	01	1	0603-	●	●	●	●	●
219	02.559 NUT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) FUEL SEDIMENTER WITH HEATER<6HU> EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 (C) M8 FLANGE	0-91180-108-0	01	1	0603-	●	●	●	●
219	02.559 NUT 01.062 (C) M8 FLANGE	0-91180-108-0	01	1	0603-					●
219	02.559 NUT 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 04.594 (B) M6 FLANGE	0-91150-106-0	01	1	0211-0501	●	●	●	●	●	●
219	02.559 NUT 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 04.594 (B) M6 FLANGE	0-91150-106-0	01	1	0211-0501	●	●	●	●	●	●
219	02.559 NUT 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 04.594 (B) M6 FLANGE	0-91150-106-0	03	1	0304-0501	●	●	●	●	●	●
219	02.559 NUT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 04.594 (B) M6 FLANGE	0-91150-106-0	03	1	0502-0602	●	●	●	●		●
219	02.559 NUT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 (B) M6 FLANGE	0-91180-106-0	03	1	0603-	●	●	●	●		●
219	02.559 NUT 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) 04.594 (B) M6 FLANGE	0-91150-106-0	02	1	0211-0303	●	●	●	●	●	●
219	02.559 NUT 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 04.594 (B) M6 FLANGE	0-91150-106-0	02	1	0304-0501	●	●	●	●	●
219	02.559 NUT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 04.594 (B) M6 FLANGE	0-91150-106-0	02	1	0502-0506		●	●	●
219	02.559 NUT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 04.594 (B) M6 FLANGE	0-91150-106-0	02	1	0507-0602	●	●	●	●
219	02.559 NUT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 01.062 (B) M6 FLANGE	0-91180-106-0	02	1	0603-	●	●	●	●
239	02.559 BOLT; GRAND 02.343 (A) M8X25 W/LK&PL WASHER	8-97087-203-0	01	1	0211-0501	●	●	●	●	●	●
239	02.559 BOLT; GRAND 02.343 (A) M8X25 W/LK&PL WASHER	8-97087-203-0	01	1	0502-0506	●	●	●	●		●
239	02.559 BOLT; GRAND 02.343 (A) M8X25 W/LK&PL WASHER	8-97087-203-0	01	1	0507-1004	●	●	●	●	●	●
239	02.559 BOLT; GRAND 02.343 (B) M8X24 W/PL WASHER	8-98141-256-1	01	1	1005-	●	●	●	●	●	●
294	02.559 NUT 4HK1-TCN ENG(RDQ) 07.633 (C) M8 FLANGE	0-91150-108-0	01	1	0507-0602	●
294	02.559 NUT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 07.633 (C) M8 FLANGE	0-91150-108-0	01	1	0507-0602		●	●	●
294	02.559 NUT 07.633 (C) M8 FLANGE	0-91150-108-0	01	1	0507-0602					●
294	02.559 NUT 4HK1-TCN ENG(RDQ) 01.062 (C) M8 FLANGE	0-91180-108-0	01	1	0603-	●
294	02.559 NUT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.062 (C) M8 FLANGE	0-91180-108-0	01	1	0603-		●	●	●
294	02.559 NUT 01.062 (C) M8 FLANGE	0-91180-108-0	01	1	0603-					●
294	02.559 NUT 4HF1-S ENG(RLS),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 04.594 (A) M6 FLANGE	0-91150-106-0	01	1	0211-0306	●
294	02.559 NUT 4HF1-S ENG(RLS),4HE1 ENG(RLY) 04.594 (A) M6 FLANGE	0-91150-106-0	01	1	0211-0306	●
294	02.559 NUT 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 04.594 (A) M6 FLANGE	0-91150-106-0	01	1	0211-0306		●	●	●
294	02.559 NUT 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) 04.594 (A) M6 FLANGE	0-91150-106-0	01	1	0211-0306		●	●	●
294	02.559 NUT 04.594 (A) M6 FLANGE	0-91150-106-0	01	1	0211-0306					●	●
294	02.559 NUT EXC. FRAME STRAIGHT TYPE<7KJ> 04.594 (A) M6 FLANGE	0-91150-106-0	01	1	0211-0306					●
294	02.559 NUT 04.594 (A) M6 FLANGE	0-91150-106-0	01	1	0211-0306						●
294	02.559 NUT 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 04.594 (A) M6 FLANGE	0-91150-106-0	01	1	0307-0501	●	●	●	●	●	●
294	02.559 NUT 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) 04.594 (A) M6 FLANGE	0-91150-106-0	01	1	0307-0501	●	●	●	●	●	●
294	02.559 NUT EXC. HYDRO BRAKE BOOSTER<7QQ> 04.594 (A) M6 FLANGE	0-91150-106-0	01	1	0307-0501	●	●	●	●	●	●
294	02.559 NUT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 04.594 (A) M6 FLANGE	0-91150-106-0	02	1	0502-0602	●	●	●	●		●
294	02.559 NUT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M6 FLANGE	0-91180-106-0	02	1	0603-	●	●	●	●		●
294	02.559 NUT 4HE1 ENG(RLY) M/T MZZ6U(RSF) 04.785 (B) M10 FLANGE	0-91150-110-0	01	1	0211-0211	●	●	●	●
294	02.559 NUT M/T MZZ6U(RSF) 04.785 (B) M10 FLANGE	0-91150-110-0	01	1	0211-0211					●
294	02.559 NUT M/T MZZ6U(RSF),M/T MYY6P(RSJ),M/T MYY5T(RSM) 04.785 (B) M10 FLANGE	0-91150-110-0	01	1	0212-0501	●	●	●	●	●	●
294	02.559 NUT 04.785 (B) M10 FLANGE	0-91150-110-0	01	1	0502-0506	●	●	●	●		●
294	02.559 NUT TRANSMISSION CONTROL-SMOOTHER(8GF) 04.785 (B) M10 FLANGE	0-91150-110-0	01	1	0507-0602	●	●	●	●	●
294	02.559 NUT 04.785 (B) M10 FLANGE	0-91150-110-0	01	1	0507-0602	●				●	●
294	02.559 NUT M/T MZZ6U(RSF),M/T MYY6P(RSJ),M/T MYY5T(RSM) 04.785 (B) M10 FLANGE	0-91150-110-0	01	1	0507-0602		●	●
294	02.559 NUT M/T MZZ6U(RSF),M/T MYY5T(RSM) 04.785 (B) M10 FLANGE	0-91150-110-0	01	1	0507-0602				●
294	02.559 NUT TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0603-	●	●	●	●	●
294	02.559 NUT 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0603-	●				●	●
294	02.559 NUT M/T MZZ6U(RSF),M/T MYY6P(RSJ),M/T MYY5T(RSM) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0603-		●	●
294	02.559 NUT M/T MZZ6U(RSF),M/T MYY5T(RSM) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0603-				●
294	02.559 NUT FLOOR REMOTE SHIFT<M11> 07.633 (C) M8 FLANGE	0-91150-108-0	02	1	0211-0501	●	●	●	●	●
294	02.559 NUT 07.633 (C) M8 FLANGE	0-91150-108-0	02	1	0211-0501						●
294	02.559 NUT 07.633 (C) M8 FLANGE	0-91150-108-0	02	1	0502-0506	●	●	●	●		●
294	02.559 NUT M/T MZZ6U(RSF),M/T MYY6P(RSJ),M/T MYY5T(RSM) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 07.633 (C) M8 FLANGE	0-91150-108-0	02	1	0507-0602	●	●	●	●	●	●
294	02.559 NUT M/T MZZ6U(RSF),M/T MYY6P(RSJ),M/T MYY5T(RSM) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 (C) M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●	●	●	●
294	02.559 NUT 04.594 (A) M6 FLANGE	0-91150-106-0	01	1	0502-0506	●	●	●	●		●
294	02.559 NUT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 04.594 (A) M6 FLANGE	0-91150-106-0	01	1	0502-0506		●	●	●
294	02.559 NUT 04.594 (A) M6 FLANGE	0-91150-106-0	01	1	0507-0602	●	●	●	●	●	●
294	02.559 NUT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HG1 ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 04.594 (A) M6 FLANGE	0-91150-106-0	01	1	0507-0602	●	●	●	●	●
294	02.559 NUT 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	0603-	●	●	●	●	●	●
294	02.559 NUT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HG1 ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	0603-	●	●	●	●	●
358	02.480 BOLT; EARTH 4HF1-S ENG(RLS) ENGINE POWER N-SPEC(7QV) 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0211-0403	●	●	●
377	02.559 BOLT; CAB EARTH AIR BAG DRIVER<AJ3> (A) M8X20 W/LK&PL WASHER	8-97086-825-0	02	1	0507-1004	●	●	●	●	●
377	02.559 BOLT; CAB EARTH AIR BAG DRIVER<AJ3> 02.343 (B) M8X18.5 W/PL WASHER	8-98141-255-0	02	1	1005-	●	●	●	●	●
377	02.559 BOLT; CAB EARTH (A) M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	0211-0501	●	●	●	●	●	●
377	02.559 BOLT; CAB EARTH (A) M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	0502-0506	●	●	●	●		●
377	02.559 BOLT; CAB EARTH EXC. AIR BAG DRIVER<AJ3> (A) M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	0507-1004	●	●	●	●	●
377	02.559 BOLT; CAB EARTH (A) M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	0507-1004						●
377	02.559 BOLT; CAB EARTH EXC. AIR BAG DRIVER<AJ3> 02.343 (B) M8X18.5 W/PL WASHER	8-98141-255-0	01	1	1005-	●	●	●	●	●
377	02.559 BOLT; CAB EARTH 02.343 (B) M8X18.5 W/PL WASHER	8-98141-255-0	01	1	1005-						●
386	02.559 BOLT; GRAND HARNESS 02.343 (A) M6X16 W/LK&PL WASHER	8-97086-823-0	01	1	0211-0501	●	●	●	●	●	●
386	02.559 BOLT; GRAND HARNESS (B) M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	0502-0506	●	●	●	●		●
386	02.559 BOLT; GRAND HARNESS (B) M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	0507-1004	●	●	●	●	●	●
386	02.559 BOLT; GRAND HARNESS 02.343 (C) M8X18.5 W/PL WASHER	8-98141-255-0	01	1	1005-	●	●	●	●	●	●
469	02.559 NUT; PROTECTOR 4HF1-S ENG(RLS),4HE1 ENG(RLY) 04.785 M10 FLANGE	0-91150-110-0	01	1	0211-0501	●	●	●	●
469	02.559 NUT; PROTECTOR 4HG1 ENG(RJH) EXC. TURBOCHARGER(K51),FRAME STRAIGHTTYPE<7KJ> 04.785 M10 FLANGE	0-91150-110-0	01	1	0211-0501		●	●	●
469	02.559 NUT; PROTECTOR 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> 04.785 M10 FLANGE	0-91150-110-0	01	1	0211-0501		●	●	●
469	02.559 NUT; PROTECTOR 04.785 M10 FLANGE	0-91150-110-0	01	1	0211-0501					●
469	02.559 NUT; PROTECTOR 04.785 M10 FLANGE	0-91150-110-0	01	1	0502-0506	●	●	●	●		●
469	02.559 NUT; PROTECTOR 04.785 M10 FLANGE	0-91150-110-0	01	1	0507-0507	●	●	●	●	●	●
469	02.559 NUT; PROTECTOR FRAME STRAIGHT TYPE<7KJ> 04.785 M10 FLANGE	0-91150-110-0	01	1	0507-0602	●	●	●	●	●
469	02.559 NUT; PROTECTOR 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 04.785 M10 FLANGE	0-91150-110-0	01	1	0507-0602	●	●	●	●
469	02.559 NUT; PROTECTOR FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE	0-91180-110-0	01	1	0603-	●	●	●	●	●
469	02.559 NUT; PROTECTOR 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE	0-91180-110-0	01	1	0603-	●	●	●	●
515	02.559 NUT; BRKT 4HF1-S ENG(RLS),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 04.594 (A) M6 FLANGE	0-91150-106-0	02	1	0211-0501	●
515	02.559 NUT; BRKT 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 04.594 (A) M6 FLANGE	0-91150-106-0	02	1	0211-0501		●	●	●
515	02.559 NUT; BRKT EXC. FRAME STRAIGHT TYPE<7KJ> 04.594 (A) M6 FLANGE	0-91150-106-0	02	1	0211-0501					●
515	02.559 NUT; BRKT 04.594 (A) M6 FLANGE	0-91150-106-0	02	1	0211-0501						●
515	02.559 NUT; BRKT 04.594 (A) M6 FLANGE	0-91150-106-0	02	1	0502-0506	●					●
515	02.559 NUT; BRKT EXC. FRAME STRAIGHT TYPE<7KJ> 04.594 (A) M6 FLANGE	0-91150-106-0	02	1	0502-0506		●	●	●
515	02.559 NUT; BRKT EXC. FRAME STRAIGHT TYPE<7KJ> 04.594 (A) M6 FLANGE	0-91150-106-0	02	1	0507-0602	●	●	●	●
515	02.559 NUT; BRKT 04.594 (A) M6 FLANGE	0-91150-106-0	02	1	0507-0602						●
515	02.559 NUT; BRKT EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M6 FLANGE	0-91180-106-0	02	1	0603-	●	●	●	●
515	02.559 NUT; BRKT 01.062 (A) M6 FLANGE	0-91180-106-0	02	1	0603-						●
515	02.559 NUT; BRKT 4HE1 ENG(RLY) M/T MZZ6U(RSF),M/T MYY6P(RSJ),M/T MYY5T(RSM) 07.633 (B) M8 FLANGE	0-91150-108-0	01	1	0211-0501	●	●	●	●	●
515	02.559 NUT; BRKT 4HG1 ENG(RJH),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 07.633 (B) M8 FLANGE	0-91150-108-0	01	1	0211-0501	●	●	●	●
515	02.559 NUT; BRKT 07.633 (B) M8 FLANGE	0-91150-108-0	01	1	0502-0502	●	●	●	●		●
515	02.559 NUT; BRKT 07.633 (B) M8 FLANGE	0-91150-108-0	01	1	0503-0506	●	●	●	●		●
515	02.559 NUT; BRKT FRAME STRAIGHT TYPE<7KJ> EXC. TOOL & STORAGE BOX<VK2> 07.633 (B) M8 FLANGE	0-91150-108-0	01	1	0503-0506		●	●	●
515	02.559 NUT; BRKT 07.633 (B) M8 FLANGE	0-91150-108-0	01	1	0507-0602	●				●	●
515	02.559 NUT; BRKT FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> 07.633 (B) M8 FLANGE	0-91150-108-0	01	1	0507-0602	●
515	02.559 NUT; BRKT EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 (B) M8 FLANGE	0-91150-108-0	01	1	0507-0602		●	●	●
515	02.559 NUT; BRKT FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) TOOL & STORAGE BOX<VK2> FRAME STRAIGHT TYPE<7KJ> 07.633 (B) M8 FLANGE	0-91150-108-0	01	1	0507-0602		●	●	●
515	02.559 NUT; BRKT FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. TOOL & STORAGE BOX<VK2> 07.633 (B) M8 FLANGE	0-91150-108-0	01	1	0507-0602		●	●	●
515	02.559 NUT; BRKT M/T MZZ6U(RSF),M/T MYY6P(RSJ),M/T MYY5T(RSM) FRAME STRAIGHT TYPE<7KJ> 07.633 (B) M8 FLANGE	0-91150-108-0	01	1	0507-0602		●	●
515	02.559 NUT; BRKT M/T MZZ6U(RSF),M/T MYY5T(RSM) FRAME STRAIGHT TYPE<7KJ> 07.633 (B) M8 FLANGE	0-91150-108-0	01	1	0507-0602				●
515	02.559 NUT; BRKT 07.633 (B) M8 FLANGE	0-91150-108-0	01	1	0507-0602					●
515	02.559 NUT; BRKT 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	0603-	●				●	●
515	02.559 NUT; BRKT FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	0603-	●
515	02.559 NUT; BRKT EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	0603-		●	●	●
515	02.559 NUT; BRKT FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) TOOL & STORAGE BOX<VK2> FRAME STRAIGHT TYPE<7KJ> 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	0603-		●	●	●
515	02.559 NUT; BRKT FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. TOOL & STORAGE BOX<VK2> 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	0603-		●	●	●
515	02.559 NUT; BRKT M/T MZZ6U(RSF),M/T MYY6P(RSJ),M/T MYY5T(RSM) FRAME STRAIGHT TYPE<7KJ> 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	0603-		●	●
515	02.559 NUT; BRKT M/T MZZ6U(RSF),M/T MYY5T(RSM) FRAME STRAIGHT TYPE<7KJ> 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	0603-				●
515	02.559 NUT; BRKT 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	0603-					●
515	02.559 NUT; BRKT FRAME STRAIGHT TYPE<7KJ> 04.785 (C) M10 FLANGE	0-91150-110-0	01	1	0502-0506		●	●	●
515	02.559 NUT; BRKT FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> 04.785 (C) M10 FLANGE	0-91150-110-0	01	1	0507-0602	●	●	●	●
515	02.559 NUT; BRKT 04.785 (C) M10 FLANGE	0-91150-110-0	01	1	0507-0602					●
515	02.559 NUT; BRKT FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	0603-	●	●	●	●
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	0603-					●
516	02.559 BOLT; HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE	0-28680-825-0	01	1	0507-0512	●	●	●	●
516	02.559 BOLT; HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●	●	●
516	02.559 BOLT; HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE	0-28680-825-0	01	1	0309-0501		●	●	●
519	02.559 NUT; EARTH CABLE 4HF1-S ENG(RLS),4HE1 ENG(RLY) 04.785 M10 FLANGE	0-91150-110-0	01	1	0211-0501	●
519	02.559 NUT; EARTH CABLE 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) 04.785 M10 FLANGE	0-91150-110-0	01	1	0211-0501		●	●	●
519	02.559 NUT; EARTH CABLE 04.785 M10 FLANGE	0-91150-110-0	01	1	0211-0501					●	●
519	02.559 NUT; EARTH CABLE 04.785 M10 FLANGE	0-91150-110-0	01	1	0502-0506	●	●	●	●		●
519	02.559 NUT; EARTH CABLE 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HG1 ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 04.785 M10 FLANGE	0-91150-110-0	01	1	0507-0602	●	●	●	●	●	●
519	02.559 NUT; EARTH CABLE 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HG1 ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 03.162 M10 FLANGE	0-91180-110-0	01	1	0603-	●	●	●	●	●	●
525	02.559 NUT; CLIP 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 04.785 M10 FLANGE	0-91150-110-0	01	1	0211-0501	●	●	●	●
525	02.559 NUT; CLIP CHARGE AIR COOLER<6PL> 04.785 M10 FLANGE	0-91150-110-0	01	1	0211-0501					●

511 180 510 510 178 512 312

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
178	02.559 GROMMET; HARNESS ID=47	8-94279-735-0	01	1	0211-0501	●	●	●	●	●	●
178	02.559 GROMMET; HARNESS ID=47	8-94279-735-0	01	1	0502-0506	●	●	●	●		●
178	02.559 GROMMET; HARNESS ID=47	8-94279-735-0	01	1	0507-	●	●	●	●	●	●
180	02.559 COVER; HARNESS	8-97856-130-4	02	1	0211-0501	●	●	●	●	●	●
180	02.559 COVER; HARNESS	8-97856-130-4	02	1	0502-0506	●	●	●	●		●
180	02.559 COVER; HARNESS	8-97856-130-4	02	1	0507-	●	●	●	●	●	●
312	02.559 BRACKET; CLIP HARNESS 4HF1-S ENG(RLS),4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (A)	8-97017-072-2	01	1	0211-0501	●
312	02.559 BRACKET; CLIP HARNESS 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (A)	8-97017-072-2	01	1	0211-0501		●	●	●
312	02.559 BRACKET; CLIP HARNESS FRAME STRAIGHT TYPE<7KJ> (A)	8-97017-072-2	01	1	0211-0501					●
312	02.559 BRACKET; CLIP HARNESS FRAME STRAIGHT TYPE<7KJ> (A)	8-97017-072-2	01	1	0502-0506		●	●	●
312	02.559 BRACKET; CLIP HARNESS FRAME STRAIGHT TYPE<7KJ> (A)	8-97017-072-2	01	1	0507-	●	●	●	●
312	02.559 BRACKET; CLIP HARNESS (A)	8-97017-072-2	01	1	0507-					●
312	02.559 BRACKET; CLIP HARNESS 4HF1-S ENG(RLS),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97357-050-0	01	1	0211-0501	●
312	02.559 BRACKET; CLIP HARNESS 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97357-050-0	01	1	0211-0501		●	●	●
312	02.559 BRACKET; CLIP HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97357-050-0	01	1	0211-0501					●
312	02.559 BRACKET; CLIP HARNESS (A)	8-97357-050-0	01	1	0211-0501						●
312	02.559 BRACKET; CLIP HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97357-050-0	01	1	0502-	●	●	●	●		●
312	02.559 BRACKET; CLIP HARNESS 4HF1-S ENG(RLS),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-97357-051-1	01	1	0211-0501	●
312	02.559 BRACKET; CLIP HARNESS 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-97357-051-1	01	1	0211-0501		●	●	●
312	02.559 BRACKET; CLIP HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-97357-051-1	01	1	0211-0501					●
312	02.559 BRACKET; CLIP HARNESS (B)	8-97357-051-1	01	1	0211-0501						●
312	02.559 BRACKET; CLIP HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-97357-051-1	01	1	0502-	●	●	●	●		●
510	02.559 GROMMET; SCREW 04.931 H=15	8-94463-268-1	04	1	0211-0501	●	●	●	●	●	●
510	02.559 GROMMET; SCREW 04.931 H=15	8-94463-268-1	04	1	0502-0506	●	●	●	●		●
510	02.559 GROMMET; SCREW 04.931 H=15	8-94463-268-1	04	1	0507-	●	●	●	●	●	●
511	02.559 SCREW; HARNESS COVER 08.845 M5X14 TAPPING W/PL WASHER	0-74110-514-0	04	1	0211-0501	●	●	●	●	●	●
511	02.559 SCREW; HARNESS COVER 08.845 M5X14 TAPPING W/PL WASHER	0-74110-514-0	04	1	0502-0506	●	●	●	●		●
511	02.559 SCREW; HARNESS COVER 08.845 M5X14 TAPPING W/PL WASHER	0-74110-514-0	04	1	0507-0604	●	●	●	●	●	●
511	02.559 SCREW; HARNESS COVER 16.800 M5X14 TAPPING W/PL WASHER	0-74160-514-0	04	1	0605-0702	●	●	●	●	●	●
511	02.559 SCREW; HARNESS COVER 04.681 T25 M5X12 TAPPING HEXALOBULAR	0-72180-512-0	04	1	0703-	●	●	●	●	●	●
512	02.559 PROTECTOR; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32>, AUSTRALIA EQUIPMENT(RR3)	8-97072-950-0	02	1	0211-0501	●	●	●	●	●	●
512	02.559 PROTECTOR; HARNESS POWER WINDOW FRT DOOR<A32> EXC. AUSTRALIA EQUIPMENT(RR3)	8-97072-950-0	02	1	0211-0501	●	●	●	●	●	●
512	02.559 PROTECTOR; HARNESS ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32>,AUSTRALIA EQUIPMENT(RR3),RADIO AM/FM STEREO 2 SPEAKERS(6GZ) ,RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL)	8-97072-950-0	02	1	0211-0501	●	●	●	●	●	●
512	02.559 PROTECTOR; HARNESS RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32>,AUSTRALIA EQUIPMENT(RR3)	8-97072-950-0	02	1	0211-0501	●	●	●	●	●	●
512	02.559 PROTECTOR; HARNESS AUSTRALIA EQUIPMENT(RR3)	8-97072-950-0	02	1	0211-0501	●	●	●	●	●
512	02.559 PROTECTOR; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32>	8-97072-950-0	02	1	0502-0506	●	●	●	●		●
512	02.559 PROTECTOR; HARNESS POWER WINDOW FRT DOOR<A32>	8-97072-950-0	02	1	0502-0506	●	●	●	●		●
512	02.559 PROTECTOR; HARNESS ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32>,RADIO AM/FM STEREO 2 S PEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2SPEAKERS(6VL)	8-97072-950-0	02	1	0502-0506	●	●	●	●		●
512	02.559 PROTECTOR; HARNESS RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32>	8-97072-950-0	02	1	0502-0506	●	●	●	●
512	02.559 PROTECTOR; HARNESS AUSTRALIA EQUIPMENT(RR3)	8-97072-950-0	02	1	0507-	●	●	●	●	●
512	02.559 PROTECTOR; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32>, AUSTRALIA EQUIPMENT(RR3)	8-97072-950-0	02	1	0507-	●	●	●	●		●
512	02.559 PROTECTOR; HARNESS POWER WINDOW FRT DOOR<A32> EXC. AUSTRALIA EQUIPMENT(RR3)	8-97072-950-0	02	1	0507-	●	●	●	●		●
512	02.559 PROTECTOR; HARNESS ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32>,AUSTRALIA EQUIPMENT(RR3),RADIO AM/FM STEREO 2 SPEAKERS(6GZ) ,RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL)	8-97072-950-0	02	1	0507-	●	●	●	●		●
512	02.559 PROTECTOR; HARNESS RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32>,AUSTRALIA EQUIPMENT(RR3)	8-97072-950-0	02	1	0507-	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
