◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50948 - NPR/NQR RHDEXC.EURO4 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#18342) — 1082 parça

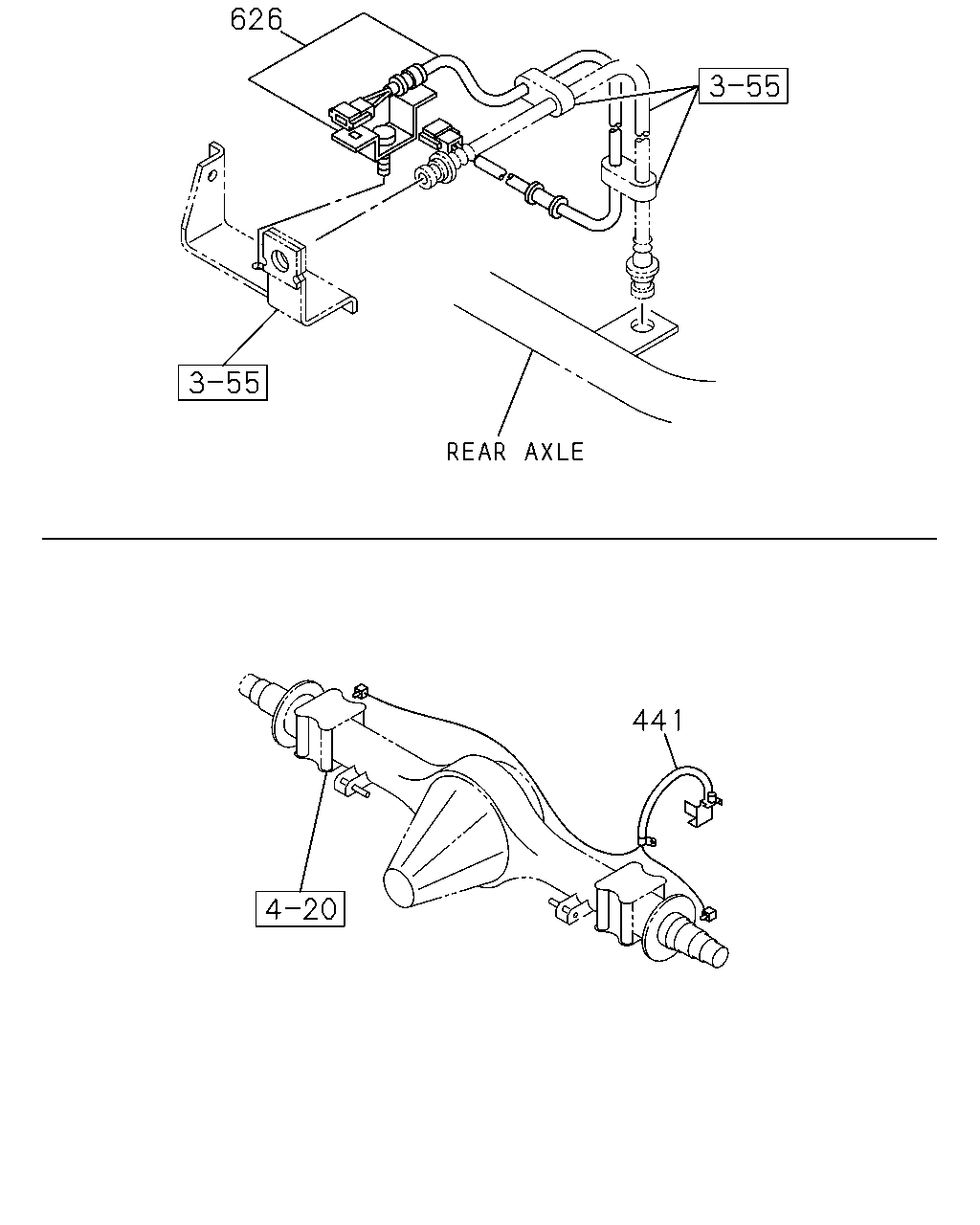

çizim 12967
626 441
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
441 02.480 HARNESS; CABLE,SPEED SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97308-225-4 01 1 0507- ● ● ● ●
441 02.480 HARNESS; CABLE,SPEED SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97308-225-4 01 1 0309-0501 ● ● ●
626 02.480 HARNESS; FLEX HOSE
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 		8-97253-968-1 01 1 0507- ● ● ● ●
626 02.480 HARNESS; FLEX HOSE 8-97253-968-1 01 1 0507- ●
626 02.480 HARNESS; FLEX HOSE
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 		8-97253-969-1 01 1 0507- ● ● ● ●
626 02.480 HARNESS; FLEX HOSE 8-97253-969-1 01 1 0507- ●
626 02.480 HARNESS; FLEX HOSE
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 		8-97253-968-1 01 1 0309-0501 ● ● ●
626 02.480 HARNESS; FLEX HOSE
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 		8-97253-969-1 01 1 0309-0501 ● ● ●

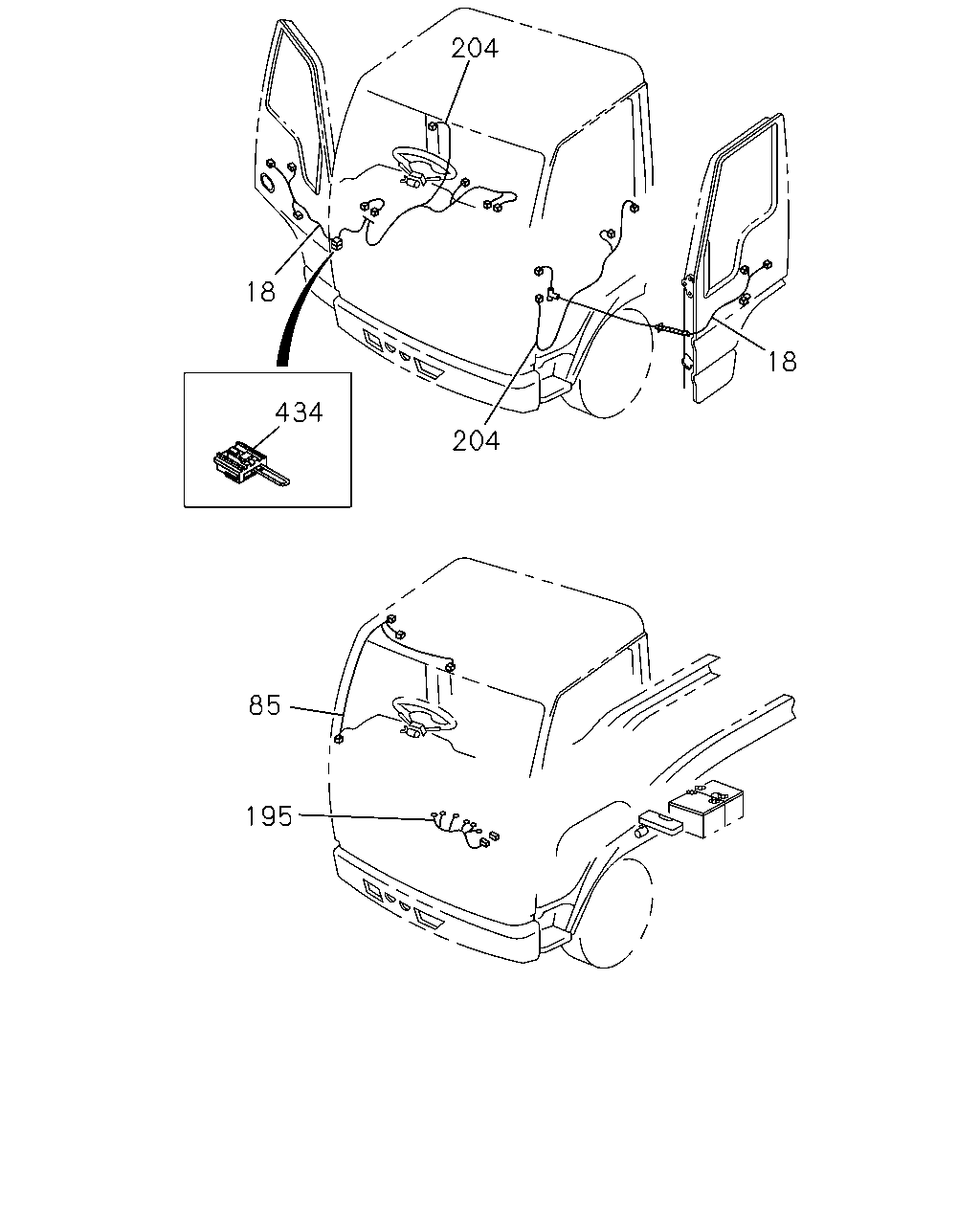

çizim 51050
204 18 18 434 204 85 195
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> EXC. AUTO DOOR LOCK<AU4> FRONT DOOR 		8-97226-669-0 01 1 1011-1405 ● ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97226-669-0 01 1 1406- ● ● ● ● ●
18 02.480 HARNESS; DOOR
FRONT DOOR 		8-97226-669-0 01 1 1406- ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32>,RADIO AM/FM STEREO 2 S PEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2SPEAKERS(6VL) FRONT DOOR 		8-97226-671-1 01 1 1011-1405 ● ● ● ●
18 02.480 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32> FRONT DOOR 		8-97226-671-1 01 1 1011-1405 ● ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32> FRONT DOOR 		8-97226-671-1 01 1 1011-1405 ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97226-671-1 01 1 1406- ● ● ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32>,RADIO AM/FM STEREO 2 S PEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2SPEAKERS(6VL) FRONT DOOR 		8-97226-671-1 01 1 1406- ● ● ● ●
18 02.480 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32> FRONT DOOR 		8-97226-671-1 01 1 1406- ● ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32> FRONT DOOR 		8-97226-671-1 01 1 1406- ●
18 02.480 HARNESS; DOOR
AUSTRALIA EQUIPMENT(RR3) REMOTE CONT DOOR LOCK<6NF> FRONT DOOR 		8-97312-148-0 01 1 0507- ● ● ● ●
18 02.480 HARNESS; DOOR
FRONT DOOR 		8-97312-148-0 01 1 0507- ●
18 02.480 HARNESS; DOOR
REAR DOOR 		8-97075-738-2 02 1 0507- ●
18 02.480 HARNESS; DOOR
AUSTRALIA EQUIPMENT(RR3) REMOTE CONT DOOR LOCK<6NF> FRONT DOOR 		8-97312-148-0 01 1 0211-0404 ● ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> REMOTE CONT DOOR LOCK<6NF> FRONT DOOR 		8-97312-148-0 01 1 0405-0501 ● ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> EXC. AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97185-142-1 01 1 0211-0404 ● ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> AUSTRALIA EQUIPMENT(RR3) EXC. REMOTE CONT DOOR LOCK<6NF> FRONT DOOR 		8-97185-142-1 01 1 0211-0404 ● ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97185-142-1 01 1 0211-0404 ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> EXC. REMOTE CONT DOOR LOCK<6NF> FRONT DOOR 		8-97185-142-1 01 1 0405-0501 ● ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97185-142-1 01 1 0405-0501 ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97185-142-1 01 1 0502-0506 ● ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> EXC. AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97185-142-1 01 1 0507- ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> AUSTRALIA EQUIPMENT(RR3) EXC. REMOTE CONT DOOR LOCK<6NF> FRONT DOOR 		8-97185-142-1 01 1 0507- ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97185-142-1 01 1 0507- ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97226-671-1 01 1 0211-0501 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32>,RADIO AM/FM STEREO 2 S PEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2SPEAKERS(6VL) FRONT DOOR 		8-97226-671-1 01 1 0211-0501 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32> FRONT DOOR 		8-97226-671-1 01 1 0211-0501 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97226-671-1 01 1 0502-1009 ● ● ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32>,RADIO AM/FM STEREO 2 S PEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2SPEAKERS(6VL) FRONT DOOR 		8-97226-671-1 01 1 0502-1009 ● ● ● ●
18 02.480 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32> FRONT DOOR 		8-97226-671-1 01 1 0502-1009 ● ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32> FRONT DOOR 		8-97226-671-1 01 1 0502-1009 ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-98166-819-0 01 1 1010-1010 ● ● ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32>,RADIO AM/FM STEREO 2 S PEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2SPEAKERS(6VL) FRONT DOOR 		8-98166-819-0 01 1 1010-1010 ● ● ● ●
18 02.480 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32> FRONT DOOR 		8-98166-819-0 01 1 1010-1010 ● ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32> FRONT DOOR 		8-98166-819-0 01 1 1010-1010 ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-98166-819-0 01 1 1011-1405 ● ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97105-571-1 01 1 0211-0501 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32>,RADIO AM/FM STEREO 2 S PEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2SPEAKERS(6VL) FRONT DOOR 		8-97105-571-1 01 1 0211-0501 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32> FRONT DOOR 		8-97105-571-1 01 1 0211-0501 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97105-571-1 01 1 0502- ● ● ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32>,RADIO AM/FM STEREO 2 S PEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2SPEAKERS(6VL) FRONT DOOR 		8-97105-571-1 01 1 0502- ● ● ● ●
18 02.480 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32> FRONT DOOR 		8-97105-571-1 01 1 0502- ● ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32> FRONT DOOR 		8-97105-571-1 01 1 0502- ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97226-669-0 01 1 0211-0501 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97226-669-0 01 1 0502-0506 ● ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97226-669-0 01 1 0507-1009 ● ● ● ● ●
18 02.480 HARNESS; DOOR
FRONT DOOR 		8-97226-669-0 01 1 0507-1009 ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-98166-820-0 01 1 1010-1010 ● ● ● ● ●
18 02.480 HARNESS; DOOR
FRONT DOOR 		8-98166-820-0 01 1 1010-1010 ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-98166-820-0 01 1 1011-1405 ● ● ● ● ●
18 02.480 HARNESS; DOOR
FRONT DOOR 		8-98166-820-0 01 1 1011-1405 ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> REAR DOOR 		8-97075-738-2 02 1 0211-0501 ●
85 06.495 HARNESS; ROOM LAMP
AUSTRALIA EQUIPMENT(RR3) 		8-97364-161-0 01 1 0507- ● ● ● ●
85 06.495 HARNESS; ROOM LAMP 8-97364-163-0 01 1 0507- ●
85 06.495 HARNESS; ROOM LAMP
AUSTRALIA EQUIPMENT(RR3) 		8-97307-518-0 01 1 0211-0302 ● ● ● ●
85 06.495 HARNESS; ROOM LAMP
AUSTRALIA EQUIPMENT(RR3) 		8-97364-161-0 01 1 0303-0501 ● ● ● ●
85 06.495 HARNESS; ROOM LAMP
EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97164-611-2 01 1 0211-0302 ● ● ● ●
85 06.495 HARNESS; ROOM LAMP 8-97164-611-2 01 1 0211-0302 ●
85 06.495 HARNESS; ROOM LAMP
EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97364-159-0 01 1 0303-0501 ● ● ● ●
85 06.495 HARNESS; ROOM LAMP 8-97364-159-0 01 1 0303-0501 ●
85 06.495 HARNESS; ROOM LAMP 8-97364-159-0 01 1 0502-0506 ● ● ● ● ●
85 06.495 HARNESS; ROOM LAMP
EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97364-159-0 01 1 0507- ● ● ● ●
85 06.495 HARNESS; ROOM LAMP 8-97364-159-0 01 1 0507- ●
85 06.495 HARNESS; ROOM LAMP
AUSTRALIA EQUIPMENT(RR3) 		8-97312-297-0 01 1 0211-0302 ●
85 06.495 HARNESS; ROOM LAMP
AUSTRALIA EQUIPMENT(RR3) 		8-97364-163-0 01 1 0303-0501 ●
85 06.495 HARNESS; ROOM LAMP
EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97162-627-3 01 1 0211-0302 ●
85 06.495 HARNESS; ROOM LAMP
EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97364-156-0 01 1 0303-0501 ●
195 01.150 HARNESS; EXT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION(NT2) 		8-97306-681-0 01 1 0211-0501 ● ● ● ● ●
195 01.150 HARNESS; EXT
4HE1 ENG(RLY) EURO2 SPECIFICATION(NT2) CHARGE AIR COOLER<6PL> 		8-97172-039-3 01 1 0211-0501 ● ● ●
204 02.559 HARNESS; CABLE,FLOOR
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97373-874-2 01 1 0507- ● ● ● ●
204 02.559 HARNESS; CABLE,FLOOR
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97373-875-2 01 1 0507- ●
204 02.559 HARNESS; CABLE,FLOOR 8-97364-146-0 01 1 0507- ●
204 02.559 HARNESS; CABLE,FLOOR
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97364-143-0 01 1 0507- ●
204 02.559 HARNESS; CABLE,FLOOR
H.S.A SYSTEM<6EP> 		8-97364-145-0 01 1 0507- ● ● ● ●
204 02.559 HARNESS; CABLE,FLOOR
ROOM LAMP W/ALL DOORS SW(SDF) EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97364-145-0 01 1 0507- ● ● ● ●
204 02.559 HARNESS; CABLE,FLOOR
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. H.S.A SYSTEM<6EP> 		8-97364-145-0 01 1 0507- ● ● ● ●
204 02.559 HARNESS; CABLE,FLOOR
FLOOR REMOTE SHIFT<M11> 		8-97162-629-2 01 1 0211-0302 ● ● ● ●
204 02.559 HARNESS; CABLE,FLOOR 8-97162-629-2 01 1 0211-0302 ●
204 02.559 HARNESS; CABLE,FLOOR
FLOOR REMOTE SHIFT<M11> 		8-97364-140-0 01 1 0303-0501 ● ● ● ●
204 02.559 HARNESS; CABLE,FLOOR 8-97364-140-0 01 1 0303-0501 ●
204 02.559 HARNESS; CABLE,FLOOR
ROOM LAMP W/ALL DOORS SW(SDF) 		8-97162-631-2 01 1 0211-0302 ● ● ● ●
204 02.559 HARNESS; CABLE,FLOOR
ROOM LAMP W/ALL DOORS SW(SDF) 		8-97364-145-0 01 1 0303-0404 ● ● ● ●
204 02.559 HARNESS; CABLE,FLOOR
ROOM LAMP W/ALL DOORS SW(SDF) 		8-97364-145-0 01 1 0405-0501 ●
204 02.559 HARNESS; CABLE,FLOOR
NEW ZEALAND EQUIPMENT(PK5) REMOTE CONT DOOR LOCK<6NF> 		8-97364-145-0 01 1 0405-0501 ● ● ●
204 02.559 HARNESS; CABLE,FLOOR
ROOM LAMP W/ALL DOORS SW(SDF) EXC. NEW ZEALAND EQUIPMENT(PK5) 		8-97364-145-0 01 1 0405-0501 ● ● ●
204 02.559 HARNESS; CABLE,FLOOR
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) 		8-97162-625-3 01 1 0211-0302 ● ●
204 02.559 HARNESS; CABLE,FLOOR
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) 		8-97364-142-0 01 1 0303-0501 ● ●
204 02.559 HARNESS; CABLE,FLOOR 8-97364-140-0 01 1 0502-0506 ● ● ● ● ●
204 02.559 HARNESS; CABLE,FLOOR
M/T MZZ6U(RSF),M/T MYY6P(RSJ),M/T MYY5T(RSM) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97364-140-0 01 1 0507- ● ● ● ● ●
204 02.559 HARNESS; CABLE,FLOOR 8-97162-632-2 01 1 0211-0302 ●
204 02.559 HARNESS; CABLE,FLOOR 8-97364-146-0 01 1 0303-0501 ●
204 02.559 HARNESS; CABLE,FLOOR
FLOOR REMOTE SHIFT<M11> 		8-97162-626-4 01 1 0211-0302 ●
204 02.559 HARNESS; CABLE,FLOOR
FLOOR REMOTE SHIFT<M11> 		8-97364-143-0 01 1 0303-0501 ●
434 02.559 CONNECTOR; SHORT CIRCUIT
4HK1-TCN ENG(RDQ) 		8-97388-448-0 01 1 0507- ●
434 02.559 CONNECTOR; SHORT CIRCUIT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97388-448-0 01 1 0507- ● ● ●
434 02.559 CONNECTOR; SHORT CIRCUIT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER<7QQ> 		8-97388-449-0 01 1 0507- ● ● ●
434 02.559 CONNECTOR; SHORT CIRCUIT 8-97388-449-0 01 1 0507- ●
434 02.559 CONNECTOR; SHORT CIRCUIT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) 		8-97140-182-0 01 1 0211-0501 ● ● ● ●

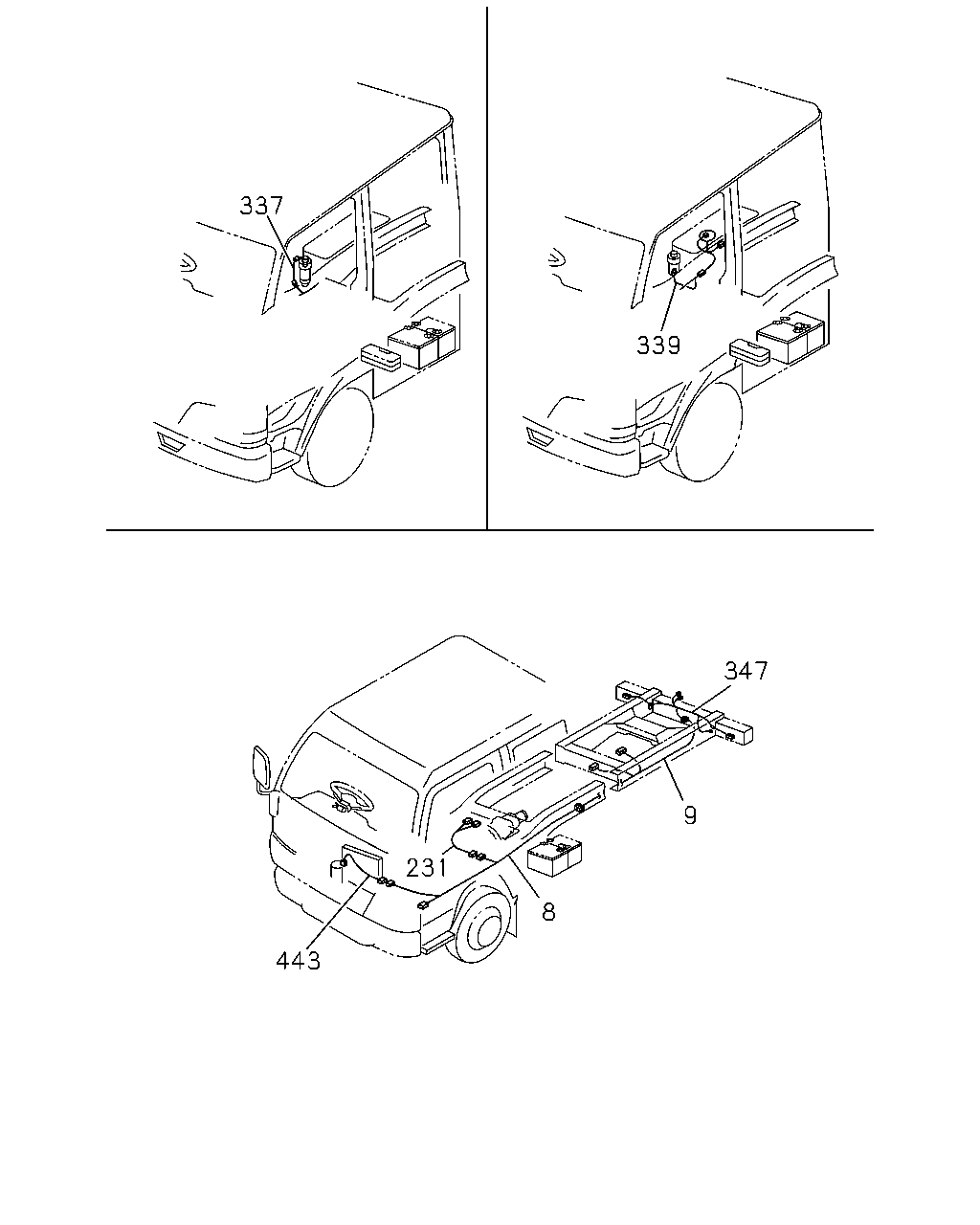

çizim 51532
337 339 347 9 231 8 443
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98010-898-3 01 1 0507-0610 ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98062-149-0 01 1 0611- ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98010-897-3 01 1 0507-0610 ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98062-147-0 01 1 0611- ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98010-896-3 01 1 0507-0610 ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98062-146-0 01 1 0611- ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98010-900-3 01 1 0507-0610 ●
8 02.480 HARNESS; FRAME,FRT
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98062-150-0 01 1 0611- ●
8 02.480 HARNESS; FRAME,FRT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98010-899-3 01 1 0507-0610 ●
8 02.480 HARNESS; FRAME,FRT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98062-148-0 01 1 0611- ●
8 02.480 HARNESS; FRAME,FRT
4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> DUMP CHASSIS(V4D) EXC. TURBOCHARGER(K51) 		8-97350-632-2 01 1 0211-0501 ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97377-013-1 01 1 0502-0506 ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME STRAIGHT TYPE<7KJ> 		8-97377-013-1 01 1 0507- ● ● ● ●

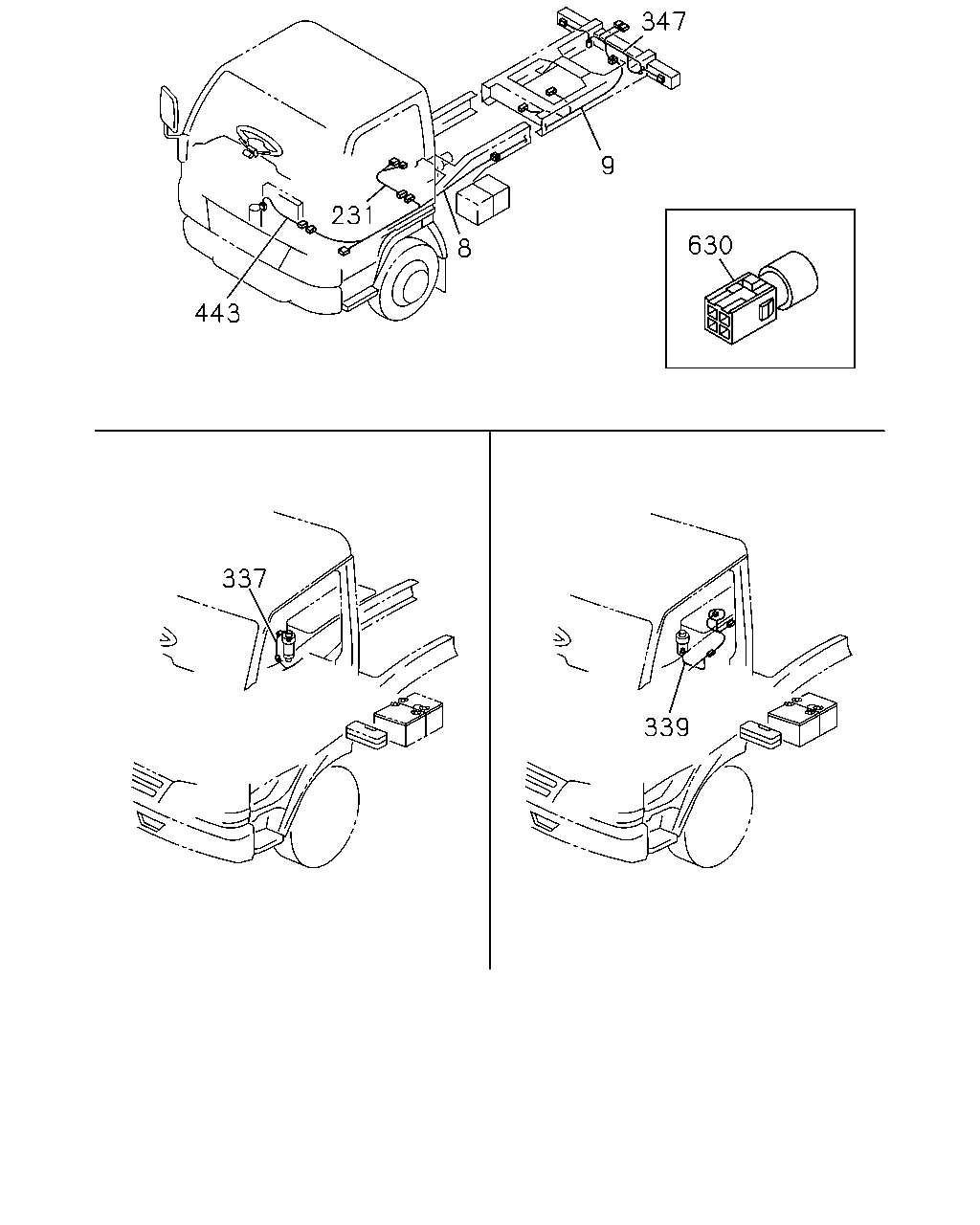

8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) CHARGE AIR COOLER<6PL> EXC. VEHICLE CATEGORY NQR<7NQ> 		8-97357-071-1 01 1 0211-0501 ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. TURBOCHARGER(K51) 		8-97350-637-1 01 1 0211-0501 ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HG1-T ENG(RDP) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98000-755-0 01 1 0502-0506 ●
8 02.480 HARNESS; FRAME,FRT 8-98000-755-0 01 1 0502-0506 ●
8 02.480 HARNESS; FRAME,FRT
4HG1-T ENG(RDP) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME STRAIGHT TYPE<7KJ> 		8-98000-755-0 01 1 0507- ●
8 02.480 HARNESS; FRAME,FRT 8-98000-755-0 01 1 0507- ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TURBOCHARGER(K51),DUMP CHASSIS(V4D),FRAME STRAIGHT TYPE<7KJ> 		8-97350-633-2 01 1 0211-0501 ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 		8-97377-016-2 01 1 0502-0506 ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97377-016-2 01 1 0507- ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> EXC. AUSTRALIA EQUIPMENT(RR3), VEHICLECATEGORY NQR<7NQ> 		8-97350-650-2 01 1 0211-0501 ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) TURBOCHARGER(K51) AUSTRALIA EQUIPMENT(RR3) FRAME STRAIGHT TYPE<7KJ> 		8-97357-072-1 01 1 0211-0501 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) SINGAPORE EQUIPMENT(S9Y) CHARGE AIR COOLER<6PL> EXC. VEHICLE CATEGORY NQR<7NQ> 		8-97350-651-2 01 1 0211-0501 ● ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) CHARGE AIR COOLER<6PL> VEHICLE CATEGORY NQR<7NQ> 		8-97357-073-1 01 1 0211-0501 ● ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH) TURBOCHARGER(K51) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97350-626-3 01 1 0211-0501 ● ●
8 02.480 HARNESS; FRAME,FRT 8-97350-626-3 01 1 0211-0501 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) CHARGE AIR COOLER<6PL> VEHICLE CATEGORY NQR<7NQ> 		8-97357-075-1 01 1 0211-0501 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MZZ6U(RSF) VEHICLE CATEGORY NQR<7NQ> EXC. CHARGE AIR COOLER<6PL> 		8-97359-700-2 01 1 0211-0501 ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. TURBOCHARGER(K51) 		8-97350-640-1 01 1 0211-0501 ●
8 02.480 HARNESS; FRAME,FRT
FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) CHARGE AIR COOLER<6PL> 		8-97357-074-1 01 1 0211-0501 ●
9 02.480 HARNESS; FRAME,RR
4HG1 ENG(RJH),4HF1-S ENG(RLS) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 		8-98069-017-0 01 1 0612- ●
9 02.480 HARNESS; FRAME,RR
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97377-063-1 01 1 0507- ●
9 02.480 HARNESS; FRAME,RR
4HK1-TCN ENG(RDQ) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 		8-98000-799-1 01 1 0507- ●
9 02.480 HARNESS; FRAME,RR
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 		8-97377-069-1 01 1 0507- ●
9 02.480 HARNESS; FRAME,RR
FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97377-065-1 01 1 0507- ●
9 02.480 HARNESS; FRAME,RR
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97377-064-1 01 1 0507- ●
9 02.480 HARNESS; FRAME,RR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 		8-98000-800-1 01 1 0507- ●
9 02.480 HARNESS; FRAME,RR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 		8-98000-801-1 01 1 0507- ●
9 02.480 HARNESS; FRAME,RR
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 		8-98000-797-1 01 1 0507- ●
9 02.480 HARNESS; FRAME,RR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 		8-98000-802-1 01 1 0507- ●
9 02.480 HARNESS; FRAME,RR 8-98000-804-2 01 1 0507- ●
9 02.480 HARNESS; FRAME,RR 8-97377-060-1 01 1 0502-0506 ●
9 02.480 HARNESS; FRAME,RR
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME STRAIGHT TYPE<7KJ> 		8-97377-060-1 01 1 0507- ●
9 02.480 HARNESS; FRAME,RR
FRAME STRAIGHT TYPE<7KJ> 		8-97377-066-1 01 1 0502-0506 ●
9 02.480 HARNESS; FRAME,RR
FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97377-066-1 01 1 0507- ●
9 02.480 HARNESS; FRAME,RR
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97377-061-1 01 1 0502-0506 ●
9 02.480 HARNESS; FRAME,RR 8-97377-061-1 01 1 0502-0506 ●
9 02.480 HARNESS; FRAME,RR
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME STRAIGHT TYPE<7KJ> 		8-97377-061-1 01 1 0507- ●
9 02.480 HARNESS; FRAME,RR 8-97377-061-1 01 1 0507- ●
9 02.480 HARNESS; FRAME,RR
FRAME STRAIGHT TYPE<7KJ> 		8-97377-067-1 01 1 0502-0506 ●
9 02.480 HARNESS; FRAME,RR
FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97377-067-1 01 1 0507- ●
9 02.480 HARNESS; FRAME,RR
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97377-062-1 01 1 0502-0506 ●
9 02.480 HARNESS; FRAME,RR
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME STRAIGHT TYPE<7KJ> 		8-97377-062-1 01 1 0507- ●
9 02.480 HARNESS; FRAME,RR
FRAME STRAIGHT TYPE<7KJ> 		8-97377-068-1 01 1 0502-0506 ●
9 02.480 HARNESS; FRAME,RR
FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97377-068-1 01 1 0507- ●
231 02.480 HARNESS; TRANS
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97373-511-2 01 1 0507- ● ● ● ● ●
337 02.530 HARNESS; EXT,HTR
FUEL SEDIMENTER WITH HEATER<6HU> 		8-97261-149-0 01 1 0211-0501 ● ● ● ●
337 02.530 HARNESS; EXT,HTR
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> 		8-97261-149-0 01 1 0502- ● ● ● ●
339 02.530 HARNESS; EXT,FUEL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FUEL TANK 125L,33GAL<NL7> 		8-98012-979-0 01 1 0507- ● ● ● ● ●
339 02.530 HARNESS; EXT,FUEL
02.480 		8-94318-759-0 01 1 0211-0501 ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. DUMP CHASSIS(V4D) 		8-97213-568-0 01 1 0211-0302 ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. RR BODY FLAT BED(RS6) 		8-97213-568-0 01 1 0211-0302 ● ●
347 02.480 HARNESS; CABLE,RR BODY 8-97213-568-0 01 1 0211-0302 ● ● ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. DUMP CHASSIS(V4D) 		8-97364-152-0 01 1 0303-0501 ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. RR BODY FLAT BED(RS6) 		8-97364-152-0 01 1 0303-0501 ● ●
347 02.480 HARNESS; CABLE,RR BODY 8-97364-152-0 01 1 0303-0501 ● ● ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. DUMP CHASSIS(V4D) 		8-97364-152-0 01 1 0502-0503 ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. RR BODY FLAT BED(RS6) 		8-97364-152-0 01 1 0502-0503 ● ●
347 02.480 HARNESS; CABLE,RR BODY 8-97364-152-0 01 1 0502-0503 ● ●
347 02.480 HARNESS; CABLE,RR BODY 8-97364-152-0 01 1 0504-0506 ● ● ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. RR BODY FLAT BED(RS6) 		8-97364-152-0 01 1 0504-0506 ● ●
347 02.480 HARNESS; CABLE,RR BODY 8-97364-152-0 01 1 0507- ● ● ● ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. RR BODY FLAT BED(RS6) 		8-97364-152-0 01 1 0507- ● ●
347 02.480 HARNESS; CABLE,RR BODY
RR BODY FLAT BED(RS6) 		8-97213-566-0 01 1 0211-0302 ● ●
347 02.480 HARNESS; CABLE,RR BODY
RR BODY FLAT BED(RS6) 		8-97364-151-0 01 1 0303- ● ●
443 02.480 HARNESS; EXT,A/C
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 		8-98012-984-1 01 1 0507- ● ● ● ● ●

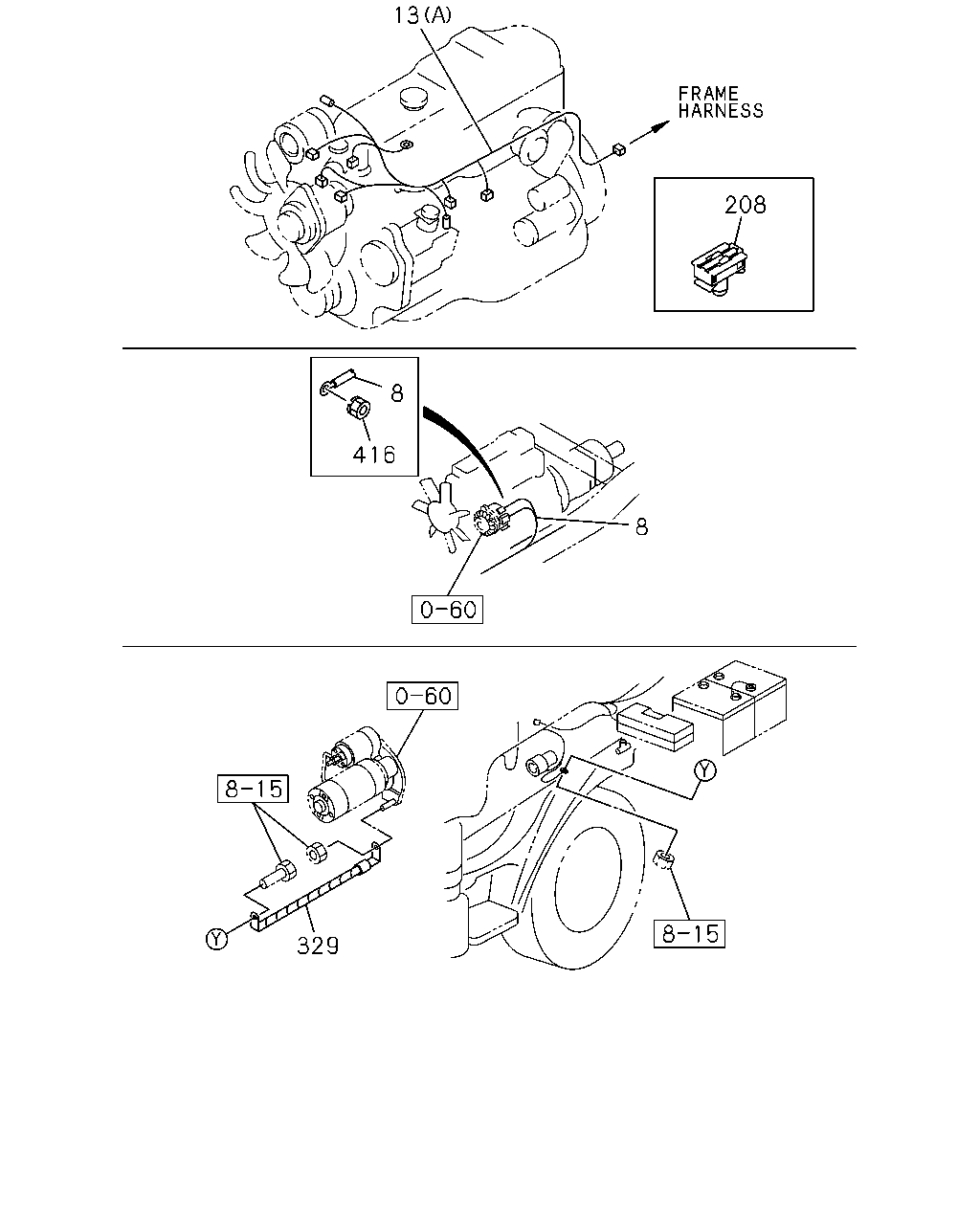

çizim 51599
13 208 8 416 8 329
BalonParca AdiParca NoAdetTipApplied Date A B C D E F

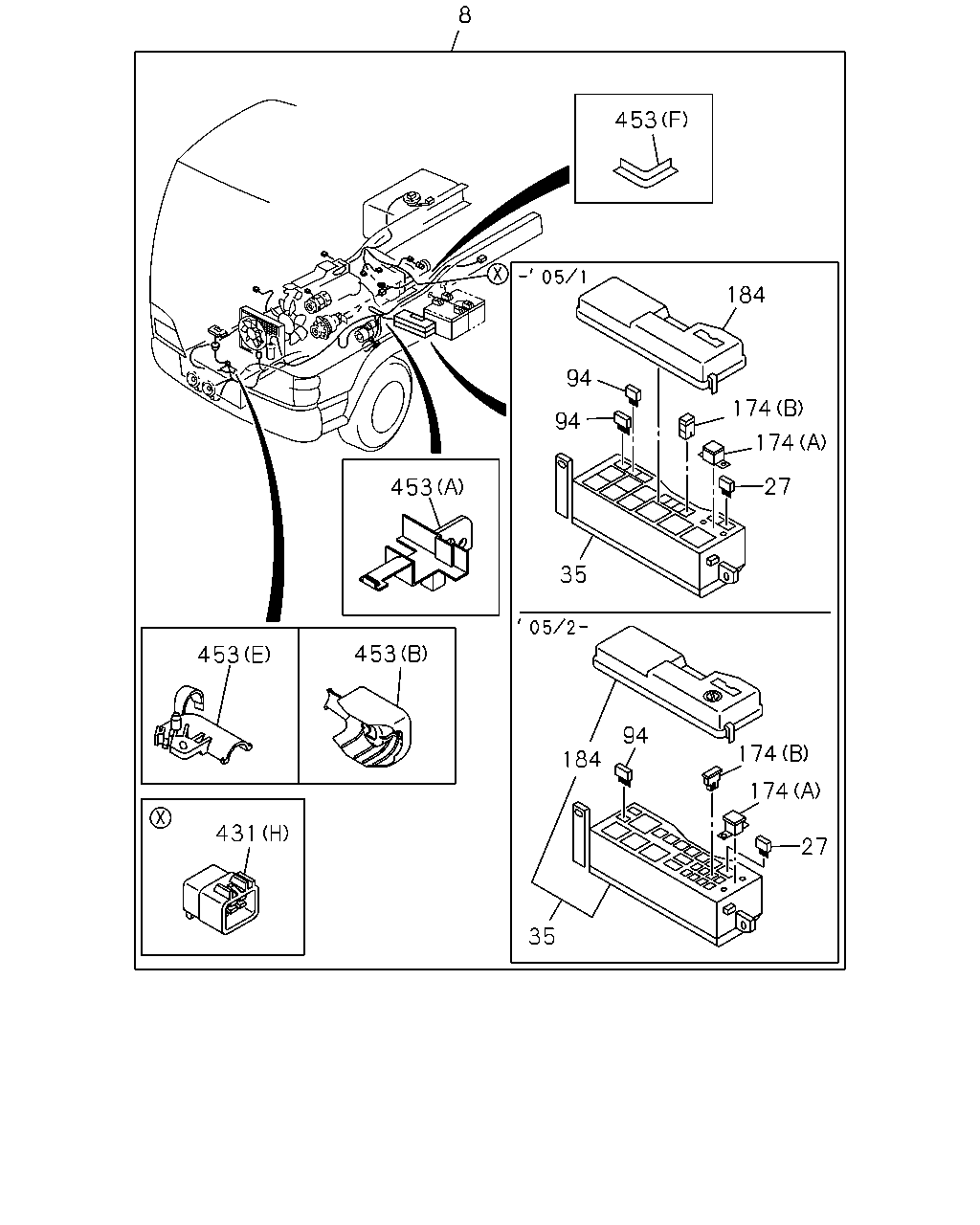

8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98010-898-3 01 1 0507-0610 ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98062-149-0 01 1 0611- ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98010-897-3 01 1 0507-0610 ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98062-147-0 01 1 0611- ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98010-896-3 01 1 0507-0610 ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98062-146-0 01 1 0611- ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98010-900-3 01 1 0507-0610 ●
8 02.480 HARNESS; FRAME,FRT
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98062-150-0 01 1 0611- ●
8 02.480 HARNESS; FRAME,FRT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98010-899-3 01 1 0507-0610 ●
8 02.480 HARNESS; FRAME,FRT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98062-148-0 01 1 0611- ●
8 02.480 HARNESS; FRAME,FRT
4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> DUMP CHASSIS(V4D) EXC. TURBOCHARGER(K51) 		8-97350-632-2 01 1 0211-0501 ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97377-013-1 01 1 0502-0506 ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME STRAIGHT TYPE<7KJ> 		8-97377-013-1 01 1 0507- ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) CHARGE AIR COOLER<6PL> EXC. VEHICLE CATEGORY NQR<7NQ> 		8-97357-071-1 01 1 0211-0501 ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. TURBOCHARGER(K51) 		8-97350-637-1 01 1 0211-0501 ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HG1-T ENG(RDP) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98000-755-0 01 1 0502-0506 ●
8 02.480 HARNESS; FRAME,FRT 8-98000-755-0 01 1 0502-0506 ●
8 02.480 HARNESS; FRAME,FRT
4HG1-T ENG(RDP) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME STRAIGHT TYPE<7KJ> 		8-98000-755-0 01 1 0507- ●
8 02.480 HARNESS; FRAME,FRT 8-98000-755-0 01 1 0507- ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TURBOCHARGER(K51),DUMP CHASSIS(V4D),FRAME STRAIGHT TYPE<7KJ> 		8-97350-633-2 01 1 0211-0501 ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 		8-97377-016-2 01 1 0502-0506 ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97377-016-2 01 1 0507- ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> EXC. AUSTRALIA EQUIPMENT(RR3), VEHICLECATEGORY NQR<7NQ> 		8-97350-650-2 01 1 0211-0501 ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) TURBOCHARGER(K51) AUSTRALIA EQUIPMENT(RR3) FRAME STRAIGHT TYPE<7KJ> 		8-97357-072-1 01 1 0211-0501 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) SINGAPORE EQUIPMENT(S9Y) CHARGE AIR COOLER<6PL> EXC. VEHICLE CATEGORY NQR<7NQ> 		8-97350-651-2 01 1 0211-0501 ● ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) CHARGE AIR COOLER<6PL> VEHICLE CATEGORY NQR<7NQ> 		8-97357-073-1 01 1 0211-0501 ● ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH) TURBOCHARGER(K51) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97350-626-3 01 1 0211-0501 ● ●
8 02.480 HARNESS; FRAME,FRT 8-97350-626-3 01 1 0211-0501 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) CHARGE AIR COOLER<6PL> VEHICLE CATEGORY NQR<7NQ> 		8-97357-075-1 01 1 0211-0501 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MZZ6U(RSF) VEHICLE CATEGORY NQR<7NQ> EXC. CHARGE AIR COOLER<6PL> 		8-97359-700-2 01 1 0211-0501 ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. TURBOCHARGER(K51) 		8-97350-640-1 01 1 0211-0501 ●
8 02.480 HARNESS; FRAME,FRT
FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) CHARGE AIR COOLER<6PL> 		8-97357-074-1 01 1 0211-0501 ●
13 02.525 HARNESS; ENG
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (A) 		8-98020-041-0 01 1 0507-0509 ● ● ● ● ●
13 02.525 HARNESS; ENG
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (A) 		8-98023-708-0 01 1 0510- ● ● ● ● ●
13 02.525 HARNESS; ENG
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B) 		8-97332-133-3 01 1 0507- ● ● ● ● ●
13 02.525 HARNESS; ENG
4HF1-S ENG(RLS) ENGINE POWER N-SPEC(7QV) (A) 		8-97356-991-0 01 1 0303-0501 ● ● ●
13 02.525 HARNESS; ENG
4HF1-N ENG(RJZ) (A) 		8-97356-991-0 01 1 0502- ● ● ●
13 02.525 HARNESS; ENG
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> (A) 		8-97356-988-0 01 1 0211-0211 ● ● ● ● ●
13 02.525 HARNESS; ENG
4HF1-S ENG(RLS) (A) 		8-97356-988-0 01 1 0211-0211 ● ● ● ●
13 02.525 HARNESS; ENG
4HG1 ENG(RJH) EXC. TURBOCHARGER(K51) (A) 		8-97356-988-0 01 1 0211-0211 ● ● ● ●
13 02.525 HARNESS; ENG
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> (A) 		8-97356-988-0 01 1 0212-0302 ● ● ● ● ●
13 02.525 HARNESS; ENG
4HF1-S ENG(RLS) (A) 		8-97356-988-0 01 1 0212-0302 ● ● ● ●
13 02.525 HARNESS; ENG
4HG1 ENG(RJH) EXC. TURBOCHARGER(K51) (A) 		8-97356-988-0 01 1 0212-0302 ● ● ●
13 02.525 HARNESS; ENG
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> (A) 		8-97356-988-0 01 1 0303-0501 ● ● ● ● ●
13 02.525 HARNESS; ENG
4HF1-S ENG(RLS) EXC. ENGINE POWER N-SPEC(7QV) (A) 		8-97356-988-0 01 1 0303-0501 ● ● ● ●
13 02.525 HARNESS; ENG
4HG1 ENG(RJH) EXC. TURBOCHARGER(K51) (A) 		8-97356-988-0 01 1 0303-0501 ● ● ●
13 02.525 HARNESS; ENG
4HG1 ENG(RJH),4HF1-S ENG(RLS) (A) 		8-97356-988-1 01 1 0502- ● ● ● ●
13 02.525 HARNESS; ENG
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> (A) 		8-97356-989-0 01 1 0211-0501 ● ● ● ● ●
13 02.525 HARNESS; ENG
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> (A) 		8-97166-705-1 01 1 0211-0501 ● ●
13 02.525 HARNESS; ENG
4HG1 ENG(RJH) TURBOCHARGER(K51) (A) 		8-97360-767-0 01 1 0211-0211 ● ● ● ●
13 02.525 HARNESS; ENG
4HG1 ENG(RJH) TURBOCHARGER(K51) (A) 		8-97360-767-0 01 1 0212-0501 ● ● ●
13 02.525 HARNESS; ENG
4HG1-T ENG(RDP) (A) 		8-97360-767-1 01 1 0502- ● ●
208 02.483 HOLDER; CONNECTOR
4HE1 ENG(RLY) 		8-94459-973-1 01 1 0211-0501 ● ● ● ● ●
329 02.480 CABLE; ENG TO FRAME
4HG1-T ENG(RDP) HIGH ALTITUDE COMPENSATOR(EE2) FAST GLOW SYSTEM<KM6> FLOOR REMOTE SHIFT<M11> EXHAUST BRAKE<NF8> POWER STEERING<N40> VEHICLE CATEGORY NQR<7NQ> EXC. AIR CONDITIONER MANUAL CONT(C60) ,HYDRO BRAKE BOOSTER<7QQ> 		8-97177-383-0 01 1 1008-1405 ●
329 02.480 CABLE; ENG TO FRAME
4HG1-T ENG(RDP) FAST GLOW SYSTEM<KM6> FLOOR REMOTE SHIFT<M11> EXHAUST BRAKE<NF8> POWER STEERING<N40> VEHICLE CATEGORY NQR<7NQ> EXC. HIGH ALTITUDE COMPENSATOR(EE2), HYDRO BRAKE BOOSTER<7QQ> 		8-97177-383-0 01 1 1008-1405 ●
329 02.480 CABLE; ENG TO FRAME
4HG1-T ENG(RDP) HIGH ALTITUDE COMPENSATOR(EE2) FAST GLOW SYSTEM<KM6> FLOOR REMOTE SHIFT<M11> EXHAUST BRAKE<NF8> POWER STEERING<N40> VEHICLE CATEGORY NQR<7NQ> EXC. AIR CONDITIONER MANUAL CONT(C60) ,HYDRO BRAKE BOOSTER<7QQ> 		8-97177-383-0 01 1 1406- ●
329 02.480 CABLE; ENG TO FRAME
4HG1-T ENG(RDP) FAST GLOW SYSTEM<KM6> FLOOR REMOTE SHIFT<M11> EXHAUST BRAKE<NF8> POWER STEERING<N40> VEHICLE CATEGORY NQR<7NQ> EXC. HIGH ALTITUDE COMPENSATOR(EE2), HYDRO BRAKE BOOSTER<7QQ> 		8-97177-383-0 01 1 1406- ●
329 02.480 CABLE; ENG TO FRAME
4HG1-T ENG(RDP) AIR CONDITIONER MANUAL CONT(C60) FAST GLOW SYSTEM<KM6> FLOOR REMOTE SHIFT<M11> EXHAUST BRAKE<NF8> POWER STEERING<N40> VEHICLE CATEGORY NQR<7NQ> EXC. HIGH ALTITUDE COMPENSATOR(EE2) 		8-97177-383-0 01 1 1406- ●
329 02.480 CABLE; ENG TO FRAME
4HG1-T ENG(RDP) FAST GLOW SYSTEM<KM6> FLOOR REMOTE SHIFT<M11> EXHAUST BRAKE<NF8> POWER STEERING<N40> VEHICLE CATEGORY NQR<7NQ> HYDRO BRAKE BOOSTER<7QQ> EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97177-383-0 01 1 1406- ●
329 02.480 CABLE; ENG TO FRAME
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98019-595-0 01 1 0507- ● ● ● ● ●
329 02.480 CABLE; ENG TO FRAME
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97182-112-0 01 1 0507- ● ● ● ● ●
329 02.480 CABLE; ENG TO FRAME
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 		8-97113-787-0 01 1 0211-0501 ● ● ● ● ●
329 02.480 CABLE; ENG TO FRAME
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 		8-97113-787-0 01 1 0502-0506 ● ● ●
329 02.480 CABLE; ENG TO FRAME
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 		8-97113-787-0 01 1 0507- ● ● ● ●
329 02.480 CABLE; ENG TO FRAME
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97065-249-1 01 1 0211-0501 ● ● ● ● ● ●
329 02.480 CABLE; ENG TO FRAME
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97065-249-1 01 1 0502- ● ● ● ● ●
329 02.480 CABLE; ENG TO FRAME
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 		8-97182-112-0 01 1 0211-0501 ● ● ● ●
329 02.480 CABLE; ENG TO FRAME
CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 		8-97182-112-0 01 1 0211-0501 ●
416 02.559 NUT; TERMINAL
4HF1-S ENG(RLS) 02.343 M6 W/LK WASHER 		8-94424-179-0 01 1 0211-0501 ●
416 02.559 NUT; TERMINAL
4HG1 ENG(RJH),4HF1-S ENG(RLS) 02.343 M6 W/LK WASHER 		8-94424-179-0 01 1 0211-0501 ● ● ●
416 02.559 NUT; TERMINAL
02.343 M6 W/LK WASHER 		8-94424-179-0 01 1 0211-0501 ●
416 02.559 NUT; TERMINAL
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 02.343 M6 W/LK WASHER 		8-94424-179-0 01 1 0502- ● ● ● ● ●

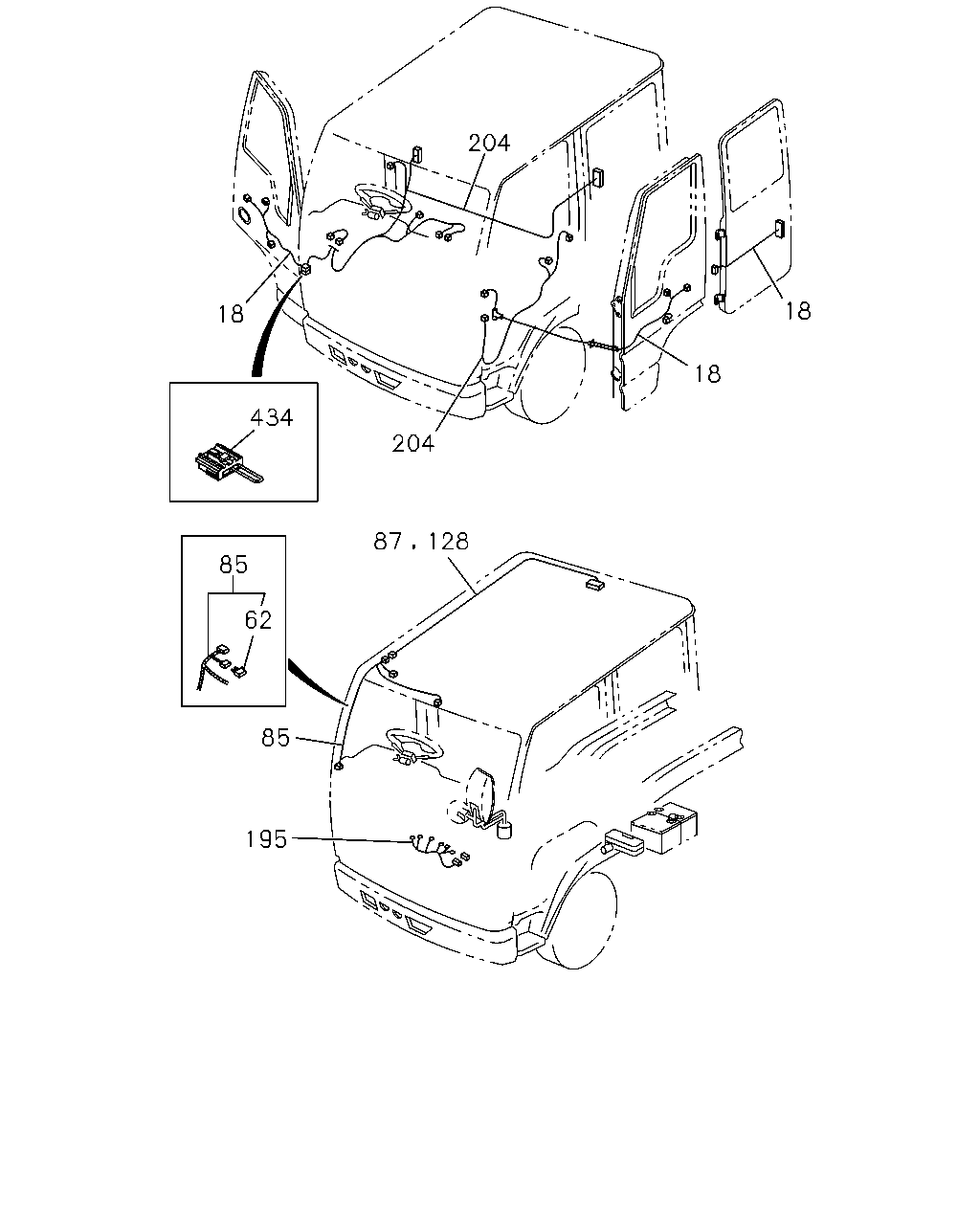

çizim 51600
204 18 18 18 434 204 87 128 85 62 85 195
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> EXC. AUTO DOOR LOCK<AU4> FRONT DOOR 		8-97226-669-0 01 1 1011-1405 ● ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97226-669-0 01 1 1406- ● ● ● ● ●
18 02.480 HARNESS; DOOR
FRONT DOOR 		8-97226-669-0 01 1 1406- ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32>,RADIO AM/FM STEREO 2 S PEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2SPEAKERS(6VL) FRONT DOOR 		8-97226-671-1 01 1 1011-1405 ● ● ● ●
18 02.480 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32> FRONT DOOR 		8-97226-671-1 01 1 1011-1405 ● ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32> FRONT DOOR 		8-97226-671-1 01 1 1011-1405 ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97226-671-1 01 1 1406- ● ● ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32>,RADIO AM/FM STEREO 2 S PEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2SPEAKERS(6VL) FRONT DOOR 		8-97226-671-1 01 1 1406- ● ● ● ●
18 02.480 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32> FRONT DOOR 		8-97226-671-1 01 1 1406- ● ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32> FRONT DOOR 		8-97226-671-1 01 1 1406- ●
18 02.480 HARNESS; DOOR
AUSTRALIA EQUIPMENT(RR3) REMOTE CONT DOOR LOCK<6NF> FRONT DOOR 		8-97312-148-0 01 1 0507- ● ● ● ●
18 02.480 HARNESS; DOOR
FRONT DOOR 		8-97312-148-0 01 1 0507- ●
18 02.480 HARNESS; DOOR
REAR DOOR 		8-97075-738-2 02 1 0507- ●
18 02.480 HARNESS; DOOR
AUSTRALIA EQUIPMENT(RR3) REMOTE CONT DOOR LOCK<6NF> FRONT DOOR 		8-97312-148-0 01 1 0211-0404 ● ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> REMOTE CONT DOOR LOCK<6NF> FRONT DOOR 		8-97312-148-0 01 1 0405-0501 ● ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> EXC. AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97185-142-1 01 1 0211-0404 ● ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> AUSTRALIA EQUIPMENT(RR3) EXC. REMOTE CONT DOOR LOCK<6NF> FRONT DOOR 		8-97185-142-1 01 1 0211-0404 ● ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97185-142-1 01 1 0211-0404 ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> EXC. REMOTE CONT DOOR LOCK<6NF> FRONT DOOR 		8-97185-142-1 01 1 0405-0501 ● ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97185-142-1 01 1 0405-0501 ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97185-142-1 01 1 0502-0506 ● ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> EXC. AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97185-142-1 01 1 0507- ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> AUSTRALIA EQUIPMENT(RR3) EXC. REMOTE CONT DOOR LOCK<6NF> FRONT DOOR 		8-97185-142-1 01 1 0507- ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97185-142-1 01 1 0507- ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97226-671-1 01 1 0211-0501 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32>,RADIO AM/FM STEREO 2 S PEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2SPEAKERS(6VL) FRONT DOOR 		8-97226-671-1 01 1 0211-0501 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32> FRONT DOOR 		8-97226-671-1 01 1 0211-0501 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97226-671-1 01 1 0502-1009 ● ● ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32>,RADIO AM/FM STEREO 2 S PEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2SPEAKERS(6VL) FRONT DOOR 		8-97226-671-1 01 1 0502-1009 ● ● ● ●
18 02.480 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32> FRONT DOOR 		8-97226-671-1 01 1 0502-1009 ● ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32> FRONT DOOR 		8-97226-671-1 01 1 0502-1009 ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-98166-819-0 01 1 1010-1010 ● ● ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32>,RADIO AM/FM STEREO 2 S PEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2SPEAKERS(6VL) FRONT DOOR 		8-98166-819-0 01 1 1010-1010 ● ● ● ●
18 02.480 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32> FRONT DOOR 		8-98166-819-0 01 1 1010-1010 ● ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32> FRONT DOOR 		8-98166-819-0 01 1 1010-1010 ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-98166-819-0 01 1 1011-1405 ● ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97105-571-1 01 1 0211-0501 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32>,RADIO AM/FM STEREO 2 S PEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2SPEAKERS(6VL) FRONT DOOR 		8-97105-571-1 01 1 0211-0501 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32> FRONT DOOR 		8-97105-571-1 01 1 0211-0501 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97105-571-1 01 1 0502- ● ● ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32>,RADIO AM/FM STEREO 2 S PEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2SPEAKERS(6VL) FRONT DOOR 		8-97105-571-1 01 1 0502- ● ● ● ●
18 02.480 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32> FRONT DOOR 		8-97105-571-1 01 1 0502- ● ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32> FRONT DOOR 		8-97105-571-1 01 1 0502- ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97226-669-0 01 1 0211-0501 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97226-669-0 01 1 0502-0506 ● ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97226-669-0 01 1 0507-1009 ● ● ● ● ●
18 02.480 HARNESS; DOOR
FRONT DOOR 		8-97226-669-0 01 1 0507-1009 ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-98166-820-0 01 1 1010-1010 ● ● ● ● ●
18 02.480 HARNESS; DOOR
FRONT DOOR 		8-98166-820-0 01 1 1010-1010 ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-98166-820-0 01 1 1011-1405 ● ● ● ● ●
18 02.480 HARNESS; DOOR
FRONT DOOR 		8-98166-820-0 01 1 1011-1405 ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> REAR DOOR 		8-97075-738-2 02 1 0211-0501 ●
62 02.530 DIODE; HARNESS
02.483 BLACK 2P-1.5A 		8-94422-639-1 01 1 0507- ●
62 02.530 DIODE; HARNESS
02.483 BLACK 2P-1.5A 		8-94422-639-1 01 1 0211-0501 ●
85 06.495 HARNESS; ROOM LAMP
AUSTRALIA EQUIPMENT(RR3) 		8-97364-161-0 01 1 0507- ● ● ● ●
85 06.495 HARNESS; ROOM LAMP 8-97364-163-0 01 1 0507- ●
85 06.495 HARNESS; ROOM LAMP
AUSTRALIA EQUIPMENT(RR3) 		8-97307-518-0 01 1 0211-0302 ● ● ● ●
85 06.495 HARNESS; ROOM LAMP
AUSTRALIA EQUIPMENT(RR3) 		8-97364-161-0 01 1 0303-0501 ● ● ● ●
85 06.495 HARNESS; ROOM LAMP
EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97164-611-2 01 1 0211-0302 ● ● ● ●
85 06.495 HARNESS; ROOM LAMP 8-97164-611-2 01 1 0211-0302 ●
85 06.495 HARNESS; ROOM LAMP
EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97364-159-0 01 1 0303-0501 ● ● ● ●
85 06.495 HARNESS; ROOM LAMP 8-97364-159-0 01 1 0303-0501 ●
85 06.495 HARNESS; ROOM LAMP 8-97364-159-0 01 1 0502-0506 ● ● ● ● ●
85 06.495 HARNESS; ROOM LAMP
EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97364-159-0 01 1 0507- ● ● ● ●
85 06.495 HARNESS; ROOM LAMP 8-97364-159-0 01 1 0507- ●
85 06.495 HARNESS; ROOM LAMP
AUSTRALIA EQUIPMENT(RR3) 		8-97312-297-0 01 1 0211-0302 ●
85 06.495 HARNESS; ROOM LAMP
AUSTRALIA EQUIPMENT(RR3) 		8-97364-163-0 01 1 0303-0501 ●
85 06.495 HARNESS; ROOM LAMP
EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97162-627-3 01 1 0211-0302 ●
85 06.495 HARNESS; ROOM LAMP
EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97364-156-0 01 1 0303-0501 ●
87 02.480 HARNESS; EXT,ROOM LAMP
EXC. ROOM LAMP W/ALL DOORS SW(SDF) 		8-97075-747-0 01 1 0211-0501 ●
128 02.480 HARNESS; BODY,RR 8-97364-164-0 01 1 0507- ●
128 02.480 HARNESS; BODY,RR
ROOM LAMP W/ALL DOORS SW(SDF) 		8-97300-349-0 01 1 0211-0302 ●
128 02.480 HARNESS; BODY,RR
ROOM LAMP W/ALL DOORS SW(SDF) 		8-97364-164-0 01 1 0303-0501 ●
195 01.150 HARNESS; EXT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION(NT2) 		8-97306-681-0 01 1 0211-0501 ● ● ● ● ●
195 01.150 HARNESS; EXT
4HE1 ENG(RLY) EURO2 SPECIFICATION(NT2) CHARGE AIR COOLER<6PL> 		8-97172-039-3 01 1 0211-0501 ● ● ●
204 02.559 HARNESS; CABLE,FLOOR
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97373-874-2 01 1 0507- ● ● ● ●
204 02.559 HARNESS; CABLE,FLOOR
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97373-875-2 01 1 0507- ●
204 02.559 HARNESS; CABLE,FLOOR 8-97364-146-0 01 1 0507- ●
204 02.559 HARNESS; CABLE,FLOOR
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97364-143-0 01 1 0507- ●
204 02.559 HARNESS; CABLE,FLOOR
H.S.A SYSTEM<6EP> 		8-97364-145-0 01 1 0507- ● ● ● ●
204 02.559 HARNESS; CABLE,FLOOR
ROOM LAMP W/ALL DOORS SW(SDF) EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97364-145-0 01 1 0507- ● ● ● ●
204 02.559 HARNESS; CABLE,FLOOR
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. H.S.A SYSTEM<6EP> 		8-97364-145-0 01 1 0507- ● ● ● ●
204 02.559 HARNESS; CABLE,FLOOR
FLOOR REMOTE SHIFT<M11> 		8-97162-629-2 01 1 0211-0302 ● ● ● ●
204 02.559 HARNESS; CABLE,FLOOR 8-97162-629-2 01 1 0211-0302 ●
204 02.559 HARNESS; CABLE,FLOOR
FLOOR REMOTE SHIFT<M11> 		8-97364-140-0 01 1 0303-0501 ● ● ● ●
204 02.559 HARNESS; CABLE,FLOOR 8-97364-140-0 01 1 0303-0501 ●
204 02.559 HARNESS; CABLE,FLOOR
ROOM LAMP W/ALL DOORS SW(SDF) 		8-97162-631-2 01 1 0211-0302 ● ● ● ●
204 02.559 HARNESS; CABLE,FLOOR
ROOM LAMP W/ALL DOORS SW(SDF) 		8-97364-145-0 01 1 0303-0404 ● ● ● ●
204 02.559 HARNESS; CABLE,FLOOR
ROOM LAMP W/ALL DOORS SW(SDF) 		8-97364-145-0 01 1 0405-0501 ●
204 02.559 HARNESS; CABLE,FLOOR
NEW ZEALAND EQUIPMENT(PK5) REMOTE CONT DOOR LOCK<6NF> 		8-97364-145-0 01 1 0405-0501 ● ● ●
204 02.559 HARNESS; CABLE,FLOOR
ROOM LAMP W/ALL DOORS SW(SDF) EXC. NEW ZEALAND EQUIPMENT(PK5) 		8-97364-145-0 01 1 0405-0501 ● ● ●
204 02.559 HARNESS; CABLE,FLOOR
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) 		8-97162-625-3 01 1 0211-0302 ● ●
204 02.559 HARNESS; CABLE,FLOOR
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) 		8-97364-142-0 01 1 0303-0501 ● ●
204 02.559 HARNESS; CABLE,FLOOR 8-97364-140-0 01 1 0502-0506 ● ● ● ● ●
204 02.559 HARNESS; CABLE,FLOOR
M/T MZZ6U(RSF),M/T MYY6P(RSJ),M/T MYY5T(RSM) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97364-140-0 01 1 0507- ● ● ● ● ●
204 02.559 HARNESS; CABLE,FLOOR 8-97162-632-2 01 1 0211-0302 ●
204 02.559 HARNESS; CABLE,FLOOR 8-97364-146-0 01 1 0303-0501 ●
204 02.559 HARNESS; CABLE,FLOOR
FLOOR REMOTE SHIFT<M11> 		8-97162-626-4 01 1 0211-0302 ●
204 02.559 HARNESS; CABLE,FLOOR
FLOOR REMOTE SHIFT<M11> 		8-97364-143-0 01 1 0303-0501 ●
434 02.559 CONNECTOR; SHORT CIRCUIT
4HK1-TCN ENG(RDQ) 		8-97388-448-0 01 1 0507- ●
434 02.559 CONNECTOR; SHORT CIRCUIT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97388-448-0 01 1 0507- ● ● ●
434 02.559 CONNECTOR; SHORT CIRCUIT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER<7QQ> 		8-97388-449-0 01 1 0507- ● ● ●
434 02.559 CONNECTOR; SHORT CIRCUIT 8-97388-449-0 01 1 0507- ●
434 02.559 CONNECTOR; SHORT CIRCUIT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) 		8-97140-182-0 01 1 0211-0501 ● ● ● ●
çizim 52409
8 453 184 94 174 94 174 27 453 35 453 453 94 174 184 174 431 27 35
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98010-898-3 01 1 0507-0610 ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98062-149-0 01 1 0611- ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98010-897-3 01 1 0507-0610 ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98062-147-0 01 1 0611- ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98010-896-3 01 1 0507-0610 ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98062-146-0 01 1 0611- ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98010-900-3 01 1 0507-0610 ●
8 02.480 HARNESS; FRAME,FRT
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98062-150-0 01 1 0611- ●
8 02.480 HARNESS; FRAME,FRT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98010-899-3 01 1 0507-0610 ●
8 02.480 HARNESS; FRAME,FRT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98062-148-0 01 1 0611- ●
8 02.480 HARNESS; FRAME,FRT
4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> DUMP CHASSIS(V4D) EXC. TURBOCHARGER(K51) 		8-97350-632-2 01 1 0211-0501 ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97377-013-1 01 1 0502-0506 ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME STRAIGHT TYPE<7KJ> 		8-97377-013-1 01 1 0507- ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) CHARGE AIR COOLER<6PL> EXC. VEHICLE CATEGORY NQR<7NQ> 		8-97357-071-1 01 1 0211-0501 ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. TURBOCHARGER(K51) 		8-97350-637-1 01 1 0211-0501 ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HG1-T ENG(RDP) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98000-755-0 01 1 0502-0506 ●
8 02.480 HARNESS; FRAME,FRT 8-98000-755-0 01 1 0502-0506 ●
8 02.480 HARNESS; FRAME,FRT
4HG1-T ENG(RDP) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME STRAIGHT TYPE<7KJ> 		8-98000-755-0 01 1 0507- ●
8 02.480 HARNESS; FRAME,FRT 8-98000-755-0 01 1 0507- ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TURBOCHARGER(K51),DUMP CHASSIS(V4D),FRAME STRAIGHT TYPE<7KJ> 		8-97350-633-2 01 1 0211-0501 ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 		8-97377-016-2 01 1 0502-0506 ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97377-016-2 01 1 0507- ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> EXC. AUSTRALIA EQUIPMENT(RR3), VEHICLECATEGORY NQR<7NQ> 		8-97350-650-2 01 1 0211-0501 ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) TURBOCHARGER(K51) AUSTRALIA EQUIPMENT(RR3) FRAME STRAIGHT TYPE<7KJ> 		8-97357-072-1 01 1 0211-0501 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) SINGAPORE EQUIPMENT(S9Y) CHARGE AIR COOLER<6PL> EXC. VEHICLE CATEGORY NQR<7NQ> 		8-97350-651-2 01 1 0211-0501 ● ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) CHARGE AIR COOLER<6PL> VEHICLE CATEGORY NQR<7NQ> 		8-97357-073-1 01 1 0211-0501 ● ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH) TURBOCHARGER(K51) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97350-626-3 01 1 0211-0501 ● ●
8 02.480 HARNESS; FRAME,FRT 8-97350-626-3 01 1 0211-0501 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) CHARGE AIR COOLER<6PL> VEHICLE CATEGORY NQR<7NQ> 		8-97357-075-1 01 1 0211-0501 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MZZ6U(RSF) VEHICLE CATEGORY NQR<7NQ> EXC. CHARGE AIR COOLER<6PL> 		8-97359-700-2 01 1 0211-0501 ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. TURBOCHARGER(K51) 		8-97350-640-1 01 1 0211-0501 ●
8 02.480 HARNESS; FRAME,FRT
FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) CHARGE AIR COOLER<6PL> 		8-97357-074-1 01 1 0211-0501 ●
27 08.965 FUSE UNIT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> 10A MINI RED 		8-97062-022-0 02 1 0507- ● ● ● ● ●
27 08.965 FUSE UNIT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, TRANSMISSION CONTROL-SMOOTHER(8GF) 10A MINI RED 		8-97062-022-0 02 1 0507- ● ● ● ●
27 08.965 FUSE UNIT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> 15A MINI BLUE 		8-97062-023-0 02 1 0507- ● ● ● ● ●
27 08.965 FUSE UNIT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, TRANSMISSION CONTROL-SMOOTHER(8GF) 15A MINI BLUE 		8-97062-023-0 02 1 0507- ● ● ● ●
35 02.530 BOX; RELAY & FUSE 8-97063-150-1 01 1 0211-0501 ● ● ● ● ● ●
35 02.530 BOX; RELAY & FUSE
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 		8-97377-739-0 01 1 0502-0506 ● ● ● ● ●
35 02.530 BOX; RELAY & FUSE 8-97377-739-0 01 1 0507- ● ● ● ● ● ●
94 02.483 DIODE; FRAME HARNESS
BLACK 3P-1.5A 		8-94422-640-1 AR 1 0211- ● ● ● ● ● ●
94 02.483 DIODE; FRAME HARNESS
4HG1 ENG(RJH) BLACK 4P-1.5A 		8-94381-730-0 AR 1 0211- ● ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
(A) 60A YELLOW 		8-94388-303-1 AR 1 0211- ● ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
02.483 (B) 60A YELLOW 		8-94468-664-0 AR 1 0211- ● ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
(A) 100A BLUE 		8-94388-306-1 AR 1 0502- ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
(B) 30A PINK 		8-97183-643-0 AR 1 0502- ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
(B) 40A GREEN 		8-97183-644-0 AR 1 0502- ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
(B) 60A YELLOW 		8-97219-407-0 AR 1 0502- ● ● ● ● ●
184 02.559 COVER; RELAY & FUSE BOX
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 		8-97377-741-0 01 1 0502-0506 ● ● ● ● ●
184 02.559 COVER; RELAY & FUSE BOX 8-97377-741-0 01 1 0507- ● ● ● ● ● ●
184 02.559 COVER; RELAY & FUSE BOX 8-97063-152-1 01 1 0211-0501 ● ● ● ● ● ●
431 02.530 CONNECTOR; JOINT
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. HYDRO BRAKE BOOSTER<7QQ> (B) 10P BLUE 		1-82699-598-0 01 1 0502-0506 ● ● ● ● ●
431 02.530 CONNECTOR; JOINT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. AIR BAG DRIVER<AJ3>,AUSTRALIA EQUIPMENT(RR3),TRANSMISSION CONTROL-SMO OTHER(8GF) (B) 10P BLUE 		1-82699-598-0 01 1 0507- ● ● ● ● ●
431 02.530 CONNECTOR; JOINT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AUSTRALIA EQUIPMENT(RR3) (B) 10P BLUE 		1-82699-598-0 01 1 0507- ● ● ● ● ●
431 02.530 CONNECTOR; JOINT
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HYDRO BRAKE BOOSTER<7QQ> (B) 10P BLUE 		1-82699-598-0 01 1 0507- ● ● ● ● ●
431 02.530 CONNECTOR; JOINT
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. HYDRO BRAKE BOOSTER<7QQ> (C) 10P GREEN 		1-82699-599-0 04 1 0502-0506 ● ● ● ● ●
431 02.530 CONNECTOR; JOINT
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HYDRO BRAKE BOOSTER<7QQ> (C) 10P GREEN 		1-82699-599-0 04 1 0507- ● ● ● ● ●
431 02.530 CONNECTOR; JOINT
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. HYDRO BRAKE BOOSTER<7QQ> (A) 10P BROWN 		1-82699-601-0 03 1 0502-0506 ● ● ● ● ●
431 02.530 CONNECTOR; JOINT
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HYDRO BRAKE BOOSTER<7QQ> (A) 10P BROWN 		1-82699-601-0 03 1 0507- ● ● ● ● ●
431 02.530 CONNECTOR; JOINT
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. HYDRO BRAKE BOOSTER<7QQ> (E) 4P 		8-97077-939-0 01 1 0502-0506 ● ● ● ● ●
431 02.530 CONNECTOR; JOINT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. AIR BAG DRIVER<AJ3>,AUSTRALIA EQUIPMENT(RR3),TRANSMISSION CONTROL-SMO OTHER(8GF) (E) 4P 		8-97077-939-0 01 1 0507- ● ● ● ● ●
431 02.530 CONNECTOR; JOINT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AUSTRALIA EQUIPMENT(RR3) (E) 4P 		8-97077-939-0 01 1 0507- ● ● ● ● ●
431 02.530 CONNECTOR; JOINT
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HYDRO BRAKE BOOSTER<7QQ> (E) 4P 		8-97077-939-0 01 1 0507- ● ● ● ● ●
431 02.530 CONNECTOR; JOINT
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. HYDRO BRAKE BOOSTER<7QQ> (D) 6P 		8-97077-941-0 01 1 0502-0506 ● ● ● ● ●
431 02.530 CONNECTOR; JOINT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. AIR BAG DRIVER<AJ3>,AUSTRALIA EQUIPMENT(RR3),TRANSMISSION CONTROL-SMO OTHER(8GF) (D) 6P 		8-97077-941-0 01 1 0507- ● ● ● ● ●
431 02.530 CONNECTOR; JOINT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AUSTRALIA EQUIPMENT(RR3) (D) 6P 		8-97077-941-0 01 1 0507- ● ● ● ● ●
431 02.530 CONNECTOR; JOINT
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HYDRO BRAKE BOOSTER<7QQ> (D) 6P 		8-97077-941-0 01 1 0507- ● ● ● ● ●
431 02.530 CONNECTOR; JOINT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (F) 6P 		1-82691-206-0 03 1 0507-0709 ● ● ● ●
431 02.530 CONNECTOR; JOINT
(F) 6P 		1-82691-206-0 03 1 0507-0709 ●
431 02.530 CONNECTOR; JOINT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AUSTRALIA EQUIPMENT(RR3) (F) 6P 		1-82691-206-0 03 1 0710- ● ● ● ● ●
431 02.530 CONNECTOR; JOINT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. AIR BAG DRIVER<AJ3>,AUSTRALIA EQUIPMENT(RR3),TRANSMISSION CONTROL-SMO OTHER(8GF) (F) 6P 		1-82691-206-0 03 1 0710- ● ● ● ● ●
431 02.530 CONNECTOR; JOINT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (G) 3P & 3P 		1-82698-170-0 03 1 0507-0709 ● ● ● ●
431 02.530 CONNECTOR; JOINT
(G) 3P & 3P 		1-82698-170-0 03 1 0507-0709 ●
431 02.530 CONNECTOR; JOINT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AUSTRALIA EQUIPMENT(RR3) (G) 3P & 3P 		1-82698-170-0 03 1 0710- ● ● ● ● ●
431 02.530 CONNECTOR; JOINT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. AIR BAG DRIVER<AJ3>,AUSTRALIA EQUIPMENT(RR3),TRANSMISSION CONTROL-SMO OTHER(8GF) (G) 3P & 3P 		1-82698-170-0 03 1 0710- ● ● ● ● ●
431 02.530 CONNECTOR; JOINT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (C) 10P GREEN 		1-82699-599-0 02 1 0507-0709 ● ● ● ●
431 02.530 CONNECTOR; JOINT
(C) 10P GREEN 		1-82699-599-0 02 1 0507-0709 ●
431 02.530 CONNECTOR; JOINT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AUSTRALIA EQUIPMENT(RR3) (C) 10P GREEN 		1-82699-599-0 02 1 0710- ● ● ● ● ●
431 02.530 CONNECTOR; JOINT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. AIR BAG DRIVER<AJ3>,AUSTRALIA EQUIPMENT(RR3),TRANSMISSION CONTROL-SMO OTHER(8GF) (C) 10P GREEN 		1-82699-599-0 02 1 0710- ● ● ● ● ●
431 02.530 CONNECTOR; JOINT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (A) 10P BROWN 		1-82699-601-0 01 1 0507-0709 ● ● ● ●
431 02.530 CONNECTOR; JOINT
(A) 10P BROWN 		1-82699-601-0 01 1 0507-0709 ●
431 02.530 CONNECTOR; JOINT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AUSTRALIA EQUIPMENT(RR3) (A) 10P BROWN 		1-82699-601-0 01 1 0710- ● ● ● ● ●
431 02.530 CONNECTOR; JOINT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. AIR BAG DRIVER<AJ3>,AUSTRALIA EQUIPMENT(RR3),TRANSMISSION CONTROL-SMO OTHER(8GF) (A) 10P BROWN 		1-82699-601-0 01 1 0710- ● ● ● ● ●
431 02.530 CONNECTOR; JOINT
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (H) 6P 		8-97381-428-0 02 1 0509- ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. HYDRO BRAKE BOOSTER<7QQ> (G) 		8-97088-615-0 01 1 0502-0506 ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. AIR BAG DRIVER<AJ3>,AUSTRALIA EQUIPMENT(RR3),TRANSMISSION CONTROL-SMO OTHER(8GF) (G) 		8-97088-615-0 01 1 0507- ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AUSTRALIA EQUIPMENT(RR3) (G) 		8-97088-615-0 01 1 0507- ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HYDRO BRAKE BOOSTER<7QQ> (G) 		8-97088-615-0 01 1 0507- ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97062-169-0 01 1 0507- ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97062-169-0 01 1 0507- ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> (F) 		8-94417-716-0 01 1 0212-0501 ● ● ●
453 02.483 PROTECTOR; HARNESS
(F) 		8-94417-716-0 01 1 0212-0501 ●
453 02.483 PROTECTOR; HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (F) 		8-94417-716-0 01 1 0502-0506 ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME STRAIGHT TYPE<7KJ> (F) 		8-94417-716-0 01 1 0507- ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-94482-169-0 01 1 0212-0501 ● ● ●
453 02.483 PROTECTOR; HARNESS
(B) 		8-94482-169-0 01 1 0212-0501 ●
453 02.483 PROTECTOR; HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-94482-169-0 01 1 0502-0506 ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME STRAIGHT TYPE<7KJ> (B) 		8-94482-169-0 01 1 0507- ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
(A) 		8-97120-591-1 01 1 0211-0501 ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) (A) 		8-97120-591-1 01 1 0502-0506 ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-97120-591-1 01 1 0507- ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97120-591-1 01 1 0507- ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-97120-591-1 01 1 0507- ● ● ● ●
453 02.483 PROTECTOR; HARNESS
(E) 		8-97093-668-1 01 1 0211-0501 ● ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) (E) 		8-97093-668-1 01 1 0502-0506 ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
(E) 		8-97093-668-1 01 1 0507- ● ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
(C) 		8-97259-730-2 01 1 0211-0501 ● ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. HYDRO BRAKE BOOSTER<7QQ> (C) 		8-97259-730-3 01 1 0502-0506 ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. AIR BAG DRIVER<AJ3>,AUSTRALIA EQUIPMENT(RR3),TRANSMISSION CONTROL-SMO OTHER(8GF) (C) 		8-97259-730-3 01 1 0507- ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AUSTRALIA EQUIPMENT(RR3) (C) 		8-97259-730-3 01 1 0507- ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HYDRO BRAKE BOOSTER<7QQ> (C) 		8-97259-730-3 01 1 0507- ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
(D) 		8-97261-653-2 01 1 0211-0501 ● ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. HYDRO BRAKE BOOSTER<7QQ> (D) 		8-97261-653-2 01 1 0502-0506 ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. AIR BAG DRIVER<AJ3>,AUSTRALIA EQUIPMENT(RR3),TRANSMISSION CONTROL-SMO OTHER(8GF) (D) 		8-97261-653-2 01 1 0507- ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AUSTRALIA EQUIPMENT(RR3) (D) 		8-97261-653-2 01 1 0507- ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HYDRO BRAKE BOOSTER<7QQ> (D) 		8-97261-653-2 01 1 0507- ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) SINGAPORE EQUIPMENT(S9Y) CHARGE AIR COOLER<6PL> EXC. VEHICLE CATEGORY NQR<7NQ> (B) 		8-97062-169-0 01 1 0211-0501 ● ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) TURBOCHARGER(K51) AUSTRALIA EQUIPMENT(RR3) FRAME STRAIGHT TYPE<7KJ> (B) 		8-97062-169-0 01 1 0211-0501 ●

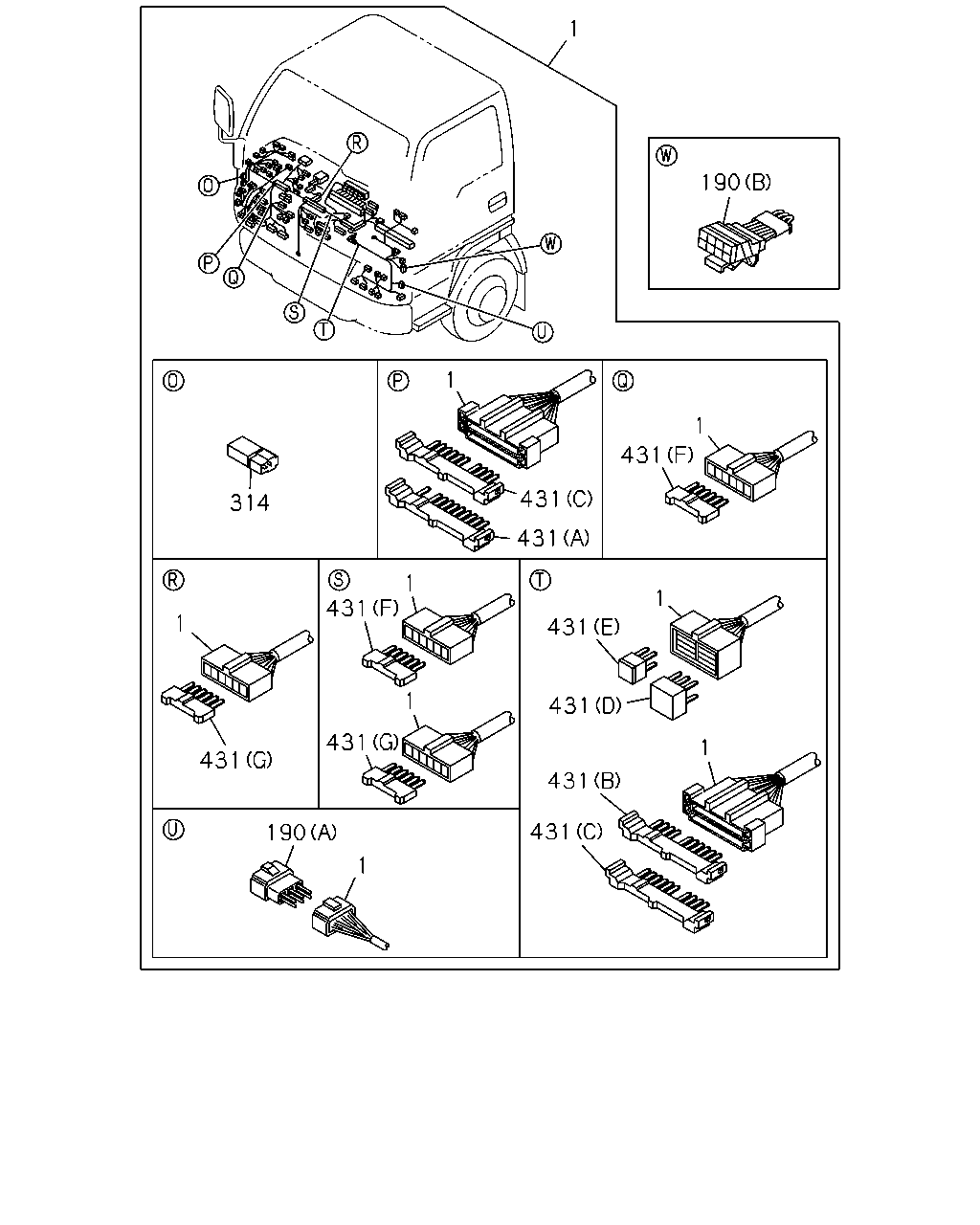

çizim 52540
1 190 1 1 431 431 314 431 1 431 1 1 431 1 431 431 1 431 431 431 190 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 02.480 HARNESS; CAB
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) PROVISIONAL PACKAGE SPEC<BCC> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HYDRO BRAKE BOOSTER<7QQ> 		8-98217-081-0 01 1 1207- ● ● ● ●
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR BAG DRIVER<AJ3> AUSTRALIA EQUIPMENT(RR3) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98010-602-1 01 1 0507-0510 ● ● ● ● ●
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR BAG DRIVER<AJ3> AUSTRALIA EQUIPMENT(RR3) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98028-726-2 01 1 0511-0610 ● ● ● ● ●
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR BAG DRIVER<AJ3> AUSTRALIA EQUIPMENT(RR3) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98061-919-0 01 1 0611- ● ● ● ● ●
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR BAG DRIVER<AJ3> AUSTRALIA EQUIPMENT(RR3) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98010-601-1 01 1 0507-0510 ● ● ● ● ●
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR BAG DRIVER<AJ3> AUSTRALIA EQUIPMENT(RR3) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98028-725-2 01 1 0511-0610 ● ● ● ● ●
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR BAG DRIVER<AJ3> AUSTRALIA EQUIPMENT(RR3) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98061-918-0 01 1 0611- ● ● ● ● ●
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AUSTRALIA EQUIPMENT(RR3) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3> 		8-98010-600-1 01 1 0507-0510 ● ● ● ● ●
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AUSTRALIA EQUIPMENT(RR3) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3> 		8-98028-724-1 01 1 0511-0610 ● ● ● ● ●
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AUSTRALIA EQUIPMENT(RR3) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3> 		8-98061-917-0 01 1 0611- ● ● ● ● ●
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AUSTRALIA EQUIPMENT(RR3) EXC. AIR BAG DRIVER<AJ3>, TRANSMISSIONCONTROL-SMOOTHER(8GF) 		8-98010-599-1 01 1 0507-0510 ● ● ● ● ●
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AUSTRALIA EQUIPMENT(RR3) EXC. AIR BAG DRIVER<AJ3>, TRANSMISSIONCONTROL-SMOOTHER(8GF) 		8-98028-723-1 01 1 0511-0610 ● ● ● ● ●
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AUSTRALIA EQUIPMENT(RR3) EXC. AIR BAG DRIVER<AJ3>, TRANSMISSIONCONTROL-SMOOTHER(8GF) 		8-98061-916-0 01 1 0611- ● ● ● ● ●
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. AIR BAG DRIVER<AJ3>,AUSTRALIA EQUIPMENT(RR3),TRANSMISSION CONTROL-SMO OTHER(8GF) 		8-98010-598-2 01 1 0507-0610 ● ● ● ●
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. AIR BAG DRIVER<AJ3>,AUSTRALIA EQUIPMENT(RR3),TRANSMISSION CONTROL-SMO OTHER(8GF) 		8-98061-915-0 01 1 0611- ● ● ● ●
1 02.480 HARNESS; CAB
4HF1-S ENG(RLS) ENGINE POWER N-SPEC(7QV) 		8-97309-088-2 01 1 0211-0501 ● ● ●
1 02.480 HARNESS; CAB
4HG1-T ENG(RDP) EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-98000-741-0 01 1 0502-0506 ●
1 02.480 HARNESS; CAB 8-98000-741-0 01 1 0502-0506 ●
1 02.480 HARNESS; CAB
4HG1-T ENG(RDP) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HYDRO BRAKE BOOSTER<7QQ> 		8-98000-741-0 01 1 0507-0510 ●
1 02.480 HARNESS; CAB 8-98000-741-0 01 1 0507-0510 ●
1 02.480 HARNESS; CAB
4HG1-T ENG(RDP) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HYDRO BRAKE BOOSTER<7QQ> 		8-98028-703-1 01 1 0511- ●
1 02.480 HARNESS; CAB 8-98028-703-1 01 1 0511- ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97309-112-1 01 1 0211-0404 ● ● ● ●
1 02.480 HARNESS; CAB
FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97309-112-1 01 1 0211-0404 ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. NEW ZEALAND EQUIPMENT(PK5), CHARGE AIR COOLER<6PL> 		8-97309-112-2 01 1 0405-0501 ● ● ● ● ●
1 02.480 HARNESS; CAB
4HG1 ENG(RJH),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TURBOCHARGER(K51),AUSTRALIA EQUIPMENT(RR3),SINGAPORE EQUIPMENT(S9Y),E NGINE POWER N-SPEC(7QV) 		8-97309-114-1 01 1 0211-0404 ● ● ● ●
1 02.480 HARNESS; CAB
4HG1 ENG(RJH),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TURBOCHARGER(K51),NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) ,SINGAPORE EQUIPMENT(S9Y),ENGINE POWER N-SPEC(7QV) 		8-97309-114-2 01 1 0405-0501 ● ● ● ●
1 02.480 HARNESS; CAB
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97377-105-2 01 1 0502-0506 ● ● ● ●
1 02.480 HARNESS; CAB
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HYDRO BRAKE BOOSTER<7QQ> 		8-97377-105-2 01 1 0507-1206 ● ● ● ●
1 02.480 HARNESS; CAB
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. PROVISIONAL PACKAGE SPEC<BCC>,4 WHEEL ANTI LOCK BRAKE<JE5>,HYDRO BRAKE BOOSTER<7QQ> 		8-97377-105-2 01 1 1207- ● ● ● ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) REMOTE CONT DOOR LOCK<6NF> CHARGE AIR COOLER<6PL> EXC. HYDRO BRAKE BOOSTER<7QQ> 02.726 		8-97357-037-1 01 1 0211-0501 ● ● ● ● ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) TURBOCHARGER(K51) REMOTE CONT DOOR LOCK<6NF> 		8-97357-038-1 01 1 0211-0501 ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) SINGAPORE EQUIPMENT(S9Y) EXC. VEHICLE CATEGORY NQR<7NQ> 		8-97300-469-2 01 1 0211-0501 ● ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> SINGAPORE EQUIPMENT(S9Y) EXC. VEHICLE CATEGORY NQR<7NQ> 		8-97310-069-1 01 1 0211-0403 ● ●
1 02.480 HARNESS; CAB
FLOOR REMOTE SHIFT<M11> SINGAPORE EQUIPMENT(S9Y) 		8-97310-069-1 01 1 0211-0403 ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> SINGAPORE EQUIPMENT(S9Y) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, VEHICLE CATEGORY NQR<7NQ> 		8-97310-069-2 01 1 0404-0501 ● ●
1 02.480 HARNESS; CAB
FLOOR REMOTE SHIFT<M11> SINGAPORE EQUIPMENT(S9Y) 		8-97310-069-2 01 1 0404-0501 ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) 4 WHEEL ANTI LOCK BRAKE<JE5> FLOOR REMOTE SHIFT<M11> SINGAPORE EQUIPMENT(S9Y) EXC. VEHICLE CATEGORY NQR<7NQ> 		8-97376-315-0 01 1 0404-0501 ● ●
1 02.480 HARNESS; CAB
4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. AUSTRALIA EQUIPMENT(RR3), SINGAPORE EQUIPMENT(S9Y) 		8-97309-116-1 01 1 0211-0404 ● ●
1 02.480 HARNESS; CAB
4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97309-116-1 01 1 0211-0404 ●
1 02.480 HARNESS; CAB
4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. NEW ZEALAND EQUIPMENT(PK5), AUSTRALIA EQUIPMENT(RR3),SINGAPORE EQUIPME NT(S9Y) 		8-97309-116-2 01 1 0405-0501 ● ●
1 02.480 HARNESS; CAB
4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. NEW ZEALAND EQUIPMENT(PK5), AUSTRALIA EQUIPMENT(RR3) 		8-97309-116-2 01 1 0405-0501 ●
1 02.480 HARNESS; CAB
4HG1 ENG(RJH) TURBOCHARGER(K51) SINGAPORE EQUIPMENT(S9Y) 		8-97309-115-2 01 1 0211-0501 ● ●
1 02.480 HARNESS; CAB 8-97309-115-2 01 1 0211-0501 ●
1 02.480 HARNESS; CAB
4HG1 ENG(RJH),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> NEW ZEALAND EQUIPMENT(PK5) REMOTE CONT DOOR LOCK<6NF> EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) 		8-97380-149-0 01 1 0405-0501 ● ●
1 02.480 HARNESS; CAB
4HG1 ENG(RJH),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> NEW ZEALAND EQUIPMENT(PK5) REMOTE CONT DOOR LOCK<6NF> EXC. TURBOCHARGER(K51) 		8-97380-149-0 01 1 0405-0501 ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) REMOTE CONT DOOR LOCK<6NF> CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> 		8-97357-039-2 01 1 0211-0501 ● ● ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> NEW ZEALAND EQUIPMENT(PK5) REMOTE CONT DOOR LOCK<6NF> 		8-97380-151-0 01 1 0405-0501 ● ● ●
1 02.480 HARNESS; CAB
4HG1 ENG(RJH) TURBOCHARGER(K51) NEW ZEALAND EQUIPMENT(PK5) REMOTE CONT DOOR LOCK<6NF> 		8-97380-150-0 01 1 0405-0501 ● ● ●
190 02.559 CONNECTOR; SHORT CIRCUIT
EXC. INTERMITTENT WIPER<C13> (B) 		8-98036-238-0 01 1 0607- ● ● ● ● ● ●
190 02.559 CONNECTOR; SHORT CIRCUIT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (A) 		5-82690-411-0 01 1 0507-0709 ● ● ● ●
190 02.559 CONNECTOR; SHORT CIRCUIT
(A) 		5-82690-411-0 01 1 0507-0709 ●
190 02.559 CONNECTOR; SHORT CIRCUIT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AUSTRALIA EQUIPMENT(RR3) (A) 		5-82690-411-0 01 1 0710- ● ● ● ● ●
190 02.559 CONNECTOR; SHORT CIRCUIT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. AIR BAG DRIVER<AJ3>,AUSTRALIA EQUIPMENT(RR3),TRANSMISSION CONTROL-SMO OTHER(8GF) (A) 		5-82690-411-0 01 1 0710- ● ● ● ● ●
314 02.510 RESISTOR; HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. AIR BAG DRIVER<AJ3> BLUE 		1-82691-204-0 01 1 0605-0607 ● ● ● ● ●
314 02.510 RESISTOR; HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) BLUE 		1-82691-204-0 01 1 0507-0604 ● ● ● ●
314 02.510 RESISTOR; HARNESS
BLUE 		1-82691-204-0 01 1 0507-0604 ●
314 02.510 RESISTOR; HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR BAG DRIVER<AJ3> BLUE 		1-82691-204-0 02 1 0605-0607 ● ● ● ● ●
314 02.510 RESISTOR; HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) BLUE 		1-82691-204-0 02 1 0608-0709 ● ● ● ●
314 02.510 RESISTOR; HARNESS
BLUE 		1-82691-204-0 02 1 0608-0709 ●
314 02.510 RESISTOR; HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AUSTRALIA EQUIPMENT(RR3) BLUE 		1-82691-204-0 02 1 0710- ● ● ● ● ●
314 02.510 RESISTOR; HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. AIR BAG DRIVER<AJ3>,AUSTRALIA EQUIPMENT(RR3),TRANSMISSION CONTROL-SMO OTHER(8GF) BLUE 		1-82691-204-0 02 1 0710- ● ● ● ● ●
431 02.530 CONNECTOR; JOINT
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. HYDRO BRAKE BOOSTER<7QQ> (B) 10P BLUE 		1-82699-598-0 01 1 0502-0506 ● ● ● ● ●
431 02.530 CONNECTOR; JOINT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. AIR BAG DRIVER<AJ3>,AUSTRALIA EQUIPMENT(RR3),TRANSMISSION CONTROL-SMO OTHER(8GF) (B) 10P BLUE 		1-82699-598-0 01 1 0507- ● ● ● ● ●
431 02.530 CONNECTOR; JOINT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AUSTRALIA EQUIPMENT(RR3) (B) 10P BLUE 		1-82699-598-0 01 1 0507- ● ● ● ● ●
431 02.530 CONNECTOR; JOINT
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HYDRO BRAKE BOOSTER<7QQ> (B) 10P BLUE 		1-82699-598-0 01 1 0507- ● ● ● ● ●
431 02.530 CONNECTOR; JOINT
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. HYDRO BRAKE BOOSTER<7QQ> (C) 10P GREEN 		1-82699-599-0 04 1 0502-0506 ● ● ● ● ●
431 02.530 CONNECTOR; JOINT
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HYDRO BRAKE BOOSTER<7QQ> (C) 10P GREEN 		1-82699-599-0 04 1 0507- ● ● ● ● ●
431 02.530 CONNECTOR; JOINT
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. HYDRO BRAKE BOOSTER<7QQ> (A) 10P BROWN 		1-82699-601-0 03 1 0502-0506 ● ● ● ● ●
431 02.530 CONNECTOR; JOINT
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HYDRO BRAKE BOOSTER<7QQ> (A) 10P BROWN 		1-82699-601-0 03 1 0507- ● ● ● ● ●
431 02.530 CONNECTOR; JOINT
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. HYDRO BRAKE BOOSTER<7QQ> (E) 4P 		8-97077-939-0 01 1 0502-0506 ● ● ● ● ●
431 02.530 CONNECTOR; JOINT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. AIR BAG DRIVER<AJ3>,AUSTRALIA EQUIPMENT(RR3),TRANSMISSION CONTROL-SMO OTHER(8GF) (E) 4P 		8-97077-939-0 01 1 0507- ● ● ● ● ●
431 02.530 CONNECTOR; JOINT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AUSTRALIA EQUIPMENT(RR3) (E) 4P 		8-97077-939-0 01 1 0507- ● ● ● ● ●
431 02.530 CONNECTOR; JOINT
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HYDRO BRAKE BOOSTER<7QQ> (E) 4P 		8-97077-939-0 01 1 0507- ● ● ● ● ●
431 02.530 CONNECTOR; JOINT
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. HYDRO BRAKE BOOSTER<7QQ> (D) 6P 		8-97077-941-0 01 1 0502-0506 ● ● ● ● ●
431 02.530 CONNECTOR; JOINT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. AIR BAG DRIVER<AJ3>,AUSTRALIA EQUIPMENT(RR3),TRANSMISSION CONTROL-SMO OTHER(8GF) (D) 6P 		8-97077-941-0 01 1 0507- ● ● ● ● ●
431 02.530 CONNECTOR; JOINT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AUSTRALIA EQUIPMENT(RR3) (D) 6P 		8-97077-941-0 01 1 0507- ● ● ● ● ●
431 02.530 CONNECTOR; JOINT
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HYDRO BRAKE BOOSTER<7QQ> (D) 6P 		8-97077-941-0 01 1 0507- ● ● ● ● ●
431 02.530 CONNECTOR; JOINT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (F) 6P 		1-82691-206-0 03 1 0507-0709 ● ● ● ●
431 02.530 CONNECTOR; JOINT
(F) 6P 		1-82691-206-0 03 1 0507-0709 ●
431 02.530 CONNECTOR; JOINT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AUSTRALIA EQUIPMENT(RR3) (F) 6P 		1-82691-206-0 03 1 0710- ● ● ● ● ●
431 02.530 CONNECTOR; JOINT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. AIR BAG DRIVER<AJ3>,AUSTRALIA EQUIPMENT(RR3),TRANSMISSION CONTROL-SMO OTHER(8GF) (F) 6P 		1-82691-206-0 03 1 0710- ● ● ● ● ●
431 02.530 CONNECTOR; JOINT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (G) 3P & 3P 		1-82698-170-0 03 1 0507-0709 ● ● ● ●
431 02.530 CONNECTOR; JOINT
(G) 3P & 3P 		1-82698-170-0 03 1 0507-0709 ●
431 02.530 CONNECTOR; JOINT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AUSTRALIA EQUIPMENT(RR3) (G) 3P & 3P 		1-82698-170-0 03 1 0710- ● ● ● ● ●
431 02.530 CONNECTOR; JOINT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. AIR BAG DRIVER<AJ3>,AUSTRALIA EQUIPMENT(RR3),TRANSMISSION CONTROL-SMO OTHER(8GF) (G) 3P & 3P 		1-82698-170-0 03 1 0710- ● ● ● ● ●
431 02.530 CONNECTOR; JOINT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (C) 10P GREEN 		1-82699-599-0 02 1 0507-0709 ● ● ● ●
431 02.530 CONNECTOR; JOINT
(C) 10P GREEN 		1-82699-599-0 02 1 0507-0709 ●
431 02.530 CONNECTOR; JOINT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AUSTRALIA EQUIPMENT(RR3) (C) 10P GREEN 		1-82699-599-0 02 1 0710- ● ● ● ● ●
431 02.530 CONNECTOR; JOINT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. AIR BAG DRIVER<AJ3>,AUSTRALIA EQUIPMENT(RR3),TRANSMISSION CONTROL-SMO OTHER(8GF) (C) 10P GREEN 		1-82699-599-0 02 1 0710- ● ● ● ● ●
431 02.530 CONNECTOR; JOINT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (A) 10P BROWN 		1-82699-601-0 01 1 0507-0709 ● ● ● ●
431 02.530 CONNECTOR; JOINT
(A) 10P BROWN 		1-82699-601-0 01 1 0507-0709 ●
431 02.530 CONNECTOR; JOINT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AUSTRALIA EQUIPMENT(RR3) (A) 10P BROWN 		1-82699-601-0 01 1 0710- ● ● ● ● ●
431 02.530 CONNECTOR; JOINT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. AIR BAG DRIVER<AJ3>,AUSTRALIA EQUIPMENT(RR3),TRANSMISSION CONTROL-SMO OTHER(8GF) (A) 10P BROWN 		1-82699-601-0 01 1 0710- ● ● ● ● ●
431 02.530 CONNECTOR; JOINT
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (H) 6P 		8-97381-428-0 02 1 0509- ● ● ● ●
çizim 52715
1 36 40 453 456 2 2 36 453 4 29 453 5 41 444 28
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 02.480 HARNESS; CAB
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) PROVISIONAL PACKAGE SPEC<BCC> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HYDRO BRAKE BOOSTER<7QQ> 		8-98217-081-0 01 1 1207- ● ● ● ●
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR BAG DRIVER<AJ3> AUSTRALIA EQUIPMENT(RR3) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98010-602-1 01 1 0507-0510 ● ● ● ● ●
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR BAG DRIVER<AJ3> AUSTRALIA EQUIPMENT(RR3) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98028-726-2 01 1 0511-0610 ● ● ● ● ●
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR BAG DRIVER<AJ3> AUSTRALIA EQUIPMENT(RR3) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98061-919-0 01 1 0611- ● ● ● ● ●
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR BAG DRIVER<AJ3> AUSTRALIA EQUIPMENT(RR3) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98010-601-1 01 1 0507-0510 ● ● ● ● ●
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR BAG DRIVER<AJ3> AUSTRALIA EQUIPMENT(RR3) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98028-725-2 01 1 0511-0610 ● ● ● ● ●
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR BAG DRIVER<AJ3> AUSTRALIA EQUIPMENT(RR3) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98061-918-0 01 1 0611- ● ● ● ● ●
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AUSTRALIA EQUIPMENT(RR3) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3> 		8-98010-600-1 01 1 0507-0510 ● ● ● ● ●
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AUSTRALIA EQUIPMENT(RR3) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3> 		8-98028-724-1 01 1 0511-0610 ● ● ● ● ●
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AUSTRALIA EQUIPMENT(RR3) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3> 		8-98061-917-0 01 1 0611- ● ● ● ● ●
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AUSTRALIA EQUIPMENT(RR3) EXC. AIR BAG DRIVER<AJ3>, TRANSMISSIONCONTROL-SMOOTHER(8GF) 		8-98010-599-1 01 1 0507-0510 ● ● ● ● ●
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AUSTRALIA EQUIPMENT(RR3) EXC. AIR BAG DRIVER<AJ3>, TRANSMISSIONCONTROL-SMOOTHER(8GF) 		8-98028-723-1 01 1 0511-0610 ● ● ● ● ●
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AUSTRALIA EQUIPMENT(RR3) EXC. AIR BAG DRIVER<AJ3>, TRANSMISSIONCONTROL-SMOOTHER(8GF) 		8-98061-916-0 01 1 0611- ● ● ● ● ●
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. AIR BAG DRIVER<AJ3>,AUSTRALIA EQUIPMENT(RR3),TRANSMISSION CONTROL-SMO OTHER(8GF) 		8-98010-598-2 01 1 0507-0610 ● ● ● ●
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. AIR BAG DRIVER<AJ3>,AUSTRALIA EQUIPMENT(RR3),TRANSMISSION CONTROL-SMO OTHER(8GF) 		8-98061-915-0 01 1 0611- ● ● ● ●
1 02.480 HARNESS; CAB
4HF1-S ENG(RLS) ENGINE POWER N-SPEC(7QV) 		8-97309-088-2 01 1 0211-0501 ● ● ●
1 02.480 HARNESS; CAB
4HG1-T ENG(RDP) EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-98000-741-0 01 1 0502-0506 ●
1 02.480 HARNESS; CAB 8-98000-741-0 01 1 0502-0506 ●
1 02.480 HARNESS; CAB
4HG1-T ENG(RDP) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HYDRO BRAKE BOOSTER<7QQ> 		8-98000-741-0 01 1 0507-0510 ●
1 02.480 HARNESS; CAB 8-98000-741-0 01 1 0507-0510 ●
1 02.480 HARNESS; CAB
4HG1-T ENG(RDP) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HYDRO BRAKE BOOSTER<7QQ> 		8-98028-703-1 01 1 0511- ●
1 02.480 HARNESS; CAB 8-98028-703-1 01 1 0511- ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97309-112-1 01 1 0211-0404 ● ● ● ●
1 02.480 HARNESS; CAB
FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97309-112-1 01 1 0211-0404 ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. NEW ZEALAND EQUIPMENT(PK5), CHARGE AIR COOLER<6PL> 		8-97309-112-2 01 1 0405-0501 ● ● ● ● ●
1 02.480 HARNESS; CAB
4HG1 ENG(RJH),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TURBOCHARGER(K51),AUSTRALIA EQUIPMENT(RR3),SINGAPORE EQUIPMENT(S9Y),E NGINE POWER N-SPEC(7QV) 		8-97309-114-1 01 1 0211-0404 ● ● ● ●
1 02.480 HARNESS; CAB
4HG1 ENG(RJH),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TURBOCHARGER(K51),NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) ,SINGAPORE EQUIPMENT(S9Y),ENGINE POWER N-SPEC(7QV) 		8-97309-114-2 01 1 0405-0501 ● ● ● ●
1 02.480 HARNESS; CAB
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97377-105-2 01 1 0502-0506 ● ● ● ●
1 02.480 HARNESS; CAB
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HYDRO BRAKE BOOSTER<7QQ> 		8-97377-105-2 01 1 0507-1206 ● ● ● ●
1 02.480 HARNESS; CAB
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. PROVISIONAL PACKAGE SPEC<BCC>,4 WHEEL ANTI LOCK BRAKE<JE5>,HYDRO BRAKE BOOSTER<7QQ> 		8-97377-105-2 01 1 1207- ● ● ● ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) REMOTE CONT DOOR LOCK<6NF> CHARGE AIR COOLER<6PL> EXC. HYDRO BRAKE BOOSTER<7QQ> 02.726 		8-97357-037-1 01 1 0211-0501 ● ● ● ● ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) TURBOCHARGER(K51) REMOTE CONT DOOR LOCK<6NF> 		8-97357-038-1 01 1 0211-0501 ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) SINGAPORE EQUIPMENT(S9Y) EXC. VEHICLE CATEGORY NQR<7NQ> 		8-97300-469-2 01 1 0211-0501 ● ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> SINGAPORE EQUIPMENT(S9Y) EXC. VEHICLE CATEGORY NQR<7NQ> 		8-97310-069-1 01 1 0211-0403 ● ●
1 02.480 HARNESS; CAB
FLOOR REMOTE SHIFT<M11> SINGAPORE EQUIPMENT(S9Y) 		8-97310-069-1 01 1 0211-0403 ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> SINGAPORE EQUIPMENT(S9Y) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, VEHICLE CATEGORY NQR<7NQ> 		8-97310-069-2 01 1 0404-0501 ● ●
1 02.480 HARNESS; CAB
FLOOR REMOTE SHIFT<M11> SINGAPORE EQUIPMENT(S9Y) 		8-97310-069-2 01 1 0404-0501 ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) 4 WHEEL ANTI LOCK BRAKE<JE5> FLOOR REMOTE SHIFT<M11> SINGAPORE EQUIPMENT(S9Y) EXC. VEHICLE CATEGORY NQR<7NQ> 		8-97376-315-0 01 1 0404-0501 ● ●
1 02.480 HARNESS; CAB
4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. AUSTRALIA EQUIPMENT(RR3), SINGAPORE EQUIPMENT(S9Y) 		8-97309-116-1 01 1 0211-0404 ● ●
1 02.480 HARNESS; CAB
4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97309-116-1 01 1 0211-0404 ●
1 02.480 HARNESS; CAB
4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. NEW ZEALAND EQUIPMENT(PK5), AUSTRALIA EQUIPMENT(RR3),SINGAPORE EQUIPME NT(S9Y) 		8-97309-116-2 01 1 0405-0501 ● ●
1 02.480 HARNESS; CAB
4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. NEW ZEALAND EQUIPMENT(PK5), AUSTRALIA EQUIPMENT(RR3) 		8-97309-116-2 01 1 0405-0501 ●
1 02.480 HARNESS; CAB
4HG1 ENG(RJH) TURBOCHARGER(K51) SINGAPORE EQUIPMENT(S9Y) 		8-97309-115-2 01 1 0211-0501 ● ●
1 02.480 HARNESS; CAB 8-97309-115-2 01 1 0211-0501 ●
1 02.480 HARNESS; CAB
4HG1 ENG(RJH),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> NEW ZEALAND EQUIPMENT(PK5) REMOTE CONT DOOR LOCK<6NF> EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) 		8-97380-149-0 01 1 0405-0501 ● ●
1 02.480 HARNESS; CAB
4HG1 ENG(RJH),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> NEW ZEALAND EQUIPMENT(PK5) REMOTE CONT DOOR LOCK<6NF> EXC. TURBOCHARGER(K51) 		8-97380-149-0 01 1 0405-0501 ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) REMOTE CONT DOOR LOCK<6NF> CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> 		8-97357-039-2 01 1 0211-0501 ● ● ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> NEW ZEALAND EQUIPMENT(PK5) REMOTE CONT DOOR LOCK<6NF> 		8-97380-151-0 01 1 0405-0501 ● ● ●
1 02.480 HARNESS; CAB
4HG1 ENG(RJH) TURBOCHARGER(K51) NEW ZEALAND EQUIPMENT(PK5) REMOTE CONT DOOR LOCK<6NF> 		8-97380-150-0 01 1 0405-0501 ● ● ●
2 02.483 DIODE; CABLE HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 AR 1 0211- ● ● ● ● ● ●
2 02.483 DIODE; CABLE HARNESS
(A) BLACK 3P-1.5A 		8-94422-640-1 AR 1 0211-0501 ● ● ● ● ● ●
2 02.483 DIODE; CABLE HARNESS
(C) BLACK 3P-1.5A 		8-94416-438-1 AR 1 0507- ● ● ● ● ● ●
2 02.483 DIODE; CABLE HARNESS
(A) BLACK 3P-1.5A 		8-94422-640-1 AR 1 0611- ● ● ● ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS 8-97214-415-0 01 1 0211-0501 ● ● ● ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97187-921-1 01 1 0502-0506 ● ● ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. AIR BAG DRIVER<AJ3>,AUSTRALIA EQUIPMENT(RR3),TRANSMISSION CONTROL-SMO OTHER(8GF) 		8-97187-921-1 01 1 0507- ● ● ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AUSTRALIA EQUIPMENT(RR3) 		8-97187-921-1 01 1 0507- ● ● ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HYDRO BRAKE BOOSTER<7QQ> 		8-97187-921-1 01 1 0507- ● ● ● ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 10A RED 		5-82516-002-0 AR 1 0211- ● ● ● ● ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 15A BLUE 		5-82516-003-0 AR 1 0211- ● ● ● ● ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 10A MINI RED 		8-97062-022-0 AR 1 0502- ● ● ● ● ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 15A MINI BLUE 		8-97062-023-0 AR 1 0502- ● ● ● ● ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 20A MINI YELLOW 		8-97062-024-0 AR 1 0502- ● ● ● ● ● ●
28 02.483 SCREW; FUSE BOX
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0211-0501 ● ● ● ● ● ●
28 02.483 SCREW; FUSE BOX
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0502-0506 ● ● ● ● ●
28 02.483 SCREW; FUSE BOX
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0507-0604 ● ● ● ● ● ●
28 02.483 SCREW; FUSE BOX
03.885 M5X16 TAPPING W/PL WASHER 		0-74360-516-0 02 1 0605-0612 ● ● ● ● ● ●
28 02.483 SCREW; FUSE BOX
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 0701-1101 ● ● ● ● ● ●
28 02.483 SCREW; FUSE BOX
16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 02 1 1102-1212 ● ● ● ● ● ●
28 02.483 SCREW; FUSE BOX
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1301- ● ● ● ● ● ●
29 02.483 COVER; FUSE BOX
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97074-955-0 01 1 0502-0506 ● ● ● ● ●
29 02.483 COVER; FUSE BOX
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. AIR BAG DRIVER<AJ3>,AUSTRALIA EQUIPMENT(RR3),TRANSMISSION CONTROL-SMO OTHER(8GF) 		8-97074-955-0 01 1 0507- ● ● ● ● ●
29 02.483 COVER; FUSE BOX
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AUSTRALIA EQUIPMENT(RR3) 		8-97074-955-0 01 1 0507- ● ● ● ● ●
29 02.483 COVER; FUSE BOX
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HYDRO BRAKE BOOSTER<7QQ> 		8-97074-955-0 01 1 0507- ● ● ● ● ●
36 02.530 BOX; RELAY
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (A) 		8-97087-640-2 01 1 0507-0709 ● ● ● ●
36 02.530 BOX; RELAY
(A) 		8-97087-640-2 01 1 0507-0709 ●
36 02.530 BOX; RELAY
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AUSTRALIA EQUIPMENT(RR3) (A) 		8-97087-640-2 01 1 0710- ● ● ● ● ●
36 02.530 BOX; RELAY
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. AIR BAG DRIVER<AJ3>,AUSTRALIA EQUIPMENT(RR3),TRANSMISSION CONTROL-SMO OTHER(8GF) (A) 		8-97087-640-2 01 1 0710- ● ● ● ● ●
36 02.530 BOX; RELAY
(B) 		8-97087-639-1 01 1 0211-0501 ● ● ● ● ● ●
36 02.530 BOX; RELAY
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. HYDRO BRAKE BOOSTER<7QQ> (C) 		8-97187-918-1 01 1 0502-0506 ● ● ● ● ●
36 02.530 BOX; RELAY
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. AIR BAG DRIVER<AJ3>,AUSTRALIA EQUIPMENT(RR3),TRANSMISSION CONTROL-SMO OTHER(8GF) (C) 		8-97187-918-1 01 1 0507- ● ● ● ● ●
36 02.530 BOX; RELAY
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AUSTRALIA EQUIPMENT(RR3) (C) 		8-97187-918-1 01 1 0507- ● ● ● ● ●
36 02.530 BOX; RELAY
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HYDRO BRAKE BOOSTER<7QQ> (C) 		8-97187-918-1 01 1 0507- ● ● ● ● ●
36 02.530 BOX; RELAY
(A) 		8-97087-640-1 01 1 0211-0501 ● ● ● ● ● ●
40 02.483 BOX; DIODE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AUSTRALIA EQUIPMENT(RR3) BLACK 8P 		8-97078-064-1 01 1 0611-0709 ● ● ● ● ●
40 02.483 BOX; DIODE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. AIR BAG DRIVER<AJ3>,AUSTRALIA EQUIPMENT(RR3),TRANSMISSION CONTROL-SMO OTHER(8GF) BLACK 8P 		8-97078-064-1 01 1 0611-0709 ● ● ● ●
40 02.483 BOX; DIODE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AUSTRALIA EQUIPMENT(RR3) BLACK 8P 		8-97078-064-1 01 1 0710- ● ● ● ● ●
40 02.483 BOX; DIODE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. AIR BAG DRIVER<AJ3>,AUSTRALIA EQUIPMENT(RR3),TRANSMISSION CONTROL-SMO OTHER(8GF) BLACK 8P 		8-97078-064-1 01 1 0710- ● ● ● ● ●
40 02.483 BOX; DIODE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR BAG DRIVER<AJ3> BLACK 8P 		8-97078-064-0 01 1 0605-0607 ● ● ● ● ●
40 02.483 BOX; DIODE
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. HYDRO BRAKE BOOSTER<7QQ> NATURAL 8P 		8-97200-753-0 01 1 0502-0506 ● ● ● ● ●
40 02.483 BOX; DIODE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. AIR BAG DRIVER<AJ3>,AUSTRALIA EQUIPMENT(RR3),TRANSMISSION CONTROL-SMO OTHER(8GF) NATURAL 8P 		8-97200-753-0 01 1 0507- ● ● ● ● ●
40 02.483 BOX; DIODE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AUSTRALIA EQUIPMENT(RR3) NATURAL 8P 		8-97200-753-0 01 1 0507- ● ● ● ● ●
40 02.483 BOX; DIODE
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HYDRO BRAKE BOOSTER<7QQ> NATURAL 8P 		8-97200-753-0 01 1 0507- ● ● ● ● ●
41 08.821 PULLER; FUSE
02.483 L=25.3 B=11.5 		8-94121-482-0 01 1 0211-0501 ● ● ● ● ● ●
41 08.821 PULLER; FUSE
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97103-388-0 01 1 0502-0506 ● ● ● ● ●
41 08.821 PULLER; FUSE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. AIR BAG DRIVER<AJ3>,AUSTRALIA EQUIPMENT(RR3),TRANSMISSION CONTROL-SMO OTHER(8GF) 		8-97103-388-0 01 1 0507- ● ● ● ● ●
41 08.821 PULLER; FUSE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AUSTRALIA EQUIPMENT(RR3) 		8-97103-388-0 01 1 0507- ● ● ● ● ●
41 08.821 PULLER; FUSE
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HYDRO BRAKE BOOSTER<7QQ> 		8-97103-388-0 01 1 0507- ● ● ● ● ●
444 02.483 GROMMET; SCREW,FUSE BOX
01.269 D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 0211-0501 ● ● ● ● ● ●
444 02.483 GROMMET; SCREW,FUSE BOX
01.269 D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 0502-0506 ● ● ● ● ●
444 02.483 GROMMET; SCREW,FUSE BOX
01.269 D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 0507- ● ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. HYDRO BRAKE BOOSTER<7QQ> (G) 		8-97088-615-0 01 1 0502-0506 ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. AIR BAG DRIVER<AJ3>,AUSTRALIA EQUIPMENT(RR3),TRANSMISSION CONTROL-SMO OTHER(8GF) (G) 		8-97088-615-0 01 1 0507- ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AUSTRALIA EQUIPMENT(RR3) (G) 		8-97088-615-0 01 1 0507- ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HYDRO BRAKE BOOSTER<7QQ> (G) 		8-97088-615-0 01 1 0507- ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97062-169-0 01 1 0507- ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97062-169-0 01 1 0507- ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> (F) 		8-94417-716-0 01 1 0212-0501 ● ● ●
453 02.483 PROTECTOR; HARNESS
(F) 		8-94417-716-0 01 1 0212-0501 ●
453 02.483 PROTECTOR; HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (F) 		8-94417-716-0 01 1 0502-0506 ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME STRAIGHT TYPE<7KJ> (F) 		8-94417-716-0 01 1 0507- ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-94482-169-0 01 1 0212-0501 ● ● ●
453 02.483 PROTECTOR; HARNESS
(B) 		8-94482-169-0 01 1 0212-0501 ●
453 02.483 PROTECTOR; HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-94482-169-0 01 1 0502-0506 ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME STRAIGHT TYPE<7KJ> (B) 		8-94482-169-0 01 1 0507- ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
(A) 		8-97120-591-1 01 1 0211-0501 ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) (A) 		8-97120-591-1 01 1 0502-0506 ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-97120-591-1 01 1 0507- ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97120-591-1 01 1 0507- ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-97120-591-1 01 1 0507- ● ● ● ●
453 02.483 PROTECTOR; HARNESS
(E) 		8-97093-668-1 01 1 0211-0501 ● ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) (E) 		8-97093-668-1 01 1 0502-0506 ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
(E) 		8-97093-668-1 01 1 0507- ● ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
(C) 		8-97259-730-2 01 1 0211-0501 ● ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. HYDRO BRAKE BOOSTER<7QQ> (C) 		8-97259-730-3 01 1 0502-0506 ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. AIR BAG DRIVER<AJ3>,AUSTRALIA EQUIPMENT(RR3),TRANSMISSION CONTROL-SMO OTHER(8GF) (C) 		8-97259-730-3 01 1 0507- ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AUSTRALIA EQUIPMENT(RR3) (C) 		8-97259-730-3 01 1 0507- ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HYDRO BRAKE BOOSTER<7QQ> (C) 		8-97259-730-3 01 1 0507- ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
(D) 		8-97261-653-2 01 1 0211-0501 ● ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. HYDRO BRAKE BOOSTER<7QQ> (D) 		8-97261-653-2 01 1 0502-0506 ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. AIR BAG DRIVER<AJ3>,AUSTRALIA EQUIPMENT(RR3),TRANSMISSION CONTROL-SMO OTHER(8GF) (D) 		8-97261-653-2 01 1 0507- ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AUSTRALIA EQUIPMENT(RR3) (D) 		8-97261-653-2 01 1 0507- ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HYDRO BRAKE BOOSTER<7QQ> (D) 		8-97261-653-2 01 1 0507- ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) SINGAPORE EQUIPMENT(S9Y) CHARGE AIR COOLER<6PL> EXC. VEHICLE CATEGORY NQR<7NQ> (B) 		8-97062-169-0 01 1 0211-0501 ● ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) TURBOCHARGER(K51) AUSTRALIA EQUIPMENT(RR3) FRAME STRAIGHT TYPE<7KJ> (B) 		8-97062-169-0 01 1 0211-0501 ●
456 02.483 CUSHION; FUSE BOX
16.085 15X30 T=5 		8-94270-366-2 01 1 0211-0501 ● ● ● ● ● ●
456 02.483 CUSHION; FUSE BOX
16.085 15X30 T=5 		8-94270-366-2 01 1 0502-0506 ● ● ● ● ●
456 02.483 CUSHION; FUSE BOX
16.085 15X30 T=5 		8-94270-366-2 01 1 0507- ● ● ● ● ● ●
çizim 53556
1 190 1 1 431 431 431 431 1 431 431 431 1 431 431 190 1 431
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 02.480 HARNESS; CAB
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) PROVISIONAL PACKAGE SPEC<BCC> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HYDRO BRAKE BOOSTER<7QQ> 		8-98217-081-0 01 1 1207- ● ● ● ●
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR BAG DRIVER<AJ3> AUSTRALIA EQUIPMENT(RR3) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98010-602-1 01 1 0507-0510 ● ● ● ● ●
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR BAG DRIVER<AJ3> AUSTRALIA EQUIPMENT(RR3) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98028-726-2 01 1 0511-0610 ● ● ● ● ●
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR BAG DRIVER<AJ3> AUSTRALIA EQUIPMENT(RR3) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98061-919-0 01 1 0611- ● ● ● ● ●
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR BAG DRIVER<AJ3> AUSTRALIA EQUIPMENT(RR3) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98010-601-1 01 1 0507-0510 ● ● ● ● ●
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR BAG DRIVER<AJ3> AUSTRALIA EQUIPMENT(RR3) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98028-725-2 01 1 0511-0610 ● ● ● ● ●
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR BAG DRIVER<AJ3> AUSTRALIA EQUIPMENT(RR3) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98061-918-0 01 1 0611- ● ● ● ● ●
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AUSTRALIA EQUIPMENT(RR3) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3> 		8-98010-600-1 01 1 0507-0510 ● ● ● ● ●
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AUSTRALIA EQUIPMENT(RR3) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3> 		8-98028-724-1 01 1 0511-0610 ● ● ● ● ●
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AUSTRALIA EQUIPMENT(RR3) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3> 		8-98061-917-0 01 1 0611- ● ● ● ● ●
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AUSTRALIA EQUIPMENT(RR3) EXC. AIR BAG DRIVER<AJ3>, TRANSMISSIONCONTROL-SMOOTHER(8GF) 		8-98010-599-1 01 1 0507-0510 ● ● ● ● ●
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AUSTRALIA EQUIPMENT(RR3) EXC. AIR BAG DRIVER<AJ3>, TRANSMISSIONCONTROL-SMOOTHER(8GF) 		8-98028-723-1 01 1 0511-0610 ● ● ● ● ●
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AUSTRALIA EQUIPMENT(RR3) EXC. AIR BAG DRIVER<AJ3>, TRANSMISSIONCONTROL-SMOOTHER(8GF) 		8-98061-916-0 01 1 0611- ● ● ● ● ●
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. AIR BAG DRIVER<AJ3>,AUSTRALIA EQUIPMENT(RR3),TRANSMISSION CONTROL-SMO OTHER(8GF) 		8-98010-598-2 01 1 0507-0610 ● ● ● ●
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. AIR BAG DRIVER<AJ3>,AUSTRALIA EQUIPMENT(RR3),TRANSMISSION CONTROL-SMO OTHER(8GF) 		8-98061-915-0 01 1 0611- ● ● ● ●
1 02.480 HARNESS; CAB
4HF1-S ENG(RLS) ENGINE POWER N-SPEC(7QV) 		8-97309-088-2 01 1 0211-0501 ● ● ●
1 02.480 HARNESS; CAB
4HG1-T ENG(RDP) EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-98000-741-0 01 1 0502-0506 ●
1 02.480 HARNESS; CAB 8-98000-741-0 01 1 0502-0506 ●
1 02.480 HARNESS; CAB
4HG1-T ENG(RDP) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HYDRO BRAKE BOOSTER<7QQ> 		8-98000-741-0 01 1 0507-0510 ●
1 02.480 HARNESS; CAB 8-98000-741-0 01 1 0507-0510 ●
1 02.480 HARNESS; CAB
4HG1-T ENG(RDP) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HYDRO BRAKE BOOSTER<7QQ> 		8-98028-703-1 01 1 0511- ●
1 02.480 HARNESS; CAB 8-98028-703-1 01 1 0511- ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97309-112-1 01 1 0211-0404 ● ● ● ●
1 02.480 HARNESS; CAB
FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97309-112-1 01 1 0211-0404 ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. NEW ZEALAND EQUIPMENT(PK5), CHARGE AIR COOLER<6PL> 		8-97309-112-2 01 1 0405-0501 ● ● ● ● ●
1 02.480 HARNESS; CAB
4HG1 ENG(RJH),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TURBOCHARGER(K51),AUSTRALIA EQUIPMENT(RR3),SINGAPORE EQUIPMENT(S9Y),E NGINE POWER N-SPEC(7QV) 		8-97309-114-1 01 1 0211-0404 ● ● ● ●
1 02.480 HARNESS; CAB
4HG1 ENG(RJH),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TURBOCHARGER(K51),NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) ,SINGAPORE EQUIPMENT(S9Y),ENGINE POWER N-SPEC(7QV) 		8-97309-114-2 01 1 0405-0501 ● ● ● ●
1 02.480 HARNESS; CAB
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97377-105-2 01 1 0502-0506 ● ● ● ●
1 02.480 HARNESS; CAB
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HYDRO BRAKE BOOSTER<7QQ> 		8-97377-105-2 01 1 0507-1206 ● ● ● ●
1 02.480 HARNESS; CAB
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. PROVISIONAL PACKAGE SPEC<BCC>,4 WHEEL ANTI LOCK BRAKE<JE5>,HYDRO BRAKE BOOSTER<7QQ> 		8-97377-105-2 01 1 1207- ● ● ● ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) REMOTE CONT DOOR LOCK<6NF> CHARGE AIR COOLER<6PL> EXC. HYDRO BRAKE BOOSTER<7QQ> 02.726 		8-97357-037-1 01 1 0211-0501 ● ● ● ● ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) TURBOCHARGER(K51) REMOTE CONT DOOR LOCK<6NF> 		8-97357-038-1 01 1 0211-0501 ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) SINGAPORE EQUIPMENT(S9Y) EXC. VEHICLE CATEGORY NQR<7NQ> 		8-97300-469-2 01 1 0211-0501 ● ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> SINGAPORE EQUIPMENT(S9Y) EXC. VEHICLE CATEGORY NQR<7NQ> 		8-97310-069-1 01 1 0211-0403 ● ●
1 02.480 HARNESS; CAB
FLOOR REMOTE SHIFT<M11> SINGAPORE EQUIPMENT(S9Y) 		8-97310-069-1 01 1 0211-0403 ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> SINGAPORE EQUIPMENT(S9Y) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, VEHICLE CATEGORY NQR<7NQ> 		8-97310-069-2 01 1 0404-0501 ● ●
1 02.480 HARNESS; CAB
FLOOR REMOTE SHIFT<M11> SINGAPORE EQUIPMENT(S9Y) 		8-97310-069-2 01 1 0404-0501 ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) 4 WHEEL ANTI LOCK BRAKE<JE5> FLOOR REMOTE SHIFT<M11> SINGAPORE EQUIPMENT(S9Y) EXC. VEHICLE CATEGORY NQR<7NQ> 		8-97376-315-0 01 1 0404-0501 ● ●
1 02.480 HARNESS; CAB
4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. AUSTRALIA EQUIPMENT(RR3), SINGAPORE EQUIPMENT(S9Y) 		8-97309-116-1 01 1 0211-0404 ● ●
1 02.480 HARNESS; CAB
4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97309-116-1 01 1 0211-0404 ●
1 02.480 HARNESS; CAB
4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. NEW ZEALAND EQUIPMENT(PK5), AUSTRALIA EQUIPMENT(RR3),SINGAPORE EQUIPME NT(S9Y) 		8-97309-116-2 01 1 0405-0501 ● ●
1 02.480 HARNESS; CAB
4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. NEW ZEALAND EQUIPMENT(PK5), AUSTRALIA EQUIPMENT(RR3) 		8-97309-116-2 01 1 0405-0501 ●
1 02.480 HARNESS; CAB
4HG1 ENG(RJH) TURBOCHARGER(K51) SINGAPORE EQUIPMENT(S9Y) 		8-97309-115-2 01 1 0211-0501 ● ●
1 02.480 HARNESS; CAB 8-97309-115-2 01 1 0211-0501 ●
1 02.480 HARNESS; CAB
4HG1 ENG(RJH),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> NEW ZEALAND EQUIPMENT(PK5) REMOTE CONT DOOR LOCK<6NF> EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) 		8-97380-149-0 01 1 0405-0501 ● ●
1 02.480 HARNESS; CAB
4HG1 ENG(RJH),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> NEW ZEALAND EQUIPMENT(PK5) REMOTE CONT DOOR LOCK<6NF> EXC. TURBOCHARGER(K51) 		8-97380-149-0 01 1 0405-0501 ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) REMOTE CONT DOOR LOCK<6NF> CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> 		8-97357-039-2 01 1 0211-0501 ● ● ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> NEW ZEALAND EQUIPMENT(PK5) REMOTE CONT DOOR LOCK<6NF> 		8-97380-151-0 01 1 0405-0501 ● ● ●
1 02.480 HARNESS; CAB
4HG1 ENG(RJH) TURBOCHARGER(K51) NEW ZEALAND EQUIPMENT(PK5) REMOTE CONT DOOR LOCK<6NF> 		8-97380-150-0 01 1 0405-0501 ● ● ●
190 02.559 CONNECTOR; SHORT CIRCUIT
EXC. INTERMITTENT WIPER<C13> (B) 		8-98036-238-0 01 1 0607- ● ● ● ● ● ●
190 02.559 CONNECTOR; SHORT CIRCUIT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (A) 		5-82690-411-0 01 1 0507-0709 ● ● ● ●
190 02.559 CONNECTOR; SHORT CIRCUIT
(A) 		5-82690-411-0 01 1 0507-0709 ●
190 02.559 CONNECTOR; SHORT CIRCUIT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AUSTRALIA EQUIPMENT(RR3) (A) 		5-82690-411-0 01 1 0710- ● ● ● ● ●
190 02.559 CONNECTOR; SHORT CIRCUIT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. AIR BAG DRIVER<AJ3>,AUSTRALIA EQUIPMENT(RR3),TRANSMISSION CONTROL-SMO OTHER(8GF) (A) 		5-82690-411-0 01 1 0710- ● ● ● ● ●
431 02.530 CONNECTOR; JOINT
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. HYDRO BRAKE BOOSTER<7QQ> (B) 10P BLUE 		1-82699-598-0 01 1 0502-0506 ● ● ● ● ●
431 02.530 CONNECTOR; JOINT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. AIR BAG DRIVER<AJ3>,AUSTRALIA EQUIPMENT(RR3),TRANSMISSION CONTROL-SMO OTHER(8GF) (B) 10P BLUE 		1-82699-598-0 01 1 0507- ● ● ● ● ●
431 02.530 CONNECTOR; JOINT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AUSTRALIA EQUIPMENT(RR3) (B) 10P BLUE 		1-82699-598-0 01 1 0507- ● ● ● ● ●
431 02.530 CONNECTOR; JOINT
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HYDRO BRAKE BOOSTER<7QQ> (B) 10P BLUE 		1-82699-598-0 01 1 0507- ● ● ● ● ●
431 02.530 CONNECTOR; JOINT
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. HYDRO BRAKE BOOSTER<7QQ> (C) 10P GREEN 		1-82699-599-0 04 1 0502-0506 ● ● ● ● ●
431 02.530 CONNECTOR; JOINT
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HYDRO BRAKE BOOSTER<7QQ> (C) 10P GREEN 		1-82699-599-0 04 1 0507- ● ● ● ● ●
431 02.530 CONNECTOR; JOINT
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. HYDRO BRAKE BOOSTER<7QQ> (A) 10P BROWN 		1-82699-601-0 03 1 0502-0506 ● ● ● ● ●
431 02.530 CONNECTOR; JOINT
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HYDRO BRAKE BOOSTER<7QQ> (A) 10P BROWN 		1-82699-601-0 03 1 0507- ● ● ● ● ●
431 02.530 CONNECTOR; JOINT
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. HYDRO BRAKE BOOSTER<7QQ> (E) 4P 		8-97077-939-0 01 1 0502-0506 ● ● ● ● ●
431 02.530 CONNECTOR; JOINT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. AIR BAG DRIVER<AJ3>,AUSTRALIA EQUIPMENT(RR3),TRANSMISSION CONTROL-SMO OTHER(8GF) (E) 4P 		8-97077-939-0 01 1 0507- ● ● ● ● ●
431 02.530 CONNECTOR; JOINT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AUSTRALIA EQUIPMENT(RR3) (E) 4P 		8-97077-939-0 01 1 0507- ● ● ● ● ●
431 02.530 CONNECTOR; JOINT
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HYDRO BRAKE BOOSTER<7QQ> (E) 4P 		8-97077-939-0 01 1 0507- ● ● ● ● ●
431 02.530 CONNECTOR; JOINT
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. HYDRO BRAKE BOOSTER<7QQ> (D) 6P 		8-97077-941-0 01 1 0502-0506 ● ● ● ● ●
431 02.530 CONNECTOR; JOINT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. AIR BAG DRIVER<AJ3>,AUSTRALIA EQUIPMENT(RR3),TRANSMISSION CONTROL-SMO OTHER(8GF) (D) 6P 		8-97077-941-0 01 1 0507- ● ● ● ● ●
431 02.530 CONNECTOR; JOINT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AUSTRALIA EQUIPMENT(RR3) (D) 6P 		8-97077-941-0 01 1 0507- ● ● ● ● ●
431 02.530 CONNECTOR; JOINT
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HYDRO BRAKE BOOSTER<7QQ> (D) 6P 		8-97077-941-0 01 1 0507- ● ● ● ● ●
431 02.530 CONNECTOR; JOINT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (F) 6P 		1-82691-206-0 03 1 0507-0709 ● ● ● ●
431 02.530 CONNECTOR; JOINT
(F) 6P 		1-82691-206-0 03 1 0507-0709 ●
431 02.530 CONNECTOR; JOINT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AUSTRALIA EQUIPMENT(RR3) (F) 6P 		1-82691-206-0 03 1 0710- ● ● ● ● ●
431 02.530 CONNECTOR; JOINT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. AIR BAG DRIVER<AJ3>,AUSTRALIA EQUIPMENT(RR3),TRANSMISSION CONTROL-SMO OTHER(8GF) (F) 6P 		1-82691-206-0 03 1 0710- ● ● ● ● ●
431 02.530 CONNECTOR; JOINT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (G) 3P & 3P 		1-82698-170-0 03 1 0507-0709 ● ● ● ●
431 02.530 CONNECTOR; JOINT
(G) 3P & 3P 		1-82698-170-0 03 1 0507-0709 ●
431 02.530 CONNECTOR; JOINT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AUSTRALIA EQUIPMENT(RR3) (G) 3P & 3P 		1-82698-170-0 03 1 0710- ● ● ● ● ●
431 02.530 CONNECTOR; JOINT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. AIR BAG DRIVER<AJ3>,AUSTRALIA EQUIPMENT(RR3),TRANSMISSION CONTROL-SMO OTHER(8GF) (G) 3P & 3P 		1-82698-170-0 03 1 0710- ● ● ● ● ●
431 02.530 CONNECTOR; JOINT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (C) 10P GREEN 		1-82699-599-0 02 1 0507-0709 ● ● ● ●
431 02.530 CONNECTOR; JOINT
(C) 10P GREEN 		1-82699-599-0 02 1 0507-0709 ●
431 02.530 CONNECTOR; JOINT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AUSTRALIA EQUIPMENT(RR3) (C) 10P GREEN 		1-82699-599-0 02 1 0710- ● ● ● ● ●
431 02.530 CONNECTOR; JOINT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. AIR BAG DRIVER<AJ3>,AUSTRALIA EQUIPMENT(RR3),TRANSMISSION CONTROL-SMO OTHER(8GF) (C) 10P GREEN 		1-82699-599-0 02 1 0710- ● ● ● ● ●
431 02.530 CONNECTOR; JOINT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (A) 10P BROWN 		1-82699-601-0 01 1 0507-0709 ● ● ● ●
431 02.530 CONNECTOR; JOINT
(A) 10P BROWN 		1-82699-601-0 01 1 0507-0709 ●
431 02.530 CONNECTOR; JOINT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AUSTRALIA EQUIPMENT(RR3) (A) 10P BROWN 		1-82699-601-0 01 1 0710- ● ● ● ● ●
431 02.530 CONNECTOR; JOINT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. AIR BAG DRIVER<AJ3>,AUSTRALIA EQUIPMENT(RR3),TRANSMISSION CONTROL-SMO OTHER(8GF) (A) 10P BROWN 		1-82699-601-0 01 1 0710- ● ● ● ● ●
431 02.530 CONNECTOR; JOINT
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (H) 6P 		8-97381-428-0 02 1 0509- ● ● ● ●
çizim 53983
347 9 231 630 8 443 337 339
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98010-898-3 01 1 0507-0610 ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98062-149-0 01 1 0611- ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98010-897-3 01 1 0507-0610 ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98062-147-0 01 1 0611- ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98010-896-3 01 1 0507-0610 ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98062-146-0 01 1 0611- ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98010-900-3 01 1 0507-0610 ●
8 02.480 HARNESS; FRAME,FRT
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98062-150-0 01 1 0611- ●
8 02.480 HARNESS; FRAME,FRT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98010-899-3 01 1 0507-0610 ●
8 02.480 HARNESS; FRAME,FRT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98062-148-0 01 1 0611- ●
8 02.480 HARNESS; FRAME,FRT
4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> DUMP CHASSIS(V4D) EXC. TURBOCHARGER(K51) 		8-97350-632-2 01 1 0211-0501 ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97377-013-1 01 1 0502-0506 ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME STRAIGHT TYPE<7KJ> 		8-97377-013-1 01 1 0507- ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) CHARGE AIR COOLER<6PL> EXC. VEHICLE CATEGORY NQR<7NQ> 		8-97357-071-1 01 1 0211-0501 ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. TURBOCHARGER(K51) 		8-97350-637-1 01 1 0211-0501 ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HG1-T ENG(RDP) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98000-755-0 01 1 0502-0506 ●
8 02.480 HARNESS; FRAME,FRT 8-98000-755-0 01 1 0502-0506 ●
8 02.480 HARNESS; FRAME,FRT
4HG1-T ENG(RDP) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME STRAIGHT TYPE<7KJ> 		8-98000-755-0 01 1 0507- ●
8 02.480 HARNESS; FRAME,FRT 8-98000-755-0 01 1 0507- ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TURBOCHARGER(K51),DUMP CHASSIS(V4D),FRAME STRAIGHT TYPE<7KJ> 		8-97350-633-2 01 1 0211-0501 ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 		8-97377-016-2 01 1 0502-0506 ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97377-016-2 01 1 0507- ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> EXC. AUSTRALIA EQUIPMENT(RR3), VEHICLECATEGORY NQR<7NQ> 		8-97350-650-2 01 1 0211-0501 ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) TURBOCHARGER(K51) AUSTRALIA EQUIPMENT(RR3) FRAME STRAIGHT TYPE<7KJ> 		8-97357-072-1 01 1 0211-0501 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) SINGAPORE EQUIPMENT(S9Y) CHARGE AIR COOLER<6PL> EXC. VEHICLE CATEGORY NQR<7NQ> 		8-97350-651-2 01 1 0211-0501 ● ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) CHARGE AIR COOLER<6PL> VEHICLE CATEGORY NQR<7NQ> 		8-97357-073-1 01 1 0211-0501 ● ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH) TURBOCHARGER(K51) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97350-626-3 01 1 0211-0501 ● ●
8 02.480 HARNESS; FRAME,FRT 8-97350-626-3 01 1 0211-0501 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) CHARGE AIR COOLER<6PL> VEHICLE CATEGORY NQR<7NQ> 		8-97357-075-1 01 1 0211-0501 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MZZ6U(RSF) VEHICLE CATEGORY NQR<7NQ> EXC. CHARGE AIR COOLER<6PL> 		8-97359-700-2 01 1 0211-0501 ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. TURBOCHARGER(K51) 		8-97350-640-1 01 1 0211-0501 ●
8 02.480 HARNESS; FRAME,FRT
FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) CHARGE AIR COOLER<6PL> 		8-97357-074-1 01 1 0211-0501 ●
9 02.480 HARNESS; FRAME,RR
4HG1 ENG(RJH),4HF1-S ENG(RLS) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 		8-98069-017-0 01 1 0612- ●
9 02.480 HARNESS; FRAME,RR
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97377-063-1 01 1 0507- ●
9 02.480 HARNESS; FRAME,RR
4HK1-TCN ENG(RDQ) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 		8-98000-799-1 01 1 0507- ●
9 02.480 HARNESS; FRAME,RR
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 		8-97377-069-1 01 1 0507- ●
9 02.480 HARNESS; FRAME,RR
FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97377-065-1 01 1 0507- ●
9 02.480 HARNESS; FRAME,RR
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97377-064-1 01 1 0507- ●
9 02.480 HARNESS; FRAME,RR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 		8-98000-800-1 01 1 0507- ●
9 02.480 HARNESS; FRAME,RR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 		8-98000-801-1 01 1 0507- ●
9 02.480 HARNESS; FRAME,RR
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 		8-98000-797-1 01 1 0507- ●
9 02.480 HARNESS; FRAME,RR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 		8-98000-802-1 01 1 0507- ●
9 02.480 HARNESS; FRAME,RR 8-98000-804-2 01 1 0507- ●
9 02.480 HARNESS; FRAME,RR 8-97377-060-1 01 1 0502-0506 ●
9 02.480 HARNESS; FRAME,RR
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME STRAIGHT TYPE<7KJ> 		8-97377-060-1 01 1 0507- ●
9 02.480 HARNESS; FRAME,RR
FRAME STRAIGHT TYPE<7KJ> 		8-97377-066-1 01 1 0502-0506 ●
9 02.480 HARNESS; FRAME,RR
FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97377-066-1 01 1 0507- ●
9 02.480 HARNESS; FRAME,RR
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97377-061-1 01 1 0502-0506 ●
9 02.480 HARNESS; FRAME,RR 8-97377-061-1 01 1 0502-0506 ●
9 02.480 HARNESS; FRAME,RR
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME STRAIGHT TYPE<7KJ> 		8-97377-061-1 01 1 0507- ●
9 02.480 HARNESS; FRAME,RR 8-97377-061-1 01 1 0507- ●
9 02.480 HARNESS; FRAME,RR
FRAME STRAIGHT TYPE<7KJ> 		8-97377-067-1 01 1 0502-0506 ●
9 02.480 HARNESS; FRAME,RR
FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97377-067-1 01 1 0507- ●
9 02.480 HARNESS; FRAME,RR
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97377-062-1 01 1 0502-0506 ●
9 02.480 HARNESS; FRAME,RR
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME STRAIGHT TYPE<7KJ> 		8-97377-062-1 01 1 0507- ●
9 02.480 HARNESS; FRAME,RR
FRAME STRAIGHT TYPE<7KJ> 		8-97377-068-1 01 1 0502-0506 ●
9 02.480 HARNESS; FRAME,RR
FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97377-068-1 01 1 0507- ●
231 02.480 HARNESS; TRANS
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97373-511-2 01 1 0507- ● ● ● ● ●
337 02.530 HARNESS; EXT,HTR
FUEL SEDIMENTER WITH HEATER<6HU> 		8-97261-149-0 01 1 0211-0501 ● ● ● ●
337 02.530 HARNESS; EXT,HTR
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> 		8-97261-149-0 01 1 0502- ● ● ● ●
339 02.530 HARNESS; EXT,FUEL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FUEL TANK 125L,33GAL<NL7> 		8-98012-979-0 01 1 0507- ● ● ● ● ●
339 02.530 HARNESS; EXT,FUEL
02.480 		8-94318-759-0 01 1 0211-0501 ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. DUMP CHASSIS(V4D) 		8-97213-568-0 01 1 0211-0302 ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. RR BODY FLAT BED(RS6) 		8-97213-568-0 01 1 0211-0302 ● ●
347 02.480 HARNESS; CABLE,RR BODY 8-97213-568-0 01 1 0211-0302 ● ● ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. DUMP CHASSIS(V4D) 		8-97364-152-0 01 1 0303-0501 ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. RR BODY FLAT BED(RS6) 		8-97364-152-0 01 1 0303-0501 ● ●
347 02.480 HARNESS; CABLE,RR BODY 8-97364-152-0 01 1 0303-0501 ● ● ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. DUMP CHASSIS(V4D) 		8-97364-152-0 01 1 0502-0503 ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. RR BODY FLAT BED(RS6) 		8-97364-152-0 01 1 0502-0503 ● ●
347 02.480 HARNESS; CABLE,RR BODY 8-97364-152-0 01 1 0502-0503 ● ●
347 02.480 HARNESS; CABLE,RR BODY 8-97364-152-0 01 1 0504-0506 ● ● ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. RR BODY FLAT BED(RS6) 		8-97364-152-0 01 1 0504-0506 ● ●
347 02.480 HARNESS; CABLE,RR BODY 8-97364-152-0 01 1 0507- ● ● ● ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. RR BODY FLAT BED(RS6) 		8-97364-152-0 01 1 0507- ● ●
347 02.480 HARNESS; CABLE,RR BODY
RR BODY FLAT BED(RS6) 		8-97213-566-0 01 1 0211-0302 ● ●
347 02.480 HARNESS; CABLE,RR BODY
RR BODY FLAT BED(RS6) 		8-97364-151-0 01 1 0303- ● ●
443 02.480 HARNESS; EXT,A/C
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 		8-98012-984-1 01 1 0507- ● ● ● ● ●
630 02.559 CONNECTOR; SHORT,ABS
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52> 		8-97308-277-0 01 1 0507- ● ● ● ●
630 02.559 CONNECTOR; SHORT,ABS
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> HYDRO BRAKE BOOSTER<7QQ> 		8-97258-074-0 01 1 0507- ● ● ●
çizim 54694
534 13 1 483 189 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 02.480 HARNESS; CAB
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) PROVISIONAL PACKAGE SPEC<BCC> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HYDRO BRAKE BOOSTER<7QQ> 		8-98217-081-0 01 1 1207- ● ● ● ●
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR BAG DRIVER<AJ3> AUSTRALIA EQUIPMENT(RR3) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98010-602-1 01 1 0507-0510 ● ● ● ● ●
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR BAG DRIVER<AJ3> AUSTRALIA EQUIPMENT(RR3) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98028-726-2 01 1 0511-0610 ● ● ● ● ●
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR BAG DRIVER<AJ3> AUSTRALIA EQUIPMENT(RR3) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98061-919-0 01 1 0611- ● ● ● ● ●
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR BAG DRIVER<AJ3> AUSTRALIA EQUIPMENT(RR3) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98010-601-1 01 1 0507-0510 ● ● ● ● ●
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR BAG DRIVER<AJ3> AUSTRALIA EQUIPMENT(RR3) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98028-725-2 01 1 0511-0610 ● ● ● ● ●
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR BAG DRIVER<AJ3> AUSTRALIA EQUIPMENT(RR3) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98061-918-0 01 1 0611- ● ● ● ● ●
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AUSTRALIA EQUIPMENT(RR3) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3> 		8-98010-600-1 01 1 0507-0510 ● ● ● ● ●
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AUSTRALIA EQUIPMENT(RR3) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3> 		8-98028-724-1 01 1 0511-0610 ● ● ● ● ●
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AUSTRALIA EQUIPMENT(RR3) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3> 		8-98061-917-0 01 1 0611- ● ● ● ● ●
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AUSTRALIA EQUIPMENT(RR3) EXC. AIR BAG DRIVER<AJ3>, TRANSMISSIONCONTROL-SMOOTHER(8GF) 		8-98010-599-1 01 1 0507-0510 ● ● ● ● ●
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AUSTRALIA EQUIPMENT(RR3) EXC. AIR BAG DRIVER<AJ3>, TRANSMISSIONCONTROL-SMOOTHER(8GF) 		8-98028-723-1 01 1 0511-0610 ● ● ● ● ●
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AUSTRALIA EQUIPMENT(RR3) EXC. AIR BAG DRIVER<AJ3>, TRANSMISSIONCONTROL-SMOOTHER(8GF) 		8-98061-916-0 01 1 0611- ● ● ● ● ●
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. AIR BAG DRIVER<AJ3>,AUSTRALIA EQUIPMENT(RR3),TRANSMISSION CONTROL-SMO OTHER(8GF) 		8-98010-598-2 01 1 0507-0610 ● ● ● ●
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. AIR BAG DRIVER<AJ3>,AUSTRALIA EQUIPMENT(RR3),TRANSMISSION CONTROL-SMO OTHER(8GF) 		8-98061-915-0 01 1 0611- ● ● ● ●
1 02.480 HARNESS; CAB
4HF1-S ENG(RLS) ENGINE POWER N-SPEC(7QV) 		8-97309-088-2 01 1 0211-0501 ● ● ●
1 02.480 HARNESS; CAB
4HG1-T ENG(RDP) EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-98000-741-0 01 1 0502-0506 ●
1 02.480 HARNESS; CAB 8-98000-741-0 01 1 0502-0506 ●
1 02.480 HARNESS; CAB
4HG1-T ENG(RDP) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HYDRO BRAKE BOOSTER<7QQ> 		8-98000-741-0 01 1 0507-0510 ●
1 02.480 HARNESS; CAB 8-98000-741-0 01 1 0507-0510 ●
1 02.480 HARNESS; CAB
4HG1-T ENG(RDP) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HYDRO BRAKE BOOSTER<7QQ> 		8-98028-703-1 01 1 0511- ●
1 02.480 HARNESS; CAB 8-98028-703-1 01 1 0511- ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97309-112-1 01 1 0211-0404 ● ● ● ●
1 02.480 HARNESS; CAB
FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97309-112-1 01 1 0211-0404 ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. NEW ZEALAND EQUIPMENT(PK5), CHARGE AIR COOLER<6PL> 		8-97309-112-2 01 1 0405-0501 ● ● ● ● ●
1 02.480 HARNESS; CAB
4HG1 ENG(RJH),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TURBOCHARGER(K51),AUSTRALIA EQUIPMENT(RR3),SINGAPORE EQUIPMENT(S9Y),E NGINE POWER N-SPEC(7QV) 		8-97309-114-1 01 1 0211-0404 ● ● ● ●
1 02.480 HARNESS; CAB
4HG1 ENG(RJH),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TURBOCHARGER(K51),NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) ,SINGAPORE EQUIPMENT(S9Y),ENGINE POWER N-SPEC(7QV) 		8-97309-114-2 01 1 0405-0501 ● ● ● ●
1 02.480 HARNESS; CAB
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97377-105-2 01 1 0502-0506 ● ● ● ●
1 02.480 HARNESS; CAB
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HYDRO BRAKE BOOSTER<7QQ> 		8-97377-105-2 01 1 0507-1206 ● ● ● ●
1 02.480 HARNESS; CAB
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. PROVISIONAL PACKAGE SPEC<BCC>,4 WHEEL ANTI LOCK BRAKE<JE5>,HYDRO BRAKE BOOSTER<7QQ> 		8-97377-105-2 01 1 1207- ● ● ● ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) REMOTE CONT DOOR LOCK<6NF> CHARGE AIR COOLER<6PL> EXC. HYDRO BRAKE BOOSTER<7QQ> 02.726 		8-97357-037-1 01 1 0211-0501 ● ● ● ● ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) TURBOCHARGER(K51) REMOTE CONT DOOR LOCK<6NF> 		8-97357-038-1 01 1 0211-0501 ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) SINGAPORE EQUIPMENT(S9Y) EXC. VEHICLE CATEGORY NQR<7NQ> 		8-97300-469-2 01 1 0211-0501 ● ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> SINGAPORE EQUIPMENT(S9Y) EXC. VEHICLE CATEGORY NQR<7NQ> 		8-97310-069-1 01 1 0211-0403 ● ●
1 02.480 HARNESS; CAB
FLOOR REMOTE SHIFT<M11> SINGAPORE EQUIPMENT(S9Y) 		8-97310-069-1 01 1 0211-0403 ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> SINGAPORE EQUIPMENT(S9Y) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, VEHICLE CATEGORY NQR<7NQ> 		8-97310-069-2 01 1 0404-0501 ● ●
1 02.480 HARNESS; CAB
FLOOR REMOTE SHIFT<M11> SINGAPORE EQUIPMENT(S9Y) 		8-97310-069-2 01 1 0404-0501 ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) 4 WHEEL ANTI LOCK BRAKE<JE5> FLOOR REMOTE SHIFT<M11> SINGAPORE EQUIPMENT(S9Y) EXC. VEHICLE CATEGORY NQR<7NQ> 		8-97376-315-0 01 1 0404-0501 ● ●
1 02.480 HARNESS; CAB
4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. AUSTRALIA EQUIPMENT(RR3), SINGAPORE EQUIPMENT(S9Y) 		8-97309-116-1 01 1 0211-0404 ● ●
1 02.480 HARNESS; CAB
4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97309-116-1 01 1 0211-0404 ●
1 02.480 HARNESS; CAB
4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. NEW ZEALAND EQUIPMENT(PK5), AUSTRALIA EQUIPMENT(RR3),SINGAPORE EQUIPME NT(S9Y) 		8-97309-116-2 01 1 0405-0501 ● ●
1 02.480 HARNESS; CAB
4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. NEW ZEALAND EQUIPMENT(PK5), AUSTRALIA EQUIPMENT(RR3) 		8-97309-116-2 01 1 0405-0501 ●
1 02.480 HARNESS; CAB
4HG1 ENG(RJH) TURBOCHARGER(K51) SINGAPORE EQUIPMENT(S9Y) 		8-97309-115-2 01 1 0211-0501 ● ●
1 02.480 HARNESS; CAB 8-97309-115-2 01 1 0211-0501 ●
1 02.480 HARNESS; CAB
4HG1 ENG(RJH),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> NEW ZEALAND EQUIPMENT(PK5) REMOTE CONT DOOR LOCK<6NF> EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) 		8-97380-149-0 01 1 0405-0501 ● ●
1 02.480 HARNESS; CAB
4HG1 ENG(RJH),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> NEW ZEALAND EQUIPMENT(PK5) REMOTE CONT DOOR LOCK<6NF> EXC. TURBOCHARGER(K51) 		8-97380-149-0 01 1 0405-0501 ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) REMOTE CONT DOOR LOCK<6NF> CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> 		8-97357-039-2 01 1 0211-0501 ● ● ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> NEW ZEALAND EQUIPMENT(PK5) REMOTE CONT DOOR LOCK<6NF> 		8-97380-151-0 01 1 0405-0501 ● ● ●
1 02.480 HARNESS; CAB
4HG1 ENG(RJH) TURBOCHARGER(K51) NEW ZEALAND EQUIPMENT(PK5) REMOTE CONT DOOR LOCK<6NF> 		8-97380-150-0 01 1 0405-0501 ● ● ●
13 02.525 HARNESS; ENG
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (A) 		8-98020-041-0 01 1 0507-0509 ● ● ● ● ●
13 02.525 HARNESS; ENG
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (A) 		8-98023-708-0 01 1 0510- ● ● ● ● ●
13 02.525 HARNESS; ENG
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B) 		8-97332-133-3 01 1 0507- ● ● ● ● ●
13 02.525 HARNESS; ENG
4HF1-S ENG(RLS) ENGINE POWER N-SPEC(7QV) (A) 		8-97356-991-0 01 1 0303-0501 ● ● ●
13 02.525 HARNESS; ENG
4HF1-N ENG(RJZ) (A) 		8-97356-991-0 01 1 0502- ● ● ●
13 02.525 HARNESS; ENG
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> (A) 		8-97356-988-0 01 1 0211-0211 ● ● ● ● ●
13 02.525 HARNESS; ENG
4HF1-S ENG(RLS) (A) 		8-97356-988-0 01 1 0211-0211 ● ● ● ●
13 02.525 HARNESS; ENG
4HG1 ENG(RJH) EXC. TURBOCHARGER(K51) (A) 		8-97356-988-0 01 1 0211-0211 ● ● ● ●
13 02.525 HARNESS; ENG
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> (A) 		8-97356-988-0 01 1 0212-0302 ● ● ● ● ●
13 02.525 HARNESS; ENG
4HF1-S ENG(RLS) (A) 		8-97356-988-0 01 1 0212-0302 ● ● ● ●
13 02.525 HARNESS; ENG
4HG1 ENG(RJH) EXC. TURBOCHARGER(K51) (A) 		8-97356-988-0 01 1 0212-0302 ● ● ●
13 02.525 HARNESS; ENG
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> (A) 		8-97356-988-0 01 1 0303-0501 ● ● ● ● ●
13 02.525 HARNESS; ENG
4HF1-S ENG(RLS) EXC. ENGINE POWER N-SPEC(7QV) (A) 		8-97356-988-0 01 1 0303-0501 ● ● ● ●
13 02.525 HARNESS; ENG
4HG1 ENG(RJH) EXC. TURBOCHARGER(K51) (A) 		8-97356-988-0 01 1 0303-0501 ● ● ●
13 02.525 HARNESS; ENG
4HG1 ENG(RJH),4HF1-S ENG(RLS) (A) 		8-97356-988-1 01 1 0502- ● ● ● ●
13 02.525 HARNESS; ENG
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> (A) 		8-97356-989-0 01 1 0211-0501 ● ● ● ● ●
13 02.525 HARNESS; ENG
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> (A) 		8-97166-705-1 01 1 0211-0501 ● ●
13 02.525 HARNESS; ENG
4HG1 ENG(RJH) TURBOCHARGER(K51) (A) 		8-97360-767-0 01 1 0211-0211 ● ● ● ●
13 02.525 HARNESS; ENG
4HG1 ENG(RJH) TURBOCHARGER(K51) (A) 		8-97360-767-0 01 1 0212-0501 ● ● ●
13 02.525 HARNESS; ENG
4HG1-T ENG(RDP) (A) 		8-97360-767-1 01 1 0502- ● ●
189 02.480 HARNESS; EXT
AUSTRALIA EQUIPMENT(RR3) FOG LAMP<T96> 		8-98027-774-0 01 1 0511- ● ● ● ●
189 02.480 HARNESS; EXT
FOG LAMP<T96> 		8-98027-774-0 01 1 0511- ●
483 02.480 HARNESS; EXT,RADIO
RADIO AM/FM STEREO 2 SPEAKERS(6GZ) 		8-97383-850-0 01 1 0502-0506 ● ● ● ●
483 02.480 HARNESS; EXT,RADIO
RADIO AM/FM STEREO 2 SPEAKERS(6GZ) 		8-97383-850-0 01 1 0507- ● ● ● ● ●
534 02.483 BOLT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 00.683 M10X55 FLANGE 		8-94399-863-1 03 1 0507-0606 ● ● ● ● ●
534 02.483 BOLT
4HK1-TCN ENG(RDQ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO3 SPECIFICATION(NT3) EXC. KD PREPARATORY PACK<6HF> 00.683 M10X55 FLANGE 		8-94399-863-1 03 1 0607-0805 ● ● ● ●
534 02.483 BOLT
4HK1-TCN ENG(RDQ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO3 SPECIFICATION(NT3) KD PREPARATORY PACK<6HF> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 00.683 M10X55 FLANGE 		8-94399-863-1 03 1 0607-0805 ●
534 02.483 BOLT
4HK1-TCN ENG(RDQ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO3 SPECIFICATION(NT3) KD PREPARATORY PACK<6HF> EXC. HYDRO BRAKE BOOSTER<7QQ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 00.683 M10X55 FLANGE 		8-94399-863-1 03 1 0607-0805 ● ● ●
534 02.483 BOLT
4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO3 SPECIFICATION(NT3) HYDRO BRAKE BOOSTER<7QQ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 00.683 M10X55 FLANGE 		8-94399-863-1 03 1 0607-0805 ● ● ●
534 02.483 BOLT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. KD PREPARATORY PACK<6HF> 00.683 M10X55 FLANGE 		8-94399-863-1 03 1 0607-0805 ●
534 02.483 BOLT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 00.683 M10X55 FLANGE 		8-97365-449-0 03 1 0806- ● ● ● ● ●
çizim 55322
1 36 36 456 2 2 453 453 4 41 5 444 28
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 02.480 HARNESS; CAB
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) PROVISIONAL PACKAGE SPEC<BCC> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HYDRO BRAKE BOOSTER<7QQ> 		8-98217-081-0 01 1 1207- ● ● ● ●
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR BAG DRIVER<AJ3> AUSTRALIA EQUIPMENT(RR3) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98010-602-1 01 1 0507-0510 ● ● ● ● ●
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR BAG DRIVER<AJ3> AUSTRALIA EQUIPMENT(RR3) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98028-726-2 01 1 0511-0610 ● ● ● ● ●
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR BAG DRIVER<AJ3> AUSTRALIA EQUIPMENT(RR3) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98061-919-0 01 1 0611- ● ● ● ● ●
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR BAG DRIVER<AJ3> AUSTRALIA EQUIPMENT(RR3) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98010-601-1 01 1 0507-0510 ● ● ● ● ●
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR BAG DRIVER<AJ3> AUSTRALIA EQUIPMENT(RR3) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98028-725-2 01 1 0511-0610 ● ● ● ● ●
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR BAG DRIVER<AJ3> AUSTRALIA EQUIPMENT(RR3) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98061-918-0 01 1 0611- ● ● ● ● ●
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AUSTRALIA EQUIPMENT(RR3) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3> 		8-98010-600-1 01 1 0507-0510 ● ● ● ● ●
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AUSTRALIA EQUIPMENT(RR3) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3> 		8-98028-724-1 01 1 0511-0610 ● ● ● ● ●
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AUSTRALIA EQUIPMENT(RR3) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3> 		8-98061-917-0 01 1 0611- ● ● ● ● ●
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AUSTRALIA EQUIPMENT(RR3) EXC. AIR BAG DRIVER<AJ3>, TRANSMISSIONCONTROL-SMOOTHER(8GF) 		8-98010-599-1 01 1 0507-0510 ● ● ● ● ●
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AUSTRALIA EQUIPMENT(RR3) EXC. AIR BAG DRIVER<AJ3>, TRANSMISSIONCONTROL-SMOOTHER(8GF) 		8-98028-723-1 01 1 0511-0610 ● ● ● ● ●
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AUSTRALIA EQUIPMENT(RR3) EXC. AIR BAG DRIVER<AJ3>, TRANSMISSIONCONTROL-SMOOTHER(8GF) 		8-98061-916-0 01 1 0611- ● ● ● ● ●
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. AIR BAG DRIVER<AJ3>,AUSTRALIA EQUIPMENT(RR3),TRANSMISSION CONTROL-SMO OTHER(8GF) 		8-98010-598-2 01 1 0507-0610 ● ● ● ●
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. AIR BAG DRIVER<AJ3>,AUSTRALIA EQUIPMENT(RR3),TRANSMISSION CONTROL-SMO OTHER(8GF) 		8-98061-915-0 01 1 0611- ● ● ● ●
1 02.480 HARNESS; CAB
4HF1-S ENG(RLS) ENGINE POWER N-SPEC(7QV) 		8-97309-088-2 01 1 0211-0501 ● ● ●
1 02.480 HARNESS; CAB
4HG1-T ENG(RDP) EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-98000-741-0 01 1 0502-0506 ●
1 02.480 HARNESS; CAB 8-98000-741-0 01 1 0502-0506 ●
1 02.480 HARNESS; CAB
4HG1-T ENG(RDP) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HYDRO BRAKE BOOSTER<7QQ> 		8-98000-741-0 01 1 0507-0510 ●
1 02.480 HARNESS; CAB 8-98000-741-0 01 1 0507-0510 ●
1 02.480 HARNESS; CAB
4HG1-T ENG(RDP) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HYDRO BRAKE BOOSTER<7QQ> 		8-98028-703-1 01 1 0511- ●
1 02.480 HARNESS; CAB 8-98028-703-1 01 1 0511- ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97309-112-1 01 1 0211-0404 ● ● ● ●
1 02.480 HARNESS; CAB
FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97309-112-1 01 1 0211-0404 ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. NEW ZEALAND EQUIPMENT(PK5), CHARGE AIR COOLER<6PL> 		8-97309-112-2 01 1 0405-0501 ● ● ● ● ●
1 02.480 HARNESS; CAB
4HG1 ENG(RJH),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TURBOCHARGER(K51),AUSTRALIA EQUIPMENT(RR3),SINGAPORE EQUIPMENT(S9Y),E NGINE POWER N-SPEC(7QV) 		8-97309-114-1 01 1 0211-0404 ● ● ● ●
1 02.480 HARNESS; CAB
4HG1 ENG(RJH),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TURBOCHARGER(K51),NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) ,SINGAPORE EQUIPMENT(S9Y),ENGINE POWER N-SPEC(7QV) 		8-97309-114-2 01 1 0405-0501 ● ● ● ●
1 02.480 HARNESS; CAB
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97377-105-2 01 1 0502-0506 ● ● ● ●
1 02.480 HARNESS; CAB
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HYDRO BRAKE BOOSTER<7QQ> 		8-97377-105-2 01 1 0507-1206 ● ● ● ●
1 02.480 HARNESS; CAB
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. PROVISIONAL PACKAGE SPEC<BCC>,4 WHEEL ANTI LOCK BRAKE<JE5>,HYDRO BRAKE BOOSTER<7QQ> 		8-97377-105-2 01 1 1207- ● ● ● ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) REMOTE CONT DOOR LOCK<6NF> CHARGE AIR COOLER<6PL> EXC. HYDRO BRAKE BOOSTER<7QQ> 02.726 		8-97357-037-1 01 1 0211-0501 ● ● ● ● ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) TURBOCHARGER(K51) REMOTE CONT DOOR LOCK<6NF> 		8-97357-038-1 01 1 0211-0501 ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) SINGAPORE EQUIPMENT(S9Y) EXC. VEHICLE CATEGORY NQR<7NQ> 		8-97300-469-2 01 1 0211-0501 ● ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> SINGAPORE EQUIPMENT(S9Y) EXC. VEHICLE CATEGORY NQR<7NQ> 		8-97310-069-1 01 1 0211-0403 ● ●
1 02.480 HARNESS; CAB
FLOOR REMOTE SHIFT<M11> SINGAPORE EQUIPMENT(S9Y) 		8-97310-069-1 01 1 0211-0403 ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> SINGAPORE EQUIPMENT(S9Y) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, VEHICLE CATEGORY NQR<7NQ> 		8-97310-069-2 01 1 0404-0501 ● ●
1 02.480 HARNESS; CAB
FLOOR REMOTE SHIFT<M11> SINGAPORE EQUIPMENT(S9Y) 		8-97310-069-2 01 1 0404-0501 ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) 4 WHEEL ANTI LOCK BRAKE<JE5> FLOOR REMOTE SHIFT<M11> SINGAPORE EQUIPMENT(S9Y) EXC. VEHICLE CATEGORY NQR<7NQ> 		8-97376-315-0 01 1 0404-0501 ● ●
1 02.480 HARNESS; CAB
4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. AUSTRALIA EQUIPMENT(RR3), SINGAPORE EQUIPMENT(S9Y) 		8-97309-116-1 01 1 0211-0404 ● ●
1 02.480 HARNESS; CAB
4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97309-116-1 01 1 0211-0404 ●
1 02.480 HARNESS; CAB
4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. NEW ZEALAND EQUIPMENT(PK5), AUSTRALIA EQUIPMENT(RR3),SINGAPORE EQUIPME NT(S9Y) 		8-97309-116-2 01 1 0405-0501 ● ●
1 02.480 HARNESS; CAB
4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. NEW ZEALAND EQUIPMENT(PK5), AUSTRALIA EQUIPMENT(RR3) 		8-97309-116-2 01 1 0405-0501 ●
1 02.480 HARNESS; CAB
4HG1 ENG(RJH) TURBOCHARGER(K51) SINGAPORE EQUIPMENT(S9Y) 		8-97309-115-2 01 1 0211-0501 ● ●
1 02.480 HARNESS; CAB 8-97309-115-2 01 1 0211-0501 ●
1 02.480 HARNESS; CAB
4HG1 ENG(RJH),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> NEW ZEALAND EQUIPMENT(PK5) REMOTE CONT DOOR LOCK<6NF> EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) 		8-97380-149-0 01 1 0405-0501 ● ●
1 02.480 HARNESS; CAB
4HG1 ENG(RJH),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> NEW ZEALAND EQUIPMENT(PK5) REMOTE CONT DOOR LOCK<6NF> EXC. TURBOCHARGER(K51) 		8-97380-149-0 01 1 0405-0501 ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) REMOTE CONT DOOR LOCK<6NF> CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> 		8-97357-039-2 01 1 0211-0501 ● ● ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> NEW ZEALAND EQUIPMENT(PK5) REMOTE CONT DOOR LOCK<6NF> 		8-97380-151-0 01 1 0405-0501 ● ● ●
1 02.480 HARNESS; CAB
4HG1 ENG(RJH) TURBOCHARGER(K51) NEW ZEALAND EQUIPMENT(PK5) REMOTE CONT DOOR LOCK<6NF> 		8-97380-150-0 01 1 0405-0501 ● ● ●
2 02.483 DIODE; CABLE HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 AR 1 0211- ● ● ● ● ● ●
2 02.483 DIODE; CABLE HARNESS
(A) BLACK 3P-1.5A 		8-94422-640-1 AR 1 0211-0501 ● ● ● ● ● ●
2 02.483 DIODE; CABLE HARNESS
(C) BLACK 3P-1.5A 		8-94416-438-1 AR 1 0507- ● ● ● ● ● ●
2 02.483 DIODE; CABLE HARNESS
(A) BLACK 3P-1.5A 		8-94422-640-1 AR 1 0611- ● ● ● ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS 8-97214-415-0 01 1 0211-0501 ● ● ● ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97187-921-1 01 1 0502-0506 ● ● ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. AIR BAG DRIVER<AJ3>,AUSTRALIA EQUIPMENT(RR3),TRANSMISSION CONTROL-SMO OTHER(8GF) 		8-97187-921-1 01 1 0507- ● ● ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AUSTRALIA EQUIPMENT(RR3) 		8-97187-921-1 01 1 0507- ● ● ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HYDRO BRAKE BOOSTER<7QQ> 		8-97187-921-1 01 1 0507- ● ● ● ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 10A RED 		5-82516-002-0 AR 1 0211- ● ● ● ● ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 15A BLUE 		5-82516-003-0 AR 1 0211- ● ● ● ● ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 10A MINI RED 		8-97062-022-0 AR 1 0502- ● ● ● ● ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 15A MINI BLUE 		8-97062-023-0 AR 1 0502- ● ● ● ● ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 20A MINI YELLOW 		8-97062-024-0 AR 1 0502- ● ● ● ● ● ●
28 02.483 SCREW; FUSE BOX
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0211-0501 ● ● ● ● ● ●
28 02.483 SCREW; FUSE BOX
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0502-0506 ● ● ● ● ●
28 02.483 SCREW; FUSE BOX
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0507-0604 ● ● ● ● ● ●
28 02.483 SCREW; FUSE BOX
03.885 M5X16 TAPPING W/PL WASHER 		0-74360-516-0 02 1 0605-0612 ● ● ● ● ● ●
28 02.483 SCREW; FUSE BOX
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 0701-1101 ● ● ● ● ● ●
28 02.483 SCREW; FUSE BOX
16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 02 1 1102-1212 ● ● ● ● ● ●
28 02.483 SCREW; FUSE BOX
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1301- ● ● ● ● ● ●
36 02.530 BOX; RELAY
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (A) 		8-97087-640-2 01 1 0507-0709 ● ● ● ●
36 02.530 BOX; RELAY
(A) 		8-97087-640-2 01 1 0507-0709 ●
36 02.530 BOX; RELAY
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AUSTRALIA EQUIPMENT(RR3) (A) 		8-97087-640-2 01 1 0710- ● ● ● ● ●
36 02.530 BOX; RELAY
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. AIR BAG DRIVER<AJ3>,AUSTRALIA EQUIPMENT(RR3),TRANSMISSION CONTROL-SMO OTHER(8GF) (A) 		8-97087-640-2 01 1 0710- ● ● ● ● ●
36 02.530 BOX; RELAY
(B) 		8-97087-639-1 01 1 0211-0501 ● ● ● ● ● ●
36 02.530 BOX; RELAY
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. HYDRO BRAKE BOOSTER<7QQ> (C) 		8-97187-918-1 01 1 0502-0506 ● ● ● ● ●
36 02.530 BOX; RELAY
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. AIR BAG DRIVER<AJ3>,AUSTRALIA EQUIPMENT(RR3),TRANSMISSION CONTROL-SMO OTHER(8GF) (C) 		8-97187-918-1 01 1 0507- ● ● ● ● ●
36 02.530 BOX; RELAY
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AUSTRALIA EQUIPMENT(RR3) (C) 		8-97187-918-1 01 1 0507- ● ● ● ● ●
36 02.530 BOX; RELAY
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HYDRO BRAKE BOOSTER<7QQ> (C) 		8-97187-918-1 01 1 0507- ● ● ● ● ●
36 02.530 BOX; RELAY
(A) 		8-97087-640-1 01 1 0211-0501 ● ● ● ● ● ●
41 08.821 PULLER; FUSE
02.483 L=25.3 B=11.5 		8-94121-482-0 01 1 0211-0501 ● ● ● ● ● ●
41 08.821 PULLER; FUSE
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97103-388-0 01 1 0502-0506 ● ● ● ● ●
41 08.821 PULLER; FUSE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. AIR BAG DRIVER<AJ3>,AUSTRALIA EQUIPMENT(RR3),TRANSMISSION CONTROL-SMO OTHER(8GF) 		8-97103-388-0 01 1 0507- ● ● ● ● ●
41 08.821 PULLER; FUSE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AUSTRALIA EQUIPMENT(RR3) 		8-97103-388-0 01 1 0507- ● ● ● ● ●
41 08.821 PULLER; FUSE
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HYDRO BRAKE BOOSTER<7QQ> 		8-97103-388-0 01 1 0507- ● ● ● ● ●
444 02.483 GROMMET; SCREW,FUSE BOX
01.269 D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 0211-0501 ● ● ● ● ● ●
444 02.483 GROMMET; SCREW,FUSE BOX
01.269 D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 0502-0506 ● ● ● ● ●
444 02.483 GROMMET; SCREW,FUSE BOX
01.269 D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 0507- ● ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. HYDRO BRAKE BOOSTER<7QQ> (G) 		8-97088-615-0 01 1 0502-0506 ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. AIR BAG DRIVER<AJ3>,AUSTRALIA EQUIPMENT(RR3),TRANSMISSION CONTROL-SMO OTHER(8GF) (G) 		8-97088-615-0 01 1 0507- ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AUSTRALIA EQUIPMENT(RR3) (G) 		8-97088-615-0 01 1 0507- ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HYDRO BRAKE BOOSTER<7QQ> (G) 		8-97088-615-0 01 1 0507- ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97062-169-0 01 1 0507- ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97062-169-0 01 1 0507- ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> (F) 		8-94417-716-0 01 1 0212-0501 ● ● ●
453 02.483 PROTECTOR; HARNESS
(F) 		8-94417-716-0 01 1 0212-0501 ●
453 02.483 PROTECTOR; HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (F) 		8-94417-716-0 01 1 0502-0506 ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME STRAIGHT TYPE<7KJ> (F) 		8-94417-716-0 01 1 0507- ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-94482-169-0 01 1 0212-0501 ● ● ●
453 02.483 PROTECTOR; HARNESS
(B) 		8-94482-169-0 01 1 0212-0501 ●
453 02.483 PROTECTOR; HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-94482-169-0 01 1 0502-0506 ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME STRAIGHT TYPE<7KJ> (B) 		8-94482-169-0 01 1 0507- ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
(A) 		8-97120-591-1 01 1 0211-0501 ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) (A) 		8-97120-591-1 01 1 0502-0506 ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-97120-591-1 01 1 0507- ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97120-591-1 01 1 0507- ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-97120-591-1 01 1 0507- ● ● ● ●
453 02.483 PROTECTOR; HARNESS
(E) 		8-97093-668-1 01 1 0211-0501 ● ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) (E) 		8-97093-668-1 01 1 0502-0506 ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
(E) 		8-97093-668-1 01 1 0507- ● ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
(C) 		8-97259-730-2 01 1 0211-0501 ● ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. HYDRO BRAKE BOOSTER<7QQ> (C) 		8-97259-730-3 01 1 0502-0506 ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. AIR BAG DRIVER<AJ3>,AUSTRALIA EQUIPMENT(RR3),TRANSMISSION CONTROL-SMO OTHER(8GF) (C) 		8-97259-730-3 01 1 0507- ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AUSTRALIA EQUIPMENT(RR3) (C) 		8-97259-730-3 01 1 0507- ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HYDRO BRAKE BOOSTER<7QQ> (C) 		8-97259-730-3 01 1 0507- ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
(D) 		8-97261-653-2 01 1 0211-0501 ● ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. HYDRO BRAKE BOOSTER<7QQ> (D) 		8-97261-653-2 01 1 0502-0506 ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. AIR BAG DRIVER<AJ3>,AUSTRALIA EQUIPMENT(RR3),TRANSMISSION CONTROL-SMO OTHER(8GF) (D) 		8-97261-653-2 01 1 0507- ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AUSTRALIA EQUIPMENT(RR3) (D) 		8-97261-653-2 01 1 0507- ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HYDRO BRAKE BOOSTER<7QQ> (D) 		8-97261-653-2 01 1 0507- ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) SINGAPORE EQUIPMENT(S9Y) CHARGE AIR COOLER<6PL> EXC. VEHICLE CATEGORY NQR<7NQ> (B) 		8-97062-169-0 01 1 0211-0501 ● ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) TURBOCHARGER(K51) AUSTRALIA EQUIPMENT(RR3) FRAME STRAIGHT TYPE<7KJ> (B) 		8-97062-169-0 01 1 0211-0501 ●
456 02.483 CUSHION; FUSE BOX
16.085 15X30 T=5 		8-94270-366-2 01 1 0211-0501 ● ● ● ● ● ●
456 02.483 CUSHION; FUSE BOX
16.085 15X30 T=5 		8-94270-366-2 01 1 0502-0506 ● ● ● ● ●
456 02.483 CUSHION; FUSE BOX
16.085 15X30 T=5 		8-94270-366-2 01 1 0507- ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
