Sayfa 8-03 - Isuzu EPC

8-03 — LAMP; REAR AND REAR SIDE (#18340) — 193 parça

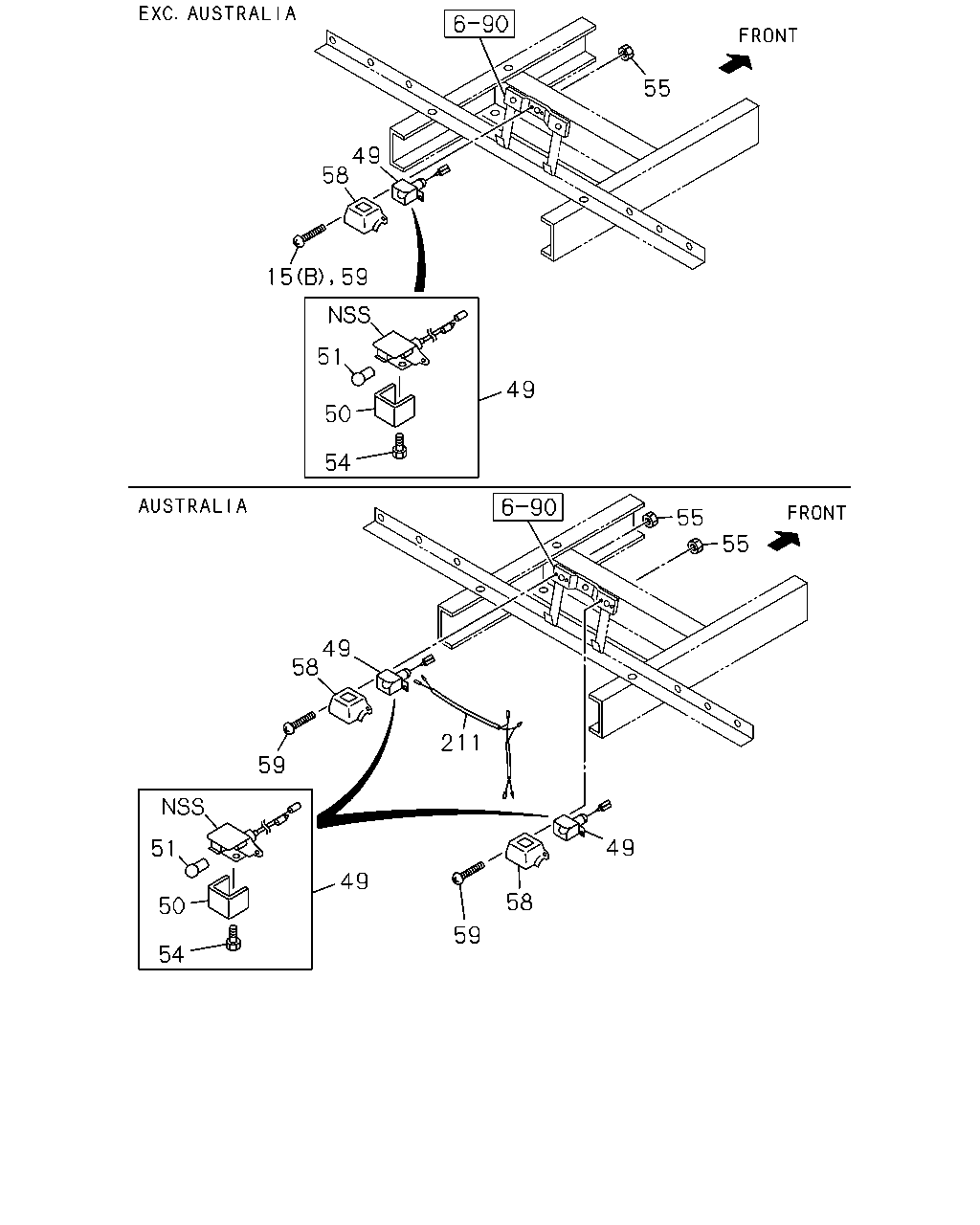

55 49 58 51 49 50 54 55 55 49 58 211 59 49 51 49 58 50 59 54

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
49	02.700 LAMP; LICENSE PLATE AUSTRALIA EQUIPMENT(RR3) 24V 5W	8-97105-380-0	02	1	0507-1509	●	●	●	●
49	02.700 LAMP; LICENSE PLATE 24V 5W	8-97105-380-0	02	1	0507-1509					●
49	02.700 LAMP; LICENSE PLATE AUSTRALIA EQUIPMENT(RR3) 24V 5W	8-98329-430-0	02	1	1510-	●	●	●	●
49	02.700 LAMP; LICENSE PLATE 24V 5W	8-98329-430-0	02	1	1510-					●
49	02.700 LAMP; LICENSE PLATE AUSTRALIA EQUIPMENT(RR3) 24V 5W	8-97105-380-0	02	1	0211-0501	●	●	●	●	●
49	02.700 LAMP; LICENSE PLATE EXC. AUSTRALIA EQUIPMENT(RR3) 24V 12W	5-82120-021-0	01	1	0211-0501	●	●	●	●	●
49	02.700 LAMP; LICENSE PLATE 24V 12W	5-82120-021-0	01	1	0211-0501						●
49	02.700 LAMP; LICENSE PLATE 24V 12W	5-82120-021-1	01	1	0502-0506	●	●	●	●		●
49	02.700 LAMP; LICENSE PLATE EXC. AUSTRALIA EQUIPMENT(RR3) 24V 12W	5-82120-021-1	01	1	0507-	●	●	●	●
49	02.700 LAMP; LICENSE PLATE 24V 12W	5-82120-021-1	01	1	0507-						●
50	02.709 LENS; LICENSE PLATE LAMP AUSTRALIA EQUIPMENT(RR3)	8-97108-212-0	02	1	0507-	●	●	●	●
50	02.709 LENS; LICENSE PLATE LAMP	8-97108-212-0	02	1	0507-					●
50	02.709 LENS; LICENSE PLATE LAMP AUSTRALIA EQUIPMENT(RR3)	8-97108-212-0	02	1	0211-0501	●	●	●	●	●
50	02.709 LENS; LICENSE PLATE LAMP EXC. AUSTRALIA EQUIPMENT(RR3)	5-82125-004-0	01	1	0211-0501	●	●	●	●	●
50	02.709 LENS; LICENSE PLATE LAMP	5-82125-004-0	01	1	0211-0501						●
50	02.709 LENS; LICENSE PLATE LAMP	5-82125-004-0	01	1	0502-0506	●	●	●	●		●
50	02.709 LENS; LICENSE PLATE LAMP EXC. AUSTRALIA EQUIPMENT(RR3)	5-82125-004-0	01	1	0507-	●	●	●	●
50	02.709 LENS; LICENSE PLATE LAMP	5-82125-004-0	01	1	0507-						●
51	08.991 BULB; LICENSE PLATE LAMP AUSTRALIA EQUIPMENT(RR3) 24V 5W	1-82194-039-0	02	1	0507-	●	●	●	●
51	08.991 BULB; LICENSE PLATE LAMP 24V 5W	1-82194-039-0	02	1	0507-					●
51	08.991 BULB; LICENSE PLATE LAMP AUSTRALIA EQUIPMENT(RR3) 24V 5W	1-82194-039-0	02	1	0211-0501	●	●	●	●	●
51	08.991 BULB; LICENSE PLATE LAMP EXC. AUSTRALIA EQUIPMENT(RR3) 24V 12W	1-82194-004-0	01	1	0211-0501	●	●	●	●	●
51	08.991 BULB; LICENSE PLATE LAMP 24V 12W	1-82194-004-0	01	1	0211-0501						●
51	08.991 BULB; LICENSE PLATE LAMP 24V 12W	1-82194-004-0	01	1	0502-0506	●	●	●	●		●
51	08.991 BULB; LICENSE PLATE LAMP EXC. AUSTRALIA EQUIPMENT(RR3) 24V 12W	1-82194-004-0	01	1	0507-	●	●	●	●
51	08.991 BULB; LICENSE PLATE LAMP 24V 12W	1-82194-004-0	01	1	0507-						●
54	02.708 SCREW; LICENSE PLATE LAMP AUSTRALIA EQUIPMENT(RR3) 02.709 M4X8	8-94419-312-0	02	1	0507-	●	●	●	●
54	02.708 SCREW; LICENSE PLATE LAMP 02.709 M4X8	8-94419-312-0	02	1	0507-					●
54	02.708 SCREW; LICENSE PLATE LAMP AUSTRALIA EQUIPMENT(RR3) 02.709 M4X8	8-94419-312-0	02	1	0211-0501	●	●	●	●	●
54	02.708 SCREW; LICENSE PLATE LAMP 02.709 M4X8	8-94419-312-0	01	1	0502-0506	●	●	●	●		●
54	02.708 SCREW; LICENSE PLATE LAMP EXC. AUSTRALIA EQUIPMENT(RR3) 02.709 M4X8	8-94419-312-0	01	1	0507-	●	●	●	●
54	02.708 SCREW; LICENSE PLATE LAMP 02.709 M4X8	8-94419-312-0	01	1	0507-						●
54	02.708 SCREW; LICENSE PLATE LAMP EXC. AUSTRALIA EQUIPMENT(RR3) 02.709 M4X8	8-94419-312-0	01	1	0211-0501	●	●	●	●	●
54	02.708 SCREW; LICENSE PLATE LAMP 02.709 M4X8	8-94419-312-0	01	1	0211-0501						●
55	02.708 NUT; LICENSE PLATE LAMP AUSTRALIA EQUIPMENT(RR3) 03.444 M5 FLANGE	8-94153-039-0	04	1	0507-	●	●	●	●
55	02.708 NUT; LICENSE PLATE LAMP 03.444 M5 FLANGE	8-94153-039-0	04	1	0507-					●
55	02.708 NUT; LICENSE PLATE LAMP AUSTRALIA EQUIPMENT(RR3) 03.444 M5 FLANGE	8-94153-039-0	04	1	0211-0501	●	●	●	●	●
55	02.708 NUT; LICENSE PLATE LAMP 03.444 M5 FLANGE	8-94153-039-0	02	1	0502-0506	●	●	●	●		●
55	02.708 NUT; LICENSE PLATE LAMP EXC. AUSTRALIA EQUIPMENT(RR3) 03.444 M5 FLANGE	8-94153-039-0	02	1	0507-	●	●	●	●
55	02.708 NUT; LICENSE PLATE LAMP 03.444 M5 FLANGE	8-94153-039-0	02	1	0507-						●
55	02.708 NUT; LICENSE PLATE LAMP EXC. AUSTRALIA EQUIPMENT(RR3) 03.444 M5 FLANGE	8-94153-039-0	02	1	0211-0501	●	●	●	●	●
55	02.708 NUT; LICENSE PLATE LAMP 03.444 M5 FLANGE	8-94153-039-0	02	1	0211-0501						●
58	02.705 COVER; LICENSE PLATE LAMP AUSTRALIA EQUIPMENT(RR3)	8-97076-590-1	02	1	0507-	●	●	●	●
58	02.705 COVER; LICENSE PLATE LAMP	8-97076-590-1	02	1	0507-					●
58	02.705 COVER; LICENSE PLATE LAMP AUSTRALIA EQUIPMENT(RR3)	8-97076-590-1	02	1	0211-0501	●	●	●	●	●
58	02.705 COVER; LICENSE PLATE LAMP	8-97076-590-1	01	1	0502-0506	●	●	●	●		●
58	02.705 COVER; LICENSE PLATE LAMP EXC. AUSTRALIA EQUIPMENT(RR3)	8-97076-590-1	01	1	0507-	●	●	●	●
58	02.705 COVER; LICENSE PLATE LAMP	8-97076-590-1	01	1	0507-						●
58	02.705 COVER; LICENSE PLATE LAMP EXC. AUSTRALIA EQUIPMENT(RR3)	8-97076-590-1	01	1	0211-0501	●	●	●	●	●
58	02.705 COVER; LICENSE PLATE LAMP	8-97076-590-1	01	1	0211-0501						●
59	02.708 SCREW; TAP,LICENSE LAMP BODY AUSTRALIA EQUIPMENT(RR3) 14.550 M5X20	9-93490-520-0	04	1	0507-	●	●	●	●
59	02.708 SCREW; TAP,LICENSE LAMP BODY 14.550 M5X20	9-93490-520-0	04	1	0507-					●
59	02.708 SCREW; TAP,LICENSE LAMP BODY AUSTRALIA EQUIPMENT(RR3) 14.550 M5X20	9-93490-520-0	04	1	0211-0501	●	●	●	●	●
59	02.708 SCREW; TAP,LICENSE LAMP BODY 14.550 M5X20	9-93490-520-0	02	1	0502-0506	●			●		●
59	02.708 SCREW; TAP,LICENSE LAMP BODY EXC. RR BODY FLAT BED(RS6) 14.550 M5X20	9-93490-520-0	02	1	0502-0506		●	●
59	02.708 SCREW; TAP,LICENSE LAMP BODY EXC. AUSTRALIA EQUIPMENT(RR3) 14.550 M5X20	9-93490-520-0	02	1	0507-	●			●
59	02.708 SCREW; TAP,LICENSE LAMP BODY EXC. AUSTRALIA EQUIPMENT(RR3),RR BODYFLAT BED(RS6) 14.550 M5X20	9-93490-520-0	02	1	0507-		●	●
59	02.708 SCREW; TAP,LICENSE LAMP BODY 14.550 M5X20	9-93490-520-0	02	1	0507-						●
59	02.708 SCREW; TAP,LICENSE LAMP BODY EXC. AUSTRALIA EQUIPMENT(RR3) 14.550 M5X20	9-93490-520-0	02	1	0211-0501	●			●	●
59	02.708 SCREW; TAP,LICENSE LAMP BODY EXC. AUSTRALIA EQUIPMENT(RR3),RR BODYFLAT BED(RS6) 14.550 M5X20	9-93490-520-0	02	1	0211-0501		●	●
59	02.708 SCREW; TAP,LICENSE LAMP BODY 14.550 M5X20	9-93490-520-0	02	1	0211-0501						●
211	02.708 HARNESS; EXT AUSTRALIA EQUIPMENT(RR3)	5-82129-004-1	01	1	0507-	●	●	●	●
211	02.708 HARNESS; EXT	5-82129-004-1	01	1	0507-					●
211	02.708 HARNESS; EXT AUSTRALIA EQUIPMENT(RR3)	5-82129-004-1	01	1	0211-0501	●	●	●	●	●

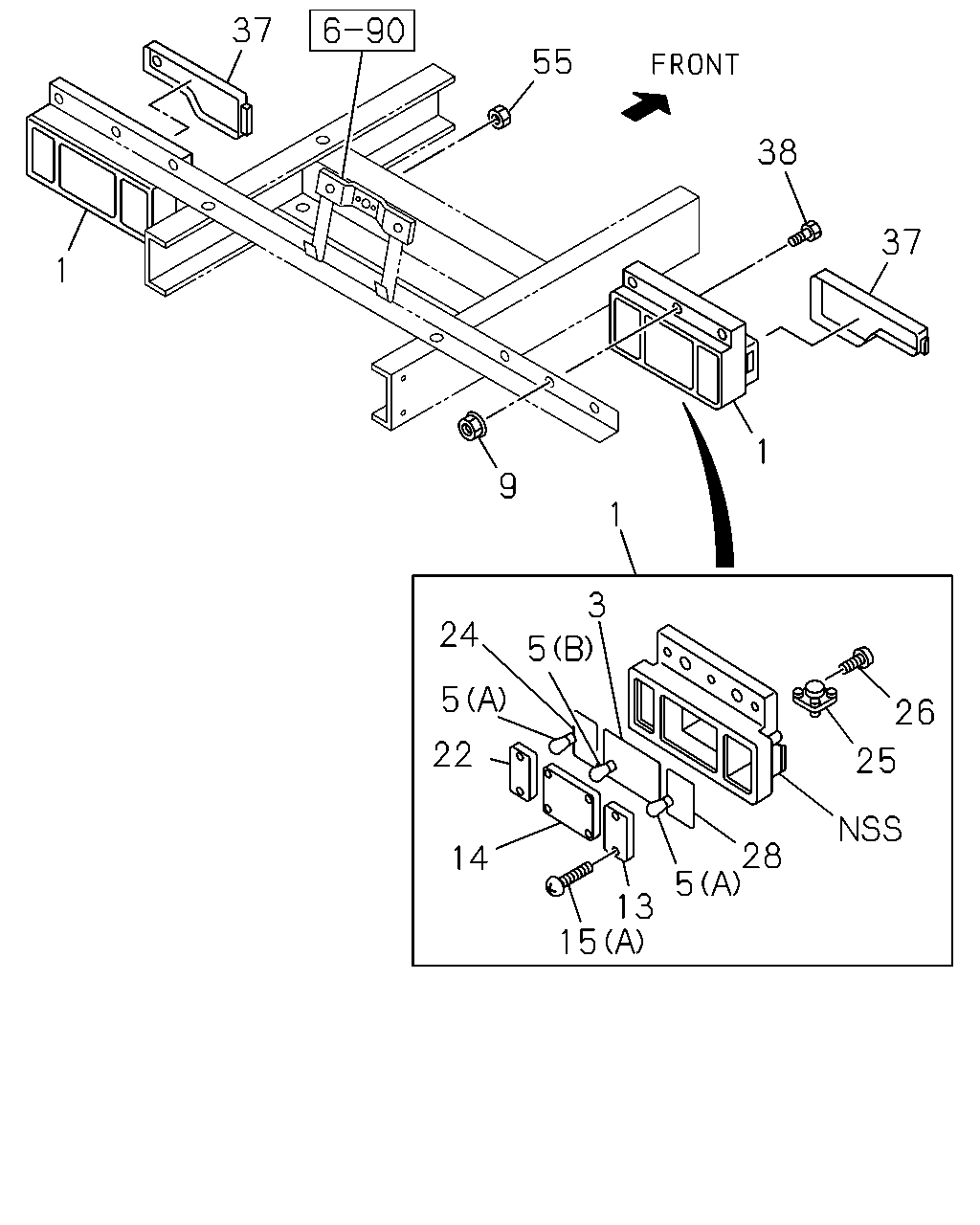

37 55 38 37 1 1 9 1 3 24 5 5 26 22 25 28 14 5 13 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	02.679 LAMP ASM; RR COMB BACK BUZZER<YM9> EXC. FRAME STRAIGHT TYPE<7KJ>	8-98120-440-0	01	1	0807-	●			●
1	02.679 LAMP ASM; RR COMB BACK BUZZER<YM9> EXC. RR BODY FLAT BED(RS6),FRAME STRAIGHT TYPE<7KJ>	8-98120-440-0	01	1	0807-		●	●
1	02.679 LAMP ASM; RR COMB BACK BUZZER<YM9>	8-98120-440-0	01	1	0807-						●
1	02.679 LAMP ASM; RR COMB EXC. BACK BUZZER<YM9>,FRAME STRAIGHT TYPE<7KJ>	8-98034-324-0	01	1	0807-	●			●
1	02.679 LAMP ASM; RR COMB EXC. RR BODY FLAT BED(RS6),BACK BUZZER<YM9>,FRAME STRAIGHT TYPE<7KJ>	8-98034-324-0	01	1	0807-		●	●
1	02.679 LAMP ASM; RR COMB EXC. BACK BUZZER<YM9>	8-98034-324-0	01	1	0807-						●
1	02.679 LAMP ASM; RR COMB EXC. RR BODY FLAT BED(RS6),FRAME STRAIGHT TYPE<7KJ>	8-98034-325-0	01	1	0807-	●	●	●	●		●
1	02.679 LAMP ASM; RR COMB	8-97213-369-0	01	1	0211-0501	●	●	●	●	●	●
1	02.679 LAMP ASM; RR COMB	8-97213-369-0	01	1	0502-0506	●	●	●	●		●
1	02.679 LAMP ASM; RR COMB	8-97213-369-0	01	1	0507-0806	●	●	●	●	●	●
1	02.679 LAMP ASM; RR COMB FRAME STRAIGHT TYPE<7KJ>	8-97213-369-0	01	1	0807-	●			●
1	02.679 LAMP ASM; RR COMB RR BODY FLAT BED(RS6)	8-97213-369-0	01	1	0807-		●	●
1	02.679 LAMP ASM; RR COMB FRAME STRAIGHT TYPE<7KJ> EXC. RR BODY FLAT BED(RS6)	8-97213-369-0	01	1	0807-		●	●
1	02.679 LAMP ASM; RR COMB	8-97213-369-0	01	1	0807-					●
1	02.679 LAMP ASM; RR COMB BACK BUZZER<YM9>	8-97213-370-0	01	1	0211-0501	●	●	●	●	●	●
1	02.679 LAMP ASM; RR COMB BACK BUZZER<YM9>	8-97213-370-0	01	1	0502-0506	●	●	●	●		●
1	02.679 LAMP ASM; RR COMB BACK BUZZER<YM9>	8-97213-370-0	01	1	0507-0806	●	●	●	●		●
1	02.679 LAMP ASM; RR COMB	8-97213-370-0	01	1	0507-0806					●
1	02.679 LAMP ASM; RR COMB BACK BUZZER<YM9> FRAME STRAIGHT TYPE<7KJ>	8-97213-370-0	01	1	0807-	●			●
1	02.679 LAMP ASM; RR COMB RR BODY FLAT BED(RS6) BACK BUZZER<YM9>	8-97213-370-0	01	1	0807-		●	●
1	02.679 LAMP ASM; RR COMB BACK BUZZER<YM9> FRAME STRAIGHT TYPE<7KJ> EXC. RR BODY FLAT BED(RS6)	8-97213-370-0	01	1	0807-		●	●
1	02.679 LAMP ASM; RR COMB	8-97213-370-0	01	1	0807-					●
1	02.679 LAMP ASM; RR COMB EXC. BACK BUZZER<YM9>	8-97213-368-0	01	1	0211-0501	●	●	●	●	●	●
1	02.679 LAMP ASM; RR COMB EXC. BACK BUZZER<YM9>	8-97213-368-0	01	1	0502-0806	●	●	●	●		●
1	02.679 LAMP ASM; RR COMB FRAME STRAIGHT TYPE<7KJ> EXC. BACK BUZZER<YM9>	8-97213-368-0	01	1	0807-	●			●
1	02.679 LAMP ASM; RR COMB RR BODY FLAT BED(RS6) EXC. BACK BUZZER<YM9>	8-97213-368-0	01	1	0807-		●	●
1	02.679 LAMP ASM; RR COMB FRAME STRAIGHT TYPE<7KJ> EXC. RR BODY FLAT BED(RS6),BACK BUZZER<YM9>	8-97213-368-0	01	1	0807-		●	●
3	02.684 GASKET; RR COMB LAMP	8-94257-505-0	02	1	0211-0501	●	●	●	●	●	●
3	02.684 GASKET; RR COMB LAMP	8-94257-505-0	02	1	0502-0506	●	●	●	●		●
3	02.684 GASKET; RR COMB LAMP	8-94257-505-0	02	1	0507-	●	●	●	●	●	●
5	08.991 BULB; RR COMB LAMP EXC. BACK BUZZER<YM9>,FRAME STRAIGHT TYPE<7KJ> (A) 24V 21W	1-82194-108-0	02	1	0807-	●			●
5	08.991 BULB; RR COMB LAMP EXC. FRAME STRAIGHT TYPE<7KJ> (A) 24V 21W	1-82194-108-0	02	1	0807-	●			●
5	08.991 BULB; RR COMB LAMP EXC. RR BODY FLAT BED(RS6),BACK BUZZER<YM9>,FRAME STRAIGHT TYPE<7KJ> (A) 24V 21W	1-82194-108-0	02	1	0807-		●	●
5	08.991 BULB; RR COMB LAMP EXC. RR BODY FLAT BED(RS6),FRAME STRAIGHT TYPE<7KJ> (A) 24V 21W	1-82194-108-0	02	1	0807-		●	●
5	08.991 BULB; RR COMB LAMP EXC. BACK BUZZER<YM9> (A) 24V 21W	1-82194-108-0	02	1	0807-						●
5	08.991 BULB; RR COMB LAMP (A) 24V 21W	1-82194-108-0	02	1	0807-						●
5	08.991 BULB; RR COMB LAMP EXC. BACK BUZZER<YM9>,FRAME STRAIGHT TYPE<7KJ> (B) 24V 21/5W	1-82194-109-0	01	1	0807-	●			●
5	08.991 BULB; RR COMB LAMP EXC. FRAME STRAIGHT TYPE<7KJ> (B) 24V 21/5W	1-82194-109-0	01	1	0807-	●			●
5	08.991 BULB; RR COMB LAMP EXC. RR BODY FLAT BED(RS6),BACK BUZZER<YM9>,FRAME STRAIGHT TYPE<7KJ> (B) 24V 21/5W	1-82194-109-0	01	1	0807-		●	●
5	08.991 BULB; RR COMB LAMP EXC. RR BODY FLAT BED(RS6),FRAME STRAIGHT TYPE<7KJ> (B) 24V 21/5W	1-82194-109-0	01	1	0807-		●	●
5	08.991 BULB; RR COMB LAMP EXC. BACK BUZZER<YM9> (B) 24V 21/5W	1-82194-109-0	01	1	0807-						●
5	08.991 BULB; RR COMB LAMP (B) 24V 21/5W	1-82194-109-0	01	1	0807-						●
5	08.991 BULB; RR COMB LAMP FRAME STRAIGHT TYPE<7KJ> (A) 24V 21W	1-82194-036-0	02	1	0807-	●			●
5	08.991 BULB; RR COMB LAMP BACK BUZZER<YM9> EXC. FRAME STRAIGHT TYPE<7KJ> (A) 24V 21W	1-82194-036-0	02	1	0807-	●			●
5	08.991 BULB; RR COMB LAMP FRAME STRAIGHT TYPE<7KJ> (A) 24V 21W	1-82194-036-0	02	1	0807-	●			●
5	08.991 BULB; RR COMB LAMP RR BODY FLAT BED(RS6) (A) 24V 21W	1-82194-036-0	02	1	0807-		●	●
5	08.991 BULB; RR COMB LAMP FRAME STRAIGHT TYPE<7KJ> EXC. RR BODY FLAT BED(RS6) (A) 24V 21W	1-82194-036-0	02	1	0807-		●	●
5	08.991 BULB; RR COMB LAMP BACK BUZZER<YM9> EXC. RR BODY FLAT BED(RS6),FRAME STRAIGHT TYPE<7KJ> (A) 24V 21W	1-82194-036-0	02	1	0807-		●	●
5	08.991 BULB; RR COMB LAMP RR BODY FLAT BED(RS6) (A) 24V 21W	1-82194-036-0	02	1	0807-		●	●
5	08.991 BULB; RR COMB LAMP FRAME STRAIGHT TYPE<7KJ> EXC. RR BODY FLAT BED(RS6) (A) 24V 21W	1-82194-036-0	02	1	0807-		●	●
5	08.991 BULB; RR COMB LAMP (A) 24V 21W	1-82194-036-0	02	1	0807-					●
5	08.991 BULB; RR COMB LAMP (A) 24V 21W	1-82194-036-0	02	1	0807-					●
5	08.991 BULB; RR COMB LAMP BACK BUZZER<YM9> (A) 24V 21W	1-82194-036-0	02	1	0807-						●
5	08.991 BULB; RR COMB LAMP FRAME STRAIGHT TYPE<7KJ> (B) 24V 21/5W	1-82194-038-0	01	1	0807-	●			●
5	08.991 BULB; RR COMB LAMP BACK BUZZER<YM9> EXC. FRAME STRAIGHT TYPE<7KJ> (B) 24V 21/5W	1-82194-038-0	01	1	0807-	●			●
5	08.991 BULB; RR COMB LAMP FRAME STRAIGHT TYPE<7KJ> (B) 24V 21/5W	1-82194-038-0	01	1	0807-	●			●
5	08.991 BULB; RR COMB LAMP RR BODY FLAT BED(RS6) (B) 24V 21/5W	1-82194-038-0	01	1	0807-		●	●
5	08.991 BULB; RR COMB LAMP FRAME STRAIGHT TYPE<7KJ> EXC. RR BODY FLAT BED(RS6) (B) 24V 21/5W	1-82194-038-0	01	1	0807-		●	●
5	08.991 BULB; RR COMB LAMP BACK BUZZER<YM9> EXC. RR BODY FLAT BED(RS6),FRAME STRAIGHT TYPE<7KJ> (B) 24V 21/5W	1-82194-038-0	01	1	0807-		●	●
5	08.991 BULB; RR COMB LAMP RR BODY FLAT BED(RS6) (B) 24V 21/5W	1-82194-038-0	01	1	0807-		●	●
5	08.991 BULB; RR COMB LAMP FRAME STRAIGHT TYPE<7KJ> EXC. RR BODY FLAT BED(RS6) (B) 24V 21/5W	1-82194-038-0	01	1	0807-		●	●
5	08.991 BULB; RR COMB LAMP (B) 24V 21/5W	1-82194-038-0	01	1	0807-					●
5	08.991 BULB; RR COMB LAMP (B) 24V 21/5W	1-82194-038-0	01	1	0807-					●
5	08.991 BULB; RR COMB LAMP BACK BUZZER<YM9> (B) 24V 21/5W	1-82194-038-0	01	1	0807-						●
5	08.991 BULB; RR COMB LAMP (A) 24V 21W	1-82194-036-0	04	1	0211-0501	●	●	●	●	●	●
5	08.991 BULB; RR COMB LAMP (A) 24V 21W	1-82194-036-0	04	1	0502-0506	●	●	●	●		●
5	08.991 BULB; RR COMB LAMP (A) 24V 21W	1-82194-036-0	04	1	0507-0806	●	●	●	●	●	●
5	08.991 BULB; RR COMB LAMP (B) 24V 21/5W	1-82194-038-0	02	1	0211-0501	●	●	●	●	●	●
5	08.991 BULB; RR COMB LAMP (B) 24V 21/5W	1-82194-038-0	02	1	0502-0506	●	●	●	●		●
5	08.991 BULB; RR COMB LAMP (B) 24V 21/5W	1-82194-038-0	02	1	0507-0806	●	●	●	●	●	●
9	02.689 NUT; LAMP,RR COMB EXC. RR BODY FLAT BED(RS6),FRAME STRAIGHT TYPE<7KJ> 07.829 M6 FLANGE	5-09440-004-0	06	1	0211-0501	●	●	●	●	●	●
9	02.689 NUT; LAMP,RR COMB EXC. RR BODY FLAT BED(RS6),FRAME STRAIGHT TYPE<7KJ> 07.829 M6 FLANGE	5-09440-004-0	06	1	0502-	●	●	●	●		●
13	02.682 LENS; TURN SIGNAL	8-94174-639-0	01	1	0211-0501	●	●	●	●	●	●
13	02.682 LENS; TURN SIGNAL	8-94174-639-0	01	1	0502-0506	●	●	●	●		●
13	02.682 LENS; TURN SIGNAL	8-94174-639-0	01	1	0507-	●	●	●	●	●	●
13	02.682 LENS; TURN SIGNAL	8-94174-638-0	01	1	0211-0501	●	●	●	●	●	●
13	02.682 LENS; TURN SIGNAL	8-94174-638-0	01	1	0502-0506	●	●	●	●		●
13	02.682 LENS; TURN SIGNAL	8-94174-638-0	01	1	0507-	●	●	●	●	●	●
14	02.682 LENS; TAIL & STOP,RR COMB LAMP	8-94178-625-0	01	1	0211-0501	●	●	●	●	●	●
14	02.682 LENS; TAIL & STOP,RR COMB LAMP	8-94178-625-0	01	1	0502-0506	●	●	●	●		●
14	02.682 LENS; TAIL & STOP,RR COMB LAMP	8-94178-625-0	01	1	0507-	●	●	●	●	●	●
14	02.682 LENS; TAIL & STOP,RR COMB LAMP	8-94178-624-0	01	1	0211-0501	●	●	●	●	●	●
14	02.682 LENS; TAIL & STOP,RR COMB LAMP	8-94178-624-0	01	1	0502-0506	●	●	●	●		●
14	02.682 LENS; TAIL & STOP,RR COMB LAMP	8-94178-624-0	01	1	0507-	●	●	●	●	●	●
15	02.664 SCREW; RR COMB LAMP 08.977 (A) M4X20 TAPPING STAINLESS	0-71190-420-0	16	1	0211-0501	●	●	●	●	●	●
15	02.664 SCREW; RR COMB LAMP 08.977 (A) M4X20 TAPPING STAINLESS	0-71190-420-0	16	1	0502-0506	●	●	●	●		●
15	02.664 SCREW; RR COMB LAMP 08.977 (A) M4X20 TAPPING STAINLESS	0-71190-420-0	16	1	0507-	●	●	●	●	●	●
15	02.664 SCREW; RR COMB LAMP RR BODY FLAT BED(RS6) EXC. AUSTRALIA EQUIPMENT(RR3) 14.550 (B) M5X20	9-93490-520-0	02	1	0211-0501		●	●
15	02.664 SCREW; RR COMB LAMP RR BODY FLAT BED(RS6) 14.550 (B) M5X20	9-93490-520-0	02	1	0502-0506		●	●
15	02.664 SCREW; RR COMB LAMP RR BODY FLAT BED(RS6) EXC. AUSTRALIA EQUIPMENT(RR3) 14.550 (B) M5X20	9-93490-520-0	02	1	0507-		●	●
22	02.697 LENS; BACKUP,RR COMB LAMP CLEAR	8-94257-512-1	02	1	0211-0501	●	●	●	●	●	●
22	02.697 LENS; BACKUP,RR COMB LAMP CLEAR	8-94257-512-1	02	1	0502-0506	●	●	●	●		●
22	02.697 LENS; BACKUP,RR COMB LAMP CLEAR	8-94257-512-1	02	1	0507-	●	●	●	●	●	●
24	02.697 GASKET; BACK,LAMP	8-94257-506-0	02	1	0211-0501	●	●	●	●	●	●
24	02.697 GASKET; BACK,LAMP	8-94257-506-0	02	1	0502-0506	●	●	●	●		●
24	02.697 GASKET; BACK,LAMP	8-94257-506-0	02	1	0507-	●	●	●	●	●	●
25	02.810 HORN ASM; BACK BACK BUZZER<YM9>	8-94257-518-0	01	1	0211-0501	●	●	●	●	●	●
25	02.810 HORN ASM; BACK BACK BUZZER<YM9>	8-94257-518-0	01	1	0502-0506	●	●	●	●		●
25	02.810 HORN ASM; BACK BACK BUZZER<YM9>	8-94257-518-0	01	1	0507-	●	●	●	●		●
25	02.810 HORN ASM; BACK	8-94257-518-0	01	1	0507-					●
26	02.812 SCREW; BACK HORN 09.655 M4X14 TAPPING	9-07076-414-0	01	1	0211-0501	●	●	●	●	●	●
26	02.812 SCREW; BACK HORN 09.655 M4X14 TAPPING	9-07076-414-0	01	1	0502-0506	●	●	●	●		●
26	02.812 SCREW; BACK HORN 09.655 M4X14 TAPPING	9-07076-414-0	01	1	0507-	●	●	●	●	●	●
26	02.812 SCREW; BACK HORN BACK BUZZER<YM9> 02.688 M4X12 TAPPING	9-07076-412-0	02	1	0211-0501	●	●	●	●	●	●
26	02.812 SCREW; BACK HORN BACK BUZZER<YM9> 02.688 M4X12 TAPPING	9-07076-412-0	02	1	0502-0506	●	●	●	●		●
26	02.812 SCREW; BACK HORN BACK BUZZER<YM9> 02.688 M4X12 TAPPING	9-07076-412-0	02	1	0507-	●	●	●	●		●
26	02.812 SCREW; BACK HORN 02.688 M4X12 TAPPING	9-07076-412-0	02	1	0507-					●
26	02.812 SCREW; BACK HORN EXC. BACK BUZZER<YM9> 02.688 M4X12 TAPPING	9-07076-412-0	01	1	0211-0501	●	●	●	●	●	●
26	02.812 SCREW; BACK HORN EXC. BACK BUZZER<YM9> 02.688 M4X12 TAPPING	9-07076-412-0	01	1	0502-	●	●	●	●		●
28	02.684 GASKET; TURN,LAMP	8-94257-507-0	02	1	0211-0501	●	●	●	●	●	●
28	02.684 GASKET; TURN,LAMP	8-94257-507-0	02	1	0502-0506	●	●	●	●		●
28	02.684 GASKET; TURN,LAMP	8-94257-507-0	02	1	0507-	●	●	●	●	●	●
37	02.680 COVER; RR COMB LAMP	8-94129-274-4	01	1	0211-0501	●	●	●	●	●	●
37	02.680 COVER; RR COMB LAMP	8-94129-274-4	01	1	0502-0506	●	●	●	●		●
37	02.680 COVER; RR COMB LAMP	8-94129-274-4	01	1	0507-	●	●	●	●	●	●
37	02.680 COVER; RR COMB LAMP	8-94128-858-4	01	1	0211-0501	●	●	●	●	●	●
37	02.680 COVER; RR COMB LAMP	8-94128-858-4	01	1	0502-0506	●	●	●	●		●
37	02.680 COVER; RR COMB LAMP	8-94128-858-4	01	1	0507-	●	●	●	●	●	●
38	02.689 BOLT; LAMP,RR COMB 02.664 M6X20	8-94402-623-0	06	1	0211-0501	●	●	●	●	●	●
38	02.689 BOLT; LAMP,RR COMB 02.664 M6X20	8-94402-623-0	06	1	0502-0506	●	●	●	●		●
38	02.689 BOLT; LAMP,RR COMB 02.664 M6X20	8-94402-623-0	06	1	0507-	●	●	●	●	●	●
55	02.708 NUT; LICENSE PLATE LAMP AUSTRALIA EQUIPMENT(RR3) 03.444 M5 FLANGE	8-94153-039-0	04	1	0507-	●	●	●	●
55	02.708 NUT; LICENSE PLATE LAMP 03.444 M5 FLANGE	8-94153-039-0	04	1	0507-					●
55	02.708 NUT; LICENSE PLATE LAMP AUSTRALIA EQUIPMENT(RR3) 03.444 M5 FLANGE	8-94153-039-0	04	1	0211-0501	●	●	●	●	●
55	02.708 NUT; LICENSE PLATE LAMP 03.444 M5 FLANGE	8-94153-039-0	02	1	0502-0506	●	●	●	●		●
55	02.708 NUT; LICENSE PLATE LAMP EXC. AUSTRALIA EQUIPMENT(RR3) 03.444 M5 FLANGE	8-94153-039-0	02	1	0507-	●	●	●	●
55	02.708 NUT; LICENSE PLATE LAMP 03.444 M5 FLANGE	8-94153-039-0	02	1	0507-						●
55	02.708 NUT; LICENSE PLATE LAMP EXC. AUSTRALIA EQUIPMENT(RR3) 03.444 M5 FLANGE	8-94153-039-0	02	1	0211-0501	●	●	●	●	●
55	02.708 NUT; LICENSE PLATE LAMP 03.444 M5 FLANGE	8-94153-039-0	02	1	0211-0501						●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
