◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50948 - NPR/NQR RHDEXC.EURO4 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-60 - SEAT BELT ▶
7-60 — SEAT BELT (#18338) — 163 parça

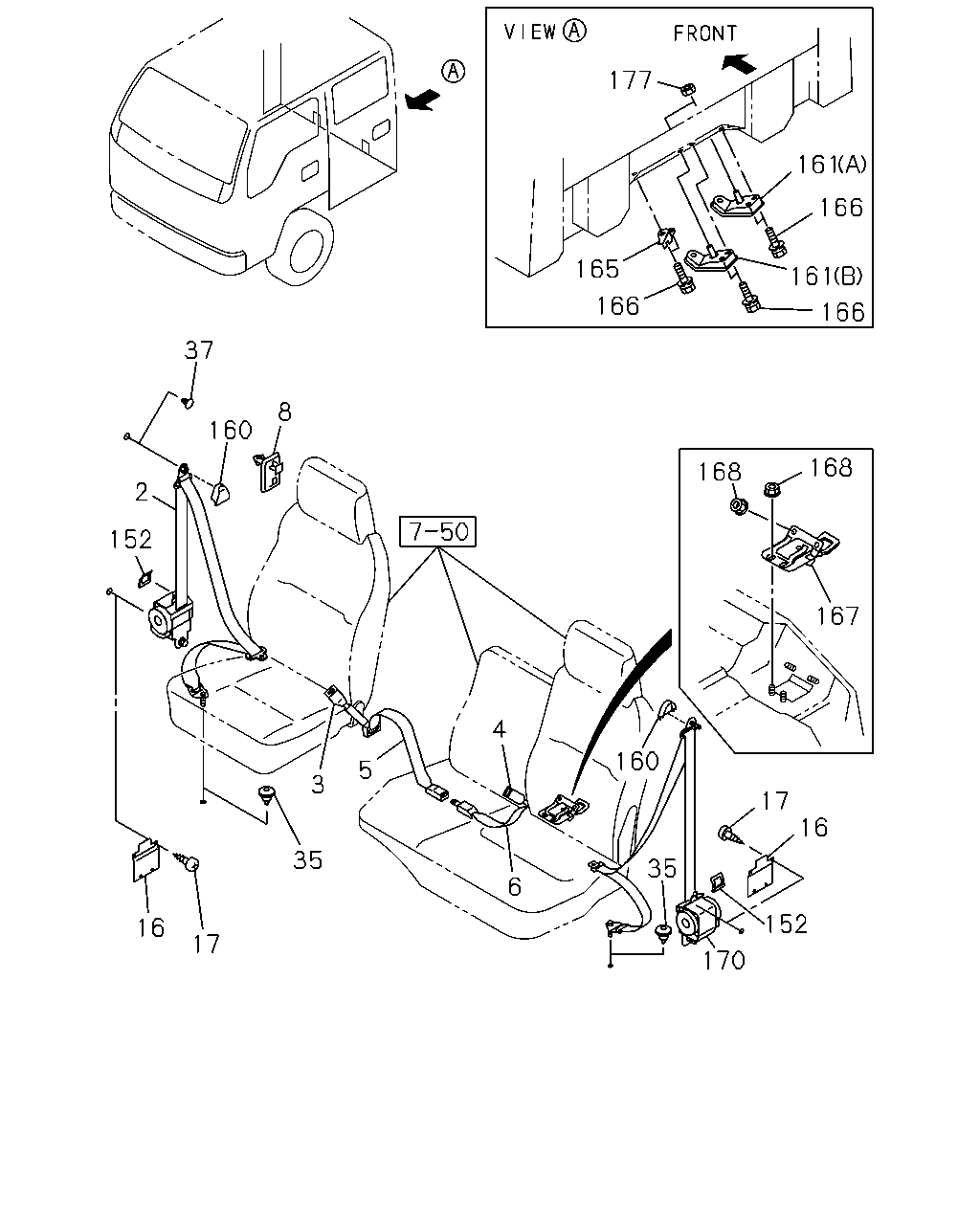

çizim 51503
177 161 166 165 161 166 166 37 8 160 168 168 2 152 167 4 160 5 3 17 16 35 35 6 152 16 17 170
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> AUSTRALIA EQUIPMENT(RR3) GRAY 		8-97400-625-1 01 1 0507- ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
GRAY 		8-97400-625-1 01 1 0507- ●
2 16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT DRIVER & ASSIST 2 POINT<AS6> DARK GRAY 		8-97394-511-0 01 1 0211-0501 ● ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT DRIVER & ASSIST 2 POINT<AS6> GRAY 		8-97400-353-1 01 1 0502- ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97394-514-0 01 1 0211-0501 ● ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> GRAY 		8-97400-623-2 01 1 0502-0506 ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
GRAY 		8-97400-623-2 01 1 0502-0506 ●
2 16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. AUSTRALIA EQUIPMENT(RR3) GRAY 		8-97400-623-2 01 1 0507- ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
GRAY 		8-97400-623-2 01 1 0507- ●
2 16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97394-512-0 01 1 0211-0501 ● ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
DARK GRAY 		8-97394-512-0 01 1 0211-0501 ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT BELT DRIVER & ASSIST 2 POINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> DARK GRAY 		8-97394-509-0 01 1 0211-0501 ● ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
DARK GRAY 		8-97394-509-0 01 1 0211-0501 ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT BELT DRIVER & ASSIST 2 POINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> GRAY 		8-97400-349-0 01 1 0502-0506 ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
GRAY 		8-97400-349-0 01 1 0502-0506 ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT BELT DRIVER & ASSIST 2 POINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> GRAY 		8-97400-349-0 01 1 0507- ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
GRAY 		8-97400-349-0 01 1 0507- ● ●
4 16.714 BELT; PASSENGER SEAT,BUCKLE SIDE
SEAT BELT DRIVER & ASSIST 2 POINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> SEAT BELT FRT SEAT CTR 2 POINT<A38> DARK GRAY 		8-97326-220-0 01 1 0211-0501 ● ● ● ● ●
4 16.714 BELT; PASSENGER SEAT,BUCKLE SIDE
SEAT BELT FRT SEAT CTR 2 POINT<A38> DARK GRAY 		8-97326-220-0 01 1 0211-0501 ●
4 16.714 BELT; PASSENGER SEAT,BUCKLE SIDE
SEAT BELT DRIVER & ASSIST 2 POINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> SEAT BELT FRT SEAT CTR 2 POINT<A38> GRAY 		8-97396-952-0 01 1 0502-0506 ● ● ● ●
4 16.714 BELT; PASSENGER SEAT,BUCKLE SIDE
SEAT BELT FRT SEAT CTR 2 POINT<A38> GRAY 		8-97396-952-0 01 1 0502-0506 ●
4 16.714 BELT; PASSENGER SEAT,BUCKLE SIDE
SEAT BELT DRIVER & ASSIST 2 POINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> SEAT BELT FRT SEAT CTR 2 POINT<A38> GRAY 		8-97396-952-0 01 1 0507- ● ● ● ●
4 16.714 BELT; PASSENGER SEAT,BUCKLE SIDE
GRAY 		8-97396-952-0 01 1 0507- ●
4 16.714 BELT; PASSENGER SEAT,BUCKLE SIDE
SEAT BELT FRT SEAT CTR 2 POINT<A38> GRAY 		8-97396-952-0 01 1 0507- ●
4 16.714 BELT; PASSENGER SEAT,BUCKLE SIDE
SEAT BELT DRIVER & ASSIST 2 POINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. SEAT BELT FRT SEAT CTR 2 POINT<A38> DARK GRAY 		8-97394-516-0 01 1 0211-0501 ● ● ● ● ●
4 16.714 BELT; PASSENGER SEAT,BUCKLE SIDE
EXC. SEAT BELT FRT SEAT CTR 2 POINT<A38> DARK GRAY 		8-97394-516-0 01 1 0211-0501 ●
4 16.714 BELT; PASSENGER SEAT,BUCKLE SIDE
SEAT BELT DRIVER & ASSIST 2 POINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. SEAT BELT FRT SEAT CTR 2 POINT<A38> GRAY 		8-97400-354-0 01 1 0502- ● ● ● ●
4 16.714 BELT; PASSENGER SEAT,BUCKLE SIDE
EXC. SEAT BELT FRT SEAT CTR 2 POINT<A38> GRAY 		8-97400-354-0 01 1 0502- ●
5 16.714 BELT; CENTER SEAT,BUCKLE SIDE
SEAT BELT FRT SEAT CTR 2 POINT<A38> AUSTRALIA EQUIPMENT(RR3) GRAY 		8-97404-031-0 01 1 0507- ● ● ● ●
5 16.714 BELT; CENTER SEAT,BUCKLE SIDE
GRAY 		8-97404-031-0 01 1 0507- ●
5 16.714 BELT; CENTER SEAT,BUCKLE SIDE
SEAT BELT FRT SEAT CTR 2 POINT<A38> AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97394-523-0 01 1 0211-0501 ● ● ● ● ●
5 16.714 BELT; CENTER SEAT,BUCKLE SIDE
SEAT BELT FRT SEAT CTR 2 POINT<A38> GRAY 		8-97401-516-0 01 1 0502-0506 ● ● ● ● ●
5 16.714 BELT; CENTER SEAT,BUCKLE SIDE
SEAT BELT FRT SEAT CTR 2 POINT<A38> EXC. AUSTRALIA EQUIPMENT(RR3) GRAY 		8-97401-516-0 01 1 0507-0512 ● ● ● ●
5 16.714 BELT; CENTER SEAT,BUCKLE SIDE
SEAT BELT FRT SEAT CTR 2 POINT<A38> GRAY 		8-97401-516-0 01 1 0507-0512 ●
5 16.714 BELT; CENTER SEAT,BUCKLE SIDE
SEAT BELT FRT SEAT CTR 2 POINT<A38> EXC. AUSTRALIA EQUIPMENT(RR3) GRAY 		8-97404-304-0 01 1 0601- ● ● ● ●
5 16.714 BELT; CENTER SEAT,BUCKLE SIDE
SEAT BELT FRT SEAT CTR 2 POINT<A38> GRAY 		8-97404-304-0 01 1 0601- ●
5 16.714 BELT; CENTER SEAT,BUCKLE SIDE
SEAT BELT FRT SEAT CTR 2 POINT<A38> EXC. AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97326-221-0 01 1 0211-0409 ● ● ● ● ●
5 16.714 BELT; CENTER SEAT,BUCKLE SIDE
SEAT BELT FRT SEAT CTR 2 POINT<A38> DARK GRAY 		8-97326-221-0 01 1 0211-0409 ●
5 16.714 BELT; CENTER SEAT,BUCKLE SIDE
SEAT BELT FRT SEAT CTR 2 POINT<A38> EXC. AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97401-281-0 01 1 0410-0501 ● ● ● ● ●
5 16.714 BELT; CENTER SEAT,BUCKLE SIDE
SEAT BELT FRT SEAT CTR 2 POINT<A38> DARK GRAY 		8-97401-281-0 01 1 0410-0501 ●
6 16.714 BELT; CENTER SEAT,TONGUE SIDE
SEAT BELT FRT SEAT CTR 2 POINT<A38> AUSTRALIA EQUIPMENT(RR3) GRAY 		8-97404-032-0 01 1 0507- ● ● ● ●
6 16.714 BELT; CENTER SEAT,TONGUE SIDE
GRAY 		8-97404-032-0 01 1 0507- ●
6 16.714 BELT; CENTER SEAT,TONGUE SIDE
SEAT BELT FRT SEAT CTR 2 POINT<A38> AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97394-526-0 01 1 0211-0501 ● ● ● ● ●
6 16.714 BELT; CENTER SEAT,TONGUE SIDE
SEAT BELT FRT SEAT CTR 2 POINT<A38> GRAY 		8-97400-451-1 01 1 0502-0506 ● ● ● ● ●
6 16.714 BELT; CENTER SEAT,TONGUE SIDE
SEAT BELT FRT SEAT CTR 2 POINT<A38> EXC. AUSTRALIA EQUIPMENT(RR3) GRAY 		8-97400-451-1 01 1 0507- ● ● ● ●
6 16.714 BELT; CENTER SEAT,TONGUE SIDE
SEAT BELT FRT SEAT CTR 2 POINT<A38> GRAY 		8-97400-451-1 01 1 0507- ●
6 16.714 BELT; CENTER SEAT,TONGUE SIDE
SEAT BELT FRT SEAT CTR 2 POINT<A38> EXC. AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97326-224-0 01 1 0211-0501 ● ● ● ● ●
6 16.714 BELT; CENTER SEAT,TONGUE SIDE
SEAT BELT FRT SEAT CTR 2 POINT<A38> DARK GRAY 		8-97326-224-0 01 1 0211-0501 ●
8 16.714 HOOK; SEAT BELT
SEAT BELT DRIVER & ASSIST 2 POINT<AS6> 		8-94276-268-1 02 1 0211-0501 ● ● ● ● ●
8 16.714 HOOK; SEAT BELT
SEAT BELT DRIVER & ASSIST 2 POINT<AS6> 		8-94276-268-1 02 1 0502- ● ● ● ●
16 16.714 COVER; HOLE,SEAT BELT
EXC. SEAT BELT FRT 3 POINT W/RETRACTO R<A49> 		8-97854-868-1 02 1 0211-0501 ●
17 16.714 SCREW; HOLE COVER,SEAT BELT
EXC. SEAT BELT FRT 3 POINT W/RETRACTO R<A49> 16.584 M6X13 		5-09981-074-0 08 1 0211-0501 ●
35 16.714 GROMMET; SEAT BELT ANCHOR
SEAT BELT DRIVER & ASSIST 2 POINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. SEAT BELT FRT SEAT CTR 2 POINT<A38> OD=22 		9-61168-535-0 01 1 0211-0501 ● ● ● ● ●
35 16.714 GROMMET; SEAT BELT ANCHOR
EXC. SEAT BELT FRT SEAT CTR 2 POINT<A38> OD=22 		9-61168-535-0 01 1 0211-0501 ●
35 16.714 GROMMET; SEAT BELT ANCHOR
SEAT BELT DRIVER & ASSIST 2 POINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. SEAT BELT FRT SEAT CTR 2 POINT<A38> OD=22 		9-61168-535-0 01 1 0502- ● ● ● ●
35 16.714 GROMMET; SEAT BELT ANCHOR
EXC. SEAT BELT FRT SEAT CTR 2 POINT<A38> OD=22 		9-61168-535-0 01 1 0502- ●
35 16.714 GROMMET; SEAT BELT ANCHOR
EXC. SEAT BELT DRIVER & ASSIST 2 POIN T<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> OD=22 		9-61168-535-0 04 1 0211-0501 ● ● ● ● ●
35 16.714 GROMMET; SEAT BELT ANCHOR
EXC. SEAT BELT DRIVER & ASSIST 2 POIN T<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> OD=22 		9-61168-535-0 04 1 0502- ● ● ● ●
35 16.714 GROMMET; SEAT BELT ANCHOR
EXC. AUSTRALIA EQUIPMENT(RR3) OD=22 		9-61168-535-0 06 1 0211-0501 ●
37 16.714 PLUG; SEAT BELT ANCHOR
EXC. SEAT BELT DRIVER & ASSIST 2 POIN T<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> L=18.5 		8-94279-726-0 02 1 0211-0501 ● ● ● ● ●
37 16.714 PLUG; SEAT BELT ANCHOR
EXC. AUSTRALIA EQUIPMENT(RR3) L=18.5 		8-94279-726-0 02 1 0211-0501 ●
37 16.714 PLUG; SEAT BELT ANCHOR
EXC. SEAT BELT DRIVER & ASSIST 2 POIN T<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> L=18.5 		8-94279-726-0 02 1 0502- ● ● ● ●
152 16.714 PROTECTOR
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> 		8-97287-563-0 02 1 0211-0501 ● ● ● ● ●
152 16.714 PROTECTOR
AUSTRALIA EQUIPMENT(RR3) 		8-97287-563-0 02 1 0211-0501 ●
152 16.714 PROTECTOR 8-97287-563-0 02 1 0211-0501 ●
152 16.714 PROTECTOR
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> 		8-97287-563-0 02 1 0502-0506 ● ● ● ●
152 16.714 PROTECTOR 8-97287-563-0 02 1 0502-0506 ●
152 16.714 PROTECTOR
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> 		8-97287-563-0 02 1 0507- ● ● ● ●
152 16.714 PROTECTOR 8-97287-563-0 02 1 0507- ● ●
152 16.714 PROTECTOR 8-97287-563-0 02 1 0507- ●
160 16.714 COVER; THROUGH ANCHOR
GRAY 		8-97396-954-0 02 1 1507- ●
160 16.714 COVER; THROUGH ANCHOR
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> DARK GRAY 		8-97854-897-0 02 1 0211-0501 ● ● ● ● ●
160 16.714 COVER; THROUGH ANCHOR
AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97854-897-0 02 1 0211-0501 ●
160 16.714 COVER; THROUGH ANCHOR
DARK GRAY 		8-97854-897-0 02 1 0211-0501 ●
160 16.714 COVER; THROUGH ANCHOR
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> GRAY 		8-97396-954-0 02 1 0502-0506 ● ● ● ●
160 16.714 COVER; THROUGH ANCHOR
GRAY 		8-97396-954-0 02 1 0502-0506 ●
160 16.714 COVER; THROUGH ANCHOR
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> GRAY 		8-97396-954-0 02 1 0507-1506 ● ● ● ●
160 16.714 COVER; THROUGH ANCHOR
GRAY 		8-97396-954-0 02 1 0507-1506 ● ●
160 16.714 COVER; THROUGH ANCHOR
GRAY 		8-97396-954-0 02 1 0507-1506 ●
160 16.714 COVER; THROUGH ANCHOR
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> GRAY 		8-97396-954-0 01 1 1507- ● ● ● ●
160 16.714 COVER; THROUGH ANCHOR
GRAY 		8-97396-954-0 01 1 1507- ● ●
161 16.714 REINFORCEMENT; SEAT BELT ANCHOR
(B) 		8-97850-329-4 01 1 0211-0501 ● ● ● ● ● ●
161 16.714 REINFORCEMENT; SEAT BELT ANCHOR
(B) 		8-97850-329-4 01 1 0502-0506 ● ● ● ● ●
161 16.714 REINFORCEMENT; SEAT BELT ANCHOR
(B) 		8-97850-329-4 01 1 0507- ● ● ● ● ● ●
161 16.714 REINFORCEMENT; SEAT BELT ANCHOR
(A) 		8-97850-286-5 01 1 0211-0501 ● ● ● ● ● ●
161 16.714 REINFORCEMENT; SEAT BELT ANCHOR
(A) 		8-97850-286-5 01 1 0502-0506 ● ● ● ● ●
161 16.714 REINFORCEMENT; SEAT BELT ANCHOR
(A) 		8-97850-286-5 01 1 0507- ● ● ● ● ● ●
165 16.714 HOOK; SEAT BELT ANCHOR 8-97869-415-0 01 1 0211-0501 ● ● ● ● ● ●
165 16.714 HOOK; SEAT BELT ANCHOR 8-97869-415-0 01 1 0502-0506 ● ● ● ● ●
165 16.714 HOOK; SEAT BELT ANCHOR 8-97869-415-0 01 1 0507- ● ● ● ● ● ●
166 16.714 BOLT; SEAT BELT ANCHOR
02.559 M8X25 FLANGE 		0-28680-825-0 06 1 0211-0501 ● ● ● ● ● ●
166 16.714 BOLT; SEAT BELT ANCHOR
02.559 M8X25 FLANGE 		0-28680-825-0 06 1 0502-0506 ● ● ● ● ●
166 16.714 BOLT; SEAT BELT ANCHOR
02.559 M8X25 FLANGE 		0-28680-825-0 06 1 0507-0512 ● ● ● ● ● ●
166 16.714 BOLT; SEAT BELT ANCHOR
06.216 M8X25 FLANGE 		0-28650-825-0 06 1 0601- ● ● ● ● ● ●
167 16.714 PLATE; ANCHOR 8-97869-412-1 01 1 0211-0501 ● ● ● ● ● ●
167 16.714 PLATE; ANCHOR 8-97869-412-2 01 1 0502-0506 ● ● ● ● ●
167 16.714 PLATE; ANCHOR 8-97869-412-2 01 1 0507- ● ● ● ● ● ●
168 16.714 NUT; ANCHOR PLATE
00.854 M8 FLANGE 		5-09440-005-0 04 1 0211-0501 ● ● ● ● ● ●
168 16.714 NUT; ANCHOR PLATE
00.854 M8 FLANGE 		5-09440-005-0 04 1 0502-0506 ● ● ● ● ●
168 16.714 NUT; ANCHOR PLATE
00.854 M8 FLANGE 		5-09440-005-0 04 1 0507-0712 ● ● ● ● ● ●
168 16.714 NUT; ANCHOR PLATE
01.062 M8 FLANGE 		0-91180-108-0 04 1 0801- ● ● ● ● ● ●
170 16.714 BELT; PASSENGER SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> AUSTRALIA EQUIPMENT(RR3) GRAY 		8-97400-449-1 01 1 0507- ● ● ● ●
170 16.714 BELT; PASSENGER SEAT,TONGUE SIDE
GRAY 		8-97400-449-1 01 1 0507- ●
170 16.714 BELT; PASSENGER SEAT,TONGUE SIDE
SEAT BELT DRIVER & ASSIST 2 POINT<AS6> DARK GRAY 		8-97394-511-0 01 1 0211-0501 ● ● ● ● ●
170 16.714 BELT; PASSENGER SEAT,TONGUE SIDE
SEAT BELT DRIVER & ASSIST 2 POINT<AS6> GRAY 		8-97400-353-1 01 1 0502- ● ● ● ●
170 16.714 BELT; PASSENGER SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97394-521-0 01 1 0211-0501 ● ● ● ● ●
170 16.714 BELT; PASSENGER SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97392-992-0 01 1 0211-0501 ● ● ● ● ●
170 16.714 BELT; PASSENGER SEAT,TONGUE SIDE
DARK GRAY 		8-97392-992-0 01 1 0211-0501 ●
170 16.714 BELT; PASSENGER SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> GRAY 		8-97397-380-2 01 1 0502-0506 ● ● ● ●
170 16.714 BELT; PASSENGER SEAT,TONGUE SIDE
GRAY 		8-97397-380-2 01 1 0502-0506 ●
170 16.714 BELT; PASSENGER SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. AUSTRALIA EQUIPMENT(RR3) GRAY 		8-97397-380-2 01 1 0507- ● ● ● ●
170 16.714 BELT; PASSENGER SEAT,TONGUE SIDE
GRAY 		8-97397-380-2 01 1 0507- ●
177 16.714 NUT
07.833 M8 W/LK WASHER 		8-94327-073-0 02 1 0211-0501 ● ● ● ● ● ●
177 16.714 NUT
07.833 M8 W/LK WASHER 		8-94327-073-0 02 1 0502-0506 ● ● ● ● ●
177 16.714 NUT
07.833 M8 W/LK WASHER 		8-94327-073-0 02 1 0507-0805 ● ● ● ● ● ●
177 16.714 NUT
03.417 M8 W/LK WASHER 		8-97581-234-0 02 1 0806- ● ● ● ● ● ●

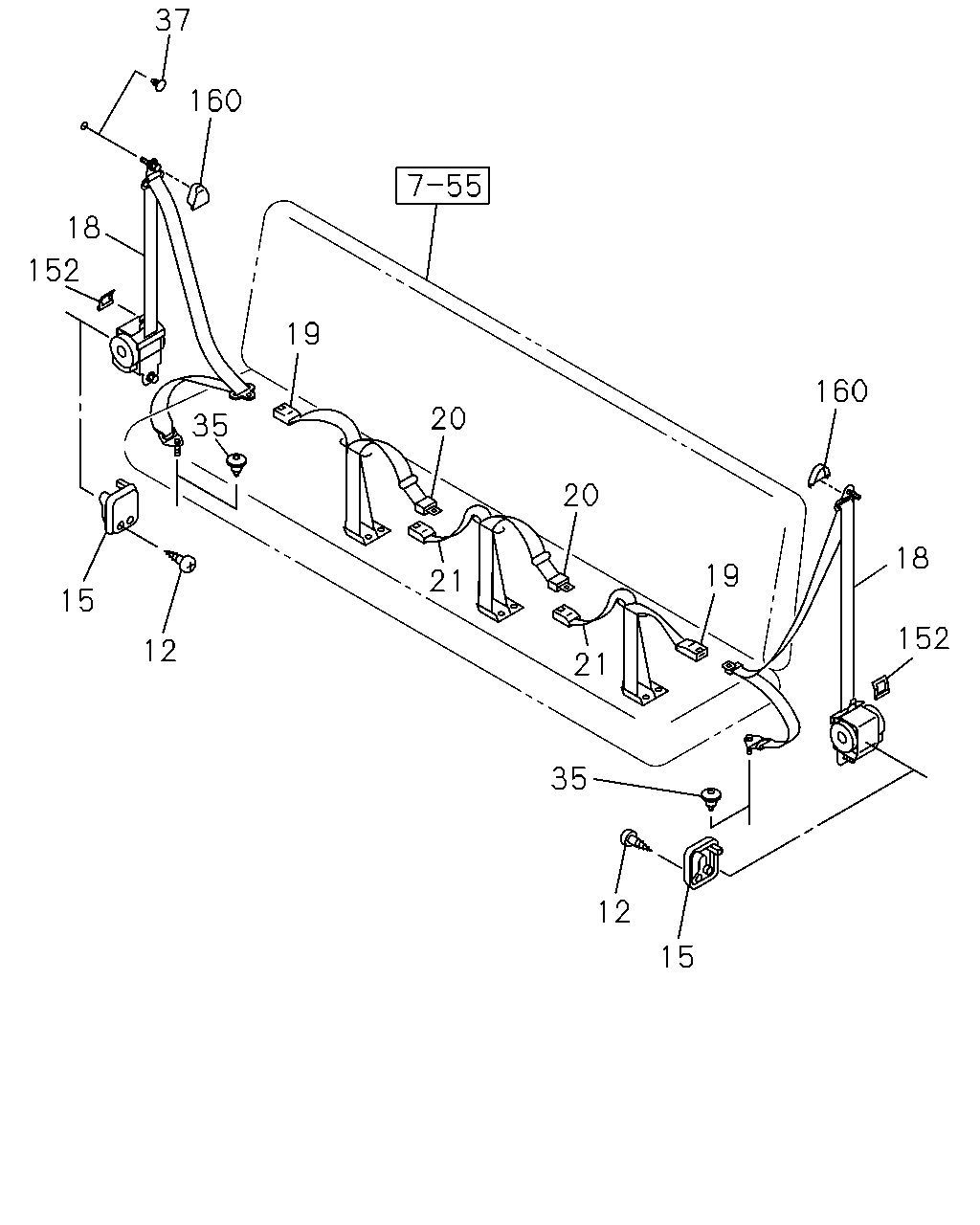

çizim 54587
37 160 18 152 19 160 20 35 20 18 19 21 15 152 12 21 35 12 15
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
12 16.714 SCREW; RETRACTOR COVER,SEAT BELT
16.584 M6X13 		5-09981-074-0 04 1 0507-0611 ●
12 16.714 SCREW; RETRACTOR COVER,SEAT BELT
M4X14 TAPPING 		0-74360-414-0 04 1 0612- ●
12 16.714 SCREW; RETRACTOR COVER,SEAT BELT
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> 16.584 M6X13 		5-09981-074-0 04 1 0211-0501 ●
15 16.714 COVER; DUST,FRT SEAT BELT RETRAC
GRAY 		8-97396-955-3 02 1 0507-0708 ●
15 16.714 COVER; DUST,FRT SEAT BELT RETRAC
16.578 GRAY 		8-97405-192-3 02 1 0709- ●
15 16.714 COVER; DUST,FRT SEAT BELT RETRAC
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> DARK GRAY 		8-94351-619-3 02 1 0211-0501 ●
18 16.714 BELT; SEAT,RR
GRAY 		8-97400-630-1 02 1 0507- ●
18 16.714 BELT; SEAT,RR
AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97394-533-0 02 1 0211-0501 ●
19 16.714 BELT; RR SEAT,BUCKLE SIDE
GRAY 		8-97400-627-0 02 1 0507- ●
19 16.714 BELT; RR SEAT,BUCKLE SIDE
AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97394-529-0 02 1 0211-0501 ●
20 16.714 BELT; RR SEAT CTR,TONGUE SIDE
GRAY 		8-97404-039-0 01 1 0507- ●
20 16.714 BELT; RR SEAT CTR,TONGUE SIDE
GRAY 		8-97404-040-0 01 1 0507- ●
20 16.714 BELT; RR SEAT CTR,TONGUE SIDE
AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97394-542-0 01 1 0211-0501 ●
20 16.714 BELT; RR SEAT CTR,TONGUE SIDE
AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97394-547-0 01 1 0211-0501 ●
21 16.714 BELT; RR SEAT CTR,BUCKLE SIDE
GRAY 		8-97404-036-0 01 1 0507- ●
21 16.714 BELT; RR SEAT CTR,BUCKLE SIDE
GRAY 		8-97404-037-0 01 1 0507- ●
21 16.714 BELT; RR SEAT CTR,BUCKLE SIDE
AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97394-538-0 01 1 0211-0501 ●
21 16.714 BELT; RR SEAT CTR,BUCKLE SIDE
AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97394-539-0 01 1 0211-0501 ●
35 16.714 GROMMET; SEAT BELT ANCHOR
SEAT BELT DRIVER & ASSIST 2 POINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. SEAT BELT FRT SEAT CTR 2 POINT<A38> OD=22 		9-61168-535-0 01 1 0211-0501 ● ● ● ● ●
35 16.714 GROMMET; SEAT BELT ANCHOR
EXC. SEAT BELT FRT SEAT CTR 2 POINT<A38> OD=22 		9-61168-535-0 01 1 0211-0501 ●
35 16.714 GROMMET; SEAT BELT ANCHOR
SEAT BELT DRIVER & ASSIST 2 POINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. SEAT BELT FRT SEAT CTR 2 POINT<A38> OD=22 		9-61168-535-0 01 1 0502- ● ● ● ●
35 16.714 GROMMET; SEAT BELT ANCHOR
EXC. SEAT BELT FRT SEAT CTR 2 POINT<A38> OD=22 		9-61168-535-0 01 1 0502- ●
35 16.714 GROMMET; SEAT BELT ANCHOR
EXC. SEAT BELT DRIVER & ASSIST 2 POIN T<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> OD=22 		9-61168-535-0 04 1 0211-0501 ● ● ● ● ●
35 16.714 GROMMET; SEAT BELT ANCHOR
EXC. SEAT BELT DRIVER & ASSIST 2 POIN T<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> OD=22 		9-61168-535-0 04 1 0502- ● ● ● ●
35 16.714 GROMMET; SEAT BELT ANCHOR
EXC. AUSTRALIA EQUIPMENT(RR3) OD=22 		9-61168-535-0 06 1 0211-0501 ●
37 16.714 PLUG; SEAT BELT ANCHOR
EXC. SEAT BELT DRIVER & ASSIST 2 POIN T<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> L=18.5 		8-94279-726-0 02 1 0211-0501 ● ● ● ● ●
37 16.714 PLUG; SEAT BELT ANCHOR
EXC. AUSTRALIA EQUIPMENT(RR3) L=18.5 		8-94279-726-0 02 1 0211-0501 ●
37 16.714 PLUG; SEAT BELT ANCHOR
EXC. SEAT BELT DRIVER & ASSIST 2 POIN T<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> L=18.5 		8-94279-726-0 02 1 0502- ● ● ● ●
152 16.714 PROTECTOR
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> 		8-97287-563-0 02 1 0211-0501 ● ● ● ● ●
152 16.714 PROTECTOR
AUSTRALIA EQUIPMENT(RR3) 		8-97287-563-0 02 1 0211-0501 ●
152 16.714 PROTECTOR 8-97287-563-0 02 1 0211-0501 ●
152 16.714 PROTECTOR
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> 		8-97287-563-0 02 1 0502-0506 ● ● ● ●
152 16.714 PROTECTOR 8-97287-563-0 02 1 0502-0506 ●
152 16.714 PROTECTOR
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> 		8-97287-563-0 02 1 0507- ● ● ● ●
152 16.714 PROTECTOR 8-97287-563-0 02 1 0507- ● ●
152 16.714 PROTECTOR 8-97287-563-0 02 1 0507- ●
160 16.714 COVER; THROUGH ANCHOR
GRAY 		8-97396-954-0 02 1 1507- ●
160 16.714 COVER; THROUGH ANCHOR
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> DARK GRAY 		8-97854-897-0 02 1 0211-0501 ● ● ● ● ●
160 16.714 COVER; THROUGH ANCHOR
AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97854-897-0 02 1 0211-0501 ●
160 16.714 COVER; THROUGH ANCHOR
DARK GRAY 		8-97854-897-0 02 1 0211-0501 ●
160 16.714 COVER; THROUGH ANCHOR
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> GRAY 		8-97396-954-0 02 1 0502-0506 ● ● ● ●
160 16.714 COVER; THROUGH ANCHOR
GRAY 		8-97396-954-0 02 1 0502-0506 ●
160 16.714 COVER; THROUGH ANCHOR
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> GRAY 		8-97396-954-0 02 1 0507-1506 ● ● ● ●
160 16.714 COVER; THROUGH ANCHOR
GRAY 		8-97396-954-0 02 1 0507-1506 ● ●
160 16.714 COVER; THROUGH ANCHOR
GRAY 		8-97396-954-0 02 1 0507-1506 ●
160 16.714 COVER; THROUGH ANCHOR
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> GRAY 		8-97396-954-0 01 1 1507- ● ● ● ●
160 16.714 COVER; THROUGH ANCHOR
GRAY 		8-97396-954-0 01 1 1507- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
