7-41 — UNDER COVER; INSTRUMENT (#18332) — 39 parça

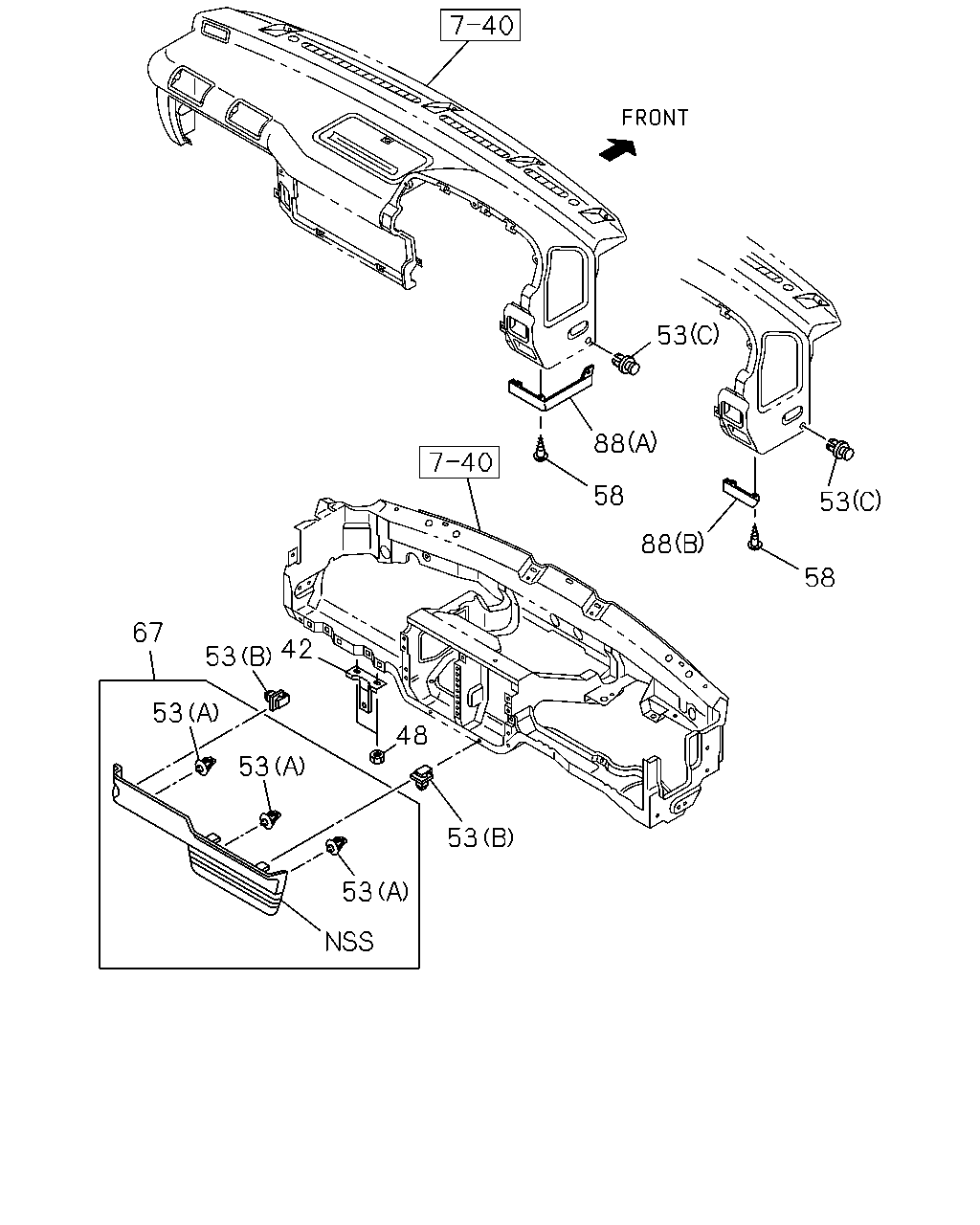

çizim 53006
53 88 58 53 88 58 42 53 67 48 53 53 53 53
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
42 16.110 BRACKET; UNDER COVER 8-97217-299-1 01 1 0211-0501 ● ● ● ● ● ●
42 16.110 BRACKET; UNDER COVER 8-97217-299-1 01 1 0502-0506 ● ● ● ● ●
42 16.110 BRACKET; UNDER COVER 8-97217-299-1 01 1 0507- ● ● ● ● ● ●
48 16.081 NUT; UNDER COVER
04.594 M6 FLANGE 		0-91150-106-0 02 1 0211-0501 ● ● ● ● ● ●
48 16.081 NUT; UNDER COVER
04.594 M6 FLANGE 		0-91150-106-0 02 1 0502-0506 ● ● ● ● ●
48 16.081 NUT; UNDER COVER
04.594 M6 FLANGE 		0-91150-106-0 02 1 0507-0602 ● ● ● ● ● ●
48 16.081 NUT; UNDER COVER
01.062 M6 FLANGE 		0-91180-106-0 02 1 0603- ● ● ● ● ● ●
53 16.085 CLIP; UNDER COVER
DUMP CHASSIS(V4D) 16.800 (C) BLACK 		8-94493-404-0 01 1 0211- ●
53 16.085 CLIP; UNDER COVER
EXC. DUMP CHASSIS(V4D) 06.521 (C) DARK GRAY 		8-97857-542-0 01 1 0211-0501 ●
53 16.085 CLIP; UNDER COVER
06.521 (C) DARK GRAY 		8-97857-542-0 01 1 0211-0501 ● ● ● ● ●
53 16.085 CLIP; UNDER COVER
EXC. DUMP CHASSIS(V4D) 06.521 (C) DARK GRAY 		8-97582-246-0 01 1 0502-0506 ●
53 16.085 CLIP; UNDER COVER
06.521 (C) DARK GRAY 		8-97582-246-0 01 1 0502-0506 ● ● ● ●
53 16.085 CLIP; UNDER COVER
EXC. DUMP CHASSIS(V4D) 06.521 (C) DARK GRAY 		8-97582-246-0 01 1 0507- ●
53 16.085 CLIP; UNDER COVER
06.521 (C) DARK GRAY 		8-97582-246-0 01 1 0507- ● ● ● ● ●
53 16.085 CLIP; UNDER COVER
16.100 (A) 		8-97853-169-0 04 1 0211-0501 ● ● ● ● ● ●
53 16.085 CLIP; UNDER COVER
16.100 (A) 		8-97853-169-0 04 1 0502-0506 ● ● ● ● ●
53 16.085 CLIP; UNDER COVER
16.100 (A) 		8-97853-169-0 04 1 0507- ● ● ● ● ● ●
53 16.085 CLIP; UNDER COVER
(B) 		8-97853-249-5 03 1 0211-0501 ● ● ● ● ● ●
53 16.085 CLIP; UNDER COVER
(B) 		8-97853-249-5 03 1 0502-0506 ● ● ● ● ●
53 16.085 CLIP; UNDER COVER
(B) 		8-97853-249-5 03 1 0507- ● ● ● ● ● ●
58 09.264 SCREW; UNDER COVER
16.067 M5X14 		8-94279-325-0 02 1 0211-0501 ● ● ● ● ● ●
58 09.264 SCREW; UNDER COVER
16.067 M5X14 		8-94279-325-0 02 1 0502-0506 ● ● ● ● ●
58 09.264 SCREW; UNDER COVER
16.067 M5X14 		8-94279-325-0 02 1 0507-0612 ● ● ● ● ● ●
58 09.264 SCREW; UNDER COVER
09.655 M5X14 TAPPING W/TORQUES 		8-98061-856-0 02 1 0701- ● ● ● ● ● ●
67 16.081 COVER; UNDER,INST PNL 8-97856-661-6 01 1 0211-0501 ● ● ● ● ● ●
67 16.081 COVER; UNDER,INST PNL 8-97856-661-6 01 1 0502-0506 ● ● ● ● ●
67 16.081 COVER; UNDER,INST PNL 8-97856-661-6 01 1 0507- ● ● ● ● ● ●
88 16.081 COVER; UNDER,INST PNL SIDE
EXC. DUMP CHASSIS(V4D) (A) DARK GRAY 		8-97582-204-2 01 1 0507- ●
88 16.081 COVER; UNDER,INST PNL SIDE
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) DARK GRAY 		8-97582-204-2 01 1 0507- ● ● ● ●
88 16.081 COVER; UNDER,INST PNL SIDE
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. H.S.A SYSTEM<6EP> (A) DARK GRAY 		8-97582-204-2 01 1 0507- ● ● ● ●
88 16.081 COVER; UNDER,INST PNL SIDE
DUMP CHASSIS(V4D) (B) DARK GRAY 		8-97859-803-2 01 1 0211-0501 ●
88 16.081 COVER; UNDER,INST PNL SIDE
DUMP CHASSIS(V4D) (B) DARK GRAY 		8-97582-202-2 01 1 0502- ●
88 16.081 COVER; UNDER,INST PNL SIDE
EXC. DUMP CHASSIS(V4D) (A) DARK GRAY 		8-97859-801-2 01 1 0211-0501 ●
88 16.081 COVER; UNDER,INST PNL SIDE
(A) DARK GRAY 		8-97859-801-2 01 1 0211-0501 ● ● ● ● ●
88 16.081 COVER; UNDER,INST PNL SIDE
EXC. DUMP CHASSIS(V4D) (A) DARK GRAY 		8-97582-201-2 01 1 0502-0506 ●
88 16.081 COVER; UNDER,INST PNL SIDE
(A) DARK GRAY 		8-97582-201-2 01 1 0502-0506 ● ● ● ●
88 16.081 COVER; UNDER,INST PNL SIDE
EXC. DUMP CHASSIS(V4D),H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A) DARK GRAY 		8-97582-201-2 01 1 0507- ●
88 16.081 COVER; UNDER,INST PNL SIDE
EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A) DARK GRAY 		8-97582-201-2 01 1 0507- ● ● ● ●
88 16.081 COVER; UNDER,INST PNL SIDE
(A) DARK GRAY 		8-97582-201-2 01 1 0507- ●
