Sayfa 8-71 - Isuzu EPC

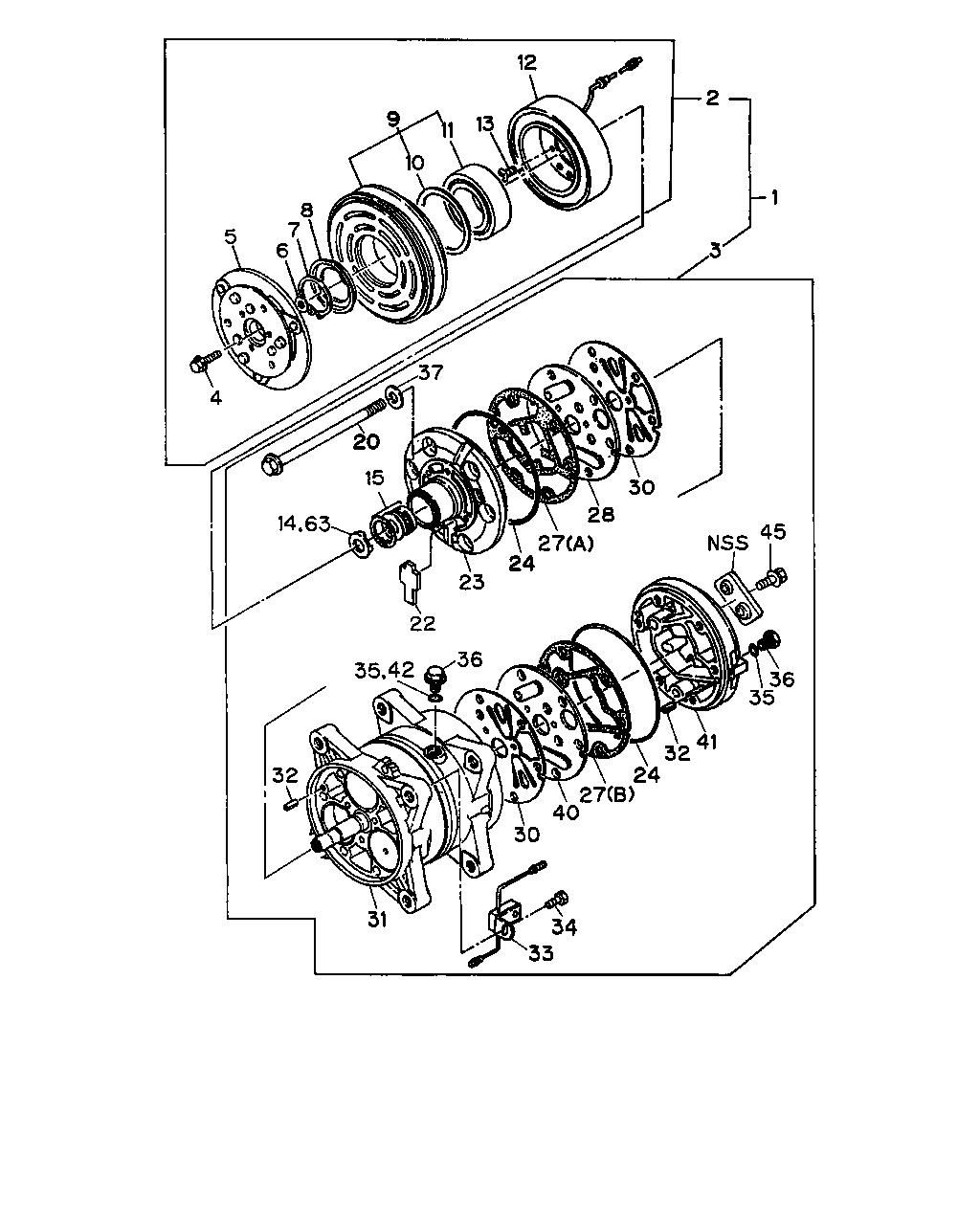

8-71 — COMPRESSOR; AIR CONDITIONING (#1833) — 141 parça

12 13 9 8 7 6 5 4 37 20 63 15 24 27 28 30 23 22 3 1 2 45 35 36 41 32 24 27 40 30 34 33 31 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	COMPRESSOR ASM; A/C 10PD1 STD ENG(40L),12PD1 STD ENG(42L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83532-154-2	01	1	9002-9306	●	●
1	COMPRESSOR ASM; A/C 6RB1 STD ENG(07L),6RB1TC ENG(30L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83532-157-2	01	1	9002-9306	●	●
1	COMPRESSOR ASM; A/C 8PD1 STD ENG(38L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) "R-134A"	1-83532-216-0	01	1	9307-9506	●	●
1	COMPRESSOR ASM; A/C 8PD1 STD ENG(38L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83532-256-0	01	1	9507-9509	●	●
1	COMPRESSOR ASM; A/C 8PD1 STD ENG(38L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83532-256-0	01	1	9510-9510	●	●
1	COMPRESSOR ASM; A/C 8PD1 STD ENG(38L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83532-255-1	01	1	9511-	●	●
2	CLUTCH; MAGNET,A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83533-016-1	01	1	9002-9306	●	●
2	CLUTCH; MAGNET,A/C 8PD1 STD ENG(38L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83533-034-0	01	1	9307-9506	●	●
2	CLUTCH; MAGNET,A/C 8PD1 STD ENG(38L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83533-038-0	01	1	9507-9510	●	●
2	CLUTCH; MAGNET,A/C 8PD1 STD ENG(38L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83533-041-0	01	1	9511-	●	●
3	COMPRESSOR ASM; A/C 10PD1 STD ENG(40L),12PD1 STD ENG(42L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83532-162-0	01	1	9002-9205	●	●
3	COMPRESSOR ASM; A/C 10PD1 STD ENG(40L),12PD1 STD ENG(42L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83532-155-2	01	1	9206-9306	●	●
3	COMPRESSOR ASM; A/C 6RB1 STD ENG(07L),6RB1TC ENG(30L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83532-158-2	01	1	9002-9306	●	●
3	COMPRESSOR ASM; A/C 8PD1 STD ENG(38L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83532-235-0	01	1	9307-9506	●	●
3	COMPRESSOR ASM; A/C 8PD1 STD ENG(38L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83532-258-0	01	1	9507-	●	●
4	BOLT; MAGNET CLU AIR CONDITIONER MANUAL CONTROL(C60)	8-94164-439-0	01	1	9002-	●	●
5	ARMATURE ASM; MAGNET CLU,A/C AIR CONDITIONER MANUAL CONTROL(C60)	8-94466-701-0	01	1	9002-9306	●	●
5	ARMATURE ASM; MAGNET CLU,A/C 8PD1 STD ENG(38L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60)	8-97034-788-0	01	1	9307-	●	●
6	SHIM; MAGNET CLU AIR CONDITIONER MANUAL CONTROL(C60) T=0.1	8-94120-721-0	AR	1	9002-	●	●
6	SHIM; MAGNET CLU AIR CONDITIONER MANUAL CONTROL(C60) T=0.3	8-94120-722-0	AR	1	9002-	●	●
6	SHIM; MAGNET CLU AIR CONDITIONER MANUAL CONTROL(C60) T=0.5	8-94120-723-0	AR	1	9002-	●	●
7	RING; SNAP,PULLEY AIR CONDITIONER MANUAL CONTROL(C60)	8-94120-724-0	01	1	9002-	●	●
8	COVER; PULLEY AIR CONDITIONER MANUAL CONTROL(C60)	8-94120-725-0	01	1	9002-9506	●	●
9	PULLEY; MAGNET CLU AIR CONDITIONER MANUAL CONTROL(C60)	8-94154-715-1	01	1	9002-9306	●	●
9	PULLEY; MAGNET CLU V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-616-0	01	1	9307-9310	●	●
9	PULLEY; MAGNET CLU AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-616-0	01	1	9311-	●	●
12	COIL; FIELD,MAGNET CLU AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-402-0	01	1	9002-9510	●	●
12	COIL; FIELD,MAGNET CLU AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-833-0	01	1	9511-	●	●
13	SCREW; COIL FIELD AIR CONDITIONER MANUAL CONTROL(C60)	8-94120-727-0	03	1	9002-	●	●
15	SEAL; SHAFT AIR CONDITIONER MANUAL CONTROL(C60)	8-94466-697-0	01	1	9002-9306	●	●
15	SEAL; SHAFT AIR CONDITIONER MANUAL CONTROL(C60) "R-134A"	8-97081-397-0	01	1	9307-9506	●	●
15	SEAL; SHAFT AIR CONDITIONER MANUAL CONTROL(C60) "R-134A"	8-97114-217-1	01	1	9507-	●	●
20	BOLT; CMPR AIR CONDITIONER MANUAL CONTROL(C60)	8-94466-676-0	06	1	9002-9306	●	●
20	BOLT; CMPR AIR CONDITIONER MANUAL CONTROL(C60)	8-97081-394-0	06	1	9307-	●	●
22	FELT; CYL HD,FRT AIR CONDITIONER MANUAL CONTROL(C60)	8-94441-396-0	01	1	9002-9506	●	●
23	HEAD; CYL,FRT AIR CONDITIONER MANUAL CONTROL(C60)	8-94466-683-0	01	1	9002-9306	●	●
23	HEAD; CYL,FRT AIR CONDITIONER MANUAL CONTROL(C60) "R-134A"	8-97034-782-0	01	1	9307-9506	●	●
23	HEAD; CYL,FRT AIR CONDITIONER MANUAL CONTROL(C60) "R-134A"	8-97114-215-0	01	1	9507-	●	●
24	GASKET; CMPR AIR CONDITIONER MANUAL CONTROL(C60)	8-94466-681-0	02	1	9002-9306	●	●
24	GASKET; CMPR AIR CONDITIONER MANUAL CONTROL(C60) "R-134A"	8-97081-396-0	02	1	9307-	●	●
27	GASKET; CYL HD AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-94466-685-0	01	1	9002-9306	●	●
27	GASKET; CYL HD AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-94466-693-0	01	1	9002-9306	●	●
27	GASKET; CYL HD AIR CONDITIONER MANUAL CONTROL(C60) (A) "R-134A"	8-97085-777-0	01	1	9307-	●	●
27	GASKET; CYL HD AIR CONDITIONER MANUAL CONTROL(C60) (B) "R-134A"	8-97085-779-0	01	1	9307-	●	●
28	PLATE; VLV,CMPR AIR CONDITIONER MANUAL CONTROL(C60)	8-94466-687-0	01	1	9002-9506	●	●
28	PLATE; VLV,CMPR AIR CONDITIONER MANUAL CONTROL(C60)	8-97135-796-0	01	1	9507-	●	●
30	VALVE; SUCTION AIR CONDITIONER MANUAL CONTROL(C60)	8-94466-689-0	02	1	9002-9205	●	●
30	VALVE; SUCTION AIR CONDITIONER MANUAL CONTROL(C60) "R-134A"	8-97081-404-0	02	1	9206-9506	●	●
30	VALVE; SUCTION AIR CONDITIONER MANUAL CONTROL(C60)	8-97134-755-0	02	1	9507-	●	●
31	CYLINDER & SHAFT ASM; AIR CMPR L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60)	1-83571-591-0	01	1	9002-9306	●	●
31	CYLINDER & SHAFT ASM; AIR CMPR V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60)	1-83571-592-0	01	1	9002-9306	●	●
31	CYLINDER & SHAFT ASM; AIR CMPR 8PD1 STD ENG(38L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60)	8-97081-391-0	01	1	9307-9506	●	●
31	CYLINDER & SHAFT ASM; AIR CMPR 8PD1 STD ENG(38L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60)	8-97138-177-0	01	1	9507-	●	●
32	PIN; CMPR AIR CONDITIONER MANUAL CONTROL(C60)	8-94154-711-0	04	1	9002-	●	●
33	PROTECTOR; CMPR AIR CONDITIONER MANUAL CONTROL(C60)	1-83571-531-0	01	1	9002-9306	●	●
33	PROTECTOR; CMPR AIR CONDITIONER MANUAL CONTROL(C60)	1-83571-737-0	01	1	9307-9510	●	●
34	BOLT; PROTECTOR AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-277-0	01	1	9002-9510	●	●
35	GASKET; PLUG,CYL AIR CONDITIONER MANUAL CONTROL(C60)	8-94113-333-0	02	1	9002-9306	●	●
35	GASKET; PLUG,CYL AIR CONDITIONER MANUAL CONTROL(C60) "R-134A"	8-97081-395-0	01	1	9307-	●	●
36	PLUG; CYL AIR CONDITIONER MANUAL CONTROL(C60)	8-94164-473-0	02	1	9002-9306	●	●
36	PLUG; CYL AIR CONDITIONER MANUAL CONTROL(C60)	8-94164-473-0	01	1	9307-	●	●
37	GASKET; CMPR 8PD1 STD ENG(38L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60)	8-94466-678-0	06	1	9307-	●	●
40	PLATE; VLV,RR AIR CONDITIONER MANUAL CONTROL(C60)	8-94466-691-0	01	1	9002-9506	●	●
40	PLATE; VLV,RR AIR CONDITIONER MANUAL CONTROL(C60)	8-97135-797-0	01	1	9507-	●	●
41	HEAD; CYL,RR AIR CONDITIONER MANUAL CONTROL(C60)	8-94466-695-0	01	1	9002-9306	●	●
41	HEAD; CYL,RR AIR CONDITIONER MANUAL CONTROL(C60)	8-97034-784-0	01	1	9307-	●	●
45	BOLT; PLATE TO CYL HD AIR CONDITIONER MANUAL CONTROL(C60) M10X35 W/LK&PL WASHER	9-01971-035-0	01	1	9002-	●	●
63	COVER; CMPR AIR CONDITIONER MANUAL CONTROL(C60)	8-94441-395-0	01	1	9002-9506	●	●

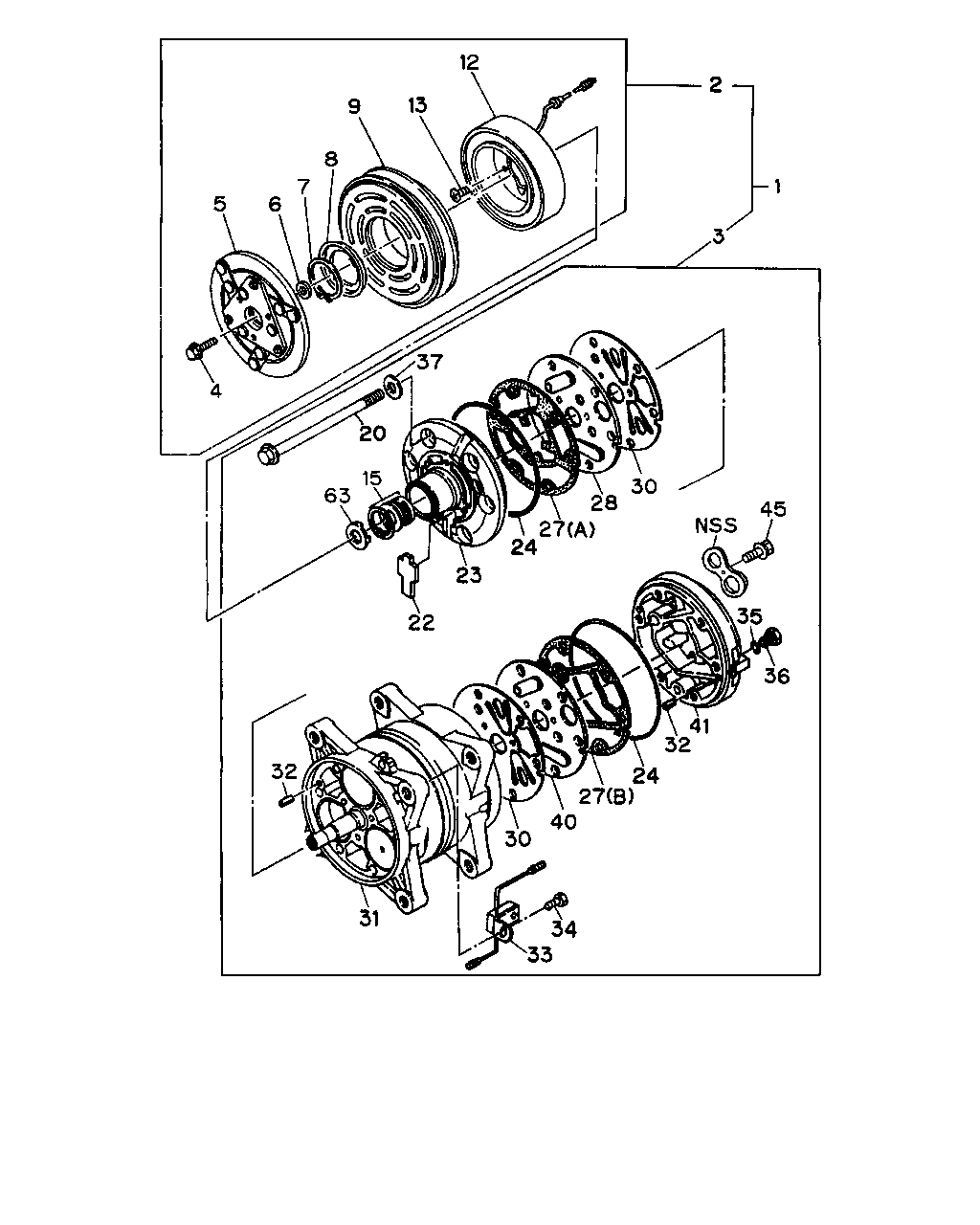

12 13 11 9 2 1 3 10 8 7 6 5 4 37 20 14 63 15 27 24 23 28 30 22 35 42 36 45 36 35 41 32 24 27 40 30 32 31 34 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	COMPRESSOR ASM; A/C 10PD1 STD ENG(40L),12PD1 STD ENG(42L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83532-154-2	01	1	9002-9306	●	●
1	COMPRESSOR ASM; A/C 6RB1 STD ENG(07L),6RB1TC ENG(30L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83532-157-2	01	1	9002-9306	●	●
1	COMPRESSOR ASM; A/C 8PD1 STD ENG(38L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) "R-134A"	1-83532-216-0	01	1	9307-9506	●	●
1	COMPRESSOR ASM; A/C 8PD1 STD ENG(38L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83532-256-0	01	1	9507-9509	●	●
1	COMPRESSOR ASM; A/C 8PD1 STD ENG(38L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83532-256-0	01	1	9510-9510	●	●
1	COMPRESSOR ASM; A/C 8PD1 STD ENG(38L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83532-255-1	01	1	9511-	●	●
2	CLUTCH; MAGNET,A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83533-016-1	01	1	9002-9306	●	●
2	CLUTCH; MAGNET,A/C 8PD1 STD ENG(38L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83533-034-0	01	1	9307-9506	●	●
2	CLUTCH; MAGNET,A/C 8PD1 STD ENG(38L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83533-038-0	01	1	9507-9510	●	●
2	CLUTCH; MAGNET,A/C 8PD1 STD ENG(38L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83533-041-0	01	1	9511-	●	●
3	COMPRESSOR ASM; A/C 10PD1 STD ENG(40L),12PD1 STD ENG(42L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83532-162-0	01	1	9002-9205	●	●
3	COMPRESSOR ASM; A/C 10PD1 STD ENG(40L),12PD1 STD ENG(42L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83532-155-2	01	1	9206-9306	●	●
3	COMPRESSOR ASM; A/C 6RB1 STD ENG(07L),6RB1TC ENG(30L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83532-158-2	01	1	9002-9306	●	●
3	COMPRESSOR ASM; A/C 8PD1 STD ENG(38L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83532-235-0	01	1	9307-9506	●	●
3	COMPRESSOR ASM; A/C 8PD1 STD ENG(38L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83532-258-0	01	1	9507-	●	●
4	BOLT; MAGNET CLU AIR CONDITIONER MANUAL CONTROL(C60)	8-94164-439-0	01	1	9002-	●	●
5	ARMATURE ASM; MAGNET CLU,A/C AIR CONDITIONER MANUAL CONTROL(C60)	8-94466-701-0	01	1	9002-9306	●	●
5	ARMATURE ASM; MAGNET CLU,A/C 8PD1 STD ENG(38L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60)	8-97034-788-0	01	1	9307-	●	●
6	SHIM; MAGNET CLU AIR CONDITIONER MANUAL CONTROL(C60) T=0.1	8-94120-721-0	AR	1	9002-	●	●
6	SHIM; MAGNET CLU AIR CONDITIONER MANUAL CONTROL(C60) T=0.3	8-94120-722-0	AR	1	9002-	●	●
6	SHIM; MAGNET CLU AIR CONDITIONER MANUAL CONTROL(C60) T=0.5	8-94120-723-0	AR	1	9002-	●	●
7	RING; SNAP,PULLEY AIR CONDITIONER MANUAL CONTROL(C60)	8-94120-724-0	01	1	9002-	●	●
8	COVER; PULLEY AIR CONDITIONER MANUAL CONTROL(C60)	8-94120-725-0	01	1	9002-9506	●	●
9	PULLEY; MAGNET CLU AIR CONDITIONER MANUAL CONTROL(C60)	8-94154-715-1	01	1	9002-9306	●	●
9	PULLEY; MAGNET CLU V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-616-0	01	1	9307-9310	●	●
9	PULLEY; MAGNET CLU AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-616-0	01	1	9311-	●	●
10	PLATE; ARMATURE,MAGNET CLU AIR CONDITIONER MANUAL CONTROL(C60)	8-94463-697-0	01	1	9002-9205	●	●
11	BEARING; PULLEY AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-223-0	01	1	9002-9205	●	●
12	COIL; FIELD,MAGNET CLU AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-402-0	01	1	9002-9510	●	●
12	COIL; FIELD,MAGNET CLU AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-833-0	01	1	9511-	●	●
13	SCREW; COIL FIELD AIR CONDITIONER MANUAL CONTROL(C60)	8-94120-727-0	03	1	9002-	●	●
14	FELT; SHAFT SEAL,CYL HD,FRT 6RB1 STD ENG(07L),6RB1TC ENG(30L) AIR CONDITIONER MANUAL CONTROL(C60)	8-94441-395-0	01	1	9002-9205	●	●
15	SEAL; SHAFT AIR CONDITIONER MANUAL CONTROL(C60)	8-94466-697-0	01	1	9002-9306	●	●
15	SEAL; SHAFT AIR CONDITIONER MANUAL CONTROL(C60) "R-134A"	8-97081-397-0	01	1	9307-9506	●	●
15	SEAL; SHAFT AIR CONDITIONER MANUAL CONTROL(C60) "R-134A"	8-97114-217-1	01	1	9507-	●	●
20	BOLT; CMPR AIR CONDITIONER MANUAL CONTROL(C60)	8-94466-676-0	06	1	9002-9306	●	●
20	BOLT; CMPR AIR CONDITIONER MANUAL CONTROL(C60)	8-97081-394-0	06	1	9307-	●	●
22	FELT; CYL HD,FRT AIR CONDITIONER MANUAL CONTROL(C60)	8-94441-396-0	01	1	9002-9506	●	●
23	HEAD; CYL,FRT AIR CONDITIONER MANUAL CONTROL(C60)	8-94466-683-0	01	1	9002-9306	●	●
23	HEAD; CYL,FRT AIR CONDITIONER MANUAL CONTROL(C60) "R-134A"	8-97034-782-0	01	1	9307-9506	●	●
23	HEAD; CYL,FRT AIR CONDITIONER MANUAL CONTROL(C60) "R-134A"	8-97114-215-0	01	1	9507-	●	●
24	GASKET; CMPR AIR CONDITIONER MANUAL CONTROL(C60)	8-94466-681-0	02	1	9002-9306	●	●
24	GASKET; CMPR AIR CONDITIONER MANUAL CONTROL(C60) "R-134A"	8-97081-396-0	02	1	9307-	●	●
27	GASKET; CYL HD AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-94466-685-0	01	1	9002-9306	●	●
27	GASKET; CYL HD AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-94466-693-0	01	1	9002-9306	●	●
27	GASKET; CYL HD AIR CONDITIONER MANUAL CONTROL(C60) (A) "R-134A"	8-97085-777-0	01	1	9307-	●	●
27	GASKET; CYL HD AIR CONDITIONER MANUAL CONTROL(C60) (B) "R-134A"	8-97085-779-0	01	1	9307-	●	●
28	PLATE; VLV,CMPR AIR CONDITIONER MANUAL CONTROL(C60)	8-94466-687-0	01	1	9002-9506	●	●
28	PLATE; VLV,CMPR AIR CONDITIONER MANUAL CONTROL(C60)	8-97135-796-0	01	1	9507-	●	●
30	VALVE; SUCTION AIR CONDITIONER MANUAL CONTROL(C60)	8-94466-689-0	02	1	9002-9205	●	●
30	VALVE; SUCTION AIR CONDITIONER MANUAL CONTROL(C60) "R-134A"	8-97081-404-0	02	1	9206-9506	●	●
30	VALVE; SUCTION AIR CONDITIONER MANUAL CONTROL(C60)	8-97134-755-0	02	1	9507-	●	●
31	CYLINDER & SHAFT ASM; AIR CMPR L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60)	1-83571-591-0	01	1	9002-9306	●	●
31	CYLINDER & SHAFT ASM; AIR CMPR V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60)	1-83571-592-0	01	1	9002-9306	●	●
31	CYLINDER & SHAFT ASM; AIR CMPR 8PD1 STD ENG(38L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60)	8-97081-391-0	01	1	9307-9506	●	●
31	CYLINDER & SHAFT ASM; AIR CMPR 8PD1 STD ENG(38L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60)	8-97138-177-0	01	1	9507-	●	●
32	PIN; CMPR AIR CONDITIONER MANUAL CONTROL(C60)	8-94154-711-0	04	1	9002-	●	●
33	PROTECTOR; CMPR AIR CONDITIONER MANUAL CONTROL(C60)	1-83571-531-0	01	1	9002-9306	●	●
33	PROTECTOR; CMPR AIR CONDITIONER MANUAL CONTROL(C60)	1-83571-737-0	01	1	9307-9510	●	●
34	BOLT; PROTECTOR AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-277-0	01	1	9002-9510	●	●
35	GASKET; PLUG,CYL AIR CONDITIONER MANUAL CONTROL(C60)	8-94113-333-0	02	1	9002-9306	●	●
35	GASKET; PLUG,CYL AIR CONDITIONER MANUAL CONTROL(C60) "R-134A"	8-97081-395-0	01	1	9307-	●	●
36	PLUG; CYL AIR CONDITIONER MANUAL CONTROL(C60)	8-94164-473-0	02	1	9002-9306	●	●
36	PLUG; CYL AIR CONDITIONER MANUAL CONTROL(C60)	8-94164-473-0	01	1	9307-	●	●
37	GASKET; CMPR 8PD1 STD ENG(38L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60)	8-94466-678-0	06	1	9307-	●	●
40	PLATE; VLV,RR AIR CONDITIONER MANUAL CONTROL(C60)	8-94466-691-0	01	1	9002-9506	●	●
40	PLATE; VLV,RR AIR CONDITIONER MANUAL CONTROL(C60)	8-97135-797-0	01	1	9507-	●	●
41	HEAD; CYL,RR AIR CONDITIONER MANUAL CONTROL(C60)	8-94466-695-0	01	1	9002-9306	●	●
41	HEAD; CYL,RR AIR CONDITIONER MANUAL CONTROL(C60)	8-97034-784-0	01	1	9307-	●	●
42	GASKET; CYL HD,MAGNET CLU 10PD1 STD ENG(40L),12PD1 STD ENG(42L) AIR CONDITIONER MANUAL CONTROL(C60)	8-94466-693-0	01	1	9002-9205	●	●
42	GASKET; CYL HD,MAGNET CLU 6RB1 STD ENG(07L),6RB1TC ENG(30L) AIR CONDITIONER MANUAL CONTROL(C60)	8-94113-333-0	01	1	9002-9205	●	●
45	BOLT; PLATE TO CYL HD AIR CONDITIONER MANUAL CONTROL(C60) M10X35 W/LK&PL WASHER	9-01971-035-0	01	1	9002-	●	●
63	COVER; CMPR AIR CONDITIONER MANUAL CONTROL(C60)	8-94441-395-0	01	1	9002-9506	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
