◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50948 - NPR/NQR RHDEXC.EURO4 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-80 - BACK PANEL ▶
6-80 — BACK PANEL (#18323) — 68 parça

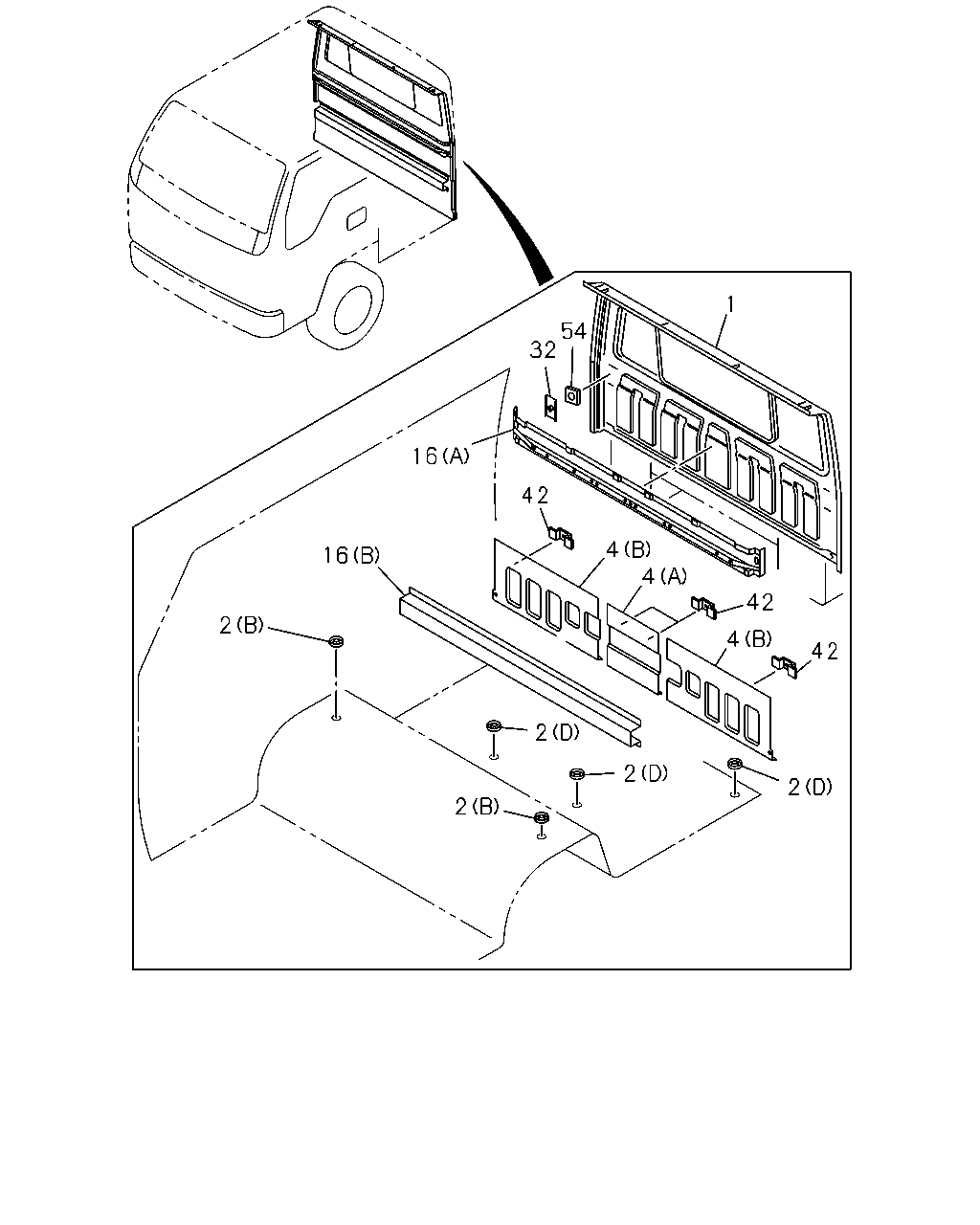

çizim 52372
1 54 32 16 2 4 4 16 42 2 4 2 2 2 2 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 16.587 PANEL; BACK OUTER 8-97851-267-6 01 1 0211-0501 ●
1 16.587 PANEL; BACK OUTER 8-97851-267-6 01 1 0507- ●
1 16.587 PANEL; BACK OUTER 8-97859-127-0 01 1 0502-0506 ● ● ● ● ●
1 16.587 PANEL; BACK OUTER 8-97859-127-0 01 1 0211-0501 ● ● ● ● ●
1 16.587 PANEL; BACK OUTER 8-97859-127-0 01 1 0507- ● ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
15.222 (D) OD=35 		8-94122-971-0 04 1 0507- ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
00.785 (B) OD=16.2 		8-94492-493-0 02 1 0211-0501 ● ● ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
00.785 (B) OD=16.2 		8-94492-493-0 02 1 0502-0506 ● ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
00.785 (B) OD=16.2 		8-94492-493-0 02 1 0507-0512 ● ● ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.547 (B) OD=15.0 		8-94279-040-0 02 1 0601- ● ● ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.165 (A) OD=25 BLACK 		1-76798-019-0 04 1 0211- ● ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
02.580 (C) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 0211-0710 ● ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.545 (C) OD=32 BLACK 		8-98031-126-0 02 1 0711- ● ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
15.222 (D) OD=35 		8-94122-971-0 04 1 0211-0501 ●
4 16.575 PANEL; CAB BACK LWR
(A) 		8-97851-268-3 01 1 0211-0501 ●
4 16.575 PANEL; CAB BACK LWR
(A) 		8-97851-268-3 01 1 0507- ●
4 16.575 PANEL; CAB BACK LWR
(B) 		8-97851-293-5 01 1 0211-0501 ●
4 16.575 PANEL; CAB BACK LWR
(B) 		8-97851-293-5 01 1 0507- ●
4 16.575 PANEL; CAB BACK LWR
(B) 		8-97892-520-1 01 1 0211-0501 ●
4 16.575 PANEL; CAB BACK LWR
(B) 		8-97892-520-1 01 1 0507- ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HK1-TCN ENG(RDQ) (A) 		8-97890-837-1 01 1 0507- ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (A) 		8-97890-837-1 01 1 0507- ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(B) 		8-97851-415-1 01 1 0507- ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HE1 ENG(RLY) EXC. INTERIOR DELUXE<RBB>,CHARGE AIR COOLER<6PL> (A) 		8-97851-501-6 02 1 0211-0501 ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HE1 ENG(RLY) EXC. INTERIOR DELUXE<RBB>,CUSTOM PACKAGE<YM8>,CHARGE AIR COOLER<6PL> (A) 		8-97851-501-6 02 1 0211-0501 ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (A) 		8-97890-837-1 01 1 0211-0501 ● ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HG1 ENG(RJH),4HF1-S ENG(RLS) (A) 		8-97851-106-9 01 1 0211-0501 ● ● ● ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(A) 		8-97851-106-9 01 1 0502-0506 ● ● ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) (A) 		8-97851-106-9 01 1 0507- ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HG1-T ENG(RDP),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) (A) 		8-97851-106-9 01 1 0507- ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) (A) 		8-97851-106-9 01 1 0507- ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HG1 ENG(RJH),4HF1-S ENG(RLS) (A) 		8-97851-106-9 01 1 0507- ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(A) 		8-97851-106-9 01 1 0507- ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(B) 		8-97851-415-1 01 1 0211-0501 ●
32 16.587 PATCH; AIR INT DUCT 8-97892-522-1 01 1 0507- ●
32 16.587 PATCH; AIR INT DUCT 8-97892-522-1 01 1 0211-0501 ●
42 16.587 BRACKET; HEAT PROTECTOR
16.588 		8-94265-170-1 04 1 0507- ●
42 16.587 BRACKET; HEAT PROTECTOR
16.588 		8-94265-170-1 04 1 0211-0501 ●
54 16.587 SEAL; STUD
16.585 30X30 ID=9 T=0.7 		1-61281-444-1 01 1 0507- ●
54 16.587 SEAL; STUD
16.585 30X30 ID=9 T=0.7 		1-61281-444-0 01 1 0211-0501 ●

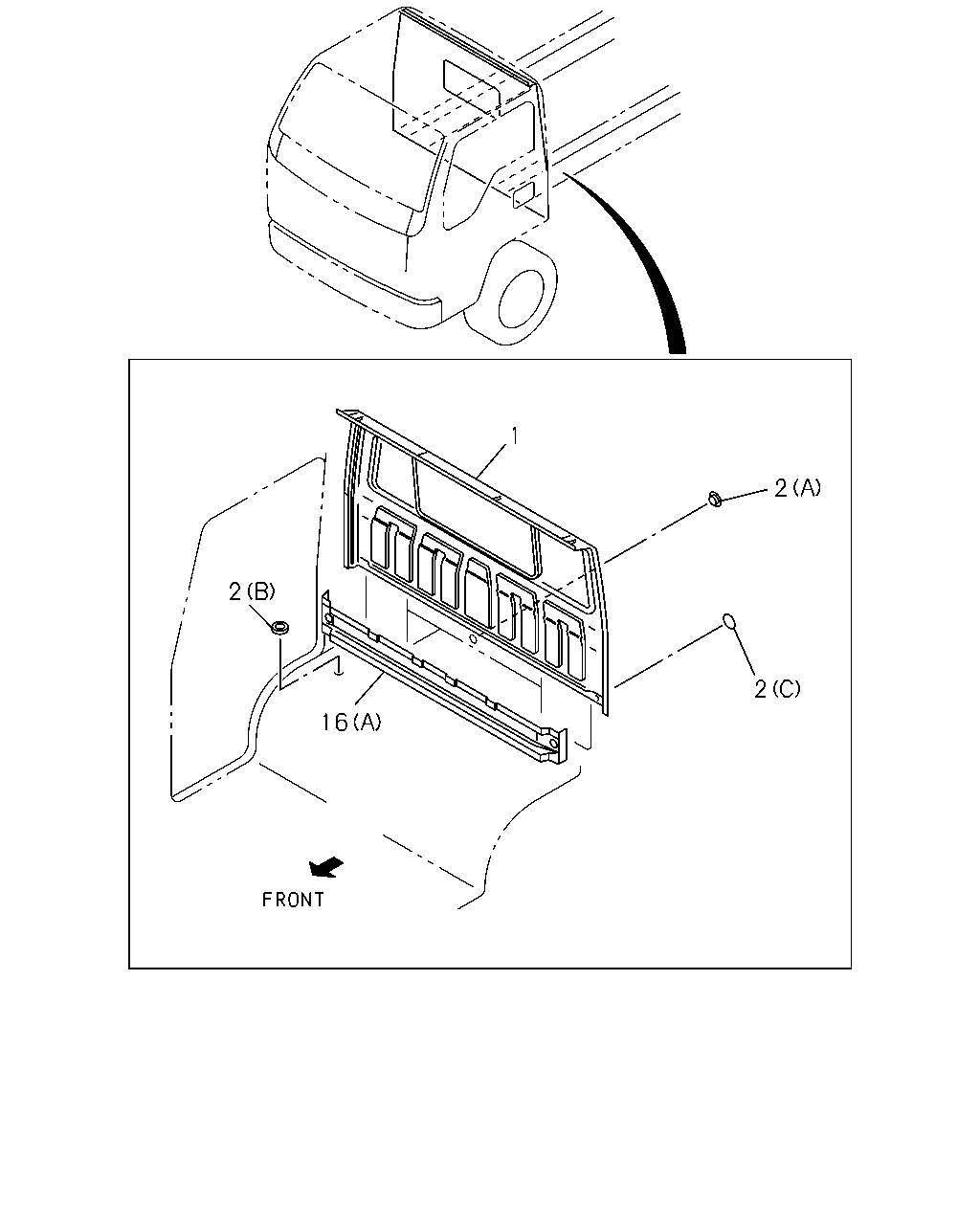

çizim 52420
1 2 2 2 16
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 16.587 PANEL; BACK OUTER 8-97851-267-6 01 1 0211-0501 ●
1 16.587 PANEL; BACK OUTER 8-97851-267-6 01 1 0507- ●
1 16.587 PANEL; BACK OUTER 8-97859-127-0 01 1 0502-0506 ● ● ● ● ●
1 16.587 PANEL; BACK OUTER 8-97859-127-0 01 1 0211-0501 ● ● ● ● ●
1 16.587 PANEL; BACK OUTER 8-97859-127-0 01 1 0507- ● ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
15.222 (D) OD=35 		8-94122-971-0 04 1 0507- ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
00.785 (B) OD=16.2 		8-94492-493-0 02 1 0211-0501 ● ● ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
00.785 (B) OD=16.2 		8-94492-493-0 02 1 0502-0506 ● ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
00.785 (B) OD=16.2 		8-94492-493-0 02 1 0507-0512 ● ● ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.547 (B) OD=15.0 		8-94279-040-0 02 1 0601- ● ● ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.165 (A) OD=25 BLACK 		1-76798-019-0 04 1 0211- ● ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
02.580 (C) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 0211-0710 ● ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.545 (C) OD=32 BLACK 		8-98031-126-0 02 1 0711- ● ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
15.222 (D) OD=35 		8-94122-971-0 04 1 0211-0501 ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HK1-TCN ENG(RDQ) (A) 		8-97890-837-1 01 1 0507- ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (A) 		8-97890-837-1 01 1 0507- ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(B) 		8-97851-415-1 01 1 0507- ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HE1 ENG(RLY) EXC. INTERIOR DELUXE<RBB>,CHARGE AIR COOLER<6PL> (A) 		8-97851-501-6 02 1 0211-0501 ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HE1 ENG(RLY) EXC. INTERIOR DELUXE<RBB>,CUSTOM PACKAGE<YM8>,CHARGE AIR COOLER<6PL> (A) 		8-97851-501-6 02 1 0211-0501 ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (A) 		8-97890-837-1 01 1 0211-0501 ● ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HG1 ENG(RJH),4HF1-S ENG(RLS) (A) 		8-97851-106-9 01 1 0211-0501 ● ● ● ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(A) 		8-97851-106-9 01 1 0502-0506 ● ● ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) (A) 		8-97851-106-9 01 1 0507- ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HG1-T ENG(RDP),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) (A) 		8-97851-106-9 01 1 0507- ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) (A) 		8-97851-106-9 01 1 0507- ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HG1 ENG(RJH),4HF1-S ENG(RLS) (A) 		8-97851-106-9 01 1 0507- ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(A) 		8-97851-106-9 01 1 0507- ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(B) 		8-97851-415-1 01 1 0211-0501 ●
