◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50948 - NPR/NQR RHDEXC.EURO4 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-78 - FLOOR HOLE PLUG ▶
6-78 — FLOOR HOLE PLUG (#18322) — 65 parça

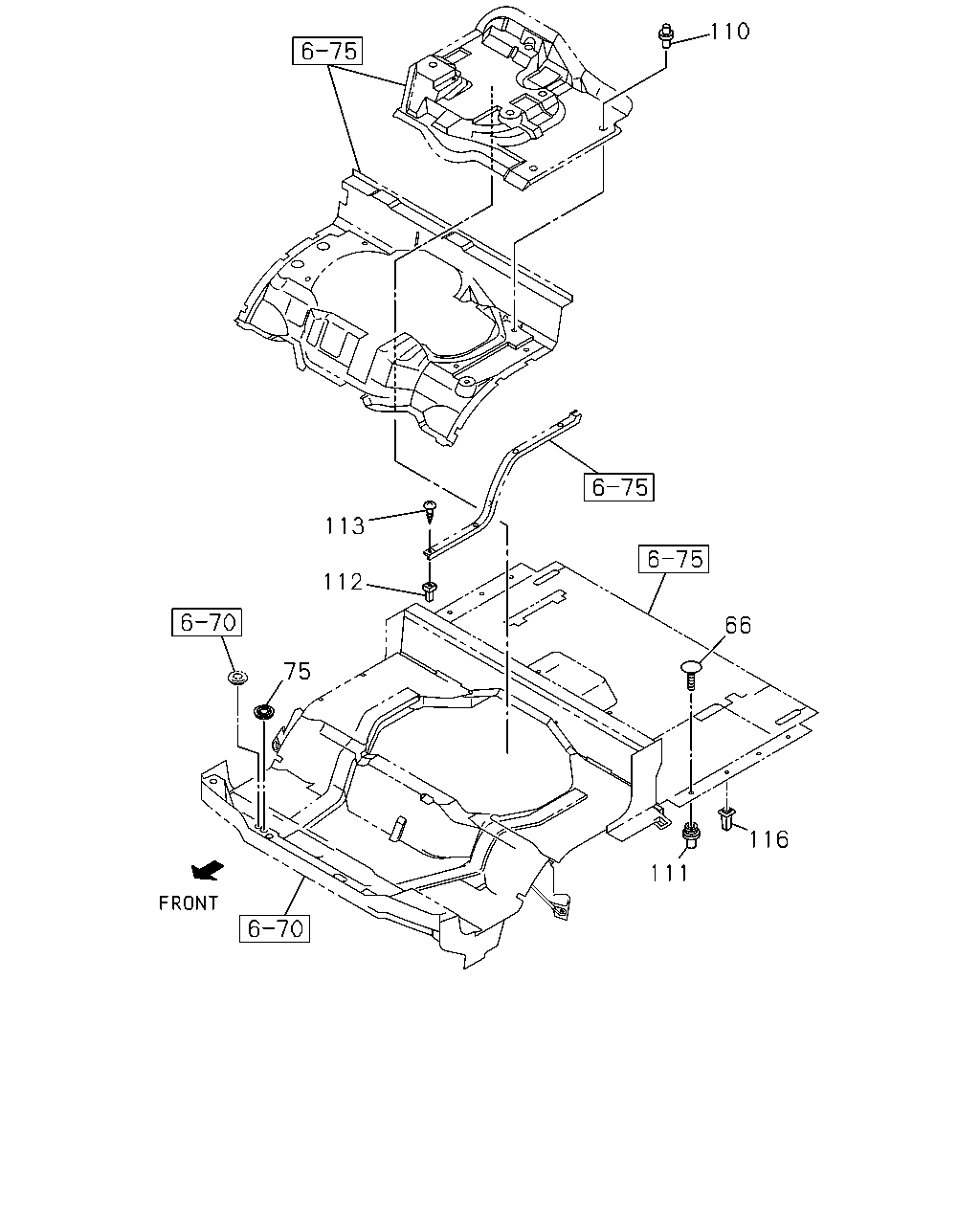

çizim 12951
110 113 112 66 75 116 111
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
66 16.800 PLUG; FLOOR MAT,CAB RR FLOOR
GRAY 		8-97582-244-0 04 1 0507-0708 ●
66 16.800 PLUG; FLOOR MAT,CAB RR FLOOR
16.802 GRAY 		8-97405-205-0 04 1 0709- ●
66 16.800 PLUG; FLOOR MAT,CAB RR FLOOR
DARK GRAY 		8-97867-158-0 04 1 0211-0501 ●
75 09.775 PLUG; RUBBER,FLOOR
EXC. DUMP BODY LONG SHINMEIWA(RS9) 16.549 OD=38 		8-94159-507-0 01 1 0211-0501 ●
75 09.775 PLUG; RUBBER,FLOOR
EXC. HYDRO BRAKE BOOSTER<7QQ> 16.549 OD=38 		8-94159-507-0 01 1 0211-0501 ● ● ●
75 09.775 PLUG; RUBBER,FLOOR
16.549 OD=38 		8-94159-507-0 01 1 0211-0501 ● ●
75 09.775 PLUG; RUBBER,FLOOR
EXC. DUMP BODY LONG SHINMEIWA(RS9) 16.549 OD=38 		8-94159-507-0 01 1 0502-0506 ●
75 09.775 PLUG; RUBBER,FLOOR
EXC. HYDRO BRAKE BOOSTER<7QQ> 16.549 OD=38 		8-94159-507-0 01 1 0502-0506 ●
75 09.775 PLUG; RUBBER,FLOOR
16.549 OD=38 		8-94159-507-0 01 1 0502-0506 ● ● ●
75 09.775 PLUG; RUBBER,FLOOR
EXC. DUMP BODY LONG SHINMEIWA(RS9) 16.549 OD=38 		8-94159-507-0 01 1 0507- ●
75 09.775 PLUG; RUBBER,FLOOR
EXC. HYDRO BRAKE BOOSTER<7QQ> 16.549 OD=38 		8-94159-507-0 01 1 0507- ● ● ●
75 09.775 PLUG; RUBBER,FLOOR
16.549 OD=38 		8-94159-507-0 01 1 0507- ●
110 16.802 FASTENER; FLOOR MAT
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) AUSTRALIA EQUIPMENT(RR3) BLACK 		8-94279-089-0 14 1 0507- ● ●
110 16.802 FASTENER; FLOOR MAT
G.V.W. 6.0-6.5TON(RPV) AUSTRALIA EQUIPMENT(RR3) BLACK 		8-94279-089-0 14 1 0507- ●
110 16.802 FASTENER; FLOOR MAT
EXC. AUSTRALIA EQUIPMENT(RR3) BLACK 		8-94279-089-0 13 1 0211-0211 ● ● ● ● ● ●
110 16.802 FASTENER; FLOOR MAT
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY), G.V.W. 8.0-8.5TON(RPZ) AUSTRALIA EQUIPMENT(RR3) BLACK 		8-94279-089-0 13 1 0211-0211 ● ● ● ● ●
110 16.802 FASTENER; FLOOR MAT
EXC. AUSTRALIA EQUIPMENT(RR3) BLACK 		8-94279-089-0 12 1 0212-0501 ● ● ● ● ● ●
110 16.802 FASTENER; FLOOR MAT
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY), G.V.W. 8.0-8.5TON(RPZ) AUSTRALIA EQUIPMENT(RR3) BLACK 		8-94279-089-0 12 1 0212-0501 ● ● ● ● ●
110 16.802 FASTENER; FLOOR MAT
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) AUSTRALIA EQUIPMENT(RR3) BLACK 		8-94279-089-0 15 1 0211-0211 ● ● ● ●
110 16.802 FASTENER; FLOOR MAT
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) AUSTRALIA EQUIPMENT(RR3) BLACK 		8-94279-089-0 14 1 0212-0501 ● ● ● ●
110 16.802 FASTENER; FLOOR MAT
BLACK 		8-94279-089-0 12 1 0502-0506 ● ● ● ● ●
110 16.802 FASTENER; FLOOR MAT
EXC. AUSTRALIA EQUIPMENT(RR3) BLACK 		8-94279-089-0 12 1 0507- ● ● ● ●
110 16.802 FASTENER; FLOOR MAT
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY), G.V.W. 8.0-8.5TON(RPZ) AUSTRALIA EQUIPMENT(RR3) BLACK 		8-94279-089-0 12 1 0507- ● ● ● ●
110 16.802 FASTENER; FLOOR MAT
BLACK 		8-94279-089-0 12 1 0507- ● ●
111 16.800 FASTENER; FLOOR MAT,CAB RR MTG
16.802 BLACK 		8-94279-089-0 15 1 0507- ●
111 16.800 FASTENER; FLOOR MAT,CAB RR MTG
FRAME STRAIGHT TYPE<7KJ> 16.802 BLACK 		8-94279-089-0 15 1 0211-0501 ●
112 16.800 GROMMET; SCREW,TRIM COVER
04.931 H=15 		8-94463-268-1 10 1 0211-0501 ● ● ● ● ● ●
112 16.800 GROMMET; SCREW,TRIM COVER
04.931 H=15 		8-94463-268-1 10 1 0502-0506 ● ● ● ● ●
112 16.800 GROMMET; SCREW,TRIM COVER
04.931 H=15 		8-94463-268-1 10 1 0507- ● ● ● ● ● ●
113 16.800 SCREW; TRIM COVER
08.845 M5X14 TAPPING W/PL WASHER 		0-74110-514-0 10 1 0211-0501 ● ● ● ● ● ●
113 16.800 SCREW; TRIM COVER
08.845 M5X14 TAPPING W/PL WASHER 		0-74110-514-0 10 1 0502-0506 ● ● ● ● ●
113 16.800 SCREW; TRIM COVER
08.845 M5X14 TAPPING W/PL WASHER 		0-74110-514-0 10 1 0507-0604 ● ● ● ● ● ●
113 16.800 SCREW; TRIM COVER
M5X14 TAPPING W/PL WASHER 		0-74160-514-0 10 1 0605-0612 ● ● ● ● ● ●
113 16.800 SCREW; TRIM COVER
04.681 T25 M5X12 TAPPING HEXALOBULAR 		0-72180-512-0 10 1 0701- ● ● ● ● ● ●
116 16.547 GROMMET; SCREW,FLOOR MAT
16.802 D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 08 1 0507- ●
116 16.547 GROMMET; SCREW,FLOOR MAT
16.802 D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 08 1 0211-0501 ●

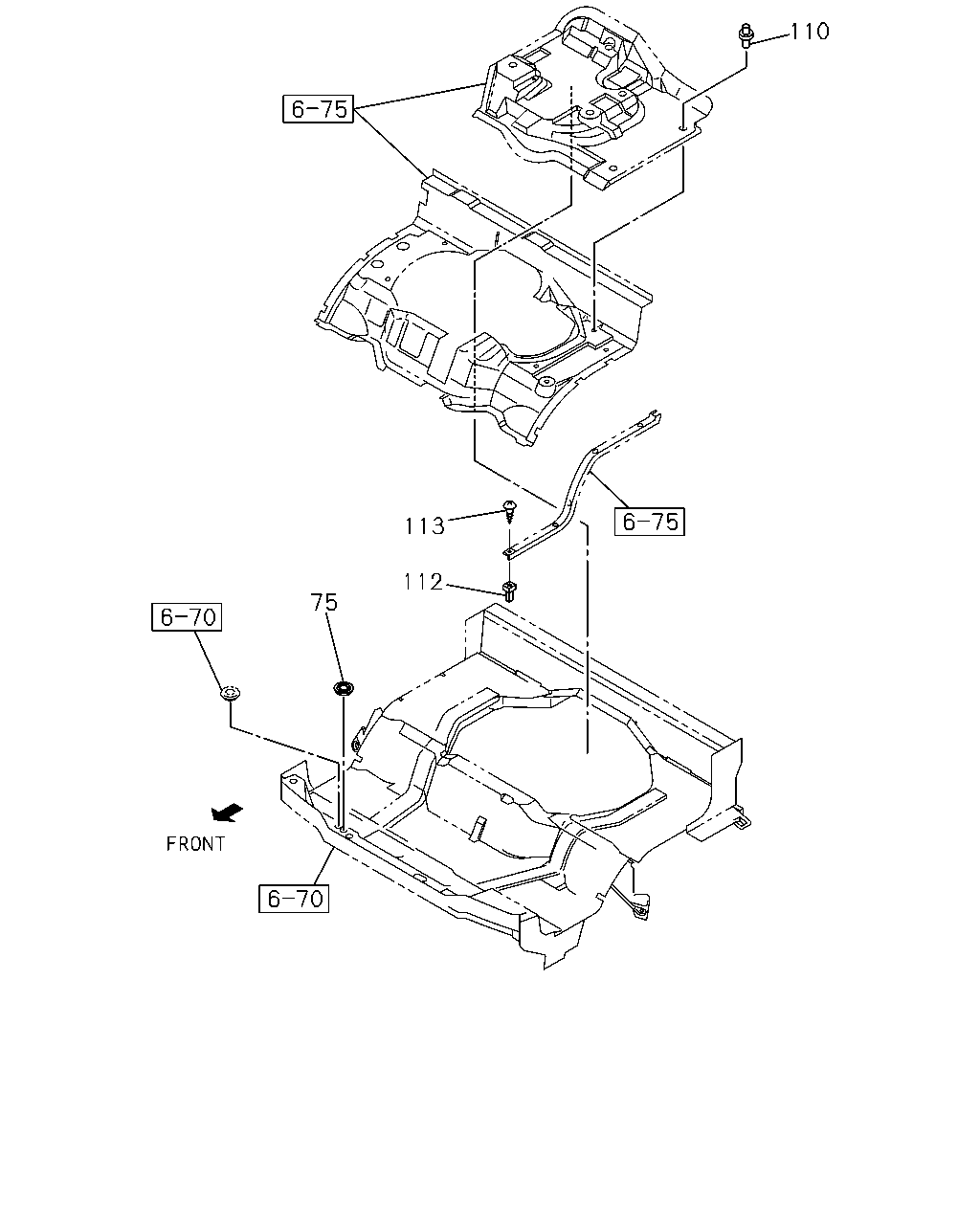

çizim 13359
110 113 112 75
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
75 09.775 PLUG; RUBBER,FLOOR
EXC. DUMP BODY LONG SHINMEIWA(RS9) 16.549 OD=38 		8-94159-507-0 01 1 0211-0501 ●
75 09.775 PLUG; RUBBER,FLOOR
EXC. HYDRO BRAKE BOOSTER<7QQ> 16.549 OD=38 		8-94159-507-0 01 1 0211-0501 ● ● ●
75 09.775 PLUG; RUBBER,FLOOR
16.549 OD=38 		8-94159-507-0 01 1 0211-0501 ● ●
75 09.775 PLUG; RUBBER,FLOOR
EXC. DUMP BODY LONG SHINMEIWA(RS9) 16.549 OD=38 		8-94159-507-0 01 1 0502-0506 ●
75 09.775 PLUG; RUBBER,FLOOR
EXC. HYDRO BRAKE BOOSTER<7QQ> 16.549 OD=38 		8-94159-507-0 01 1 0502-0506 ●
75 09.775 PLUG; RUBBER,FLOOR
16.549 OD=38 		8-94159-507-0 01 1 0502-0506 ● ● ●
75 09.775 PLUG; RUBBER,FLOOR
EXC. DUMP BODY LONG SHINMEIWA(RS9) 16.549 OD=38 		8-94159-507-0 01 1 0507- ●
75 09.775 PLUG; RUBBER,FLOOR
EXC. HYDRO BRAKE BOOSTER<7QQ> 16.549 OD=38 		8-94159-507-0 01 1 0507- ● ● ●
75 09.775 PLUG; RUBBER,FLOOR
16.549 OD=38 		8-94159-507-0 01 1 0507- ●
110 16.802 FASTENER; FLOOR MAT
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) AUSTRALIA EQUIPMENT(RR3) BLACK 		8-94279-089-0 14 1 0507- ● ●
110 16.802 FASTENER; FLOOR MAT
G.V.W. 6.0-6.5TON(RPV) AUSTRALIA EQUIPMENT(RR3) BLACK 		8-94279-089-0 14 1 0507- ●
110 16.802 FASTENER; FLOOR MAT
EXC. AUSTRALIA EQUIPMENT(RR3) BLACK 		8-94279-089-0 13 1 0211-0211 ● ● ● ● ● ●
110 16.802 FASTENER; FLOOR MAT
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY), G.V.W. 8.0-8.5TON(RPZ) AUSTRALIA EQUIPMENT(RR3) BLACK 		8-94279-089-0 13 1 0211-0211 ● ● ● ● ●
110 16.802 FASTENER; FLOOR MAT
EXC. AUSTRALIA EQUIPMENT(RR3) BLACK 		8-94279-089-0 12 1 0212-0501 ● ● ● ● ● ●
110 16.802 FASTENER; FLOOR MAT
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY), G.V.W. 8.0-8.5TON(RPZ) AUSTRALIA EQUIPMENT(RR3) BLACK 		8-94279-089-0 12 1 0212-0501 ● ● ● ● ●
110 16.802 FASTENER; FLOOR MAT
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) AUSTRALIA EQUIPMENT(RR3) BLACK 		8-94279-089-0 15 1 0211-0211 ● ● ● ●
110 16.802 FASTENER; FLOOR MAT
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) AUSTRALIA EQUIPMENT(RR3) BLACK 		8-94279-089-0 14 1 0212-0501 ● ● ● ●
110 16.802 FASTENER; FLOOR MAT
BLACK 		8-94279-089-0 12 1 0502-0506 ● ● ● ● ●
110 16.802 FASTENER; FLOOR MAT
EXC. AUSTRALIA EQUIPMENT(RR3) BLACK 		8-94279-089-0 12 1 0507- ● ● ● ●
110 16.802 FASTENER; FLOOR MAT
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY), G.V.W. 8.0-8.5TON(RPZ) AUSTRALIA EQUIPMENT(RR3) BLACK 		8-94279-089-0 12 1 0507- ● ● ● ●
110 16.802 FASTENER; FLOOR MAT
BLACK 		8-94279-089-0 12 1 0507- ● ●
112 16.800 GROMMET; SCREW,TRIM COVER
04.931 H=15 		8-94463-268-1 10 1 0211-0501 ● ● ● ● ● ●
112 16.800 GROMMET; SCREW,TRIM COVER
04.931 H=15 		8-94463-268-1 10 1 0502-0506 ● ● ● ● ●
112 16.800 GROMMET; SCREW,TRIM COVER
04.931 H=15 		8-94463-268-1 10 1 0507- ● ● ● ● ● ●
113 16.800 SCREW; TRIM COVER
08.845 M5X14 TAPPING W/PL WASHER 		0-74110-514-0 10 1 0211-0501 ● ● ● ● ● ●
113 16.800 SCREW; TRIM COVER
08.845 M5X14 TAPPING W/PL WASHER 		0-74110-514-0 10 1 0502-0506 ● ● ● ● ●
113 16.800 SCREW; TRIM COVER
08.845 M5X14 TAPPING W/PL WASHER 		0-74110-514-0 10 1 0507-0604 ● ● ● ● ● ●
113 16.800 SCREW; TRIM COVER
M5X14 TAPPING W/PL WASHER 		0-74160-514-0 10 1 0605-0612 ● ● ● ● ● ●
113 16.800 SCREW; TRIM COVER
04.681 T25 M5X12 TAPPING HEXALOBULAR 		0-72180-512-0 10 1 0701- ● ● ● ● ● ●
