6-76 — FLOOR EQUIPMENT AND SEALING (#18321) — 393 parça

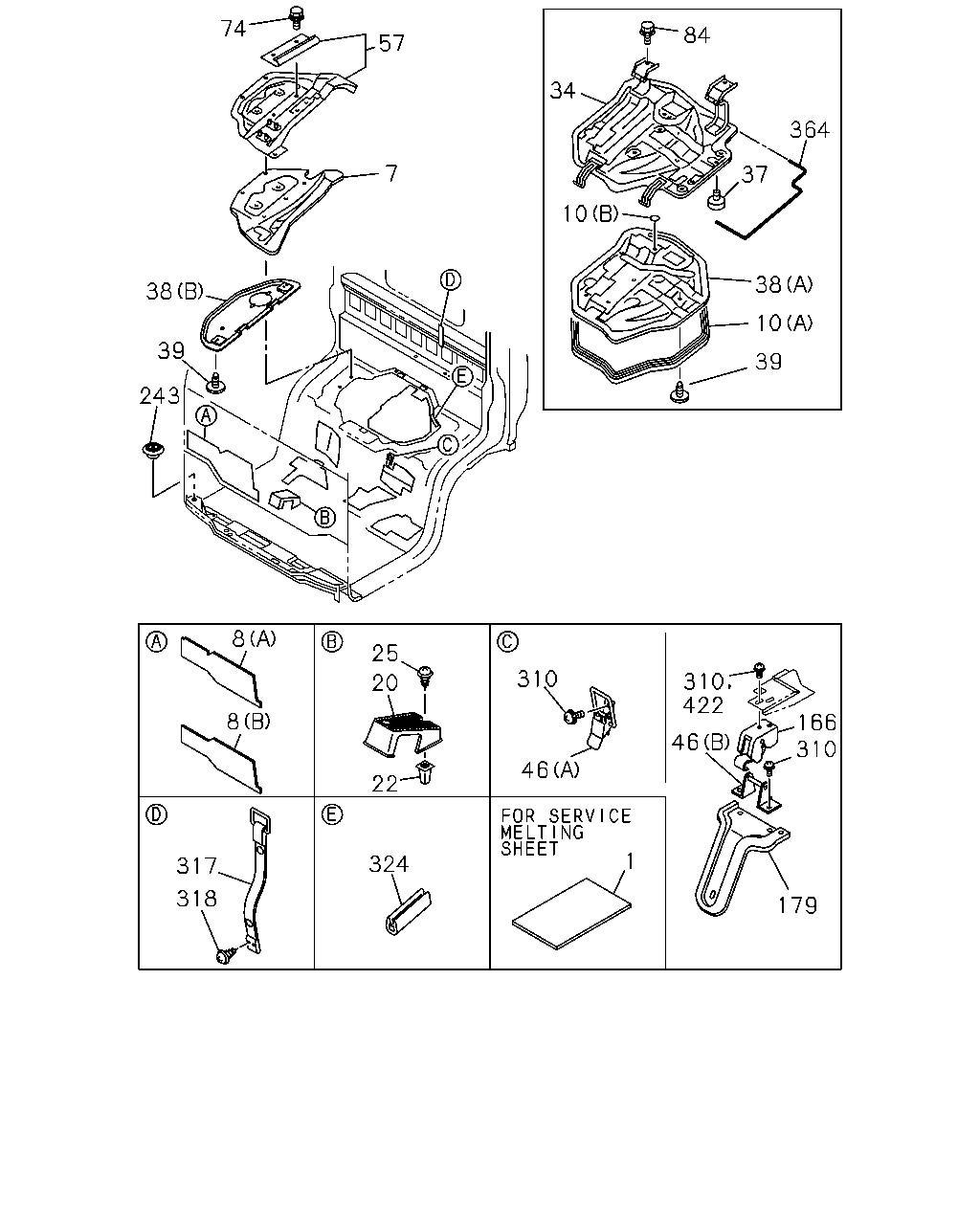

çizim 51018
74 84 57 34 364 7 37 10 38 38 10 39 39 243 8 25 310 310 422 20 8 166 310 46 46 22 1 324 317 318 179
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 16.850 SHEET; MELTING,FLOOR
NON ASBESTOS 1000X600 T=1.5; PARTS ON LY 		8-94262-093-0 AR 1 0211- ● ● ● ● ● ●
7 16.545 INSULATOR; SUPPORT COVER
MANUAL TILT CAB<RWZ> 		8-97853-629-2 01 1 0211- ● ● ● ● ●
7 16.545 INSULATOR; SUPPORT COVER
EXC. MANUAL TILT CAB<RWZ> 		8-97853-641-2 01 1 0211-0501 ● ● ● ● ●
7 16.545 INSULATOR; SUPPORT COVER 8-97853-641-2 01 1 0211-0501 ●
7 16.545 INSULATOR; SUPPORT COVER
EXC. MANUAL TILT CAB<RWZ> 		8-97853-641-2 01 1 0502-0506 ● ● ● ● ●
7 16.545 INSULATOR; SUPPORT COVER
EXC. MANUAL TILT CAB<RWZ> 		8-97853-641-2 01 1 0507- ● ● ● ● ●
7 16.545 INSULATOR; SUPPORT COVER 8-97853-641-2 01 1 0507- ●
8 16.802 MAT; SILENCER,FRT PANEL
(A) 		8-97853-606-1 01 1 0211-0501 ● ● ● ● ● ●
8 16.802 MAT; SILENCER,FRT PANEL
(B) 		8-97581-661-3 01 1 0502-0506 ● ● ● ● ●
8 16.802 MAT; SILENCER,FRT PANEL
(B) 		8-97581-661-3 01 1 0507- ● ● ● ● ● ●
8 16.802 MAT; SILENCER,FRT PANEL
(A) 		8-97853-605-2 01 1 0211-0501 ● ● ● ● ● ●
8 16.802 MAT; SILENCER,FRT PANEL
(B) 		8-97581-660-3 01 1 0502-0506 ● ● ● ● ●
8 16.802 MAT; SILENCER,FRT PANEL
(B) 		8-97581-660-3 01 1 0507- ● ● ● ● ● ●
10 16.549 SEAL; ENG COVER
BODY COLOR FT ORANGE(609),BODY COLOR POLAR SILVER MET(845),BODY COLOR MARINE BLUE(890) INTERIOR DELUXE<RBB> 02.580 (B) OD=36 T=0.05 BLACK 		5-76777-035-0 01 1 0507-0710 ●
10 16.549 SEAL; ENG COVER
BODY COLOR FT ORANGE(609),BODY COLOR POLAR SILVER MET(845),BODY COLOR MARINE BLUE(890) INTERIOR DELUXE<RBB>,CUSTOM PACKAGE<YM8> 02.580 (B) OD=36 T=0.05 BLACK 		5-76777-035-0 01 1 0507-0710 ● ● ●
10 16.549 SEAL; ENG COVER
BODY COLOR FT ORANGE(609),BODY COLOR POLAR SILVER MET(845),BODY COLOR MARINE BLUE(890) INTERIOR DELUXE<RBB> 16.545 (B) OD=32 BLACK 		8-98031-126-0 01 1 0711- ●
10 16.549 SEAL; ENG COVER
BODY COLOR FT ORANGE(609),BODY COLOR POLAR SILVER MET(845),BODY COLOR MARINE BLUE(890) INTERIOR DELUXE<RBB>,CUSTOM PACKAGE<YM8> 16.545 (B) OD=32 BLACK 		8-98031-126-0 01 1 0711- ● ● ●
10 16.549 SEAL; ENG COVER
BODY COLOR ARC WHITE(729) INTERIOR DELUXE<RBB> 16.592 (B) OD=36 WHITE 		1-76778-007-0 01 1 0507- ●
10 16.549 SEAL; ENG COVER
BODY COLOR ARC WHITE(729) INTERIOR DELUXE<RBB>,CUSTOM PACKAGE<YM8> 16.592 (B) OD=36 WHITE 		1-76778-007-0 01 1 0507- ● ● ●
10 16.549 SEAL; ENG COVER
(C) L=543 		8-97582-085-0 01 1 0507- ●
10 16.549 SEAL; ENG COVER
(D) L=804 		8-97582-086-0 01 1 0507- ●
10 16.549 SEAL; ENG COVER
(D) L=481 		8-97582-088-0 01 1 0507- ●
10 16.549 SEAL; ENG COVER
(D) L=886 		8-97996-183-0 01 1 0507- ●
10 16.549 SEAL; ENG COVER
(D) L=566 		8-97996-184-0 01 1 0507- ●
10 16.549 SEAL; ENG COVER
BODY COLOR ARC WHITE(729) INTERIOR DELUXE<RBB> 16.592 (B) OD=36 WHITE 		1-76778-007-0 01 1 0211-0501 ●
10 16.549 SEAL; ENG COVER
BODY COLOR ARC WHITE(729) INTERIOR DELUXE<RBB>,CUSTOM PACKAGE<YM8> 16.592 (B) OD=36 WHITE 		1-76778-007-0 01 1 0211-0501 ● ● ●
10 16.549 SEAL; ENG COVER
BODY COLOR FT ORANGE(609),BODY COLOR POLAR SILVER MET(845),BODY COLOR MARINE BLUE(890) INTERIOR DELUXE<RBB> 02.580 (B) OD=36 T=0.05 BLACK 		5-76777-035-0 01 1 0211-0501 ●
10 16.549 SEAL; ENG COVER
BODY COLOR FT ORANGE(609),BODY COLOR POLAR SILVER MET(845),BODY COLOR MARINE BLUE(890) INTERIOR DELUXE<RBB>,CUSTOM PACKAGE<YM8> 02.580 (B) OD=36 T=0.05 BLACK 		5-76777-035-0 01 1 0211-0501 ● ● ●
10 16.549 SEAL; ENG COVER
(A) 		8-97853-267-5 01 1 0211-0305 ● ● ● ● ● ●
10 16.549 SEAL; ENG COVER
(A) 		8-97581-109-0 01 1 0306-0501 ● ● ● ● ● ●
10 16.549 SEAL; ENG COVER
(A) 		8-97581-109-1 01 1 0502-0506 ● ● ● ● ●
10 16.549 SEAL; ENG COVER
(A) 		8-97581-109-1 01 1 0507- ● ● ● ● ● ●
10 16.549 SEAL; ENG COVER
FRAME STRAIGHT TYPE<7KJ> (C) L=519 		8-97995-003-0 01 1 0211-0305 ●
10 16.549 SEAL; ENG COVER
FRAME STRAIGHT TYPE<7KJ> (C) L=543 		8-97582-085-0 01 1 0306-0501 ●
10 16.549 SEAL; ENG COVER
FRAME STRAIGHT TYPE<7KJ> (D) L=804 		8-97995-004-0 01 1 0211-0305 ●
10 16.549 SEAL; ENG COVER
FRAME STRAIGHT TYPE<7KJ> (D) L=804 		8-97582-086-0 01 1 0306-0501 ●
10 16.549 SEAL; ENG COVER
FRAME STRAIGHT TYPE<7KJ> (E) L=519 		8-97995-005-0 01 1 0211-0501 ●
10 16.549 SEAL; ENG COVER
FRAME STRAIGHT TYPE<7KJ> (F) L=467 		8-97995-006-0 01 1 0211-0305 ●
10 16.549 SEAL; ENG COVER
FRAME STRAIGHT TYPE<7KJ> (F) L=436 		8-97582-087-0 01 1 0306-0501 ●
20 16.547 REST; FOOT
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97853-767-2 01 1 0507- ● ● ● ● ●
20 16.547 REST; FOOT
EXC. FLOOR REMOTE SHIFT<M11> 		8-97853-767-1 01 1 0211-0501 ● ● ● ● ●
22 16.547 GROMMET; SCREW,FOOT REST
TRANSMISSION CONTROL-SMOOTHER(8GF) 04.931 H=15 		8-94463-268-1 02 1 0507- ● ● ● ● ●
22 16.547 GROMMET; SCREW,FOOT REST
EXC. FLOOR REMOTE SHIFT<M11> 04.931 H=15 		8-94463-268-1 02 1 0211-0501 ● ● ● ● ●
25 16.549 SCREW; FOOT REST
TRANSMISSION CONTROL-SMOOTHER(8GF) 16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0507-0604 ● ● ● ● ●
25 16.549 SCREW; FOOT REST
TRANSMISSION CONTROL-SMOOTHER(8GF) 03.885 M5X16 TAPPING W/PL WASHER 		0-74360-516-0 02 1 0605-0612 ● ● ● ● ●
25 16.549 SCREW; FOOT REST
TRANSMISSION CONTROL-SMOOTHER(8GF) 16.570 M5X16 TAPPING HEXALOBULAR 		0-72380-516-0 02 1 0701- ● ● ● ● ●
25 16.549 SCREW; FOOT REST
EXC. FLOOR REMOTE SHIFT<M11> 16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0211-0501 ● ● ● ● ●
34 16.549 COVER ASM; ENG,CAB FLOOR
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) AUSTRALIA EQUIPMENT(RR3) 		8-97898-097-1 01 1 0507- ● ●
34 16.549 COVER ASM; ENG,CAB FLOOR
G.V.W. 6.0-6.5TON(RPV) AUSTRALIA EQUIPMENT(RR3) 		8-97898-097-1 01 1 0507- ●
34 16.549 COVER ASM; ENG,CAB FLOOR
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) AUSTRALIA EQUIPMENT(RR3) 		8-97898-097-1 01 1 0211-0501 ● ●
34 16.549 COVER ASM; ENG,CAB FLOOR
G.V.W. 6.0-6.5TON(RPV) AUSTRALIA EQUIPMENT(RR3) 		8-97898-097-1 01 1 0211-0501 ● ●
34 16.549 COVER ASM; ENG,CAB FLOOR
EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97898-132-1 01 1 0211-0501 ● ● ● ● ● ●
34 16.549 COVER ASM; ENG,CAB FLOOR
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY), G.V.W. 8.0-8.5TON(RPZ) AUSTRALIA EQUIPMENT(RR3) 		8-97898-132-1 01 1 0211-0501 ● ● ● ● ●
34 16.549 COVER ASM; ENG,CAB FLOOR 8-97898-132-1 01 1 0502-0506 ● ● ● ● ●
34 16.549 COVER ASM; ENG,CAB FLOOR
EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97898-132-1 01 1 0507- ● ● ● ●
34 16.549 COVER ASM; ENG,CAB FLOOR
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) AUSTRALIA EQUIPMENT(RR3) 		8-97898-132-1 01 1 0507- ●
34 16.549 COVER ASM; ENG,CAB FLOOR
G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) AUSTRALIA EQUIPMENT(RR3) 		8-97898-132-1 01 1 0507- ● ●
34 16.549 COVER ASM; ENG,CAB FLOOR 8-97898-132-1 01 1 0507- ● ●
37 16.549 RUBBER; BUFFER,ENG COVER
16.155 OD=30 T=10 		5-74917-001-2 02 1 0211-0501 ● ● ● ● ● ●
37 16.549 RUBBER; BUFFER,ENG COVER
16.155 OD=30 T=10 		5-74917-001-2 02 1 0502-0506 ● ● ● ● ●
37 16.549 RUBBER; BUFFER,ENG COVER
16.155 OD=30 T=10 		5-74917-001-2 02 1 0507- ● ● ● ● ● ●
38 16.549 INSULATOR; ENG COVER
(B) 		8-97856-803-0 01 1 0507- ●
38 16.549 INSULATOR; ENG COVER
4HF1-S ENG(RLS) EXC. MANUAL TILT CAB<RWZ> (B) 		8-97856-803-0 01 1 0211-0501 ● ● ● ●
38 16.549 INSULATOR; ENG COVER
(B) 		8-97856-803-0 01 1 0211-0501 ●
38 16.549 INSULATOR; ENG COVER
(A) 		8-97898-101-0 01 1 0211-0501 ● ● ● ● ● ●
38 16.549 INSULATOR; ENG COVER
(A) 		8-97898-101-0 01 1 0502-0506 ● ● ● ● ●
38 16.549 INSULATOR; ENG COVER
(A) 		8-97898-101-0 01 1 0507- ● ● ● ● ● ●
39 16.549 CLIP; INSULATOR,COVER
OD=30 		8-94279-952-0 02 1 0507- ●
39 16.549 CLIP; INSULATOR,COVER
4HF1-S ENG(RLS) EXC. MANUAL TILT CAB<RWZ> OD=30 		8-94279-952-0 02 1 0211-0501 ● ● ● ●
39 16.549 CLIP; INSULATOR,COVER
OD=30 		8-94279-952-0 02 1 0211-0501 ●
39 16.549 CLIP; INSULATOR,COVER
OD=30 		8-94279-952-0 05 1 0502-0506 ● ● ● ● ●
39 16.549 CLIP; INSULATOR,COVER
EXC. MANUAL TILT CAB<RWZ> OD=30 		8-94279-952-0 05 1 0502-0506 ● ● ● ● ●
39 16.549 CLIP; INSULATOR,COVER
OD=30 		8-94279-952-0 05 1 0507- ● ● ● ● ● ●
39 16.549 CLIP; INSULATOR,COVER
EXC. MANUAL TILT CAB<RWZ> OD=30 		8-94279-952-0 05 1 0507- ● ● ● ● ●
39 16.549 CLIP; INSULATOR,COVER
OD=30 		8-94279-952-0 05 1 0507- ●
39 16.549 CLIP; INSULATOR,COVER
OD=30 		8-94279-952-0 05 1 0211-0501 ● ● ● ● ● ●
39 16.549 CLIP; INSULATOR,COVER
EXC. MANUAL TILT CAB<RWZ> OD=30 		8-94279-952-0 05 1 0211-0501 ● ● ● ● ●
39 16.549 CLIP; INSULATOR,COVER
OD=30 		8-94279-952-0 05 1 0211-0501 ●
39 16.549 CLIP; INSULATOR,COVER
MANUAL TILT CAB<RWZ> OD=30 		8-94279-952-0 08 1 0211- ● ● ● ● ●
46 16.549 HOOK ASM; ENG COVER
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) AUSTRALIA EQUIPMENT(RR3) (B) 		8-97850-594-2 02 1 0507-0608 ● ●
46 16.549 HOOK ASM; ENG COVER
G.V.W. 6.0-6.5TON(RPV) AUSTRALIA EQUIPMENT(RR3) (B) 		8-97850-594-2 02 1 0507-0608 ●
46 16.549 HOOK ASM; ENG COVER
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) AUSTRALIA EQUIPMENT(RR3) (B) 		8-98040-145-0 02 1 0609- ● ●
46 16.549 HOOK ASM; ENG COVER
G.V.W. 6.0-6.5TON(RPV) AUSTRALIA EQUIPMENT(RR3) (B) 		8-98040-145-0 02 1 0609- ●
46 16.549 HOOK ASM; ENG COVER
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) AUSTRALIA EQUIPMENT(RR3) (B) 		8-97850-594-2 02 1 0211-0501 ● ●
46 16.549 HOOK ASM; ENG COVER
G.V.W. 6.0-6.5TON(RPV) AUSTRALIA EQUIPMENT(RR3) (B) 		8-97850-594-2 02 1 0211-0501 ● ●
46 16.549 HOOK ASM; ENG COVER
EXC. AUSTRALIA EQUIPMENT(RR3) (A) 		8-97853-632-2 02 1 0211-0501 ● ● ● ● ● ●
46 16.549 HOOK ASM; ENG COVER
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY), G.V.W. 8.0-8.5TON(RPZ) AUSTRALIA EQUIPMENT(RR3) (A) 		8-97853-632-2 02 1 0211-0501 ● ● ● ● ●
46 16.549 HOOK ASM; ENG COVER
(A) 		8-97853-632-2 02 1 0502-0506 ● ● ● ● ●
46 16.549 HOOK ASM; ENG COVER
EXC. AUSTRALIA EQUIPMENT(RR3) (A) 		8-97853-632-2 02 1 0507- ● ● ● ●
46 16.549 HOOK ASM; ENG COVER
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY), G.V.W. 8.0-8.5TON(RPZ) AUSTRALIA EQUIPMENT(RR3) (A) 		8-97853-632-2 02 1 0507- ● ● ● ●
46 16.549 HOOK ASM; ENG COVER
(A) 		8-97853-632-2 02 1 0507- ● ●
57 16.549 COVER ASM; SUPPORT,CAB FLOOR 8-97866-685-2 01 1 0507- ●
57 16.549 COVER ASM; SUPPORT,CAB FLOOR
MANUAL TILT CAB<RWZ> 		8-97866-684-2 01 1 0211- ● ● ● ● ●
57 16.549 COVER ASM; SUPPORT,CAB FLOOR
EXC. MANUAL TILT CAB<RWZ> 		8-97866-685-1 01 1 0211-0501 ● ● ● ● ●
57 16.549 COVER ASM; SUPPORT,CAB FLOOR 8-97866-685-1 01 1 0211-0501 ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
02.664 M8X20 FLANGE 		0-28680-820-0 05 1 0211-0501 ● ● ● ● ● ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
02.664 M8X20 FLANGE 		0-28680-820-0 05 1 0502-0506 ● ● ● ● ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
02.664 M8X20 FLANGE 		0-28680-820-0 05 1 0507-0512 ● ● ● ● ● ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
01.531 M8X20 FLANGE 		0-28650-820-0 05 1 0601- ● ● ● ● ● ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0211-0501 ● ● ● ● ● ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0502-0506 ● ● ● ● ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0507-0512 ● ● ● ● ● ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0601- ● ● ● ● ● ●
84 16.549 BOLT; ENG COVER HINGE
02.664 M8X20 FLANGE 		0-28680-820-0 04 1 0211-0501 ● ● ● ● ● ●
84 16.549 BOLT; ENG COVER HINGE
02.664 M8X20 FLANGE 		0-28680-820-0 04 1 0502-0506 ● ● ● ● ●
84 16.549 BOLT; ENG COVER HINGE
02.664 M8X20 FLANGE 		0-28680-820-0 04 1 0507-0512 ● ● ● ● ● ●
84 16.549 BOLT; ENG COVER HINGE
01.531 M8X20 FLANGE 		0-28650-820-0 04 1 0601- ● ● ● ● ● ●
166 16.549 LOCK; ENG COVER
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) AUSTRALIA EQUIPMENT(RR3) 		8-97850-915-1 02 1 0507-0608 ● ●
166 16.549 LOCK; ENG COVER
G.V.W. 6.0-6.5TON(RPV) AUSTRALIA EQUIPMENT(RR3) 		8-97850-915-1 02 1 0507-0608 ●
166 16.549 LOCK; ENG COVER
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) AUSTRALIA EQUIPMENT(RR3) 		8-98040-152-0 02 1 0609- ● ●
166 16.549 LOCK; ENG COVER
G.V.W. 6.0-6.5TON(RPV) AUSTRALIA EQUIPMENT(RR3) 		8-98040-152-0 02 1 0609- ●
166 16.549 LOCK; ENG COVER
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) AUSTRALIA EQUIPMENT(RR3) 		8-97850-915-1 02 1 0211-0501 ● ●
166 16.549 LOCK; ENG COVER
G.V.W. 6.0-6.5TON(RPV) AUSTRALIA EQUIPMENT(RR3) 		8-97850-915-1 02 1 0211-0501 ● ●
179 16.549 REINFORCEMENT; COVER
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) AUSTRALIA EQUIPMENT(RR3) 		8-97857-865-2 01 1 0507- ● ●
179 16.549 REINFORCEMENT; COVER
G.V.W. 6.0-6.5TON(RPV) AUSTRALIA EQUIPMENT(RR3) 		8-97857-865-2 01 1 0507- ●
179 16.549 REINFORCEMENT; COVER
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) AUSTRALIA EQUIPMENT(RR3) 		8-97857-865-2 01 1 0211-0501 ● ● ● ●
243 16.547 GROMMET; STOPPER,CHECK HOLE LID
OD=12.1 		8-97898-423-0 01 1 0211-0501 ● ● ● ● ● ●
243 16.547 GROMMET; STOPPER,CHECK HOLE LID
OD=12.1 		8-97898-423-0 01 1 0502-0506 ● ● ● ● ●
243 16.547 GROMMET; STOPPER,CHECK HOLE LID
OD=12.1 		8-97898-423-0 01 1 0507- ● ● ● ● ● ●
310 16.549 SCREW; ENG COVER HOOK
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) AUSTRALIA EQUIPMENT(RR3) 16.320 M6X20 W/LK&PL WASHER 		8-94279-403-0 09 1 0507-0604 ● ●
310 16.549 SCREW; ENG COVER HOOK
G.V.W. 6.0-6.5TON(RPV) AUSTRALIA EQUIPMENT(RR3) 16.320 M6X20 W/LK&PL WASHER 		8-94279-403-0 09 1 0507-0604 ●
310 16.549 SCREW; ENG COVER HOOK
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) AUSTRALIA EQUIPMENT(RR3) 16.320 M6X20 W/LK&PL WASHER 		8-94279-403-0 05 1 0605-0612 ● ●
310 16.549 SCREW; ENG COVER HOOK
G.V.W. 6.0-6.5TON(RPV) AUSTRALIA EQUIPMENT(RR3) 16.320 M6X20 W/LK&PL WASHER 		8-94279-403-0 05 1 0605-0612 ●
310 16.549 SCREW; ENG COVER HOOK
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) AUSTRALIA EQUIPMENT(RR3) 16.570 M6X16 		0-38050-616-0 05 1 0701- ● ●
310 16.549 SCREW; ENG COVER HOOK
G.V.W. 6.0-6.5TON(RPV) AUSTRALIA EQUIPMENT(RR3) 16.570 M6X16 		0-38050-616-0 05 1 0701- ●
310 16.549 SCREW; ENG COVER HOOK
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) AUSTRALIA EQUIPMENT(RR3) 16.320 M6X20 W/LK&PL WASHER 		8-94279-403-0 09 1 0211-0501 ● ●
310 16.549 SCREW; ENG COVER HOOK
G.V.W. 6.0-6.5TON(RPV) AUSTRALIA EQUIPMENT(RR3) 16.320 M6X20 W/LK&PL WASHER 		8-94279-403-0 09 1 0211-0501 ● ●
310 16.549 SCREW; ENG COVER HOOK
16.320 M6X20 W/LK&PL WASHER 		8-94279-403-0 04 1 0502-0506 ● ● ● ● ●
310 16.549 SCREW; ENG COVER HOOK
EXC. AUSTRALIA EQUIPMENT(RR3) 16.320 M6X20 W/LK&PL WASHER 		8-94279-403-0 04 1 0507-0612 ● ● ● ●
310 16.549 SCREW; ENG COVER HOOK
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY), G.V.W. 8.0-8.5TON(RPZ) AUSTRALIA EQUIPMENT(RR3) 16.320 M6X20 W/LK&PL WASHER 		8-94279-403-0 04 1 0507-0612 ● ● ● ●
310 16.549 SCREW; ENG COVER HOOK
16.320 M6X20 W/LK&PL WASHER 		8-94279-403-0 04 1 0507-0612 ● ●
310 16.549 SCREW; ENG COVER HOOK
EXC. AUSTRALIA EQUIPMENT(RR3) 16.570 M6X16 		0-38050-616-0 04 1 0701-0810 ● ● ● ●
310 16.549 SCREW; ENG COVER HOOK
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY), G.V.W. 8.0-8.5TON(RPZ) AUSTRALIA EQUIPMENT(RR3) 16.570 M6X16 		0-38050-616-0 04 1 0701-0810 ● ● ● ●
310 16.549 SCREW; ENG COVER HOOK
16.570 M6X16 		0-38050-616-0 04 1 0701-0810 ● ●
310 16.549 SCREW; ENG COVER HOOK
EXC. AUSTRALIA EQUIPMENT(RR3) 02.343 M6X16 FLANGE 		0-28650-616-0 04 1 0811- ● ● ● ●
310 16.549 SCREW; ENG COVER HOOK
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY), G.V.W. 8.0-8.5TON(RPZ) AUSTRALIA EQUIPMENT(RR3) 02.343 M6X16 FLANGE 		0-28650-616-0 04 1 0811- ● ● ● ●
310 16.549 SCREW; ENG COVER HOOK
02.343 M6X16 FLANGE 		0-28650-616-0 04 1 0811- ● ●
310 16.549 SCREW; ENG COVER HOOK
EXC. AUSTRALIA EQUIPMENT(RR3) 16.320 M6X20 W/LK&PL WASHER 		8-94279-403-0 04 1 0211-0501 ● ● ● ● ● ●
310 16.549 SCREW; ENG COVER HOOK
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY), G.V.W. 8.0-8.5TON(RPZ) AUSTRALIA EQUIPMENT(RR3) 16.320 M6X20 W/LK&PL WASHER 		8-94279-403-0 04 1 0211-0501 ● ● ● ● ●
317 16.549 BAND; ENGINE COVER
L=535 BLACK 		8-97867-201-1 01 1 0211-0501 ● ● ● ● ● ●
317 16.549 BAND; ENGINE COVER
L=535 BLACK 		8-97867-201-1 01 1 0502-0506 ● ● ● ● ●
317 16.549 BAND; ENGINE COVER
L=535 BLACK 		8-97867-201-1 01 1 0507- ● ● ● ● ● ●
318 16.549 SCREW; BAND
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0211-0501 ● ● ● ● ● ●
318 16.549 SCREW; BAND
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0502-0506 ● ● ● ● ●
318 16.549 SCREW; BAND
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0507-0604 ● ● ● ● ● ●
318 16.549 SCREW; BAND
03.885 M5X16 TAPPING W/PL WASHER 		0-74360-516-0 02 1 0605-0612 ● ● ● ● ● ●
318 16.549 SCREW; BAND
16.570 M5X16 TAPPING HEXALOBULAR 		0-72380-516-0 02 1 0701- ● ● ● ● ● ●
324 16.545 FINISHER; FLOOR PANEL
L=140 		8-97892-742-0 01 1 0211-0501 ● ● ● ● ● ●
324 16.545 FINISHER; FLOOR PANEL
L=140 		8-97892-742-0 01 1 0502-0506 ● ● ● ● ●
324 16.545 FINISHER; FLOOR PANEL
L=140 		8-97892-742-0 01 1 0507- ● ● ● ● ● ●
364 16.545 FINISHER; ENG COVER SIDE
L=1000 		8-97892-743-0 01 1 0211-0501 ● ● ● ● ● ●
364 16.545 FINISHER; ENG COVER SIDE
L=1000 		8-97892-743-0 01 1 0502-0506 ● ● ● ● ●
364 16.545 FINISHER; ENG COVER SIDE
L=1000 		8-97892-743-0 01 1 0507- ● ● ● ● ● ●
422 16.549 BOLT; LOCK,ENG COVER
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) AUSTRALIA EQUIPMENT(RR3) 10.230 M6X16 W/LK&PL WASHER 		8-94139-963-0 04 1 0605-0612 ● ●
422 16.549 BOLT; LOCK,ENG COVER
G.V.W. 6.0-6.5TON(RPV) AUSTRALIA EQUIPMENT(RR3) 10.230 M6X16 W/LK&PL WASHER 		8-94139-963-0 04 1 0605-0612 ●
422 16.549 BOLT; LOCK,ENG COVER
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) AUSTRALIA EQUIPMENT(RR3) 16.570 M6X16 		0-38050-616-0 04 1 0701-0810 ● ●
422 16.549 BOLT; LOCK,ENG COVER
G.V.W. 6.0-6.5TON(RPV) AUSTRALIA EQUIPMENT(RR3) 16.570 M6X16 		0-38050-616-0 04 1 0701-0810 ●
422 16.549 BOLT; LOCK,ENG COVER
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) AUSTRALIA EQUIPMENT(RR3) 02.343 M6X16 FLANGE 		0-28650-616-0 04 1 0811- ● ●
422 16.549 BOLT; LOCK,ENG COVER
G.V.W. 6.0-6.5TON(RPV) AUSTRALIA EQUIPMENT(RR3) 02.343 M6X16 FLANGE 		0-28650-616-0 04 1 0811- ●
çizim 51540
236 119 120 327 414 394 87 88
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
87 16.549 COVER; BATTERY CHECK HOLE 8-97410-416-0 01 1 0507- ●
87 16.549 COVER; BATTERY CHECK HOLE 8-97856-332-4 01 1 0211-0409 ●
87 16.549 COVER; BATTERY CHECK HOLE 8-97410-416-0 01 1 0410-0501 ●
88 16.549 SEAL; BATTERY CHECK HOLE COVER 8-97853-725-1 01 1 0507- ●
88 16.549 SEAL; BATTERY CHECK HOLE COVER 8-97853-725-1 01 1 0211-0501 ●
119 16.090 LID; P/S OIL TANK 8-97853-440-2 01 1 0507- ●
119 16.090 LID; P/S OIL TANK 8-97853-440-2 01 1 0211-0501 ●
120 16.090 SEAL; LID,P/S 8-97853-441-1 01 1 0507- ●
120 16.090 SEAL; LID,P/S 8-97853-441-1 01 1 0211-0501 ●
236 16.549 SEAL; CHECK HOLE
16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0507- ●
236 16.549 SEAL; CHECK HOLE
16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0211-0501 ●
327 16.545 FINISHER; CTR PILLAR,LWR 8-97857-257-1 02 1 0507- ●
327 16.545 FINISHER; CTR PILLAR,LWR 8-97857-257-1 02 1 0211-0501 ●
394 16.549 SEAL; FIXING HOLE
16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 0507- ●
414 16.549 SEAL; BATTERY COVER
16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0507- ●
414 16.549 SEAL; BATTERY COVER
16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0410-0501 ●

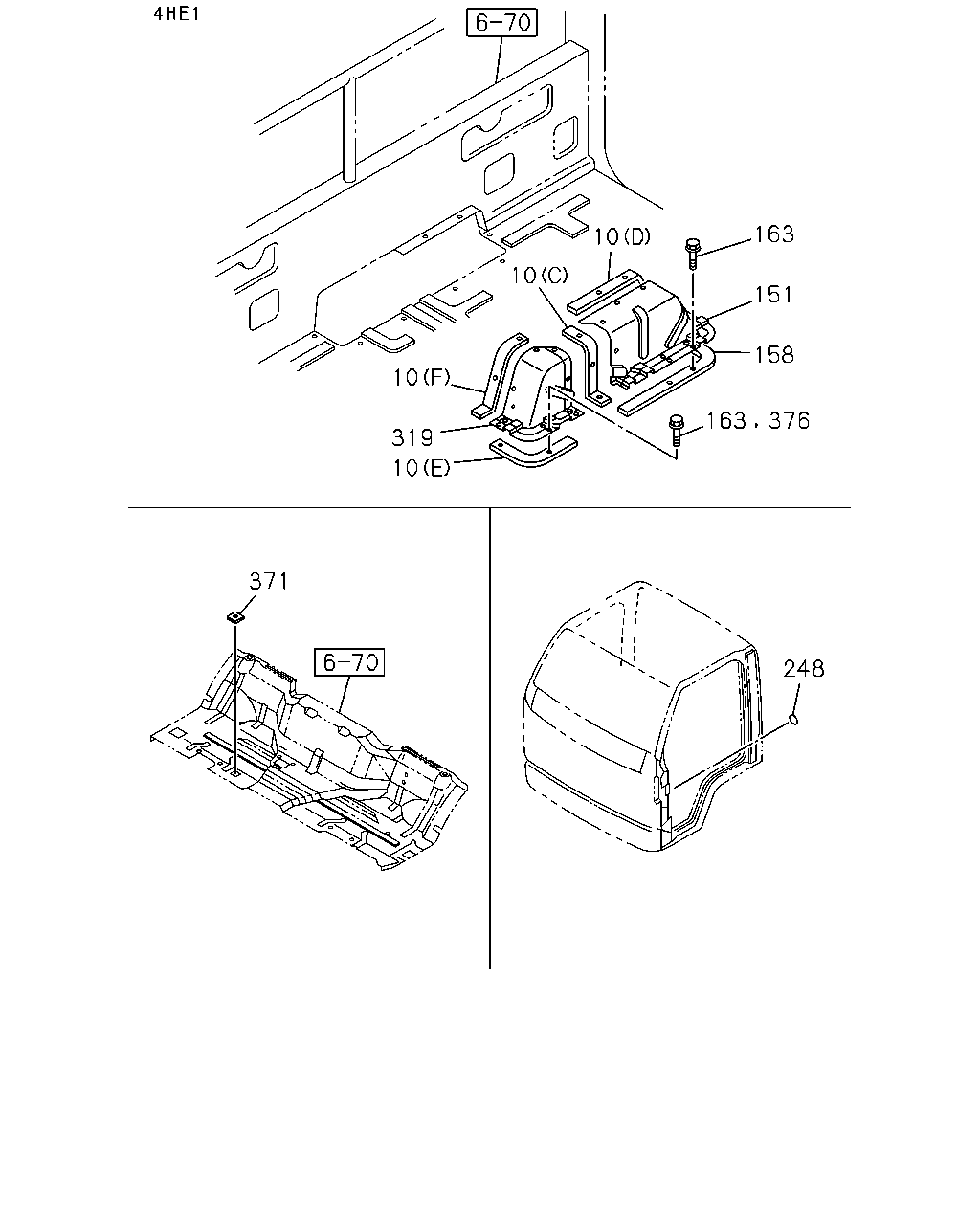

çizim 52406
163 10 10 151 158 10 319 10 371 248 163 376
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
10 16.549 SEAL; ENG COVER
BODY COLOR FT ORANGE(609),BODY COLOR POLAR SILVER MET(845),BODY COLOR MARINE BLUE(890) INTERIOR DELUXE<RBB> 02.580 (B) OD=36 T=0.05 BLACK 		5-76777-035-0 01 1 0507-0710 ●
10 16.549 SEAL; ENG COVER
BODY COLOR FT ORANGE(609),BODY COLOR POLAR SILVER MET(845),BODY COLOR MARINE BLUE(890) INTERIOR DELUXE<RBB>,CUSTOM PACKAGE<YM8> 02.580 (B) OD=36 T=0.05 BLACK 		5-76777-035-0 01 1 0507-0710 ● ● ●
10 16.549 SEAL; ENG COVER
BODY COLOR FT ORANGE(609),BODY COLOR POLAR SILVER MET(845),BODY COLOR MARINE BLUE(890) INTERIOR DELUXE<RBB> 16.545 (B) OD=32 BLACK 		8-98031-126-0 01 1 0711- ●
10 16.549 SEAL; ENG COVER
BODY COLOR FT ORANGE(609),BODY COLOR POLAR SILVER MET(845),BODY COLOR MARINE BLUE(890) INTERIOR DELUXE<RBB>,CUSTOM PACKAGE<YM8> 16.545 (B) OD=32 BLACK 		8-98031-126-0 01 1 0711- ● ● ●
10 16.549 SEAL; ENG COVER
BODY COLOR ARC WHITE(729) INTERIOR DELUXE<RBB> 16.592 (B) OD=36 WHITE 		1-76778-007-0 01 1 0507- ●
10 16.549 SEAL; ENG COVER
BODY COLOR ARC WHITE(729) INTERIOR DELUXE<RBB>,CUSTOM PACKAGE<YM8> 16.592 (B) OD=36 WHITE 		1-76778-007-0 01 1 0507- ● ● ●
10 16.549 SEAL; ENG COVER
(C) L=543 		8-97582-085-0 01 1 0507- ●
10 16.549 SEAL; ENG COVER
(D) L=804 		8-97582-086-0 01 1 0507- ●
10 16.549 SEAL; ENG COVER
(D) L=481 		8-97582-088-0 01 1 0507- ●
10 16.549 SEAL; ENG COVER
(D) L=886 		8-97996-183-0 01 1 0507- ●
10 16.549 SEAL; ENG COVER
(D) L=566 		8-97996-184-0 01 1 0507- ●
10 16.549 SEAL; ENG COVER
BODY COLOR ARC WHITE(729) INTERIOR DELUXE<RBB> 16.592 (B) OD=36 WHITE 		1-76778-007-0 01 1 0211-0501 ●
10 16.549 SEAL; ENG COVER
BODY COLOR ARC WHITE(729) INTERIOR DELUXE<RBB>,CUSTOM PACKAGE<YM8> 16.592 (B) OD=36 WHITE 		1-76778-007-0 01 1 0211-0501 ● ● ●
10 16.549 SEAL; ENG COVER
BODY COLOR FT ORANGE(609),BODY COLOR POLAR SILVER MET(845),BODY COLOR MARINE BLUE(890) INTERIOR DELUXE<RBB> 02.580 (B) OD=36 T=0.05 BLACK 		5-76777-035-0 01 1 0211-0501 ●
10 16.549 SEAL; ENG COVER
BODY COLOR FT ORANGE(609),BODY COLOR POLAR SILVER MET(845),BODY COLOR MARINE BLUE(890) INTERIOR DELUXE<RBB>,CUSTOM PACKAGE<YM8> 02.580 (B) OD=36 T=0.05 BLACK 		5-76777-035-0 01 1 0211-0501 ● ● ●
10 16.549 SEAL; ENG COVER
(A) 		8-97853-267-5 01 1 0211-0305 ● ● ● ● ● ●
10 16.549 SEAL; ENG COVER
(A) 		8-97581-109-0 01 1 0306-0501 ● ● ● ● ● ●
10 16.549 SEAL; ENG COVER
(A) 		8-97581-109-1 01 1 0502-0506 ● ● ● ● ●
10 16.549 SEAL; ENG COVER
(A) 		8-97581-109-1 01 1 0507- ● ● ● ● ● ●
10 16.549 SEAL; ENG COVER
FRAME STRAIGHT TYPE<7KJ> (C) L=519 		8-97995-003-0 01 1 0211-0305 ●
10 16.549 SEAL; ENG COVER
FRAME STRAIGHT TYPE<7KJ> (C) L=543 		8-97582-085-0 01 1 0306-0501 ●
10 16.549 SEAL; ENG COVER
FRAME STRAIGHT TYPE<7KJ> (D) L=804 		8-97995-004-0 01 1 0211-0305 ●
10 16.549 SEAL; ENG COVER
FRAME STRAIGHT TYPE<7KJ> (D) L=804 		8-97582-086-0 01 1 0306-0501 ●
10 16.549 SEAL; ENG COVER
FRAME STRAIGHT TYPE<7KJ> (E) L=519 		8-97995-005-0 01 1 0211-0501 ●
10 16.549 SEAL; ENG COVER
FRAME STRAIGHT TYPE<7KJ> (F) L=467 		8-97995-006-0 01 1 0211-0305 ●
10 16.549 SEAL; ENG COVER
FRAME STRAIGHT TYPE<7KJ> (F) L=436 		8-97582-087-0 01 1 0306-0501 ●
151 16.549 COVER ASM; ENG 8-97582-091-0 01 1 0507- ●
151 16.549 COVER ASM; ENG 8-97582-093-0 01 1 0507- ●
151 16.549 COVER ASM; ENG
FRAME STRAIGHT TYPE<7KJ> 		8-97996-192-0 01 1 0211-0305 ●
151 16.549 COVER ASM; ENG
FRAME STRAIGHT TYPE<7KJ> 		8-97582-089-0 01 1 0306-0501 ●
158 16.549 SEAL; RR,ENG COVER,FRT
FRAME STRAIGHT TYPE<7KJ> 		8-97995-002-0 01 1 0211-0501 ●
163 16.549 BOLT; RR,ENG COVER,FRT
02.762 M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 0507- ●
163 16.549 BOLT; RR,ENG COVER,FRT
02.762 M6X20 W/LK&PL WASHER 		8-94279-203-0 09 1 0507- ●
163 16.549 BOLT; RR,ENG COVER,FRT
FRAME STRAIGHT TYPE<7KJ> 02.762 M6X20 W/LK&PL WASHER 		8-94279-203-0 06 1 0211-0305 ●
163 16.549 BOLT; RR,ENG COVER,FRT
FRAME STRAIGHT TYPE<7KJ> 02.762 M6X20 W/LK&PL WASHER 		8-94279-203-0 05 1 0306-0501 ●
163 16.549 BOLT; RR,ENG COVER,FRT
FRAME STRAIGHT TYPE<7KJ> 04.439 M6X16 FLANGE 		0-28680-616-0 03 1 0211-0501 ●
248 16.850 SEAL; EXT,FRT & RR
02.580 OD=36 T=0.05 BLACK 		5-76777-035-0 04 1 0307-0501 ● ● ● ● ● ●
319 16.549 COVER; ENG RR,FLOOR
FRAME STRAIGHT TYPE<7KJ> 		8-97997-526-0 01 1 0211-0305 ●
319 16.549 COVER; ENG RR,FLOOR
FRAME STRAIGHT TYPE<7KJ> 		8-97582-090-0 01 1 0306-0501 ●
371 16.549 GROMMET; LOCATION HOLE
FLOOR REMOTE SHIFT<M11> 16.547 14.5X14.5 BLACK 		8-94279-714-0 02 1 0304-0307 ● ● ● ● ●
371 16.549 GROMMET; LOCATION HOLE
FLOOR REMOTE SHIFT<M11> 16.547 14.5X14.5 BLACK 		8-94279-714-0 02 1 0308-0501 ● ● ● ● ●
371 16.549 GROMMET; LOCATION HOLE
16.547 14.5X14.5 BLACK 		8-94279-714-0 02 1 0308-0501 ●
371 16.549 GROMMET; LOCATION HOLE
16.547 14.5X14.5 BLACK 		8-94279-714-0 02 1 0502-0506 ● ● ● ● ●
371 16.549 GROMMET; LOCATION HOLE
FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 16.547 14.5X14.5 BLACK 		8-94279-714-0 02 1 0507- ● ● ● ●
371 16.549 GROMMET; LOCATION HOLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 16.547 14.5X14.5 BLACK 		8-94279-714-0 02 1 0507- ●
371 16.549 GROMMET; LOCATION HOLE
16.547 14.5X14.5 BLACK 		8-94279-714-0 02 1 0507- ●
376 16.549 BOLT; RR ENG COVER
FRAME STRAIGHT TYPE<7KJ> 02.334 M6X16 W/PL WASHER 		8-97803-781-0 04 1 0211-0501 ●

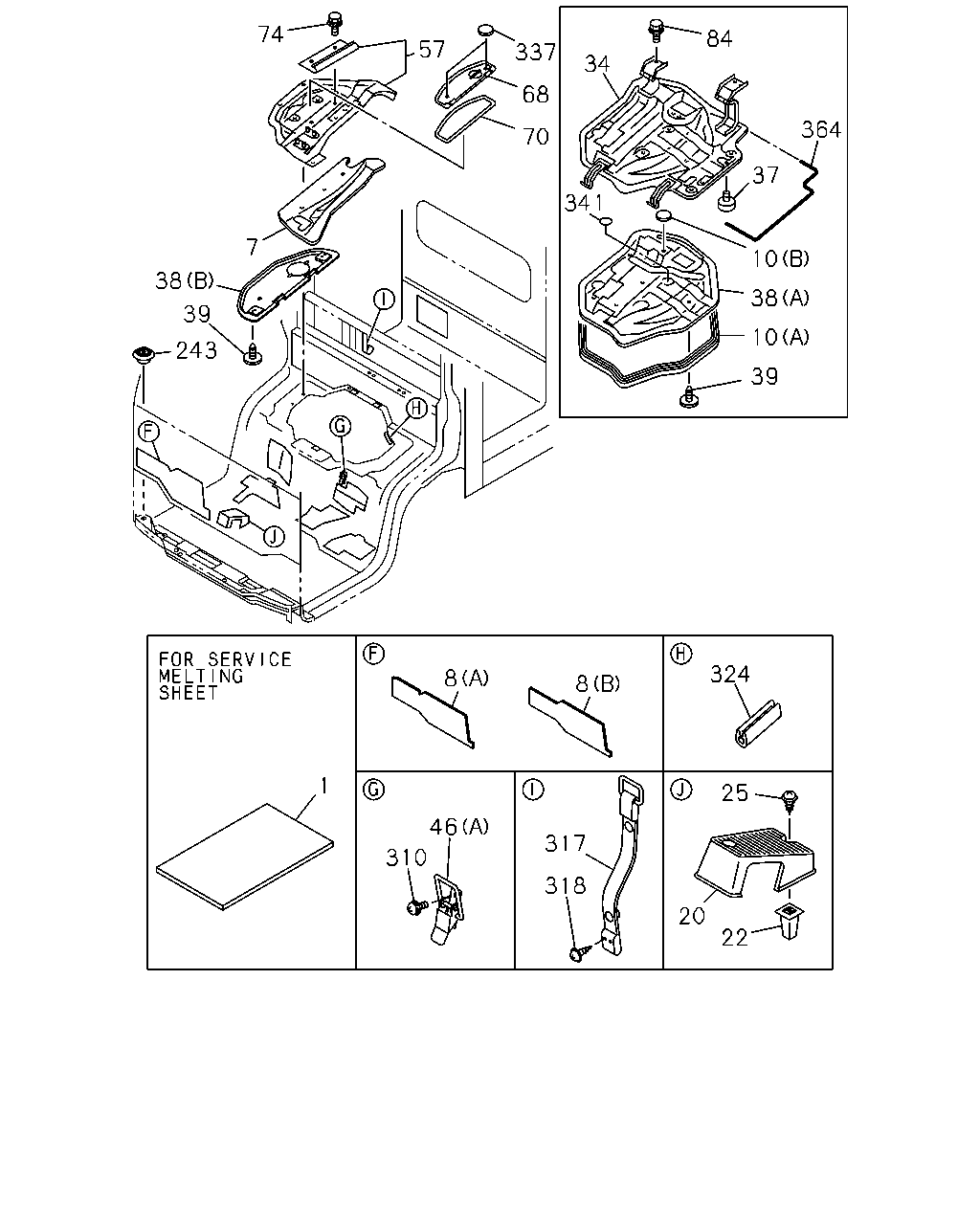

çizim 53119
74 84 57 337 34 68 364 70 37 341 7 10 38 38 39 10 243 39 324 8 8 1 25 46 317 310 318 20 22
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 16.850 SHEET; MELTING,FLOOR
NON ASBESTOS 1000X600 T=1.5; PARTS ON LY 		8-94262-093-0 AR 1 0211- ● ● ● ● ● ●
7 16.545 INSULATOR; SUPPORT COVER
MANUAL TILT CAB<RWZ> 		8-97853-629-2 01 1 0211- ● ● ● ● ●
7 16.545 INSULATOR; SUPPORT COVER
EXC. MANUAL TILT CAB<RWZ> 		8-97853-641-2 01 1 0211-0501 ● ● ● ● ●
7 16.545 INSULATOR; SUPPORT COVER 8-97853-641-2 01 1 0211-0501 ●
7 16.545 INSULATOR; SUPPORT COVER
EXC. MANUAL TILT CAB<RWZ> 		8-97853-641-2 01 1 0502-0506 ● ● ● ● ●
7 16.545 INSULATOR; SUPPORT COVER
EXC. MANUAL TILT CAB<RWZ> 		8-97853-641-2 01 1 0507- ● ● ● ● ●
7 16.545 INSULATOR; SUPPORT COVER 8-97853-641-2 01 1 0507- ●
8 16.802 MAT; SILENCER,FRT PANEL
(A) 		8-97853-606-1 01 1 0211-0501 ● ● ● ● ● ●
8 16.802 MAT; SILENCER,FRT PANEL
(B) 		8-97581-661-3 01 1 0502-0506 ● ● ● ● ●
8 16.802 MAT; SILENCER,FRT PANEL
(B) 		8-97581-661-3 01 1 0507- ● ● ● ● ● ●
8 16.802 MAT; SILENCER,FRT PANEL
(A) 		8-97853-605-2 01 1 0211-0501 ● ● ● ● ● ●
8 16.802 MAT; SILENCER,FRT PANEL
(B) 		8-97581-660-3 01 1 0502-0506 ● ● ● ● ●
8 16.802 MAT; SILENCER,FRT PANEL
(B) 		8-97581-660-3 01 1 0507- ● ● ● ● ● ●
10 16.549 SEAL; ENG COVER
BODY COLOR FT ORANGE(609),BODY COLOR POLAR SILVER MET(845),BODY COLOR MARINE BLUE(890) INTERIOR DELUXE<RBB> 02.580 (B) OD=36 T=0.05 BLACK 		5-76777-035-0 01 1 0507-0710 ●
10 16.549 SEAL; ENG COVER
BODY COLOR FT ORANGE(609),BODY COLOR POLAR SILVER MET(845),BODY COLOR MARINE BLUE(890) INTERIOR DELUXE<RBB>,CUSTOM PACKAGE<YM8> 02.580 (B) OD=36 T=0.05 BLACK 		5-76777-035-0 01 1 0507-0710 ● ● ●
10 16.549 SEAL; ENG COVER
BODY COLOR FT ORANGE(609),BODY COLOR POLAR SILVER MET(845),BODY COLOR MARINE BLUE(890) INTERIOR DELUXE<RBB> 16.545 (B) OD=32 BLACK 		8-98031-126-0 01 1 0711- ●
10 16.549 SEAL; ENG COVER
BODY COLOR FT ORANGE(609),BODY COLOR POLAR SILVER MET(845),BODY COLOR MARINE BLUE(890) INTERIOR DELUXE<RBB>,CUSTOM PACKAGE<YM8> 16.545 (B) OD=32 BLACK 		8-98031-126-0 01 1 0711- ● ● ●
10 16.549 SEAL; ENG COVER
BODY COLOR ARC WHITE(729) INTERIOR DELUXE<RBB> 16.592 (B) OD=36 WHITE 		1-76778-007-0 01 1 0507- ●
10 16.549 SEAL; ENG COVER
BODY COLOR ARC WHITE(729) INTERIOR DELUXE<RBB>,CUSTOM PACKAGE<YM8> 16.592 (B) OD=36 WHITE 		1-76778-007-0 01 1 0507- ● ● ●
10 16.549 SEAL; ENG COVER
(C) L=543 		8-97582-085-0 01 1 0507- ●
10 16.549 SEAL; ENG COVER
(D) L=804 		8-97582-086-0 01 1 0507- ●
10 16.549 SEAL; ENG COVER
(D) L=481 		8-97582-088-0 01 1 0507- ●
10 16.549 SEAL; ENG COVER
(D) L=886 		8-97996-183-0 01 1 0507- ●
10 16.549 SEAL; ENG COVER
(D) L=566 		8-97996-184-0 01 1 0507- ●
10 16.549 SEAL; ENG COVER
BODY COLOR ARC WHITE(729) INTERIOR DELUXE<RBB> 16.592 (B) OD=36 WHITE 		1-76778-007-0 01 1 0211-0501 ●
10 16.549 SEAL; ENG COVER
BODY COLOR ARC WHITE(729) INTERIOR DELUXE<RBB>,CUSTOM PACKAGE<YM8> 16.592 (B) OD=36 WHITE 		1-76778-007-0 01 1 0211-0501 ● ● ●
10 16.549 SEAL; ENG COVER
BODY COLOR FT ORANGE(609),BODY COLOR POLAR SILVER MET(845),BODY COLOR MARINE BLUE(890) INTERIOR DELUXE<RBB> 02.580 (B) OD=36 T=0.05 BLACK 		5-76777-035-0 01 1 0211-0501 ●
10 16.549 SEAL; ENG COVER
BODY COLOR FT ORANGE(609),BODY COLOR POLAR SILVER MET(845),BODY COLOR MARINE BLUE(890) INTERIOR DELUXE<RBB>,CUSTOM PACKAGE<YM8> 02.580 (B) OD=36 T=0.05 BLACK 		5-76777-035-0 01 1 0211-0501 ● ● ●
10 16.549 SEAL; ENG COVER
(A) 		8-97853-267-5 01 1 0211-0305 ● ● ● ● ● ●
10 16.549 SEAL; ENG COVER
(A) 		8-97581-109-0 01 1 0306-0501 ● ● ● ● ● ●
10 16.549 SEAL; ENG COVER
(A) 		8-97581-109-1 01 1 0502-0506 ● ● ● ● ●
10 16.549 SEAL; ENG COVER
(A) 		8-97581-109-1 01 1 0507- ● ● ● ● ● ●
10 16.549 SEAL; ENG COVER
FRAME STRAIGHT TYPE<7KJ> (C) L=519 		8-97995-003-0 01 1 0211-0305 ●
10 16.549 SEAL; ENG COVER
FRAME STRAIGHT TYPE<7KJ> (C) L=543 		8-97582-085-0 01 1 0306-0501 ●
10 16.549 SEAL; ENG COVER
FRAME STRAIGHT TYPE<7KJ> (D) L=804 		8-97995-004-0 01 1 0211-0305 ●
10 16.549 SEAL; ENG COVER
FRAME STRAIGHT TYPE<7KJ> (D) L=804 		8-97582-086-0 01 1 0306-0501 ●
10 16.549 SEAL; ENG COVER
FRAME STRAIGHT TYPE<7KJ> (E) L=519 		8-97995-005-0 01 1 0211-0501 ●
10 16.549 SEAL; ENG COVER
FRAME STRAIGHT TYPE<7KJ> (F) L=467 		8-97995-006-0 01 1 0211-0305 ●
10 16.549 SEAL; ENG COVER
FRAME STRAIGHT TYPE<7KJ> (F) L=436 		8-97582-087-0 01 1 0306-0501 ●
20 16.547 REST; FOOT
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97853-767-2 01 1 0507- ● ● ● ● ●
20 16.547 REST; FOOT
EXC. FLOOR REMOTE SHIFT<M11> 		8-97853-767-1 01 1 0211-0501 ● ● ● ● ●
22 16.547 GROMMET; SCREW,FOOT REST
TRANSMISSION CONTROL-SMOOTHER(8GF) 04.931 H=15 		8-94463-268-1 02 1 0507- ● ● ● ● ●
22 16.547 GROMMET; SCREW,FOOT REST
EXC. FLOOR REMOTE SHIFT<M11> 04.931 H=15 		8-94463-268-1 02 1 0211-0501 ● ● ● ● ●
25 16.549 SCREW; FOOT REST
TRANSMISSION CONTROL-SMOOTHER(8GF) 16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0507-0604 ● ● ● ● ●
25 16.549 SCREW; FOOT REST
TRANSMISSION CONTROL-SMOOTHER(8GF) 03.885 M5X16 TAPPING W/PL WASHER 		0-74360-516-0 02 1 0605-0612 ● ● ● ● ●
25 16.549 SCREW; FOOT REST
TRANSMISSION CONTROL-SMOOTHER(8GF) 16.570 M5X16 TAPPING HEXALOBULAR 		0-72380-516-0 02 1 0701- ● ● ● ● ●
25 16.549 SCREW; FOOT REST
EXC. FLOOR REMOTE SHIFT<M11> 16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0211-0501 ● ● ● ● ●
34 16.549 COVER ASM; ENG,CAB FLOOR
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) AUSTRALIA EQUIPMENT(RR3) 		8-97898-097-1 01 1 0507- ● ●
34 16.549 COVER ASM; ENG,CAB FLOOR
G.V.W. 6.0-6.5TON(RPV) AUSTRALIA EQUIPMENT(RR3) 		8-97898-097-1 01 1 0507- ●
34 16.549 COVER ASM; ENG,CAB FLOOR
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) AUSTRALIA EQUIPMENT(RR3) 		8-97898-097-1 01 1 0211-0501 ● ●
34 16.549 COVER ASM; ENG,CAB FLOOR
G.V.W. 6.0-6.5TON(RPV) AUSTRALIA EQUIPMENT(RR3) 		8-97898-097-1 01 1 0211-0501 ● ●
34 16.549 COVER ASM; ENG,CAB FLOOR
EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97898-132-1 01 1 0211-0501 ● ● ● ● ● ●
34 16.549 COVER ASM; ENG,CAB FLOOR
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY), G.V.W. 8.0-8.5TON(RPZ) AUSTRALIA EQUIPMENT(RR3) 		8-97898-132-1 01 1 0211-0501 ● ● ● ● ●
34 16.549 COVER ASM; ENG,CAB FLOOR 8-97898-132-1 01 1 0502-0506 ● ● ● ● ●
34 16.549 COVER ASM; ENG,CAB FLOOR
EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97898-132-1 01 1 0507- ● ● ● ●
34 16.549 COVER ASM; ENG,CAB FLOOR
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) AUSTRALIA EQUIPMENT(RR3) 		8-97898-132-1 01 1 0507- ●
34 16.549 COVER ASM; ENG,CAB FLOOR
G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) AUSTRALIA EQUIPMENT(RR3) 		8-97898-132-1 01 1 0507- ● ●
34 16.549 COVER ASM; ENG,CAB FLOOR 8-97898-132-1 01 1 0507- ● ●
37 16.549 RUBBER; BUFFER,ENG COVER
16.155 OD=30 T=10 		5-74917-001-2 02 1 0211-0501 ● ● ● ● ● ●
37 16.549 RUBBER; BUFFER,ENG COVER
16.155 OD=30 T=10 		5-74917-001-2 02 1 0502-0506 ● ● ● ● ●
37 16.549 RUBBER; BUFFER,ENG COVER
16.155 OD=30 T=10 		5-74917-001-2 02 1 0507- ● ● ● ● ● ●
38 16.549 INSULATOR; ENG COVER
(B) 		8-97856-803-0 01 1 0507- ●
38 16.549 INSULATOR; ENG COVER
4HF1-S ENG(RLS) EXC. MANUAL TILT CAB<RWZ> (B) 		8-97856-803-0 01 1 0211-0501 ● ● ● ●
38 16.549 INSULATOR; ENG COVER
(B) 		8-97856-803-0 01 1 0211-0501 ●
38 16.549 INSULATOR; ENG COVER
(A) 		8-97898-101-0 01 1 0211-0501 ● ● ● ● ● ●
38 16.549 INSULATOR; ENG COVER
(A) 		8-97898-101-0 01 1 0502-0506 ● ● ● ● ●
38 16.549 INSULATOR; ENG COVER
(A) 		8-97898-101-0 01 1 0507- ● ● ● ● ● ●
39 16.549 CLIP; INSULATOR,COVER
OD=30 		8-94279-952-0 02 1 0507- ●
39 16.549 CLIP; INSULATOR,COVER
4HF1-S ENG(RLS) EXC. MANUAL TILT CAB<RWZ> OD=30 		8-94279-952-0 02 1 0211-0501 ● ● ● ●
39 16.549 CLIP; INSULATOR,COVER
OD=30 		8-94279-952-0 02 1 0211-0501 ●
39 16.549 CLIP; INSULATOR,COVER
OD=30 		8-94279-952-0 05 1 0502-0506 ● ● ● ● ●
39 16.549 CLIP; INSULATOR,COVER
EXC. MANUAL TILT CAB<RWZ> OD=30 		8-94279-952-0 05 1 0502-0506 ● ● ● ● ●
39 16.549 CLIP; INSULATOR,COVER
OD=30 		8-94279-952-0 05 1 0507- ● ● ● ● ● ●
39 16.549 CLIP; INSULATOR,COVER
EXC. MANUAL TILT CAB<RWZ> OD=30 		8-94279-952-0 05 1 0507- ● ● ● ● ●
39 16.549 CLIP; INSULATOR,COVER
OD=30 		8-94279-952-0 05 1 0507- ●
39 16.549 CLIP; INSULATOR,COVER
OD=30 		8-94279-952-0 05 1 0211-0501 ● ● ● ● ● ●
39 16.549 CLIP; INSULATOR,COVER
EXC. MANUAL TILT CAB<RWZ> OD=30 		8-94279-952-0 05 1 0211-0501 ● ● ● ● ●
39 16.549 CLIP; INSULATOR,COVER
OD=30 		8-94279-952-0 05 1 0211-0501 ●
39 16.549 CLIP; INSULATOR,COVER
MANUAL TILT CAB<RWZ> OD=30 		8-94279-952-0 08 1 0211- ● ● ● ● ●
46 16.549 HOOK ASM; ENG COVER
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) AUSTRALIA EQUIPMENT(RR3) (B) 		8-97850-594-2 02 1 0507-0608 ● ●
46 16.549 HOOK ASM; ENG COVER
G.V.W. 6.0-6.5TON(RPV) AUSTRALIA EQUIPMENT(RR3) (B) 		8-97850-594-2 02 1 0507-0608 ●
46 16.549 HOOK ASM; ENG COVER
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) AUSTRALIA EQUIPMENT(RR3) (B) 		8-98040-145-0 02 1 0609- ● ●
46 16.549 HOOK ASM; ENG COVER
G.V.W. 6.0-6.5TON(RPV) AUSTRALIA EQUIPMENT(RR3) (B) 		8-98040-145-0 02 1 0609- ●
46 16.549 HOOK ASM; ENG COVER
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) AUSTRALIA EQUIPMENT(RR3) (B) 		8-97850-594-2 02 1 0211-0501 ● ●
46 16.549 HOOK ASM; ENG COVER
G.V.W. 6.0-6.5TON(RPV) AUSTRALIA EQUIPMENT(RR3) (B) 		8-97850-594-2 02 1 0211-0501 ● ●
46 16.549 HOOK ASM; ENG COVER
EXC. AUSTRALIA EQUIPMENT(RR3) (A) 		8-97853-632-2 02 1 0211-0501 ● ● ● ● ● ●
46 16.549 HOOK ASM; ENG COVER
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY), G.V.W. 8.0-8.5TON(RPZ) AUSTRALIA EQUIPMENT(RR3) (A) 		8-97853-632-2 02 1 0211-0501 ● ● ● ● ●
46 16.549 HOOK ASM; ENG COVER
(A) 		8-97853-632-2 02 1 0502-0506 ● ● ● ● ●
46 16.549 HOOK ASM; ENG COVER
EXC. AUSTRALIA EQUIPMENT(RR3) (A) 		8-97853-632-2 02 1 0507- ● ● ● ●
46 16.549 HOOK ASM; ENG COVER
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY), G.V.W. 8.0-8.5TON(RPZ) AUSTRALIA EQUIPMENT(RR3) (A) 		8-97853-632-2 02 1 0507- ● ● ● ●
46 16.549 HOOK ASM; ENG COVER
(A) 		8-97853-632-2 02 1 0507- ● ●
57 16.549 COVER ASM; SUPPORT,CAB FLOOR 8-97866-685-2 01 1 0507- ●
57 16.549 COVER ASM; SUPPORT,CAB FLOOR
MANUAL TILT CAB<RWZ> 		8-97866-684-2 01 1 0211- ● ● ● ● ●
57 16.549 COVER ASM; SUPPORT,CAB FLOOR
EXC. MANUAL TILT CAB<RWZ> 		8-97866-685-1 01 1 0211-0501 ● ● ● ● ●
57 16.549 COVER ASM; SUPPORT,CAB FLOOR 8-97866-685-1 01 1 0211-0501 ●
68 16.549 COVER ASM; SUB,ENG COVER
EXC. MANUAL TILT CAB<RWZ> 		8-97853-712-3 01 1 0211-0312 ● ● ● ● ●
68 16.549 COVER ASM; SUB,ENG COVER 8-97853-712-3 01 1 0211-0312 ●
68 16.549 COVER ASM; SUB,ENG COVER
EXC. MANUAL TILT CAB<RWZ> 		8-97583-489-0 01 1 0401-0501 ● ● ● ● ●
68 16.549 COVER ASM; SUB,ENG COVER 8-97583-489-0 01 1 0401-0501 ●
68 16.549 COVER ASM; SUB,ENG COVER
EXC. MANUAL TILT CAB<RWZ> 		8-97583-489-0 01 1 0502-0506 ● ● ● ● ●
68 16.549 COVER ASM; SUB,ENG COVER
EXC. MANUAL TILT CAB<RWZ> 		8-97583-489-0 01 1 0507-0608 ● ● ● ● ●
68 16.549 COVER ASM; SUB,ENG COVER 8-97583-489-0 01 1 0507-0608 ●
68 16.549 COVER ASM; SUB,ENG COVER
EXC. MANUAL TILT CAB<RWZ> 		8-98040-141-0 01 1 0609- ● ● ● ● ●
68 16.549 COVER ASM; SUB,ENG COVER 8-98040-141-0 01 1 0609- ●
70 16.549 SEAL; ENG SUB COVER,CAB FLOOR
EXC. MANUAL TILT CAB<RWZ> 		8-97853-050-1 01 1 0211-0501 ● ● ● ● ●
70 16.549 SEAL; ENG SUB COVER,CAB FLOOR 8-97853-050-1 01 1 0211-0501 ●
70 16.549 SEAL; ENG SUB COVER,CAB FLOOR
EXC. MANUAL TILT CAB<RWZ> 		8-97853-050-1 01 1 0502-0506 ● ● ● ● ●
70 16.549 SEAL; ENG SUB COVER,CAB FLOOR
EXC. MANUAL TILT CAB<RWZ> 		8-97853-050-1 01 1 0507- ● ● ● ● ●
70 16.549 SEAL; ENG SUB COVER,CAB FLOOR 8-97853-050-1 01 1 0507- ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
02.664 M8X20 FLANGE 		0-28680-820-0 05 1 0211-0501 ● ● ● ● ● ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
02.664 M8X20 FLANGE 		0-28680-820-0 05 1 0502-0506 ● ● ● ● ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
02.664 M8X20 FLANGE 		0-28680-820-0 05 1 0507-0512 ● ● ● ● ● ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
01.531 M8X20 FLANGE 		0-28650-820-0 05 1 0601- ● ● ● ● ● ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0211-0501 ● ● ● ● ● ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0502-0506 ● ● ● ● ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0507-0512 ● ● ● ● ● ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0601- ● ● ● ● ● ●
84 16.549 BOLT; ENG COVER HINGE
02.664 M8X20 FLANGE 		0-28680-820-0 04 1 0211-0501 ● ● ● ● ● ●
84 16.549 BOLT; ENG COVER HINGE
02.664 M8X20 FLANGE 		0-28680-820-0 04 1 0502-0506 ● ● ● ● ●
84 16.549 BOLT; ENG COVER HINGE
02.664 M8X20 FLANGE 		0-28680-820-0 04 1 0507-0512 ● ● ● ● ● ●
84 16.549 BOLT; ENG COVER HINGE
01.531 M8X20 FLANGE 		0-28650-820-0 04 1 0601- ● ● ● ● ● ●
243 16.547 GROMMET; STOPPER,CHECK HOLE LID
OD=12.1 		8-97898-423-0 01 1 0211-0501 ● ● ● ● ● ●
243 16.547 GROMMET; STOPPER,CHECK HOLE LID
OD=12.1 		8-97898-423-0 01 1 0502-0506 ● ● ● ● ●
243 16.547 GROMMET; STOPPER,CHECK HOLE LID
OD=12.1 		8-97898-423-0 01 1 0507- ● ● ● ● ● ●
310 16.549 SCREW; ENG COVER HOOK
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) AUSTRALIA EQUIPMENT(RR3) 16.320 M6X20 W/LK&PL WASHER 		8-94279-403-0 09 1 0507-0604 ● ●
310 16.549 SCREW; ENG COVER HOOK
G.V.W. 6.0-6.5TON(RPV) AUSTRALIA EQUIPMENT(RR3) 16.320 M6X20 W/LK&PL WASHER 		8-94279-403-0 09 1 0507-0604 ●
310 16.549 SCREW; ENG COVER HOOK
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) AUSTRALIA EQUIPMENT(RR3) 16.320 M6X20 W/LK&PL WASHER 		8-94279-403-0 05 1 0605-0612 ● ●
310 16.549 SCREW; ENG COVER HOOK
G.V.W. 6.0-6.5TON(RPV) AUSTRALIA EQUIPMENT(RR3) 16.320 M6X20 W/LK&PL WASHER 		8-94279-403-0 05 1 0605-0612 ●
310 16.549 SCREW; ENG COVER HOOK
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) AUSTRALIA EQUIPMENT(RR3) 16.570 M6X16 		0-38050-616-0 05 1 0701- ● ●
310 16.549 SCREW; ENG COVER HOOK
G.V.W. 6.0-6.5TON(RPV) AUSTRALIA EQUIPMENT(RR3) 16.570 M6X16 		0-38050-616-0 05 1 0701- ●
310 16.549 SCREW; ENG COVER HOOK
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) AUSTRALIA EQUIPMENT(RR3) 16.320 M6X20 W/LK&PL WASHER 		8-94279-403-0 09 1 0211-0501 ● ●
310 16.549 SCREW; ENG COVER HOOK
G.V.W. 6.0-6.5TON(RPV) AUSTRALIA EQUIPMENT(RR3) 16.320 M6X20 W/LK&PL WASHER 		8-94279-403-0 09 1 0211-0501 ● ●
310 16.549 SCREW; ENG COVER HOOK
16.320 M6X20 W/LK&PL WASHER 		8-94279-403-0 04 1 0502-0506 ● ● ● ● ●
310 16.549 SCREW; ENG COVER HOOK
EXC. AUSTRALIA EQUIPMENT(RR3) 16.320 M6X20 W/LK&PL WASHER 		8-94279-403-0 04 1 0507-0612 ● ● ● ●
310 16.549 SCREW; ENG COVER HOOK
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY), G.V.W. 8.0-8.5TON(RPZ) AUSTRALIA EQUIPMENT(RR3) 16.320 M6X20 W/LK&PL WASHER 		8-94279-403-0 04 1 0507-0612 ● ● ● ●
310 16.549 SCREW; ENG COVER HOOK
16.320 M6X20 W/LK&PL WASHER 		8-94279-403-0 04 1 0507-0612 ● ●
310 16.549 SCREW; ENG COVER HOOK
EXC. AUSTRALIA EQUIPMENT(RR3) 16.570 M6X16 		0-38050-616-0 04 1 0701-0810 ● ● ● ●
310 16.549 SCREW; ENG COVER HOOK
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY), G.V.W. 8.0-8.5TON(RPZ) AUSTRALIA EQUIPMENT(RR3) 16.570 M6X16 		0-38050-616-0 04 1 0701-0810 ● ● ● ●
310 16.549 SCREW; ENG COVER HOOK
16.570 M6X16 		0-38050-616-0 04 1 0701-0810 ● ●
310 16.549 SCREW; ENG COVER HOOK
EXC. AUSTRALIA EQUIPMENT(RR3) 02.343 M6X16 FLANGE 		0-28650-616-0 04 1 0811- ● ● ● ●
310 16.549 SCREW; ENG COVER HOOK
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY), G.V.W. 8.0-8.5TON(RPZ) AUSTRALIA EQUIPMENT(RR3) 02.343 M6X16 FLANGE 		0-28650-616-0 04 1 0811- ● ● ● ●
310 16.549 SCREW; ENG COVER HOOK
02.343 M6X16 FLANGE 		0-28650-616-0 04 1 0811- ● ●
310 16.549 SCREW; ENG COVER HOOK
EXC. AUSTRALIA EQUIPMENT(RR3) 16.320 M6X20 W/LK&PL WASHER 		8-94279-403-0 04 1 0211-0501 ● ● ● ● ● ●
310 16.549 SCREW; ENG COVER HOOK
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY), G.V.W. 8.0-8.5TON(RPZ) AUSTRALIA EQUIPMENT(RR3) 16.320 M6X20 W/LK&PL WASHER 		8-94279-403-0 04 1 0211-0501 ● ● ● ● ●
317 16.549 BAND; ENGINE COVER
L=535 BLACK 		8-97867-201-1 01 1 0211-0501 ● ● ● ● ● ●
317 16.549 BAND; ENGINE COVER
L=535 BLACK 		8-97867-201-1 01 1 0502-0506 ● ● ● ● ●
317 16.549 BAND; ENGINE COVER
L=535 BLACK 		8-97867-201-1 01 1 0507- ● ● ● ● ● ●
318 16.549 SCREW; BAND
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0211-0501 ● ● ● ● ● ●
318 16.549 SCREW; BAND
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0502-0506 ● ● ● ● ●
318 16.549 SCREW; BAND
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0507-0604 ● ● ● ● ● ●
318 16.549 SCREW; BAND
03.885 M5X16 TAPPING W/PL WASHER 		0-74360-516-0 02 1 0605-0612 ● ● ● ● ● ●
318 16.549 SCREW; BAND
16.570 M5X16 TAPPING HEXALOBULAR 		0-72380-516-0 02 1 0701- ● ● ● ● ● ●
324 16.545 FINISHER; FLOOR PANEL
L=140 		8-97892-742-0 01 1 0211-0501 ● ● ● ● ● ●
324 16.545 FINISHER; FLOOR PANEL
L=140 		8-97892-742-0 01 1 0502-0506 ● ● ● ● ●
324 16.545 FINISHER; FLOOR PANEL
L=140 		8-97892-742-0 01 1 0507- ● ● ● ● ● ●
337 16.545 SEAL; CLIP HOLE
4HK1-TCN ENG(RDQ) 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 0507- ●
337 16.545 SEAL; CLIP HOLE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 0507- ● ● ●
337 16.545 SEAL; CLIP HOLE
16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 0507- ●
337 16.545 SEAL; CLIP HOLE
4HE1 ENG(RLY) EXC. MANUAL TILT CAB<RWZ> 16.570 OD=20 T=0.05 WHITE 		8-97856-832-1 02 1 0211-0501 ●
337 16.545 SEAL; CLIP HOLE
4HG1 ENG(RJH),4HE1 ENG(RLY) EXC. MANUAL TILT CAB<RWZ> 16.570 OD=20 T=0.05 WHITE 		8-97856-832-1 02 1 0211-0501 ● ● ●
337 16.545 SEAL; CLIP HOLE
EXC. MANUAL TILT CAB<RWZ> 16.570 OD=20 T=0.05 WHITE 		8-97856-832-1 02 1 0211-0501 ●
341 16.549 SEAL; INSULATOR HOLE
EXC. MANUAL TILT CAB<RWZ> 16.570 OD=20 T=0.05 WHITE 		8-97856-832-1 01 1 0211-0501 ● ● ● ● ●
341 16.549 SEAL; INSULATOR HOLE
16.570 OD=20 T=0.05 WHITE 		8-97856-832-1 01 1 0211-0501 ●
341 16.549 SEAL; INSULATOR HOLE
EXC. MANUAL TILT CAB<RWZ> 16.570 OD=20 T=0.05 WHITE 		8-97856-832-2 01 1 0502-0506 ● ● ● ● ●
341 16.549 SEAL; INSULATOR HOLE
EXC. MANUAL TILT CAB<RWZ> 16.570 OD=20 T=0.05 WHITE 		8-97856-832-2 01 1 0507-0610 ● ● ● ● ●
341 16.549 SEAL; INSULATOR HOLE
16.570 OD=20 T=0.05 WHITE 		8-97856-832-2 01 1 0507-0610 ●
341 16.549 SEAL; INSULATOR HOLE
EXC. MANUAL TILT CAB<RWZ> 16.570 OD=20 T=0.05 WHITE 		8-98059-421-0 01 1 0611- ● ● ● ● ●
341 16.549 SEAL; INSULATOR HOLE
16.570 OD=20 T=0.05 WHITE 		8-98059-421-0 01 1 0611- ●
364 16.545 FINISHER; ENG COVER SIDE
L=1000 		8-97892-743-0 01 1 0211-0501 ● ● ● ● ● ●
364 16.545 FINISHER; ENG COVER SIDE
L=1000 		8-97892-743-0 01 1 0502-0506 ● ● ● ● ●
364 16.545 FINISHER; ENG COVER SIDE
L=1000 		8-97892-743-0 01 1 0507- ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
