6-75 — MAT AND CARPET (#18320) — 167 parça

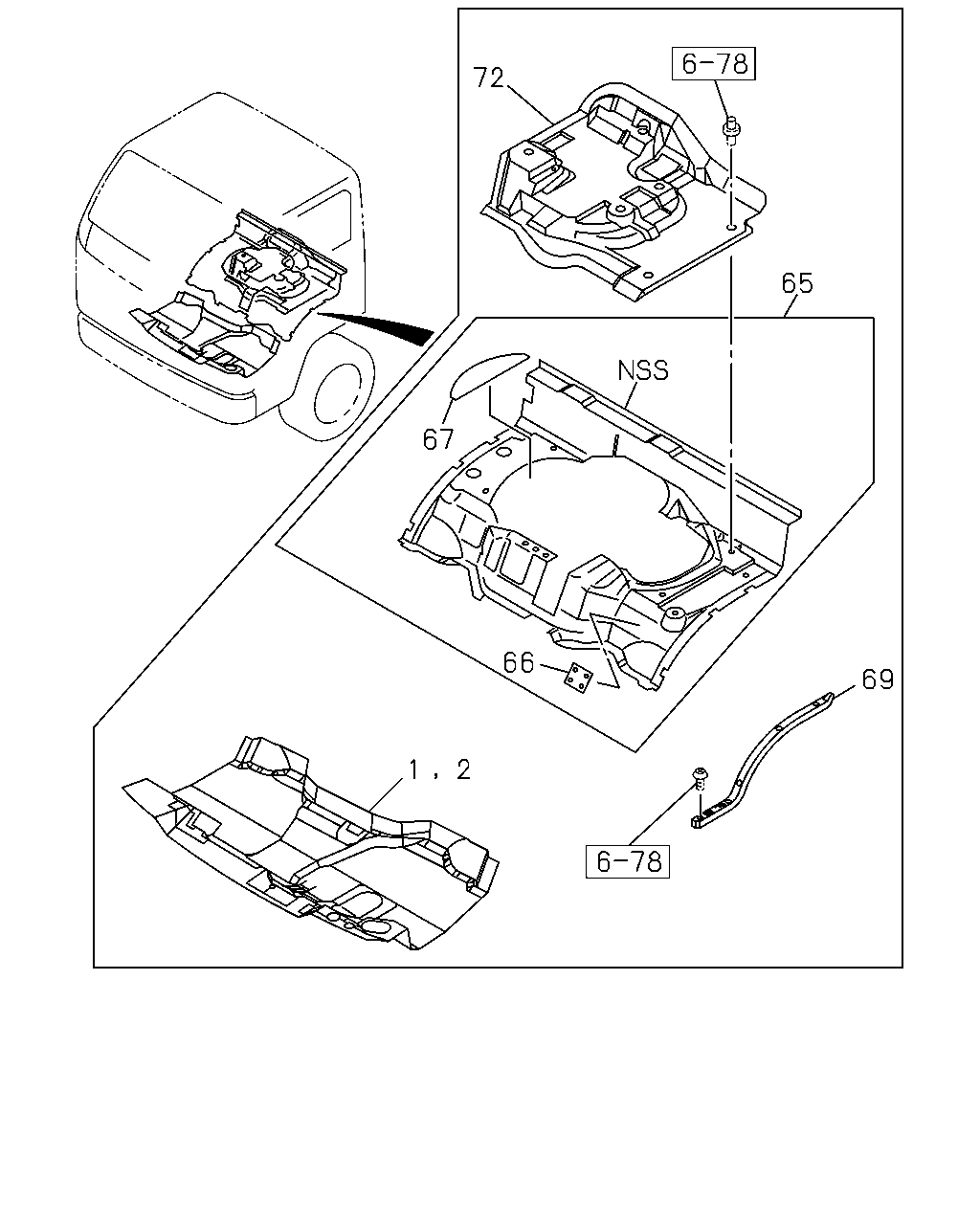

çizim 14190
72 65 67 66 69 2 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 16.850 CARPET; FLOOR,FRT
AUSTRALIA EQUIPMENT(RR3) CUSTOM PACKAGE<YM8> TRANSMISSION CONTROL-SMOOTHER(8GF) DARK GRAY 		8-97582-958-2 01 1 0507- ● ● ●
1 16.850 CARPET; FLOOR,FRT
AUSTRALIA EQUIPMENT(RR3) CUSTOM PACKAGE<YM8> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) DARK GRAY 		8-97582-957-2 01 1 0507- ● ● ●
1 16.850 CARPET; FLOOR,FRT
AUSTRALIA EQUIPMENT(RR3) CUSTOM PACKAGE<YM8> EXC. FLOOR REMOTE SHIFT<M11> BLUE 		8-97867-572-1 01 1 0211-0501 ● ● ●
1 16.850 CARPET; FLOOR,FRT
FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) CUSTOM PACKAGE<YM8> BLUE 		8-97867-571-1 01 1 0211-0501 ● ● ●
2 16.800 MAT; FLOOR
AIR CONDITIONER MANUAL CONT(C60) AUSTRALIA EQUIPMENT(RR3) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. CUSTOM PACKAGE<YM8> GRAY 		8-97404-551-2 01 1 0507- ● ● ● ● ●
2 16.800 MAT; FLOOR
AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AUSTRALIA EQUIPMENT(RR3) GRAY 		8-97404-549-2 01 1 0507- ● ● ● ●
2 16.800 MAT; FLOOR
AUSTRALIA EQUIPMENT(RR3) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR CONDITIONER MANUAL CONT(C60) ,CUSTOM PACKAGE<YM8> GRAY 		8-97404-550-2 01 1 0507- ● ● ● ● ●
2 16.800 MAT; FLOOR
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR CONDITIONER MANUAL CONT(C60) ,AUSTRALIA EQUIPMENT(RR3) GRAY 		8-97404-548-2 01 1 0507- ● ● ● ●
2 16.800 MAT; FLOOR
AIR CONDITIONER MANUAL CONT(C60) AUSTRALIA EQUIPMENT(RR3) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) GRAY 		8-97588-996-4 01 1 0507- ●
2 16.800 MAT; FLOOR
AIR CONDITIONER MANUAL CONT(C60) AUSTRALIA EQUIPMENT(RR3) EXC. CUSTOM PACKAGE<YM8>, TRANSMISSIONCONTROL-SMOOTHER(8GF) GRAY 		8-97588-996-4 01 1 0507- ● ● ●
2 16.800 MAT; FLOOR
AIR CONDITIONER MANUAL CONT(C60) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) GRAY 		8-97588-996-4 01 1 0507- ●
2 16.800 MAT; FLOOR
AUSTRALIA EQUIPMENT(RR3) EXC. AIR CONDITIONER MANUAL CONT(C60) ,TRANSMISSION CONTROL-SMOOTHER(8GF) GRAY 		8-97588-995-4 01 1 0507- ●
2 16.800 MAT; FLOOR
AUSTRALIA EQUIPMENT(RR3) EXC. AIR CONDITIONER MANUAL CONT(C60) ,CUSTOM PACKAGE<YM8>,TRANSMISSION CONTROL-SMOOTHER(8GF) GRAY 		8-97588-995-4 01 1 0507- ● ● ●
2 16.800 MAT; FLOOR
EXC. AIR CONDITIONER MANUAL CONT(C60) ,TRANSMISSION CONTROL-SMOOTHER(8GF) GRAY 		8-97588-995-4 01 1 0507- ●
2 16.800 MAT; FLOOR
AIR CONDITIONER MANUAL CONT(C60) EXC. AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97581-121-1 01 1 0211-0501 ● ● ● ● ●
2 16.800 MAT; FLOOR
AIR CONDITIONER MANUAL CONT(C60) DARK GRAY 		8-97581-121-1 01 1 0211-0501 ●
2 16.800 MAT; FLOOR
EXC. AIR CONDITIONER MANUAL CONT(C60) ,AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97581-120-1 01 1 0211-0501 ● ● ● ● ●
2 16.800 MAT; FLOOR
EXC. AIR CONDITIONER MANUAL CONT(C60) DARK GRAY 		8-97581-120-1 01 1 0211-0501 ●
2 16.800 MAT; FLOOR
AIR CONDITIONER MANUAL CONT(C60) AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97996-680-2 01 1 0211-0501 ● ●
2 16.800 MAT; FLOOR
AIR CONDITIONER MANUAL CONT(C60) AUSTRALIA EQUIPMENT(RR3) EXC. CUSTOM PACKAGE<YM8> DARK GRAY 		8-97996-680-2 01 1 0211-0501 ● ● ●
2 16.800 MAT; FLOOR
AIR CONDITIONER MANUAL CONT(C60) GRAY 		8-97588-992-3 01 1 0502-0506 ● ● ● ● ●
2 16.800 MAT; FLOOR
AIR CONDITIONER MANUAL CONT(C60) EXC. AUSTRALIA EQUIPMENT(RR3), TRANSMISSION CONTROL-SMOOTHER(8GF) GRAY 		8-97588-992-3 01 1 0507- ● ● ● ●
2 16.800 MAT; FLOOR
AIR CONDITIONER MANUAL CONT(C60) GRAY 		8-97588-992-3 01 1 0507- ●
2 16.800 MAT; FLOOR
AUSTRALIA EQUIPMENT(RR3) EXC. AIR CONDITIONER MANUAL CONT(C60) DARK GRAY 		8-97996-678-2 01 1 0211-0501 ● ●
2 16.800 MAT; FLOOR
AUSTRALIA EQUIPMENT(RR3) EXC. AIR CONDITIONER MANUAL CONT(C60) ,CUSTOM PACKAGE<YM8> DARK GRAY 		8-97996-678-2 01 1 0211-0501 ● ● ●
2 16.800 MAT; FLOOR
EXC. AIR CONDITIONER MANUAL CONT(C60) GRAY 		8-97588-991-3 01 1 0502-0506 ● ● ● ● ●
2 16.800 MAT; FLOOR
EXC. AIR CONDITIONER MANUAL CONT(C60) ,AUSTRALIA EQUIPMENT(RR3), TRANSMISSION CONTROL-SMOOTHER(8GF) GRAY 		8-97588-991-3 01 1 0507- ● ● ● ●
2 16.800 MAT; FLOOR
EXC. AIR CONDITIONER MANUAL CONT(C60) GRAY 		8-97588-991-3 01 1 0507- ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) AUSTRALIA EQUIPMENT(RR3) MANUAL TILT CAB<RWZ> EXC. CUSTOM PACKAGE<YM8> GRAY 		8-97589-110-1 01 1 0507- ● ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY), G.V.W. 8.0-8.5TON(RPZ) AUSTRALIA EQUIPMENT(RR3) MANUAL TILT CAB<RWZ> EXC. CUSTOM PACKAGE<YM8> GRAY 		8-97589-108-1 01 1 0507- ● ● ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) AUSTRALIA EQUIPMENT(RR3) MANUAL TILT CAB<RWZ> CUSTOM PACKAGE<YM8> DARK GRAY 		8-97582-959-1 01 1 0507- ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY), G.V.W. 8.0-8.5TON(RPZ) AUSTRALIA EQUIPMENT(RR3) MANUAL TILT CAB<RWZ> CUSTOM PACKAGE<YM8> DARK GRAY 		8-97589-101-2 01 1 0507- ● ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
GRAY 		8-97589-109-1 01 1 0507- ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) AUSTRALIA EQUIPMENT(RR3) MANUAL TILT CAB<RWZ> EXC. CUSTOM PACKAGE<YM8> DARK GRAY 		8-97996-760-0 01 1 0211-0501 ● ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY), G.V.W. 8.0-8.5TON(RPZ) AUSTRALIA EQUIPMENT(RR3) MANUAL TILT CAB<RWZ> EXC. CUSTOM PACKAGE<YM8> DARK GRAY 		8-97996-682-0 01 1 0211-0501 ● ● ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
MANUAL TILT CAB<RWZ> EXC. AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97996-687-0 01 1 0211-0501 ● ● ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
MANUAL TILT CAB<RWZ> DARK GRAY 		8-97996-687-0 01 1 0211-0501 ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
MANUAL TILT CAB<RWZ> GRAY 		8-97589-104-1 01 1 0502-0506 ● ● ● ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
MANUAL TILT CAB<RWZ> EXC. AUSTRALIA EQUIPMENT(RR3) GRAY 		8-97589-104-1 01 1 0507- ● ● ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
MANUAL TILT CAB<RWZ> GRAY 		8-97589-104-1 01 1 0507- ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) AUSTRALIA EQUIPMENT(RR3) MANUAL TILT CAB<RWZ> CUSTOM PACKAGE<YM8> BLUE 		8-97890-382-0 01 1 0211-0501 ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
G.V.W. 6.0-6.5TON(RPV) AUSTRALIA EQUIPMENT(RR3) MANUAL TILT CAB<RWZ> CUSTOM PACKAGE<YM8> BLUE 		8-97890-382-0 01 1 0211-0501 ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY), G.V.W. 8.0-8.5TON(RPZ) AUSTRALIA EQUIPMENT(RR3) MANUAL TILT CAB<RWZ> CUSTOM PACKAGE<YM8> BLUE 		8-97867-592-1 01 1 0211-0501 ● ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
EXC. AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97996-691-0 01 1 0211-0501 ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
G.V.W. 6.0-6.5TON(RPV) AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97996-762-0 01 1 0211-0501 ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
G.V.W. 7.5-8.0TON(RPY) AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97996-684-0 01 1 0211-0501 ●
66 16.549 HOOK; COVER
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY), G.V.W. 8.0-8.5TON(RPZ) AUSTRALIA EQUIPMENT(RR3) MANUAL TILT CAB<RWZ> CUSTOM PACKAGE<YM8> DARK GRAY 		8-97589-213-0 02 1 0507- ● ● ●
66 16.549 HOOK; COVER
MANUAL TILT CAB<RWZ> EXC. AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97997-582-0 02 1 0211-0501 ● ● ● ● ●
66 16.549 HOOK; COVER
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY), G.V.W. 8.0-8.5TON(RPZ) AUSTRALIA EQUIPMENT(RR3) MANUAL TILT CAB<RWZ> EXC. CUSTOM PACKAGE<YM8> DARK GRAY 		8-97997-582-0 02 1 0211-0501 ● ● ● ●
66 16.549 HOOK; COVER
DARK GRAY 		8-97997-582-0 02 1 0211-0501 ●
66 16.549 HOOK; COVER
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY), G.V.W. 8.0-8.5TON(RPZ) AUSTRALIA EQUIPMENT(RR3) MANUAL TILT CAB<RWZ> CUSTOM PACKAGE<YM8> BLUE 		8-97859-706-0 02 1 0211-0501 ● ● ●
66 16.549 HOOK; COVER
MANUAL TILT CAB<RWZ> GRAY 		8-97583-948-0 02 1 0502-0506 ● ● ● ● ●
66 16.549 HOOK; COVER
MANUAL TILT CAB<RWZ> EXC. AUSTRALIA EQUIPMENT(RR3) GRAY 		8-97583-948-0 02 1 0507- ● ● ● ●
66 16.549 HOOK; COVER
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY), G.V.W. 8.0-8.5TON(RPZ) AUSTRALIA EQUIPMENT(RR3) MANUAL TILT CAB<RWZ> EXC. CUSTOM PACKAGE<YM8> GRAY 		8-97583-948-0 02 1 0507- ● ● ●
66 16.549 HOOK; COVER
GRAY 		8-97583-948-0 02 1 0507- ●
66 16.549 HOOK; COVER
MANUAL TILT CAB<RWZ> GRAY 		8-97583-948-0 02 1 0507- ●
67 16.549 LID; COVER
GRAY 		8-97583-949-0 01 1 0507- ●
67 16.549 LID; COVER
EXC. AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97997-584-0 01 1 0211-0501 ●
67 16.549 LID; COVER
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97997-584-0 01 1 0211-0501 ●
69 16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
DARK GRAY 		8-97857-552-0 01 1 0211-0501 ● ● ● ● ● ●
69 16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY 		8-97582-229-1 01 1 0502-0506 ● ● ● ● ●
69 16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY 		8-97582-229-1 01 1 0507-0702 ● ● ● ● ● ●
69 16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY 		8-97409-479-0 01 1 0703- ● ● ● ● ● ●
69 16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
DARK GRAY 		8-97857-551-0 01 1 0211-0501 ● ● ● ● ● ●
69 16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY 		8-97582-228-1 01 1 0502-0506 ● ● ● ● ●
69 16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY 		8-97582-228-1 01 1 0507-0702 ● ● ● ● ● ●
69 16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY 		8-97409-478-0 01 1 0703- ● ● ● ● ● ●
72 16.800 MAT; SILENCER,ENG COVER
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) AUSTRALIA EQUIPMENT(RR3) GRAY 		8-97582-805-2 01 1 0507- ●
72 16.800 MAT; SILENCER,ENG COVER
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) AUSTRALIA EQUIPMENT(RR3) CUSTOM PACKAGE<YM8> GRAY 		8-97582-805-2 01 1 0507- ● ●
72 16.800 MAT; SILENCER,ENG COVER
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) AUSTRALIA EQUIPMENT(RR3) CUSTOM PACKAGE<YM8> DARK GRAY 		8-97582-962-2 01 1 0507- ● ●
72 16.800 MAT; SILENCER,ENG COVER
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY), G.V.W. 8.0-8.5TON(RPZ) AUSTRALIA EQUIPMENT(RR3) CUSTOM PACKAGE<YM8> DARK GRAY 		8-97589-117-1 01 1 0507- ● ● ●
72 16.800 MAT; SILENCER,ENG COVER
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY), G.V.W. 8.0-8.5TON(RPZ) AUSTRALIA EQUIPMENT(RR3) EXC. CUSTOM PACKAGE<YM8> DARK GRAY 		8-97996-731-0 01 1 0211-0501 ● ● ● ● ●
72 16.800 MAT; SILENCER,ENG COVER
EXC. AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97996-731-0 01 1 0211-0501 ● ● ● ● ●
72 16.800 MAT; SILENCER,ENG COVER
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) AUSTRALIA EQUIPMENT(RR3) EXC. CUSTOM PACKAGE<YM8> DARK GRAY 		8-97996-751-0 01 1 0211-0501 ● ● ● ●
72 16.800 MAT; SILENCER,ENG COVER
GRAY 		8-97589-118-1 01 1 0502-0506 ● ● ● ● ●
72 16.800 MAT; SILENCER,ENG COVER
EXC. AUSTRALIA EQUIPMENT(RR3) GRAY 		8-97589-118-1 01 1 0507- ● ● ● ●
72 16.800 MAT; SILENCER,ENG COVER
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY), G.V.W. 8.0-8.5TON(RPZ) AUSTRALIA EQUIPMENT(RR3) EXC. CUSTOM PACKAGE<YM8> GRAY 		8-97589-118-1 01 1 0507- ● ● ● ●
72 16.800 MAT; SILENCER,ENG COVER
GRAY 		8-97589-118-1 01 1 0507- ● ●
72 16.800 MAT; SILENCER,ENG COVER
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) AUSTRALIA EQUIPMENT(RR3) CUSTOM PACKAGE<YM8> BLUE 		8-97890-384-0 01 1 0211-0501 ●
72 16.800 MAT; SILENCER,ENG COVER
G.V.W. 6.0-6.5TON(RPV) AUSTRALIA EQUIPMENT(RR3) CUSTOM PACKAGE<YM8> BLUE 		8-97890-384-0 01 1 0211-0501 ●
72 16.800 MAT; SILENCER,ENG COVER
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY), G.V.W. 8.0-8.5TON(RPZ) AUSTRALIA EQUIPMENT(RR3) CUSTOM PACKAGE<YM8> BLUE 		8-97867-598-0 01 1 0211-0501 ● ● ●

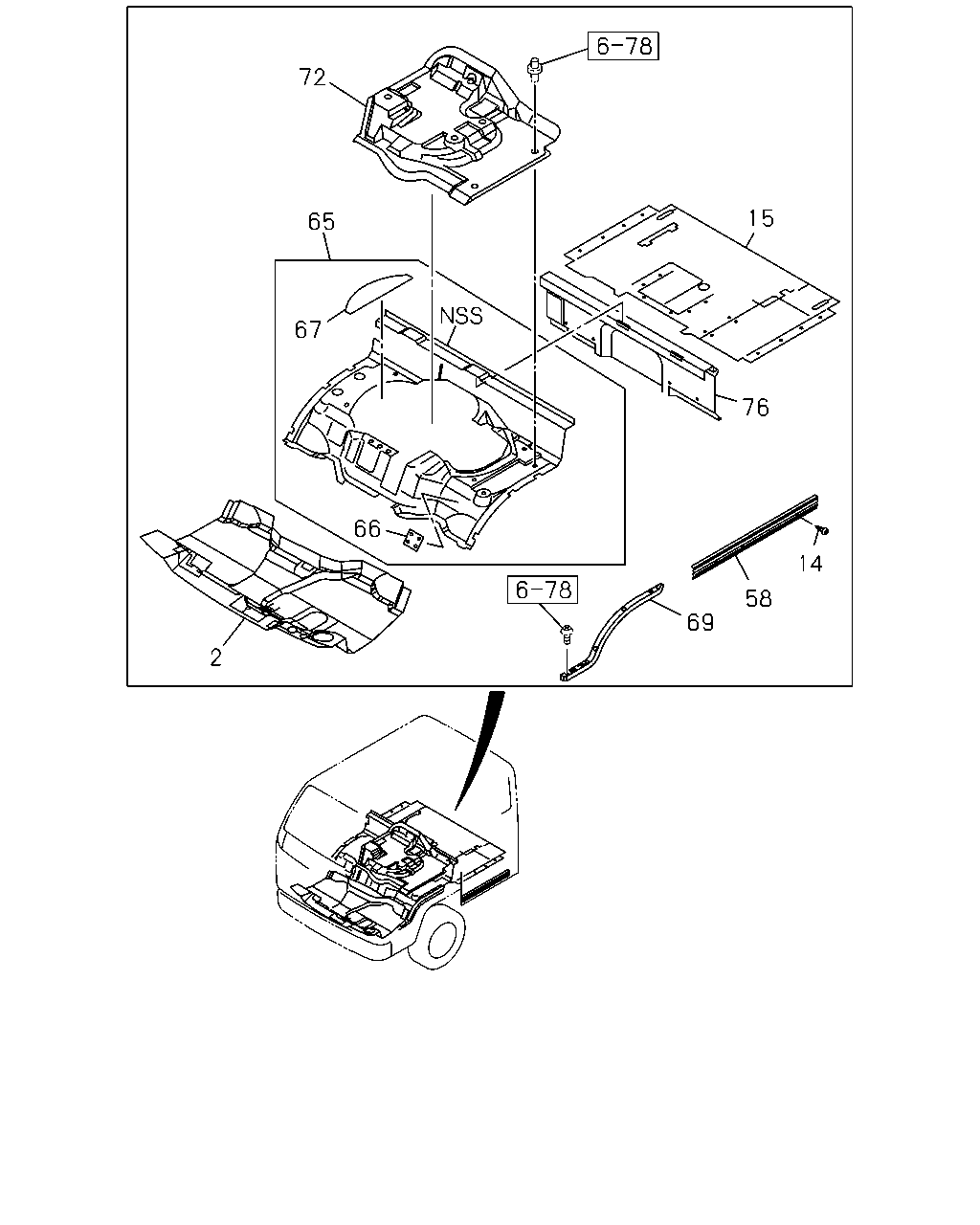

çizim 53540
72 15 65 67 76 66 14 58 69 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 16.800 MAT; FLOOR
AIR CONDITIONER MANUAL CONT(C60) AUSTRALIA EQUIPMENT(RR3) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. CUSTOM PACKAGE<YM8> GRAY 		8-97404-551-2 01 1 0507- ● ● ● ● ●
2 16.800 MAT; FLOOR
AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AUSTRALIA EQUIPMENT(RR3) GRAY 		8-97404-549-2 01 1 0507- ● ● ● ●
2 16.800 MAT; FLOOR
AUSTRALIA EQUIPMENT(RR3) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR CONDITIONER MANUAL CONT(C60) ,CUSTOM PACKAGE<YM8> GRAY 		8-97404-550-2 01 1 0507- ● ● ● ● ●
2 16.800 MAT; FLOOR
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR CONDITIONER MANUAL CONT(C60) ,AUSTRALIA EQUIPMENT(RR3) GRAY 		8-97404-548-2 01 1 0507- ● ● ● ●
2 16.800 MAT; FLOOR
AIR CONDITIONER MANUAL CONT(C60) AUSTRALIA EQUIPMENT(RR3) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) GRAY 		8-97588-996-4 01 1 0507- ●
2 16.800 MAT; FLOOR
AIR CONDITIONER MANUAL CONT(C60) AUSTRALIA EQUIPMENT(RR3) EXC. CUSTOM PACKAGE<YM8>, TRANSMISSIONCONTROL-SMOOTHER(8GF) GRAY 		8-97588-996-4 01 1 0507- ● ● ●
2 16.800 MAT; FLOOR
AIR CONDITIONER MANUAL CONT(C60) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) GRAY 		8-97588-996-4 01 1 0507- ●
2 16.800 MAT; FLOOR
AUSTRALIA EQUIPMENT(RR3) EXC. AIR CONDITIONER MANUAL CONT(C60) ,TRANSMISSION CONTROL-SMOOTHER(8GF) GRAY 		8-97588-995-4 01 1 0507- ●
2 16.800 MAT; FLOOR
AUSTRALIA EQUIPMENT(RR3) EXC. AIR CONDITIONER MANUAL CONT(C60) ,CUSTOM PACKAGE<YM8>,TRANSMISSION CONTROL-SMOOTHER(8GF) GRAY 		8-97588-995-4 01 1 0507- ● ● ●
2 16.800 MAT; FLOOR
EXC. AIR CONDITIONER MANUAL CONT(C60) ,TRANSMISSION CONTROL-SMOOTHER(8GF) GRAY 		8-97588-995-4 01 1 0507- ●
2 16.800 MAT; FLOOR
AIR CONDITIONER MANUAL CONT(C60) EXC. AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97581-121-1 01 1 0211-0501 ● ● ● ● ●
2 16.800 MAT; FLOOR
AIR CONDITIONER MANUAL CONT(C60) DARK GRAY 		8-97581-121-1 01 1 0211-0501 ●
2 16.800 MAT; FLOOR
EXC. AIR CONDITIONER MANUAL CONT(C60) ,AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97581-120-1 01 1 0211-0501 ● ● ● ● ●
2 16.800 MAT; FLOOR
EXC. AIR CONDITIONER MANUAL CONT(C60) DARK GRAY 		8-97581-120-1 01 1 0211-0501 ●
2 16.800 MAT; FLOOR
AIR CONDITIONER MANUAL CONT(C60) AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97996-680-2 01 1 0211-0501 ● ●
2 16.800 MAT; FLOOR
AIR CONDITIONER MANUAL CONT(C60) AUSTRALIA EQUIPMENT(RR3) EXC. CUSTOM PACKAGE<YM8> DARK GRAY 		8-97996-680-2 01 1 0211-0501 ● ● ●
2 16.800 MAT; FLOOR
AIR CONDITIONER MANUAL CONT(C60) GRAY 		8-97588-992-3 01 1 0502-0506 ● ● ● ● ●
2 16.800 MAT; FLOOR
AIR CONDITIONER MANUAL CONT(C60) EXC. AUSTRALIA EQUIPMENT(RR3), TRANSMISSION CONTROL-SMOOTHER(8GF) GRAY 		8-97588-992-3 01 1 0507- ● ● ● ●
2 16.800 MAT; FLOOR
AIR CONDITIONER MANUAL CONT(C60) GRAY 		8-97588-992-3 01 1 0507- ●
2 16.800 MAT; FLOOR
AUSTRALIA EQUIPMENT(RR3) EXC. AIR CONDITIONER MANUAL CONT(C60) DARK GRAY 		8-97996-678-2 01 1 0211-0501 ● ●
2 16.800 MAT; FLOOR
AUSTRALIA EQUIPMENT(RR3) EXC. AIR CONDITIONER MANUAL CONT(C60) ,CUSTOM PACKAGE<YM8> DARK GRAY 		8-97996-678-2 01 1 0211-0501 ● ● ●
2 16.800 MAT; FLOOR
EXC. AIR CONDITIONER MANUAL CONT(C60) GRAY 		8-97588-991-3 01 1 0502-0506 ● ● ● ● ●
2 16.800 MAT; FLOOR
EXC. AIR CONDITIONER MANUAL CONT(C60) ,AUSTRALIA EQUIPMENT(RR3), TRANSMISSION CONTROL-SMOOTHER(8GF) GRAY 		8-97588-991-3 01 1 0507- ● ● ● ●
2 16.800 MAT; FLOOR
EXC. AIR CONDITIONER MANUAL CONT(C60) GRAY 		8-97588-991-3 01 1 0507- ●
14 16.870 SCREW; PLATE
16.345 M5X16 W/PL WASHER TAPPING 		8-94279-123-0 08 1 0507-0612 ●
14 16.870 SCREW; PLATE
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 08 1 0701- ●
14 16.870 SCREW; PLATE
16.345 M5X16 W/PL WASHER TAPPING 		8-94279-123-0 08 1 0211-0501 ●
15 16.800 MAT; FLOOR REAR
GRAY 		8-97588-997-1 01 1 0507- ●
15 16.800 MAT; FLOOR REAR
FRAME STRAIGHT TYPE<7KJ> DARK GRAY 		8-97996-770-0 01 1 0211-0501 ●
58 08.153 PLATE; GUARD,RR FLOOR MAT 8-97081-344-3 02 1 0507- ●
58 08.153 PLATE; GUARD,RR FLOOR MAT 8-97081-344-3 02 1 0211-0501 ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) AUSTRALIA EQUIPMENT(RR3) MANUAL TILT CAB<RWZ> EXC. CUSTOM PACKAGE<YM8> GRAY 		8-97589-110-1 01 1 0507- ● ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY), G.V.W. 8.0-8.5TON(RPZ) AUSTRALIA EQUIPMENT(RR3) MANUAL TILT CAB<RWZ> EXC. CUSTOM PACKAGE<YM8> GRAY 		8-97589-108-1 01 1 0507- ● ● ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) AUSTRALIA EQUIPMENT(RR3) MANUAL TILT CAB<RWZ> CUSTOM PACKAGE<YM8> DARK GRAY 		8-97582-959-1 01 1 0507- ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY), G.V.W. 8.0-8.5TON(RPZ) AUSTRALIA EQUIPMENT(RR3) MANUAL TILT CAB<RWZ> CUSTOM PACKAGE<YM8> DARK GRAY 		8-97589-101-2 01 1 0507- ● ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
GRAY 		8-97589-109-1 01 1 0507- ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) AUSTRALIA EQUIPMENT(RR3) MANUAL TILT CAB<RWZ> EXC. CUSTOM PACKAGE<YM8> DARK GRAY 		8-97996-760-0 01 1 0211-0501 ● ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY), G.V.W. 8.0-8.5TON(RPZ) AUSTRALIA EQUIPMENT(RR3) MANUAL TILT CAB<RWZ> EXC. CUSTOM PACKAGE<YM8> DARK GRAY 		8-97996-682-0 01 1 0211-0501 ● ● ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
MANUAL TILT CAB<RWZ> EXC. AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97996-687-0 01 1 0211-0501 ● ● ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
MANUAL TILT CAB<RWZ> DARK GRAY 		8-97996-687-0 01 1 0211-0501 ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
MANUAL TILT CAB<RWZ> GRAY 		8-97589-104-1 01 1 0502-0506 ● ● ● ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
MANUAL TILT CAB<RWZ> EXC. AUSTRALIA EQUIPMENT(RR3) GRAY 		8-97589-104-1 01 1 0507- ● ● ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
MANUAL TILT CAB<RWZ> GRAY 		8-97589-104-1 01 1 0507- ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) AUSTRALIA EQUIPMENT(RR3) MANUAL TILT CAB<RWZ> CUSTOM PACKAGE<YM8> BLUE 		8-97890-382-0 01 1 0211-0501 ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
G.V.W. 6.0-6.5TON(RPV) AUSTRALIA EQUIPMENT(RR3) MANUAL TILT CAB<RWZ> CUSTOM PACKAGE<YM8> BLUE 		8-97890-382-0 01 1 0211-0501 ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY), G.V.W. 8.0-8.5TON(RPZ) AUSTRALIA EQUIPMENT(RR3) MANUAL TILT CAB<RWZ> CUSTOM PACKAGE<YM8> BLUE 		8-97867-592-1 01 1 0211-0501 ● ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
EXC. AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97996-691-0 01 1 0211-0501 ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
G.V.W. 6.0-6.5TON(RPV) AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97996-762-0 01 1 0211-0501 ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
G.V.W. 7.5-8.0TON(RPY) AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97996-684-0 01 1 0211-0501 ●
66 16.549 HOOK; COVER
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY), G.V.W. 8.0-8.5TON(RPZ) AUSTRALIA EQUIPMENT(RR3) MANUAL TILT CAB<RWZ> CUSTOM PACKAGE<YM8> DARK GRAY 		8-97589-213-0 02 1 0507- ● ● ●
66 16.549 HOOK; COVER
MANUAL TILT CAB<RWZ> EXC. AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97997-582-0 02 1 0211-0501 ● ● ● ● ●
66 16.549 HOOK; COVER
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY), G.V.W. 8.0-8.5TON(RPZ) AUSTRALIA EQUIPMENT(RR3) MANUAL TILT CAB<RWZ> EXC. CUSTOM PACKAGE<YM8> DARK GRAY 		8-97997-582-0 02 1 0211-0501 ● ● ● ●
66 16.549 HOOK; COVER
DARK GRAY 		8-97997-582-0 02 1 0211-0501 ●
66 16.549 HOOK; COVER
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY), G.V.W. 8.0-8.5TON(RPZ) AUSTRALIA EQUIPMENT(RR3) MANUAL TILT CAB<RWZ> CUSTOM PACKAGE<YM8> BLUE 		8-97859-706-0 02 1 0211-0501 ● ● ●
66 16.549 HOOK; COVER
MANUAL TILT CAB<RWZ> GRAY 		8-97583-948-0 02 1 0502-0506 ● ● ● ● ●
66 16.549 HOOK; COVER
MANUAL TILT CAB<RWZ> EXC. AUSTRALIA EQUIPMENT(RR3) GRAY 		8-97583-948-0 02 1 0507- ● ● ● ●
66 16.549 HOOK; COVER
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY), G.V.W. 8.0-8.5TON(RPZ) AUSTRALIA EQUIPMENT(RR3) MANUAL TILT CAB<RWZ> EXC. CUSTOM PACKAGE<YM8> GRAY 		8-97583-948-0 02 1 0507- ● ● ●
66 16.549 HOOK; COVER
GRAY 		8-97583-948-0 02 1 0507- ●
66 16.549 HOOK; COVER
MANUAL TILT CAB<RWZ> GRAY 		8-97583-948-0 02 1 0507- ●
67 16.549 LID; COVER
GRAY 		8-97583-949-0 01 1 0507- ●
67 16.549 LID; COVER
EXC. AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97997-584-0 01 1 0211-0501 ●
67 16.549 LID; COVER
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97997-584-0 01 1 0211-0501 ●
69 16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
DARK GRAY 		8-97857-552-0 01 1 0211-0501 ● ● ● ● ● ●
69 16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY 		8-97582-229-1 01 1 0502-0506 ● ● ● ● ●
69 16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY 		8-97582-229-1 01 1 0507-0702 ● ● ● ● ● ●
69 16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY 		8-97409-479-0 01 1 0703- ● ● ● ● ● ●
69 16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
DARK GRAY 		8-97857-551-0 01 1 0211-0501 ● ● ● ● ● ●
69 16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY 		8-97582-228-1 01 1 0502-0506 ● ● ● ● ●
69 16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY 		8-97582-228-1 01 1 0507-0702 ● ● ● ● ● ●
69 16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY 		8-97409-478-0 01 1 0703- ● ● ● ● ● ●
72 16.800 MAT; SILENCER,ENG COVER
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) AUSTRALIA EQUIPMENT(RR3) GRAY 		8-97582-805-2 01 1 0507- ●
72 16.800 MAT; SILENCER,ENG COVER
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) AUSTRALIA EQUIPMENT(RR3) CUSTOM PACKAGE<YM8> GRAY 		8-97582-805-2 01 1 0507- ● ●
72 16.800 MAT; SILENCER,ENG COVER
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) AUSTRALIA EQUIPMENT(RR3) CUSTOM PACKAGE<YM8> DARK GRAY 		8-97582-962-2 01 1 0507- ● ●
72 16.800 MAT; SILENCER,ENG COVER
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY), G.V.W. 8.0-8.5TON(RPZ) AUSTRALIA EQUIPMENT(RR3) CUSTOM PACKAGE<YM8> DARK GRAY 		8-97589-117-1 01 1 0507- ● ● ●
72 16.800 MAT; SILENCER,ENG COVER
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY), G.V.W. 8.0-8.5TON(RPZ) AUSTRALIA EQUIPMENT(RR3) EXC. CUSTOM PACKAGE<YM8> DARK GRAY 		8-97996-731-0 01 1 0211-0501 ● ● ● ● ●
72 16.800 MAT; SILENCER,ENG COVER
EXC. AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97996-731-0 01 1 0211-0501 ● ● ● ● ●
72 16.800 MAT; SILENCER,ENG COVER
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) AUSTRALIA EQUIPMENT(RR3) EXC. CUSTOM PACKAGE<YM8> DARK GRAY 		8-97996-751-0 01 1 0211-0501 ● ● ● ●
72 16.800 MAT; SILENCER,ENG COVER
GRAY 		8-97589-118-1 01 1 0502-0506 ● ● ● ● ●
72 16.800 MAT; SILENCER,ENG COVER
EXC. AUSTRALIA EQUIPMENT(RR3) GRAY 		8-97589-118-1 01 1 0507- ● ● ● ●
72 16.800 MAT; SILENCER,ENG COVER
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY), G.V.W. 8.0-8.5TON(RPZ) AUSTRALIA EQUIPMENT(RR3) EXC. CUSTOM PACKAGE<YM8> GRAY 		8-97589-118-1 01 1 0507- ● ● ● ●
72 16.800 MAT; SILENCER,ENG COVER
GRAY 		8-97589-118-1 01 1 0507- ● ●
72 16.800 MAT; SILENCER,ENG COVER
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) AUSTRALIA EQUIPMENT(RR3) CUSTOM PACKAGE<YM8> BLUE 		8-97890-384-0 01 1 0211-0501 ●
72 16.800 MAT; SILENCER,ENG COVER
G.V.W. 6.0-6.5TON(RPV) AUSTRALIA EQUIPMENT(RR3) CUSTOM PACKAGE<YM8> BLUE 		8-97890-384-0 01 1 0211-0501 ●
72 16.800 MAT; SILENCER,ENG COVER
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY), G.V.W. 8.0-8.5TON(RPZ) AUSTRALIA EQUIPMENT(RR3) CUSTOM PACKAGE<YM8> BLUE 		8-97867-598-0 01 1 0211-0501 ● ● ●
76 16.800 MAT; FLOOR,REINF,CAB RR MTG
GRAY 		8-97589-115-2 01 1 0507- ●
76 16.800 MAT; FLOOR,REINF,CAB RR MTG
FRAME STRAIGHT TYPE<7KJ> DARK GRAY 		8-97985-069-0 01 1 0211-0501 ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
