◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50948 - NPR/NQR RHDEXC.EURO4 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-60 - ROOF PANEL ▶
6-60 — ROOF PANEL (#18316) — 111 parça

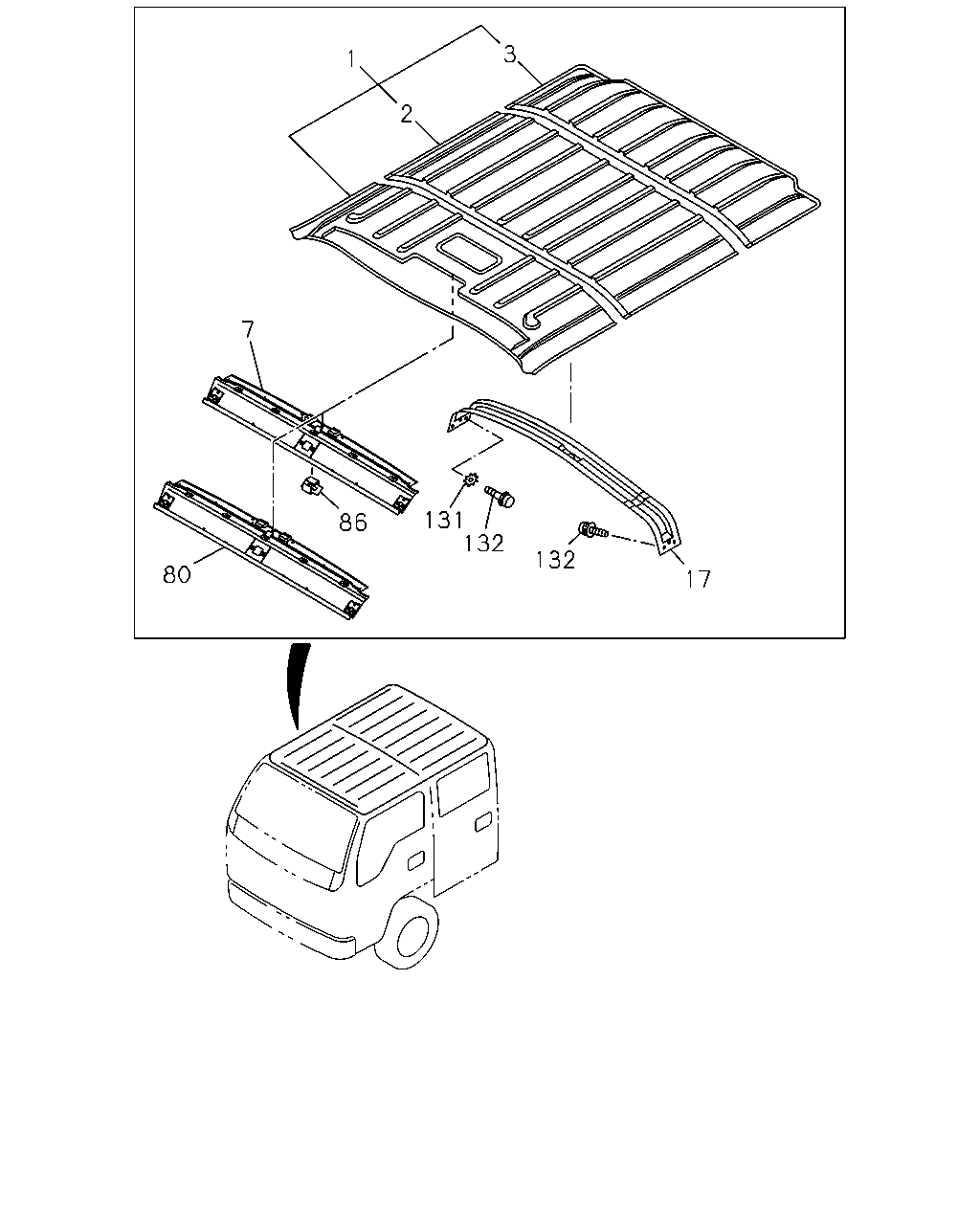

çizim 52679
3 1 2 7 131 132 86 132 80 17
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 16.585 PANEL; ROOF
ROOF VENTILATOR<C55> AUSTRALIA EQUIPMENT(RR3) 		8-97898-995-1 01 1 0507-0709 ● ● ● ●
1 16.585 PANEL; ROOF
AUSTRALIA EQUIPMENT(RR3) ROOF VENTILATOR<C55> 		8-97898-995-1 01 1 0710- ● ● ● ●
1 16.585 PANEL; ROOF
AUSTRALIA EQUIPMENT(RR3) TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> 		8-97898-997-2 01 1 0507- ● ● ● ●
1 16.585 PANEL; ROOF
AUSTRALIA EQUIPMENT(RR3) EXC. ROOF VENTILATOR<C55>,TRAY ROOF HEAD<7EJ> 		8-97898-996-2 01 1 0507- ● ● ● ●
1 16.585 PANEL; ROOF
ROOF VENTILATOR<C55> 		8-97898-998-4 01 1 0507- ●
1 16.585 PANEL; ROOF
TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> 		8-97899-001-4 01 1 0507- ●
1 16.585 PANEL; ROOF
EXC. ROOF VENTILATOR<C55>,TRAY ROOF HEAD<7EJ> 		8-97898-999-4 01 1 0507- ●
1 16.585 PANEL; ROOF
AUSTRALIA EQUIPMENT(RR3) EXC. ROOF VENTILATOR<C55>,TRAY ROOF HEAD<7EJ> 		8-97898-996-2 01 1 0211-0501 ● ● ● ●
1 16.585 PANEL; ROOF
AUSTRALIA EQUIPMENT(RR3) TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> 		8-97898-997-2 01 1 0211-0501 ● ● ● ●
1 16.585 PANEL; ROOF
IDENTIFICATION LABEL FOR KD<6UT> EXC. ROOF VENTILATOR<C55>,AUSTRALIA EQUIPMENT(RR3),TRAY ROOF HEAD<7EJ> 		8-97851-402-1 01 1 0211-0501 ● ● ● ●
1 16.585 PANEL; ROOF
IDENTIFICATION LABEL FOR KD<6UT> EXC. ROOF VENTILATOR<C55>,TRAY ROOF HEAD<7EJ> 		8-97851-402-1 01 1 0211-0501 ●
1 16.585 PANEL; ROOF
IDENTIFICATION LABEL FOR KD<6UT> EXC. ROOF VENTILATOR<C55>,TRAY ROOF HEAD<7EJ> 		8-97851-402-1 01 1 0502-0506 ● ● ● ● ●
1 16.585 PANEL; ROOF
EXC. ROOF VENTILATOR<C55>,AUSTRALIA EQUIPMENT(RR3),TRAY ROOF HEAD<7EJ> 		8-97851-402-1 01 1 0507- ● ● ● ● ●
1 16.585 PANEL; ROOF
IDENTIFICATION LABEL FOR KD<6UT> TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55>,AUSTRALIA EQUIPMENT(RR3) 		8-97851-488-1 01 1 0211-0501 ● ● ● ●
1 16.585 PANEL; ROOF
IDENTIFICATION LABEL FOR KD<6UT> TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> 		8-97851-488-1 01 1 0211-0501 ●
1 16.585 PANEL; ROOF
IDENTIFICATION LABEL FOR KD<6UT> TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> 		8-97851-488-1 01 1 0502-0506 ● ● ● ● ●
1 16.585 PANEL; ROOF
TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55>,AUSTRALIA EQUIPMENT(RR3) 		8-97851-488-1 01 1 0507- ● ● ● ● ●
1 16.585 PANEL; ROOF
ROOF VENTILATOR<C55> AUSTRALIA EQUIPMENT(RR3) 		8-97898-995-1 01 1 0211-0501 ● ● ● ●
1 16.585 PANEL; ROOF
ROOF VENTILATOR<C55> EXC. AUSTRALIA EQUIPMENT(RR3), IDENTIFICATION LABEL FOR KD<6UT> 		8-97892-869-0 01 1 0211-0501 ● ● ● ●
1 16.585 PANEL; ROOF
ROOF VENTILATOR<C55> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97892-869-0 01 1 0211-0501 ●
1 16.585 PANEL; ROOF
ROOF VENTILATOR<C55> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97892-869-0 01 1 0502-0506 ● ● ● ● ●
1 16.585 PANEL; ROOF
ROOF VENTILATOR<C55> EXC. AUSTRALIA EQUIPMENT(RR3), IDENTIFICATION LABEL FOR KD<6UT> 		8-97892-869-0 01 1 0507- ● ● ● ● ●
1 16.585 PANEL; ROOF
ROOF VENTILATOR<C55> IDENTIFICATION LABEL FOR KD<6UT> EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97851-098-1 01 1 0211-0501 ● ● ● ●
1 16.585 PANEL; ROOF
ROOF VENTILATOR<C55> IDENTIFICATION LABEL FOR KD<6UT> 		8-97851-098-1 01 1 0211-0501 ●
1 16.585 PANEL; ROOF
ROOF VENTILATOR<C55> IDENTIFICATION LABEL FOR KD<6UT> 		8-97851-098-1 01 1 0502-0506 ● ● ● ● ●
1 16.585 PANEL; ROOF
ROOF VENTILATOR<C55> IDENTIFICATION LABEL FOR KD<6UT> EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97851-098-1 01 1 0507- ● ● ● ● ●
1 16.585 PANEL; ROOF
EXC. ROOF VENTILATOR<C55>,AUSTRALIA EQUIPMENT(RR3),IDENTIFICATION LABEL FOR KD<6UT>,TRAY ROOF HEAD<7EJ> 		8-97892-872-0 01 1 0211-0501 ● ● ● ●
1 16.585 PANEL; ROOF
EXC. ROOF VENTILATOR<C55>, IDENTIFICATION LABEL FOR KD<6UT>,TRAY ROOF HEAD<7EJ> 		8-97892-872-0 01 1 0211-0501 ●
1 16.585 PANEL; ROOF
EXC. ROOF VENTILATOR<C55>, IDENTIFICATION LABEL FOR KD<6UT>,TRAY ROOF HEAD<7EJ> 		8-97892-872-0 01 1 0502-0506 ● ● ● ● ●
1 16.585 PANEL; ROOF
EXC. ROOF VENTILATOR<C55>,AUSTRALIA EQUIPMENT(RR3),IDENTIFICATION LABEL FOR KD<6UT>,TRAY ROOF HEAD<7EJ> 		8-97892-872-0 01 1 0507- ● ● ● ● ●
1 16.585 PANEL; ROOF
TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55>,AUSTRALIA EQUIPMENT(RR3),IDENTIFICATION LABEL FO R KD<6UT> 		8-97892-870-0 01 1 0211-0501 ● ● ● ●
1 16.585 PANEL; ROOF
TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55>, IDENTIFICATION LABEL FOR KD<6UT> 		8-97892-870-0 01 1 0211-0501 ●
1 16.585 PANEL; ROOF
TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55>, IDENTIFICATION LABEL FOR KD<6UT> 		8-97892-870-0 01 1 0502-0506 ● ● ● ● ●
1 16.585 PANEL; ROOF
TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55>,AUSTRALIA EQUIPMENT(RR3),IDENTIFICATION LABEL FO R KD<6UT> 		8-97892-870-0 01 1 0507- ● ● ● ● ●
1 16.585 PANEL; ROOF
AUSTRALIA EQUIPMENT(RR3) EXC. ROOF VENTILATOR<C55>,TRAY ROOF HEAD<7EJ> 		8-97898-999-2 01 1 0211-0501 ●
1 16.585 PANEL; ROOF
AUSTRALIA EQUIPMENT(RR3) TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> 		8-97899-001-2 01 1 0211-0501 ●
1 16.585 PANEL; ROOF
IDENTIFICATION LABEL FOR KD<6UT> EXC. ROOF VENTILATOR<C55>,AUSTRALIA EQUIPMENT(RR3),TRAY ROOF HEAD<7EJ> 		8-97851-403-6 01 1 0211-0501 ●
1 16.585 PANEL; ROOF
IDENTIFICATION LABEL FOR KD<6UT> TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55>,AUSTRALIA EQUIPMENT(RR3) 		8-97851-489-6 01 1 0211-0501 ●
1 16.585 PANEL; ROOF
ROOF VENTILATOR<C55> AUSTRALIA EQUIPMENT(RR3) 		8-97898-998-2 01 1 0211-0501 ●
1 16.585 PANEL; ROOF
ROOF VENTILATOR<C55> EXC. AUSTRALIA EQUIPMENT(RR3), IDENTIFICATION LABEL FOR KD<6UT> 		8-97892-931-0 01 1 0211-0501 ●
1 16.585 PANEL; ROOF
ROOF VENTILATOR<C55> IDENTIFICATION LABEL FOR KD<6UT> EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97851-258-8 01 1 0211-0501 ●
1 16.585 PANEL; ROOF
EXC. ROOF VENTILATOR<C55>,AUSTRALIA EQUIPMENT(RR3),IDENTIFICATION LABEL FOR KD<6UT>,TRAY ROOF HEAD<7EJ> 		8-97892-935-0 01 1 0211-0501 ●
1 16.585 PANEL; ROOF
TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55>,AUSTRALIA EQUIPMENT(RR3),IDENTIFICATION LABEL FO R KD<6UT> 		8-97892-933-0 01 1 0211-0501 ●
2 16.585 PANEL; ROOF,CENTER 8-97851-256-3 01 1 0507- ●
2 16.585 PANEL; ROOF,CENTER 8-97851-256-2 01 1 0211-0501 ●
3 16.585 PANEL; ROOF,RR 8-97851-257-5 01 1 0507- ●
3 16.585 PANEL; ROOF,RR
AUSTRALIA EQUIPMENT(RR3) 		8-97851-257-5 01 1 0211-0501 ●
3 16.585 PANEL; ROOF,RR
IDENTIFICATION LABEL FOR KD<6UT> EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97851-257-5 01 1 0211-0501 ●
3 16.585 PANEL; ROOF,RR
EXC. AUSTRALIA EQUIPMENT(RR3), IDENTIFICATION LABEL FOR KD<6UT> 		8-97892-943-0 01 1 0211-0501 ●
7 16.585 PANEL; FRT WINDSHIELD UPR 8-97892-143-1 01 1 0211-0405 ● ● ● ● ● ●
17 16.570 REINFORCEMENT; ROOF PNL CENTER 8-97899-081-0 01 1 0507- ●
17 16.570 REINFORCEMENT; ROOF PNL CENTER
ROOM LAMP W/ALL DOORS SW(SDF) 		8-97899-081-0 01 1 0211-0501 ●
17 16.570 REINFORCEMENT; ROOF PNL CENTER
EXC. ROOM LAMP W/ALL DOORS SW(SDF) 		8-97853-626-3 01 1 0211-0501 ●
80 16.585 PANEL; HEADER,ROOF 8-97583-507-0 01 1 0406-0501 ● ● ● ● ● ●
80 16.585 PANEL; HEADER,ROOF 8-97583-507-0 01 1 0502-0506 ● ● ● ● ●
80 16.585 PANEL; HEADER,ROOF 8-97583-507-0 01 1 0507- ● ● ● ● ● ●
86 16.585 NUT; ROOF
16.069 M5 		8-94279-075-1 01 1 0211-0405 ● ● ● ● ● ●
131 16.585 WASHER; LOCK,ROOF REINF
00.002 ID=6.4 TOOTH LK INT-EXT 		9-09152-206-0 01 1 0507-0603 ●
131 16.585 WASHER; LOCK,ROOF REINF
ID=6.4 TOOTH LK INT-EXT 		0-91542-206-0 01 1 0604- ●
131 16.585 WASHER; LOCK,ROOF REINF
00.002 ID=6.4 TOOTH LK INT-EXT 		9-09152-206-0 01 1 0211-0501 ●
132 16.585 FASTENER; HEADER SHELF
16.742 		8-97892-737-0 04 1 0507-0612 ●
132 16.585 FASTENER; HEADER SHELF
16.742 M6X16 W/TORQUES 		8-98064-273-0 04 1 0701- ●
132 16.585 FASTENER; HEADER SHELF
16.742 		8-97892-737-0 04 1 0211-0501 ●
çizim 53632
1 86 7 80
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 16.585 PANEL; ROOF
ROOF VENTILATOR<C55> AUSTRALIA EQUIPMENT(RR3) 		8-97898-995-1 01 1 0507-0709 ● ● ● ●
1 16.585 PANEL; ROOF
AUSTRALIA EQUIPMENT(RR3) ROOF VENTILATOR<C55> 		8-97898-995-1 01 1 0710- ● ● ● ●
1 16.585 PANEL; ROOF
AUSTRALIA EQUIPMENT(RR3) TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> 		8-97898-997-2 01 1 0507- ● ● ● ●
1 16.585 PANEL; ROOF
AUSTRALIA EQUIPMENT(RR3) EXC. ROOF VENTILATOR<C55>,TRAY ROOF HEAD<7EJ> 		8-97898-996-2 01 1 0507- ● ● ● ●
1 16.585 PANEL; ROOF
ROOF VENTILATOR<C55> 		8-97898-998-4 01 1 0507- ●
1 16.585 PANEL; ROOF
TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> 		8-97899-001-4 01 1 0507- ●
1 16.585 PANEL; ROOF
EXC. ROOF VENTILATOR<C55>,TRAY ROOF HEAD<7EJ> 		8-97898-999-4 01 1 0507- ●
1 16.585 PANEL; ROOF
AUSTRALIA EQUIPMENT(RR3) EXC. ROOF VENTILATOR<C55>,TRAY ROOF HEAD<7EJ> 		8-97898-996-2 01 1 0211-0501 ● ● ● ●
1 16.585 PANEL; ROOF
AUSTRALIA EQUIPMENT(RR3) TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> 		8-97898-997-2 01 1 0211-0501 ● ● ● ●
1 16.585 PANEL; ROOF
IDENTIFICATION LABEL FOR KD<6UT> EXC. ROOF VENTILATOR<C55>,AUSTRALIA EQUIPMENT(RR3),TRAY ROOF HEAD<7EJ> 		8-97851-402-1 01 1 0211-0501 ● ● ● ●
1 16.585 PANEL; ROOF
IDENTIFICATION LABEL FOR KD<6UT> EXC. ROOF VENTILATOR<C55>,TRAY ROOF HEAD<7EJ> 		8-97851-402-1 01 1 0211-0501 ●
1 16.585 PANEL; ROOF
IDENTIFICATION LABEL FOR KD<6UT> EXC. ROOF VENTILATOR<C55>,TRAY ROOF HEAD<7EJ> 		8-97851-402-1 01 1 0502-0506 ● ● ● ● ●
1 16.585 PANEL; ROOF
EXC. ROOF VENTILATOR<C55>,AUSTRALIA EQUIPMENT(RR3),TRAY ROOF HEAD<7EJ> 		8-97851-402-1 01 1 0507- ● ● ● ● ●
1 16.585 PANEL; ROOF
IDENTIFICATION LABEL FOR KD<6UT> TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55>,AUSTRALIA EQUIPMENT(RR3) 		8-97851-488-1 01 1 0211-0501 ● ● ● ●
1 16.585 PANEL; ROOF
IDENTIFICATION LABEL FOR KD<6UT> TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> 		8-97851-488-1 01 1 0211-0501 ●
1 16.585 PANEL; ROOF
IDENTIFICATION LABEL FOR KD<6UT> TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> 		8-97851-488-1 01 1 0502-0506 ● ● ● ● ●
1 16.585 PANEL; ROOF
TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55>,AUSTRALIA EQUIPMENT(RR3) 		8-97851-488-1 01 1 0507- ● ● ● ● ●
1 16.585 PANEL; ROOF
ROOF VENTILATOR<C55> AUSTRALIA EQUIPMENT(RR3) 		8-97898-995-1 01 1 0211-0501 ● ● ● ●
1 16.585 PANEL; ROOF
ROOF VENTILATOR<C55> EXC. AUSTRALIA EQUIPMENT(RR3), IDENTIFICATION LABEL FOR KD<6UT> 		8-97892-869-0 01 1 0211-0501 ● ● ● ●
1 16.585 PANEL; ROOF
ROOF VENTILATOR<C55> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97892-869-0 01 1 0211-0501 ●
1 16.585 PANEL; ROOF
ROOF VENTILATOR<C55> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97892-869-0 01 1 0502-0506 ● ● ● ● ●
1 16.585 PANEL; ROOF
ROOF VENTILATOR<C55> EXC. AUSTRALIA EQUIPMENT(RR3), IDENTIFICATION LABEL FOR KD<6UT> 		8-97892-869-0 01 1 0507- ● ● ● ● ●
1 16.585 PANEL; ROOF
ROOF VENTILATOR<C55> IDENTIFICATION LABEL FOR KD<6UT> EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97851-098-1 01 1 0211-0501 ● ● ● ●
1 16.585 PANEL; ROOF
ROOF VENTILATOR<C55> IDENTIFICATION LABEL FOR KD<6UT> 		8-97851-098-1 01 1 0211-0501 ●
1 16.585 PANEL; ROOF
ROOF VENTILATOR<C55> IDENTIFICATION LABEL FOR KD<6UT> 		8-97851-098-1 01 1 0502-0506 ● ● ● ● ●
1 16.585 PANEL; ROOF
ROOF VENTILATOR<C55> IDENTIFICATION LABEL FOR KD<6UT> EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97851-098-1 01 1 0507- ● ● ● ● ●
1 16.585 PANEL; ROOF
EXC. ROOF VENTILATOR<C55>,AUSTRALIA EQUIPMENT(RR3),IDENTIFICATION LABEL FOR KD<6UT>,TRAY ROOF HEAD<7EJ> 		8-97892-872-0 01 1 0211-0501 ● ● ● ●
1 16.585 PANEL; ROOF
EXC. ROOF VENTILATOR<C55>, IDENTIFICATION LABEL FOR KD<6UT>,TRAY ROOF HEAD<7EJ> 		8-97892-872-0 01 1 0211-0501 ●
1 16.585 PANEL; ROOF
EXC. ROOF VENTILATOR<C55>, IDENTIFICATION LABEL FOR KD<6UT>,TRAY ROOF HEAD<7EJ> 		8-97892-872-0 01 1 0502-0506 ● ● ● ● ●
1 16.585 PANEL; ROOF
EXC. ROOF VENTILATOR<C55>,AUSTRALIA EQUIPMENT(RR3),IDENTIFICATION LABEL FOR KD<6UT>,TRAY ROOF HEAD<7EJ> 		8-97892-872-0 01 1 0507- ● ● ● ● ●
1 16.585 PANEL; ROOF
TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55>,AUSTRALIA EQUIPMENT(RR3),IDENTIFICATION LABEL FO R KD<6UT> 		8-97892-870-0 01 1 0211-0501 ● ● ● ●
1 16.585 PANEL; ROOF
TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55>, IDENTIFICATION LABEL FOR KD<6UT> 		8-97892-870-0 01 1 0211-0501 ●
1 16.585 PANEL; ROOF
TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55>, IDENTIFICATION LABEL FOR KD<6UT> 		8-97892-870-0 01 1 0502-0506 ● ● ● ● ●
1 16.585 PANEL; ROOF
TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55>,AUSTRALIA EQUIPMENT(RR3),IDENTIFICATION LABEL FO R KD<6UT> 		8-97892-870-0 01 1 0507- ● ● ● ● ●
1 16.585 PANEL; ROOF
AUSTRALIA EQUIPMENT(RR3) EXC. ROOF VENTILATOR<C55>,TRAY ROOF HEAD<7EJ> 		8-97898-999-2 01 1 0211-0501 ●
1 16.585 PANEL; ROOF
AUSTRALIA EQUIPMENT(RR3) TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> 		8-97899-001-2 01 1 0211-0501 ●
1 16.585 PANEL; ROOF
IDENTIFICATION LABEL FOR KD<6UT> EXC. ROOF VENTILATOR<C55>,AUSTRALIA EQUIPMENT(RR3),TRAY ROOF HEAD<7EJ> 		8-97851-403-6 01 1 0211-0501 ●
1 16.585 PANEL; ROOF
IDENTIFICATION LABEL FOR KD<6UT> TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55>,AUSTRALIA EQUIPMENT(RR3) 		8-97851-489-6 01 1 0211-0501 ●
1 16.585 PANEL; ROOF
ROOF VENTILATOR<C55> AUSTRALIA EQUIPMENT(RR3) 		8-97898-998-2 01 1 0211-0501 ●
1 16.585 PANEL; ROOF
ROOF VENTILATOR<C55> EXC. AUSTRALIA EQUIPMENT(RR3), IDENTIFICATION LABEL FOR KD<6UT> 		8-97892-931-0 01 1 0211-0501 ●
1 16.585 PANEL; ROOF
ROOF VENTILATOR<C55> IDENTIFICATION LABEL FOR KD<6UT> EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97851-258-8 01 1 0211-0501 ●
1 16.585 PANEL; ROOF
EXC. ROOF VENTILATOR<C55>,AUSTRALIA EQUIPMENT(RR3),IDENTIFICATION LABEL FOR KD<6UT>,TRAY ROOF HEAD<7EJ> 		8-97892-935-0 01 1 0211-0501 ●
1 16.585 PANEL; ROOF
TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55>,AUSTRALIA EQUIPMENT(RR3),IDENTIFICATION LABEL FO R KD<6UT> 		8-97892-933-0 01 1 0211-0501 ●
7 16.585 PANEL; FRT WINDSHIELD UPR 8-97892-143-1 01 1 0211-0405 ● ● ● ● ● ●
80 16.585 PANEL; HEADER,ROOF 8-97583-507-0 01 1 0406-0501 ● ● ● ● ● ●
80 16.585 PANEL; HEADER,ROOF 8-97583-507-0 01 1 0502-0506 ● ● ● ● ●
80 16.585 PANEL; HEADER,ROOF 8-97583-507-0 01 1 0507- ● ● ● ● ● ●
86 16.585 NUT; ROOF
16.069 M5 		8-94279-075-1 01 1 0211-0405 ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
