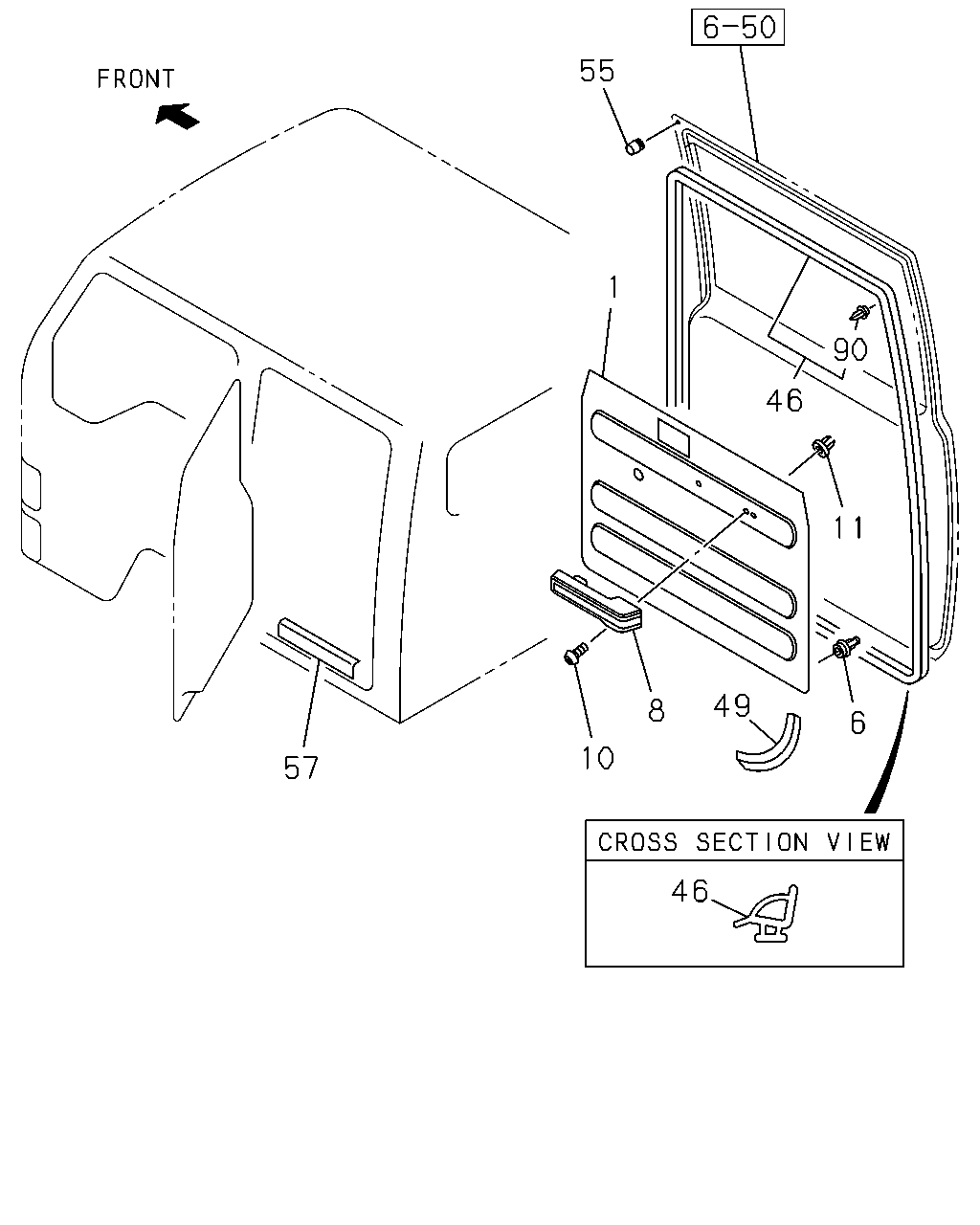

6-55 — REAR DOOR TRIM (#18315) — 29 parça

55 1 90 46 11 49 8 6 10 57 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	16.165 PAD; TRIM,RR DOOR GRAY	8-97582-315-6	01	1	0507-
1	16.165 PAD; TRIM,RR DOOR GRAY	8-97582-316-6	01	1	0507-
1	16.165 PAD; TRIM,RR DOOR DARK GRAY	8-97867-203-5	01	1	0211-0501
1	16.165 PAD; TRIM,RR DOOR DARK GRAY	8-97867-202-5	01	1	0211-0501
6	16.165 CLIP; DOOR PAD 16.166	8-94226-492-0	22	1	0507-
6	16.165 CLIP; DOOR PAD 16.166	8-94226-492-0	22	1	0211-0501
8	16.155 REST; ARM,RR DOOR GRAY	8-97582-327-1	01	1	0507-0708
8	16.155 REST; ARM,RR DOOR GRAY	8-97405-328-2	01	1	0709-
8	16.155 REST; ARM,RR DOOR GRAY	8-97582-328-1	01	1	0507-0708
8	16.155 REST; ARM,RR DOOR GRAY	8-97405-329-2	01	1	0709-
8	16.155 REST; ARM,RR DOOR DARK GRAY	8-97867-207-0	01	1	0211-0501
8	16.155 REST; ARM,RR DOOR DARK GRAY	8-97867-206-0	01	1	0211-0501
10	16.155 SCREW; ARM REST 02.483 M6X30 TAPPING	9-07066-630-0	04	1	0507-0603
10	16.155 SCREW; ARM REST M6X30 TAPPING	0-71040-630-0	04	1	0604-0612
10	16.155 SCREW; ARM REST M6X30 TAPPING	8-98059-872-0	04	1	0701-
10	16.155 SCREW; ARM REST 02.483 M6X30 TAPPING	9-07066-630-0	04	1	0211-0501
11	16.155 NUT; ARM REST 14.686 SCREW GROMMET	8-06698-938-1	04	1	0507-
11	16.155 NUT; ARM REST 14.686 SCREW GROMMET	8-06698-938-1	04	1	0211-0501
46	16.225 SEAL; DOOR,UPR,CAB SIDE	8-97852-364-9	02	1	0507-0604
46	16.225 SEAL; DOOR,UPR,CAB SIDE	8-98039-384-1	02	1	0605-
46	16.225 SEAL; DOOR,UPR,CAB SIDE	8-97852-364-8	02	1	0211-0501
49	16.165 SEAL; DOOR	8-97583-053-0	02	1	0507-
49	16.165 SEAL; DOOR	8-97583-053-0	02	1	0308-0501
55	16.165 RUBBER; STOPPER,DOOR INNER 16.225	8-97852-022-1	04	1	0507-
55	16.165 RUBBER; STOPPER,DOOR INNER 16.225	8-97852-022-1	04	1	0211-0501
57	16.445 PROTECTOR; STEP RR	8-97852-871-0	02	1	0507-0511
57	16.445 PROTECTOR; STEP RR	8-98027-817-0	02	1	0512-
57	16.445 PROTECTOR; STEP RR	8-97852-871-0	02	1	0211-0501
90	16.165 CLIP; SEAL	8-98070-193-0	66	1	0612-
