6-47 — MUD GUARD AND INSULATOR (#18311) — 434 parça

112 112 92 145 24 24 24 24 219 76 5 145 66 66 5 5 76 5 66 34 33 33 33 66 34 33 33 219 285 285 285 285 285 3 3 3 3 3 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F

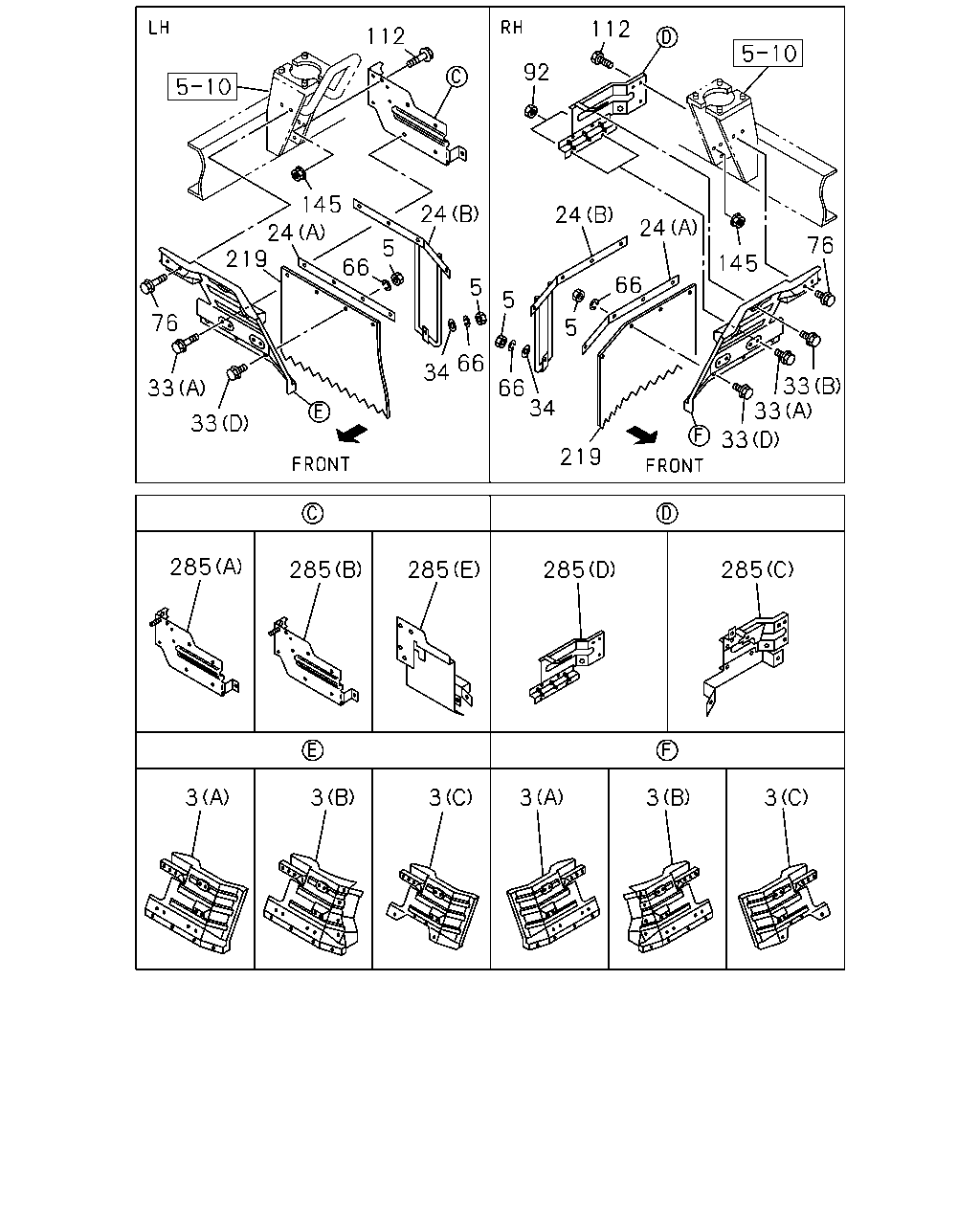

3	08.153 GUARD; MUD,RR (B)	8-97081-734-5	01	1	0507-	●
3	08.153 GUARD; MUD,RR (B)	8-97366-989-1	01	1	0507-	●
3	08.153 GUARD; MUD,RR (A)	8-97048-729-1	01	1	0211-0312		●	●
3	08.153 GUARD; MUD,RR EXC. TIRE SIZE 8.25-16<7QP> (A)	8-97048-729-1	01	1	0211-0312				●	●	●
3	08.153 GUARD; MUD,RR (A)	8-97366-988-1	01	1	0401-0501		●	●
3	08.153 GUARD; MUD,RR EXC. TIRE SIZE 8.25-16<7QP> (A)	8-97366-988-1	01	1	0401-0501				●	●	●
3	08.153 GUARD; MUD,RR (A)	8-97366-988-1	01	1	0502-0506		●
3	08.153 GUARD; MUD,RR EXC. TIRE SIZE 8.25-16<7QP> (A)	8-97366-988-1	01	1	0502-0506				●	●	●
3	08.153 GUARD; MUD,RR (A)	8-97366-988-1	01	1	0507-0507		●
3	08.153 GUARD; MUD,RR FRT&RR 225/70R19.5 19.5X6.00-127(CRR) EXC. TIRE SIZE 8.25-16<7QP> (A)	8-97366-988-1	01	1	0507-0507				●	●	●
3	08.153 GUARD; MUD,RR AUSTRALIA EQUIPMENT(RR3) EXC. VEHICLE CATEGORY NQR<7NQ> (A)	8-97366-988-1	01	1	0507-0507				●	●	●
3	08.153 GUARD; MUD,RR EXC. AUSTRALIA EQUIPMENT(RR3),TIRE SIZE 8.25-16<7QP> (A)	8-97366-988-1	01	1	0507-0507				●	●	●
3	08.153 GUARD; MUD,RR (A)	8-97366-988-1	01	1	0508-		●	●
3	08.153 GUARD; MUD,RR FRT&RR 225/70R19.5 19.5X6.00-127(CRR) EXC. TIRE SIZE 8.25-16<7QP> (A)	8-97366-988-1	01	1	0508-				●	●	●
3	08.153 GUARD; MUD,RR AUSTRALIA EQUIPMENT(RR3) EXC. VEHICLE CATEGORY NQR<7NQ> (A)	8-97366-988-1	01	1	0508-				●	●	●
3	08.153 GUARD; MUD,RR EXC. AUSTRALIA EQUIPMENT(RR3),TIRE SIZE 8.25-16<7QP> (A)	8-97366-988-1	01	1	0508-				●	●	●
3	08.153 GUARD; MUD,RR (A)	8-97048-728-3	01	1	0211-0501		●	●
3	08.153 GUARD; MUD,RR EXC. TIRE SIZE 8.25-16<7QP> (A)	8-97048-728-3	01	1	0211-0501				●	●	●
3	08.153 GUARD; MUD,RR (A)	8-97048-728-3	01	1	0502-0506		●
3	08.153 GUARD; MUD,RR EXC. TIRE SIZE 8.25-16<7QP> (A)	8-97048-728-3	01	1	0502-0506				●	●	●
3	08.153 GUARD; MUD,RR (A)	8-97048-728-3	01	1	0507-0507		●
3	08.153 GUARD; MUD,RR FRT&RR 225/70R19.5 19.5X6.00-127(CRR) EXC. TIRE SIZE 8.25-16<7QP> (A)	8-97048-728-3	01	1	0507-0507				●	●	●
3	08.153 GUARD; MUD,RR AUSTRALIA EQUIPMENT(RR3) EXC. VEHICLE CATEGORY NQR<7NQ> (A)	8-97048-728-3	01	1	0507-0507				●	●	●
3	08.153 GUARD; MUD,RR EXC. AUSTRALIA EQUIPMENT(RR3),TIRE SIZE 8.25-16<7QP> (A)	8-97048-728-3	01	1	0507-0507				●	●	●
3	08.153 GUARD; MUD,RR (A)	8-97048-728-3	01	1	0508-		●	●
3	08.153 GUARD; MUD,RR FRT&RR 225/70R19.5 19.5X6.00-127(CRR) EXC. TIRE SIZE 8.25-16<7QP> (A)	8-97048-728-3	01	1	0508-				●	●	●
3	08.153 GUARD; MUD,RR AUSTRALIA EQUIPMENT(RR3) EXC. VEHICLE CATEGORY NQR<7NQ> (A)	8-97048-728-3	01	1	0508-				●	●	●
3	08.153 GUARD; MUD,RR EXC. AUSTRALIA EQUIPMENT(RR3),TIRE SIZE 8.25-16<7QP> (A)	8-97048-728-3	01	1	0508-				●	●	●
3	08.153 GUARD; MUD,RR FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> (C)	8-97147-222-2	01	1	0211-				●	●	●
3	08.153 GUARD; MUD,RR FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> (C)	8-97147-221-1	01	1	0211-				●	●	●
3	08.153 GUARD; MUD,RR (B)	8-97081-735-3	01	1	0211-0312	●
3	08.153 GUARD; MUD,RR (B)	8-97366-989-1	01	1	0401-0501	●
3	08.153 GUARD; MUD,RR (B)	8-97081-734-5	01	1	0211-0501	●
5	08.155 NUT; FLAP RUBBER FRT&RR 225/70R19.5 19.5X6.00-127(CRR) EXC. TIRE SIZE 8.25-16<7QP> 08.915 M6	9-09111-406-0	10	1	0507-0512				●	●	●
5	08.155 NUT; FLAP RUBBER FRT&RR 225/70R19.5 19.5X6.00-127(CRR) EXC. TIRE SIZE 8.25-16<7QP> M6	0-91111-506-0	10	1	0601-				●	●	●
5	08.155 NUT; FLAP RUBBER 08.915 M6	9-09111-406-0	08	1	0211-0501	●	●	●
5	08.155 NUT; FLAP RUBBER EXC. TIRE SIZE 8.25-16<7QP> 08.915 M6	9-09111-406-0	08	1	0211-0501				●	●	●
5	08.155 NUT; FLAP RUBBER 08.915 M6	9-09111-406-0	08	1	0502-0506		●
5	08.155 NUT; FLAP RUBBER EXC. TIRE SIZE 8.25-16<7QP> 08.915 M6	9-09111-406-0	08	1	0502-0506				●	●	●
5	08.155 NUT; FLAP RUBBER 08.915 M6	9-09111-406-0	08	1	0507-0507	●	●
5	08.155 NUT; FLAP RUBBER AUSTRALIA EQUIPMENT(RR3) EXC. VEHICLE CATEGORY NQR<7NQ> 08.915 M6	9-09111-406-0	08	1	0507-0507				●	●	●
5	08.155 NUT; FLAP RUBBER EXC. AUSTRALIA EQUIPMENT(RR3),TIRE SIZE 8.25-16<7QP> 08.915 M6	9-09111-406-0	08	1	0507-0507				●	●	●
5	08.155 NUT; FLAP RUBBER 08.915 M6	9-09111-406-0	08	1	0508-0512	●	●	●
5	08.155 NUT; FLAP RUBBER AUSTRALIA EQUIPMENT(RR3) EXC. VEHICLE CATEGORY NQR<7NQ> 08.915 M6	9-09111-406-0	08	1	0508-0512				●	●	●
5	08.155 NUT; FLAP RUBBER EXC. AUSTRALIA EQUIPMENT(RR3),TIRE SIZE 8.25-16<7QP> 08.915 M6	9-09111-406-0	08	1	0508-0512				●	●	●
5	08.155 NUT; FLAP RUBBER M6	0-91111-506-0	08	1	0601-	●	●	●
5	08.155 NUT; FLAP RUBBER AUSTRALIA EQUIPMENT(RR3) EXC. VEHICLE CATEGORY NQR<7NQ> M6	0-91111-506-0	08	1	0601-				●	●	●
5	08.155 NUT; FLAP RUBBER EXC. AUSTRALIA EQUIPMENT(RR3),TIRE SIZE 8.25-16<7QP> M6	0-91111-506-0	08	1	0601-				●	●	●
5	08.155 NUT; FLAP RUBBER FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> 08.915 M6	9-09111-406-0	06	1	0211-0501				●	●	●
5	08.155 NUT; FLAP RUBBER FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> 08.915 M6	9-09111-406-0	03	1	0502-0507				●	●	●
5	08.155 NUT; FLAP RUBBER FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> 08.915 M6	9-09111-406-0	03	1	0502-0507				●	●	●
5	08.155 NUT; FLAP RUBBER FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> 08.915 M6	9-09111-406-0	06	1	0508-0512				●	●	●
5	08.155 NUT; FLAP RUBBER FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> M6	0-91111-506-0	06	1	0601-				●	●	●
24	08.155 PLATE; MUD COVER FRT&RR 225/70R19.5 19.5X6.00-127(CRR) EXC. TIRE SIZE 8.25-16<7QP> (B)	8-97183-159-0	01	1	0507-				●	●	●
24	08.155 PLATE; MUD COVER FRT&RR 225/70R19.5 19.5X6.00-127(CRR) EXC. TIRE SIZE 8.25-16<7QP> (B)	8-97212-726-0	01	1	0507-				●	●	●
24	08.155 PLATE; MUD COVER (A)	8-97095-186-0	02	1	0211-0501	●	●	●
24	08.155 PLATE; MUD COVER EXC. TIRE SIZE 8.25-16<7QP> (A)	8-97095-186-0	02	1	0211-0501				●	●	●
24	08.155 PLATE; MUD COVER (A)	8-97095-186-0	02	1	0502-0506		●
24	08.155 PLATE; MUD COVER EXC. TIRE SIZE 8.25-16<7QP> (A)	8-97095-186-0	02	1	0502-0506				●	●	●
24	08.155 PLATE; MUD COVER (A)	8-97095-186-0	02	1	0507-0507	●	●
24	08.155 PLATE; MUD COVER AUSTRALIA EQUIPMENT(RR3) EXC. VEHICLE CATEGORY NQR<7NQ> (A)	8-97095-186-0	02	1	0507-0507				●	●	●
24	08.155 PLATE; MUD COVER EXC. AUSTRALIA EQUIPMENT(RR3),TIRE SIZE 8.25-16<7QP> (A)	8-97095-186-0	02	1	0507-0507				●	●	●
24	08.155 PLATE; MUD COVER (A)	8-97095-186-0	02	1	0508-	●	●	●
24	08.155 PLATE; MUD COVER AUSTRALIA EQUIPMENT(RR3) EXC. VEHICLE CATEGORY NQR<7NQ> (A)	8-97095-186-0	02	1	0508-				●	●	●
24	08.155 PLATE; MUD COVER EXC. AUSTRALIA EQUIPMENT(RR3),TIRE SIZE 8.25-16<7QP> (A)	8-97095-186-0	02	1	0508-				●	●	●
24	08.155 PLATE; MUD COVER FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> (A)	8-97147-225-0	02	1	0211-0501				●	●	●
24	08.155 PLATE; MUD COVER FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> (A)	8-97147-225-0	01	1	0502-0507				●	●	●
24	08.155 PLATE; MUD COVER FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> (A)	8-97147-225-0	01	1	0502-0507				●	●	●
24	08.155 PLATE; MUD COVER FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> (A)	8-97147-225-0	02	1	0508-				●	●	●
33	08.155 BOLT; MUD COVER FRT&RR 225/70R19.5 19.5X6.00-127(CRR) EXC. TIRE SIZE 8.25-16<7QP> 00.738 (D) M6X16 FLANGE	0-28080-616-0	10	1	0507-0512				●	●	●
33	08.155 BOLT; MUD COVER FRT&RR 225/70R19.5 19.5X6.00-127(CRR) EXC. TIRE SIZE 8.25-16<7QP> 09.242 (D) M6X16 FLANGE	0-28050-616-0	10	1	0601-				●	●	●
33	08.155 BOLT; MUD COVER 07.010 (A) M8X20 FLANGE	0-28080-820-0	05	1	0211-0501	●	●	●	●	●	●
33	08.155 BOLT; MUD COVER 07.010 (A) M8X20 FLANGE	0-28080-820-0	05	1	0502-0506		●	●	●	●	●
33	08.155 BOLT; MUD COVER 07.010 (A) M8X20 FLANGE	0-28080-820-0	05	1	0507-0512	●	●	●	●	●	●
33	08.155 BOLT; MUD COVER 04.338 (A) M8X20 FLANGE	0-28050-820-0	05	1	0601-	●	●	●	●	●	●
33	08.155 BOLT; MUD COVER 02.334 (C) M6X25 FLANGE	0-28680-625-0	04	1	0211-0501	●	●	●	●	●	●
33	08.155 BOLT; MUD COVER 02.334 (C) M6X25 FLANGE	0-28680-625-0	04	1	0502-0506		●	●	●	●	●
33	08.155 BOLT; MUD COVER 02.334 (C) M6X25 FLANGE	0-28680-625-0	04	1	0507-0512	●	●	●	●	●	●
33	08.155 BOLT; MUD COVER 00.685 (C) M6X25 FLANGE	0-28650-625-0	04	1	0601-0604	●	●	●	●	●	●
33	08.155 BOLT; MUD COVER (C) M6X26 W/PL WASHER	8-98035-643-0	04	1	0605-	●	●	●	●	●	●
33	08.155 BOLT; MUD COVER 16.320 (B) M8X20 W/LK&PL WASHER	8-94279-104-0	01	1	0211-0501	●	●	●	●	●	●
33	08.155 BOLT; MUD COVER 16.320 (B) M8X20 W/LK&PL WASHER	8-94279-104-0	01	1	0502-0506		●	●	●	●	●
33	08.155 BOLT; MUD COVER 16.320 (B) M8X20 W/LK&PL WASHER	8-94279-104-0	01	1	0507-0805	●	●	●	●	●	●
33	08.155 BOLT; MUD COVER 16.085 (B) M8X20 W/LK&PL WASHER	8-97359-709-0	01	1	0806-	●	●	●	●	●	●
33	08.155 BOLT; MUD COVER 00.738 (D) M6X16 FLANGE	0-28080-616-0	08	1	0211-0501	●	●	●
33	08.155 BOLT; MUD COVER EXC. TIRE SIZE 8.25-16<7QP> 00.738 (D) M6X16 FLANGE	0-28080-616-0	08	1	0211-0501				●	●	●
33	08.155 BOLT; MUD COVER 00.738 (D) M6X16 FLANGE	0-28080-616-0	08	1	0502-0506		●
33	08.155 BOLT; MUD COVER EXC. TIRE SIZE 8.25-16<7QP> 00.738 (D) M6X16 FLANGE	0-28080-616-0	08	1	0502-0506				●	●	●
33	08.155 BOLT; MUD COVER 00.738 (D) M6X16 FLANGE	0-28080-616-0	08	1	0507-0507	●	●
33	08.155 BOLT; MUD COVER AUSTRALIA EQUIPMENT(RR3) EXC. VEHICLE CATEGORY NQR<7NQ> 00.738 (D) M6X16 FLANGE	0-28080-616-0	08	1	0507-0507				●	●	●
33	08.155 BOLT; MUD COVER EXC. AUSTRALIA EQUIPMENT(RR3),TIRE SIZE 8.25-16<7QP> 00.738 (D) M6X16 FLANGE	0-28080-616-0	08	1	0507-0507				●	●	●
33	08.155 BOLT; MUD COVER 00.738 (D) M6X16 FLANGE	0-28080-616-0	08	1	0508-0512	●	●	●
33	08.155 BOLT; MUD COVER AUSTRALIA EQUIPMENT(RR3) EXC. VEHICLE CATEGORY NQR<7NQ> 00.738 (D) M6X16 FLANGE	0-28080-616-0	08	1	0508-0512				●	●	●
33	08.155 BOLT; MUD COVER EXC. AUSTRALIA EQUIPMENT(RR3),TIRE SIZE 8.25-16<7QP> 00.738 (D) M6X16 FLANGE	0-28080-616-0	08	1	0508-0512				●	●	●
33	08.155 BOLT; MUD COVER 09.242 (D) M6X16 FLANGE	0-28050-616-0	08	1	0601-	●	●	●
33	08.155 BOLT; MUD COVER AUSTRALIA EQUIPMENT(RR3) EXC. VEHICLE CATEGORY NQR<7NQ> 09.242 (D) M6X16 FLANGE	0-28050-616-0	08	1	0601-				●	●	●
33	08.155 BOLT; MUD COVER EXC. AUSTRALIA EQUIPMENT(RR3),TIRE SIZE 8.25-16<7QP> 09.242 (D) M6X16 FLANGE	0-28050-616-0	08	1	0601-				●	●	●
33	08.155 BOLT; MUD COVER FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> 00.738 (D) M6X16 FLANGE	0-28080-616-0	06	1	0211-0501				●	●	●
33	08.155 BOLT; MUD COVER FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> 00.738 (D) M6X16 FLANGE	0-28080-616-0	03	1	0502-0507				●	●	●
33	08.155 BOLT; MUD COVER FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> 00.738 (D) M6X16 FLANGE	0-28080-616-0	03	1	0502-0507				●	●	●
33	08.155 BOLT; MUD COVER FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> 00.738 (D) M6X16 FLANGE	0-28080-616-0	06	1	0508-0512				●	●	●
33	08.155 BOLT; MUD COVER FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> 09.242 (D) M6X16 FLANGE	0-28050-616-0	06	1	0601-				●	●	●
34	08.155 WASHER; PL,MUD COVER FRT&RR 225/70R19.5 19.5X6.00-127(CRR) EXC. TIRE SIZE 8.25-16<7QP> 02.587 ID=6.4 OD=18	9-09160-706-0	02	1	0507-0605				●	●	●
34	08.155 WASHER; PL,MUD COVER FRT&RR 225/70R19.5 19.5X6.00-127(CRR) EXC. TIRE SIZE 8.25-16<7QP> 00.413 ID=6.4 OD=18	0-91610-706-0	02	1	0606-				●	●	●
66	08.155 WASHER; LK FRT&RR 225/70R19.5 19.5X6.00-127(CRR) EXC. TIRE SIZE 8.25-16<7QP> 00.206 ID=6.1	9-09150-506-0	10	1	0507-0603				●	●	●
66	08.155 WASHER; LK FRT&RR 225/70R19.5 19.5X6.00-127(CRR) EXC. TIRE SIZE 8.25-16<7QP> ID=6.1	0-91510-506-0	10	1	0604-				●	●	●
66	08.155 WASHER; LK 00.206 ID=6.1	9-09150-506-0	08	1	0211-0501	●	●	●
66	08.155 WASHER; LK EXC. TIRE SIZE 8.25-16<7QP> 00.206 ID=6.1	9-09150-506-0	08	1	0211-0501				●	●	●
66	08.155 WASHER; LK 00.206 ID=6.1	9-09150-506-0	08	1	0502-0506		●
66	08.155 WASHER; LK EXC. TIRE SIZE 8.25-16<7QP> 00.206 ID=6.1	9-09150-506-0	08	1	0502-0506				●	●	●
66	08.155 WASHER; LK 00.206 ID=6.1	9-09150-506-0	08	1	0507-0507	●	●
66	08.155 WASHER; LK AUSTRALIA EQUIPMENT(RR3) EXC. VEHICLE CATEGORY NQR<7NQ> 00.206 ID=6.1	9-09150-506-0	08	1	0507-0507				●	●	●
66	08.155 WASHER; LK EXC. AUSTRALIA EQUIPMENT(RR3),TIRE SIZE 8.25-16<7QP> 00.206 ID=6.1	9-09150-506-0	08	1	0507-0507				●	●	●
66	08.155 WASHER; LK 00.206 ID=6.1	9-09150-506-0	08	1	0508-0603	●	●	●
66	08.155 WASHER; LK AUSTRALIA EQUIPMENT(RR3) EXC. VEHICLE CATEGORY NQR<7NQ> 00.206 ID=6.1	9-09150-506-0	08	1	0508-0603				●	●	●
66	08.155 WASHER; LK EXC. AUSTRALIA EQUIPMENT(RR3),TIRE SIZE 8.25-16<7QP> 00.206 ID=6.1	9-09150-506-0	08	1	0508-0603				●	●	●
66	08.155 WASHER; LK ID=6.1	0-91510-506-0	08	1	0604-	●	●	●
66	08.155 WASHER; LK AUSTRALIA EQUIPMENT(RR3) EXC. VEHICLE CATEGORY NQR<7NQ> ID=6.1	0-91510-506-0	08	1	0604-				●	●	●
66	08.155 WASHER; LK EXC. AUSTRALIA EQUIPMENT(RR3),TIRE SIZE 8.25-16<7QP> ID=6.1	0-91510-506-0	08	1	0604-				●	●	●
66	08.155 WASHER; LK FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> 00.206 ID=6.1	9-09150-506-0	06	1	0211-0501				●	●	●
66	08.155 WASHER; LK FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> 00.206 ID=6.1	9-09150-506-0	03	1	0502-0507				●	●	●
66	08.155 WASHER; LK FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> 00.206 ID=6.1	9-09150-506-0	03	1	0502-0507				●	●	●
66	08.155 WASHER; LK FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> 00.206 ID=6.1	9-09150-506-0	06	1	0508-0603				●	●	●
66	08.155 WASHER; LK FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> ID=6.1	0-91510-506-0	06	1	0604-				●	●	●
76	08.155 BOLT; MUD GUARD 07.010 M8X20 FLANGE	0-28080-820-0	04	1	0211-0501	●	●	●	●	●	●
76	08.155 BOLT; MUD GUARD 07.010 M8X20 FLANGE	0-28080-820-0	04	1	0502-0506		●	●	●	●	●
76	08.155 BOLT; MUD GUARD 07.010 M8X20 FLANGE	0-28080-820-0	04	1	0507-0512	●	●	●	●	●	●
76	08.155 BOLT; MUD GUARD 04.338 M8X20 FLANGE	0-28050-820-0	04	1	0601-	●	●	●	●	●	●
92	08.155 NUT; MUD COVER 07.633 M8 FLANGE	0-91150-108-0	02	1	0211-0501	●	●	●
92	08.155 NUT; MUD COVER EXC. TIRE SIZE 8.25-16<7QP> 07.633 M8 FLANGE	0-91150-108-0	02	1	0211-0501				●	●	●
92	08.155 NUT; MUD COVER 07.633 M8 FLANGE	0-91150-108-0	02	1	0502-0506		●	●
92	08.155 NUT; MUD COVER EXC. TIRE SIZE 8.25-16<7QP> 07.633 M8 FLANGE	0-91150-108-0	02	1	0502-0506				●	●	●
92	08.155 NUT; MUD COVER 07.633 M8 FLANGE	0-91150-108-0	02	1	0507-0602	●	●	●
92	08.155 NUT; MUD COVER EXC. TIRE SIZE 8.25-16<7QP> 07.633 M8 FLANGE	0-91150-108-0	02	1	0507-0602				●	●	●
92	08.155 NUT; MUD COVER 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●
92	08.155 NUT; MUD COVER EXC. TIRE SIZE 8.25-16<7QP> 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-				●	●	●
92	08.155 NUT; MUD COVER FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> 07.633 M8 FLANGE	0-91150-108-0	05	1	0211-0602				●	●	●
92	08.155 NUT; MUD COVER FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> 01.062 M8 FLANGE	0-91180-108-0	05	1	0603-				●	●	●
112	08.155 BOLT; BRKT 02.559 M8X25 FLANGE	0-28680-825-0	05	1	0211-0501	●	●	●
112	08.155 BOLT; BRKT EXC. TIRE SIZE 8.25-16<7QP> 02.559 M8X25 FLANGE	0-28680-825-0	05	1	0211-0501				●	●	●
112	08.155 BOLT; BRKT 02.559 M8X25 FLANGE	0-28680-825-0	05	1	0502-0506		●	●
112	08.155 BOLT; BRKT EXC. TIRE SIZE 8.25-16<7QP> 02.559 M8X25 FLANGE	0-28680-825-0	05	1	0502-0506				●	●	●
112	08.155 BOLT; BRKT 02.559 M8X25 FLANGE	0-28680-825-0	05	1	0507-0512	●	●	●
112	08.155 BOLT; BRKT EXC. TIRE SIZE 8.25-16<7QP> 02.559 M8X25 FLANGE	0-28680-825-0	05	1	0507-0512				●	●	●
112	08.155 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	05	1	0601-	●	●	●
112	08.155 BOLT; BRKT EXC. TIRE SIZE 8.25-16<7QP> 06.216 M8X25 FLANGE	0-28650-825-0	05	1	0601-				●	●	●
112	08.155 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> 02.559 M8X25 FLANGE	0-28680-825-0	06	1	0211-0512				●	●	●
112	08.155 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> 06.216 M8X25 FLANGE	0-28650-825-0	06	1	0601-				●	●	●
145	08.155 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	06	1	0211-0501	●	●	●	●	●	●
145	08.155 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	06	1	0502-0506		●	●	●	●	●
145	08.155 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	06	1	0507-0602	●	●	●	●	●	●
145	08.155 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	06	1	0603-	●	●	●	●	●	●
219	08.155 FLAP; MUD GUARD FRT&RR 225/70R19.5 19.5X6.00-127(CRR) EXC. TIRE SIZE 8.25-16<7QP>	8-97218-085-0	01	1	0507-				●	●	●
219	08.155 FLAP; MUD GUARD FRT&RR 225/70R19.5 19.5X6.00-127(CRR) EXC. TIRE SIZE 8.25-16<7QP>	8-97218-086-0	01	1	0507-				●	●	●
219	08.155 FLAP; MUD GUARD	8-97218-080-0	02	1	0211-0501	●	●	●
219	08.155 FLAP; MUD GUARD EXC. TIRE SIZE 8.25-16<7QP>	8-97218-080-0	02	1	0211-0501				●	●	●
219	08.155 FLAP; MUD GUARD	8-97218-080-0	02	1	0502-0506		●
219	08.155 FLAP; MUD GUARD EXC. TIRE SIZE 8.25-16<7QP>	8-97218-080-0	02	1	0502-0506				●	●	●
219	08.155 FLAP; MUD GUARD	8-97218-080-0	02	1	0507-0507	●	●
219	08.155 FLAP; MUD GUARD AUSTRALIA EQUIPMENT(RR3) EXC. VEHICLE CATEGORY NQR<7NQ>	8-97218-080-0	02	1	0507-0507				●	●	●
219	08.155 FLAP; MUD GUARD EXC. AUSTRALIA EQUIPMENT(RR3),TIRE SIZE 8.25-16<7QP>	8-97218-080-0	02	1	0507-0507				●	●	●
219	08.155 FLAP; MUD GUARD	8-97218-080-0	02	1	0508-	●	●	●
219	08.155 FLAP; MUD GUARD AUSTRALIA EQUIPMENT(RR3) EXC. VEHICLE CATEGORY NQR<7NQ>	8-97218-080-0	02	1	0508-				●	●	●
219	08.155 FLAP; MUD GUARD EXC. AUSTRALIA EQUIPMENT(RR3),TIRE SIZE 8.25-16<7QP>	8-97218-080-0	02	1	0508-				●	●	●
219	08.155 FLAP; MUD GUARD FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP>	8-97325-116-0	02	1	0211-0501				●	●	●
219	08.155 FLAP; MUD GUARD FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP>	8-97325-116-0	01	1	0502-0507				●	●	●
219	08.155 FLAP; MUD GUARD FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP>	8-97325-116-0	01	1	0502-0507				●	●	●
219	08.155 FLAP; MUD GUARD FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP>	8-97325-116-0	02	1	0508-				●	●	●
285	08.155 BRACKET; MUD COVER 4HK1-TCN ENG(RDQ) (A)	8-97035-780-4	01	1	0507-		●
285	08.155 BRACKET; MUD COVER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. TIRE SIZE 8.25-16<7QP> (A)	8-97035-780-4	01	1	0507-				●	●	●
285	08.155 BRACKET; MUD COVER (A)	8-97035-780-4	01	1	0507-	●
285	08.155 BRACKET; MUD COVER 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (A)	8-97035-780-4	01	1	0211-0501		●
285	08.155 BRACKET; MUD COVER 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. TIRE SIZE 8.25-16<7QP> (A)	8-97035-780-4	01	1	0211-0501				●	●	●
285	08.155 BRACKET; MUD COVER CHARGE AIR COOLER<6PL> (A)	8-97035-780-4	01	1	0211-0501	●
285	08.155 BRACKET; MUD COVER 4HF1-S ENG(RLS),4HE1 ENG(RLY) (D)	8-97035-778-4	01	1	0211-0501		●
285	08.155 BRACKET; MUD COVER 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) EXC. TIRE SIZE 8.25-16<7QP> (D)	8-97035-778-4	01	1	0211-0501				●	●	●
285	08.155 BRACKET; MUD COVER (D)	8-97035-778-4	01	1	0211-0501	●		●
285	08.155 BRACKET; MUD COVER (D)	8-97035-778-4	01	1	0502-0506		●	●
285	08.155 BRACKET; MUD COVER EXC. TIRE SIZE 8.25-16<7QP> (D)	8-97035-778-4	01	1	0502-0506				●	●	●
285	08.155 BRACKET; MUD COVER 4HK1-TCN ENG(RDQ),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) (D)	8-97035-778-4	01	1	0507-		●
285	08.155 BRACKET; MUD COVER 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ), 4HF1-SENG(RLS) EXC. TIRE SIZE 8.25-16<7QP> (D)	8-97035-778-4	01	1	0507-				●
285	08.155 BRACKET; MUD COVER 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH), 4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. TIRE SIZE 8.25-16<7QP> (D)	8-97035-778-4	01	1	0507-					●
285	08.155 BRACKET; MUD COVER 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH), 4HK1-TCS ENG(RJS),4HF1-S ENG(RLS) EXC. TIRE SIZE 8.25-16<7QP> (D)	8-97035-778-4	01	1	0507-						●
285	08.155 BRACKET; MUD COVER (D)	8-97035-778-4	01	1	0507-	●		●
285	08.155 BRACKET; MUD COVER 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>,TIRE SIZE8.25-16<7QP> (B)	8-97092-037-2	01	1	0211-0501	●	●		●	●	●
285	08.155 BRACKET; MUD COVER 4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. TIRE SIZE 8.25-16<7QP> (B)	8-97092-037-2	01	1	0211-0501		●	●	●	●	●
285	08.155 BRACKET; MUD COVER (B)	8-97092-037-2	01	1	0502-		●	●
285	08.155 BRACKET; MUD COVER EXC. TIRE SIZE 8.25-16<7QP> (B)	8-97092-037-2	01	1	0502-				●	●	●
285	08.155 BRACKET; MUD COVER FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> (E)	8-97180-529-0	01	1	0211-				●	●	●
285	08.155 BRACKET; MUD COVER FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> (C)	8-97147-235-0	01	1	0211-				●	●	●

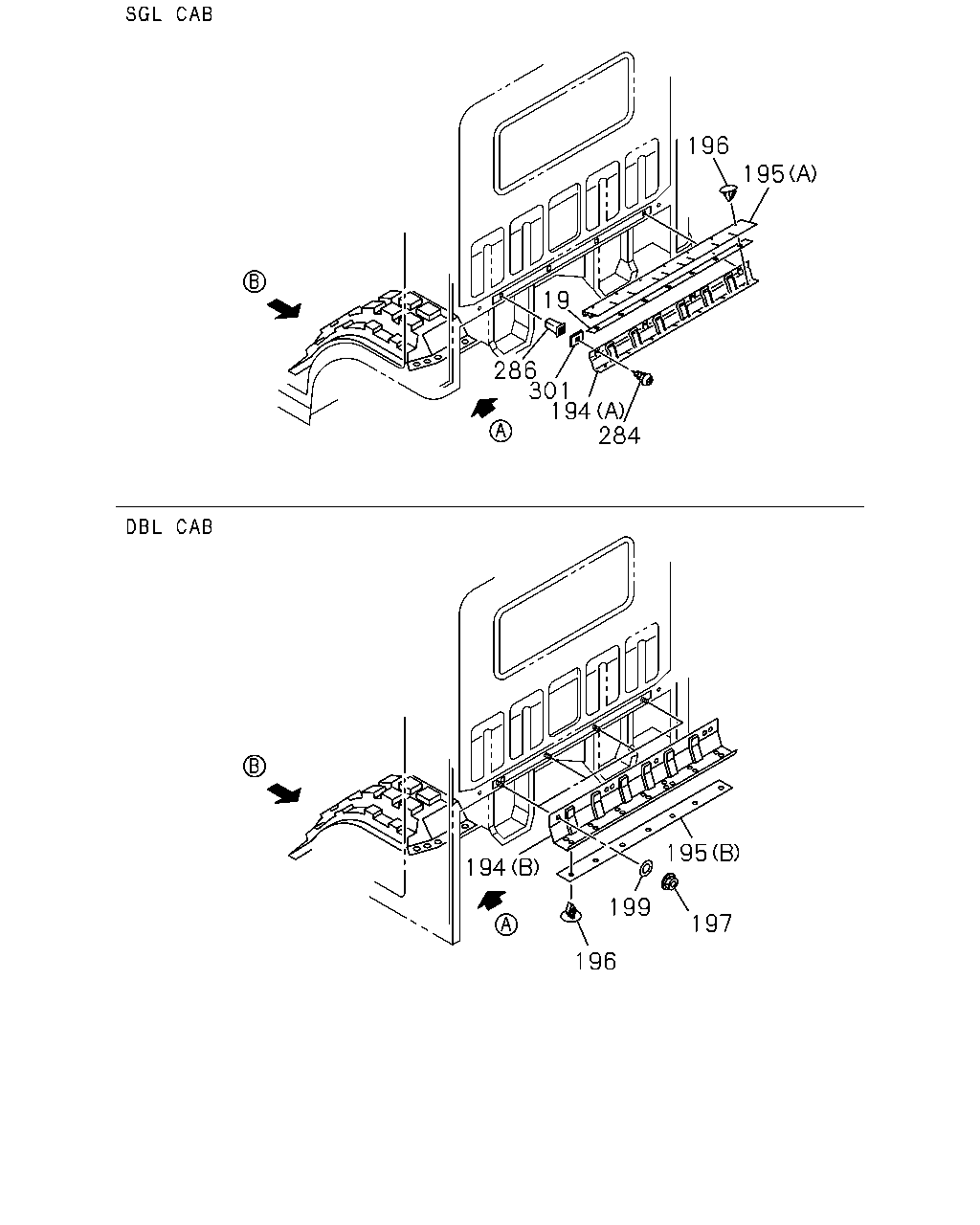

196 195 19 286 301 194 284 195 194 199 197 196

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
19	03.602 SHEET; HEAT PROTECTOR,CAB BACK EXC. AUSTRALIA EQUIPMENT(RR3)	8-97856-016-0	01	1	0211-0211		●		●	●	●
19	03.602 SHEET; HEAT PROTECTOR,CAB BACK	8-97856-016-0	01	1	0211-0211			●
19	03.602 SHEET; HEAT PROTECTOR,CAB BACK DUMP BODY LONG SHINMEIWA(RS9) EXC. AUSTRALIA EQUIPMENT(RR3)	8-97856-016-0	01	1	0212-0501		●
19	03.602 SHEET; HEAT PROTECTOR,CAB BACK RR BODY FLAT BED(RS6) EXC. AUSTRALIA EQUIPMENT(RR3)	8-97856-016-0	01	1	0212-0501				●	●
19	03.602 SHEET; HEAT PROTECTOR,CAB BACK DUMP BODY LONG SHINMEIWA(RS9)	8-97856-016-0	01	1	0502-		●
19	03.602 SHEET; HEAT PROTECTOR,CAB BACK RR BODY FLAT BED(RS6)	8-97856-016-0	01	1	0502-				●	●
194	03.602 BRACKET; HEAT PROTECTOR DUMP BODY LONG SHINMEIWA(RS9) EXC. AUSTRALIA EQUIPMENT(RR3) (A)	8-97853-797-1	01	1	0211-0501		●
194	03.602 BRACKET; HEAT PROTECTOR RR BODY FLAT BED(RS6) EXC. AUSTRALIA EQUIPMENT(RR3) (A)	8-97853-797-1	01	1	0211-0501				●	●
194	03.602 BRACKET; HEAT PROTECTOR DUMP BODY LONG SHINMEIWA(RS9) (A)	8-97853-797-1	01	1	0502-		●
194	03.602 BRACKET; HEAT PROTECTOR RR BODY FLAT BED(RS6) (A)	8-97853-797-1	01	1	0502-				●	●
194	03.602 BRACKET; HEAT PROTECTOR EXC. AUSTRALIA EQUIPMENT(RR3) (B)	8-94272-529-3	01	1	0211-0501	●
195	03.602 PROTECTOR; HEAT DUMP BODY LONG SHINMEIWA(RS9) EXC. AUSTRALIA EQUIPMENT(RR3) (A)	8-97856-386-1	01	1	0211-0501		●
195	03.602 PROTECTOR; HEAT RR BODY FLAT BED(RS6) EXC. AUSTRALIA EQUIPMENT(RR3) (A)	8-97856-386-1	01	1	0211-0501				●	●
195	03.602 PROTECTOR; HEAT DUMP BODY LONG SHINMEIWA(RS9) (A)	8-97856-386-2	01	1	0502-		●
195	03.602 PROTECTOR; HEAT RR BODY FLAT BED(RS6) (A)	8-97856-386-2	01	1	0502-				●	●
195	03.602 PROTECTOR; HEAT EXC. AUSTRALIA EQUIPMENT(RR3) (B)	8-94272-528-0	01	1	0211-0501	●
196	03.602 CLIP; HEAT PROTECTOR DUMP BODY LONG SHINMEIWA(RS9) EXC. AUSTRALIA EQUIPMENT(RR3)	8-94244-922-0	07	1	0211-0501		●
196	03.602 CLIP; HEAT PROTECTOR RR BODY FLAT BED(RS6) EXC. AUSTRALIA EQUIPMENT(RR3)	8-94244-922-0	07	1	0211-0501				●	●
196	03.602 CLIP; HEAT PROTECTOR EXC. AUSTRALIA EQUIPMENT(RR3)	8-94244-922-0	07	1	0211-0501	●
196	03.602 CLIP; HEAT PROTECTOR DUMP BODY LONG SHINMEIWA(RS9)	8-94244-922-0	07	1	0502-		●
196	03.602 CLIP; HEAT PROTECTOR RR BODY FLAT BED(RS6)	8-94244-922-0	07	1	0502-				●	●
197	03.602 NUT; HEAT PROTECTOR,CAB BACK EXC. AUSTRALIA EQUIPMENT(RR3) 03.417 M6 FLANGE	8-94279-514-0	04	1	0211-0501	●
199	03.602 WASHER; PL,HEAT PROTECTOR EXC. AUSTRALIA EQUIPMENT(RR3)	8-94292-135-0	04	1	0211-0501	●
284	08.155 SCREW; HEAT PROTECTOR DUMP BODY LONG SHINMEIWA(RS9) EXC. AUSTRALIA EQUIPMENT(RR3) 16.345 M5X16 W/PL WASHER TAPPING	8-94279-123-0	04	1	0211-0501		●
284	08.155 SCREW; HEAT PROTECTOR RR BODY FLAT BED(RS6) EXC. AUSTRALIA EQUIPMENT(RR3) 16.345 M5X16 W/PL WASHER TAPPING	8-94279-123-0	04	1	0211-0501				●	●
284	08.155 SCREW; HEAT PROTECTOR DUMP BODY LONG SHINMEIWA(RS9) 16.345 M5X16 W/PL WASHER TAPPING	8-94279-123-0	04	1	0502-0612		●
284	08.155 SCREW; HEAT PROTECTOR RR BODY FLAT BED(RS6) 16.345 M5X16 W/PL WASHER TAPPING	8-94279-123-0	04	1	0502-0612				●	●
284	08.155 SCREW; HEAT PROTECTOR DUMP BODY LONG SHINMEIWA(RS9) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	04	1	0701-1101		●
284	08.155 SCREW; HEAT PROTECTOR RR BODY FLAT BED(RS6) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	04	1	0701-1101				●	●
284	08.155 SCREW; HEAT PROTECTOR DUMP BODY LONG SHINMEIWA(RS9) 16.090 M5X16 HEXALOBULAR SOCKET	8-98177-744-0	04	1	1102-1212		●
284	08.155 SCREW; HEAT PROTECTOR RR BODY FLAT BED(RS6) 16.090 M5X16 HEXALOBULAR SOCKET	8-98177-744-0	04	1	1102-1212				●	●
284	08.155 SCREW; HEAT PROTECTOR DUMP BODY LONG SHINMEIWA(RS9) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	04	1	1301-		●
284	08.155 SCREW; HEAT PROTECTOR RR BODY FLAT BED(RS6) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	04	1	1301-				●	●
286	08.155 GROMMET; SCREW,HEAT PROTECTOR	8-97994-312-0	04	1	0211-		●	●	●	●	●
301	08.155 HOLDER; HEAT PROTECTOR	8-97994-313-0	04	1	0211-		●	●	●	●	●

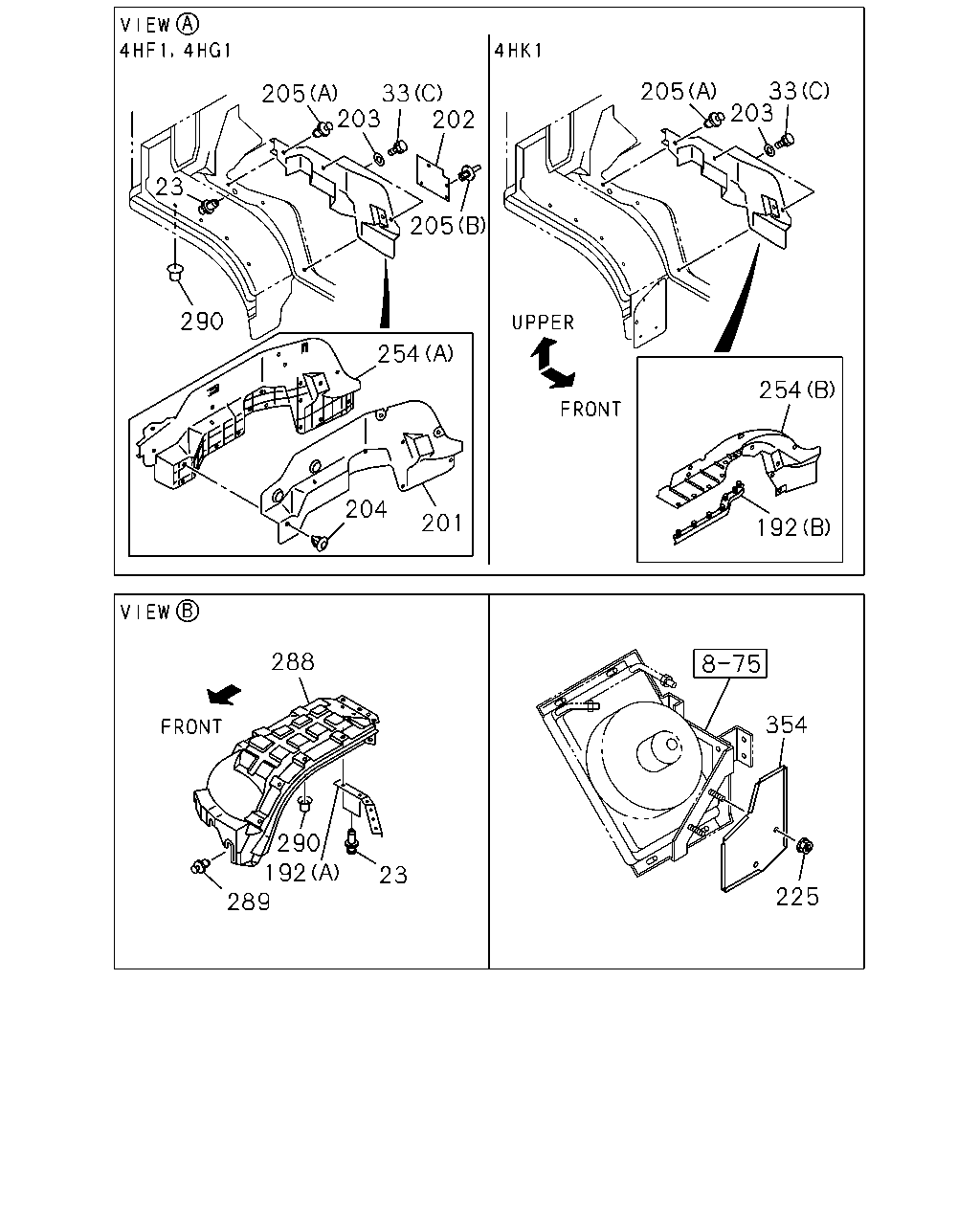

33 203 205 33 203 202 205 23 205 290 254 254 204 201 192 288 354 290 192 289 23 225

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
23	08.154 FASTENER; MUD COVER 4HK1-TCN ENG(RDQ) 16.320 OD=8.3	8-97997-832-0	10	1	0507-		●
23	08.154 FASTENER; MUD COVER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 16.320 OD=8.3	8-97997-832-0	10	1	0507-				●	●	●
23	08.154 FASTENER; MUD COVER 16.320 OD=8.3	8-97997-832-0	10	1	0507-	●
23	08.154 FASTENER; MUD COVER 16.320 OD=8.3	8-97997-832-0	06	1	0211-0501	●	●	●	●	●	●
23	08.154 FASTENER; MUD COVER 4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 16.320 OD=8.3	8-97997-832-0	06	1	0502-		●
23	08.154 FASTENER; MUD COVER 4HG1-T ENG(RDP),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) 16.320 OD=8.3	8-97997-832-0	06	1	0502-				●
23	08.154 FASTENER; MUD COVER 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 16.320 OD=8.3	8-97997-832-0	06	1	0502-					●
23	08.154 FASTENER; MUD COVER 4HG1 ENG(RJH),4HF1-S ENG(RLS) 16.320 OD=8.3	8-97997-832-0	06	1	0502-						●
23	08.154 FASTENER; MUD COVER 16.320 OD=8.3	8-97997-832-0	06	1	0502-			●
33	08.155 BOLT; MUD COVER FRT&RR 225/70R19.5 19.5X6.00-127(CRR) EXC. TIRE SIZE 8.25-16<7QP> 00.738 (D) M6X16 FLANGE	0-28080-616-0	10	1	0507-0512				●	●	●
33	08.155 BOLT; MUD COVER FRT&RR 225/70R19.5 19.5X6.00-127(CRR) EXC. TIRE SIZE 8.25-16<7QP> 09.242 (D) M6X16 FLANGE	0-28050-616-0	10	1	0601-				●	●	●
33	08.155 BOLT; MUD COVER 07.010 (A) M8X20 FLANGE	0-28080-820-0	05	1	0211-0501	●	●	●	●	●	●
33	08.155 BOLT; MUD COVER 07.010 (A) M8X20 FLANGE	0-28080-820-0	05	1	0502-0506		●	●	●	●	●
33	08.155 BOLT; MUD COVER 07.010 (A) M8X20 FLANGE	0-28080-820-0	05	1	0507-0512	●	●	●	●	●	●
33	08.155 BOLT; MUD COVER 04.338 (A) M8X20 FLANGE	0-28050-820-0	05	1	0601-	●	●	●	●	●	●
33	08.155 BOLT; MUD COVER 02.334 (C) M6X25 FLANGE	0-28680-625-0	04	1	0211-0501	●	●	●	●	●	●
33	08.155 BOLT; MUD COVER 02.334 (C) M6X25 FLANGE	0-28680-625-0	04	1	0502-0506		●	●	●	●	●
33	08.155 BOLT; MUD COVER 02.334 (C) M6X25 FLANGE	0-28680-625-0	04	1	0507-0512	●	●	●	●	●	●
33	08.155 BOLT; MUD COVER 00.685 (C) M6X25 FLANGE	0-28650-625-0	04	1	0601-0604	●	●	●	●	●	●
33	08.155 BOLT; MUD COVER (C) M6X26 W/PL WASHER	8-98035-643-0	04	1	0605-	●	●	●	●	●	●
33	08.155 BOLT; MUD COVER 16.320 (B) M8X20 W/LK&PL WASHER	8-94279-104-0	01	1	0211-0501	●	●	●	●	●	●
33	08.155 BOLT; MUD COVER 16.320 (B) M8X20 W/LK&PL WASHER	8-94279-104-0	01	1	0502-0506		●	●	●	●	●
33	08.155 BOLT; MUD COVER 16.320 (B) M8X20 W/LK&PL WASHER	8-94279-104-0	01	1	0507-0805	●	●	●	●	●	●
33	08.155 BOLT; MUD COVER 16.085 (B) M8X20 W/LK&PL WASHER	8-97359-709-0	01	1	0806-	●	●	●	●	●	●
33	08.155 BOLT; MUD COVER 00.738 (D) M6X16 FLANGE	0-28080-616-0	08	1	0211-0501	●	●	●
33	08.155 BOLT; MUD COVER EXC. TIRE SIZE 8.25-16<7QP> 00.738 (D) M6X16 FLANGE	0-28080-616-0	08	1	0211-0501				●	●	●
33	08.155 BOLT; MUD COVER 00.738 (D) M6X16 FLANGE	0-28080-616-0	08	1	0502-0506		●
33	08.155 BOLT; MUD COVER EXC. TIRE SIZE 8.25-16<7QP> 00.738 (D) M6X16 FLANGE	0-28080-616-0	08	1	0502-0506				●	●	●
33	08.155 BOLT; MUD COVER 00.738 (D) M6X16 FLANGE	0-28080-616-0	08	1	0507-0507	●	●
33	08.155 BOLT; MUD COVER AUSTRALIA EQUIPMENT(RR3) EXC. VEHICLE CATEGORY NQR<7NQ> 00.738 (D) M6X16 FLANGE	0-28080-616-0	08	1	0507-0507				●	●	●
33	08.155 BOLT; MUD COVER EXC. AUSTRALIA EQUIPMENT(RR3),TIRE SIZE 8.25-16<7QP> 00.738 (D) M6X16 FLANGE	0-28080-616-0	08	1	0507-0507				●	●	●
33	08.155 BOLT; MUD COVER 00.738 (D) M6X16 FLANGE	0-28080-616-0	08	1	0508-0512	●	●	●
33	08.155 BOLT; MUD COVER AUSTRALIA EQUIPMENT(RR3) EXC. VEHICLE CATEGORY NQR<7NQ> 00.738 (D) M6X16 FLANGE	0-28080-616-0	08	1	0508-0512				●	●	●
33	08.155 BOLT; MUD COVER EXC. AUSTRALIA EQUIPMENT(RR3),TIRE SIZE 8.25-16<7QP> 00.738 (D) M6X16 FLANGE	0-28080-616-0	08	1	0508-0512				●	●	●
33	08.155 BOLT; MUD COVER 09.242 (D) M6X16 FLANGE	0-28050-616-0	08	1	0601-	●	●	●
33	08.155 BOLT; MUD COVER AUSTRALIA EQUIPMENT(RR3) EXC. VEHICLE CATEGORY NQR<7NQ> 09.242 (D) M6X16 FLANGE	0-28050-616-0	08	1	0601-				●	●	●
33	08.155 BOLT; MUD COVER EXC. AUSTRALIA EQUIPMENT(RR3),TIRE SIZE 8.25-16<7QP> 09.242 (D) M6X16 FLANGE	0-28050-616-0	08	1	0601-				●	●	●
33	08.155 BOLT; MUD COVER FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> 00.738 (D) M6X16 FLANGE	0-28080-616-0	06	1	0211-0501				●	●	●
33	08.155 BOLT; MUD COVER FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> 00.738 (D) M6X16 FLANGE	0-28080-616-0	03	1	0502-0507				●	●	●
33	08.155 BOLT; MUD COVER FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> 00.738 (D) M6X16 FLANGE	0-28080-616-0	03	1	0502-0507				●	●	●
33	08.155 BOLT; MUD COVER FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> 00.738 (D) M6X16 FLANGE	0-28080-616-0	06	1	0508-0512				●	●	●
33	08.155 BOLT; MUD COVER FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> 09.242 (D) M6X16 FLANGE	0-28050-616-0	06	1	0601-				●	●	●
192	08.153 SEAL; MUD COVER 4HK1-TCN ENG(RDQ) (B)	8-97581-413-1	01	1	0507-		●
192	08.153 SEAL; MUD COVER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B)	8-97581-413-1	01	1	0507-				●	●	●
192	08.153 SEAL; MUD COVER (B)	8-97581-413-1	01	1	0507-	●
192	08.153 SEAL; MUD COVER 4HK1-TCN ENG(RDQ) (B)	8-97581-414-1	01	1	0507-		●
192	08.153 SEAL; MUD COVER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B)	8-97581-414-1	01	1	0507-				●	●	●
192	08.153 SEAL; MUD COVER (B)	8-97581-414-1	01	1	0507-	●
192	08.153 SEAL; MUD COVER 4HK1-TCN ENG(RDQ) (A)	8-97896-994-1	02	1	0507-1106		●
192	08.153 SEAL; MUD COVER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (A)	8-97896-994-1	02	1	0507-1106				●	●	●
192	08.153 SEAL; MUD COVER (A)	8-97896-994-1	02	1	0507-1106	●
192	08.153 SEAL; MUD COVER 4HK1-TCN ENG(RDQ) (A)	8-98192-033-0	02	1	1107-		●
192	08.153 SEAL; MUD COVER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (A)	8-98192-033-0	02	1	1107-				●	●	●
192	08.153 SEAL; MUD COVER (A)	8-98192-033-0	02	1	1107-	●
192	08.153 SEAL; MUD COVER (A)	8-97857-297-3	02	1	0211-0501	●	●	●	●	●	●
192	08.153 SEAL; MUD COVER 4HF1-N ENG(RJZ),4HF1-S ENG(RLS) (A)	8-97857-297-4	02	1	0502-1106		●
192	08.153 SEAL; MUD COVER 4HG1-T ENG(RDP),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) (A)	8-97857-297-4	02	1	0502-1106				●
192	08.153 SEAL; MUD COVER 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) (A)	8-97857-297-4	02	1	0502-1106					●
192	08.153 SEAL; MUD COVER 4HG1 ENG(RJH),4HF1-S ENG(RLS) (A)	8-97857-297-4	02	1	0502-1106						●
192	08.153 SEAL; MUD COVER (A)	8-97857-297-4	02	1	0502-1106			●
192	08.153 SEAL; MUD COVER (A)	8-98192-031-0	02	1	1107-		●	●	●	●	●
201	08.155 INSULATOR; VALANCE 4HF1-S ENG(RLS),4HE1 ENG(RLY)	8-97853-631-3	01	1	0211-0501		●
201	08.155 INSULATOR; VALANCE 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY)	8-97853-631-3	01	1	0211-0501				●	●	●
201	08.155 INSULATOR; VALANCE	8-97853-631-3	01	1	0211-0501	●		●
201	08.155 INSULATOR; VALANCE	8-97853-631-3	01	1	0502-		●	●	●	●	●
201	08.155 INSULATOR; VALANCE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97892-184-1	01	1	0211-0501		●		●	●	●
201	08.155 INSULATOR; VALANCE CHARGE AIR COOLER<6PL>	8-97892-184-1	01	1	0211-0501	●
201	08.155 INSULATOR; VALANCE 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>	8-97853-630-3	01	1	0211-0501	●	●		●	●	●
201	08.155 INSULATOR; VALANCE 4HG1 ENG(RJH),4HF1-S ENG(RLS)	8-97853-630-3	01	1	0211-0501		●	●	●	●	●
201	08.155 INSULATOR; VALANCE 4HF1-N ENG(RJZ),4HF1-S ENG(RLS)	8-97853-630-3	01	1	0502-		●
201	08.155 INSULATOR; VALANCE 4HG1-T ENG(RDP),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS)	8-97853-630-3	01	1	0502-				●
201	08.155 INSULATOR; VALANCE 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS)	8-97853-630-3	01	1	0502-					●
201	08.155 INSULATOR; VALANCE 4HG1 ENG(RJH),4HF1-S ENG(RLS)	8-97853-630-3	01	1	0502-						●
201	08.155 INSULATOR; VALANCE	8-97853-630-3	01	1	0502-			●
202	08.155 RUBBER; MUD,VALANCE PANEL 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97892-185-0	01	1	0211-0501		●		●	●	●
202	08.155 RUBBER; MUD,VALANCE PANEL CHARGE AIR COOLER<6PL>	8-97892-185-0	01	1	0211-0501	●
203	08.155 WASHER; PL,VALANCE ID=6.4 OD=22	8-94279-631-0	04	1	0211-0501	●	●	●	●	●	●
203	08.155 WASHER; PL,VALANCE ID=6.4 OD=22	8-94279-631-0	04	1	0502-0506		●	●	●	●	●
203	08.155 WASHER; PL,VALANCE ID=6.4 OD=22	8-94279-631-0	04	1	0507-0604	●	●	●	●	●	●
204	08.155 CLIP; VALANCE,INSULATOR OD=18 L=17	8-94279-702-0	14	1	0211-0308	●	●	●	●	●	●
204	08.155 CLIP; VALANCE,INSULATOR OD=18 L=17	8-94279-702-0	12	1	0309-0501	●	●	●	●	●	●
204	08.155 CLIP; VALANCE,INSULATOR 4HF1-N ENG(RJZ),4HF1-S ENG(RLS) OD=18 L=17	8-94279-702-0	12	1	0502-		●
204	08.155 CLIP; VALANCE,INSULATOR 4HG1-T ENG(RDP),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) OD=18 L=17	8-94279-702-0	12	1	0502-				●
204	08.155 CLIP; VALANCE,INSULATOR 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) OD=18 L=17	8-94279-702-0	12	1	0502-					●
204	08.155 CLIP; VALANCE,INSULATOR 4HG1 ENG(RJH),4HF1-S ENG(RLS) OD=18 L=17	8-94279-702-0	12	1	0502-						●
204	08.155 CLIP; VALANCE,INSULATOR OD=18 L=17	8-94279-702-0	12	1	0502-			●
205	08.155 FASTENER; MUD COVER 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (B)	5-09989-002-0	04	1	0211-0501		●		●	●	●
205	08.155 FASTENER; MUD COVER CHARGE AIR COOLER<6PL> (B)	5-09989-002-0	04	1	0211-0501	●
205	08.155 FASTENER; MUD COVER 12.934 (A) D=5.8 SCREW & GROMMET NYLON	8-94242-150-0	02	1	0211-0501	●	●	●	●	●	●
205	08.155 FASTENER; MUD COVER 12.934 (A) D=5.8 SCREW & GROMMET NYLON	8-94242-150-0	02	1	0502-0506		●	●	●	●	●
205	08.155 FASTENER; MUD COVER 12.934 (A) D=5.8 SCREW & GROMMET NYLON	8-94242-150-0	02	1	0507-	●	●	●	●	●	●
225	08.155 NUT; MUD GUARD 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) AUSTRALIA EQUIPMENT(RR3) 07.633 M8 FLANGE	0-91150-108-0	02	1	0507-0602	●	●		●	●	●
225	08.155 NUT; MUD GUARD 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) AUSTRALIA EQUIPMENT(RR3) 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-	●	●		●	●	●
254	08.153 COVER; MUD,VALANCE 4HK1-TCN ENG(RDQ) (B)	8-97899-213-4	01	1	0507-		●
254	08.153 COVER; MUD,VALANCE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B)	8-97899-213-4	01	1	0507-				●	●	●
254	08.153 COVER; MUD,VALANCE (B)	8-97899-213-4	01	1	0507-	●
254	08.153 COVER; MUD,VALANCE 4HK1-TCN ENG(RDQ) (B)	8-97899-214-4	01	1	0507-		●
254	08.153 COVER; MUD,VALANCE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B)	8-97899-214-4	01	1	0507-				●	●	●
254	08.153 COVER; MUD,VALANCE (B)	8-97899-214-4	01	1	0507-	●
254	08.153 COVER; MUD,VALANCE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (A)	8-97892-183-0	01	1	0211-0501		●		●	●	●
254	08.153 COVER; MUD,VALANCE CHARGE AIR COOLER<6PL> (A)	8-97892-183-0	01	1	0211-0501	●
254	08.153 COVER; MUD,VALANCE 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> (A)	8-97853-358-3	01	1	0211-0501	●	●		●	●	●
254	08.153 COVER; MUD,VALANCE 4HG1 ENG(RJH),4HF1-S ENG(RLS) (A)	8-97853-358-3	01	1	0211-0501		●	●	●	●	●
254	08.153 COVER; MUD,VALANCE (A)	8-97853-358-3	01	1	0502-		●	●	●	●	●
254	08.153 COVER; MUD,VALANCE (A)	8-97853-359-3	01	1	0211-0501	●	●	●	●	●	●
254	08.153 COVER; MUD,VALANCE 4HF1-N ENG(RJZ),4HF1-S ENG(RLS) (A)	8-97853-359-3	01	1	0502-		●
254	08.153 COVER; MUD,VALANCE 4HG1-T ENG(RDP),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) (A)	8-97853-359-3	01	1	0502-				●
254	08.153 COVER; MUD,VALANCE 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) (A)	8-97853-359-3	01	1	0502-					●
254	08.153 COVER; MUD,VALANCE 4HG1 ENG(RJH),4HF1-S ENG(RLS) (A)	8-97853-359-3	01	1	0502-						●
254	08.153 COVER; MUD,VALANCE (A)	8-97853-359-3	01	1	0502-			●
288	08.155 LINER; TIRE HOUSE	8-97890-579-1	01	1	0211-0212	●	●	●	●	●	●
288	08.155 LINER; TIRE HOUSE	8-97581-241-0	01	1	0301-0501	●	●	●	●	●	●
288	08.155 LINER; TIRE HOUSE	8-97581-241-0	01	1	0502-0506		●	●	●	●	●
288	08.155 LINER; TIRE HOUSE	8-97581-241-0	01	1	0507-	●	●	●	●	●	●
288	08.155 LINER; TIRE HOUSE	8-97890-578-1	01	1	0211-0212	●	●	●	●	●	●
288	08.155 LINER; TIRE HOUSE	8-97581-240-0	01	1	0301-0501	●	●	●	●	●	●
288	08.155 LINER; TIRE HOUSE	8-97581-240-0	01	1	0502-0506		●	●	●	●	●
288	08.155 LINER; TIRE HOUSE	8-97581-240-0	01	1	0507-	●	●	●	●	●	●
289	08.155 FASTENER; LINER 16.320 OD=8.3	8-94279-989-0	20	1	0211-0212	●	●	●	●	●	●
289	08.155 FASTENER; LINER 16.320 OD=8.3	8-94279-989-0	18	1	0301-0501	●	●	●	●	●	●
289	08.155 FASTENER; LINER 16.320 OD=8.3	8-94279-989-0	18	1	0502-0506		●	●	●	●	●
289	08.155 FASTENER; LINER 16.320 OD=8.3	8-94279-989-0	18	1	0507-	●	●	●	●	●	●
290	08.155 NUT; LINER CAP NUT BLACK	8-94279-526-0	08	1	0211-0501	●	●	●	●	●	●
290	08.155 NUT; LINER CAP NUT BLACK	8-94279-526-0	08	1	0502-0506		●	●	●	●	●
290	08.155 NUT; LINER CAP NUT BLACK	8-94279-526-0	08	1	0507-	●	●	●	●	●	●
354	08.155 PLATE; MUD GUARD 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) AUSTRALIA EQUIPMENT(RR3)	8-97377-737-0	01	1	0507-	●	●		●	●	●

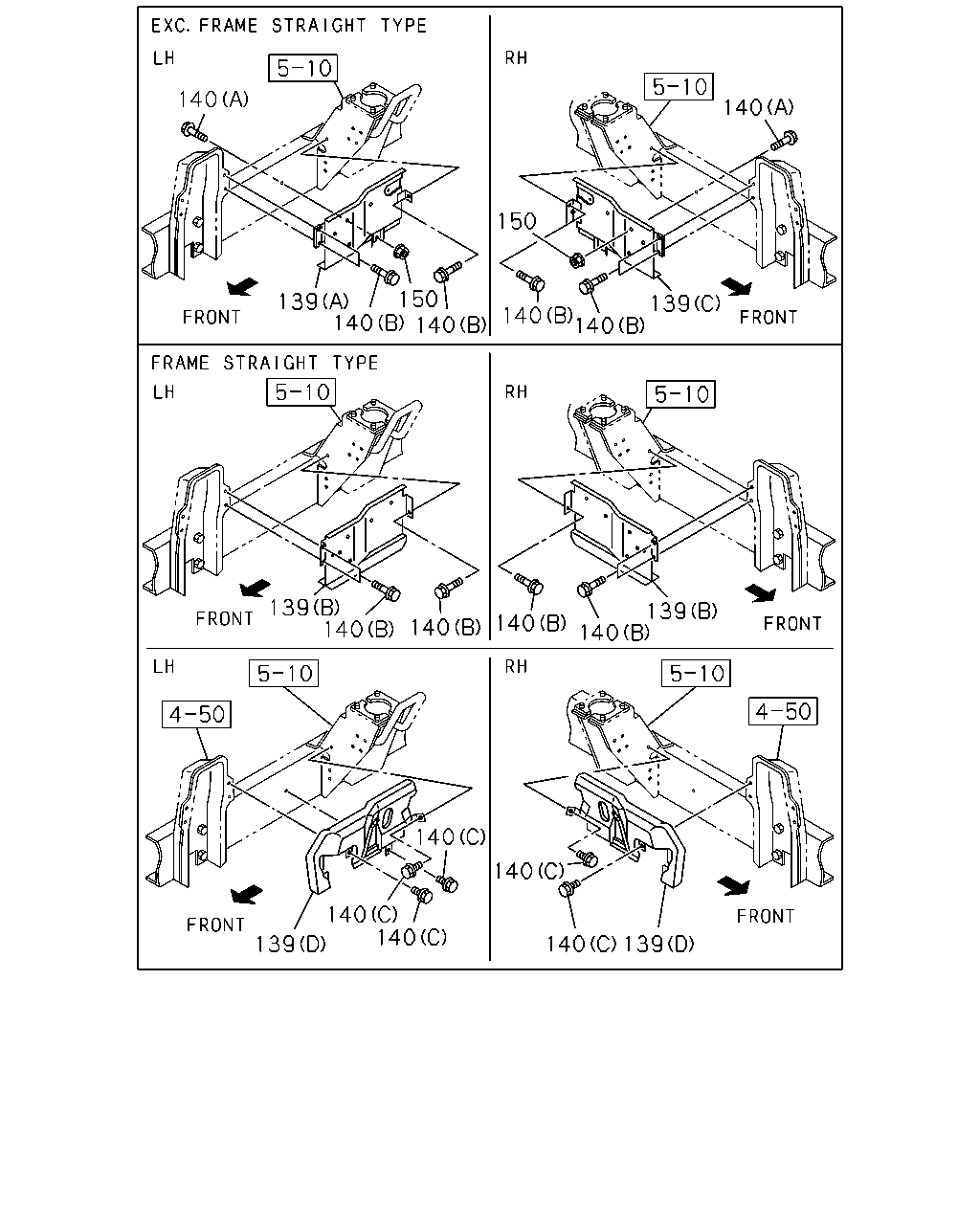

140 140 150 139 150 140 140 139 140 140 139 140 140 139 140 140 140 140 140 140 139 140 139

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
139	08.153 PANEL; SIDE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (D)	8-97352-124-1	01	1	0507-		●
139	08.153 PANEL; SIDE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (D)	8-97352-124-1	01	1	0507-				●	●	●
139	08.153 PANEL; SIDE (D)	8-97352-124-1	01	1	0507-	●
139	08.153 PANEL; SIDE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (D)	8-97352-125-2	01	1	0507-		●
139	08.153 PANEL; SIDE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (D)	8-97352-125-2	01	1	0507-				●	●	●
139	08.153 PANEL; SIDE (D)	8-97352-125-2	01	1	0507-	●
139	08.153 PANEL; SIDE 4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97092-020-1	01	1	0211-0501		●
139	08.153 PANEL; SIDE 4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97092-020-1	01	1	0211-0501				●	●	●
139	08.153 PANEL; SIDE (A)	8-97092-020-1	01	1	0211-0501			●
139	08.153 PANEL; SIDE (A)	8-97092-020-1	01	1	0502-0506		●
139	08.153 PANEL; SIDE EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97092-020-1	01	1	0502-0506				●	●	●
139	08.153 PANEL; SIDE 4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97092-020-1	01	1	0507-0507		●
139	08.153 PANEL; SIDE 4HG1-T ENG(RDP),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97092-020-1	01	1	0507-0507				●
139	08.153 PANEL; SIDE 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97092-020-1	01	1	0507-0507					●
139	08.153 PANEL; SIDE 4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97092-020-1	01	1	0507-0507						●
139	08.153 PANEL; SIDE 4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97092-020-1	01	1	0508-		●
139	08.153 PANEL; SIDE 4HG1-T ENG(RDP),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97092-020-1	01	1	0508-				●
139	08.153 PANEL; SIDE 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97092-020-1	01	1	0508-					●
139	08.153 PANEL; SIDE 4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97092-020-1	01	1	0508-						●
139	08.153 PANEL; SIDE (A)	8-97092-020-1	01	1	0508-			●
139	08.153 PANEL; SIDE 4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-97021-164-0	01	1	0211-0501		●
139	08.153 PANEL; SIDE 4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-97021-164-0	01	1	0211-0501				●	●	●
139	08.153 PANEL; SIDE (C)	8-97021-164-0	01	1	0211-0501			●
139	08.153 PANEL; SIDE (C)	8-97021-164-0	01	1	0502-0506		●
139	08.153 PANEL; SIDE EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-97021-164-0	01	1	0502-0506				●	●	●
139	08.153 PANEL; SIDE 4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-97021-164-0	01	1	0507-0507		●
139	08.153 PANEL; SIDE 4HG1-T ENG(RDP),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-97021-164-0	01	1	0507-0507				●
139	08.153 PANEL; SIDE 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-97021-164-0	01	1	0507-0507					●
139	08.153 PANEL; SIDE 4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-97021-164-0	01	1	0507-0507						●
139	08.153 PANEL; SIDE 4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-97021-164-0	01	1	0508-		●
139	08.153 PANEL; SIDE 4HG1-T ENG(RDP),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-97021-164-0	01	1	0508-				●
139	08.153 PANEL; SIDE 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-97021-164-0	01	1	0508-					●
139	08.153 PANEL; SIDE 4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-97021-164-0	01	1	0508-						●
139	08.153 PANEL; SIDE (C)	8-97021-164-0	01	1	0508-			●
139	08.153 PANEL; SIDE FRAME STRAIGHT TYPE<7KJ> (B)	8-97171-996-0	01	1	0211-0501	●	●		●	●	●
139	08.153 PANEL; SIDE FRAME STRAIGHT TYPE<7KJ> (B)	8-97171-996-0	01	1	0502-0506				●	●	●
139	08.153 PANEL; SIDE 4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> (B)	8-97171-996-0	01	1	0507-		●
139	08.153 PANEL; SIDE 4HG1-T ENG(RDP),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> (B)	8-97171-996-0	01	1	0507-				●
139	08.153 PANEL; SIDE 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> (B)	8-97171-996-0	01	1	0507-					●
139	08.153 PANEL; SIDE 4HG1 ENG(RJH),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> (B)	8-97171-996-0	01	1	0507-						●
139	08.153 PANEL; SIDE FRAME STRAIGHT TYPE<7KJ> (B)	8-97188-736-0	01	1	0211-0501	●	●		●	●	●
139	08.153 PANEL; SIDE FRAME STRAIGHT TYPE<7KJ> (B)	8-97188-736-0	01	1	0502-0506				●	●	●
139	08.153 PANEL; SIDE 4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> (B)	8-97188-736-0	01	1	0507-		●
139	08.153 PANEL; SIDE 4HG1-T ENG(RDP),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> (B)	8-97188-736-0	01	1	0507-				●
139	08.153 PANEL; SIDE 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> (B)	8-97188-736-0	01	1	0507-					●
139	08.153 PANEL; SIDE 4HG1 ENG(RJH),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> (B)	8-97188-736-0	01	1	0507-						●
140	08.155 BOLT; SIDE PANEL 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> 01.219 (C) M8X25 W/LK&PL WASHER	1-09030-074-0	06	1	0507-0611		●
140	08.155 BOLT; SIDE PANEL 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 01.219 (C) M8X25 W/LK&PL WASHER	1-09030-074-0	06	1	0507-0611				●	●	●
140	08.155 BOLT; SIDE PANEL 01.219 (C) M8X25 W/LK&PL WASHER	1-09030-074-0	06	1	0507-0611	●
140	08.155 BOLT; SIDE PANEL 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (C) M8X25 W/LK&PL WASHER	1-09030-093-0	06	1	0612-		●
140	08.155 BOLT; SIDE PANEL 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (C) M8X25 W/LK&PL WASHER	1-09030-093-0	06	1	0612-				●	●	●
140	08.155 BOLT; SIDE PANEL (C) M8X25 W/LK&PL WASHER	1-09030-093-0	06	1	0612-	●
140	08.155 BOLT; SIDE PANEL EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (A) M8X25 FLANGE	0-28680-825-0	02	1	0211-0501	●	●		●	●	●
140	08.155 BOLT; SIDE PANEL 02.559 (A) M8X25 FLANGE	0-28680-825-0	02	1	0211-0501			●
140	08.155 BOLT; SIDE PANEL 02.559 (A) M8X25 FLANGE	0-28680-825-0	02	1	0502-0506		●
140	08.155 BOLT; SIDE PANEL EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (A) M8X25 FLANGE	0-28680-825-0	02	1	0502-0506				●	●	●
140	08.155 BOLT; SIDE PANEL 4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (A) M8X25 FLANGE	0-28680-825-0	02	1	0507-0507		●
140	08.155 BOLT; SIDE PANEL 4HG1-T ENG(RDP),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (A) M8X25 FLANGE	0-28680-825-0	02	1	0507-0507				●
140	08.155 BOLT; SIDE PANEL 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (A) M8X25 FLANGE	0-28680-825-0	02	1	0507-0507					●
140	08.155 BOLT; SIDE PANEL 4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (A) M8X25 FLANGE	0-28680-825-0	02	1	0507-0507						●
140	08.155 BOLT; SIDE PANEL 4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (A) M8X25 FLANGE	0-28680-825-0	02	1	0508-0512		●
140	08.155 BOLT; SIDE PANEL 4HG1-T ENG(RDP),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (A) M8X25 FLANGE	0-28680-825-0	02	1	0508-0512				●
140	08.155 BOLT; SIDE PANEL 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (A) M8X25 FLANGE	0-28680-825-0	02	1	0508-0512					●
140	08.155 BOLT; SIDE PANEL 4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (A) M8X25 FLANGE	0-28680-825-0	02	1	0508-0512						●
140	08.155 BOLT; SIDE PANEL 02.559 (A) M8X25 FLANGE	0-28680-825-0	02	1	0508-0512			●
140	08.155 BOLT; SIDE PANEL 4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	0601-		●
140	08.155 BOLT; SIDE PANEL 4HG1-T ENG(RDP),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	0601-				●
140	08.155 BOLT; SIDE PANEL 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	0601-					●
140	08.155 BOLT; SIDE PANEL 4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	0601-						●
140	08.155 BOLT; SIDE PANEL 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	0601-			●
140	08.155 BOLT; SIDE PANEL 04.595 (B) M8X20 FLANGE	0-28480-820-0	06	1	0211-0501	●	●	●	●	●	●
140	08.155 BOLT; SIDE PANEL 04.595 (B) M8X20 FLANGE	0-28480-820-0	06	1	0502-0507		●		●	●	●
140	08.155 BOLT; SIDE PANEL 04.595 (B) M8X20 FLANGE	0-28480-820-0	06	1	0508-0512		●	●	●	●	●
140	08.155 BOLT; SIDE PANEL 07.242 (B) M8X20 FLANGE	0-28450-820-0	06	1	0601-		●	●	●	●	●
150	08.155 NUT; SIDE PANEL EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	02	1	0211-0501	●	●		●	●	●
150	08.155 NUT; SIDE PANEL 07.633 M8 FLANGE	0-91150-108-0	02	1	0211-0501			●
150	08.155 NUT; SIDE PANEL 07.633 M8 FLANGE	0-91150-108-0	02	1	0502-0506		●
150	08.155 NUT; SIDE PANEL EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	02	1	0502-0506				●	●	●
150	08.155 NUT; SIDE PANEL EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	02	1	0507-0507		●		●	●	●
150	08.155 NUT; SIDE PANEL EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	02	1	0508-0602		●		●	●	●
150	08.155 NUT; SIDE PANEL 07.633 M8 FLANGE	0-91150-108-0	02	1	0508-0602			●
150	08.155 NUT; SIDE PANEL EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-		●		●	●	●
150	08.155 NUT; SIDE PANEL 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
