6-32 — FRONT DOOR LOCK AND HANDLE (#18308) — 133 parça

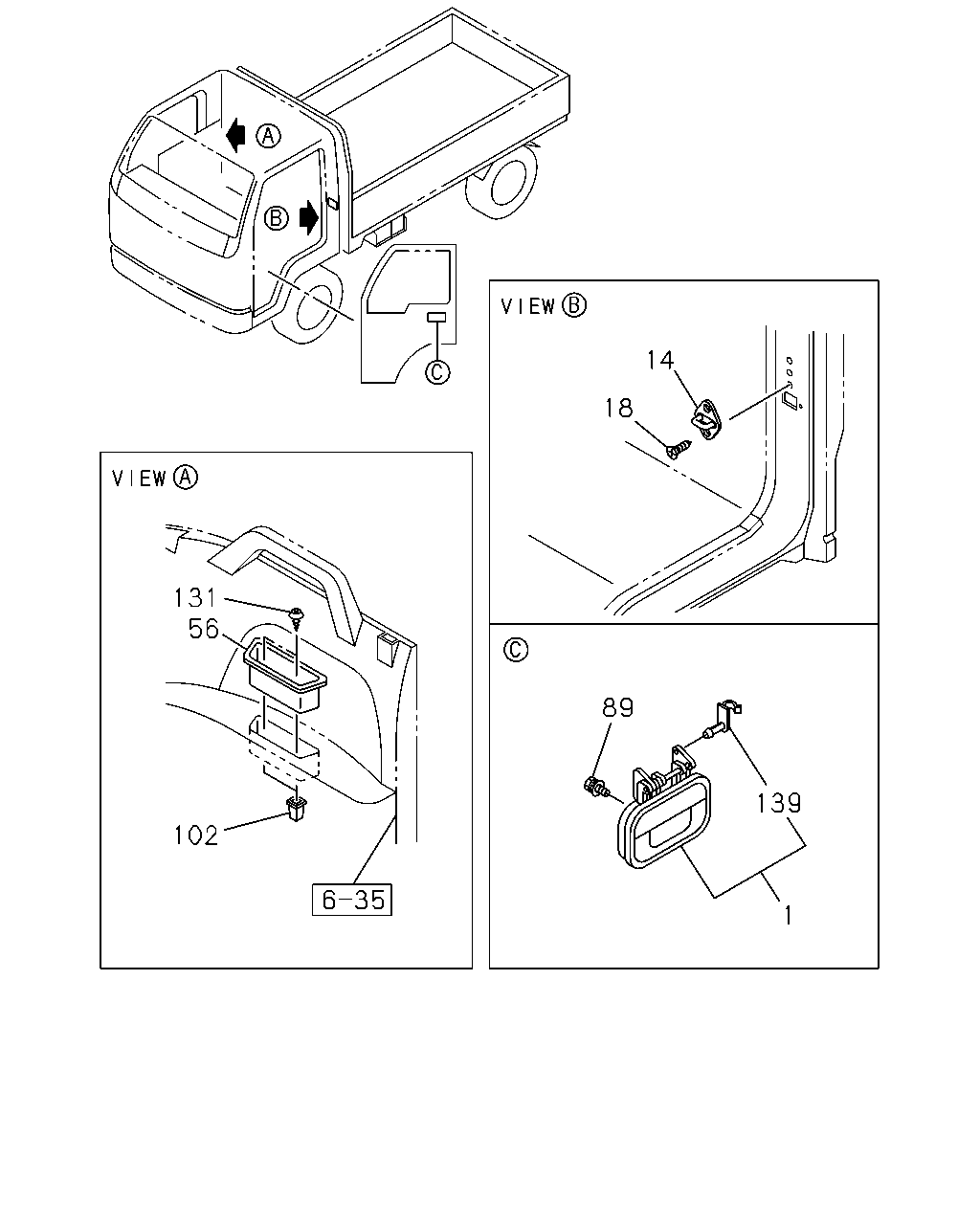

çizim 13163
14 18 131 56 89 139 102 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 16.350 HANDLE; OUTSIDE,FRT DOOR 8-97867-722-1 01 1 0211-0501 ● ● ● ● ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR 8-97867-722-1 01 1 0502-0506 ● ● ● ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR 8-97867-722-1 01 1 0507- ● ● ● ● ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR 8-97867-721-1 01 1 0211-0501 ● ● ● ● ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR 8-97867-721-1 01 1 0502-0506 ● ● ● ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR 8-97867-721-1 01 1 0507- ● ● ● ● ● ●
14 16.335 STRIKER; FRT DOOR 8-97221-702-0 02 1 0211-0501 ● ● ● ● ● ●
14 16.335 STRIKER; FRT DOOR 8-97221-702-1 02 1 0502-0506 ● ● ● ● ●
14 16.335 STRIKER; FRT DOOR 8-97221-702-1 02 1 0507- ● ● ● ● ● ●
18 16.335 SCREW; DOOR STRIKER
M8X23 W/LK WASHER 		8-97221-701-0 04 1 0211-0501 ● ● ● ● ● ●
18 16.335 SCREW; DOOR STRIKER
M8X23 W/LK WASHER 		8-97221-701-0 04 1 0502-0506 ● ● ● ● ●
18 16.335 SCREW; DOOR STRIKER
M8X23 W/LK WASHER 		8-97221-701-0 04 1 0507-0612 ● ● ● ● ● ●
18 16.335 SCREW; DOOR STRIKER
M8X20 CK-HEAD 		8-98004-343-2 04 1 0701- ● ● ● ● ● ●
56 16.157 ESCUTCHEON; LOCK KNOB
DARK GRAY 		8-97852-669-3 02 1 0211-0501 ● ● ● ● ● ●
56 16.157 ESCUTCHEON; LOCK KNOB
GRAY 		8-97582-307-3 02 1 0502-0506 ● ● ● ● ●
56 16.157 ESCUTCHEON; LOCK KNOB
GRAY 		8-97582-307-3 02 1 0507-0610 ● ● ● ● ● ●
56 16.157 ESCUTCHEON; LOCK KNOB
GRAY 		8-97406-318-3 02 1 0611- ● ● ● ● ● ●
89 16.350 BOLT; DOOR OUTSIDE HANDLE
M6X12 W/LK&PL WASHER 		8-94279-200-0 04 1 0502-0612 ● ● ● ● ● ●
89 16.350 BOLT; DOOR OUTSIDE HANDLE
M6X8 W/TORQUES 		8-98064-276-1 04 1 0701- ● ● ● ● ● ●
89 16.350 BOLT; DOOR OUTSIDE HANDLE
M6X12 W/LK&PL WASHER 		8-94279-200-0 04 1 0211-0501 ● ● ● ● ● ●
102 16.345 GROMMET; SCREW,ESCUTCHEON,DOOR P
01.269 D=8.6X7.7 L=7.5 		8-94279-078-0 06 1 0211-0501 ● ● ● ● ● ●
102 16.345 GROMMET; SCREW,ESCUTCHEON,DOOR P
01.269 D=8.6X7.7 L=7.5 		8-94279-078-0 06 1 0502-0506 ● ● ● ● ●
102 16.345 GROMMET; SCREW,ESCUTCHEON,DOOR P
01.269 D=8.6X7.7 L=7.5 		8-94279-078-0 06 1 0507- ● ● ● ● ● ●
131 16.345 SCREW; ESCUTCHEON,DOOR PULL
09.663 M5X12 TAPPING W/PL WASHER 		0-74110-512-0 06 1 0211-0501 ● ● ● ● ● ●
131 16.345 SCREW; ESCUTCHEON,DOOR PULL
09.663 M5X12 TAPPING W/PL WASHER 		0-74110-512-0 06 1 0502-0506 ● ● ● ● ●
131 16.345 SCREW; ESCUTCHEON,DOOR PULL
09.663 M5X12 TAPPING W/PL WASHER 		0-74110-512-0 06 1 0507-0604 ● ● ● ● ● ●
131 16.345 SCREW; ESCUTCHEON,DOOR PULL
M5X12 TAPPING W/PL WASHER 		0-74160-512-0 06 1 0605-0612 ● ● ● ● ● ●
131 16.345 SCREW; ESCUTCHEON,DOOR PULL
M5X12 HEX SOCKET 		0-72380-512-0 06 1 0701- ● ● ● ● ● ●
139 16.350 HOLDER; ROD,DOOR HANDLE 8-97852-652-1 01 1 0211-0501 ● ● ● ● ● ●
139 16.350 HOLDER; ROD,DOOR HANDLE 8-97852-652-1 01 1 0502-0506 ● ● ● ● ●
139 16.350 HOLDER; ROD,DOOR HANDLE 8-97852-652-1 01 1 0507- ● ● ● ● ● ●
139 16.350 HOLDER; ROD,DOOR HANDLE 8-97852-651-1 01 1 0211-0501 ● ● ● ● ● ●
139 16.350 HOLDER; ROD,DOOR HANDLE 8-97852-651-1 01 1 0502-0506 ● ● ● ● ●
139 16.350 HOLDER; ROD,DOOR HANDLE 8-97852-651-1 01 1 0507- ● ● ● ● ● ●

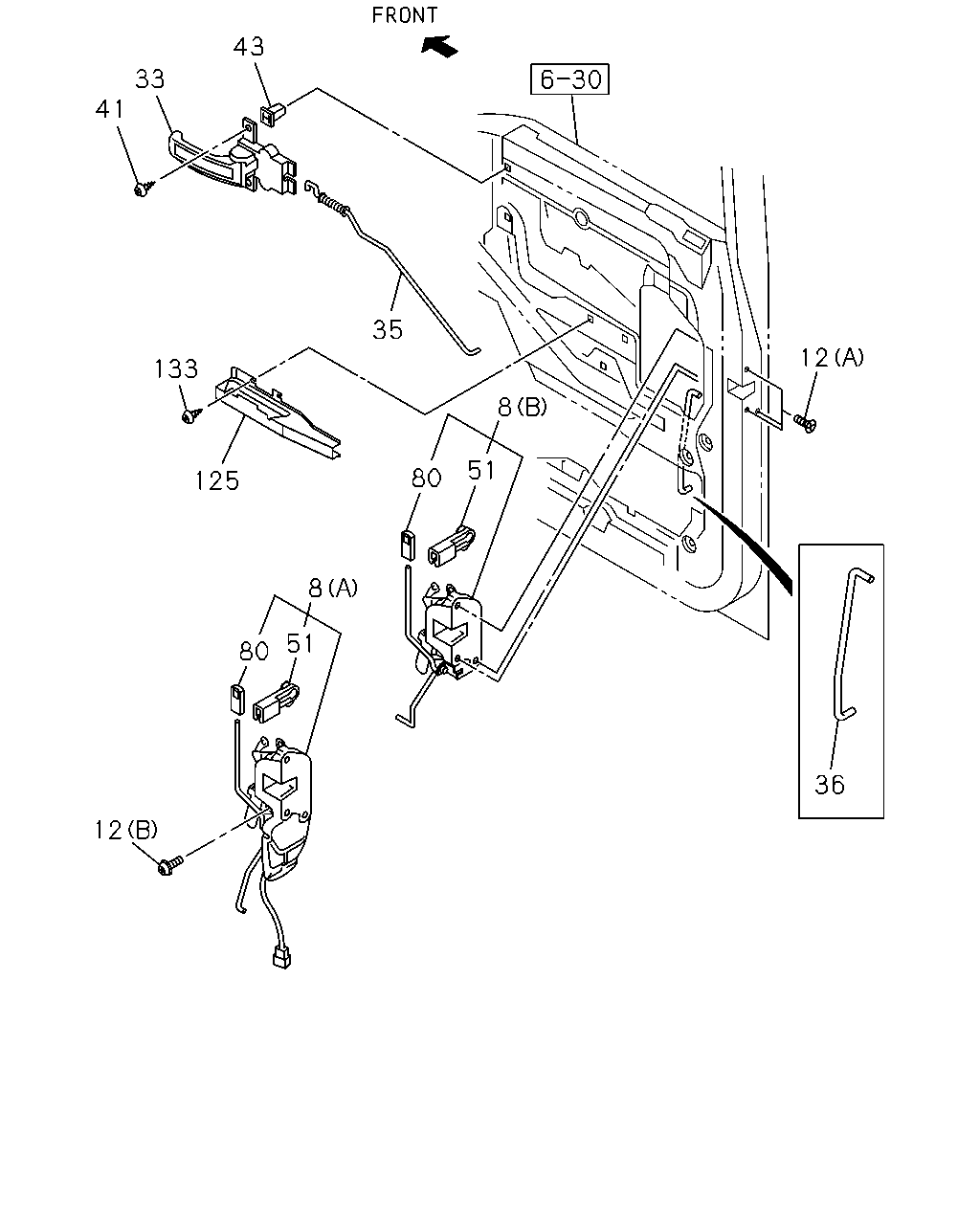

çizim 54693
43 33 41 35 8 12 80 51 125 133 80 8 51 12 36
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
8 16.330 LOCK; DOOR,FRT DOOR
AUTO DOOR LOCK<AU4> (A) GRAY 		8-97582-300-2 01 1 0502-0506 ● ● ● ● ●
8 16.330 LOCK; DOOR,FRT DOOR
AUTO DOOR LOCK<AU4> (A) GRAY 		8-97582-300-2 01 1 0507-0610 ● ● ● ● ●
8 16.330 LOCK; DOOR,FRT DOOR
(A) GRAY 		8-97582-300-2 01 1 0507-0610 ●
8 16.330 LOCK; DOOR,FRT DOOR
AUTO DOOR LOCK<AU4> (A) GRAY 		8-97406-312-2 01 1 0611-1009 ● ● ● ● ●
8 16.330 LOCK; DOOR,FRT DOOR
(A) GRAY 		8-97406-312-2 01 1 0611-1009 ●
8 16.330 LOCK; DOOR,FRT DOOR
AUTO DOOR LOCK<AU4> (A) GRAY 		8-97421-007-0 01 1 1010-1405 ● ● ● ● ●
8 16.330 LOCK; DOOR,FRT DOOR
(A) GRAY 		8-97421-007-0 01 1 1010-1405 ●
8 16.330 LOCK; DOOR,FRT DOOR
AUTO DOOR LOCK<AU4> (A) GRAY 		8-97428-935-0 01 1 1406- ● ● ● ● ●
8 16.330 LOCK; DOOR,FRT DOOR
(A) GRAY 		8-97428-935-0 01 1 1406- ●
8 16.330 LOCK; DOOR,FRT DOOR
AUTO DOOR LOCK<AU4> REMOTE CONT DOOR LOCK<6NF> (A) GRAY 		8-97582-302-2 01 1 0507-0610 ● ● ● ●
8 16.330 LOCK; DOOR,FRT DOOR
AUTO DOOR LOCK<AU4> CUSTOM PACKAGE<YM8> (A) GRAY 		8-97582-302-2 01 1 0507-0610 ● ● ●
8 16.330 LOCK; DOOR,FRT DOOR
(A) GRAY 		8-97582-302-2 01 1 0507-0610 ●
8 16.330 LOCK; DOOR,FRT DOOR
AUTO DOOR LOCK<AU4> REMOTE CONT DOOR LOCK<6NF> (A) GRAY 		8-97406-313-2 01 1 0611-1405 ● ● ● ●
8 16.330 LOCK; DOOR,FRT DOOR
AUTO DOOR LOCK<AU4> CUSTOM PACKAGE<YM8> (A) GRAY 		8-97406-313-2 01 1 0611-1405 ● ● ●
8 16.330 LOCK; DOOR,FRT DOOR
(A) GRAY 		8-97406-313-2 01 1 0611-1405 ●
8 16.330 LOCK; DOOR,FRT DOOR
AUTO DOOR LOCK<AU4> REMOTE CONT DOOR LOCK<6NF> (A) GRAY 		8-97428-945-0 01 1 1406- ● ● ● ●
8 16.330 LOCK; DOOR,FRT DOOR
AUTO DOOR LOCK<AU4> CUSTOM PACKAGE<YM8> (A) GRAY 		8-97428-945-0 01 1 1406- ● ● ●
8 16.330 LOCK; DOOR,FRT DOOR
(A) GRAY 		8-97428-945-0 01 1 1406- ●
8 16.330 LOCK; DOOR,FRT DOOR
AUTO DOOR LOCK<AU4> REMOTE CONT DOOR LOCK<6NF> (A) DARK GRAY 		8-97892-102-1 01 1 0211-0501 ● ● ● ● ●
8 16.330 LOCK; DOOR,FRT DOOR
AUTO DOOR LOCK<AU4> CUSTOM PACKAGE<YM8> (A) DARK GRAY 		8-97892-102-1 01 1 0211-0501 ● ● ●
8 16.330 LOCK; DOOR,FRT DOOR
AUTO DOOR LOCK<AU4> (A) DARK GRAY 		8-97892-100-1 01 1 0211-0501 ● ● ● ● ● ●
8 16.330 LOCK; DOOR,FRT DOOR
EXC. AUTO DOOR LOCK<AU4> (B) DARK GRAY 		8-97892-198-1 01 1 0211-0501 ● ● ● ● ● ●
8 16.330 LOCK; DOOR,FRT DOOR
EXC. AUTO DOOR LOCK<AU4> (B) GRAY 		8-97582-298-2 01 1 0502-0610 ● ● ● ● ●
8 16.330 LOCK; DOOR,FRT DOOR
EXC. AUTO DOOR LOCK<AU4> (B) GRAY 		8-97406-310-2 01 1 0611- ● ● ● ● ●
8 16.330 LOCK; DOOR,FRT DOOR
EXC. AUTO DOOR LOCK<AU4> (B) DARK GRAY 		8-97892-098-1 01 1 0211-0501 ● ● ● ● ● ●
8 16.330 LOCK; DOOR,FRT DOOR
EXC. AUTO DOOR LOCK<AU4> (B) GRAY 		8-97582-297-2 01 1 0502-0610 ● ● ● ● ●
8 16.330 LOCK; DOOR,FRT DOOR
EXC. AUTO DOOR LOCK<AU4> (B) GRAY 		8-97406-309-2 01 1 0611- ● ● ● ● ●
8 16.330 LOCK; DOOR,FRT DOOR
AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK<6NF> (A) DARK GRAY 		8-97892-099-1 01 1 0211-0501 ● ●
8 16.330 LOCK; DOOR,FRT DOOR
AUTO DOOR LOCK<AU4> EXC. CUSTOM PACKAGE<YM8>,REMOTE CONT DOOR LOCK<6NF> (A) DARK GRAY 		8-97892-099-1 01 1 0211-0501 ● ● ●
8 16.330 LOCK; DOOR,FRT DOOR
AUTO DOOR LOCK<AU4> (A) DARK GRAY 		8-97892-099-1 01 1 0211-0501 ●
8 16.330 LOCK; DOOR,FRT DOOR
AUTO DOOR LOCK<AU4> (A) GRAY 		8-97582-299-2 01 1 0502-0506 ● ● ● ● ●
8 16.330 LOCK; DOOR,FRT DOOR
AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK<6NF> (A) GRAY 		8-97582-299-2 01 1 0507-0610 ●
8 16.330 LOCK; DOOR,FRT DOOR
AUTO DOOR LOCK<AU4> EXC. CUSTOM PACKAGE<YM8>,REMOTE CONT DOOR LOCK<6NF> (A) GRAY 		8-97582-299-2 01 1 0507-0610 ● ● ●
8 16.330 LOCK; DOOR,FRT DOOR
AUTO DOOR LOCK<AU4> (A) GRAY 		8-97582-299-2 01 1 0507-0610 ●
8 16.330 LOCK; DOOR,FRT DOOR
AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK<6NF> (A) GRAY 		8-97406-311-2 01 1 0611- ●
8 16.330 LOCK; DOOR,FRT DOOR
AUTO DOOR LOCK<AU4> EXC. CUSTOM PACKAGE<YM8>,REMOTE CONT DOOR LOCK<6NF> (A) GRAY 		8-97406-311-2 01 1 0611- ● ● ●
8 16.330 LOCK; DOOR,FRT DOOR
AUTO DOOR LOCK<AU4> (A) GRAY 		8-97406-311-2 01 1 0611- ●
12 16.330 SCREW; DOOR LK
AUTO DOOR LOCK<AU4> 16.650 (B) T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 01 1 1406- ● ● ● ● ●
12 16.330 SCREW; DOOR LK
16.650 (B) T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 01 1 1406- ●
12 16.330 SCREW; DOOR LK
AUTO DOOR LOCK<AU4> REMOTE CONT DOOR LOCK<6NF> 16.650 (B) T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 02 1 1406- ● ● ● ●
12 16.330 SCREW; DOOR LK
AUTO DOOR LOCK<AU4> CUSTOM PACKAGE<YM8> 16.650 (B) T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 02 1 1406- ● ● ●
12 16.330 SCREW; DOOR LK
16.650 (B) T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 02 1 1406- ●
12 16.330 SCREW; DOOR LK
(A) M6X16 		1-09981-447-1 06 1 0211-0501 ● ● ● ● ● ●
12 16.330 SCREW; DOOR LK
(A) M6X16 		1-09981-447-1 06 1 0502-0506 ● ● ● ● ●
12 16.330 SCREW; DOOR LK
(A) M6X16 		1-09981-447-1 06 1 0507-0612 ● ● ● ● ● ●
12 16.330 SCREW; DOOR LK
(A) M6X14.5 		8-98004-342-0 06 1 0701- ● ● ● ● ● ●
33 16.345 LEVER ASM; INSIDE,FRT DOOR
DARK GRAY 		8-97866-602-1 01 1 0211-0501 ● ● ● ● ● ●
33 16.345 LEVER ASM; INSIDE,FRT DOOR
GRAY 		8-97582-305-1 01 1 0502-0506 ● ● ● ● ●
33 16.345 LEVER ASM; INSIDE,FRT DOOR
GRAY 		8-97582-305-1 01 1 0507-0611 ● ● ● ● ● ●
33 16.345 LEVER ASM; INSIDE,FRT DOOR
GRAY 		8-97409-389-0 01 1 0612- ● ● ● ● ● ●
33 16.345 LEVER ASM; INSIDE,FRT DOOR
DARK GRAY 		8-97866-601-1 01 1 0211-0501 ● ● ● ● ● ●
33 16.345 LEVER ASM; INSIDE,FRT DOOR
GRAY 		8-97582-304-1 01 1 0502-0506 ● ● ● ● ●
33 16.345 LEVER ASM; INSIDE,FRT DOOR
GRAY 		8-97582-304-1 01 1 0507-0611 ● ● ● ● ● ●
33 16.345 LEVER ASM; INSIDE,FRT DOOR
GRAY 		8-97409-388-0 01 1 0612- ● ● ● ● ● ●
35 16.341 LINK; DOOR LOCK,INSIDE 8-97890-887-2 01 1 0211-0501 ● ● ● ● ● ●
35 16.341 LINK; DOOR LOCK,INSIDE 8-97890-887-3 01 1 0502-0506 ● ● ● ● ●
35 16.341 LINK; DOOR LOCK,INSIDE 8-97890-887-3 01 1 0507- ● ● ● ● ● ●
35 16.341 LINK; DOOR LOCK,INSIDE 8-97890-886-2 01 1 0211-0501 ● ● ● ● ● ●
35 16.341 LINK; DOOR LOCK,INSIDE 8-97890-886-3 01 1 0502-0506 ● ● ● ● ●
35 16.341 LINK; DOOR LOCK,INSIDE 8-97890-886-3 01 1 0507- ● ● ● ● ● ●
36 16.332 LINK; DOOR LOCK,OUTSIDE 8-97890-885-0 01 1 0211-0501 ● ● ● ● ● ●
36 16.332 LINK; DOOR LOCK,OUTSIDE 8-97890-885-0 01 1 0502-0506 ● ● ● ● ●
36 16.332 LINK; DOOR LOCK,OUTSIDE 8-97890-885-0 01 1 0507- ● ● ● ● ● ●
36 16.332 LINK; DOOR LOCK,OUTSIDE 8-97890-884-0 01 1 0211-0501 ● ● ● ● ● ●
36 16.332 LINK; DOOR LOCK,OUTSIDE 8-97890-884-0 01 1 0502-0506 ● ● ● ● ●
36 16.332 LINK; DOOR LOCK,OUTSIDE 8-97890-884-0 01 1 0507- ● ● ● ● ● ●
41 16.345 SCREW; INSIDE HANDLE
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 04 1 0211-0501 ● ● ● ● ● ●
41 16.345 SCREW; INSIDE HANDLE
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 04 1 0502-0506 ● ● ● ● ●
41 16.345 SCREW; INSIDE HANDLE
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 04 1 0507-0604 ● ● ● ● ● ●
41 16.345 SCREW; INSIDE HANDLE
03.885 M5X16 TAPPING W/PL WASHER 		0-74360-516-0 04 1 0605-0612 ● ● ● ● ● ●
41 16.345 SCREW; INSIDE HANDLE
16.570 M5X16 TAPPING HEXALOBULAR 		0-72380-516-0 04 1 0701- ● ● ● ● ● ●
43 16.345 GROMMET; SCREW,INSIDE LEVER,DOOR
01.269 D=8.6X7.7 L=7.5 		8-94279-078-0 04 1 0211-0501 ● ● ● ● ● ●
43 16.345 GROMMET; SCREW,INSIDE LEVER,DOOR
01.269 D=8.6X7.7 L=7.5 		8-94279-078-0 04 1 0502-0506 ● ● ● ● ●
43 16.345 GROMMET; SCREW,INSIDE LEVER,DOOR
01.269 D=8.6X7.7 L=7.5 		8-94279-078-0 04 1 0507- ● ● ● ● ● ●
51 16.335 SNAP; FRT DOOR LOCK CONT ROD 8-97859-069-0 01 1 0502- ● ● ● ● ● ●
51 16.335 SNAP; FRT DOOR LOCK CONT ROD 8-97859-069-0 01 1 0211-0501 ● ● ● ● ● ●
51 16.335 SNAP; FRT DOOR LOCK CONT ROD
16.345 		8-97852-643-0 01 1 0211- ● ● ● ● ● ●
80 16.157 KNOB; DOOR LOCK
AUTO DOOR LOCK<AU4> DARK GRAY 		8-97098-574-0 01 1 0211-0501 ● ● ● ● ● ●
80 16.157 KNOB; DOOR LOCK
AUTO DOOR LOCK<AU4> DARK GRAY 		8-97098-574-0 01 1 0211-0501 ● ● ● ● ● ●
80 16.157 KNOB; DOOR LOCK
AUTO DOOR LOCK<AU4> GRAY 		8-97582-706-0 01 1 0502-0506 ● ● ● ● ●
80 16.157 KNOB; DOOR LOCK
AUTO DOOR LOCK<AU4> GRAY 		8-97582-706-0 01 1 0502-0506 ● ● ● ● ●
80 16.157 KNOB; DOOR LOCK
AUTO DOOR LOCK<AU4> GRAY 		8-97582-706-0 01 1 0507-0610 ● ● ● ● ● ●
80 16.157 KNOB; DOOR LOCK
AUTO DOOR LOCK<AU4> GRAY 		8-97582-706-0 01 1 0507-0610 ● ● ● ● ● ●
80 16.157 KNOB; DOOR LOCK
AUTO DOOR LOCK<AU4> GRAY 		8-97406-876-0 01 1 0611- ● ● ● ● ● ●
80 16.157 KNOB; DOOR LOCK
AUTO DOOR LOCK<AU4> GRAY 		8-97406-876-0 01 1 0611- ● ● ● ● ● ●
80 16.157 KNOB; DOOR LOCK
EXC. AUTO DOOR LOCK<AU4> DARK GRAY 		8-97098-574-0 02 1 0211-0501 ● ● ● ● ● ●
80 16.157 KNOB; DOOR LOCK
EXC. AUTO DOOR LOCK<AU4> GRAY 		8-97582-706-0 02 1 0502-0610 ● ● ● ● ●
80 16.157 KNOB; DOOR LOCK
EXC. AUTO DOOR LOCK<AU4> GRAY 		8-97406-876-0 02 1 0611- ● ● ● ● ●
125 16.341 BRACKET; DOOR PULL 8-97869-460-0 01 1 0211-0501 ● ● ● ● ● ●
125 16.341 BRACKET; DOOR PULL 8-97869-460-1 01 1 0502-0506 ● ● ● ● ●
125 16.341 BRACKET; DOOR PULL 8-97869-460-1 01 1 0507- ● ● ● ● ● ●
125 16.341 BRACKET; DOOR PULL 8-97869-459-0 01 1 0211-0501 ● ● ● ● ● ●
125 16.341 BRACKET; DOOR PULL 8-97869-459-1 01 1 0502-0506 ● ● ● ● ●
125 16.341 BRACKET; DOOR PULL 8-97869-459-1 01 1 0507- ● ● ● ● ● ●
133 16.345 SCREW; DOOR PULL STAY
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 06 1 0211-0501 ● ● ● ● ● ●
133 16.345 SCREW; DOOR PULL STAY
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 06 1 0502-0506 ● ● ● ● ●
133 16.345 SCREW; DOOR PULL STAY
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 06 1 0507-0604 ● ● ● ● ● ●
133 16.345 SCREW; DOOR PULL STAY
03.885 M5X16 TAPPING W/PL WASHER 		0-74360-516-0 06 1 0605-0612 ● ● ● ● ● ●
133 16.345 SCREW; DOOR PULL STAY
16.570 M5X16 TAPPING HEXALOBULAR 		0-72380-516-0 06 1 0701- ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
