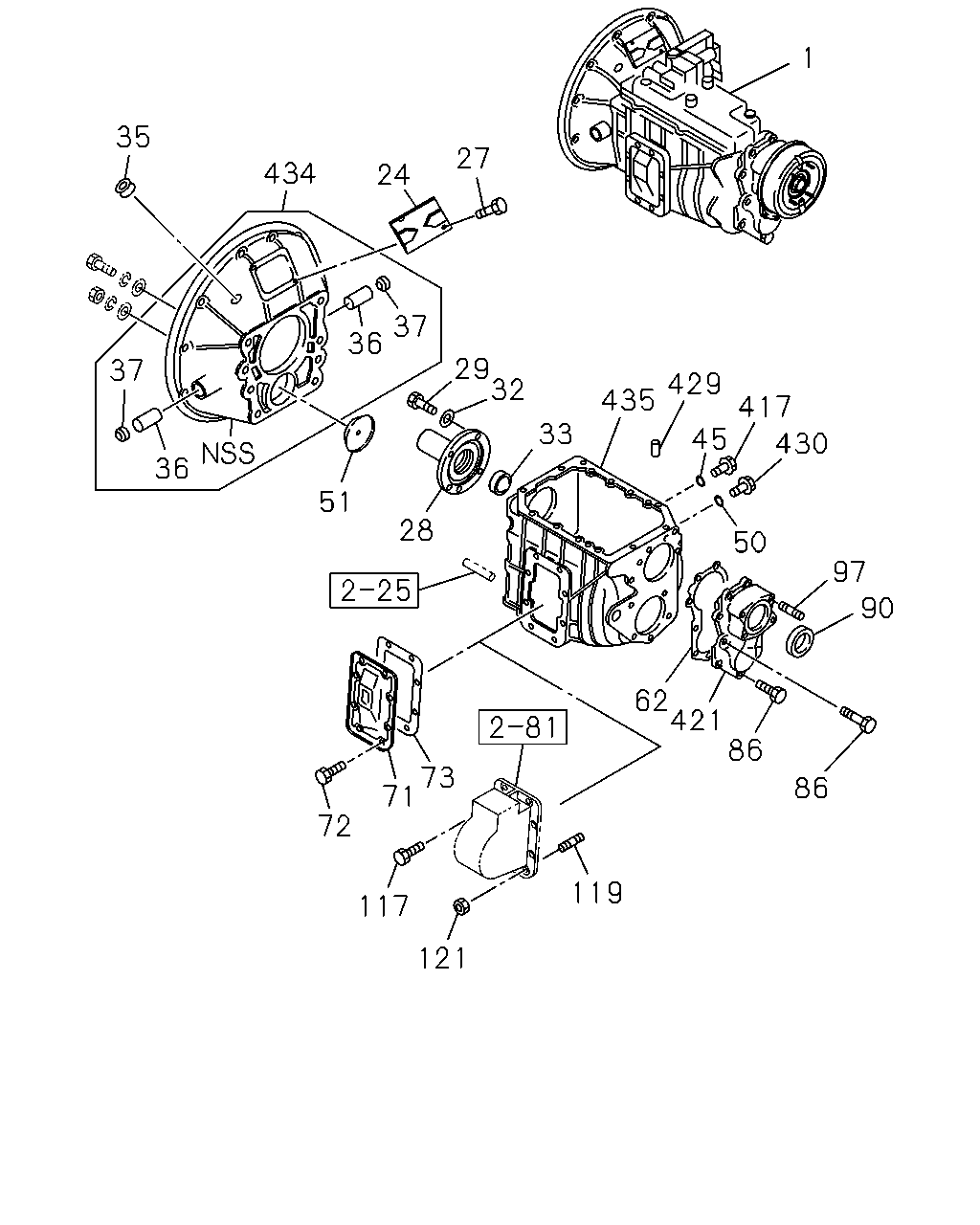

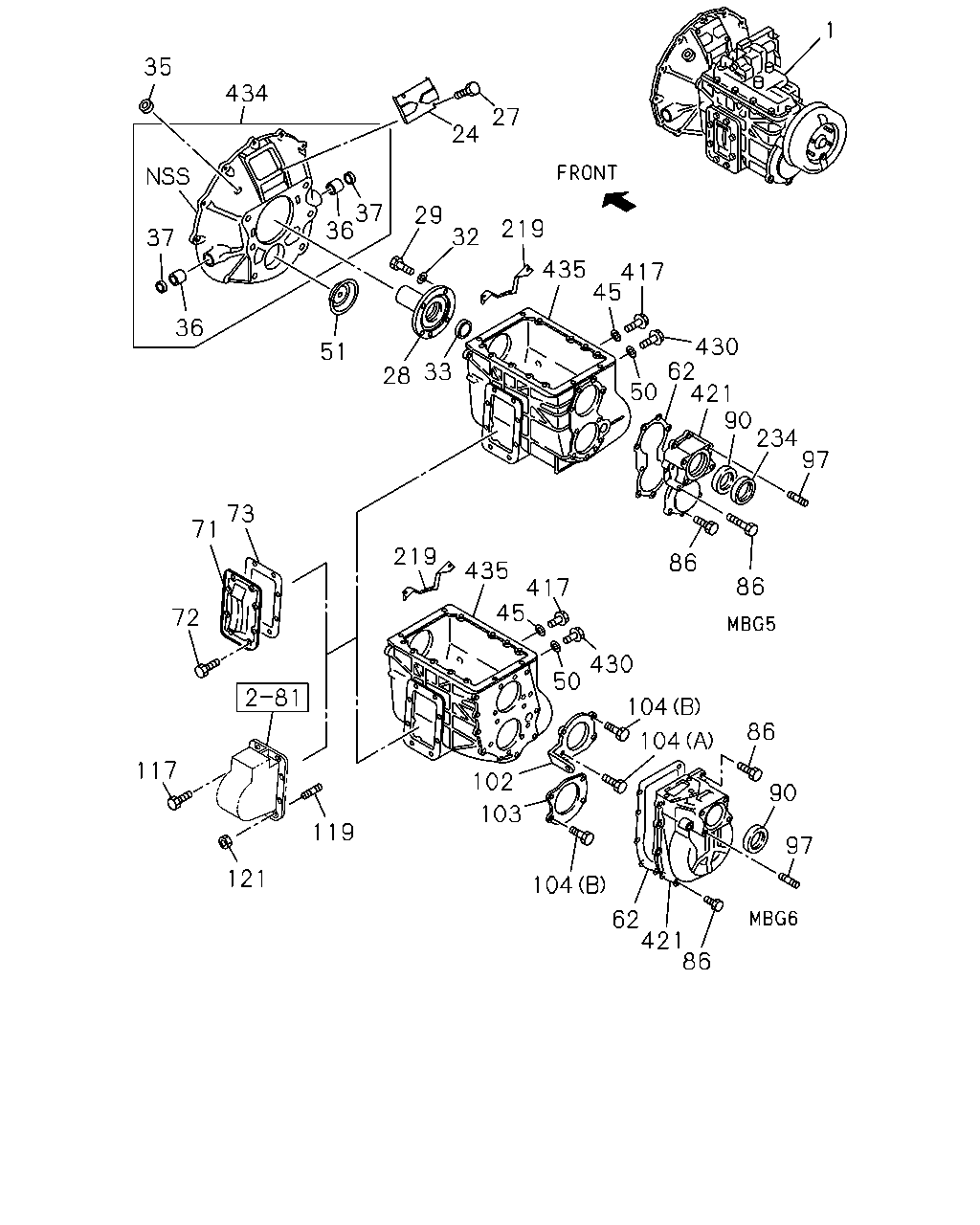

2-20 — MANUAL TRANSMISSION ASM AND CASE (#183) — 145 parça

1 35 434 27 24 37 36 29 32 219 37 435 417 45 36 430 62 421 90 234 97 51 33 28 50 73 71 219 86 435 86 417 45 102 72 430 50 104 86 104 117 90 119 97 121 104 62 421 86 103

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 8.5"(B1S) P30 PROP SHAFT(B2F) 13" CLUTCH(WD4)	1-33032-493-0	01	1	9212-	●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 8.5"(B1S) P46 PROP SHAFT(C4Z) 14" CLUTCH(WF6)	1-33032-757-0	01	1	9212-	●
1	TRANSMISSION ASM; MANUAL P30 PROP SHAFT(B2F) 13" CLUTCH(WD4) EXC. PARKING BRAKE DRUM 8.5"(B1S)	1-33032-504-0	01	1	9212-	●
1	TRANSMISSION ASM; MANUAL P46 PROP SHAFT(C4Z) 14" CLUTCH(WF6) EXC. PARKING BRAKE DRUM 8.5"(B1S)	1-33032-768-0	01	1	9212-	●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 8.5"(B1S) P46 PROP SHAFT(C4Z) 14" CLUTCH(WF6)	1-33033-286-0	01	1	9212-		●
1	TRANSMISSION ASM; MANUAL P46 PROP SHAFT(C4Z) 14" CLUTCH(WF6) EXC. PARKING BRAKE DRUM 8.5"(B1S)	1-33033-297-0	01	1	9212-		●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 8.5"(B1S) P30 PROP SHAFT(B2F) 13" CLUTCH(WD4)	1-33033-550-0	01	1	9212-			●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 8.5"(B1S) P46 PROP SHAFT(C4Z) 14" CLUTCH(WF6)	1-33033-682-0	01	1	9212-			●
1	TRANSMISSION ASM; MANUAL P30 PROP SHAFT(B2F) 13" CLUTCH(WD4) EXC. PARKING BRAKE DRUM 8.5"(B1S)	1-33033-561-0	01	1	9212-			●
1	TRANSMISSION ASM; MANUAL P46 PROP SHAFT(C4Z) 14" CLUTCH(WF6) EXC. PARKING BRAKE DRUM 8.5"(B1S)	1-33033-693-0	01	1	9212-			●
1	TRANSMISSION ASM; MANUAL FINAL GEAR 39/7 15.5"(W3K),FINAL GEAR 41/8 15.5"(W4H),FINAL GEAR 43/9 15.5"(W4P) PARKING BRAKE DRUM 10"(B1T)	1-33033-971-0	01	1	9212-				●
1	TRANSMISSION ASM; MANUAL FINAL GEAR 39/7 15.5"(W3K),FINAL GEAR 41/8 15.5"(W4H),FINAL GEAR 43/9 15.5"(W4P) EXC. PARKING BRAKE DRUM 10"(B1T)	1-33033-984-0	01	1	9212-				●
1	TRANSMISSION ASM; MANUAL FINAL GEAR 43/7 15.5"(W1R)	1-33033-974-0	01	1	9405-				●
24	COVER; CHECK HOLE,DUST	1-31131-027-0	01	1	9212-	●	●	●	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28080-812-0	02	1	9212-	●	●	●	●
28	COVER; FRT,TRANS CASE EXC. 13" CLUTCH(WD4)	1-33121-079-0	01	1	9212-	●	●	●
28	COVER; FRT,TRANS CASE 13" CLUTCH(WD4)	1-33121-078-0	01	1	9212-	●		●
28	COVER; FRT,TRANS CASE	1-33121-105-0	01	1	9212-				●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	1-09040-089-0	04	1	9212-	●	●	●	●
32	GASKET; BOLT,FRT COVER ALSO INCLUDED IN GASKET SET(M/T). ID=10	1-09623-369-0	04	1	9212-	●	●	●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-502-0	01	1	9212-9306	●	●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-565-0	01	1	9307-	●	●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-498-0	01	1	9212-				●
35	GROMMET; CLU HSG OD=45	9-31139-007-0	01	1	9212-	●	●	●	●
36	BEARING; NEEDLE,CLU HSG NTN	1-09811-002-1	02	1	9212-	●	●	●	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-002-0	02	1	9212-	●	●	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=24.5 OD=32.5	9-09920-392-0	01	1	9212-9405	●	●	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9406-	●	●	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9212-	●	●	●	●
51	COVER; SEAL,COUNTER,FRT	1-33319-056-0	01	1	9212-	●	●	●
51	COVER; SEAL,COUNTER,FRT	1-33319-057-0	01	1	9212-9402				●
51	COVER; SEAL,COUNTER,FRT	1-33319-107-0	01	1	9403-				●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33132-027-2	01	1	9212-	●	●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33112-014-1	01	1	9212-			●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33132-045-2	01	1	9212-				●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33141-028-0	01	1	9212-	●	●	●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33141-033-0	01	1	9212-				●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X16 FLANGE	0-28181-016-0	08	1	9212-	●	●	●	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33142-036-0	01	1	9212-	●	●	●	●
86	BOLT; RR COVER M10X25	1-09044-080-0	07	1	9212-	●	●
86	BOLT; RR COVER M10X55	1-09044-083-0	02	1	9212-	●	●
86	BOLT; RR COVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X55	1-09044-083-0	02	1	9212-			●
86	BOLT; RR COVER M10X25	1-09044-080-0	08	1	9212-			●
86	BOLT; RR COVER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M12X16	1-09044-082-0	02	1	9212-			●
86	BOLT; RR COVER M17X35	1-09044-076-0	08	1	9212-				●
86	BOLT; RR COVER M12X60	1-09044-084-0	01	1	9212-				●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-505-0	01	1	9212-	●	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). KOYO	1-09625-522-0	01	1	9212-	●	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-513-0	01	1	9212-				●
97	STUD; PARKING BRK M14X23 L=43	1-09302-138-1	01	1	9212-	●	●	●
97	STUD; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X23 L=43	1-09302-138-1	03	1	9212-			●
97	STUD; PARKING BRK M14X27 L=49	1-09302-099-0	04	1	9212-				●
102	RETAINER; BRG UPR,MAINSHAFT	1-33151-040-1	01	1	9212-			●
103	RETAINER; BRG	1-33151-029-0	01	1	9212-			●
104	BOLT; BRG RET (A)	1-09040-089-0	01	1	9212-			●
104	BOLT; BRG RET (B)	1-09049-006-1	07	1	9212-			●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X28 FLANGE	0-28181-028-0	06	1	9212-	●	●	●	●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 L=40	9-04411-025-0	02	1	9212-	●	●	●	●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE	0-91150-210-0	02	1	9212-	●	●	●	●
219	PLATE; TRANS CASE & QUAD BOX	1-33119-073-1	01	1	9212-	●	●	●
234	COVER; OIL SEAL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-33139-001-1	01	1	9212-	●	●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-021-0	01	1	9212-9405	●	●	●	●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-022-0	01	1	9406-	●	●	●	●
421	COVER; RR,TRANS REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-33131-063-4	01	1	9212-	●	●
421	COVER; RR,TRANS EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-33131-058-5	01	1	9212-	●	●
421	COVER; RR,TRANS REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-33131-143-1	01	1	9212-			●
421	COVER; RR,TRANS EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-33131-141-0	01	1	9212-			●
421	COVER; RR,TRANS	1-33131-089-7	01	1	9212-				●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	9212-	●	●	●	●
434	HOUSING; CLU EXC. 13" CLUTCH(WD4)	1-31110-085-2	01	1	9212-	●	●	●
434	HOUSING; CLU 13" CLUTCH(WD4)	1-31110-086-0	01	1	9212-	●		●
434	HOUSING; CLU	1-31110-092-2	01	1	9212-				●
435	CASE; TRANS	1-33111-157-3	01	1	9212-	●	●
435	CASE; TRANS	1-33111-158-4	01	1	9212-			●
435	CASE; TRANS	1-33111-235-0	01	1	9212-				●

1 35 27 434 24 37 36 29 32 37 429 435 417 45 33 430 36 51 28 50 97 90 62 421 86 73 71 86 72 119 117 121

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 8.5"(B1S) P30 PROP SHAFT(B2F) 13" CLUTCH(WD4)	1-33032-493-0	01	1	9212-	●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 8.5"(B1S) P46 PROP SHAFT(C4Z) 14" CLUTCH(WF6)	1-33032-757-0	01	1	9212-	●
1	TRANSMISSION ASM; MANUAL P30 PROP SHAFT(B2F) 13" CLUTCH(WD4) EXC. PARKING BRAKE DRUM 8.5"(B1S)	1-33032-504-0	01	1	9212-	●
1	TRANSMISSION ASM; MANUAL P46 PROP SHAFT(C4Z) 14" CLUTCH(WF6) EXC. PARKING BRAKE DRUM 8.5"(B1S)	1-33032-768-0	01	1	9212-	●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 8.5"(B1S) P46 PROP SHAFT(C4Z) 14" CLUTCH(WF6)	1-33033-286-0	01	1	9212-		●
1	TRANSMISSION ASM; MANUAL P46 PROP SHAFT(C4Z) 14" CLUTCH(WF6) EXC. PARKING BRAKE DRUM 8.5"(B1S)	1-33033-297-0	01	1	9212-		●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 8.5"(B1S) P30 PROP SHAFT(B2F) 13" CLUTCH(WD4)	1-33033-550-0	01	1	9212-			●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 8.5"(B1S) P46 PROP SHAFT(C4Z) 14" CLUTCH(WF6)	1-33033-682-0	01	1	9212-			●
1	TRANSMISSION ASM; MANUAL P30 PROP SHAFT(B2F) 13" CLUTCH(WD4) EXC. PARKING BRAKE DRUM 8.5"(B1S)	1-33033-561-0	01	1	9212-			●
1	TRANSMISSION ASM; MANUAL P46 PROP SHAFT(C4Z) 14" CLUTCH(WF6) EXC. PARKING BRAKE DRUM 8.5"(B1S)	1-33033-693-0	01	1	9212-			●
1	TRANSMISSION ASM; MANUAL FINAL GEAR 39/7 15.5"(W3K),FINAL GEAR 41/8 15.5"(W4H),FINAL GEAR 43/9 15.5"(W4P) PARKING BRAKE DRUM 10"(B1T)	1-33033-971-0	01	1	9212-				●
1	TRANSMISSION ASM; MANUAL FINAL GEAR 39/7 15.5"(W3K),FINAL GEAR 41/8 15.5"(W4H),FINAL GEAR 43/9 15.5"(W4P) EXC. PARKING BRAKE DRUM 10"(B1T)	1-33033-984-0	01	1	9212-				●
1	TRANSMISSION ASM; MANUAL FINAL GEAR 43/7 15.5"(W1R)	1-33033-974-0	01	1	9405-				●
24	COVER; CHECK HOLE,DUST	1-31131-027-0	01	1	9212-	●	●	●	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28080-812-0	02	1	9212-	●	●	●	●
28	COVER; FRT,TRANS CASE EXC. 13" CLUTCH(WD4)	1-33121-079-0	01	1	9212-	●	●	●
28	COVER; FRT,TRANS CASE 13" CLUTCH(WD4)	1-33121-078-0	01	1	9212-	●		●
28	COVER; FRT,TRANS CASE	1-33121-105-0	01	1	9212-				●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	1-09040-089-0	04	1	9212-	●	●	●	●
32	GASKET; BOLT,FRT COVER ALSO INCLUDED IN GASKET SET(M/T). ID=10	1-09623-369-0	04	1	9212-	●	●	●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-502-0	01	1	9212-9306	●	●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-565-0	01	1	9307-	●	●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-498-0	01	1	9212-				●
35	GROMMET; CLU HSG OD=45	9-31139-007-0	01	1	9212-	●	●	●	●
36	BEARING; NEEDLE,CLU HSG NTN	1-09811-002-1	02	1	9212-	●	●	●	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-002-0	02	1	9212-	●	●	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=24.5 OD=32.5	9-09920-392-0	01	1	9212-9405	●	●	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9406-	●	●	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9212-	●	●	●	●
51	COVER; SEAL,COUNTER,FRT	1-33319-056-0	01	1	9212-	●	●	●
51	COVER; SEAL,COUNTER,FRT	1-33319-057-0	01	1	9212-9402				●
51	COVER; SEAL,COUNTER,FRT	1-33319-107-0	01	1	9403-				●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33132-027-2	01	1	9212-	●	●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33112-014-1	01	1	9212-			●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33132-045-2	01	1	9212-				●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33141-028-0	01	1	9212-	●	●	●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33141-033-0	01	1	9212-				●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X16 FLANGE	0-28181-016-0	08	1	9212-	●	●	●	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33142-036-0	01	1	9212-	●	●	●	●
86	BOLT; RR COVER M10X25	1-09044-080-0	07	1	9212-	●	●
86	BOLT; RR COVER M10X55	1-09044-083-0	02	1	9212-	●	●
86	BOLT; RR COVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X55	1-09044-083-0	02	1	9212-			●
86	BOLT; RR COVER M10X25	1-09044-080-0	08	1	9212-			●
86	BOLT; RR COVER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M12X16	1-09044-082-0	02	1	9212-			●
86	BOLT; RR COVER M17X35	1-09044-076-0	08	1	9212-				●
86	BOLT; RR COVER M12X60	1-09044-084-0	01	1	9212-				●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-505-0	01	1	9212-	●	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). KOYO	1-09625-522-0	01	1	9212-	●	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-513-0	01	1	9212-				●
97	STUD; PARKING BRK M14X23 L=43	1-09302-138-1	01	1	9212-	●	●	●
97	STUD; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X23 L=43	1-09302-138-1	03	1	9212-			●
97	STUD; PARKING BRK M14X27 L=49	1-09302-099-0	04	1	9212-				●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X28 FLANGE	0-28181-028-0	06	1	9212-	●	●	●	●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 L=40	9-04411-025-0	02	1	9212-	●	●	●	●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE	0-91150-210-0	02	1	9212-	●	●	●	●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-021-0	01	1	9212-9405	●	●	●	●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-022-0	01	1	9406-	●	●	●	●
421	COVER; RR,TRANS REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-33131-063-4	01	1	9212-	●	●
421	COVER; RR,TRANS EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-33131-058-5	01	1	9212-	●	●
421	COVER; RR,TRANS REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-33131-143-1	01	1	9212-			●
421	COVER; RR,TRANS EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-33131-141-0	01	1	9212-			●
421	COVER; RR,TRANS	1-33131-089-7	01	1	9212-				●
429	PIN; STRAIGHT OD=10 L=18	9-08151-018-0	02	1	9212-				●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	9212-	●	●	●	●
434	HOUSING; CLU EXC. 13" CLUTCH(WD4)	1-31110-085-2	01	1	9212-	●	●	●
434	HOUSING; CLU 13" CLUTCH(WD4)	1-31110-086-0	01	1	9212-	●		●
434	HOUSING; CLU	1-31110-092-2	01	1	9212-				●
435	CASE; TRANS	1-33111-157-3	01	1	9212-	●	●
435	CASE; TRANS	1-33111-158-4	01	1	9212-			●
435	CASE; TRANS	1-33111-235-0	01	1	9212-				●
