Sayfa 5-20 - Isuzu EPC

5-20 — BATTERY CARRIER (#18298) — 254 parça

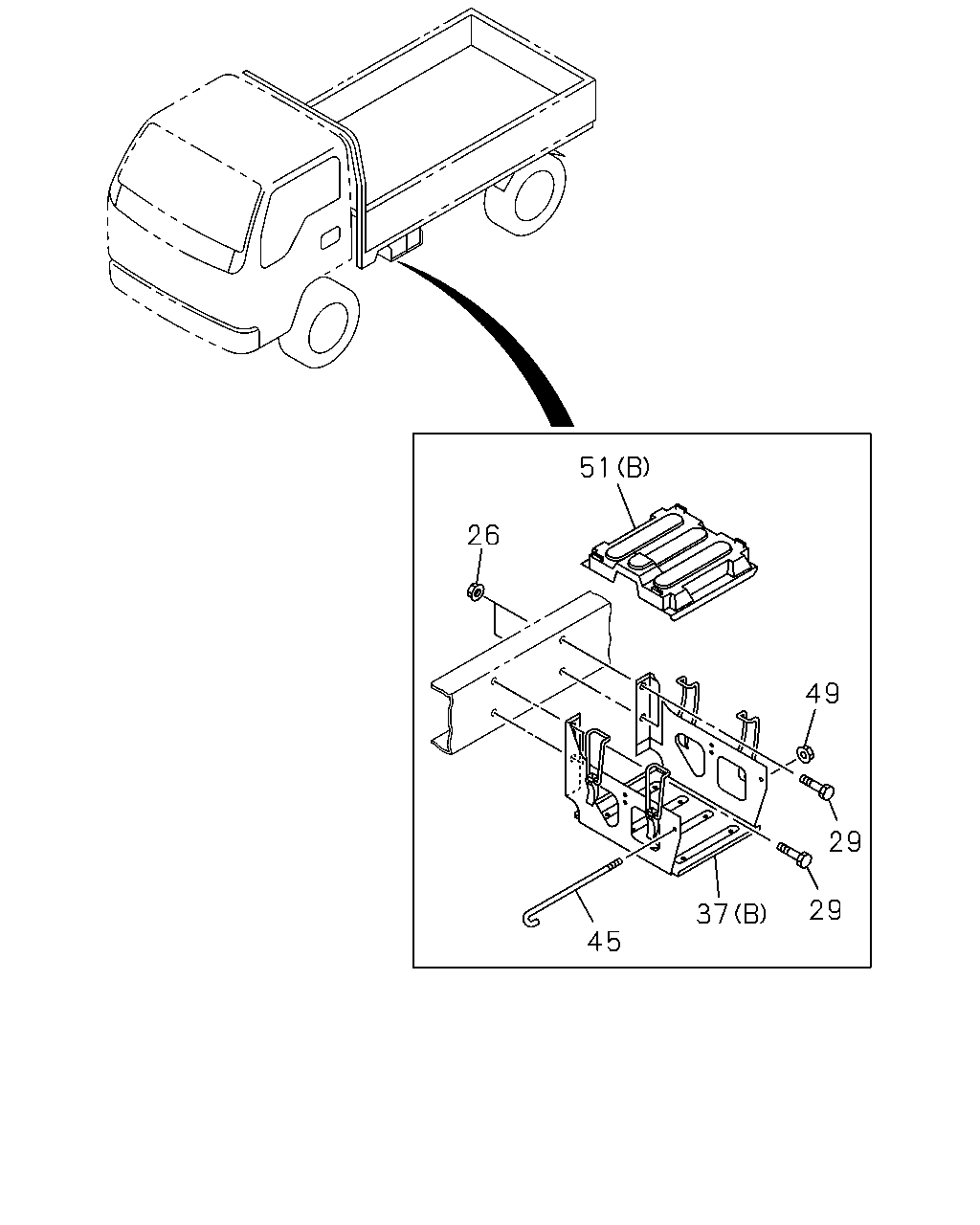

51 26 49 29 29 37 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
26	02.334 NUT; BRKT 4HF1-S ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> 08.917 M10 FLANGE	0-91150-210-0	03	1	0211-0501	●
26	02.334 NUT; BRKT 4HF1-S ENG(RLS) 08.917 M10 FLANGE	0-91150-210-0	03	1	0502-0506	●
26	02.334 NUT; BRKT 4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 08.917 M10 FLANGE	0-91150-210-0	03	1	0507-0602	●
26	02.334 NUT; BRKT 4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 04.085 M10 FLANGE	0-91180-210-0	03	1	0603-	●
26	02.334 NUT; BRKT 4HF1-S ENG(RLS),4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 08.917 M10 FLANGE	0-91150-210-0	02	1	0211-0501	●
26	02.334 NUT; BRKT 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 08.917 M10 FLANGE	0-91150-210-0	02	1	0211-0501		●	●
26	02.334 NUT; BRKT 4HG1 ENG(RJH),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 08.917 M10 FLANGE	0-91150-210-0	02	1	0211-0501				●
26	02.334 NUT; BRKT 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 08.917 M10 FLANGE	0-91150-210-0	02	1	0211-0501				●
26	02.334 NUT; BRKT 08.917 M10 FLANGE	0-91150-210-0	02	1	0211-0501					●
26	02.334 NUT; BRKT 4HG1-T ENG(RDP),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 08.917 M10 FLANGE	0-91150-210-0	02	1	0502-0506		●
26	02.334 NUT; BRKT 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 08.917 M10 FLANGE	0-91150-210-0	02	1	0502-0506			●
26	02.334 NUT; BRKT 4HG1 ENG(RJH),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 08.917 M10 FLANGE	0-91150-210-0	02	1	0502-0506				●
26	02.334 NUT; BRKT 4HK1-TCN ENG(RDQ),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 08.917 M10 FLANGE	0-91150-210-0	02	1	0507-0602	●
26	02.334 NUT; BRKT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ), 4HF1-SENG(RLS) FRAME STRAIGHT TYPE<7KJ> 08.917 M10 FLANGE	0-91150-210-0	02	1	0507-0602		●
26	02.334 NUT; BRKT 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH), 4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 08.917 M10 FLANGE	0-91150-210-0	02	1	0507-0602			●
26	02.334 NUT; BRKT 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH), 4HK1-TCS ENG(RJS),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 08.917 M10 FLANGE	0-91150-210-0	02	1	0507-0602				●
26	02.334 NUT; BRKT EXC. EXH SYSTEM CHROME SINGLE VERTICA L TAIL PIPE<NC4> 08.917 M10 FLANGE	0-91150-210-0	02	1	0507-0602					●
26	02.334 NUT; BRKT 4HK1-TCN ENG(RDQ),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 04.085 M10 FLANGE	0-91180-210-0	02	1	0603-	●
26	02.334 NUT; BRKT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ), 4HF1-SENG(RLS) FRAME STRAIGHT TYPE<7KJ> 04.085 M10 FLANGE	0-91180-210-0	02	1	0603-		●
26	02.334 NUT; BRKT 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH), 4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 04.085 M10 FLANGE	0-91180-210-0	02	1	0603-			●
26	02.334 NUT; BRKT 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH), 4HK1-TCS ENG(RJS),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 04.085 M10 FLANGE	0-91180-210-0	02	1	0603-				●
26	02.334 NUT; BRKT EXC. EXH SYSTEM CHROME SINGLE VERTICA L TAIL PIPE<NC4> 04.085 M10 FLANGE	0-91180-210-0	02	1	0603-					●
26	02.334 NUT; BRKT 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> 08.917 M10 FLANGE	0-91150-210-0	04	1	0211-0501		●	●
26	02.334 NUT; BRKT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 08.917 M10 FLANGE	0-91150-210-0	04	1	0211-0501				●
26	02.334 NUT; BRKT 08.917 M10 FLANGE	0-91150-210-0	04	1	0211-0501						●
26	02.334 NUT; BRKT 4HG1-T ENG(RDP),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 08.917 M10 FLANGE	0-91150-210-0	04	1	0502-0506		●
26	02.334 NUT; BRKT 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 08.917 M10 FLANGE	0-91150-210-0	04	1	0502-0506			●
26	02.334 NUT; BRKT 4HG1-T ENG(RDP),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 08.917 M10 FLANGE	0-91150-210-0	04	1	0507-0507		●
26	02.334 NUT; BRKT 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 08.917 M10 FLANGE	0-91150-210-0	04	1	0507-0507			●
26	02.334 NUT; BRKT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 08.917 M10 FLANGE	0-91150-210-0	04	1	0507-0507				●
26	02.334 NUT; BRKT 4HG1-T ENG(RDP),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 08.917 M10 FLANGE	0-91150-210-0	04	1	0507-0602		●
26	02.334 NUT; BRKT 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 08.917 M10 FLANGE	0-91150-210-0	04	1	0507-0602			●
26	02.334 NUT; BRKT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 08.917 M10 FLANGE	0-91150-210-0	04	1	0507-0602				●
26	02.334 NUT; BRKT 08.917 M10 FLANGE	0-91150-210-0	04	1	0507-0602						●
26	02.334 NUT; BRKT 4HG1-T ENG(RDP),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 04.085 M10 FLANGE	0-91180-210-0	04	1	0603-		●
26	02.334 NUT; BRKT 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 04.085 M10 FLANGE	0-91180-210-0	04	1	0603-			●
26	02.334 NUT; BRKT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 04.085 M10 FLANGE	0-91180-210-0	04	1	0603-				●
26	02.334 NUT; BRKT 04.085 M10 FLANGE	0-91180-210-0	04	1	0603-						●
29	02.334 BOLT; BRKT TO FRAME 4HF1-S ENG(RLS),4HE1 ENG(RLY) 09.171 M10X30 W/LK WASHER	0-50041-030-0	04	1	0211-0501	●
29	02.334 BOLT; BRKT TO FRAME 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) EXC. BATTERY 115E41R<6XD> 09.171 M10X30 W/LK WASHER	0-50041-030-0	04	1	0211-0501		●	●	●
29	02.334 BOLT; BRKT TO FRAME EXC. BATTERY 115E41R<6XD> 09.171 M10X30 W/LK WASHER	0-50041-030-0	04	1	0211-0501					●
29	02.334 BOLT; BRKT TO FRAME 09.171 M10X30 W/LK WASHER	0-50041-030-0	04	1	0211-0501						●
29	02.334 BOLT; BRKT TO FRAME 4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 09.171 M10X30 W/LK WASHER	0-50041-030-0	04	1	0502-0502	●
29	02.334 BOLT; BRKT TO FRAME 4HG1-T ENG(RDP),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) 09.171 M10X30 W/LK WASHER	0-50041-030-0	04	1	0502-0502		●
29	02.334 BOLT; BRKT TO FRAME 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 09.171 M10X30 W/LK WASHER	0-50041-030-0	04	1	0502-0502			●
29	02.334 BOLT; BRKT TO FRAME 4HG1 ENG(RJH),4HF1-S ENG(RLS) 09.171 M10X30 W/LK WASHER	0-50041-030-0	04	1	0502-0502				●
29	02.334 BOLT; BRKT TO FRAME 09.171 M10X30 W/LK WASHER	0-50041-030-0	04	1	0502-0502						●
29	02.334 BOLT; BRKT TO FRAME 09.171 M10X30 W/LK WASHER	0-50041-030-0	04	1	0503-0506	●	●	●	●		●
29	02.334 BOLT; BRKT TO FRAME 09.171 M10X30 W/LK WASHER	0-50041-030-0	04	1	0507-0512	●				●	●
29	02.334 BOLT; BRKT TO FRAME EXC. BATTERY 115E41R<6XD> 09.171 M10X30 W/LK WASHER	0-50041-030-0	04	1	0507-0512		●	●	●
29	02.334 BOLT; BRKT TO FRAME 04.439 M10X30 W/LK WASHER	0-50541-030-0	04	1	0601-	●				●	●
29	02.334 BOLT; BRKT TO FRAME EXC. BATTERY 115E41R<6XD> 04.439 M10X30 W/LK WASHER	0-50541-030-0	04	1	0601-		●	●	●
29	02.334 BOLT; BRKT TO FRAME BATTERY 115E41R<6XD> 06.168 M10X35 FLANGE	0-28691-035-0	04	1	0211-0501		●	●	●	●
29	02.334 BOLT; BRKT TO FRAME BATTERY 115E41R<6XD> 06.168 M10X35 FLANGE	0-28691-035-0	04	1	0507-0512		●	●	●
29	02.334 BOLT; BRKT TO FRAME BATTERY 115E41R<6XD> 03.023 M10X35 FLANGE	0-28661-035-0	04	1	0601-		●	●	●
37	02.333 BRACKET; BATTERY BATTERY 115E41R<6XD> (B)	8-97134-838-0	01	1	0507-0706		●	●	●
37	02.333 BRACKET; BATTERY BATTERY 115E41R<6XD> (B)	8-98091-497-0	01	1	0707-		●	●	●
37	02.333 BRACKET; BATTERY 4HF1-S ENG(RLS),4HE1 ENG(RLY) (A)	8-97356-174-0	01	1	0211-0501	●
37	02.333 BRACKET; BATTERY 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) EXC. BATTERY 115E41R<6XD> (A)	8-97356-174-0	01	1	0211-0501		●	●	●
37	02.333 BRACKET; BATTERY EXC. BATTERY 115E41R<6XD> (A)	8-97356-174-0	01	1	0211-0501					●
37	02.333 BRACKET; BATTERY (A)	8-97356-174-0	01	1	0211-0501						●
37	02.333 BRACKET; BATTERY 4HF1-N ENG(RJZ),4HF1-S ENG(RLS) (A)	8-97356-174-0	01	1	0502-0502	●
37	02.333 BRACKET; BATTERY 4HG1-T ENG(RDP),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) (A)	8-97356-174-0	01	1	0502-0502		●
37	02.333 BRACKET; BATTERY 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) (A)	8-97356-174-0	01	1	0502-0502			●
37	02.333 BRACKET; BATTERY 4HG1 ENG(RJH),4HF1-S ENG(RLS) (A)	8-97356-174-0	01	1	0502-0502				●
37	02.333 BRACKET; BATTERY (A)	8-97356-174-0	01	1	0502-0502						●
37	02.333 BRACKET; BATTERY (A)	8-97356-174-0	01	1	0503-0506	●	●	●	●		●
37	02.333 BRACKET; BATTERY (A)	8-97356-174-0	01	1	0507-0610	●				●	●
37	02.333 BRACKET; BATTERY EXC. BATTERY 115E41R<6XD> (A)	8-97356-174-0	01	1	0507-0610		●	●	●
37	02.333 BRACKET; BATTERY (A)	8-97384-068-2	01	1	0611-0612	●				●	●
37	02.333 BRACKET; BATTERY EXC. BATTERY 115E41R<6XD> (A)	8-97384-068-2	01	1	0611-0612		●	●	●
37	02.333 BRACKET; BATTERY (A)	8-97384-067-2	01	1	0701-	●				●	●
37	02.333 BRACKET; BATTERY EXC. BATTERY 115E41R<6XD> (A)	8-97384-067-2	01	1	0701-		●	●	●
37	02.333 BRACKET; BATTERY BATTERY 115E41R<6XD> (B)	8-97134-838-0	01	1	0211-0501		●	●	●	●
45	02.334 ROD; TENSION,BATTERY BATTERY 115E41R<6XD> L=430	8-97134-740-0	02	1	0507-		●	●	●
45	02.334 ROD; TENSION,BATTERY 4HF1-S ENG(RLS),4HE1 ENG(RLY) L=120	9-53616-615-0	02	1	0211-0501	●
45	02.334 ROD; TENSION,BATTERY 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) EXC. BATTERY 115E41R<6XD> L=120	9-53616-615-0	02	1	0211-0501		●	●	●
45	02.334 ROD; TENSION,BATTERY EXC. BATTERY 115E41R<6XD> L=120	9-53616-615-0	02	1	0211-0501					●
45	02.334 ROD; TENSION,BATTERY L=120	9-53616-615-0	02	1	0211-0501						●
45	02.334 ROD; TENSION,BATTERY 4HF1-N ENG(RJZ),4HF1-S ENG(RLS) L=120	9-53616-615-0	02	1	0502-0502	●
45	02.334 ROD; TENSION,BATTERY 4HG1-T ENG(RDP),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) L=120	9-53616-615-0	02	1	0502-0502		●
45	02.334 ROD; TENSION,BATTERY 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) L=120	9-53616-615-0	02	1	0502-0502			●
45	02.334 ROD; TENSION,BATTERY 4HG1 ENG(RJH),4HF1-S ENG(RLS) L=120	9-53616-615-0	02	1	0502-0502				●
45	02.334 ROD; TENSION,BATTERY L=120	9-53616-615-0	02	1	0502-0502						●
45	02.334 ROD; TENSION,BATTERY L=120	9-53616-615-0	02	1	0503-0506	●	●	●	●		●
45	02.334 ROD; TENSION,BATTERY L=120	9-53616-615-0	02	1	0507-	●				●	●
45	02.334 ROD; TENSION,BATTERY EXC. BATTERY 115E41R<6XD> L=120	9-53616-615-0	02	1	0507-		●	●	●
45	02.334 ROD; TENSION,BATTERY BATTERY 115E41R<6XD> L=430	8-97134-740-0	02	1	0211-0501		●	●	●	●
49	02.334 NUT; ROD,BATTERY BATTERY 115E41R<6XD> 07.633 M8 FLANGE	0-91150-108-0	02	1	0507-0602		●	●	●
49	02.334 NUT; ROD,BATTERY BATTERY 115E41R<6XD> 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-		●	●	●
49	02.334 NUT; ROD,BATTERY BATTERY 115E41R<6XD> 07.633 M8 FLANGE	0-91150-108-0	02	1	0211-0501		●	●	●	●
51	02.335 COVER; BATTERY BATTERY 115E41R<6XD> (B)	9-53612-072-1	01	1	0507-		●	●	●
51	02.335 COVER; BATTERY 4HF1-S ENG(RLS),4HE1 ENG(RLY) (A)	8-97120-747-0	01	1	0211-0501	●
51	02.335 COVER; BATTERY 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) EXC. BATTERY 115E41R<6XD> (A)	8-97120-747-0	01	1	0211-0501		●	●	●
51	02.335 COVER; BATTERY EXC. BATTERY 115E41R<6XD> (A)	8-97120-747-0	01	1	0211-0501					●
51	02.335 COVER; BATTERY (A)	8-97120-747-0	01	1	0211-0501						●
51	02.335 COVER; BATTERY 4HF1-N ENG(RJZ),4HF1-S ENG(RLS) (A)	8-97120-747-0	01	1	0502-0502	●
51	02.335 COVER; BATTERY 4HG1-T ENG(RDP),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) (A)	8-97120-747-0	01	1	0502-0502		●
51	02.335 COVER; BATTERY 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) (A)	8-97120-747-0	01	1	0502-0502			●
51	02.335 COVER; BATTERY 4HG1 ENG(RJH),4HF1-S ENG(RLS) (A)	8-97120-747-0	01	1	0502-0502				●
51	02.335 COVER; BATTERY (A)	8-97120-747-0	01	1	0502-0502						●
51	02.335 COVER; BATTERY (A)	8-97120-747-0	01	1	0503-0506	●	●	●	●		●
51	02.335 COVER; BATTERY (A)	8-97120-747-0	01	1	0507-	●				●	●
51	02.335 COVER; BATTERY EXC. BATTERY 115E41R<6XD> (A)	8-97120-747-0	01	1	0507-		●	●	●
51	02.335 COVER; BATTERY BATTERY 115E41R<6XD> (B)	9-53612-072-0	01	1	0211-0501		●	●	●	●

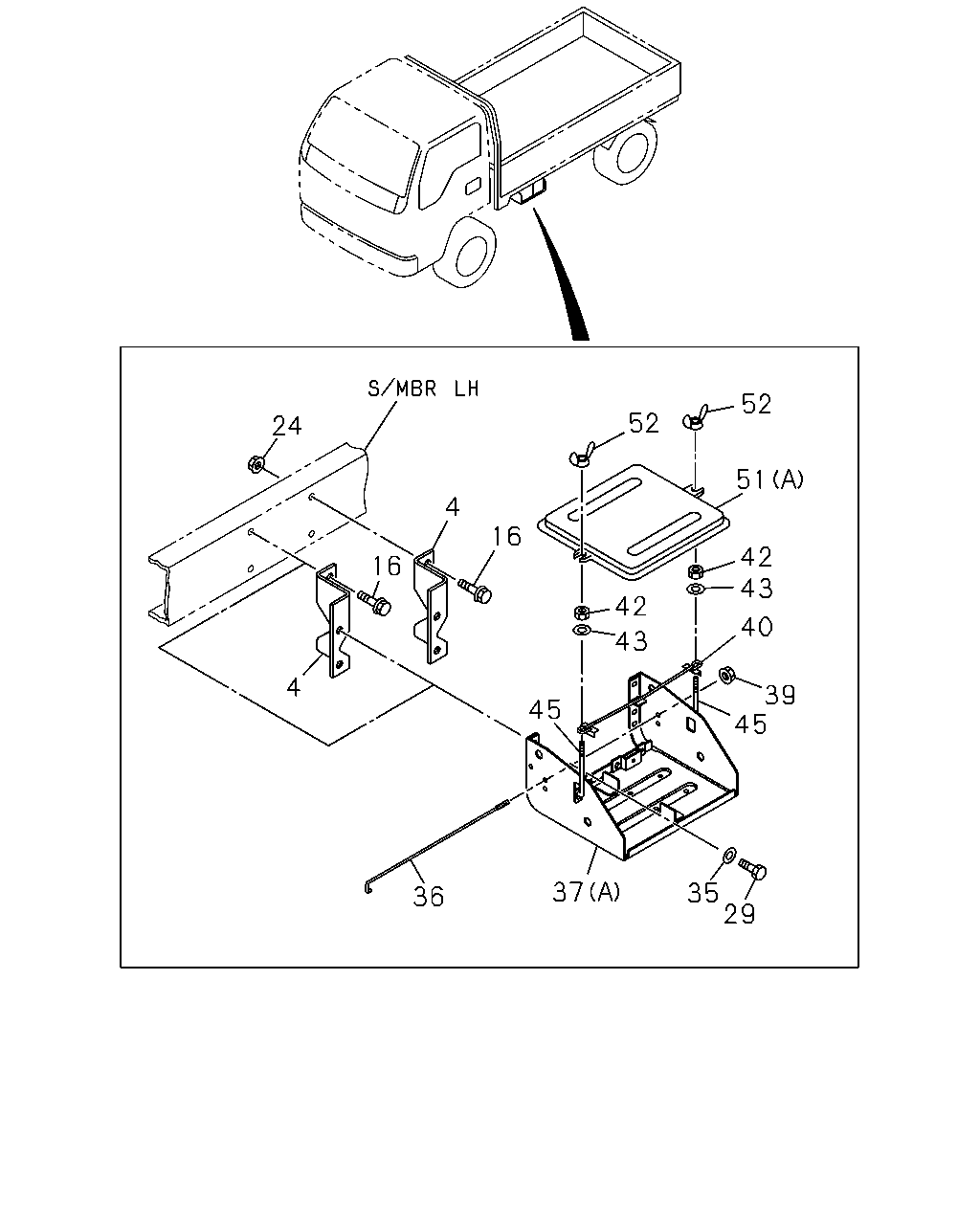

52 52 24 51 4 16 42 43 16 42 40 43 4 39 45 45 37 35 29 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
4	02.333 BRACKET; BATTERY CARRIER EXH SYSTEM CHROME SINGLE VERTICAL TAI L PIPE<NC4>	8-97075-610-0	02	1	0507-					●
16	02.334 BOLT; BRKT TO FRAME EXH SYSTEM CHROME SINGLE VERTICAL TAI L PIPE<NC4> 06.168 M10X35 FLANGE	0-28691-035-0	04	1	0507-0512					●
16	02.334 BOLT; BRKT TO FRAME EXH SYSTEM CHROME SINGLE VERTICAL TAI L PIPE<NC4> 03.023 M10X35 FLANGE	0-28661-035-0	04	1	0601-					●
24	02.334 NUT; BRKT TO FRAME EXH SYSTEM CHROME SINGLE VERTICAL TAI L PIPE<NC4> 08.917 M10 FLANGE	0-91150-210-0	02	1	0507-0602					●
24	02.334 NUT; BRKT TO FRAME EXH SYSTEM CHROME SINGLE VERTICAL TAI L PIPE<NC4> 04.085 M10 FLANGE	0-91180-210-0	02	1	0603-					●
29	02.334 BOLT; BRKT TO FRAME 4HF1-S ENG(RLS),4HE1 ENG(RLY) 09.171 M10X30 W/LK WASHER	0-50041-030-0	04	1	0211-0501	●
29	02.334 BOLT; BRKT TO FRAME 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) EXC. BATTERY 115E41R<6XD> 09.171 M10X30 W/LK WASHER	0-50041-030-0	04	1	0211-0501		●	●	●
29	02.334 BOLT; BRKT TO FRAME EXC. BATTERY 115E41R<6XD> 09.171 M10X30 W/LK WASHER	0-50041-030-0	04	1	0211-0501					●
29	02.334 BOLT; BRKT TO FRAME 09.171 M10X30 W/LK WASHER	0-50041-030-0	04	1	0211-0501						●
29	02.334 BOLT; BRKT TO FRAME 4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 09.171 M10X30 W/LK WASHER	0-50041-030-0	04	1	0502-0502	●
29	02.334 BOLT; BRKT TO FRAME 4HG1-T ENG(RDP),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) 09.171 M10X30 W/LK WASHER	0-50041-030-0	04	1	0502-0502		●
29	02.334 BOLT; BRKT TO FRAME 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 09.171 M10X30 W/LK WASHER	0-50041-030-0	04	1	0502-0502			●
29	02.334 BOLT; BRKT TO FRAME 4HG1 ENG(RJH),4HF1-S ENG(RLS) 09.171 M10X30 W/LK WASHER	0-50041-030-0	04	1	0502-0502				●
29	02.334 BOLT; BRKT TO FRAME 09.171 M10X30 W/LK WASHER	0-50041-030-0	04	1	0502-0502						●
29	02.334 BOLT; BRKT TO FRAME 09.171 M10X30 W/LK WASHER	0-50041-030-0	04	1	0503-0506	●	●	●	●		●
29	02.334 BOLT; BRKT TO FRAME 09.171 M10X30 W/LK WASHER	0-50041-030-0	04	1	0507-0512	●				●	●
29	02.334 BOLT; BRKT TO FRAME EXC. BATTERY 115E41R<6XD> 09.171 M10X30 W/LK WASHER	0-50041-030-0	04	1	0507-0512		●	●	●
29	02.334 BOLT; BRKT TO FRAME 04.439 M10X30 W/LK WASHER	0-50541-030-0	04	1	0601-	●				●	●
29	02.334 BOLT; BRKT TO FRAME EXC. BATTERY 115E41R<6XD> 04.439 M10X30 W/LK WASHER	0-50541-030-0	04	1	0601-		●	●	●
29	02.334 BOLT; BRKT TO FRAME BATTERY 115E41R<6XD> 06.168 M10X35 FLANGE	0-28691-035-0	04	1	0211-0501		●	●	●	●
29	02.334 BOLT; BRKT TO FRAME BATTERY 115E41R<6XD> 06.168 M10X35 FLANGE	0-28691-035-0	04	1	0507-0512		●	●	●
29	02.334 BOLT; BRKT TO FRAME BATTERY 115E41R<6XD> 03.023 M10X35 FLANGE	0-28661-035-0	04	1	0601-		●	●	●
35	02.334 WASHER; PL,BATTERY CARRIER 4HF1-S ENG(RLS),4HE1 ENG(RLY) 16.682 ID=10.5 OD=22	9-09160-610-0	04	1	0211-0501	●
35	02.334 WASHER; PL,BATTERY CARRIER 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) EXC. BATTERY 115E41R<6XD> 16.682 ID=10.5 OD=22	9-09160-610-0	04	1	0211-0501		●	●	●
35	02.334 WASHER; PL,BATTERY CARRIER EXC. BATTERY 115E41R<6XD> 16.682 ID=10.5 OD=22	9-09160-610-0	04	1	0211-0501					●
35	02.334 WASHER; PL,BATTERY CARRIER 16.682 ID=10.5 OD=22	9-09160-610-0	04	1	0211-0501						●
35	02.334 WASHER; PL,BATTERY CARRIER 4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 16.682 ID=10.5 OD=22	9-09160-610-0	04	1	0502-0502	●
35	02.334 WASHER; PL,BATTERY CARRIER 4HG1-T ENG(RDP),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) 16.682 ID=10.5 OD=22	9-09160-610-0	04	1	0502-0502		●
35	02.334 WASHER; PL,BATTERY CARRIER 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 16.682 ID=10.5 OD=22	9-09160-610-0	04	1	0502-0502			●
35	02.334 WASHER; PL,BATTERY CARRIER 4HG1 ENG(RJH),4HF1-S ENG(RLS) 16.682 ID=10.5 OD=22	9-09160-610-0	04	1	0502-0502				●
35	02.334 WASHER; PL,BATTERY CARRIER 16.682 ID=10.5 OD=22	9-09160-610-0	04	1	0502-0502						●
35	02.334 WASHER; PL,BATTERY CARRIER 16.682 ID=10.5 OD=22	9-09160-610-0	04	1	0503-0506	●	●	●	●		●
35	02.334 WASHER; PL,BATTERY CARRIER 16.682 ID=10.5 OD=22	9-09160-610-0	04	1	0507-0605	●				●	●
35	02.334 WASHER; PL,BATTERY CARRIER EXC. BATTERY 115E41R<6XD> 16.682 ID=10.5 OD=22	9-09160-610-0	04	1	0507-0605		●	●	●
35	02.334 WASHER; PL,BATTERY CARRIER 04.046 ID=10.5 OD=22 T=1.6	0-91610-610-0	04	1	0606-	●				●	●
35	02.334 WASHER; PL,BATTERY CARRIER EXC. BATTERY 115E41R<6XD> 04.046 ID=10.5 OD=22 T=1.6	0-91610-610-0	04	1	0606-		●	●	●
36	02.334 STOPPER; BATTERY BATTERY 65D23R<7DQ>,BATTERY 75D23R<7PC>	8-94145-894-0	01	1	0211-0501	●	●	●	●
36	02.334 STOPPER; BATTERY BATTERY 65D23R<7DQ>	8-94145-894-0	01	1	0211-0501					●
36	02.334 STOPPER; BATTERY BATTERY 75D23R<7PC>	8-94145-894-0	01	1	0211-0501						●
36	02.334 STOPPER; BATTERY BATTERY 65D23R<7DQ>,BATTERY 75D23R<7PC>	8-94145-894-0	01	1	0502-	●	●	●	●
36	02.334 STOPPER; BATTERY BATTERY 75D23R<7PC>	8-94145-894-0	01	1	0502-						●
37	02.333 BRACKET; BATTERY BATTERY 115E41R<6XD> (B)	8-97134-838-0	01	1	0507-0706		●	●	●
37	02.333 BRACKET; BATTERY BATTERY 115E41R<6XD> (B)	8-98091-497-0	01	1	0707-		●	●	●
37	02.333 BRACKET; BATTERY 4HF1-S ENG(RLS),4HE1 ENG(RLY) (A)	8-97356-174-0	01	1	0211-0501	●
37	02.333 BRACKET; BATTERY 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) EXC. BATTERY 115E41R<6XD> (A)	8-97356-174-0	01	1	0211-0501		●	●	●
37	02.333 BRACKET; BATTERY EXC. BATTERY 115E41R<6XD> (A)	8-97356-174-0	01	1	0211-0501					●
37	02.333 BRACKET; BATTERY (A)	8-97356-174-0	01	1	0211-0501						●
37	02.333 BRACKET; BATTERY 4HF1-N ENG(RJZ),4HF1-S ENG(RLS) (A)	8-97356-174-0	01	1	0502-0502	●
37	02.333 BRACKET; BATTERY 4HG1-T ENG(RDP),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) (A)	8-97356-174-0	01	1	0502-0502		●
37	02.333 BRACKET; BATTERY 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) (A)	8-97356-174-0	01	1	0502-0502			●
37	02.333 BRACKET; BATTERY 4HG1 ENG(RJH),4HF1-S ENG(RLS) (A)	8-97356-174-0	01	1	0502-0502				●
37	02.333 BRACKET; BATTERY (A)	8-97356-174-0	01	1	0502-0502						●
37	02.333 BRACKET; BATTERY (A)	8-97356-174-0	01	1	0503-0506	●	●	●	●		●
37	02.333 BRACKET; BATTERY (A)	8-97356-174-0	01	1	0507-0610	●				●	●
37	02.333 BRACKET; BATTERY EXC. BATTERY 115E41R<6XD> (A)	8-97356-174-0	01	1	0507-0610		●	●	●
37	02.333 BRACKET; BATTERY (A)	8-97384-068-2	01	1	0611-0612	●				●	●
37	02.333 BRACKET; BATTERY EXC. BATTERY 115E41R<6XD> (A)	8-97384-068-2	01	1	0611-0612		●	●	●
37	02.333 BRACKET; BATTERY (A)	8-97384-067-2	01	1	0701-	●				●	●
37	02.333 BRACKET; BATTERY EXC. BATTERY 115E41R<6XD> (A)	8-97384-067-2	01	1	0701-		●	●	●
37	02.333 BRACKET; BATTERY BATTERY 115E41R<6XD> (B)	8-97134-838-0	01	1	0211-0501		●	●	●	●
39	02.334 NUT; STOPPER,BATTERY BATTERY 65D23R<7DQ>,BATTERY 75D23R<7PC> 04.594 M6 FLANGE	0-91150-106-0	01	1	0211-0501	●	●	●	●
39	02.334 NUT; STOPPER,BATTERY BATTERY 65D23R<7DQ> 04.594 M6 FLANGE	0-91150-106-0	01	1	0211-0501					●
39	02.334 NUT; STOPPER,BATTERY BATTERY 75D23R<7PC> 04.594 M6 FLANGE	0-91150-106-0	01	1	0211-0501						●
39	02.334 NUT; STOPPER,BATTERY BATTERY 65D23R<7DQ>,BATTERY 75D23R<7PC> 04.594 M6 FLANGE	0-91150-106-0	01	1	0502-0602	●	●	●	●
39	02.334 NUT; STOPPER,BATTERY BATTERY 75D23R<7PC> 04.594 M6 FLANGE	0-91150-106-0	01	1	0502-0602						●
39	02.334 NUT; STOPPER,BATTERY BATTERY 65D23R<7DQ>,BATTERY 75D23R<7PC> 01.062 M6 FLANGE	0-91180-106-0	01	1	0603-	●	●	●	●
39	02.334 NUT; STOPPER,BATTERY BATTERY 75D23R<7PC> 01.062 M6 FLANGE	0-91180-106-0	01	1	0603-						●
40	02.335 CLAMP; BATTERY 4HF1-S ENG(RLS),4HE1 ENG(RLY)	5-53615-004-1	01	1	0211-0501	●
40	02.335 CLAMP; BATTERY 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) EXC. BATTERY 115E41R<6XD>	5-53615-004-1	01	1	0211-0501		●	●	●
40	02.335 CLAMP; BATTERY EXC. BATTERY 115E41R<6XD>	5-53615-004-1	01	1	0211-0501					●
40	02.335 CLAMP; BATTERY	5-53615-004-1	01	1	0211-0501						●
40	02.335 CLAMP; BATTERY 4HF1-N ENG(RJZ),4HF1-S ENG(RLS)	5-53615-004-1	01	1	0502-0502	●
40	02.335 CLAMP; BATTERY 4HG1-T ENG(RDP),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS)	5-53615-004-1	01	1	0502-0502		●
40	02.335 CLAMP; BATTERY 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS)	5-53615-004-1	01	1	0502-0502			●
40	02.335 CLAMP; BATTERY 4HG1 ENG(RJH),4HF1-S ENG(RLS)	5-53615-004-1	01	1	0502-0502				●
40	02.335 CLAMP; BATTERY	5-53615-004-1	01	1	0502-0502						●
40	02.335 CLAMP; BATTERY	5-53615-004-1	01	1	0503-0506	●	●	●	●		●
40	02.335 CLAMP; BATTERY	5-53615-004-1	01	1	0507-	●				●	●
40	02.335 CLAMP; BATTERY EXC. BATTERY 115E41R<6XD>	5-53615-004-1	01	1	0507-		●	●	●
42	02.334 NUT; CLAMP 4HF1-S ENG(RLS),4HE1 ENG(RLY) 02.559 M8	9-09110-408-0	02	1	0211-0501	●
42	02.334 NUT; CLAMP 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) EXC. BATTERY 115E41R<6XD> 02.559 M8	9-09110-408-0	02	1	0211-0501		●	●	●
42	02.334 NUT; CLAMP EXC. BATTERY 115E41R<6XD> 02.559 M8	9-09110-408-0	02	1	0211-0501					●
42	02.334 NUT; CLAMP 02.559 M8	9-09110-408-0	02	1	0211-0501						●
42	02.334 NUT; CLAMP 4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 02.559 M8	9-09110-408-0	02	1	0502-0502	●
42	02.334 NUT; CLAMP 4HG1-T ENG(RDP),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) 02.559 M8	9-09110-408-0	02	1	0502-0502		●
42	02.334 NUT; CLAMP 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 02.559 M8	9-09110-408-0	02	1	0502-0502			●
42	02.334 NUT; CLAMP 4HG1 ENG(RJH),4HF1-S ENG(RLS) 02.559 M8	9-09110-408-0	02	1	0502-0502				●
42	02.334 NUT; CLAMP 02.559 M8	9-09110-408-0	02	1	0502-0502						●
42	02.334 NUT; CLAMP 02.559 M8	9-09110-408-0	02	1	0503-0506	●	●	●	●		●
42	02.334 NUT; CLAMP 02.559 M8	9-09110-408-0	02	1	0507-0512	●				●	●
42	02.334 NUT; CLAMP EXC. BATTERY 115E41R<6XD> 02.559 M8	9-09110-408-0	02	1	0507-0512		●	●	●
42	02.334 NUT; CLAMP M8	0-91110-508-0	02	1	0601-	●				●	●
42	02.334 NUT; CLAMP EXC. BATTERY 115E41R<6XD> M8	0-91110-508-0	02	1	0601-		●	●	●
43	02.334 WASHER; PL,CLAMP 4HF1-S ENG(RLS),4HE1 ENG(RLY) 07.633 ID=8.4 OD=22	9-09164-708-0	02	1	0211-0501	●
43	02.334 WASHER; PL,CLAMP 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) EXC. BATTERY 115E41R<6XD> 07.633 ID=8.4 OD=22	9-09164-708-0	02	1	0211-0501		●	●	●
43	02.334 WASHER; PL,CLAMP EXC. BATTERY 115E41R<6XD> 07.633 ID=8.4 OD=22	9-09164-708-0	02	1	0211-0501					●
43	02.334 WASHER; PL,CLAMP 07.633 ID=8.4 OD=22	9-09164-708-0	02	1	0211-0501						●
43	02.334 WASHER; PL,CLAMP 4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 07.633 ID=8.4 OD=22	9-09164-708-0	02	1	0502-0502	●
43	02.334 WASHER; PL,CLAMP 4HG1-T ENG(RDP),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) 07.633 ID=8.4 OD=22	9-09164-708-0	02	1	0502-0502		●
43	02.334 WASHER; PL,CLAMP 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 07.633 ID=8.4 OD=22	9-09164-708-0	02	1	0502-0502			●
43	02.334 WASHER; PL,CLAMP 4HG1 ENG(RJH),4HF1-S ENG(RLS) 07.633 ID=8.4 OD=22	9-09164-708-0	02	1	0502-0502				●
43	02.334 WASHER; PL,CLAMP 07.633 ID=8.4 OD=22	9-09164-708-0	02	1	0502-0502						●
43	02.334 WASHER; PL,CLAMP 07.633 ID=8.4 OD=22	9-09164-708-0	02	1	0503-0506	●	●	●	●		●
43	02.334 WASHER; PL,CLAMP 07.633 ID=8.4 OD=22	9-09164-708-0	02	1	0507-0605	●				●	●
43	02.334 WASHER; PL,CLAMP EXC. BATTERY 115E41R<6XD> 07.633 ID=8.4 OD=22	9-09164-708-0	02	1	0507-0605		●	●	●
43	02.334 WASHER; PL,CLAMP 02.277 ID=8.4 OD=22	0-91614-708-0	02	1	0606-	●				●	●
43	02.334 WASHER; PL,CLAMP EXC. BATTERY 115E41R<6XD> 02.277 ID=8.4 OD=22	0-91614-708-0	02	1	0606-		●	●	●
45	02.334 ROD; TENSION,BATTERY BATTERY 115E41R<6XD> L=430	8-97134-740-0	02	1	0507-		●	●	●
45	02.334 ROD; TENSION,BATTERY 4HF1-S ENG(RLS),4HE1 ENG(RLY) L=120	9-53616-615-0	02	1	0211-0501	●
45	02.334 ROD; TENSION,BATTERY 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) EXC. BATTERY 115E41R<6XD> L=120	9-53616-615-0	02	1	0211-0501		●	●	●
45	02.334 ROD; TENSION,BATTERY EXC. BATTERY 115E41R<6XD> L=120	9-53616-615-0	02	1	0211-0501					●
45	02.334 ROD; TENSION,BATTERY L=120	9-53616-615-0	02	1	0211-0501						●
45	02.334 ROD; TENSION,BATTERY 4HF1-N ENG(RJZ),4HF1-S ENG(RLS) L=120	9-53616-615-0	02	1	0502-0502	●
45	02.334 ROD; TENSION,BATTERY 4HG1-T ENG(RDP),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) L=120	9-53616-615-0	02	1	0502-0502		●
45	02.334 ROD; TENSION,BATTERY 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) L=120	9-53616-615-0	02	1	0502-0502			●
45	02.334 ROD; TENSION,BATTERY 4HG1 ENG(RJH),4HF1-S ENG(RLS) L=120	9-53616-615-0	02	1	0502-0502				●
45	02.334 ROD; TENSION,BATTERY L=120	9-53616-615-0	02	1	0502-0502						●
45	02.334 ROD; TENSION,BATTERY L=120	9-53616-615-0	02	1	0503-0506	●	●	●	●		●
45	02.334 ROD; TENSION,BATTERY L=120	9-53616-615-0	02	1	0507-	●				●	●
45	02.334 ROD; TENSION,BATTERY EXC. BATTERY 115E41R<6XD> L=120	9-53616-615-0	02	1	0507-		●	●	●
45	02.334 ROD; TENSION,BATTERY BATTERY 115E41R<6XD> L=430	8-97134-740-0	02	1	0211-0501		●	●	●	●
51	02.335 COVER; BATTERY BATTERY 115E41R<6XD> (B)	9-53612-072-1	01	1	0507-		●	●	●
51	02.335 COVER; BATTERY 4HF1-S ENG(RLS),4HE1 ENG(RLY) (A)	8-97120-747-0	01	1	0211-0501	●
51	02.335 COVER; BATTERY 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) EXC. BATTERY 115E41R<6XD> (A)	8-97120-747-0	01	1	0211-0501		●	●	●
51	02.335 COVER; BATTERY EXC. BATTERY 115E41R<6XD> (A)	8-97120-747-0	01	1	0211-0501					●
51	02.335 COVER; BATTERY (A)	8-97120-747-0	01	1	0211-0501						●
51	02.335 COVER; BATTERY 4HF1-N ENG(RJZ),4HF1-S ENG(RLS) (A)	8-97120-747-0	01	1	0502-0502	●
51	02.335 COVER; BATTERY 4HG1-T ENG(RDP),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) (A)	8-97120-747-0	01	1	0502-0502		●
51	02.335 COVER; BATTERY 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) (A)	8-97120-747-0	01	1	0502-0502			●
51	02.335 COVER; BATTERY 4HG1 ENG(RJH),4HF1-S ENG(RLS) (A)	8-97120-747-0	01	1	0502-0502				●
51	02.335 COVER; BATTERY (A)	8-97120-747-0	01	1	0502-0502						●
51	02.335 COVER; BATTERY (A)	8-97120-747-0	01	1	0503-0506	●	●	●	●		●
51	02.335 COVER; BATTERY (A)	8-97120-747-0	01	1	0507-	●				●	●
51	02.335 COVER; BATTERY EXC. BATTERY 115E41R<6XD> (A)	8-97120-747-0	01	1	0507-		●	●	●
51	02.335 COVER; BATTERY BATTERY 115E41R<6XD> (B)	9-53612-072-0	01	1	0211-0501		●	●	●	●
52	02.335 NUT; WING,COVER FIX 4HF1-S ENG(RLS),4HE1 ENG(RLY) M8 WING NUT	9-09118-408-0	02	1	0211-0501	●
52	02.335 NUT; WING,COVER FIX 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) EXC. BATTERY 115E41R<6XD> M8 WING NUT	9-09118-408-0	02	1	0211-0501		●	●	●
52	02.335 NUT; WING,COVER FIX EXC. BATTERY 115E41R<6XD> M8 WING NUT	9-09118-408-0	02	1	0211-0501					●
52	02.335 NUT; WING,COVER FIX M8 WING NUT	9-09118-408-0	02	1	0211-0501						●
52	02.335 NUT; WING,COVER FIX 4HF1-N ENG(RJZ),4HF1-S ENG(RLS) M8 WING NUT	9-09118-408-0	02	1	0502-0502	●
52	02.335 NUT; WING,COVER FIX 4HG1-T ENG(RDP),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) M8 WING NUT	9-09118-408-0	02	1	0502-0502		●
52	02.335 NUT; WING,COVER FIX 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) M8 WING NUT	9-09118-408-0	02	1	0502-0502			●
52	02.335 NUT; WING,COVER FIX 4HG1 ENG(RJH),4HF1-S ENG(RLS) M8 WING NUT	9-09118-408-0	02	1	0502-0502				●
52	02.335 NUT; WING,COVER FIX M8 WING NUT	9-09118-408-0	02	1	0502-0502						●
52	02.335 NUT; WING,COVER FIX M8 WING NUT	9-09118-408-0	02	1	0503-0506	●	●	●	●		●
52	02.335 NUT; WING,COVER FIX M8 WING NUT	9-09118-408-0	02	1	0507-0512	●				●	●
52	02.335 NUT; WING,COVER FIX EXC. BATTERY 115E41R<6XD> M8 WING NUT	9-09118-408-0	02	1	0507-0512		●	●	●
52	02.335 NUT; WING,COVER FIX M8 WING NUT	0-91118-408-0	02	1	0601-	●				●	●
52	02.335 NUT; WING,COVER FIX EXC. BATTERY 115E41R<6XD> M8 WING NUT	0-91118-408-0	02	1	0601-		●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
