4-80 — ROAD WHEEL (#18294) — 377 parça

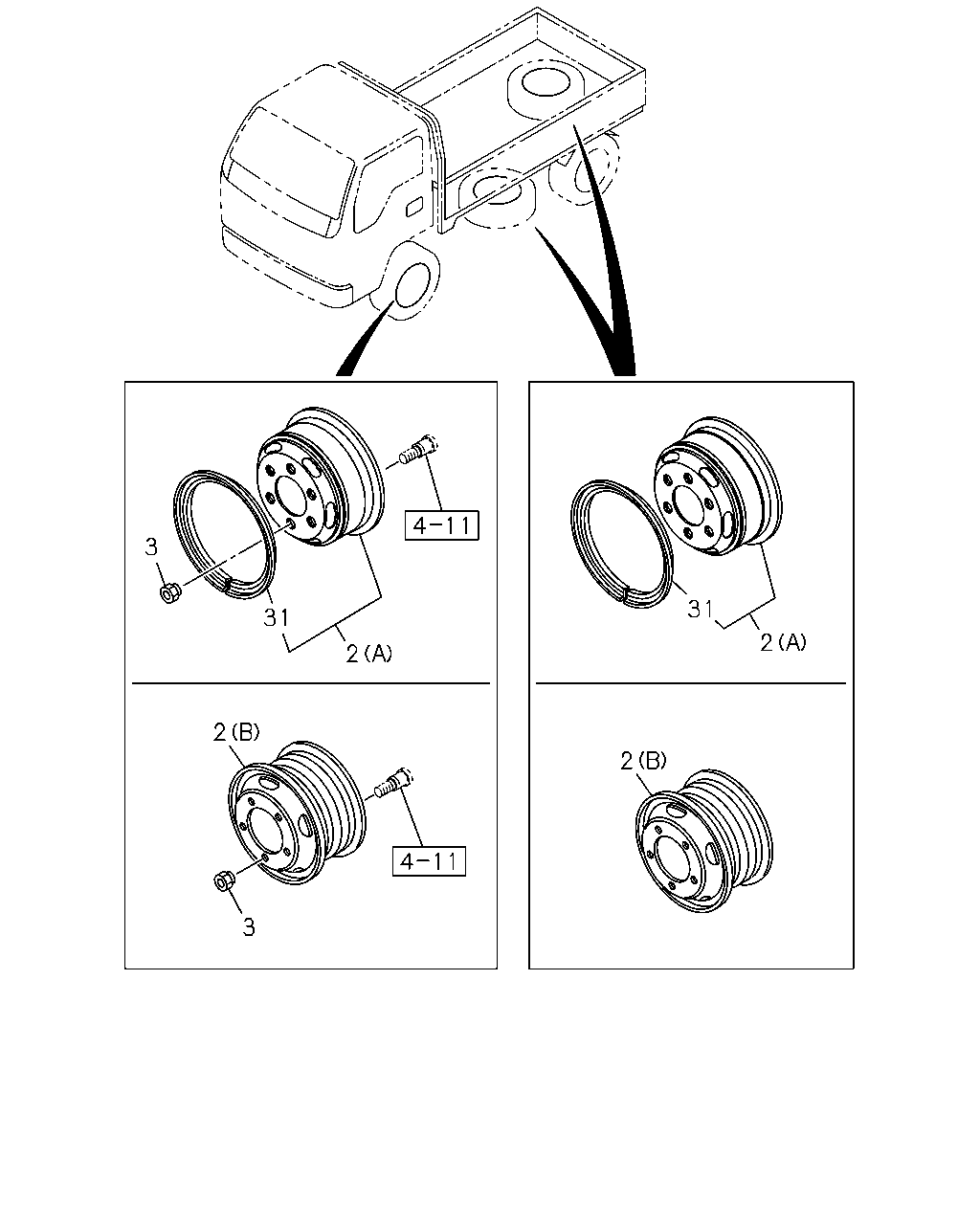

çizim 12601
3 31 31 2 2 2 2 3
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 05.803 WHEEL; DISC
FRT&RR 225/70R19.5 19.5X6.00-127(CRR) (B) FRONT 19.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-98080-745-1 02 1 0703- ● ● ●
2 05.803 WHEEL; DISC
F&R 215/75R17.5(MICHELIN)17.5X6.00-12 7 SILVER(CRV),FRT&RR TIRE 215-75R17.5DISC 17.5-6-127SILVER(CTV) (B) REAR 17.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98012-855-0 04 1 0702-1010 ● ● ● ●
2 05.803 WHEEL; DISC
F&R 215/75R17.5(MICHELIN)17.5X6.00-12 7 SILVER(CRV),FRT&RR TIRE 215-75R17.5DISC 17.5-6-127SILVER(CTV) (B) REAR 17.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98168-215-0 04 1 1011- ● ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 225/80R17.5 17.5X6.00-127(BXP) ,F&R TIRE 205/75R17.5(MICHELIN)17.5X6.00-127(CSM) (B) FRONT,REAR 17.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98012-855-0 06 1 0702-1010 ● ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 225/80R17.5 17.5X6.00-127(BXP) ,F&R TIRE 205/75R17.5(MICHELIN)17.5X6.00-127(CSM) (B) FRONT,REAR 17.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98168-215-0 06 1 1011- ● ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 225/80R17.5 17.5X6.00-127(BXP) (B) SPARE 17.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98012-855-0 01 1 0607-0608 ● ●
2 05.803 WHEEL; DISC
FRT&RR 225/80R17.5 17.5X6.00-127(BXP) ,F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),F&R TIRE 205/75R17.5(MICHELIN)17.5X6.00-127(CSM) (B) SPARE 17.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98012-855-0 01 1 0609-0701 ● ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 225/80R17.5 17.5X6.00-127(BXP) ,F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),F&R TIRE 205/75R17.5(MICHELIN)17.5X6.00-127(CSM),FRT&RR TIRE 215-75R17.5 DISC 17.5-6-127SILVER(CTV) (B) SPARE 17.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98012-855-0 01 1 0702-1010 ● ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 225/80R17.5 17.5X6.00-127(BXP) ,F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),F&R TIRE 205/75R17.5(MICHELIN)17.5X6.00-127(CSM),FRT&RR TIRE 215-75R17.5 DISC 17.5-6-127SILVER(CTV) (B) SPARE 17.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98168-215-0 01 1 1011- ● ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 225/80R17.5 17.5X6.00-127(BXP) (B) FRONT,REAR 17.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98012-855-0 06 1 0607-0608 ● ●
2 05.803 WHEEL; DISC
FRT&RR 225/80R17.5 17.5X6.00-127(BXP) ,F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),F&R TIRE 205/75R17.5(MICHELIN)17.5X6.00-127(CSM) (B) FRONT,REAR 17.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98012-855-0 06 1 0609-0701 ● ● ● ●
2 05.803 WHEEL; DISC
F&R 215/75R17.5(MICHELIN)17.5X6.00-12 7 SILVER(CRV),FRT&RR TIRE 215-75R17.5DISC 17.5-6-127SILVER(CTV) (B) FRONT 17.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98012-855-0 02 1 0702-1010 ● ● ● ●
2 05.803 WHEEL; DISC
F&R 215/75R17.5(MICHELIN)17.5X6.00-12 7 SILVER(CRV),FRT&RR TIRE 215-75R17.5DISC 17.5-6-127SILVER(CTV) (B) FRONT 17.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98168-215-0 02 1 1011- ● ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 215/75R17.5 17.5X6.00-127 SILV ER(CQU) (B) SPARE 17.5X6.00 OFFSET=127 PLATINUM SILVER 		8-97233-667-0 01 1 0507-0508 ● ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 215/75R17.5 17.5X6.00-127 SILV ER(CQU),F&R TIRE 205/75R17.5(MICHELIN)17.5X6.00-127(CSM) (B) SPARE 17.5X6.00 OFFSET=127 PLATINUM SILVER 		8-97233-667-0 01 1 0509-0604 ● ● ● ●
2 05.803 WHEEL; DISC
F&R 215/75R17.5(MICHELIN)17.5X6.00-12 7 SILVER(CRV),F&R TIRE 205/75R17.5(MICHELIN)17.5X6.00-127(CSM) (B) SPARE 17.5X6.00 OFFSET=127 PLATINUM SILVER 		8-97233-667-0 01 1 0605-0608 ● ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 215/75R17.5 17.5X6.00-127 SILV ER(CQU) (B) FRONT,REAR 17.5X6.00 OFFSET=127 PLATINUM SILVER 		8-97233-667-0 06 1 0507-0508 ● ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 215/75R17.5 17.5X6.00-127 SILV ER(CQU),F&R TIRE 205/75R17.5(MICHELIN)17.5X6.00-127(CSM) (B) FRONT,REAR 17.5X6.00 OFFSET=127 PLATINUM SILVER 		8-97233-667-0 06 1 0509-0604 ● ● ● ●
2 05.803 WHEEL; DISC
F&R 215/75R17.5(MICHELIN)17.5X6.00-12 7 SILVER(CRV),F&R TIRE 205/75R17.5(MICHELIN)17.5X6.00-127(CSM) (B) FRONT,REAR 17.5X6.00 OFFSET=127 PLATINUM SILVER 		8-97233-667-0 06 1 0605-0608 ● ● ● ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 195-85R16 DISC 16-5.5J-11 6.5(CPG) (B) SPARE 16X5.5J OFFSET=116.5 BLACK 5-HOLE 		8-97213-255-1 01 1 0507-0508 ● ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 195/85R16 16X5.5J-116.5 5 -WHL/NUT(CSK) (B) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 01 1 0509-0910 ● ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 195-85R16 DISC 16-5.5J-11 6.5(CPG) (B) FRONT,REAR 16X5.5J OFFSET=116.5 BLACK 5-HOLE 		8-97213-255-1 06 1 0507-0508 ● ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 195/85R16 16X5.5J-116.5 5 -WHL/NUT(CSK) (B) FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 06 1 0509-0910 ● ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 205-75R17.5 DISC 17.5X6.0 0-127(CPH) (B) SPARE 17.5X6.00 OFFSET=127 BLACK 6-HOLE 		8-97086-051-2 01 1 0507-0508 ● ● ● ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 205-75R17.5 DISC 17.5X6.0 0-127(CPH) (B) FRONT,REAR 17.5X6.00 OFFSET=127 BLACK 6-HOLE 		8-97086-051-2 06 1 0507-0508 ● ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 225/70R19.5 19.5X6.00-127(CRR) (B) SPARE 19.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-97179-773-4 01 1 0507- ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 225/70R19.5 19.5X6.00-127(CRR) (B) FRONT,REAR 19.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-97179-773-3 06 1 0507-0702 ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 225/70R19.5 19.5X6.00-127(CRR) (B) REAR 19.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-97179-773-4 04 1 0703- ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 205/85R16 16X5.5J-116.5(AXZ), FRT&RR TIRE 195-85R16 DISC 16-5.5J-116 .5(CPG) (B) SPARE 16X5.5J OFFSET=116.5 BLACK 5-HOLE 		8-97213-255-1 01 1 0211-0501 ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 205/85R16 16X5.5J-116.5(AXZ), FRT&RR TIRE 195-85R16 DISC 16-5.5J-116 .5(CPG) (B) FRONT,REAR 16X5.5J OFFSET=116.5 BLACK 5-HOLE 		8-97213-255-1 06 1 0211-0501 ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT (03C),FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16 -127 6-WHL/NUT(05C),FRT&RR 7.5R-16-106GSX16-127 6-WHL/NUT(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT& RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYN AMIC(95V),FRT&RR 7.5-16-10 6GSX16-1276-WHL/NUT DYNAMIC(97V) (A) SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-4 01 1 0211-0501 ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT (9BP) (A) SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-4 01 1 0211-0501 ● ●
2 05.803 WHEEL; DISC
FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT (03C),FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16 -127 6-WHL/NUT(05C),FRT&RR 7.5R-16-106GSX16-127 6-WHL/NUT(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT& RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYN AMIC(95V),FRT&RR 7.5-16-10 6GSX16-1276-WHL/NUT DYNAMIC(97V) (A) SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-4 01 1 0502-0811 ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT (9BP) (A) SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-4 01 1 0502-0811 ●
2 05.803 WHEEL; DISC
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6GSX16-1 27 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R- 16-10 6GSX16-127 6-WHL/NUT(83V), FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP) ,FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX1 6-127 6-WHL/NUT DYNAMIC(97V) (A) SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-4 01 1 0812- ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP) (A) SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-4 01 1 0812- ●
2 05.803 WHEEL; DISC
FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT (03C),FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16 -127 6-WHL/NUT(05C),FRT&RR 7.5R-16-106GSX16-127 6-WHL/NUT(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT& RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYN AMIC(95V),FRT&RR 7.5-16-10 6GSX16-1276-WHL/NUT DYNAMIC(97V) (A) FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-4 06 1 0211-0501 ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT (9BP) (A) FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-4 06 1 0211-0501 ● ●
2 05.803 WHEEL; DISC
FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT (03C),FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16 -127 6-WHL/NUT(05C),FRT&RR 7.5R-16-106GSX16-127 6-WHL/NUT(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT& RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYN AMIC(95V),FRT&RR 7.5-16-10 6GSX16-1276-WHL/NUT DYNAMIC(97V) (A) FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-4 06 1 0502-0811 ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT (9BP) (A) FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-4 06 1 0502-0811 ●
2 05.803 WHEEL; DISC
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6GSX16-1 27 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R- 16-10 6GSX16-127 6-WHL/NUT(83V), FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP) ,FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX1 6-127 6-WHL/NUT DYNAMIC(97V) (A) FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-4 06 1 0812- ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP) (A) FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-4 06 1 0812- ●
2 05.803 WHEEL; DISC
FRT&RR 7R-16-10 16X5.5F-115(07H), FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-12 16X5.5F-115(96H),F RT&RR 7-16-10L 5.5FX16-115 T/VLV TR17 7A(98H) (A) FRONT,REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 06 1 0211-0501 ● ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 7R-16-10 16X5.5F-115(07H), FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-12 16X5.5F-115(96H),F RT&RR 7-16-10L 5.5FX16-115 T/VLV TR17 7A(98H) (A) FRONT,REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 06 1 0502- ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 7R-16-10 16X5.5F-115(07H), FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-12 16X5.5F-115(96H),F RT&RR 7-16-10L 5.5FX16-115 T/VLV TR17 7A(98H) (A) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 01 1 0211-0501 ● ● ● ●
2 05.803 WHEEL; DISC
FRT 7-16-12 16X5.5F-115 RR 185R14-8 1 4X5J-112(CPT),FRT 7-16-12 16X5.5F-115RR 175R14-8 14X5J-112(CPU) (A) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 01 1 0211-0501 ●
2 05.803 WHEEL; DISC
FRT&RR 7R-16-10 16X5.5F-115(07H), FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-12 16X5.5F-115(96H),F RT&RR 7-16-10L 5.5FX16-115 T/VLV TR17 7A(98H) (A) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 01 1 0502- ● ● ●
2 05.803 WHEEL; DISC
FRT 7-16-12 16X5.5F-115 RR 185R14-8 1 4X5J-112(CPT),FRT 7-16-12 16X5.5F-115RR 175R14-8 14X5J-112(CPU) (A) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 01 1 0502- ●
2 05.803 WHEEL; DISC
FRT&RR 7.5-16-8 6GSX16-127(10H), FRT&RR 7.5-16-10 6GSX16-127(11H),FRT&RR 7.5-16-12 6GSX16-127(12H),FRT&RR 7.5-16 -8L 6GSX16-127(14H),FRT&RR 7.5R-16-126GSX16-127(19H) (A) SPARE 6.0SGX16 OFFSET=127 BLACK 5-HOLE 		8-94135-596-2 01 1 0211-0501 ● ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 7.5-16-8 6GSX16-127(10H), FRT&RR 7.5-16-10 6GSX16-127(11H),FRT&RR 7.5-16-12 6GSX16-127(12H),FRT&RR 7.5-16 -8L 6GSX16-127(14H),FRT&RR 7.5R-16-126GSX16-127(19H) (A) SPARE 6.0SGX16 OFFSET=127 BLACK 5-HOLE 		8-94135-596-2 01 1 0502-0811 ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 7.5R-16-10 DISC 6.00GSX16-127(CUV),FRT&RR 7.5-16-8 6GSX16-127(10H), FRT&RR 7.5-16-10 6GSX16-127(11H), FRT&RR 7.5-16-12 6GSX16-127(12H),FRT&RR 7 .5-16-8L 6GSX16-127(14H),FRT&RR 7.5R-16-12 6GSX16-127(19H) (A) SPARE 6.0SGX16 OFFSET=127 BLACK 5-HOLE 		8-94135-596-2 01 1 0812- ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 7.5-16-8 6GSX16-127(10H), FRT&RR 7.5-16-10 6GSX16-127(11H),FRT&RR 7.5-16-12 6GSX16-127(12H),FRT&RR 7.5-16 -8L 6GSX16-127(14H),FRT&RR 7.5R-16-126GSX16-127(19H) (A) FRONT,REAR 6.0SGX16 OFFSET=127 BLACK 5-HOLE 		8-94135-596-2 06 1 0211-0501 ● ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 7.5-16-8 6GSX16-127(10H), FRT&RR 7.5-16-10 6GSX16-127(11H),FRT&RR 7.5-16-12 6GSX16-127(12H),FRT&RR 7.5-16 -8L 6GSX16-127(14H),FRT&RR 7.5R-16-126GSX16-127(19H) (A) FRONT,REAR 6.0SGX16 OFFSET=127 BLACK 5-HOLE 		8-94135-596-2 06 1 0502-0811 ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 7.5R-16-10 DISC 6.00GSX16-127(CUV),FRT&RR 7.5-16-8 6GSX16-127(10H), FRT&RR 7.5-16-10 6GSX16-127(11H), FRT&RR 7.5-16-12 6GSX16-127(12H),FRT&RR 7 .5-16-8L 6GSX16-127(14H),FRT&RR 7.5R-16-12 6GSX16-127(19H) (A) FRONT,REAR 6.0SGX16 OFFSET=127 BLACK 5-HOLE 		8-94135-596-2 06 1 0812- ● ● ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 205-75R17.5 DISC 17.5X6.0 0-127(CPH) (B) SPARE 17.5X6.00 OFFSET=127 BLACK 6-HOLE 		8-97086-051-2 01 1 0211-0501 ● ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 215-75R17.5 DISC 17.5-6J- 127(AUS),FRT&RR TIRE 205-75R17.5 DISC17.5X6.00-127(CPH) (B) SPARE 17.5X6.00 OFFSET=127 BLACK 6-HOLE 		8-97086-051-2 01 1 0211-0501 ● ● ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 205-75R17.5 DISC 17.5X6.0 0-127(CPH) (B) FRONT,REAR 17.5X6.00 OFFSET=127 BLACK 6-HOLE 		8-97086-051-2 06 1 0211-0501 ● ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 215-75R17.5 DISC 17.5-6J- 127(AUS),FRT&RR TIRE 205-75R17.5 DISC17.5X6.00-127(CPH) (B) FRONT,REAR 17.5X6.00 OFFSET=127 BLACK 6-HOLE 		8-97086-051-2 06 1 0211-0501 ● ● ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 215-75R17.5 DISC 17.5-6J- 127WHITE(AUJ),FRT&RR TIRE 215-75R17.5DISC 17.5-6J-127WHITE(AVK) (B) SPARE 17.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-97086-052-1 01 1 0211-0501 ● ● ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 215-75R17.5 DISC 17.5-6J- 127WHITE(AUJ),FRT&RR TIRE 215-75R17.5DISC 17.5-6J-127WHITE(AVK) (B) FRONT 17.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-97086-052-1 02 1 0211-0501 ● ● ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 215-75R17.5 DISC 17.5-6J- 127WHITE(AUJ),FRT&RR TIRE 215-75R17.5DISC 17.5-6J-127WHITE(AVK) (B) REAR 17.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-97086-052-1 04 1 0211-0501 ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 8.25-16-12 16X6.00GS-135 6-WHL /NUT(9ZM),FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT(9ZP) (A) FRONT 6.00GSX16 OFFSET=135 BLACK 6-HOLE 		1-42350-417-0 01 1 0211- ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 8.25-16-12 16X6.00GS-135 6-WHL /NUT(9ZM),FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT(9ZP) (A) FRONT,REAR 6.00GSX16 OFFSET=135 BLACK 6-HOLE 		1-42350-417-0 06 1 0211- ● ● ●
2 05.803 WHEEL; DISC
FRT 7-16-12 16X5.5F-115 RR 185R14-8 1 4X5J-112(CPT),FRT 7-16-12 16X5.5F-115RR 175R14-8 14X5J-112(CPU) (A) FRONT 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 02 1 0211- ●
2 05.803 WHEEL; DISC
FRT 7-16-12 16X5.5F-115 RR 185R14-8 1 4X5J-112(CPT),FRT 7-16-12 16X5.5F-115RR 175R14-8 14X5J-112(CPU) (B) SPARE 14X5J OFFSET=112.5 BLACK 6-HOLE 		8-97145-820-1 01 1 0211- ●
2 05.803 WHEEL; DISC
FRT 7-16-12 16X5.5F-115 RR 185R14-8 1 4X5J-112(CPT),FRT 7-16-12 16X5.5F-115RR 175R14-8 14X5J-112(CPU) (B) REAR 14X5J OFFSET=112.5 BLACK 6-HOLE 		8-97145-820-1 04 1 0211- ●
3 05.813 NUT; WHEEL,FRT AXLE
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) M18 LH THREAD 		8-94365-148-0 05 1 0211-0501 ● ●
3 05.813 NUT; WHEEL,FRT AXLE
G.V.W. 6.0-6.5TON(RPV) M18 LH THREAD 		8-94365-148-0 05 1 0211-0501 ● ●
3 05.813 NUT; WHEEL,FRT AXLE
M18 LH THREAD 		8-94365-148-0 05 1 0211-0501 ●
3 05.813 NUT; WHEEL,FRT AXLE
G.V.W. 6.0-6.5TON(RPV) M18 LH THREAD 		8-94365-148-0 05 1 0502-0504 ● ● ●
3 05.813 NUT; WHEEL,FRT AXLE
G.V.W. 6.0-6.5TON(RPV) M18 LH THREAD 		8-94365-148-0 05 1 0505-0506 ● ● ●
3 05.813 NUT; WHEEL,FRT AXLE
M18 LH THREAD 		8-94365-148-0 05 1 0505-0506 ●
3 05.813 NUT; WHEEL,FRT AXLE
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) M18 LH THREAD 		8-94365-148-0 05 1 0507-0610 ● ●
3 05.813 NUT; WHEEL,FRT AXLE
G.V.W. 6.0-6.5TON(RPV) M18 LH THREAD 		8-94365-148-0 05 1 0507-0610 ●
3 05.813 NUT; WHEEL,FRT AXLE
M18 LH THREAD 		8-94365-148-0 05 1 0507-0610 ●
3 05.813 NUT; WHEEL,FRT AXLE
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) M18 LH THREAD 		8-98007-908-0 05 1 0611- ● ●
3 05.813 NUT; WHEEL,FRT AXLE
G.V.W. 6.0-6.5TON(RPV) M18 LH THREAD 		8-98007-908-0 05 1 0611- ●
3 05.813 NUT; WHEEL,FRT AXLE
M18 LH THREAD 		8-98007-908-0 05 1 0611- ●
3 05.813 NUT; WHEEL,FRT AXLE
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) M18 RH THREAD 		8-94365-147-0 05 1 0211-0501 ● ●
3 05.813 NUT; WHEEL,FRT AXLE
G.V.W. 6.0-6.5TON(RPV) M18 RH THREAD 		8-94365-147-0 05 1 0211-0501 ● ●
3 05.813 NUT; WHEEL,FRT AXLE
M18 RH THREAD 		8-94365-147-0 05 1 0211-0501 ●
3 05.813 NUT; WHEEL,FRT AXLE
G.V.W. 6.0-6.5TON(RPV) M18 RH THREAD 		8-94365-147-0 05 1 0502-0504 ● ● ●
3 05.813 NUT; WHEEL,FRT AXLE
G.V.W. 6.0-6.5TON(RPV) M18 RH THREAD 		8-94365-147-0 05 1 0505-0506 ● ● ●
3 05.813 NUT; WHEEL,FRT AXLE
M18 RH THREAD 		8-94365-147-0 05 1 0505-0506 ●
3 05.813 NUT; WHEEL,FRT AXLE
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) M18 RH THREAD 		8-94365-147-0 05 1 0507-0610 ● ●
3 05.813 NUT; WHEEL,FRT AXLE
G.V.W. 6.0-6.5TON(RPV) M18 RH THREAD 		8-94365-147-0 05 1 0507-0610 ●
3 05.813 NUT; WHEEL,FRT AXLE
M18 RH THREAD 		8-94365-147-0 05 1 0507-0610 ●
3 05.813 NUT; WHEEL,FRT AXLE
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) M18 RH THREAD 		8-98007-907-0 05 1 0611- ● ●
3 05.813 NUT; WHEEL,FRT AXLE
G.V.W. 6.0-6.5TON(RPV) M18 RH THREAD 		8-98007-907-0 05 1 0611- ●
3 05.813 NUT; WHEEL,FRT AXLE
M18 RH THREAD 		8-98007-907-0 05 1 0611- ●
3 05.813 NUT; WHEEL,FRT AXLE
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY), G.V.W. 8.0-8.5TON(RPZ) M20 LH THREAD 		8-94427-549-1 06 1 0211-0501 ● ● ● ● ●
3 05.813 NUT; WHEEL,FRT AXLE
G.V.W. 7.0-7.5TON(RPX) M20 LH THREAD 		8-94427-549-1 06 1 0502-0506 ●
3 05.813 NUT; WHEEL,FRT AXLE
G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) M20 LH THREAD 		8-94427-549-1 06 1 0502-0506 ● ●
3 05.813 NUT; WHEEL,FRT AXLE
M20 LH THREAD 		8-94427-549-1 06 1 0502-0506 ●
3 05.813 NUT; WHEEL,FRT AXLE
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY), G.V.W. 8.0-8.5TON(RPZ) M20 LH THREAD 		8-94427-549-1 06 1 0507-0610 ● ● ● ● ●
3 05.813 NUT; WHEEL,FRT AXLE
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY), G.V.W. 8.0-8.5TON(RPZ) M20 LH THREAD 		8-97359-808-0 06 1 0611- ● ● ● ● ●
3 05.813 NUT; WHEEL,FRT AXLE
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY), G.V.W. 8.0-8.5TON(RPZ) M20 RH THREAD 		8-94427-548-1 06 1 0211-0501 ● ● ● ● ●
3 05.813 NUT; WHEEL,FRT AXLE
G.V.W. 7.0-7.5TON(RPX) M20 RH THREAD 		8-94427-548-1 06 1 0502-0506 ●
3 05.813 NUT; WHEEL,FRT AXLE
G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) M20 RH THREAD 		8-94427-548-1 06 1 0502-0506 ● ●
3 05.813 NUT; WHEEL,FRT AXLE
M20 RH THREAD 		8-94427-548-1 06 1 0502-0506 ●
3 05.813 NUT; WHEEL,FRT AXLE
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY), G.V.W. 8.0-8.5TON(RPZ) M20 RH THREAD 		8-94427-548-1 06 1 0507-0610 ● ● ● ● ●
3 05.813 NUT; WHEEL,FRT AXLE
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY), G.V.W. 8.0-8.5TON(RPZ) M20 RH THREAD 		8-97359-807-0 06 1 0611- ● ● ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT (03C),FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16 -127 6-WHL/NUT(05C),FRT&RR 7.5R-16-106GSX16-127 6-WHL/NUT(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT& RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYN AMIC(95V),FRT&RR 7.5-16-10 6GSX16-1276-WHL/NUT DYNAMIC(97V) SPARE 16X6.00GS STAMP, BLACK 		8-94412-585-0 01 1 0211-0501 ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT (9BP) SPARE 16X6.00GS STAMP, BLACK 		8-94412-585-0 01 1 0211-0501 ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT (03C),FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16 -127 6-WHL/NUT(05C),FRT&RR 7.5R-16-106GSX16-127 6-WHL/NUT(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT& RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYN AMIC(95V),FRT&RR 7.5-16-10 6GSX16-1276-WHL/NUT DYNAMIC(97V) SPARE 16X6.00GS STAMP, BLACK 		8-94412-585-0 01 1 0502-0811 ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT (9BP) SPARE 16X6.00GS STAMP, BLACK 		8-94412-585-0 01 1 0502-0811 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6GSX16-1 27 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R- 16-10 6GSX16-127 6-WHL/NUT(83V), FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP) ,FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX1 6-127 6-WHL/NUT DYNAMIC(97V) SPARE 16X6.00GS STAMP, BLACK 		8-94412-585-0 01 1 0812- ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP) SPARE 16X6.00GS STAMP, BLACK 		8-94412-585-0 01 1 0812- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT (03C),FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16 -127 6-WHL/NUT(05C),FRT&RR 7.5R-16-106GSX16-127 6-WHL/NUT(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT& RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYN AMIC(95V),FRT&RR 7.5-16-10 6GSX16-1276-WHL/NUT DYNAMIC(97V) FRONT,REAR 16X6.00GS STAMP, BLACK 		8-94412-585-0 06 1 0211-0501 ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT (9BP) FRONT,REAR 16X6.00GS STAMP, BLACK 		8-94412-585-0 06 1 0211-0501 ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT (03C),FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16 -127 6-WHL/NUT(05C),FRT&RR 7.5R-16-106GSX16-127 6-WHL/NUT(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT& RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYN AMIC(95V),FRT&RR 7.5-16-10 6GSX16-1276-WHL/NUT DYNAMIC(97V) FRONT,REAR 16X6.00GS STAMP, BLACK 		8-94412-585-0 06 1 0502-0811 ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT (9BP) FRONT,REAR 16X6.00GS STAMP, BLACK 		8-94412-585-0 06 1 0502-0811 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6GSX16-1 27 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R- 16-10 6GSX16-127 6-WHL/NUT(83V), FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP) ,FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX1 6-127 6-WHL/NUT DYNAMIC(97V) FRONT,REAR 16X6.00GS STAMP, BLACK 		8-94412-585-0 06 1 0812- ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP) FRONT,REAR 16X6.00GS STAMP, BLACK 		8-94412-585-0 06 1 0812- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7R-16-10 16X5.5F-115(07H), FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-12 16X5.5F-115(96H),F RT&RR 7-16-10L 5.5FX16-115 T/VLV TR17 7A(98H) FRONT,REAR 16X5.50F STAMP, BLACK 		8-94135-601-0 06 1 0211-0501 ● ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7R-16-10 16X5.5F-115(07H), FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-12 16X5.5F-115(96H),F RT&RR 7-16-10L 5.5FX16-115 T/VLV TR17 7A(98H) FRONT,REAR 16X5.50F STAMP, BLACK 		8-94135-601-0 06 1 0502- ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7R-16-10 16X5.5F-115(07H), FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-12 16X5.5F-115(96H),F RT&RR 7-16-10L 5.5FX16-115 T/VLV TR17 7A(98H) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 0211-0501 ● ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT 7-16-12 16X5.5F-115 RR 185R14-8 1 4X5J-112(CPT),FRT 7-16-12 16X5.5F-115RR 175R14-8 14X5J-112(CPU) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 0211-0501 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7R-16-10 16X5.5F-115(07H), FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-12 16X5.5F-115(96H),F RT&RR 7-16-10L 5.5FX16-115 T/VLV TR17 7A(98H) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 0502- ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT 7-16-12 16X5.5F-115 RR 185R14-8 1 4X5J-112(CPT),FRT 7-16-12 16X5.5F-115RR 175R14-8 14X5J-112(CPU) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 0502- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5-16-8 6GSX16-127(10H), FRT&RR 7.5-16-10 6GSX16-127(11H),FRT&RR 7.5-16-12 6GSX16-127(12H),FRT&RR 7.5-16 -8L 6GSX16-127(14H),FRT&RR 7.5R-16-126GSX16-127(19H) SPARE 16X6.00GS STAMP, BLACK 		8-94135-602-0 01 1 0211-0501 ● ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5-16-8 6GSX16-127(10H), FRT&RR 7.5-16-10 6GSX16-127(11H),FRT&RR 7.5-16-12 6GSX16-127(12H),FRT&RR 7.5-16 -8L 6GSX16-127(14H),FRT&RR 7.5R-16-126GSX16-127(19H) SPARE 16X6.00GS STAMP, BLACK 		8-94135-602-0 01 1 0502-0811 ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5R-16-10 DISC 6.00GSX16-127(CUV),FRT&RR 7.5-16-8 6GSX16-127(10H), FRT&RR 7.5-16-10 6GSX16-127(11H), FRT&RR 7.5-16-12 6GSX16-127(12H),FRT&RR 7 .5-16-8L 6GSX16-127(14H),FRT&RR 7.5R-16-12 6GSX16-127(19H) SPARE 16X6.00GS STAMP, BLACK 		8-94135-602-0 01 1 0812- ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5-16-8 6GSX16-127(10H), FRT&RR 7.5-16-10 6GSX16-127(11H),FRT&RR 7.5-16-12 6GSX16-127(12H),FRT&RR 7.5-16 -8L 6GSX16-127(14H),FRT&RR 7.5R-16-126GSX16-127(19H) FRONT,REAR 16X6.00GS STAMP, BLACK 		8-94135-602-0 06 1 0211-0501 ● ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5-16-8 6GSX16-127(10H), FRT&RR 7.5-16-10 6GSX16-127(11H),FRT&RR 7.5-16-12 6GSX16-127(12H),FRT&RR 7.5-16 -8L 6GSX16-127(14H),FRT&RR 7.5R-16-126GSX16-127(19H) FRONT,REAR 16X6.00GS STAMP, BLACK 		8-94135-602-0 06 1 0502-0811 ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5R-16-10 DISC 6.00GSX16-127(CUV),FRT&RR 7.5-16-8 6GSX16-127(10H), FRT&RR 7.5-16-10 6GSX16-127(11H), FRT&RR 7.5-16-12 6GSX16-127(12H),FRT&RR 7 .5-16-8L 6GSX16-127(14H),FRT&RR 7.5R-16-12 6GSX16-127(19H) FRONT,REAR 16X6.00GS STAMP, BLACK 		8-94135-602-0 06 1 0812- ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 8.25-16-12 16X6.00GS-135 6-WHL /NUT(9ZM),FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT(9ZP) SPARE 16X6.00GS STAMP, BLACK 		1-42355-015-2 01 1 0211- ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 8.25-16-12 16X6.00GS-135 6-WHL /NUT(9ZM),FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT(9ZP) FRONT,REAR 16X6.00GS STAMP, BLACK 		1-42355-015-2 06 1 0211- ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT 7-16-12 16X5.5F-115 RR 185R14-8 1 4X5J-112(CPT),FRT 7-16-12 16X5.5F-115RR 175R14-8 14X5J-112(CPU) FRONT 16X5.50F STAMP, BLACK 		8-94135-601-0 02 1 0211- ●
çizim 12950
31 2 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 05.803 WHEEL; DISC
FRT&RR 225/70R19.5 19.5X6.00-127(CRR) (B) FRONT 19.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-98080-745-1 02 1 0703- ● ● ●
2 05.803 WHEEL; DISC
F&R 215/75R17.5(MICHELIN)17.5X6.00-12 7 SILVER(CRV),FRT&RR TIRE 215-75R17.5DISC 17.5-6-127SILVER(CTV) (B) REAR 17.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98012-855-0 04 1 0702-1010 ● ● ● ●
2 05.803 WHEEL; DISC
F&R 215/75R17.5(MICHELIN)17.5X6.00-12 7 SILVER(CRV),FRT&RR TIRE 215-75R17.5DISC 17.5-6-127SILVER(CTV) (B) REAR 17.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98168-215-0 04 1 1011- ● ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 225/80R17.5 17.5X6.00-127(BXP) ,F&R TIRE 205/75R17.5(MICHELIN)17.5X6.00-127(CSM) (B) FRONT,REAR 17.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98012-855-0 06 1 0702-1010 ● ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 225/80R17.5 17.5X6.00-127(BXP) ,F&R TIRE 205/75R17.5(MICHELIN)17.5X6.00-127(CSM) (B) FRONT,REAR 17.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98168-215-0 06 1 1011- ● ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 225/80R17.5 17.5X6.00-127(BXP) (B) SPARE 17.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98012-855-0 01 1 0607-0608 ● ●
2 05.803 WHEEL; DISC
FRT&RR 225/80R17.5 17.5X6.00-127(BXP) ,F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),F&R TIRE 205/75R17.5(MICHELIN)17.5X6.00-127(CSM) (B) SPARE 17.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98012-855-0 01 1 0609-0701 ● ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 225/80R17.5 17.5X6.00-127(BXP) ,F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),F&R TIRE 205/75R17.5(MICHELIN)17.5X6.00-127(CSM),FRT&RR TIRE 215-75R17.5 DISC 17.5-6-127SILVER(CTV) (B) SPARE 17.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98012-855-0 01 1 0702-1010 ● ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 225/80R17.5 17.5X6.00-127(BXP) ,F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),F&R TIRE 205/75R17.5(MICHELIN)17.5X6.00-127(CSM),FRT&RR TIRE 215-75R17.5 DISC 17.5-6-127SILVER(CTV) (B) SPARE 17.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98168-215-0 01 1 1011- ● ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 225/80R17.5 17.5X6.00-127(BXP) (B) FRONT,REAR 17.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98012-855-0 06 1 0607-0608 ● ●
2 05.803 WHEEL; DISC
FRT&RR 225/80R17.5 17.5X6.00-127(BXP) ,F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),F&R TIRE 205/75R17.5(MICHELIN)17.5X6.00-127(CSM) (B) FRONT,REAR 17.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98012-855-0 06 1 0609-0701 ● ● ● ●
2 05.803 WHEEL; DISC
F&R 215/75R17.5(MICHELIN)17.5X6.00-12 7 SILVER(CRV),FRT&RR TIRE 215-75R17.5DISC 17.5-6-127SILVER(CTV) (B) FRONT 17.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98012-855-0 02 1 0702-1010 ● ● ● ●
2 05.803 WHEEL; DISC
F&R 215/75R17.5(MICHELIN)17.5X6.00-12 7 SILVER(CRV),FRT&RR TIRE 215-75R17.5DISC 17.5-6-127SILVER(CTV) (B) FRONT 17.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98168-215-0 02 1 1011- ● ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 215/75R17.5 17.5X6.00-127 SILV ER(CQU) (B) SPARE 17.5X6.00 OFFSET=127 PLATINUM SILVER 		8-97233-667-0 01 1 0507-0508 ● ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 215/75R17.5 17.5X6.00-127 SILV ER(CQU),F&R TIRE 205/75R17.5(MICHELIN)17.5X6.00-127(CSM) (B) SPARE 17.5X6.00 OFFSET=127 PLATINUM SILVER 		8-97233-667-0 01 1 0509-0604 ● ● ● ●
2 05.803 WHEEL; DISC
F&R 215/75R17.5(MICHELIN)17.5X6.00-12 7 SILVER(CRV),F&R TIRE 205/75R17.5(MICHELIN)17.5X6.00-127(CSM) (B) SPARE 17.5X6.00 OFFSET=127 PLATINUM SILVER 		8-97233-667-0 01 1 0605-0608 ● ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 215/75R17.5 17.5X6.00-127 SILV ER(CQU) (B) FRONT,REAR 17.5X6.00 OFFSET=127 PLATINUM SILVER 		8-97233-667-0 06 1 0507-0508 ● ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 215/75R17.5 17.5X6.00-127 SILV ER(CQU),F&R TIRE 205/75R17.5(MICHELIN)17.5X6.00-127(CSM) (B) FRONT,REAR 17.5X6.00 OFFSET=127 PLATINUM SILVER 		8-97233-667-0 06 1 0509-0604 ● ● ● ●
2 05.803 WHEEL; DISC
F&R 215/75R17.5(MICHELIN)17.5X6.00-12 7 SILVER(CRV),F&R TIRE 205/75R17.5(MICHELIN)17.5X6.00-127(CSM) (B) FRONT,REAR 17.5X6.00 OFFSET=127 PLATINUM SILVER 		8-97233-667-0 06 1 0605-0608 ● ● ● ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 195-85R16 DISC 16-5.5J-11 6.5(CPG) (B) SPARE 16X5.5J OFFSET=116.5 BLACK 5-HOLE 		8-97213-255-1 01 1 0507-0508 ● ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 195/85R16 16X5.5J-116.5 5 -WHL/NUT(CSK) (B) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 01 1 0509-0910 ● ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 195-85R16 DISC 16-5.5J-11 6.5(CPG) (B) FRONT,REAR 16X5.5J OFFSET=116.5 BLACK 5-HOLE 		8-97213-255-1 06 1 0507-0508 ● ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 195/85R16 16X5.5J-116.5 5 -WHL/NUT(CSK) (B) FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 06 1 0509-0910 ● ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 205-75R17.5 DISC 17.5X6.0 0-127(CPH) (B) SPARE 17.5X6.00 OFFSET=127 BLACK 6-HOLE 		8-97086-051-2 01 1 0507-0508 ● ● ● ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 205-75R17.5 DISC 17.5X6.0 0-127(CPH) (B) FRONT,REAR 17.5X6.00 OFFSET=127 BLACK 6-HOLE 		8-97086-051-2 06 1 0507-0508 ● ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 225/70R19.5 19.5X6.00-127(CRR) (B) SPARE 19.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-97179-773-4 01 1 0507- ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 225/70R19.5 19.5X6.00-127(CRR) (B) FRONT,REAR 19.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-97179-773-3 06 1 0507-0702 ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 225/70R19.5 19.5X6.00-127(CRR) (B) REAR 19.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-97179-773-4 04 1 0703- ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 205/85R16 16X5.5J-116.5(AXZ), FRT&RR TIRE 195-85R16 DISC 16-5.5J-116 .5(CPG) (B) SPARE 16X5.5J OFFSET=116.5 BLACK 5-HOLE 		8-97213-255-1 01 1 0211-0501 ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 205/85R16 16X5.5J-116.5(AXZ), FRT&RR TIRE 195-85R16 DISC 16-5.5J-116 .5(CPG) (B) FRONT,REAR 16X5.5J OFFSET=116.5 BLACK 5-HOLE 		8-97213-255-1 06 1 0211-0501 ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT (03C),FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16 -127 6-WHL/NUT(05C),FRT&RR 7.5R-16-106GSX16-127 6-WHL/NUT(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT& RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYN AMIC(95V),FRT&RR 7.5-16-10 6GSX16-1276-WHL/NUT DYNAMIC(97V) (A) SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-4 01 1 0211-0501 ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT (9BP) (A) SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-4 01 1 0211-0501 ● ●
2 05.803 WHEEL; DISC
FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT (03C),FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16 -127 6-WHL/NUT(05C),FRT&RR 7.5R-16-106GSX16-127 6-WHL/NUT(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT& RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYN AMIC(95V),FRT&RR 7.5-16-10 6GSX16-1276-WHL/NUT DYNAMIC(97V) (A) SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-4 01 1 0502-0811 ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT (9BP) (A) SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-4 01 1 0502-0811 ●
2 05.803 WHEEL; DISC
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6GSX16-1 27 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R- 16-10 6GSX16-127 6-WHL/NUT(83V), FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP) ,FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX1 6-127 6-WHL/NUT DYNAMIC(97V) (A) SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-4 01 1 0812- ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP) (A) SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-4 01 1 0812- ●
2 05.803 WHEEL; DISC
FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT (03C),FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16 -127 6-WHL/NUT(05C),FRT&RR 7.5R-16-106GSX16-127 6-WHL/NUT(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT& RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYN AMIC(95V),FRT&RR 7.5-16-10 6GSX16-1276-WHL/NUT DYNAMIC(97V) (A) FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-4 06 1 0211-0501 ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT (9BP) (A) FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-4 06 1 0211-0501 ● ●
2 05.803 WHEEL; DISC
FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT (03C),FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16 -127 6-WHL/NUT(05C),FRT&RR 7.5R-16-106GSX16-127 6-WHL/NUT(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT& RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYN AMIC(95V),FRT&RR 7.5-16-10 6GSX16-1276-WHL/NUT DYNAMIC(97V) (A) FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-4 06 1 0502-0811 ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT (9BP) (A) FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-4 06 1 0502-0811 ●
2 05.803 WHEEL; DISC
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6GSX16-1 27 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R- 16-10 6GSX16-127 6-WHL/NUT(83V), FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP) ,FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX1 6-127 6-WHL/NUT DYNAMIC(97V) (A) FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-4 06 1 0812- ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP) (A) FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-4 06 1 0812- ●
2 05.803 WHEEL; DISC
FRT&RR 7R-16-10 16X5.5F-115(07H), FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-12 16X5.5F-115(96H),F RT&RR 7-16-10L 5.5FX16-115 T/VLV TR17 7A(98H) (A) FRONT,REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 06 1 0211-0501 ● ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 7R-16-10 16X5.5F-115(07H), FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-12 16X5.5F-115(96H),F RT&RR 7-16-10L 5.5FX16-115 T/VLV TR17 7A(98H) (A) FRONT,REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 06 1 0502- ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 7R-16-10 16X5.5F-115(07H), FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-12 16X5.5F-115(96H),F RT&RR 7-16-10L 5.5FX16-115 T/VLV TR17 7A(98H) (A) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 01 1 0211-0501 ● ● ● ●
2 05.803 WHEEL; DISC
FRT 7-16-12 16X5.5F-115 RR 185R14-8 1 4X5J-112(CPT),FRT 7-16-12 16X5.5F-115RR 175R14-8 14X5J-112(CPU) (A) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 01 1 0211-0501 ●
2 05.803 WHEEL; DISC
FRT&RR 7R-16-10 16X5.5F-115(07H), FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-12 16X5.5F-115(96H),F RT&RR 7-16-10L 5.5FX16-115 T/VLV TR17 7A(98H) (A) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 01 1 0502- ● ● ●
2 05.803 WHEEL; DISC
FRT 7-16-12 16X5.5F-115 RR 185R14-8 1 4X5J-112(CPT),FRT 7-16-12 16X5.5F-115RR 175R14-8 14X5J-112(CPU) (A) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 01 1 0502- ●
2 05.803 WHEEL; DISC
FRT&RR 7.5-16-8 6GSX16-127(10H), FRT&RR 7.5-16-10 6GSX16-127(11H),FRT&RR 7.5-16-12 6GSX16-127(12H),FRT&RR 7.5-16 -8L 6GSX16-127(14H),FRT&RR 7.5R-16-126GSX16-127(19H) (A) SPARE 6.0SGX16 OFFSET=127 BLACK 5-HOLE 		8-94135-596-2 01 1 0211-0501 ● ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 7.5-16-8 6GSX16-127(10H), FRT&RR 7.5-16-10 6GSX16-127(11H),FRT&RR 7.5-16-12 6GSX16-127(12H),FRT&RR 7.5-16 -8L 6GSX16-127(14H),FRT&RR 7.5R-16-126GSX16-127(19H) (A) SPARE 6.0SGX16 OFFSET=127 BLACK 5-HOLE 		8-94135-596-2 01 1 0502-0811 ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 7.5R-16-10 DISC 6.00GSX16-127(CUV),FRT&RR 7.5-16-8 6GSX16-127(10H), FRT&RR 7.5-16-10 6GSX16-127(11H), FRT&RR 7.5-16-12 6GSX16-127(12H),FRT&RR 7 .5-16-8L 6GSX16-127(14H),FRT&RR 7.5R-16-12 6GSX16-127(19H) (A) SPARE 6.0SGX16 OFFSET=127 BLACK 5-HOLE 		8-94135-596-2 01 1 0812- ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 7.5-16-8 6GSX16-127(10H), FRT&RR 7.5-16-10 6GSX16-127(11H),FRT&RR 7.5-16-12 6GSX16-127(12H),FRT&RR 7.5-16 -8L 6GSX16-127(14H),FRT&RR 7.5R-16-126GSX16-127(19H) (A) FRONT,REAR 6.0SGX16 OFFSET=127 BLACK 5-HOLE 		8-94135-596-2 06 1 0211-0501 ● ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 7.5-16-8 6GSX16-127(10H), FRT&RR 7.5-16-10 6GSX16-127(11H),FRT&RR 7.5-16-12 6GSX16-127(12H),FRT&RR 7.5-16 -8L 6GSX16-127(14H),FRT&RR 7.5R-16-126GSX16-127(19H) (A) FRONT,REAR 6.0SGX16 OFFSET=127 BLACK 5-HOLE 		8-94135-596-2 06 1 0502-0811 ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 7.5R-16-10 DISC 6.00GSX16-127(CUV),FRT&RR 7.5-16-8 6GSX16-127(10H), FRT&RR 7.5-16-10 6GSX16-127(11H), FRT&RR 7.5-16-12 6GSX16-127(12H),FRT&RR 7 .5-16-8L 6GSX16-127(14H),FRT&RR 7.5R-16-12 6GSX16-127(19H) (A) FRONT,REAR 6.0SGX16 OFFSET=127 BLACK 5-HOLE 		8-94135-596-2 06 1 0812- ● ● ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 205-75R17.5 DISC 17.5X6.0 0-127(CPH) (B) SPARE 17.5X6.00 OFFSET=127 BLACK 6-HOLE 		8-97086-051-2 01 1 0211-0501 ● ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 215-75R17.5 DISC 17.5-6J- 127(AUS),FRT&RR TIRE 205-75R17.5 DISC17.5X6.00-127(CPH) (B) SPARE 17.5X6.00 OFFSET=127 BLACK 6-HOLE 		8-97086-051-2 01 1 0211-0501 ● ● ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 205-75R17.5 DISC 17.5X6.0 0-127(CPH) (B) FRONT,REAR 17.5X6.00 OFFSET=127 BLACK 6-HOLE 		8-97086-051-2 06 1 0211-0501 ● ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 215-75R17.5 DISC 17.5-6J- 127(AUS),FRT&RR TIRE 205-75R17.5 DISC17.5X6.00-127(CPH) (B) FRONT,REAR 17.5X6.00 OFFSET=127 BLACK 6-HOLE 		8-97086-051-2 06 1 0211-0501 ● ● ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 215-75R17.5 DISC 17.5-6J- 127WHITE(AUJ),FRT&RR TIRE 215-75R17.5DISC 17.5-6J-127WHITE(AVK) (B) SPARE 17.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-97086-052-1 01 1 0211-0501 ● ● ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 215-75R17.5 DISC 17.5-6J- 127WHITE(AUJ),FRT&RR TIRE 215-75R17.5DISC 17.5-6J-127WHITE(AVK) (B) FRONT 17.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-97086-052-1 02 1 0211-0501 ● ● ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 215-75R17.5 DISC 17.5-6J- 127WHITE(AUJ),FRT&RR TIRE 215-75R17.5DISC 17.5-6J-127WHITE(AVK) (B) REAR 17.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-97086-052-1 04 1 0211-0501 ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 8.25-16-12 16X6.00GS-135 6-WHL /NUT(9ZM),FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT(9ZP) (A) FRONT 6.00GSX16 OFFSET=135 BLACK 6-HOLE 		1-42350-417-0 01 1 0211- ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 8.25-16-12 16X6.00GS-135 6-WHL /NUT(9ZM),FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT(9ZP) (A) FRONT,REAR 6.00GSX16 OFFSET=135 BLACK 6-HOLE 		1-42350-417-0 06 1 0211- ● ● ●
2 05.803 WHEEL; DISC
FRT 7-16-12 16X5.5F-115 RR 185R14-8 1 4X5J-112(CPT),FRT 7-16-12 16X5.5F-115RR 175R14-8 14X5J-112(CPU) (A) FRONT 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 02 1 0211- ●
2 05.803 WHEEL; DISC
FRT 7-16-12 16X5.5F-115 RR 185R14-8 1 4X5J-112(CPT),FRT 7-16-12 16X5.5F-115RR 175R14-8 14X5J-112(CPU) (B) SPARE 14X5J OFFSET=112.5 BLACK 6-HOLE 		8-97145-820-1 01 1 0211- ●
2 05.803 WHEEL; DISC
FRT 7-16-12 16X5.5F-115 RR 185R14-8 1 4X5J-112(CPT),FRT 7-16-12 16X5.5F-115RR 175R14-8 14X5J-112(CPU) (B) REAR 14X5J OFFSET=112.5 BLACK 6-HOLE 		8-97145-820-1 04 1 0211- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT (03C),FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16 -127 6-WHL/NUT(05C),FRT&RR 7.5R-16-106GSX16-127 6-WHL/NUT(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT& RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYN AMIC(95V),FRT&RR 7.5-16-10 6GSX16-1276-WHL/NUT DYNAMIC(97V) SPARE 16X6.00GS STAMP, BLACK 		8-94412-585-0 01 1 0211-0501 ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT (9BP) SPARE 16X6.00GS STAMP, BLACK 		8-94412-585-0 01 1 0211-0501 ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT (03C),FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16 -127 6-WHL/NUT(05C),FRT&RR 7.5R-16-106GSX16-127 6-WHL/NUT(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT& RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYN AMIC(95V),FRT&RR 7.5-16-10 6GSX16-1276-WHL/NUT DYNAMIC(97V) SPARE 16X6.00GS STAMP, BLACK 		8-94412-585-0 01 1 0502-0811 ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT (9BP) SPARE 16X6.00GS STAMP, BLACK 		8-94412-585-0 01 1 0502-0811 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6GSX16-1 27 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R- 16-10 6GSX16-127 6-WHL/NUT(83V), FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP) ,FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX1 6-127 6-WHL/NUT DYNAMIC(97V) SPARE 16X6.00GS STAMP, BLACK 		8-94412-585-0 01 1 0812- ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP) SPARE 16X6.00GS STAMP, BLACK 		8-94412-585-0 01 1 0812- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT (03C),FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16 -127 6-WHL/NUT(05C),FRT&RR 7.5R-16-106GSX16-127 6-WHL/NUT(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT& RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYN AMIC(95V),FRT&RR 7.5-16-10 6GSX16-1276-WHL/NUT DYNAMIC(97V) FRONT,REAR 16X6.00GS STAMP, BLACK 		8-94412-585-0 06 1 0211-0501 ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT (9BP) FRONT,REAR 16X6.00GS STAMP, BLACK 		8-94412-585-0 06 1 0211-0501 ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT (03C),FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16 -127 6-WHL/NUT(05C),FRT&RR 7.5R-16-106GSX16-127 6-WHL/NUT(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT& RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYN AMIC(95V),FRT&RR 7.5-16-10 6GSX16-1276-WHL/NUT DYNAMIC(97V) FRONT,REAR 16X6.00GS STAMP, BLACK 		8-94412-585-0 06 1 0502-0811 ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT (9BP) FRONT,REAR 16X6.00GS STAMP, BLACK 		8-94412-585-0 06 1 0502-0811 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6GSX16-1 27 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R- 16-10 6GSX16-127 6-WHL/NUT(83V), FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP) ,FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX1 6-127 6-WHL/NUT DYNAMIC(97V) FRONT,REAR 16X6.00GS STAMP, BLACK 		8-94412-585-0 06 1 0812- ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP) FRONT,REAR 16X6.00GS STAMP, BLACK 		8-94412-585-0 06 1 0812- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7R-16-10 16X5.5F-115(07H), FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-12 16X5.5F-115(96H),F RT&RR 7-16-10L 5.5FX16-115 T/VLV TR17 7A(98H) FRONT,REAR 16X5.50F STAMP, BLACK 		8-94135-601-0 06 1 0211-0501 ● ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7R-16-10 16X5.5F-115(07H), FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-12 16X5.5F-115(96H),F RT&RR 7-16-10L 5.5FX16-115 T/VLV TR17 7A(98H) FRONT,REAR 16X5.50F STAMP, BLACK 		8-94135-601-0 06 1 0502- ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7R-16-10 16X5.5F-115(07H), FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-12 16X5.5F-115(96H),F RT&RR 7-16-10L 5.5FX16-115 T/VLV TR17 7A(98H) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 0211-0501 ● ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT 7-16-12 16X5.5F-115 RR 185R14-8 1 4X5J-112(CPT),FRT 7-16-12 16X5.5F-115RR 175R14-8 14X5J-112(CPU) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 0211-0501 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7R-16-10 16X5.5F-115(07H), FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-12 16X5.5F-115(96H),F RT&RR 7-16-10L 5.5FX16-115 T/VLV TR17 7A(98H) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 0502- ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT 7-16-12 16X5.5F-115 RR 185R14-8 1 4X5J-112(CPT),FRT 7-16-12 16X5.5F-115RR 175R14-8 14X5J-112(CPU) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 0502- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5-16-8 6GSX16-127(10H), FRT&RR 7.5-16-10 6GSX16-127(11H),FRT&RR 7.5-16-12 6GSX16-127(12H),FRT&RR 7.5-16 -8L 6GSX16-127(14H),FRT&RR 7.5R-16-126GSX16-127(19H) SPARE 16X6.00GS STAMP, BLACK 		8-94135-602-0 01 1 0211-0501 ● ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5-16-8 6GSX16-127(10H), FRT&RR 7.5-16-10 6GSX16-127(11H),FRT&RR 7.5-16-12 6GSX16-127(12H),FRT&RR 7.5-16 -8L 6GSX16-127(14H),FRT&RR 7.5R-16-126GSX16-127(19H) SPARE 16X6.00GS STAMP, BLACK 		8-94135-602-0 01 1 0502-0811 ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5R-16-10 DISC 6.00GSX16-127(CUV),FRT&RR 7.5-16-8 6GSX16-127(10H), FRT&RR 7.5-16-10 6GSX16-127(11H), FRT&RR 7.5-16-12 6GSX16-127(12H),FRT&RR 7 .5-16-8L 6GSX16-127(14H),FRT&RR 7.5R-16-12 6GSX16-127(19H) SPARE 16X6.00GS STAMP, BLACK 		8-94135-602-0 01 1 0812- ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5-16-8 6GSX16-127(10H), FRT&RR 7.5-16-10 6GSX16-127(11H),FRT&RR 7.5-16-12 6GSX16-127(12H),FRT&RR 7.5-16 -8L 6GSX16-127(14H),FRT&RR 7.5R-16-126GSX16-127(19H) FRONT,REAR 16X6.00GS STAMP, BLACK 		8-94135-602-0 06 1 0211-0501 ● ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5-16-8 6GSX16-127(10H), FRT&RR 7.5-16-10 6GSX16-127(11H),FRT&RR 7.5-16-12 6GSX16-127(12H),FRT&RR 7.5-16 -8L 6GSX16-127(14H),FRT&RR 7.5R-16-126GSX16-127(19H) FRONT,REAR 16X6.00GS STAMP, BLACK 		8-94135-602-0 06 1 0502-0811 ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5R-16-10 DISC 6.00GSX16-127(CUV),FRT&RR 7.5-16-8 6GSX16-127(10H), FRT&RR 7.5-16-10 6GSX16-127(11H), FRT&RR 7.5-16-12 6GSX16-127(12H),FRT&RR 7 .5-16-8L 6GSX16-127(14H),FRT&RR 7.5R-16-12 6GSX16-127(19H) FRONT,REAR 16X6.00GS STAMP, BLACK 		8-94135-602-0 06 1 0812- ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 8.25-16-12 16X6.00GS-135 6-WHL /NUT(9ZM),FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT(9ZP) SPARE 16X6.00GS STAMP, BLACK 		1-42355-015-2 01 1 0211- ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 8.25-16-12 16X6.00GS-135 6-WHL /NUT(9ZM),FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT(9ZP) FRONT,REAR 16X6.00GS STAMP, BLACK 		1-42355-015-2 06 1 0211- ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT 7-16-12 16X5.5F-115 RR 185R14-8 1 4X5J-112(CPT),FRT 7-16-12 16X5.5F-115RR 175R14-8 14X5J-112(CPU) FRONT 16X5.50F STAMP, BLACK 		8-94135-601-0 02 1 0211- ●

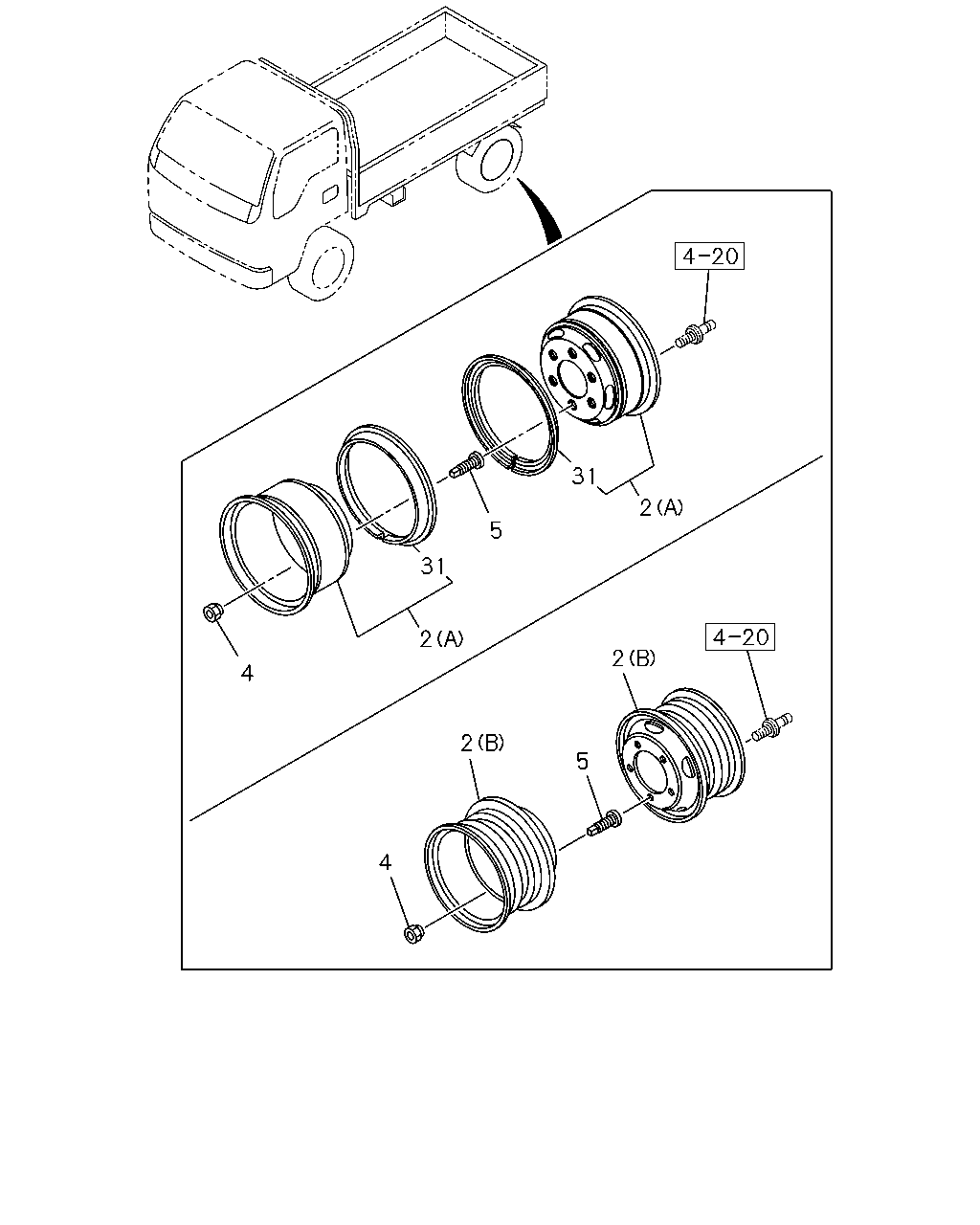

çizim 54757
31 2 5 31 2 2 4 2 5 4
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 05.803 WHEEL; DISC
FRT&RR 225/70R19.5 19.5X6.00-127(CRR) (B) FRONT 19.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-98080-745-1 02 1 0703- ● ● ●
2 05.803 WHEEL; DISC
F&R 215/75R17.5(MICHELIN)17.5X6.00-12 7 SILVER(CRV),FRT&RR TIRE 215-75R17.5DISC 17.5-6-127SILVER(CTV) (B) REAR 17.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98012-855-0 04 1 0702-1010 ● ● ● ●
2 05.803 WHEEL; DISC
F&R 215/75R17.5(MICHELIN)17.5X6.00-12 7 SILVER(CRV),FRT&RR TIRE 215-75R17.5DISC 17.5-6-127SILVER(CTV) (B) REAR 17.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98168-215-0 04 1 1011- ● ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 225/80R17.5 17.5X6.00-127(BXP) ,F&R TIRE 205/75R17.5(MICHELIN)17.5X6.00-127(CSM) (B) FRONT,REAR 17.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98012-855-0 06 1 0702-1010 ● ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 225/80R17.5 17.5X6.00-127(BXP) ,F&R TIRE 205/75R17.5(MICHELIN)17.5X6.00-127(CSM) (B) FRONT,REAR 17.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98168-215-0 06 1 1011- ● ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 225/80R17.5 17.5X6.00-127(BXP) (B) SPARE 17.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98012-855-0 01 1 0607-0608 ● ●
2 05.803 WHEEL; DISC
FRT&RR 225/80R17.5 17.5X6.00-127(BXP) ,F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),F&R TIRE 205/75R17.5(MICHELIN)17.5X6.00-127(CSM) (B) SPARE 17.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98012-855-0 01 1 0609-0701 ● ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 225/80R17.5 17.5X6.00-127(BXP) ,F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),F&R TIRE 205/75R17.5(MICHELIN)17.5X6.00-127(CSM),FRT&RR TIRE 215-75R17.5 DISC 17.5-6-127SILVER(CTV) (B) SPARE 17.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98012-855-0 01 1 0702-1010 ● ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 225/80R17.5 17.5X6.00-127(BXP) ,F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),F&R TIRE 205/75R17.5(MICHELIN)17.5X6.00-127(CSM),FRT&RR TIRE 215-75R17.5 DISC 17.5-6-127SILVER(CTV) (B) SPARE 17.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98168-215-0 01 1 1011- ● ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 225/80R17.5 17.5X6.00-127(BXP) (B) FRONT,REAR 17.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98012-855-0 06 1 0607-0608 ● ●
2 05.803 WHEEL; DISC
FRT&RR 225/80R17.5 17.5X6.00-127(BXP) ,F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),F&R TIRE 205/75R17.5(MICHELIN)17.5X6.00-127(CSM) (B) FRONT,REAR 17.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98012-855-0 06 1 0609-0701 ● ● ● ●
2 05.803 WHEEL; DISC
F&R 215/75R17.5(MICHELIN)17.5X6.00-12 7 SILVER(CRV),FRT&RR TIRE 215-75R17.5DISC 17.5-6-127SILVER(CTV) (B) FRONT 17.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98012-855-0 02 1 0702-1010 ● ● ● ●
2 05.803 WHEEL; DISC
F&R 215/75R17.5(MICHELIN)17.5X6.00-12 7 SILVER(CRV),FRT&RR TIRE 215-75R17.5DISC 17.5-6-127SILVER(CTV) (B) FRONT 17.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98168-215-0 02 1 1011- ● ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 215/75R17.5 17.5X6.00-127 SILV ER(CQU) (B) SPARE 17.5X6.00 OFFSET=127 PLATINUM SILVER 		8-97233-667-0 01 1 0507-0508 ● ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 215/75R17.5 17.5X6.00-127 SILV ER(CQU),F&R TIRE 205/75R17.5(MICHELIN)17.5X6.00-127(CSM) (B) SPARE 17.5X6.00 OFFSET=127 PLATINUM SILVER 		8-97233-667-0 01 1 0509-0604 ● ● ● ●
2 05.803 WHEEL; DISC
F&R 215/75R17.5(MICHELIN)17.5X6.00-12 7 SILVER(CRV),F&R TIRE 205/75R17.5(MICHELIN)17.5X6.00-127(CSM) (B) SPARE 17.5X6.00 OFFSET=127 PLATINUM SILVER 		8-97233-667-0 01 1 0605-0608 ● ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 215/75R17.5 17.5X6.00-127 SILV ER(CQU) (B) FRONT,REAR 17.5X6.00 OFFSET=127 PLATINUM SILVER 		8-97233-667-0 06 1 0507-0508 ● ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 215/75R17.5 17.5X6.00-127 SILV ER(CQU),F&R TIRE 205/75R17.5(MICHELIN)17.5X6.00-127(CSM) (B) FRONT,REAR 17.5X6.00 OFFSET=127 PLATINUM SILVER 		8-97233-667-0 06 1 0509-0604 ● ● ● ●
2 05.803 WHEEL; DISC
F&R 215/75R17.5(MICHELIN)17.5X6.00-12 7 SILVER(CRV),F&R TIRE 205/75R17.5(MICHELIN)17.5X6.00-127(CSM) (B) FRONT,REAR 17.5X6.00 OFFSET=127 PLATINUM SILVER 		8-97233-667-0 06 1 0605-0608 ● ● ● ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 195-85R16 DISC 16-5.5J-11 6.5(CPG) (B) SPARE 16X5.5J OFFSET=116.5 BLACK 5-HOLE 		8-97213-255-1 01 1 0507-0508 ● ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 195/85R16 16X5.5J-116.5 5 -WHL/NUT(CSK) (B) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 01 1 0509-0910 ● ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 195-85R16 DISC 16-5.5J-11 6.5(CPG) (B) FRONT,REAR 16X5.5J OFFSET=116.5 BLACK 5-HOLE 		8-97213-255-1 06 1 0507-0508 ● ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 195/85R16 16X5.5J-116.5 5 -WHL/NUT(CSK) (B) FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 06 1 0509-0910 ● ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 205-75R17.5 DISC 17.5X6.0 0-127(CPH) (B) SPARE 17.5X6.00 OFFSET=127 BLACK 6-HOLE 		8-97086-051-2 01 1 0507-0508 ● ● ● ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 205-75R17.5 DISC 17.5X6.0 0-127(CPH) (B) FRONT,REAR 17.5X6.00 OFFSET=127 BLACK 6-HOLE 		8-97086-051-2 06 1 0507-0508 ● ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 225/70R19.5 19.5X6.00-127(CRR) (B) SPARE 19.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-97179-773-4 01 1 0507- ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 225/70R19.5 19.5X6.00-127(CRR) (B) FRONT,REAR 19.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-97179-773-3 06 1 0507-0702 ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 225/70R19.5 19.5X6.00-127(CRR) (B) REAR 19.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-97179-773-4 04 1 0703- ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 205/85R16 16X5.5J-116.5(AXZ), FRT&RR TIRE 195-85R16 DISC 16-5.5J-116 .5(CPG) (B) SPARE 16X5.5J OFFSET=116.5 BLACK 5-HOLE 		8-97213-255-1 01 1 0211-0501 ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 205/85R16 16X5.5J-116.5(AXZ), FRT&RR TIRE 195-85R16 DISC 16-5.5J-116 .5(CPG) (B) FRONT,REAR 16X5.5J OFFSET=116.5 BLACK 5-HOLE 		8-97213-255-1 06 1 0211-0501 ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT (03C),FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16 -127 6-WHL/NUT(05C),FRT&RR 7.5R-16-106GSX16-127 6-WHL/NUT(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT& RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYN AMIC(95V),FRT&RR 7.5-16-10 6GSX16-1276-WHL/NUT DYNAMIC(97V) (A) SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-4 01 1 0211-0501 ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT (9BP) (A) SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-4 01 1 0211-0501 ● ●
2 05.803 WHEEL; DISC
FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT (03C),FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16 -127 6-WHL/NUT(05C),FRT&RR 7.5R-16-106GSX16-127 6-WHL/NUT(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT& RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYN AMIC(95V),FRT&RR 7.5-16-10 6GSX16-1276-WHL/NUT DYNAMIC(97V) (A) SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-4 01 1 0502-0811 ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT (9BP) (A) SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-4 01 1 0502-0811 ●
2 05.803 WHEEL; DISC
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6GSX16-1 27 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R- 16-10 6GSX16-127 6-WHL/NUT(83V), FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP) ,FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX1 6-127 6-WHL/NUT DYNAMIC(97V) (A) SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-4 01 1 0812- ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP) (A) SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-4 01 1 0812- ●
2 05.803 WHEEL; DISC
FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT (03C),FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16 -127 6-WHL/NUT(05C),FRT&RR 7.5R-16-106GSX16-127 6-WHL/NUT(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT& RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYN AMIC(95V),FRT&RR 7.5-16-10 6GSX16-1276-WHL/NUT DYNAMIC(97V) (A) FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-4 06 1 0211-0501 ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT (9BP) (A) FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-4 06 1 0211-0501 ● ●
2 05.803 WHEEL; DISC
FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT (03C),FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16 -127 6-WHL/NUT(05C),FRT&RR 7.5R-16-106GSX16-127 6-WHL/NUT(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT& RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYN AMIC(95V),FRT&RR 7.5-16-10 6GSX16-1276-WHL/NUT DYNAMIC(97V) (A) FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-4 06 1 0502-0811 ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT (9BP) (A) FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-4 06 1 0502-0811 ●
2 05.803 WHEEL; DISC
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6GSX16-1 27 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R- 16-10 6GSX16-127 6-WHL/NUT(83V), FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP) ,FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX1 6-127 6-WHL/NUT DYNAMIC(97V) (A) FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-4 06 1 0812- ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP) (A) FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-4 06 1 0812- ●
2 05.803 WHEEL; DISC
FRT&RR 7R-16-10 16X5.5F-115(07H), FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-12 16X5.5F-115(96H),F RT&RR 7-16-10L 5.5FX16-115 T/VLV TR17 7A(98H) (A) FRONT,REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 06 1 0211-0501 ● ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 7R-16-10 16X5.5F-115(07H), FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-12 16X5.5F-115(96H),F RT&RR 7-16-10L 5.5FX16-115 T/VLV TR17 7A(98H) (A) FRONT,REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 06 1 0502- ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 7R-16-10 16X5.5F-115(07H), FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-12 16X5.5F-115(96H),F RT&RR 7-16-10L 5.5FX16-115 T/VLV TR17 7A(98H) (A) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 01 1 0211-0501 ● ● ● ●
2 05.803 WHEEL; DISC
FRT 7-16-12 16X5.5F-115 RR 185R14-8 1 4X5J-112(CPT),FRT 7-16-12 16X5.5F-115RR 175R14-8 14X5J-112(CPU) (A) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 01 1 0211-0501 ●
2 05.803 WHEEL; DISC
FRT&RR 7R-16-10 16X5.5F-115(07H), FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-12 16X5.5F-115(96H),F RT&RR 7-16-10L 5.5FX16-115 T/VLV TR17 7A(98H) (A) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 01 1 0502- ● ● ●
2 05.803 WHEEL; DISC
FRT 7-16-12 16X5.5F-115 RR 185R14-8 1 4X5J-112(CPT),FRT 7-16-12 16X5.5F-115RR 175R14-8 14X5J-112(CPU) (A) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 01 1 0502- ●
2 05.803 WHEEL; DISC
FRT&RR 7.5-16-8 6GSX16-127(10H), FRT&RR 7.5-16-10 6GSX16-127(11H),FRT&RR 7.5-16-12 6GSX16-127(12H),FRT&RR 7.5-16 -8L 6GSX16-127(14H),FRT&RR 7.5R-16-126GSX16-127(19H) (A) SPARE 6.0SGX16 OFFSET=127 BLACK 5-HOLE 		8-94135-596-2 01 1 0211-0501 ● ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 7.5-16-8 6GSX16-127(10H), FRT&RR 7.5-16-10 6GSX16-127(11H),FRT&RR 7.5-16-12 6GSX16-127(12H),FRT&RR 7.5-16 -8L 6GSX16-127(14H),FRT&RR 7.5R-16-126GSX16-127(19H) (A) SPARE 6.0SGX16 OFFSET=127 BLACK 5-HOLE 		8-94135-596-2 01 1 0502-0811 ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 7.5R-16-10 DISC 6.00GSX16-127(CUV),FRT&RR 7.5-16-8 6GSX16-127(10H), FRT&RR 7.5-16-10 6GSX16-127(11H), FRT&RR 7.5-16-12 6GSX16-127(12H),FRT&RR 7 .5-16-8L 6GSX16-127(14H),FRT&RR 7.5R-16-12 6GSX16-127(19H) (A) SPARE 6.0SGX16 OFFSET=127 BLACK 5-HOLE 		8-94135-596-2 01 1 0812- ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 7.5-16-8 6GSX16-127(10H), FRT&RR 7.5-16-10 6GSX16-127(11H),FRT&RR 7.5-16-12 6GSX16-127(12H),FRT&RR 7.5-16 -8L 6GSX16-127(14H),FRT&RR 7.5R-16-126GSX16-127(19H) (A) FRONT,REAR 6.0SGX16 OFFSET=127 BLACK 5-HOLE 		8-94135-596-2 06 1 0211-0501 ● ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 7.5-16-8 6GSX16-127(10H), FRT&RR 7.5-16-10 6GSX16-127(11H),FRT&RR 7.5-16-12 6GSX16-127(12H),FRT&RR 7.5-16 -8L 6GSX16-127(14H),FRT&RR 7.5R-16-126GSX16-127(19H) (A) FRONT,REAR 6.0SGX16 OFFSET=127 BLACK 5-HOLE 		8-94135-596-2 06 1 0502-0811 ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 7.5R-16-10 DISC 6.00GSX16-127(CUV),FRT&RR 7.5-16-8 6GSX16-127(10H), FRT&RR 7.5-16-10 6GSX16-127(11H), FRT&RR 7.5-16-12 6GSX16-127(12H),FRT&RR 7 .5-16-8L 6GSX16-127(14H),FRT&RR 7.5R-16-12 6GSX16-127(19H) (A) FRONT,REAR 6.0SGX16 OFFSET=127 BLACK 5-HOLE 		8-94135-596-2 06 1 0812- ● ● ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 205-75R17.5 DISC 17.5X6.0 0-127(CPH) (B) SPARE 17.5X6.00 OFFSET=127 BLACK 6-HOLE 		8-97086-051-2 01 1 0211-0501 ● ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 215-75R17.5 DISC 17.5-6J- 127(AUS),FRT&RR TIRE 205-75R17.5 DISC17.5X6.00-127(CPH) (B) SPARE 17.5X6.00 OFFSET=127 BLACK 6-HOLE 		8-97086-051-2 01 1 0211-0501 ● ● ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 205-75R17.5 DISC 17.5X6.0 0-127(CPH) (B) FRONT,REAR 17.5X6.00 OFFSET=127 BLACK 6-HOLE 		8-97086-051-2 06 1 0211-0501 ● ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 215-75R17.5 DISC 17.5-6J- 127(AUS),FRT&RR TIRE 205-75R17.5 DISC17.5X6.00-127(CPH) (B) FRONT,REAR 17.5X6.00 OFFSET=127 BLACK 6-HOLE 		8-97086-051-2 06 1 0211-0501 ● ● ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 215-75R17.5 DISC 17.5-6J- 127WHITE(AUJ),FRT&RR TIRE 215-75R17.5DISC 17.5-6J-127WHITE(AVK) (B) SPARE 17.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-97086-052-1 01 1 0211-0501 ● ● ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 215-75R17.5 DISC 17.5-6J- 127WHITE(AUJ),FRT&RR TIRE 215-75R17.5DISC 17.5-6J-127WHITE(AVK) (B) FRONT 17.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-97086-052-1 02 1 0211-0501 ● ● ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 215-75R17.5 DISC 17.5-6J- 127WHITE(AUJ),FRT&RR TIRE 215-75R17.5DISC 17.5-6J-127WHITE(AVK) (B) REAR 17.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-97086-052-1 04 1 0211-0501 ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 8.25-16-12 16X6.00GS-135 6-WHL /NUT(9ZM),FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT(9ZP) (A) FRONT 6.00GSX16 OFFSET=135 BLACK 6-HOLE 		1-42350-417-0 01 1 0211- ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 8.25-16-12 16X6.00GS-135 6-WHL /NUT(9ZM),FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT(9ZP) (A) FRONT,REAR 6.00GSX16 OFFSET=135 BLACK 6-HOLE 		1-42350-417-0 06 1 0211- ● ● ●
2 05.803 WHEEL; DISC
FRT 7-16-12 16X5.5F-115 RR 185R14-8 1 4X5J-112(CPT),FRT 7-16-12 16X5.5F-115RR 175R14-8 14X5J-112(CPU) (A) FRONT 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 02 1 0211- ●
2 05.803 WHEEL; DISC
FRT 7-16-12 16X5.5F-115 RR 185R14-8 1 4X5J-112(CPT),FRT 7-16-12 16X5.5F-115RR 175R14-8 14X5J-112(CPU) (B) SPARE 14X5J OFFSET=112.5 BLACK 6-HOLE 		8-97145-820-1 01 1 0211- ●
2 05.803 WHEEL; DISC
FRT 7-16-12 16X5.5F-115 RR 185R14-8 1 4X5J-112(CPT),FRT 7-16-12 16X5.5F-115RR 175R14-8 14X5J-112(CPU) (B) REAR 14X5J OFFSET=112.5 BLACK 6-HOLE 		8-97145-820-1 04 1 0211- ●
4 05.813 NUT; WHEEL,RR AXLE
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) M27 LH THREAD 		8-94365-146-0 05 1 0211-0501 ● ●
4 05.813 NUT; WHEEL,RR AXLE
G.V.W. 6.0-6.5TON(RPV) M27 LH THREAD 		8-94365-146-0 05 1 0211-0501 ● ●
4 05.813 NUT; WHEEL,RR AXLE
G.V.W. 6.0-6.5TON(RPV) M27 LH THREAD 		8-94365-146-0 05 1 0502-0506 ● ● ●
4 05.813 NUT; WHEEL,RR AXLE
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) M27 LH THREAD 		8-94365-146-0 05 1 0507-0610 ● ●
4 05.813 NUT; WHEEL,RR AXLE
G.V.W. 6.0-6.5TON(RPV) M27 LH THREAD 		8-94365-146-0 05 1 0507-0610 ●
4 05.813 NUT; WHEEL,RR AXLE
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) M27 LH THREAD 		8-98007-825-0 05 1 0611- ● ●
4 05.813 NUT; WHEEL,RR AXLE
G.V.W. 6.0-6.5TON(RPV) M27 LH THREAD 		8-98007-825-0 05 1 0611- ●
4 05.813 NUT; WHEEL,RR AXLE
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) M27 RH THREAD 		8-94365-145-0 05 1 0211-0501 ● ●
4 05.813 NUT; WHEEL,RR AXLE
G.V.W. 6.0-6.5TON(RPV) M27 RH THREAD 		8-94365-145-0 05 1 0211-0501 ● ●
4 05.813 NUT; WHEEL,RR AXLE
G.V.W. 6.0-6.5TON(RPV) M27 RH THREAD 		8-94365-145-0 05 1 0502-0506 ● ● ●
4 05.813 NUT; WHEEL,RR AXLE
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) M27 RH THREAD 		8-94365-145-0 05 1 0507-0610 ● ●
4 05.813 NUT; WHEEL,RR AXLE
G.V.W. 6.0-6.5TON(RPV) M27 RH THREAD 		8-94365-145-0 05 1 0507-0610 ●
4 05.813 NUT; WHEEL,RR AXLE
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) M27 RH THREAD 		8-98007-824-0 05 1 0611- ● ●
4 05.813 NUT; WHEEL,RR AXLE
G.V.W. 6.0-6.5TON(RPV) M27 RH THREAD 		8-98007-824-0 05 1 0611- ●
4 05.813 NUT; WHEEL,RR AXLE
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY), G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> M30 LH THREAD 		1-42334-023-0 06 1 0211-0501 ● ● ● ● ●
4 05.813 NUT; WHEEL,RR AXLE
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. FRAME STRAIGHT TYPE<7KJ> M30 LH THREAD 		1-42334-023-0 06 1 0211-0501 ● ● ● ● ●
4 05.813 NUT; WHEEL,RR AXLE
G.V.W. 7.0-7.5TON(RPX) M30 LH THREAD 		1-42334-023-0 06 1 0502-0506 ●
4 05.813 NUT; WHEEL,RR AXLE
G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) M30 LH THREAD 		1-42334-023-0 06 1 0502-0506 ● ●
4 05.813 NUT; WHEEL,RR AXLE
M30 LH THREAD 		1-42334-023-0 06 1 0502-0506 ●
4 05.813 NUT; WHEEL,RR AXLE
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY), G.V.W. 8.0-8.5TON(RPZ) M30 LH THREAD 		1-42334-023-0 06 1 0507-0610 ● ● ● ● ●
4 05.813 NUT; WHEEL,RR AXLE
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY), G.V.W. 8.0-8.5TON(RPZ) M30 LH THREAD 		8-97359-810-0 06 1 0611- ● ● ● ● ●
4 05.813 NUT; WHEEL,RR AXLE
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY), G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> M30 		1-42333-023-0 06 1 0211-0501 ● ● ● ● ●
4 05.813 NUT; WHEEL,RR AXLE
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. FRAME STRAIGHT TYPE<7KJ> M30 		1-42333-023-0 06 1 0211-0501 ● ● ● ● ●
4 05.813 NUT; WHEEL,RR AXLE
G.V.W. 7.0-7.5TON(RPX) M30 		1-42333-023-0 06 1 0502-0506 ●
4 05.813 NUT; WHEEL,RR AXLE
G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) M30 		1-42333-023-0 06 1 0502-0506 ● ●
4 05.813 NUT; WHEEL,RR AXLE
M30 		1-42333-023-0 06 1 0502-0506 ●
4 05.813 NUT; WHEEL,RR AXLE
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY), G.V.W. 8.0-8.5TON(RPZ) M30 		1-42333-023-0 06 1 0507-0610 ● ● ● ● ●
4 05.813 NUT; WHEEL,RR AXLE
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY), G.V.W. 8.0-8.5TON(RPZ) M30 RH THREAD 		8-97359-809-0 06 1 0611- ● ● ● ● ●
4 05.813 NUT; WHEEL,RR AXLE
M25 LH THREAD 		9-42334-009-0 06 1 0211-0610 ●
4 05.813 NUT; WHEEL,RR AXLE
M25 LH THREAD 		8-98007-831-0 06 1 0611- ●
4 05.813 NUT; WHEEL,RR AXLE
M25 RH THREAD 		9-42333-015-0 06 1 0211-0610 ●
4 05.813 NUT; WHEEL,RR AXLE
M25 RH THREAD 		8-98007-830-0 06 1 0611- ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) OUTER M27,INNER M18 LH THREAD 		8-94365-144-1 05 1 0211-0501 ● ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
G.V.W. 6.0-6.5TON(RPV) OUTER M27,INNER M18 LH THREAD 		8-94365-144-1 05 1 0211-0501 ● ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
G.V.W. 6.0-6.5TON(RPV) OUTER M27,INNER M18 LH THREAD 		8-94365-144-1 05 1 0502-0506 ● ● ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) OUTER M27,INNER M18 LH THREAD 		8-94365-144-1 05 1 0507-0610 ● ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
G.V.W. 6.0-6.5TON(RPV) OUTER M27,INNER M18 LH THREAD 		8-94365-144-1 05 1 0507-0610 ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) OUTER M27,INNER M18 LH THREAD 		8-98007-811-0 05 1 0611- ● ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
G.V.W. 6.0-6.5TON(RPV) OUTER M27,INNER M18 LH THREAD 		8-98007-811-0 05 1 0611- ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) OUTER M27,INNER M18 RH THREAD 		8-94365-143-1 05 1 0211-0501 ● ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
G.V.W. 6.0-6.5TON(RPV) OUTER M27,INNER M18 RH THREAD 		8-94365-143-1 05 1 0211-0501 ● ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
G.V.W. 6.0-6.5TON(RPV) OUTER M27,INNER M18 RH THREAD 		8-94365-143-1 05 1 0502-0506 ● ● ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) OUTER M27,INNER M18 RH THREAD 		8-94365-143-1 05 1 0507-0610 ● ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
G.V.W. 6.0-6.5TON(RPV) OUTER M27,INNER M18 RH THREAD 		8-94365-143-1 05 1 0507-0610 ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) OUTER M27,INNER M18 RH THREAD 		8-98007-810-0 05 1 0611- ● ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
G.V.W. 6.0-6.5TON(RPV) OUTER M27,INNER M18 RH THREAD 		8-98007-810-0 05 1 0611- ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY), G.V.W. 8.0-8.5TON(RPZ) OUTER M30,INNER M20 LH THREAD 		1-42336-005-0 06 1 0211-0501 ● ● ● ● ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
G.V.W. 7.0-7.5TON(RPX) OUTER M30,INNER M20 LH THREAD 		1-42336-005-1 06 1 0502-0506 ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) OUTER M30,INNER M20 LH THREAD 		1-42336-005-1 06 1 0502-0506 ● ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 LH THREAD 		1-42336-005-1 06 1 0502-0506 ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY), G.V.W. 8.0-8.5TON(RPZ) OUTER M30,INNER M20 LH THREAD 		1-42336-005-1 06 1 0507-0610 ● ● ● ● ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY), G.V.W. 8.0-8.5TON(RPZ) OUTER M30,INNER M20 LH THREAD 		8-97359-806-0 06 1 0611- ● ● ● ● ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY), G.V.W. 8.0-8.5TON(RPZ) OUTER M30,INNER M20 RH THREAD 		1-42335-005-0 06 1 0211-0501 ● ● ● ● ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
G.V.W. 7.0-7.5TON(RPX) OUTER M30,INNER M20 RH THREAD 		1-42335-005-1 06 1 0502-0506 ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) OUTER M30,INNER M20 RH THREAD 		1-42335-005-1 06 1 0502-0506 ● ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 RH THREAD 		1-42335-005-1 06 1 0502-0506 ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY), G.V.W. 8.0-8.5TON(RPZ) OUTER M30,INNER M20 RH THREAD 		1-42335-005-1 06 1 0507-0610 ● ● ● ● ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY), G.V.W. 8.0-8.5TON(RPZ) OUTER M30,INNER M20 RH THREAD 		8-97359-805-0 06 1 0611- ● ● ● ● ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
OUTER M25,INNER M16 LH THREAD 		5-42336-001-1 06 1 0211-0610 ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
OUTER M25,INNER M16 LH THREAD 		8-98007-829-0 06 1 0611- ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
OUTER M25,INNER M16 RH THREAD 		5-42335-001-1 06 1 0211-0610 ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
OUTER M25,INNER M16 RH THREAD 		8-98007-828-0 06 1 0611- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT (03C),FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16 -127 6-WHL/NUT(05C),FRT&RR 7.5R-16-106GSX16-127 6-WHL/NUT(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT& RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYN AMIC(95V),FRT&RR 7.5-16-10 6GSX16-1276-WHL/NUT DYNAMIC(97V) SPARE 16X6.00GS STAMP, BLACK 		8-94412-585-0 01 1 0211-0501 ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT (9BP) SPARE 16X6.00GS STAMP, BLACK 		8-94412-585-0 01 1 0211-0501 ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT (03C),FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16 -127 6-WHL/NUT(05C),FRT&RR 7.5R-16-106GSX16-127 6-WHL/NUT(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT& RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYN AMIC(95V),FRT&RR 7.5-16-10 6GSX16-1276-WHL/NUT DYNAMIC(97V) SPARE 16X6.00GS STAMP, BLACK 		8-94412-585-0 01 1 0502-0811 ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT (9BP) SPARE 16X6.00GS STAMP, BLACK 		8-94412-585-0 01 1 0502-0811 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6GSX16-1 27 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R- 16-10 6GSX16-127 6-WHL/NUT(83V), FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP) ,FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX1 6-127 6-WHL/NUT DYNAMIC(97V) SPARE 16X6.00GS STAMP, BLACK 		8-94412-585-0 01 1 0812- ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP) SPARE 16X6.00GS STAMP, BLACK 		8-94412-585-0 01 1 0812- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT (03C),FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16 -127 6-WHL/NUT(05C),FRT&RR 7.5R-16-106GSX16-127 6-WHL/NUT(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT& RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYN AMIC(95V),FRT&RR 7.5-16-10 6GSX16-1276-WHL/NUT DYNAMIC(97V) FRONT,REAR 16X6.00GS STAMP, BLACK 		8-94412-585-0 06 1 0211-0501 ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT (9BP) FRONT,REAR 16X6.00GS STAMP, BLACK 		8-94412-585-0 06 1 0211-0501 ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT (03C),FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16 -127 6-WHL/NUT(05C),FRT&RR 7.5R-16-106GSX16-127 6-WHL/NUT(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT& RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYN AMIC(95V),FRT&RR 7.5-16-10 6GSX16-1276-WHL/NUT DYNAMIC(97V) FRONT,REAR 16X6.00GS STAMP, BLACK 		8-94412-585-0 06 1 0502-0811 ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT (9BP) FRONT,REAR 16X6.00GS STAMP, BLACK 		8-94412-585-0 06 1 0502-0811 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6GSX16-1 27 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R- 16-10 6GSX16-127 6-WHL/NUT(83V), FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP) ,FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX1 6-127 6-WHL/NUT DYNAMIC(97V) FRONT,REAR 16X6.00GS STAMP, BLACK 		8-94412-585-0 06 1 0812- ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP) FRONT,REAR 16X6.00GS STAMP, BLACK 		8-94412-585-0 06 1 0812- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7R-16-10 16X5.5F-115(07H), FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-12 16X5.5F-115(96H),F RT&RR 7-16-10L 5.5FX16-115 T/VLV TR17 7A(98H) FRONT,REAR 16X5.50F STAMP, BLACK 		8-94135-601-0 06 1 0211-0501 ● ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7R-16-10 16X5.5F-115(07H), FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-12 16X5.5F-115(96H),F RT&RR 7-16-10L 5.5FX16-115 T/VLV TR17 7A(98H) FRONT,REAR 16X5.50F STAMP, BLACK 		8-94135-601-0 06 1 0502- ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7R-16-10 16X5.5F-115(07H), FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-12 16X5.5F-115(96H),F RT&RR 7-16-10L 5.5FX16-115 T/VLV TR17 7A(98H) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 0211-0501 ● ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT 7-16-12 16X5.5F-115 RR 185R14-8 1 4X5J-112(CPT),FRT 7-16-12 16X5.5F-115RR 175R14-8 14X5J-112(CPU) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 0211-0501 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7R-16-10 16X5.5F-115(07H), FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-12 16X5.5F-115(96H),F RT&RR 7-16-10L 5.5FX16-115 T/VLV TR17 7A(98H) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 0502- ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT 7-16-12 16X5.5F-115 RR 185R14-8 1 4X5J-112(CPT),FRT 7-16-12 16X5.5F-115RR 175R14-8 14X5J-112(CPU) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 0502- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5-16-8 6GSX16-127(10H), FRT&RR 7.5-16-10 6GSX16-127(11H),FRT&RR 7.5-16-12 6GSX16-127(12H),FRT&RR 7.5-16 -8L 6GSX16-127(14H),FRT&RR 7.5R-16-126GSX16-127(19H) SPARE 16X6.00GS STAMP, BLACK 		8-94135-602-0 01 1 0211-0501 ● ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5-16-8 6GSX16-127(10H), FRT&RR 7.5-16-10 6GSX16-127(11H),FRT&RR 7.5-16-12 6GSX16-127(12H),FRT&RR 7.5-16 -8L 6GSX16-127(14H),FRT&RR 7.5R-16-126GSX16-127(19H) SPARE 16X6.00GS STAMP, BLACK 		8-94135-602-0 01 1 0502-0811 ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5R-16-10 DISC 6.00GSX16-127(CUV),FRT&RR 7.5-16-8 6GSX16-127(10H), FRT&RR 7.5-16-10 6GSX16-127(11H), FRT&RR 7.5-16-12 6GSX16-127(12H),FRT&RR 7 .5-16-8L 6GSX16-127(14H),FRT&RR 7.5R-16-12 6GSX16-127(19H) SPARE 16X6.00GS STAMP, BLACK 		8-94135-602-0 01 1 0812- ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5-16-8 6GSX16-127(10H), FRT&RR 7.5-16-10 6GSX16-127(11H),FRT&RR 7.5-16-12 6GSX16-127(12H),FRT&RR 7.5-16 -8L 6GSX16-127(14H),FRT&RR 7.5R-16-126GSX16-127(19H) FRONT,REAR 16X6.00GS STAMP, BLACK 		8-94135-602-0 06 1 0211-0501 ● ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5-16-8 6GSX16-127(10H), FRT&RR 7.5-16-10 6GSX16-127(11H),FRT&RR 7.5-16-12 6GSX16-127(12H),FRT&RR 7.5-16 -8L 6GSX16-127(14H),FRT&RR 7.5R-16-126GSX16-127(19H) FRONT,REAR 16X6.00GS STAMP, BLACK 		8-94135-602-0 06 1 0502-0811 ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5R-16-10 DISC 6.00GSX16-127(CUV),FRT&RR 7.5-16-8 6GSX16-127(10H), FRT&RR 7.5-16-10 6GSX16-127(11H), FRT&RR 7.5-16-12 6GSX16-127(12H),FRT&RR 7 .5-16-8L 6GSX16-127(14H),FRT&RR 7.5R-16-12 6GSX16-127(19H) FRONT,REAR 16X6.00GS STAMP, BLACK 		8-94135-602-0 06 1 0812- ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 8.25-16-12 16X6.00GS-135 6-WHL /NUT(9ZM),FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT(9ZP) SPARE 16X6.00GS STAMP, BLACK 		1-42355-015-2 01 1 0211- ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 8.25-16-12 16X6.00GS-135 6-WHL /NUT(9ZM),FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT(9ZP) FRONT,REAR 16X6.00GS STAMP, BLACK 		1-42355-015-2 06 1 0211- ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT 7-16-12 16X5.5F-115 RR 185R14-8 1 4X5J-112(CPT),FRT 7-16-12 16X5.5F-115RR 175R14-8 14X5J-112(CPU) FRONT 16X5.50F STAMP, BLACK 		8-94135-601-0 02 1 0211- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
