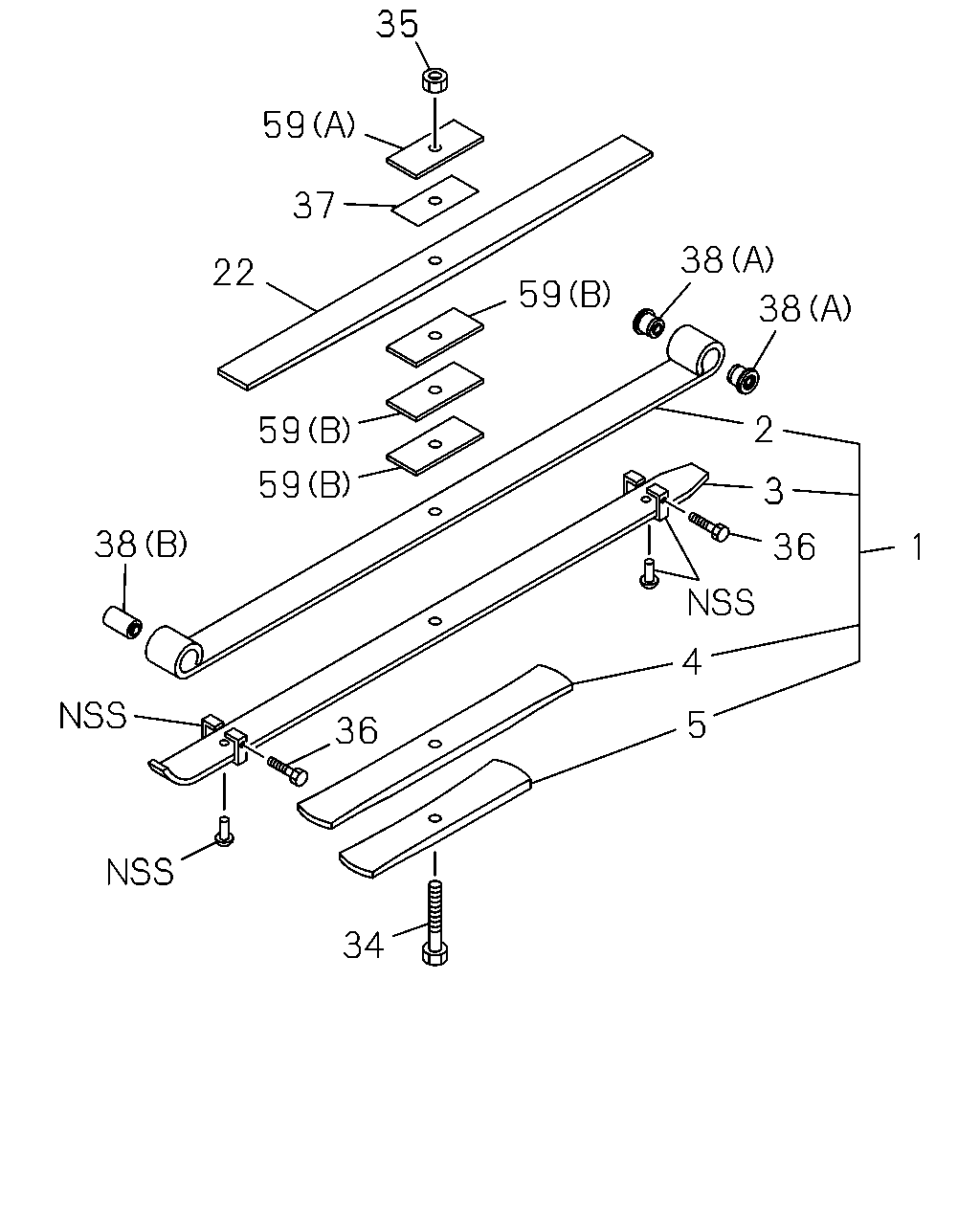

4-65B — REAR LEAF SPRING (#18289) — 15 parça

35 59 37 38 22 59 38 2 59 59 3 38 36 1 4 5 36 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	07.503 SPRING ASM; LEAF,RR MAIN ASM PART: A = 8-97349-300-0, 97349300	8-97373-692-0	01	1	-
2	07.505 SPRING; LEAF,NO 1,RR MAIN ASM PART: A = 8-97349-300-0, 97349300	8-97373-693-0	01	1	-
3	07.505 SPRING; LEAF,NO 2,RR MAIN ASM PART: A = 8-97349-300-0, 97349300	8-97373-694-0	01	1	-
4	07.505 SPRING; LEAF,NO 3,RR MAIN ASM PART: A = 8-97349-300-0, 97349300	8-97373-695-0	01	1	-
5	07.505 SPRING; LEAF,NO 4,RR MAIN ASM PART: A = 8-97349-300-0, 97349300	8-97373-696-0	01	1	-
22	07.505 SPRING; LEAF,NO 1,RR SUB ASM PART: A = 8-97349-300-0, 97349300	8-97373-697-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN L=120 ASM PART: A = 8-97349-300-0, 97349300	8-94165-310-0	01	1	-
35	07.506 NUT; CENTER BOLT,LEAF SPR,RR 04.634, M12 ASM PART: A = 8-97349-300-0, 97349300	9-99110-512-0	01	1	-
36	07.506 BOLT; CLIP,LEAF SPR,RR M8X90.5 ASM PART: A = 8-97349-300-0, 97349300	8-94407-133-0	02	1	-
37	07.518 SPACER; CENTER,LEAF SPR,RR T=1 ASM PART: A = 8-97349-300-0, 97349300	8-97084-102-0	01	1	-
38	07.505 BUSHING; LEAF SPR,RR (B), BEST VALUE PARTS ASM PART: A = 8-97349-300-0, 97349300	5-87610-163-0	01	1	-
38	07.505 BUSHING; LEAF SPR,RR 07.524, (A) ASM PART: A = 8-97349-300-0, 97349300	8-94118-588-1	02	1	-
38	07.505 BUSHING; LEAF SPR,RR (B), OD=42 L=81 ASM PART: A = 8-97349-300-0, 97349300	8-97074-826-0	01	1	-
59	07.513 SEAT; RR SPRING,SUB 07.518, (A) ASM PART: A = 8-97349-300-0, 97349300	8-97084-668-0	01	1	-
59	07.513 SEAT; RR SPRING,SUB (B), T=6 ASM PART: A = 8-97349-300-0, 97349300	8-97373-698-0	03	1	-
