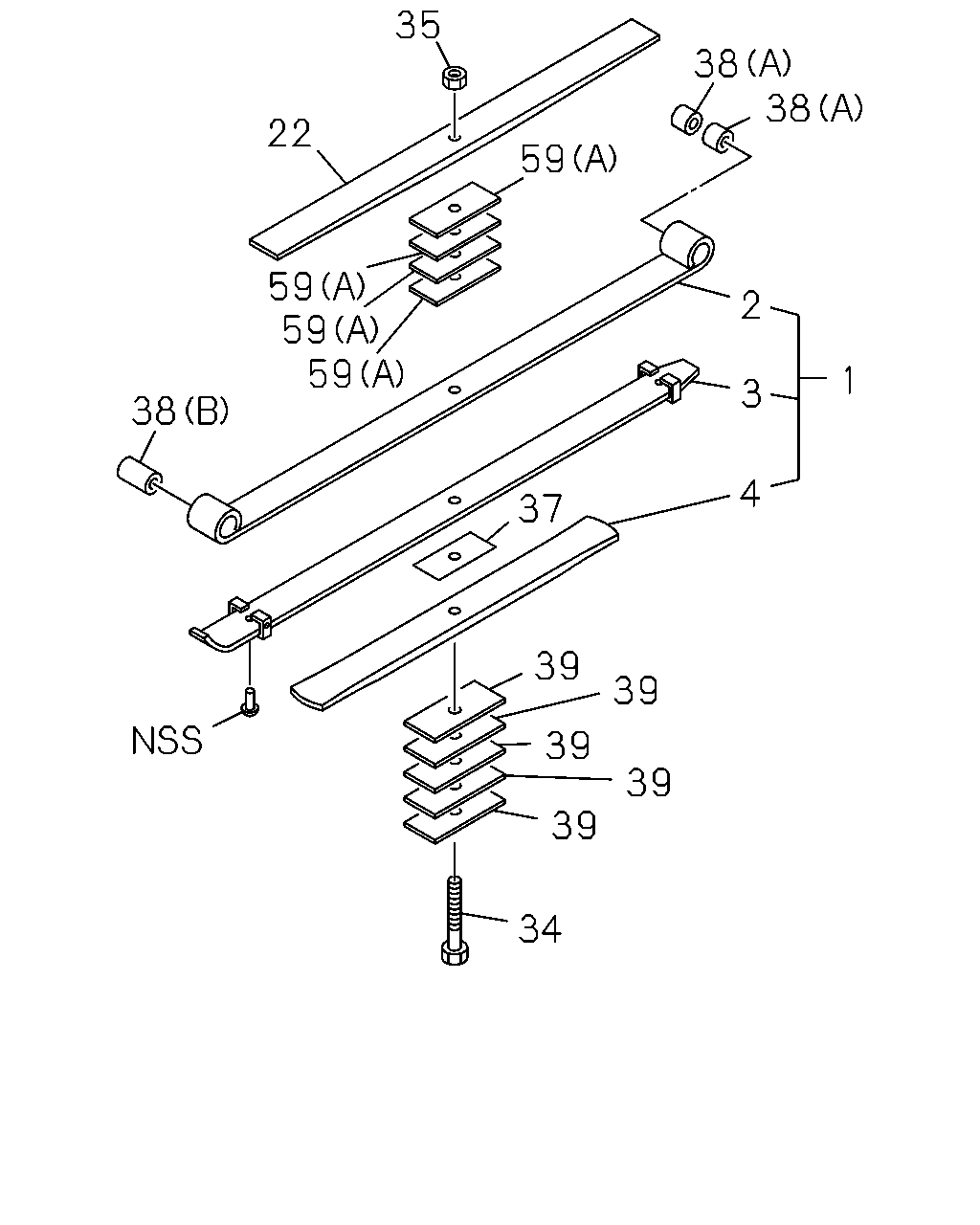

4-65A — REAR LEAF SPRING (#18288) — 13 parça

35 38 38 22 59 59 59 59 2 1 3 38 4 37 39 39 39 39 39 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	07.503 SPRING ASM; LEAF,RR MAIN ASM PART: A = 8-97033-558-3, 97033558	8-97088-804-0	01	1	-
2	07.505 SPRING; LEAF,NO 1,RR MAIN ASM PART: A = 8-97033-558-3, 97033558	8-97088-805-0	01	1	-
3	07.505 SPRING; LEAF,NO 2,RR MAIN ASM PART: A = 8-97033-558-3, 97033558	8-97088-806-0	01	1	-
4	07.505 SPRING; LEAF,NO 3,RR MAIN ASM PART: A = 8-97033-558-3, 97033558	8-97088-807-0	01	1	-
22	07.505 SPRING; LEAF,NO 1,RR SUB ASM PART: A = 8-97033-558-3, 97033558	8-97088-827-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN L=145 ASM PART: A = 8-97033-558-3, 97033558	8-94165-315-0	01	1	-
35	07.506 NUT; CENTER BOLT,LEAF SPR,RR 04.634, M12 ASM PART: A = 8-97033-558-3, 97033558	9-99110-512-0	01	1	-
37	07.518 SPACER; CENTER,LEAF SPR,RR T=1 ASM PART: A = 8-97033-558-3, 97033558	8-97084-102-0	01	1	-
38	07.505 BUSHING; LEAF SPR,RR (B), BEST VALUE PARTS ASM PART: A = 8-97033-558-3, 97033558	5-87610-163-0	01	1	-
38	07.505 BUSHING; LEAF SPR,RR 07.524, (A) ASM PART: A = 8-97033-558-3, 97033558	8-94118-588-1	02	1	-
38	07.505 BUSHING; LEAF SPR,RR (B), OD=42 L=81 ASM PART: A = 8-97033-558-3, 97033558	8-97074-826-0	01	1	-
39	07.518 SEAT; LEAF SPR,RR MAIN T=8 ASM PART: A = 8-97033-558-3, 97033558	8-97084-668-0	05	1	-
59	07.513 SEAT; RR SPRING,SUB 07.518, (A) ASM PART: A = 8-97033-558-3, 97033558	8-97084-668-0	04	1	-
