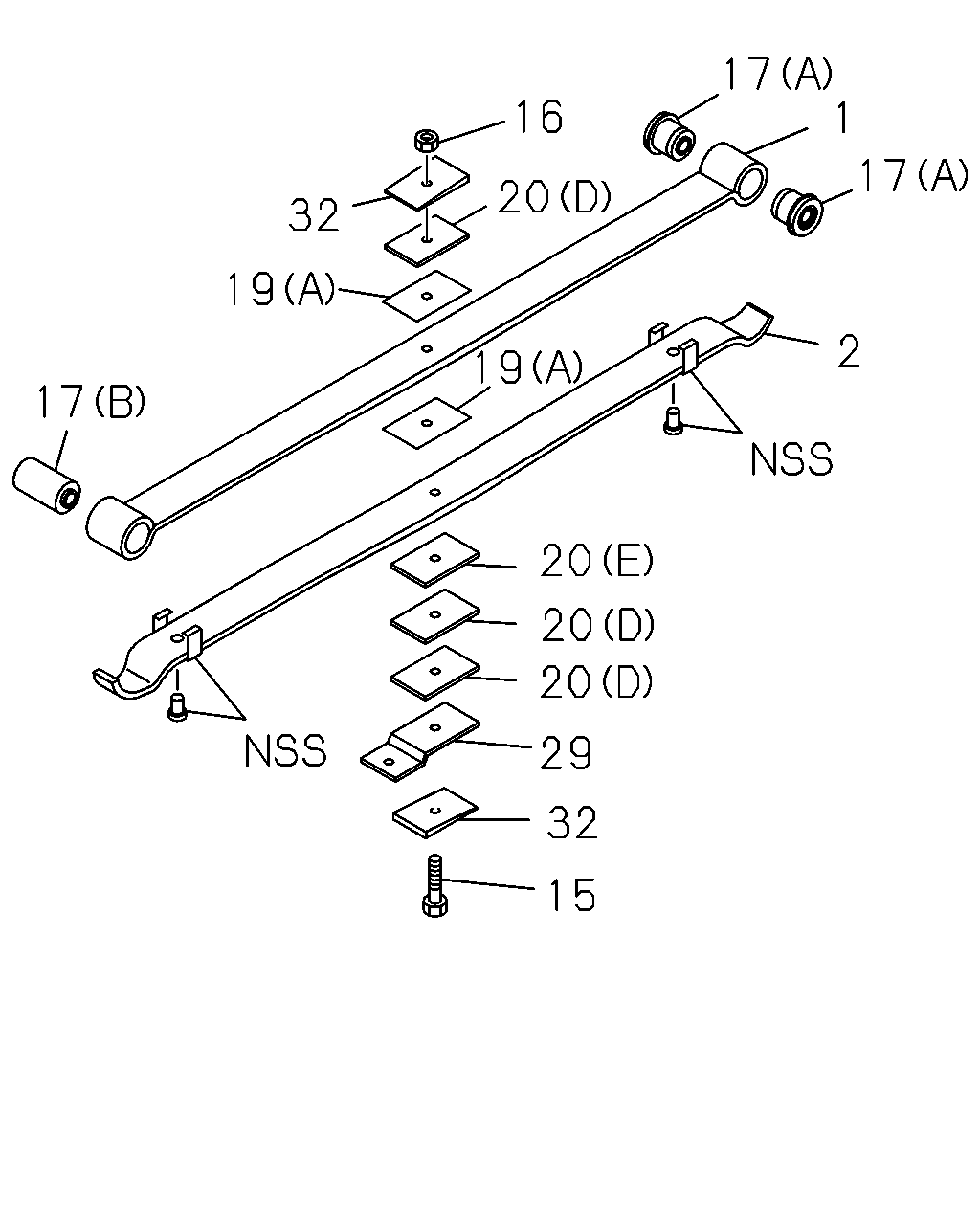

4-55A — FRONT LEAF SPRING (#18282) — 13 parça

17 1 16 17 20 32 19 2 19 17 20 20 20 29 32 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	07.415 SPRING; LEAF,NO 1,FRT ASM PART: A = 8-97333-819-0, 97333819	8-97373-688-0	01	1	-
1	07.415 SPRING; LEAF,NO 1,FRT ASM PART: B = 8-97333-820-0, 97333820	8-97373-690-0	01	1	-
2	07.415 SPRING; LEAF,NO 2,FRT ASM PART: A = 8-97333-819-0, 97333819	8-97373-689-0	01	1	-
2	07.415 SPRING; LEAF,NO 2,FRT ASM PART: B = 8-97333-820-0, 97333820	8-97373-691-0	01	1	-
15	07.428 BOLT; CENTER,LEAF SPR,FRT L=90 ASM PART: A = 8-97333-819-0, 97333819, B = 8-97333-820-0, 97333820	8-94165-284-0	01	1	-
16	07.506 NUT; CENTER BOLT,LEAF SPR,FRT M10 ASM PART: A = 8-97333-819-0, 97333819, B = 8-97333-820-0, 97333820	1-09400-055-0	01	1	-
17	07.413 BUSHING; LEAF SPR,FRT 07.524, (A) ASM PART: A = 8-97333-819-0, 97333819, B = 8-97333-820-0, 97333820	8-94118-588-1	02	1	-
17	07.413 BUSHING; LEAF SPR,FRT 07.105, (B) ASM PART: A = 8-97333-819-0, 97333819, B = 8-97333-820-0, 97333820	8-94130-354-0	01	1	-
19	07.425 SPACER; LEAF SPRING,FRT (A), T=1 ASM PART: A = 8-97333-819-0, 97333819, B = 8-97333-820-0, 97333820	8-97084-845-0	02	1	-
20	07.425 SEAT; LEAF SPR,FRT (D), T=6 ASM PART: A = 8-97333-819-0, 97333819, B = 8-97333-820-0, 97333820	8-97353-792-0	03	1	-
20	07.425 SEAT; LEAF SPR,FRT (E), T=8 ASM PART: A = 8-97333-819-0, 97333819, B = 8-97333-820-0, 97333820	8-97353-793-0	01	1	-
29	07.425 SUPPORTER; LEAF SPR,FRT ASM PART: A = 8-97333-819-0, 97333819, B = 8-97333-820-0, 97333820	8-97141-927-1	01	1	-
32	07.425 PLATE; CASTER ASM PART: A = 8-97333-819-0, 97333819, B = 8-97333-820-0, 97333820	8-97164-386-2	02	1	-
