4-30 — STEERING WHEEL AND COWL (#18274) — 212 parça

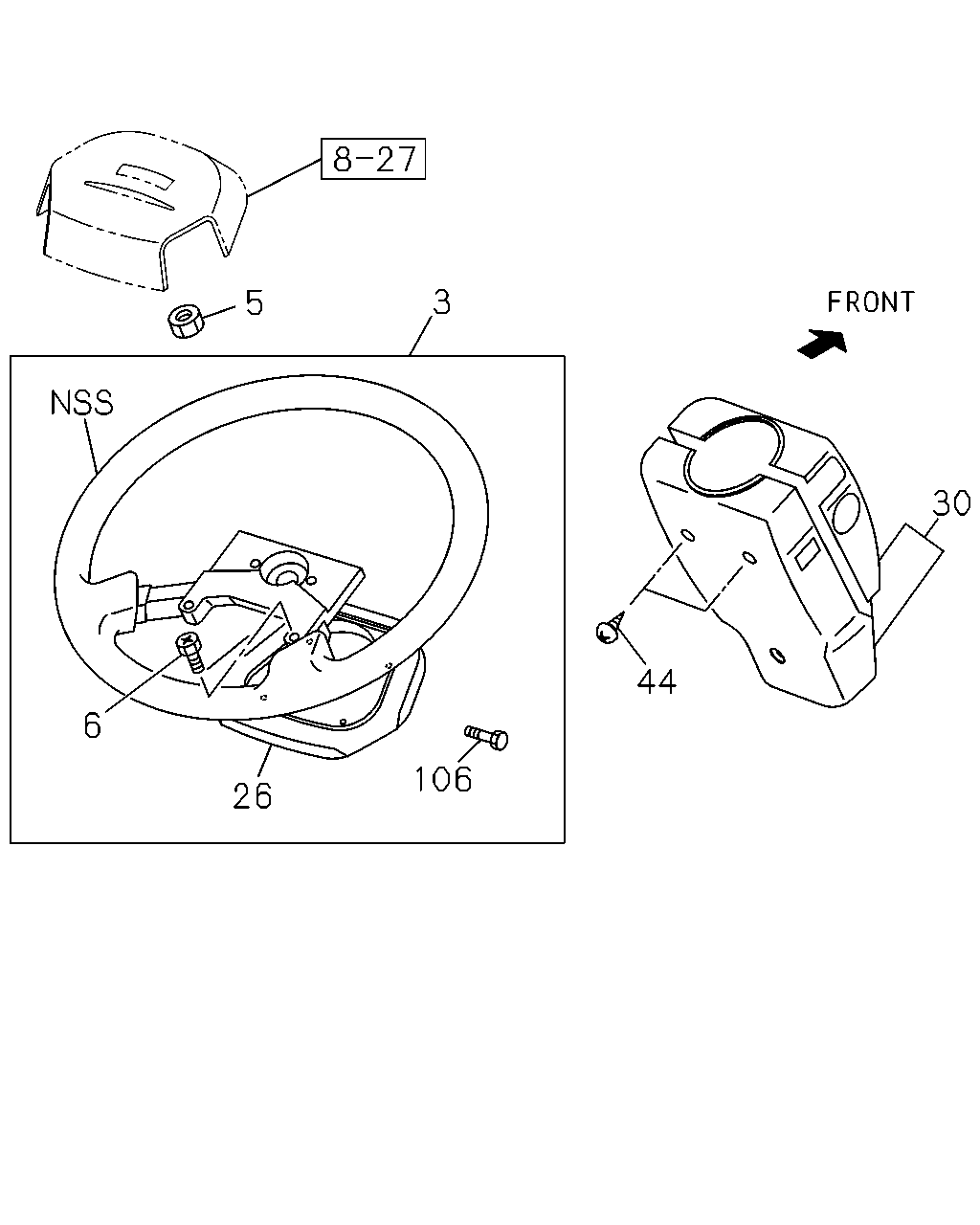

çizim 51021
44 30 3 5 26 106 6
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
3 06.513 WHEEL; STRG
AIR BAG DRIVER<AJ3> POWER STEERING<N40> DARK GRAY 		8-97399-483-1 01 1 0507-1006 ● ● ● ●
3 06.513 WHEEL; STRG
AIR BAG DRIVER<AJ3> DARK GRAY 		8-97399-483-1 01 1 0507-1006 ●
3 06.513 WHEEL; STRG
AIR BAG DRIVER<AJ3> POWER STEERING<N40> DARK GRAY 		8-97421-974-1 01 1 1007- ● ● ● ●
3 06.513 WHEEL; STRG
AIR BAG DRIVER<AJ3> DARK GRAY 		8-97421-974-1 01 1 1007- ●
3 06.513 WHEEL; STRG
POWER STEERING<N40> DARK GRAY 		8-97098-531-2 01 1 0211-0501 ● ● ● ●
3 06.513 WHEEL; STRG
DARK GRAY 		8-97098-531-2 01 1 0211-0501 ● ●
3 06.513 WHEEL; STRG
POWER STEERING<N40> DARK GRAY 		8-97400-081-2 01 1 0502-0506 ● ● ● ●
3 06.513 WHEEL; STRG
DARK GRAY 		8-97400-081-2 01 1 0502-0506 ●
3 06.513 WHEEL; STRG
POWER STEERING<N40> EXC. AIR BAG DRIVER<AJ3> DARK GRAY 		8-97400-081-2 01 1 0507- ● ● ● ●
3 06.513 WHEEL; STRG
EXC. AIR BAG DRIVER<AJ3> DARK GRAY 		8-97400-081-2 01 1 0507- ●
3 06.513 WHEEL; STRG
DARK GRAY 		8-97400-081-2 01 1 0507- ●
3 06.513 WHEEL; STRG
EXC. POWER STEERING<N40> DARK GRAY 		8-97158-727-0 01 1 0211-0501 ● ● ● ●
3 06.513 WHEEL; STRG
EXC. POWER STEERING<N40> DARK GRAY 		8-97400-399-0 01 1 0502- ● ● ● ●
5 06.515 NUT; STRG WHEEL TO SHAFT
06.172 M14 		9-99111-414-0 01 1 0211-0501 ● ● ● ● ● ●
5 06.515 NUT; STRG WHEEL TO SHAFT
06.172 M14 		9-99111-414-0 01 1 0502-0506 ● ● ● ● ●
5 06.515 NUT; STRG WHEEL TO SHAFT
06.172 M14 		9-99111-414-0 01 1 0507-0512 ● ● ● ● ● ●
5 06.515 NUT; STRG WHEEL TO SHAFT
M14 		0-91111-514-0 01 1 0601- ● ● ● ● ● ●
6 02.820 SCREW; HORN SPR CONTACT
AIR BAG DRIVER<AJ3> POWER STEERING<N40> M4X12 		8-97167-588-0 04 1 0507- ● ● ● ●
6 02.820 SCREW; HORN SPR CONTACT
AIR BAG DRIVER<AJ3> M4X12 		8-97167-588-0 04 1 0507- ●
6 02.820 SCREW; HORN SPR CONTACT
EXC. POWER STEERING<N40> 		8-94458-316-0 02 1 0211- ● ● ● ●
26 06.514 COVER; STRG WHEEL,LWR
AIR BAG DRIVER<AJ3> POWER STEERING<N40> DARK GRAY 		8-97399-485-0 01 1 0507-1006 ● ● ● ●
26 06.514 COVER; STRG WHEEL,LWR
AIR BAG DRIVER<AJ3> DARK GRAY 		8-97399-485-0 01 1 0507-1006 ●
26 06.514 COVER; STRG WHEEL,LWR
AIR BAG DRIVER<AJ3> POWER STEERING<N40> DARK GRAY 		8-97421-970-0 01 1 1007- ● ● ● ●
26 06.514 COVER; STRG WHEEL,LWR
AIR BAG DRIVER<AJ3> DARK GRAY 		8-97421-970-0 01 1 1007- ●
26 06.514 COVER; STRG WHEEL,LWR
POWER STEERING<N40> DARK GRAY 		8-97098-534-1 01 1 0211-0501 ● ● ● ●
26 06.514 COVER; STRG WHEEL,LWR
DARK GRAY 		8-97098-534-1 01 1 0211-0501 ● ●
26 06.514 COVER; STRG WHEEL,LWR
POWER STEERING<N40> DARK GRAY 		8-97400-089-1 01 1 0502-0506 ● ● ● ●
26 06.514 COVER; STRG WHEEL,LWR
DARK GRAY 		8-97400-089-1 01 1 0502-0506 ●
26 06.514 COVER; STRG WHEEL,LWR
POWER STEERING<N40> EXC. AIR BAG DRIVER<AJ3> DARK GRAY 		8-97400-089-1 01 1 0507- ● ● ● ●
26 06.514 COVER; STRG WHEEL,LWR
EXC. AIR BAG DRIVER<AJ3> DARK GRAY 		8-97400-089-1 01 1 0507- ●
26 06.514 COVER; STRG WHEEL,LWR
DARK GRAY 		8-97400-089-1 01 1 0507- ●
30 06.518 COWL; STEERING
AIR BAG DRIVER<AJ3> PTO TRANSMISSION SIDE(V66) DARK GRAY 		8-97404-018-1 01 1 0507- ● ● ● ●
30 06.518 COWL; STEERING
AIR BAG DRIVER<AJ3> EXC. PTO TRANSMISSION SIDE(V66) DARK GRAY 		8-97404-017-1 01 1 0507- ● ● ● ●
30 06.518 COWL; STEERING
AIR BAG DRIVER<AJ3> DARK GRAY 		8-97404-017-1 01 1 0507- ●
30 06.518 COWL; STEERING
PTO TRANSMISSION SIDE(V66) EXC. TILT STEERING<N33> BLACK 		8-97997-904-7 01 1 0211-0501 ● ● ● ● ● ●
30 06.518 COWL; STEERING
PTO TRANSMISSION SIDE(V66) EXC. TILT STEERING<N33> DARK GRAY 		8-97588-867-7 01 1 0502-0504 ● ● ● ●
30 06.518 COWL; STEERING
PTO TRANSMISSION SIDE(V66) EXC. TILT STEERING<N33> DARK GRAY 		8-97588-867-7 01 1 0505-0506 ● ● ● ● ●
30 06.518 COWL; STEERING
PTO TRANSMISSION SIDE(V66) EXC. AIR BAG DRIVER<AJ3>,TILT STEERING<N33> DARK GRAY 		8-97588-867-7 01 1 0507- ● ● ● ●
30 06.518 COWL; STEERING
PTO TRANSMISSION SIDE(V66) EXC. TILT STEERING<N33> DARK GRAY 		8-97588-867-7 01 1 0507- ●
30 06.518 COWL; STEERING
TILT STEERING<N33> PTO TRANSMISSION SIDE(V66) BLACK 		8-97197-937-8 01 1 0211-0501 ● ● ● ● ● ●
30 06.518 COWL; STEERING
TILT STEERING<N33> PTO TRANSMISSION SIDE(V66) DARK GRAY 		8-97582-825-8 01 1 0502-0506 ● ● ● ● ●
30 06.518 COWL; STEERING
TILT STEERING<N33> PTO TRANSMISSION SIDE(V66) EXC. AIR BAG DRIVER<AJ3> DARK GRAY 		8-97582-825-8 01 1 0507- ● ● ● ●
30 06.518 COWL; STEERING
TILT STEERING<N33> PTO TRANSMISSION SIDE(V66) DARK GRAY 		8-97582-825-8 01 1 0507- ●
30 06.518 COWL; STEERING
TILT STEERING<N33> EXC. PTO TRANSMISSION SIDE(V66) BLACK 		8-97197-936-8 01 1 0211-0501 ● ● ● ● ● ●
30 06.518 COWL; STEERING
TILT STEERING<N33> EXC. PTO TRANSMISSION SIDE(V66) DARK GRAY 		8-97582-824-8 01 1 0502-0506 ● ● ● ● ●
30 06.518 COWL; STEERING
TILT STEERING<N33> EXC. AIR BAG DRIVER<AJ3>,PTO TRANSMISSION SIDE(V66) DARK GRAY 		8-97582-824-8 01 1 0507- ● ● ● ●
30 06.518 COWL; STEERING
TILT STEERING<N33> EXC. AIR BAG DRIVER<AJ3> DARK GRAY 		8-97582-824-8 01 1 0507- ●
30 06.518 COWL; STEERING
TILT STEERING<N33> EXC. PTO TRANSMISSION SIDE(V66) DARK GRAY 		8-97582-824-8 01 1 0507- ●
30 06.518 COWL; STEERING
EXC. TILT STEERING<N33>,PTO TRANSMISSION SIDE(V66) BLACK 		8-97997-903-7 01 1 0211-0501 ● ● ● ● ● ●
30 06.518 COWL; STEERING
EXC. TILT STEERING<N33>,PTO TRANSMISSION SIDE(V66) DARK GRAY 		8-97587-492-7 01 1 0502-0506 ● ● ● ● ●
30 06.518 COWL; STEERING
EXC. AIR BAG DRIVER<AJ3>,TILT STEERING<N33>,PTO TRANSMISSION SIDE(V66) DARK GRAY 		8-97587-492-7 01 1 0507- ● ● ● ●
30 06.518 COWL; STEERING
EXC. AIR BAG DRIVER<AJ3>,TILT STEERING<N33> DARK GRAY 		8-97587-492-7 01 1 0507- ●
30 06.518 COWL; STEERING
EXC. TILT STEERING<N33>,PTO TRANSMISSION SIDE(V66) DARK GRAY 		8-97587-492-7 01 1 0507- ●
44 06.514 SCREW; STRG COWL
M5X16 W/LK&PL WASHER 		8-94279-400-0 02 1 0211-0501 ● ● ● ● ● ●
44 06.514 SCREW; STRG COWL
M5X16 W/LK&PL WASHER 		8-94279-400-0 02 1 0502-0506 ● ● ● ● ●
44 06.514 SCREW; STRG COWL
M5X16 W/LK&PL WASHER 		8-94279-400-0 02 1 0507-0612 ● ● ● ● ● ●
44 06.514 SCREW; STRG COWL
M5X12 		0-38050-512-0 02 1 0701- ● ● ● ● ● ●
106 05.453 BOLT; TORX
AIR BAG DRIVER<AJ3> POWER STEERING<N40> 		8-98231-397-0 02 1 1307- ● ● ● ●
106 05.453 BOLT; TORX
AIR BAG DRIVER<AJ3> 		8-98231-397-0 02 1 1307- ●

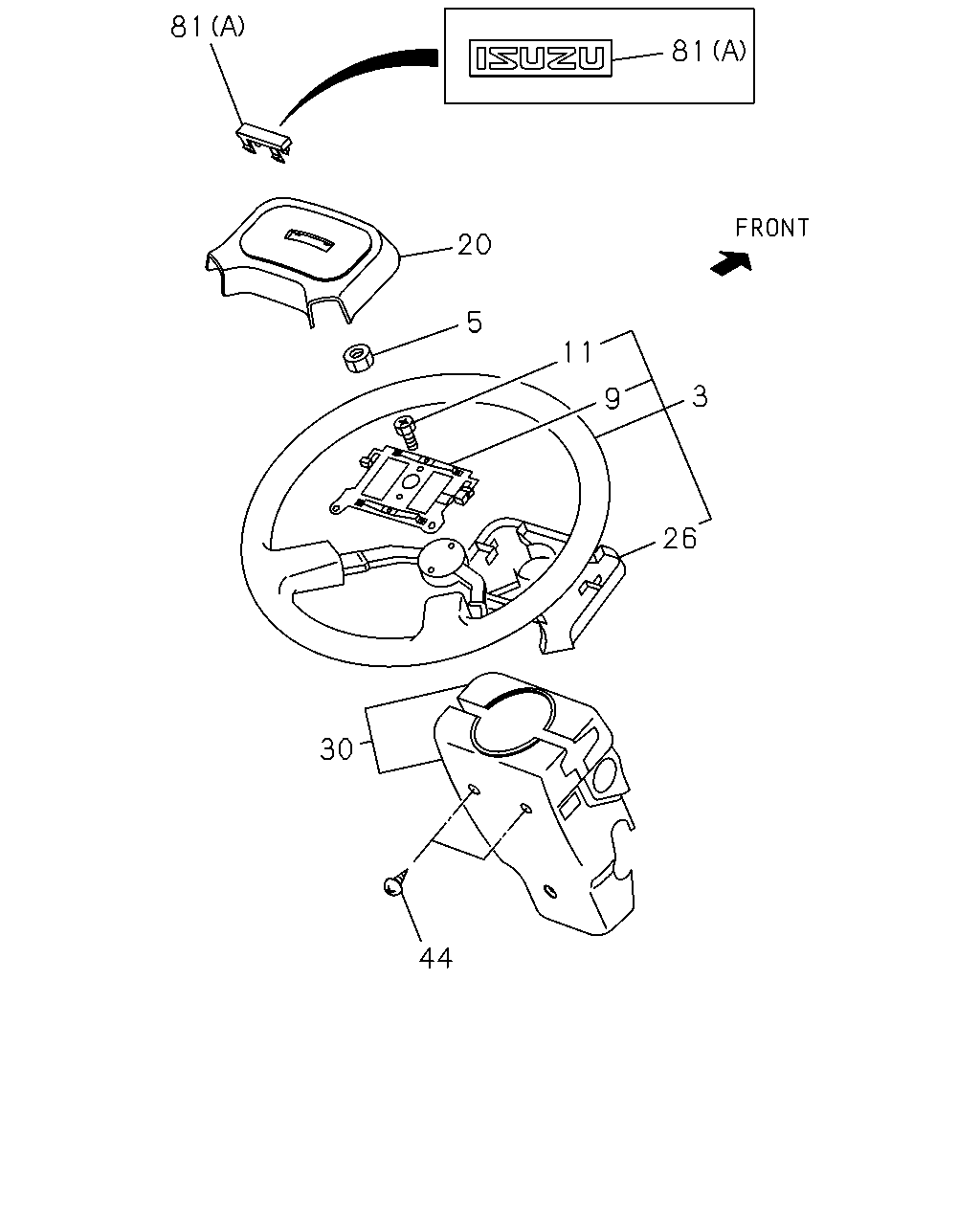

çizim 53968
81 81 20 5 11 3 9 26 30 44
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
3 06.513 WHEEL; STRG
AIR BAG DRIVER<AJ3> POWER STEERING<N40> DARK GRAY 		8-97399-483-1 01 1 0507-1006 ● ● ● ●
3 06.513 WHEEL; STRG
AIR BAG DRIVER<AJ3> DARK GRAY 		8-97399-483-1 01 1 0507-1006 ●
3 06.513 WHEEL; STRG
AIR BAG DRIVER<AJ3> POWER STEERING<N40> DARK GRAY 		8-97421-974-1 01 1 1007- ● ● ● ●
3 06.513 WHEEL; STRG
AIR BAG DRIVER<AJ3> DARK GRAY 		8-97421-974-1 01 1 1007- ●
3 06.513 WHEEL; STRG
POWER STEERING<N40> DARK GRAY 		8-97098-531-2 01 1 0211-0501 ● ● ● ●
3 06.513 WHEEL; STRG
DARK GRAY 		8-97098-531-2 01 1 0211-0501 ● ●
3 06.513 WHEEL; STRG
POWER STEERING<N40> DARK GRAY 		8-97400-081-2 01 1 0502-0506 ● ● ● ●
3 06.513 WHEEL; STRG
DARK GRAY 		8-97400-081-2 01 1 0502-0506 ●
3 06.513 WHEEL; STRG
POWER STEERING<N40> EXC. AIR BAG DRIVER<AJ3> DARK GRAY 		8-97400-081-2 01 1 0507- ● ● ● ●
3 06.513 WHEEL; STRG
EXC. AIR BAG DRIVER<AJ3> DARK GRAY 		8-97400-081-2 01 1 0507- ●
3 06.513 WHEEL; STRG
DARK GRAY 		8-97400-081-2 01 1 0507- ●
3 06.513 WHEEL; STRG
EXC. POWER STEERING<N40> DARK GRAY 		8-97158-727-0 01 1 0211-0501 ● ● ● ●
3 06.513 WHEEL; STRG
EXC. POWER STEERING<N40> DARK GRAY 		8-97400-399-0 01 1 0502- ● ● ● ●
5 06.515 NUT; STRG WHEEL TO SHAFT
06.172 M14 		9-99111-414-0 01 1 0211-0501 ● ● ● ● ● ●
5 06.515 NUT; STRG WHEEL TO SHAFT
06.172 M14 		9-99111-414-0 01 1 0502-0506 ● ● ● ● ●
5 06.515 NUT; STRG WHEEL TO SHAFT
06.172 M14 		9-99111-414-0 01 1 0507-0512 ● ● ● ● ● ●
5 06.515 NUT; STRG WHEEL TO SHAFT
M14 		0-91111-514-0 01 1 0601- ● ● ● ● ● ●
9 02.819 PLATE; HORN CONTACT
POWER STEERING<N40> 		8-97076-688-1 01 1 0211-0501 ● ● ● ●
9 02.819 PLATE; HORN CONTACT 8-97076-688-1 01 1 0211-0501 ● ●
9 02.819 PLATE; HORN CONTACT
POWER STEERING<N40> 		8-97076-688-1 01 1 0502-0506 ● ● ● ●
9 02.819 PLATE; HORN CONTACT 8-97076-688-1 01 1 0502-0506 ●
9 02.819 PLATE; HORN CONTACT
POWER STEERING<N40> EXC. AIR BAG DRIVER<AJ3> 		8-97076-688-1 01 1 0507- ● ● ● ●
9 02.819 PLATE; HORN CONTACT
EXC. AIR BAG DRIVER<AJ3> 		8-97076-688-1 01 1 0507- ●
9 02.819 PLATE; HORN CONTACT 8-97076-688-1 01 1 0507- ●
11 06.514 SCREW; PLATE TO BUTTON
POWER STEERING<N40> 		8-97076-690-1 01 1 0211-0501 ● ● ● ●
11 06.514 SCREW; PLATE TO BUTTON 8-97076-690-1 01 1 0211-0501 ● ●
11 06.514 SCREW; PLATE TO BUTTON
POWER STEERING<N40> 		8-97076-690-1 01 1 0502-0506 ● ● ● ●
11 06.514 SCREW; PLATE TO BUTTON 8-97076-690-1 01 1 0502-0506 ●
11 06.514 SCREW; PLATE TO BUTTON
POWER STEERING<N40> EXC. AIR BAG DRIVER<AJ3> 		8-97076-690-1 01 1 0507- ● ● ● ●
11 06.514 SCREW; PLATE TO BUTTON
EXC. AIR BAG DRIVER<AJ3> 		8-97076-690-1 01 1 0507- ●
11 06.514 SCREW; PLATE TO BUTTON 8-97076-690-1 01 1 0507- ●
20 06.512 SHROUD; PAD,STRG WHEEL
POWER STEERING<N40> DARK GRAY 		8-97098-526-0 01 1 0211-0501 ● ● ● ●
20 06.512 SHROUD; PAD,STRG WHEEL
DARK GRAY 		8-97098-526-0 01 1 0211-0501 ● ●
20 06.512 SHROUD; PAD,STRG WHEEL
POWER STEERING<N40> DARK GRAY 		8-97400-049-0 01 1 0502-0506 ● ● ● ●
20 06.512 SHROUD; PAD,STRG WHEEL
DARK GRAY 		8-97400-049-0 01 1 0502-0506 ●
20 06.512 SHROUD; PAD,STRG WHEEL
POWER STEERING<N40> EXC. AIR BAG DRIVER<AJ3> DARK GRAY 		8-97400-049-0 01 1 0507- ● ● ● ●
20 06.512 SHROUD; PAD,STRG WHEEL
EXC. AIR BAG DRIVER<AJ3> DARK GRAY 		8-97400-049-0 01 1 0507- ●
20 06.512 SHROUD; PAD,STRG WHEEL
DARK GRAY 		8-97400-049-0 01 1 0507- ●
20 06.512 SHROUD; PAD,STRG WHEEL
EXC. POWER STEERING<N40> DARK GRAY 		8-97158-724-0 01 1 0211-0501 ● ● ● ●
20 06.512 SHROUD; PAD,STRG WHEEL
EXC. POWER STEERING<N40> DARK GRAY 		8-97400-396-0 01 1 0502- ● ● ● ●
26 06.514 COVER; STRG WHEEL,LWR
AIR BAG DRIVER<AJ3> POWER STEERING<N40> DARK GRAY 		8-97399-485-0 01 1 0507-1006 ● ● ● ●
26 06.514 COVER; STRG WHEEL,LWR
AIR BAG DRIVER<AJ3> DARK GRAY 		8-97399-485-0 01 1 0507-1006 ●
26 06.514 COVER; STRG WHEEL,LWR
AIR BAG DRIVER<AJ3> POWER STEERING<N40> DARK GRAY 		8-97421-970-0 01 1 1007- ● ● ● ●
26 06.514 COVER; STRG WHEEL,LWR
AIR BAG DRIVER<AJ3> DARK GRAY 		8-97421-970-0 01 1 1007- ●
26 06.514 COVER; STRG WHEEL,LWR
POWER STEERING<N40> DARK GRAY 		8-97098-534-1 01 1 0211-0501 ● ● ● ●
26 06.514 COVER; STRG WHEEL,LWR
DARK GRAY 		8-97098-534-1 01 1 0211-0501 ● ●
26 06.514 COVER; STRG WHEEL,LWR
POWER STEERING<N40> DARK GRAY 		8-97400-089-1 01 1 0502-0506 ● ● ● ●
26 06.514 COVER; STRG WHEEL,LWR
DARK GRAY 		8-97400-089-1 01 1 0502-0506 ●
26 06.514 COVER; STRG WHEEL,LWR
POWER STEERING<N40> EXC. AIR BAG DRIVER<AJ3> DARK GRAY 		8-97400-089-1 01 1 0507- ● ● ● ●
26 06.514 COVER; STRG WHEEL,LWR
EXC. AIR BAG DRIVER<AJ3> DARK GRAY 		8-97400-089-1 01 1 0507- ●
26 06.514 COVER; STRG WHEEL,LWR
DARK GRAY 		8-97400-089-1 01 1 0507- ●
30 06.518 COWL; STEERING
AIR BAG DRIVER<AJ3> PTO TRANSMISSION SIDE(V66) DARK GRAY 		8-97404-018-1 01 1 0507- ● ● ● ●
30 06.518 COWL; STEERING
AIR BAG DRIVER<AJ3> EXC. PTO TRANSMISSION SIDE(V66) DARK GRAY 		8-97404-017-1 01 1 0507- ● ● ● ●
30 06.518 COWL; STEERING
AIR BAG DRIVER<AJ3> DARK GRAY 		8-97404-017-1 01 1 0507- ●
30 06.518 COWL; STEERING
PTO TRANSMISSION SIDE(V66) EXC. TILT STEERING<N33> BLACK 		8-97997-904-7 01 1 0211-0501 ● ● ● ● ● ●
30 06.518 COWL; STEERING
PTO TRANSMISSION SIDE(V66) EXC. TILT STEERING<N33> DARK GRAY 		8-97588-867-7 01 1 0502-0504 ● ● ● ●
30 06.518 COWL; STEERING
PTO TRANSMISSION SIDE(V66) EXC. TILT STEERING<N33> DARK GRAY 		8-97588-867-7 01 1 0505-0506 ● ● ● ● ●
30 06.518 COWL; STEERING
PTO TRANSMISSION SIDE(V66) EXC. AIR BAG DRIVER<AJ3>,TILT STEERING<N33> DARK GRAY 		8-97588-867-7 01 1 0507- ● ● ● ●
30 06.518 COWL; STEERING
PTO TRANSMISSION SIDE(V66) EXC. TILT STEERING<N33> DARK GRAY 		8-97588-867-7 01 1 0507- ●
30 06.518 COWL; STEERING
TILT STEERING<N33> PTO TRANSMISSION SIDE(V66) BLACK 		8-97197-937-8 01 1 0211-0501 ● ● ● ● ● ●
30 06.518 COWL; STEERING
TILT STEERING<N33> PTO TRANSMISSION SIDE(V66) DARK GRAY 		8-97582-825-8 01 1 0502-0506 ● ● ● ● ●
30 06.518 COWL; STEERING
TILT STEERING<N33> PTO TRANSMISSION SIDE(V66) EXC. AIR BAG DRIVER<AJ3> DARK GRAY 		8-97582-825-8 01 1 0507- ● ● ● ●
30 06.518 COWL; STEERING
TILT STEERING<N33> PTO TRANSMISSION SIDE(V66) DARK GRAY 		8-97582-825-8 01 1 0507- ●
30 06.518 COWL; STEERING
TILT STEERING<N33> EXC. PTO TRANSMISSION SIDE(V66) BLACK 		8-97197-936-8 01 1 0211-0501 ● ● ● ● ● ●
30 06.518 COWL; STEERING
TILT STEERING<N33> EXC. PTO TRANSMISSION SIDE(V66) DARK GRAY 		8-97582-824-8 01 1 0502-0506 ● ● ● ● ●
30 06.518 COWL; STEERING
TILT STEERING<N33> EXC. AIR BAG DRIVER<AJ3>,PTO TRANSMISSION SIDE(V66) DARK GRAY 		8-97582-824-8 01 1 0507- ● ● ● ●
30 06.518 COWL; STEERING
TILT STEERING<N33> EXC. AIR BAG DRIVER<AJ3> DARK GRAY 		8-97582-824-8 01 1 0507- ●
30 06.518 COWL; STEERING
TILT STEERING<N33> EXC. PTO TRANSMISSION SIDE(V66) DARK GRAY 		8-97582-824-8 01 1 0507- ●
30 06.518 COWL; STEERING
EXC. TILT STEERING<N33>,PTO TRANSMISSION SIDE(V66) BLACK 		8-97997-903-7 01 1 0211-0501 ● ● ● ● ● ●
30 06.518 COWL; STEERING
EXC. TILT STEERING<N33>,PTO TRANSMISSION SIDE(V66) DARK GRAY 		8-97587-492-7 01 1 0502-0506 ● ● ● ● ●
30 06.518 COWL; STEERING
EXC. AIR BAG DRIVER<AJ3>,TILT STEERING<N33>,PTO TRANSMISSION SIDE(V66) DARK GRAY 		8-97587-492-7 01 1 0507- ● ● ● ●
30 06.518 COWL; STEERING
EXC. AIR BAG DRIVER<AJ3>,TILT STEERING<N33> DARK GRAY 		8-97587-492-7 01 1 0507- ●
30 06.518 COWL; STEERING
EXC. TILT STEERING<N33>,PTO TRANSMISSION SIDE(V66) DARK GRAY 		8-97587-492-7 01 1 0507- ●
44 06.514 SCREW; STRG COWL
M5X16 W/LK&PL WASHER 		8-94279-400-0 02 1 0211-0501 ● ● ● ● ● ●
44 06.514 SCREW; STRG COWL
M5X16 W/LK&PL WASHER 		8-94279-400-0 02 1 0502-0506 ● ● ● ● ●
44 06.514 SCREW; STRG COWL
M5X16 W/LK&PL WASHER 		8-94279-400-0 02 1 0507-0612 ● ● ● ● ● ●
44 06.514 SCREW; STRG COWL
M5X12 		0-38050-512-0 02 1 0701- ● ● ● ● ● ●
81 02.820 EMBLEM; STRG WHEEL
POWER STEERING<N40> (A) DARK GRAY 		8-97098-527-0 01 1 0211-0501 ● ● ● ●
81 02.820 EMBLEM; STRG WHEEL
(A) DARK GRAY 		8-97098-527-0 01 1 0211-0501 ● ●
81 02.820 EMBLEM; STRG WHEEL
POWER STEERING<N40> (A) DARK GRAY 		8-97400-060-0 01 1 0502-0506 ● ● ● ●
81 02.820 EMBLEM; STRG WHEEL
(A) DARK GRAY 		8-97400-060-0 01 1 0502-0506 ●
81 02.820 EMBLEM; STRG WHEEL
POWER STEERING<N40> EXC. AIR BAG DRIVER<AJ3> (A) DARK GRAY 		8-97400-060-0 01 1 0507- ● ● ● ●
81 02.820 EMBLEM; STRG WHEEL
EXC. AIR BAG DRIVER<AJ3> (A) DARK GRAY 		8-97400-060-0 01 1 0507- ●
81 02.820 EMBLEM; STRG WHEEL
(A) DARK GRAY 		8-97400-060-0 01 1 0507- ●
81 02.820 EMBLEM; STRG WHEEL
EXC. POWER STEERING<N40> (B) DARK GRAY 		8-97158-725-0 01 1 0211-0501 ● ● ● ●
81 02.820 EMBLEM; STRG WHEEL
EXC. POWER STEERING<N40> (B) DARK GRAY 		8-97400-397-0 01 1 0502- ● ● ● ●
çizim 54646
81 81 20 5 7 6 7 3 2 13 30 44
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 06.514 RING; HORN CONTACT
EXC. POWER STEERING<N40> 02.819 		8-94150-223-0 01 1 0211- ● ● ● ●
3 06.513 WHEEL; STRG
AIR BAG DRIVER<AJ3> POWER STEERING<N40> DARK GRAY 		8-97399-483-1 01 1 0507-1006 ● ● ● ●
3 06.513 WHEEL; STRG
AIR BAG DRIVER<AJ3> DARK GRAY 		8-97399-483-1 01 1 0507-1006 ●
3 06.513 WHEEL; STRG
AIR BAG DRIVER<AJ3> POWER STEERING<N40> DARK GRAY 		8-97421-974-1 01 1 1007- ● ● ● ●
3 06.513 WHEEL; STRG
AIR BAG DRIVER<AJ3> DARK GRAY 		8-97421-974-1 01 1 1007- ●
3 06.513 WHEEL; STRG
POWER STEERING<N40> DARK GRAY 		8-97098-531-2 01 1 0211-0501 ● ● ● ●
3 06.513 WHEEL; STRG
DARK GRAY 		8-97098-531-2 01 1 0211-0501 ● ●
3 06.513 WHEEL; STRG
POWER STEERING<N40> DARK GRAY 		8-97400-081-2 01 1 0502-0506 ● ● ● ●
3 06.513 WHEEL; STRG
DARK GRAY 		8-97400-081-2 01 1 0502-0506 ●
3 06.513 WHEEL; STRG
POWER STEERING<N40> EXC. AIR BAG DRIVER<AJ3> DARK GRAY 		8-97400-081-2 01 1 0507- ● ● ● ●
3 06.513 WHEEL; STRG
EXC. AIR BAG DRIVER<AJ3> DARK GRAY 		8-97400-081-2 01 1 0507- ●
3 06.513 WHEEL; STRG
DARK GRAY 		8-97400-081-2 01 1 0507- ●
3 06.513 WHEEL; STRG
EXC. POWER STEERING<N40> DARK GRAY 		8-97158-727-0 01 1 0211-0501 ● ● ● ●
3 06.513 WHEEL; STRG
EXC. POWER STEERING<N40> DARK GRAY 		8-97400-399-0 01 1 0502- ● ● ● ●
5 06.515 NUT; STRG WHEEL TO SHAFT
06.172 M14 		9-99111-414-0 01 1 0211-0501 ● ● ● ● ● ●
5 06.515 NUT; STRG WHEEL TO SHAFT
06.172 M14 		9-99111-414-0 01 1 0502-0506 ● ● ● ● ●
5 06.515 NUT; STRG WHEEL TO SHAFT
06.172 M14 		9-99111-414-0 01 1 0507-0512 ● ● ● ● ● ●
5 06.515 NUT; STRG WHEEL TO SHAFT
M14 		0-91111-514-0 01 1 0601- ● ● ● ● ● ●
6 02.820 SCREW; HORN SPR CONTACT
AIR BAG DRIVER<AJ3> POWER STEERING<N40> M4X12 		8-97167-588-0 04 1 0507- ● ● ● ●
6 02.820 SCREW; HORN SPR CONTACT
AIR BAG DRIVER<AJ3> M4X12 		8-97167-588-0 04 1 0507- ●
6 02.820 SCREW; HORN SPR CONTACT
EXC. POWER STEERING<N40> 		8-94458-316-0 02 1 0211- ● ● ● ●
7 02.819 SPRING; HORN CONTACT
EXC. POWER STEERING<N40> 		8-94150-222-0 02 1 0211- ● ● ● ●
13 06.514 SCREW; CONTACT RING
EXC. POWER STEERING<N40> M3X10 TAPPING 		9-07076-310-0 03 1 0211- ● ● ● ●
20 06.512 SHROUD; PAD,STRG WHEEL
POWER STEERING<N40> DARK GRAY 		8-97098-526-0 01 1 0211-0501 ● ● ● ●
20 06.512 SHROUD; PAD,STRG WHEEL
DARK GRAY 		8-97098-526-0 01 1 0211-0501 ● ●
20 06.512 SHROUD; PAD,STRG WHEEL
POWER STEERING<N40> DARK GRAY 		8-97400-049-0 01 1 0502-0506 ● ● ● ●
20 06.512 SHROUD; PAD,STRG WHEEL
DARK GRAY 		8-97400-049-0 01 1 0502-0506 ●
20 06.512 SHROUD; PAD,STRG WHEEL
POWER STEERING<N40> EXC. AIR BAG DRIVER<AJ3> DARK GRAY 		8-97400-049-0 01 1 0507- ● ● ● ●
20 06.512 SHROUD; PAD,STRG WHEEL
EXC. AIR BAG DRIVER<AJ3> DARK GRAY 		8-97400-049-0 01 1 0507- ●
20 06.512 SHROUD; PAD,STRG WHEEL
DARK GRAY 		8-97400-049-0 01 1 0507- ●
20 06.512 SHROUD; PAD,STRG WHEEL
EXC. POWER STEERING<N40> DARK GRAY 		8-97158-724-0 01 1 0211-0501 ● ● ● ●
20 06.512 SHROUD; PAD,STRG WHEEL
EXC. POWER STEERING<N40> DARK GRAY 		8-97400-396-0 01 1 0502- ● ● ● ●
30 06.518 COWL; STEERING
AIR BAG DRIVER<AJ3> PTO TRANSMISSION SIDE(V66) DARK GRAY 		8-97404-018-1 01 1 0507- ● ● ● ●
30 06.518 COWL; STEERING
AIR BAG DRIVER<AJ3> EXC. PTO TRANSMISSION SIDE(V66) DARK GRAY 		8-97404-017-1 01 1 0507- ● ● ● ●
30 06.518 COWL; STEERING
AIR BAG DRIVER<AJ3> DARK GRAY 		8-97404-017-1 01 1 0507- ●
30 06.518 COWL; STEERING
PTO TRANSMISSION SIDE(V66) EXC. TILT STEERING<N33> BLACK 		8-97997-904-7 01 1 0211-0501 ● ● ● ● ● ●
30 06.518 COWL; STEERING
PTO TRANSMISSION SIDE(V66) EXC. TILT STEERING<N33> DARK GRAY 		8-97588-867-7 01 1 0502-0504 ● ● ● ●
30 06.518 COWL; STEERING
PTO TRANSMISSION SIDE(V66) EXC. TILT STEERING<N33> DARK GRAY 		8-97588-867-7 01 1 0505-0506 ● ● ● ● ●
30 06.518 COWL; STEERING
PTO TRANSMISSION SIDE(V66) EXC. AIR BAG DRIVER<AJ3>,TILT STEERING<N33> DARK GRAY 		8-97588-867-7 01 1 0507- ● ● ● ●
30 06.518 COWL; STEERING
PTO TRANSMISSION SIDE(V66) EXC. TILT STEERING<N33> DARK GRAY 		8-97588-867-7 01 1 0507- ●
30 06.518 COWL; STEERING
TILT STEERING<N33> PTO TRANSMISSION SIDE(V66) BLACK 		8-97197-937-8 01 1 0211-0501 ● ● ● ● ● ●
30 06.518 COWL; STEERING
TILT STEERING<N33> PTO TRANSMISSION SIDE(V66) DARK GRAY 		8-97582-825-8 01 1 0502-0506 ● ● ● ● ●
30 06.518 COWL; STEERING
TILT STEERING<N33> PTO TRANSMISSION SIDE(V66) EXC. AIR BAG DRIVER<AJ3> DARK GRAY 		8-97582-825-8 01 1 0507- ● ● ● ●
30 06.518 COWL; STEERING
TILT STEERING<N33> PTO TRANSMISSION SIDE(V66) DARK GRAY 		8-97582-825-8 01 1 0507- ●
30 06.518 COWL; STEERING
TILT STEERING<N33> EXC. PTO TRANSMISSION SIDE(V66) BLACK 		8-97197-936-8 01 1 0211-0501 ● ● ● ● ● ●
30 06.518 COWL; STEERING
TILT STEERING<N33> EXC. PTO TRANSMISSION SIDE(V66) DARK GRAY 		8-97582-824-8 01 1 0502-0506 ● ● ● ● ●
30 06.518 COWL; STEERING
TILT STEERING<N33> EXC. AIR BAG DRIVER<AJ3>,PTO TRANSMISSION SIDE(V66) DARK GRAY 		8-97582-824-8 01 1 0507- ● ● ● ●
30 06.518 COWL; STEERING
TILT STEERING<N33> EXC. AIR BAG DRIVER<AJ3> DARK GRAY 		8-97582-824-8 01 1 0507- ●
30 06.518 COWL; STEERING
TILT STEERING<N33> EXC. PTO TRANSMISSION SIDE(V66) DARK GRAY 		8-97582-824-8 01 1 0507- ●
30 06.518 COWL; STEERING
EXC. TILT STEERING<N33>,PTO TRANSMISSION SIDE(V66) BLACK 		8-97997-903-7 01 1 0211-0501 ● ● ● ● ● ●
30 06.518 COWL; STEERING
EXC. TILT STEERING<N33>,PTO TRANSMISSION SIDE(V66) DARK GRAY 		8-97587-492-7 01 1 0502-0506 ● ● ● ● ●
30 06.518 COWL; STEERING
EXC. AIR BAG DRIVER<AJ3>,TILT STEERING<N33>,PTO TRANSMISSION SIDE(V66) DARK GRAY 		8-97587-492-7 01 1 0507- ● ● ● ●
30 06.518 COWL; STEERING
EXC. AIR BAG DRIVER<AJ3>,TILT STEERING<N33> DARK GRAY 		8-97587-492-7 01 1 0507- ●
30 06.518 COWL; STEERING
EXC. TILT STEERING<N33>,PTO TRANSMISSION SIDE(V66) DARK GRAY 		8-97587-492-7 01 1 0507- ●
44 06.514 SCREW; STRG COWL
M5X16 W/LK&PL WASHER 		8-94279-400-0 02 1 0211-0501 ● ● ● ● ● ●
44 06.514 SCREW; STRG COWL
M5X16 W/LK&PL WASHER 		8-94279-400-0 02 1 0502-0506 ● ● ● ● ●
44 06.514 SCREW; STRG COWL
M5X16 W/LK&PL WASHER 		8-94279-400-0 02 1 0507-0612 ● ● ● ● ● ●
44 06.514 SCREW; STRG COWL
M5X12 		0-38050-512-0 02 1 0701- ● ● ● ● ● ●
81 02.820 EMBLEM; STRG WHEEL
POWER STEERING<N40> (A) DARK GRAY 		8-97098-527-0 01 1 0211-0501 ● ● ● ●
81 02.820 EMBLEM; STRG WHEEL
(A) DARK GRAY 		8-97098-527-0 01 1 0211-0501 ● ●
81 02.820 EMBLEM; STRG WHEEL
POWER STEERING<N40> (A) DARK GRAY 		8-97400-060-0 01 1 0502-0506 ● ● ● ●
81 02.820 EMBLEM; STRG WHEEL
(A) DARK GRAY 		8-97400-060-0 01 1 0502-0506 ●
81 02.820 EMBLEM; STRG WHEEL
POWER STEERING<N40> EXC. AIR BAG DRIVER<AJ3> (A) DARK GRAY 		8-97400-060-0 01 1 0507- ● ● ● ●
81 02.820 EMBLEM; STRG WHEEL
EXC. AIR BAG DRIVER<AJ3> (A) DARK GRAY 		8-97400-060-0 01 1 0507- ●
81 02.820 EMBLEM; STRG WHEEL
(A) DARK GRAY 		8-97400-060-0 01 1 0507- ●
81 02.820 EMBLEM; STRG WHEEL
EXC. POWER STEERING<N40> (B) DARK GRAY 		8-97158-725-0 01 1 0211-0501 ● ● ● ●
81 02.820 EMBLEM; STRG WHEEL
EXC. POWER STEERING<N40> (B) DARK GRAY 		8-97400-397-0 01 1 0502- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
