◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50948 - NPR/NQR RHDEXC.EURO4 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-11 - FRONT HUB AND DRUM OR ROTOR ▶
4-11 — FRONT HUB AND DRUM OR ROTOR (#18271) — 305 parça

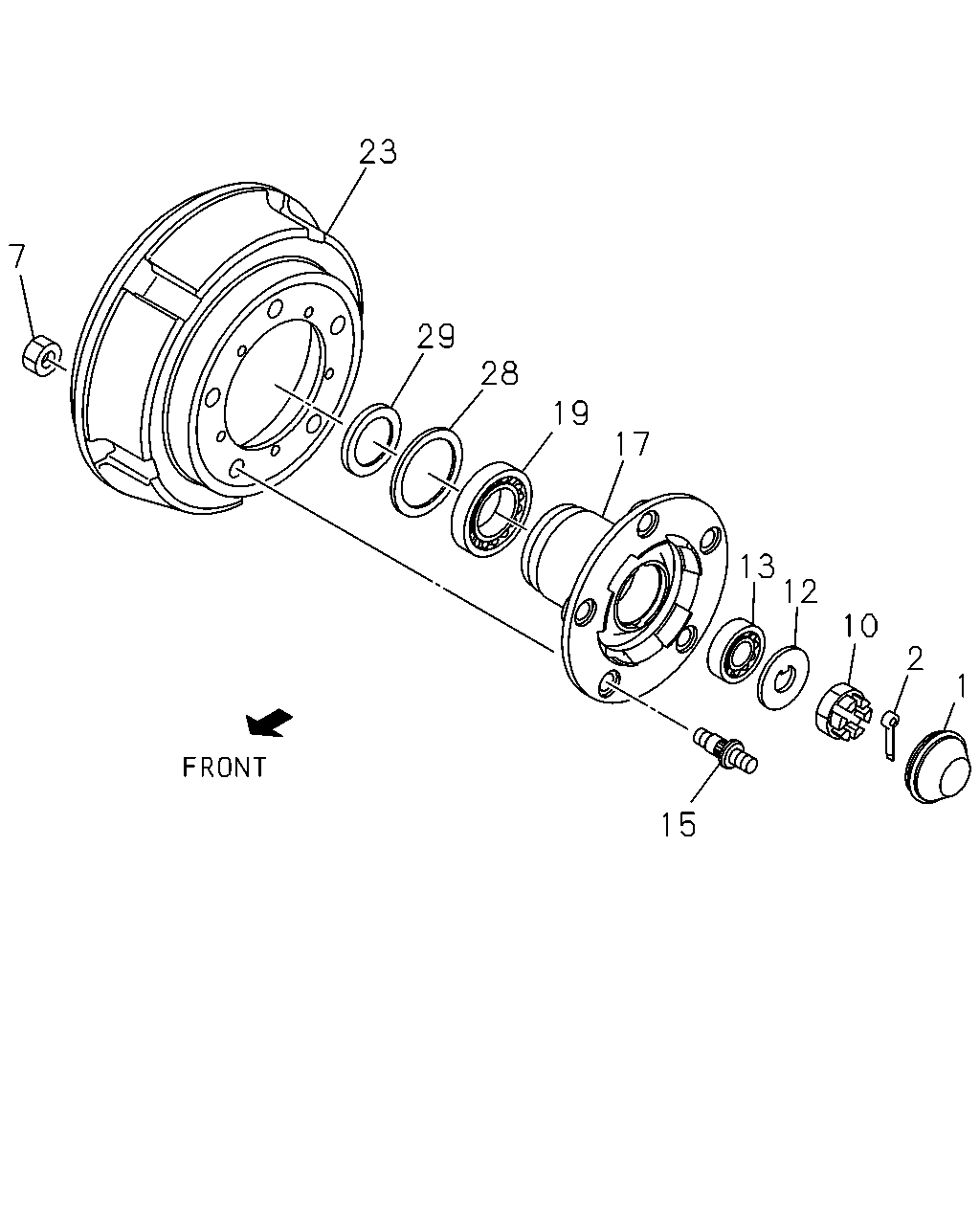

çizim 52644
23 7 29 28 19 17 13 12 10 2 1 15
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 06.330 CAP; HUB,FRT AXLE 8-97012-619-0 02 1 0211-0501 ● ● ● ● ● ●
1 06.330 CAP; HUB,FRT AXLE 8-97012-619-0 02 1 0502-0506 ● ● ● ● ●
1 06.330 CAP; HUB,FRT AXLE 8-97012-619-0 02 1 0507-0611 ● ● ● ● ● ●
1 06.330 CAP; HUB,FRT AXLE 8-97360-101-0 02 1 0612-1407 ● ● ● ● ● ●
1 06.330 CAP; HUB,FRT AXLE 8-98276-604-0 02 1 1408-1511 ● ● ● ● ● ●
1 06.330 CAP; HUB,FRT AXLE 8-98331-242-0 02 1 1512- ● ● ● ● ● ●
2 05.812 PIN; SPLIT,HUB TO AXLE SHAFT
OD=4.6 L=40 		9-08115-040-0 02 1 0211-0501 ● ● ● ● ● ●
2 05.812 PIN; SPLIT,HUB TO AXLE SHAFT
OD=4.6 L=40 		9-08115-040-0 02 1 0502-0506 ● ● ● ● ●
2 05.812 PIN; SPLIT,HUB TO AXLE SHAFT
OD=4.6 L=40 		9-08115-040-0 02 1 0507-0606 ● ● ● ● ● ●
2 05.812 PIN; SPLIT,HUB TO AXLE SHAFT
OD=4.6 L=40 		0-81125-040-0 02 1 0607- ● ● ● ● ● ●
7 05.812 NUT; FRT HUB
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY), G.V.W. 8.0-8.5TON(RPZ) 05.813 M22 		9-09110-522-0 12 1 0211-0501 ● ● ● ● ●
7 05.812 NUT; FRT HUB
G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) 05.813 M22 		9-09110-522-0 12 1 0502-0506 ● ● ● ●
7 05.812 NUT; FRT HUB
G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 05.813 M22 		9-09110-522-0 12 1 0507-0512 ● ● ● ●
7 05.812 NUT; FRT HUB
G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 07.172 M22 		0-91110-522-0 12 1 0601-0709 ● ● ● ●
7 05.812 NUT; FRT HUB
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. DISC BRAKE FRT<J52> 07.172 M22 		0-91110-522-0 12 1 0710- ● ● ● ●
7 05.812 NUT; FRT HUB
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) 00.050 M20 		9-99110-520-0 10 1 0211-0501 ● ● ● ●
7 05.812 NUT; FRT HUB
G.V.W. 6.0-6.5TON(RPV) EXC. VEHICLE CATEGORY NQR<7NQ>,HYDRO BRAKE BOOSTER<7QQ> 00.050 M20 		9-99110-520-0 10 1 0502-0502 ● ● ●
7 05.812 NUT; FRT HUB
G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO BRAKE BOOSTER<7QQ> 00.050 M20 		9-99110-520-0 10 1 0502-0506 ● ● ●
7 05.812 NUT; FRT HUB
G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>,HYDRO BRAKE BOOSTER<7QQ> 00.050 M20 		9-99110-520-0 10 1 0507-0512 ● ● ●
7 05.812 NUT; FRT HUB
G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>,HYDRO BRAKE BOOSTER<7QQ> M20 		0-91110-520-0 10 1 0601- ● ● ●
10 05.812 NUT; FRT HUB BRG
06.022 		8-94247-357-1 02 1 0211-0501 ● ● ● ● ● ●
10 05.812 NUT; FRT HUB BRG
06.022 		8-94247-357-1 02 1 0502-0506 ● ● ● ● ●
10 05.812 NUT; FRT HUB BRG
06.022 		8-94247-357-1 02 1 0507- ● ● ● ● ● ●
12 06.321 WASHER; LK,FRT HUB BRG 8-94247-356-1 02 1 0211-0501 ● ● ● ● ● ●
12 06.321 WASHER; LK,FRT HUB BRG 8-94247-356-1 02 1 0502-0506 ● ● ● ● ●
12 06.321 WASHER; LK,FRT HUB BRG 8-94247-356-1 02 1 0507-1502 ● ● ● ● ● ●
12 06.321 WASHER; LK,FRT HUB BRG
05.812 		8-98282-435-0 02 1 1503- ● ● ● ● ● ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
NSK 		9-00093-172-0 02 1 0211-0501 ● ● ● ● ● ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
NSK 		9-00093-172-0 02 1 0502-0506 ● ● ● ● ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
NSK 		9-00093-172-0 02 1 0507- ● ● ● ● ● ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
BEST VALUE PARTS 		5-87610-134-0 02 1 0211-0501 ● ● ● ● ● ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
BEST VALUE PARTS 		5-87610-134-0 02 1 0502-0506 ● ● ● ● ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
BEST VALUE PARTS 		5-87610-134-0 02 1 0507- ● ● ● ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 6.0-6.5TON(RPV),G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX), G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) DISC BRAKE FRT<J52> M20X53 RH THREAD 		8-97168-456-2 06 1 0507- ● ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
M20X53 RH THREAD 		8-97168-456-2 06 1 0507- ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 6.0-6.5TON(RPV),G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX), G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) DISC BRAKE FRT<J52> M20X53 LH THREAD 		8-97168-457-2 06 1 0507- ● ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
M20X53 LH THREAD 		8-97168-457-2 06 1 0507- ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. HYDRO BRAKE BOOSTER<7QQ> M20X28 LH THREAD,M22X57 RH THREAD 		8-97081-585-1 06 1 0211-0501 ● ● ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 8.0-8.5TON(RPZ) FRT&RR 8.25-16-12 16X6.00GS-135 6-WHL /NUT(9ZM),FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT(9ZP) M20X28 LH THREAD,M22X57 RH THREAD 		8-97081-585-1 06 1 0211-0501 ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 7.0-7.5TON(RPX) M20X28 LH THREAD,M22X57 RH THREAD 		8-97081-585-1 06 1 0502-0506 ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 8.0-8.5TON(RPZ) FRT&RR 8.25-16-12 16X6.00GS-135 6-WHL /NUT(9ZM),FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT(9ZP) M20X28 LH THREAD,M22X57 RH THREAD 		8-97081-585-1 06 1 0502-0506 ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 7.0-7.5TON(RPX) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> M20X28 LH THREAD,M22X57 RH THREAD 		8-97081-585-4 06 1 0507- ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 8.0-8.5TON(RPZ) FRT&RR 8.25-16-12 16X6.00GS-135 6-WHL /NUT(9ZM),FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT(9ZP) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> M20X28 LH THREAD,M22X57 RH THREAD 		8-97081-585-4 06 1 0507- ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. HYDRO BRAKE BOOSTER<7QQ> M20X28,M22X57 RH THREAD 		8-97081-584-1 06 1 0211-0501 ● ● ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 8.0-8.5TON(RPZ) FRT&RR 8.25-16-12 16X6.00GS-135 6-WHL /NUT(9ZM),FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT(9ZP) M20X28,M22X57 RH THREAD 		8-97081-584-1 06 1 0211-0501 ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 7.0-7.5TON(RPX) M20X28,M22X57 RH THREAD 		8-97081-584-1 06 1 0502-0506 ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 8.0-8.5TON(RPZ) FRT&RR 8.25-16-12 16X6.00GS-135 6-WHL /NUT(9ZM),FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT(9ZP) M20X28,M22X57 RH THREAD 		8-97081-584-1 06 1 0502-0506 ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 7.0-7.5TON(RPX) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> M20X28,M22X57 RH THREAD 		8-97081-584-4 06 1 0507- ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 8.0-8.5TON(RPZ) FRT&RR 8.25-16-12 16X6.00GS-135 6-WHL /NUT(9ZM),FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT(9ZP) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> M20X28,M22X57 RH THREAD 		8-97081-584-4 06 1 0507- ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) FRT&RR 205/85R16 16X5.5J-116.5(AXZ), FRT&RR TIRE 195-85R16 DISC 16-5.5J-116 .5(CPG),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7-16-10 16X5.5F-115 T/VLVTR177A(95H),FRT&RR 7-16-12 16X5.5F-11 5(96H),FRT&RR 7-16-10L 5.5FX16-115 T/VLV TR177A(98H) M18X29 LH THREAD,M20X43.5 RH THREAD 		8-94383-437-1 05 1 0211-0501 ● ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 6.0-6.5TON(RPV) FRT&RR 7R-16-10 16X5.5F-115(07H), FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-12 16X5.5F-115(96H),F RT&RR 7-16-10L 5.5FX16-115 T/VLV TR17 7A(98H) M18X29 LH THREAD,M20X43.5 RH THREAD 		8-94383-437-2 05 1 0502-0506 ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 6.0-6.5TON(RPV) FRT&RR 7R-16-10 16X5.5F-115(07H), FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-12 16X5.5F-115(96H),F RT&RR 7-16-10L 5.5FX16-115 T/VLV TR17 7A(98H) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> M18X29 LH THREAD,M20X43.5 RH THREAD 		8-94383-437-2 05 1 0507- ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) FRT&RR 205/85R16 16X5.5J-116.5(AXZ), FRT&RR TIRE 195-85R16 DISC 16-5.5J-116 .5(CPG),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7-16-10 16X5.5F-115 T/VLVTR177A(95H),FRT&RR 7-16-12 16X5.5F-11 5(96H),FRT&RR 7-16-10L 5.5FX16-115 T/VLV TR177A(98H) M18X29,M20X43.5 RH THREAD 		8-94383-436-1 05 1 0211-0501 ● ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 6.0-6.5TON(RPV) FRT&RR 7R-16-10 16X5.5F-115(07H), FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-12 16X5.5F-115(96H),F RT&RR 7-16-10L 5.5FX16-115 T/VLV TR17 7A(98H) M18X29,M20X43.5 RH THREAD 		8-94383-436-2 05 1 0502-0506 ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 6.0-6.5TON(RPV) FRT&RR 7R-16-10 16X5.5F-115(07H), FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-12 16X5.5F-115(96H),F RT&RR 7-16-10L 5.5FX16-115 T/VLV TR17 7A(98H) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> M18X29,M20X43.5 RH THREAD 		8-94383-436-2 05 1 0507- ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) FRT&RR 7.5-16-8 6GSX16-127(10H), FRT&RR 7.5-16-10 6GSX16-127(11H),FRT&RR 7. 5-16-12 6GSX16-127(12H),FRT&RR 7.5-16-8L 6GSX16-127(14H),FRT&RR 7.5R-16-12 6GSX16-127(19H) M18X29 LH THREAD,M20X55 RH THREAD 		8-97017-044-1 05 1 0211-0501 ● ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 6.0-6.5TON(RPV) FRT&RR 7.5-16-8 6GSX16-127(10H), FRT&RR 7.5-16-10 6GSX16-127(11H),FRT&RR 7. 5-16-12 6GSX16-127(12H),FRT&RR 7.5-16-8L 6GSX16-127(14H),FRT&RR 7.5R-16-12 6GSX16-127(19H) M18X29 LH THREAD,M20X55 RH THREAD 		8-97017-044-2 05 1 0502-0506 ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 6.0-6.5TON(RPV) FRT&RR 7.5-16-8 6GSX16-127(10H), FRT&RR 7.5-16-10 6GSX16-127(11H),FRT&RR 7. 5-16-12 6GSX16-127(12H),FRT&RR 7.5-16-8L 6GSX16-127(14H),FRT&RR 7.5R-16-12 6GSX16-127(19H) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> M18X29 LH THREAD,M20X55 RH THREAD 		8-97017-044-2 05 1 0507-0811 ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 6.0-6.5TON(RPV) FRT&RR 7.5R-16-10 DISC 6.00GSX16-127(CUV),FRT&RR 7.5-16-8 6GSX16-127(10H), FRT&RR 7.5-16-10 6GSX16-127(11H), FRT&RR 7.5-16-12 6GSX16-127(12H),FRT&RR 7 .5-16-8L 6GSX16-127(14H),FRT&RR 7.5R-16-12 6GSX16-127(19H) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> M18X29 LH THREAD,M20X55 RH THREAD 		8-97017-044-2 05 1 0812- ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) FRT&RR 7.5-16-8 6GSX16-127(10H), FRT&RR 7.5-16-10 6GSX16-127(11H),FRT&RR 7. 5-16-12 6GSX16-127(12H),FRT&RR 7.5-16-8L 6GSX16-127(14H),FRT&RR 7.5R-16-12 6GSX16-127(19H) M18X29,M20X55 RH THREAD 		8-97017-043-1 05 1 0211-0501 ● ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 6.0-6.5TON(RPV) FRT&RR 7.5-16-8 6GSX16-127(10H), FRT&RR 7.5-16-10 6GSX16-127(11H),FRT&RR 7. 5-16-12 6GSX16-127(12H),FRT&RR 7.5-16-8L 6GSX16-127(14H),FRT&RR 7.5R-16-12 6GSX16-127(19H) M18X29,M20X55 RH THREAD 		8-97017-043-2 05 1 0502-0506 ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 6.0-6.5TON(RPV) FRT&RR 7.5-16-8 6GSX16-127(10H), FRT&RR 7.5-16-10 6GSX16-127(11H),FRT&RR 7. 5-16-12 6GSX16-127(12H),FRT&RR 7.5-16-8L 6GSX16-127(14H),FRT&RR 7.5R-16-12 6GSX16-127(19H) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> M18X29,M20X55 RH THREAD 		8-97017-043-2 05 1 0507-0811 ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 6.0-6.5TON(RPV) FRT&RR 7.5R-16-10 DISC 6.00GSX16-127(CUV),FRT&RR 7.5-16-8 6GSX16-127(10H), FRT&RR 7.5-16-10 6GSX16-127(11H), FRT&RR 7.5-16-12 6GSX16-127(12H),FRT&RR 7 .5-16-8L 6GSX16-127(14H),FRT&RR 7.5R-16-12 6GSX16-127(19H) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> M18X29,M20X55 RH THREAD 		8-97017-043-2 05 1 0812- ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 8.0-8.5TON(RPZ) FRT&RR TIRE 215-75R17.5 DISC 17.5-6J- 127WHITE(AUJ),FRT&RR TIRE 215-75R17.5DISC 17.5-6J-127(AUS),FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127WHITE(AVK), FRT&RR TIRE 205-75R17.5 DISC 17.5X6.0 0-127(CPH),FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-1 6-12 6GSX16-127 6-WHL/NUT(05C), FRT&RR7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) ,FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GSX16-127 6 WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-106GSX16-127 6-WHL/NUT DYNAMIC(97V) M20X28 LH THREAD,M22X50 RH THREAD 		8-97131-284-0 06 1 0211-0501 ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 8.0-8.5TON(RPZ) FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT (03C),FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16 -127 6-WHL/NUT(05C),FRT&RR 7.5R-16-106GSX16-127 6-WHL/NUT(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT& RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYN AMIC(95V),FRT&RR 7.5-16-10 6GSX16-1276-WHL/NUT DYNAMIC(97V) M20X28 LH THREAD,M22X50 RH THREAD 		8-97131-284-0 06 1 0502-0506 ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 8.0-8.5TON(RPZ) FRT&RR TIRE 205-75R17.5 DISC 17.5X6.0 0-127(CPH),FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU),FRT&RR 225/70R19.5 19.5X6.00-127(CRR),FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT& RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GS X16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMI C(97V) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> M20X28 LH THREAD,M22X50 RH THREAD 		8-97131-284-0 06 1 0507-0508 ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 8.0-8.5TON(RPZ) FRT&RR 215/75R17.5 17.5X6.00-127 SILV ER(CQU),FRT&RR 225/70R19.5 19.5X6.00-127(CRR),F&R TIRE 205/75R17.5(MICHELIN)17.5X6.00-127(CSM),FRT&RR 7.5-16-126GSX16-127 6-WHL/NUT(03C),FRT&RR 7.5 -16-12L 6GSX16-127 6-WHL/NUT(04C), FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V),FRT&RR 7.5-16-14 6GSX16-12 7 6-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAM IC(97V) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> M20X28 LH THREAD,M22X50 RH THREAD 		8-97131-284-0 06 1 0509-0604 ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 8.0-8.5TON(RPZ) FRT&RR 225/70R19.5 19.5X6.00-127(CRR) ,F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),F&R TIRE 205/75R17.5(MICHELIN)17.5X6.00-127(CSM),FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT(03C),FRT& RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-12 7 6-WHL/NUT(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT&RR 7.5-16- 10L 6GSX16-127 6WHL/NUT DYNAMIC(95V), FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC(97V) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> M20X28 LH THREAD,M22X50 RH THREAD 		8-97131-284-0 06 1 0605-0606 ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 8.0-8.5TON(RPZ) FRT&RR 225/80R17.5 17.5X6.00-127(BXP) ,FRT&RR 225/70R19.5 19.5X6.00-127(CRR),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),F&R TIRE 205/75R17.5(MICHELIN)17.5X6.00-127(CSM),FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT(03C),FRT &RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-1 27 6-WHL/NUT(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT&RR 7.5-16 -10L 6GSX16-127 6WHL/NUT DYNAMIC(95V) ,FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC(97V) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> M20X28 LH THREAD,M22X50 RH THREAD 		8-97131-284-1 06 1 0607-0709 ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 8.0-8.5TON(RPZ) FRT&RR 225/80R17.5 17.5X6.00-127(BXP) ,FRT&RR 225/70R19.5 19.5X6.00-127(CRR),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),F&R TIRE 205/75R17.5(MICHELIN)17.5X6.00-127(CSM),FRT&RR TIRE 215-75R17.5 DISC 17.5-6-127SILVER(CTV),FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6GSX16-1 27 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R- 16-10 6GSX16-127 6-WHL/NUT(83V), FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP) ,FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX1 6-127 6-WHL/NUT DYNAMIC(97V) EXC. DISC BRAKE FRT<J52> M20X28 LH THREAD,M22X50 RH THREAD 		8-97131-284-1 06 1 0710-0811 ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 8.0-8.5TON(RPZ) FRT&RR 225/80R17.5 17.5X6.00-127(BXP) ,FRT&RR 225/70R19.5 19.5X6.00-127(CRR),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),F&R TIRE 205/75R17.5(MICHELIN)17.5X6.00-127(CSM),FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT& RR TIRE 215-75R17.5 DISC 17.5-6-127SI LVER(CTV),FRT&RR 7.5-16-12 6GSX16-1276-WHL/NUT(03C),FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-16 -12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V), FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT (9BP),FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC(97V) EXC. DISC BRAKE FRT<J52> M20X28 LH THREAD,M22X50 RH THREAD 		8-97131-284-3 06 1 0812- ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 8.0-8.5TON(RPZ) FRT&RR TIRE 215-75R17.5 DISC 17.5-6J- 127WHITE(AUJ),FRT&RR TIRE 215-75R17.5DISC 17.5-6J-127(AUS),FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127WHITE(AVK), FRT&RR TIRE 205-75R17.5 DISC 17.5X6.0 0-127(CPH),FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-1 6-12 6GSX16-127 6-WHL/NUT(05C), FRT&RR7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) ,FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GSX16-127 6 WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-106GSX16-127 6-WHL/NUT DYNAMIC(97V) M20X28,M22X50 RH THREAD 		8-97131-283-0 06 1 0211-0501 ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 8.0-8.5TON(RPZ) FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT (03C),FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16 -127 6-WHL/NUT(05C),FRT&RR 7.5R-16-106GSX16-127 6-WHL/NUT(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT& RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYN AMIC(95V),FRT&RR 7.5-16-10 6GSX16-1276-WHL/NUT DYNAMIC(97V) M20X28,M22X50 RH THREAD 		8-97131-283-0 06 1 0502-0506 ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 8.0-8.5TON(RPZ) FRT&RR TIRE 205-75R17.5 DISC 17.5X6.0 0-127(CPH),FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU),FRT&RR 225/70R19.5 19.5X6.00-127(CRR),FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT& RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GS X16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMI C(97V) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> M20X28,M22X50 RH THREAD 		8-97131-283-0 06 1 0507-0508 ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 8.0-8.5TON(RPZ) FRT&RR 215/75R17.5 17.5X6.00-127 SILV ER(CQU),FRT&RR 225/70R19.5 19.5X6.00-127(CRR),F&R TIRE 205/75R17.5(MICHELIN)17.5X6.00-127(CSM),FRT&RR 7.5-16-126GSX16-127 6-WHL/NUT(03C),FRT&RR 7.5 -16-12L 6GSX16-127 6-WHL/NUT(04C), FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V),FRT&RR 7.5-16-14 6GSX16-12 7 6-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAM IC(97V) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> M20X28,M22X50 RH THREAD 		8-97131-283-0 06 1 0509-0604 ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 8.0-8.5TON(RPZ) FRT&RR 225/70R19.5 19.5X6.00-127(CRR) ,F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),F&R TIRE 205/75R17.5(MICHELIN)17.5X6.00-127(CSM),FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT(03C),FRT& RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-12 7 6-WHL/NUT(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT&RR 7.5-16- 10L 6GSX16-127 6WHL/NUT DYNAMIC(95V), FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC(97V) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> M20X28,M22X50 RH THREAD 		8-97131-283-0 06 1 0605-0606 ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 8.0-8.5TON(RPZ) FRT&RR 225/80R17.5 17.5X6.00-127(BXP) ,FRT&RR 225/70R19.5 19.5X6.00-127(CRR),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),F&R TIRE 205/75R17.5(MICHELIN)17.5X6.00-127(CSM),FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT(03C),FRT &RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-1 27 6-WHL/NUT(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT&RR 7.5-16 -10L 6GSX16-127 6WHL/NUT DYNAMIC(95V) ,FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC(97V) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> M20X28,M22X50 RH THREAD 		8-97131-283-1 06 1 0607-0709 ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 8.0-8.5TON(RPZ) FRT&RR 225/80R17.5 17.5X6.00-127(BXP) ,FRT&RR 225/70R19.5 19.5X6.00-127(CRR),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),F&R TIRE 205/75R17.5(MICHELIN)17.5X6.00-127(CSM),FRT&RR TIRE 215-75R17.5 DISC 17.5-6-127SILVER(CTV),FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6GSX16-1 27 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R- 16-10 6GSX16-127 6-WHL/NUT(83V), FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP) ,FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX1 6-127 6-WHL/NUT DYNAMIC(97V) EXC. DISC BRAKE FRT<J52> M20X28,M22X50 RH THREAD 		8-97131-283-1 06 1 0710-0811 ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 8.0-8.5TON(RPZ) FRT&RR 225/80R17.5 17.5X6.00-127(BXP) ,FRT&RR 225/70R19.5 19.5X6.00-127(CRR),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),F&R TIRE 205/75R17.5(MICHELIN)17.5X6.00-127(CSM),FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT& RR TIRE 215-75R17.5 DISC 17.5-6-127SI LVER(CTV),FRT&RR 7.5-16-12 6GSX16-1276-WHL/NUT(03C),FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-16 -12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V), FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT (9BP),FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC(97V) EXC. DISC BRAKE FRT<J52> M20X28,M22X50 RH THREAD 		8-97131-283-3 06 1 0812- ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
M18X46 LH THREAD 		8-97017-042-0 05 1 0211-0506 ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS) M18X46 LH THREAD 		8-97017-042-0 05 1 0507-0605 ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS) M18X46 LH THREAD 		8-98028-533-1 05 1 0606-0910 ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 4.0-4.5TON(RPR) M18X46 LH THREAD 		8-98028-533-1 05 1 0911- ● ●
15 05.812 PIN; WHEEL,FRT AXLE
M18X46 LH THREAD 		8-98028-533-1 05 1 0911- ●
15 05.812 PIN; WHEEL,FRT AXLE
M18X46 RH THREAD 		8-97017-041-0 05 1 0211-0506 ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS) M18X46 RH THREAD 		8-97017-041-0 05 1 0507-0605 ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS) M18X46 RH THREAD 		8-98028-532-1 05 1 0606-0910 ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 4.0-4.5TON(RPR) M18X46 RH THREAD 		8-98028-532-1 05 1 0911- ● ●
15 05.812 PIN; WHEEL,FRT AXLE
M18X46 RH THREAD 		8-98028-532-1 05 1 0911- ●
17 06.307 HUB; FRT AXLE
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) 4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER<7QQ> EXC. DISC BRAKE FRT<J52> 		8-97349-911-0 02 1 0710- ● ● ●
17 06.307 HUB; FRT AXLE
G.V.W. 6.0-6.5TON(RPV),G.V.W. 6.5-7.0TON(RPW) DISC BRAKE FRT<J52> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97233-501-0 02 1 0507- ● ● ●
17 06.307 HUB; FRT AXLE
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) DISC BRAKE FRT<J52> HYDRO BRAKE BOOSTER<7QQ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97233-501-0 02 1 0507- ● ● ●
17 06.307 HUB; FRT AXLE
G.V.W. 4.0-4.5TON(RPR) 		8-97035-160-0 02 1 0507- ● ●
17 06.307 HUB; FRT AXLE
G.V.W. 6.0-6.5TON(RPV),G.V.W. 6.5-7.0TON(RPW) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> 		8-97168-460-0 02 1 0507- ● ● ●
17 06.307 HUB; FRT AXLE
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> HYDRO BRAKE BOOSTER<7QQ> 		8-97168-460-0 02 1 0507- ● ● ●
17 06.307 HUB; FRT AXLE 8-97168-460-0 02 1 0507- ●
17 06.307 HUB; FRT AXLE
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97081-322-0 02 1 0211-0501 ● ● ● ● ●
17 06.307 HUB; FRT AXLE
G.V.W. 7.0-7.5TON(RPX) EXC. VEHICLE CATEGORY NQR<7NQ>,HYDRO BRAKE BOOSTER<7QQ> 		8-97081-322-0 02 1 0502-0502 ● ● ●
17 06.307 HUB; FRT AXLE
G.V.W. 7.0-7.5TON(RPX) EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97081-322-0 02 1 0502-0506 ● ● ●
17 06.307 HUB; FRT AXLE
G.V.W. 7.0-7.5TON(RPX) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 		8-97081-322-0 02 1 0507- ● ● ●
17 06.307 HUB; FRT AXLE
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) FRT&RR 205/85R16 16X5.5J-116.5(AXZ), FRT&RR TIRE 195-85R16 DISC 16-5.5J-116 .5(CPG),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7-16-10 16X5.5F-115 T/VLVTR177A(95H),FRT&RR 7-16-12 16X5.5F-11 5(96H),FRT&RR 7-16-10L 5.5FX16-115 T/VLV TR177A(98H) 		8-94365-459-0 02 1 0211-0501 ● ● ● ●
17 06.307 HUB; FRT AXLE
G.V.W. 6.0-6.5TON(RPV) FRT&RR 7R-16-10 16X5.5F-115(07H), FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-12 16X5.5F-115(96H),F RT&RR 7-16-10L 5.5FX16-115 T/VLV TR17 7A(98H) 		8-94365-459-0 02 1 0502-0506 ● ● ●
17 06.307 HUB; FRT AXLE
G.V.W. 6.0-6.5TON(RPV) FRT&RR 7R-16-10 16X5.5F-115(07H), FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-12 16X5.5F-115(96H),F RT&RR 7-16-10L 5.5FX16-115 T/VLV TR17 7A(98H) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 		8-94365-459-0 02 1 0507- ● ● ●
17 06.307 HUB; FRT AXLE
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) FRT&RR 7.5-16-8 6GSX16-127(10H), FRT&RR 7.5-16-10 6GSX16-127(11H),FRT&RR 7. 5-16-12 6GSX16-127(12H),FRT&RR 7.5-16-8L 6GSX16-127(14H),FRT&RR 7.5R-16-12 6GSX16-127(19H) 		8-97017-206-0 02 1 0211-0501 ● ● ● ●
17 06.307 HUB; FRT AXLE
G.V.W. 6.0-6.5TON(RPV) FRT&RR 7.5-16-8 6GSX16-127(10H), FRT&RR 7.5-16-10 6GSX16-127(11H),FRT&RR 7. 5-16-12 6GSX16-127(12H),FRT&RR 7.5-16-8L 6GSX16-127(14H),FRT&RR 7.5R-16-12 6GSX16-127(19H) 		8-97017-206-0 02 1 0502-0506 ● ● ●
17 06.307 HUB; FRT AXLE
G.V.W. 6.0-6.5TON(RPV) FRT&RR 7.5-16-8 6GSX16-127(10H), FRT&RR 7.5-16-10 6GSX16-127(11H),FRT&RR 7. 5-16-12 6GSX16-127(12H),FRT&RR 7.5-16-8L 6GSX16-127(14H),FRT&RR 7.5R-16-12 6GSX16-127(19H) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 		8-97017-206-0 02 1 0507-0811 ● ● ●
17 06.307 HUB; FRT AXLE
G.V.W. 6.0-6.5TON(RPV) FRT&RR 7.5R-16-10 DISC 6.00GSX16-127(CUV),FRT&RR 7.5-16-8 6GSX16-127(10H), FRT&RR 7.5-16-10 6GSX16-127(11H), FRT&RR 7.5-16-12 6GSX16-127(12H),FRT&RR 7 .5-16-8L 6GSX16-127(14H),FRT&RR 7.5R-16-12 6GSX16-127(19H) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 		8-97017-206-0 02 1 0812- ● ● ●
17 06.307 HUB; FRT AXLE
G.V.W. 8.0-8.5TON(RPZ) FRT&RR 8.25-16-12 16X6.00GS-135 6-WHL /NUT(9ZM),FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT(9ZP) 		8-97107-414-0 02 1 0211- ● ● ●
17 06.307 HUB; FRT AXLE
G.V.W. 8.0-8.5TON(RPZ) FRT&RR TIRE 215-75R17.5 DISC 17.5-6J- 127WHITE(AUJ),FRT&RR TIRE 215-75R17.5DISC 17.5-6J-127(AUS),FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127WHITE(AVK), FRT&RR TIRE 205-75R17.5 DISC 17.5X6.0 0-127(CPH),FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-1 6-12 6GSX16-127 6-WHL/NUT(05C), FRT&RR7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) ,FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GSX16-127 6 WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-106GSX16-127 6-WHL/NUT DYNAMIC(97V) 		8-97131-236-0 02 1 0211-0501 ● ● ●
17 06.307 HUB; FRT AXLE
G.V.W. 8.0-8.5TON(RPZ) FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT (03C),FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16 -127 6-WHL/NUT(05C),FRT&RR 7.5R-16-106GSX16-127 6-WHL/NUT(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT& RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYN AMIC(95V),FRT&RR 7.5-16-10 6GSX16-1276-WHL/NUT DYNAMIC(97V) 		8-97131-236-0 02 1 0502-0506 ● ● ●
17 06.307 HUB; FRT AXLE
G.V.W. 8.0-8.5TON(RPZ) FRT&RR TIRE 205-75R17.5 DISC 17.5X6.0 0-127(CPH),FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU),FRT&RR 225/70R19.5 19.5X6.00-127(CRR),FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT& RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GS X16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMI C(97V) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 		8-97131-236-0 02 1 0507-0508 ● ● ●
17 06.307 HUB; FRT AXLE
G.V.W. 8.0-8.5TON(RPZ) FRT&RR 215/75R17.5 17.5X6.00-127 SILV ER(CQU),FRT&RR 225/70R19.5 19.5X6.00-127(CRR),F&R TIRE 205/75R17.5(MICHELIN)17.5X6.00-127(CSM),FRT&RR 7.5-16-126GSX16-127 6-WHL/NUT(03C),FRT&RR 7.5 -16-12L 6GSX16-127 6-WHL/NUT(04C), FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V),FRT&RR 7.5-16-14 6GSX16-12 7 6-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAM IC(97V) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 		8-97131-236-0 02 1 0509-0604 ● ● ●
17 06.307 HUB; FRT AXLE
G.V.W. 8.0-8.5TON(RPZ) FRT&RR 225/70R19.5 19.5X6.00-127(CRR) ,F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),F&R TIRE 205/75R17.5(MICHELIN)17.5X6.00-127(CSM),FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT(03C),FRT& RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-12 7 6-WHL/NUT(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT&RR 7.5-16- 10L 6GSX16-127 6WHL/NUT DYNAMIC(95V), FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC(97V) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 		8-97131-236-0 02 1 0605-0606 ● ● ●
17 06.307 HUB; FRT AXLE
G.V.W. 8.0-8.5TON(RPZ) FRT&RR 225/80R17.5 17.5X6.00-127(BXP) ,FRT&RR 225/70R19.5 19.5X6.00-127(CRR),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),F&R TIRE 205/75R17.5(MICHELIN)17.5X6.00-127(CSM),FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT(03C),FRT &RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-1 27 6-WHL/NUT(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT&RR 7.5-16 -10L 6GSX16-127 6WHL/NUT DYNAMIC(95V) ,FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC(97V) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 		8-97131-236-0 02 1 0607-0811 ● ● ●
17 06.307 HUB; FRT AXLE
G.V.W. 8.0-8.5TON(RPZ) FRT&RR 225/80R17.5 17.5X6.00-127(BXP) ,FRT&RR 225/70R19.5 19.5X6.00-127(CRR),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),F&R TIRE 205/75R17.5(MICHELIN)17.5X6.00-127(CSM),FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT& RR TIRE 215-75R17.5 DISC 17.5-6-127SI LVER(CTV),FRT&RR 7.5-16-12 6GSX16-1276-WHL/NUT(03C),FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-16 -12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V), FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT (9BP),FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC(97V) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 		8-97131-236-0 02 1 0812- ● ● ●
17 06.307 HUB; FRT AXLE 8-97017-193-0 02 1 0211- ●
19 06.311 BEARING; HUB INNER,FRT AXLE
JTEKT 		8-94248-088-2 02 1 0211-0501 ● ● ● ● ● ●
19 06.311 BEARING; HUB INNER,FRT AXLE
JTEKT 		8-94248-088-2 02 1 0502-0506 ● ● ● ● ●
19 06.311 BEARING; HUB INNER,FRT AXLE
JTEKT 		8-94248-088-2 02 1 0507-1009 ● ● ● ● ● ●
19 06.311 BEARING; HUB INNER,FRT AXLE
JTEKT 		8-98171-254-0 02 1 1010- ● ● ● ● ● ●
19 06.311 BEARING; HUB INNER,FRT AXLE
NSK 		9-00093-149-0 02 1 0211-0501 ● ● ● ● ● ●
19 06.311 BEARING; HUB INNER,FRT AXLE
NSK 		9-00093-149-0 02 1 0502-0506 ● ● ● ● ●
19 06.311 BEARING; HUB INNER,FRT AXLE
NSK 		9-00093-149-0 02 1 0507-1009 ● ● ● ● ● ●
19 06.311 BEARING; HUB INNER,FRT AXLE
BEST VALUE PARTS 		1-87610-134-0 02 1 1010- ● ● ● ● ● ●
23 05.809 DRUM; BRK,FRT
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97081-218-2 02 1 0211-0501 ● ● ● ● ●
23 05.809 DRUM; BRK,FRT
G.V.W. 7.0-7.5TON(RPX) EXC. VEHICLE CATEGORY NQR<7NQ>,HYDRO BRAKE BOOSTER<7QQ> 		8-97081-218-2 02 1 0502-0502 ● ● ●
23 05.809 DRUM; BRK,FRT
G.V.W. 7.0-7.5TON(RPX) EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97081-218-2 02 1 0502-0506 ● ● ●
23 05.809 DRUM; BRK,FRT
G.V.W. 7.0-7.5TON(RPX) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 		8-97081-218-2 02 1 0507- ● ● ●
23 05.809 DRUM; BRK,FRT
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) 		8-94385-650-3 02 1 0211-0501 ● ● ● ●
23 05.809 DRUM; BRK,FRT
G.V.W. 6.0-6.5TON(RPV) EXC. VEHICLE CATEGORY NQR<7NQ>,HYDRO BRAKE BOOSTER<7QQ> 		8-94385-650-3 02 1 0502-0502 ● ● ●
23 05.809 DRUM; BRK,FRT
G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-94385-650-3 02 1 0502-0506 ● ● ●
23 05.809 DRUM; BRK,FRT
G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>,HYDRO BRAKE BOOSTER<7QQ> 		8-94385-650-3 02 1 0507- ● ● ●
23 05.809 DRUM; BRK,FRT
FRT&RR TIRE 215-75R17.5 DISC 17.5-6J- 127WHITE(AUJ),FRT&RR TIRE 215-75R17.5DISC 17.5-6J-127(AUS),FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127WHITE(AVK), FRT&RR TIRE 205-75R17.5 DISC 17.5X6.0 0-127(CPH) G.V.W. 8.0-8.5TON(RPZ) HYDRO BRAKE BOOSTER<7QQ> 		8-97188-016-0 02 1 0211-0501 ● ● ●
23 05.809 DRUM; BRK,FRT
G.V.W. 8.0-8.5TON(RPZ) FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT (03C),FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16 -127 6-WHL/NUT(05C),FRT&RR 7.5R-16-106GSX16-127 6-WHL/NUT(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT& RR 8.25-16-12 16X6.00GS-135 6-WHL/NUT (9ZM),FRT&RR 8.25-16-14 16X6.00GS-1356-WHL/NUT(9ZP),FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMI C(97V) HYDRO BRAKE BOOSTER<7QQ> 		8-97188-115-0 02 1 0211-0501 ● ● ●
23 05.809 DRUM; BRK,FRT
G.V.W. 8.0-8.5TON(RPZ) EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97188-115-0 02 1 0211-0501 ● ● ●
23 05.809 DRUM; BRK,FRT
G.V.W. 8.0-8.5TON(RPZ) 		8-97188-115-0 02 1 0502-0506 ● ● ●
23 05.809 DRUM; BRK,FRT
G.V.W. 8.0-8.5TON(RPZ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 		8-97188-115-0 02 1 0507-0709 ● ● ●
23 05.809 DRUM; BRK,FRT
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52> 		8-97188-115-0 02 1 0710- ● ● ●
23 05.809 DRUM; BRK,FRT
G.V.W. 8.0-8.5TON(RPZ) EXC. DISC BRAKE FRT<J52> 		8-97188-115-0 02 1 0710- ● ● ●
28 06.326 SEAL; OIL,FRT HUB 8-94248-117-1 02 1 0211-0501 ● ● ● ● ● ●
28 06.326 SEAL; OIL,FRT HUB 8-94248-117-1 02 1 0502-0506 ● ● ● ● ●
28 06.326 SEAL; OIL,FRT HUB 8-94248-117-1 02 1 0507- ● ● ● ● ● ●
29 06.326 DISTANCE PIECE; HUB BRKT
NTN 		8-97234-513-0 02 1 0211-0501 ● ● ● ● ● ●
29 06.326 DISTANCE PIECE; HUB BRKT
NTN 		8-97234-513-0 02 1 0502-0506 ● ● ● ● ●
29 06.326 DISTANCE PIECE; HUB BRKT
NTN 		8-97234-513-0 02 1 0507- ● ● ● ● ● ●

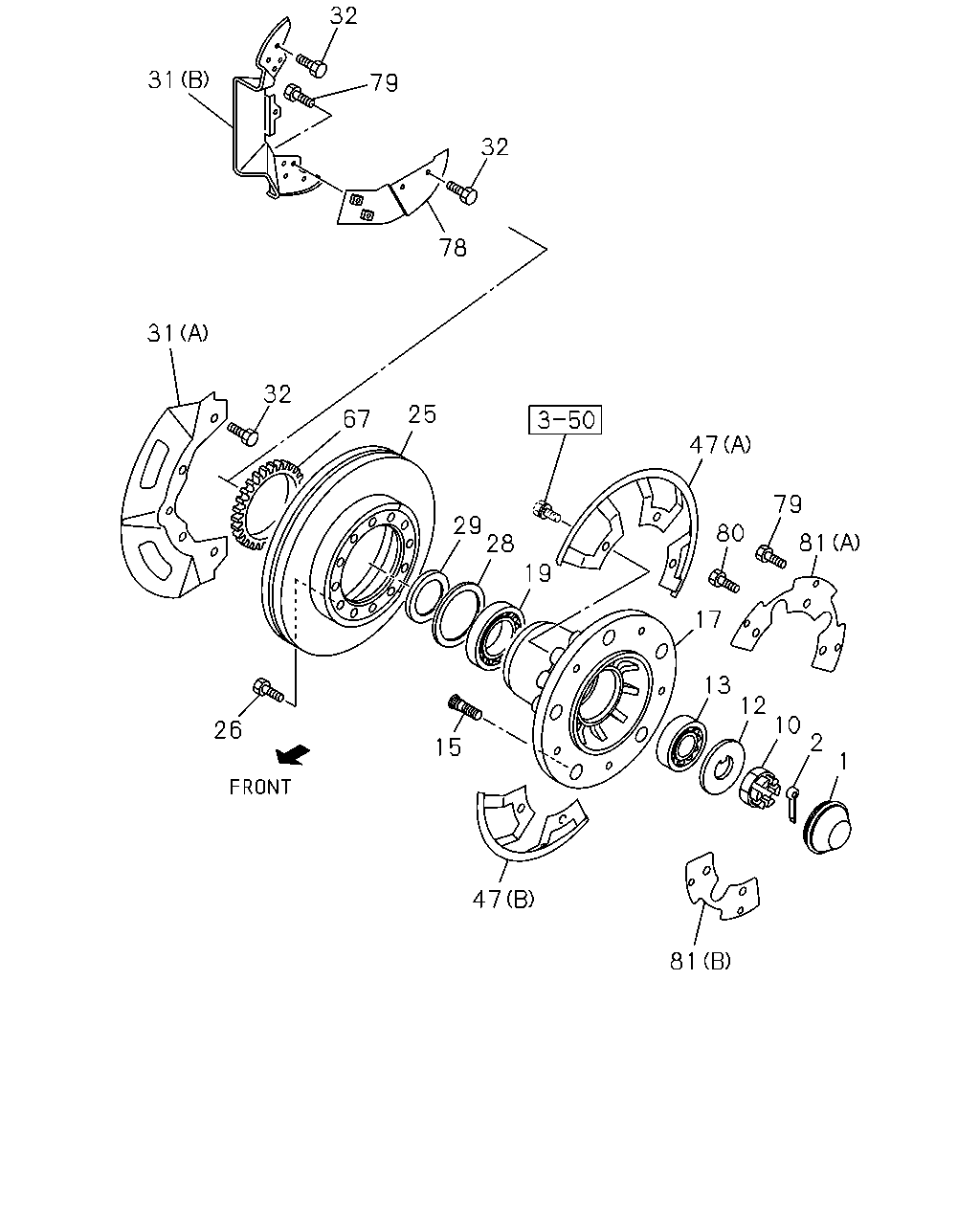

çizim 55539
32 31 79 32 78 31 32 25 67 47 79 29 28 80 81 19 17 13 12 10 2 26 15 1 47 81
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 06.330 CAP; HUB,FRT AXLE 8-97012-619-0 02 1 0211-0501 ● ● ● ● ● ●
1 06.330 CAP; HUB,FRT AXLE 8-97012-619-0 02 1 0502-0506 ● ● ● ● ●
1 06.330 CAP; HUB,FRT AXLE 8-97012-619-0 02 1 0507-0611 ● ● ● ● ● ●
1 06.330 CAP; HUB,FRT AXLE 8-97360-101-0 02 1 0612-1407 ● ● ● ● ● ●
1 06.330 CAP; HUB,FRT AXLE 8-98276-604-0 02 1 1408-1511 ● ● ● ● ● ●
1 06.330 CAP; HUB,FRT AXLE 8-98331-242-0 02 1 1512- ● ● ● ● ● ●
2 05.812 PIN; SPLIT,HUB TO AXLE SHAFT
OD=4.6 L=40 		9-08115-040-0 02 1 0211-0501 ● ● ● ● ● ●
2 05.812 PIN; SPLIT,HUB TO AXLE SHAFT
OD=4.6 L=40 		9-08115-040-0 02 1 0502-0506 ● ● ● ● ●
2 05.812 PIN; SPLIT,HUB TO AXLE SHAFT
OD=4.6 L=40 		9-08115-040-0 02 1 0507-0606 ● ● ● ● ● ●
2 05.812 PIN; SPLIT,HUB TO AXLE SHAFT
OD=4.6 L=40 		0-81125-040-0 02 1 0607- ● ● ● ● ● ●
10 05.812 NUT; FRT HUB BRG
06.022 		8-94247-357-1 02 1 0211-0501 ● ● ● ● ● ●
10 05.812 NUT; FRT HUB BRG
06.022 		8-94247-357-1 02 1 0502-0506 ● ● ● ● ●
10 05.812 NUT; FRT HUB BRG
06.022 		8-94247-357-1 02 1 0507- ● ● ● ● ● ●
12 06.321 WASHER; LK,FRT HUB BRG 8-94247-356-1 02 1 0211-0501 ● ● ● ● ● ●
12 06.321 WASHER; LK,FRT HUB BRG 8-94247-356-1 02 1 0502-0506 ● ● ● ● ●
12 06.321 WASHER; LK,FRT HUB BRG 8-94247-356-1 02 1 0507-1502 ● ● ● ● ● ●
12 06.321 WASHER; LK,FRT HUB BRG
05.812 		8-98282-435-0 02 1 1503- ● ● ● ● ● ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
NSK 		9-00093-172-0 02 1 0211-0501 ● ● ● ● ● ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
NSK 		9-00093-172-0 02 1 0502-0506 ● ● ● ● ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
NSK 		9-00093-172-0 02 1 0507- ● ● ● ● ● ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
BEST VALUE PARTS 		5-87610-134-0 02 1 0211-0501 ● ● ● ● ● ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
BEST VALUE PARTS 		5-87610-134-0 02 1 0502-0506 ● ● ● ● ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
BEST VALUE PARTS 		5-87610-134-0 02 1 0507- ● ● ● ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 6.0-6.5TON(RPV),G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX), G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) DISC BRAKE FRT<J52> M20X53 RH THREAD 		8-97168-456-2 06 1 0507- ● ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
M20X53 RH THREAD 		8-97168-456-2 06 1 0507- ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 6.0-6.5TON(RPV),G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX), G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) DISC BRAKE FRT<J52> M20X53 LH THREAD 		8-97168-457-2 06 1 0507- ● ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
M20X53 LH THREAD 		8-97168-457-2 06 1 0507- ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. HYDRO BRAKE BOOSTER<7QQ> M20X28 LH THREAD,M22X57 RH THREAD 		8-97081-585-1 06 1 0211-0501 ● ● ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 8.0-8.5TON(RPZ) FRT&RR 8.25-16-12 16X6.00GS-135 6-WHL /NUT(9ZM),FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT(9ZP) M20X28 LH THREAD,M22X57 RH THREAD 		8-97081-585-1 06 1 0211-0501 ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 7.0-7.5TON(RPX) M20X28 LH THREAD,M22X57 RH THREAD 		8-97081-585-1 06 1 0502-0506 ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 8.0-8.5TON(RPZ) FRT&RR 8.25-16-12 16X6.00GS-135 6-WHL /NUT(9ZM),FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT(9ZP) M20X28 LH THREAD,M22X57 RH THREAD 		8-97081-585-1 06 1 0502-0506 ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 7.0-7.5TON(RPX) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> M20X28 LH THREAD,M22X57 RH THREAD 		8-97081-585-4 06 1 0507- ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 8.0-8.5TON(RPZ) FRT&RR 8.25-16-12 16X6.00GS-135 6-WHL /NUT(9ZM),FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT(9ZP) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> M20X28 LH THREAD,M22X57 RH THREAD 		8-97081-585-4 06 1 0507- ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. HYDRO BRAKE BOOSTER<7QQ> M20X28,M22X57 RH THREAD 		8-97081-584-1 06 1 0211-0501 ● ● ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 8.0-8.5TON(RPZ) FRT&RR 8.25-16-12 16X6.00GS-135 6-WHL /NUT(9ZM),FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT(9ZP) M20X28,M22X57 RH THREAD 		8-97081-584-1 06 1 0211-0501 ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 7.0-7.5TON(RPX) M20X28,M22X57 RH THREAD 		8-97081-584-1 06 1 0502-0506 ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 8.0-8.5TON(RPZ) FRT&RR 8.25-16-12 16X6.00GS-135 6-WHL /NUT(9ZM),FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT(9ZP) M20X28,M22X57 RH THREAD 		8-97081-584-1 06 1 0502-0506 ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 7.0-7.5TON(RPX) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> M20X28,M22X57 RH THREAD 		8-97081-584-4 06 1 0507- ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 8.0-8.5TON(RPZ) FRT&RR 8.25-16-12 16X6.00GS-135 6-WHL /NUT(9ZM),FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT(9ZP) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> M20X28,M22X57 RH THREAD 		8-97081-584-4 06 1 0507- ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) FRT&RR 205/85R16 16X5.5J-116.5(AXZ), FRT&RR TIRE 195-85R16 DISC 16-5.5J-116 .5(CPG),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7-16-10 16X5.5F-115 T/VLVTR177A(95H),FRT&RR 7-16-12 16X5.5F-11 5(96H),FRT&RR 7-16-10L 5.5FX16-115 T/VLV TR177A(98H) M18X29 LH THREAD,M20X43.5 RH THREAD 		8-94383-437-1 05 1 0211-0501 ● ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 6.0-6.5TON(RPV) FRT&RR 7R-16-10 16X5.5F-115(07H), FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-12 16X5.5F-115(96H),F RT&RR 7-16-10L 5.5FX16-115 T/VLV TR17 7A(98H) M18X29 LH THREAD,M20X43.5 RH THREAD 		8-94383-437-2 05 1 0502-0506 ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 6.0-6.5TON(RPV) FRT&RR 7R-16-10 16X5.5F-115(07H), FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-12 16X5.5F-115(96H),F RT&RR 7-16-10L 5.5FX16-115 T/VLV TR17 7A(98H) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> M18X29 LH THREAD,M20X43.5 RH THREAD 		8-94383-437-2 05 1 0507- ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) FRT&RR 205/85R16 16X5.5J-116.5(AXZ), FRT&RR TIRE 195-85R16 DISC 16-5.5J-116 .5(CPG),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7-16-10 16X5.5F-115 T/VLVTR177A(95H),FRT&RR 7-16-12 16X5.5F-11 5(96H),FRT&RR 7-16-10L 5.5FX16-115 T/VLV TR177A(98H) M18X29,M20X43.5 RH THREAD 		8-94383-436-1 05 1 0211-0501 ● ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 6.0-6.5TON(RPV) FRT&RR 7R-16-10 16X5.5F-115(07H), FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-12 16X5.5F-115(96H),F RT&RR 7-16-10L 5.5FX16-115 T/VLV TR17 7A(98H) M18X29,M20X43.5 RH THREAD 		8-94383-436-2 05 1 0502-0506 ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 6.0-6.5TON(RPV) FRT&RR 7R-16-10 16X5.5F-115(07H), FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-12 16X5.5F-115(96H),F RT&RR 7-16-10L 5.5FX16-115 T/VLV TR17 7A(98H) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> M18X29,M20X43.5 RH THREAD 		8-94383-436-2 05 1 0507- ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) FRT&RR 7.5-16-8 6GSX16-127(10H), FRT&RR 7.5-16-10 6GSX16-127(11H),FRT&RR 7. 5-16-12 6GSX16-127(12H),FRT&RR 7.5-16-8L 6GSX16-127(14H),FRT&RR 7.5R-16-12 6GSX16-127(19H) M18X29 LH THREAD,M20X55 RH THREAD 		8-97017-044-1 05 1 0211-0501 ● ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 6.0-6.5TON(RPV) FRT&RR 7.5-16-8 6GSX16-127(10H), FRT&RR 7.5-16-10 6GSX16-127(11H),FRT&RR 7. 5-16-12 6GSX16-127(12H),FRT&RR 7.5-16-8L 6GSX16-127(14H),FRT&RR 7.5R-16-12 6GSX16-127(19H) M18X29 LH THREAD,M20X55 RH THREAD 		8-97017-044-2 05 1 0502-0506 ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 6.0-6.5TON(RPV) FRT&RR 7.5-16-8 6GSX16-127(10H), FRT&RR 7.5-16-10 6GSX16-127(11H),FRT&RR 7. 5-16-12 6GSX16-127(12H),FRT&RR 7.5-16-8L 6GSX16-127(14H),FRT&RR 7.5R-16-12 6GSX16-127(19H) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> M18X29 LH THREAD,M20X55 RH THREAD 		8-97017-044-2 05 1 0507-0811 ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 6.0-6.5TON(RPV) FRT&RR 7.5R-16-10 DISC 6.00GSX16-127(CUV),FRT&RR 7.5-16-8 6GSX16-127(10H), FRT&RR 7.5-16-10 6GSX16-127(11H), FRT&RR 7.5-16-12 6GSX16-127(12H),FRT&RR 7 .5-16-8L 6GSX16-127(14H),FRT&RR 7.5R-16-12 6GSX16-127(19H) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> M18X29 LH THREAD,M20X55 RH THREAD 		8-97017-044-2 05 1 0812- ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) FRT&RR 7.5-16-8 6GSX16-127(10H), FRT&RR 7.5-16-10 6GSX16-127(11H),FRT&RR 7. 5-16-12 6GSX16-127(12H),FRT&RR 7.5-16-8L 6GSX16-127(14H),FRT&RR 7.5R-16-12 6GSX16-127(19H) M18X29,M20X55 RH THREAD 		8-97017-043-1 05 1 0211-0501 ● ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 6.0-6.5TON(RPV) FRT&RR 7.5-16-8 6GSX16-127(10H), FRT&RR 7.5-16-10 6GSX16-127(11H),FRT&RR 7. 5-16-12 6GSX16-127(12H),FRT&RR 7.5-16-8L 6GSX16-127(14H),FRT&RR 7.5R-16-12 6GSX16-127(19H) M18X29,M20X55 RH THREAD 		8-97017-043-2 05 1 0502-0506 ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 6.0-6.5TON(RPV) FRT&RR 7.5-16-8 6GSX16-127(10H), FRT&RR 7.5-16-10 6GSX16-127(11H),FRT&RR 7. 5-16-12 6GSX16-127(12H),FRT&RR 7.5-16-8L 6GSX16-127(14H),FRT&RR 7.5R-16-12 6GSX16-127(19H) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> M18X29,M20X55 RH THREAD 		8-97017-043-2 05 1 0507-0811 ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 6.0-6.5TON(RPV) FRT&RR 7.5R-16-10 DISC 6.00GSX16-127(CUV),FRT&RR 7.5-16-8 6GSX16-127(10H), FRT&RR 7.5-16-10 6GSX16-127(11H), FRT&RR 7.5-16-12 6GSX16-127(12H),FRT&RR 7 .5-16-8L 6GSX16-127(14H),FRT&RR 7.5R-16-12 6GSX16-127(19H) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> M18X29,M20X55 RH THREAD 		8-97017-043-2 05 1 0812- ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 8.0-8.5TON(RPZ) FRT&RR TIRE 215-75R17.5 DISC 17.5-6J- 127WHITE(AUJ),FRT&RR TIRE 215-75R17.5DISC 17.5-6J-127(AUS),FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127WHITE(AVK), FRT&RR TIRE 205-75R17.5 DISC 17.5X6.0 0-127(CPH),FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-1 6-12 6GSX16-127 6-WHL/NUT(05C), FRT&RR7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) ,FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GSX16-127 6 WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-106GSX16-127 6-WHL/NUT DYNAMIC(97V) M20X28 LH THREAD,M22X50 RH THREAD 		8-97131-284-0 06 1 0211-0501 ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 8.0-8.5TON(RPZ) FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT (03C),FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16 -127 6-WHL/NUT(05C),FRT&RR 7.5R-16-106GSX16-127 6-WHL/NUT(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT& RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYN AMIC(95V),FRT&RR 7.5-16-10 6GSX16-1276-WHL/NUT DYNAMIC(97V) M20X28 LH THREAD,M22X50 RH THREAD 		8-97131-284-0 06 1 0502-0506 ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 8.0-8.5TON(RPZ) FRT&RR TIRE 205-75R17.5 DISC 17.5X6.0 0-127(CPH),FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU),FRT&RR 225/70R19.5 19.5X6.00-127(CRR),FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT& RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GS X16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMI C(97V) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> M20X28 LH THREAD,M22X50 RH THREAD 		8-97131-284-0 06 1 0507-0508 ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 8.0-8.5TON(RPZ) FRT&RR 215/75R17.5 17.5X6.00-127 SILV ER(CQU),FRT&RR 225/70R19.5 19.5X6.00-127(CRR),F&R TIRE 205/75R17.5(MICHELIN)17.5X6.00-127(CSM),FRT&RR 7.5-16-126GSX16-127 6-WHL/NUT(03C),FRT&RR 7.5 -16-12L 6GSX16-127 6-WHL/NUT(04C), FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V),FRT&RR 7.5-16-14 6GSX16-12 7 6-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAM IC(97V) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> M20X28 LH THREAD,M22X50 RH THREAD 		8-97131-284-0 06 1 0509-0604 ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 8.0-8.5TON(RPZ) FRT&RR 225/70R19.5 19.5X6.00-127(CRR) ,F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),F&R TIRE 205/75R17.5(MICHELIN)17.5X6.00-127(CSM),FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT(03C),FRT& RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-12 7 6-WHL/NUT(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT&RR 7.5-16- 10L 6GSX16-127 6WHL/NUT DYNAMIC(95V), FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC(97V) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> M20X28 LH THREAD,M22X50 RH THREAD 		8-97131-284-0 06 1 0605-0606 ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 8.0-8.5TON(RPZ) FRT&RR 225/80R17.5 17.5X6.00-127(BXP) ,FRT&RR 225/70R19.5 19.5X6.00-127(CRR),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),F&R TIRE 205/75R17.5(MICHELIN)17.5X6.00-127(CSM),FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT(03C),FRT &RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-1 27 6-WHL/NUT(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT&RR 7.5-16 -10L 6GSX16-127 6WHL/NUT DYNAMIC(95V) ,FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC(97V) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> M20X28 LH THREAD,M22X50 RH THREAD 		8-97131-284-1 06 1 0607-0709 ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 8.0-8.5TON(RPZ) FRT&RR 225/80R17.5 17.5X6.00-127(BXP) ,FRT&RR 225/70R19.5 19.5X6.00-127(CRR),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),F&R TIRE 205/75R17.5(MICHELIN)17.5X6.00-127(CSM),FRT&RR TIRE 215-75R17.5 DISC 17.5-6-127SILVER(CTV),FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6GSX16-1 27 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R- 16-10 6GSX16-127 6-WHL/NUT(83V), FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP) ,FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX1 6-127 6-WHL/NUT DYNAMIC(97V) EXC. DISC BRAKE FRT<J52> M20X28 LH THREAD,M22X50 RH THREAD 		8-97131-284-1 06 1 0710-0811 ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 8.0-8.5TON(RPZ) FRT&RR 225/80R17.5 17.5X6.00-127(BXP) ,FRT&RR 225/70R19.5 19.5X6.00-127(CRR),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),F&R TIRE 205/75R17.5(MICHELIN)17.5X6.00-127(CSM),FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT& RR TIRE 215-75R17.5 DISC 17.5-6-127SI LVER(CTV),FRT&RR 7.5-16-12 6GSX16-1276-WHL/NUT(03C),FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-16 -12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V), FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT (9BP),FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC(97V) EXC. DISC BRAKE FRT<J52> M20X28 LH THREAD,M22X50 RH THREAD 		8-97131-284-3 06 1 0812- ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 8.0-8.5TON(RPZ) FRT&RR TIRE 215-75R17.5 DISC 17.5-6J- 127WHITE(AUJ),FRT&RR TIRE 215-75R17.5DISC 17.5-6J-127(AUS),FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127WHITE(AVK), FRT&RR TIRE 205-75R17.5 DISC 17.5X6.0 0-127(CPH),FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-1 6-12 6GSX16-127 6-WHL/NUT(05C), FRT&RR7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) ,FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GSX16-127 6 WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-106GSX16-127 6-WHL/NUT DYNAMIC(97V) M20X28,M22X50 RH THREAD 		8-97131-283-0 06 1 0211-0501 ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 8.0-8.5TON(RPZ) FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT (03C),FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16 -127 6-WHL/NUT(05C),FRT&RR 7.5R-16-106GSX16-127 6-WHL/NUT(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT& RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYN AMIC(95V),FRT&RR 7.5-16-10 6GSX16-1276-WHL/NUT DYNAMIC(97V) M20X28,M22X50 RH THREAD 		8-97131-283-0 06 1 0502-0506 ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 8.0-8.5TON(RPZ) FRT&RR TIRE 205-75R17.5 DISC 17.5X6.0 0-127(CPH),FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU),FRT&RR 225/70R19.5 19.5X6.00-127(CRR),FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT& RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GS X16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMI C(97V) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> M20X28,M22X50 RH THREAD 		8-97131-283-0 06 1 0507-0508 ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 8.0-8.5TON(RPZ) FRT&RR 215/75R17.5 17.5X6.00-127 SILV ER(CQU),FRT&RR 225/70R19.5 19.5X6.00-127(CRR),F&R TIRE 205/75R17.5(MICHELIN)17.5X6.00-127(CSM),FRT&RR 7.5-16-126GSX16-127 6-WHL/NUT(03C),FRT&RR 7.5 -16-12L 6GSX16-127 6-WHL/NUT(04C), FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V),FRT&RR 7.5-16-14 6GSX16-12 7 6-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAM IC(97V) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> M20X28,M22X50 RH THREAD 		8-97131-283-0 06 1 0509-0604 ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 8.0-8.5TON(RPZ) FRT&RR 225/70R19.5 19.5X6.00-127(CRR) ,F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),F&R TIRE 205/75R17.5(MICHELIN)17.5X6.00-127(CSM),FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT(03C),FRT& RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-12 7 6-WHL/NUT(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT&RR 7.5-16- 10L 6GSX16-127 6WHL/NUT DYNAMIC(95V), FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC(97V) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> M20X28,M22X50 RH THREAD 		8-97131-283-0 06 1 0605-0606 ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 8.0-8.5TON(RPZ) FRT&RR 225/80R17.5 17.5X6.00-127(BXP) ,FRT&RR 225/70R19.5 19.5X6.00-127(CRR),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),F&R TIRE 205/75R17.5(MICHELIN)17.5X6.00-127(CSM),FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT(03C),FRT &RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-1 27 6-WHL/NUT(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT&RR 7.5-16 -10L 6GSX16-127 6WHL/NUT DYNAMIC(95V) ,FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC(97V) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> M20X28,M22X50 RH THREAD 		8-97131-283-1 06 1 0607-0709 ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 8.0-8.5TON(RPZ) FRT&RR 225/80R17.5 17.5X6.00-127(BXP) ,FRT&RR 225/70R19.5 19.5X6.00-127(CRR),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),F&R TIRE 205/75R17.5(MICHELIN)17.5X6.00-127(CSM),FRT&RR TIRE 215-75R17.5 DISC 17.5-6-127SILVER(CTV),FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6GSX16-1 27 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R- 16-10 6GSX16-127 6-WHL/NUT(83V), FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP) ,FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX1 6-127 6-WHL/NUT DYNAMIC(97V) EXC. DISC BRAKE FRT<J52> M20X28,M22X50 RH THREAD 		8-97131-283-1 06 1 0710-0811 ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 8.0-8.5TON(RPZ) FRT&RR 225/80R17.5 17.5X6.00-127(BXP) ,FRT&RR 225/70R19.5 19.5X6.00-127(CRR),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),F&R TIRE 205/75R17.5(MICHELIN)17.5X6.00-127(CSM),FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT& RR TIRE 215-75R17.5 DISC 17.5-6-127SI LVER(CTV),FRT&RR 7.5-16-12 6GSX16-1276-WHL/NUT(03C),FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-16 -12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V), FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT (9BP),FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC(97V) EXC. DISC BRAKE FRT<J52> M20X28,M22X50 RH THREAD 		8-97131-283-3 06 1 0812- ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
M18X46 LH THREAD 		8-97017-042-0 05 1 0211-0506 ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS) M18X46 LH THREAD 		8-97017-042-0 05 1 0507-0605 ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS) M18X46 LH THREAD 		8-98028-533-1 05 1 0606-0910 ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 4.0-4.5TON(RPR) M18X46 LH THREAD 		8-98028-533-1 05 1 0911- ● ●
15 05.812 PIN; WHEEL,FRT AXLE
M18X46 LH THREAD 		8-98028-533-1 05 1 0911- ●
15 05.812 PIN; WHEEL,FRT AXLE
M18X46 RH THREAD 		8-97017-041-0 05 1 0211-0506 ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS) M18X46 RH THREAD 		8-97017-041-0 05 1 0507-0605 ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS) M18X46 RH THREAD 		8-98028-532-1 05 1 0606-0910 ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 4.0-4.5TON(RPR) M18X46 RH THREAD 		8-98028-532-1 05 1 0911- ● ●
15 05.812 PIN; WHEEL,FRT AXLE
M18X46 RH THREAD 		8-98028-532-1 05 1 0911- ●
17 06.307 HUB; FRT AXLE
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) 4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER<7QQ> EXC. DISC BRAKE FRT<J52> 		8-97349-911-0 02 1 0710- ● ● ●
17 06.307 HUB; FRT AXLE
G.V.W. 6.0-6.5TON(RPV),G.V.W. 6.5-7.0TON(RPW) DISC BRAKE FRT<J52> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97233-501-0 02 1 0507- ● ● ●
17 06.307 HUB; FRT AXLE
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) DISC BRAKE FRT<J52> HYDRO BRAKE BOOSTER<7QQ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97233-501-0 02 1 0507- ● ● ●
17 06.307 HUB; FRT AXLE
G.V.W. 4.0-4.5TON(RPR) 		8-97035-160-0 02 1 0507- ● ●
17 06.307 HUB; FRT AXLE
G.V.W. 6.0-6.5TON(RPV),G.V.W. 6.5-7.0TON(RPW) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> 		8-97168-460-0 02 1 0507- ● ● ●
17 06.307 HUB; FRT AXLE
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> HYDRO BRAKE BOOSTER<7QQ> 		8-97168-460-0 02 1 0507- ● ● ●
17 06.307 HUB; FRT AXLE 8-97168-460-0 02 1 0507- ●
17 06.307 HUB; FRT AXLE
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97081-322-0 02 1 0211-0501 ● ● ● ● ●
17 06.307 HUB; FRT AXLE
G.V.W. 7.0-7.5TON(RPX) EXC. VEHICLE CATEGORY NQR<7NQ>,HYDRO BRAKE BOOSTER<7QQ> 		8-97081-322-0 02 1 0502-0502 ● ● ●
17 06.307 HUB; FRT AXLE
G.V.W. 7.0-7.5TON(RPX) EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97081-322-0 02 1 0502-0506 ● ● ●
17 06.307 HUB; FRT AXLE
G.V.W. 7.0-7.5TON(RPX) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 		8-97081-322-0 02 1 0507- ● ● ●
17 06.307 HUB; FRT AXLE
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) FRT&RR 205/85R16 16X5.5J-116.5(AXZ), FRT&RR TIRE 195-85R16 DISC 16-5.5J-116 .5(CPG),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7-16-10 16X5.5F-115 T/VLVTR177A(95H),FRT&RR 7-16-12 16X5.5F-11 5(96H),FRT&RR 7-16-10L 5.5FX16-115 T/VLV TR177A(98H) 		8-94365-459-0 02 1 0211-0501 ● ● ● ●
17 06.307 HUB; FRT AXLE
G.V.W. 6.0-6.5TON(RPV) FRT&RR 7R-16-10 16X5.5F-115(07H), FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-12 16X5.5F-115(96H),F RT&RR 7-16-10L 5.5FX16-115 T/VLV TR17 7A(98H) 		8-94365-459-0 02 1 0502-0506 ● ● ●
17 06.307 HUB; FRT AXLE
G.V.W. 6.0-6.5TON(RPV) FRT&RR 7R-16-10 16X5.5F-115(07H), FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-12 16X5.5F-115(96H),F RT&RR 7-16-10L 5.5FX16-115 T/VLV TR17 7A(98H) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 		8-94365-459-0 02 1 0507- ● ● ●
17 06.307 HUB; FRT AXLE
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) FRT&RR 7.5-16-8 6GSX16-127(10H), FRT&RR 7.5-16-10 6GSX16-127(11H),FRT&RR 7. 5-16-12 6GSX16-127(12H),FRT&RR 7.5-16-8L 6GSX16-127(14H),FRT&RR 7.5R-16-12 6GSX16-127(19H) 		8-97017-206-0 02 1 0211-0501 ● ● ● ●
17 06.307 HUB; FRT AXLE
G.V.W. 6.0-6.5TON(RPV) FRT&RR 7.5-16-8 6GSX16-127(10H), FRT&RR 7.5-16-10 6GSX16-127(11H),FRT&RR 7. 5-16-12 6GSX16-127(12H),FRT&RR 7.5-16-8L 6GSX16-127(14H),FRT&RR 7.5R-16-12 6GSX16-127(19H) 		8-97017-206-0 02 1 0502-0506 ● ● ●
17 06.307 HUB; FRT AXLE
G.V.W. 6.0-6.5TON(RPV) FRT&RR 7.5-16-8 6GSX16-127(10H), FRT&RR 7.5-16-10 6GSX16-127(11H),FRT&RR 7. 5-16-12 6GSX16-127(12H),FRT&RR 7.5-16-8L 6GSX16-127(14H),FRT&RR 7.5R-16-12 6GSX16-127(19H) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 		8-97017-206-0 02 1 0507-0811 ● ● ●
17 06.307 HUB; FRT AXLE
G.V.W. 6.0-6.5TON(RPV) FRT&RR 7.5R-16-10 DISC 6.00GSX16-127(CUV),FRT&RR 7.5-16-8 6GSX16-127(10H), FRT&RR 7.5-16-10 6GSX16-127(11H), FRT&RR 7.5-16-12 6GSX16-127(12H),FRT&RR 7 .5-16-8L 6GSX16-127(14H),FRT&RR 7.5R-16-12 6GSX16-127(19H) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 		8-97017-206-0 02 1 0812- ● ● ●
17 06.307 HUB; FRT AXLE
G.V.W. 8.0-8.5TON(RPZ) FRT&RR 8.25-16-12 16X6.00GS-135 6-WHL /NUT(9ZM),FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT(9ZP) 		8-97107-414-0 02 1 0211- ● ● ●
17 06.307 HUB; FRT AXLE
G.V.W. 8.0-8.5TON(RPZ) FRT&RR TIRE 215-75R17.5 DISC 17.5-6J- 127WHITE(AUJ),FRT&RR TIRE 215-75R17.5DISC 17.5-6J-127(AUS),FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127WHITE(AVK), FRT&RR TIRE 205-75R17.5 DISC 17.5X6.0 0-127(CPH),FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-1 6-12 6GSX16-127 6-WHL/NUT(05C), FRT&RR7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) ,FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GSX16-127 6 WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-106GSX16-127 6-WHL/NUT DYNAMIC(97V) 		8-97131-236-0 02 1 0211-0501 ● ● ●
17 06.307 HUB; FRT AXLE
G.V.W. 8.0-8.5TON(RPZ) FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT (03C),FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16 -127 6-WHL/NUT(05C),FRT&RR 7.5R-16-106GSX16-127 6-WHL/NUT(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT& RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYN AMIC(95V),FRT&RR 7.5-16-10 6GSX16-1276-WHL/NUT DYNAMIC(97V) 		8-97131-236-0 02 1 0502-0506 ● ● ●
17 06.307 HUB; FRT AXLE
G.V.W. 8.0-8.5TON(RPZ) FRT&RR TIRE 205-75R17.5 DISC 17.5X6.0 0-127(CPH),FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU),FRT&RR 225/70R19.5 19.5X6.00-127(CRR),FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT& RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GS X16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMI C(97V) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 		8-97131-236-0 02 1 0507-0508 ● ● ●
17 06.307 HUB; FRT AXLE
G.V.W. 8.0-8.5TON(RPZ) FRT&RR 215/75R17.5 17.5X6.00-127 SILV ER(CQU),FRT&RR 225/70R19.5 19.5X6.00-127(CRR),F&R TIRE 205/75R17.5(MICHELIN)17.5X6.00-127(CSM),FRT&RR 7.5-16-126GSX16-127 6-WHL/NUT(03C),FRT&RR 7.5 -16-12L 6GSX16-127 6-WHL/NUT(04C), FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V),FRT&RR 7.5-16-14 6GSX16-12 7 6-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAM IC(97V) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 		8-97131-236-0 02 1 0509-0604 ● ● ●
17 06.307 HUB; FRT AXLE
G.V.W. 8.0-8.5TON(RPZ) FRT&RR 225/70R19.5 19.5X6.00-127(CRR) ,F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),F&R TIRE 205/75R17.5(MICHELIN)17.5X6.00-127(CSM),FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT(03C),FRT& RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-12 7 6-WHL/NUT(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT&RR 7.5-16- 10L 6GSX16-127 6WHL/NUT DYNAMIC(95V), FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC(97V) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 		8-97131-236-0 02 1 0605-0606 ● ● ●
17 06.307 HUB; FRT AXLE
G.V.W. 8.0-8.5TON(RPZ) FRT&RR 225/80R17.5 17.5X6.00-127(BXP) ,FRT&RR 225/70R19.5 19.5X6.00-127(CRR),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),F&R TIRE 205/75R17.5(MICHELIN)17.5X6.00-127(CSM),FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT(03C),FRT &RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-1 27 6-WHL/NUT(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT&RR 7.5-16 -10L 6GSX16-127 6WHL/NUT DYNAMIC(95V) ,FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC(97V) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 		8-97131-236-0 02 1 0607-0811 ● ● ●
17 06.307 HUB; FRT AXLE
G.V.W. 8.0-8.5TON(RPZ) FRT&RR 225/80R17.5 17.5X6.00-127(BXP) ,FRT&RR 225/70R19.5 19.5X6.00-127(CRR),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),F&R TIRE 205/75R17.5(MICHELIN)17.5X6.00-127(CSM),FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT& RR TIRE 215-75R17.5 DISC 17.5-6-127SI LVER(CTV),FRT&RR 7.5-16-12 6GSX16-1276-WHL/NUT(03C),FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-16 -12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V), FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT (9BP),FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC(97V) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 		8-97131-236-0 02 1 0812- ● ● ●
17 06.307 HUB; FRT AXLE 8-97017-193-0 02 1 0211- ●
19 06.311 BEARING; HUB INNER,FRT AXLE
JTEKT 		8-94248-088-2 02 1 0211-0501 ● ● ● ● ● ●
19 06.311 BEARING; HUB INNER,FRT AXLE
JTEKT 		8-94248-088-2 02 1 0502-0506 ● ● ● ● ●
19 06.311 BEARING; HUB INNER,FRT AXLE
JTEKT 		8-94248-088-2 02 1 0507-1009 ● ● ● ● ● ●
19 06.311 BEARING; HUB INNER,FRT AXLE
JTEKT 		8-98171-254-0 02 1 1010- ● ● ● ● ● ●
19 06.311 BEARING; HUB INNER,FRT AXLE
NSK 		9-00093-149-0 02 1 0211-0501 ● ● ● ● ● ●
19 06.311 BEARING; HUB INNER,FRT AXLE
NSK 		9-00093-149-0 02 1 0502-0506 ● ● ● ● ●
19 06.311 BEARING; HUB INNER,FRT AXLE
NSK 		9-00093-149-0 02 1 0507-1009 ● ● ● ● ● ●
19 06.311 BEARING; HUB INNER,FRT AXLE
BEST VALUE PARTS 		1-87610-134-0 02 1 1010- ● ● ● ● ● ●
25 05.809 ROTOR; DISC BRK,FRT
G.V.W. 8.0-8.5TON(RPZ) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> HYDRO BRAKE BOOSTER<7QQ> 		8-97182-771-0 02 1 0507-0612 ● ● ●
25 05.809 ROTOR; DISC BRK,FRT
G.V.W. 8.0-8.5TON(RPZ) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> HYDRO BRAKE BOOSTER<7QQ> 		8-98006-395-0 02 1 0701- ● ● ●
25 05.809 ROTOR; DISC BRK,FRT 8-97168-631-1 02 1 0211-0311 ●
25 05.809 ROTOR; DISC BRK,FRT 8-97371-876-0 02 1 0312-0506 ●
25 05.809 ROTOR; DISC BRK,FRT
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV),G.V.W. 6.5-7.0TON(RPW) DISC BRAKE FRT<J52> 		8-97371-876-0 02 1 0507-0612 ● ● ●
25 05.809 ROTOR; DISC BRK,FRT 8-97371-876-0 02 1 0507-0612 ●
25 05.809 ROTOR; DISC BRK,FRT
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV),G.V.W. 6.5-7.0TON(RPW) DISC BRAKE FRT<J52> 		8-97387-229-0 02 1 0701- ● ● ●
25 05.809 ROTOR; DISC BRK,FRT 8-97387-229-0 02 1 0701- ●
25 05.809 ROTOR; DISC BRK,FRT
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) DISC BRAKE FRT<J52> HYDRO BRAKE BOOSTER<7QQ> REFER TO PERIODICAL PCN86 		8-98105-058-0 02 1 0507- ● ● ●
25 05.809 ROTOR; DISC BRK,FRT
REFER TO PERIODICAL PCN86 		8-98105-058-0 02 1 0507- ●
26 05.812 BOLT; BRK,DISC TO HUB 8-94474-923-0 24 1 0211-0506 ●
26 05.812 BOLT; BRK,DISC TO HUB
DISC BRAKE FRT<J52> 		8-94474-923-0 24 1 0507- ● ● ● ●
26 05.812 BOLT; BRK,DISC TO HUB 8-94474-923-0 24 1 0507- ● ●
28 06.326 SEAL; OIL,FRT HUB 8-94248-117-1 02 1 0211-0501 ● ● ● ● ● ●
28 06.326 SEAL; OIL,FRT HUB 8-94248-117-1 02 1 0502-0506 ● ● ● ● ●
28 06.326 SEAL; OIL,FRT HUB 8-94248-117-1 02 1 0507- ● ● ● ● ● ●
29 06.326 DISTANCE PIECE; HUB BRKT
NTN 		8-97234-513-0 02 1 0211-0501 ● ● ● ● ● ●
29 06.326 DISTANCE PIECE; HUB BRKT
NTN 		8-97234-513-0 02 1 0502-0506 ● ● ● ● ●
29 06.326 DISTANCE PIECE; HUB BRKT
NTN 		8-97234-513-0 02 1 0507- ● ● ● ● ● ●
31 04.665 COVER; DUST,FRT BRAKE
G.V.W. 8.0-8.5TON(RPZ) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> HYDRO BRAKE BOOSTER<7QQ> (B) 		8-97333-375-0 01 1 0507- ● ● ●
31 04.665 COVER; DUST,FRT BRAKE
G.V.W. 8.0-8.5TON(RPZ) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> HYDRO BRAKE BOOSTER<7QQ> (B) 		8-97333-376-0 01 1 0507- ● ● ●
31 04.665 COVER; DUST,FRT BRAKE
(A) 		8-97332-209-1 02 1 0211-0506 ●
31 04.665 COVER; DUST,FRT BRAKE
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV),G.V.W. 6.5-7.0TON(RPW), G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) DISC BRAKE FRT<J52> (A) 		8-97332-209-1 02 1 0507-0703 ● ● ● ●
31 04.665 COVER; DUST,FRT BRAKE
(A) 		8-97332-209-1 02 1 0507-0703 ● ●
31 04.665 COVER; DUST,FRT BRAKE
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV),G.V.W. 6.5-7.0TON(RPW), G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) DISC BRAKE FRT<J52> (A) 		8-98037-377-0 02 1 0704- ● ● ● ●
31 04.665 COVER; DUST,FRT BRAKE
(A) 		8-98037-377-0 02 1 0704- ● ●
32 04.665 BOLT; DUST COVER TO KNUCKLE
08.900 M8X12 FLANGE 		0-28080-812-0 08 1 0211-0506 ●
32 04.665 BOLT; DUST COVER TO KNUCKLE
DISC BRAKE FRT<J52> 08.900 M8X12 FLANGE 		0-28080-812-0 08 1 0507-0512 ● ● ● ●
32 04.665 BOLT; DUST COVER TO KNUCKLE
08.900 M8X12 FLANGE 		0-28080-812-0 08 1 0507-0512 ● ●
32 04.665 BOLT; DUST COVER TO KNUCKLE
DISC BRAKE FRT<J52> 02.343 M8X12 FLANGE 		0-28050-812-0 08 1 0601- ● ● ● ●
32 04.665 BOLT; DUST COVER TO KNUCKLE
02.343 M8X12 FLANGE 		0-28050-812-0 08 1 0601- ● ●
47 06.308 HOLDER; TIRE VALVE,FRT HUB
(A) 		8-97228-399-0 02 1 0211- ●
47 06.308 HOLDER; TIRE VALVE,FRT HUB
(B) 		8-97228-400-0 02 1 0211- ●
67 05.811 ROTOR; SENSOR
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) 4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER<7QQ> EXC. DISC BRAKE FRT<J52> 		8-97234-458-0 02 1 0710- ● ● ●
67 05.811 ROTOR; SENSOR
DISC BRAKE FRT<J52> 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97206-773-0 02 1 0507- ● ● ● ●
67 05.811 ROTOR; SENSOR 8-97206-773-0 02 1 0507- ●
78 04.665 BRACKET; DUST COVER
G.V.W. 8.0-8.5TON(RPZ) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> HYDRO BRAKE BOOSTER<7QQ> 		8-97207-172-1 01 1 0507- ● ● ●
78 04.665 BRACKET; DUST COVER
G.V.W. 8.0-8.5TON(RPZ) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> HYDRO BRAKE BOOSTER<7QQ> 		8-97207-173-1 01 1 0507- ● ● ●
79 04.665 BOLT; BRKT
G.V.W. 8.0-8.5TON(RPZ) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> HYDRO BRAKE BOOSTER<7QQ> 08.900 M8X12 FLANGE 		0-28080-812-0 04 1 0507-0512 ● ● ●
79 04.665 BOLT; BRKT
G.V.W. 8.0-8.5TON(RPZ) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> HYDRO BRAKE BOOSTER<7QQ> 02.343 M8X12 FLANGE 		0-28050-812-0 04 1 0601- ● ● ●
79 04.665 BOLT; BRKT
08.900 M8X12 FLANGE 		0-28080-812-0 10 1 0211-0512 ●
79 04.665 BOLT; BRKT
02.343 M8X12 FLANGE 		0-28050-812-0 10 1 0601- ●
80 05.812 BOLT; VALVE HOLDER
02.559 M10X16 FLANGE 		0-28081-016-0 10 1 0211-0512 ●
80 05.812 BOLT; VALVE HOLDER
02.483 M10X16 FLANGE 		0-28051-016-0 10 1 0601- ●
81 05.812 BRACKET; VALVE HOLDER
(A) 		8-97214-248-0 02 1 0211- ●
81 05.812 BRACKET; VALVE HOLDER
(B) 		8-97214-249-0 02 1 0211- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
