8-40 — HEATER SYSTEM (#1827) — 102 parça

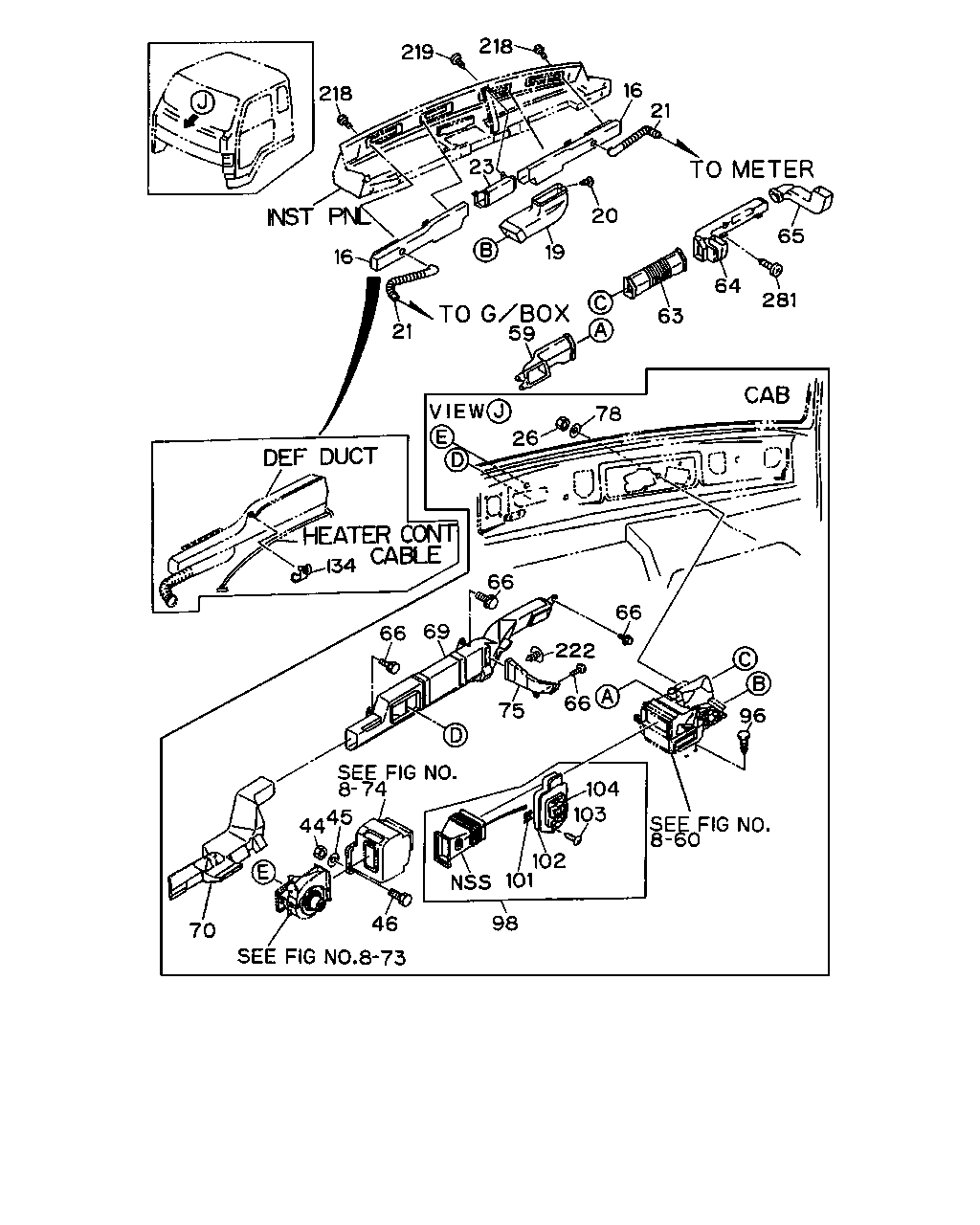

218 219 218 16 21 20 19 21 16 59 63 64 281 65 78 26 66 69 66 222 66 66 96 75 104 103 102 101 98 46 45 44 70 134 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	DUCT ASM; DEFROSTER	1-76377-072-5	01	1	9002-	●
16	DUCT ASM; DEFROSTER	1-76377-071-6	01	1	9002-	●
16	DUCT ASM; DEFROSTER	1-76377-074-5	01	1	9002-		●
16	DUCT ASM; DEFROSTER	1-76377-073-4	01	1	9002-		●
19	DUCT; DEFROSTER,HTR JOINT	1-76377-076-2	01	1	9002-	●
19	DUCT; DEFROSTER,HTR JOINT	1-76377-097-1	01	1	9002-		●
20	FASTENER; DEFROSTER DUCT,HTR JOINT	1-09987-144-0	01	1	9002-	●	●
21	HOSE; DEFROSTER,DRIVER SIDE WO/URETHANE	1-76377-085-4	02	1	9002-	●	●
23	DUCT ASM; DEFROSTER,JOINT CTR	1-76377-087-4	01	1	9002-	●
23	DUCT ASM; DEFROSTER,JOINT CTR	1-76377-088-3	01	1	9002-		●
26	NUT; HTR M6 FLANGE	1-09984-141-0	03	1	9002-	●	●
44	NUT; EVAP AIR CONDITIONER MANUAL CONTROL(C60) M6 FLANGE	1-09984-141-0	02	1	9002-	●
45	WASHER; PL,EVAP AIR CONDITIONER MANUAL CONTROL(C60) ID=6.4 OD=14	9-09160-606-0	04	1	9002-	●
46	BOLT; EVAP AIR CONDITIONER MANUAL CONTROL(C60) M6X25	9-02040-625-0	02	1	9002-9204	●
46	BOLT; EVAP AIR CONDITIONER MANUAL CONTROL(C60) M6X25	0-20800-625-0	02	1	9205-	●
59	DUCT; VENT,ASSIST SIDE	1-76377-083-2	01	1	9002-	●
59	DUCT; VENT,ASSIST SIDE	1-76377-084-3	01	1	9002-		●
63	DUCT; VENT,DRIVER JOINT	1-76377-082-5	01	1	9002-	●
63	DUCT; VENT,DRIVER JOINT	1-76377-098-4	01	1	9002-		●
64	DUCT; VENT,DRIVER SIDE	1-76377-080-2	01	1	9002-	●
64	DUCT; VENT,DRIVER SIDE	1-76377-081-4	01	1	9002-		●
65	DUCT; VENT,DRIVER SIDE	1-76377-078-3	01	1	9002-	●
65	DUCT; VENT,DRIVER SIDE	1-76377-079-3	01	1	9002-		●
66	BOLT; DUCT M6X16 W/LK&PL WASHER	0-50140-616-0	03	1	9002-	●
66	BOLT; DUCT M6X16 W/LK&PL WASHER	0-50140-616-0	01	1	9002-	●	●
66	BOLT; DUCT M6X16 W/LK&PL WASHER	0-50140-616-0	02	1	9002-		●
69	DUCT; ROOM	1-83542-047-0	01	1	9002-	●
69	DUCT; ROOM	1-83542-053-1	01	1	9002-		●
70	DUCT; ROOM	1-83542-044-1	01	1	9002-	●
70	DUCT; ROOM	1-83542-057-1	01	1	9002-		●
75	DUCT; ROOM	1-83542-045-0	01	1	9002-	●
78	WASHER; PL,HTR UNIT OD=20	1-09509-047-0	01	1	9002-	●	●
78	WASHER; PL,HTR UNIT OD=14	1-09509-048-0	02	1	9002-	●	●
96	PLUG; DUMMY,HTR UNIT BRKT D4.7X11	1-76378-154-0	02	1	9002-	●
98	DUCT; BLOWER UNIT TO HTR UNIT EXC. AIR CONDITIONER MANUAL CONTROL(C60)	1-83542-048-3	01	1	9002-	●
98	DUCT; BLOWER UNIT TO HTR UNIT EXC. AIR CONDITIONER MANUAL CONTROL(C60)	1-83542-054-2	01	1	9002-		●
101	NUT; RESISTOR FIX EXC. AIR CONDITIONER MANUAL CONTROL(C60)	1-83519-047-0	01	1	9002-	●
102	LINING; HTR DUCT EXC. AIR CONDITIONER MANUAL CONTROL(C60)	1-83519-049-0	01	1	9002-	●
103	SCREW; TAPPING,RESISTOR FIX EXC. AIR CONDITIONER MANUAL CONTROL(C60)	1-83519-048-0	01	1	9002-	●
104	RESISTOR; HTR DUCT EXC. AIR CONDITIONER MANUAL CONTROL(C60)	1-83519-028-0	01	1	9002-	●	●
134	CLIP; CONT CABLE	1-09987-147-0	01	1	9002-	●	●
218	SCREW; DEFROSTER DUCT M5X14 W/PL WASHER	5-09981-050-0	04	1	9002-	●	●
219	SCREW; DEFROSTER DUCT,CTR M5X14 W/PL WASHER	5-09981-050-0	01	1	9002-	●	●
222	FASTENER; DUCT BLACK	8-94104-935-0	01	1	9408-	●
281	FASTENER; VENT DUCT,DRIVER SIDE BLACK	8-94104-935-0	04	1	9407-	●	●

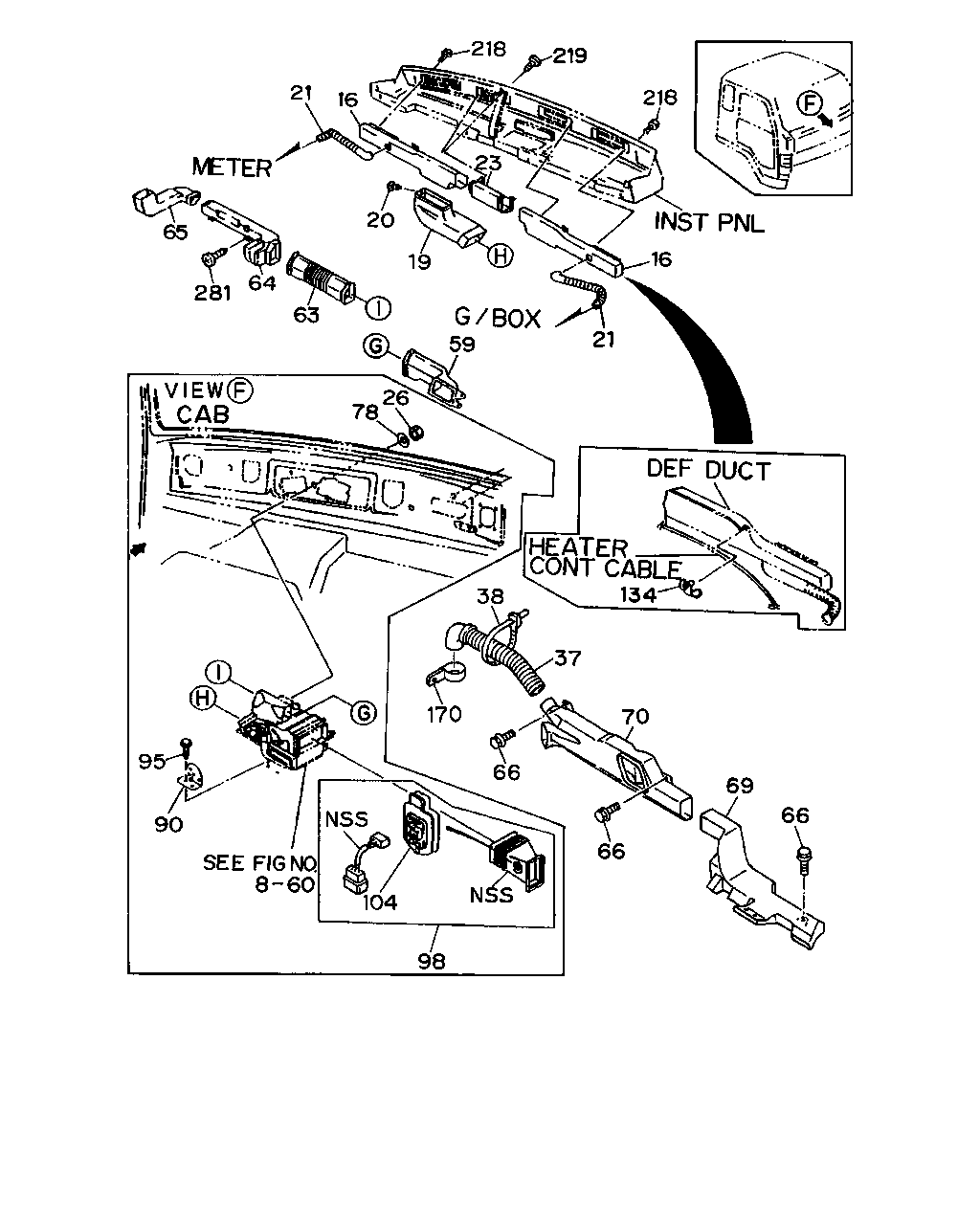

218 219 218 16 21 20 59 21 16 19 23 63 64 281 65 78 26 38 37 134 70 69 66 66 66 170 98 104 90 95

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	DUCT ASM; DEFROSTER	1-76377-072-5	01	1	9002-	●
16	DUCT ASM; DEFROSTER	1-76377-071-6	01	1	9002-	●
16	DUCT ASM; DEFROSTER	1-76377-074-5	01	1	9002-		●
16	DUCT ASM; DEFROSTER	1-76377-073-4	01	1	9002-		●
19	DUCT; DEFROSTER,HTR JOINT	1-76377-076-2	01	1	9002-	●
19	DUCT; DEFROSTER,HTR JOINT	1-76377-097-1	01	1	9002-		●
20	FASTENER; DEFROSTER DUCT,HTR JOINT	1-09987-144-0	01	1	9002-	●	●
21	HOSE; DEFROSTER,DRIVER SIDE WO/URETHANE	1-76377-085-4	02	1	9002-	●	●
23	DUCT ASM; DEFROSTER,JOINT CTR	1-76377-087-4	01	1	9002-	●
23	DUCT ASM; DEFROSTER,JOINT CTR	1-76377-088-3	01	1	9002-		●
26	NUT; HTR M6 FLANGE	1-09984-141-0	03	1	9002-	●	●
37	HOSE; AIR,HTR	1-83512-112-0	01	1	9002-		●
38	CLIP; BAND,HTR AIR HOSE L=300	1-09707-001-0	01	1	9002-		●
59	DUCT; VENT,ASSIST SIDE	1-76377-083-2	01	1	9002-	●
59	DUCT; VENT,ASSIST SIDE	1-76377-084-3	01	1	9002-		●
63	DUCT; VENT,DRIVER JOINT	1-76377-082-5	01	1	9002-	●
63	DUCT; VENT,DRIVER JOINT	1-76377-098-4	01	1	9002-		●
64	DUCT; VENT,DRIVER SIDE	1-76377-080-2	01	1	9002-	●
64	DUCT; VENT,DRIVER SIDE	1-76377-081-4	01	1	9002-		●
65	DUCT; VENT,DRIVER SIDE	1-76377-078-3	01	1	9002-	●
65	DUCT; VENT,DRIVER SIDE	1-76377-079-3	01	1	9002-		●
66	BOLT; DUCT M6X16 W/LK&PL WASHER	0-50140-616-0	03	1	9002-	●
66	BOLT; DUCT M6X16 W/LK&PL WASHER	0-50140-616-0	01	1	9002-	●	●
66	BOLT; DUCT M6X16 W/LK&PL WASHER	0-50140-616-0	02	1	9002-		●
69	DUCT; ROOM	1-83542-047-0	01	1	9002-	●
69	DUCT; ROOM	1-83542-053-1	01	1	9002-		●
70	DUCT; ROOM	1-83542-044-1	01	1	9002-	●
70	DUCT; ROOM	1-83542-057-1	01	1	9002-		●
78	WASHER; PL,HTR UNIT OD=20	1-09509-047-0	01	1	9002-	●	●
78	WASHER; PL,HTR UNIT OD=14	1-09509-048-0	02	1	9002-	●	●
90	BRACKET; SUPPORT,HTR UNIT	1-76397-008-2	01	1	9002-		●
95	BOLT; SUPPORT BRKT M6X16 W/LK&PL WASHER	1-09980-497-0	02	1	9002-9301		●
95	BOLT; SUPPORT BRKT M6X16 W/LK&PL WASHER	1-09980-586-0	02	1	9302-		●
98	DUCT; BLOWER UNIT TO HTR UNIT EXC. AIR CONDITIONER MANUAL CONTROL(C60)	1-83542-048-3	01	1	9002-	●
98	DUCT; BLOWER UNIT TO HTR UNIT EXC. AIR CONDITIONER MANUAL CONTROL(C60)	1-83542-054-2	01	1	9002-		●
104	RESISTOR; HTR DUCT EXC. AIR CONDITIONER MANUAL CONTROL(C60)	1-83519-028-0	01	1	9002-	●	●
134	CLIP; CONT CABLE	1-09987-147-0	01	1	9002-	●	●
170	CLIP; HTR HOSE	9-09915-526-2	01	1	9002-		●
218	SCREW; DEFROSTER DUCT M5X14 W/PL WASHER	5-09981-050-0	04	1	9002-	●	●
219	SCREW; DEFROSTER DUCT,CTR M5X14 W/PL WASHER	5-09981-050-0	01	1	9002-	●	●
281	FASTENER; VENT DUCT,DRIVER SIDE BLACK	8-94104-935-0	04	1	9407-	●	●

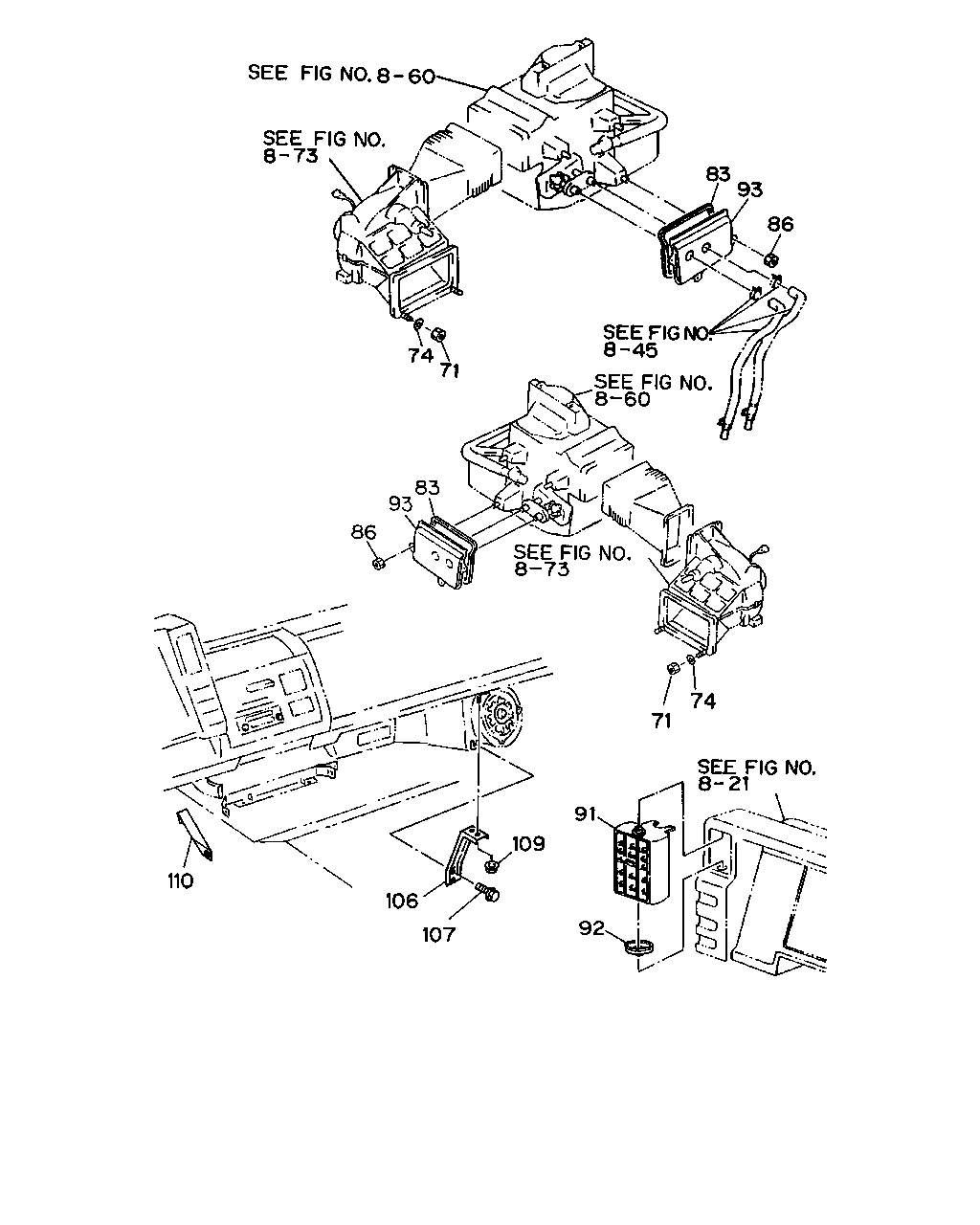

83 93 86 71 74 83 93 86 71 74 91 109 92 107 106 110

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
71	NUT; BLOWER UNIT TO DASH M6 FLANGE	1-09984-141-0	03	1	9002-	●
71	NUT; BLOWER UNIT TO DASH EXC. AIR CONDITIONER MANUAL CONTROL(C60) M6 FLANGE	1-09984-141-0	03	1	9002-		●
74	WASHER; PL,BLOWER UNIT TO DASH OD=20	1-09509-047-0	01	1	9002-	●
74	WASHER; PL,BLOWER UNIT TO DASH EXC. AIR CONDITIONER MANUAL CONTROL(C60) OD=20	1-09509-047-0	01	1	9002-		●
74	WASHER; PL,BLOWER UNIT TO DASH OD=14	1-09509-048-0	02	1	9002-	●
74	WASHER; PL,BLOWER UNIT TO DASH EXC. AIR CONDITIONER MANUAL CONTROL(C60) OD=14	1-09509-048-0	02	1	9002-		●
83	SEAL; COVER,HTR HOLE	1-71997-456-3	01	1	9002-	●	●
86	NUT; COVER,HTR HOLE M6 FLANGE	1-09984-141-0	03	1	9002-	●	●
91	GRILLE ASM; AIR OUTLET,METER CLUSTER	1-76367-050-1	02	1	9002-	●	●
92	BUSHING; AIR OUTLET GRILLE,METER CLUST	1-72547-048-1	02	1	9002-	●	●
93	COVER; HTR CORE	1-71997-891-0	01	1	9002-	●
93	COVER; HTR CORE	1-71997-476-3	01	1	9002-		●
106	STAY; HTR UNIT	1-65680-450-1	01	1	9002-		●
107	BOLT; STAY,HTR UNIT M6X20 W/LK&PL WASHER	0-50140-620-0	01	1	9002-		●
109	NUT; STAY,HTR UNIT M6 FLANGE	5-09440-004-0	01	1	9002-		●
110	BRACKET ASM; CONT UNIT INTAKE HEATER<SL2>	1-73997-787-0	01	1	9002-		●
