8-28 — CHASSIS ELECTRICAL (#1826) — 95 parça

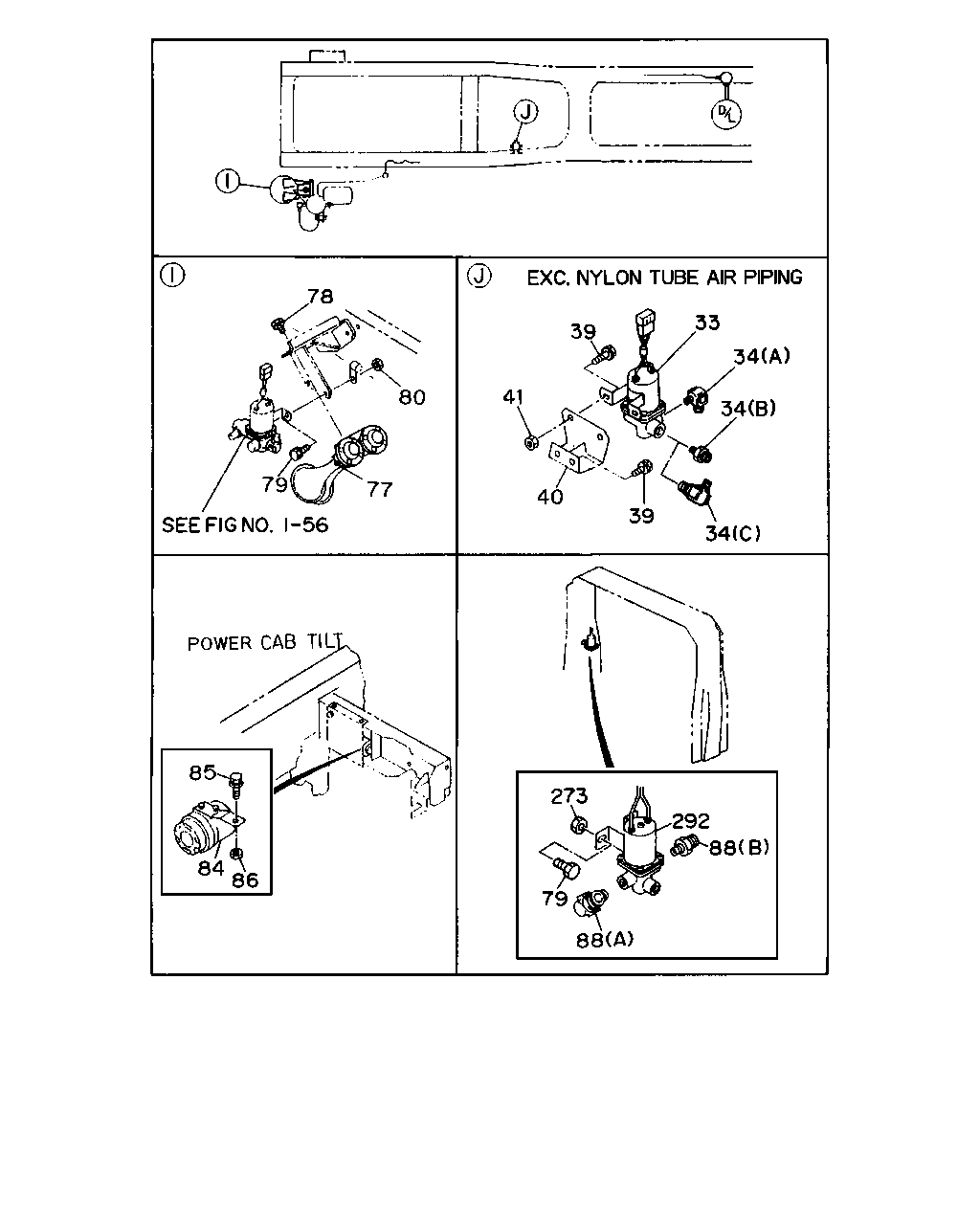

79 77 80 78 41 40 39 39 33 34 34 34 292 273 88 79 88 86 84 85

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
33	VALVE; MAG,PTO CONT TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. NYLON TUBE AIR PIPING<Z29>	1-82563-305-0	01	1	9002-	●	●
34	CONNECTOR; MAG VLV,INL PORT NYLON TUBE AIR PIPING<Z29> (A) 17/32" PT1/4 ELBOW	1-09660-551-0	01	1	9307-	●
34	CONNECTOR; MAG VLV,INL PORT NYLON TUBE AIR PIPING<Z29> (B) 17/32" PT1/4	1-09660-573-0	01	1	9307-	●
34	CONNECTOR; MAG VLV,INL PORT EXC. NYLON TUBE AIR PIPING<Z29> (B) M20 & PT1/4	9-09902-386-0	01	1	9002-	●	●
34	CONNECTOR; MAG VLV,INL PORT 6RB1TC ENG(30L) TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. NYLON TUBE AIR PIPING<Z29> (B) M20 & PT1/4	9-09902-386-0	01	1	9002-	●
34	CONNECTOR; MAG VLV,INL PORT EXC. NYLON TUBE AIR PIPING<Z29> (B) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	9307-	●	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. NYLON TUBE AIR PIPING<Z29> (A)	1-09650-117-1	01	1	9002-9302	●	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. NYLON TUBE AIR PIPING<Z29> (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9303-	●	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. NYLON TUBE AIR PIPING<Z29> (C) M20 & PT1/4 ELBOW	1-09660-681-0	01	1	9307-	●	●
39	BOLT; BRKT,MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. NYLON TUBE AIR PIPING<Z29> M8X20 W/LK WASHER	0-50040-820-0	02	1	9002-9302	●	●
39	BOLT; BRKT,MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. NYLON TUBE AIR PIPING<Z29> M8X20 FLANGE	0-28080-820-0	02	1	9303-	●	●
39	BOLT; BRKT,MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. NYLON TUBE AIR PIPING<Z29> M8X30 W/LK WASHER	0-50040-830-0	02	1	9002-9302	●	●
39	BOLT; BRKT,MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. NYLON TUBE AIR PIPING<Z29> M8X30 FLANGE	0-28080-830-0	02	1	9303-	●	●
40	BRACKET; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. NYLON TUBE AIR PIPING<Z29>	1-47476-464-1	01	1	9002-	●	●
41	NUT; BRKT,MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	04	1	9002-	●	●
77	HORN ASM	1-83430-017-0	01	1	9002-	●	●
78	BOLT; AIR HORN M8X20 W/LK WASHER	9-01900-820-0	02	1	9002-9204	●	●
78	BOLT; AIR HORN M8X20 W/LK WASHER	0-50040-820-0	02	1	9205-9302	●	●
78	BOLT; AIR HORN M8X20 FLANGE	0-28080-820-0	02	1	9303-	●	●
79	BOLT; MAG VLV NYLON TUBE AIR PIPING<Z29> M8X25 FLANGE	0-28080-825-0	02	1	9307-	●
79	BOLT; MAG VLV M8X20 W/LK WASHER	9-01900-820-0	02	1	9002-9204	●	●
79	BOLT; MAG VLV M8X20 W/LK WASHER	0-50040-820-0	02	1	9205-9302	●	●
79	BOLT; MAG VLV M8X20 FLANGE	0-28080-820-0	02	1	9303-	●	●
80	NUT; MAG VLV M8	9-09110-408-0	02	1	9002-	●	●
84	BUZZER; POWER CAB TILT AUTO CAB TILT<WV2>	1-83460-033-3	01	1	9002-9306	●
84	BUZZER; POWER CAB TILT AUTO CAB TILT<WV2> NIKKO	1-83460-054-0	01	1	9307-	●
85	BOLT; BUZZER,POWER CAB TILT AUTO CAB TILT<WV2> M8X20 W/LK&PL WASHER	9-01960-820-0	01	1	9002-9204	●
85	BOLT; BUZZER,POWER CAB TILT AUTO CAB TILT<WV2> M8X30 W/LK&PL WASHER	0-50140-830-0	01	1	9205-9304	●
85	BOLT; BUZZER,POWER CAB TILT AUTO CAB TILT<WV2> M8X20 W/LK&PL WASHER	0-50140-820-0	01	1	9305-	●
86	NUT; BUZZER AUTO CAB TILT<WV2> M8	9-09110-408-0	01	1	9002-	●
88	CONNECTOR; MAG VLV NYLON TUBE AIR PIPING<Z29> (A) 17/32" PT1/4 ELBOW	1-09660-551-0	01	1	9307-	●
88	CONNECTOR; MAG VLV NYLON TUBE AIR PIPING<Z29> (B) 17/32" PT1/4	1-09660-573-0	01	1	9307-	●
273	NUT; MAG VLV NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	02	1	9307-	●
292	VALVE; MAG SPR BRK NYLON TUBE AIR PIPING<Z29>	1-82563-433-0	01	1	9307-	●

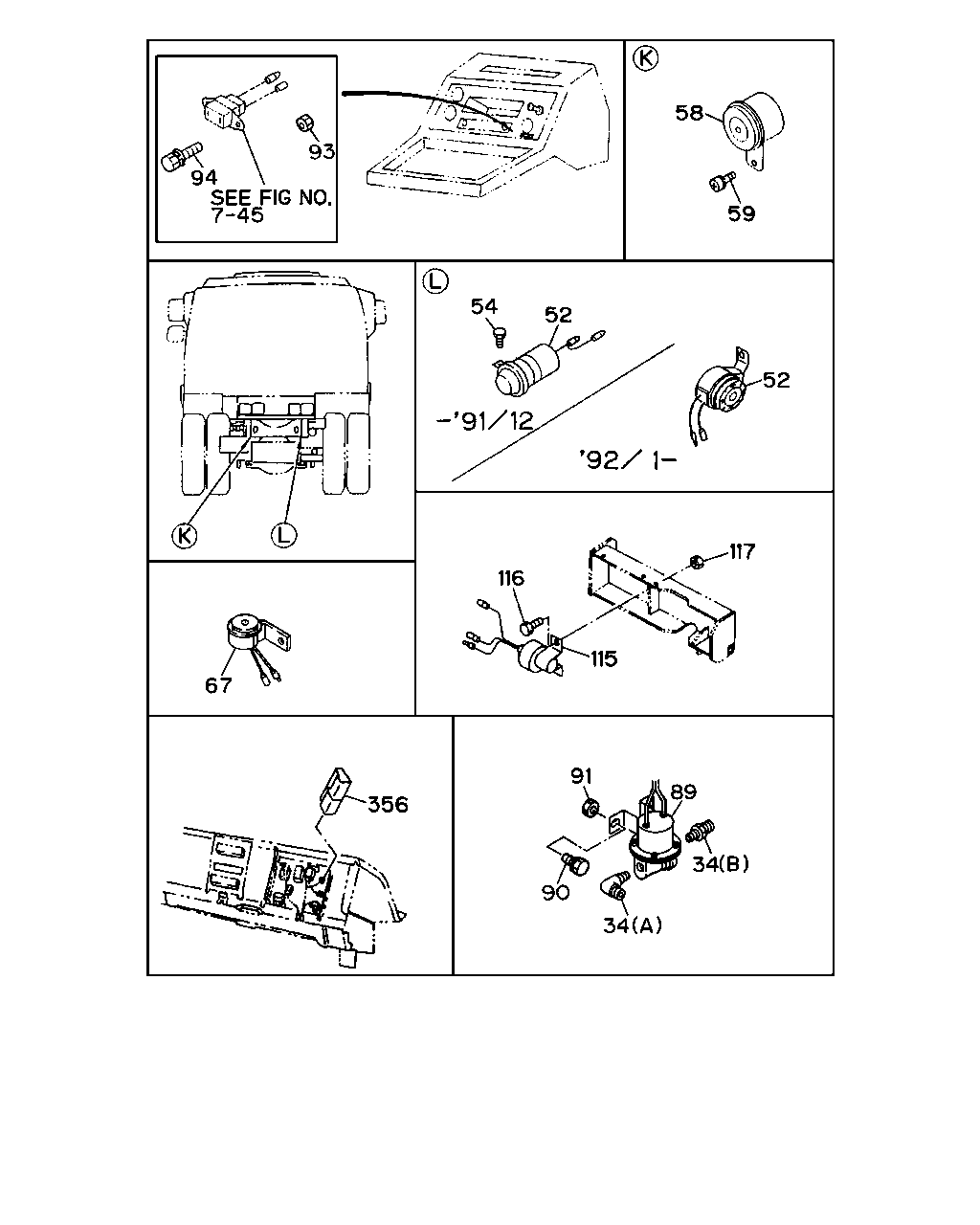

58 59 52 52 54 93 94 67 115 117 116 91 89 34 34 90 356

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
34	CONNECTOR; MAG VLV,INL PORT NYLON TUBE AIR PIPING<Z29> (A) 17/32" PT1/4 ELBOW	1-09660-551-0	01	1	9307-	●
34	CONNECTOR; MAG VLV,INL PORT NYLON TUBE AIR PIPING<Z29> (B) 17/32" PT1/4	1-09660-573-0	01	1	9307-	●
34	CONNECTOR; MAG VLV,INL PORT EXC. NYLON TUBE AIR PIPING<Z29> (B) M20 & PT1/4	9-09902-386-0	01	1	9002-	●	●
34	CONNECTOR; MAG VLV,INL PORT 6RB1TC ENG(30L) TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. NYLON TUBE AIR PIPING<Z29> (B) M20 & PT1/4	9-09902-386-0	01	1	9002-	●
34	CONNECTOR; MAG VLV,INL PORT EXC. NYLON TUBE AIR PIPING<Z29> (B) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	9307-	●	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. NYLON TUBE AIR PIPING<Z29> (A)	1-09650-117-1	01	1	9002-9302	●	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. NYLON TUBE AIR PIPING<Z29> (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9303-	●	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. NYLON TUBE AIR PIPING<Z29> (C) M20 & PT1/4 ELBOW	1-09660-681-0	01	1	9307-	●	●
52	BUZZER; BACK REVERSING WARNING BUZZER<YM9> NIKKO	1-83460-010-0	01	1	9002-9112	●	●
52	BUZZER; BACK REVERSING WARNING BUZZER<YM9> NIKKO	8-97061-718-0	01	1	9201-9306	●	●
52	BUZZER; BACK REVERSING WARNING BUZZER<YM9> NIKKO	1-83460-052-0	01	1	9307-	●	●
54	BOLT; BACK BUZZER REVERSING WARNING BUZZER<YM9> M10X25 W/LK WASHER	0-50041-025-0	01	1	9002-9006	●	●
58	BUZZER; AIR PRESSURE WARNING	1-83460-029-0	01	1	9002-	●
58	BUZZER; AIR PRESSURE WARNING	1-83460-005-0	01	1	9002-		●
59	SCREW; BUZZER M5X14 W/PL WASHER	5-09981-050-0	01	1	9002-	●	●
67	BUZZER; ENG OVERRUN ENGINE OVERRUN BUZZER<SK4>	1-83460-032-0	01	1	9002-	●	●
67	BUZZER; ENG OVERRUN EXH HEAT WARNING<W50> EXC. ENGINE OVERRUN BUZZER<SK4>	1-83460-032-0	01	1	9002-	●
89	VALVE; MAG,DIFF LOCK NYLON TUBE AIR PIPING<Z29>	1-82563-361-0	01	1	9002-9105	●
89	VALVE; MAG,DIFF LOCK NYLON TUBE AIR PIPING<Z29>	1-82563-404-0	01	1	9106-	●
89	VALVE; MAG,DIFF LOCK EXC. NYLON TUBE AIR PIPING<Z29>	1-82563-301-0	01	1	9002-	●	●
90	BOLT; MAG VLV FRAME EQUIPMENT HEAVY DUTY<F03> M8X30 FLANGE	0-28080-830-0	02	1	9307-	●
90	BOLT; MAG VLV EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M8X25 FLANGE	0-28080-825-0	02	1	9307-	●
90	BOLT; MAG VLV M8X25 FLANGE	0-28080-825-0	02	1	9307-		●
90	BOLT; MAG VLV M8X25 W/LK WASHER	9-01900-825-0	02	1	9002-9204	●	●
90	BOLT; MAG VLV M8X25 W/LK WASHER	0-50040-825-0	02	1	9205-9302	●	●
90	BOLT; MAG VLV M8X25 FLANGE	0-28080-825-0	02	1	9303-9306	●	●
91	NUT; MAG VLV M8	9-09110-408-0	02	1	9002-	●	●
93	NUT; CONSENT TO BLIND PNL M5 FLANGE	5-09440-003-0	02	1	9002-		●
94	SCREW; CONSENT TO BLIND PNL M5X14 W/PL WASHER	5-09981-050-0	02	1	9002-	●
94	SCREW; CONSENT TO BLIND PNL	1-09981-282-0	02	1	9002-		●
115	RELAY; POWER CAB TILT UNIT AUTO CAB TILT<WV2> NIKKO	1-81171-034-1	01	1	9002-9306	●
115	RELAY; POWER CAB TILT UNIT AUTO CAB TILT<WV2> NIKKO	1-81171-071-0	01	1	9307-	●
116	BOLT; RELAY FIX AUTO CAB TILT<WV2> M8X20 W/LK&PL WASHER	9-01960-820-0	02	1	9002-9204	●
116	BOLT; RELAY FIX AUTO CAB TILT<WV2> M8X20 W/LK&PL WASHER	0-50140-820-0	02	1	9205-	●
117	NUT; RELAY FIX AUTO CAB TILT<WV2> M8	9-09110-408-0	02	1	9002-	●
356	DIODE; TRAILER HAND BRK 1.1A 2P	8-94249-985-0	01	1	9002-	●	●

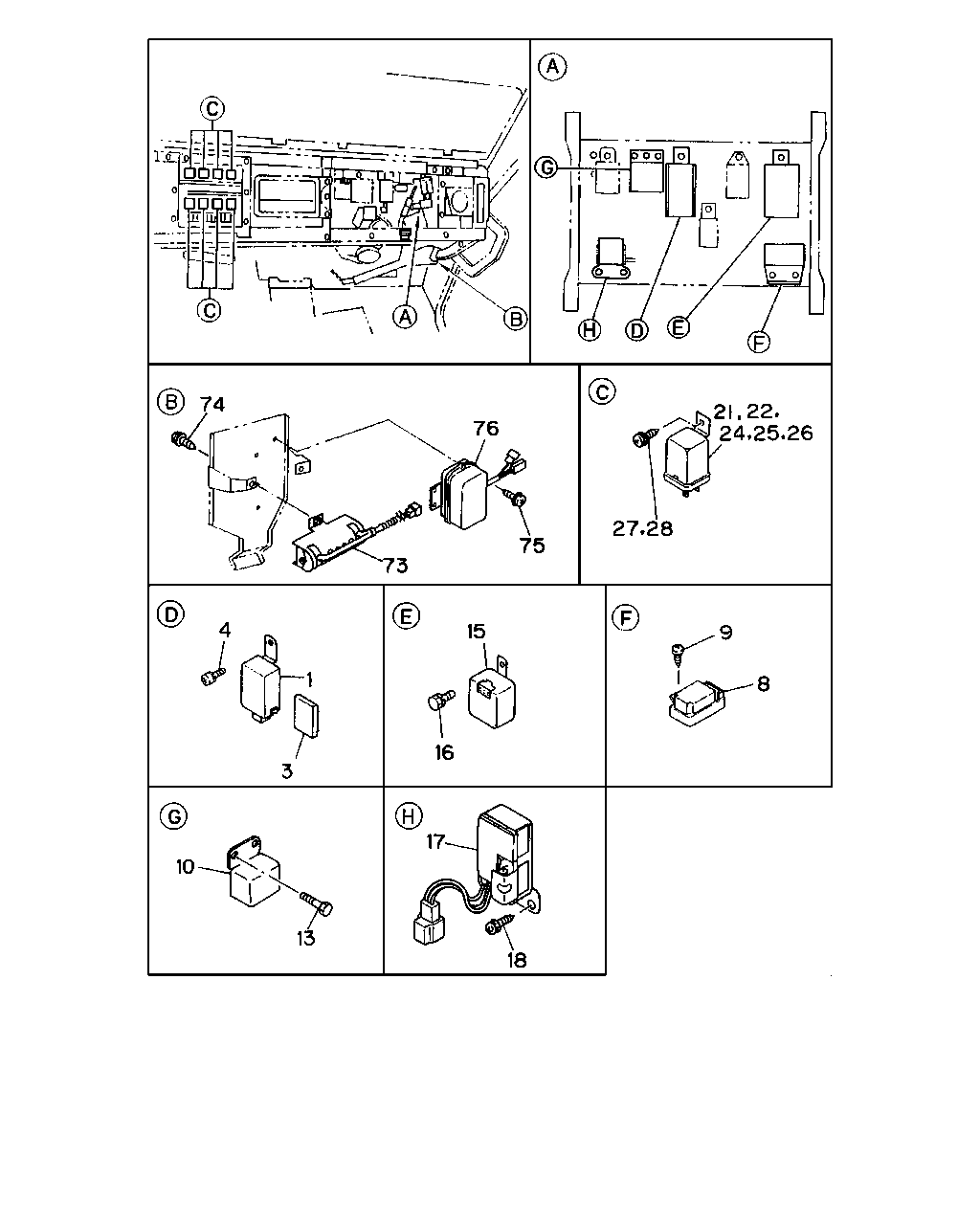

74 73 76 75 27 28 21 22 26 25 24 9 8 15 16 17 18 13 10 3 1 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	UNIT; FLASHER	1-83470-030-0	01	1	9002-9509	●	●
1	UNIT; FLASHER	1-83470-030-0	01	1	9510-	●
1	UNIT; FLASHER EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2)	1-83470-030-0	01	1	9510-		●
1	UNIT; FLASHER CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-83470-061-0	01	1	9510-		●
3	SEAL; SILENT,RELAY	1-73368-001-0	01	1	9002-	●	●
4	SCREW; FLASHER UNIT M5X14 TAPPING W/PL WASHER	0-74100-514-0	01	1	9002-	●	●
8	RELAY; WIPER INTERMITTENT WIPER<C13>	1-82550-095-3	01	1	9002-	●	●
9	SCREW; WIPER RELAY INTERMITTENT WIPER<C13> M5X14 TAPPING W/PL WASHER	0-74100-514-0	02	1	9002-	●	●
10	DETECTOR ASM; FUEL	1-81553-001-0	01	1	9002-	●	●
13	BOLT; FUEL DETECTOR M5X14 TAPPING W/PL WASHER	0-74100-514-0	01	1	9203-	●	●
15	RELAY; STOP & TAIL WARNING	1-82550-143-2	01	1	9002-	●	●
16	SCREW; RELAY M5X14 TAPPING W/PL WASHER	0-74100-514-0	03	1	9002-	●	●
17	TIMER; SEAT BELT POWER WINDOW<A30> EXC. SAUDI ARABIA EQUIPMENT(WH1)	1-82550-183-1	01	1	9002-9306		●
18	SCREW; TIMER POWER WINDOW<A30> EXC. SAUDI ARABIA EQUIPMENT(WH1) M5X14 TAPPING W/PL WASHER	0-74100-514-0	02	1	9002-9306		●
21	RELAY; TRAILER TAIL GREEN	1-82550-146-0	01	1	9002-	●	●
22	RELAY; STOP LAMP GREEN	1-82550-146-0	01	1	9002-	●	●
24	RELAY; LIGHTING GREEN	1-82550-146-0	02	1	9002-	●	●
25	RELAY; TAIL LAMP GREEN	1-82550-146-0	01	1	9002-	●	●
26	RELAY; CONSENT GREEN	1-82550-146-0	01	1	9002-	●	●
27	SCREW; SET,LIGHTING RELAY M5X14 TAPPING W/PL WASHER	0-74100-514-0	02	1	9002-	●	●
28	SCREW; SET,TAIL LAMP RELAY M5X14 TAPPING W/PL WASHER	0-74100-514-0	02	1	9002-	●	●
73	RESISTOR; RELAY INTAKE HEATER<SL2>	1-81375-004-1	01	1	9002-	●	●
74	SCREW; RESISTOR INTAKE HEATER<SL2> M5X14 TAPPING W/PL WASHER	0-74100-514-0	04	1	9002-	●	●
75	SCREW; STOP LAMP RELAY M5X14 TAPPING W/PL WASHER	0-74100-514-0	02	1	9002-	●	●
76	TIMER; INT HTR INTAKE HEATER<SL2>	1-82550-132-1	01	1	9002-	●	●
