3-15 — ANTILOCK BRAKE SYSTEM(A.B.S.) (#18259) — 18 parça

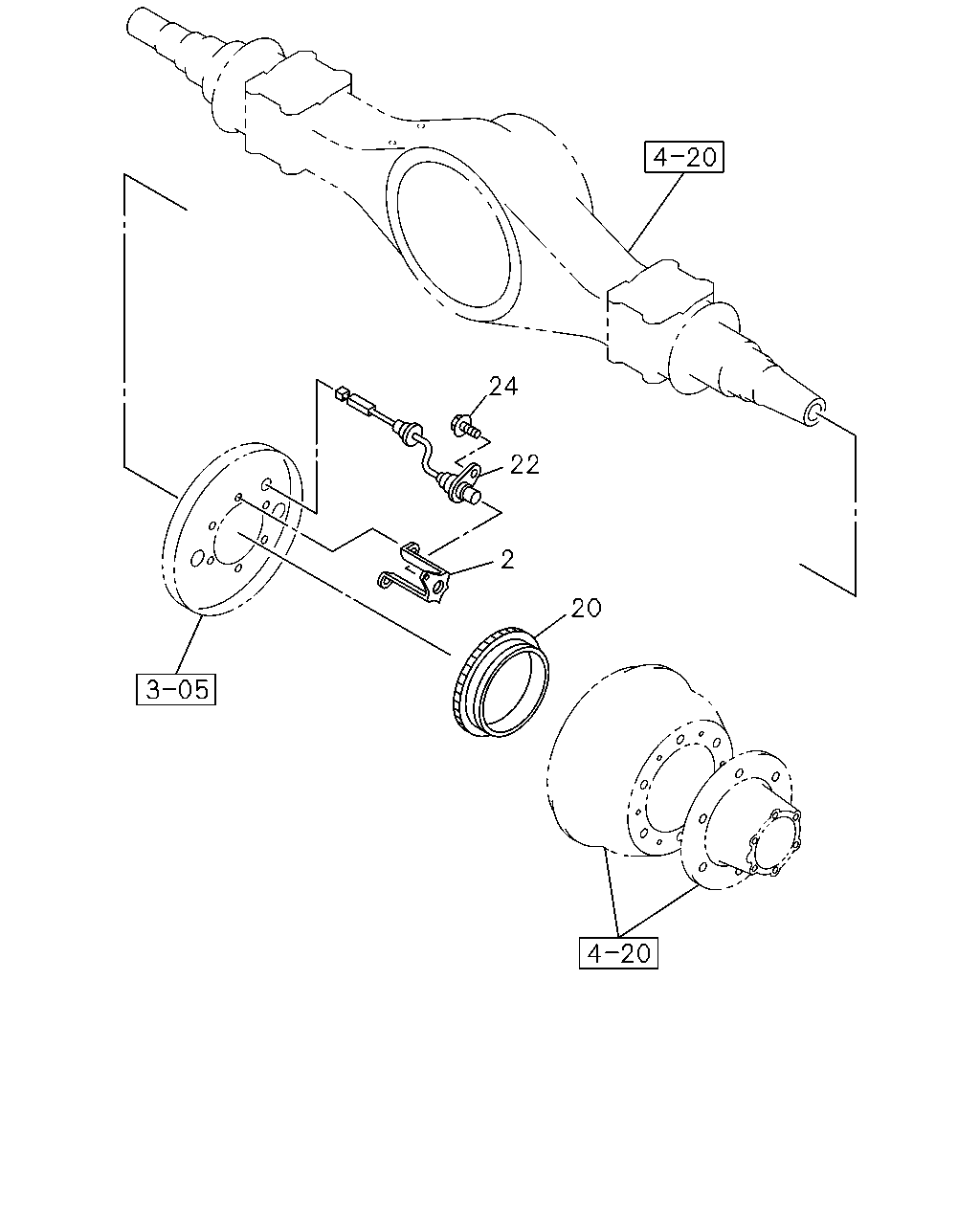

çizim 13435
24 22 2 20
BalonParca AdiParca NoAdetTipApplied Date A B C D E
2 04.730 BRACKET; SENSOR
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV),G.V.W. 6.5-7.0TON(RPW) BRK WHL LK CONT LSPV<6PH> 		8-97314-120-0 02 1 0507- ● ● ●
2 04.730 BRACKET; SENSOR
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) REAR AXLE HEAVY DUTY 320MM(6CP) BRK WHL LK CONT LSPV<6PH> 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97248-117-0 02 1 0507- ● ● ● ●
2 04.730 BRACKET; SENSOR
G.V.W. 8.0-8.5TON(RPZ) BRK WHL LK CONT LSPV<6PH> 4 WHEEL ANTI LOCK BRAKE<JE5> FINAL GEAR RATIO 41/7(R41),FINAL GEARRATIO 43/7(R42),FINAL GEAR RATIO 41/ 6(6YB) 		8-97248-117-0 02 1 0507- ● ● ●
2 04.730 BRACKET; SENSOR
REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 41/9(HC6) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> G.V.W. 8.0-8.5TON(RPZ) AUSTRALIA EQUIPMENT(RR3) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> 		8-97350-528-0 02 1 0507- ● ● ●
2 04.730 BRACKET; SENSOR
4HG1 ENG(RJH) G.V.W. 8.0-8.5TON(RPZ) FINAL GEAR RATIO 41/7(R41),FINAL GEARRATIO 43/7(R42),FINAL GEAR RATIO 41/ 6(6YB) BRK WHL LK CONT LSPV<6PH> 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97248-117-0 02 1 0309-0501 ● ● ●
20 04.710 ROTOR; SENSOR
4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/9(HC6) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV),G.V.W. 6.5-7.0TON(RPW) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> 		8-97206-774-3 02 1 0507-0601 ● ● ●
20 04.710 ROTOR; SENSOR
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV),G.V.W. 6.5-7.0TON(RPW) BRK WHL LK CONT LSPV<6PH> 		8-97206-774-3 02 1 0602-0608 ● ● ●
20 04.710 ROTOR; SENSOR
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV),G.V.W. 6.5-7.0TON(RPW) BRK WHL LK CONT LSPV<6PH> 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97206-774-4 02 1 0609- ● ● ●
20 04.710 ROTOR; SENSOR
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) BRK WHL LK CONT LSPV<6PH> 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97206-775-3 02 1 0507- ● ● ● ●
20 04.710 ROTOR; SENSOR
4HG1 ENG(RJH) G.V.W. 8.0-8.5TON(RPZ) FINAL GEAR RATIO 41/7(R41),FINAL GEARRATIO 43/7(R42),FINAL GEAR RATIO 41/ 6(6YB) BRK WHL LK CONT LSPV<6PH> 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97206-775-3 02 1 0309-0501 ● ● ●
22 04.710 SENSOR; SPEED
REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 41/9(HC6) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> G.V.W. 8.0-8.5TON(RPZ) AUSTRALIA EQUIPMENT(RR3) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> 		8-97331-218-3 02 1 0507- ● ● ●
22 04.710 SENSOR; SPEED
BRK WHL LK CONT LSPV<6PH> 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97206-760-2 02 1 0507-0608 ● ● ● ● ●
22 04.710 SENSOR; SPEED
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV),G.V.W. 6.5-7.0TON(RPW), G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) BRK WHL LK CONT LSPV<6PH> 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97206-760-3 02 1 0609- ● ● ● ● ●
22 04.710 SENSOR; SPEED
4HG1-T ENG(RDP) G.V.W. 8.0-8.5TON(RPZ) BRK WHL LK CONT LSPV<6PH> 4 WHEEL ANTI LOCK BRAKE<JE5> FINAL GEAR RATIO 41/7(R41),FINAL GEARRATIO 43/7(R42),FINAL GEAR RATIO 41/ 6(6YB) HYDRO BRAKE BOOSTER<7QQ> 		8-97206-760-3 02 1 0609- ●
22 04.710 SENSOR; SPEED
4HG1 ENG(RJH) G.V.W. 8.0-8.5TON(RPZ) FINAL GEAR RATIO 41/7(R41),FINAL GEARRATIO 43/7(R42),FINAL GEAR RATIO 41/ 6(6YB) BRK WHL LK CONT LSPV<6PH> 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97206-760-2 02 1 0309-0501 ● ● ●
24 04.730 BOLT; SENSOR
BRK WHL LK CONT LSPV<6PH> 4 WHEEL ANTI LOCK BRAKE<JE5> 08.900 M8X12 FLANGE 		0-28080-812-0 02 1 0507-0512 ● ● ● ● ●
24 04.730 BOLT; SENSOR
BRK WHL LK CONT LSPV<6PH> 4 WHEEL ANTI LOCK BRAKE<JE5> 02.343 M8X12 FLANGE 		0-28050-812-0 02 1 0601- ● ● ● ● ●
24 04.730 BOLT; SENSOR
4HG1 ENG(RJH) G.V.W. 8.0-8.5TON(RPZ) FINAL GEAR RATIO 41/7(R41),FINAL GEARRATIO 43/7(R42),FINAL GEAR RATIO 41/ 6(6YB) BRK WHL LK CONT LSPV<6PH> 4 WHEEL ANTI LOCK BRAKE<JE5> 08.900 M8X12 FLANGE 		0-28080-812-0 02 1 0309-0501 ● ● ●
