7 |

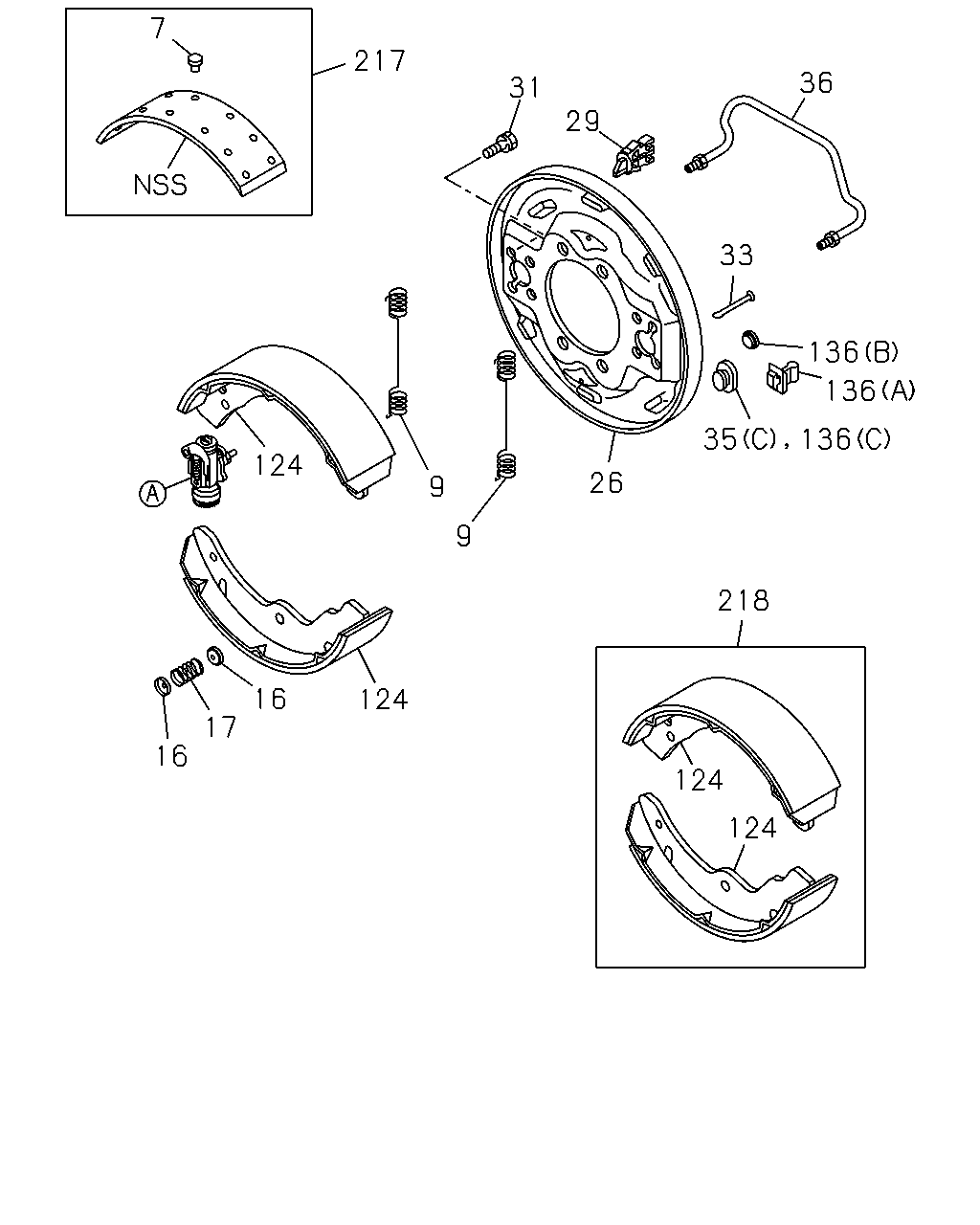

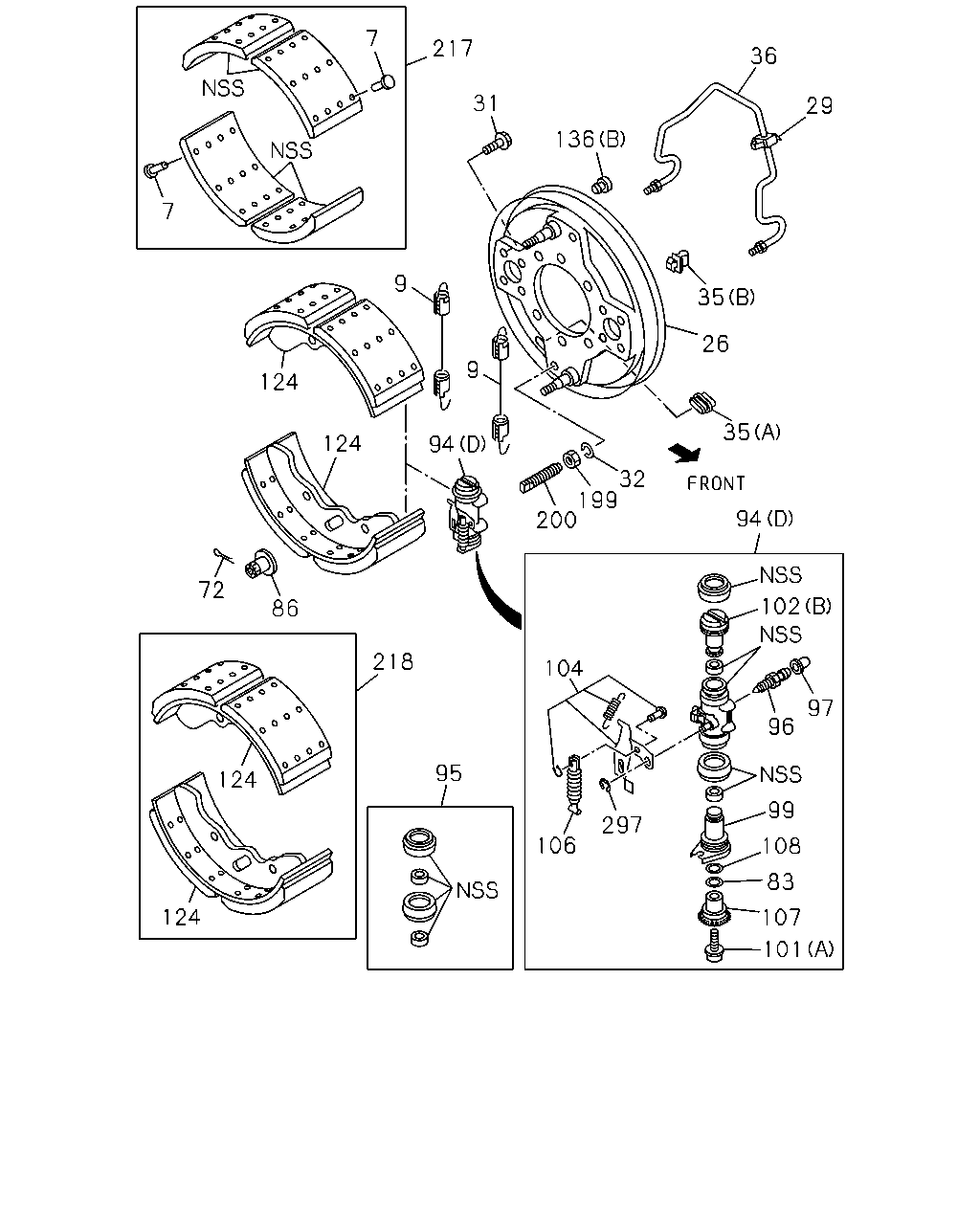

05.019 RIVET; LINING,RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.5-8.0TON(RPY)
|
1-09732-029-0 |
64 |
1 |
0507-0606 |
● |
● |
● |
● |
|
|
| |
7 |
05.019 RIVET; LINING,RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 8.0-8.5TON(RPZ)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEARRATIO 41/7(R41),FINAL GEAR RATIO 43/
7(R42),FINAL GEAR RATIO 41/6(6YB)
|
1-09732-029-0 |
64 |
1 |
0507-0606 |
● |
● |
● |
|
|
|
| |
7 |
05.019 RIVET; LINING,RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
BRK WHL LK CONT LSPV<6PH>
HYDRO BRAKE BOOSTER<7QQ>
|
1-09732-029-0 |
64 |
1 |
0507-0606 |
● |
● |
|
|
|
|
| |
7 |
05.019 RIVET; LINING,RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.5-8.0TON(RPY)
|
1-09732-029-0 |
64 |
1 |
0607- |
● |
● |
● |
● |
|
|
| |
7 |
05.019 RIVET; LINING,RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 8.0-8.5TON(RPZ)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEARRATIO 41/7(R41),FINAL GEAR RATIO 43/
7(R42),FINAL GEAR RATIO 41/6(6YB)
|
1-09732-029-0 |
64 |
1 |
0607- |
● |
● |
● |
|
|
|
| |
7 |
05.019 RIVET; LINING,RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 8.0-8.5TON(RPZ)
FINAL GEAR RATIO 41/9(HC6)
HYDRO BRAKE BOOSTER<7QQ>
EXC. DISC BRAKE FRT<J52>,BRK WHL LK
CONT LSPV<6PH>
|
1-09732-029-0 |
64 |
1 |
0607- |
● |
● |
● |
|
|
|
| |
7 |
05.019 RIVET; LINING,RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
BRK WHL LK CONT LSPV<6PH>
HYDRO BRAKE BOOSTER<7QQ>
|
1-09732-029-0 |
64 |
1 |
0607- |
● |
● |
|
|
|
|
| |
7 |
05.019 RIVET; LINING,RR BRK
G.V.W. 6.5-7.0TON(RPW),G.V.W.
7.0-7.5TON(RPX)
|
1-09732-029-0 |
48 |
1 |
0211-0501 |
● |
● |
|
|
● |
|
| |
7 |
05.019 RIVET; LINING,RR BRK
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 7.5-8.0TON(RPY)
BRK WHL LK CONT LSPV<6PH>
|
1-09732-029-0 |
48 |
1 |
0211-0501 |
● |
● |
|
● |
|
|
| |
7 |
05.019 RIVET; LINING,RR BRK
G.V.W. 7.0-7.5TON(RPX)
|
1-09732-029-0 |
48 |
1 |
0502-0506 |
● |
● |
|
|
● |
|
| |
7 |
05.019 RIVET; LINING,RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 6.0-6.5TON(RPV),G.V.W.
6.5-7.0TON(RPW)
|
1-09732-029-0 |
48 |
1 |
0507-0509 |
● |
● |
|
|
● |
|
| |
7 |
05.019 RIVET; LINING,RR BRK
G.V.W. 7.0-7.5TON(RPX)
EXC. BRK WHL LK CONT LSPV<6PH>
|
1-09732-029-0 |
48 |
1 |
0507-0509 |
● |
● |
|
|
● |
|
| |
7 |
05.019 RIVET; LINING,RR BRK
G.V.W. 7.0-7.5TON(RPX)
REAR AXLE HEAVY DUTY 292MM(G73)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,
DISC BRAKE FRT<J52>,BRK WHL LK CONT LSPV
<6PH>
|
1-09732-029-0 |
48 |
1 |
0510-0606 |
● |
● |
|
|
● |
|
| |
7 |
05.019 RIVET; LINING,RR BRK
G.V.W. 6.0-6.5TON(RPV),G.V.W.
6.5-7.0TON(RPW)
REAR AXLE HEAVY DUTY 320MM(6CP)
DISC BRAKE FRT<J52>
BRK WHL LK CONT LSPV<6PH>
|
1-09732-029-0 |
48 |
1 |
0510-0606 |
● |
● |
|
|
● |
|
| |
7 |
05.019 RIVET; LINING,RR BRK
G.V.W. 7.0-7.5TON(RPX)
REAR AXLE HEAVY DUTY 292MM(G73)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,
DISC BRAKE FRT<J52>,BRK WHL LK CONT LSPV
<6PH>
|
1-09732-029-0 |
48 |
1 |
0607- |
● |
● |
|
|
● |
|
| |
7 |
05.019 RIVET; LINING,RR BRK
G.V.W. 6.0-6.5TON(RPV),G.V.W.
6.5-7.0TON(RPW)
REAR AXLE HEAVY DUTY 320MM(6CP)
DISC BRAKE FRT<J52>
BRK WHL LK CONT LSPV<6PH>
|
1-09732-029-0 |
48 |
1 |
0607- |
● |
● |
|
|
● |
|
| |
7 |
05.019 RIVET; LINING,RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
FINAL GEAR RATIO 39/7(GV1)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,
DISC BRAKE FRT<J52>,BRK WHL LK CONT LSPV
<6PH>
|
1-09732-029-0 |
48 |
1 |
0607- |
● |
● |
|
|
● |
|
| |
7 |
05.019 RIVET; LINING,RR BRK
G.V.W. 4.0-4.5TON(RPR),G.V.W.
6.0-6.5TON(RPV)
|
1-09732-029-0 |
40 |
1 |
0211-0501 |
● |
● |
|
● |
● |
|
| |
7 |
05.019 RIVET; LINING,RR BRK
G.V.W. 6.0-6.5TON(RPV)
|
1-09732-029-0 |
40 |
1 |
0502-0506 |
● |
● |
|
|
● |
|
| |
7 |
05.019 RIVET; LINING,RR BRK
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 6.0-6.5TON(RPV)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,
DISC BRAKE FRT<J52>,BRK WHL LK CONT LSPV
<6PH>
|
1-09732-029-0 |
40 |
1 |
0507- |
● |
● |
|
|
● |
|
| |
7 |
05.019 RIVET; LINING,RR BRK
G.V.W. 4.0-4.5TON(RPR)
|
1-09732-029-0 |
40 |
1 |
0507- |
● |
|
|
|
● |
|
| |
7 |
05.019 RIVET; LINING,RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.5-8.0TON(RPY)
EXC. BRK WHL LK CONT LSPV<6PH>
|
1-09732-029-0 |
64 |
1 |
0211-0501 |
● |
● |
● |
|
|
|
| |
7 |
05.019 RIVET; LINING,RR BRK
G.V.W. 8.0-8.5TON(RPZ)
|
1-09732-029-0 |
64 |
1 |
0211-0501 |
● |
● |
● |
|
|
|
| |
7 |
05.019 RIVET; LINING,RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP)
|
1-09732-029-0 |
64 |
1 |
0502-0506 |
● |
● |
● |
|
|
|
| |
7 |
05.019 RIVET; LINING,RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 41/10(GT5),FINAL
GEAR RATIO 41/9(HC6)
4 WHEEL ANTI LOCK BRAKE<JE5>
DISC BRAKE FRT<J52>
G.V.W. 8.0-8.5TON(RPZ)
AUSTRALIA EQUIPMENT(RR3)
BRK WHL LK CONT LSPV<6PH>
FRAME STRAIGHT TYPE<7KJ>
|
1-09732-029-0 |
96 |
1 |
0507- |
● |
● |
● |
|
|
|
| |
9 |
05.026 SPRING; RETURN,BRK SHOE
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 41/10(GT5),FINAL
GEAR RATIO 41/9(HC6)
4 WHEEL ANTI LOCK BRAKE<JE5>
DISC BRAKE FRT<J52>
G.V.W. 8.0-8.5TON(RPZ)
AUSTRALIA EQUIPMENT(RR3)
BRK WHL LK CONT LSPV<6PH>
FRAME STRAIGHT TYPE<7KJ>
|
1-09583-346-0 |
04 |
1 |
0507- |
● |
● |
● |
|
|
|
| |
9 |
05.026 SPRING; RETURN,BRK SHOE
G.V.W. 6.5-7.0TON(RPW),G.V.W.
7.0-7.5TON(RPX)
|
8-97022-087-0 |
04 |
1 |
0211-0501 |
● |
● |
|
|
● |
|
| |
9 |
05.026 SPRING; RETURN,BRK SHOE
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 7.5-8.0TON(RPY)
BRK WHL LK CONT LSPV<6PH>
|
8-97022-087-0 |
04 |
1 |
0211-0501 |
● |
● |
|
● |
|
|
| |
9 |
05.026 SPRING; RETURN,BRK SHOE
G.V.W. 7.0-7.5TON(RPX)
|
8-97022-087-0 |
04 |
1 |
0502-0506 |
● |
● |
|
|
● |
|
| |
9 |
05.026 SPRING; RETURN,BRK SHOE
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 6.0-6.5TON(RPV),G.V.W.
6.5-7.0TON(RPW)
|
8-97022-087-0 |
04 |
1 |
0507-0509 |
● |
● |
|
|
● |
|
| |
9 |
05.026 SPRING; RETURN,BRK SHOE
G.V.W. 7.0-7.5TON(RPX)
EXC. BRK WHL LK CONT LSPV<6PH>
|
8-97022-087-0 |
04 |
1 |
0507-0509 |
● |
● |
|
|
● |
|
| |
9 |
05.026 SPRING; RETURN,BRK SHOE
G.V.W. 7.0-7.5TON(RPX)
REAR AXLE HEAVY DUTY 292MM(G73)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,
DISC BRAKE FRT<J52>,BRK WHL LK CONT LSPV
<6PH>
|
8-97022-087-0 |
04 |
1 |
0510-0606 |
● |
● |
|
|
● |
|
| |
9 |
05.026 SPRING; RETURN,BRK SHOE
G.V.W. 6.0-6.5TON(RPV),G.V.W.
6.5-7.0TON(RPW)
REAR AXLE HEAVY DUTY 320MM(6CP)
DISC BRAKE FRT<J52>
BRK WHL LK CONT LSPV<6PH>
|
8-97022-087-0 |
04 |
1 |
0510-0606 |
● |
● |
|
|
● |
|
| |
9 |
05.026 SPRING; RETURN,BRK SHOE
G.V.W. 7.0-7.5TON(RPX)
REAR AXLE HEAVY DUTY 292MM(G73)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,
DISC BRAKE FRT<J52>,BRK WHL LK CONT LSPV
<6PH>
|
8-97022-087-0 |
04 |
1 |
0607- |
● |
● |
|
|
● |
|
| |
9 |
05.026 SPRING; RETURN,BRK SHOE
G.V.W. 6.0-6.5TON(RPV),G.V.W.
6.5-7.0TON(RPW)
REAR AXLE HEAVY DUTY 320MM(6CP)
DISC BRAKE FRT<J52>
BRK WHL LK CONT LSPV<6PH>
|
8-97022-087-0 |
04 |
1 |
0607- |
● |
● |
|
|
● |
|
| |
9 |
05.026 SPRING; RETURN,BRK SHOE
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
FINAL GEAR RATIO 39/7(GV1)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,
DISC BRAKE FRT<J52>,BRK WHL LK CONT LSPV
<6PH>
|
8-97022-087-0 |
04 |
1 |
0607- |
● |
● |
|
|
● |
|
| |
9 |
05.026 SPRING; RETURN,BRK SHOE
G.V.W. 4.0-4.5TON(RPR),G.V.W.
6.0-6.5TON(RPV)
|
5-09583-118-0 |
04 |
1 |
0211-0501 |
● |
● |
|
● |
● |
|
| |
9 |
05.026 SPRING; RETURN,BRK SHOE
G.V.W. 6.0-6.5TON(RPV)
|
5-09583-118-0 |
04 |
1 |
0502-0506 |
● |
● |
|
|
● |
|
| |
9 |
05.026 SPRING; RETURN,BRK SHOE
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 6.0-6.5TON(RPV)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,
DISC BRAKE FRT<J52>,BRK WHL LK CONT LSPV
<6PH>
|
5-09583-118-0 |
04 |
1 |
0507- |
● |
● |
|
|
● |
|
| |
9 |
05.026 SPRING; RETURN,BRK SHOE
G.V.W. 4.0-4.5TON(RPR)
|
5-09583-118-0 |
04 |
1 |
0507- |
● |
|
|
|
● |
|
| |
9 |
05.026 SPRING; RETURN,BRK SHOE
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.5-8.0TON(RPY)
EXC. BRK WHL LK CONT LSPV<6PH>
|
8-97122-869-0 |
04 |
1 |
0211-0501 |
● |
● |
● |
|
|
|
| |
9 |
05.026 SPRING; RETURN,BRK SHOE
G.V.W. 8.0-8.5TON(RPZ)
|
8-97122-869-0 |
04 |
1 |
0211-0501 |
● |
● |
● |
|
|
|
| |
9 |
05.026 SPRING; RETURN,BRK SHOE
REAR AXLE HEAVY DUTY 320MM(6CP)
|
8-97122-869-0 |
04 |
1 |
0502-0506 |
● |
● |
● |
|
|
|
| |
9 |
05.026 SPRING; RETURN,BRK SHOE
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.5-8.0TON(RPY)
|
8-97122-869-0 |
04 |
1 |
0507-0606 |
● |
● |
● |
● |
|
|
| |
9 |
05.026 SPRING; RETURN,BRK SHOE
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 8.0-8.5TON(RPZ)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEARRATIO 41/7(R41),FINAL GEAR RATIO 43/
7(R42),FINAL GEAR RATIO 41/6(6YB)
|
8-97122-869-0 |
04 |
1 |
0507-0606 |
● |
● |
● |
|
|
|
| |
9 |
05.026 SPRING; RETURN,BRK SHOE
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
BRK WHL LK CONT LSPV<6PH>
HYDRO BRAKE BOOSTER<7QQ>
|
8-97122-869-0 |
04 |
1 |
0507-0606 |
● |
● |
|
|
|
|
| |
9 |
05.026 SPRING; RETURN,BRK SHOE
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.5-8.0TON(RPY)
|
8-97122-869-0 |
04 |
1 |
0607- |
● |
● |
● |
● |
|
|
| |
9 |
05.026 SPRING; RETURN,BRK SHOE
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 8.0-8.5TON(RPZ)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEARRATIO 41/7(R41),FINAL GEAR RATIO 43/
7(R42),FINAL GEAR RATIO 41/6(6YB)
|
8-97122-869-0 |
04 |
1 |
0607- |
● |
● |
● |
|
|
|
| |
9 |
05.026 SPRING; RETURN,BRK SHOE
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 8.0-8.5TON(RPZ)
FINAL GEAR RATIO 41/9(HC6)
HYDRO BRAKE BOOSTER<7QQ>
EXC. DISC BRAKE FRT<J52>,BRK WHL LK
CONT LSPV<6PH>
|
8-97122-869-0 |
04 |
1 |
0607- |
● |
● |
● |
|
|
|
| |
9 |
05.026 SPRING; RETURN,BRK SHOE
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
BRK WHL LK CONT LSPV<6PH>
HYDRO BRAKE BOOSTER<7QQ>
|
8-97122-869-0 |
04 |
1 |
0607- |
● |
● |
|
|
|
|
| |
9 |
05.026 SPRING; RETURN,BRK SHOE
|
8-94438-227-0 |
04 |
1 |
0211- |
|
|
|
|
|
● |
| |
26 |
05.001 PLATE; BACK,RR BRK
G.V.W. 6.0-6.5TON(RPV),G.V.W.
6.5-7.0TON(RPW)
DISC BRAKE FRT<J52>
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-97376-073-0 |
01 |
1 |
0507- |
● |
● |
|
|
● |
|
| |
26 |
05.001 PLATE; BACK,RR BRK
G.V.W. 6.0-6.5TON(RPV),G.V.W.
6.5-7.0TON(RPW)
DISC BRAKE FRT<J52>
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-97376-074-0 |
01 |
1 |
0507- |
● |
● |
|
|
● |
|
| |
26 |
05.001 PLATE; BACK,RR BRK
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
REAR AXLE HEAVY DUTY 320MM(6CP)
BRK WHL LK CONT LSPV<6PH>
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-97168-748-0 |
01 |
1 |
0507- |
● |
● |
● |
|
|
|
| |
26 |
05.001 PLATE; BACK,RR BRK
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
REAR AXLE HEAVY DUTY 320MM(6CP)
BRK WHL LK CONT LSPV<6PH>
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-97168-750-0 |
01 |
1 |
0507- |
● |
● |
● |
|
|
|
| |
26 |
05.001 PLATE; BACK,RR BRK
4HK1-TCN ENG(RDQ)
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 41/9(HC6)
4 WHEEL ANTI LOCK BRAKE<JE5>
DISC BRAKE FRT<J52>
G.V.W. 6.0-6.5TON(RPV),G.V.W.
6.5-7.0TON(RPW)
BRK WHL LK CONT LSPV<6PH>
FRAME STRAIGHT TYPE<7KJ>
|
8-97192-080-0 |
01 |
1 |
0507-0608 |
● |
● |
|
|
● |
|
| |
26 |
05.001 PLATE; BACK,RR BRK
4HK1-TCN ENG(RDQ)
REAR AXLE HEAVY DUTY 320MM(6CP)
4 WHEEL ANTI LOCK BRAKE<JE5>
DISC BRAKE FRT<J52>
G.V.W. 6.0-6.5TON(RPV),G.V.W.
6.5-7.0TON(RPW)
BRK WHL LK CONT LSPV<6PH>
FRAME STRAIGHT TYPE<7KJ>
|
8-97192-080-0 |
01 |
1 |
0609- |
● |
● |
|
|
● |
|
| |
26 |
05.001 PLATE; BACK,RR BRK
4HK1-TCN ENG(RDQ)
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 41/9(HC6)
4 WHEEL ANTI LOCK BRAKE<JE5>
DISC BRAKE FRT<J52>
G.V.W. 6.0-6.5TON(RPV),G.V.W.
6.5-7.0TON(RPW)
BRK WHL LK CONT LSPV<6PH>
FRAME STRAIGHT TYPE<7KJ>
|
8-97192-081-0 |
01 |
1 |
0507-0608 |
● |
● |
|
|
● |
|
| |
26 |
05.001 PLATE; BACK,RR BRK
4HK1-TCN ENG(RDQ)
REAR AXLE HEAVY DUTY 320MM(6CP)
4 WHEEL ANTI LOCK BRAKE<JE5>
DISC BRAKE FRT<J52>
G.V.W. 6.0-6.5TON(RPV),G.V.W.
6.5-7.0TON(RPW)
BRK WHL LK CONT LSPV<6PH>
FRAME STRAIGHT TYPE<7KJ>
|
8-97192-081-0 |
01 |
1 |
0609- |
● |
● |
|
|
● |
|
| |
26 |
05.001 PLATE; BACK,RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP)
4 WHEEL ANTI LOCK BRAKE<JE5>
DISC BRAKE FRT<J52>
G.V.W. 4.0-4.5TON(RPR)
BRK WHL LK CONT LSPV<6PH>
FRAME STRAIGHT TYPE<7KJ>
|
8-97079-854-0 |
01 |
1 |
0507- |
● |
|
|
|
● |
|
| |
26 |
05.001 PLATE; BACK,RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP)
4 WHEEL ANTI LOCK BRAKE<JE5>
DISC BRAKE FRT<J52>
G.V.W. 4.0-4.5TON(RPR)
BRK WHL LK CONT LSPV<6PH>
FRAME STRAIGHT TYPE<7KJ>
|
8-97079-855-0 |
01 |
1 |
0507- |
● |
|
|
|
● |
|
| |
26 |
05.001 PLATE; BACK,RR BRK
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
REAR AXLE HEAVY DUTY 320MM(6CP)
BRK WHL LK CONT LSPV<6PH>
4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-97207-157-0 |
01 |
1 |
0507- |
● |
● |
● |
● |
|
|
| |
26 |
05.001 PLATE; BACK,RR BRK
G.V.W. 8.0-8.5TON(RPZ)
BRK WHL LK CONT LSPV<6PH>
4 WHEEL ANTI LOCK BRAKE<JE5>
FINAL GEAR RATIO 41/7(R41),FINAL
GEARRATIO 43/7(R42),FINAL GEAR RATIO 41/
6(6YB)
|
8-97207-157-0 |
01 |
1 |
0507- |
● |
● |
● |
|
|
|
| |
26 |
05.001 PLATE; BACK,RR BRK
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
REAR AXLE HEAVY DUTY 320MM(6CP)
BRK WHL LK CONT LSPV<6PH>
4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-97207-158-0 |
01 |
1 |
0507- |
● |
● |
● |
● |
|
|
| |
26 |
05.001 PLATE; BACK,RR BRK
G.V.W. 8.0-8.5TON(RPZ)
BRK WHL LK CONT LSPV<6PH>
4 WHEEL ANTI LOCK BRAKE<JE5>
FINAL GEAR RATIO 41/7(R41),FINAL
GEARRATIO 43/7(R42),FINAL GEAR RATIO 41/
6(6YB)
|
8-97207-158-0 |
01 |
1 |
0507- |
● |
● |
● |
|
|
|
| |
26 |
05.001 PLATE; BACK,RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 41/10(GT5),FINAL
GEAR RATIO 41/9(HC6)
4 WHEEL ANTI LOCK BRAKE<JE5>
DISC BRAKE FRT<J52>
G.V.W. 8.0-8.5TON(RPZ)
AUSTRALIA EQUIPMENT(RR3)
BRK WHL LK CONT LSPV<6PH>
FRAME STRAIGHT TYPE<7KJ>
|
8-97372-818-0 |
01 |
1 |
0507- |
● |
● |
● |
|
|
|
| |
26 |
05.001 PLATE; BACK,RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 41/10(GT5),FINAL
GEAR RATIO 41/9(HC6)
4 WHEEL ANTI LOCK BRAKE<JE5>
DISC BRAKE FRT<J52>
G.V.W. 8.0-8.5TON(RPZ)
AUSTRALIA EQUIPMENT(RR3)
BRK WHL LK CONT LSPV<6PH>
FRAME STRAIGHT TYPE<7KJ>
|
8-97372-819-0 |
01 |
1 |
0507- |
● |
● |
● |
|
|
|
| |
26 |
05.001 PLATE; BACK,RR BRK
G.V.W. 6.5-7.0TON(RPW),G.V.W.
7.0-7.5TON(RPX)
|
8-97223-574-0 |
01 |
1 |
0211-0501 |
● |
● |
|
|
● |
|
| |
26 |
05.001 PLATE; BACK,RR BRK
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 7.5-8.0TON(RPY)
BRK WHL LK CONT LSPV<6PH>
|
8-97223-574-0 |
01 |
1 |
0211-0501 |
● |
● |
|
● |
|
|
| |
26 |
05.001 PLATE; BACK,RR BRK
G.V.W. 7.0-7.5TON(RPX)
|
8-97223-574-0 |
01 |
1 |
0502-0506 |
● |
● |
|
|
● |
|
| |
26 |
05.001 PLATE; BACK,RR BRK
G.V.W. 7.0-7.5TON(RPX)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,
DISC BRAKE FRT<J52>,BRK WHL LK CONT LSPV
<6PH>
|
8-97223-574-0 |
01 |
1 |
0507-0509 |
● |
● |
|
|
● |
|
| |
26 |
05.001 PLATE; BACK,RR BRK
G.V.W. 7.0-7.5TON(RPX)
REAR AXLE HEAVY DUTY 292MM(G73)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,
DISC BRAKE FRT<J52>,BRK WHL LK CONT LSPV
<6PH>
|
8-97223-574-0 |
01 |
1 |
0510-0606 |
● |
● |
|
|
● |
|
| |
26 |
05.001 PLATE; BACK,RR BRK
G.V.W. 7.0-7.5TON(RPX)
REAR AXLE HEAVY DUTY 292MM(G73)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,
DISC BRAKE FRT<J52>,BRK WHL LK CONT LSPV
<6PH>
|
8-97223-574-0 |
01 |
1 |
0607- |
● |
● |
|
|
● |
|
| |
26 |
05.001 PLATE; BACK,RR BRK
G.V.W. 7.0-7.5TON(RPX)
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 39/7(GV1)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,
DISC BRAKE FRT<J52>,BRK WHL LK CONT LSPV
<6PH>
|
8-97223-574-0 |
01 |
1 |
0607- |
● |
● |
|
|
● |
|
| |
26 |
05.001 PLATE; BACK,RR BRK
G.V.W. 6.5-7.0TON(RPW),G.V.W.
7.0-7.5TON(RPX)
|
8-97223-573-0 |
01 |
1 |
0211-0501 |
● |
● |
|
|
● |
|
| |
26 |
05.001 PLATE; BACK,RR BRK
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 7.5-8.0TON(RPY)
BRK WHL LK CONT LSPV<6PH>
|
8-97223-573-0 |
01 |
1 |
0211-0501 |
● |
● |
|
● |
|
|
| |
26 |
05.001 PLATE; BACK,RR BRK
G.V.W. 7.0-7.5TON(RPX)
|
8-97223-573-0 |
01 |
1 |
0502-0506 |
● |
● |
|
|
● |
|
| |
26 |
05.001 PLATE; BACK,RR BRK
G.V.W. 7.0-7.5TON(RPX)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,
DISC BRAKE FRT<J52>,BRK WHL LK CONT LSPV
<6PH>
|
8-97223-573-0 |
01 |
1 |
0507-0509 |
● |
● |
|
|
● |
|
| |
26 |
05.001 PLATE; BACK,RR BRK
G.V.W. 7.0-7.5TON(RPX)
REAR AXLE HEAVY DUTY 292MM(G73)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,
DISC BRAKE FRT<J52>,BRK WHL LK CONT LSPV
<6PH>
|
8-97223-573-0 |
01 |
1 |
0510-0606 |
● |
● |
|
|
● |
|
| |
26 |
05.001 PLATE; BACK,RR BRK
G.V.W. 7.0-7.5TON(RPX)
REAR AXLE HEAVY DUTY 292MM(G73)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,
DISC BRAKE FRT<J52>,BRK WHL LK CONT LSPV
<6PH>
|
8-97223-573-0 |
01 |
1 |
0607- |
● |
● |
|
|
● |
|
| |
26 |
05.001 PLATE; BACK,RR BRK
G.V.W. 7.0-7.5TON(RPX)
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 39/7(GV1)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,
DISC BRAKE FRT<J52>,BRK WHL LK CONT LSPV
<6PH>
|
8-97223-573-0 |
01 |
1 |
0607- |
● |
● |
|
|
● |
|
| |
26 |
05.001 PLATE; BACK,RR BRK
G.V.W. 4.0-4.5TON(RPR),G.V.W.
6.0-6.5TON(RPV)
|
8-97078-606-0 |
01 |
1 |
0211-0501 |
● |
● |
|
● |
● |
|
| |
26 |
05.001 PLATE; BACK,RR BRK
G.V.W. 6.0-6.5TON(RPV)
|
8-97078-606-0 |
01 |
1 |
0502-0506 |
● |
● |
|
|
● |
|
| |
26 |
05.001 PLATE; BACK,RR BRK
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 4.0-4.5TON(RPR),G.V.W.
6.0-6.5TON(RPV)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,
DISC BRAKE FRT<J52>,BRK WHL LK CONT LSPV
<6PH>
|
8-97078-606-0 |
01 |
1 |
0507- |
● |
● |
|
|
● |
|
| |
26 |
05.001 PLATE; BACK,RR BRK
G.V.W. 4.0-4.5TON(RPR),G.V.W.
6.0-6.5TON(RPV)
|
8-97078-605-0 |
01 |
1 |
0211-0501 |
● |
● |
|
● |
● |
|
| |
26 |
05.001 PLATE; BACK,RR BRK
G.V.W. 6.0-6.5TON(RPV)
|
8-97078-605-0 |
01 |
1 |
0502-0506 |
● |
● |
|
|
● |
|
| |
26 |
05.001 PLATE; BACK,RR BRK
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 4.0-4.5TON(RPR),G.V.W.
6.0-6.5TON(RPV)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,
DISC BRAKE FRT<J52>,BRK WHL LK CONT LSPV
<6PH>
|
8-97078-605-0 |
01 |
1 |
0507- |
● |
● |
|
|
● |
|
| |
26 |
05.001 PLATE; BACK,RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.5-8.0TON(RPY)
EXC. BRK WHL LK CONT LSPV<6PH>
|
8-97134-732-0 |
01 |
1 |
0211-0501 |
● |
● |
● |
|
|
|
| |
26 |
05.001 PLATE; BACK,RR BRK
G.V.W. 8.0-8.5TON(RPZ)
|
8-97134-732-0 |
01 |
1 |
0211-0501 |
● |
● |
● |
|
|
|
| |
26 |
05.001 PLATE; BACK,RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP)
|
8-97134-732-0 |
01 |
1 |
0502-0506 |
● |
● |
● |
|
|
|
| |
26 |
05.001 PLATE; BACK,RR BRK
G.V.W. 7.5-8.0TON(RPY),G.V.W.
8.0-8.5TON(RPZ)
EXC. BRK WHL LK CONT LSPV<6PH>
|
8-97134-732-0 |
01 |
1 |
0507- |
● |
● |
● |
|
|
|
| |
26 |
05.001 PLATE; BACK,RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.5-8.0TON(RPY)
EXC. BRK WHL LK CONT LSPV<6PH>
|
8-97134-731-0 |
01 |
1 |
0211-0501 |
● |
● |
● |
|
|
|
| |
26 |
05.001 PLATE; BACK,RR BRK
G.V.W. 8.0-8.5TON(RPZ)
|
8-97134-731-0 |
01 |
1 |
0211-0501 |
● |
● |
● |
|
|
|
| |
26 |
05.001 PLATE; BACK,RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP)
|
8-97134-731-0 |
01 |
1 |
0502-0506 |
● |
● |
● |
|
|
|
| |
26 |
05.001 PLATE; BACK,RR BRK
G.V.W. 7.5-8.0TON(RPY),G.V.W.
8.0-8.5TON(RPZ)
EXC. BRK WHL LK CONT LSPV<6PH>
|
8-97134-731-0 |
01 |
1 |
0507- |
● |
● |
● |
|
|
|
| |
26 |
05.001 PLATE; BACK,RR BRK
4HG1 ENG(RJH)
G.V.W. 8.0-8.5TON(RPZ)
FINAL GEAR RATIO 41/7(R41),FINAL
GEARRATIO 43/7(R42),FINAL GEAR RATIO 41/
6(6YB)
BRK WHL LK CONT LSPV<6PH>
4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-97207-158-0 |
01 |
1 |
0309-0501 |
● |
● |
● |
|
|
|
| |
26 |
05.001 PLATE; BACK,RR BRK
4HG1 ENG(RJH)
G.V.W. 8.0-8.5TON(RPZ)
FINAL GEAR RATIO 41/7(R41),FINAL
GEARRATIO 43/7(R42),FINAL GEAR RATIO 41/
6(6YB)
BRK WHL LK CONT LSPV<6PH>
4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-97207-157-0 |
01 |
1 |
0309-0501 |
● |
● |
● |
|
|
|
| |
26 |
05.001 PLATE; BACK,RR BRK
|
8-97079-853-0 |
01 |
1 |
0211- |
|
|
|
|
|
● |
| |
26 |
05.001 PLATE; BACK,RR BRK
|
8-97079-852-0 |
01 |
1 |
0211- |
|
|
|
|
|
● |
| |
29 |
04.685 CLIP; PIPE,BRK
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 41/10(GT5),FINAL
GEAR RATIO 41/9(HC6)
4 WHEEL ANTI LOCK BRAKE<JE5>
DISC BRAKE FRT<J52>
G.V.W. 8.0-8.5TON(RPZ)
AUSTRALIA EQUIPMENT(RR3)
BRK WHL LK CONT LSPV<6PH>
FRAME STRAIGHT TYPE<7KJ>
|
1-47143-008-0 |
02 |
1 |
0507- |
● |
● |
● |
|
|
|
| |
29 |
04.685 CLIP; PIPE,BRK
G.V.W. 6.5-7.0TON(RPW),G.V.W.
7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),
G.V.W. 8.0-8.5TON(RPZ)
|
8-97022-086-0 |
02 |
1 |
0211-0501 |
● |
● |
● |
● |
● |
|
| |
29 |
04.685 CLIP; PIPE,BRK
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ)
|
8-97022-086-0 |
02 |
1 |
0502-0506 |
● |
● |
● |
|
● |
|
| |
29 |
04.685 CLIP; PIPE,BRK
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
|
8-97022-086-0 |
02 |
1 |
0507-0509 |
● |
● |
● |
● |
● |
|
| |
29 |
04.685 CLIP; PIPE,BRK
G.V.W. 6.0-6.5TON(RPV),G.V.W.
6.5-7.0TON(RPW)
REAR AXLE HEAVY DUTY 320MM(6CP)
DISC BRAKE FRT<J52>
|
8-97022-086-0 |
02 |
1 |
0507-0509 |
● |
● |
|
|
● |
|
| |
29 |
04.685 CLIP; PIPE,BRK
G.V.W. 8.0-8.5TON(RPZ)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEARRATIO 41/7(R41),FINAL GEAR RATIO 43/
7(R42),FINAL GEAR RATIO 41/6(6YB)
|
8-97022-086-0 |
02 |
1 |
0507-0509 |
● |
● |
● |
|
|
|
| |
29 |
04.685 CLIP; PIPE,BRK
G.V.W. 6.5-7.0TON(RPW),G.V.W.
7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),
G.V.W. 8.0-8.5TON(RPZ)
|
8-97022-086-0 |
02 |
1 |
0510-0606 |
● |
● |
● |
|
● |
|
| |
29 |
04.685 CLIP; PIPE,BRK
G.V.W. 6.0-6.5TON(RPV)
REAR AXLE HEAVY DUTY 320MM(6CP)
DISC BRAKE FRT<J52>
BRK WHL LK CONT LSPV<6PH>
|
8-97022-086-0 |
02 |
1 |
0510-0606 |
● |
● |
|
|
● |
|
| |
29 |
04.685 CLIP; PIPE,BRK
|
8-97022-086-0 |
02 |
1 |
0510-0606 |
|
|
|
● |
|
|
| |
29 |
04.685 CLIP; PIPE,BRK
G.V.W. 6.5-7.0TON(RPW),G.V.W.
7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY)
|
8-97022-086-0 |
02 |
1 |
0607-0608 |
● |
● |
● |
● |
● |
|
| |
29 |
04.685 CLIP; PIPE,BRK
G.V.W. 6.0-6.5TON(RPV)
REAR AXLE HEAVY DUTY 320MM(6CP)
DISC BRAKE FRT<J52>
BRK WHL LK CONT LSPV<6PH>
|
8-97022-086-0 |
02 |
1 |
0607-0608 |
● |
● |
|
|
● |
|
| |
29 |
04.685 CLIP; PIPE,BRK
G.V.W. 8.0-8.5TON(RPZ)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEARRATIO 41/7(R41),FINAL GEAR RATIO 43/
7(R42),FINAL GEAR RATIO 41/6(6YB)
|
8-97022-086-0 |
02 |
1 |
0607-0608 |
● |
● |
● |
|
|
|
| |
29 |
04.685 CLIP; PIPE,BRK
G.V.W. 8.0-8.5TON(RPZ)
FINAL GEAR RATIO 41/9(HC6)
HYDRO BRAKE BOOSTER<7QQ>
EXC. DISC BRAKE FRT<J52>,BRK WHL LK
CONT LSPV<6PH>
|
8-97022-086-0 |
02 |
1 |
0607-0608 |
● |
● |
● |
|
|
|
| |
29 |
04.685 CLIP; PIPE,BRK
G.V.W. 6.5-7.0TON(RPW),G.V.W.
7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY)
|
8-97022-086-0 |
02 |
1 |
0609- |
● |
● |
● |
● |
● |
|
| |
29 |
04.685 CLIP; PIPE,BRK
G.V.W. 6.0-6.5TON(RPV)
REAR AXLE HEAVY DUTY 320MM(6CP)
DISC BRAKE FRT<J52>
BRK WHL LK CONT LSPV<6PH>
|
8-97022-086-0 |
02 |
1 |
0609- |
● |
● |
|
|
● |
|
| |
29 |
04.685 CLIP; PIPE,BRK
G.V.W. 8.0-8.5TON(RPZ)
EXC. BRK WHL LK CONT LSPV<6PH>
|
8-97022-086-0 |
02 |
1 |
0609- |
● |
● |
● |
|
|
|
| |
29 |
04.685 CLIP; PIPE,BRK
4HG1-T ENG(RDP)
G.V.W. 8.0-8.5TON(RPZ)
FINAL GEAR RATIO 41/7(R41),FINAL
GEARRATIO 43/7(R42),FINAL GEAR RATIO 41/
6(6YB)
BRK WHL LK CONT LSPV<6PH>
|
8-97022-086-0 |
02 |
1 |
0609- |
● |
|
|
|
|
|
| |
29 |
04.685 CLIP; PIPE,BRK
G.V.W. 4.0-4.5TON(RPR),G.V.W.
6.0-6.5TON(RPV)
|
8-94128-306-0 |
02 |
1 |
0211-0501 |
● |
● |
|
● |
● |
|
| |
29 |
04.685 CLIP; PIPE,BRK
G.V.W. 6.0-6.5TON(RPV)
|
8-94128-306-0 |
02 |
1 |
0502-0506 |
● |
● |
|
|
● |
|
| |
29 |
04.685 CLIP; PIPE,BRK
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 6.0-6.5TON(RPV)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,
DISC BRAKE FRT<J52>,BRK WHL LK CONT LSPV
<6PH>
|
8-94128-306-0 |
02 |
1 |
0507- |
● |
● |
|
|
● |
|
| |
29 |
04.685 CLIP; PIPE,BRK
G.V.W. 4.0-4.5TON(RPR)
|
8-94128-306-0 |
02 |
1 |
0507- |
● |
|
|
|
● |
|
| |
31 |
04.665 BOLT; RR WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 41/10(GT5),FINAL
GEAR RATIO 41/9(HC6)
4 WHEEL ANTI LOCK BRAKE<JE5>
DISC BRAKE FRT<J52>
G.V.W. 8.0-8.5TON(RPZ)
AUSTRALIA EQUIPMENT(RR3)
BRK WHL LK CONT LSPV<6PH>
FRAME STRAIGHT TYPE<7KJ>
M12
|
1-47159-184-0 |
16 |
1 |
0507- |
● |
● |
● |
|
|
|
| |
31 |
04.665 BOLT; RR WHEEL CYL
G.V.W. 7.0-7.5TON(RPX)
BRK WHL LK CONT LSPV<6PH>
|
8-97081-305-0 |
16 |
1 |
0211-0501 |
● |
● |
|
|
● |
|
| |
31 |
04.665 BOLT; RR WHEEL CYL
G.V.W. 6.5-7.0TON(RPW),G.V.W.
7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ)
|
8-97081-305-0 |
16 |
1 |
0211-0501 |
● |
● |
● |
● |
|
|
| |
31 |
04.665 BOLT; RR WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP)
|
8-97081-305-0 |
16 |
1 |
0502-0502 |
● |
● |
● |
|
|
|
| |
31 |
04.665 BOLT; RR WHEEL CYL
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ)
|
8-97081-305-0 |
16 |
1 |
0503-0506 |
● |
● |
● |
|
● |
|
| |
31 |
04.665 BOLT; RR WHEEL CYL
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
|
8-97081-305-0 |
16 |
1 |
0507-0509 |
● |
● |
● |
● |
● |
|
| |
31 |
04.665 BOLT; RR WHEEL CYL
G.V.W. 6.0-6.5TON(RPV),G.V.W.
6.5-7.0TON(RPW)
REAR AXLE HEAVY DUTY 320MM(6CP)
DISC BRAKE FRT<J52>
|
8-97081-305-0 |
16 |
1 |
0507-0509 |
● |
● |
|
|
● |
|
| |
31 |
04.665 BOLT; RR WHEEL CYL
G.V.W. 8.0-8.5TON(RPZ)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEARRATIO 41/7(R41),FINAL GEAR RATIO 43/
7(R42),FINAL GEAR RATIO 41/6(6YB)
|
8-97081-305-0 |
16 |
1 |
0507-0509 |
● |
● |
● |
|
|
|
| |
31 |
04.665 BOLT; RR WHEEL CYL
G.V.W. 6.5-7.0TON(RPW),G.V.W.
7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),
G.V.W. 8.0-8.5TON(RPZ)
|
8-97081-305-0 |
16 |
1 |
0510-0606 |
● |
● |
● |
|
● |
|
| |
31 |
04.665 BOLT; RR WHEEL CYL
G.V.W. 6.0-6.5TON(RPV)
REAR AXLE HEAVY DUTY 320MM(6CP)
DISC BRAKE FRT<J52>
BRK WHL LK CONT LSPV<6PH>
|
8-97081-305-0 |
16 |
1 |
0510-0606 |
● |
● |
|
|
● |
|
| |
31 |
04.665 BOLT; RR WHEEL CYL
|
8-97081-305-0 |
16 |
1 |
0510-0606 |
|
|
|
● |
|
|
| |
31 |
04.665 BOLT; RR WHEEL CYL
G.V.W. 6.5-7.0TON(RPW),G.V.W.
7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY)
|
8-97081-305-0 |
16 |
1 |
0607-0608 |
● |
● |
● |
● |
● |
|
| |
31 |
04.665 BOLT; RR WHEEL CYL
G.V.W. 6.0-6.5TON(RPV)
REAR AXLE HEAVY DUTY 320MM(6CP)
DISC BRAKE FRT<J52>
BRK WHL LK CONT LSPV<6PH>
|
8-97081-305-0 |
16 |
1 |
0607-0608 |
● |
● |
|
|
● |
|
| |
31 |
04.665 BOLT; RR WHEEL CYL
G.V.W. 8.0-8.5TON(RPZ)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEARRATIO 41/7(R41),FINAL GEAR RATIO 43/
7(R42),FINAL GEAR RATIO 41/6(6YB)
|
8-97081-305-0 |
16 |
1 |
0607-0608 |
● |
● |
● |
|
|
|
| |
31 |
04.665 BOLT; RR WHEEL CYL
G.V.W. 8.0-8.5TON(RPZ)
FINAL GEAR RATIO 41/9(HC6)
HYDRO BRAKE BOOSTER<7QQ>
EXC. DISC BRAKE FRT<J52>,BRK WHL LK
CONT LSPV<6PH>
|
8-97081-305-0 |
16 |
1 |
0607-0608 |
● |
● |
● |
|
|
|
| |
31 |
04.665 BOLT; RR WHEEL CYL
G.V.W. 6.5-7.0TON(RPW),G.V.W.
7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY)
|
8-97081-305-0 |
16 |
1 |
0609- |
● |
● |
● |
● |
● |
|
| |
31 |
04.665 BOLT; RR WHEEL CYL
G.V.W. 6.0-6.5TON(RPV)
REAR AXLE HEAVY DUTY 320MM(6CP)
DISC BRAKE FRT<J52>
BRK WHL LK CONT LSPV<6PH>
|
8-97081-305-0 |
16 |
1 |
0609- |
● |
● |
|
|
● |
|
| |
31 |
04.665 BOLT; RR WHEEL CYL
G.V.W. 8.0-8.5TON(RPZ)
EXC. BRK WHL LK CONT LSPV<6PH>
|
8-97081-305-0 |
16 |
1 |
0609- |
● |
● |
● |
|
|
|
| |
31 |
04.665 BOLT; RR WHEEL CYL
4HG1-T ENG(RDP)
G.V.W. 8.0-8.5TON(RPZ)
FINAL GEAR RATIO 41/7(R41),FINAL
GEARRATIO 43/7(R42),FINAL GEAR RATIO 41/
6(6YB)
BRK WHL LK CONT LSPV<6PH>
|
8-97081-305-0 |
16 |
1 |
0609- |
● |
|
|
|
|
|
| |
31 |
04.665 BOLT; RR WHEEL CYL
G.V.W. 7.0-7.5TON(RPX)
EXC. BRK WHL LK CONT LSPV<6PH>
|
8-97022-088-0 |
16 |
1 |
0211-0501 |
● |
● |
|
|
● |
|
| |
31 |
04.665 BOLT; RR WHEEL CYL
G.V.W. 7.0-7.5TON(RPX)
|
8-97022-088-0 |
16 |
1 |
0502-0502 |
● |
● |
|
|
● |
|
| |
31 |
04.665 BOLT; RR WHEEL CYL
G.V.W. 4.0-4.5TON(RPR),G.V.W.
6.0-6.5TON(RPV)
|
5-09030-016-1 |
16 |
1 |
0211-0501 |
● |
● |
|
● |
● |
|
| |
31 |
04.665 BOLT; RR WHEEL CYL
|
5-09030-016-1 |
16 |
1 |
0211-0501 |
|
|
|
|
|
● |
| |
31 |
04.665 BOLT; RR WHEEL CYL
G.V.W. 4.0-4.5TON(RPR),G.V.W.
6.0-6.5TON(RPV)
|
5-09030-016-1 |
16 |
1 |
0502-0506 |
● |
● |
|
|
● |
|
| |
31 |
04.665 BOLT; RR WHEEL CYL
|
5-09030-016-1 |
16 |
1 |
0502-0506 |
|
|
|
|
|
● |
| |
31 |
04.665 BOLT; RR WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 6.0-6.5TON(RPV)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,
DISC BRAKE FRT<J52>,BRK WHL LK CONT LSPV
<6PH>
|
5-09030-016-1 |
16 |
1 |
0507- |
● |
● |
|
|
● |
|
| |
31 |
04.665 BOLT; RR WHEEL CYL
G.V.W. 4.0-4.5TON(RPR)
|
5-09030-016-1 |
16 |
1 |
0507- |
● |
|
|
|
● |
|
| |
31 |
04.665 BOLT; RR WHEEL CYL
|
5-09030-016-1 |
16 |
1 |
0507- |
|
|
|
|
|
● |
| |
32 |
05.056 WASHER; LK
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 41/10(GT5),FINAL
GEAR RATIO 41/9(HC6)
4 WHEEL ANTI LOCK BRAKE<JE5>
DISC BRAKE FRT<J52>
G.V.W. 8.0-8.5TON(RPZ)
AUSTRALIA EQUIPMENT(RR3)
BRK WHL LK CONT LSPV<6PH>
FRAME STRAIGHT TYPE<7KJ>
04.634
ID=12.2
|
9-09150-512-0 |
04 |
1 |
0507-0603 |
● |
● |
● |
|
|
|
| |
32 |
05.056 WASHER; LK
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 41/10(GT5),FINAL
GEAR RATIO 41/9(HC6)
4 WHEEL ANTI LOCK BRAKE<JE5>
DISC BRAKE FRT<J52>
G.V.W. 8.0-8.5TON(RPZ)
AUSTRALIA EQUIPMENT(RR3)
BRK WHL LK CONT LSPV<6PH>
FRAME STRAIGHT TYPE<7KJ>
03.634
ID=12.2
|
0-91510-512-0 |
04 |
1 |
0604- |
● |
● |
● |
|
|
|
| |
35 |
05.002 GROMMET; CHECK HOLE
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 41/10(GT5),FINAL
GEAR RATIO 41/9(HC6)
4 WHEEL ANTI LOCK BRAKE<JE5>
DISC BRAKE FRT<J52>
G.V.W. 8.0-8.5TON(RPZ)
AUSTRALIA EQUIPMENT(RR3)
BRK WHL LK CONT LSPV<6PH>
FRAME STRAIGHT TYPE<7KJ>
(A)
|
1-09333-033-0 |
04 |
1 |
0507- |
● |
● |
● |
|
|
|
| |
35 |
05.002 GROMMET; CHECK HOLE
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 41/10(GT5),FINAL
GEAR RATIO 41/9(HC6)
4 WHEEL ANTI LOCK BRAKE<JE5>
DISC BRAKE FRT<J52>
G.V.W. 8.0-8.5TON(RPZ)
AUSTRALIA EQUIPMENT(RR3)
BRK WHL LK CONT LSPV<6PH>
FRAME STRAIGHT TYPE<7KJ>
(B)
|
9-09956-640-0 |
04 |
1 |
0507- |
● |
● |
● |
|
|
|
| |
35 |
05.002 GROMMET; CHECK HOLE
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ)
EXC. BRK WHL LK CONT LSPV<6PH>
(C)
|
8-97017-507-0 |
02 |
1 |
0507-0509 |
● |
● |
● |
|
● |
|
| |
35 |
05.002 GROMMET; CHECK HOLE
G.V.W. 6.0-6.5TON(RPV),G.V.W.
6.5-7.0TON(RPW)
REAR AXLE HEAVY DUTY 320MM(6CP)
DISC BRAKE FRT<J52>
(C)
|
8-97017-507-0 |
02 |
1 |
0507-0509 |
● |
● |
|
|
● |
|
| |
35 |
05.002 GROMMET; CHECK HOLE
G.V.W. 7.0-7.5TON(RPX)
REAR AXLE HEAVY DUTY 292MM(G73)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,
DISC BRAKE FRT<J52>,BRK WHL LK CONT LSPV
<6PH>
(C)
|
8-97017-507-0 |
02 |
1 |
0510-0606 |
● |
● |
|
|
● |
|
| |
35 |
05.002 GROMMET; CHECK HOLE
G.V.W. 6.0-6.5TON(RPV),G.V.W.
6.5-7.0TON(RPW)
REAR AXLE HEAVY DUTY 320MM(6CP)
DISC BRAKE FRT<J52>
BRK WHL LK CONT LSPV<6PH>
(C)
|
8-97017-507-0 |
02 |
1 |
0510-0606 |
● |
● |
|
|
● |
|
| |
35 |
05.002 GROMMET; CHECK HOLE
G.V.W. 7.5-8.0TON(RPY),G.V.W.
8.0-8.5TON(RPZ)
VEHICLE CATEGORY NQR<7NQ>
EXC. DISC BRAKE FRT<J52>,BRK WHL LK
CONT LSPV<6PH>
(C)
|
8-97017-507-0 |
02 |
1 |
0510-0606 |
● |
● |
● |
|
|
|
| |
35 |
05.002 GROMMET; CHECK HOLE
G.V.W. 7.0-7.5TON(RPX)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,
DISC BRAKE FRT<J52>,BRK WHL LK CONT LSPV
<6PH>
(C)
|
8-97017-507-0 |
02 |
1 |
0607- |
● |
● |
|
|
● |
|
| |
35 |
05.002 GROMMET; CHECK HOLE
G.V.W. 6.0-6.5TON(RPV),G.V.W.
6.5-7.0TON(RPW)
REAR AXLE HEAVY DUTY 320MM(6CP)
DISC BRAKE FRT<J52>
BRK WHL LK CONT LSPV<6PH>
(C)
|
8-97017-507-0 |
02 |
1 |
0607- |
● |
● |
|
|
● |
|
| |
35 |
05.002 GROMMET; CHECK HOLE
G.V.W. 7.5-8.0TON(RPY),G.V.W.
8.0-8.5TON(RPZ)
EXC. DISC BRAKE FRT<J52>,BRK WHL LK
CONT LSPV<6PH>
(C)
|
8-97017-507-0 |
02 |
1 |
0607- |
● |
● |
● |
|
|
|
| |
35 |
05.002 GROMMET; CHECK HOLE
G.V.W. 6.5-7.0TON(RPW),G.V.W.
7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY)
(C)
|
8-97017-507-0 |
02 |
1 |
0309-0501 |
● |
● |
● |
● |
● |
|
| |
35 |
05.002 GROMMET; CHECK HOLE
G.V.W. 8.0-8.5TON(RPZ)
EXC. BRK WHL LK CONT LSPV<6PH>
(C)
|
8-97017-507-0 |
02 |
1 |
0309-0501 |
● |
● |
● |
|
|
|
| |
35 |
05.002 GROMMET; CHECK HOLE
G.V.W. 8.0-8.5TON(RPZ)
4HE1 ENG(RLY)
BRK WHL LK CONT LSPV<6PH>
(C)
|
8-97017-507-0 |
02 |
1 |
0309-0501 |
● |
● |
● |
|
|
|
| |
35 |
05.002 GROMMET; CHECK HOLE
G.V.W. 6.5-7.0TON(RPW),G.V.W.
7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),
G.V.W. 8.0-8.5TON(RPZ)
(C)
|
8-97017-507-0 |
02 |
1 |
0211-0308 |
● |
● |
● |
● |
● |
|
| |
35 |
05.002 GROMMET; CHECK HOLE
4HG1 ENG(RJH)
G.V.W. 8.0-8.5TON(RPZ)
FINAL GEAR RATIO 41/7(R41),FINAL
GEARRATIO 43/7(R42),FINAL GEAR RATIO 41/
6(6YB)
BRK WHL LK CONT LSPV<6PH>
4 WHEEL ANTI LOCK BRAKE<JE5>
(C)
|
8-97017-507-0 |
06 |
1 |
0309-0501 |
● |
● |
● |
|
|
|
| |
35 |
05.002 GROMMET; CHECK HOLE
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ)
(C)
|
8-97017-507-0 |
02 |
1 |
0502-0506 |
● |
● |
● |
|
● |
|
| |
35 |
05.002 GROMMET; CHECK HOLE
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
BRK WHL LK CONT LSPV<6PH>
(C)
|
8-97017-507-0 |
06 |
1 |
0507- |
● |
● |
● |
● |
|
|
| |
35 |
05.002 GROMMET; CHECK HOLE
G.V.W. 8.0-8.5TON(RPZ)
BRK WHL LK CONT LSPV<6PH>
FINAL GEAR RATIO 41/7(R41),FINAL
GEARRATIO 43/7(R42),FINAL GEAR RATIO 41/
6(6YB)
(C)
|
8-97017-507-0 |
06 |
1 |
0507- |
● |
● |
● |
|
|
|
| |
35 |
05.002 GROMMET; CHECK HOLE
G.V.W. 4.0-4.5TON(RPR),G.V.W.
6.0-6.5TON(RPV)
(C)
|
8-94171-287-0 |
02 |
1 |
0211-0501 |
● |
● |
|
● |
● |
|
| |
35 |
05.002 GROMMET; CHECK HOLE
G.V.W. 6.0-6.5TON(RPV)
(C)
|
8-94171-287-0 |
02 |
1 |
0502-0506 |
● |
● |
|
|
● |
|
| |
35 |
05.002 GROMMET; CHECK HOLE
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 6.0-6.5TON(RPV)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,
DISC BRAKE FRT<J52>,BRK WHL LK CONT LSPV
<6PH>
(C)
|
8-94171-287-0 |
02 |
1 |
0507- |
● |
● |
|
|
● |
|
| |
35 |
05.002 GROMMET; CHECK HOLE
G.V.W. 4.0-4.5TON(RPR)
(C)
|
8-94171-287-0 |
02 |
1 |
0507- |
● |
|
|
|
● |
|
| |
35 |
05.002 GROMMET; CHECK HOLE
(C)
|
8-94438-228-0 |
04 |
1 |
0211- |
|
|
|
|
|
● |
| |
36 |
04.685 PIPE; OIL,RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 41/10(GT5),FINAL
GEAR RATIO 41/9(HC6)
4 WHEEL ANTI LOCK BRAKE<JE5>
DISC BRAKE FRT<J52>
G.V.W. 8.0-8.5TON(RPZ)
AUSTRALIA EQUIPMENT(RR3)
BRK WHL LK CONT LSPV<6PH>
FRAME STRAIGHT TYPE<7KJ>
|
8-97372-826-0 |
02 |
1 |
0507- |
● |
● |
● |
|
|
|
| |
36 |
04.685 PIPE; OIL,RR BRK
G.V.W. 6.5-7.0TON(RPW),G.V.W.
7.0-7.5TON(RPX)
|
8-97192-215-0 |
02 |
1 |
0211-0308 |
● |
● |
|
|
● |
|
| |
36 |
04.685 PIPE; OIL,RR BRK
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 7.5-8.0TON(RPY)
BRK WHL LK CONT LSPV<6PH>
|
8-97192-215-0 |
02 |
1 |
0211-0308 |
● |
● |
|
● |
|
|
| |
36 |
04.685 PIPE; OIL,RR BRK
G.V.W. 6.5-7.0TON(RPW),G.V.W.
7.0-7.5TON(RPX)
|
8-97192-215-0 |
02 |
1 |
0309-0501 |
● |
● |
|
|
● |
|
| |
36 |
04.685 PIPE; OIL,RR BRK
G.V.W. 8.0-8.5TON(RPZ)
4HG1 ENG(RJH)
|
8-97192-215-0 |
02 |
1 |
0309-0501 |
● |
● |
● |
|
|
|
| |
36 |
04.685 PIPE; OIL,RR BRK
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 7.5-8.0TON(RPY)
BRK WHL LK CONT LSPV<6PH>
|
8-97192-215-0 |
02 |
1 |
0309-0501 |
● |
● |
|
● |
|
|
| |
36 |
04.685 PIPE; OIL,RR BRK
G.V.W. 7.0-7.5TON(RPX)
|
8-97192-215-0 |
02 |
1 |
0502-0506 |
● |
● |
|
|
● |
|
| |
36 |
04.685 PIPE; OIL,RR BRK
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
BRK WHL LK CONT LSPV<6PH>
4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-97192-215-0 |
02 |
1 |
0507-0509 |
● |
● |
● |
● |
● |
|
| |
36 |
04.685 PIPE; OIL,RR BRK
G.V.W. 7.0-7.5TON(RPX)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,
DISC BRAKE FRT<J52>,BRK WHL LK CONT LSPV
<6PH>
|
8-97192-215-0 |
02 |
1 |
0507-0509 |
● |
● |
|
|
● |
|
| |
36 |
04.685 PIPE; OIL,RR BRK
G.V.W. 6.0-6.5TON(RPV),G.V.W.
6.5-7.0TON(RPW)
REAR AXLE HEAVY DUTY 320MM(6CP)
BRK WHL LK CONT LSPV<6PH>
|
8-97192-215-0 |
02 |
1 |
0507-0509 |
● |
● |
|
|
● |
|
| |
36 |
04.685 PIPE; OIL,RR BRK
G.V.W. 8.0-8.5TON(RPZ)
BRK WHL LK CONT LSPV<6PH>
FINAL GEAR RATIO 41/7(R41),FINAL
GEARRATIO 43/7(R42),FINAL GEAR RATIO 41/
6(6YB)
|
8-97192-215-0 |
02 |
1 |
0507-0509 |
● |
● |
● |
|
|
|
| |
36 |
04.685 PIPE; OIL,RR BRK
G.V.W. 7.0-7.5TON(RPX)
REAR AXLE HEAVY DUTY 292MM(G73)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,
DISC BRAKE FRT<J52>,BRK WHL LK CONT LSPV
<6PH>
|
8-97192-215-0 |
02 |
1 |
0510-0606 |
● |
● |
|
|
● |
|
| |
36 |
04.685 PIPE; OIL,RR BRK
G.V.W. 6.0-6.5TON(RPV),G.V.W.
6.5-7.0TON(RPW)
REAR AXLE HEAVY DUTY 320MM(6CP)
DISC BRAKE FRT<J52>
BRK WHL LK CONT LSPV<6PH>
|
8-97192-215-0 |
02 |
1 |
0510-0606 |
● |
● |
|
|
● |
|
| |
36 |
04.685 PIPE; OIL,RR BRK
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ)
REAR AXLE HEAVY DUTY 320MM(6CP)
4 WHEEL ANTI LOCK BRAKE<JE5>
HYDRO BRAKE BOOSTER<7QQ>
BRK WHL LK CONT LSPV<6PH>
|
8-97192-215-0 |
02 |
1 |
0510-0606 |
● |
● |
● |
|
|
|
| |
36 |
04.685 PIPE; OIL,RR BRK
|
8-97192-215-0 |
02 |
1 |
0510-0606 |
|
|
|
● |
|
|
| |
36 |
04.685 PIPE; OIL,RR BRK
G.V.W. 7.0-7.5TON(RPX)
REAR AXLE HEAVY DUTY 292MM(G73)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,
DISC BRAKE FRT<J52>,BRK WHL LK CONT LSPV
<6PH>
|
8-97192-215-0 |
02 |
1 |
0607- |
● |
● |
|
|
● |
|
| |
36 |
04.685 PIPE; OIL,RR BRK
G.V.W. 7.0-7.5TON(RPX)
REAR AXLE HEAVY DUTY 320MM(6CP)
HYDRO BRAKE BOOSTER<7QQ>
BRK WHL LK CONT LSPV<6PH>
4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-97192-215-0 |
02 |
1 |
0607- |
● |
● |
|
|
● |
|
| |
36 |
04.685 PIPE; OIL,RR BRK
G.V.W. 7.0-7.5TON(RPX)
REAR AXLE HEAVY DUTY 320MM(6CP)
EXC. BRK WHL LK CONT LSPV<6PH>
|
8-97192-215-0 |
02 |
1 |
0607- |
● |
● |
|
|
● |
|
| |
36 |
04.685 PIPE; OIL,RR BRK
G.V.W. 6.0-6.5TON(RPV),G.V.W.
6.5-7.0TON(RPW)
REAR AXLE HEAVY DUTY 320MM(6CP)
|
8-97192-215-0 |
02 |
1 |
0607- |
● |
● |
|
|
● |
|
| |
36 |
04.685 PIPE; OIL,RR BRK
G.V.W. 7.5-8.0TON(RPY)
BRK WHL LK CONT LSPV<6PH>
HYDRO BRAKE BOOSTER<7QQ>
4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-97192-215-0 |
02 |
1 |
0607- |
● |
● |
● |
● |
|
|
| |
36 |
04.685 PIPE; OIL,RR BRK
G.V.W. 8.0-8.5TON(RPZ)
FINAL GEAR RATIO 41/7(R41),FINAL
GEARRATIO 43/7(R42),FINAL GEAR RATIO 41/
6(6YB)
HYDRO BRAKE BOOSTER<7QQ>
BRK WHL LK CONT LSPV<6PH>
4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-97192-215-0 |
02 |
1 |
0607- |
● |
● |
● |
|
|
|
| |
36 |
04.685 PIPE; OIL,RR BRK
G.V.W. 4.0-4.5TON(RPR),G.V.W.
6.0-6.5TON(RPV)
|
8-94154-916-0 |
02 |
1 |
0211-0501 |
● |
● |
|
● |
● |
|
| |
36 |
04.685 PIPE; OIL,RR BRK
G.V.W. 6.0-6.5TON(RPV)
|
8-94154-916-0 |
02 |
1 |
0502-0506 |
● |
● |
|
|
● |
|
| |
36 |
04.685 PIPE; OIL,RR BRK
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 6.0-6.5TON(RPV)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,
DISC BRAKE FRT<J52>,BRK WHL LK CONT LSPV
<6PH>
|
8-94154-916-0 |
02 |
1 |
0507- |
● |
● |
|
|
● |
|
| |
36 |
04.685 PIPE; OIL,RR BRK
G.V.W. 4.0-4.5TON(RPR)
|
8-94154-916-0 |
02 |
1 |
0507- |
● |
|
|
|
● |
|
| |
36 |
04.685 PIPE; OIL,RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.5-8.0TON(RPY)
EXC. BRK WHL LK CONT LSPV<6PH>
|
8-97079-847-0 |
02 |
1 |
0211-0501 |
● |
● |
● |
|
|
|
| |
36 |
04.685 PIPE; OIL,RR BRK
G.V.W. 8.0-8.5TON(RPZ)
|
8-97079-847-0 |
02 |
1 |
0211-0501 |
● |
● |
● |
|
|
|
| |
36 |
04.685 PIPE; OIL,RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP)
|
8-97079-847-0 |
02 |
1 |
0502-0506 |
● |
● |
● |
|
|
|
| |
36 |
04.685 PIPE; OIL,RR BRK
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
REAR AXLE HEAVY DUTY 320MM(6CP)
BRK WHL LK CONT LSPV<6PH>
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-97079-847-0 |
02 |
1 |
0507-0606 |
● |
● |
● |
|
|
|
| |
36 |
04.685 PIPE; OIL,RR BRK
G.V.W. 7.5-8.0TON(RPY),G.V.W.
8.0-8.5TON(RPZ)
EXC. BRK WHL LK CONT LSPV<6PH>
|
8-97079-847-0 |
02 |
1 |
0507-0606 |
● |
● |
● |
|
|
|
| |
36 |
04.685 PIPE; OIL,RR BRK
G.V.W. 7.5-8.0TON(RPY),G.V.W.
8.0-8.5TON(RPZ)
EXC. BRK WHL LK CONT LSPV<6PH>
|
8-97079-847-0 |
02 |
1 |
0607- |
● |
● |
● |
|
|
|
| |
36 |
04.685 PIPE; OIL,RR BRK
G.V.W. 7.5-8.0TON(RPY)
BRK WHL LK CONT LSPV<6PH>
HYDRO BRAKE BOOSTER<7QQ>
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-97079-847-0 |
02 |
1 |
0607- |
● |
● |
● |
|
|
|
| |
36 |
04.685 PIPE; OIL,RR BRK
G.V.W. 7.0-7.5TON(RPX)
REAR AXLE HEAVY DUTY 320MM(6CP)
BRK WHL LK CONT LSPV<6PH>
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-97079-847-0 |
02 |
1 |
0607- |
● |
● |
|
|
|
|
| |
36 |
04.685 PIPE; OIL,RR BRK
|
8-94438-145-0 |
02 |
1 |
0211- |
|
|
|
|
|
● |
| |
72 |
05.120 PIN; SPLIT
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 41/10(GT5),FINAL
GEAR RATIO 41/9(HC6)
4 WHEEL ANTI LOCK BRAKE<JE5>
DISC BRAKE FRT<J52>
G.V.W. 8.0-8.5TON(RPZ)
AUSTRALIA EQUIPMENT(RR3)
BRK WHL LK CONT LSPV<6PH>
FRAME STRAIGHT TYPE<7KJ>
05.020
|
9-09874-040-0 |
04 |
1 |
0507- |
● |
● |
● |
|
|
|
| |
83 |
05.130 WASHER; PL
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 41/10(GT5),FINAL
GEAR RATIO 41/9(HC6)
4 WHEEL ANTI LOCK BRAKE<JE5>
DISC BRAKE FRT<J52>
G.V.W. 8.0-8.5TON(RPZ)
AUSTRALIA EQUIPMENT(RR3)
BRK WHL LK CONT LSPV<6PH>
FRAME STRAIGHT TYPE<7KJ>
05.020
|
1-47629-136-0 |
04 |
1 |
0507- |
● |
● |
● |
|
|
|
| |
86 |
05.122 NUT; FLANGE
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 41/10(GT5),FINAL
GEAR RATIO 41/9(HC6)
4 WHEEL ANTI LOCK BRAKE<JE5>
DISC BRAKE FRT<J52>
G.V.W. 8.0-8.5TON(RPZ)
AUSTRALIA EQUIPMENT(RR3)
BRK WHL LK CONT LSPV<6PH>
FRAME STRAIGHT TYPE<7KJ>
05.056
|
1-09440-003-0 |
04 |
1 |
0507- |
● |
● |
● |
|
|
|
| |
94 |

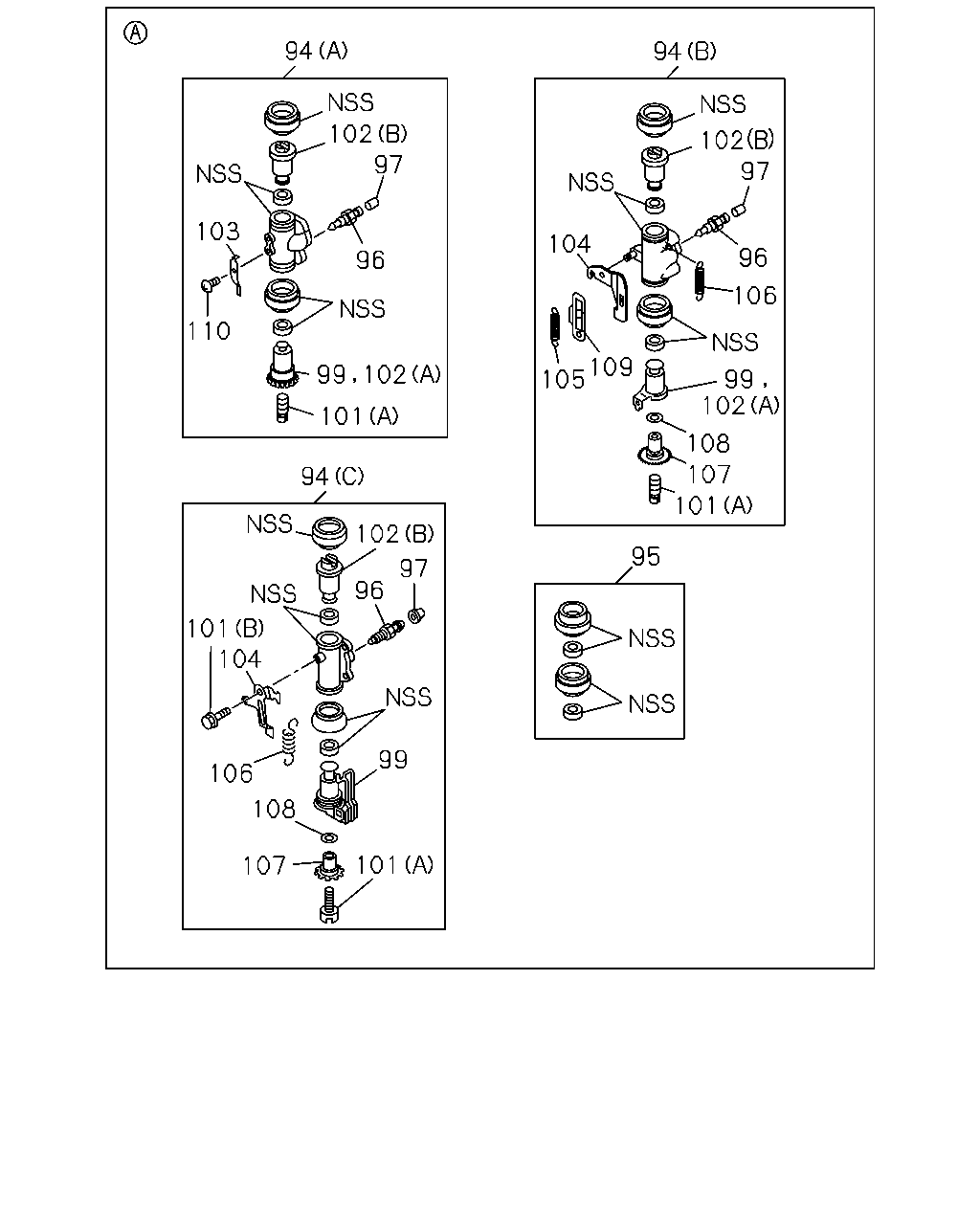

04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 6.0-6.5TON(RPV),G.V.W.
6.5-7.0TON(RPW)
DISC BRAKE FRT<J52>
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
(C)
|
8-97349-705-0 |
02 |
1 |
0507- |
● |
● |
|
|
● |
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
REAR AXLE HEAVY DUTY 320MM(6CP)
BRK WHL LK CONT LSPV<6PH>
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
(C)
|
8-97358-878-0 |
02 |
1 |
0507- |
● |
● |
● |
|
|
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
4HK1-TCN ENG(RDQ)
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 41/9(HC6)
4 WHEEL ANTI LOCK BRAKE<JE5>
DISC BRAKE FRT<J52>
G.V.W. 6.0-6.5TON(RPV),G.V.W.
6.5-7.0TON(RPW)
BRK WHL LK CONT LSPV<6PH>
FRAME STRAIGHT TYPE<7KJ>
(C) REAR
|
8-97349-705-0 |
01 |
1 |
0507-0608 |
● |
● |
|
|
● |
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
4HK1-TCN ENG(RDQ)
REAR AXLE HEAVY DUTY 320MM(6CP)
4 WHEEL ANTI LOCK BRAKE<JE5>
DISC BRAKE FRT<J52>
G.V.W. 6.0-6.5TON(RPV),G.V.W.
6.5-7.0TON(RPW)
BRK WHL LK CONT LSPV<6PH>
FRAME STRAIGHT TYPE<7KJ>
(C) REAR
|
8-97349-705-0 |
01 |
1 |
0609- |
● |
● |
|
|
● |
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 6.0-6.5TON(RPV),G.V.W.
6.5-7.0TON(RPW)
REAR AXLE HEAVY DUTY 320MM(6CP)
BRK WHL LK CONT LSPV<6PH>
(C) REAR
|
8-97349-706-0 |
01 |
1 |
0507- |
● |
● |
|
|
● |
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
4HK1-TCN ENG(RDQ)
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 41/9(HC6)
4 WHEEL ANTI LOCK BRAKE<JE5>
DISC BRAKE FRT<J52>
G.V.W. 6.0-6.5TON(RPV),G.V.W.
6.5-7.0TON(RPW)
BRK WHL LK CONT LSPV<6PH>
FRAME STRAIGHT TYPE<7KJ>
(C) FRONT
|
8-97349-707-0 |
01 |
1 |
0507-0608 |
● |
● |
|
|
● |
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
4HK1-TCN ENG(RDQ)
REAR AXLE HEAVY DUTY 320MM(6CP)
4 WHEEL ANTI LOCK BRAKE<JE5>
DISC BRAKE FRT<J52>
G.V.W. 6.0-6.5TON(RPV),G.V.W.
6.5-7.0TON(RPW)
BRK WHL LK CONT LSPV<6PH>
FRAME STRAIGHT TYPE<7KJ>
(C) FRONT
|
8-97349-707-0 |
01 |
1 |
0609- |
● |
● |
|
|
● |
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 6.0-6.5TON(RPV),G.V.W.
6.5-7.0TON(RPW)
REAR AXLE HEAVY DUTY 320MM(6CP)
BRK WHL LK CONT LSPV<6PH>
(C) FRONT
|
8-97349-708-0 |
01 |
1 |
0507- |
● |
● |
|
|
● |
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP)
4 WHEEL ANTI LOCK BRAKE<JE5>
DISC BRAKE FRT<J52>
G.V.W. 4.0-4.5TON(RPR)
BRK WHL LK CONT LSPV<6PH>
FRAME STRAIGHT TYPE<7KJ>
(C) REAR
|
8-97349-689-0 |
01 |
1 |
0507- |
● |
|
|
|
● |
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP)
4 WHEEL ANTI LOCK BRAKE<JE5>
DISC BRAKE FRT<J52>
G.V.W. 4.0-4.5TON(RPR)
BRK WHL LK CONT LSPV<6PH>
FRAME STRAIGHT TYPE<7KJ>
(C) REAR
|
8-97349-690-0 |
01 |
1 |
0507- |
● |
|
|
|
● |
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP)
4 WHEEL ANTI LOCK BRAKE<JE5>
DISC BRAKE FRT<J52>
G.V.W. 4.0-4.5TON(RPR)
BRK WHL LK CONT LSPV<6PH>
FRAME STRAIGHT TYPE<7KJ>
(C) FRONT
|
8-97349-691-0 |
01 |
1 |
0507- |
● |
|
|
|
● |
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP)
4 WHEEL ANTI LOCK BRAKE<JE5>
DISC BRAKE FRT<J52>
G.V.W. 4.0-4.5TON(RPR)
BRK WHL LK CONT LSPV<6PH>
FRAME STRAIGHT TYPE<7KJ>
(C) FRONT
|
8-97349-692-0 |
01 |
1 |
0507- |
● |
|
|
|
● |
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
REAR AXLE HEAVY DUTY 320MM(6CP)
BRK WHL LK CONT LSPV<6PH>
4 WHEEL ANTI LOCK BRAKE<JE5>
(C) REAR
|
8-97358-878-0 |
01 |
1 |
0507- |
● |
● |
● |
● |
|
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 8.0-8.5TON(RPZ)
BRK WHL LK CONT LSPV<6PH>
4 WHEEL ANTI LOCK BRAKE<JE5>
FINAL GEAR RATIO 41/7(R41),FINAL
GEARRATIO 43/7(R42),FINAL GEAR RATIO 41/
6(6YB)
(C) REAR
|
8-97358-878-0 |
01 |
1 |
0507- |
● |
● |
● |
|
|
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
BRK WHL LK CONT LSPV<6PH>
(C) REAR
|
8-97358-879-0 |
01 |
1 |
0507- |
● |
● |
● |
● |
|
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 8.0-8.5TON(RPZ)
BRK WHL LK CONT LSPV<6PH>
FINAL GEAR RATIO 41/7(R41),FINAL
GEARRATIO 43/7(R42),FINAL GEAR RATIO 41/
6(6YB)
(C) REAR
|
8-97358-879-0 |
01 |
1 |
0507- |
● |
● |
● |
|
|
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
REAR AXLE HEAVY DUTY 320MM(6CP)
BRK WHL LK CONT LSPV<6PH>
4 WHEEL ANTI LOCK BRAKE<JE5>
(C) FRONT
|
8-97358-880-0 |
01 |
1 |
0507- |
● |
● |
● |
● |
|
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 8.0-8.5TON(RPZ)
BRK WHL LK CONT LSPV<6PH>
4 WHEEL ANTI LOCK BRAKE<JE5>
FINAL GEAR RATIO 41/7(R41),FINAL
GEARRATIO 43/7(R42),FINAL GEAR RATIO 41/
6(6YB)
(C) FRONT
|
8-97358-880-0 |
01 |
1 |
0507- |
● |
● |
● |
|
|
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
BRK WHL LK CONT LSPV<6PH>
(C) FRONT
|
8-97358-881-0 |
01 |
1 |
0507- |
● |
● |
● |
● |
|
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 8.0-8.5TON(RPZ)
BRK WHL LK CONT LSPV<6PH>
FINAL GEAR RATIO 41/7(R41),FINAL
GEARRATIO 43/7(R42),FINAL GEAR RATIO 41/
6(6YB)
(C) FRONT
|
8-97358-881-0 |
01 |
1 |
0507- |
● |
● |
● |
|
|
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 41/10(GT5),FINAL
GEAR RATIO 41/9(HC6)
4 WHEEL ANTI LOCK BRAKE<JE5>
DISC BRAKE FRT<J52>
G.V.W. 8.0-8.5TON(RPZ)
AUSTRALIA EQUIPMENT(RR3)
BRK WHL LK CONT LSPV<6PH>
FRAME STRAIGHT TYPE<7KJ>
(D) FRONT
|
8-97372-820-0 |
01 |
1 |
0507-1510 |
● |
● |
● |
|
|
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 41/10(GT5),FINAL
GEAR RATIO 41/9(HC6)
4 WHEEL ANTI LOCK BRAKE<JE5>
DISC BRAKE FRT<J52>
G.V.W. 8.0-8.5TON(RPZ)
AUSTRALIA EQUIPMENT(RR3)
BRK WHL LK CONT LSPV<6PH>
FRAME STRAIGHT TYPE<7KJ>
(D) FRONT
|
8-98317-281-0 |
01 |
1 |
1511- |
● |
● |
● |
|
|
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 41/10(GT5),FINAL
GEAR RATIO 41/9(HC6)
4 WHEEL ANTI LOCK BRAKE<JE5>
DISC BRAKE FRT<J52>
G.V.W. 8.0-8.5TON(RPZ)
AUSTRALIA EQUIPMENT(RR3)
BRK WHL LK CONT LSPV<6PH>
FRAME STRAIGHT TYPE<7KJ>
(D) FRONT
|
8-97372-821-0 |
01 |
1 |
0507-1510 |
● |
● |
● |
|
|
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 41/10(GT5),FINAL
GEAR RATIO 41/9(HC6)
4 WHEEL ANTI LOCK BRAKE<JE5>
DISC BRAKE FRT<J52>
G.V.W. 8.0-8.5TON(RPZ)
AUSTRALIA EQUIPMENT(RR3)
BRK WHL LK CONT LSPV<6PH>
FRAME STRAIGHT TYPE<7KJ>
(D) FRONT
|
8-98317-278-0 |
01 |
1 |
1511- |
● |
● |
● |
|
|
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 41/10(GT5),FINAL
GEAR RATIO 41/9(HC6)
4 WHEEL ANTI LOCK BRAKE<JE5>
DISC BRAKE FRT<J52>
G.V.W. 8.0-8.5TON(RPZ)
AUSTRALIA EQUIPMENT(RR3)
BRK WHL LK CONT LSPV<6PH>
FRAME STRAIGHT TYPE<7KJ>
(D) REAR
|
8-97372-822-0 |
01 |
1 |
0507-1510 |
● |
● |
● |
|
|
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 41/10(GT5),FINAL
GEAR RATIO 41/9(HC6)
4 WHEEL ANTI LOCK BRAKE<JE5>
DISC BRAKE FRT<J52>
G.V.W. 8.0-8.5TON(RPZ)
AUSTRALIA EQUIPMENT(RR3)
BRK WHL LK CONT LSPV<6PH>
FRAME STRAIGHT TYPE<7KJ>
(D) REAR
|
8-98317-282-0 |
01 |
1 |
1511- |
● |
● |
● |
|
|
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 41/10(GT5),FINAL
GEAR RATIO 41/9(HC6)
4 WHEEL ANTI LOCK BRAKE<JE5>
DISC BRAKE FRT<J52>
G.V.W. 8.0-8.5TON(RPZ)
AUSTRALIA EQUIPMENT(RR3)
BRK WHL LK CONT LSPV<6PH>
FRAME STRAIGHT TYPE<7KJ>
(D) REAR
|
8-97372-823-0 |
01 |
1 |
0507-1510 |
● |
● |
● |
|
|
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 41/10(GT5),FINAL
GEAR RATIO 41/9(HC6)
4 WHEEL ANTI LOCK BRAKE<JE5>
DISC BRAKE FRT<J52>
G.V.W. 8.0-8.5TON(RPZ)
AUSTRALIA EQUIPMENT(RR3)
BRK WHL LK CONT LSPV<6PH>
FRAME STRAIGHT TYPE<7KJ>
(D) REAR
|
8-98317-280-0 |
01 |
1 |
1511- |
● |
● |
● |
|
|
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 7.0-7.5TON(RPX)
EXC. BRK WHL LK CONT LSPV<6PH>
(A)
|
8-97139-825-0 |
02 |
1 |
0211-0501 |
● |
● |
|
|
● |
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 7.0-7.5TON(RPX)
(A)
|
8-97139-825-0 |
02 |
1 |
0502-0506 |
● |
● |
|
|
● |
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 7.0-7.5TON(RPX)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,
DISC BRAKE FRT<J52>,BRK WHL LK CONT LSPV
<6PH>
(A)
|
8-97139-825-0 |
02 |
1 |
0507-0509 |
● |
● |
|
|
● |
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 7.0-7.5TON(RPX)
REAR AXLE HEAVY DUTY 292MM(G73)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,
DISC BRAKE FRT<J52>,BRK WHL LK CONT LSPV
<6PH>
(A)
|
8-97139-825-0 |
02 |
1 |
0510-0606 |
● |
● |
|
|
● |
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 7.0-7.5TON(RPX)
REAR AXLE HEAVY DUTY 292MM(G73)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,
DISC BRAKE FRT<J52>,BRK WHL LK CONT LSPV
<6PH>
(A)
|
8-97139-825-0 |
02 |
1 |
0607- |
● |
● |
|
|
● |
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 7.0-7.5TON(RPX)
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 39/7(GV1)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,
DISC BRAKE FRT<J52>,BRK WHL LK CONT LSPV
<6PH>
(A)
|
8-97139-825-0 |
02 |
1 |
0607- |
● |
● |
|
|
● |
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 7.0-7.5TON(RPX)
EXC. BRK WHL LK CONT LSPV<6PH>
(A) FRONT
|
8-97139-822-0 |
01 |
1 |
0211-0501 |
● |
● |
|
|
● |
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 7.0-7.5TON(RPX)
(A) FRONT
|
8-97139-822-0 |
01 |
1 |
0502-0506 |
● |
● |
|
|
● |
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 7.0-7.5TON(RPX)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,
DISC BRAKE FRT<J52>,BRK WHL LK CONT LSPV
<6PH>
(A) FRONT
|
8-97139-822-0 |
01 |
1 |
0507-0509 |
● |
● |
|
|
● |
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 7.0-7.5TON(RPX)
REAR AXLE HEAVY DUTY 292MM(G73)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,
DISC BRAKE FRT<J52>,BRK WHL LK CONT LSPV
<6PH>
(A) FRONT
|
8-97139-822-0 |
01 |
1 |
0510-0606 |
● |
● |
|
|
● |
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 7.0-7.5TON(RPX)
REAR AXLE HEAVY DUTY 292MM(G73)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,
DISC BRAKE FRT<J52>,BRK WHL LK CONT LSPV
<6PH>
(A) FRONT
|
8-97139-822-0 |
01 |
1 |
0607- |
● |
● |
|
|
● |
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 7.0-7.5TON(RPX)
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 39/7(GV1)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,
DISC BRAKE FRT<J52>,BRK WHL LK CONT LSPV
<6PH>
(A) FRONT
|
8-97139-822-0 |
01 |
1 |
0607- |
● |
● |
|
|
● |
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 7.0-7.5TON(RPX)
EXC. BRK WHL LK CONT LSPV<6PH>
(A) REAR
|
8-97139-824-0 |
01 |
1 |
0211-0501 |
● |
● |
|
|
● |
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 7.0-7.5TON(RPX)
(A) REAR
|
8-97139-824-0 |
01 |
1 |
0502-0506 |
● |
● |
|
|
● |
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 7.0-7.5TON(RPX)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,
DISC BRAKE FRT<J52>,BRK WHL LK CONT LSPV
<6PH>
(A) REAR
|
8-97139-824-0 |
01 |
1 |
0507-0509 |
● |
● |
|
|
● |
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 7.0-7.5TON(RPX)
REAR AXLE HEAVY DUTY 292MM(G73)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,
DISC BRAKE FRT<J52>,BRK WHL LK CONT LSPV
<6PH>
(A) REAR
|
8-97139-824-0 |
01 |
1 |
0510-0606 |
● |
● |
|
|
● |
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 7.0-7.5TON(RPX)
REAR AXLE HEAVY DUTY 292MM(G73)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,
DISC BRAKE FRT<J52>,BRK WHL LK CONT LSPV
<6PH>
(A) REAR
|
8-97139-824-0 |
01 |
1 |
0607- |
● |
● |
|
|
● |
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 7.0-7.5TON(RPX)
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 39/7(GV1)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,
DISC BRAKE FRT<J52>,BRK WHL LK CONT LSPV
<6PH>
(A) REAR
|
8-97139-824-0 |
01 |
1 |
0607- |
● |
● |
|
|
● |
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 4.0-4.5TON(RPR),G.V.W.
6.0-6.5TON(RPV)
(A)
|
8-97179-352-0 |
02 |
1 |
0211-0501 |
● |
● |
|
● |
● |
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 6.0-6.5TON(RPV)
(A)
|
8-97179-352-0 |
02 |
1 |
0502-0506 |
● |
● |
|
|
● |
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 4.0-4.5TON(RPR),G.V.W.
6.0-6.5TON(RPV)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,
DISC BRAKE FRT<J52>,BRK WHL LK CONT LSPV
<6PH>
(A)
|
8-97179-352-0 |
02 |
1 |
0507- |
● |
● |
|
|
● |
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 4.0-4.5TON(RPR),G.V.W.
6.0-6.5TON(RPV)
(A) FRONT
|
8-97179-350-0 |
01 |
1 |
0211-0501 |
● |
● |
|
● |
● |
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 6.0-6.5TON(RPV)
(A) FRONT
|
8-97179-350-0 |
01 |
1 |
0502-0506 |
● |
● |
|
|
● |
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 4.0-4.5TON(RPR),G.V.W.
6.0-6.5TON(RPV)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,
DISC BRAKE FRT<J52>,BRK WHL LK CONT LSPV
<6PH>
(A) FRONT
|
8-97179-350-0 |
01 |
1 |
0507- |
● |
● |
|
|
● |
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 4.0-4.5TON(RPR),G.V.W.
6.0-6.5TON(RPV)
(A) REAR
|
8-97179-351-0 |
01 |
1 |
0211-0501 |
● |
● |
|
● |
● |
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 6.0-6.5TON(RPV)
(A) REAR
|
8-97179-351-0 |
01 |
1 |
0502-0506 |
● |
● |
|
|
● |
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 4.0-4.5TON(RPR),G.V.W.
6.0-6.5TON(RPV)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,
DISC BRAKE FRT<J52>,BRK WHL LK CONT LSPV
<6PH>
(A) REAR
|
8-97179-351-0 |
01 |
1 |
0507- |
● |
● |
|
|
● |
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 6.5-7.0TON(RPW),G.V.W.
7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY)
BRK WHL LK CONT LSPV<6PH>
(A)
|
8-97332-227-0 |
02 |
1 |
0211-0501 |
● |
● |
|
● |
● |
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 6.5-7.0TON(RPW),G.V.W.
7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY)
BRK WHL LK CONT LSPV<6PH>
(A) FRONT
|
8-97332-225-0 |
01 |
1 |
0211-0501 |
● |
● |
|
● |
● |
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 6.5-7.0TON(RPW),G.V.W.
7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY)
BRK WHL LK CONT LSPV<6PH>
(A) REAR
|
8-97332-226-0 |
01 |
1 |
0211-0501 |
● |
● |
|
● |
● |
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.5-8.0TON(RPY)
HYDRO BRAKE BOOSTER<7QQ>
(A) FRONT
|
8-97353-572-0 |
01 |
1 |
0211-0501 |
● |
● |
● |
|
|
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 8.0-8.5TON(RPZ)
HYDRO BRAKE BOOSTER<7QQ>
EXC. BRK WHL LK CONT LSPV<6PH>
(A) FRONT
|
8-97353-572-0 |
01 |
1 |
0211-0501 |
● |
● |
● |
|
|
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
4HE1 ENG(RLY)
G.V.W. 8.0-8.5TON(RPZ)
FINAL GEAR RATIO 41/8(RU1),FINAL
GEARRATIO 43/9(S2J),FINAL GEAR RATIO 43/
10(S7C)
BRK WHL LK CONT LSPV<6PH>
(A) FRONT
|
8-97353-572-0 |
01 |
1 |
0211-0501 |
● |
● |
● |
|
|
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
4HF1-S ENG(RLS)
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEARRATIO 41/7(R41),FINAL GEAR RATIO 43/
7(R42),FINAL GEAR RATIO 41/6(6YB)
G.V.W. 8.0-8.5TON(RPZ)
FRAME STRAIGHT TYPE<7KJ>
VEHICLE CATEGORY NQR<7NQ>
HYDRO BRAKE BOOSTER<7QQ>
(A) FRONT
|
8-97353-572-0 |
01 |
1 |
0502-0506 |
● |
|
|
|
|
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.5-8.0TON(RPY),G.V.W.
8.0-8.5TON(RPZ)
HYDRO BRAKE BOOSTER<7QQ>
EXC. DISC BRAKE FRT<J52>,BRK WHL LK
CONT LSPV<6PH>
(A) FRONT
|
8-97353-572-0 |
01 |
1 |
0507- |
● |
● |
● |
|
|
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.5-8.0TON(RPY)
HYDRO BRAKE BOOSTER<7QQ>
(A)
|
8-97353-570-0 |
02 |
1 |
0211-0501 |
● |
● |
● |
|
|
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 8.0-8.5TON(RPZ)
HYDRO BRAKE BOOSTER<7QQ>
EXC. BRK WHL LK CONT LSPV<6PH>
(A)
|
8-97353-570-0 |
02 |
1 |
0211-0501 |
● |
● |
● |
|
|
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
4HE1 ENG(RLY)
G.V.W. 8.0-8.5TON(RPZ)
FINAL GEAR RATIO 41/8(RU1),FINAL
GEARRATIO 43/9(S2J),FINAL GEAR RATIO 43/
10(S7C)
BRK WHL LK CONT LSPV<6PH>
(A)
|
8-97353-570-0 |
02 |
1 |
0211-0501 |
● |
● |
● |
|
|
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
4HF1-S ENG(RLS)
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEARRATIO 41/7(R41),FINAL GEAR RATIO 43/
7(R42),FINAL GEAR RATIO 41/6(6YB)
G.V.W. 8.0-8.5TON(RPZ)
FRAME STRAIGHT TYPE<7KJ>
VEHICLE CATEGORY NQR<7NQ>
HYDRO BRAKE BOOSTER<7QQ>
(A)
|
8-97353-570-0 |
02 |
1 |
0502-0506 |
● |
|
|
|
|
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.5-8.0TON(RPY),G.V.W.
8.0-8.5TON(RPZ)
HYDRO BRAKE BOOSTER<7QQ>
EXC. DISC BRAKE FRT<J52>,BRK WHL LK
CONT LSPV<6PH>
(A)
|
8-97353-570-0 |
02 |
1 |
0507- |
● |
● |
● |
|
|
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.5-8.0TON(RPY)
HYDRO BRAKE BOOSTER<7QQ>
(A) REAR
|
8-97353-571-0 |
01 |
1 |
0211-0501 |
● |
● |
● |
|
|
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 8.0-8.5TON(RPZ)
HYDRO BRAKE BOOSTER<7QQ>
EXC. BRK WHL LK CONT LSPV<6PH>
(A) REAR
|
8-97353-571-0 |
01 |
1 |
0211-0501 |
● |
● |
● |
|
|
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
4HE1 ENG(RLY)
G.V.W. 8.0-8.5TON(RPZ)
FINAL GEAR RATIO 41/8(RU1),FINAL
GEARRATIO 43/9(S2J),FINAL GEAR RATIO 43/
10(S7C)
BRK WHL LK CONT LSPV<6PH>
(A) REAR
|
8-97353-571-0 |
01 |
1 |
0211-0501 |
● |
● |
● |
|
|
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
4HF1-S ENG(RLS)
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEARRATIO 41/7(R41),FINAL GEAR RATIO 43/
7(R42),FINAL GEAR RATIO 41/6(6YB)
G.V.W. 8.0-8.5TON(RPZ)
FRAME STRAIGHT TYPE<7KJ>
VEHICLE CATEGORY NQR<7NQ>
HYDRO BRAKE BOOSTER<7QQ>
(A) REAR
|
8-97353-571-0 |
01 |
1 |
0502-0506 |
● |
|
|
|
|
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.5-8.0TON(RPY),G.V.W.
8.0-8.5TON(RPZ)
HYDRO BRAKE BOOSTER<7QQ>
EXC. DISC BRAKE FRT<J52>,BRK WHL LK
CONT LSPV<6PH>
(A) REAR
|
8-97353-571-0 |
01 |
1 |
0507- |
● |
● |
● |
|
|
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.5-8.0TON(RPY),G.V.W.
8.0-8.5TON(RPZ)
EXC. BRK WHL LK CONT LSPV<6PH>,HYDRO
BRAKE BOOSTER<7QQ>
(A)
|
8-97332-224-0 |
02 |
1 |
0211-0501 |
● |
● |
● |
|
|
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP)
EXC. HYDRO BRAKE BOOSTER<7QQ>
(A)
|
8-97332-224-0 |
02 |
1 |
0502-0506 |
● |
● |
● |
|
|
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.5-8.0TON(RPY),G.V.W.
8.0-8.5TON(RPZ)
FRAME STRAIGHT TYPE<7KJ>
VEHICLE CATEGORY NQR<7NQ>
EXC. DISC BRAKE FRT<J52>,BRK WHL LK
CONT LSPV<6PH>,HYDRO BRAKE
BOOSTER<7QQ>
(A)
|
8-97332-224-0 |
02 |
1 |
0507- |
● |
● |
● |
|
|
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.5-8.0TON(RPY),G.V.W.
8.0-8.5TON(RPZ)
EXC. BRK WHL LK CONT LSPV<6PH>,HYDRO
BRAKE BOOSTER<7QQ>
(A) FRONT
|
8-97332-222-0 |
01 |
1 |
0211-0501 |
● |
● |
● |
|
|
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP)
EXC. HYDRO BRAKE BOOSTER<7QQ>
(A) FRONT
|
8-97332-222-0 |
01 |
1 |
0502-0506 |
● |
● |
● |
|
|
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.5-8.0TON(RPY),G.V.W.
8.0-8.5TON(RPZ)
FRAME STRAIGHT TYPE<7KJ>
VEHICLE CATEGORY NQR<7NQ>
EXC. DISC BRAKE FRT<J52>,BRK WHL LK
CONT LSPV<6PH>,HYDRO BRAKE
BOOSTER<7QQ>
(A) FRONT
|
8-97332-222-0 |
01 |
1 |
0507- |
● |
● |
● |
|
|
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.5-8.0TON(RPY),G.V.W.
8.0-8.5TON(RPZ)
EXC. BRK WHL LK CONT LSPV<6PH>,HYDRO
BRAKE BOOSTER<7QQ>
(A) REAR
|
8-97332-223-0 |
01 |
1 |
0211-0501 |
● |
● |
● |
|
|
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP)
EXC. HYDRO BRAKE BOOSTER<7QQ>
(A) REAR
|
8-97332-223-0 |
01 |
1 |
0502-0506 |
● |
● |
● |
|
|
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.5-8.0TON(RPY),G.V.W.
8.0-8.5TON(RPZ)
FRAME STRAIGHT TYPE<7KJ>
VEHICLE CATEGORY NQR<7NQ>
EXC. DISC BRAKE FRT<J52>,BRK WHL LK
CONT LSPV<6PH>,HYDRO BRAKE
BOOSTER<7QQ>
(A) REAR
|
8-97332-223-0 |
01 |
1 |
0507- |
● |
● |
● |
|
|
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
4HG1 ENG(RJH)
G.V.W. 8.0-8.5TON(RPZ)
FINAL GEAR RATIO 41/7(R41),FINAL
GEARRATIO 43/7(R42),FINAL GEAR RATIO 41/
6(6YB)
BRK WHL LK CONT LSPV<6PH>
4 WHEEL ANTI LOCK BRAKE<JE5>
(C) REAR
|
8-97358-878-0 |
01 |
1 |
0309-0501 |
● |
● |
● |
|
|
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
4HG1 ENG(RJH)
G.V.W. 8.0-8.5TON(RPZ)
FINAL GEAR RATIO 41/7(R41),FINAL
GEARRATIO 43/7(R42),FINAL GEAR RATIO 41/
6(6YB)
BRK WHL LK CONT LSPV<6PH>
4 WHEEL ANTI LOCK BRAKE<JE5>
(C) FRONT
|
8-97358-880-0 |
01 |
1 |
0309-0501 |
● |
● |
● |
|
|
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
4HG1 ENG(RJH)
G.V.W. 8.0-8.5TON(RPZ)
FINAL GEAR RATIO 41/7(R41),FINAL
GEARRATIO 43/7(R42),FINAL GEAR RATIO 41/
6(6YB)
BRK WHL LK CONT LSPV<6PH>
4 WHEEL ANTI LOCK BRAKE<JE5>
(C) REAR
|
8-97358-879-0 |
01 |
1 |
0309-0501 |
● |
● |
● |
|
|
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
4HG1 ENG(RJH)
G.V.W. 8.0-8.5TON(RPZ)
FINAL GEAR RATIO 41/7(R41),FINAL
GEARRATIO 43/7(R42),FINAL GEAR RATIO 41/
6(6YB)
BRK WHL LK CONT LSPV<6PH>
4 WHEEL ANTI LOCK BRAKE<JE5>
(C) FRONT
|
8-97358-881-0 |
01 |
1 |
0309-0501 |
● |
● |
● |
|
|
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
(B)
|
8-97139-835-0 |
02 |
1 |
0211- |
|
|
|
|
|
● |
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
(B) FRONT
|
8-97139-833-0 |
01 |
1 |
0211- |
|
|
|
|
|
● |
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
(B) REAR
|
8-97139-834-0 |
01 |
1 |
0211- |
|
|
|
|
|
● |
| |
95 |
04.665 CUP SET; RR WHEEL CYL
G.V.W. 6.0-6.5TON(RPV),G.V.W.
6.5-7.0TON(RPW)
REAR AXLE HEAVY DUTY 320MM(6CP)
BRK WHL LK CONT LSPV<6PH>
|
5-87832-070-0 |
01 |
1 |
0507- |
● |
● |
|
|
● |
|
| |
95 |
04.665 CUP SET; RR WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 41/10(GT5),FINAL
GEAR RATIO 41/9(HC6)
4 WHEEL ANTI LOCK BRAKE<JE5>
DISC BRAKE FRT<J52>
G.V.W. 8.0-8.5TON(RPZ)
AUSTRALIA EQUIPMENT(RR3)
BRK WHL LK CONT LSPV<6PH>
FRAME STRAIGHT TYPE<7KJ>
|
5-87832-131-0 |
01 |
1 |
0507-1507 |
● |
● |
● |
|
|
|
| |
95 |
04.665 CUP SET; RR WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 41/10(GT5),FINAL
GEAR RATIO 41/9(HC6)
4 WHEEL ANTI LOCK BRAKE<JE5>
DISC BRAKE FRT<J52>
G.V.W. 8.0-8.5TON(RPZ)
AUSTRALIA EQUIPMENT(RR3)
BRK WHL LK CONT LSPV<6PH>
FRAME STRAIGHT TYPE<7KJ>
|
5-87832-359-0 |
01 |
1 |
1508- |
● |
● |
● |
|
|
|
| |
95 |
04.665 CUP SET; RR WHEEL CYL
G.V.W. 7.0-7.5TON(RPX)
EXC. BRK WHL LK CONT LSPV<6PH>
|
5-87831-598-0 |
02 |
1 |
0211-0501 |
● |
● |
|
|
● |
|
| |
95 |
04.665 CUP SET; RR WHEEL CYL
G.V.W. 7.0-7.5TON(RPX)
|
5-87831-598-0 |
02 |
1 |
0502-0506 |
● |
● |
|
|
● |
|
| |
95 |
04.665 CUP SET; RR WHEEL CYL
G.V.W. 7.0-7.5TON(RPX)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,
DISC BRAKE FRT<J52>,BRK WHL LK CONT LSPV
<6PH>
|
5-87831-598-0 |
02 |
1 |
0507-0509 |
● |
● |
|
|
● |
|
| |
95 |
04.665 CUP SET; RR WHEEL CYL
G.V.W. 7.0-7.5TON(RPX)
REAR AXLE HEAVY DUTY 292MM(G73)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,
DISC BRAKE FRT<J52>,BRK WHL LK CONT LSPV
<6PH>
|
5-87831-598-0 |
02 |
1 |
0510-0606 |
● |
● |
|
|
● |
|
| |
95 |
04.665 CUP SET; RR WHEEL CYL
G.V.W. 7.0-7.5TON(RPX)
REAR AXLE HEAVY DUTY 292MM(G73)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,
DISC BRAKE FRT<J52>,BRK WHL LK CONT LSPV
<6PH>
|
5-87831-598-0 |
02 |
1 |
0607- |
● |
● |
|
|
● |
|
| |
95 |
04.665 CUP SET; RR WHEEL CYL
G.V.W. 7.0-7.5TON(RPX)
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 39/7(GV1)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,
DISC BRAKE FRT<J52>,BRK WHL LK CONT LSPV
<6PH>
|
5-87831-598-0 |
02 |
1 |
0607- |
● |
● |
|
|
● |
|
| |
95 |
04.665 CUP SET; RR WHEEL CYL
G.V.W. 4.0-4.5TON(RPR),G.V.W.
6.0-6.5TON(RPV)
|
5-87831-621-0 |
01 |
1 |
0211-0501 |
● |
● |
|
● |
● |
|
| |
95 |
04.665 CUP SET; RR WHEEL CYL
G.V.W. 6.0-6.5TON(RPV)
|
5-87831-621-0 |
01 |
1 |
0502-0506 |
● |
● |
|
|
● |
|
| |
95 |
04.665 CUP SET; RR WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 4.0-4.5TON(RPR),G.V.W.
6.0-6.5TON(RPV)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,
DISC BRAKE FRT<J52>,BRK WHL LK CONT LSPV
<6PH>
|
5-87831-621-0 |
01 |
1 |
0507- |
● |
● |
|
|
● |
|
| |
95 |
04.665 CUP SET; RR WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 6.5-7.0TON(RPW),G.V.W.
7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY)
BRK WHL LK CONT LSPV<6PH>
|
5-87832-051-0 |
02 |
1 |
0211-0308 |
● |
● |
|
● |
● |
|
| |
95 |
04.665 CUP SET; RR WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.5-8.0TON(RPY),G.V.W.
8.0-8.5TON(RPZ)
EXC. BRK WHL LK CONT LSPV<6PH>,HYDRO
BRAKE BOOSTER<7QQ>
|
5-87832-051-0 |
02 |
1 |
0211-0308 |
● |
● |
● |
|
|
|
| |
95 |
04.665 CUP SET; RR WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 6.5-7.0TON(RPW),G.V.W.
7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY)
BRK WHL LK CONT LSPV<6PH>
|
5-87832-051-0 |
02 |
1 |
0309-0501 |
● |
● |
|
● |
● |
|
| |
95 |
04.665 CUP SET; RR WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.5-8.0TON(RPY),G.V.W.
8.0-8.5TON(RPZ)
EXC. BRK WHL LK CONT LSPV<6PH>,HYDRO
BRAKE BOOSTER<7QQ>
|
5-87832-051-0 |
02 |
1 |
0309-0501 |
● |
● |
● |
|
|
|
| |
95 |
04.665 CUP SET; RR WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 8.0-8.5TON(RPZ)
4HG1 ENG(RJH)
BRK WHL LK CONT LSPV<6PH>
|
5-87832-051-0 |
02 |
1 |
0309-0501 |
● |
● |
● |
|
|
|
| |
95 |
04.665 CUP SET; RR WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP)
EXC. HYDRO BRAKE BOOSTER<7QQ>
|
5-87832-051-0 |
02 |
1 |
0502-0506 |
● |
● |
● |
|
|
|
| |
95 |
04.665 CUP SET; RR WHEEL CYL
G.V.W. 7.0-7.5TON(RPX)
REAR AXLE HEAVY DUTY 320MM(6CP)
BRK WHL LK CONT LSPV<6PH>
|
5-87832-051-0 |
02 |
1 |
0507- |
● |
● |
|
|
● |
|
| |
95 |
04.665 CUP SET; RR WHEEL CYL
G.V.W. 7.5-8.0TON(RPY)
BRK WHL LK CONT LSPV<6PH>
HYDRO BRAKE BOOSTER<7QQ>
|
5-87832-051-0 |
02 |
1 |
0507- |
● |
● |
● |
● |
|
|
| |
95 |
04.665 CUP SET; RR WHEEL CYL
G.V.W. 7.5-8.0TON(RPY),G.V.W.
8.0-8.5TON(RPZ)
EXC. BRK WHL LK CONT LSPV<6PH>,HYDRO
BRAKE BOOSTER<7QQ>
|
5-87832-051-0 |
02 |
1 |
0507- |
● |
● |
● |
|
|
|
| |
95 |
04.665 CUP SET; RR WHEEL CYL
G.V.W. 8.0-8.5TON(RPZ)
BRK WHL LK CONT LSPV<6PH>
HYDRO BRAKE BOOSTER<7QQ>
FINAL GEAR RATIO 41/7(R41),FINAL
GEARRATIO 43/7(R42),FINAL GEAR RATIO 41/
6(6YB)
|
5-87832-051-0 |
02 |
1 |
0507- |
● |
● |
● |
|
|
|
| |
95 |
04.665 CUP SET; RR WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.5-8.0TON(RPY)
HYDRO BRAKE BOOSTER<7QQ>
|
5-87832-080-0 |
02 |
1 |
0211-0501 |
● |
● |
● |
|
|
|
| |
95 |
04.665 CUP SET; RR WHEEL CYL
G.V.W. 8.0-8.5TON(RPZ)
HYDRO BRAKE BOOSTER<7QQ>
EXC. BRK WHL LK CONT LSPV<6PH>
|
5-87832-080-0 |
02 |
1 |
0211-0501 |
● |
● |
● |
|
|
|
| |
95 |
04.665 CUP SET; RR WHEEL CYL
4HE1 ENG(RLY)
G.V.W. 8.0-8.5TON(RPZ)
FINAL GEAR RATIO 41/8(RU1),FINAL
GEARRATIO 43/9(S2J),FINAL GEAR RATIO 43/
10(S7C)
BRK WHL LK CONT LSPV<6PH>
|
5-87832-080-0 |
02 |
1 |
0211-0501 |
● |
● |
● |
|
|
|
| |
95 |
04.665 CUP SET; RR WHEEL CYL
4HF1-S ENG(RLS)
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEARRATIO 41/7(R41),FINAL GEAR RATIO 43/
7(R42),FINAL GEAR RATIO 41/6(6YB)
G.V.W. 8.0-8.5TON(RPZ)
FRAME STRAIGHT TYPE<7KJ>
VEHICLE CATEGORY NQR<7NQ>
HYDRO BRAKE BOOSTER<7QQ>
|
5-87832-080-0 |
02 |
1 |
0502-0506 |
● |
|
|
|
|
|
| |
95 |
04.665 CUP SET; RR WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.5-8.0TON(RPY),G.V.W.
8.0-8.5TON(RPZ)
HYDRO BRAKE BOOSTER<7QQ>
EXC. DISC BRAKE FRT<J52>,BRK WHL LK
CONT LSPV<6PH>
|
5-87832-080-0 |
02 |
1 |
0507- |
● |
● |
● |
|
|
|
| |
95 |
04.665 CUP SET; RR WHEEL CYL
|
5-87831-622-0 |
01 |
1 |
0211-0506 |
|
|
|
|
|
● |
| |
95 |
04.665 CUP SET; RR WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP)
4 WHEEL ANTI LOCK BRAKE<JE5>
DISC BRAKE FRT<J52>
G.V.W. 4.0-4.5TON(RPR)
BRK WHL LK CONT LSPV<6PH>
FRAME STRAIGHT TYPE<7KJ>
|
5-87831-622-0 |
01 |
1 |
0507- |
● |
|
|
|
● |
|
| |
95 |
04.665 CUP SET; RR WHEEL CYL
|
5-87831-622-0 |
01 |
1 |
0507- |
|
|
|
|
|
● |
| |
96 |
04.666 SCREW; BLEEDER,RR BRK
G.V.W. 6.0-6.5TON(RPV),G.V.W.
6.5-7.0TON(RPW)
DISC BRAKE FRT<J52>
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-98050-476-0 |
01 |
1 |
0708-0710 |
● |
● |
|
|
● |
|
| |
96 |
04.666 SCREW; BLEEDER,RR BRK
G.V.W. 6.0-6.5TON(RPV),G.V.W.
6.5-7.0TON(RPW)
DISC BRAKE FRT<J52>
BRK WHL LK CONT LSPV<6PH>
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-98050-476-0 |
01 |
1 |
0711-0711 |
● |
● |
|
|
● |
|
| |
96 |
04.666 SCREW; BLEEDER,RR BRK
|
8-98050-476-0 |
01 |
1 |
0711-0711 |
|
|
|
|
|
● |
| |
96 |
04.666 SCREW; BLEEDER,RR BRK
REAR AXLE HEAVY DUTY 292MM(G73)
EXC. BRK WHL LK CONT LSPV<6PH>
|
8-98050-476-0 |
01 |
1 |
0712- |
● |
● |
● |
|
● |
|
| |
96 |
04.666 SCREW; BLEEDER,RR BRK
G.V.W. 6.0-6.5TON(RPV),G.V.W.
6.5-7.0TON(RPW)
DISC BRAKE FRT<J52>
BRK WHL LK CONT LSPV<6PH>
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-98050-476-0 |
01 |
1 |
0712- |
● |
● |
|
|
● |
|
| |
96 |
04.666 SCREW; BLEEDER,RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
EXC. BRK WHL LK CONT LSPV<6PH>
|
8-98050-476-0 |
01 |
1 |
0712- |
● |
● |
|
|
● |
|
| |
96 |
04.666 SCREW; BLEEDER,RR BRK
|
8-98050-476-0 |
01 |
1 |
0712- |
|
|
|
|
|
● |
| |
96 |
04.666 SCREW; BLEEDER,RR BRK
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
REAR AXLE HEAVY DUTY 320MM(6CP)
BRK WHL LK CONT LSPV<6PH>
4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-98050-477-0 |
02 |
1 |
0708-0710 |
● |
● |
● |
● |
|
|
| |
96 |
04.666 SCREW; BLEEDER,RR BRK
G.V.W. 8.0-8.5TON(RPZ)
BRK WHL LK CONT LSPV<6PH>
4 WHEEL ANTI LOCK BRAKE<JE5>
FINAL GEAR RATIO 41/7(R41),FINAL
GEARRATIO 43/7(R42),FINAL GEAR RATIO 41/
6(6YB)
|
8-98050-477-0 |
02 |
1 |
0708-0710 |
● |
● |
● |
|
|
|
| |
96 |
04.666 SCREW; BLEEDER,RR BRK
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ)
BRK WHL LK CONT LSPV<6PH>
4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-98050-477-0 |
02 |
1 |
0711- |
● |
● |
● |
● |
|
|
| |
96 |
04.666 SCREW; BLEEDER,RR BRK
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
REAR AXLE HEAVY DUTY 320MM(6CP)
BRK WHL LK CONT LSPV<6PH>
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-97126-082-0 |
01 |
1 |
0507-0707 |
● |
● |
● |
|
|
|
| |
96 |
04.666 SCREW; BLEEDER,RR BRK
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
REAR AXLE HEAVY DUTY 320MM(6CP)
BRK WHL LK CONT LSPV<6PH>
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-98050-477-0 |
01 |
1 |
0708-0710 |
● |
● |
● |
|
|
|
| |
96 |
04.666 SCREW; BLEEDER,RR BRK
G.V.W. 7.5-8.0TON(RPY),G.V.W.
8.0-8.5TON(RPZ)
EXC. BRK WHL LK CONT LSPV<6PH>
|
8-98050-477-0 |
01 |
1 |
0711- |
● |
● |
● |
|
|
|
| |
96 |
04.666 SCREW; BLEEDER,RR BRK
G.V.W. 7.5-8.0TON(RPY)
BRK WHL LK CONT LSPV<6PH>
HYDRO BRAKE BOOSTER<7QQ>
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-98050-477-0 |
01 |
1 |
0711- |
● |
● |
● |
|
|
|
| |
96 |
04.666 SCREW; BLEEDER,RR BRK
G.V.W. 7.0-7.5TON(RPX)
REAR AXLE HEAVY DUTY 320MM(6CP)
BRK WHL LK CONT LSPV<6PH>
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-98050-477-0 |
01 |
1 |
0711- |
● |
● |
|
|
|
|
| |
96 |
04.666 SCREW; BLEEDER,RR BRK
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ)
BRK WHL LK CONT LSPV<6PH>
4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-97126-082-0 |
02 |
1 |
0507-0707 |
● |
● |
● |
● |
|
|
| |
96 |
04.666 SCREW; BLEEDER,RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 41/10(GT5),FINAL
GEAR RATIO 41/9(HC6)
4 WHEEL ANTI LOCK BRAKE<JE5>
DISC BRAKE FRT<J52>
G.V.W. 8.0-8.5TON(RPZ)
AUSTRALIA EQUIPMENT(RR3)
BRK WHL LK CONT LSPV<6PH>
FRAME STRAIGHT TYPE<7KJ>
|
8-97126-082-0 |
02 |
1 |
0708-0710 |
● |
● |
● |
|
|
|
| |
96 |
04.666 SCREW; BLEEDER,RR BRK
EXC. BRK WHL LK CONT LSPV<6PH>
|
9-47615-027-0 |
01 |
1 |
0507-0509 |
● |
● |
● |
|
● |
● |
| |
96 |
04.666 SCREW; BLEEDER,RR BRK
G.V.W. 6.0-6.5TON(RPV),G.V.W.
8.0-8.5TON(RPZ)
REAR AXLE HEAVY DUTY 320MM(6CP)
BRK WHL LK CONT LSPV<6PH>
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
|
9-47615-027-0 |
01 |
1 |
0507-0509 |
● |
● |
|
|
● |
|
| |
96 |
04.666 SCREW; BLEEDER,RR BRK
EXC. BRK WHL LK CONT LSPV<6PH>
|
9-47615-027-0 |
01 |
1 |
0510-0707 |
● |
● |
● |
|
● |
● |
| |
96 |
04.666 SCREW; BLEEDER,RR BRK
G.V.W. 6.0-6.5TON(RPV),G.V.W.
6.5-7.0TON(RPW)
REAR AXLE HEAVY DUTY 320MM(6CP)
DISC BRAKE FRT<J52>
BRK WHL LK CONT LSPV<6PH>
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
|
9-47615-027-0 |
01 |
1 |
0510-0707 |
● |
● |
|
|
● |
|
| |
96 |
04.666 SCREW; BLEEDER,RR BRK
EXC. BRK WHL LK CONT LSPV<6PH>
|
9-47615-027-0 |
01 |
1 |
0708-0710 |
● |
● |
● |
|
● |
● |
| |
96 |
04.666 SCREW; BLEEDER,RR BRK
EXC. BRK WHL LK CONT LSPV<6PH>
|
9-47615-027-0 |
01 |
1 |
0711-0711 |
● |
● |
● |
|
● |
|
| |
96 |
04.666 SCREW; BLEEDER,RR BRK
REAR AXLE HEAVY DUTY 292MM(G73)
EXC. BRK WHL LK CONT LSPV<6PH>
|
9-47615-027-0 |
01 |
1 |
0711-0711 |
● |
● |
● |
|
● |
|
| |
96 |
04.666 SCREW; BLEEDER,RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
EXC. BRK WHL LK CONT LSPV<6PH>
|
9-47615-027-0 |
01 |
1 |
0711-0711 |
● |
● |
|
|
● |
|
| |
96 |
04.666 SCREW; BLEEDER,RR BRK
|
9-47615-027-0 |
01 |
1 |
0211-0308 |
● |
● |
● |
● |
● |
● |
| |
96 |
04.666 SCREW; BLEEDER,RR BRK
G.V.W. 4.0-4.5TON(RPR),G.V.W.
6.0-6.5TON(RPV),G.V.W. 6.5-7.0TON(RPW),
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
|
9-47615-027-0 |
01 |
1 |
0309-0501 |
● |
● |
● |
● |
● |
|
| |
96 |
04.666 SCREW; BLEEDER,RR BRK
G.V.W. 8.0-8.5TON(RPZ)
EXC. BRK WHL LK CONT LSPV<6PH>
|
9-47615-027-0 |
01 |
1 |
0309-0501 |
● |
● |
● |
|
|
|
| |
96 |
04.666 SCREW; BLEEDER,RR BRK
G.V.W. 8.0-8.5TON(RPZ)
BRK WHL LK CONT LSPV<6PH>
4HE1 ENG(RLY)
|
9-47615-027-0 |
01 |
1 |
0309-0501 |
● |
● |
● |
|
|
|
| |
96 |
04.666 SCREW; BLEEDER,RR BRK
|
9-47615-027-0 |
01 |
1 |
0309-0501 |
|
|
|
|
|
● |
| |
96 |
04.666 SCREW; BLEEDER,RR BRK
|
9-47615-027-0 |
01 |
1 |
0502-0506 |
● |
● |
● |
|
● |
● |
| |
96 |
04.666 SCREW; BLEEDER,RR BRK
G.V.W. 4.0-4.5TON(RPR),G.V.W.
6.0-6.5TON(RPV),G.V.W. 6.5-7.0TON(RPW)
REAR AXLE HEAVY DUTY 320MM(6CP)
4 WHEEL ANTI LOCK BRAKE<JE5>
DISC BRAKE FRT<J52>
BRK WHL LK CONT LSPV<6PH>
|
9-47615-027-0 |
02 |
1 |
0507-0707 |
● |
● |
|
|
● |
|
| |
96 |
04.666 SCREW; BLEEDER,RR BRK
G.V.W. 4.0-4.5TON(RPR),G.V.W.
6.0-6.5TON(RPV),G.V.W. 6.5-7.0TON(RPW)
REAR AXLE HEAVY DUTY 320MM(6CP)
4 WHEEL ANTI LOCK BRAKE<JE5>
DISC BRAKE FRT<J52>
BRK WHL LK CONT LSPV<6PH>
|
8-98050-476-0 |
02 |
1 |
0708- |
● |
● |
|
|
● |
|
| |
96 |
04.666 SCREW; BLEEDER,RR BRK
4HG1 ENG(RJH)
G.V.W. 8.0-8.5TON(RPZ)
FINAL GEAR RATIO 41/7(R41),FINAL
GEARRATIO 43/7(R42),FINAL GEAR RATIO 41/
6(6YB)
BRK WHL LK CONT LSPV<6PH>
4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-97126-082-0 |
02 |
1 |
0309-0501 |
● |
● |
● |
|
|
|
| |
97 |
04.666 CAP; BLEEDER,RR WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP)
BRK WHL LK CONT LSPV<6PH>
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-98050-479-0 |
01 |
1 |
0708-0710 |
● |
● |
● |
|
● |
|
| |
97 |
04.666 CAP; BLEEDER,RR WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP)
BRK WHL LK CONT LSPV<6PH>
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-98050-479-0 |
01 |
1 |
0711-0711 |
● |
● |
● |
|
● |
|
| |
97 |
04.666 CAP; BLEEDER,RR WHEEL CYL
|
8-98050-479-0 |
01 |
1 |
0711-0711 |
|
|
|
|
|
● |
| |
97 |
04.666 CAP; BLEEDER,RR WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP)
BRK WHL LK CONT LSPV<6PH>
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-98050-479-0 |
01 |
1 |
0711-0711 |
● |
● |
● |
|
● |
|
| |
97 |
04.666 CAP; BLEEDER,RR WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.5-8.0TON(RPY),G.V.W.
8.0-8.5TON(RPZ)
EXC. BRK WHL LK CONT LSPV<6PH>
|
8-98050-479-0 |
01 |
1 |
0711-0711 |
● |
● |
● |
|
|
|
| |
97 |
04.666 CAP; BLEEDER,RR WHEEL CYL
|
8-98050-479-0 |
01 |
1 |
0711-0711 |
|
|
|
|
|
● |
| |
97 |
04.666 CAP; BLEEDER,RR WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP)
BRK WHL LK CONT LSPV<6PH>
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-98050-479-0 |
01 |
1 |
0712- |
● |
● |
● |
|
● |
|
| |
97 |
04.666 CAP; BLEEDER,RR WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73)
EXC. BRK WHL LK CONT LSPV<6PH>
|
8-98050-479-0 |
01 |
1 |
0712- |
● |
● |
● |
|
● |
|
| |
97 |
04.666 CAP; BLEEDER,RR WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
EXC. BRK WHL LK CONT LSPV<6PH>
|
8-98050-479-0 |
01 |
1 |
0712- |
|
|
|
|
● |
|
| |
97 |
04.666 CAP; BLEEDER,RR WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ)
EXC. BRK WHL LK CONT LSPV<6PH>
|
8-98050-479-0 |
01 |
1 |
0712- |
● |
● |
|
|
|
|
| |
97 |
04.666 CAP; BLEEDER,RR WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.5-8.0TON(RPY),G.V.W.
8.0-8.5TON(RPZ)
EXC. BRK WHL LK CONT LSPV<6PH>
|
8-98050-479-0 |
01 |
1 |
0712- |
|
|
● |
|
|
|
| |
97 |
04.666 CAP; BLEEDER,RR WHEEL CYL
|
8-98050-479-0 |
01 |
1 |
0712- |
|
|
|
|
|
● |
| |
97 |
04.666 CAP; BLEEDER,RR WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP)
4 WHEEL ANTI LOCK BRAKE<JE5>
G.V.W. 4.0-4.5TON(RPR),G.V.W.
6.0-6.5TON(RPV),G.V.W. 6.5-7.0TON(RPW),G.V.W
. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
BRK WHL LK CONT LSPV<6PH>
|
8-98050-479-0 |
02 |
1 |
0708-0710 |
● |
● |
● |
|
● |
|
| |
97 |
04.666 CAP; BLEEDER,RR WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 41/7(R41),FINAL
GEARRATIO 43/7(R42),FINAL GEAR RATIO 41/
6(6YB)
4 WHEEL ANTI LOCK BRAKE<JE5>
G.V.W. 8.0-8.5TON(RPZ)
BRK WHL LK CONT LSPV<6PH>
|
8-98050-479-0 |
02 |
1 |
0708-0710 |
● |
|
|
|
|
|
| |
97 |
04.666 CAP; BLEEDER,RR WHEEL CYL
|
8-98050-479-0 |
02 |
1 |
0708-0710 |
|
|
|
● |
|
|
| |
97 |
04.666 CAP; BLEEDER,RR WHEEL CYL
BRK WHL LK CONT LSPV<6PH>
4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-98050-479-0 |
02 |
1 |
0711- |
● |
● |
● |
● |
● |
|
| |
97 |
04.666 CAP; BLEEDER,RR WHEEL CYL
|
1-47619-009-0 |
01 |
1 |
0211-0308 |
● |
● |
● |
● |
● |
● |
| |
97 |
04.666 CAP; BLEEDER,RR WHEEL CYL
G.V.W. 4.0-4.5TON(RPR),G.V.W.
6.0-6.5TON(RPV),G.V.W. 6.5-7.0TON(RPW),
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
|
1-47619-009-0 |
01 |
1 |
0309-0501 |
● |
● |
● |
● |
● |
|
| |
97 |
04.666 CAP; BLEEDER,RR WHEEL CYL
G.V.W. 8.0-8.5TON(RPZ)
EXC. BRK WHL LK CONT LSPV<6PH>
|
1-47619-009-0 |
01 |
1 |
0309-0501 |
● |
● |
● |
|
|
|
| |
97 |
04.666 CAP; BLEEDER,RR WHEEL CYL
G.V.W. 8.0-8.5TON(RPZ)
BRK WHL LK CONT LSPV<6PH>
4HE1 ENG(RLY)
|
1-47619-009-0 |
01 |
1 |
0309-0501 |
● |
● |
● |
|
|
|
| |
97 |
04.666 CAP; BLEEDER,RR WHEEL CYL
|
1-47619-009-0 |
01 |
1 |
0309-0501 |
|
|
|
|
|
● |
| |
97 |
04.666 CAP; BLEEDER,RR WHEEL CYL
BRK WHL LK CONT LSPV<6PH>
4 WHEEL ANTI LOCK BRAKE<JE5>
|
1-47619-009-0 |
02 |
1 |
0507-0707 |
● |
● |
● |
● |
● |
|
| |
97 |
04.666 CAP; BLEEDER,RR WHEEL CYL
EXC. BRK WHL LK CONT LSPV<6PH>
|
1-47619-009-0 |
01 |
1 |
0708-0710 |
● |
● |
● |
|
● |
● |
| |
97 |
04.666 CAP; BLEEDER,RR WHEEL CYL
4HG1 ENG(RJH)
G.V.W. 8.0-8.5TON(RPZ)
FINAL GEAR RATIO 41/7(R41),FINAL
GEARRATIO 43/7(R42),FINAL GEAR RATIO 41/
6(6YB)
BRK WHL LK CONT LSPV<6PH>
4 WHEEL ANTI LOCK BRAKE<JE5>
|
1-47619-009-0 |
02 |
1 |
0309-0501 |
● |
● |
● |
|
|
|
| |
97 |
04.666 CAP; BLEEDER,RR WHEEL CYL
|
1-47619-009-0 |
01 |
1 |
0502-0506 |
● |
● |
● |
|
● |
● |
| |
97 |
04.666 CAP; BLEEDER,RR WHEEL CYL
EXC. BRK WHL LK CONT LSPV<6PH>
|
1-47619-009-0 |
01 |
1 |
0507-0707 |
● |
● |
● |
|
● |
● |
| |
97 |
04.666 CAP; BLEEDER,RR WHEEL CYL
BRK WHL LK CONT LSPV<6PH>
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
|
1-47619-009-0 |
01 |
1 |
0507-0707 |
● |
● |
● |
|
● |
|
| |
97 |
04.666 CAP; BLEEDER,RR WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 41/10(GT5),FINAL
GEAR RATIO 41/9(HC6)
4 WHEEL ANTI LOCK BRAKE<JE5>
DISC BRAKE FRT<J52>
G.V.W. 8.0-8.5TON(RPZ)
AUSTRALIA EQUIPMENT(RR3)
BRK WHL LK CONT LSPV<6PH>
FRAME STRAIGHT TYPE<7KJ>
|
1-47619-009-0 |
02 |
1 |
0708-0710 |
● |
● |
● |
|
|
|
| |
97 |
04.666 CAP; BLEEDER,RR WHEEL CYL
EXC. BRK WHL LK CONT LSPV<6PH>
|
1-47619-009-0 |
01 |
1 |
0711-0711 |
● |
● |
● |
|
● |
|
| |
97 |
04.666 CAP; BLEEDER,RR WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73)
EXC. BRK WHL LK CONT LSPV<6PH>
|
1-47619-009-0 |
01 |
1 |
0711-0711 |
● |
● |
● |
|
● |
|
| |
97 |
04.666 CAP; BLEEDER,RR WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
EXC. BRK WHL LK CONT LSPV<6PH>
|
1-47619-009-0 |
01 |
1 |
0711-0711 |
● |
● |
|
|
● |
|
| |
99 |
04.668 PISTON; RR WHEEL CYL
G.V.W. 6.0-6.5TON(RPV),G.V.W.
6.5-7.0TON(RPW)
DISC BRAKE FRT<J52>
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-97349-729-0 |
02 |
1 |
0507- |
● |
● |
|
|
● |
|
| |
99 |
04.668 PISTON; RR WHEEL CYL
4HK1-TCN ENG(RDQ)
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 41/9(HC6)
4 WHEEL ANTI LOCK BRAKE<JE5>
DISC BRAKE FRT<J52>
G.V.W. 6.0-6.5TON(RPV),G.V.W.
6.5-7.0TON(RPW)
BRK WHL LK CONT LSPV<6PH>
FRAME STRAIGHT TYPE<7KJ>
|
8-97349-729-0 |
01 |
1 |
0507-0608 |
● |
● |
|
|
● |
|
| |
99 |
04.668 PISTON; RR WHEEL CYL
4HK1-TCN ENG(RDQ)
REAR AXLE HEAVY DUTY 320MM(6CP)
4 WHEEL ANTI LOCK BRAKE<JE5>
DISC BRAKE FRT<J52>
G.V.W. 6.0-6.5TON(RPV),G.V.W.
6.5-7.0TON(RPW)
BRK WHL LK CONT LSPV<6PH>
FRAME STRAIGHT TYPE<7KJ>
|
8-97349-729-0 |
01 |
1 |
0609- |
● |
● |
|
|
● |
|
| |
99 |
04.668 PISTON; RR WHEEL CYL
G.V.W. 6.0-6.5TON(RPV),G.V.W.
6.5-7.0TON(RPW)
REAR AXLE HEAVY DUTY 320MM(6CP)
BRK WHL LK CONT LSPV<6PH>
|
8-97349-730-0 |
02 |
1 |
0507- |
● |
● |
|
|
● |
|
| |
99 |
04.668 PISTON; RR WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP)
4 WHEEL ANTI LOCK BRAKE<JE5>
DISC BRAKE FRT<J52>
G.V.W. 4.0-4.5TON(RPR)
BRK WHL LK CONT LSPV<6PH>
FRAME STRAIGHT TYPE<7KJ>
|
8-97349-727-0 |
02 |
1 |
0507- |
● |
|
|
|
● |
|
| |
99 |
04.668 PISTON; RR WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP)
4 WHEEL ANTI LOCK BRAKE<JE5>
DISC BRAKE FRT<J52>
G.V.W. 4.0-4.5TON(RPR)
BRK WHL LK CONT LSPV<6PH>
FRAME STRAIGHT TYPE<7KJ>
|
8-97349-728-0 |
02 |
1 |
0507- |
● |
|
|
|
● |
|
| |
99 |
04.668 PISTON; RR WHEEL CYL
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
BRK WHL LK CONT LSPV<6PH>
|
8-97349-731-0 |
02 |
1 |
0507- |
● |
● |
● |
● |
|
|
| |
99 |
04.668 PISTON; RR WHEEL CYL
G.V.W. 8.0-8.5TON(RPZ)
BRK WHL LK CONT LSPV<6PH>
FINAL GEAR RATIO 41/7(R41),FINAL
GEARRATIO 43/7(R42),FINAL GEAR RATIO 41/
6(6YB)
|
8-97349-731-0 |
02 |
1 |
0507- |
● |
● |
● |
|
|
|
| |
99 |
04.668 PISTON; RR WHEEL CYL
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
BRK WHL LK CONT LSPV<6PH>
|
8-97349-732-0 |
02 |
1 |
0507- |
● |
● |
● |
● |
|
|
| |
99 |
04.668 PISTON; RR WHEEL CYL
G.V.W. 8.0-8.5TON(RPZ)
BRK WHL LK CONT LSPV<6PH>
FINAL GEAR RATIO 41/7(R41),FINAL
GEARRATIO 43/7(R42),FINAL GEAR RATIO 41/
6(6YB)
|
8-97349-732-0 |
02 |
1 |
0507- |
● |
● |
● |
|
|
|
| |
99 |
04.668 PISTON; RR WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 41/10(GT5),FINAL
GEAR RATIO 41/9(HC6)
4 WHEEL ANTI LOCK BRAKE<JE5>
DISC BRAKE FRT<J52>
G.V.W. 8.0-8.5TON(RPZ)
AUSTRALIA EQUIPMENT(RR3)
BRK WHL LK CONT LSPV<6PH>
FRAME STRAIGHT TYPE<7KJ>
|
8-97372-831-0 |
02 |
1 |
0507- |
● |
● |
● |
|
|
|
| |
99 |
04.668 PISTON; RR WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 41/10(GT5),FINAL
GEAR RATIO 41/9(HC6)
4 WHEEL ANTI LOCK BRAKE<JE5>
DISC BRAKE FRT<J52>
G.V.W. 8.0-8.5TON(RPZ)
AUSTRALIA EQUIPMENT(RR3)
BRK WHL LK CONT LSPV<6PH>
FRAME STRAIGHT TYPE<7KJ>
|
8-97372-832-0 |
02 |
1 |
0507- |
● |
● |
● |
|
|
|
| |
99 |
04.668 PISTON; RR WHEEL CYL
G.V.W. 7.0-7.5TON(RPX)
EXC. BRK WHL LK CONT LSPV<6PH>
|
8-94414-700-1 |
02 |
1 |
0211-0304 |
● |
● |
|
|
● |
|
| |
99 |
04.668 PISTON; RR WHEEL CYL
G.V.W. 7.0-7.5TON(RPX)
EXC. BRK WHL LK CONT LSPV<6PH>
|
8-94414-700-1 |
04 |
1 |
0305-0501 |
● |
● |
|
|
● |
|
| |
99 |
04.668 PISTON; RR WHEEL CYL
G.V.W. 7.0-7.5TON(RPX)
|
8-94414-700-1 |
04 |
1 |
0502-0506 |
● |
● |
|
|
● |
|
| |
99 |
04.668 PISTON; RR WHEEL CYL
G.V.W. 7.0-7.5TON(RPX)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,
DISC BRAKE FRT<J52>,BRK WHL LK CONT LSPV
<6PH>
|
8-94414-700-1 |
04 |
1 |
0507-0509 |
● |
● |
|
|
● |
|
| |
99 |
04.668 PISTON; RR WHEEL CYL
G.V.W. 7.0-7.5TON(RPX)
REAR AXLE HEAVY DUTY 292MM(G73)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,
DISC BRAKE FRT<J52>,BRK WHL LK CONT LSPV
<6PH>
|
8-94414-700-1 |
04 |
1 |
0510-0606 |
● |
● |
|
|
● |
|
| |
99 |
04.668 PISTON; RR WHEEL CYL
G.V.W. 7.0-7.5TON(RPX)
REAR AXLE HEAVY DUTY 292MM(G73)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,
DISC BRAKE FRT<J52>,BRK WHL LK CONT LSPV
<6PH>
|
8-94414-700-1 |
04 |
1 |
0607- |
● |
● |
|
|
● |
|
| |
99 |
04.668 PISTON; RR WHEEL CYL
G.V.W. 7.0-7.5TON(RPX)
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 39/7(GV1)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,
DISC BRAKE FRT<J52>,BRK WHL LK CONT LSPV
<6PH>
|
8-94414-700-1 |
04 |
1 |
0607- |
● |
● |
|
|
● |
|
| |
99 |
04.668 PISTON; RR WHEEL CYL
G.V.W. 4.0-4.5TON(RPR),G.V.W.
6.0-6.5TON(RPV)
|
8-97078-622-0 |
02 |
1 |
0211-0304 |
● |
● |
|
● |
● |
|
| |
99 |
04.668 PISTON; RR WHEEL CYL
G.V.W. 4.0-4.5TON(RPR),G.V.W.
6.0-6.5TON(RPV)
|
8-97078-622-0 |
03 |
1 |
0305-0501 |
● |
● |
|
● |
● |
|
| |
99 |
04.668 PISTON; RR WHEEL CYL
G.V.W. 6.0-6.5TON(RPV)
|
8-97078-622-0 |
03 |
1 |
0502-0506 |
● |
● |
|
|
● |
|
| |
99 |
04.668 PISTON; RR WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 4.0-4.5TON(RPR),G.V.W.
6.0-6.5TON(RPV)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,
DISC BRAKE FRT<J52>,BRK WHL LK CONT LSPV
<6PH>
|
8-97078-622-0 |
03 |
1 |
0507- |
● |
● |
|
|
● |
|
| |
99 |
04.668 PISTON; RR WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 6.5-7.0TON(RPW),G.V.W.
7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY)
BRK WHL LK CONT LSPV<6PH>
|
8-97332-229-0 |
02 |
1 |
0211-0304 |
● |
● |
|
● |
● |
|
| |
99 |
04.668 PISTON; RR WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.5-8.0TON(RPY),G.V.W.
8.0-8.5TON(RPZ)
EXC. BRK WHL LK CONT LSPV<6PH>,HYDRO
BRAKE BOOSTER<7QQ>
|
8-97332-229-0 |
02 |
1 |
0211-0304 |
● |
● |
● |
|
|
|
| |
99 |
04.668 PISTON; RR WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 6.5-7.0TON(RPW),G.V.W.
7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY)
BRK WHL LK CONT LSPV<6PH>
|
8-97332-229-0 |
03 |
1 |
0305-0501 |
● |
● |
|
● |
● |
|
| |
99 |
04.668 PISTON; RR WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.5-8.0TON(RPY),G.V.W.
8.0-8.5TON(RPZ)
EXC. BRK WHL LK CONT LSPV<6PH>,HYDRO
BRAKE BOOSTER<7QQ>
|
8-97332-229-0 |
03 |
1 |
0305-0501 |
● |
● |
● |
|
|
|
| |
99 |
04.668 PISTON; RR WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP)
EXC. HYDRO BRAKE BOOSTER<7QQ>
|
8-97332-229-0 |
03 |
1 |
0502-0506 |
● |
● |
● |
|
|
|
| |
99 |
04.668 PISTON; RR WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.5-8.0TON(RPY),G.V.W.
8.0-8.5TON(RPZ)
FRAME STRAIGHT TYPE<7KJ>
VEHICLE CATEGORY NQR<7NQ>
EXC. DISC BRAKE FRT<J52>,BRK WHL LK
CONT LSPV<6PH>,HYDRO BRAKE
BOOSTER<7QQ>
|
8-97332-229-0 |
03 |
1 |
0507- |
● |
● |
● |
|
|
|
| |
99 |
04.668 PISTON; RR WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.5-8.0TON(RPY)
HYDRO BRAKE BOOSTER<7QQ>
|
8-97353-579-0 |
02 |
1 |
0211-0304 |
● |
● |
● |
|
|
|
| |
99 |
04.668 PISTON; RR WHEEL CYL
G.V.W. 8.0-8.5TON(RPZ)
HYDRO BRAKE BOOSTER<7QQ>
EXC. BRK WHL LK CONT LSPV<6PH>
|
8-97353-579-0 |
02 |
1 |
0211-0304 |
● |
● |
● |
|
|
|
| |
99 |
04.668 PISTON; RR WHEEL CYL
4HE1 ENG(RLY)
G.V.W. 8.0-8.5TON(RPZ)
FINAL GEAR RATIO 41/8(RU1),FINAL
GEARRATIO 43/9(S2J),FINAL GEAR RATIO 43/
10(S7C)
BRK WHL LK CONT LSPV<6PH>
|
8-97353-579-0 |
02 |
1 |
0211-0304 |
● |
● |
● |
|
|
|
| |
99 |
04.668 PISTON; RR WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.5-8.0TON(RPY)
HYDRO BRAKE BOOSTER<7QQ>
|
8-97353-579-0 |
03 |
1 |
0305-0501 |
● |
● |
● |
|
|
|
| |
99 |
04.668 PISTON; RR WHEEL CYL
G.V.W. 8.0-8.5TON(RPZ)
HYDRO BRAKE BOOSTER<7QQ>
EXC. BRK WHL LK CONT LSPV<6PH>
|
8-97353-579-0 |
03 |
1 |
0305-0501 |
● |
● |
● |
|
|
|
| |
99 |
04.668 PISTON; RR WHEEL CYL
4HE1 ENG(RLY)
G.V.W. 8.0-8.5TON(RPZ)
FINAL GEAR RATIO 41/8(RU1),FINAL
GEARRATIO 43/9(S2J),FINAL GEAR RATIO 43/
10(S7C)
BRK WHL LK CONT LSPV<6PH>
|
8-97353-579-0 |
03 |
1 |
0305-0501 |
● |
● |
● |
|
|
|
| |
99 |
04.668 PISTON; RR WHEEL CYL
4HF1-S ENG(RLS)
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEARRATIO 41/7(R41),FINAL GEAR RATIO 43/
7(R42),FINAL GEAR RATIO 41/6(6YB)
G.V.W. 8.0-8.5TON(RPZ)
FRAME STRAIGHT TYPE<7KJ>
VEHICLE CATEGORY NQR<7NQ>
HYDRO BRAKE BOOSTER<7QQ>
|
8-97353-579-0 |
03 |
1 |
0502-0506 |
● |
|
|
|
|
|
| |
99 |
04.668 PISTON; RR WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.5-8.0TON(RPY),G.V.W.
8.0-8.5TON(RPZ)
HYDRO BRAKE BOOSTER<7QQ>
EXC. DISC BRAKE FRT<J52>,BRK WHL LK
CONT LSPV<6PH>
|
8-97353-579-0 |
03 |
1 |
0507- |
● |
● |
● |
|
|
|
| |
99 |
04.668 PISTON; RR WHEEL CYL
4HG1 ENG(RJH)
G.V.W. 8.0-8.5TON(RPZ)
FINAL GEAR RATIO 41/7(R41),FINAL
GEARRATIO 43/7(R42),FINAL GEAR RATIO 41/
6(6YB)
BRK WHL LK CONT LSPV<6PH>
4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-97349-731-0 |
02 |
1 |
0309-0501 |
● |
● |
● |
|
|
|
| |
99 |
04.668 PISTON; RR WHEEL CYL
4HG1 ENG(RJH)
G.V.W. 8.0-8.5TON(RPZ)
FINAL GEAR RATIO 41/7(R41),FINAL
GEARRATIO 43/7(R42),FINAL GEAR RATIO 41/
6(6YB)
BRK WHL LK CONT LSPV<6PH>
4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-97349-732-0 |
02 |
1 |
0309-0501 |
● |
● |
● |
|
|
|
| |
99 |
04.668 PISTON; RR WHEEL CYL
D=25.4
|
8-94129-016-1 |
02 |
1 |
0211- |
|
|
|
|
|
● |
| |
99 |
04.668 PISTON; RR WHEEL CYL
D=25.4
|
8-94128-539-1 |
02 |
1 |
0211- |
|
|
|
|
|
● |
| |
101 |
04.666 SCREW; ADJ,RR WHEEL CYL
G.V.W. 4.0-4.5TON(RPR),G.V.W.
6.0-6.5TON(RPV),G.V.W. 6.5-7.0TON(RPW),
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
BRK WHL LK CONT LSPV<6PH>
(B)
|
8-97349-747-0 |
04 |
1 |
0507-0608 |
● |
● |
● |
● |
● |
|
| |
101 |
04.666 SCREW; ADJ,RR WHEEL CYL
G.V.W. 8.0-8.5TON(RPZ)
BRK WHL LK CONT LSPV<6PH>
FINAL GEAR RATIO 41/7(R41),FINAL
GEARRATIO 43/7(R42),FINAL GEAR RATIO 41/
6(6YB)
(B)
|
8-97349-747-0 |
04 |
1 |
0507-0608 |
● |
● |
● |
|
|
|
| |
101 |
04.666 SCREW; ADJ,RR WHEEL CYL
G.V.W. 4.0-4.5TON(RPR),G.V.W.
6.0-6.5TON(RPV),G.V.W. 6.5-7.0TON(RPW),
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
BRK WHL LK CONT LSPV<6PH>
(B)
|
8-97349-747-0 |
04 |
1 |
0609- |
● |
● |
● |
● |
● |
|
| |
101 |
04.666 SCREW; ADJ,RR WHEEL CYL
G.V.W. 8.0-8.5TON(RPZ)
BRK WHL LK CONT LSPV<6PH>
FINAL GEAR RATIO 41/7(R41),FINAL
GEARRATIO 43/7(R42),FINAL GEAR RATIO 41/
6(6YB)
(B)
|
8-97349-747-0 |
04 |
1 |
0609- |
● |
|
|
|
|
|
| |
101 |
04.666 SCREW; ADJ,RR WHEEL CYL
G.V.W. 6.0-6.5TON(RPV),G.V.W.
6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),
G.V.W. 7.5-8.0TON(RPY)
BRK WHL LK CONT LSPV<6PH>
(A)
|
8-97349-741-0 |
02 |
1 |
0507-0608 |
● |
● |
● |
● |
● |
|
| |
101 |
04.666 SCREW; ADJ,RR WHEEL CYL
G.V.W. 8.0-8.5TON(RPZ)
BRK WHL LK CONT LSPV<6PH>
FINAL GEAR RATIO 41/7(R41),FINAL
GEARRATIO 43/7(R42),FINAL GEAR RATIO 41/
6(6YB)
(A)
|
8-97349-741-0 |
02 |
1 |
0507-0608 |
● |
● |
● |
|
|
|
| |
101 |
04.666 SCREW; ADJ,RR WHEEL CYL
G.V.W. 6.0-6.5TON(RPV),G.V.W.
6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),
G.V.W. 7.5-8.0TON(RPY)
BRK WHL LK CONT LSPV<6PH>
(A)
|
8-97349-741-0 |
02 |
1 |
0609- |
● |
● |
● |
● |
● |
|
| |
101 |
04.666 SCREW; ADJ,RR WHEEL CYL
G.V.W. 8.0-8.5TON(RPZ)
BRK WHL LK CONT LSPV<6PH>
FINAL GEAR RATIO 41/7(R41),FINAL
GEARRATIO 43/7(R42),FINAL GEAR RATIO 41/
6(6YB)
(A)
|
8-97349-741-0 |
02 |
1 |
0609- |
● |
|
|
|
|
|
| |
101 |
04.666 SCREW; ADJ,RR WHEEL CYL
G.V.W. 6.0-6.5TON(RPV),G.V.W.
6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),
G.V.W. 7.5-8.0TON(RPY)
BRK WHL LK CONT LSPV<6PH>
(A)
|
8-97349-742-0 |
02 |
1 |
0507-0608 |
● |
● |
● |
● |
● |
|
| |
101 |
04.666 SCREW; ADJ,RR WHEEL CYL
G.V.W. 8.0-8.5TON(RPZ)
BRK WHL LK CONT LSPV<6PH>
FINAL GEAR RATIO 41/7(R41),FINAL
GEARRATIO 43/7(R42),FINAL GEAR RATIO 41/
6(6YB)
(A)
|
8-97349-742-0 |
02 |
1 |
0507-0608 |
● |
● |
● |
|
|
|
| |
101 |
04.666 SCREW; ADJ,RR WHEEL CYL
G.V.W. 6.0-6.5TON(RPV),G.V.W.
6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),
G.V.W. 7.5-8.0TON(RPY)
BRK WHL LK CONT LSPV<6PH>
(A)
|
8-97349-742-0 |
02 |
1 |
0609- |
● |
● |
● |
● |
● |
|
| |
101 |
04.666 SCREW; ADJ,RR WHEEL CYL
G.V.W. 8.0-8.5TON(RPZ)
BRK WHL LK CONT LSPV<6PH>
FINAL GEAR RATIO 41/7(R41),FINAL
GEARRATIO 43/7(R42),FINAL GEAR RATIO 41/
6(6YB)
(A)
|
8-97349-742-0 |
02 |
1 |
0609- |
● |
|
|
|
|
|
| |
101 |
04.666 SCREW; ADJ,RR WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP)
4 WHEEL ANTI LOCK BRAKE<JE5>
DISC BRAKE FRT<J52>
G.V.W. 4.0-4.5TON(RPR)
BRK WHL LK CONT LSPV<6PH>
FRAME STRAIGHT TYPE<7KJ>
(A)
M12X30.2 RH THREAD
|
5-47622-003-1 |
02 |
1 |
0507- |
● |
|
|
|
● |
|
| |
101 |
04.666 SCREW; ADJ,RR WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP)
4 WHEEL ANTI LOCK BRAKE<JE5>
DISC BRAKE FRT<J52>
G.V.W. 4.0-4.5TON(RPR)
BRK WHL LK CONT LSPV<6PH>
FRAME STRAIGHT TYPE<7KJ>
(A)
M12X30.2 LH THREAD
|
5-47622-004-1 |
02 |
1 |
0507- |
● |
|
|
|
● |
|
| |
101 |
04.666 SCREW; ADJ,RR WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 41/10(GT5),FINAL
GEAR RATIO 41/9(HC6)
4 WHEEL ANTI LOCK BRAKE<JE5>
DISC BRAKE FRT<J52>
G.V.W. 8.0-8.5TON(RPZ)
AUSTRALIA EQUIPMENT(RR3)
BRK WHL LK CONT LSPV<6PH>
FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-97372-837-0 |
02 |
1 |
0507- |
● |
● |
● |
|
|
|
| |
101 |
04.666 SCREW; ADJ,RR WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 41/10(GT5),FINAL
GEAR RATIO 41/9(HC6)
4 WHEEL ANTI LOCK BRAKE<JE5>
DISC BRAKE FRT<J52>
G.V.W. 8.0-8.5TON(RPZ)
AUSTRALIA EQUIPMENT(RR3)
BRK WHL LK CONT LSPV<6PH>
FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-97372-838-0 |
02 |
1 |
0507- |
● |
● |
● |
|
|
|
| |
101 |
04.666 SCREW; ADJ,RR WHEEL CYL
G.V.W. 6.5-7.0TON(RPW),G.V.W.
7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),
G.V.W. 8.0-8.5TON(RPZ)
(A)
|
8-94414-702-0 |
04 |
1 |
0211-0308 |
● |
● |
● |
● |
● |
|
| |
101 |
04.666 SCREW; ADJ,RR WHEEL CYL
G.V.W. 6.5-7.0TON(RPW),G.V.W.
7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY)
(A)
|
8-94414-702-0 |
04 |
1 |
0309-0501 |
● |
● |
● |
● |
● |
|
| |
101 |
04.666 SCREW; ADJ,RR WHEEL CYL
G.V.W. 8.0-8.5TON(RPZ)
EXC. BRK WHL LK CONT LSPV<6PH>
(A)
|
8-94414-702-0 |
04 |
1 |
0309-0501 |
● |
● |
● |
|
|
|
| |
101 |
04.666 SCREW; ADJ,RR WHEEL CYL
G.V.W. 8.0-8.5TON(RPZ)
4HE1 ENG(RLY)
BRK WHL LK CONT LSPV<6PH>
(A)
|
8-94414-702-0 |
04 |
1 |
0309-0501 |
● |
● |
● |
|
|
|
| |
101 |
04.666 SCREW; ADJ,RR WHEEL CYL
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ)
(A)
|
8-94414-702-0 |
04 |
1 |
0502-0506 |
● |
● |
● |
|
● |
|
| |
101 |
04.666 SCREW; ADJ,RR WHEEL CYL
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ)
EXC. BRK WHL LK CONT LSPV<6PH>
(A)
|
8-94414-702-0 |
04 |
1 |
0507- |
● |
● |
● |
|
● |
|
| |
101 |
04.666 SCREW; ADJ,RR WHEEL CYL
G.V.W. 4.0-4.5TON(RPR),G.V.W.
6.0-6.5TON(RPV)
05.110
(A)
|
8-97078-623-0 |
04 |
1 |
0211-0501 |
● |
● |
|
● |
● |
|
| |
101 |
04.666 SCREW; ADJ,RR WHEEL CYL
G.V.W. 6.0-6.5TON(RPV)
05.110
(A)
|
8-97078-623-0 |
04 |
1 |
0502-0506 |
● |
● |
|
|
● |
|
| |
101 |
04.666 SCREW; ADJ,RR WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 4.0-4.5TON(RPR),G.V.W.
6.0-6.5TON(RPV)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,
DISC BRAKE FRT<J52>,BRK WHL LK CONT LSPV
<6PH>
05.110
(A)
|
8-97078-623-0 |
04 |
1 |
0507- |
● |
● |
|
|
● |
|
| |
101 |
04.666 SCREW; ADJ,RR WHEEL CYL
4HG1 ENG(RJH)
G.V.W. 8.0-8.5TON(RPZ)
FINAL GEAR RATIO 41/7(R41),FINAL
GEARRATIO 43/7(R42),FINAL GEAR RATIO 41/
6(6YB)
BRK WHL LK CONT LSPV<6PH>
4 WHEEL ANTI LOCK BRAKE<JE5>
(B)
|
8-97349-747-0 |
04 |
1 |
0309-0501 |
● |
● |
● |
|
|
|
| |
101 |
04.666 SCREW; ADJ,RR WHEEL CYL
4HG1 ENG(RJH)
G.V.W. 8.0-8.5TON(RPZ)
FINAL GEAR RATIO 41/7(R41),FINAL
GEARRATIO 43/7(R42),FINAL GEAR RATIO 41/
6(6YB)
BRK WHL LK CONT LSPV<6PH>
4 WHEEL ANTI LOCK BRAKE<JE5>
(A)
|
8-97349-741-0 |
02 |
1 |
0309-0501 |
● |
● |
● |
|
|
|
| |
101 |
04.666 SCREW; ADJ,RR WHEEL CYL
4HG1 ENG(RJH)
G.V.W. 8.0-8.5TON(RPZ)
FINAL GEAR RATIO 41/7(R41),FINAL
GEARRATIO 43/7(R42),FINAL GEAR RATIO 41/
6(6YB)
BRK WHL LK CONT LSPV<6PH>
4 WHEEL ANTI LOCK BRAKE<JE5>
(A)
|
8-97349-742-0 |
02 |
1 |
0309-0501 |
● |
● |
● |
|
|
|
| |
101 |
04.666 SCREW; ADJ,RR WHEEL CYL
(A)
M10 LH THREAD
|
5-47622-006-2 |
02 |
1 |
0211- |
|
|
|
|
|
● |
| |
101 |
04.666 SCREW; ADJ,RR WHEEL CYL
(A)
M10
|
5-47622-005-2 |
02 |
1 |
0211- |
|
|
|
|
|
● |
| |
102 |
04.668 PISTON; REAR WHEEL CYL
G.V.W. 6.0-6.5TON(RPV),G.V.W.
6.5-7.0TON(RPW)
REAR AXLE HEAVY DUTY 320MM(6CP)
BRK WHL LK CONT LSPV<6PH>
(B)
|
8-97078-045-0 |
04 |
1 |
0507-0810 |
● |
● |
|
|
● |
|
| |
102 |
04.668 PISTON; REAR WHEEL CYL
G.V.W. 7.0-7.5TON(RPX)
REAR AXLE HEAVY DUTY 292MM(G73)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,
DISC BRAKE FRT<J52>,BRK WHL LK CONT LSPV
<6PH>
(B)
|
8-97078-045-0 |
04 |
1 |
0811- |
● |
● |
|
|
● |
|
| |
102 |
04.668 PISTON; REAR WHEEL CYL
G.V.W. 6.0-6.5TON(RPV),G.V.W.
6.5-7.0TON(RPW)
REAR AXLE HEAVY DUTY 320MM(6CP)
DISC BRAKE FRT<J52>
BRK WHL LK CONT LSPV<6PH>
(B)
|
8-97078-045-0 |
04 |
1 |
0811- |
● |
● |
|
|
● |
|
| |
102 |
04.668 PISTON; REAR WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
FINAL GEAR RATIO 39/7(GV1)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,
DISC BRAKE FRT<J52>,BRK WHL LK CONT LSPV
<6PH>
(B)
|
8-97078-045-0 |
04 |
1 |
0811- |
● |
● |
|
|
● |
|
| |
102 |
04.668 PISTON; REAR WHEEL CYL
4HK1-TCN ENG(RDQ)
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 41/9(HC6)
4 WHEEL ANTI LOCK BRAKE<JE5>
DISC BRAKE FRT<J52>
G.V.W. 6.0-6.5TON(RPV),G.V.W.
6.5-7.0TON(RPW)
BRK WHL LK CONT LSPV<6PH>
FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-97349-729-0 |
01 |
1 |
0507-0608 |
● |
● |
|
|
● |
|
| |
102 |
04.668 PISTON; REAR WHEEL CYL
4HK1-TCN ENG(RDQ)
REAR AXLE HEAVY DUTY 320MM(6CP)
4 WHEEL ANTI LOCK BRAKE<JE5>
DISC BRAKE FRT<J52>
G.V.W. 6.0-6.5TON(RPV),G.V.W.
6.5-7.0TON(RPW)
BRK WHL LK CONT LSPV<6PH>
FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-97349-729-0 |
01 |
1 |
0609- |
● |
● |
|
|
● |
|
| |
102 |
04.668 PISTON; REAR WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 41/10(GT5),FINAL
GEAR RATIO 41/9(HC6)
4 WHEEL ANTI LOCK BRAKE<JE5>
DISC BRAKE FRT<J52>
G.V.W. 8.0-8.5TON(RPZ)
AUSTRALIA EQUIPMENT(RR3)
BRK WHL LK CONT LSPV<6PH>
FRAME STRAIGHT TYPE<7KJ>
(B)
|
8-97372-833-0 |
04 |
1 |
0507- |
● |
● |
● |
|
|
|
| |
102 |
04.668 PISTON; REAR WHEEL CYL
G.V.W. 7.0-7.5TON(RPX)
EXC. BRK WHL LK CONT LSPV<6PH>
(A)
|
8-94414-700-1 |
02 |
1 |
0211-0304 |
● |
● |
|
|
● |
|
| |
102 |
04.668 PISTON; REAR WHEEL CYL
G.V.W. 7.0-7.5TON(RPX)
EXC. BRK WHL LK CONT LSPV<6PH>
(B)
D=30.16
|
8-94414-701-1 |
04 |
1 |
0211-0501 |
● |
● |
|
|
● |
|
| |
102 |
04.668 PISTON; REAR WHEEL CYL
G.V.W. 7.0-7.5TON(RPX)
(B)
D=30.16
|
8-94414-701-1 |
04 |
1 |
0502-0506 |
● |
● |
|
|
● |
|
| |
102 |
04.668 PISTON; REAR WHEEL CYL
G.V.W. 7.0-7.5TON(RPX)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,
DISC BRAKE FRT<J52>,BRK WHL LK CONT LSPV
<6PH>
(B)
D=30.16
|
8-94414-701-1 |
04 |
1 |
0507-0509 |
● |
● |
|
|
● |
|
| |
102 |
04.668 PISTON; REAR WHEEL CYL
G.V.W. 7.0-7.5TON(RPX)
REAR AXLE HEAVY DUTY 292MM(G73)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,
DISC BRAKE FRT<J52>,BRK WHL LK CONT LSPV
<6PH>
(B)
D=30.16
|
8-94414-701-1 |
04 |
1 |
0510-0606 |
● |
● |
|
|
● |
|
| |
102 |
04.668 PISTON; REAR WHEEL CYL
G.V.W. 7.0-7.5TON(RPX)
REAR AXLE HEAVY DUTY 292MM(G73)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,
DISC BRAKE FRT<J52>,BRK WHL LK CONT LSPV
<6PH>
(B)
D=30.16
|
8-94414-701-1 |
04 |
1 |
0607-0810 |
● |
● |
|
|
● |
|
| |
102 |
04.668 PISTON; REAR WHEEL CYL
G.V.W. 7.0-7.5TON(RPX)
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 39/7(GV1)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,
DISC BRAKE FRT<J52>,BRK WHL LK CONT LSPV
<6PH>
(B)
D=30.16
|
8-94414-701-1 |
04 |
1 |
0607-0810 |
● |
● |
|
|
● |
|
| |
102 |
04.668 PISTON; REAR WHEEL CYL
G.V.W. 4.0-4.5TON(RPR),G.V.W.
6.0-6.5TON(RPV)
(B)
D=25.4
|
8-94128-531-1 |
04 |
1 |
0211-0501 |
● |
● |
|
● |
● |
|
| |
102 |
04.668 PISTON; REAR WHEEL CYL
G.V.W. 6.0-6.5TON(RPV)
(B)
D=25.4
|
8-94128-531-1 |
04 |
1 |
0502-0506 |
● |
● |
|
|
● |
|
| |
102 |
04.668 PISTON; REAR WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 6.0-6.5TON(RPV)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,
DISC BRAKE FRT<J52>,BRK WHL LK CONT LSPV
<6PH>
(B)
D=25.4
|
8-94128-531-1 |
04 |
1 |
0507- |
● |
● |
|
|
● |
|
| |
102 |
04.668 PISTON; REAR WHEEL CYL
G.V.W. 4.0-4.5TON(RPR)
(B)
D=25.4
|
8-94128-531-1 |
04 |
1 |
0507- |
● |
|
|
|
● |
|
| |
102 |
04.668 PISTON; REAR WHEEL CYL
G.V.W. 4.0-4.5TON(RPR),G.V.W.
6.0-6.5TON(RPV)
(A)
|
8-97078-622-0 |
02 |
1 |
0211-0304 |
● |
● |
|
● |
● |
|
| |
102 |
04.668 PISTON; REAR WHEEL CYL
G.V.W. 4.0-4.5TON(RPR),G.V.W.
6.0-6.5TON(RPV)
(A)
|
8-97078-622-0 |
01 |
1 |
0305-0501 |
● |
● |
|
● |
● |
|
| |
102 |
04.668 PISTON; REAR WHEEL CYL
G.V.W. 6.0-6.5TON(RPV)
(A)
|
8-97078-622-0 |
01 |
1 |
0502-0506 |
● |
● |
|
|
● |
|
| |
102 |
04.668 PISTON; REAR WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 4.0-4.5TON(RPR),G.V.W.
6.0-6.5TON(RPV)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,
DISC BRAKE FRT<J52>,BRK WHL LK CONT LSPV
<6PH>
(A)
|
8-97078-622-0 |
01 |
1 |
0507- |
● |
● |
|
|
● |
|
| |
102 |
04.668 PISTON; REAR WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 6.5-7.0TON(RPW),G.V.W.
7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY)
BRK WHL LK CONT LSPV<6PH>
(B)
|
8-97332-043-0 |
04 |
1 |
0211-0308 |
● |
● |
|
● |
● |
|
| |
102 |
04.668 PISTON; REAR WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.5-8.0TON(RPY),G.V.W.
8.0-8.5TON(RPZ)
EXC. BRK WHL LK CONT LSPV<6PH>,HYDRO
BRAKE BOOSTER<7QQ>
(B)
|
8-97332-043-0 |
04 |
1 |
0211-0308 |
● |
● |
● |
|
|
|
| |
102 |
04.668 PISTON; REAR WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 6.5-7.0TON(RPW),G.V.W.
7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY)
BRK WHL LK CONT LSPV<6PH>
(B)
|
8-97332-043-0 |
04 |
1 |
0309-0501 |
● |
● |
|
● |
● |
|
| |
102 |
04.668 PISTON; REAR WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.5-8.0TON(RPY),G.V.W.
8.0-8.5TON(RPZ)
EXC. BRK WHL LK CONT LSPV<6PH>,HYDRO
BRAKE BOOSTER<7QQ>
(B)
|
8-97332-043-0 |
04 |
1 |
0309-0501 |
● |
● |
● |
|
|
|
| |
102 |
04.668 PISTON; REAR WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 8.0-8.5TON(RPZ)
4HG1 ENG(RJH)
BRK WHL LK CONT LSPV<6PH>
(B)
|
8-97332-043-0 |
04 |
1 |
0309-0501 |
● |
● |
● |
|
|
|
| |
102 |
04.668 PISTON; REAR WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP)
EXC. HYDRO BRAKE BOOSTER<7QQ>
(B)
|
8-97332-043-0 |
04 |
1 |
0502-0506 |
● |
● |
● |
|
|
|
| |
102 |
04.668 PISTON; REAR WHEEL CYL
G.V.W. 7.0-7.5TON(RPX)
REAR AXLE HEAVY DUTY 320MM(6CP)
BRK WHL LK CONT LSPV<6PH>
(B)
|
8-97332-043-0 |
04 |
1 |
0507- |
● |
● |
|
|
● |
|
| |
102 |
04.668 PISTON; REAR WHEEL CYL
G.V.W. 7.5-8.0TON(RPY)
BRK WHL LK CONT LSPV<6PH>
HYDRO BRAKE BOOSTER<7QQ>
(B)
|
8-97332-043-0 |
04 |
1 |
0507- |
● |
● |
● |
● |
|
|
| |
102 |
04.668 PISTON; REAR WHEEL CYL
G.V.W. 7.5-8.0TON(RPY),G.V.W.
8.0-8.5TON(RPZ)
EXC. BRK WHL LK CONT LSPV<6PH>,HYDRO
BRAKE BOOSTER<7QQ>
(B)
|
8-97332-043-0 |
04 |
1 |
0507- |
● |
● |
● |
|
|
|
| |
102 |
04.668 PISTON; REAR WHEEL CYL
G.V.W. 8.0-8.5TON(RPZ)
BRK WHL LK CONT LSPV<6PH>
HYDRO BRAKE BOOSTER<7QQ>
FINAL GEAR RATIO 41/7(R41),FINAL
GEARRATIO 43/7(R42),FINAL GEAR RATIO 41/
6(6YB)
(B)
|
8-97332-043-0 |
04 |
1 |
0507- |
● |
● |
● |
|
|
|
| |
102 |
04.668 PISTON; REAR WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 6.5-7.0TON(RPW),G.V.W.
7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY)
BRK WHL LK CONT LSPV<6PH>
(A)
|
8-97332-229-0 |
02 |
1 |
0211-0304 |
● |
● |
|
● |
● |
|
| |
102 |
04.668 PISTON; REAR WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.5-8.0TON(RPY),G.V.W.
8.0-8.5TON(RPZ)
EXC. BRK WHL LK CONT LSPV<6PH>,HYDRO
BRAKE BOOSTER<7QQ>
(A)
|
8-97332-229-0 |
02 |
1 |
0211-0304 |
● |
● |
● |
|
|
|
| |
102 |
04.668 PISTON; REAR WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 6.5-7.0TON(RPW),G.V.W.
7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY)
BRK WHL LK CONT LSPV<6PH>
(A)
|
8-97332-229-0 |
01 |
1 |
0305-0501 |
● |
● |
|
● |
● |
|
| |
102 |
04.668 PISTON; REAR WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.5-8.0TON(RPY),G.V.W.
8.0-8.5TON(RPZ)
EXC. BRK WHL LK CONT LSPV<6PH>,HYDRO
BRAKE BOOSTER<7QQ>
(A)
|
8-97332-229-0 |
01 |
1 |
0305-0501 |
● |
● |
● |
|
|
|
| |
102 |
04.668 PISTON; REAR WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP)
EXC. HYDRO BRAKE BOOSTER<7QQ>
(A)
|
8-97332-229-0 |
01 |
1 |
0502-0506 |
● |
● |
● |
|
|
|
| |
102 |
04.668 PISTON; REAR WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.5-8.0TON(RPY),G.V.W.
8.0-8.5TON(RPZ)
FRAME STRAIGHT TYPE<7KJ>
VEHICLE CATEGORY NQR<7NQ>
EXC. DISC BRAKE FRT<J52>,BRK WHL LK
CONT LSPV<6PH>,HYDRO BRAKE
BOOSTER<7QQ>
(A)
|
8-97332-229-0 |
01 |
1 |
0507- |
● |
● |
● |
|
|
|
| |
102 |
04.668 PISTON; REAR WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.5-8.0TON(RPY)
HYDRO BRAKE BOOSTER<7QQ>
(B)
|
8-97353-578-0 |
04 |
1 |
0211-0501 |
● |
● |
● |
|
|
|
| |
102 |
04.668 PISTON; REAR WHEEL CYL
G.V.W. 8.0-8.5TON(RPZ)
HYDRO BRAKE BOOSTER<7QQ>
EXC. BRK WHL LK CONT LSPV<6PH>
(B)
|
8-97353-578-0 |
04 |
1 |
0211-0501 |
● |
● |
● |
|
|
|
| |
102 |
04.668 PISTON; REAR WHEEL CYL
4HE1 ENG(RLY)
G.V.W. 8.0-8.5TON(RPZ)
FINAL GEAR RATIO 41/8(RU1),FINAL
GEARRATIO 43/9(S2J),FINAL GEAR RATIO 43/
10(S7C)
BRK WHL LK CONT LSPV<6PH>
(B)
|
8-97353-578-0 |
04 |
1 |
0211-0501 |
● |
● |
● |
|
|
|
| |
102 |
04.668 PISTON; REAR WHEEL CYL
4HF1-S ENG(RLS)
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEARRATIO 41/7(R41),FINAL GEAR RATIO 43/
7(R42),FINAL GEAR RATIO 41/6(6YB)
G.V.W. 8.0-8.5TON(RPZ)
FRAME STRAIGHT TYPE<7KJ>
VEHICLE CATEGORY NQR<7NQ>
HYDRO BRAKE BOOSTER<7QQ>
(B)
|
8-97353-578-0 |
04 |
1 |
0502-0506 |
● |
|
|
|
|
|
| |
102 |
04.668 PISTON; REAR WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.5-8.0TON(RPY),G.V.W.
8.0-8.5TON(RPZ)
HYDRO BRAKE BOOSTER<7QQ>
EXC. DISC BRAKE FRT<J52>,BRK WHL LK
CONT LSPV<6PH>
(B)
|
8-97353-578-0 |
04 |
1 |
0507- |
● |
● |
● |
|
|
|
| |
102 |
04.668 PISTON; REAR WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.5-8.0TON(RPY)
HYDRO BRAKE BOOSTER<7QQ>
(A)
|
8-97353-579-0 |
02 |
1 |
0211-0304 |
● |
● |
● |
|
|
|
| |
102 |
04.668 PISTON; REAR WHEEL CYL
G.V.W. 8.0-8.5TON(RPZ)
HYDRO BRAKE BOOSTER<7QQ>
EXC. BRK WHL LK CONT LSPV<6PH>
(A)
|
8-97353-579-0 |
02 |
1 |
0211-0304 |
● |
● |
● |
|
|
|
| |
102 |
04.668 PISTON; REAR WHEEL CYL
4HE1 ENG(RLY)
G.V.W. 8.0-8.5TON(RPZ)
FINAL GEAR RATIO 41/8(RU1),FINAL
GEARRATIO 43/9(S2J),FINAL GEAR RATIO 43/
10(S7C)
BRK WHL LK CONT LSPV<6PH>
(A)
|
8-97353-579-0 |
02 |
1 |
0211-0304 |
● |
● |
● |
|
|
|
| |
102 |
04.668 PISTON; REAR WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.5-8.0TON(RPY)
HYDRO BRAKE BOOSTER<7QQ>
(A)
|
8-97353-579-0 |
01 |
1 |
0305-0501 |
● |
● |
● |
|
|
|
| |
102 |
04.668 PISTON; REAR WHEEL CYL
G.V.W. 8.0-8.5TON(RPZ)
HYDRO BRAKE BOOSTER<7QQ>
EXC. BRK WHL LK CONT LSPV<6PH>
(A)
|
8-97353-579-0 |
01 |
1 |
0305-0501 |
● |
● |
● |
|
|
|
| |
102 |
04.668 PISTON; REAR WHEEL CYL
4HE1 ENG(RLY)
G.V.W. 8.0-8.5TON(RPZ)
FINAL GEAR RATIO 41/8(RU1),FINAL
GEARRATIO 43/9(S2J),FINAL GEAR RATIO 43/
10(S7C)
BRK WHL LK CONT LSPV<6PH>
(A)
|
8-97353-579-0 |
01 |
1 |
0305-0501 |
● |
● |
● |
|
|
|
| |
102 |
04.668 PISTON; REAR WHEEL CYL
4HF1-S ENG(RLS)
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEARRATIO 41/7(R41),FINAL GEAR RATIO 43/
7(R42),FINAL GEAR RATIO 41/6(6YB)
G.V.W. 8.0-8.5TON(RPZ)
FRAME STRAIGHT TYPE<7KJ>
VEHICLE CATEGORY NQR<7NQ>
HYDRO BRAKE BOOSTER<7QQ>
(A)
|
8-97353-579-0 |
01 |
1 |
0502-0506 |
● |
|
|
|
|
|
| |
102 |
04.668 PISTON; REAR WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.5-8.0TON(RPY),G.V.W.
8.0-8.5TON(RPZ)
HYDRO BRAKE BOOSTER<7QQ>
EXC. DISC BRAKE FRT<J52>,BRK WHL LK
CONT LSPV<6PH>
(A)
|
8-97353-579-0 |
01 |
1 |
0507- |
● |
● |
● |
|
|
|
| |
102 |
04.668 PISTON; REAR WHEEL CYL
(B)
D=25.4
|
8-94128-537-1 |
04 |
1 |
0211- |
|
|
|
|
|
● |
| |
104 |
05.103 LEVER; ADJ
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 41/10(GT5),FINAL
GEAR RATIO 41/9(HC6)
4 WHEEL ANTI LOCK BRAKE<JE5>
DISC BRAKE FRT<J52>
G.V.W. 8.0-8.5TON(RPZ)
AUSTRALIA EQUIPMENT(RR3)
BRK WHL LK CONT LSPV<6PH>
FRAME STRAIGHT TYPE<7KJ>
|
1-47619-133-0 |
02 |
1 |
0507- |
● |
● |
● |
|
|
|
| |
104 |
05.103 LEVER; ADJ
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 41/10(GT5),FINAL
GEAR RATIO 41/9(HC6)
4 WHEEL ANTI LOCK BRAKE<JE5>
DISC BRAKE FRT<J52>
G.V.W. 8.0-8.5TON(RPZ)
AUSTRALIA EQUIPMENT(RR3)
BRK WHL LK CONT LSPV<6PH>
FRAME STRAIGHT TYPE<7KJ>
|
1-47619-134-0 |
02 |
1 |
0507- |
● |
● |
● |
|
|
|
| |
104 |
05.103 LEVER; ADJ
G.V.W. 4.0-4.5TON(RPR),G.V.W.
6.0-6.5TON(RPV),G.V.W. 6.5-7.0TON(RPW),
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
BRK WHL LK CONT LSPV<6PH>
|
8-97349-743-0 |
02 |
1 |
0507-0608 |
● |
● |
● |
● |
● |
|
| |
104 |
05.103 LEVER; ADJ
G.V.W. 8.0-8.5TON(RPZ)
BRK WHL LK CONT LSPV<6PH>
FINAL GEAR RATIO 41/7(R41),FINAL
GEARRATIO 43/7(R42),FINAL GEAR RATIO 41/
6(6YB)
|
8-97349-743-0 |
02 |
1 |
0507-0608 |
● |
● |
● |
|
|
|
| |
104 |
05.103 LEVER; ADJ
G.V.W. 4.0-4.5TON(RPR),G.V.W.
6.0-6.5TON(RPV),G.V.W. 6.5-7.0TON(RPW),
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
BRK WHL LK CONT LSPV<6PH>
|
8-97349-743-0 |
02 |
1 |
0609- |
● |
● |
● |
● |
● |
|
| |
104 |
05.103 LEVER; ADJ
G.V.W. 8.0-8.5TON(RPZ)
BRK WHL LK CONT LSPV<6PH>
FINAL GEAR RATIO 41/7(R41),FINAL
GEARRATIO 43/7(R42),FINAL GEAR RATIO 41/
6(6YB)
|
8-97349-743-0 |
02 |
1 |
0609- |
● |
|
|
|
|
|
| |
104 |
05.103 LEVER; ADJ
G.V.W. 4.0-4.5TON(RPR),G.V.W.
6.0-6.5TON(RPV),G.V.W. 6.5-7.0TON(RPW),
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
BRK WHL LK CONT LSPV<6PH>
|
8-97349-744-0 |
02 |
1 |
0507-0608 |
● |
● |
● |
● |
● |
|
| |
104 |
05.103 LEVER; ADJ
G.V.W. 8.0-8.5TON(RPZ)
BRK WHL LK CONT LSPV<6PH>
FINAL GEAR RATIO 41/7(R41),FINAL
GEARRATIO 43/7(R42),FINAL GEAR RATIO 41/
6(6YB)
|
8-97349-744-0 |
02 |
1 |
0507-0608 |
● |
● |
● |
|
|
|
| |
104 |
05.103 LEVER; ADJ
G.V.W. 4.0-4.5TON(RPR),G.V.W.
6.0-6.5TON(RPV),G.V.W. 6.5-7.0TON(RPW),
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
BRK WHL LK CONT LSPV<6PH>
|
8-97349-744-0 |
02 |
1 |
0609- |
● |
● |
● |
● |
● |
|
| |
104 |
05.103 LEVER; ADJ
G.V.W. 8.0-8.5TON(RPZ)
BRK WHL LK CONT LSPV<6PH>
FINAL GEAR RATIO 41/7(R41),FINAL
GEARRATIO 43/7(R42),FINAL GEAR RATIO 41/
6(6YB)
|
8-97349-744-0 |
02 |
1 |
0609- |
● |
|
|
|
|
|
| |
104 |
05.103 LEVER; ADJ
4HG1 ENG(RJH)
G.V.W. 8.0-8.5TON(RPZ)
FINAL GEAR RATIO 41/7(R41),FINAL
GEARRATIO 43/7(R42),FINAL GEAR RATIO 41/
6(6YB)
BRK WHL LK CONT LSPV<6PH>
4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-97349-743-0 |
02 |
1 |
0309-0501 |
● |
● |
● |
|
|
|
| |
104 |
05.103 LEVER; ADJ
4HG1 ENG(RJH)
G.V.W. 8.0-8.5TON(RPZ)
FINAL GEAR RATIO 41/7(R41),FINAL
GEARRATIO 43/7(R42),FINAL GEAR RATIO 41/
6(6YB)
BRK WHL LK CONT LSPV<6PH>
4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-97349-744-0 |
02 |
1 |
0309-0501 |
● |
● |
● |
|
|
|
| |
104 |
05.103 LEVER; ADJ
|
5-47619-040-2 |
02 |
1 |
0211- |
|
|
|
|
|
● |
| |
104 |
05.103 LEVER; ADJ
|
5-47619-039-2 |
02 |
1 |
0211- |
|
|
|
|
|
● |
| |
106 |
05.107 SPRING; ADJ LEVER
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 41/10(GT5),FINAL
GEAR RATIO 41/9(HC6)
4 WHEEL ANTI LOCK BRAKE<JE5>
DISC BRAKE FRT<J52>
G.V.W. 8.0-8.5TON(RPZ)
AUSTRALIA EQUIPMENT(RR3)
BRK WHL LK CONT LSPV<6PH>
FRAME STRAIGHT TYPE<7KJ>
04.665
|
1-09583-345-0 |
04 |
1 |
0507- |
● |
● |
● |
|
|
|
| |
106 |
05.107 SPRING; ADJ LEVER
G.V.W. 4.0-4.5TON(RPR),G.V.W.
6.0-6.5TON(RPV),G.V.W. 6.5-7.0TON(RPW),
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
BRK WHL LK CONT LSPV<6PH>
|
8-97349-745-0 |
04 |
1 |
0507-0608 |
● |
● |
● |
● |
● |
|
| |
106 |
05.107 SPRING; ADJ LEVER
G.V.W. 8.0-8.5TON(RPZ)
BRK WHL LK CONT LSPV<6PH>
FINAL GEAR RATIO 41/7(R41),FINAL
GEARRATIO 43/7(R42),FINAL GEAR RATIO 41/
6(6YB)
|
8-97349-745-0 |
04 |
1 |
0507-0608 |
● |
● |
● |
|
|
|
| |
106 |
05.107 SPRING; ADJ LEVER
G.V.W. 4.0-4.5TON(RPR),G.V.W.
6.0-6.5TON(RPV),G.V.W. 6.5-7.0TON(RPW),
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
BRK WHL LK CONT LSPV<6PH>
|
8-97349-745-0 |
04 |
1 |
0609- |
● |
● |
● |
● |
● |
|
| |
106 |
05.107 SPRING; ADJ LEVER
G.V.W. 8.0-8.5TON(RPZ)
BRK WHL LK CONT LSPV<6PH>
FINAL GEAR RATIO 41/7(R41),FINAL
GEARRATIO 43/7(R42),FINAL GEAR RATIO 41/
6(6YB)
|
8-97349-745-0 |
04 |
1 |
0609- |
● |
|
|
|
|
|
| |
106 |
05.107 SPRING; ADJ LEVER
4HG1 ENG(RJH)
G.V.W. 8.0-8.5TON(RPZ)
FINAL GEAR RATIO 41/7(R41),FINAL
GEARRATIO 43/7(R42),FINAL GEAR RATIO 41/
6(6YB)
BRK WHL LK CONT LSPV<6PH>
4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-97349-745-0 |
04 |
1 |
0309-0501 |
● |
● |
● |
|
|
|
| |
106 |
05.107 SPRING; ADJ LEVER
|
5-09585-046-0 |
04 |
1 |
0211- |
|
|
|
|
|
● |
| |
107 |
05.110 GEAR; ADJ,RR W/CYL
G.V.W. 6.0-6.5TON(RPV),G.V.W.
6.5-7.0TON(RPW)
REAR AXLE HEAVY DUTY 320MM(6CP)
BRK WHL LK CONT LSPV<6PH>
|
8-97349-738-0 |
02 |
1 |
0507- |
● |
● |
|
|
● |
|
| |
107 |
05.110 GEAR; ADJ,RR W/CYL
G.V.W. 6.0-6.5TON(RPV),G.V.W.
6.5-7.0TON(RPW)
REAR AXLE HEAVY DUTY 320MM(6CP)
BRK WHL LK CONT LSPV<6PH>
|
8-97349-740-0 |
02 |
1 |
0507- |
● |
● |
|
|
● |
|
| |
107 |
05.110 GEAR; ADJ,RR W/CYL
REAR AXLE HEAVY DUTY 320MM(6CP)
4 WHEEL ANTI LOCK BRAKE<JE5>
DISC BRAKE FRT<J52>
G.V.W. 4.0-4.5TON(RPR)
BRK WHL LK CONT LSPV<6PH>
FRAME STRAIGHT TYPE<7KJ>
|
8-97349-737-0 |
02 |
1 |
0507- |
● |
|
|
|
● |
|
| |
107 |
05.110 GEAR; ADJ,RR W/CYL
REAR AXLE HEAVY DUTY 320MM(6CP)
4 WHEEL ANTI LOCK BRAKE<JE5>
DISC BRAKE FRT<J52>
G.V.W. 4.0-4.5TON(RPR)
BRK WHL LK CONT LSPV<6PH>
FRAME STRAIGHT TYPE<7KJ>
|
8-97349-739-0 |
02 |
1 |
0507- |
● |
|
|
|
● |
|
| |
107 |
05.110 GEAR; ADJ,RR W/CYL
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
BRK WHL LK CONT LSPV<6PH>
04.665
|
8-97358-894-0 |
02 |
1 |
0507- |
● |
● |
● |
● |
|
|
| |
107 |
05.110 GEAR; ADJ,RR W/CYL
G.V.W. 8.0-8.5TON(RPZ)
BRK WHL LK CONT LSPV<6PH>
FINAL GEAR RATIO 41/7(R41),FINAL
GEARRATIO 43/7(R42),FINAL GEAR RATIO 41/
6(6YB)
04.665
|
8-97358-894-0 |
02 |
1 |
0507- |
● |
● |
● |
|
|
|
| |
107 |
05.110 GEAR; ADJ,RR W/CYL
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
BRK WHL LK CONT LSPV<6PH>
04.665
|
8-97358-895-0 |
02 |
1 |
0507- |
● |
● |
● |
● |
|
|
| |
107 |
05.110 GEAR; ADJ,RR W/CYL
G.V.W. 8.0-8.5TON(RPZ)
BRK WHL LK CONT LSPV<6PH>
FINAL GEAR RATIO 41/7(R41),FINAL
GEARRATIO 43/7(R42),FINAL GEAR RATIO 41/
6(6YB)
04.665
|
8-97358-895-0 |
02 |
1 |
0507- |
● |
● |
● |
|
|
|
| |
107 |
05.110 GEAR; ADJ,RR W/CYL
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 41/10(GT5),FINAL
GEAR RATIO 41/9(HC6)
4 WHEEL ANTI LOCK BRAKE<JE5>
DISC BRAKE FRT<J52>
G.V.W. 8.0-8.5TON(RPZ)
AUSTRALIA EQUIPMENT(RR3)
BRK WHL LK CONT LSPV<6PH>
FRAME STRAIGHT TYPE<7KJ>
|
8-97372-835-0 |
02 |
1 |
0507- |
● |
● |
● |
|
|
|
| |
107 |
05.110 GEAR; ADJ,RR W/CYL
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 41/10(GT5),FINAL
GEAR RATIO 41/9(HC6)
4 WHEEL ANTI LOCK BRAKE<JE5>
DISC BRAKE FRT<J52>
G.V.W. 8.0-8.5TON(RPZ)
AUSTRALIA EQUIPMENT(RR3)
BRK WHL LK CONT LSPV<6PH>
FRAME STRAIGHT TYPE<7KJ>
|
8-97372-836-0 |
02 |
1 |
0507- |
● |
● |
● |
|
|
|
| |
107 |
05.110 GEAR; ADJ,RR W/CYL
4HG1 ENG(RJH)
G.V.W. 8.0-8.5TON(RPZ)
FINAL GEAR RATIO 41/7(R41),FINAL
GEARRATIO 43/7(R42),FINAL GEAR RATIO 41/
6(6YB)
BRK WHL LK CONT LSPV<6PH>
4 WHEEL ANTI LOCK BRAKE<JE5>
04.665
|
8-97358-894-0 |
02 |
1 |
0309-0501 |
● |
● |
● |
|
|
|
| |
107 |
05.110 GEAR; ADJ,RR W/CYL
4HG1 ENG(RJH)
G.V.W. 8.0-8.5TON(RPZ)
FINAL GEAR RATIO 41/7(R41),FINAL
GEARRATIO 43/7(R42),FINAL GEAR RATIO 41/
6(6YB)
BRK WHL LK CONT LSPV<6PH>
4 WHEEL ANTI LOCK BRAKE<JE5>
04.665
|
8-97358-895-0 |
02 |
1 |
0309-0501 |
● |
● |
● |
|
|
|
| |
107 |
05.110 GEAR; ADJ,RR W/CYL
|
5-47623-008-1 |
02 |
1 |
0211- |
|
|
|
|
|
● |
| |
107 |
05.110 GEAR; ADJ,RR W/CYL
|
5-47623-007-1 |
02 |
1 |
0211- |
|
|
|
|
|
● |
| |
108 |
05.110 WASHER; THRUST,GEAR ADJ
G.V.W. 6.0-6.5TON(RPV),G.V.W.
6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),
G.V.W. 7.5-8.0TON(RPY)
BRK WHL LK CONT LSPV<6PH>
|
8-97349-736-0 |
04 |
1 |
0507-0608 |
● |
● |
● |
● |
● |
|
| |
108 |
05.110 WASHER; THRUST,GEAR ADJ
G.V.W. 8.0-8.5TON(RPZ)
BRK WHL LK CONT LSPV<6PH>
FINAL GEAR RATIO 41/7(R41),FINAL
GEARRATIO 43/7(R42),FINAL GEAR RATIO 41/
6(6YB)
|
8-97349-736-0 |
04 |
1 |
0507-0608 |
● |
● |
● |
|
|
|
| |
108 |
05.110 WASHER; THRUST,GEAR ADJ
G.V.W. 6.0-6.5TON(RPV),G.V.W.
6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),
G.V.W. 7.5-8.0TON(RPY)
BRK WHL LK CONT LSPV<6PH>
|
8-97349-736-0 |
04 |
1 |
0609- |
● |
● |
● |
● |
● |
|
| |
108 |
05.110 WASHER; THRUST,GEAR ADJ
G.V.W. 8.0-8.5TON(RPZ)
BRK WHL LK CONT LSPV<6PH>
FINAL GEAR RATIO 41/7(R41),FINAL
GEARRATIO 43/7(R42),FINAL GEAR RATIO 41/
6(6YB)
|
8-97349-736-0 |
04 |
1 |
0609- |
● |
|
|
|
|
|
| |
108 |
05.110 WASHER; THRUST,GEAR ADJ
REAR AXLE HEAVY DUTY 320MM(6CP)
4 WHEEL ANTI LOCK BRAKE<JE5>
DISC BRAKE FRT<J52>
G.V.W. 4.0-4.5TON(RPR)
BRK WHL LK CONT LSPV<6PH>
FRAME STRAIGHT TYPE<7KJ>
|
8-97029-304-0 |
04 |
1 |
0507- |
● |
|
|
|
● |
|
| |
108 |
05.110 WASHER; THRUST,GEAR ADJ
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 41/10(GT5),FINAL
GEAR RATIO 41/9(HC6)
4 WHEEL ANTI LOCK BRAKE<JE5>
DISC BRAKE FRT<J52>
G.V.W. 8.0-8.5TON(RPZ)
AUSTRALIA EQUIPMENT(RR3)
BRK WHL LK CONT LSPV<6PH>
FRAME STRAIGHT TYPE<7KJ>
05.020
|
1-47629-135-0 |
04 |
1 |
0507- |
● |
● |
● |
|
|
|
| |
108 |
05.110 WASHER; THRUST,GEAR ADJ
4HG1 ENG(RJH)
G.V.W. 8.0-8.5TON(RPZ)
FINAL GEAR RATIO 41/7(R41),FINAL
GEARRATIO 43/7(R42),FINAL GEAR RATIO 41/
6(6YB)
BRK WHL LK CONT LSPV<6PH>
4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-97349-736-0 |
04 |
1 |
0309-0501 |
● |
● |
● |
|
|
|
| |
108 |
05.110 WASHER; THRUST,GEAR ADJ
ID=8
|
5-09503-085-0 |
04 |
1 |
0211- |
|
|
|
|
|
● |
| |
124 |
05.017 SHOE ASM; BRK,RR
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 41/10(GT5),FINAL
GEAR RATIO 41/9(HC6)
4 WHEEL ANTI LOCK BRAKE<JE5>
DISC BRAKE FRT<J52>
G.V.W. 8.0-8.5TON(RPZ)
AUSTRALIA EQUIPMENT(RR3)
BRK WHL LK CONT LSPV<6PH>
FRAME STRAIGHT TYPE<7KJ>
|
8-97373-425-0 |
04 |
1 |
0507- |
● |
● |
● |
|
|
|
| |
124 |
05.017 SHOE ASM; BRK,RR
G.V.W. 6.5-7.0TON(RPW),G.V.W.
7.0-7.5TON(RPX)
|
8-97201-061-0 |
04 |
1 |
0211-0501 |
● |
● |
|
|
● |
|
| |
124 |
05.017 SHOE ASM; BRK,RR
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 7.5-8.0TON(RPY)
BRK WHL LK CONT LSPV<6PH>
|
8-97201-061-0 |
04 |
1 |
0211-0501 |
● |
● |
|
● |
|
|
| |
124 |
05.017 SHOE ASM; BRK,RR
G.V.W. 7.0-7.5TON(RPX)
|
8-97201-061-0 |
04 |
1 |
0502-0506 |
● |
● |
|
|
● |
|
| |
124 |
05.017 SHOE ASM; BRK,RR
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 6.0-6.5TON(RPV),G.V.W.
6.5-7.0TON(RPW)
|
8-97201-061-0 |
04 |
1 |
0507-0509 |
● |
● |
|
|
● |
|
| |
124 |
05.017 SHOE ASM; BRK,RR
G.V.W. 7.0-7.5TON(RPX)
EXC. BRK WHL LK CONT LSPV<6PH>
|
8-97201-061-0 |
04 |
1 |
0507-0509 |
● |
● |
|
|
● |
|
| |
124 |
05.017 SHOE ASM; BRK,RR
G.V.W. 7.0-7.5TON(RPX)
REAR AXLE HEAVY DUTY 292MM(G73)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,
DISC BRAKE FRT<J52>,BRK WHL LK CONT LSPV
<6PH>
|
8-97201-061-0 |
04 |
1 |
0510-0606 |
● |
● |
|
|
● |
|
| |
124 |
05.017 SHOE ASM; BRK,RR
G.V.W. 6.0-6.5TON(RPV),G.V.W.
6.5-7.0TON(RPW)
REAR AXLE HEAVY DUTY 320MM(6CP)
DISC BRAKE FRT<J52>
BRK WHL LK CONT LSPV<6PH>
|
8-97201-061-0 |
04 |
1 |
0510-0606 |
● |
● |
|
|
● |
|
| |
124 |
05.017 SHOE ASM; BRK,RR
G.V.W. 7.0-7.5TON(RPX)
REAR AXLE HEAVY DUTY 292MM(G73)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,
DISC BRAKE FRT<J52>,BRK WHL LK CONT LSPV
<6PH>
|
8-97201-061-0 |
04 |
1 |
0607- |
● |
● |
|
|
● |
|
| |
124 |
05.017 SHOE ASM; BRK,RR
G.V.W. 6.0-6.5TON(RPV),G.V.W.
6.5-7.0TON(RPW)
REAR AXLE HEAVY DUTY 320MM(6CP)
DISC BRAKE FRT<J52>
BRK WHL LK CONT LSPV<6PH>
|
8-97201-061-0 |
04 |
1 |
0607- |
● |
● |
|
|
● |
|
| |
124 |
05.017 SHOE ASM; BRK,RR
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
FINAL GEAR RATIO 39/7(GV1)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,
DISC BRAKE FRT<J52>,BRK WHL LK CONT LSPV
<6PH>
|
8-97201-061-0 |
04 |
1 |
0607- |
● |
● |
|
|
● |
|
| |
124 |
05.017 SHOE ASM; BRK,RR
G.V.W. 4.0-4.5TON(RPR),G.V.W.
6.0-6.5TON(RPV)
|
8-97287-778-0 |
04 |
1 |
0211-0501 |
● |
● |
|
● |
● |
|
| |
124 |
05.017 SHOE ASM; BRK,RR
G.V.W. 6.0-6.5TON(RPV)
|
8-97287-778-0 |
04 |
1 |
0502-0506 |
● |
● |
|
|
● |
|
| |
124 |
05.017 SHOE ASM; BRK,RR
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 6.0-6.5TON(RPV)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,
DISC BRAKE FRT<J52>,BRK WHL LK CONT LSPV
<6PH>
|
8-97287-778-0 |
04 |
1 |
0507- |
● |
● |
|
|
● |
|
| |
124 |
05.017 SHOE ASM; BRK,RR
G.V.W. 4.0-4.5TON(RPR)
|
8-97287-778-0 |
04 |
1 |
0507- |
● |
|
|
|
● |
|
| |
124 |
05.017 SHOE ASM; BRK,RR
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.5-8.0TON(RPY)
EXC. BRK WHL LK CONT LSPV<6PH>
|
8-97188-455-0 |
04 |
1 |
0211-0501 |
● |
● |
● |
|
|
|
| |
124 |
05.017 SHOE ASM; BRK,RR
G.V.W. 8.0-8.5TON(RPZ)
|
8-97188-455-0 |
04 |
1 |
0211-0501 |
● |
● |
● |
|
|
|
| |
124 |
05.017 SHOE ASM; BRK,RR
REAR AXLE HEAVY DUTY 320MM(6CP)
|
8-97188-455-0 |
04 |
1 |
0502-0506 |
● |
● |
● |
|
|
|
| |
124 |
05.017 SHOE ASM; BRK,RR
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.5-8.0TON(RPY)
|
8-97188-455-0 |
04 |
1 |
0507-0606 |
● |
● |
● |
● |
|
|
| |
124 |
05.017 SHOE ASM; BRK,RR
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 8.0-8.5TON(RPZ)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEARRATIO 41/7(R41),FINAL GEAR RATIO 43/
7(R42),FINAL GEAR RATIO 41/6(6YB)
|
8-97188-455-0 |
04 |
1 |
0507-0606 |
● |
● |
● |
|
|
|
| |
124 |
05.017 SHOE ASM; BRK,RR
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
BRK WHL LK CONT LSPV<6PH>
HYDRO BRAKE BOOSTER<7QQ>
|
8-97188-455-0 |
04 |
1 |
0507-0606 |
● |
● |
|
|
|
|
| |
124 |
05.017 SHOE ASM; BRK,RR
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.5-8.0TON(RPY)
|
8-97188-455-0 |
04 |
1 |
0607- |
● |
● |
● |
● |
|
|
| |
124 |
05.017 SHOE ASM; BRK,RR
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 8.0-8.5TON(RPZ)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEARRATIO 41/7(R41),FINAL GEAR RATIO 43/
7(R42),FINAL GEAR RATIO 41/6(6YB)
|
8-97188-455-0 |
04 |
1 |
0607- |
● |
● |
● |
|
|
|
| |
124 |
05.017 SHOE ASM; BRK,RR
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 8.0-8.5TON(RPZ)
FINAL GEAR RATIO 41/9(HC6)
HYDRO BRAKE BOOSTER<7QQ>
EXC. DISC BRAKE FRT<J52>,BRK WHL LK
CONT LSPV<6PH>
|
8-97188-455-0 |
04 |
1 |
0607- |
● |
● |
● |
|
|
|
| |
124 |
05.017 SHOE ASM; BRK,RR
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
BRK WHL LK CONT LSPV<6PH>
HYDRO BRAKE BOOSTER<7QQ>
|
8-97188-455-0 |
04 |
1 |
0607- |
● |
● |
|
|
|
|
| |
124 |
05.017 SHOE ASM; BRK,RR
|
8-97217-753-0 |
04 |
1 |
0211- |
|
|
|
|
|
● |
| |
136 |
05.002 GROMMET
G.V.W. 6.0-6.5TON(RPV),G.V.W.
6.5-7.0TON(RPW)
REAR AXLE HEAVY DUTY 320MM(6CP)
BRK WHL LK CONT LSPV<6PH>
(C)
|
8-97017-507-0 |
04 |
1 |
0507- |
● |
● |
|
|
● |
|
| |
136 |
05.002 GROMMET
BRK WHL LK CONT LSPV<6PH>
04.670
(B)
|
1-47154-008-0 |
04 |
1 |
0507- |
● |
● |
● |
● |
● |
|
| |
136 |
05.002 GROMMET
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
EXC. BRK WHL LK CONT LSPV<6PH>
(A)
|
8-97044-742-1 |
04 |
1 |
0211-0302 |
● |
● |
● |
|
● |
|
| |
136 |
05.002 GROMMET
G.V.W. 8.0-8.5TON(RPZ)
(A)
|
8-97044-742-1 |
04 |
1 |
0211-0302 |
● |
● |
● |
|
|
|
| |
136 |
05.002 GROMMET
G.V.W. 4.0-4.5TON(RPR),G.V.W.
6.0-6.5TON(RPV)
BRK WHL LK CONT LSPV<6PH>
(A)
|
9-09756-034-0 |
02 |
1 |
0211-0302 |
● |
● |
|
● |
● |
|
| |
136 |
05.002 GROMMET
G.V.W. 4.0-4.5TON(RPR),G.V.W.
6.0-6.5TON(RPV)
EXC. BRK WHL LK CONT LSPV<6PH>
(A)
|
9-09756-034-0 |
04 |
1 |
0211-0302 |
● |
● |
|
● |
● |
|
| |
136 |
05.002 GROMMET
G.V.W. 4.0-4.5TON(RPR),G.V.W.
6.0-6.5TON(RPV)
(A)
|
9-09756-034-0 |
04 |
1 |
0303-0501 |
● |
● |
|
● |
● |
|
| |
136 |
05.002 GROMMET
G.V.W. 6.0-6.5TON(RPV)
(A)
|
9-09756-034-0 |
04 |
1 |
0502-0506 |
● |
● |
|
|
● |
|
| |
136 |
05.002 GROMMET
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 4.0-4.5TON(RPR),G.V.W.
6.0-6.5TON(RPV)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,
DISC BRAKE FRT<J52>,BRK WHL LK CONT LSPV
<6PH>
(A)
|
9-09756-034-0 |
04 |
1 |
0507- |
● |
● |
|
|
● |
|
| |
136 |
05.002 GROMMET
G.V.W. 6.5-7.0TON(RPW),G.V.W.
7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY)
BRK WHL LK CONT LSPV<6PH>
(A)
|
8-97044-742-1 |
02 |
1 |
0211-0302 |
● |
● |
|
● |
● |
|
| |
136 |
05.002 GROMMET
G.V.W. 6.5-7.0TON(RPW),G.V.W.
7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),
G.V.W. 8.0-8.5TON(RPZ)
(A)
|
8-97044-742-1 |
04 |
1 |
0303-0308 |
● |
● |
● |
● |
● |
|
| |
136 |
05.002 GROMMET
G.V.W. 6.5-7.0TON(RPW),G.V.W.
7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY)
(A)
|
8-97044-742-1 |
04 |
1 |
0309-0501 |
● |
● |
● |
● |
● |
|
| |
136 |
05.002 GROMMET
G.V.W. 8.0-8.5TON(RPZ)
EXC. BRK WHL LK CONT LSPV<6PH>
(A)
|
8-97044-742-1 |
04 |
1 |
0309-0501 |
● |
● |
● |
|
|
|
| |
136 |
05.002 GROMMET
G.V.W. 8.0-8.5TON(RPZ)
4HE1 ENG(RLY)
BRK WHL LK CONT LSPV<6PH>
(A)
|
8-97044-742-1 |
04 |
1 |
0309-0501 |
● |
● |
● |
|
|
|
| |
136 |
05.002 GROMMET
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ)
(A)
|
8-97044-742-1 |
04 |
1 |
0502-0506 |
● |
● |
● |
|
● |
|
| |
136 |
05.002 GROMMET
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ)
EXC. BRK WHL LK CONT LSPV<6PH>
(A)
|
8-97044-742-1 |
04 |
1 |
0507- |
● |
● |
● |
|
● |
|
| |
136 |
05.002 GROMMET
4HG1 ENG(RJH)
G.V.W. 8.0-8.5TON(RPZ)
FINAL GEAR RATIO 41/7(R41),FINAL
GEARRATIO 43/7(R42),FINAL GEAR RATIO 41/
6(6YB)
BRK WHL LK CONT LSPV<6PH>
4 WHEEL ANTI LOCK BRAKE<JE5>
04.670
(B)
|
1-47154-008-0 |
04 |
1 |
0309-0501 |
● |
● |
● |
|
|
|
| |
136 |
05.002 GROMMET
(C)
|
8-94171-287-0 |
04 |
1 |
0211-0506 |
|
|
|
|
|
● |
| |
136 |
05.002 GROMMET
REAR AXLE HEAVY DUTY 320MM(6CP)
4 WHEEL ANTI LOCK BRAKE<JE5>
DISC BRAKE FRT<J52>
G.V.W. 4.0-4.5TON(RPR)
BRK WHL LK CONT LSPV<6PH>
FRAME STRAIGHT TYPE<7KJ>
(C)
|
8-94171-287-0 |
04 |
1 |
0507- |
● |
|
|
|
● |
|
| |
136 |
05.002 GROMMET
(C)
|
8-94171-287-0 |
04 |
1 |
0507- |
|
|
|
|
|
● |
| |
136 |
05.002 GROMMET
(B)
|
8-94438-228-0 |
04 |
1 |
0211- |
|
|
|
|
|
● |
| |
199 |
05.056 NUT
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 41/10(GT5),FINAL
GEAR RATIO 41/9(HC6)
4 WHEEL ANTI LOCK BRAKE<JE5>
DISC BRAKE FRT<J52>
G.V.W. 8.0-8.5TON(RPZ)
AUSTRALIA EQUIPMENT(RR3)
BRK WHL LK CONT LSPV<6PH>
FRAME STRAIGHT TYPE<7KJ>
|
1-09400-100-0 |
04 |
1 |
0507- |
● |
● |
● |
|
|
|
| |
200 |
05.056 BOLT
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 41/10(GT5),FINAL
GEAR RATIO 41/9(HC6)
4 WHEEL ANTI LOCK BRAKE<JE5>
DISC BRAKE FRT<J52>
G.V.W. 8.0-8.5TON(RPZ)
AUSTRALIA EQUIPMENT(RR3)
BRK WHL LK CONT LSPV<6PH>
FRAME STRAIGHT TYPE<7KJ>
|
1-47162-017-0 |
04 |
1 |
0507-0904 |
● |
● |
● |
|
|
|
| |
200 |
05.056 BOLT
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 41/10(GT5),FINAL
GEAR RATIO 41/9(HC6)
4 WHEEL ANTI LOCK BRAKE<JE5>
DISC BRAKE FRT<J52>
G.V.W. 8.0-8.5TON(RPZ)
AUSTRALIA EQUIPMENT(RR3)
BRK WHL LK CONT LSPV<6PH>
FRAME STRAIGHT TYPE<7KJ>
|
1-47162-050-0 |
04 |
1 |
0905- |
● |
● |
● |
|
|
|
| |
217 |
05.018 LINING KIT; RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 41/10(GT5),FINAL
GEAR RATIO 41/9(HC6)
4 WHEEL ANTI LOCK BRAKE<JE5>
DISC BRAKE FRT<J52>
G.V.W. 8.0-8.5TON(RPZ)
AUSTRALIA EQUIPMENT(RR3)
BRK WHL LK CONT LSPV<6PH>
FRAME STRAIGHT TYPE<7KJ>
|
5-87832-134-0 |
01 |
1 |
0507- |
● |
● |
● |
|
|
|
| |
217 |
05.018 LINING KIT; RR BRK
G.V.W. 6.5-7.0TON(RPW),G.V.W.
7.0-7.5TON(RPX)
|
5-87831-774-0 |
01 |
1 |
0211-0501 |
● |
● |
|
|
● |
|
| |
217 |
05.018 LINING KIT; RR BRK
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 7.5-8.0TON(RPY)
BRK WHL LK CONT LSPV<6PH>
|
5-87831-774-0 |
01 |
1 |
0211-0501 |
● |
● |
|
● |
|
|
| |
217 |
05.018 LINING KIT; RR BRK
G.V.W. 7.0-7.5TON(RPX)
|
5-87831-774-0 |
01 |
1 |
0502-0506 |
● |
● |
|
|
● |
|
| |
217 |
05.018 LINING KIT; RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 6.0-6.5TON(RPV),G.V.W.
6.5-7.0TON(RPW)
|
5-87831-774-0 |
01 |
1 |
0507-0509 |
● |
● |
|
|
● |
|
| |
217 |
05.018 LINING KIT; RR BRK
G.V.W. 7.0-7.5TON(RPX)
EXC. BRK WHL LK CONT LSPV<6PH>
|
5-87831-774-0 |
01 |
1 |
0507-0509 |
● |
● |
|
|
● |
|
| |
217 |
05.018 LINING KIT; RR BRK
G.V.W. 7.0-7.5TON(RPX)
REAR AXLE HEAVY DUTY 292MM(G73)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,
DISC BRAKE FRT<J52>,BRK WHL LK CONT LSPV
<6PH>
|
5-87831-774-0 |
01 |
1 |
0510-0606 |
● |
● |
|
|
● |
|
| |
217 |
05.018 LINING KIT; RR BRK
G.V.W. 6.0-6.5TON(RPV),G.V.W.
6.5-7.0TON(RPW)
REAR AXLE HEAVY DUTY 320MM(6CP)
DISC BRAKE FRT<J52>
BRK WHL LK CONT LSPV<6PH>
|
5-87831-774-0 |
01 |
1 |
0510-0606 |
● |
● |
|
|
● |
|
| |
217 |
05.018 LINING KIT; RR BRK
G.V.W. 7.0-7.5TON(RPX)
REAR AXLE HEAVY DUTY 292MM(G73)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,
DISC BRAKE FRT<J52>,BRK WHL LK CONT LSPV
<6PH>
|
5-87831-774-0 |
01 |
1 |
0607- |
● |
● |
|
|
● |
|
| |
217 |
05.018 LINING KIT; RR BRK
G.V.W. 6.0-6.5TON(RPV),G.V.W.
6.5-7.0TON(RPW)
REAR AXLE HEAVY DUTY 320MM(6CP)
DISC BRAKE FRT<J52>
BRK WHL LK CONT LSPV<6PH>
|
5-87831-774-0 |
01 |
1 |
0607- |
● |
● |
|
|
● |
|
| |
217 |
05.018 LINING KIT; RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
FINAL GEAR RATIO 39/7(GV1)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,
DISC BRAKE FRT<J52>,BRK WHL LK CONT LSPV
<6PH>
|
5-87831-774-0 |
01 |
1 |
0607- |
● |
● |
|
|
● |
|
| |
217 |
05.018 LINING KIT; RR BRK
G.V.W. 4.0-4.5TON(RPR),G.V.W.
6.0-6.5TON(RPV)
|
5-87831-801-0 |
01 |
1 |
0211-0501 |
● |
● |
|
● |
● |
|
| |
217 |
05.018 LINING KIT; RR BRK
G.V.W. 6.0-6.5TON(RPV)
|
5-87831-801-0 |
01 |
1 |
0502-0506 |
● |
● |
|
|
● |
|
| |
217 |
05.018 LINING KIT; RR BRK
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 6.0-6.5TON(RPV)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,
DISC BRAKE FRT<J52>,BRK WHL LK CONT LSPV
<6PH>
|
5-87831-801-0 |
01 |
1 |
0507- |
● |
● |
|
|
● |
|
| |
217 |
05.018 LINING KIT; RR BRK
G.V.W. 4.0-4.5TON(RPR)
|
5-87831-801-0 |
01 |
1 |
0507- |
● |
|
|
|
● |
|
| |
217 |
05.018 LINING KIT; RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.5-8.0TON(RPY)
EXC. BRK WHL LK CONT LSPV<6PH>
|
5-87831-692-0 |
01 |
1 |
0211-0501 |
● |
● |
● |
|
|
|
| |
217 |
05.018 LINING KIT; RR BRK
G.V.W. 8.0-8.5TON(RPZ)
|
5-87831-692-0 |
01 |
1 |
0211-0501 |
● |
● |
● |
|
|
|
| |
217 |
05.018 LINING KIT; RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP)
|
5-87831-692-0 |
01 |
1 |
0502-0506 |
● |
● |
● |
|
|
|
| |
217 |
05.018 LINING KIT; RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.5-8.0TON(RPY)
|
5-87831-692-0 |
01 |
1 |
0507-0606 |
● |
● |
● |
● |
|
|
| |
217 |
05.018 LINING KIT; RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 8.0-8.5TON(RPZ)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEARRATIO 41/7(R41),FINAL GEAR RATIO 43/
7(R42),FINAL GEAR RATIO 41/6(6YB)
|
5-87831-692-0 |
01 |
1 |
0507-0606 |
● |
● |
● |
|
|
|
| |
217 |
05.018 LINING KIT; RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
BRK WHL LK CONT LSPV<6PH>
HYDRO BRAKE BOOSTER<7QQ>
|
5-87831-692-0 |
01 |
1 |
0507-0606 |
● |
● |
|
|
|
|
| |
217 |
05.018 LINING KIT; RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.5-8.0TON(RPY)
|
5-87831-692-0 |
01 |
1 |
0607- |
● |
● |
● |
● |
|
|
| |
217 |
05.018 LINING KIT; RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 8.0-8.5TON(RPZ)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEARRATIO 41/7(R41),FINAL GEAR RATIO 43/
7(R42),FINAL GEAR RATIO 41/6(6YB)
|
5-87831-692-0 |
01 |
1 |
0607- |
● |
● |
● |
|
|
|
| |
217 |
05.018 LINING KIT; RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 8.0-8.5TON(RPZ)
FINAL GEAR RATIO 41/9(HC6)
HYDRO BRAKE BOOSTER<7QQ>
EXC. DISC BRAKE FRT<J52>,BRK WHL LK
CONT LSPV<6PH>
|
5-87831-692-0 |
01 |
1 |
0607- |
● |
● |
● |
|
|
|
| |
217 |
05.018 LINING KIT; RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
BRK WHL LK CONT LSPV<6PH>
HYDRO BRAKE BOOSTER<7QQ>
|
5-87831-692-0 |
01 |
1 |
0607- |
● |
● |
|
|
|
|
| |
217 |
05.018 LINING KIT; RR BRK
G.V.W. 6.5-7.0TON(RPW),G.V.W.
7.0-7.5TON(RPX)
BEST VALUE PARTS
|
5-87610-120-0 |
01 |
1 |
0211-0501 |
● |
● |
|
|
● |
|
| |
217 |
05.018 LINING KIT; RR BRK
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 7.5-8.0TON(RPY)
BRK WHL LK CONT LSPV<6PH>
BEST VALUE PARTS
|
5-87610-120-0 |
01 |
1 |
0211-0501 |
● |
● |
|
● |
|
|
| |
217 |
05.018 LINING KIT; RR BRK
G.V.W. 7.0-7.5TON(RPX)
BEST VALUE PARTS
|
5-87610-120-0 |
01 |
1 |
0502-0506 |
● |
● |
|
|
● |
|
| |
217 |
05.018 LINING KIT; RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 6.0-6.5TON(RPV),G.V.W.
6.5-7.0TON(RPW)
BEST VALUE PARTS
|
5-87610-120-0 |
01 |
1 |
0507-0509 |
● |
● |
|
|
● |
|
| |
217 |
05.018 LINING KIT; RR BRK
G.V.W. 7.0-7.5TON(RPX)
EXC. BRK WHL LK CONT LSPV<6PH>
BEST VALUE PARTS
|
5-87610-120-0 |
01 |
1 |
0507-0509 |
● |
● |
|
|
● |
|
| |
217 |
05.018 LINING KIT; RR BRK
G.V.W. 7.0-7.5TON(RPX)
REAR AXLE HEAVY DUTY 292MM(G73)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,
DISC BRAKE FRT<J52>,BRK WHL LK CONT LSPV
<6PH>
BEST VALUE PARTS
|
5-87610-120-0 |
01 |
1 |
0510-0606 |
● |
● |
|
|
● |
|
| |
217 |
05.018 LINING KIT; RR BRK
G.V.W. 6.0-6.5TON(RPV),G.V.W.
6.5-7.0TON(RPW)
REAR AXLE HEAVY DUTY 320MM(6CP)
DISC BRAKE FRT<J52>
BRK WHL LK CONT LSPV<6PH>
BEST VALUE PARTS
|
5-87610-120-0 |
01 |
1 |
0510-0606 |
● |
● |
|
|
● |
|
| |
217 |
05.018 LINING KIT; RR BRK
G.V.W. 7.0-7.5TON(RPX)
REAR AXLE HEAVY DUTY 292MM(G73)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,
DISC BRAKE FRT<J52>,BRK WHL LK CONT LSPV
<6PH>
BEST VALUE PARTS
|
5-87610-120-0 |
01 |
1 |
0607- |
● |
● |
|
|
● |
|
| |
217 |
05.018 LINING KIT; RR BRK
G.V.W. 6.0-6.5TON(RPV),G.V.W.
6.5-7.0TON(RPW)
REAR AXLE HEAVY DUTY 320MM(6CP)
DISC BRAKE FRT<J52>
BRK WHL LK CONT LSPV<6PH>
BEST VALUE PARTS
|
5-87610-120-0 |
01 |
1 |
0607- |
● |
● |
|
|
● |
|
| |
217 |
05.018 LINING KIT; RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
FINAL GEAR RATIO 39/7(GV1)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,
DISC BRAKE FRT<J52>,BRK WHL LK CONT LSPV
<6PH>
BEST VALUE PARTS
|
5-87610-120-0 |
01 |
1 |
0607- |
● |
● |
|
|
● |
|
| |
217 |
05.018 LINING KIT; RR BRK
G.V.W. 4.0-4.5TON(RPR),G.V.W.
6.0-6.5TON(RPV)
BEST VALUE PARTS
|
5-87610-121-0 |
01 |
1 |
0211-0501 |
● |
● |
|
● |
● |
|
| |
217 |
05.018 LINING KIT; RR BRK
G.V.W. 6.0-6.5TON(RPV)
BEST VALUE PARTS
|
5-87610-121-0 |
01 |
1 |
0502-0506 |
● |
● |
|
|
● |
|
| |
217 |
05.018 LINING KIT; RR BRK
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 6.0-6.5TON(RPV)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,
DISC BRAKE FRT<J52>,BRK WHL LK CONT LSPV
<6PH>
BEST VALUE PARTS
|
5-87610-121-0 |
01 |
1 |
0507- |
● |
● |
|
|
● |
|
| |
217 |
05.018 LINING KIT; RR BRK
G.V.W. 4.0-4.5TON(RPR)
BEST VALUE PARTS
|
5-87610-121-0 |
01 |
1 |
0507- |
● |
|
|
|
● |
|
| |
217 |
05.018 LINING KIT; RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.5-8.0TON(RPY)
EXC. BRK WHL LK CONT LSPV<6PH>
BEST VALUE PARTS
|
5-87610-119-0 |
01 |
1 |
0211-0501 |
● |
● |
● |
|
|
|
| |
217 |
05.018 LINING KIT; RR BRK
G.V.W. 8.0-8.5TON(RPZ)
BEST VALUE PARTS
|
5-87610-119-0 |
01 |
1 |
0211-0501 |
● |
● |
● |
|
|
|
| |
217 |
05.018 LINING KIT; RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP)
BEST VALUE PARTS
|
5-87610-119-0 |
01 |
1 |
0502-0506 |
● |
● |
● |
|
|
|
| |
217 |
05.018 LINING KIT; RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.5-8.0TON(RPY)
BEST VALUE PARTS
|
5-87610-119-0 |
01 |
1 |
0507-0606 |
● |
● |
● |
● |
|
|
| |
217 |
05.018 LINING KIT; RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 8.0-8.5TON(RPZ)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEARRATIO 41/7(R41),FINAL GEAR RATIO 43/
7(R42),FINAL GEAR RATIO 41/6(6YB)
BEST VALUE PARTS
|
5-87610-119-0 |
01 |
1 |
0507-0606 |
● |
● |
● |
|
|
|
| |
217 |
05.018 LINING KIT; RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
BRK WHL LK CONT LSPV<6PH>
HYDRO BRAKE BOOSTER<7QQ>
BEST VALUE PARTS
|
5-87610-119-0 |
01 |
1 |
0507-0606 |
● |
● |
|
|
|
|
| |
217 |
05.018 LINING KIT; RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.5-8.0TON(RPY)
BEST VALUE PARTS
|
5-87610-119-0 |
01 |
1 |
0607- |
● |
● |
● |
● |
|
|
| |
217 |
05.018 LINING KIT; RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 8.0-8.5TON(RPZ)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEARRATIO 41/7(R41),FINAL GEAR RATIO 43/
7(R42),FINAL GEAR RATIO 41/6(6YB)
BEST VALUE PARTS
|
5-87610-119-0 |
01 |
1 |
0607- |
● |
● |
● |
|
|
|
| |
217 |
05.018 LINING KIT; RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 8.0-8.5TON(RPZ)
FINAL GEAR RATIO 41/9(HC6)
HYDRO BRAKE BOOSTER<7QQ>
EXC. DISC BRAKE FRT<J52>,BRK WHL LK
CONT LSPV<6PH>
BEST VALUE PARTS
|
5-87610-119-0 |
01 |
1 |
0607- |
● |
● |
● |
|
|
|
| |
217 |
05.018 LINING KIT; RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
BRK WHL LK CONT LSPV<6PH>
HYDRO BRAKE BOOSTER<7QQ>
BEST VALUE PARTS
|
5-87610-119-0 |
01 |
1 |
0607- |
● |
● |
|
|
|
|
| |
218 |
05.017 SHOE KIT; BRK,RR
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 41/10(GT5),FINAL
GEAR RATIO 41/9(HC6)
4 WHEEL ANTI LOCK BRAKE<JE5>
DISC BRAKE FRT<J52>
G.V.W. 8.0-8.5TON(RPZ)
AUSTRALIA EQUIPMENT(RR3)
BRK WHL LK CONT LSPV<6PH>
FRAME STRAIGHT TYPE<7KJ>
|
5-87832-132-0 |
01 |
1 |
0507- |
● |
● |
● |
|
|
|
| |
218 |
05.017 SHOE KIT; BRK,RR
G.V.W. 6.5-7.0TON(RPW),G.V.W.
7.0-7.5TON(RPX)
|
5-87831-775-0 |
01 |
1 |
0211-0501 |
● |
● |
|
|
● |
|
| |
218 |
05.017 SHOE KIT; BRK,RR
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 7.5-8.0TON(RPY)
BRK WHL LK CONT LSPV<6PH>
|
5-87831-775-0 |
01 |
1 |
0211-0501 |
● |
● |
|
● |
|
|
| |
218 |
05.017 SHOE KIT; BRK,RR
G.V.W. 7.0-7.5TON(RPX)
|
5-87831-775-0 |
01 |
1 |
0502-0506 |
● |
● |
|
|
● |
|
| |
218 |
05.017 SHOE KIT; BRK,RR
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 6.0-6.5TON(RPV),G.V.W.
6.5-7.0TON(RPW)
|
5-87831-775-0 |
01 |
1 |
0507-0509 |
● |
● |
|
|
● |
|
| |
218 |
05.017 SHOE KIT; BRK,RR
G.V.W. 7.0-7.5TON(RPX)
EXC. BRK WHL LK CONT LSPV<6PH>
|
5-87831-775-0 |
01 |
1 |
0507-0509 |
● |
● |
|
|
● |
|
| |
218 |
05.017 SHOE KIT; BRK,RR
G.V.W. 7.0-7.5TON(RPX)
REAR AXLE HEAVY DUTY 292MM(G73)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,
DISC BRAKE FRT<J52>,BRK WHL LK CONT LSPV
<6PH>
|
5-87831-775-0 |
01 |
1 |
0510-0606 |
● |
● |
|
|
● |
|
| |
218 |
05.017 SHOE KIT; BRK,RR
G.V.W. 6.0-6.5TON(RPV),G.V.W.
6.5-7.0TON(RPW)
REAR AXLE HEAVY DUTY 320MM(6CP)
DISC BRAKE FRT<J52>
BRK WHL LK CONT LSPV<6PH>
|
5-87831-775-0 |
01 |
1 |
0510-0606 |
● |
● |
|
|
● |
|
| |
218 |
05.017 SHOE KIT; BRK,RR
G.V.W. 7.0-7.5TON(RPX)
REAR AXLE HEAVY DUTY 292MM(G73)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,
DISC BRAKE FRT<J52>,BRK WHL LK CONT LSPV
<6PH>
|
5-87831-775-0 |
01 |
1 |
0607- |
● |
● |
|
|
● |
|
| |
218 |
05.017 SHOE KIT; BRK,RR
G.V.W. 6.0-6.5TON(RPV),G.V.W.
6.5-7.0TON(RPW)
REAR AXLE HEAVY DUTY 320MM(6CP)
DISC BRAKE FRT<J52>
BRK WHL LK CONT LSPV<6PH>
|
5-87831-775-0 |
01 |
1 |
0607- |
● |
● |
|
|
● |
|
| |
218 |
05.017 SHOE KIT; BRK,RR
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
FINAL GEAR RATIO 39/7(GV1)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,
DISC BRAKE FRT<J52>,BRK WHL LK CONT LSPV
<6PH>
|
5-87831-775-0 |
01 |
1 |
0607- |
● |
● |
|
|
● |
|
| |
218 |
05.017 SHOE KIT; BRK,RR
G.V.W. 4.0-4.5TON(RPR),G.V.W.
6.0-6.5TON(RPV)
|
5-87832-047-0 |
01 |
1 |
0211-0501 |
● |
● |
|
● |
● |
|
| |
218 |
05.017 SHOE KIT; BRK,RR
G.V.W. 6.0-6.5TON(RPV)
|
5-87832-047-0 |
01 |
1 |
0502-0506 |
● |
● |
|
|
● |
|
| |
218 |
05.017 SHOE KIT; BRK,RR
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 6.0-6.5TON(RPV)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,
DISC BRAKE FRT<J52>,BRK WHL LK CONT LSPV
<6PH>
|
5-87832-047-0 |
01 |
1 |
0507- |
● |
● |
|
|
● |
|
| |
218 |
05.017 SHOE KIT; BRK,RR
G.V.W. 4.0-4.5TON(RPR)
|
5-87832-047-0 |
01 |
1 |
0507- |
● |
|
|
|
● |
|
| |
218 |
05.017 SHOE KIT; BRK,RR
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.5-8.0TON(RPY)
EXC. BRK WHL LK CONT LSPV<6PH>
|
5-87831-693-0 |
01 |
1 |
0211-0501 |
● |
● |
● |
|
|
|
| |
218 |
05.017 SHOE KIT; BRK,RR
G.V.W. 8.0-8.5TON(RPZ)
|
5-87831-693-0 |
01 |
1 |
0211-0501 |
● |
● |
● |
|
|
|
| |
218 |
05.017 SHOE KIT; BRK,RR
REAR AXLE HEAVY DUTY 320MM(6CP)
|
5-87831-693-0 |
01 |
1 |
0502-0506 |
● |
● |
● |
|
|
|
| |
218 |
05.017 SHOE KIT; BRK,RR
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.5-8.0TON(RPY)
|
5-87831-693-0 |
01 |
1 |
0507-0606 |
● |
● |
● |
● |
|
|
| |
218 |
05.017 SHOE KIT; BRK,RR
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 8.0-8.5TON(RPZ)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEARRATIO 41/7(R41),FINAL GEAR RATIO 43/
7(R42),FINAL GEAR RATIO 41/6(6YB)
|
5-87831-693-0 |
01 |
1 |
0507-0606 |
● |
● |
● |
|
|
|
| |
218 |
05.017 SHOE KIT; BRK,RR
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
BRK WHL LK CONT LSPV<6PH>
HYDRO BRAKE BOOSTER<7QQ>
|
5-87831-693-0 |
01 |
1 |
0507-0606 |
● |
● |
|
|
|
|
| |
218 |
05.017 SHOE KIT; BRK,RR
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.5-8.0TON(RPY)
|
5-87831-693-0 |
01 |
1 |
0607- |
● |
● |
● |
● |
|
|
| |
218 |
05.017 SHOE KIT; BRK,RR
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 8.0-8.5TON(RPZ)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEARRATIO 41/7(R41),FINAL GEAR RATIO 43/
7(R42),FINAL GEAR RATIO 41/6(6YB)
|
5-87831-693-0 |
01 |
1 |
0607- |
● |
● |
● |
|
|
|
| |
218 |
05.017 SHOE KIT; BRK,RR
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 8.0-8.5TON(RPZ)
FINAL GEAR RATIO 41/9(HC6)
HYDRO BRAKE BOOSTER<7QQ>
EXC. DISC BRAKE FRT<J52>,BRK WHL LK
CONT LSPV<6PH>
|
5-87831-693-0 |
01 |
1 |
0607- |
● |
● |
● |
|
|
|
| |
218 |
05.017 SHOE KIT; BRK,RR
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX)
BRK WHL LK CONT LSPV<6PH>
HYDRO BRAKE BOOSTER<7QQ>
|
5-87831-693-0 |
01 |
1 |
0607- |
● |
● |
|
|
|
|
| |
218 |
05.017 SHOE KIT; BRK,RR
|
5-87832-088-0 |
01 |
1 |
0211- |
|
|
|
|
|
● |
| |
297 |
05.125 RING; SNAP
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 41/10(GT5),FINAL
GEAR RATIO 41/9(HC6)
4 WHEEL ANTI LOCK BRAKE<JE5>
DISC BRAKE FRT<J52>
G.V.W. 8.0-8.5TON(RPZ)
AUSTRALIA EQUIPMENT(RR3)
BRK WHL LK CONT LSPV<6PH>
FRAME STRAIGHT TYPE<7KJ>
04.665
|
1-47629-263-0 |
04 |
1 |
0507- |
● |
● |
● |
|
|
|
