0-36 — TURBOCHARGER SYSTEM (#18249) — 116 parça

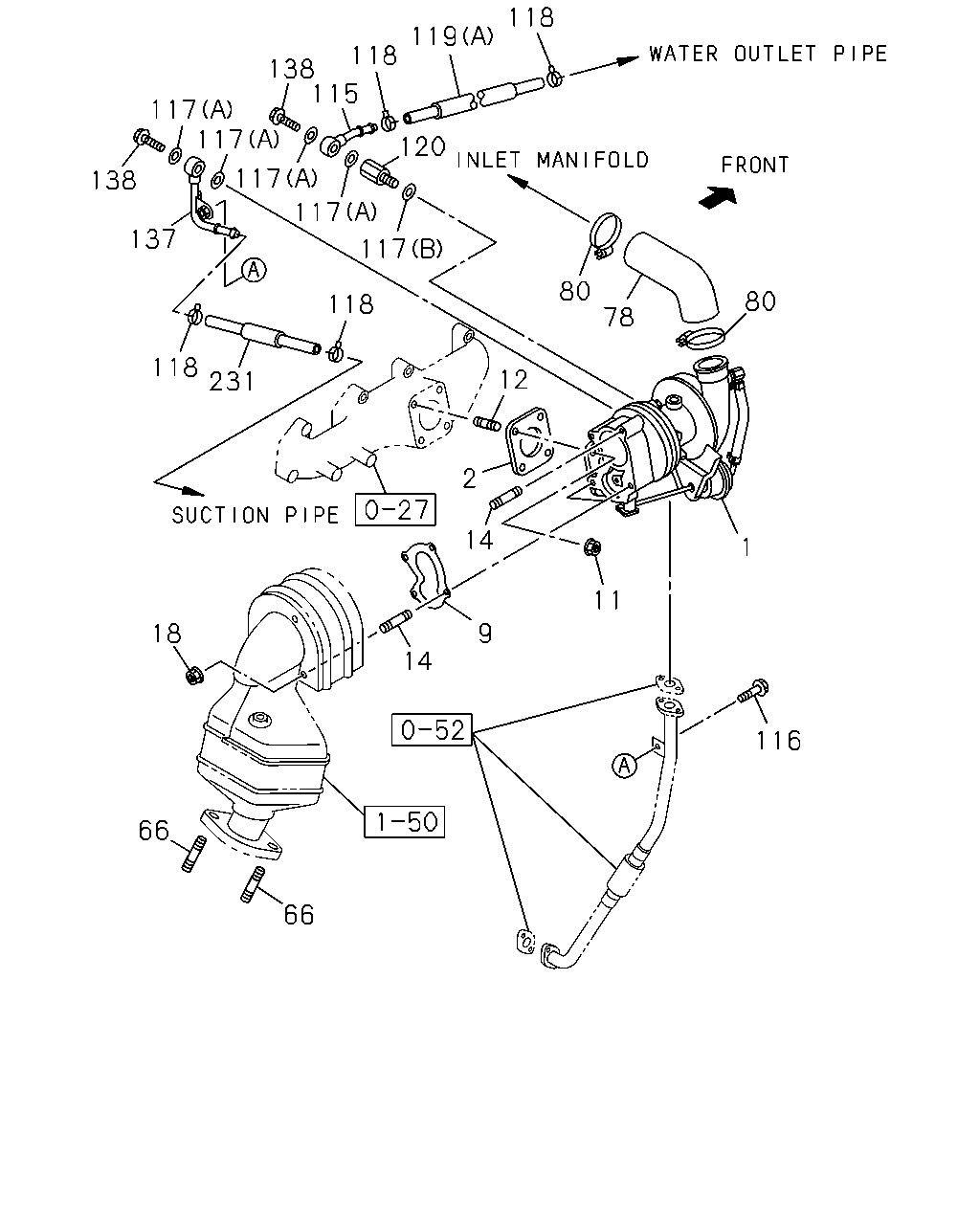

çizim 46863
118 119 118 138 115 117 117 120 117 138 117 137 117 80 80 118 78 118 231 12 2 14 1 11 18 9 14 116 66 66
BalonParca AdiParca NoAdetTipApplied Date A B C
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. THA 		8-97943-196-1 01 1 0303-0408 ●
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. THA 		8-97355-408-3 01 1 0409-0606 ●
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. THA 		8-98011-892-3 01 1 0607- ●
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. THA 		8-97373-777-1 01 1 0501-0606 ●
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. THA 		8-98011-893-4 01 1 0607- ●
2 GASKET; TURBOCHARGER TO EXH MANIF
THA 		8-97912-697-0 01 1 0303-0408 ●
2 GASKET; TURBOCHARGER TO EXH MANIF
THA 		8-97912-697-0 01 1 0409-0412 ●
2 GASKET; TURBOCHARGER TO EXH MANIF
THA 		8-97912-697-0 01 1 0501- ● ●
9 GASKET; TURBOCHARGER TO EXH DUCT
THA 		8-97912-694-0 01 1 0303-0408 ●
11 NUT; TURBOCHARGER
M8 FLANGE IMA 		8-97161-607-0 04 1 0303-0408 ●
11 NUT; TURBOCHARGER
M8 FLANGE THA 		8-97379-384-0 04 1 0409-0412 ●
11 NUT; TURBOCHARGER
M8 FLANGE THA 		8-97379-384-0 04 1 0501- ● ●
12 STUD; TURBOCHARGER
M8X20 L=31 THA 		8-97104-508-1 04 1 0303-0408 ●
12 STUD; TURBOCHARGER
M8X20 L=31 THA 		8-97104-508-1 04 1 0409-0409 ●
12 STUD; TURBOCHARGER
M8X20 L=31 THA 		8-97378-060-0 04 1 0410-0412 ●
12 STUD; TURBOCHARGER
M8X20 L=31 THA 		8-97378-060-0 04 1 0501- ● ●
14 STUD; TURBOCHARGER TO EXH PIPE
M8X43 L=54 THA 		8-97104-507-1 04 1 0303-0408 ●
18 NUT; EXH PIPE
M8 FLANGE IMA 		8-97161-607-0 04 1 0303-0408 ●
66 STUD; EXH PIPE
M10X30 L=45 THA 		0-49241-030-0 02 1 0303-0408 ●
66 STUD; EXH PIPE
M10X25 L=40 THA 		0-44011-025-0 02 1 0409-0412 ●
66 STUD; EXH PIPE
M10X25 L=40 THA 		0-44011-025-0 02 1 0501-0509 ● ●
66 STUD; EXH PIPE
M10X25 L=40 THA 		0-44011-025-0 02 1 0510-0510 ●
66 STUD; EXH PIPE
M10X22 L=43 THA 		0-43211-022-0 02 1 0510-0510 ●
66 STUD; EXH PIPE
M10X22 L=43 THA 		0-43211-022-0 02 1 0511- ● ●
78 HOSE; INL PIPE,TURBOCHARGER
THA 		8-97254-750-0 01 1 0303-0303 ●
78 HOSE; INL PIPE,TURBOCHARGER
THA 		8-97942-956-0 01 1 0303-0408 ●
80 CLIP; CONN HOSE,TURBOCHARGER
ID=44-60 THA 		8-94175-940-0 02 1 0303-0408 ●
115 PIPE; WATER,TURBOCHARGER OUT
THA 		8-97920-034-0 01 1 0303-0408 ●
115 PIPE; WATER,TURBOCHARGER OUT
THA 		8-97312-288-1 01 1 0409-0412 ●
115 PIPE; WATER,TURBOCHARGER OUT
THA 		8-97312-288-1 01 1 0501-0606 ● ●
115 PIPE; WATER,TURBOCHARGER OUT
THA 		8-98011-902-0 01 1 0607- ● ●
116 BOLT; WATER PIPE
M6X12 W/LK WASHER THA 		0-50540-612-0 01 1 0303-0408 ●
117 GASKET; WATER PIPE
(B) T=2.5 THA 		8-97920-063-0 01 1 0303-0408 ●
117 GASKET; WATER PIPE
(A) ID=12.2 IMA 		9-09571-412-0 04 1 0303-0408 ●
117 GASKET; WATER PIPE
(C) ID=14.2 OD=20.0 THA 		9-09571-414-0 04 1 0409-0412 ●
117 GASKET; WATER PIPE
(C) ID=14.2 OD=20.0 THA 		9-09571-414-0 04 1 0501- ● ●
118 CLIP; WATER HOSE
ID=12.8 IMA 		8-94367-943-0 04 1 0303-0408 ●
118 CLIP; WATER HOSE
ID=12.8 THA 		8-97944-125-0 10 1 0409-0412 ●
118 CLIP; WATER HOSE
ID=12.8 THA 		8-97944-125-0 10 1 0501- ● ●
119 HOSE; WATER,TURBOCHARGER
(A) L=250 W/INSULATOR THA 		8-97912-688-1 01 1 0303-0408 ●
119 HOSE; WATER,TURBOCHARGER
(C) L=100 SERVICED BY L=3000 IMA 		0-03559-300-0 01 1 0409-0412 ●
119 HOSE; WATER,TURBOCHARGER
(C) L=100 SERVICED BY L=3000 IMA 		0-03559-300-0 01 1 0501-0606 ● ●
119 HOSE; WATER,TURBOCHARGER
(C) L=210 SERVICED BY L=3000 IMA 		0-03559-300-0 01 1 0607- ● ●
119 HOSE; WATER,TURBOCHARGER
(B) THA 		8-97369-590-1 01 1 0409-0412 ●
119 HOSE; WATER,TURBOCHARGER
(B) THA 		8-97369-590-1 01 1 0501- ● ●
120 ADAPTER; WATER
THA 		8-97920-062-0 01 1 0303-0408 ●
137 PIPE; WATER,TURBOCHARGER IN
THA 		8-97920-035-0 01 1 0303-0408 ●
137 PIPE; WATER,TURBOCHARGER IN
THA 		8-97312-289-2 01 1 0409-0412 ●
137 PIPE; WATER,TURBOCHARGER IN
THA 		8-97312-289-2 01 1 0501-0606 ● ●
137 PIPE; WATER,TURBOCHARGER IN
THA 		8-98011-903-0 01 1 0607- ● ●
138 BOLT; EYE,WATER PIPE
M12X24 EYE-BOLT THA 		1-09675-081-0 02 1 0303-0408 ●
138 BOLT; EYE,WATER PIPE
M14X27 EYE-BOLT IMA 		1-09675-193-0 02 1 0409-0412 ●
138 BOLT; EYE,WATER PIPE
M14X27 EYE-BOLT IMA 		1-09675-193-0 02 1 0501-0606 ● ●
138 BOLT; EYE,WATER PIPE
M14X31 EYE-BOLT THA 		8-98037-067-0 02 1 0607- ● ●
231 HOSE; RUBBER,TURBOCHARGER OUT
L=160 W/INSULATOR THA 		8-97912-684-0 01 1 0303-0408 ●
231 HOSE; RUBBER,TURBOCHARGER OUT
L=220 SERVICED BY L=3000 IMA 		0-03559-300-0 01 1 0409-0412 ●
231 HOSE; RUBBER,TURBOCHARGER OUT
L=220 SERVICED BY L=3000 IMA 		0-03559-300-0 01 1 0501-0606 ● ●
231 HOSE; RUBBER,TURBOCHARGER OUT
L=210 SERVICED BY L=3000 IMA 		0-03559-300-0 01 1 0607- ● ●

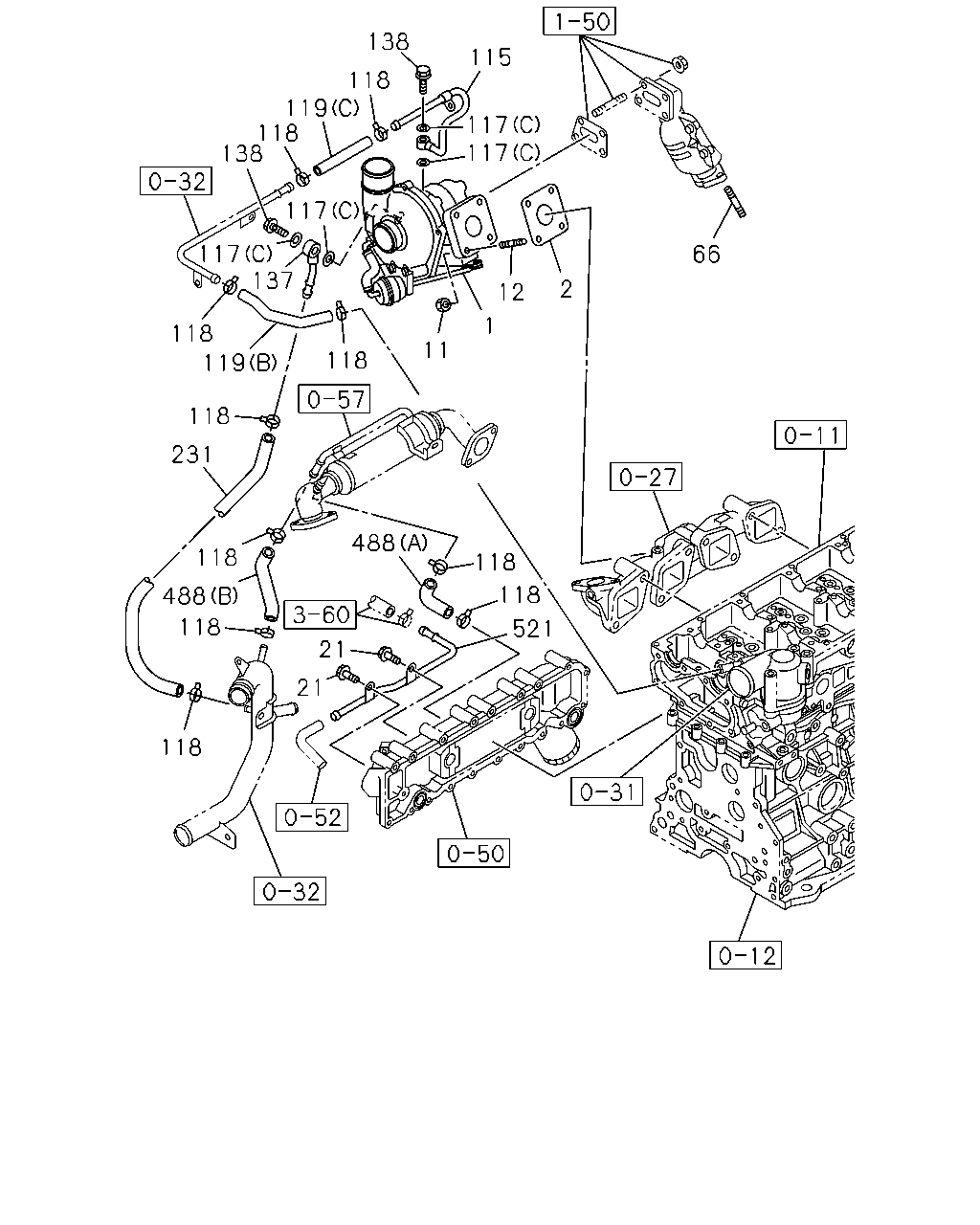

çizim 50023
138 115 118 119 118 138 117 117 117 117 137 66 2 12 1 118 11 118 119 118 231 488 118 118 118 488 118 521 21 21 118
BalonParca AdiParca NoAdetTipApplied Date A B C
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. THA 		8-97943-196-1 01 1 0303-0408 ●
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. THA 		8-97355-408-3 01 1 0409-0606 ●
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. THA 		8-98011-892-3 01 1 0607- ●
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. THA 		8-97373-777-1 01 1 0501-0606 ●
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. THA 		8-98011-893-4 01 1 0607- ●
2 GASKET; TURBOCHARGER TO EXH MANIF
THA 		8-97912-697-0 01 1 0303-0408 ●
2 GASKET; TURBOCHARGER TO EXH MANIF
THA 		8-97912-697-0 01 1 0409-0412 ●
2 GASKET; TURBOCHARGER TO EXH MANIF
THA 		8-97912-697-0 01 1 0501- ● ●
11 NUT; TURBOCHARGER
M8 FLANGE IMA 		8-97161-607-0 04 1 0303-0408 ●
11 NUT; TURBOCHARGER
M8 FLANGE THA 		8-97379-384-0 04 1 0409-0412 ●
11 NUT; TURBOCHARGER
M8 FLANGE THA 		8-97379-384-0 04 1 0501- ● ●
12 STUD; TURBOCHARGER
M8X20 L=31 THA 		8-97104-508-1 04 1 0303-0408 ●
12 STUD; TURBOCHARGER
M8X20 L=31 THA 		8-97104-508-1 04 1 0409-0409 ●
12 STUD; TURBOCHARGER
M8X20 L=31 THA 		8-97378-060-0 04 1 0410-0412 ●
12 STUD; TURBOCHARGER
M8X20 L=31 THA 		8-97378-060-0 04 1 0501- ● ●
21 BOLT; PIPE
M6X16 FLANGE THA 		0-28650-616-0 02 1 0409-0412 ●
21 BOLT; PIPE
M6X16 FLANGE THA 		0-28650-616-0 02 1 0501-0606 ● ●
66 STUD; EXH PIPE
M10X30 L=45 THA 		0-49241-030-0 02 1 0303-0408 ●
66 STUD; EXH PIPE
M10X25 L=40 THA 		0-44011-025-0 02 1 0409-0412 ●
66 STUD; EXH PIPE
M10X25 L=40 THA 		0-44011-025-0 02 1 0501-0509 ● ●
66 STUD; EXH PIPE
M10X25 L=40 THA 		0-44011-025-0 02 1 0510-0510 ●
66 STUD; EXH PIPE
M10X22 L=43 THA 		0-43211-022-0 02 1 0510-0510 ●
66 STUD; EXH PIPE
M10X22 L=43 THA 		0-43211-022-0 02 1 0511- ● ●
115 PIPE; WATER,TURBOCHARGER OUT
THA 		8-97920-034-0 01 1 0303-0408 ●
115 PIPE; WATER,TURBOCHARGER OUT
THA 		8-97312-288-1 01 1 0409-0412 ●
115 PIPE; WATER,TURBOCHARGER OUT
THA 		8-97312-288-1 01 1 0501-0606 ● ●
115 PIPE; WATER,TURBOCHARGER OUT
THA 		8-98011-902-0 01 1 0607- ● ●
117 GASKET; WATER PIPE
(B) T=2.5 THA 		8-97920-063-0 01 1 0303-0408 ●
117 GASKET; WATER PIPE
(A) ID=12.2 IMA 		9-09571-412-0 04 1 0303-0408 ●
117 GASKET; WATER PIPE
(C) ID=14.2 OD=20.0 THA 		9-09571-414-0 04 1 0409-0412 ●
117 GASKET; WATER PIPE
(C) ID=14.2 OD=20.0 THA 		9-09571-414-0 04 1 0501- ● ●
118 CLIP; WATER HOSE
ID=12.8 IMA 		8-94367-943-0 04 1 0303-0408 ●
118 CLIP; WATER HOSE
ID=12.8 THA 		8-97944-125-0 10 1 0409-0412 ●
118 CLIP; WATER HOSE
ID=12.8 THA 		8-97944-125-0 10 1 0501- ● ●
119 HOSE; WATER,TURBOCHARGER
(A) L=250 W/INSULATOR THA 		8-97912-688-1 01 1 0303-0408 ●
119 HOSE; WATER,TURBOCHARGER
(C) L=100 SERVICED BY L=3000 IMA 		0-03559-300-0 01 1 0409-0412 ●
119 HOSE; WATER,TURBOCHARGER
(C) L=100 SERVICED BY L=3000 IMA 		0-03559-300-0 01 1 0501-0606 ● ●
119 HOSE; WATER,TURBOCHARGER
(C) L=210 SERVICED BY L=3000 IMA 		0-03559-300-0 01 1 0607- ● ●
119 HOSE; WATER,TURBOCHARGER
(B) THA 		8-97369-590-1 01 1 0409-0412 ●
119 HOSE; WATER,TURBOCHARGER
(B) THA 		8-97369-590-1 01 1 0501- ● ●
137 PIPE; WATER,TURBOCHARGER IN
THA 		8-97920-035-0 01 1 0303-0408 ●
137 PIPE; WATER,TURBOCHARGER IN
THA 		8-97312-289-2 01 1 0409-0412 ●
137 PIPE; WATER,TURBOCHARGER IN
THA 		8-97312-289-2 01 1 0501-0606 ● ●
137 PIPE; WATER,TURBOCHARGER IN
THA 		8-98011-903-0 01 1 0607- ● ●
138 BOLT; EYE,WATER PIPE
M12X24 EYE-BOLT THA 		1-09675-081-0 02 1 0303-0408 ●
138 BOLT; EYE,WATER PIPE
M14X27 EYE-BOLT IMA 		1-09675-193-0 02 1 0409-0412 ●
138 BOLT; EYE,WATER PIPE
M14X27 EYE-BOLT IMA 		1-09675-193-0 02 1 0501-0606 ● ●
138 BOLT; EYE,WATER PIPE
M14X31 EYE-BOLT THA 		8-98037-067-0 02 1 0607- ● ●
231 HOSE; RUBBER,TURBOCHARGER OUT
L=160 W/INSULATOR THA 		8-97912-684-0 01 1 0303-0408 ●
231 HOSE; RUBBER,TURBOCHARGER OUT
L=220 SERVICED BY L=3000 IMA 		0-03559-300-0 01 1 0409-0412 ●
231 HOSE; RUBBER,TURBOCHARGER OUT
L=220 SERVICED BY L=3000 IMA 		0-03559-300-0 01 1 0501-0606 ● ●
231 HOSE; RUBBER,TURBOCHARGER OUT
L=210 SERVICED BY L=3000 IMA 		0-03559-300-0 01 1 0607- ● ●
488 HOSE; RUBBER
(A) L=150 SERVICED BY L=3000 IMA 		0-03559-300-0 01 1 0409-0412 ●
488 HOSE; RUBBER
(A) L=150 SERVICED BY L=3000 IMA 		0-03559-300-0 01 1 0501- ● ●
488 HOSE; RUBBER
(B) L=170 SERVICED BY L=3000 IMA 		0-03559-300-0 01 1 0409-0412 ●
488 HOSE; RUBBER
(B) L=170 SERVICED BY L=3000 IMA 		0-03559-300-0 01 1 0501- ● ●
521 PIPE; VAC
THA 		8-97357-847-3 01 1 0409-0412 ●
521 PIPE; VAC
THA 		8-97357-847-3 01 1 0501-0606 ● ●
