Isuzu WW
▶
PICKUP
▶
TFR
▶
50958 - TFR/TFS THAI-RUNG
▶
0 - Engine, Emission, Engine Electrical
▶
0-32 - WATER PIPING; ENGINE
▶
0-32 — WATER PIPING; ENGINE
(#18246) — 36 parça
Tümü
A - 4JH1 ENG
B - 4JJ1 ENG
C - 4JK1 ENG
◀

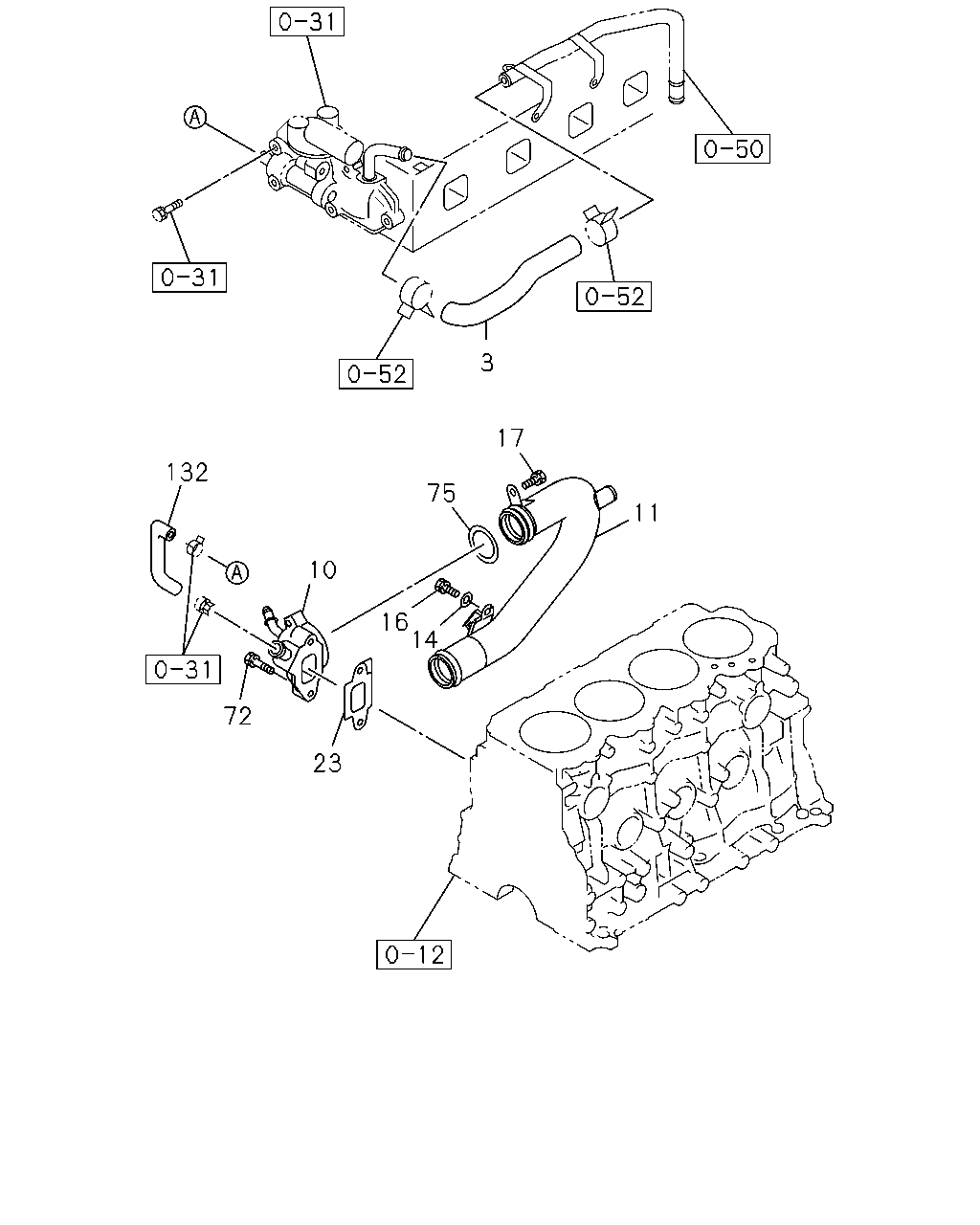

[032A] 4JH1 (15 parça)

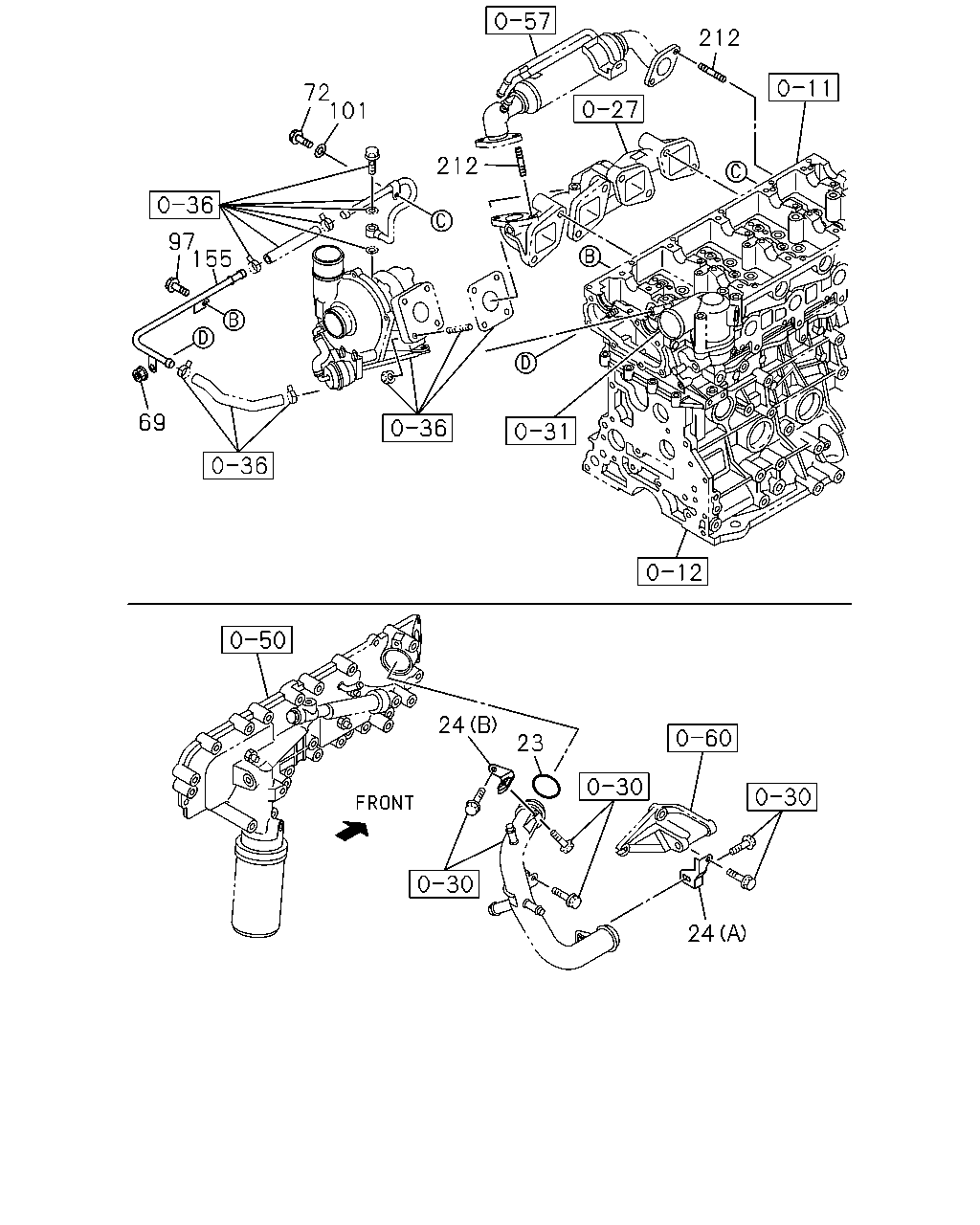

[032A] 4JJ1,4JK1 (21 parça)
▶
3
17
132
75
11
10
16
14
72
23
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
3
HOSE; WATER,OIL COOLER
THA
8-97920-060-0
01
1
0303-0401
●
3
HOSE; WATER,OIL COOLER
THA
8-97943-892-0
01
1
0402-0408
●
10
PIPE; SUCTION
THA
8-97910-379-0
01
1
0303-0408
●
11
PIPE; INL,WATER PUMP
THA
8-97288-269-1
01
1
0303-0408
●
14
WASHER; PL,INL PIPE TO BRKT
ID=8 OD=18 T=3 IMA
8-94174-537-0
01
1
0303-0408
●
16
BOLT; INL PIPE
M8X20 FLANGE THA
0-28050-820-0
01
1
0303-0408
●
17
BOLT; SUCTION PIPE
M8X20 FLANGE THA
0-28050-820-0
01
1
0303-0408
●
23
GASKET; SUCTION PIPE TO BLOCK
THA
8-97943-089-0
01
1
0303-0408
●
23
GASKET; SUCTION PIPE TO BLOCK
THA
0-95690-338-0
01
1
0409-0412
●
23
GASKET; SUCTION PIPE TO BLOCK
THA
0-95690-338-0
01
1
0501-
●
●
72
BOLT; WATER PIPE
M8X50 W/LK WASHER THA
0-50540-850-0
02
1
0303-0408
●
72
BOLT; WATER PIPE
M6X12 FLANGE THA
0-28050-612-0
01
1
0409-0412
●
72
BOLT; WATER PIPE
M6X12 FLANGE THA
0-28050-612-0
01
1
0501-0606
●
●
75
GASKET; INL PIPE TO WATER PUMP
ID=35.2 THA
9-09565-335-0
01
1
0303-0408
●
132
HOSE; WATER PIPE
THA
8-97910-065-0
01
1
0303-0408
●
212
72
101
212
97
155
69
24
23
24
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
23
GASKET; SUCTION PIPE TO BLOCK
THA
8-97943-089-0
01
1
0303-0408
●
23
GASKET; SUCTION PIPE TO BLOCK
THA
0-95690-338-0
01
1
0409-0412
●
23
GASKET; SUCTION PIPE TO BLOCK
THA
0-95690-338-0
01
1
0501-
●
●
24
BRACKET; WATER PIPE
(A) THA
8-97375-053-1
01
1
0409-0412
●
24
BRACKET; WATER PIPE
(A) THA
8-97375-053-2
01
1
0501-
●
●
24
BRACKET; WATER PIPE
(B) THA
8-97377-505-0
01
1
0409-0412
●
24
BRACKET; WATER PIPE
(B) THA
8-97377-505-1
01
1
0501-
●
●
69
NUT; WATER PIPE
M6 FLANGE THA
0-91180-206-0
01
1
0409-0412
●
69
NUT; WATER PIPE
M6 FLANGE THA
0-91180-206-0
01
1
0501-
●
●
72
BOLT; WATER PIPE
M8X50 W/LK WASHER THA
0-50540-850-0
02
1
0303-0408
●
72
BOLT; WATER PIPE
M6X12 FLANGE THA
0-28050-612-0
01
1
0409-0412
●
72
BOLT; WATER PIPE
M6X12 FLANGE THA
0-28050-612-0
01
1
0501-0606
●
●
97
BOLT; WATER PIPE
M6X12 FLANGE THA
0-28050-612-0
01
1
0409-0412
●
97
BOLT; WATER PIPE
M6X12 FLANGE THA
0-28050-612-0
01
1
0501-
●
●
101
WASHER; PL,WATER PIPE
ID=6.4 IMA
0-91610-606-0
01
1
0409-0412
●
101
WASHER; PL,WATER PIPE
ID=6.4 IMA
0-91610-606-0
01
1
0501-0606
●
●
155
PIPE ASM; WATER
THA
8-97312-072-2
01
1
0409-0412
●
155
PIPE ASM; WATER
THA
8-97312-072-2
01
1
0501-0606
●
●
155
PIPE ASM; WATER
THA
8-98011-508-1
01
1
0607-
●
●
212
STUD; PIPE
M8X22 L=33 THA
8-94257-319-0
03
1
0409-0412
●
212
STUD; PIPE
M8X22 L=33 THA
8-94257-319-0
03
1
0501-0710
●
●
