50958 - TFR/TFS THAI-RUNG
▶
0 - Engine, Emission, Engine Electrical
▶
0-30 - WATER PUMP AND CORROSION RESISTOR
▶

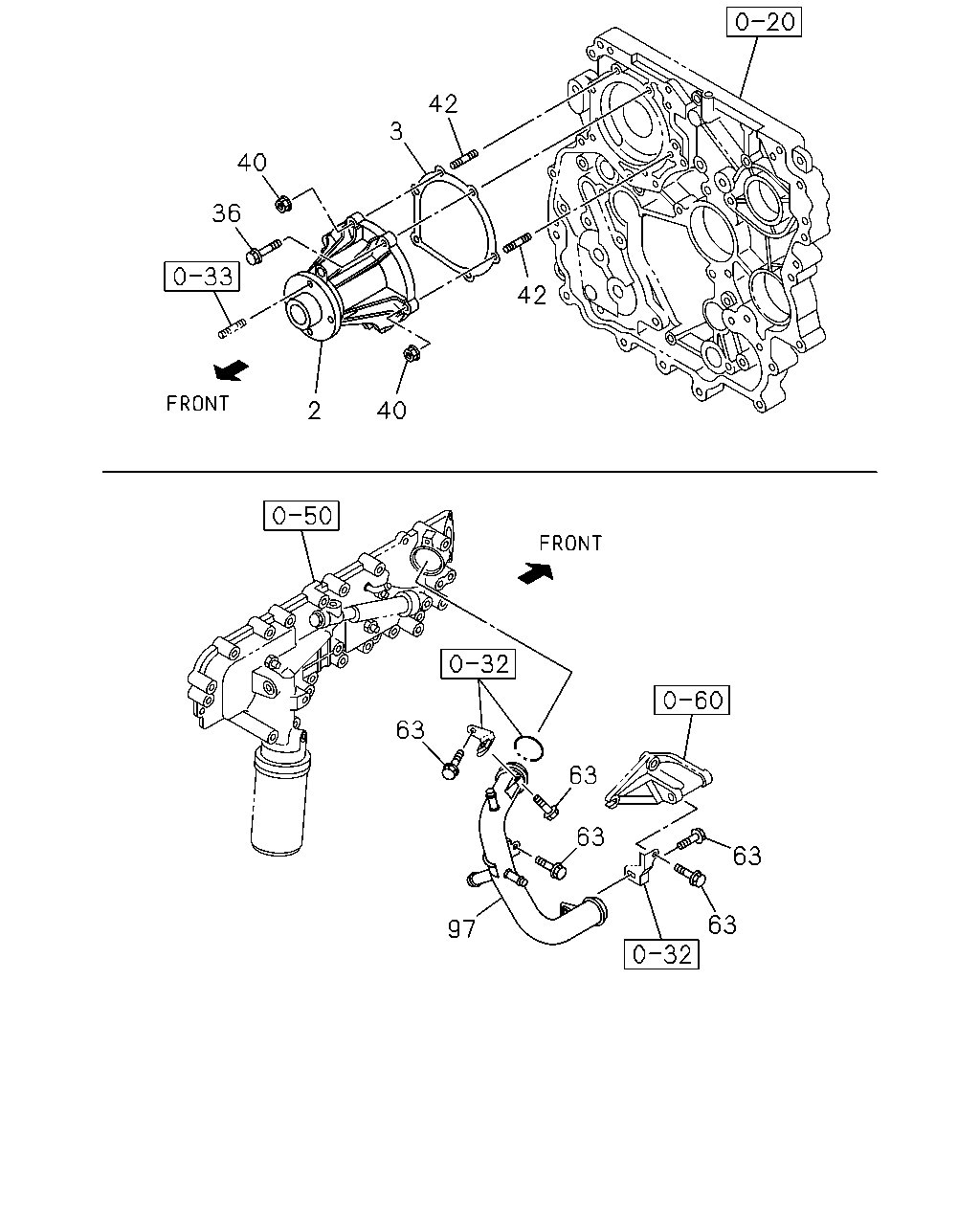

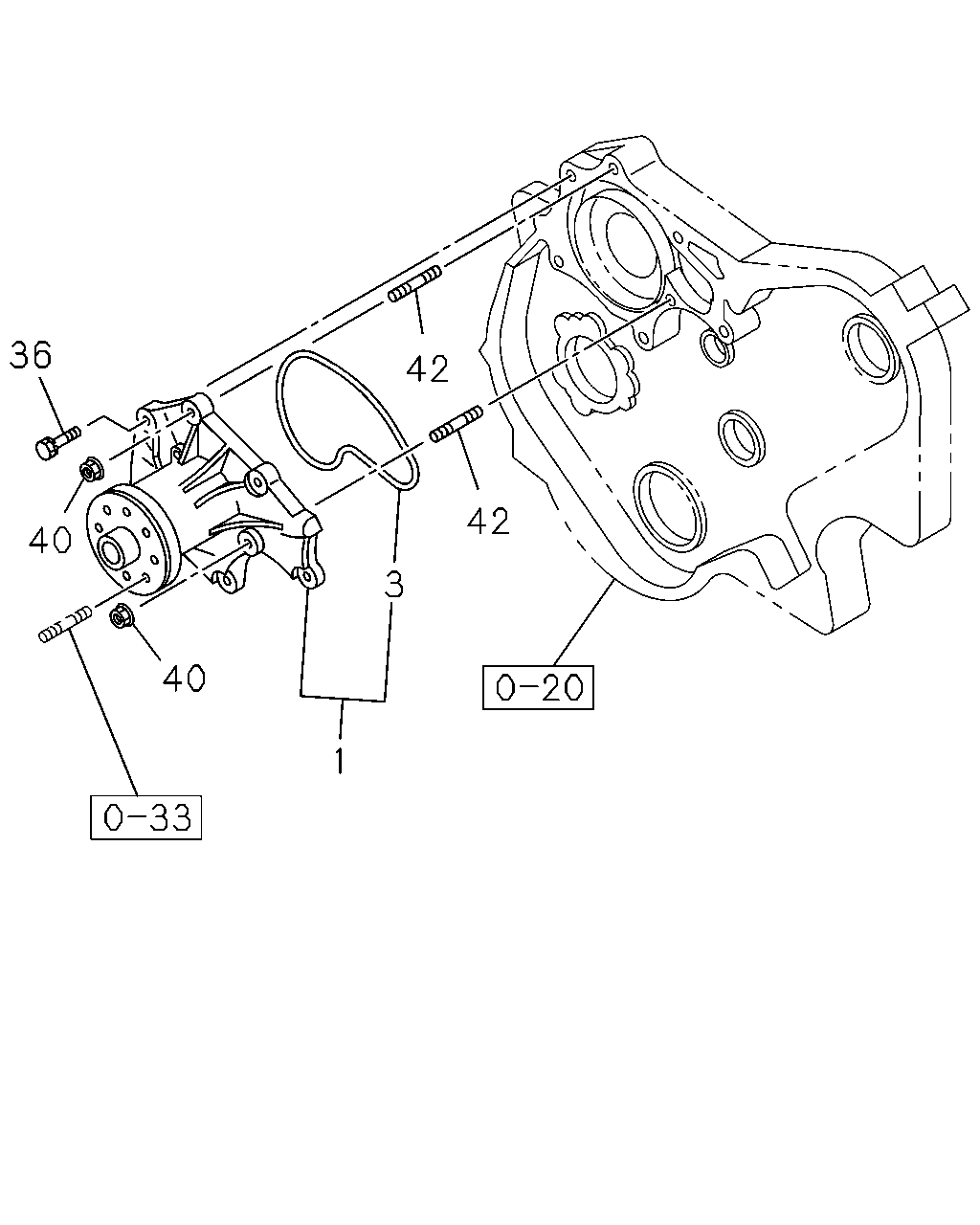

0-30 — WATER PUMP AND CORROSION RESISTOR
(#18244) — 32 parça
Tümü
A - 4JJ1 ENG
B - 4JK1 ENG
C - 4JH1 ENG
◀
[030A] 4JJ1,4JK1 (19 parça)
[030A] 4JH1 (13 parça)
▶
42
3
40
36
42
2
40
63
63
63
63
63
97
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
2
PUMP ASM; WATER
THA
8-97312-147-3
01
1
0409-0412
●
2
PUMP ASM; WATER
THA
8-97312-147-4
01
1
0501-
●
●
3
GASKET; PUMP TO C/BL
THA
8-97912-600-0
01
1
0303-0408
●
3
GASKET; PUMP TO C/BL
THA
8-97312-156-0
01
1
0409-0412
●
3
GASKET; PUMP TO C/BL
THA
8-97312-156-0
01
1
0501-
●
●
36
BOLT; WATER PUMP TO C/BL
M8X55 W/LK WASHER THA
8-97916-380-0
05
1
0303-0408
●
36
BOLT; WATER PUMP TO C/BL
M8X50 FLANGE THA
0-28050-850-0
04
1
0409-0412
●
36
BOLT; WATER PUMP TO C/BL
M8X50 FLANGE THA
0-28050-850-0
04
1
0501-
●
●
40
NUT; WATER PUMP
M8 FLANGE THA
0-91180-108-0
02
1
0303-0408
●
40
NUT; WATER PUMP
M8 FLANGE THA
0-91180-208-0
02
1
0409-0412
●
40
NUT; WATER PUMP
M8 FLANGE THA
0-91180-208-0
02
1
0501-
●
●
42
STUD; WATER PUMP
M8X22 L=34 THA
0-41010-822-0
02
1
0303-0408
●
42
STUD; WATER PUMP
M8X22 L=40 THA
0-49140-822-0
02
1
0409-0412
●
42
STUD; WATER PUMP
M8X22 L=40 THA
0-49140-822-0
02
1
0501-
●
●
63
BOLT; INL PIPE
M8X16 FLANGE THA
0-28050-816-0
05
1
0409-0412
●
63
BOLT; INL PIPE
M8X16 FLANGE THA
0-28050-816-0
05
1
0501-
●
●
97
PIPE; WATER
THA
8-97354-754-2
01
1
0409-0412
●
97
PIPE; WATER
THA
8-97354-754-3
01
1
0501-0706
●
●
97
PIPE; WATER
THA
8-98090-214-0
01
1
0707-
●
●
36
42
42
40
3
40
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
PUMP ASM; WATER,W/GASKET
THA
8-97942-972-0
01
1
0303-0408
●
3
GASKET; PUMP TO C/BL
THA
8-97912-600-0
01
1
0303-0408
●
3
GASKET; PUMP TO C/BL
THA
8-97312-156-0
01
1
0409-0412
●
3
GASKET; PUMP TO C/BL
THA
8-97312-156-0
01
1
0501-
●
●
36
BOLT; WATER PUMP TO C/BL
M8X55 W/LK WASHER THA
8-97916-380-0
05
1
0303-0408
●
36
BOLT; WATER PUMP TO C/BL
M8X50 FLANGE THA
0-28050-850-0
04
1
0409-0412
●
36
BOLT; WATER PUMP TO C/BL
M8X50 FLANGE THA
0-28050-850-0
04
1
0501-
●
●
40
NUT; WATER PUMP
M8 FLANGE THA
0-91180-108-0
02
1
0303-0408
●
40
NUT; WATER PUMP
M8 FLANGE THA
0-91180-208-0
02
1
0409-0412
●
40
NUT; WATER PUMP
M8 FLANGE THA
0-91180-208-0
02
1
0501-
●
●
42
STUD; WATER PUMP
M8X22 L=34 THA
0-41010-822-0
02
1
0303-0408
●
42
STUD; WATER PUMP
M8X22 L=40 THA
0-49140-822-0
02
1
0409-0412
●
42
STUD; WATER PUMP
M8X22 L=40 THA
0-49140-822-0
02
1
0501-
●
●
