◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50958 - TFR/TFS THAI-RUNG ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-22 - ENGINE MOUNTING ▶
0-22 — ENGINE MOUNTING (#18240) — 79 parça

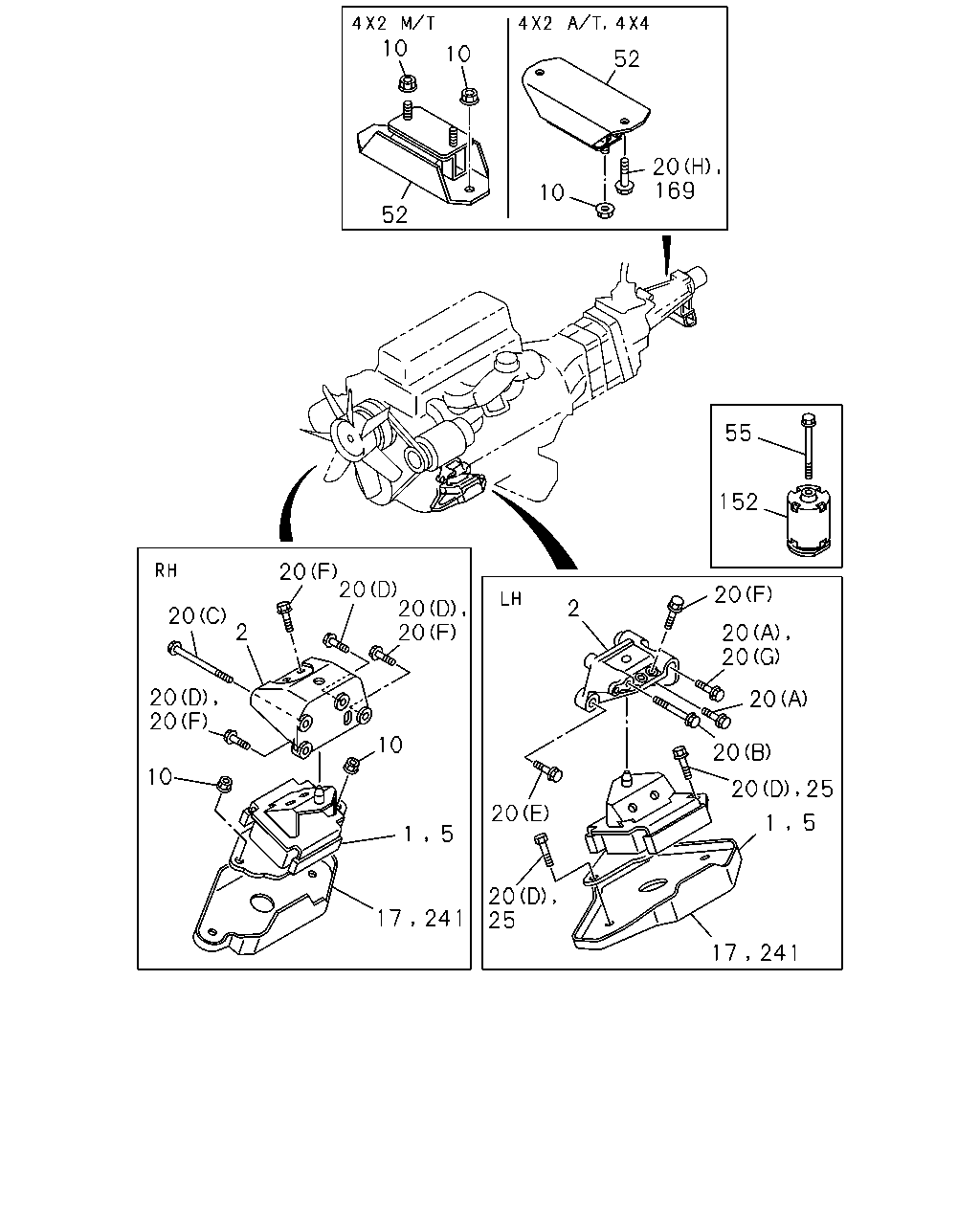

çizim 100659
10 10 52 20 169 10 52 55 152 20 20 20 20 20 2 20 2 20 20 20 20 20 10 20 10 20 5 1 5 1 20 25 20 25 17 241 17 241
BalonParca AdiParca NoAdetTipApplied Date A B C
1 RUBBER; ENG FOOT,FRT
THA 		8-97367-273-0 01 1 0409-0412 ●
1 RUBBER; ENG FOOT,FRT
THA 		8-97367-273-0 01 1 0501- ● ●
1 RUBBER; ENG FOOT,FRT
THA 		8-97363-543-0 01 1 0409-0412 ●
1 RUBBER; ENG FOOT,FRT
THA 		8-97363-543-0 01 1 0501- ● ●
2 FOOT; ENG
THA 		8-97308-036-2 01 1 0303-0408 ●
2 FOOT; ENG
THA 		8-97355-476-0 01 1 0409-0412 ●
2 FOOT; ENG
THA 		8-97355-476-0 01 1 0501- ● ●
2 FOOT; ENG
THA 		8-97943-686-0 01 1 0303-0408 ●
2 FOOT; ENG
THA 		8-97355-478-1 01 1 0409-0412 ●
2 FOOT; ENG
THA 		8-97355-478-1 01 1 0501- ● ●
5 RUBBER; SUPPORT,ENG FOOT
THA 		8-97234-977-2 01 1 0303-0304 ●
5 RUBBER; SUPPORT,ENG FOOT
THA 		8-97367-273-0 01 1 0305-0408 ●
5 RUBBER; SUPPORT,ENG FOOT
THA 		8-97234-976-2 01 1 0303-0304 ●
5 RUBBER; SUPPORT,ENG FOOT
THA 		8-97367-272-0 01 1 0305-0408 ●
10 NUT; MTG RUBBER
M10 FLANGE THA 		0-91180-210-0 04 1 0303-0408 ●
10 NUT; MTG RUBBER
4X2<TFB***> M/T MUA 5 SPEED<RMN> M10 FLANGE THA 		0-91180-210-0 02 1 0303-0408 ●
10 NUT; MTG RUBBER
M10 FLANGE THA 		0-91180-210-0 02 1 0409-0412 ●
10 NUT; MTG RUBBER
M10 FLANGE THA 		0-91180-210-0 02 1 0409-0412 ●
10 NUT; MTG RUBBER
4X2<TFB***> M/T MUA 5 SPEED 5G<RSP> M10 FLANGE THA 		0-91180-210-0 02 1 0409-0412 ●
10 NUT; MTG RUBBER
M10 FLANGE THA 		0-91180-210-0 02 1 0501-0606 ● ●
10 NUT; MTG RUBBER
M10 FLANGE THA 		0-91180-210-0 02 1 0501-0606 ● ●
10 NUT; MTG RUBBER
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> M10 FLANGE THA 		0-91180-210-0 02 1 0501-0606 ● ●
10 NUT; MTG RUBBER
M10 FLANGE THA 		0-91180-210-0 02 1 0607- ● ●
10 NUT; MTG RUBBER
M10 FLANGE THA 		0-91180-210-0 02 1 0607- ● ●
10 NUT; MTG RUBBER
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ> M10 FLANGE THA 		0-91180-210-0 02 1 0607- ● ●
17 COVER; CUSHION RUBBER,FRT
THA 		8-97385-745-0 01 1 0409-0412 ●
17 COVER; CUSHION RUBBER,FRT
THA 		8-97385-745-0 01 1 0501- ● ●
17 COVER; CUSHION RUBBER,FRT
THA 		8-97381-228-0 01 1 0409-0412 ●
17 COVER; CUSHION RUBBER,FRT
THA 		8-97381-228-0 01 1 0501- ● ●
20 BOLT; ENG FOOT
(B) M10X100 FLANGE THA 		0-28051-000-0 01 1 0303-0408 ●
20 BOLT; ENG FOOT
(B) M10X100 FLANGE THA 		0-28051-000-0 01 1 0409-0412 ●
20 BOLT; ENG FOOT
(B) M10X100 FLANGE THA 		0-28051-000-0 01 1 0501- ● ●
20 BOLT; ENG FOOT
(C) M10X80 FLANGE THA 		0-28051-080-0 01 1 0303-0408 ●
20 BOLT; ENG FOOT
(C) M10X80 FLANGE THA 		0-28051-080-0 01 1 0409-0412 ●
20 BOLT; ENG FOOT
(C) M10X80 FLANGE THA 		0-28051-080-0 01 1 0501- ● ●
20 BOLT; ENG FOOT
(D) M10X25 FLANGE THA 		0-28651-025-0 03 1 0303-0408 ●
20 BOLT; ENG FOOT
(D) M10X25 FLANGE THA 		0-28651-025-0 02 1 0409-0412 ●
20 BOLT; ENG FOOT
(D) M10X25 FLANGE THA 		0-28651-025-0 02 1 0501- ● ●
20 BOLT; ENG FOOT
(F) M10X30 FLANGE THA 		0-28651-030-0 04 1 0303-0408 ●
20 BOLT; ENG FOOT
(F) M10X30 FLANGE THA 		0-28651-030-0 04 1 0409-0412 ●
20 BOLT; ENG FOOT
(F) M10X30 FLANGE THA 		0-28651-030-0 04 1 0501- ● ●
20 BOLT; ENG FOOT
(E) M14X45 FLANGE THA 		0-28851-445-0 01 1 0303-0408 ●
20 BOLT; ENG FOOT
(E) M14X45 FLANGE THA 		0-28851-445-0 01 1 0409-0412 ●
20 BOLT; ENG FOOT
(E) M14X45 FLANGE THA 		0-28851-445-0 01 1 0501- ● ●
20 BOLT; ENG FOOT
(A) M10X25 W/LK WASHER THA 		0-50041-025-0 02 1 0303-0408 ●
20 BOLT; ENG FOOT
(A) M10X20 FLANGE THA 		0-28051-020-0 01 1 0409-0412 ●
20 BOLT; ENG FOOT
(A) M10X20 FLANGE THA 		0-28051-020-0 01 1 0501- ● ●
20 BOLT; ENG FOOT
(D) M10X25 FLANGE THA 		0-28651-025-0 01 1 0409-0412 ●
20 BOLT; ENG FOOT
(D) M10X25 FLANGE THA 		0-28651-025-0 01 1 0501- ● ●
20 BOLT; ENG FOOT
(F) M10X30 FLANGE THA 		0-28651-030-0 02 1 0409-0412 ●
20 BOLT; ENG FOOT
(F) M10X30 FLANGE THA 		0-28651-030-0 02 1 0501- ● ●
20 BOLT; ENG FOOT
(G) M10X40 FLANGE THA 		0-28651-040-0 01 1 0409-0412 ●
20 BOLT; ENG FOOT
(G) M10X40 FLANGE THA 		0-28651-040-0 01 1 0501- ● ●
20 BOLT; ENG FOOT
4X2<TFB***> A/T 4 SPEED-JATCO<RMK> (H) M10X35 FLANGE THA 		0-28751-035-0 02 1 0409-0606 ●
20 BOLT; ENG FOOT
4X4<TFS***> (H) M10X35 FLANGE THA 		0-28751-035-0 02 1 0409-0606 ●
20 BOLT; ENG FOOT
4X2<TFB***> A/T 4 SPEED-JATCO<RMK> (H) M10X35 FLANGE THA 		0-28751-035-0 02 1 0607- ●
20 BOLT; ENG FOOT
4X4<TFS***> (H) M10X35 FLANGE THA 		0-28751-035-0 02 1 0607- ●
25 BOLT; CUSHION RUBBER TO BRKT
M10X25 FLANGE THA 		0-28651-025-0 02 1 0303-0408 ●
52 RUBBER; CUSHION,ENG MTG,RR
4X2<TFB***> THA 		8-97247-681-1 01 1 0303-0303 ●
52 RUBBER; CUSHION,ENG MTG,RR
4X2<TFB***> THA 		8-97367-278-0 01 1 0304-0404 ●
52 RUBBER; CUSHION,ENG MTG,RR
4X2<TFB***> THA 		8-97367-632-0 01 1 0405-0408 ●
52 RUBBER; CUSHION,ENG MTG,RR
4X2<TFB***> THA 		8-97367-632-0 01 1 0409-0412 ●
52 RUBBER; CUSHION,ENG MTG,RR
4X2<TFB***> THA 		8-97367-632-0 01 1 0501-0610 ● ●
52 RUBBER; CUSHION,ENG MTG,RR
4X2<TFB***> THA 		8-98051-338-0 01 1 0611- ● ●
52 RUBBER; CUSHION,ENG MTG,RR
4X4<TFS***> THA 		8-97234-982-1 01 1 0303-0303 ●
52 RUBBER; CUSHION,ENG MTG,RR
4X4<TFS***> THA 		8-97367-276-0 01 1 0304-0404 ●
52 RUBBER; CUSHION,ENG MTG,RR
4X4<TFS***> THA 		8-97367-630-0 01 1 0405-0408 ●
52 RUBBER; CUSHION,ENG MTG,RR
4X4<TFS***> THA 		8-97367-630-0 01 1 0409-0610 ●
52 RUBBER; CUSHION,ENG MTG,RR
4X4<TFS***> THA 		8-98051-336-0 01 1 0611- ●
55 BOLT; BRKT,ENG MTG,RR
4X4<TFS***> A/T 4 SPEED-JATCO<RMK> M10X120 THA 		8-97134-968-0 01 1 0409-0610 ●
55 BOLT; BRKT,ENG MTG,RR
4X4<TFS***> A/T 4 SPEED-JATCO<RMK> M10X120 THA 		8-98051-536-0 01 1 0611- ●
152 DAMPER; DYNAMIC,ENG MTG
4X4<TFS***> A/T 4 SPEED-JATCO<RMK> THA 		8-97373-873-0 01 1 0409- ●
169 BOLT; SUPPORT
4X2<TFB***> A/T 4 SPEED-JATCO<RMK> M10X35 FLANGE THA 		0-28751-035-0 02 1 0303-0408 ●
169 BOLT; SUPPORT
4X4<TFS***> M10X35 FLANGE THA 		0-28751-035-0 02 1 0303-0408 ●
241 COVER; ENG MTG
THA 		8-97365-235-0 01 1 0303-0407 ●
241 COVER; ENG MTG
THA 		8-97385-745-0 01 1 0408-0408 ●
241 COVER; ENG MTG
THA 		8-97247-949-4 01 1 0303-0402 ●
241 COVER; ENG MTG
THA 		8-97350-437-1 01 1 0403-0404 ●
241 COVER; ENG MTG
THA 		8-97381-228-0 01 1 0405-0408 ●
