8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#1824) — 154 parça

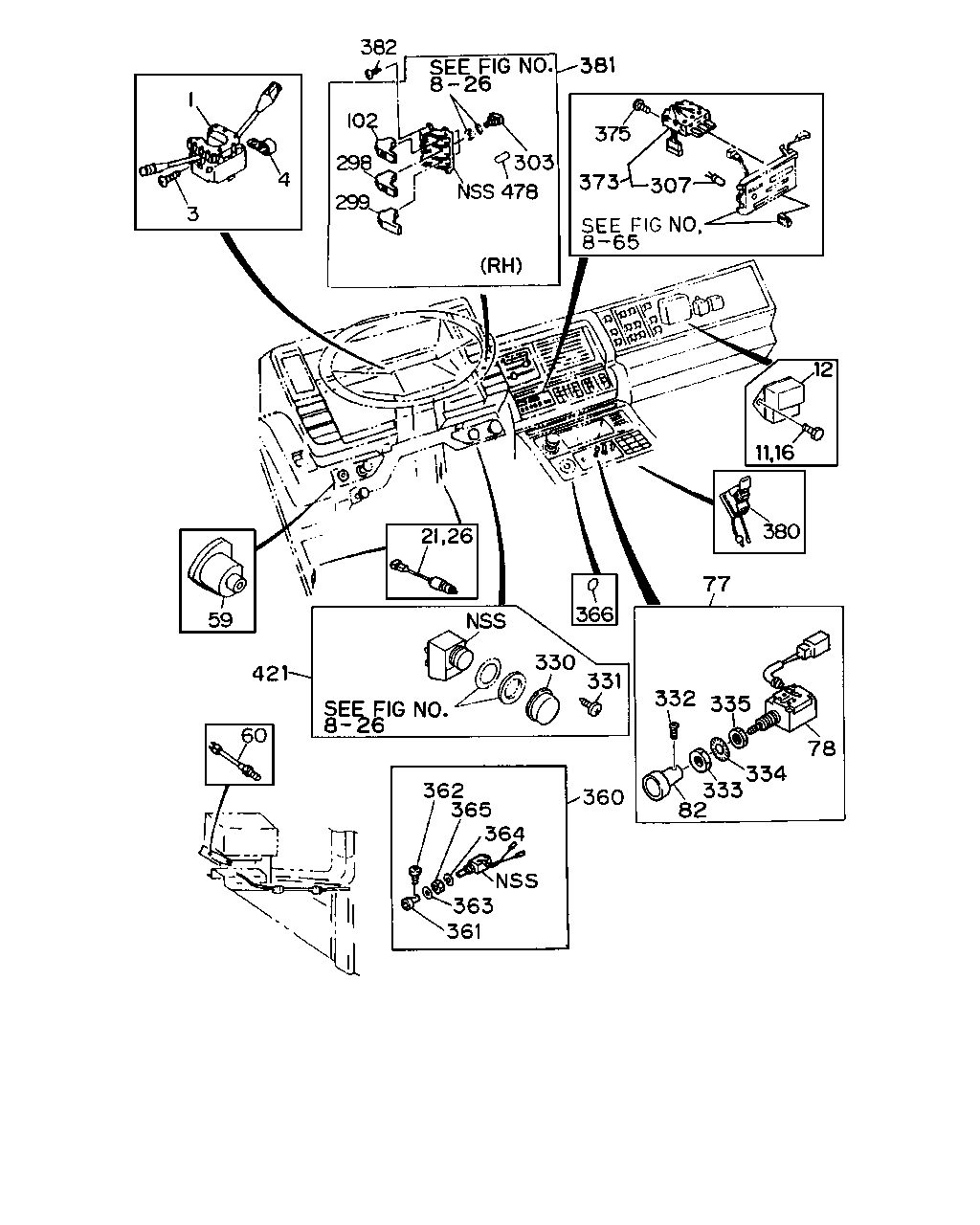

3 4 1 299 298 102 382 478 303 381 307 373 375 12 11 16 380 77 366 332 335 78 334 333 82 360 331 330 59 21 26 421 60 362 365 364 363 361

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SWITCH; COMB INTERMITTENT WIPER<C13> NEW ZEALAND EQUIPMENT(PK5)	1-82360-286-4	01	1	9002-	●
1	SWITCH; COMB INTERMITTENT WIPER<C13> EXC. NEW ZEALAND EQUIPMENT(PK5)	1-82360-255-6	01	1	9002-	●
1	SWITCH; COMB EXC. INTERMITTENT WIPER<C13>,NEW ZEALAND EQUIPMENT(PK5)	1-82360-258-6	01	1	9002-	●
1	SWITCH; COMB NEW ZEALAND EQUIPMENT(PK5) EXC. INTERMITTENT WIPER<C13>	1-82360-289-4	01	1	9002-	●
1	SWITCH; COMB INTERMITTENT WIPER<C13>	1-82360-241-7	01	1	9002-		●
1	SWITCH; COMB EXC. INTERMITTENT WIPER<C13>	1-82360-240-7	01	1	9002-		●
3	SCREW; COMB SW M5X12 TAPPING W/PL WASHER	0-74105-512-0	03	1	9002-	●	●
4	CLIP; COMB SW ID=13 L=20	9-09525-232-0	01	1	9002-	●	●
11	BOLT; POWER WINDOW POWER WINDOW<A30> M6X16 W/PL WASHER	1-09981-438-0	02	1	9109-9202		●
11	BOLT; POWER WINDOW POWER WINDOW<A30> M6X16 W/PL WASHER	1-09981-438-0	02	1	9203-9306	●	●
11	BOLT; POWER WINDOW POWER WINDOW<A30> M6X16 W/PL WASHER	1-09981-438-0	02	1	9307-	●
12	RELAY; POWER WINDOW POWER WINDOW<A30>	1-82550-264-0	01	1	9105-	●	●
12	RELAY; POWER WINDOW POWER WINDOW<A30>	1-82550-259-0	01	1	9009-9104		●
16	SCREW; RELAY,POWER WINDOW POWER WINDOW<A30> M6X16 W/PL WASHER	1-09981-176-0	02	1	9009-9108		●
21	SWITCH; CLU	1-82380-009-3	01	1	9002-	●	●
26	SWITCH; ACCEL	1-82380-089-0	01	1	9002-	●
26	SWITCH; ACCEL	1-82380-009-3	01	1	9002-		●
59	SWITCH; IGNITION	1-82313-009-1	01	1	9002-	●	●
60	SWITCH; STARTER SUB	1-82380-065-0	01	1	9002-9306	●	●
60	SWITCH; STARTER SUB	1-82380-107-1	01	1	9307-	●	●
77	SWITCH; PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-82340-192-0	01	1	9002-	●	●
78	SWITCH; PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-82340-193-0	01	1	9002-	●	●
82	KNOB; PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-82346-057-1	01	1	9002-	●	●
102	KNOB ASM; FOG LAMP	1-82356-031-0	01	1	9002-	●	●
298	KNOB ASM; PARKING LAMP	1-82356-028-0	01	1	9002-	●	●
299	KNOB ASM; A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-82356-083-0	01	1	9002-	●	●
303	SWITCH; MICRO FOG LAMP	1-82350-127-0	01	1	9002-	●	●
303	SWITCH; MICRO AIR CONDITIONER MANUAL CONTROL(C60) PARKING,AIRCON	1-82350-091-0	02	1	9002-	●	●
303	SWITCH; MICRO EXC. AIR CONDITIONER MANUAL CONTROL(C60) PARKING	1-82350-091-0	01	1	9002-	●	●
307	BULB ASM; SW 28V 1.4W	1-82194-050-0	03	1	9002-	●	●
330	KNOB; INT HTR INTAKE HEATER<SL2>	1-82336-003-1	01	1	9002-	●	●
331	SCREW INTAKE HEATER<SL2>	1-09106-002-0	01	1	9002-	●	●
332	SCREW; KNOB TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-09106-002-0	01	1	9002-	●	●
333	NUT; SW TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-09449-033-0	01	1	9002-	●	●
334	WASHER; LK,SW TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=12.5 TOOTH LK INT	9-09151-212-0	01	1	9002-	●	●
335	NUT; SW TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-09400-035-0	01	1	9002-	●	●
360	SWITCH ASM; DIFF LK	1-82340-143-1	01	1	9002-	●	●
361	KNOB; DIFF LK	1-82346-059-1	01	1	9002-	●	●
362	SCREW; DIFF LK	1-09106-002-0	01	1	9002-	●	●
363	NUT	1-09449-032-0	01	1	9002-	●	●
364	WASHER; LK ID=10.5 TOOTH LK INT	9-09151-210-0	01	1	9002-	●	●
365	NUT; DIFF LOCK SW	1-09400-034-0	01	1	9002-	●	●
366	SEAL; SW HOLE DIFF LK	1-76778-007-0	01	1	9002-9306	●	●
366	SEAL; SW HOLE DIFF LK	1-76798-018-0	01	1	9307-9502	●	●
373	SWITCH; A/C	1-82380-061-2	01	1	9002-	●	●
375	SCREW; A/C SW M5X14 W/PL WASHER	5-09981-050-0	02	1	9002-	●	●
380	SWITCH; MARKER LAMP MARKER LAMP THREE AMBER<WD9>	1-82350-019-1	01	1	9002-9306		●
381	SWITCH ASM; METER CLUSTER SIDE AIR CONDITIONER MANUAL CONTROL(C60)	1-82350-179-0	01	1	9002-	●	●
381	SWITCH ASM; METER CLUSTER SIDE EXC. AIR CONDITIONER MANUAL CONTROL(C60)	1-82350-153-0	01	1	9002-	●	●
382	SCREW; SW,METER CLUSTER SIDE M5X14 W/PL WASHER	5-09981-050-0	08	1	9002-	●	●
421	SWITCH ASM; INT HTR INTAKE HEATER<SL2>	1-82330-030-0	01	1	9002-	●	●
478	CAP; COLLAR	1-82199-008-0	03	1	9002-	●	●

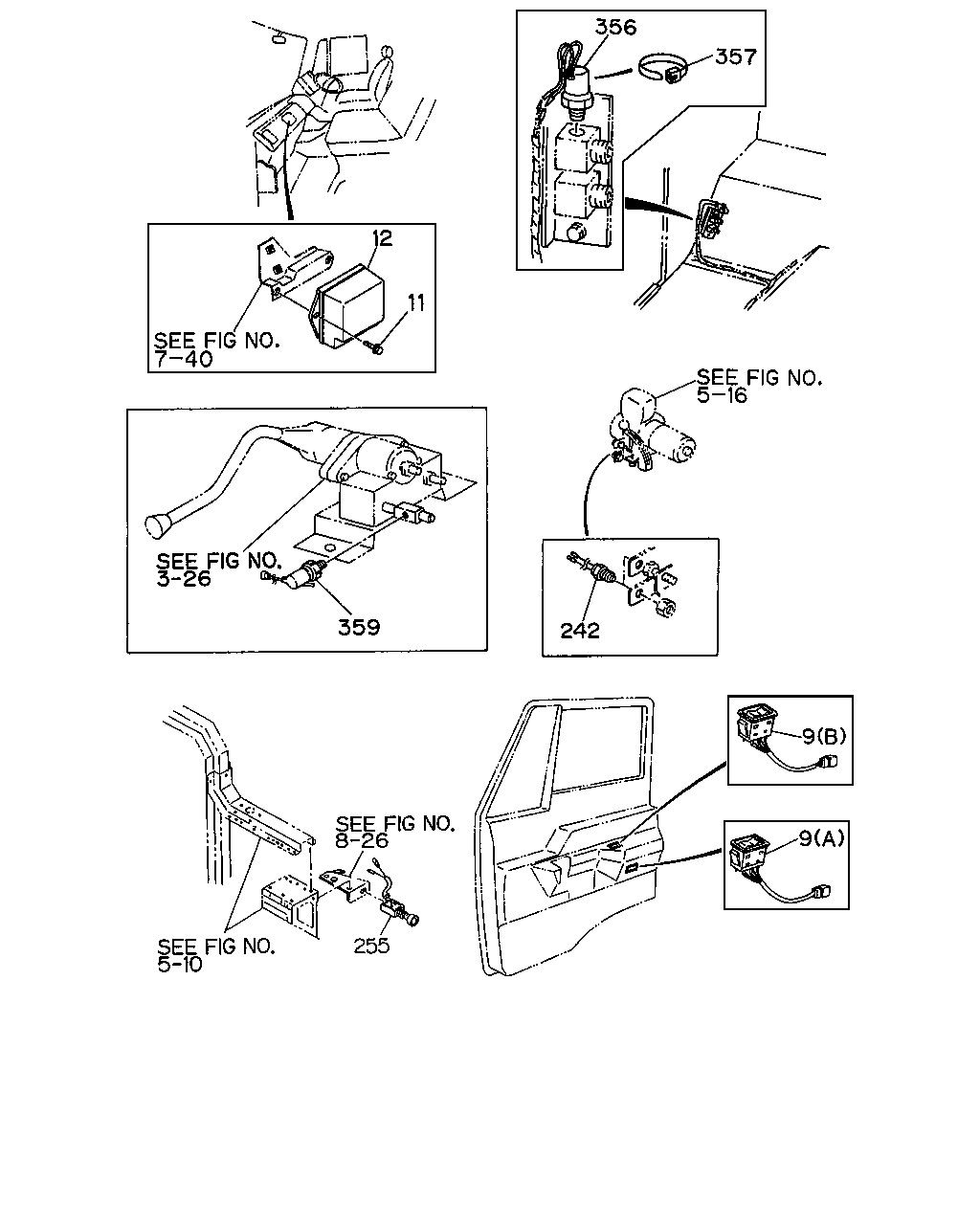

9 9 255 359 242 11 12 356 357

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
9	SWITCH; POWER WINDOW POWER WINDOW<A30> (A) PASSENGER	1-82380-124-0	02	1	9205-	●
9	SWITCH; POWER WINDOW POWER WINDOW<A30> (B) DRIVER	1-82380-123-0	01	1	9205-	●
9	SWITCH; POWER WINDOW POWER WINDOW<A30> (A) PASSENGER	8-94316-197-0	02	1	9009-9201		●
9	SWITCH; POWER WINDOW POWER WINDOW<A30> (A) PASSENGER	1-82380-124-0	02	1	9202-9306		●
11	BOLT; POWER WINDOW POWER WINDOW<A30> M6X16 W/PL WASHER	1-09981-438-0	02	1	9109-9202		●
11	BOLT; POWER WINDOW POWER WINDOW<A30> M6X16 W/PL WASHER	1-09981-438-0	02	1	9203-9306	●	●
11	BOLT; POWER WINDOW POWER WINDOW<A30> M6X16 W/PL WASHER	1-09981-438-0	02	1	9307-	●
12	RELAY; POWER WINDOW POWER WINDOW<A30>	1-82550-264-0	01	1	9105-	●	●
12	RELAY; POWER WINDOW POWER WINDOW<A30>	1-82550-259-0	01	1	9009-9104		●
242	SWITCH AUTO CAB TILT<WV2>	1-82380-074-0	02	1	9002-9306	●
242	SWITCH AUTO CAB TILT<WV2> STAMP NO	1-82380-126-0	02	1	9307-	●
255	SWITCH; SEARCH LIGHT	1-82340-179-1	01	1	9002-9306	●	●
255	SWITCH; SEARCH LIGHT	1-82340-360-0	01	1	9307-	●	●
356	SWITCH; TRAILER,LOW PRESS HONG KONG EQUIPMENT(PQ1)	1-48340-013-1	01	1	9002-9306	●
356	SWITCH; TRAILER,LOW PRESS NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48340-044-0	01	1	9307-9411	●
356	SWITCH; TRAILER,LOW PRESS NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48340-057-0	01	1	9412-	●
357	CLIP; BAND,TRAILER LOW PRESS HONG KONG EQUIPMENT(PQ1) L=140	5-09707-031-0	01	1	9002-9306	●
357	CLIP; BAND,TRAILER LOW PRESS NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) L=140	5-09707-031-0	01	1	9307-	●
359	SWITCH; TRAILER BRAKE OPERATE PRESSURE 0.3	1-82410-080-1	01	1	9002-9306	●	●
359	SWITCH; TRAILER BRAKE GREEN	1-82410-141-1	01	1	9307-9511	●	●
359	SWITCH; TRAILER BRAKE GREEN	1-82410-176-0	01	1	9512-	●	●

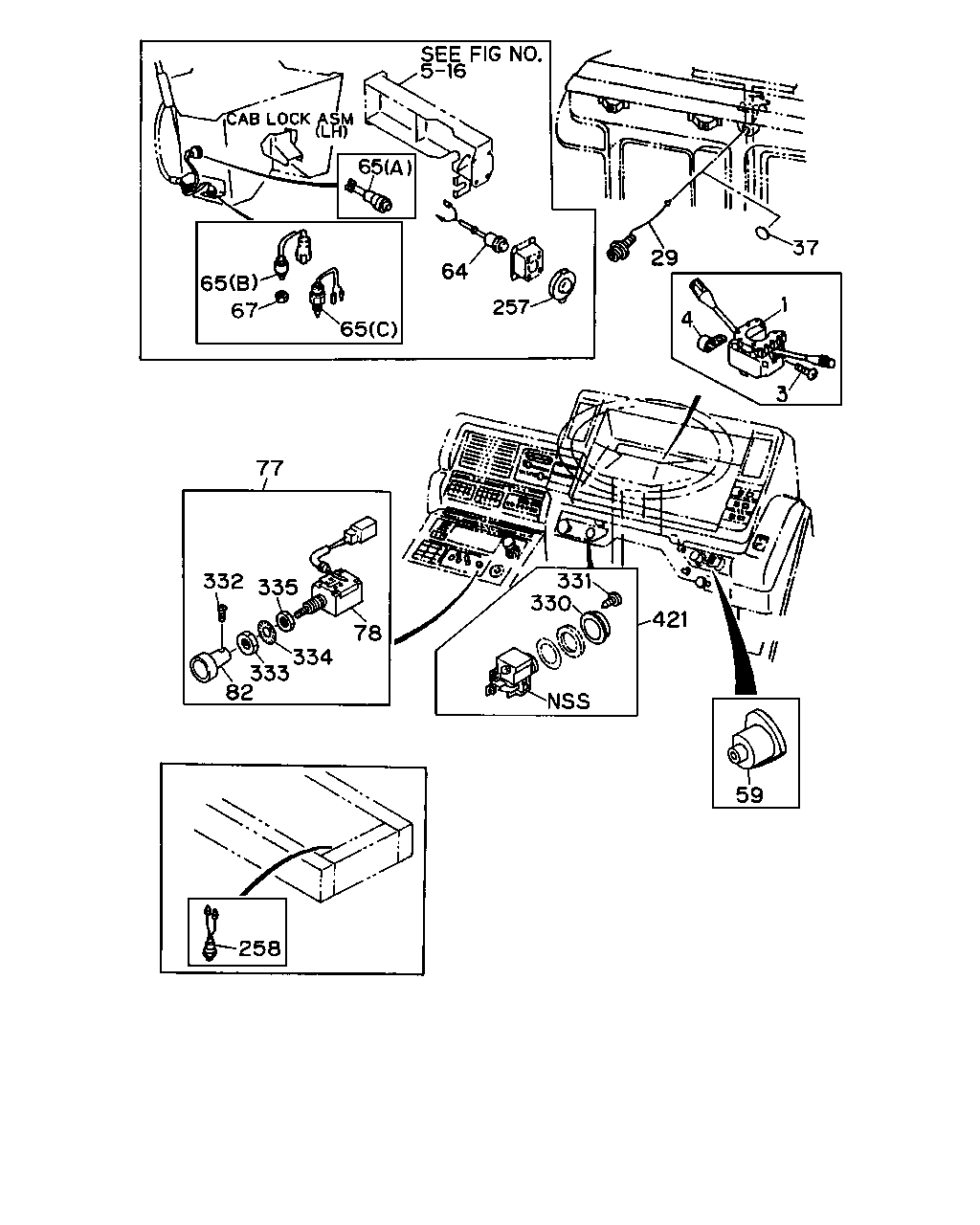

65 67 65 65 64 257 29 37 1 3 4 77 332 335 78 334 333 82 258 59 421 330 331

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SWITCH; COMB INTERMITTENT WIPER<C13> NEW ZEALAND EQUIPMENT(PK5)	1-82360-286-4	01	1	9002-	●
1	SWITCH; COMB INTERMITTENT WIPER<C13> EXC. NEW ZEALAND EQUIPMENT(PK5)	1-82360-255-6	01	1	9002-	●
1	SWITCH; COMB EXC. INTERMITTENT WIPER<C13>,NEW ZEALAND EQUIPMENT(PK5)	1-82360-258-6	01	1	9002-	●
1	SWITCH; COMB NEW ZEALAND EQUIPMENT(PK5) EXC. INTERMITTENT WIPER<C13>	1-82360-289-4	01	1	9002-	●
1	SWITCH; COMB INTERMITTENT WIPER<C13>	1-82360-241-7	01	1	9002-		●
1	SWITCH; COMB EXC. INTERMITTENT WIPER<C13>	1-82360-240-7	01	1	9002-		●
3	SCREW; COMB SW M5X12 TAPPING W/PL WASHER	0-74105-512-0	03	1	9002-	●	●
4	CLIP; COMB SW ID=13 L=20	9-09525-232-0	01	1	9002-	●	●
29	SWITCH; DOOR	1-82440-051-3	01	1	9002-9105	●	●
29	SWITCH; DOOR	1-82440-091-0	01	1	9106-	●	●
37	SEAL; DOOR SW HOLE OD=25 BLACK	1-76798-019-0	01	1	9002-	●	●
59	SWITCH; IGNITION	1-82313-009-1	01	1	9002-	●	●
64	SWITCH; CAB TILT MAIN AUTO CAB TILT<WV2>	1-82380-069-0	01	1	9002-9306	●
64	SWITCH; CAB TILT MAIN AUTO CAB TILT<WV2>	1-82380-108-0	01	1	9307-	●
65	SWITCH; CAB TILT LK AUTO CAB TILT<WV2> (A) LOCK,SWITCH	1-82380-066-1	01	1	9002-9306	●
65	SWITCH; CAB TILT LK AUTO CAB TILT<WV2> (C) ILLUM,CONTROL SWITCH	1-82380-070-1	01	1	9002-9306	●
65	SWITCH; CAB TILT LK AUTO CAB TILT<WV2> (A) LOCK,SWITCH	1-82380-115-1	01	1	9307-	●
65	SWITCH; CAB TILT LK AUTO CAB TILT<WV2> (B) CAB TILT,SWITCH STAMP NC	1-82380-125-1	01	1	9307-	●
67	NUT; SW,CAB TILT AUTO CAB TILT<WV2> M16 H=18.5	1-09409-013-0	01	1	9002-	●
67	NUT; SW,CAB TILT AUTO CAB TILT<WV2> M16	9-99111-416-0	04	1	9002-	●
77	SWITCH; PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-82340-192-0	01	1	9002-	●	●
78	SWITCH; PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-82340-193-0	01	1	9002-	●	●
82	KNOB; PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-82346-057-1	01	1	9002-	●	●
257	COVER; HOLE,SW AUTO CAB TILT<WV2>	1-82389-008-0	01	1	9002-	●
258	SWITCH; FLASHER UNIT	1-82410-079-0	01	1	9002-9306	●	●
258	SWITCH; FLASHER UNIT	1-82410-137-0	01	1	9307-	●	●
330	KNOB; INT HTR INTAKE HEATER<SL2>	1-82336-003-1	01	1	9002-	●	●
331	SCREW INTAKE HEATER<SL2>	1-09106-002-0	01	1	9002-	●	●
332	SCREW; KNOB TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-09106-002-0	01	1	9002-	●	●
333	NUT; SW TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-09449-033-0	01	1	9002-	●	●
334	WASHER; LK,SW TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=12.5 TOOTH LK INT	9-09151-212-0	01	1	9002-	●	●
335	NUT; SW TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-09400-035-0	01	1	9002-	●	●
421	SWITCH ASM; INT HTR INTAKE HEATER<SL2>	1-82330-030-0	01	1	9002-	●	●

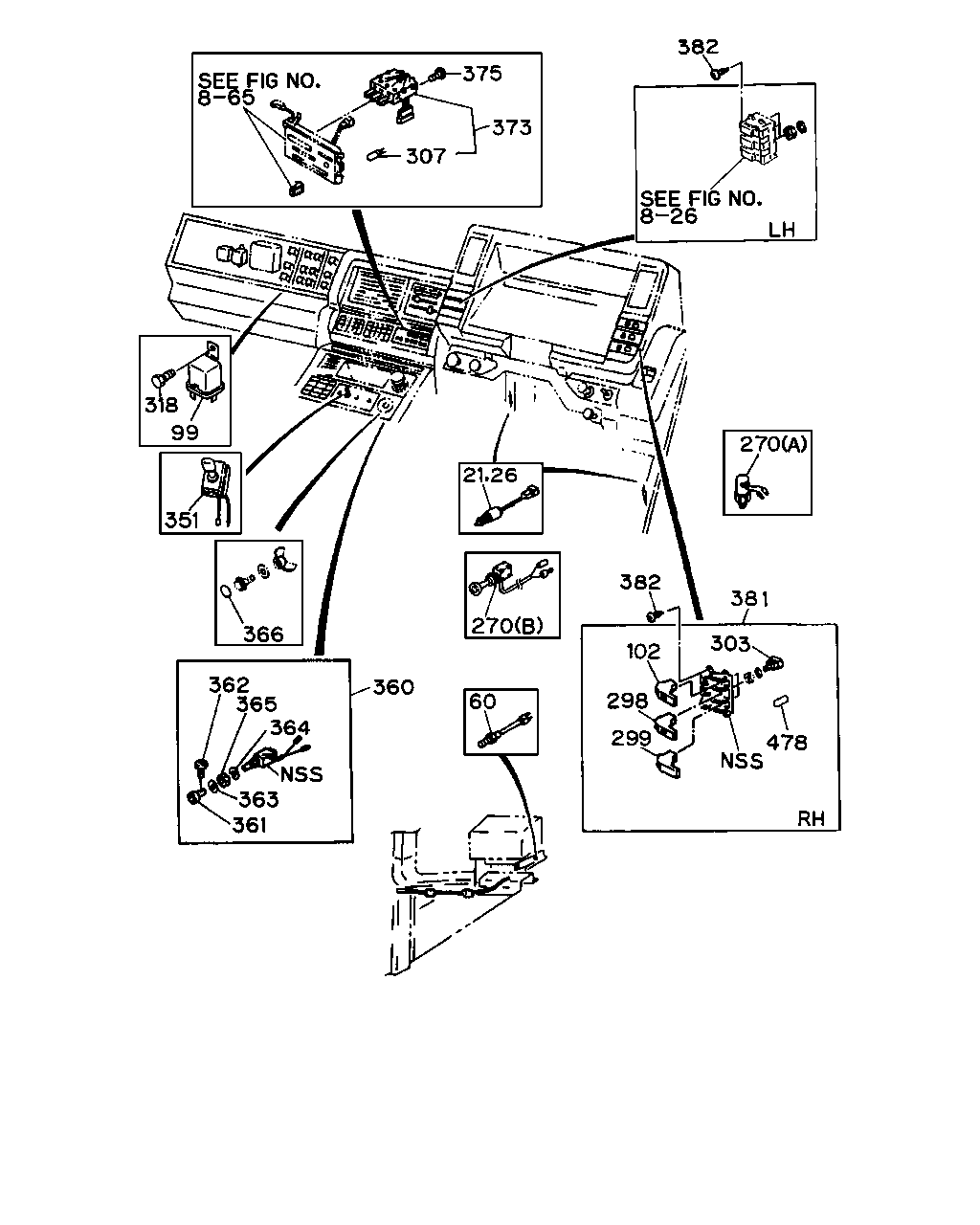

351 99 318 307 373 375 382 270 21 26 270 382 381 303 102 478 299 298 60 360 361 363 364 366 362 365

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
21	SWITCH; CLU	1-82380-009-3	01	1	9002-	●	●
26	SWITCH; ACCEL	1-82380-089-0	01	1	9002-	●
26	SWITCH; ACCEL	1-82380-009-3	01	1	9002-		●
60	SWITCH; STARTER SUB	1-82380-065-0	01	1	9002-9306	●	●
60	SWITCH; STARTER SUB	1-82380-107-1	01	1	9307-	●	●
99	RELAY; FOG LAMP NEW ZEALAND EQUIPMENT(PK5) EXC. SPEAKER SYSTEM FRT 2 SPEAKERS<UX6>,ANTENNA RADIO<U73> 24V 12.5A JIDECO	1-82550-197-0	01	1	9002-	●
102	KNOB ASM; FOG LAMP	1-82356-031-0	01	1	9002-	●	●
270	SWITCH; PRESS,WHEEL PARKING HONG KONG EQUIPMENT(PQ1) (A)	1-48340-036-0	01	1	9002-9306	●
270	SWITCH; PRESS,WHEEL PARKING HONG KONG EQUIPMENT(PQ1) (A)	1-48340-044-0	01	1	9307-9308	●
270	SWITCH; PRESS,WHEEL PARKING NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (A)	1-48340-044-0	01	1	9309-9411	●
270	SWITCH; PRESS,WHEEL PARKING NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (A)	1-48340-057-0	01	1	9412-	●
270	SWITCH; PRESS,WHEEL PARKING NEW ZEALAND EQUIPMENT(PK5) (B)	1-82340-278-0	01	1	9307-	●
298	KNOB ASM; PARKING LAMP	1-82356-028-0	01	1	9002-	●	●
299	KNOB ASM; A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-82356-083-0	01	1	9002-	●	●
303	SWITCH; MICRO FOG LAMP	1-82350-127-0	01	1	9002-	●	●
303	SWITCH; MICRO AIR CONDITIONER MANUAL CONTROL(C60) PARKING,AIRCON	1-82350-091-0	02	1	9002-	●	●
303	SWITCH; MICRO EXC. AIR CONDITIONER MANUAL CONTROL(C60) PARKING	1-82350-091-0	01	1	9002-	●	●
307	BULB ASM; SW 28V 1.4W	1-82194-050-0	03	1	9002-	●	●
318	SCREW; RELAY NEW ZEALAND EQUIPMENT(PK5) M5X14 TAPPING W/PL WASHER	0-74100-514-0	01	1	9002-	●
351	SWITCH; BULB CHECK EXH HEAT WARNING<W50>	1-82350-023-0	01	1	9002-	●
360	SWITCH ASM; DIFF LK	1-82340-143-1	01	1	9002-	●	●
361	KNOB; DIFF LK	1-82346-059-1	01	1	9002-	●	●
362	SCREW; DIFF LK	1-09106-002-0	01	1	9002-	●	●
363	NUT	1-09449-032-0	01	1	9002-	●	●
364	WASHER; LK ID=10.5 TOOTH LK INT	9-09151-210-0	01	1	9002-	●	●
365	NUT; DIFF LOCK SW	1-09400-034-0	01	1	9002-	●	●
366	SEAL; SW HOLE DIFF LK	1-76778-007-0	01	1	9002-9306	●	●
366	SEAL; SW HOLE DIFF LK	1-76798-018-0	01	1	9307-9502	●	●
373	SWITCH; A/C	1-82380-061-2	01	1	9002-	●	●
375	SCREW; A/C SW M5X14 W/PL WASHER	5-09981-050-0	02	1	9002-	●	●
381	SWITCH ASM; METER CLUSTER SIDE AIR CONDITIONER MANUAL CONTROL(C60)	1-82350-179-0	01	1	9002-	●	●
381	SWITCH ASM; METER CLUSTER SIDE EXC. AIR CONDITIONER MANUAL CONTROL(C60)	1-82350-153-0	01	1	9002-	●	●
382	SCREW; SW,METER CLUSTER SIDE M5X14 W/PL WASHER	5-09981-050-0	08	1	9002-	●	●
478	CAP; COLLAR	1-82199-008-0	03	1	9002-	●	●

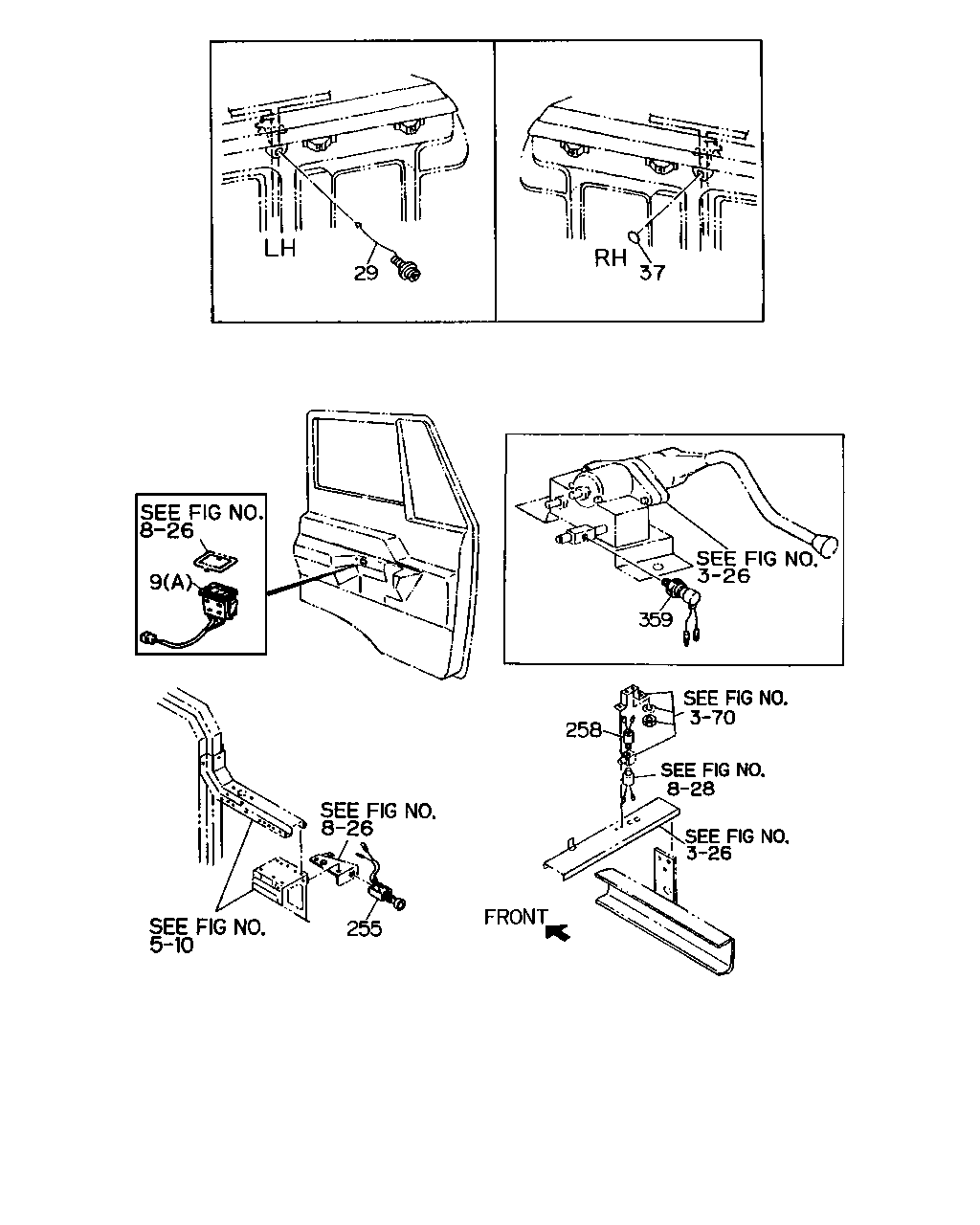

29 37 359 9 255 258

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
9	SWITCH; POWER WINDOW POWER WINDOW<A30> (A) PASSENGER	1-82380-124-0	02	1	9205-	●
9	SWITCH; POWER WINDOW POWER WINDOW<A30> (B) DRIVER	1-82380-123-0	01	1	9205-	●
9	SWITCH; POWER WINDOW POWER WINDOW<A30> (A) PASSENGER	8-94316-197-0	02	1	9009-9201		●
9	SWITCH; POWER WINDOW POWER WINDOW<A30> (A) PASSENGER	1-82380-124-0	02	1	9202-9306		●
29	SWITCH; DOOR	1-82440-051-3	01	1	9002-9105	●	●
29	SWITCH; DOOR	1-82440-091-0	01	1	9106-	●	●
37	SEAL; DOOR SW HOLE OD=25 BLACK	1-76798-019-0	01	1	9002-	●	●
255	SWITCH; SEARCH LIGHT	1-82340-179-1	01	1	9002-9306	●	●
255	SWITCH; SEARCH LIGHT	1-82340-360-0	01	1	9307-	●	●
258	SWITCH; FLASHER UNIT	1-82410-079-0	01	1	9002-9306	●	●
258	SWITCH; FLASHER UNIT	1-82410-137-0	01	1	9307-	●	●
359	SWITCH; TRAILER BRAKE OPERATE PRESSURE 0.3	1-82410-080-1	01	1	9002-9306	●	●
359	SWITCH; TRAILER BRAKE GREEN	1-82410-141-1	01	1	9307-9511	●	●
359	SWITCH; TRAILER BRAKE GREEN	1-82410-176-0	01	1	9512-	●	●
