◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50958 - TFR/TFS THAI-RUNG ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-20 - TIMING GEAR CASE AND FLYWHEEL HOUSING ▶
0-20 — TIMING GEAR CASE AND FLYWHEEL HOUSING (#18239) — 302 parça

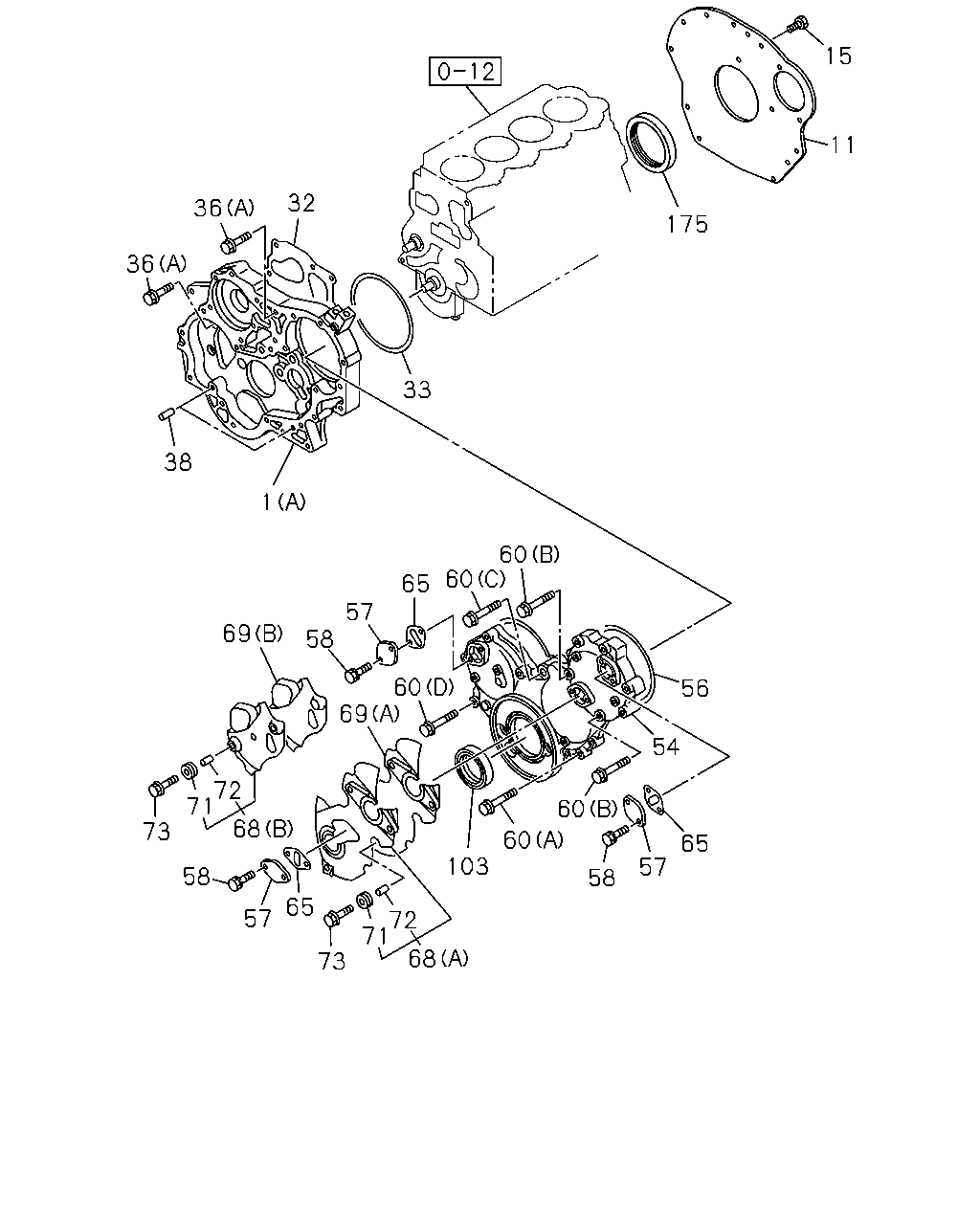

çizim 100661
15 11 32 36 175 36 33 38 1 60 60 65 57 69 58 60 56 69 54 72 71 60 68 73 60 65 103 57 58 58 65 57 72 71 68 73
BalonParca AdiParca NoAdetTipApplied Date A B C
1 CASE; TIMING GEAR
(A) THA 		8-97306-429-1 01 1 0303-0408 ●
1 CASE; TIMING GEAR
(B) THA 		8-97367-310-3 01 1 0409-0412 ●
1 CASE; TIMING GEAR
(B) THA 		8-97367-310-3 01 1 0501-0508 ● ●
1 CASE; TIMING GEAR
(C) THA 		8-97367-311-1 01 1 0409-0412 ●
1 CASE; TIMING GEAR
(C) THA 		8-97367-311-1 01 1 0501-0508 ● ●
1 CASE; TIMING GEAR
(D) SW & SONS CO.,LTD. THA 		8-97945-261-0 01 1 0509-0602 ●
1 CASE; TIMING GEAR
(D) SW & SONS CO.,LTD. THA 		8-97945-261-2 01 1 0603- ● ●
1 CASE; TIMING GEAR
(D) THAI ENGINEERING PRO 15X5.50F STAMP, BLACK THA 		8-97367-309-3 01 1 0509-0602 ●
1 CASE; TIMING GEAR
(D) THAI ENGINEERING PRO 15X5.50F STAMP, BLACK THA 		8-97367-309-3 01 1 0603- ● ●
11 PLATE; RR,C/BL
THA 		8-97912-556-0 01 1 0303-0408 ●
11 PLATE; RR,C/BL
THA 		8-97350-496-0 01 1 0409-0412 ●
11 PLATE; RR,C/BL
THA 		8-97350-496-0 01 1 0501-0606 ● ●
11 PLATE; RR,C/BL
THA 		8-98020-515-1 01 1 0607- ● ●
15 BOLT; RR PLATE TO C/BL
M12X25 THA 		8-97916-324-0 03 1 0303-0408 ●
32 GASKET; GEAR CASE TO C/BL
THA 		8-97920-346-1 01 1 0303-0408 ●
32 GASKET; GEAR CASE TO C/BL
THA 		8-97312-221-2 01 1 0409-0412 ●
32 GASKET; GEAR CASE TO C/BL
THA 		8-97312-221-2 01 1 0501- ● ●
33 GASKET; BRKT TO CASE
THA 		8-97912-581-0 01 1 0303-0408 ●
36 BOLT; GEAR CASE
(A) M8X20 W/LK WASHER THA 		0-50040-820-0 06 1 0303-0408 ●
36 BOLT; GEAR CASE
(D) M8X20 FLANGE THA 		0-28050-820-0 01 1 0409-0412 ●
36 BOLT; GEAR CASE
(D) M8X20 FLANGE THA 		0-28050-820-0 01 1 0501- ● ●
36 BOLT; GEAR CASE
(A) M8X45 W/LK WASHER THA 		0-50040-845-0 02 1 0303-0408 ●
36 BOLT; GEAR CASE
(C) M8X16 FLANGE THA 		0-28050-816-0 01 1 0409-0412 ●
36 BOLT; GEAR CASE
(C) M8X16 FLANGE THA 		0-28050-816-0 01 1 0501- ● ●
36 BOLT; GEAR CASE
(E) M8X35 FLANGE THA 		0-28050-835-0 01 1 0409-0412 ●
36 BOLT; GEAR CASE
(E) M8X35 FLANGE THA 		0-28050-835-0 01 1 0501- ● ●
36 BOLT; GEAR CASE
(F) M8X45 FLANGE THA 		0-28050-845-0 02 1 0409-0412 ●
36 BOLT; GEAR CASE
(F) M8X45 FLANGE THA 		0-28050-845-0 02 1 0501- ● ●
36 BOLT; GEAR CASE
(H) M8X60 FLANGE THA 		0-28050-860-0 01 1 0409-0412 ●
36 BOLT; GEAR CASE
(H) M8X60 FLANGE THA 		0-28050-860-0 01 1 0501- ● ●
36 BOLT; GEAR CASE
(G) M8X25 FLANGE THA 		0-28650-825-0 15 1 0409-0412 ●
36 BOLT; GEAR CASE
(G) M8X25 FLANGE THA 		0-28650-825-0 15 1 0501- ● ●
36 BOLT; GEAR CASE
(B) M8X30 FLANGE THA 		0-28650-830-0 03 1 0409-0412 ●
36 BOLT; GEAR CASE
(B) M8X30 FLANGE THA 		0-28650-830-0 03 1 0501- ● ●
38 PIN; GEAR CASE COVER
OD=10 L=20 THA 		9-08151-020-0 02 1 0303-0408 ●
38 PIN; GEAR CASE COVER
OD=10 L=20 THA 		9-08151-020-0 02 1 0409-0412 ●
38 PIN; GEAR CASE COVER
OD=10 L=20 THA 		9-08151-020-0 02 1 0501- ● ●
54 COVER; GEAR CASE
THA 		8-97306-430-2 01 1 0303-0408 ●
54 COVER; GEAR CASE
THA 		8-97367-312-4 01 1 0409-0412 ●
54 COVER; GEAR CASE
THA 		8-97367-312-4 01 1 0501-1201 ● ●
54 COVER; GEAR CASE
THA 		8-98170-215-0 01 1 1202- ● ●
56 GASKET; GEAR CASE TO COVER
THA 		8-97287-694-0 01 1 0303-0408 ●
57 COVER; TIMING CHECK HOLE
THA 		8-97912-582-0 03 1 0303-0408 ●
58 BOLT; CHECK HOLE COVER
M6X12 FLANGE THA 		0-28050-612-0 06 1 0303-0408 ●
60 BOLT; COVER TO CASE
(A) M8X30 FLANGE THA 		0-28050-830-0 08 1 0303-0408 ●
60 BOLT; COVER TO CASE
(B) M8X70 W/LK WASHER THA 		0-50540-870-0 06 1 0303-0408 ●
60 BOLT; COVER TO CASE
(C) M12X55 HEX SOCKET THA 		0-58331-255-0 01 1 0303-0408 ●
60 BOLT; COVER TO CASE
(D) M8X58 FLANGE THA 		8-97920-481-0 01 1 0303-0408 ●
65 GASKET; COVER,TIMING CHECK HOLE
THA 		8-97922-242-0 03 1 0303-0408 ●
68 COVER ASM; GEAR CASE COVER
(A) THA 		8-97943-085-0 01 1 0303-0408 ●
68 COVER ASM; GEAR CASE COVER
(B) THA 		8-97943-086-0 01 1 0303-0408 ●
69 SEAL; RUBBER,COVER TO COVER
(A) THA 		8-97942-720-0 01 1 0303-0408 ●
69 SEAL; RUBBER,COVER TO COVER
(B) THA 		8-97306-548-1 01 1 0303-0408 ●
71 RUBBER; MTG,COVER
THA 		8-97914-631-0 06 1 0303-0408 ●
72 BUSHING; SPACER,COVER TO COVER
THA 		8-97914-630-0 06 1 0303-0408 ●
73 BOLT; COVER FIX
M6X16 FLANGE THA 		0-28050-616-0 05 1 0303-0408 ●
73 BOLT; COVER FIX
M6X12 FLANGE THA 		0-28050-612-0 02 1 0409-0412 ●
73 BOLT; COVER FIX
M6X12 FLANGE THA 		0-28050-612-0 02 1 0501- ● ●
103 SEAL; OIL,CR/SHF,FRT
THA 		8-97351-704-0 01 1 0303-0408 ●
103 SEAL; OIL,CR/SHF,FRT
THA 		8-97943-951-0 01 1 0409-0412 ●
103 SEAL; OIL,CR/SHF,FRT
THA 		8-97943-951-0 01 1 0501- ● ●
175 SEAL; OIL,CR/SHF,RR
ID=95 OD=118 IMA 		8-97071-561-1 01 1 0303-0408 ●
175 SEAL; OIL,CR/SHF,RR
ID=95 OD=118 IMA 		8-97071-561-1 01 1 0409-0412 ●
175 SEAL; OIL,CR/SHF,RR
ID=95 OD=118 IMA 		8-97071-561-1 01 1 0501- ● ●

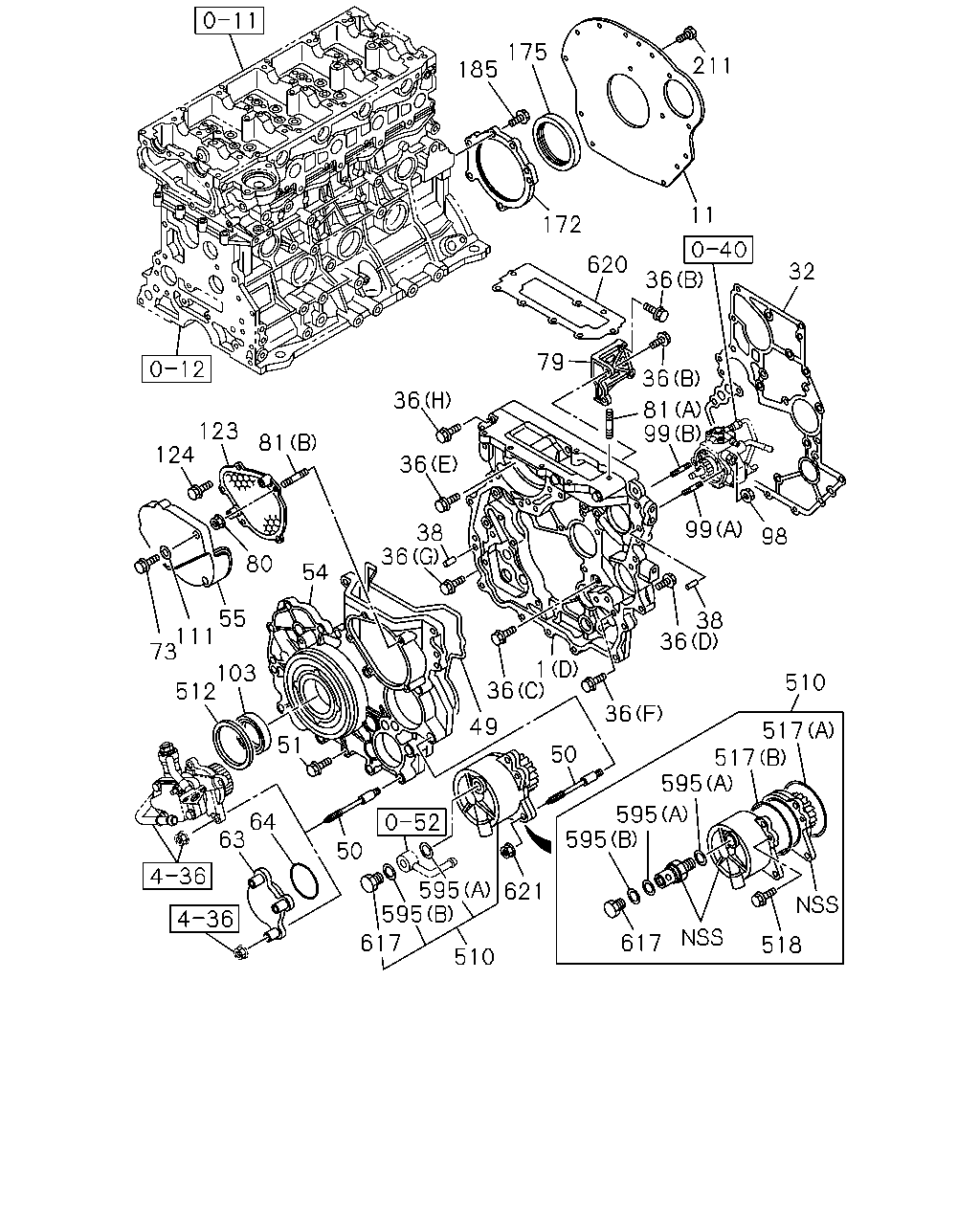

çizim 100662
518 617 517 517 595 595 595 510 38 36 98 99 36 1 36 50 49 621 595 595 617 510 50 64 63 51 103 512 55 111 73 80 54 38 36 36 36 81 123 124 79 620 172 36 36 99 81 32 11 211 175 185
BalonParca AdiParca NoAdetTipApplied Date A B C
1 CASE; TIMING GEAR
(A) THA 		8-97306-429-1 01 1 0303-0408 ●
1 CASE; TIMING GEAR
(B) THA 		8-97367-310-3 01 1 0409-0412 ●
1 CASE; TIMING GEAR
(B) THA 		8-97367-310-3 01 1 0501-0508 ● ●
1 CASE; TIMING GEAR
(C) THA 		8-97367-311-1 01 1 0409-0412 ●
1 CASE; TIMING GEAR
(C) THA 		8-97367-311-1 01 1 0501-0508 ● ●
1 CASE; TIMING GEAR
(D) SW & SONS CO.,LTD. THA 		8-97945-261-0 01 1 0509-0602 ●
1 CASE; TIMING GEAR
(D) SW & SONS CO.,LTD. THA 		8-97945-261-2 01 1 0603- ● ●
1 CASE; TIMING GEAR
(D) THAI ENGINEERING PRO 15X5.50F STAMP, BLACK THA 		8-97367-309-3 01 1 0509-0602 ●
1 CASE; TIMING GEAR
(D) THAI ENGINEERING PRO 15X5.50F STAMP, BLACK THA 		8-97367-309-3 01 1 0603- ● ●
11 PLATE; RR,C/BL
THA 		8-97912-556-0 01 1 0303-0408 ●
11 PLATE; RR,C/BL
THA 		8-97350-496-0 01 1 0409-0412 ●
11 PLATE; RR,C/BL
THA 		8-97350-496-0 01 1 0501-0606 ● ●
11 PLATE; RR,C/BL
THA 		8-98020-515-1 01 1 0607- ● ●
32 GASKET; GEAR CASE TO C/BL
THA 		8-97920-346-1 01 1 0303-0408 ●
32 GASKET; GEAR CASE TO C/BL
THA 		8-97312-221-2 01 1 0409-0412 ●
32 GASKET; GEAR CASE TO C/BL
THA 		8-97312-221-2 01 1 0501- ● ●
36 BOLT; GEAR CASE
(A) M8X20 W/LK WASHER THA 		0-50040-820-0 06 1 0303-0408 ●
36 BOLT; GEAR CASE
(D) M8X20 FLANGE THA 		0-28050-820-0 01 1 0409-0412 ●
36 BOLT; GEAR CASE
(D) M8X20 FLANGE THA 		0-28050-820-0 01 1 0501- ● ●
36 BOLT; GEAR CASE
(A) M8X45 W/LK WASHER THA 		0-50040-845-0 02 1 0303-0408 ●
36 BOLT; GEAR CASE
(C) M8X16 FLANGE THA 		0-28050-816-0 01 1 0409-0412 ●
36 BOLT; GEAR CASE
(C) M8X16 FLANGE THA 		0-28050-816-0 01 1 0501- ● ●
36 BOLT; GEAR CASE
(E) M8X35 FLANGE THA 		0-28050-835-0 01 1 0409-0412 ●
36 BOLT; GEAR CASE
(E) M8X35 FLANGE THA 		0-28050-835-0 01 1 0501- ● ●
36 BOLT; GEAR CASE
(F) M8X45 FLANGE THA 		0-28050-845-0 02 1 0409-0412 ●
36 BOLT; GEAR CASE
(F) M8X45 FLANGE THA 		0-28050-845-0 02 1 0501- ● ●
36 BOLT; GEAR CASE
(H) M8X60 FLANGE THA 		0-28050-860-0 01 1 0409-0412 ●
36 BOLT; GEAR CASE
(H) M8X60 FLANGE THA 		0-28050-860-0 01 1 0501- ● ●
36 BOLT; GEAR CASE
(G) M8X25 FLANGE THA 		0-28650-825-0 15 1 0409-0412 ●
36 BOLT; GEAR CASE
(G) M8X25 FLANGE THA 		0-28650-825-0 15 1 0501- ● ●
36 BOLT; GEAR CASE
(B) M8X30 FLANGE THA 		0-28650-830-0 03 1 0409-0412 ●
36 BOLT; GEAR CASE
(B) M8X30 FLANGE THA 		0-28650-830-0 03 1 0501- ● ●
38 PIN; GEAR CASE COVER
OD=10 L=20 THA 		9-08151-020-0 02 1 0303-0408 ●
38 PIN; GEAR CASE COVER
OD=10 L=20 THA 		9-08151-020-0 02 1 0409-0412 ●
38 PIN; GEAR CASE COVER
OD=10 L=20 THA 		9-08151-020-0 02 1 0501- ● ●
49 GASKET; GEAR CASE TO COVER
THA 		8-97354-057-1 01 1 0409-0412 ●
49 GASKET; GEAR CASE TO COVER
THA 		8-97354-057-1 01 1 0501-0511 ● ●
49 GASKET; GEAR CASE TO COVER
THA 		8-97945-298-0 01 1 0512- ● ●
50 STUD
M8X27,M8X14 L=64.5 THA 		8-97354-808-2 06 1 0409-0412 ●
50 STUD
M8X27,M8X14 L=64.5 THA 		8-97354-808-2 06 1 0501- ● ●
51 BOLT; GEAR CASE COVER
THA 		8-97354-697-0 14 1 0409-0412 ●
51 BOLT; GEAR CASE COVER
THA 		8-97354-697-1 14 1 0501- ● ●
54 COVER; GEAR CASE
THA 		8-97306-430-2 01 1 0303-0408 ●
54 COVER; GEAR CASE
THA 		8-97367-312-4 01 1 0409-0412 ●
54 COVER; GEAR CASE
THA 		8-97367-312-4 01 1 0501-1201 ● ●
54 COVER; GEAR CASE
THA 		8-98170-215-0 01 1 1202- ● ●
55 COVER; NOISE SHIELD
THA 		8-97375-190-1 01 1 0409-0412 ●
55 COVER; NOISE SHIELD
THA 		8-97375-190-1 01 1 0501- ● ●
63 COVER; P/S
EXC. POWER STEERING<N40> THA 		8-97367-336-2 01 1 0509-0606 ● ●
64 GASKET; COVER,P/S
EXC. POWER STEERING<N40> ID=59.6 THA 		8-97109-679-0 01 1 0509-0606 ● ●
73 BOLT; COVER FIX
M6X16 FLANGE THA 		0-28050-616-0 05 1 0303-0408 ●
73 BOLT; COVER FIX
M6X12 FLANGE THA 		0-28050-612-0 02 1 0409-0412 ●
73 BOLT; COVER FIX
M6X12 FLANGE THA 		0-28050-612-0 02 1 0501- ● ●
79 BRACKET; GEAR CASE COVER
THA 		8-97370-390-2 01 1 0409-0412 ●
79 BRACKET; GEAR CASE COVER
THA 		8-97370-390-2 01 1 0501- ● ●
80 NUT; COVER
M6 FLANGE THA 		0-91180-206-0 02 1 0409-0412 ●
80 NUT; COVER
M6 FLANGE THA 		0-91180-206-0 02 1 0501- ● ●
81 STUD; GEAR CASE COVER FIX
(B) M6X16 L=25 THA 		0-41010-616-0 02 1 0409-0412 ●
81 STUD; GEAR CASE COVER FIX
(B) M6X16 L=25 THA 		0-41010-616-0 02 1 0501- ● ●
81 STUD; GEAR CASE COVER FIX
(A) M8X30 L=48 THA 		0-49140-830-0 02 1 0409-0412 ●
81 STUD; GEAR CASE COVER FIX
(A) M8X30 L=48 THA 		0-49140-830-0 02 1 0501- ● ●
98 NUT; STUD,INJ PUMP
M8 FLANGE THA 		0-91180-208-0 02 1 0409-0412 ●
98 NUT; STUD,INJ PUMP
M8 FLANGE THA 		0-91180-208-0 02 1 0501- ● ●
99 STUD; INJ PUMP
(A) M8X30 L=41 THA 		8-97369-449-0 01 1 0409-0412 ●
99 STUD; INJ PUMP
(A) M8X30 L=41 THA 		8-97369-449-0 01 1 0501-0508 ● ●
99 STUD; INJ PUMP
(A) M8X30 L=48 THA 		0-49140-830-0 01 1 0509- ● ●
99 STUD; INJ PUMP
(B) M8X45 L=56 THA 		8-97369-450-0 01 1 0409-0412 ●
99 STUD; INJ PUMP
(B) M8X45 L=56 THA 		8-97369-450-0 01 1 0501-0508 ● ●
99 STUD; INJ PUMP
(B) M8X45 L=63 THA 		0-49140-845-0 01 1 0509- ● ●
103 SEAL; OIL,CR/SHF,FRT
THA 		8-97351-704-0 01 1 0303-0408 ●
103 SEAL; OIL,CR/SHF,FRT
THA 		8-97943-951-0 01 1 0409-0412 ●
103 SEAL; OIL,CR/SHF,FRT
THA 		8-97943-951-0 01 1 0501- ● ●
111 WASHER; PL
ID=6.4 OD=22 THA 		9-09164-806-0 02 1 0409-0412 ●
111 WASHER; PL
ID=6.4 OD=22 THA 		9-09164-806-0 02 1 0501-0705 ● ●
111 WASHER; PL
ID=6.4 OD=22 THA 		0-91614-806-0 02 1 0706- ● ●
123 COVER; TIMING,LWR
THA 		8-97371-720-1 01 1 0409-0412 ●
123 COVER; TIMING,LWR
THA 		8-97371-720-1 01 1 0501- ● ●
124 BOLT; TIMING COVER
M6X16 FLANGE THA 		0-28050-616-0 03 1 0409-0412 ●
124 BOLT; TIMING COVER
M6X16 FLANGE THA 		0-28050-616-0 03 1 0501- ● ●
172 RETAINER; CR/SHF
THA 		8-97379-826-0 01 1 0409-0412 ●
172 RETAINER; CR/SHF
THA 		8-97379-826-0 01 1 0501- ● ●
175 SEAL; OIL,CR/SHF,RR
ID=95 OD=118 IMA 		8-97071-561-1 01 1 0303-0408 ●
175 SEAL; OIL,CR/SHF,RR
ID=95 OD=118 IMA 		8-97071-561-1 01 1 0409-0412 ●
175 SEAL; OIL,CR/SHF,RR
ID=95 OD=118 IMA 		8-97071-561-1 01 1 0501- ● ●
185 BOLT; RET TO C/BL
M8X25 FLANGE THA 		0-28650-825-0 05 1 0409-0412 ●
185 BOLT; RET TO C/BL
M8X25 FLANGE THA 		0-28650-825-0 05 1 0501- ● ●
211 BOLT; HSG
M12X25 THA 		8-97916-324-0 03 1 0409-0412 ●
211 BOLT; HSG
M12X25 THA 		8-97916-324-1 03 1 0501- ● ●
510 PUMP ASM; VACUUM
THA 		8-97312-081-3 01 1 0409-0412 ●
510 PUMP ASM; VACUUM
THA 		8-97312-081-5 01 1 0501-1004 ● ●
510 PUMP ASM; VACUUM
THA 		8-98162-749-0 01 1 1005-1009 ● ●
510 PUMP ASM; VACUUM
THA 		8-98178-027-2 01 1 1010-1302 ● ●
510 PUMP ASM; VACUUM
THA 		8-98211-157-0 01 1 1303-1312 ● ●
510 PUMP ASM; VACUUM
THA 		8-98251-765-0 01 1 1401- ● ●
512 RUBBER; SPACE
THA 		8-97373-716-0 01 1 0409-0412 ●
512 RUBBER; SPACE
THA 		8-97373-716-0 01 1 0501- ● ●
517 GASKET; VAC PUMP
(A) IMA 		0-95690-271-0 01 1 0409-0412 ●
517 GASKET; VAC PUMP
(A) IMA 		0-95690-271-0 01 1 0501- ● ●
517 GASKET; VAC PUMP
(B) THA 		8-97184-175-0 01 1 0409-0412 ●
517 GASKET; VAC PUMP
(B) THA 		8-97184-175-0 01 1 0501-1312 ● ●
517 GASKET; VAC PUMP
(B) THA 		8-98251-768-0 01 1 1401- ● ●
518 BOLT; VAC PUMP
THA 		8-97184-180-0 03 1 0409-0412 ●
518 BOLT; VAC PUMP
THA 		8-97184-180-0 03 1 0501- ● ●
595 GASKET; VLV
(A) ID=18 OD=24 IMA 		5-19679-002-0 02 1 0409-0412 ●
595 GASKET; VLV
(A) ID=18 OD=24 IMA 		5-19679-002-0 02 1 0501- ● ●
595 GASKET; VLV
(B) ID=12 OD=24 IMA 		5-19679-003-0 01 1 0409-0412 ●
595 GASKET; VLV
(B) ID=12 OD=24 IMA 		5-19679-003-0 01 1 0501- ● ●
617 BOLT; CHECK VLV
THA 		8-97376-402-0 01 1 0409-0412 ●
617 BOLT; CHECK VLV
THA 		8-97376-402-0 01 1 0501- ● ●
620 GASKET; GEAR CASE
T=1.40 1-NOTCH THA 		8-97328-828-1 01 1 0409-0412 ●
620 GASKET; GEAR CASE
T=1.40 1-NOTCH THA 		8-97328-828-2 01 1 0501- ● ●
620 GASKET; GEAR CASE
T=1.45 2-NOTCH THA 		8-97331-631-1 01 1 0409-0412 ●
620 GASKET; GEAR CASE
T=1.45 2-NOTCH THA 		8-97331-631-2 01 1 0501- ● ●
620 GASKET; GEAR CASE
T=1.50 3-NOTCH THA 		8-97331-632-1 01 1 0409-0412 ●
620 GASKET; GEAR CASE
T=1.50 3-NOTCH THA 		8-97331-632-2 01 1 0501- ● ●
621 NUT; VAC PUMP
M8 FLANGE THA 		0-91180-208-0 03 1 0409-0412 ●
621 NUT; VAC PUMP
M8 FLANGE THA 		0-91180-208-0 03 1 0501- ● ●

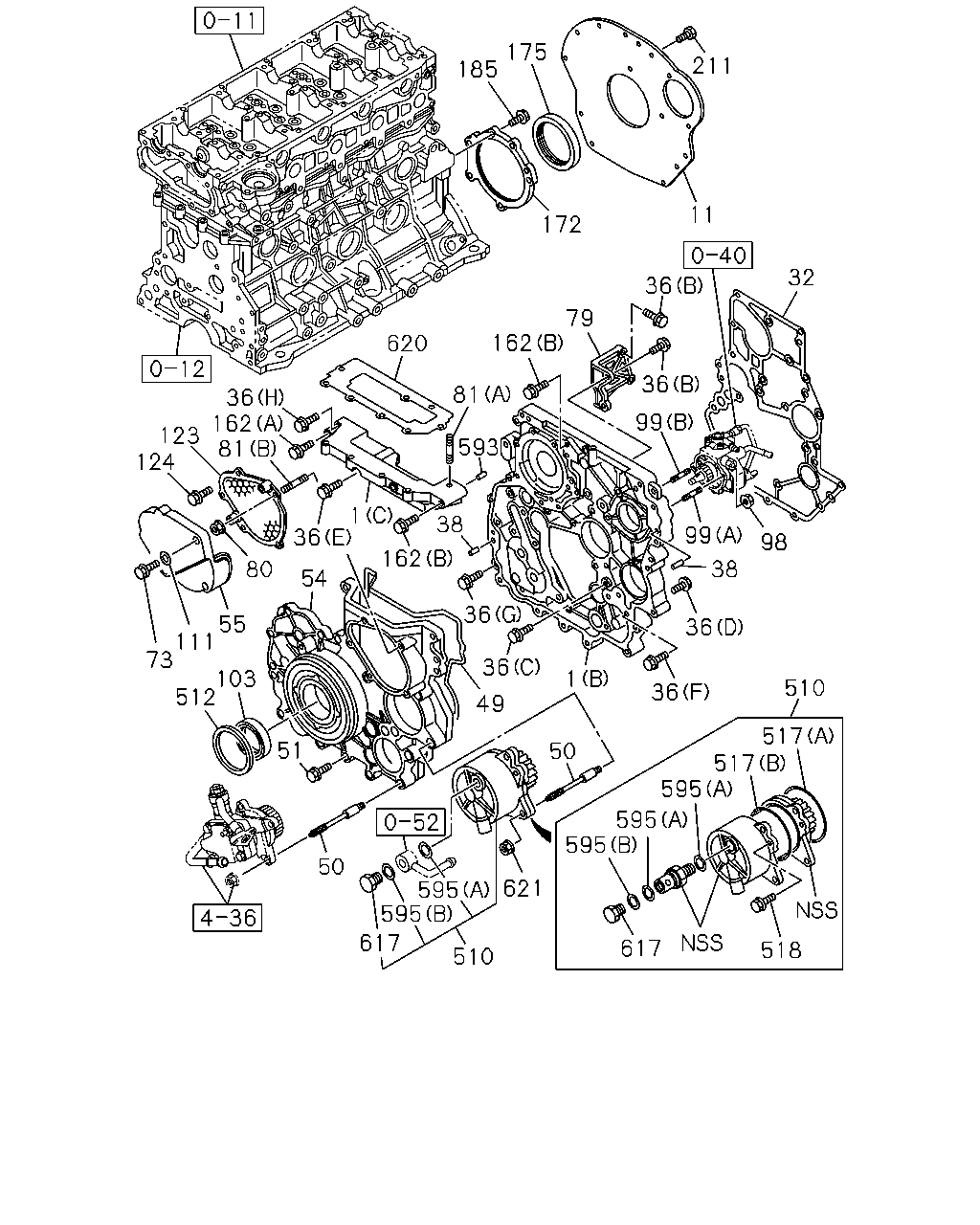

çizim 100665
518 617 595 595 595 517 517 510 36 36 38 99 98 99 36 36 32 79 162 81 593 38 162 1 36 80 55 111 73 512 51 103 50 595 595 617 510 621 50 1 49 36 36 81 36 162 123 124 620 172 175 185 211 11 54
BalonParca AdiParca NoAdetTipApplied Date A B C
1 CASE; TIMING GEAR
(A) THA 		8-97306-429-1 01 1 0303-0408 ●
1 CASE; TIMING GEAR
(B) THA 		8-97367-310-3 01 1 0409-0412 ●
1 CASE; TIMING GEAR
(B) THA 		8-97367-310-3 01 1 0501-0508 ● ●
1 CASE; TIMING GEAR
(C) THA 		8-97367-311-1 01 1 0409-0412 ●
1 CASE; TIMING GEAR
(C) THA 		8-97367-311-1 01 1 0501-0508 ● ●
1 CASE; TIMING GEAR
(D) SW & SONS CO.,LTD. THA 		8-97945-261-0 01 1 0509-0602 ●
1 CASE; TIMING GEAR
(D) SW & SONS CO.,LTD. THA 		8-97945-261-2 01 1 0603- ● ●
1 CASE; TIMING GEAR
(D) THAI ENGINEERING PRO 15X5.50F STAMP, BLACK THA 		8-97367-309-3 01 1 0509-0602 ●
1 CASE; TIMING GEAR
(D) THAI ENGINEERING PRO 15X5.50F STAMP, BLACK THA 		8-97367-309-3 01 1 0603- ● ●
11 PLATE; RR,C/BL
THA 		8-97912-556-0 01 1 0303-0408 ●
11 PLATE; RR,C/BL
THA 		8-97350-496-0 01 1 0409-0412 ●
11 PLATE; RR,C/BL
THA 		8-97350-496-0 01 1 0501-0606 ● ●
11 PLATE; RR,C/BL
THA 		8-98020-515-1 01 1 0607- ● ●
32 GASKET; GEAR CASE TO C/BL
THA 		8-97920-346-1 01 1 0303-0408 ●
32 GASKET; GEAR CASE TO C/BL
THA 		8-97312-221-2 01 1 0409-0412 ●
32 GASKET; GEAR CASE TO C/BL
THA 		8-97312-221-2 01 1 0501- ● ●
36 BOLT; GEAR CASE
(A) M8X20 W/LK WASHER THA 		0-50040-820-0 06 1 0303-0408 ●
36 BOLT; GEAR CASE
(D) M8X20 FLANGE THA 		0-28050-820-0 01 1 0409-0412 ●
36 BOLT; GEAR CASE
(D) M8X20 FLANGE THA 		0-28050-820-0 01 1 0501- ● ●
36 BOLT; GEAR CASE
(A) M8X45 W/LK WASHER THA 		0-50040-845-0 02 1 0303-0408 ●
36 BOLT; GEAR CASE
(C) M8X16 FLANGE THA 		0-28050-816-0 01 1 0409-0412 ●
36 BOLT; GEAR CASE
(C) M8X16 FLANGE THA 		0-28050-816-0 01 1 0501- ● ●
36 BOLT; GEAR CASE
(E) M8X35 FLANGE THA 		0-28050-835-0 01 1 0409-0412 ●
36 BOLT; GEAR CASE
(E) M8X35 FLANGE THA 		0-28050-835-0 01 1 0501- ● ●
36 BOLT; GEAR CASE
(F) M8X45 FLANGE THA 		0-28050-845-0 02 1 0409-0412 ●
36 BOLT; GEAR CASE
(F) M8X45 FLANGE THA 		0-28050-845-0 02 1 0501- ● ●
36 BOLT; GEAR CASE
(H) M8X60 FLANGE THA 		0-28050-860-0 01 1 0409-0412 ●
36 BOLT; GEAR CASE
(H) M8X60 FLANGE THA 		0-28050-860-0 01 1 0501- ● ●
36 BOLT; GEAR CASE
(G) M8X25 FLANGE THA 		0-28650-825-0 15 1 0409-0412 ●
36 BOLT; GEAR CASE
(G) M8X25 FLANGE THA 		0-28650-825-0 15 1 0501- ● ●
36 BOLT; GEAR CASE
(B) M8X30 FLANGE THA 		0-28650-830-0 03 1 0409-0412 ●
36 BOLT; GEAR CASE
(B) M8X30 FLANGE THA 		0-28650-830-0 03 1 0501- ● ●
38 PIN; GEAR CASE COVER
OD=10 L=20 THA 		9-08151-020-0 02 1 0303-0408 ●
38 PIN; GEAR CASE COVER
OD=10 L=20 THA 		9-08151-020-0 02 1 0409-0412 ●
38 PIN; GEAR CASE COVER
OD=10 L=20 THA 		9-08151-020-0 02 1 0501- ● ●
49 GASKET; GEAR CASE TO COVER
THA 		8-97354-057-1 01 1 0409-0412 ●
49 GASKET; GEAR CASE TO COVER
THA 		8-97354-057-1 01 1 0501-0511 ● ●
49 GASKET; GEAR CASE TO COVER
THA 		8-97945-298-0 01 1 0512- ● ●
50 STUD
M8X27,M8X14 L=64.5 THA 		8-97354-808-2 06 1 0409-0412 ●
50 STUD
M8X27,M8X14 L=64.5 THA 		8-97354-808-2 06 1 0501- ● ●
51 BOLT; GEAR CASE COVER
THA 		8-97354-697-0 14 1 0409-0412 ●
51 BOLT; GEAR CASE COVER
THA 		8-97354-697-1 14 1 0501- ● ●
54 COVER; GEAR CASE
THA 		8-97306-430-2 01 1 0303-0408 ●
54 COVER; GEAR CASE
THA 		8-97367-312-4 01 1 0409-0412 ●
54 COVER; GEAR CASE
THA 		8-97367-312-4 01 1 0501-1201 ● ●
54 COVER; GEAR CASE
THA 		8-98170-215-0 01 1 1202- ● ●
55 COVER; NOISE SHIELD
THA 		8-97375-190-1 01 1 0409-0412 ●
55 COVER; NOISE SHIELD
THA 		8-97375-190-1 01 1 0501- ● ●
73 BOLT; COVER FIX
M6X16 FLANGE THA 		0-28050-616-0 05 1 0303-0408 ●
73 BOLT; COVER FIX
M6X12 FLANGE THA 		0-28050-612-0 02 1 0409-0412 ●
73 BOLT; COVER FIX
M6X12 FLANGE THA 		0-28050-612-0 02 1 0501- ● ●
79 BRACKET; GEAR CASE COVER
THA 		8-97370-390-2 01 1 0409-0412 ●
79 BRACKET; GEAR CASE COVER
THA 		8-97370-390-2 01 1 0501- ● ●
80 NUT; COVER
M6 FLANGE THA 		0-91180-206-0 02 1 0409-0412 ●
80 NUT; COVER
M6 FLANGE THA 		0-91180-206-0 02 1 0501- ● ●
81 STUD; GEAR CASE COVER FIX
(B) M6X16 L=25 THA 		0-41010-616-0 02 1 0409-0412 ●
81 STUD; GEAR CASE COVER FIX
(B) M6X16 L=25 THA 		0-41010-616-0 02 1 0501- ● ●
81 STUD; GEAR CASE COVER FIX
(A) M8X30 L=48 THA 		0-49140-830-0 02 1 0409-0412 ●
81 STUD; GEAR CASE COVER FIX
(A) M8X30 L=48 THA 		0-49140-830-0 02 1 0501- ● ●
98 NUT; STUD,INJ PUMP
M8 FLANGE THA 		0-91180-208-0 02 1 0409-0412 ●
98 NUT; STUD,INJ PUMP
M8 FLANGE THA 		0-91180-208-0 02 1 0501- ● ●
99 STUD; INJ PUMP
(A) M8X30 L=41 THA 		8-97369-449-0 01 1 0409-0412 ●
99 STUD; INJ PUMP
(A) M8X30 L=41 THA 		8-97369-449-0 01 1 0501-0508 ● ●
99 STUD; INJ PUMP
(A) M8X30 L=48 THA 		0-49140-830-0 01 1 0509- ● ●
99 STUD; INJ PUMP
(B) M8X45 L=56 THA 		8-97369-450-0 01 1 0409-0412 ●
99 STUD; INJ PUMP
(B) M8X45 L=56 THA 		8-97369-450-0 01 1 0501-0508 ● ●
99 STUD; INJ PUMP
(B) M8X45 L=63 THA 		0-49140-845-0 01 1 0509- ● ●
103 SEAL; OIL,CR/SHF,FRT
THA 		8-97351-704-0 01 1 0303-0408 ●
103 SEAL; OIL,CR/SHF,FRT
THA 		8-97943-951-0 01 1 0409-0412 ●
103 SEAL; OIL,CR/SHF,FRT
THA 		8-97943-951-0 01 1 0501- ● ●
111 WASHER; PL
ID=6.4 OD=22 THA 		9-09164-806-0 02 1 0409-0412 ●
111 WASHER; PL
ID=6.4 OD=22 THA 		9-09164-806-0 02 1 0501-0705 ● ●
111 WASHER; PL
ID=6.4 OD=22 THA 		0-91614-806-0 02 1 0706- ● ●
123 COVER; TIMING,LWR
THA 		8-97371-720-1 01 1 0409-0412 ●
123 COVER; TIMING,LWR
THA 		8-97371-720-1 01 1 0501- ● ●
124 BOLT; TIMING COVER
M6X16 FLANGE THA 		0-28050-616-0 03 1 0409-0412 ●
124 BOLT; TIMING COVER
M6X16 FLANGE THA 		0-28050-616-0 03 1 0501- ● ●
162 BOLT; FRT PLATE
(A) M8X45 FLANGE THA 		0-28050-845-0 01 1 0409-0412 ●
162 BOLT; FRT PLATE
(A) M8X45 FLANGE THA 		0-28050-845-0 01 1 0501-0508 ● ●
162 BOLT; FRT PLATE
(B) M8X70 FLANGE THA 		0-28050-870-0 02 1 0409-0412 ●
162 BOLT; FRT PLATE
(B) M8X70 FLANGE THA 		0-28050-870-0 02 1 0501-0508 ● ●
172 RETAINER; CR/SHF
THA 		8-97379-826-0 01 1 0409-0412 ●
172 RETAINER; CR/SHF
THA 		8-97379-826-0 01 1 0501- ● ●
175 SEAL; OIL,CR/SHF,RR
ID=95 OD=118 IMA 		8-97071-561-1 01 1 0303-0408 ●
175 SEAL; OIL,CR/SHF,RR
ID=95 OD=118 IMA 		8-97071-561-1 01 1 0409-0412 ●
175 SEAL; OIL,CR/SHF,RR
ID=95 OD=118 IMA 		8-97071-561-1 01 1 0501- ● ●
185 BOLT; RET TO C/BL
M8X25 FLANGE THA 		0-28650-825-0 05 1 0409-0412 ●
185 BOLT; RET TO C/BL
M8X25 FLANGE THA 		0-28650-825-0 05 1 0501- ● ●
211 BOLT; HSG
M12X25 THA 		8-97916-324-0 03 1 0409-0412 ●
211 BOLT; HSG
M12X25 THA 		8-97916-324-1 03 1 0501- ● ●
510 PUMP ASM; VACUUM
THA 		8-97312-081-3 01 1 0409-0412 ●
510 PUMP ASM; VACUUM
THA 		8-97312-081-5 01 1 0501-1004 ● ●
510 PUMP ASM; VACUUM
THA 		8-98162-749-0 01 1 1005-1009 ● ●
510 PUMP ASM; VACUUM
THA 		8-98178-027-2 01 1 1010-1302 ● ●
510 PUMP ASM; VACUUM
THA 		8-98211-157-0 01 1 1303-1312 ● ●
510 PUMP ASM; VACUUM
THA 		8-98251-765-0 01 1 1401- ● ●
512 RUBBER; SPACE
THA 		8-97373-716-0 01 1 0409-0412 ●
512 RUBBER; SPACE
THA 		8-97373-716-0 01 1 0501- ● ●
517 GASKET; VAC PUMP
(A) IMA 		0-95690-271-0 01 1 0409-0412 ●
517 GASKET; VAC PUMP
(A) IMA 		0-95690-271-0 01 1 0501- ● ●
517 GASKET; VAC PUMP
(B) THA 		8-97184-175-0 01 1 0409-0412 ●
517 GASKET; VAC PUMP
(B) THA 		8-97184-175-0 01 1 0501-1312 ● ●
517 GASKET; VAC PUMP
(B) THA 		8-98251-768-0 01 1 1401- ● ●
518 BOLT; VAC PUMP
THA 		8-97184-180-0 03 1 0409-0412 ●
518 BOLT; VAC PUMP
THA 		8-97184-180-0 03 1 0501- ● ●
593 PIN; STRAIGHT
ID=6 L=12 THA 		9-08160-612-0 02 1 0409-0412 ●
593 PIN; STRAIGHT
ID=6 L=12 THA 		9-08160-612-0 02 1 0501-0508 ● ●
595 GASKET; VLV
(A) ID=18 OD=24 IMA 		5-19679-002-0 02 1 0409-0412 ●
595 GASKET; VLV
(A) ID=18 OD=24 IMA 		5-19679-002-0 02 1 0501- ● ●
595 GASKET; VLV
(B) ID=12 OD=24 IMA 		5-19679-003-0 01 1 0409-0412 ●
595 GASKET; VLV
(B) ID=12 OD=24 IMA 		5-19679-003-0 01 1 0501- ● ●
617 BOLT; CHECK VLV
THA 		8-97376-402-0 01 1 0409-0412 ●
617 BOLT; CHECK VLV
THA 		8-97376-402-0 01 1 0501- ● ●
620 GASKET; GEAR CASE
T=1.40 1-NOTCH THA 		8-97328-828-1 01 1 0409-0412 ●
620 GASKET; GEAR CASE
T=1.40 1-NOTCH THA 		8-97328-828-2 01 1 0501- ● ●
620 GASKET; GEAR CASE
T=1.45 2-NOTCH THA 		8-97331-631-1 01 1 0409-0412 ●
620 GASKET; GEAR CASE
T=1.45 2-NOTCH THA 		8-97331-631-2 01 1 0501- ● ●
620 GASKET; GEAR CASE
T=1.50 3-NOTCH THA 		8-97331-632-1 01 1 0409-0412 ●
620 GASKET; GEAR CASE
T=1.50 3-NOTCH THA 		8-97331-632-2 01 1 0501- ● ●
621 NUT; VAC PUMP
M8 FLANGE THA 		0-91180-208-0 03 1 0409-0412 ●
621 NUT; VAC PUMP
M8 FLANGE THA 		0-91180-208-0 03 1 0501- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
