Sayfa 0-15 - Isuzu EPC

0-15 — CRANKSHAFT,PISTON AND FLYWHEEL (#18238) — 254 parça

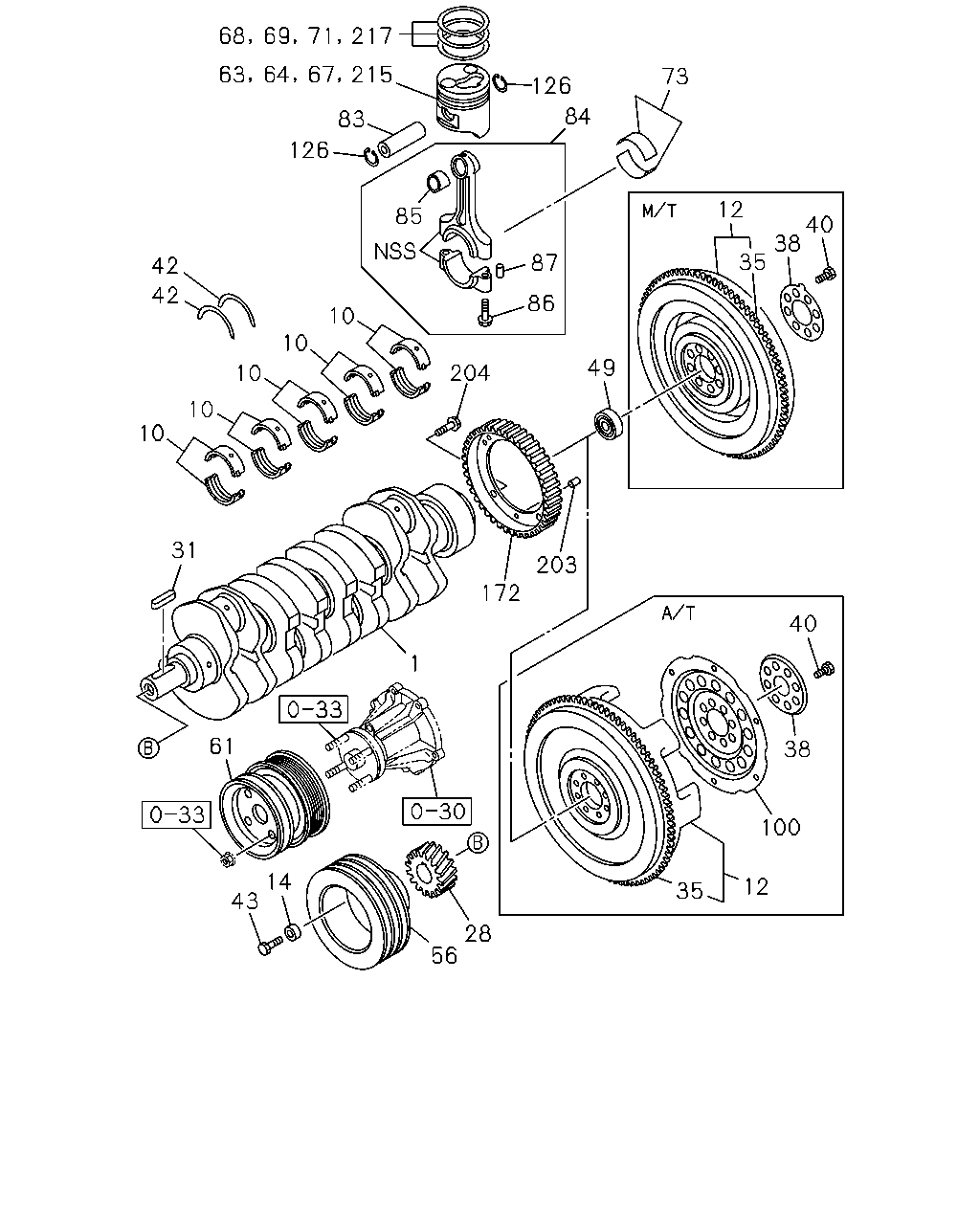

68 69 63 64 73 126 84 83 126 12 85 40 38 35 87 42 42 86 10 10 49 204 10 10 10 31 203 172 40 1 61 38 100 14 12 35 43 28 56 71 217 67 215

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	CRANKSHAFT THA	8-97940-743-0	01	1	0303-0408	●
1	CRANKSHAFT THA	8-97311-632-1	01	1	0409-		●
1	CRANKSHAFT THA	8-97372-419-2	01	1	0501-1108			●
1	CRANKSHAFT THA	8-98131-999-1	01	1	1109-			●
10	METAL SET; CRANKSHAFT,STANDARD GREEN THA	8-97288-117-0	05	1	0303-0408	●
10	METAL SET; CRANKSHAFT,STANDARD GREEN THA	8-97388-502-0	05	1	0409-0412		●
10	METAL SET; CRANKSHAFT,STANDARD GREEN THA	8-97388-502-0	05	1	0501-		●	●
10	METAL SET; CRANKSHAFT,STANDARD BLACK THA	8-97288-118-0	05	1	0303-0408	●
10	METAL SET; CRANKSHAFT,STANDARD BLACK THA	8-97388-503-0	05	1	0409-0412		●
10	METAL SET; CRANKSHAFT,STANDARD BLACK THA	8-97388-503-0	05	1	0501-		●	●
10	METAL SET; CRANKSHAFT,STANDARD BLUE THA	8-97288-119-0	05	1	0303-0408	●
10	METAL SET; CRANKSHAFT,STANDARD BLUE THA	8-97388-504-0	05	1	0409-0412		●
10	METAL SET; CRANKSHAFT,STANDARD BLUE THA	8-97388-504-0	05	1	0501-		●	●
10	METAL SET; CRANKSHAFT,STANDARD YELLOW THA	8-97288-120-0	05	1	0303-0408	●
10	METAL SET; CRANKSHAFT,STANDARD YELLOW THA	8-97388-505-0	05	1	0409-0412		●
10	METAL SET; CRANKSHAFT,STANDARD YELLOW THA	8-97388-505-0	05	1	0501-		●	●
10	METAL SET; CRANKSHAFT,STANDARD RED THA	8-97288-121-0	05	1	0303-0408	●
10	METAL SET; CRANKSHAFT,STANDARD RED THA	8-97388-506-0	05	1	0409-0412		●
10	METAL SET; CRANKSHAFT,STANDARD RED THA	8-97388-506-0	05	1	0501-		●	●
12	FLYWHEEL A/T 4 SPEED-JATCO<RMK> THA	8-97912-517-1	01	1	0303-0408	●
12	FLYWHEEL A/T 4 SPEED-JATCO<RMK> THA	8-97912-517-1	01	1	0409-		●
12	FLYWHEEL M/T MUA 5 SPEED<RMN> THA	8-97920-004-1	01	1	0303-0408	●
12	FLYWHEEL M/T MUA 5 SPEED 5G<RSP> THA	8-97920-004-1	01	1	0409-0412		●
12	FLYWHEEL M/T MUA 5 SPEED 5G<RSP> THA	8-97920-004-1	01	1	0501-0606		●
12	FLYWHEEL M/T MUA 5 SPEED 5H<MWQ> THA	8-97920-004-1	01	1	0501-0606			●
12	FLYWHEEL M/T MUA 5 SPEED 5H<MWQ> THA	8-97920-004-1	01	1	0607-0703		●	●
12	FLYWHEEL M/T MUA 5 SPEED 5H<MWQ> THA	8-98077-180-0	01	1	0704-		●	●
14	WASHER; PULLEY DAMPER ID=16.5 OD=45 T=12 THA	5-09503-127-0	01	1	0303-0408	●
14	WASHER; PULLEY DAMPER ID=16.5 OD=45 T=12 THA	5-09503-127-0	01	1	0409-0412		●
14	WASHER; PULLEY DAMPER ID=16.5 OD=45 T=12 IMA	5-09503-127-1	01	1	0501-		●	●
28	GEAR; CR/SHF Z=30 THA	8-97942-751-0	01	1	0303-0408	●
28	GEAR; CR/SHF Z=44 THA	8-97312-199-1	01	1	0409-0412		●
28	GEAR; CR/SHF Z=44 THA	8-97312-199-1	01	1	0501-		●	●
31	KEY; FEATHER,CR/SHF IMA	9-08030-743-0	01	1	0303-0408	●
31	KEY; FEATHER,CR/SHF IMA	9-08030-743-0	01	1	0409-0412		●
31	KEY; FEATHER,CR/SHF IMA	9-08030-743-0	01	1	0501-		●	●
35	GEAR; RING Z=108 THA	8-97912-516-1	01	1	0303-0408	●
35	GEAR; RING Z=108 THA	8-97912-516-1	01	1	0409-0412		●
35	GEAR; RING Z=108 THA	8-97912-516-1	01	1	0501-		●	●
38	WASHER; FLYWHEEL A/T 4 SPEED-JATCO<RMK> THA	8-97038-939-0	01	1	0303-0408	●
38	WASHER; FLYWHEEL A/T 4 SPEED-JATCO<RMK> THA	8-97038-939-1	01	1	0409-		●
38	WASHER; FLYWHEEL M/T MUA 5 SPEED<RMN> THA	8-97912-522-0	01	1	0303-0408	●
38	WASHER; FLYWHEEL M/T MUA 5 SPEED 5G<RSP> THA	8-94133-970-0	01	1	0409-0412		●
38	WASHER; FLYWHEEL M/T MUA 5 SPEED 5G<RSP> THA	8-94133-970-0	01	1	0501-0606		●
38	WASHER; FLYWHEEL M/T MUA 5 SPEED 5H<MWQ> THA	8-94133-970-0	01	1	0501-0606			●
38	WASHER; FLYWHEEL M/T MUA 5 SPEED 5H<MWQ> THA	8-94133-970-1	01	1	0607-		●	●
40	BOLT; FLYWHEEL A/T 4 SPEED-JATCO<RMK> M13X78 THA	8-97080-561-1	08	1	0303-0408	●
40	BOLT; FLYWHEEL A/T 4 SPEED-JATCO<RMK> M13X78 THA	8-97080-561-1	08	1	0409-		●
40	BOLT; FLYWHEEL M/T MUA 5 SPEED<RMN> M13X36 THA	8-97065-984-1	08	1	0303-0408	●
40	BOLT; FLYWHEEL M/T MUA 5 SPEED 5G<RSP> M13X36 THA	8-97941-069-0	08	1	0409-0412		●
40	BOLT; FLYWHEEL M/T MUA 5 SPEED 5G<RSP> M13X36 THA	8-97941-069-0	08	1	0501-0606		●
40	BOLT; FLYWHEEL M/T MUA 5 SPEED 5H<MWQ> M13X36 THA	8-97941-069-0	08	1	0501-0606			●
40	BOLT; FLYWHEEL M/T MUA 5 SPEED 5H<MWQ> M13X36 THA	8-97941-069-0	08	1	0607-		●	●
42	WASHER; THRUST,CR/SHF THA	8-97940-143-0	02	1	0303-0408	●
42	WASHER; THRUST,CR/SHF THA	8-97354-055-1	02	1	0409-0412		●
42	WASHER; THRUST,CR/SHF THA	8-97354-055-1	02	1	0501-		●	●
43	BOLT; CR/SHF PULLEY M16X43 THA	5-09000-273-2	01	1	0303-0408	●
43	BOLT; CR/SHF PULLEY M16X43 THA	8-97373-852-0	01	1	0409-0412		●
43	BOLT; CR/SHF PULLEY M16X43 THA	8-97373-852-1	01	1	0501-		●	●
49	BEARING; PILOT M/T MUA 5 SPEED 5G<RSP> NSK THA	8-97920-344-0	01	1	0409-0412		●
49	BEARING; PILOT M/T MUA 5 SPEED 5G<RSP> NSK THA	8-97920-344-0	01	1	0501-0606		●
49	BEARING; PILOT M/T MUA 5 SPEED 5H<MWQ> NSK THA	8-97920-344-0	01	1	0501-0606			●
49	BEARING; PILOT M/T MUA 5 SPEED 5H<MWQ> NSK THA	8-97920-344-2	01	1	0607-		●	●
49	BEARING; PILOT M/T MUA 5 SPEED 5G<RSP> NACHI THA	8-97922-552-0	01	1	0509-0606		●
49	BEARING; PILOT M/T MUA 5 SPEED 5H<MWQ> NACHI THA	8-97922-552-0	01	1	0509-0606			●
49	BEARING; PILOT M/T MUA 5 SPEED 5H<MWQ> NACHI THA	8-97922-552-1	01	1	0607-		●	●
56	PULLEY; CR/SHF DAMPER 3-GROOVE THA	8-97306-534-1	01	1	0303-0408	●
56	PULLEY; CR/SHF DAMPER 2-GROOVE THA	8-97361-562-1	01	1	0409-0412		●
56	PULLEY; CR/SHF DAMPER 2-GROOVE THA	8-97361-562-1	01	1	0501-		●	●
61	PULLEY; FAN DRIVE THA	8-97922-138-0	01	1	0303-0408	●
61	PULLEY; FAN DRIVE 2-GROOVE THA	8-97362-215-2	01	1	0409-0412		●
61	PULLEY; FAN DRIVE 2-GROOVE THA	8-97362-215-2	01	1	0501-		●	●
63	PISTON GRADE=AX THA	8-97941-127-0	04	1	0303-0408	●
63	PISTON GRADE=A THA	8-97367-397-1	04	1	0409-0606		●
63	PISTON GRADE=A THA	8-98028-116-0	04	1	0607-		●
63	PISTON GRADE=CX THA	8-97941-128-0	04	1	0303-0408	●
63	PISTON GRADE=B THA	8-97367-398-1	04	1	0409-0606		●
63	PISTON GRADE=B THA	8-98028-117-0	04	1	0607-		●
63	PISTON GRADE=C THA	8-97367-399-1	04	1	0409-0606		●
63	PISTON GRADE=C THA	8-98028-118-0	04	1	0607-		●
63	PISTON GRADE=A THA	8-97355-671-2	04	1	0501-			●
63	PISTON GRADE=B THA	8-97355-672-2	04	1	0501-			●
63	PISTON GRADE=C THA	8-97355-673-2	04	1	0501-			●
64	PISTON; O/S=0.50 THA	8-97388-327-0	04	1	0409-0606		●
64	PISTON; O/S=0.50 THA	8-98028-031-0	04	1	0607-		●
64	PISTON; O/S=0.50 THA	8-97388-330-0	04	1	0501-			●
67	PISTON; O/S=0.25 THA	8-98028-030-0	04	1	0711-		●
67	PISTON; O/S=0.25 THA	8-97388-329-0	04	1	0711-			●
68	RING SET; PISTON,STANDARD FOR TRUCK-BUS USERS THA	8-98173-004-0	04	1	1201-		●	●
68	RING SET; PISTON,STANDARD THA	8-97941-122-0	04	1	0303-0408	●
68	RING SET; PISTON,STANDARD THA	8-97388-734-0	04	1	0409-0412		●
68	RING SET; PISTON,STANDARD THA	8-97388-734-0	04	1	0501-0606		●	●
68	RING SET; PISTON,STANDARD THA	8-98077-915-0	04	1	0607-0704		●	●
68	RING SET; PISTON,STANDARD THA	8-98082-538-0	08	1	0705-0710		●	●
68	RING SET; PISTON,STANDARD THA	8-98082-538-0	04	1	0711-0711		●	●
68	RING SET; PISTON,STANDARD STANDARD SPEC THA	8-98096-676-1	04	1	0711-		●	●
69	RING SET; PISTON,O/S=0.50 FOR TRUCK-BUS USERS THA	8-98173-006-0	04	1	1201-		●	●
69	RING SET; PISTON,O/S=0.50 THA	8-97389-284-0	04	1	0409-0412		●
69	RING SET; PISTON,O/S=0.50 THA	8-97389-284-0	04	1	0501-0606		●	●
69	RING SET; PISTON,O/S=0.50 THA	8-98082-493-0	04	1	0607-0710		●	●
69	RING SET; PISTON,O/S=0.50 STANDARD SPEC THA	8-98096-562-1	04	1	0711-		●	●
71	RING SET; PISTON,O/S=0.25 FOR TRUCK-BUS USERS THA	8-98173-005-0	04	1	1201-		●	●
71	RING SET; PISTON,O/S=0.25 THA	8-98082-492-0	04	1	0711-0711		●	●
71	RING SET; PISTON,O/S=0.25 STANDARD SPEC THA	8-98096-561-1	04	1	0711-		●	●
73	METAL SET; CONN ROD,STANDARD THA	8-94372-193-1	04	1	0303-0408	●
73	METAL SET; CONN ROD,STANDARD THA	8-97388-735-0	04	1	0409-0412		●
73	METAL SET; CONN ROD,STANDARD THA	8-97388-735-0	04	1	0501-		●	●
83	PIN; PISTON THA	8-97942-732-0	04	1	0303-0408	●
83	PIN; PISTON THA	8-97311-928-2	04	1	0409-0412		●
83	PIN; PISTON THA	8-97311-928-2	04	1	0501-0910		●	●
83	PIN; PISTON THA	8-98150-333-0	04	1	0911-		●	●
84	ROD ASM; CONN THA	8-97941-030-2	04	1	0303-0408	●
84	ROD ASM; CONN THA	8-97357-716-1	04	1	0409-0412		●
84	ROD ASM; CONN THA	8-97357-716-3	04	1	0501-		●	●
85	BUSHING; CONNROD AFTER PRESS FITTING,SHAPE THE BUSHING. THA	8-97288-551-0	04	1	0303-0408	●
85	BUSHING; CONNROD THA	8-97311-438-0	04	1	0409-0412		●
85	BUSHING; CONNROD THA	8-97311-438-0	04	1	0501-0712		●	●
85	BUSHING; CONNROD AFTER PRESS FITTING,SHAPE THE BUSHING. IMA	8-97383-066-0	04	1	0801-		●	●
86	BOLT; CONNROD M11X44.5 THA	8-97062-086-0	08	1	0303-0408	●
86	BOLT; CONNROD M11X44.5 THA	8-97062-086-0	08	1	0409-0412		●
86	BOLT; CONNROD M11X44.5 THA	8-97062-086-0	08	1	0501-0702		●	●
86	BOLT; CONNROD M11X44.5 IMA	8-98048-538-0	08	1	0703-		●	●
87	PIN; CONNROD BIG END OD=5 L=8 THA	9-08160-508-0	08	1	0303-0408	●
87	PIN; CONNROD BIG END OD=5 L=8 THA	9-08160-508-0	08	1	0409-0412		●
87	PIN; CONNROD BIG END OD=5 L=8 THA	9-08160-508-0	08	1	0501-		●	●
100	PLATE; FLEX A/T 4 SPEED-JATCO<RMK> THA	8-97118-308-0	01	1	0303-0408	●
100	PLATE; FLEX A/T 4 SPEED-JATCO<RMK> THA	8-97118-308-0	01	1	0409-		●
126	RING; SNAP,PISTON PIN ID=33.9 THA	8-94133-969-0	08	1	0303-0408	●
126	RING; SNAP,PISTON PIN OD=37.5 IMA	8-94460-687-0	08	1	0409-0412		●
126	RING; SNAP,PISTON PIN OD=37.5 IMA	8-94460-687-0	08	1	0501-		●	●
172	ROTOR; CRANK SENSOR THA	8-97312-337-0	01	1	0409-0412		●
172	ROTOR; CRANK SENSOR THA	8-97312-337-0	01	1	0501-		●	●
203	PIN; ROTOR OD=5 L=8 THA	9-08160-508-0	01	1	0409-0412		●
203	PIN; ROTOR OD=5 L=8 THA	9-08160-508-0	01	1	0501-		●	●
204	BOLT; ROTOR THA	8-97944-142-0	03	1	0409-0412		●
204	BOLT; ROTOR THA	8-97944-142-1	03	1	0501-		●	●
215	PISTON; O/S=0.75 THA	8-98028-032-0	04	1	0711-		●
215	PISTON; O/S=0.75 THA	8-97388-331-0	04	1	0711-			●
217	RING SET; PISTON,O/S=0.75 FOR TRUCK-BUS USERS THA	8-98173-007-0	04	1	1201-		●	●
217	RING SET; PISTON,O/S=0.75 THA	8-98082-494-0	04	1	0711-0711		●	●
217	RING SET; PISTON,O/S=0.75 STANDARD SPEC THA	8-98096-563-1	04	1	0711-		●	●

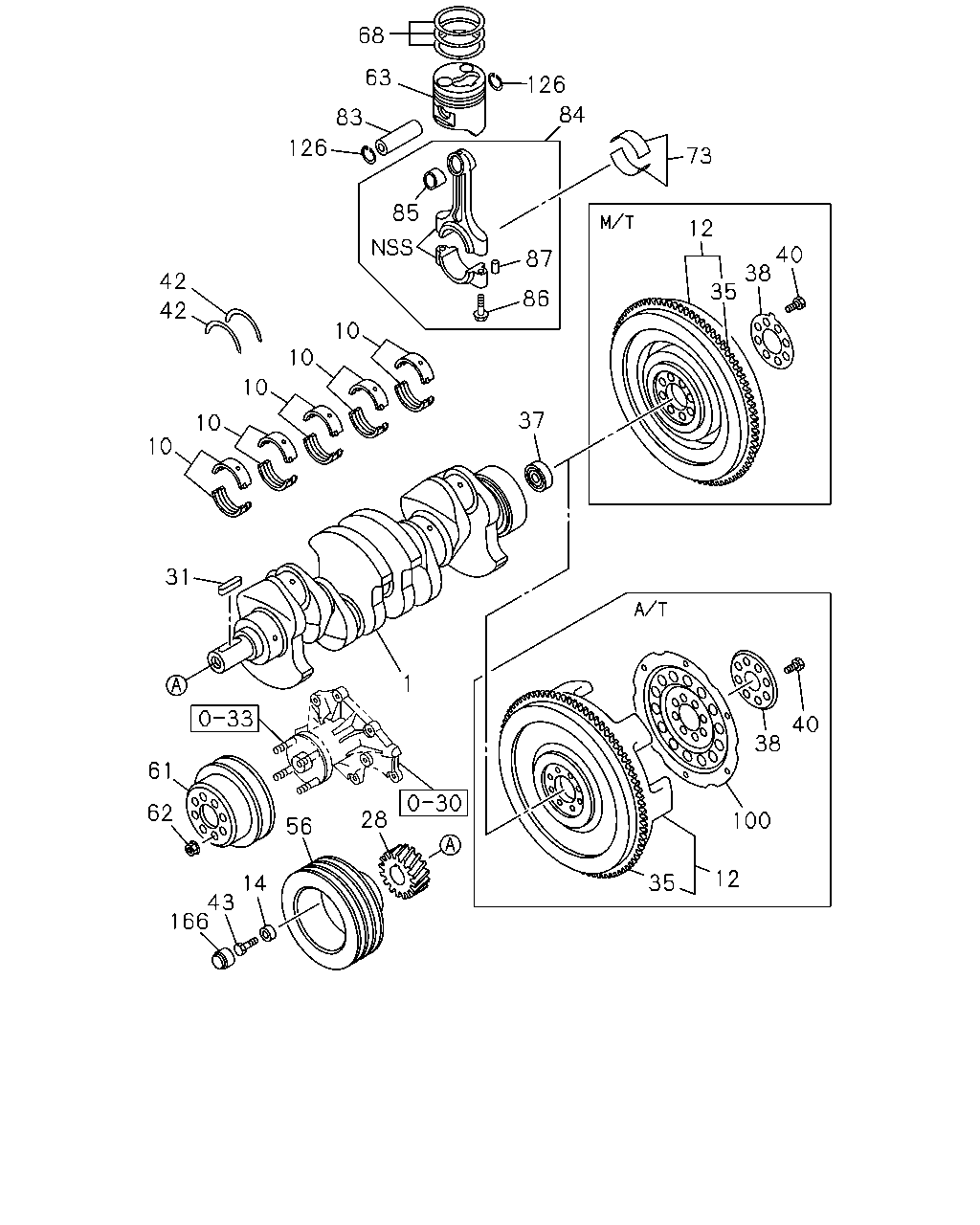

68 63 126 84 83 126 73 85 12 40 38 35 87 42 86 42 10 10 10 37 10 10 31 1 40 38 61 62 28 100 56 12 35 14 43 166

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	CRANKSHAFT THA	8-97940-743-0	01	1	0303-0408	●
1	CRANKSHAFT THA	8-97311-632-1	01	1	0409-		●
1	CRANKSHAFT THA	8-97372-419-2	01	1	0501-1108			●
1	CRANKSHAFT THA	8-98131-999-1	01	1	1109-			●
10	METAL SET; CRANKSHAFT,STANDARD GREEN THA	8-97288-117-0	05	1	0303-0408	●
10	METAL SET; CRANKSHAFT,STANDARD GREEN THA	8-97388-502-0	05	1	0409-0412		●
10	METAL SET; CRANKSHAFT,STANDARD GREEN THA	8-97388-502-0	05	1	0501-		●	●
10	METAL SET; CRANKSHAFT,STANDARD BLACK THA	8-97288-118-0	05	1	0303-0408	●
10	METAL SET; CRANKSHAFT,STANDARD BLACK THA	8-97388-503-0	05	1	0409-0412		●
10	METAL SET; CRANKSHAFT,STANDARD BLACK THA	8-97388-503-0	05	1	0501-		●	●
10	METAL SET; CRANKSHAFT,STANDARD BLUE THA	8-97288-119-0	05	1	0303-0408	●
10	METAL SET; CRANKSHAFT,STANDARD BLUE THA	8-97388-504-0	05	1	0409-0412		●
10	METAL SET; CRANKSHAFT,STANDARD BLUE THA	8-97388-504-0	05	1	0501-		●	●
10	METAL SET; CRANKSHAFT,STANDARD YELLOW THA	8-97288-120-0	05	1	0303-0408	●
10	METAL SET; CRANKSHAFT,STANDARD YELLOW THA	8-97388-505-0	05	1	0409-0412		●
10	METAL SET; CRANKSHAFT,STANDARD YELLOW THA	8-97388-505-0	05	1	0501-		●	●
10	METAL SET; CRANKSHAFT,STANDARD RED THA	8-97288-121-0	05	1	0303-0408	●
10	METAL SET; CRANKSHAFT,STANDARD RED THA	8-97388-506-0	05	1	0409-0412		●
10	METAL SET; CRANKSHAFT,STANDARD RED THA	8-97388-506-0	05	1	0501-		●	●
12	FLYWHEEL A/T 4 SPEED-JATCO<RMK> THA	8-97912-517-1	01	1	0303-0408	●
12	FLYWHEEL A/T 4 SPEED-JATCO<RMK> THA	8-97912-517-1	01	1	0409-		●
12	FLYWHEEL M/T MUA 5 SPEED<RMN> THA	8-97920-004-1	01	1	0303-0408	●
12	FLYWHEEL M/T MUA 5 SPEED 5G<RSP> THA	8-97920-004-1	01	1	0409-0412		●
12	FLYWHEEL M/T MUA 5 SPEED 5G<RSP> THA	8-97920-004-1	01	1	0501-0606		●
12	FLYWHEEL M/T MUA 5 SPEED 5H<MWQ> THA	8-97920-004-1	01	1	0501-0606			●
12	FLYWHEEL M/T MUA 5 SPEED 5H<MWQ> THA	8-97920-004-1	01	1	0607-0703		●	●
12	FLYWHEEL M/T MUA 5 SPEED 5H<MWQ> THA	8-98077-180-0	01	1	0704-		●	●
14	WASHER; PULLEY DAMPER ID=16.5 OD=45 T=12 THA	5-09503-127-0	01	1	0303-0408	●
14	WASHER; PULLEY DAMPER ID=16.5 OD=45 T=12 THA	5-09503-127-0	01	1	0409-0412		●
14	WASHER; PULLEY DAMPER ID=16.5 OD=45 T=12 IMA	5-09503-127-1	01	1	0501-		●	●
28	GEAR; CR/SHF Z=30 THA	8-97942-751-0	01	1	0303-0408	●
28	GEAR; CR/SHF Z=44 THA	8-97312-199-1	01	1	0409-0412		●
28	GEAR; CR/SHF Z=44 THA	8-97312-199-1	01	1	0501-		●	●
31	KEY; FEATHER,CR/SHF IMA	9-08030-743-0	01	1	0303-0408	●
31	KEY; FEATHER,CR/SHF IMA	9-08030-743-0	01	1	0409-0412		●
31	KEY; FEATHER,CR/SHF IMA	9-08030-743-0	01	1	0501-		●	●
35	GEAR; RING Z=108 THA	8-97912-516-1	01	1	0303-0408	●
35	GEAR; RING Z=108 THA	8-97912-516-1	01	1	0409-0412		●
35	GEAR; RING Z=108 THA	8-97912-516-1	01	1	0501-		●	●
37	BEARING; PILOT,TOP GEAR SHAFT NSK THA	8-97920-344-0	01	1	0303-0408	●
38	WASHER; FLYWHEEL A/T 4 SPEED-JATCO<RMK> THA	8-97038-939-0	01	1	0303-0408	●
38	WASHER; FLYWHEEL A/T 4 SPEED-JATCO<RMK> THA	8-97038-939-1	01	1	0409-		●
38	WASHER; FLYWHEEL M/T MUA 5 SPEED<RMN> THA	8-97912-522-0	01	1	0303-0408	●
38	WASHER; FLYWHEEL M/T MUA 5 SPEED 5G<RSP> THA	8-94133-970-0	01	1	0409-0412		●
38	WASHER; FLYWHEEL M/T MUA 5 SPEED 5G<RSP> THA	8-94133-970-0	01	1	0501-0606		●
38	WASHER; FLYWHEEL M/T MUA 5 SPEED 5H<MWQ> THA	8-94133-970-0	01	1	0501-0606			●
38	WASHER; FLYWHEEL M/T MUA 5 SPEED 5H<MWQ> THA	8-94133-970-1	01	1	0607-		●	●
40	BOLT; FLYWHEEL A/T 4 SPEED-JATCO<RMK> M13X78 THA	8-97080-561-1	08	1	0303-0408	●
40	BOLT; FLYWHEEL A/T 4 SPEED-JATCO<RMK> M13X78 THA	8-97080-561-1	08	1	0409-		●
40	BOLT; FLYWHEEL M/T MUA 5 SPEED<RMN> M13X36 THA	8-97065-984-1	08	1	0303-0408	●
40	BOLT; FLYWHEEL M/T MUA 5 SPEED 5G<RSP> M13X36 THA	8-97941-069-0	08	1	0409-0412		●
40	BOLT; FLYWHEEL M/T MUA 5 SPEED 5G<RSP> M13X36 THA	8-97941-069-0	08	1	0501-0606		●
40	BOLT; FLYWHEEL M/T MUA 5 SPEED 5H<MWQ> M13X36 THA	8-97941-069-0	08	1	0501-0606			●
40	BOLT; FLYWHEEL M/T MUA 5 SPEED 5H<MWQ> M13X36 THA	8-97941-069-0	08	1	0607-		●	●
42	WASHER; THRUST,CR/SHF THA	8-97940-143-0	02	1	0303-0408	●
42	WASHER; THRUST,CR/SHF THA	8-97354-055-1	02	1	0409-0412		●
42	WASHER; THRUST,CR/SHF THA	8-97354-055-1	02	1	0501-		●	●
43	BOLT; CR/SHF PULLEY M16X43 THA	5-09000-273-2	01	1	0303-0408	●
43	BOLT; CR/SHF PULLEY M16X43 THA	8-97373-852-0	01	1	0409-0412		●
43	BOLT; CR/SHF PULLEY M16X43 THA	8-97373-852-1	01	1	0501-		●	●
56	PULLEY; CR/SHF DAMPER 3-GROOVE THA	8-97306-534-1	01	1	0303-0408	●
56	PULLEY; CR/SHF DAMPER 2-GROOVE THA	8-97361-562-1	01	1	0409-0412		●
56	PULLEY; CR/SHF DAMPER 2-GROOVE THA	8-97361-562-1	01	1	0501-		●	●
61	PULLEY; FAN DRIVE THA	8-97922-138-0	01	1	0303-0408	●
61	PULLEY; FAN DRIVE 2-GROOVE THA	8-97362-215-2	01	1	0409-0412		●
61	PULLEY; FAN DRIVE 2-GROOVE THA	8-97362-215-2	01	1	0501-		●	●
62	NUT; FAN PULLEY M6 FLANGE THA	8-97943-101-0	04	1	0303-0408	●
63	PISTON GRADE=AX THA	8-97941-127-0	04	1	0303-0408	●
63	PISTON GRADE=A THA	8-97367-397-1	04	1	0409-0606		●
63	PISTON GRADE=A THA	8-98028-116-0	04	1	0607-		●
63	PISTON GRADE=CX THA	8-97941-128-0	04	1	0303-0408	●
63	PISTON GRADE=B THA	8-97367-398-1	04	1	0409-0606		●
63	PISTON GRADE=B THA	8-98028-117-0	04	1	0607-		●
63	PISTON GRADE=C THA	8-97367-399-1	04	1	0409-0606		●
63	PISTON GRADE=C THA	8-98028-118-0	04	1	0607-		●
63	PISTON GRADE=A THA	8-97355-671-2	04	1	0501-			●
63	PISTON GRADE=B THA	8-97355-672-2	04	1	0501-			●
63	PISTON GRADE=C THA	8-97355-673-2	04	1	0501-			●
68	RING SET; PISTON,STANDARD FOR TRUCK-BUS USERS THA	8-98173-004-0	04	1	1201-		●	●
68	RING SET; PISTON,STANDARD THA	8-97941-122-0	04	1	0303-0408	●
68	RING SET; PISTON,STANDARD THA	8-97388-734-0	04	1	0409-0412		●
68	RING SET; PISTON,STANDARD THA	8-97388-734-0	04	1	0501-0606		●	●
68	RING SET; PISTON,STANDARD THA	8-98077-915-0	04	1	0607-0704		●	●
68	RING SET; PISTON,STANDARD THA	8-98082-538-0	08	1	0705-0710		●	●
68	RING SET; PISTON,STANDARD THA	8-98082-538-0	04	1	0711-0711		●	●
68	RING SET; PISTON,STANDARD STANDARD SPEC THA	8-98096-676-1	04	1	0711-		●	●
73	METAL SET; CONN ROD,STANDARD THA	8-94372-193-1	04	1	0303-0408	●
73	METAL SET; CONN ROD,STANDARD THA	8-97388-735-0	04	1	0409-0412		●
73	METAL SET; CONN ROD,STANDARD THA	8-97388-735-0	04	1	0501-		●	●
83	PIN; PISTON THA	8-97942-732-0	04	1	0303-0408	●
83	PIN; PISTON THA	8-97311-928-2	04	1	0409-0412		●
83	PIN; PISTON THA	8-97311-928-2	04	1	0501-0910		●	●
83	PIN; PISTON THA	8-98150-333-0	04	1	0911-		●	●
84	ROD ASM; CONN THA	8-97941-030-2	04	1	0303-0408	●
84	ROD ASM; CONN THA	8-97357-716-1	04	1	0409-0412		●
84	ROD ASM; CONN THA	8-97357-716-3	04	1	0501-		●	●
85	BUSHING; CONNROD AFTER PRESS FITTING,SHAPE THE BUSHING. THA	8-97288-551-0	04	1	0303-0408	●
85	BUSHING; CONNROD THA	8-97311-438-0	04	1	0409-0412		●
85	BUSHING; CONNROD THA	8-97311-438-0	04	1	0501-0712		●	●
85	BUSHING; CONNROD AFTER PRESS FITTING,SHAPE THE BUSHING. IMA	8-97383-066-0	04	1	0801-		●	●
86	BOLT; CONNROD M11X44.5 THA	8-97062-086-0	08	1	0303-0408	●
86	BOLT; CONNROD M11X44.5 THA	8-97062-086-0	08	1	0409-0412		●
86	BOLT; CONNROD M11X44.5 THA	8-97062-086-0	08	1	0501-0702		●	●
86	BOLT; CONNROD M11X44.5 IMA	8-98048-538-0	08	1	0703-		●	●
87	PIN; CONNROD BIG END OD=5 L=8 THA	9-08160-508-0	08	1	0303-0408	●
87	PIN; CONNROD BIG END OD=5 L=8 THA	9-08160-508-0	08	1	0409-0412		●
87	PIN; CONNROD BIG END OD=5 L=8 THA	9-08160-508-0	08	1	0501-		●	●
100	PLATE; FLEX A/T 4 SPEED-JATCO<RMK> THA	8-97118-308-0	01	1	0303-0408	●
100	PLATE; FLEX A/T 4 SPEED-JATCO<RMK> THA	8-97118-308-0	01	1	0409-		●
126	RING; SNAP,PISTON PIN ID=33.9 THA	8-94133-969-0	08	1	0303-0408	●
126	RING; SNAP,PISTON PIN OD=37.5 IMA	8-94460-687-0	08	1	0409-0412		●
126	RING; SNAP,PISTON PIN OD=37.5 IMA	8-94460-687-0	08	1	0501-		●	●
166	RUBBER; SPACE,PULLEY THA	8-97942-633-0	01	1	0303-0408	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
