◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50958 - TFR/TFS THAI-RUNG ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-12 - CYLINDER BLOCK ▶

0-12 — CYLINDER BLOCK (#18235) — 208 parça

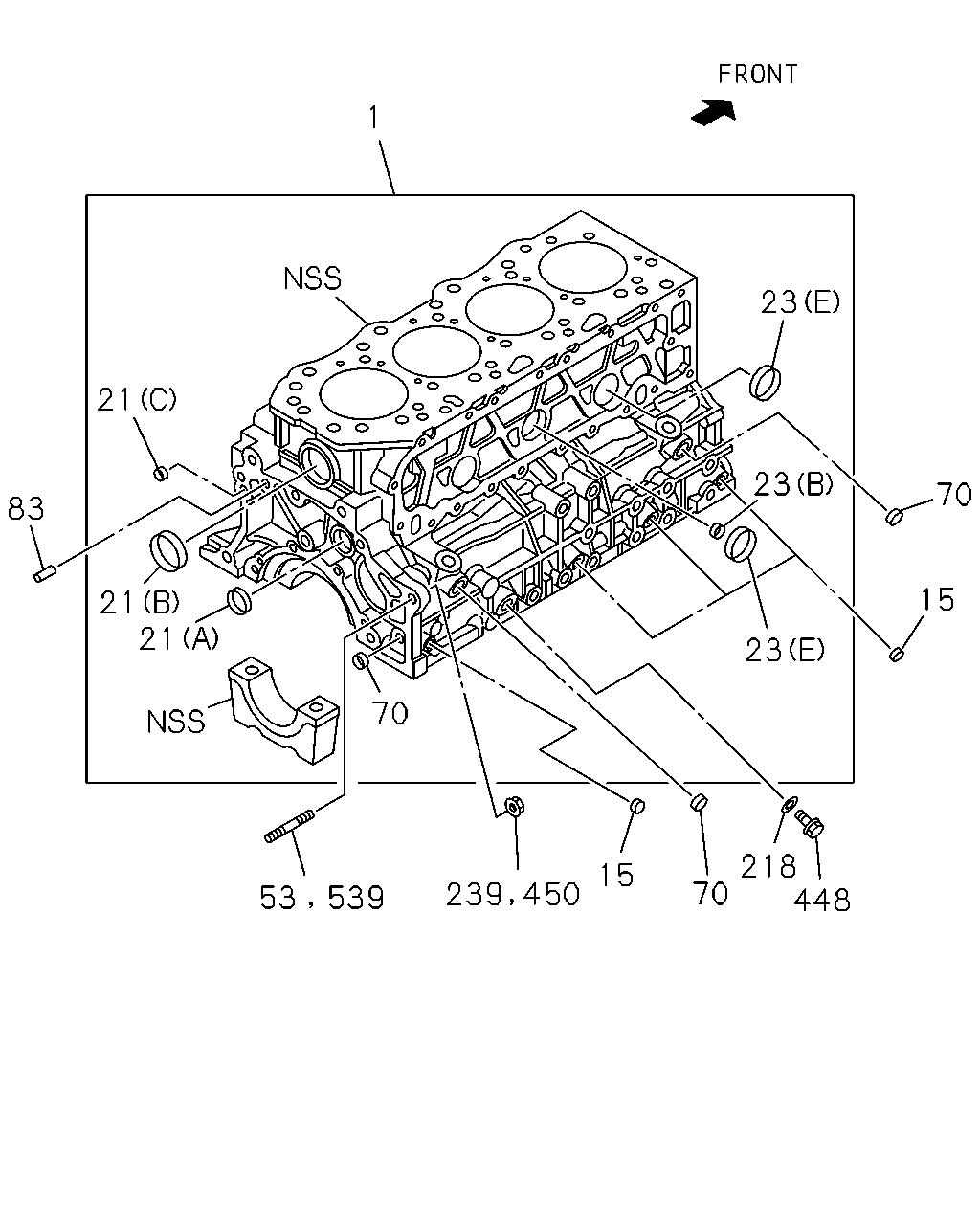

1 23 21 23 70 83 15 21 21 23 70 218 70 448 15 53 539 239 450

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	BLOCK ASM; CYL THA	8-98231-833-0	01	1	1209-1211	●	●
1	BLOCK ASM; CYL IMA	8-98223-994-0	01	1	1212-	●	●
1	BLOCK ASM; CYL THA	8-97940-732-5	01	1	0303-0408			●
1	BLOCK ASM; CYL THA	8-97310-721-7	01	1	0409-0412	●
1	BLOCK ASM; CYL THA	8-97310-721-8	01	1	0501-0507	●	●
1	BLOCK ASM; CYL THA	8-98013-824-3	01	1	0508-1208	●	●
15	PLUG; OIL GALLERY PT1/8 IMA	1-09605-050-0	03	1	0303-0408			●
15	PLUG; OIL GALLERY PT1/8 IMA	1-09605-050-0	04	1	0409-0412	●
15	PLUG; OIL GALLERY PT1/8 IMA	1-09605-050-0	04	1	0501-	●	●
21	CUP; SEALING,RR (A) OD=38 IMA	5-11219-017-0	01	1	0303-0408			●
21	CUP; SEALING,RR (A) OD=38 IMA	5-11219-017-0	01	1	0409-0412	●
21	CUP; SEALING,RR (A) OD=38 IMA	5-11219-017-0	01	1	0501-	●	●
21	CUP; SEALING,RR (B) OD=36 IMA	5-11219-018-0	01	1	0303-0408			●
21	CUP; SEALING,RR (B) OD=36 IMA	5-11219-018-0	01	1	0409-0412	●
21	CUP; SEALING,RR (B) OD=36 IMA	5-11219-018-0	01	1	0501-	●	●
21	CUP; SEALING,RR (C) OD=12.3 IMA	5-09600-013-0	01	1	0409-0412	●
21	CUP; SEALING,RR (C) OD=12.3 IMA	5-09600-013-0	01	1	0501-	●	●
23	CUP; SEALING,C/BL FRT & RR (A) OD=45 THA	1-09600-005-1	03	1	0303-0408			●
23	CUP; SEALING,C/BL FRT & RR (F) OD=45 IMA	8-97036-550-1	03	1	0409-0412	●
23	CUP; SEALING,C/BL FRT & RR (F) OD=45 IMA	8-97036-550-1	03	1	0501-	●	●
23	CUP; SEALING,C/BL FRT & RR (B) OD=18 IMA	5-11219-008-0	03	1	0303-0408			●
23	CUP; SEALING,C/BL FRT & RR (B) OD=18 IMA	5-11219-008-0	02	1	0409-0412	●
23	CUP; SEALING,C/BL FRT & RR (B) OD=18 IMA	5-11219-008-0	02	1	0501-	●	●
23	CUP; SEALING,C/BL FRT & RR (C) OD=32 IMA	5-11219-015-0	02	1	0303-0408			●
23	CUP; SEALING,C/BL FRT & RR (C) OD=32 IMA	5-11219-015-0	04	1	0409-0412	●
23	CUP; SEALING,C/BL FRT & RR (C) OD=32 IMA	5-11219-015-0	04	1	0501-	●	●
23	CUP; SEALING,C/BL FRT & RR (D) OD=36 IMA	5-11219-018-0	03	1	0303-0408			●
23	CUP; SEALING,C/BL FRT & RR (E) OD=36 IMA	5-11219-018-0	02	1	0409-0412	●
23	CUP; SEALING,C/BL FRT & RR (E) OD=36 IMA	5-11219-018-0	02	1	0501-	●	●
53	BOLT; REAMER M10X52 THA	8-97916-382-0	01	1	0303-0408			●
53	BOLT; REAMER M10X40 L=75.5 THA	8-97371-842-1	01	1	0409-0412	●
53	BOLT; REAMER M10X40 L=75.5 THA	8-97371-842-1	01	1	0501-0908	●	●
70	CUP; SEALING,FRT & RR OD=16 IMA	5-11129-006-0	02	1	0303-0408			●
70	CUP; SEALING,FRT & RR OD=16 IMA	5-11129-006-0	06	1	0409-0412	●
70	CUP; SEALING,FRT & RR OD=16 IMA	5-11129-006-0	06	1	0501-	●	●
83	PIN; FLYWHEEL HSG OD=10 L=32 THA	9-08161-032-0	01	1	0409-0412	●
83	PIN; FLYWHEEL HSG OD=10 L=32 THA	9-08161-032-0	01	1	0501-	●	●
218	GASKET; PLUG,C/BL SIDE ID=14.2 OD=20.0 THA	9-09571-414-0	01	1	0409-0412	●
218	GASKET; PLUG,C/BL SIDE ID=14.2 OD=20.0 THA	9-09571-414-0	01	1	0501-	●	●
239	NUT; STUD,C/BL M10 FLANGE THA	0-91180-110-0	01	1	0909-	●	●
448	PLUG; C/BL THA	8-97379-656-0	01	1	0409-0412	●
448	PLUG; C/BL THA	8-97379-656-1	01	1	0501-	●	●
450	NUT; REAMER BOLT M10 FLANGE THA	0-91180-110-0	01	1	0409-0412	●
450	NUT; REAMER BOLT M10 FLANGE THA	0-91180-110-0	01	1	0501-0908	●	●
539	STUD; REAMER M10X40 L=75.5 THA	8-97371-842-1	01	1	0909-	●	●

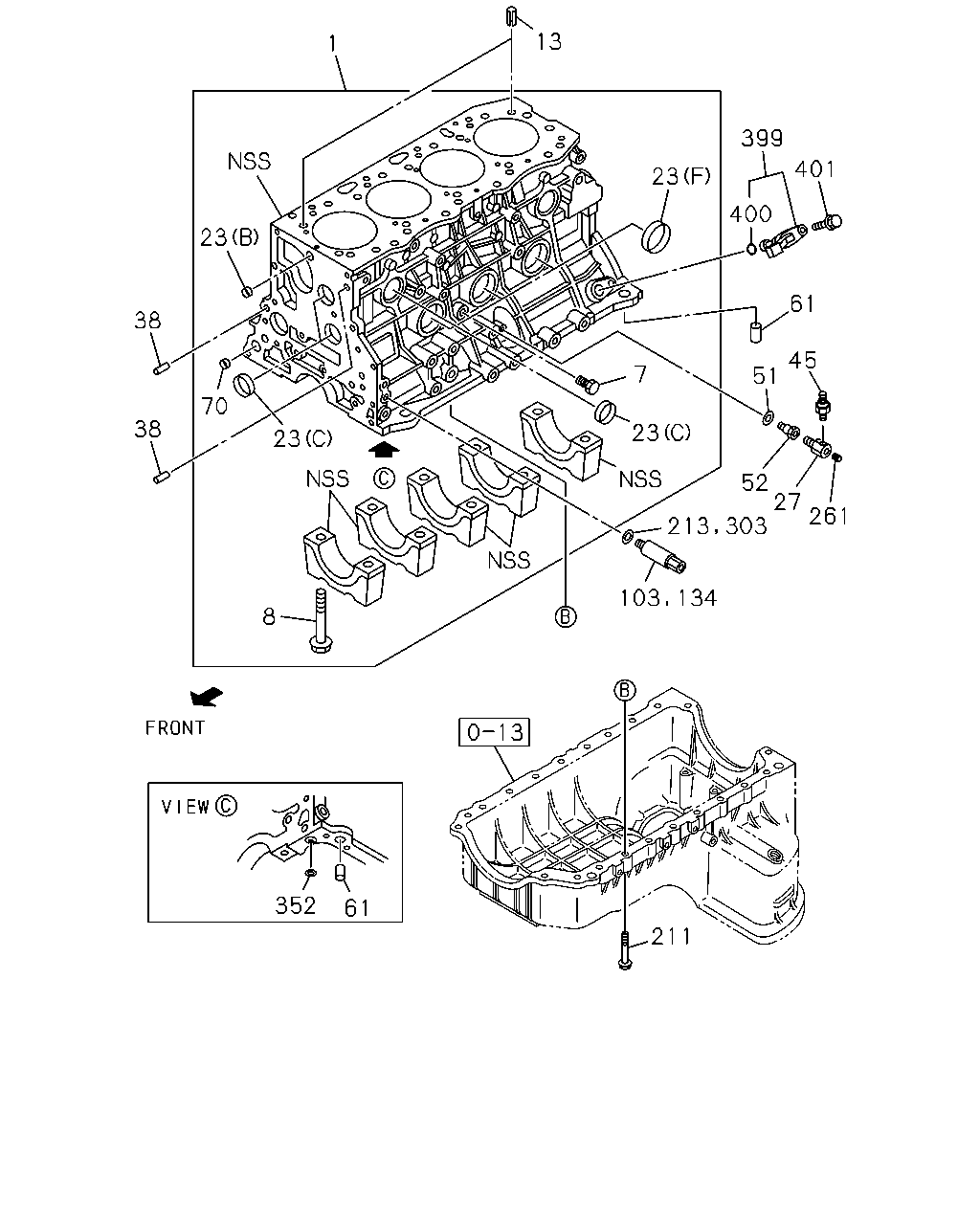

13 1 399 401 23 400 23 61 38 45 7 51 70 38 23 23 52 27 261 8 352 61 211 303 213 103 134

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	BLOCK ASM; CYL THA	8-98231-833-0	01	1	1209-1211	●	●
1	BLOCK ASM; CYL IMA	8-98223-994-0	01	1	1212-	●	●
1	BLOCK ASM; CYL THA	8-97940-732-5	01	1	0303-0408			●
1	BLOCK ASM; CYL THA	8-97310-721-7	01	1	0409-0412	●
1	BLOCK ASM; CYL THA	8-97310-721-8	01	1	0501-0507	●	●
1	BLOCK ASM; CYL THA	8-98013-824-3	01	1	0508-1208	●	●
7	PLUG; WATER DRAIN PT1/4 IMA	9-09664-001-0	01	1	1209-	●	●
7	PLUG; WATER DRAIN PT1/4 IMA	9-09664-001-0	01	1	0303-0408			●
7	PLUG; WATER DRAIN PT1/4 IMA	9-09664-001-0	01	1	0409-0412	●
7	PLUG; WATER DRAIN PT1/4 IMA	9-09664-001-0	01	1	0501-1208	●	●
8	BOLT; BRG CAP M14X89 FLANGE THA	8-97941-068-0	10	1	0303-0408			●
8	BOLT; BRG CAP M14X89 FLANGE IMA	8-94432-642-0	10	1	0409-0412	●
8	BOLT; BRG CAP M14X89 FLANGE IMA	8-94432-642-0	10	1	0501-	●	●
13	DOWEL; C/BL TO HD OD=14 IMA	8-94453-344-0	02	1	0303-0408			●
13	DOWEL; C/BL TO HD OD=14 IMA	8-94453-344-0	02	1	0409-0412	●
13	DOWEL; C/BL TO HD OD=14 IMA	8-94453-344-0	02	1	0501-	●	●
23	CUP; SEALING,C/BL FRT & RR (A) OD=45 THA	1-09600-005-1	03	1	0303-0408			●
23	CUP; SEALING,C/BL FRT & RR (F) OD=45 IMA	8-97036-550-1	03	1	0409-0412	●
23	CUP; SEALING,C/BL FRT & RR (F) OD=45 IMA	8-97036-550-1	03	1	0501-	●	●
23	CUP; SEALING,C/BL FRT & RR (B) OD=18 IMA	5-11219-008-0	03	1	0303-0408			●
23	CUP; SEALING,C/BL FRT & RR (B) OD=18 IMA	5-11219-008-0	02	1	0409-0412	●
23	CUP; SEALING,C/BL FRT & RR (B) OD=18 IMA	5-11219-008-0	02	1	0501-	●	●
23	CUP; SEALING,C/BL FRT & RR (C) OD=32 IMA	5-11219-015-0	02	1	0303-0408			●
23	CUP; SEALING,C/BL FRT & RR (C) OD=32 IMA	5-11219-015-0	04	1	0409-0412	●
23	CUP; SEALING,C/BL FRT & RR (C) OD=32 IMA	5-11219-015-0	04	1	0501-	●	●
23	CUP; SEALING,C/BL FRT & RR (D) OD=36 IMA	5-11219-018-0	03	1	0303-0408			●
23	CUP; SEALING,C/BL FRT & RR (E) OD=36 IMA	5-11219-018-0	02	1	0409-0412	●
23	CUP; SEALING,C/BL FRT & RR (E) OD=36 IMA	5-11219-018-0	02	1	0501-	●	●
27	NIPPLE; OIL GALLERY THA	8-97231-967-3	01	1	0303-0408			●
27	NIPPLE; OIL GALLERY THA	8-97231-967-3	01	1	0409-0412	●
27	NIPPLE; OIL GALLERY THA	8-97231-967-3	01	1	0501-0503	●	●
27	NIPPLE; OIL GALLERY IMA	8-98005-299-1	01	1	0504-	●	●
38	PIN; TIMING GEAR CASE OD=10 L=20 THA	9-08151-020-0	02	1	0409-0412	●
38	PIN; TIMING GEAR CASE OD=10 L=20 THA	9-08151-020-0	02	1	0501-	●	●
45	SWITCH; OIL PRESSURE THA	9-82720-209-2	01	1	0409-0412	●
45	SWITCH; OIL PRESSURE THA	9-82720-209-2	01	1	0501-0606	●	●
45	SWITCH; OIL PRESSURE IMA	8-97176-230-0	01	1	0607-	●	●
51	GASKET; OIL PRESS WARNING SW,C/BL THA	8-97912-498-0	01	1	0303-0408			●
51	GASKET; OIL PRESS WARNING SW,C/BL THA	8-97912-498-0	01	1	0409-0412	●
51	GASKET; OIL PRESS WARNING SW,C/BL THA	8-97912-498-0	01	1	0501-	●	●
52	NIPPLE; OIL PRESS WARNING SW,C/BL IMA	8-94167-750-2	01	1	0303-0408			●
52	NIPPLE; OIL PRESS WARNING SW,C/BL THA	8-97943-174-0	01	1	0409-0412	●
52	NIPPLE; OIL PRESS WARNING SW,C/BL THA	8-97943-174-0	01	1	0501-0703	●	●
52	NIPPLE; OIL PRESS WARNING SW,C/BL THA	8-98084-434-0	01	1	0704-	●	●
61	PIN; STRAIGHT OD=10 L=20 THA	9-08151-020-0	01	1	0303-0408			●
61	PIN; STRAIGHT L=31 THA	8-97920-964-1	02	1	0409-0412	●
61	PIN; STRAIGHT L=31 THA	8-97920-964-1	02	1	0501-	●	●
70	CUP; SEALING,FRT & RR OD=16 IMA	5-11129-006-0	02	1	0303-0408			●
70	CUP; SEALING,FRT & RR OD=16 IMA	5-11129-006-0	06	1	0409-0412	●
70	CUP; SEALING,FRT & RR OD=16 IMA	5-11129-006-0	06	1	0501-	●	●
103	NIPPLE; OIL FEED THA	8-97316-983-4	01	1	0909-	●	●
134	PLUG; OIL PUMP THA	8-97316-983-2	01	1	0409-0412	●
134	PLUG; OIL PUMP THA	8-97316-983-4	01	1	0501-0908	●	●
211	BOLT; CRANKCASE M8X30 FLANGE THA	0-28050-830-0	05	1	0409-0412	●
211	BOLT; CRANKCASE M8X30 FLANGE THA	0-28050-830-0	05	1	0501-	●	●
211	BOLT; CRANKCASE M8X25 FLANGE THA	0-28650-825-0	14	1	0409-0412	●
211	BOLT; CRANKCASE M8X25 FLANGE THA	0-28650-825-0	14	1	0501-	●	●
211	BOLT; CRANKCASE M8X40 FLANGE THA	0-28650-840-0	01	1	0409-0412	●
211	BOLT; CRANKCASE M8X40 FLANGE THA	0-28650-840-0	01	1	0501-	●	●
213	GASKET; NIPPLE,OIL FEED ID=10.2 OD=16.0 THA	9-09571-410-0	01	1	0909-	●	●
261	PLUG; OIL PRESS UNIT PT1/8 IMA	1-09605-050-0	01	1	0303-0408			●
261	PLUG; OIL PRESS UNIT PT1/8 IMA	1-09605-050-0	01	1	0409-0412	●
261	PLUG; OIL PRESS UNIT PT1/8 IMA	1-09605-050-0	01	1	0501-	●	●
303	GASKET; PLUG ID=10.2 OD=16.0 THA	9-09571-410-0	01	1	0409-0412	●
303	GASKET; PLUG ID=10.2 OD=16.0 THA	9-09571-410-0	01	1	0501-0908	●	●
352	GASKET; C/BL TO CRANKCASE THA	9-09566-116-0	01	1	0409-0412	●
352	GASKET; C/BL TO CRANKCASE THA	9-09566-116-0	01	1	0501-	●	●
399	SENSOR; CRANKSHAFT POSITION IMA	8-97312-108-1	01	1	0409-0412	●
399	SENSOR; CRANKSHAFT POSITION IMA	8-97312-108-1	01	1	0501-	●	●
400	GASKET; CRANKSHAFT POSITION SENSOR ID=14.2 OD=18.8 IMA	8-97369-404-0	01	1	0409-0412	●
400	GASKET; CRANKSHAFT POSITION SENSOR ID=14.2 OD=18.8 IMA	8-97369-404-0	01	1	0501-	●	●
401	BOLT; SENSOR M6X16 FLANGE THA	0-28050-616-0	01	1	0409-0412	●
401	BOLT; SENSOR M6X16 FLANGE THA	0-28050-616-0	01	1	0501-	●	●

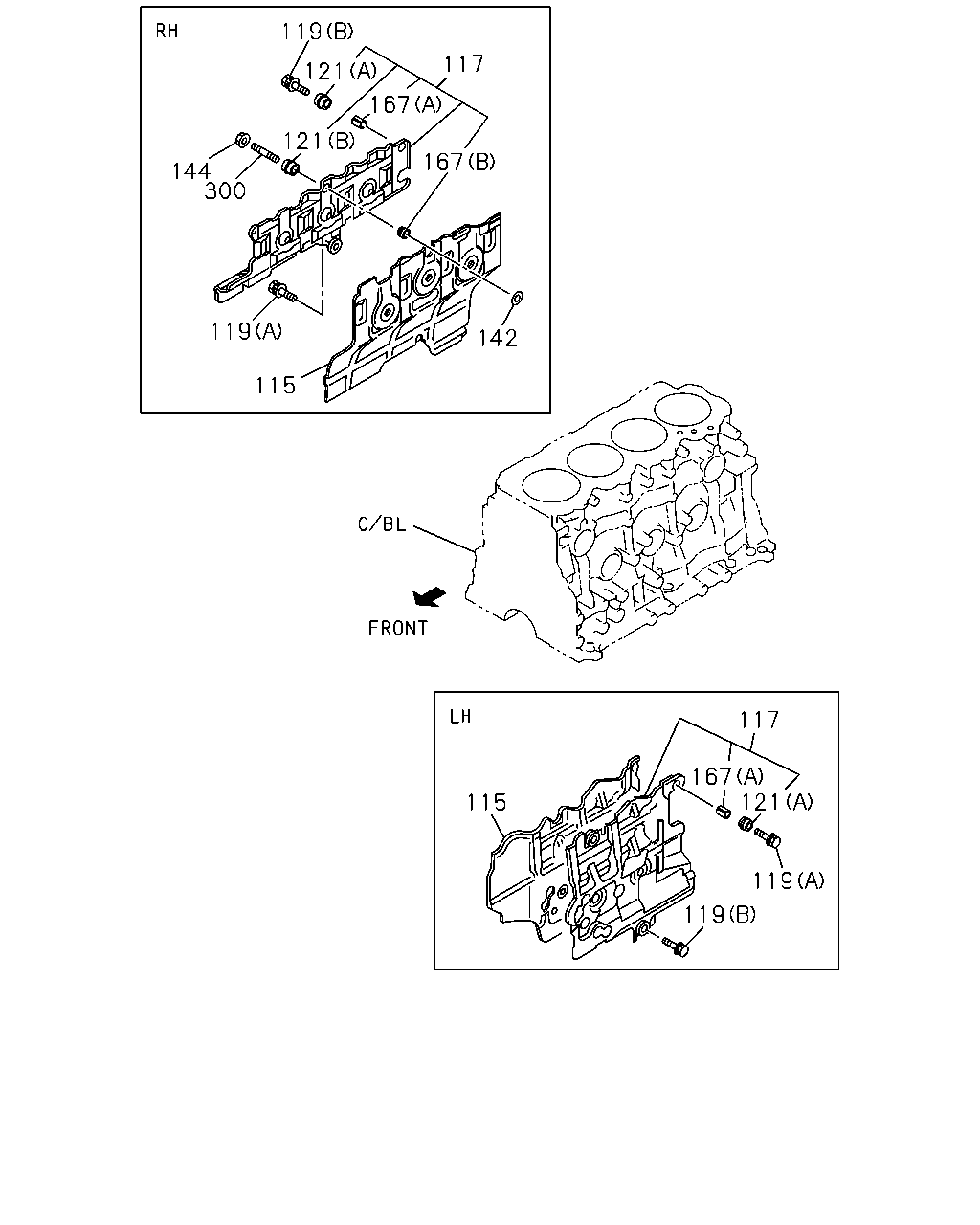

119 117 121 167 121 167 144 300 119 142 115 117 167 121 115 119 119

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	C
115	RUBBER; SPACE THA	8-97942-631-0	01	1	0303-0308	●
115	RUBBER; SPACE THA	8-97942-634-0	01	1	0303-0308	●
117	COVER ASM; C/BL THA	8-97919-885-1	01	1	0303-0308	●
117	COVER ASM; C/BL THA	8-97943-162-0	01	1	0303-0308	●
119	BOLT; COVER FIX (A) M10X28 THA	8-94329-952-1	02	1	0303-0308	●
119	BOLT; COVER FIX (B) M8X22 W/LK&PL WASHER THA	8-94329-953-1	04	1	0303-0308	●
121	RUBBER; MTG,COVER (A) THA	8-97916-666-1	06	1	0303-0308	●
121	RUBBER; MTG,COVER (B) THA	8-97919-890-0	01	1	0303-0308	●
142	WASHER; PL ID=8.4 OD=26 THA	9-09164-808-0	01	1	0303-0308	●
144	NUT; COVER FIX M8 FLANGE THA	0-91180-208-0	01	1	0303-0308	●
167	TUBE; DIST,SIDE COVER (A) THA	8-97916-668-0	06	1	0303-0308	●
167	TUBE; DIST,SIDE COVER (B) THA	8-97919-889-0	01	1	0303-0308	●
300	STUD; COVER M8X30 L=41 IMA	0-41010-830-0	01	1	0303-0308	●

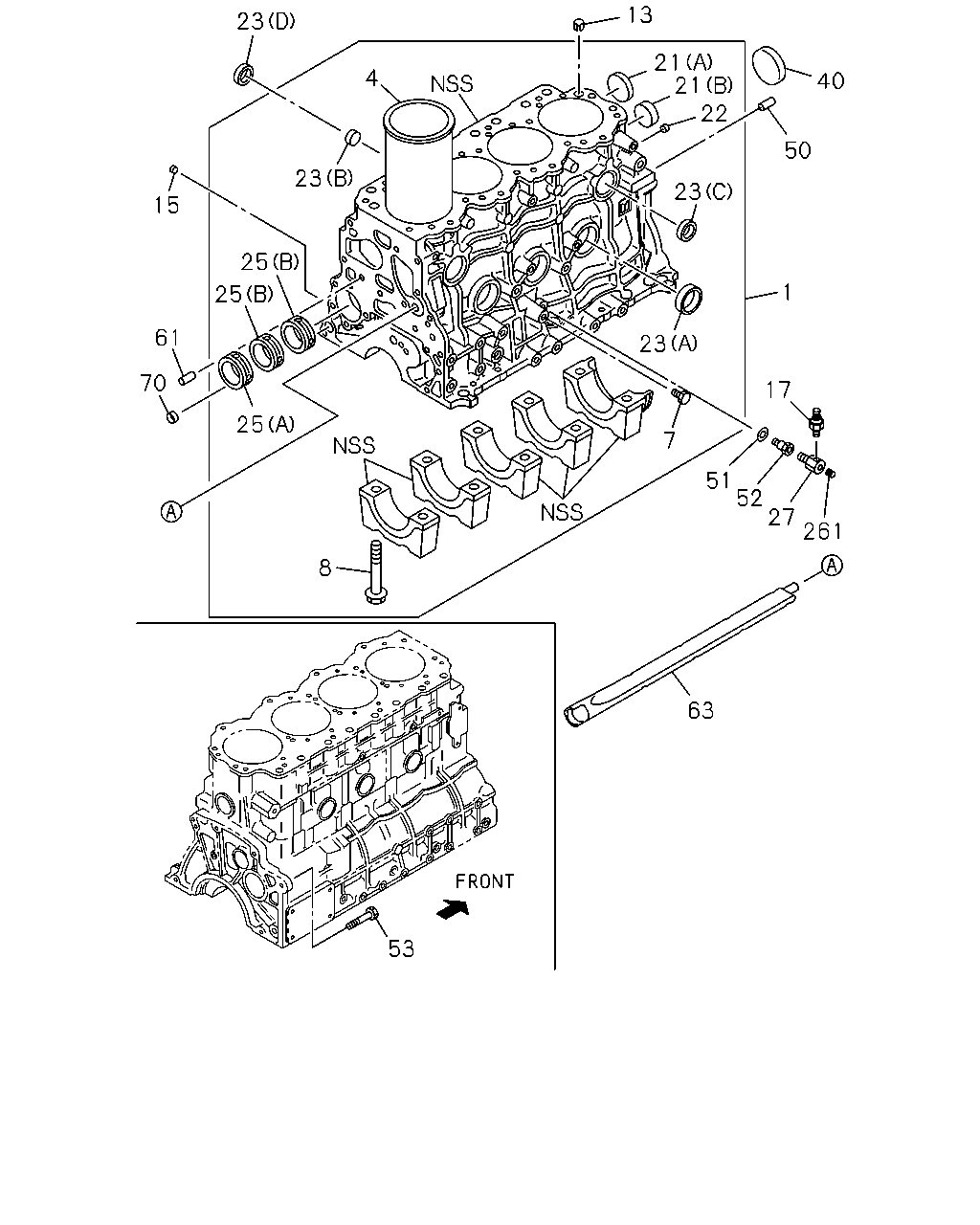

13 23 21 21 22 4 40 50 23 23 15 25 1 25 61 23 70 17 25 7 51 52 27 261 8 63 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	BLOCK ASM; CYL THA	8-98231-833-0	01	1	1209-1211	●	●
1	BLOCK ASM; CYL IMA	8-98223-994-0	01	1	1212-	●	●
1	BLOCK ASM; CYL THA	8-97940-732-5	01	1	0303-0408			●
1	BLOCK ASM; CYL THA	8-97310-721-7	01	1	0409-0412	●
1	BLOCK ASM; CYL THA	8-97310-721-8	01	1	0501-0507	●	●
1	BLOCK ASM; CYL THA	8-98013-824-3	01	1	0508-1208	●	●
4	LINER; C/BL OD GRADE=1,ID GRADE=AX THA	8-97176-699-0	04	1	0303-0408			●
4	LINER; C/BL OD GRADE=1,ID GRADE=CX THA	8-97176-700-0	04	1	0303-0408			●
4	LINER; C/BL OD GRADE=2,ID GRADE=AX THA	8-97176-701-0	04	1	0303-0408			●
4	LINER; C/BL OD GRADE=2,ID GRADE=CX THA	8-97176-702-0	04	1	0303-0408			●
4	LINER; C/BL OD GRADE=3,ID GRADE=AX THA	8-97176-703-0	04	1	0303-0408			●
4	LINER; C/BL OD GRADE=3,ID GRADE=CX THA	8-97176-704-0	04	1	0303-0408			●
4	LINER; C/BL OD GRADE=4,ID GRADE=AX THA	8-97176-705-0	04	1	0303-0408			●
4	LINER; C/BL OD GRADE=4,ID GRADE=CX THA	8-97176-706-0	04	1	0303-0408			●
7	PLUG; WATER DRAIN PT1/4 IMA	9-09664-001-0	01	1	1209-	●	●
7	PLUG; WATER DRAIN PT1/4 IMA	9-09664-001-0	01	1	0303-0408			●
7	PLUG; WATER DRAIN PT1/4 IMA	9-09664-001-0	01	1	0409-0412	●
7	PLUG; WATER DRAIN PT1/4 IMA	9-09664-001-0	01	1	0501-1208	●	●
8	BOLT; BRG CAP M14X89 FLANGE THA	8-97941-068-0	10	1	0303-0408			●
8	BOLT; BRG CAP M14X89 FLANGE IMA	8-94432-642-0	10	1	0409-0412	●
8	BOLT; BRG CAP M14X89 FLANGE IMA	8-94432-642-0	10	1	0501-	●	●
13	DOWEL; C/BL TO HD OD=14 IMA	8-94453-344-0	02	1	0303-0408			●
13	DOWEL; C/BL TO HD OD=14 IMA	8-94453-344-0	02	1	0409-0412	●
13	DOWEL; C/BL TO HD OD=14 IMA	8-94453-344-0	02	1	0501-	●	●
15	PLUG; OIL GALLERY PT1/8 IMA	1-09605-050-0	03	1	0303-0408			●
15	PLUG; OIL GALLERY PT1/8 IMA	1-09605-050-0	04	1	0409-0412	●
15	PLUG; OIL GALLERY PT1/8 IMA	1-09605-050-0	04	1	0501-	●	●
17	SWITCH; OIL PRESSURE THA	9-82720-209-2	01	1	0303-0408			●
21	CUP; SEALING,RR (A) OD=38 IMA	5-11219-017-0	01	1	0303-0408			●
21	CUP; SEALING,RR (A) OD=38 IMA	5-11219-017-0	01	1	0409-0412	●
21	CUP; SEALING,RR (A) OD=38 IMA	5-11219-017-0	01	1	0501-	●	●
21	CUP; SEALING,RR (B) OD=36 IMA	5-11219-018-0	01	1	0303-0408			●
21	CUP; SEALING,RR (B) OD=36 IMA	5-11219-018-0	01	1	0409-0412	●
21	CUP; SEALING,RR (B) OD=36 IMA	5-11219-018-0	01	1	0501-	●	●
21	CUP; SEALING,RR (C) OD=12.3 IMA	5-09600-013-0	01	1	0409-0412	●
21	CUP; SEALING,RR (C) OD=12.3 IMA	5-09600-013-0	01	1	0501-	●	●
22	CUP; SEALING,DUCT HOLE OD=12.3 IMA	5-09600-013-0	01	1	0303-0408			●
23	CUP; SEALING,C/BL FRT & RR (A) OD=45 THA	1-09600-005-1	03	1	0303-0408			●
23	CUP; SEALING,C/BL FRT & RR (F) OD=45 IMA	8-97036-550-1	03	1	0409-0412	●
23	CUP; SEALING,C/BL FRT & RR (F) OD=45 IMA	8-97036-550-1	03	1	0501-	●	●
23	CUP; SEALING,C/BL FRT & RR (B) OD=18 IMA	5-11219-008-0	03	1	0303-0408			●
23	CUP; SEALING,C/BL FRT & RR (B) OD=18 IMA	5-11219-008-0	02	1	0409-0412	●
23	CUP; SEALING,C/BL FRT & RR (B) OD=18 IMA	5-11219-008-0	02	1	0501-	●	●
23	CUP; SEALING,C/BL FRT & RR (C) OD=32 IMA	5-11219-015-0	02	1	0303-0408			●
23	CUP; SEALING,C/BL FRT & RR (C) OD=32 IMA	5-11219-015-0	04	1	0409-0412	●
23	CUP; SEALING,C/BL FRT & RR (C) OD=32 IMA	5-11219-015-0	04	1	0501-	●	●
23	CUP; SEALING,C/BL FRT & RR (D) OD=36 IMA	5-11219-018-0	03	1	0303-0408			●
23	CUP; SEALING,C/BL FRT & RR (E) OD=36 IMA	5-11219-018-0	02	1	0409-0412	●
23	CUP; SEALING,C/BL FRT & RR (E) OD=36 IMA	5-11219-018-0	02	1	0501-	●	●
25	METAL; CM/SHF (A) THA	8-97942-173-1	01	1	0303-0408			●
25	METAL; CM/SHF (B) THA	8-97942-174-1	02	1	0303-0408			●
27	NIPPLE; OIL GALLERY THA	8-97231-967-3	01	1	0303-0408			●
27	NIPPLE; OIL GALLERY THA	8-97231-967-3	01	1	0409-0412	●
27	NIPPLE; OIL GALLERY THA	8-97231-967-3	01	1	0501-0503	●	●
27	NIPPLE; OIL GALLERY IMA	8-98005-299-1	01	1	0504-	●	●
40	CUP; SEALING,C/BL RR OD=56 THA	8-94250-514-1	01	1	0303-0408			●
50	PIN; STRAIGHT,RR PLATE OD=10 L=32 THA	9-08161-032-0	01	1	0303-0408			●
51	GASKET; OIL PRESS WARNING SW,C/BL THA	8-97912-498-0	01	1	0303-0408			●
51	GASKET; OIL PRESS WARNING SW,C/BL THA	8-97912-498-0	01	1	0409-0412	●
51	GASKET; OIL PRESS WARNING SW,C/BL THA	8-97912-498-0	01	1	0501-	●	●
52	NIPPLE; OIL PRESS WARNING SW,C/BL IMA	8-94167-750-2	01	1	0303-0408			●
52	NIPPLE; OIL PRESS WARNING SW,C/BL THA	8-97943-174-0	01	1	0409-0412	●
52	NIPPLE; OIL PRESS WARNING SW,C/BL THA	8-97943-174-0	01	1	0501-0703	●	●
52	NIPPLE; OIL PRESS WARNING SW,C/BL THA	8-98084-434-0	01	1	0704-	●	●
53	BOLT; REAMER M10X52 THA	8-97916-382-0	01	1	0303-0408			●
53	BOLT; REAMER M10X40 L=75.5 THA	8-97371-842-1	01	1	0409-0412	●
53	BOLT; REAMER M10X40 L=75.5 THA	8-97371-842-1	01	1	0501-0908	●	●
61	PIN; STRAIGHT OD=10 L=20 THA	9-08151-020-0	01	1	0303-0408			●
61	PIN; STRAIGHT L=31 THA	8-97920-964-1	02	1	0409-0412	●
61	PIN; STRAIGHT L=31 THA	8-97920-964-1	02	1	0501-	●	●
63	DUCT; WATER,C/BL THA	8-97920-058-0	01	1	0303-0408			●
70	CUP; SEALING,FRT & RR OD=16 IMA	5-11129-006-0	02	1	0303-0408			●
70	CUP; SEALING,FRT & RR OD=16 IMA	5-11129-006-0	06	1	0409-0412	●
70	CUP; SEALING,FRT & RR OD=16 IMA	5-11129-006-0	06	1	0501-	●	●
261	PLUG; OIL PRESS UNIT PT1/8 IMA	1-09605-050-0	01	1	0303-0408			●
261	PLUG; OIL PRESS UNIT PT1/8 IMA	1-09605-050-0	01	1	0409-0412	●
261	PLUG; OIL PRESS UNIT PT1/8 IMA	1-09605-050-0	01	1	0501-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
