0-11 — CYLINDER HEAD (#18234) — 125 parça

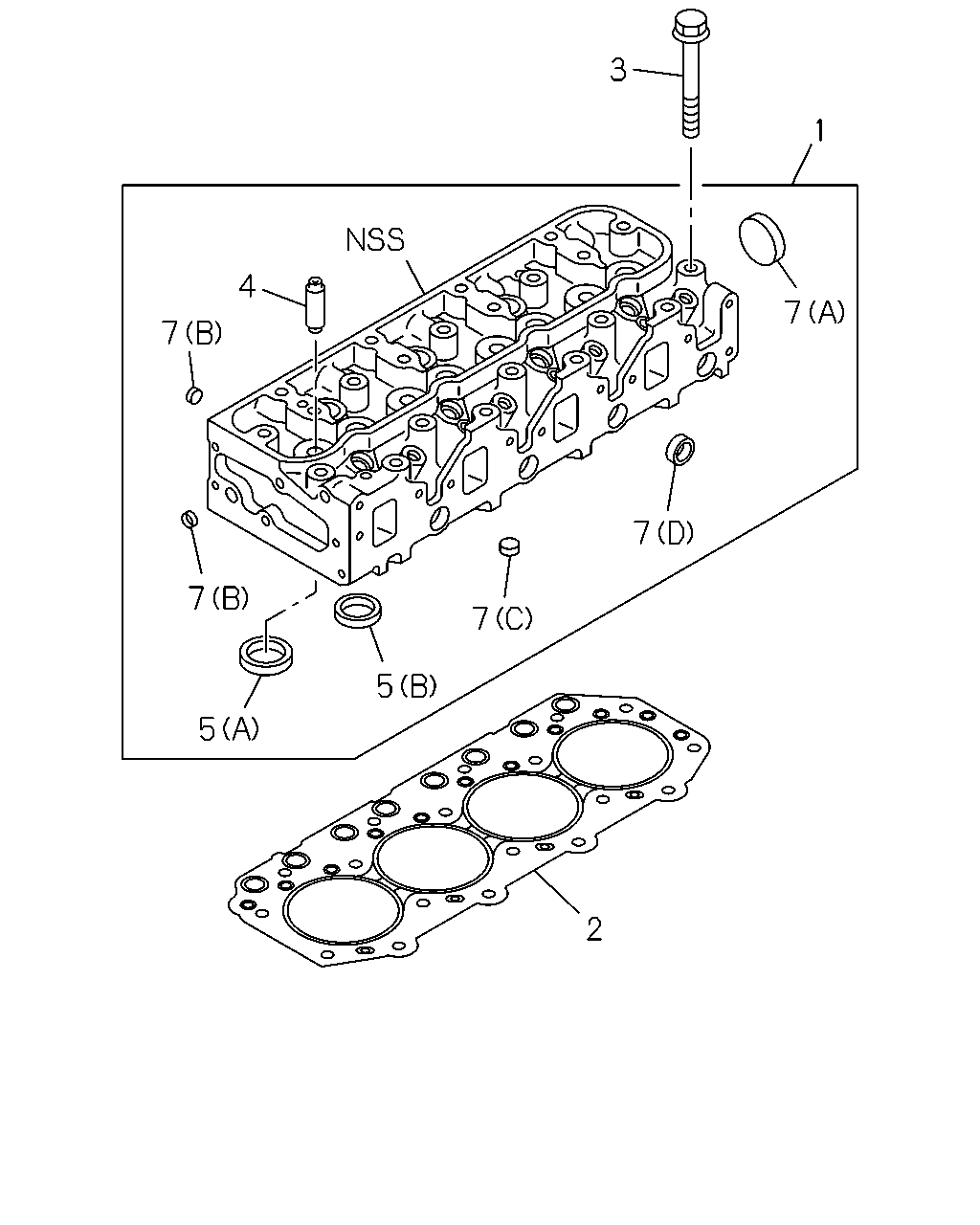

çizim 46825
3 1 4 7 7 7 7 7 5 5 2
BalonParca AdiParca NoAdetTipApplied Date A B C
1 HEAD ASM; CYL
THA 		8-97941-130-1 01 1 0303-0408 ●
1 HEAD ASM; CYL
THA 		8-97355-970-8 01 1 0409-0412 ●
1 HEAD ASM; CYL
THA 		8-97355-970-9 01 1 0501-1009 ● ●
1 HEAD ASM; CYL
THA 		8-98175-606-1 01 1 1010-1210 ● ●
1 HEAD ASM; CYL
IMA 		8-98223-019-1 01 1 1211- ● ●
2 GASKET; CYL HD
STD T=1.30 1-NOTCH THA 		8-97940-895-1 01 1 0303-0408 ●
2 GASKET; CYL HD
STD T=1.05 1-NOTCH THA 		8-97328-866-1 01 1 0409-0412 ●
2 GASKET; CYL HD
STD T=1.05 1-NOTCH THA 		8-97328-866-2 01 1 0501-1307 ● ●
2 GASKET; CYL HD
STD T=1.05 1-NOTCH THA 		8-98241-037-0 01 1 1308- ● ●
2 GASKET; CYL HD
STD T=1.35 2-NOTCH THA 		8-97940-896-1 01 1 0303-0408 ●
2 GASKET; CYL HD
STD T=1.10 2-NOTCH THA 		8-97328-867-1 01 1 0409-0412 ●
2 GASKET; CYL HD
STD T=1.10 2-NOTCH THA 		8-97328-867-2 01 1 0501-1307 ● ●
2 GASKET; CYL HD
STD T=1.10 2-NOTCH THA 		8-98241-038-0 01 1 1308- ● ●
2 GASKET; CYL HD
STD T=1.40 3-NOTCH THA 		8-97940-897-1 01 1 0303-0408 ●
2 GASKET; CYL HD
STD T=1.15 3-NOTCH THA 		8-97328-868-1 01 1 0409-0412 ●
2 GASKET; CYL HD
STD T=1.15 3-NOTCH THA 		8-97328-868-2 01 1 0501-1307 ● ●
2 GASKET; CYL HD
STD T=1.15 3-NOTCH THA 		8-98241-039-0 01 1 1308- ● ●
2 GASKET; CYL HD
O/S=0.50 OVER SIZE IMA 		8-97388-314-0 01 1 0409-0412 ●
2 GASKET; CYL HD
O/S=0.50 OVER SIZE IMA 		8-97388-314-0 01 1 0501- ● ●
3 BOLT; CYL HD TO BLOCK
M11X122 THA 		8-97941-070-0 18 1 0303-0408 ●
3 BOLT; CYL HD TO BLOCK
M11X114 THA 		8-97144-583-1 18 1 0409-0412 ●
3 BOLT; CYL HD TO BLOCK
M11X114 THA 		8-97144-583-2 18 1 0501-1201 ● ●
3 BOLT; CYL HD TO BLOCK
M11X114 W/WASHER IMA 		8-98201-019-0 18 1 1202- ● ●
4 GUIDE; VLV
L=50 THA 		5-11721-016-0 08 1 0303-0408 ●
4 GUIDE; VLV
L=42 IMA 		8-94239-423-0 16 1 0409-0412 ●
4 GUIDE; VLV
L=42 IMA 		8-94239-423-0 16 1 0501- ● ●
5 SEAT; VLV INSERT
(A) INLET OD=41.2 THA 		8-97231-228-0 04 1 0303-0408 ●
5 SEAT; VLV INSERT
(C) INLET ID=29 OD=35 IMA 		8-97311-378-0 08 1 0409-0412 ●
5 SEAT; VLV INSERT
(C) INLET ID=29 OD=35 IMA 		8-97311-378-0 08 1 0501- ● ●
5 SEAT; VLV INSERT
(B) EXHAUST OD=36.7 THA 		8-97231-229-0 04 1 0303-0408 ●
5 SEAT; VLV INSERT
(D) EXHAUST ID=26 OD=32 IMA 		8-97311-379-0 08 1 0409-0412 ●
5 SEAT; VLV INSERT
(D) EXHAUST ID=26 OD=32 IMA 		8-97311-379-0 08 1 0501- ● ●
7 CUP; SEALING,CYL HEAD
(A) OD=45 THA 		1-09600-005-1 01 1 0303-0408 ●
7 CUP; SEALING,CYL HEAD
(G) OD=18 IMA 		5-11219-008-0 13 1 0409-0412 ●
7 CUP; SEALING,CYL HEAD
(G) OD=18 IMA 		5-11219-008-0 13 1 0501- ● ●
7 CUP; SEALING,CYL HEAD
(B) OD=12.3 IMA 		5-09600-013-0 05 1 0303-0408 ●
7 CUP; SEALING,CYL HEAD
(E) OD=32 IMA 		1-09600-012-2 02 1 0409-0412 ●
7 CUP; SEALING,CYL HEAD
(E) OD=32 IMA 		1-09600-012-2 02 1 0501- ● ●
7 CUP; SEALING,CYL HEAD
(C) OD=16 IMA 		5-11129-006-0 03 1 0303-0408 ●
7 CUP; SEALING,CYL HEAD
(F) OD=14 IMA 		5-11219-011-0 07 1 0409-0412 ●
7 CUP; SEALING,CYL HEAD
(F) OD=14 IMA 		5-11219-011-0 07 1 0501- ● ●
7 CUP; SEALING,CYL HEAD
(D) OD=22 IMA 		8-97209-609-0 07 1 0303-0408 ●

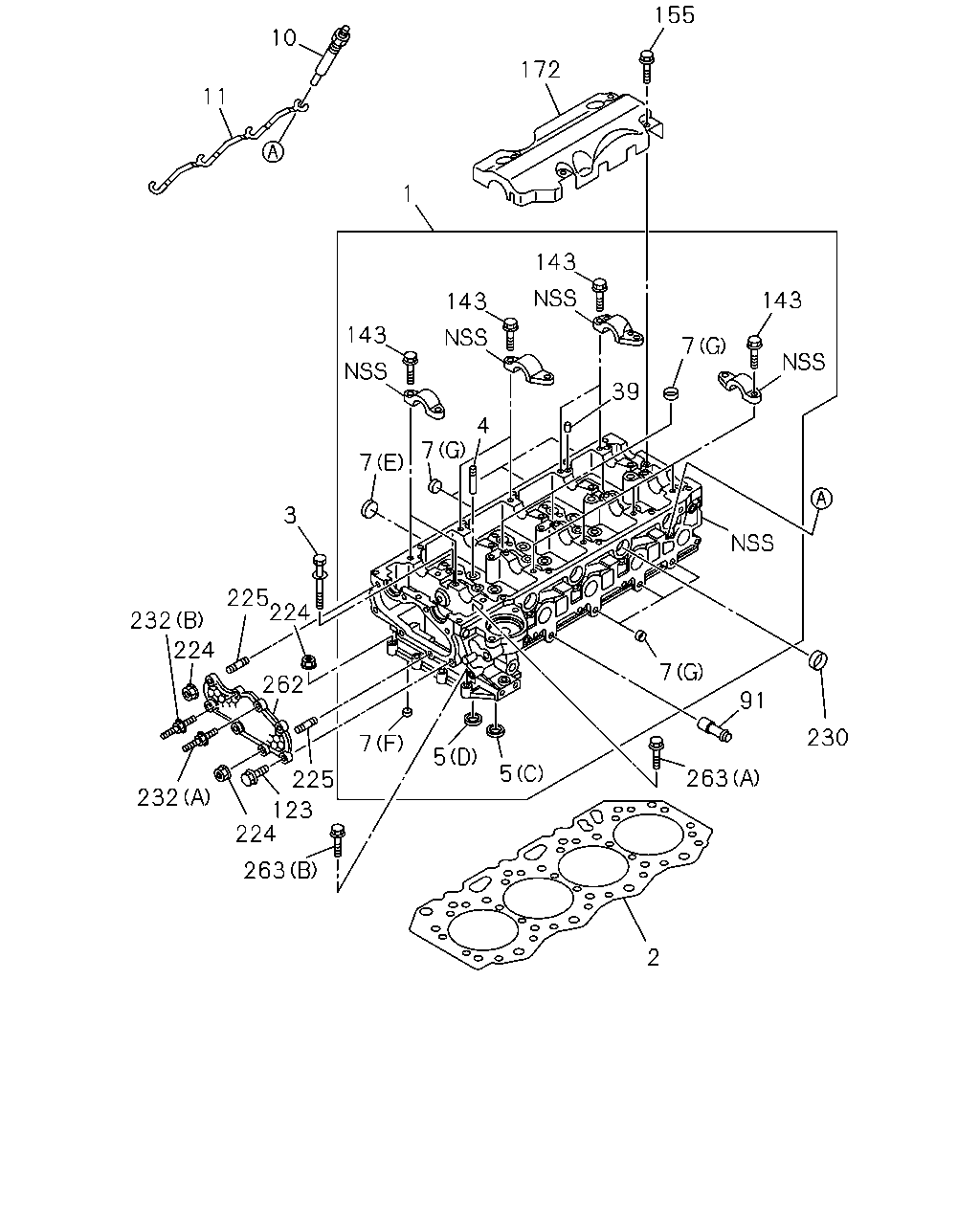

çizim 49353
155 10 172 11 1 143 143 143 143 7 39 4 7 7 3 225 224 232 224 7 262 91 7 230 225 5 5 263 232 123 224 263 2
BalonParca AdiParca NoAdetTipApplied Date A B C
1 HEAD ASM; CYL
THA 		8-97941-130-1 01 1 0303-0408 ●
1 HEAD ASM; CYL
THA 		8-97355-970-8 01 1 0409-0412 ●
1 HEAD ASM; CYL
THA 		8-97355-970-9 01 1 0501-1009 ● ●
1 HEAD ASM; CYL
THA 		8-98175-606-1 01 1 1010-1210 ● ●
1 HEAD ASM; CYL
IMA 		8-98223-019-1 01 1 1211- ● ●
2 GASKET; CYL HD
STD T=1.30 1-NOTCH THA 		8-97940-895-1 01 1 0303-0408 ●
2 GASKET; CYL HD
STD T=1.05 1-NOTCH THA 		8-97328-866-1 01 1 0409-0412 ●
2 GASKET; CYL HD
STD T=1.05 1-NOTCH THA 		8-97328-866-2 01 1 0501-1307 ● ●
2 GASKET; CYL HD
STD T=1.05 1-NOTCH THA 		8-98241-037-0 01 1 1308- ● ●
2 GASKET; CYL HD
STD T=1.35 2-NOTCH THA 		8-97940-896-1 01 1 0303-0408 ●
2 GASKET; CYL HD
STD T=1.10 2-NOTCH THA 		8-97328-867-1 01 1 0409-0412 ●
2 GASKET; CYL HD
STD T=1.10 2-NOTCH THA 		8-97328-867-2 01 1 0501-1307 ● ●
2 GASKET; CYL HD
STD T=1.10 2-NOTCH THA 		8-98241-038-0 01 1 1308- ● ●
2 GASKET; CYL HD
STD T=1.40 3-NOTCH THA 		8-97940-897-1 01 1 0303-0408 ●
2 GASKET; CYL HD
STD T=1.15 3-NOTCH THA 		8-97328-868-1 01 1 0409-0412 ●
2 GASKET; CYL HD
STD T=1.15 3-NOTCH THA 		8-97328-868-2 01 1 0501-1307 ● ●
2 GASKET; CYL HD
STD T=1.15 3-NOTCH THA 		8-98241-039-0 01 1 1308- ● ●
2 GASKET; CYL HD
O/S=0.50 OVER SIZE IMA 		8-97388-314-0 01 1 0409-0412 ●
2 GASKET; CYL HD
O/S=0.50 OVER SIZE IMA 		8-97388-314-0 01 1 0501- ● ●
3 BOLT; CYL HD TO BLOCK
M11X122 THA 		8-97941-070-0 18 1 0303-0408 ●
3 BOLT; CYL HD TO BLOCK
M11X114 THA 		8-97144-583-1 18 1 0409-0412 ●
3 BOLT; CYL HD TO BLOCK
M11X114 THA 		8-97144-583-2 18 1 0501-1201 ● ●
3 BOLT; CYL HD TO BLOCK
M11X114 W/WASHER IMA 		8-98201-019-0 18 1 1202- ● ●
4 GUIDE; VLV
L=50 THA 		5-11721-016-0 08 1 0303-0408 ●
4 GUIDE; VLV
L=42 IMA 		8-94239-423-0 16 1 0409-0412 ●
4 GUIDE; VLV
L=42 IMA 		8-94239-423-0 16 1 0501- ● ●
5 SEAT; VLV INSERT
(A) INLET OD=41.2 THA 		8-97231-228-0 04 1 0303-0408 ●
5 SEAT; VLV INSERT
(C) INLET ID=29 OD=35 IMA 		8-97311-378-0 08 1 0409-0412 ●
5 SEAT; VLV INSERT
(C) INLET ID=29 OD=35 IMA 		8-97311-378-0 08 1 0501- ● ●
5 SEAT; VLV INSERT
(B) EXHAUST OD=36.7 THA 		8-97231-229-0 04 1 0303-0408 ●
5 SEAT; VLV INSERT
(D) EXHAUST ID=26 OD=32 IMA 		8-97311-379-0 08 1 0409-0412 ●
5 SEAT; VLV INSERT
(D) EXHAUST ID=26 OD=32 IMA 		8-97311-379-0 08 1 0501- ● ●
7 CUP; SEALING,CYL HEAD
(A) OD=45 THA 		1-09600-005-1 01 1 0303-0408 ●
7 CUP; SEALING,CYL HEAD
(G) OD=18 IMA 		5-11219-008-0 13 1 0409-0412 ●
7 CUP; SEALING,CYL HEAD
(G) OD=18 IMA 		5-11219-008-0 13 1 0501- ● ●
7 CUP; SEALING,CYL HEAD
(B) OD=12.3 IMA 		5-09600-013-0 05 1 0303-0408 ●
7 CUP; SEALING,CYL HEAD
(E) OD=32 IMA 		1-09600-012-2 02 1 0409-0412 ●
7 CUP; SEALING,CYL HEAD
(E) OD=32 IMA 		1-09600-012-2 02 1 0501- ● ●
7 CUP; SEALING,CYL HEAD
(C) OD=16 IMA 		5-11129-006-0 03 1 0303-0408 ●
7 CUP; SEALING,CYL HEAD
(F) OD=14 IMA 		5-11219-011-0 07 1 0409-0412 ●
7 CUP; SEALING,CYL HEAD
(F) OD=14 IMA 		5-11219-011-0 07 1 0501- ● ●
7 CUP; SEALING,CYL HEAD
(D) OD=22 IMA 		8-97209-609-0 07 1 0303-0408 ●
10 PLUG; GLOW
BOSCH THA 		8-97326-046-0 04 1 0409-0412 ●
10 PLUG; GLOW
BOSCH THA 		8-97326-046-0 04 1 0501-0602 ● ●
10 PLUG; GLOW
BOSCH THA 		8-98013-392-0 04 1 0603-1009 ● ●
10 PLUG; GLOW
BOSCH THA 		8-98174-898-0 04 1 1010-1109 ● ●
10 PLUG; GLOW
BOSCH THA 		8-98200-051-0 04 1 1110- ● ●
11 CONNECTOR; GLOW PLUG
THA 		8-97326-045-2 01 1 0409-0412 ●
11 CONNECTOR; GLOW PLUG
THA 		8-97326-045-3 01 1 0501-1303 ● ●
11 CONNECTOR; GLOW PLUG
THA 		8-98209-370-0 01 1 1304- ● ●
39 DOWEL; CAP,CM/SHF
IMA 		8-97329-129-1 20 1 0409-0412 ●
39 DOWEL; CAP,CM/SHF
IMA 		8-97329-129-1 20 1 0501- ● ●
91 PIPE; HTR
THA 		8-94343-211-1 01 1 0409-0412 ●
91 PIPE; HTR
THA 		8-94343-211-1 01 1 0501- ● ●
123 BOLT; COVER
M8X20 FLANGE THA 		8-97366-632-0 04 1 0409-0412 ●
123 BOLT; COVER
M8X20 FLANGE THA 		8-97366-632-0 04 1 0501-0508 ● ●
123 BOLT; COVER
M8X20 FLANGE THA 		0-28050-820-0 04 1 0509- ● ●
143 BOLT; FIX
M8X40 FLANGE THA 		0-28680-840-0 20 1 0409-0412 ●
143 BOLT; FIX
M8X40 FLANGE THA 		0-28680-840-0 20 1 0501-0512 ● ●
143 BOLT; FIX
M8X40 FLANGE THA 		0-28650-840-0 20 1 0601- ● ●
155 BOLT; BAFFLE PLATE
M6X10 HEX SOCKET THA 		0-58330-610-0 04 1 0409-0412 ●
155 BOLT; BAFFLE PLATE
M6X10 HEX SOCKET THA 		0-58330-610-0 04 1 0501- ● ●
172 PLATE; BAFFLE,CYL HD
THA 		8-97364-366-4 01 1 0409-0412 ●
172 PLATE; BAFFLE,CYL HD
THA 		8-97364-366-4 01 1 0501-0606 ● ●
172 PLATE; BAFFLE,CYL HD
THA 		8-98049-103-0 01 1 0607- ● ●
224 NUT; COVER
M8 FLANGE THA 		0-91180-208-0 04 1 0409-0412 ●
224 NUT; COVER
M8 FLANGE THA 		0-91180-208-0 04 1 0501- ● ●
225 STUD; COVER
M8X20 L=31 THA 		8-97366-634-0 02 1 0409-0412 ●
225 STUD; COVER
M8X20 L=31 THA 		8-97366-634-1 02 1 0501-0508 ● ●
225 STUD; COVER
M8X20 L=31 THA 		8-97945-022-0 02 1 0509- ● ●
230 GASKET; SLEEVE,INJECTOR
THA 		8-97943-955-0 04 1 0409-0412 ●
230 GASKET; SLEEVE,INJECTOR
THA 		8-97943-955-0 04 1 0501- ● ●
232 STUD; CAM,CARRIER
(A) M8X15 M8X17 L=40 THA 		8-97366-633-0 01 1 0409-0412 ●
232 STUD; CAM,CARRIER
(A) M8X15 M8X17 L=40 THA 		8-97366-633-0 01 1 0501-0508 ● ●
232 STUD; CAM,CARRIER
(A) M8X15 M8X17 L=40 THA 		8-97945-023-0 01 1 0509- ● ●
232 STUD; CAM,CARRIER
(B) M6X12 M8X17 L=37 THA 		8-97375-460-0 01 1 0409-0412 ●
232 STUD; CAM,CARRIER
(B) M6X12 M8X17 L=37 THA 		8-97375-460-0 01 1 0501- ● ●
262 COVER; CYL HEAD
THA 		8-97355-516-4 01 1 0409-0412 ●
262 COVER; CYL HEAD
THA 		8-97355-516-4 01 1 0501- ● ●
263 BOLT; CYL HD
(A) M8X60 FLANGE THA 		0-28050-860-0 01 1 0409-0412 ●
263 BOLT; CYL HD
(A) M8X60 FLANGE THA 		0-28050-860-0 01 1 0501- ● ●
263 BOLT; CYL HD
(B) M8X35 FLANGE THA 		0-28650-835-0 03 1 0409-0412 ●
263 BOLT; CYL HD
(B) M8X35 FLANGE THA 		0-28650-835-0 03 1 0501- ● ●
