0-10 — CYLINDER HEAD COVER (#18233) — 81 parça

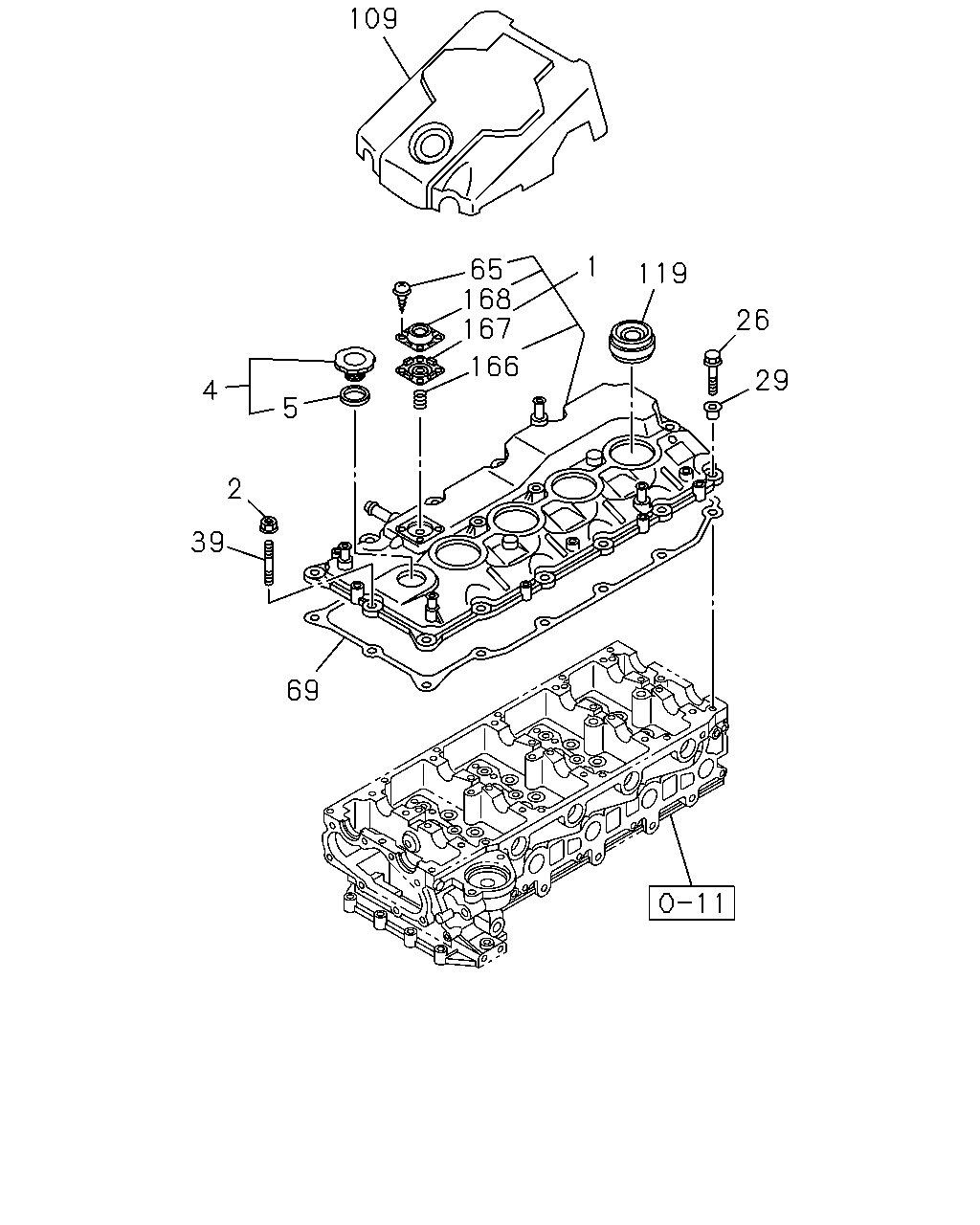

çizim 46427
109 1 65 168 167 119 26 166 29 4 5 2 39 69
BalonParca AdiParca NoAdetTipApplied Date A B C
1 COVER; CYL HD
THA 		8-97943-017-0 01 1 0303-0408 ●
1 COVER; CYL HD
THA 		8-97366-527-3 01 1 0409-0412 ●
1 COVER; CYL HD
THA 		8-97366-527-4 01 1 0501-0606 ● ●
1 COVER; CYL HD
THA 		8-98051-196-2 01 1 0607- ● ●
2 NUT; COVER,HD
M6 FLANGE THA 		0-91180-206-0 01 1 0409-0412 ●
2 NUT; COVER,HD
M6 FLANGE THA 		0-91180-206-0 01 1 0501- ● ●
4 CAP; OIL FILLER
THA 		8-97912-543-0 01 1 0303-0408 ●
4 CAP; OIL FILLER
THA 		8-97912-543-0 01 1 0409-0412 ●
4 CAP; OIL FILLER
THA 		8-97912-543-0 01 1 0501-0606 ● ●
4 CAP; OIL FILLER
THA 		8-98026-084-0 01 1 0607- ● ●
5 GASKET; OIL FILLER
ID=32 OD=40 THA 		8-97918-298-0 01 1 0303-0408 ●
5 GASKET; OIL FILLER
ID=32 OD=40 THA 		8-97918-298-0 01 1 0409-0412 ●
5 GASKET; OIL FILLER
ID=32 OD=40 THA 		8-97918-298-0 01 1 0501- ● ●
26 BOLT; CYL HD COVER
M6X30 FLANGE THA 		0-28650-630-0 13 1 0409-0412 ●
26 BOLT; CYL HD COVER
M6X30 FLANGE THA 		0-28650-630-0 13 1 0501- ● ●
29 RUBBER; MTG,HD COVER
THA 		8-97361-811-1 14 1 0409-0412 ●
29 RUBBER; MTG,HD COVER
THA 		8-97361-811-1 14 1 0501- ● ●
39 STUD; COVER,HD
M6X30 L=38 THA 		8-97372-795-0 01 1 0409-0412 ●
39 STUD; COVER,HD
M6X30 L=38 THA 		8-97372-795-0 01 1 0501-0508 ● ●
39 STUD; COVER,HD
M6X30 L=38 THA 		0-41010-630-0 01 1 0509- ● ●
65 SCREW; ADAPTER
M5X10 W/LK WASHER THA 		8-97366-592-0 04 1 0409-0412 ●
65 SCREW; ADAPTER
M5X10 W/LK WASHER THA 		8-97366-592-0 04 1 0501- ● ●
69 GASKET; HD TO COVER
THA 		8-97912-741-0 01 1 0303-0408 ●
69 GASKET; HD TO COVER
THA 		8-97312-088-0 01 1 0409-0412 ●
69 GASKET; HD TO COVER
THA 		8-97312-088-0 01 1 0501-0511 ● ●
69 GASKET; HD TO COVER
THA 		8-97945-338-0 01 1 0512- ● ●
109 COVER; ENG
THA 		8-97316-476-2 01 1 0303-0408 ●
109 COVER; ENG
THA 		8-97364-387-2 01 1 0409-0602 ●
109 COVER; ENG
THA 		8-98031-429-0 01 1 0603-0606 ●
109 COVER; ENG
THA 		8-98019-065-0 01 1 0607-0802 ●
109 COVER; ENG
THA 		8-98097-019-0 01 1 0803-0808 ●
109 COVER; ENG
THA 		8-98102-515-0 01 1 0809- ●
109 COVER; ENG
THA 		8-97370-448-2 01 1 0501-0602 ●
109 COVER; ENG
THA 		8-98031-430-0 01 1 0603-0606 ●
109 COVER; ENG
THA 		8-98031-174-0 01 1 0607-0802 ●
109 COVER; ENG
THA 		8-98097-018-0 01 1 0803-0808 ●
109 COVER; ENG
THA 		8-98102-514-0 01 1 0809- ●
119 COVER; SEAL,NOZZLE
THA 		8-97317-168-1 04 1 0409-0412 ●
119 COVER; SEAL,NOZZLE
THA 		8-97317-168-1 04 1 0501-0606 ● ●
119 COVER; SEAL,NOZZLE
THA 		8-98037-543-0 04 1 0607- ● ●
166 SPRING; VENTILATOR
THA 		8-97365-998-0 01 1 0409-0412 ●
166 SPRING; VENTILATOR
THA 		8-97365-998-0 01 1 0501- ● ●
167 DIAPHRAGM; VENTILATOR
THA 		8-97365-915-1 01 1 0409-0412 ●
167 DIAPHRAGM; VENTILATOR
THA 		8-97365-915-1 01 1 0501-0505 ● ●
167 DIAPHRAGM; VENTILATOR
THA 		8-98003-164-0 01 1 0506- ● ●
168 COVER; VENTILATOR
THA 		8-97365-992-0 01 1 0409-0412 ●
168 COVER; VENTILATOR
THA 		8-97365-992-0 01 1 0501- ● ●

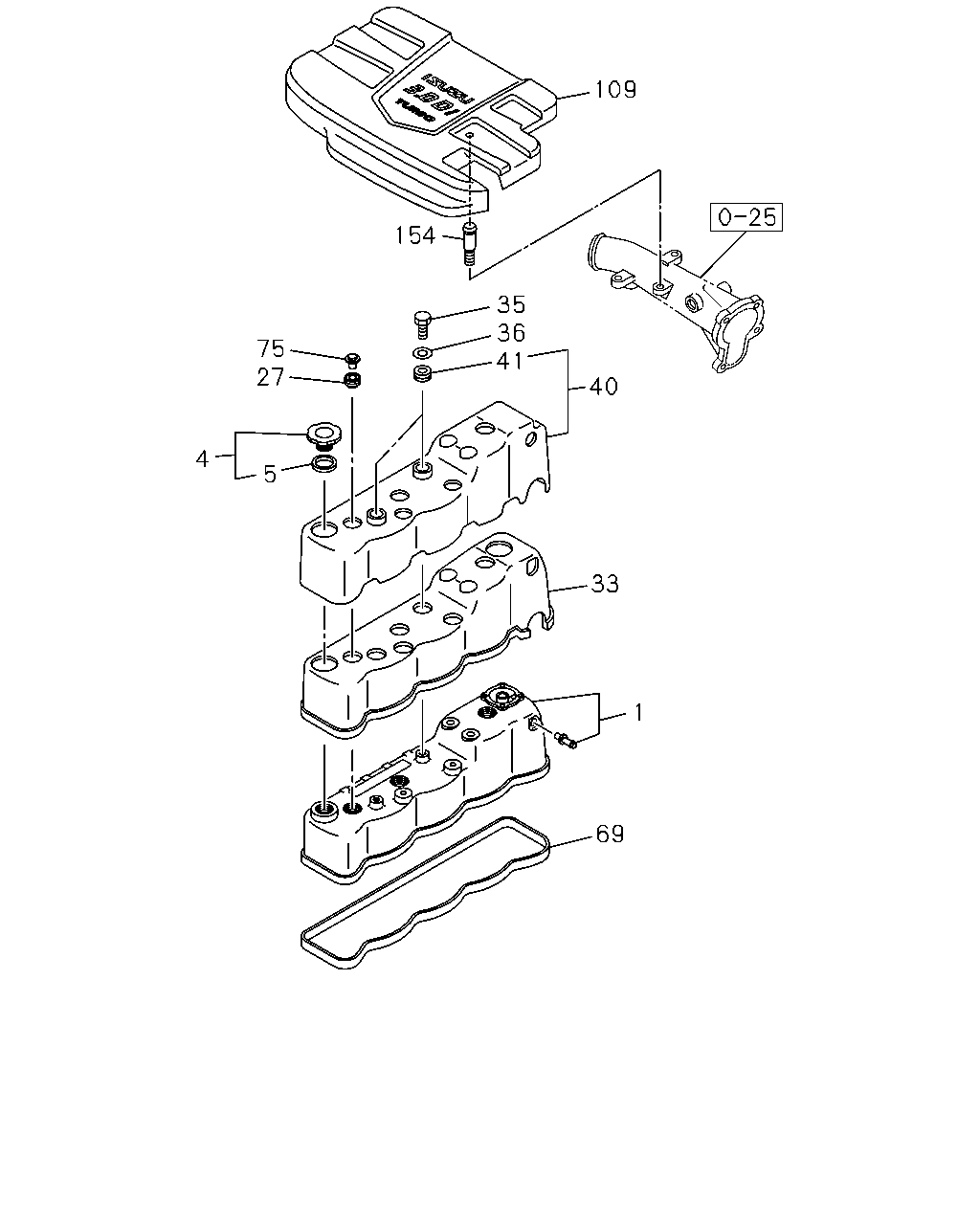

çizim 46862
109 154 35 36 41 75 27 40 4 5 33 1 69
BalonParca AdiParca NoAdetTipApplied Date A B C
1 COVER; CYL HD
THA 		8-97943-017-0 01 1 0303-0408 ●
1 COVER; CYL HD
THA 		8-97366-527-3 01 1 0409-0412 ●
1 COVER; CYL HD
THA 		8-97366-527-4 01 1 0501-0606 ● ●
1 COVER; CYL HD
THA 		8-98051-196-2 01 1 0607- ● ●
4 CAP; OIL FILLER
THA 		8-97912-543-0 01 1 0303-0408 ●
4 CAP; OIL FILLER
THA 		8-97912-543-0 01 1 0409-0412 ●
4 CAP; OIL FILLER
THA 		8-97912-543-0 01 1 0501-0606 ● ●
4 CAP; OIL FILLER
THA 		8-98026-084-0 01 1 0607- ● ●
5 GASKET; OIL FILLER
ID=32 OD=40 THA 		8-97918-298-0 01 1 0303-0408 ●
5 GASKET; OIL FILLER
ID=32 OD=40 THA 		8-97918-298-0 01 1 0409-0412 ●
5 GASKET; OIL FILLER
ID=32 OD=40 THA 		8-97918-298-0 01 1 0501- ● ●
27 GASKET; HD COVER
ID=19.5 THA 		8-97912-653-0 03 1 0303-0408 ●
33 RUBBER; SPACE,CYL HD COVER
THA 		8-97920-049-1 01 1 0303-0408 ●
35 BOLT; NOISE SHIELD COVER
M8X12 FLANGE THA 		0-28050-812-0 02 1 0303-0408 ●
36 WASHER; PL,NOISE SHIELD COVER
ID=8.5 OD=30 T=2.6 THA 		9-09651-112-0 02 1 0303-0408 ●
40 COVER
THA 		8-97920-051-1 01 1 0303-0408 ●
41 GROMMET; HD COVER,OUTER
THA 		8-97915-830-0 02 1 0303-0408 ●
69 GASKET; HD TO COVER
THA 		8-97912-741-0 01 1 0303-0408 ●
69 GASKET; HD TO COVER
THA 		8-97312-088-0 01 1 0409-0412 ●
69 GASKET; HD TO COVER
THA 		8-97312-088-0 01 1 0501-0511 ● ●
69 GASKET; HD TO COVER
THA 		8-97945-338-0 01 1 0512- ● ●
75 NUT; CAP,HD COVER
M8 OD=19 THA 		8-97912-654-0 03 1 0303-0408 ●
109 COVER; ENG
THA 		8-97316-476-2 01 1 0303-0408 ●
109 COVER; ENG
THA 		8-97364-387-2 01 1 0409-0602 ●
109 COVER; ENG
THA 		8-98031-429-0 01 1 0603-0606 ●
109 COVER; ENG
THA 		8-98019-065-0 01 1 0607-0802 ●
109 COVER; ENG
THA 		8-98097-019-0 01 1 0803-0808 ●
109 COVER; ENG
THA 		8-98102-515-0 01 1 0809- ●
109 COVER; ENG
THA 		8-97370-448-2 01 1 0501-0602 ●
109 COVER; ENG
THA 		8-98031-430-0 01 1 0603-0606 ●
109 COVER; ENG
THA 		8-98031-174-0 01 1 0607-0802 ●
109 COVER; ENG
THA 		8-98097-018-0 01 1 0803-0808 ●
109 COVER; ENG
THA 		8-98102-514-0 01 1 0809- ●
154 PIN; COVER
IMA 		8-97172-106-0 04 1 0303-0408 ●
