9-01 — TOOLS (#18230) — 57 parça
çizim 12208
285 280 284 281
BalonParca AdiParca NoAdetTipApplied Date A B C D
280 BOX; TOOL
TOOL & STORAGE BOX<VK2> 		8-97222-496-0 01 1 0303-0511 ● ● ●
280 BOX; TOOL
TOOL & STORAGE BOX<VK2> 		8-97222-496-0 01 1 0512- ● ● ● ●
281 BRACKET; TOOL BOX
4HE1 ENG(RLY) TOOL & STORAGE BOX<VK2> 		8-97254-546-0 01 1 0303-0511 ●
281 BRACKET; TOOL BOX
4HK1-TCS ENG(RJS) TOOL & STORAGE BOX<VK2> 		8-97254-546-0 01 1 0512- ● ●
284 BOLT; TOOL BOX
TOOL & STORAGE BOX<VK2> M8X25 FLANGE 		0-28680-825-0 04 1 0303-0511 ● ● ●
284 BOLT; TOOL BOX
TOOL & STORAGE BOX<VK2> M8X25 FLANGE 		0-28680-825-0 04 1 0512-0512 ● ● ● ●
284 BOLT; TOOL BOX
TOOL & STORAGE BOX<VK2> M8X25 FLANGE SOU 		0-28650-825-0 04 1 0601- ● ● ● ●
285 NUT; TOOL BOX
4HF1 ENG(RLS) TOOL & STORAGE BOX<VK2> M8 FLANGE SOU 		0-91150-108-0 04 1 0303-0602 ● ●
285 NUT; TOOL BOX
4HF1 ENG(RLS) TOOL & STORAGE BOX<VK2> M8 FLANGE SOU 		0-91180-108-0 04 1 0603-0801 ● ●
285 NUT; TOOL BOX
4HF1 ENG(RLS) TOOL & STORAGE BOX<VK2> M8 FLANGE SOU 		0-91180-108-0 04 1 0802- ● ●
285 NUT; TOOL BOX
4HK1-TCS ENG(RJS) TOOL & STORAGE BOX<VK2> M8 FLANGE SOU 		0-91180-108-0 04 1 0802- ● ●

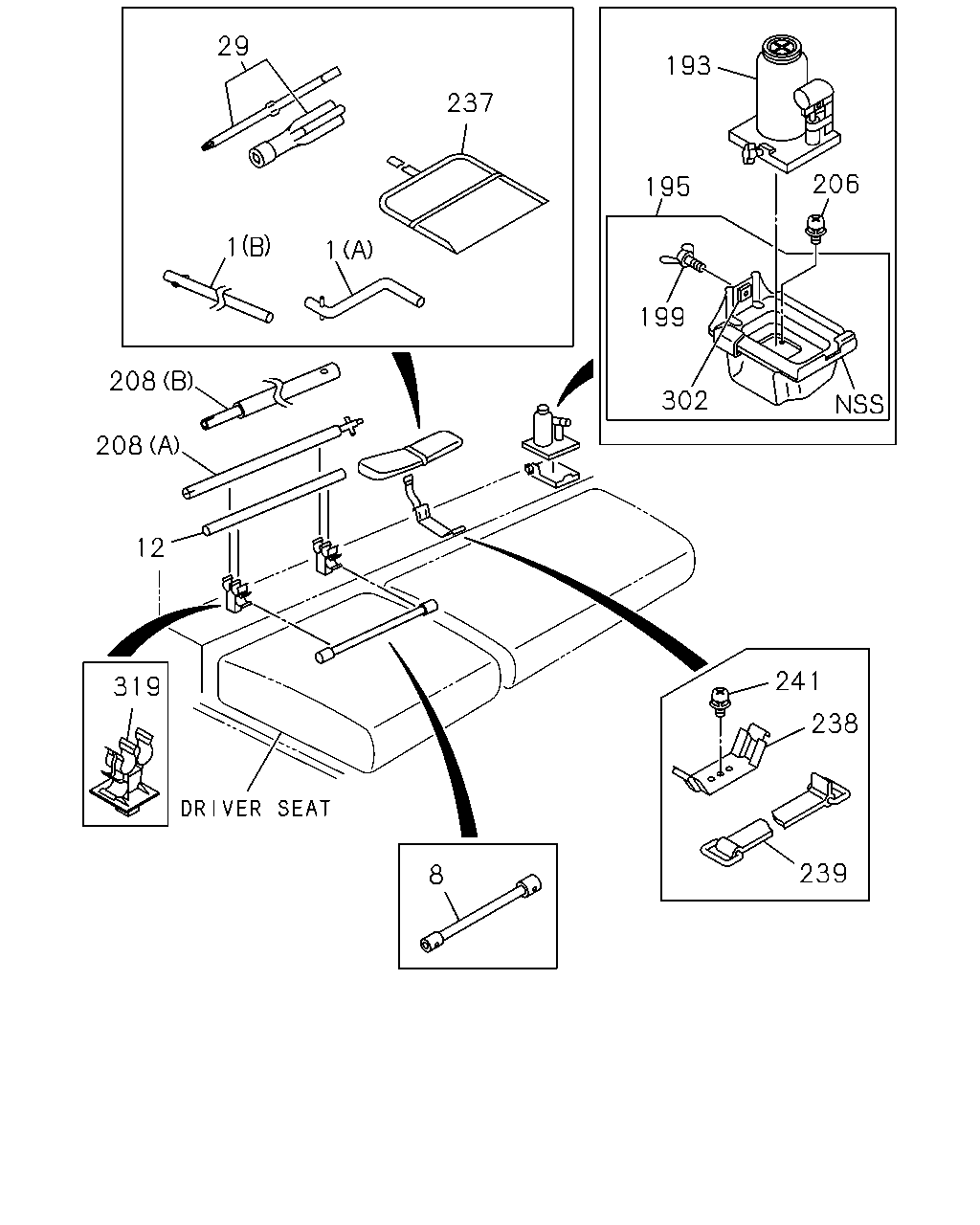

çizim 56893
29 193 237 206 195 1 1 199 208 302 208 12 241 319 238 239 8
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 HANDLE; SPARE TIRE CARRIER
(B) 		1-85515-007-0 01 1 0303- ● ●
1 HANDLE; SPARE TIRE CARRIER
(A) 		8-97218-985-0 01 1 0303-0511 ●
1 HANDLE; SPARE TIRE CARRIER
(A) 		8-97218-985-0 01 1 0512- ● ●
8 WRENCH; WHEEL
G.V.W. 6.0-6.5TON(RPV) 41X19 L=330 SOU 		8-94386-490-1 01 1 0303- ●
8 WRENCH; WHEEL
G.V.W. 7.0-7.5TON(RPX) 41X19 L=445 SOU 		1-85113-015-1 01 1 0303-0601 ●
8 WRENCH; WHEEL
41X19 L=445 SOU 		1-85113-015-1 01 1 0303-0601 ● ●
8 WRENCH; WHEEL
G.V.W. 7.0-7.5TON(RPX) 41X19 L=445 41X21 L=440 SOU 		1-85113-015-1 01 1 0602- ●
8 WRENCH; WHEEL
41X19 L=445 41X21 L=440 SOU 		1-85113-015-1 01 1 0602- ● ● ●
12 HANDLE; WRENCH,WHEEL PIN
OD=25 L=590 		8-97332-988-0 01 1 0303-0601 ●
12 HANDLE; WRENCH,WHEEL PIN
OD=25 L=590 		8-97332-988-0 01 1 0602- ● ●
29 DRIVER; SCREW
<+>,<-> L=160 SOU 		8-94242-798-1 01 1 0303-0610 ● ● ●
29 DRIVER; SCREW
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX) <+>,<-> L=160 SOU 		8-94242-798-1 01 1 0611- ●
29 DRIVER; SCREW
<+>,<-> L=160 SOU 		8-94242-798-1 01 1 0611- ● ● ●
193 JACK ASM
5TON 		8-97131-076-2 01 1 0303-0305 ● ●
193 JACK ASM
FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP) 5TON 		8-97131-076-2 01 1 0303-0305 ●
193 JACK ASM
5TON 		8-97371-124-0 01 1 0306-0511 ● ●
193 JACK ASM
FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP) 5TON 		8-97371-124-0 01 1 0306-0511 ●
193 JACK ASM
FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT(03C), FRT&RR 7.5-16-10 6GSX16-127(11H) 5TON 		8-97371-124-0 01 1 0512-0610 ●
193 JACK ASM
5TON 		8-97371-124-0 01 1 0512-0610 ● ●
193 JACK ASM
FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT(03C), FRT&RR 7.5-16-10 6GSX16-127(11H) 5TON 		8-97371-124-0 01 1 0611-0805 ●
193 JACK ASM
5TON 		8-97371-124-0 01 1 0611-0805 ● ● ●
193 JACK ASM
FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT(03C), FRT&RR 7.5-16-10 6GSX16-127(11H) 5TON 		8-98114-047-0 01 1 0806- ●
193 JACK ASM
5TON 		8-98114-047-0 01 1 0806- ● ● ●
193 JACK ASM
FRT&RR 8.25-16-12 16X6.00GS-135 6-WHL/NUT(9ZM), FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT(9ZP) 5TON 		8-97131-077-2 01 1 0303-0511 ●
195 BRACKET; JACK 8-94262-068-3 01 1 0303-0805 ● ● ●
195 BRACKET; JACK
FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT(03C), FRT&RR 7.5-16-10 6GSX16-127(11H) 		8-94273-287-7 01 1 0806- ●
195 BRACKET; JACK 8-94273-287-7 01 1 0806- ● ●
199 BOLT; JACK
M8X50 WING SOU 		8-94279-136-0 01 1 0303-0805 ● ● ●
199 BOLT; JACK
FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT(03C), FRT&RR 7.5-16-10 6GSX16-127(11H) M8X30 WING 		8-94279-018-1 01 1 0806- ●
199 BOLT; JACK
M8X30 WING 		8-94279-018-1 01 1 0806- ● ●
206 SCREW; OIL JACK BRKT
M6X20 W/LK&PL WASHER SOU 		8-94279-403-0 01 1 0303-0612 ● ● ●
206 SCREW; OIL JACK BRKT
M6X16 		0-38050-616-0 01 1 0701- ● ● ●
208 HANDLE; JACK
(B) L=580 		1-85515-005-1 01 1 0303- ● ●
208 HANDLE; JACK
(A) L=642 		8-97217-800-0 01 1 0303-0610 ●
208 HANDLE; JACK
(A) L=642 		8-97217-800-0 01 1 0611- ● ●
237 BAG; TOOL
SOU 		8-97130-903-0 01 1 0303-0610 ● ● ●
237 BAG; TOOL
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX) SOU 		8-97130-903-0 01 1 0611- ●
237 BAG; TOOL
SOU 		8-97130-903-0 01 1 0611- ● ● ●
238 SUPPORT; TOOL BAG
SOU 		8-97994-977-0 01 1 0303- ● ● ●
239 BAND; TOOL BAG
L=100 SOU 		5-73997-026-1 01 1 0303- ● ● ●
241 SCREW; TOOL BAG SUPPORT
M6X20 W/LK&PL WASHER SOU 		8-94279-403-0 01 1 0303-0612 ● ● ●
241 SCREW; TOOL BAG SUPPORT
M6X16 		0-38050-616-0 01 1 0701- ● ● ●
302 NUT; JACK BRKT
SOU 		8-94279-522-0 01 1 0303-0805 ● ● ●
302 NUT; JACK BRKT
FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT(03C), FRT&RR 7.5-16-10 6GSX16-127(11H) SOU 		8-94279-522-0 01 1 0806- ●
302 NUT; JACK BRKT
SOU 		8-94279-522-0 01 1 0806- ● ●
319 CLIP; TOOL BAR
SOU 		8-97853-077-2 02 1 0303- ● ● ●
