8-65 — CONTROL LEVER; HEATER AND AIR CON (#18226) — 17 parça

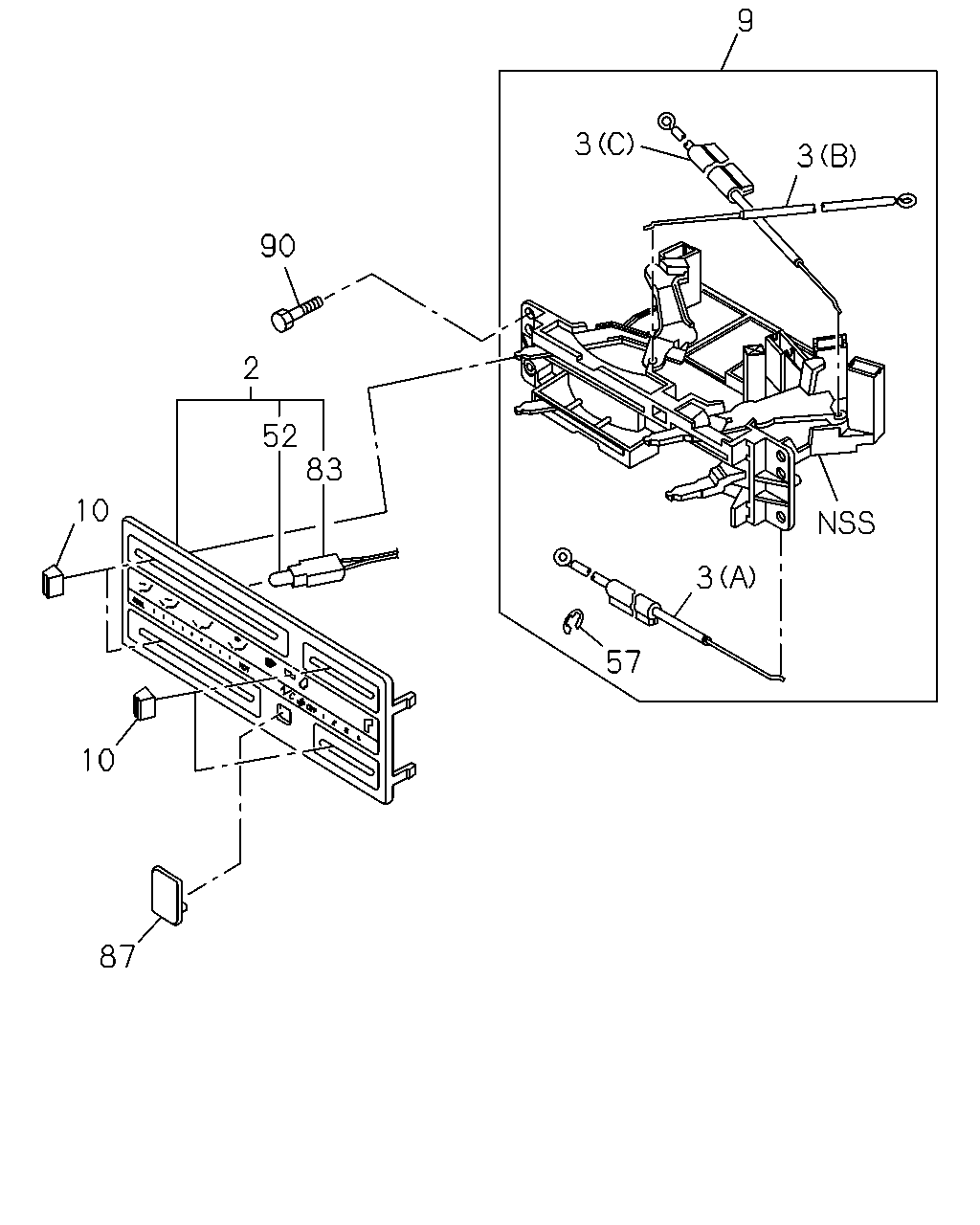

çizim 53092
9 3 3 90 2 52 83 10 3 57 10 87
BalonParca AdiParca NoAdetTipApplied Date A B C
2 PANEL ASM; CONT,ILLUMINATION
SOU 		8-97048-331-2 01 1 0303- ● ● ●
3 CABLE; HTR CONT LVR
HEATER & DEFROSTER(C41) (A) MIX SOU 		8-97085-617-2 01 1 0303-0511 ● ● ●
3 CABLE; HTR CONT LVR
(A) MIX SOU 		8-97085-617-2 01 1 0512- ● ● ●
3 CABLE; HTR CONT LVR
HEATER & DEFROSTER(C41) (B) MODE SOU 		8-97085-618-1 01 1 0303-0511 ● ● ●
3 CABLE; HTR CONT LVR
(B) MODE SOU 		8-97085-618-1 01 1 0512- ● ● ●
3 CABLE; HTR CONT LVR
HEATER & DEFROSTER(C41) (C) FRESH SOU 		8-97085-619-2 01 1 0303-0511 ● ● ●
3 CABLE; HTR CONT LVR
(C) FRESH SOU 		8-97085-619-2 01 1 0512- ● ● ●
9 LEVER ASM; HTR & A/C CONT
HEATER & DEFROSTER(C41) SOU 		8-97048-613-4 01 1 0303-0511 ● ● ●
9 LEVER ASM; HTR & A/C CONT
SOU 		8-97048-613-4 01 1 0512- ● ● ●
10 KNOB; CONT LEVER
HEATER & DEFROSTER(C41) SOU 		8-97114-430-0 04 1 0303-0511 ● ● ●
10 KNOB; CONT LEVER
SOU 		8-97114-430-0 04 1 0512- ● ● ●
52 BULB; PANEL ILLUMINATION
28V 65MA 		8-97182-225-0 01 1 0303- ● ● ●
57 RING; SNAP,HTR CONT LVR
HEATER & DEFROSTER(C41) SOU 		8-97262-535-0 01 1 0303-0511 ● ● ●
57 RING; SNAP,HTR CONT LVR
SOU 		8-97262-535-0 01 1 0512- ● ● ●
83 HARNESS; CONT PANEL
SOU 		8-97308-566-0 01 1 0303- ● ● ●
87 CAP; A/C SWITCH
SOU 		8-97065-448-2 01 1 0303- ● ● ●
90 BOLT; CONT PANEL
M6X16 W/LK&PL WASHER SOU 		8-94139-963-0 03 1 0303- ● ● ●
